1. Introduction

In the early days of software engineering, when doing any single project was a Herculean task, developers were often assigned to one project for months at a time. In the age of agile (Abrahamsson et al., 2017; Dybå and Dingsøyr, 2008; Misra et al., 2009; Begel and Nagappan, 2007), that has changed. How should management practices change to better accommodate agile developments?

One principle of agile is to use multitasking to get work done. Agile teams juggle multiple tasks so professionals are often assigned to multiple projects, especially in service organizations that monitor and maintain a large suite of software for a large user base.

When project conditions changes, it would be very useful if managers can adjust the staff allocated to those projects. Ideally, managers overseeing multiple projects would like to tell whether more/less developers will be required in the upcoming month in order to make informed choices about changes to staffing allocations.

This ideal scenario might be achievable, given access to enough software projects. For example, here we apply a time series analysis to 832 proprietary and open source projects from GitHub repositories. Data was gathered by sampling projects every week for an average period of two years. The mined data contained the following attributes: issue reports, bugs reports, and enhancement requests for each week. Trends in this data were modeled using AutoRegressive Integrated Moving Average (ARIMA) (Box et al., 2015)

(this is a standard method that has shown to outperform other models such as linear regression or random walk

(Kenmei et al., 2008; Ho and Xie, 1998; Pai and Hong, 2006a; Amin et al., 2013; Burtschy et al., 1997)). Using this data, we offer the following contributions:

  1. In hundreds of software projects, we prove the existence of simple and predictable trends in issues, bugs and enhancements.

  2. These different trends are closely associated. Hence, using past issue reports we can forecast (a) future bugs and (b) future enhancement requests.

  3. The forecasts made in this way only require a frequency count of this issue reports. They do not require an historical record of bugs found in the project. That is, this kind of predictive model is very easy to deploy within a project.

  4. In studies with 832 times series models generated separately for all our projects, we show that the forecasts made in this way are remarkably accurate.

The rest of this paper is structured as follows. After some notes on the motivation of this work, this paper’s research questions are presented in §1.1. §2 discusses some related work. §3 presents our experimental methodology. In §4, we answer our research questions and discuss lessons learned. In §6 we discuss the practical implications of our results. In §5, we present our threats to validity. §7 presents conclusions and directions for future work.

Before beginning, we digress to comment that this paper focuses on “near-term forecasts”. That is, given the last 4 months of data from one project, we infer what is expected in the next month for that project. A bigger question would be “for multiple projects, how to predict for many months into the future?”. While we have some preliminary results on that bigger question, there are no definitive results to report at this time. Accordingly, this paper reports only near-term forecast results.

1.1. Motivation and Research Questions

Why build yet another bug predictor? Why learn predictors for future bug reports using data from prior issues? In the literature there are any number bug prediction methods methods as witnessed by the plethora of papers in that area (Krishna et al., 2017, 2016; Menzies et al., 2007; Turhan et al., 2009; Menzies et al., 2010).

For large cloud-based environments of service organizations supporting multiple languages and tools, we found that those methods had certain significant drawbacks. Firstly, before anyone can use past bugs to forecast for future bugs, they need access to past bugs. For this, they could use APIs provided by platforms like GitHub to obtain temporal logs issues. However, this is not sufficient. After mining issues, these need to be carefully curated to identify the bugs. We spent over two months at IBM to manually categorize logs of issues into bugs and enhancements. Due to the significant amount of time and effort required to do this, in this paper we explore what can be achieved with just logs of issues.

Secondly, there was the problem of commissioning standard defect predictors for dozens of programming languages111Popular languages include Java, Python, Javascript, C++, Lua, Perl, Ruby, etc.. Nearly all the prior defect prediction work in software engineering have placed focus only on a few languages like C++ and Java. Certainly, we could build our own but predictors, but merely building them is not the issue. Far more problematic is the issue of certifying that they work against known baseline data (which may be missing). In addition to that, maintaining all that software over all those languages would turn into an arduous task in itself.

Problems like the above forced us to consider radical alternatives to traditional defect prediction technology. In meetings to discuss those alternatives, we came across a simple alternative — forecast bugs by looking at trends of past issue reports. We found that by mining only for issues, we can construct accurate models that forecast for bugs and enhancements. To show that, this paper explores the following research questions.

RQ1: Are there temporal trends in our data?

  • [leftmargin=-1pt]

  • Motivation: The first research question seeks to establish the existence of temporal trends in the attribute we have mined (i.e., issues, bugs, and enhancements). To assert this, we ask if the past temporal data of attributes mined can be used to construct time series models that forecast future trends for the same attributes.

  • Approach: For each of our 832 proprietary and opensource projects, we use the mined attributes (issues, bugs, and enhancements) and for each of these attributes we construct a time series model with ARIMA. Then, we used these ARIMA models to forecast future issues, bugs, and enhancements (Note: this is different from RQ3, there we built an ARIMA model only on issues and used that to forecast for bugs and enhancements).


Result: ARIMA models built on past temporal data of issues, bugs, and enhancements can be very accurate for forecasting future values.

[t]

RQ2: Are there correlations between mined attributes?

  • [leftmargin=-1pt]

  • Motivation: Our second research question follows the report by Ayari et al. (Ayari et al., 2007) regarding the correlation of issues reports with bugs and enhancement. Here we seek to establish this on our dataset of 832 projects. We ask if the time series trends of issues, bugs, and enhancements are correlated to each other. A strong correlation between these attributes would enable use to make use of models built on one attribute such as issues to forecast for other attributes.

  • Approach: In each of our 832 proprietary and opensource projects, we compute the Spearman’s value between pairs of attributes. A value close to 1 would indicate a strong positive correlation, a value close to -1 would indicate a strong negative correlation, and a value close to 0 would indicate no correlation.


Result: In proprietary projects certain pairs of attributes such as and have relative a strong correlation. In opensource projects, on the other hand, the correlations between project attributes still exist but they are relatively weaker in comparison to proprietary projects.

[t]

RQ3: Can issue reports forecast for future bugs and enhancements?

  • [leftmargin=-1pt]

  • Motivation:

    This research question naturally follows RQ2. Here we ask if it is possible to use time series models built on one attribute such as issues to estimate for another attributes such as bugs and enhancements.

  • Approach: We construct an ARIMA model on time series data of issue reports for each project to forecast for bugs and enhancements. That is, we transfer ARIMA models between:

    1. a) issues bugs, and

    2. b) issues enhancements.

    Then we compare the forecast values with the actual values by measuring the magnitude of residual error.


Result: ARIMA models built on issues can be very accurate for forecasting future bugs and enhancements.

[t]

RQ4: Are the forecasts using issues better than with using past temporal data?

  • [leftmargin=-1pt]

  • Motivation: In the final research question, we compare the errors between using time series model built with issues to forecast for future values of bugs and enhancements with forecasts using past temporal data of bugs and enhancements. As mentioned previously, it took us a significant amount of time to curate issue reports into bugs and enhancements. If the errors in using only issues for forecast is statistically comparable to using each time series separately, then we can establish that the time series trend of issues can indeed forecast for bugs and enhancements and that may save a lot of time and effort.

  • Approach: As before, for each of our 832 proprietary and opensource projects, we construct two time series models with ARIMA:

    1. a) : ARIMA model built using past issue report trend.

    2. b) : ARIMA model built using past bug report trend and past enhancement request trend.

    We use both of these models to forecast for future bugs and enhancements. Then, we compute the error in forecasts with and

    . Finally, we use a statistical test (Welch’s t-test) to compare the errors.


Result: Forecast errors of are statistically similar to . That is, we can avoid all the complexity of bug mining by just building times series models from issue reports.

[t]

2. Related Work

The study of evolution of software systems over time has been subject to much research over the past decades. Several researchers have attempted to model long term temporal behavior of aspects of software systems such as structural changes, line of code, etc. (Godfrey and Tu, 2001; Lehman and Belady, 1985). Godfrey and Qiang studied the growth of a number of opensource systems such as linux and gcc compilers. For linux, they report that the growth rate is geometric. Using this, they were able to develop a time series approach to model long term growth of such systems. Such time series models have been very popular with several software engineering researchers (Lehman and Belady, 1985; Fuentetaja and Bagert, 2002; Turski, 1996; Wu and Holt, 2006). Fuentetaja and Bagert (Fuentetaja and Bagert, 2002) used time series growth models of software systems to forecast how much memory systems may use. They demonstrate that these time series growth models of software systems exhibit a power law. Using a Detrended Fluctuation Analysis method they were able to establish a theoretical basis for some trends they noticed in software evolution. Wu et al. (Wu and Holt, 2006) studied the existence of correlations in time series over long stretches of time. Using a Re-scaled Range Analysis technique (Hurst, 1951), they reported the existence of temporal signature in the software systems and that these systems exhibit a macroscopic behaviour of self-organized criticality.

Another area of software engineering that has seen extensive use of time series modeling is software reliability. Several researchers, from as early as 1972 (Jelinski and Moranda, 1972), have attempted to describe time series models for measuring software reliability. This has resulted in several 100 different forms of time series models (Lyu, 2007). These initial models made strong stochastic assumptions about the data and were grouped in to two categories: (1) Failure interval models (Jelinski and Moranda, 1972; Goel, 1985), and (2) Failure count models (Goel and Okumoto, 1979; Lyu et al., 1996). However, these models made several unrealistic assumptions such as independence of time between failures, immediate correction of detected faults, and correcting faults without introducing new faults (Goel, 1985; Zeitler, 1991; Wood, 1997). Zeitler et al. (Zeitler, 1991) cautioned that this was a major impediment since, the real world use of these models was not practical.

In response to the above, researchers explored approaches based on non-parametric statistics (Robinson and Dietrich, 1987; Barghout et al., 1998)

and Bayesian networks as possible solutions

(Neil and Fenton, 1996; Bai et al., 2005; Fenton et al., 2008; Wiper et al., 2012)

. However, even though these non-parametric approaches are able to address the unrealistic assumptions issue; they cannot completely address the applicability and predictability issues. As a result, other methods based on neural networks and other machine learning methods

(Karunanithi et al., 1992; Pai and Hong, 2006b; Kiran and Ravi, 2008; Zaidi et al., 2008; Lo, 2009; Yang et al., 2010; das Chagas Moura et al., 2011) were introduced. However, the issue with these approaches is that they require a large training data set as input/output examples to obtain accurate forecasts, which was computationally intensive and time consuming process.

An alternative to the above approaches was offered by Zeitler et al. (Zeitler, 1991); they recommended the use of time series models such as ARIMA. They offer strong statistical evidence to show the time series models (especially ARIMA) are best suited for mapping system failures over time (Zeitler, 1991). As a result, a number of researchers have applied time series models, especially ARIMA models (Singpurwalla and Soyer, 1985; Chatterjee et al., 1997; Xie and Ho, 1999; Junhong et al., 2005; Amin et al., 2013). These researchers have shown that ARIMA models have the ability to give accurate forecasts (Amin et al., 2013). Yuen et al. (Chong Hok Yuen, 1988) used ARIMA models to predict the evolution in the maintenance phase of a software project with sampling periods of one month. Kemerer et al. (Kemerer and Slaughter, 1999) use ARIMA models to predict the monthly number of changes of a software project. Herraiz et al. (Herraiz et al., 2007) used ARIMA models to model time series changes in Eclipse IDE by smoothing using kernel methods.

Although ARIMA models have been well established for time series analysis, our reading of the literature has indicated that many of these methods do not perform a comprehensive empirical study to establish it’s usefulness. The success of ARIMA models from Ayman et al. (Amin et al., 2013) for instance was shown to work on 16 projects (some as small as 5000 LOC). Similarly, Kenmei et al. (Kenmei et al., 2008) et al. performed their analytics on only 3 software systems, Eclipse, Mozilla, and JBoss. Our paper overcomes this limitation by performing a large-scale case study with the ARIMA model on 832 open source and proprietary applications. In doing so, we demonstrate promising results showing that it is possible to mine projects on GitHub over long stretches of time to generate time series models which in turn can be used to forecast the number of issues, bugs, and enhancements.

3. Methodology

This section first details our datasets and our policy for gathering and filtering these datasets in §3.1. Then, we discuss time series modeling with ARIMA in §3.2. After that, we discuss the proposed forecasting approach and statistical measures in §3.4 and §3.3 respectively.

3.1. Datasets

To perform our experiments we use open-source projects from GitHub, and proprietary projects obtained from our industrial partners at IBM Raleigh. These totaled to 1,646 different projects with 1,108 opensource projects and 538 proprietary projects. Our data selection strategy is as follows:

  1. In case of open source projects we select public GitHub projects that are included as a ‘GitHub showcase project’. Of the publicly available projects hosted on GitHub, a selected set of projects are marked as ‘showcases’, to demonstrate how a project can be developed in certain domain such as game development, music, etc. (Github, [n. d.]). Our assumption is that by selecting these GitHub projects we can start with a representative set of open source projects that enjoy popularity, and provide good examples of software development. Example of popular projects included in the GitHub showcase that we use for our analysis are: Javascript libraries such as ‘AngularJS’222https://GitHub.com/angular/angular.js and ‘npm’333https://GitHub.com/npm/npm, and programming languages such as ‘Go’444https://GitHub.com/golang/go, ‘Rust’555https://GitHub.com/rust-lang/rust, and ‘Scala’666https://GitHub.com/scala/scala. For more examples, see Figure 1.

  2. In case of proprietary projects our collaborating company (IBM) provided us a list of projects that are hosted on their private GitHub. We mine open source and proprietary projects, respectively, by using the public GitHub API, and a private API maintained by our collaborating company.

Note that all the projects are hosted on GitHub. They have different start dates. We show the start dates of the proprietary and open source projects in Figure 2. It is worth noting that a majority of these projects have a history of at least one year.

3.1.1. Extracting Relevant Projects

It is important to note that projects hosted on GitHub gives researchers a tremendous opportunity to extract necessary project information such as issues, bugs, and enhancements (Kalliamvakou et al., 2014) (Bird et al., 2006) (Munaiah et al., 2017). Unfortunately, it is possible that many of these projects can contain very short development activity, can be used for personal use, or not be related to software development at all (Kalliamvakou et al., 2014) (Bird et al., 2006). These projects may bias our findings. Hence, we implement a set of rules to identify and discard these projects. We call these set of rules “filters” and they are designed such that only the projects that contain sufficient software development data for analysis pass this filter.

As the first step of filtering, we identify projects that contain sufficient software development information using the following criteria. These criteria address the limitations of mining GitHub projects as highlighted by prior researchers (Kalliamvakou et al., 2014) (Bird et al., 2006). The rest of the rules are listed below:

Figure 1. A subset of open source projects used in this study. In addition to these, our datasets contain a total of 1108 opensource projects and 538 proprietary projects.

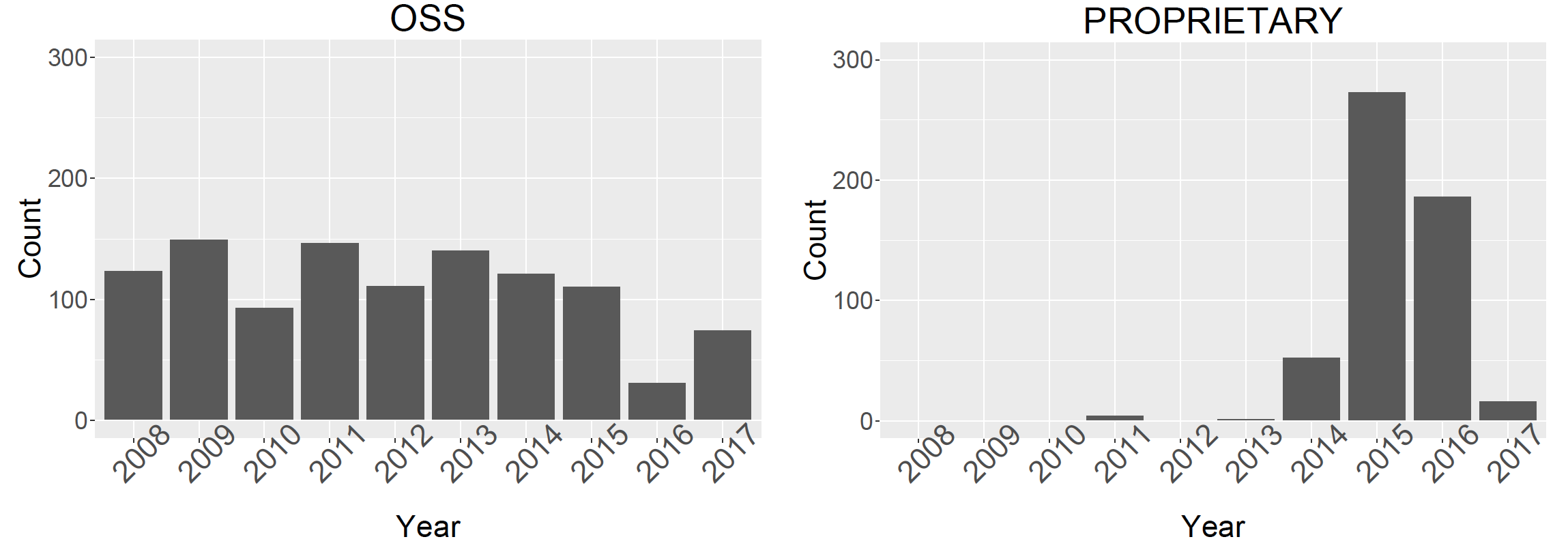

Figure 2. The project count and their start years. On the left, we plot the counts of open source projects started in each year. On the right, we count of proprietary projects started in each year.
Sanity check Discarded project count
Proprietary open-source
Collaboration (Pull requests ) 35 54
Commits 68 96
Duration year 12 46
Issues 60 89
Personal purpose (# programmers ) 47 67
Releases >0 136 44
SW development only 9 51
Projects after filtering 171 661
Figure 3. Count of projects that pass the filter. Upon completion, we are left with 171 proprietary and 661 open-source projects.
  • [leftmargin=*]

  • Collaboration: Number of pulls requests are indicative of collaboration, and the project must have at least one pull request.

  • Commits: The project must contain more than 20 commits.

  • Duration:The project must contain software development activity of at least 50 weeks.

  • Issues: The project must contain more than 10 issues.

  • Personal Purpose:The project must not be used and maintained by one person. The project must have at least eight contributors.

  • Releases:The project must have at least one release.

  • Software Development:The project must only be a placeholder for software development source code.

After applying the aforementioned filter, from our initial pool of 1,108 open source projects and 538 proprietary we are left with 661 open source and 171 proprietary projects. For details of how many projects were passed our each of our filter rules see Figure 3.

From Figure 3

we observe that 59.6% of the GitHub showcase projects pass the recommended sanity checks by researchers. The 447 projects filtered by applying the filter further emphasizes the need to validate software project data mined from GitHub before use lest they skew the findings.

3.2. Time Series Modeling

Autoregressive Integrated Moving Average (ARIMA) models were proposed by Box and Jenkins (Box et al., 2015)

in 1976. They are now most commonly used to model time series data to forecast the future values. The ARIMA model extends ARMA (Autoregressive Moving Average) model by allowing for non-stationary time series to be modeled, i.e., a time series whose statistical properties such as mean, variance, etc. are not constant over time.

A time series is said to be autoregressive moving average (ARMA) in nature with parameters , if it takes the following form:

(1)

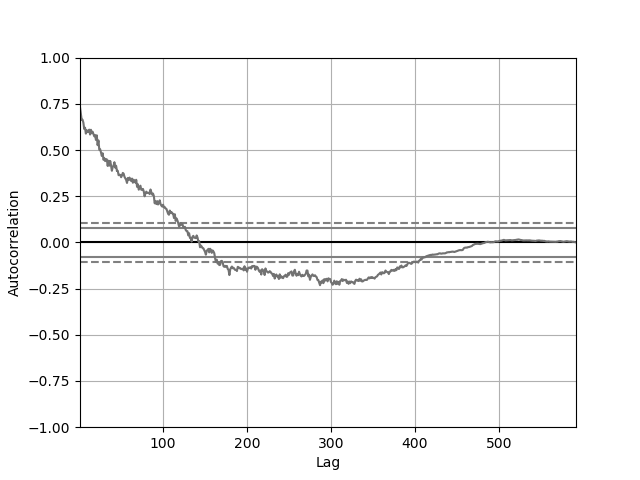

Figure 4. Autocorrelation plot of issue reports. The “lag” parameter indicates the number of weeks over which the autocorrelation was computed. Note that autocorrelation is significantly large for lag20 weeks.

Where is the current stationary observation, for are the past stationary observations, is the current error, and for are the past errors. If this original time series is non-stationary, then differences can be done to transform it into a stationary one . These differences can be viewed as a transformation denoted by , where where is known as a backshift operator. When this differencing operation is performed, it converts an ARMA (Autoregressive Moving Average) model into an ARIMA (Autoregressive Moving Integrated Average) model with parameters .

Before using ARIMA, the observed time series has to be analyzed to select the parameters for . This requires the identification of the p, d, and q parameters. To do this, we take the following steps

  1. Estimating : The value of can be estimated by analyzing the autocorrelation plot of the time series. This is a plot of correlation between the time series and the same time series separated by a given interval (called ). To demonstrate this procedure, consider an example autocorrelation plot of the ArangoDB project in Figure 4. In this figure, we see that the autocorrelation is significantly large for values of . So, we may set any for a good model.

  2. Estimating : The value of d has to be set taking into account whether the time series is stationary or not. If the time series is stationary the we may set , otherwise we set . To determine if a time series is stationary, we use the Dickey and Fuller test (Dickey and Fuller, 1979).

  3. Estimating : The value of q can be set taking into account whether the time series measurements have error in measurements. In our case, since we mine the GitHub repositories with their official API, there are no measurement errors. Thus, we set .

After the ARIMA model has been constructed, we need to ensure that the given data can be accurately model by it. Like most time series modeling techniques, ARIMA has some inherent assumptions. It is therefore required that the data be preprocessed and the assumptions be satisfied before the ARIMA model is applied lest we risk inaccurate forecast. In the following, we list these preprocessing steps taken by us:

  1. Ensuring Normality:

    ARIMA model assumes that the given time series data is approximately normally distributed. In order to ensure this, the data was transformed to approximate normal distribution using power transformations.

  2. Ensuring Stationarity: It is assumed that the time series has a constant mean, variance, and no trend over time. We use the Dickey and Fuller test (Dickey and Fuller, 1979) to test for stationarity. If we note that the series is non-stationary, we transform using using differences. This can be achieved by setting appropriate value in .

Investigating whether the given time series data satisfies these assumptions is a critical task, because falling to satisfy the assumptions leads to selecting incorrect ARIMA model. In this work, we independently verified these assumptions and applied the necessary corrective transformations before applying the ARIMA model. Additionally, we performed extensive empirical evaluations to determine the values of to be used in .

3.3. Measuring Forecast Error

To evaluate the quality of the ARIMA models used for forecasting, we compute the mean absolute error (MAE). MAE has been a preferred method to evaluate errors in time series analysis by researchers in several areas (Willmott and Matsuura, 2005, 2006). MAE is a measure of difference between two continuous variables. Assume X and Y are variables of paired observations that express the same phenomenon. Examples of Y versus X include comparisons of predicted versus observed, subsequent time versus initial time, and one technique of measurement versus an alternative technique of measurement. Consider a scatter plot of n points, where point i has coordinates (xi, yi). Mean Absolute Error (MAE) is the average vertical distance between each point and the Y=X line, which is also known as the One-to-One line. MAE is also the average horizontal distance between each point and the Y=X line. The Mean Absolute Error is given by:

(2)

Here, N represents the total number of unique values of issues, bugs, enhancements, etc.

represents the probability of appearance of each of the unique values of issues, bugs, enhancements, etc.

denotes the actual value, denotes the predicted values. According to this formulation, lower values of MAE are considered to be better.

Some researchers (Amin et al., 2013) have endorsed the use other metrics such as mean squared error (MSE) or mean magnitude of relative error (MMRE) to measure the quality of forecast in time series models. We, however, refrain from using these measures for the following reasons:

  • MAE has a clear interpretation as the average absolute difference between and . Many researchers (Willmott and Matsuura, 2005, 2006) find this measure desirable because its interpretation is clear. However, researchers frequently compute and misinterpret the Root Mean Squared Error (RMSE), which is not the average absolute error (Willmott and Matsuura, 2005, 2006).

  • In cases where the true value is close to or equal to zero, measures like MMRE fail to provide a accurate description of the error. When true values are zero, MMRE is extremely large; this skews the errors and risks leading to spurious interpretation of the errors.

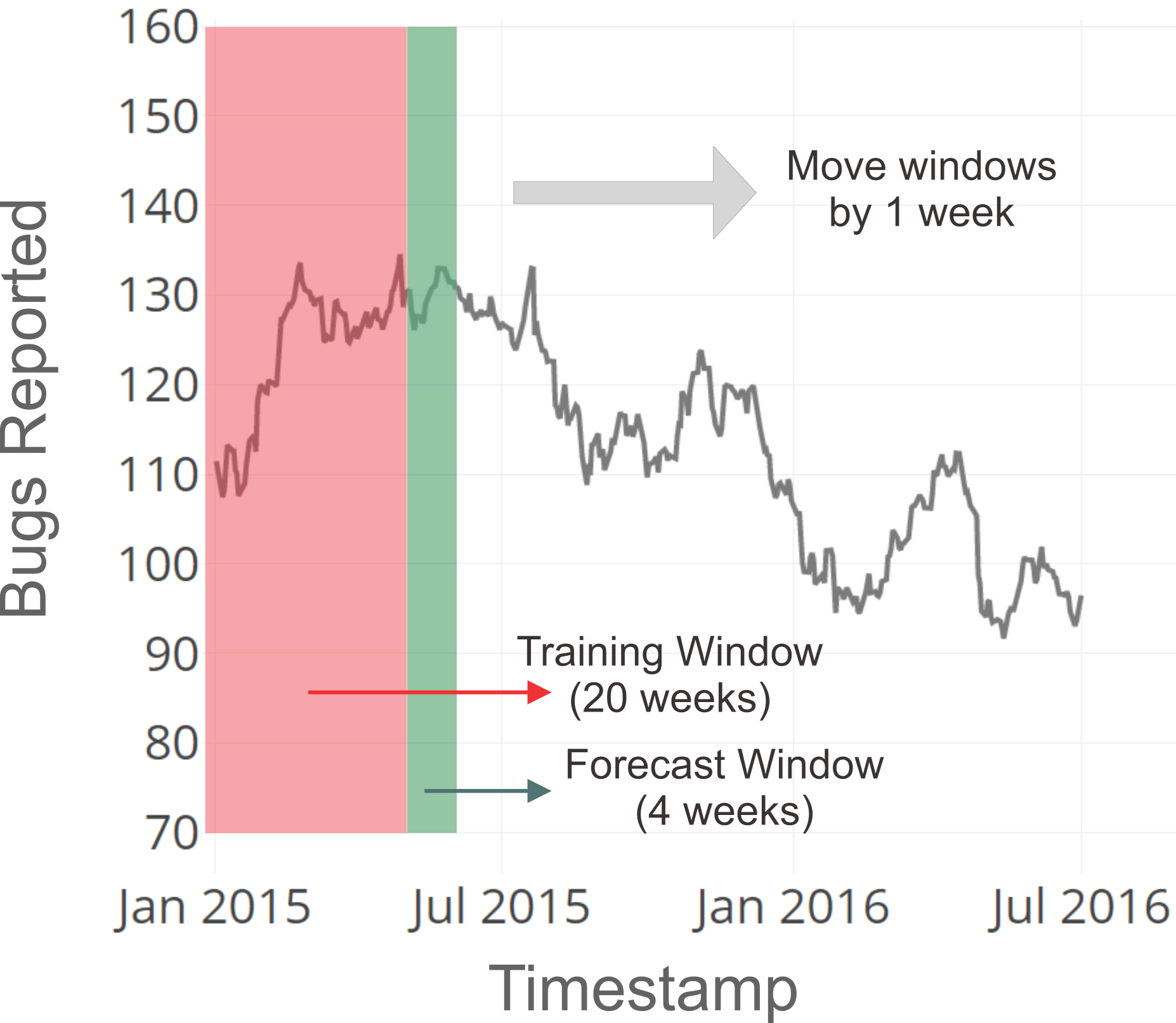

Figure 5. Rolling window approach for forecasting issues, bugs, and enhancements over time. The input window has a duration of 20 weeks ( months) and the forecast window is 4 weeks ( month). The step length of the moving window is 1 week.

3.4. Proposed Forecasting Approach

In evaluating the performance of time series modeling, we used a rolling window time series forecasting approach as shown in Figure 5. This approach works as follows:

  1. First, we create two windows (labeled training window and testing window in Figure 5). After extensive empirical evaluation of all the projects, we determined the best training window size to be around 20 weeks ( 4 months) and test window as set to 4 weeks ( 1 month).

  2. Next, we train an ARIMA model on the time series data from the training window and forecast for issues, bugs, and enhancements over the duration of the test window.

  3. Then, we estimate the magnitude of average error (also known as MAE, described in §3.3) of the forecast values.

  4. Finally, we move the training and testing window by 1 time step (in our case this is 1 week) and repeat steps 1, 2, and 3 until we reach the end of the time series.

After the rolling widow approach described above terminates, we gather the MAE values and compute the Mean MAE values and the spread computed as the variance in of the MAE values. These values are plotted for all the projects as shown in Figures 6 and 8.

4. Experimental Results

RQ1: Are there temporal trends in our data?

(a) 171 Inhouse Datasets
(b) 671 Opensource datasets
Figure 6. This figure verifies the existence of temporal trends in issues, bugs, and enhancements. The low magnitude of average error (MAE) values show that time series forecasting with ARIMA can be performed on these attributes.

The first research question seeks to establish the presence of temporal trends in issues, bugs, and enhancements. If temporal trends do exist in these attributes, a time series model such as ARIMA, which is equipped to make accurate forecasts, should lead to low errors when we use past data to forecast for the future. For this purpose, we ask if we may construct a time series model using past data from the same attributes (called ). That is, we attempt to: (a) forecast for future the number of bugs using past trends in bug reports, (b) forecast for future the number of issue reports using past trends in issue reports, and (c) forecast for future the number of enhancements using past trends in enhancements.

For experimentation, in each project we use a rolling window method to train an ARIMA model on past 20 weeks and forecast for future 4 weeks. This is repeated for issues, bugs, and enhancements. Then, we compute the magnitude of absolute error (MAE) between actual and forecast values for each step of the rolling window.

Our results are shown in Figure 6. For proprietary projects, in terms of MAE, the errors for forecasting bugs in 66% of the projects are very small (they are close to zero in several cases). Further, we note that the variance of these errors shaded in pink in Figure 6 are also quite low. For opensource projects, we notice similar trends. However, in case of open source projects, the MAE scores are slightly higher when compared to proprietary projects. This means that temporal trends do exist in open source projects, but these are less temporal as compared to proprietary projects. In summary, we answer this research question as follows:

Lesson 1 The mined attributes of both proprietary and opensource projects exhibit temporal trends. Proprietary projects are slightly more temporal compared to opensource projects.[b]

[t]

RQ2: Are there correlations between mined attributes?

(a)
(b)
Figure 7. Spearman’s . Figure 6(a) shows the correlations in proprietary projects. Figure 6(b) shows the correlations in opensource projects.

Having established that the attributes we mined (issues, bugs, and enhancements) exhibit temporal trends, in this research question we explore the correlations between mined attributes. This research question was partly motivated by the findings of Ayari et al. (Ayari et al., 2007), they report that, “…at least half of all the issues in a tracking system are related to bugs and the other half contains a mix of preventive, perfective and corrective requests.” This work was published in 2007, and since then there has been a wide adoption of version control systems such as GitHub by several projects. These version control systems have integrated issue tracking mechanisms such as GitHub issues. Therefore, in this research question, we revisit this claim to check for the relationship between issues, bugs, and enhancements.

For each of our 832 proprietary and opensource projects, we compute the correlation between all pairs of attributes. For this, we used Spearman’s . That is, we compute correlations between:

  • [leftmargin=*]

Bugs

Enhancements

Figure 8. This figure shows forecasts for future bugs and enhancements using ARIMA models constructed using past issue reports. For both proprietary and opensource projects, the magnitude of average error is very low (close to zero in several cases). Trend graphs show that an increase in actual bugs (or enhancements) leads to a corresponding increase in forecasts.

Figure 7 shows a heatmap with the correlation values. In this figure, a value close to 1 would indicate a strong positive correlation, a value close to would indicate a strong negative correlation, and a value close to 0 would indicate no correlation. A value between 0.3 and 0.7 is considered moderate to strong (Seber and Lee, 2012). Our findings corroborate the report of Ayari et al. We make the following observations:

  1. In proprietary projects, there exist two moderate to strong correlations: (a) Our strongest correlation exists between issues bugs, and (b) This is followed by issues enhancements.

  2. In opensource projects, there still exists the same two correlations. But, these correlations are relatively weaker compared to same correlations in proprietary projects.

We summarize our findings as follows:

Lesson 2 There exist moderately strong correlations between . These correlations are stronger in proprietary projects compared to opensource projects.[b]

[t]

RQ3: Can issues forecast for future bugs and enhancements?

From RQ2, we learn that there exists correlations between issues {bugs, enhancements}. In this research question, we seek to leverage those correlations to establish if it is possible to construct an ARIMA model on issues (labeled ) and use that model to forecast for bugs and enhancements.

For experimentation, we used a rolling window to create an ARIMA model on issues, then with that model we forecast for bugs and enhancements (this approach is described in detail in §3.4). The use of rolling window results in forecasts for each time step progressed by the window. For these time steps, we measure the error between the forecast values bugs (and enhancements) and the actual values of bugs (and enhancements) using magnitude of average error (MAE, see Equation 2). Figure 8 shows the magnitude of average error for bugs and enhancements in opensource and proprietary projects.

In order to see if the ARIMA model constructed using issues captures trends in bugs and enhancements, we plot the actual and forecast values of bugs (and enhancements) a function of bug (and enhancement) counts. We would expect an increase in the forecast of bug counts (or enhancement counts) as the actual values increase. These are shown in Figure 8 as well.

Our findings are summarized as follows:

  1. For most projects (both proprietary and opensource) the magnitude of average error very small.

  2. The magnitude of average errors in proprietary projects are slightly lower than in opensource projects.

  3. The variance of these errors (which results from using the rolling window) are shaded in pink are also noticeably low.

These results are very encouraging indeed and we answer this research question as follows:

Lesson 3
We find that ARIMA models built on issues can be accurate for forecasting bugs and enhancements for both proprietary and opensource projects. The errors are very low (close to zero) and the variance in errors are also significantly low.

[t]

RQ4: Are the forecasts using issues better than with past temporal data?

(a) Proprietary
(b) Opensource
Figure 9. Compare distribution of errors with ARIMA forecasts using issue reports () and past temporal data (). The charts indicate that the distribution of errors are very similar to each other with p-values 0.05.

In RQ1, we established that ARIMA model built on past bug and enhancement data (called ) can forecast for future bugs and enhancements with very low errors (see Figure 6). Further, in RQ3, we showed that an ARIMA model can built on past issue data (called ) can also forecast for future bugs and enhancements with low magnitudes of average errors (see Figure 8). This research question is a natural extension of those two results. Here we compare errors in forecasts obtained from and where:

  1. a) : ARIMA model built using past issue report trend.

  2. b) : ARIMA model built using past bug report trends and past enhancement request trends.

To perform this comparison, we use both of these models to forecast for future bugs and enhancements. The construction of model is described RQ1 and RQ3 describes the construction of . We compute the error in forecasts with and

and use a parametric statistical hypothesis test (Welch’s t-test) to compare the errors

777We use a parametric test because it is known that the errors of ARIMA models have a normal distribution (Box et al., 2015). In order to conduct the hypothesis test we use the following hypothesis:

: The distributions of errors in using is significantly larger than errors in using .

If the of the above hypothesis is less than 0.05, then we may reject that hypothesis and assert that, “the distributions of errors in using is statistically similar to errors in using .”

The distribution of errors for forecasting bugs and enhancements in proprietary and opensource projects are shown Figure 9. It is immediately noticeable the expected value of the errors are close to zero in both and for all cases. Additionally, the are always less than 0.05 in all the cases. Therefore, the answer to this research question is:

Lesson 4
In the 832 projects studied here, forecasts made using past temporal data statistically comparable to forecasts made using only the issue reports.

[t]

Note that this is a result of much practical importance since the effort involved in building the issue models of RQ3 is much lower than the bug (and enhancement) models seen in RQ1. The comparable errors indicate that it is not necessary to identify bugs or enhancements separately from issues to forecast for their future values. Rather, we may simply mine for issues and use that to forecast for future bugs and enhancements. Doing this significantly reduces effort required to mine for each one individually.

5. Threats to Validity

This work, like any other empirical study, is subject to the following threats to validity.

  1. [leftmargin=-1pt]

  2. Model Bias:

    For building the time series models, in this study, we elected to use ARIMA. We chose this method because past studies shows that, for time series modeling, the results were superior to other method. Other time series modeling methods like long short term memory (LSTM) models have shown promise in other areas. That comparison is beyond the scope of this paper.

  3. Evaluation Bias: This paper uses one measure of error, MAE (see Equation 2). Other quality measures often used in software engineering to quantify the effectiveness of forecast. A comprehensive analysis using these measures is left for future work.

  4. Sample bias: Our data was gathered by mining GitHub. Several data sets may often be noisy and uninteresting. To address this, we take the following steps: (1) Apply sanity checks to filter out irrelevant projects (§3.1

    ); (2) Include a wide variety of projects; (3) Report mean and standard errors in all our measurements; and (4) Perform statistically sound comparisons when appropriate (e.g. in RQ4 we use Welch’s t-test).

    Further, we have discussed our findings with business users who are software engineers and managers at IBM. They agreed with the general direction of findings: they stated that issues can be used as indicators of future bugs and enhancements. They also agreed that there are differences between open source and proprietary software development, and we should not assume these tools and techniques will help the practitioners of interest, in the same manner.

6. Discussion

A key motivation of this work is to reduce the amount of unexpected work assigned to any developer in any month. With Agile models, developers are frequently reassigned to different projects. It is well established that a person who works on more than one project at a time incurs a cost in terms of time required to change contexts at each shift from one project to the other. The more complex the task, the more time it takes to make the shift (Tugend, 2008). Gerald Weinberg (Weinberg, 1992) showed that for software projects, the cost of switching between projects escalated if each task has a even a 10% penalty as shown in Figure 10. In real world, the costs are usually much higher.

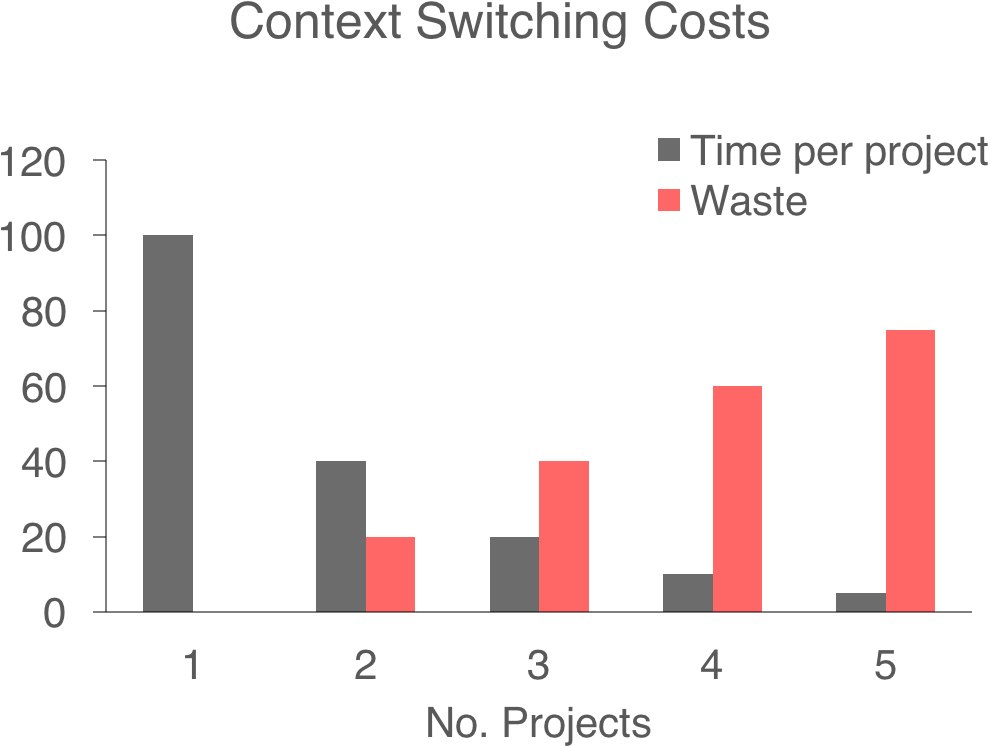

Figure 10. Cost of switching contexts. Image courtesy of (Weinberg, 1992).

For large organizations that maintain their software suites based on end-user issue reports, it is vitally important for managers not to overload staff with tasks (since such overloading can lead to greatly reduced productivity). Hence, rather than react to sudden changes in staffing level, a better approach is to plan weeks ahead in order to even out the workflow amongst all developers and alleviate effort involved in switching contexts. Of course, for that to work, we need a planning agent that can forecast the future. The results of this paper enables this kind of reasoning to address the above managerial issue. Specifically, we show that —

Managers need to only track issue trends in projects. With these trends they may be able to forecast the number of future bugs reports and enhancement requests.

We note that, this result would very useful for large service organizations maintaining suites of software attempting to effectively manage personnel across projects.

7. Conclusion

In summary, we mined 832 projects (661 opensource and 171 proprietary projects) for issue reports over time. Following this, we spent over two months curating these issues into bugs and enhancements. The effort involved in the curation process lead us to investigate if these attributes are correlated with each other. We discovered that the attributes were indeed correlated and that it is possible to build time series models on one attribute (issues) and use that to forecast for bugs and enhancements. Our method can be used to circumvent much of the complex machinery required to commission and maintain a convention bug predictors. In addition to the simplicity, we show that our method is quite accurate (with near zero errors) in more than 66% of the projects explored here.

Our claim is not that issues provide the best forecast for bugs (or enhancements), rather it is that issue trends may be leveraged to supplement bugs forecast with a sufficiently high degree of accuracy. And these forecasts may be very useful for anticipating the required managerial actions.

While our result are biased by our sample of projects, we have made attempts to include a wide array of projects both proprietary and opensource. To the best of our knowledge, there exists no large study that reports the opposite of our conclusions. At the very least, with our work we seek to highlight the merits of mining software repositories to perform time series analysis -– an issue that, we hope, is addressed further by other researchers on other projects.

References

  • (1)
  • Abrahamsson et al. (2017) Pekka Abrahamsson, Outi Salo, Jussi Ronkainen, and Juhani Warsta. 2017. Agile software development methods: Review and analysis. arXiv preprint arXiv:1709.08439 (2017).
  • Amin et al. (2013) Ayman Amin, Lars Grunske, and Alan Colman. 2013. An approach to software reliability prediction based on time series modeling. Journal of Systems and Software 86, 7 (2013), 1923–1932.
  • Ayari et al. (2007) Kamel Ayari, Peyman Meshkinfam, Giuliano Antoniol, and Massimiliano Di Penta. 2007. Threats on building models from cvs and bugzilla repositories: the mozilla case study. In Proceedings of the 2007 conference of the center for advanced studies on Collaborative research. IBM Corp., 215–228.
  • Bai et al. (2005) CG Bai, QP Hu, Min Xie, and Szu Hui Ng. 2005. Software failure prediction based on a Markov Bayesian network model. Journal of Systems and Software 74, 3 (2005), 275–282.
  • Barghout et al. (1998) May Barghout, Bev Littlewood, and Abdalla Abdel-Ghaly. 1998. A non-parametric order statistics software reliability model. Software Testing Verification and Reliability 8, 3 (1998), 113–132.
  • Begel and Nagappan (2007) Andrew Begel and Nachiappan Nagappan. 2007. Usage and perceptions of agile software development in an industrial context: An exploratory study. In Empirical Software Engineering and Measurement, 2007. ESEM 2007. First International Symposium on. IEEE, 255–264.
  • Bird et al. (2006) Christian Bird, Alex Gourley, Prem Devanbu, Michael Gertz, and Anand Swaminathan. 2006. Mining email social networks. In Proceedings of the 2006 international workshop on Mining software repositories. ACM, 137–143.
  • Box et al. (2015) George EP Box, Gwilym M Jenkins, Gregory C Reinsel, and Greta M Ljung. 2015. Time series analysis: forecasting and control. John Wiley & Sons.
  • Burtschy et al. (1997) Bernard Burtschy, Grigore Albeanu, Dragos N Boros, Florin Popentiu, and Victor Nicola. 1997. Improving software reliability forecasting. Microelectronics Reliability 37, 6 (1997), 901–907.
  • Chatterjee et al. (1997) S Chatterjee, RB Misra, and SS Alam. 1997. Prediction of software reliability using an auto regressive process. International journal of systems science 28, 2 (1997), 211–216.
  • Chong Hok Yuen (1988) CKS Chong Hok Yuen. 1988. On analyzing maintenance process data at the global and the detailed levels: A case study. In Proceedings of the IEEE Conference on Software Maintenance. 248–255.
  • das Chagas Moura et al. (2011) Márcio das Chagas Moura, Enrico Zio, Isis Didier Lins, and Enrique Droguett. 2011.

    Failure and reliability prediction by support vector machines regression of time series data.

    Reliability Engineering & System Safety 96, 11 (2011), 1527–1534.
  • Dickey and Fuller (1979) David A Dickey and Wayne A Fuller. 1979. Distribution of the estimators for autoregressive time series with a unit root. Journal of the American statistical association 74, 366a (1979), 427–431.
  • Dybå and Dingsøyr (2008) Tore Dybå and Torgeir Dingsøyr. 2008. Empirical studies of agile software development: A systematic review. Information and software technology 50, 9 (2008), 833–859.
  • Fenton et al. (2008) N Fenton, Martin Neil, and D Marquez. 2008. Using Bayesian networks to predict software defects and reliability. Proceedings of the Institution of Mechanical Engineers, Part O: Journal of Risk and Reliability 222, 4 (2008), 701–712.
  • Fuentetaja and Bagert (2002) Eduardo Fuentetaja and Donald J Bagert. 2002. Software evolution from a time-series perspective. In Software Maintenance, 2002. Proceedings. International Conference on. IEEE, 226–229.
  • Github ([n. d.]) Github. [n. d.]. Build software better, together. ([n. d.]). https://github.com/showcases
  • Godfrey and Tu (2001) Michael Godfrey and Qiang Tu. 2001. Growth, evolution, and structural change in open source software. In Proceedings of the 4th international workshop on principles of software evolution. ACM, 103–106.
  • Goel (1985) Amrit L. Goel. 1985. Software reliability models: Assumptions, limitations, and applicability. IEEE Transactions on software engineering 12 (1985), 1411–1423.
  • Goel and Okumoto (1979) Amrit L Goel and Kazu Okumoto. 1979. Time-dependent error-detection rate model for software reliability and other performance measures. IEEE transactions on Reliability 28, 3 (1979), 206–211.
  • Herraiz et al. (2007) Israel Herraiz, Jesus M Gonzalez-Barahona, and Gregorio Robles. 2007. Forecasting the number of changes in Eclipse using time series analysis. In Mining Software Repositories, 2007. ICSE Workshops MSR’07. Fourth International Workshop on. IEEE, 32–32.
  • Ho and Xie (1998) SL Ho and M Xie. 1998. The use of ARIMA models for reliability forecasting and analysis. Computers & industrial engineering 35, 1-2 (1998), 213–216.
  • Hurst (1951) Harold Edwin Hurst. 1951. Long-term storage capacity of reservoirs. Trans. Amer. Soc. Civil Eng. 116 (1951), 770–808.
  • Jelinski and Moranda (1972) Z Jelinski and PB Moranda. 1972. Software reliability research, Statistical Computer Performance Evaluation, W. Freiberger (ed.), 465–484. (1972).
  • Junhong et al. (2005) Guo Junhong, Liu Hongwei, and Yang Xiaozong. 2005. An autoregressive time series software reliability growth model with independent increment. In Proceedings of the 7th WSEAS International Conference on Mathematical Methods and Computational Techniques In Electrical Engineering. World Scientific and Engineering Academy and Society (WSEAS), 362–366.
  • Kalliamvakou et al. (2014) Eirini Kalliamvakou, Georgios Gousios, Kelly Blincoe, Leif Singer, Daniel M German, and Daniela Damian. 2014. The promises and perils of mining github. In Proceedings of the 11th working conference on mining software repositories. ACM, 92–101.
  • Karunanithi et al. (1992) Nachimuthu Karunanithi, Darrell Whitley, and Yashwant K. Malaiya. 1992. Using neural networks in reliability prediction. IEEE Software 9, 4 (1992), 53–59.
  • Kemerer and Slaughter (1999) Chris F. Kemerer and Sandra Slaughter. 1999. An empirical approach to studying software evolution. IEEE Transactions on Software Engineering 25, 4 (1999), 493–509.
  • Kenmei et al. (2008) Benedicte Kenmei, Giuliano Antoniol, and Massimiliano Di Penta. 2008. Trend analysis and issue prediction in large-scale open source systems. In Software Maintenance and Reengineering, 2008. CSMR 2008. 12th European Conference on. IEEE, 73–82.
  • Kiran and Ravi (2008) N Raj Kiran and Vadlamani Ravi. 2008. Software reliability prediction by soft computing techniques. Journal of Systems and Software 81, 4 (2008), 576–583.
  • Krishna et al. (2016) Rahul Krishna, Tim Menzies, and Wei Fu. 2016.

    Too much automation? The bellwether effect and its implications for transfer learning. In

    Proceedings of the 31st IEEE/ACM International Conference on Automated Software Engineering. ACM, 122–131.
  • Krishna et al. (2017) Rahul Krishna, Tim Menzies, and Lucas Layman. 2017. Less is more: Minimizing code reorganization using XTREE. Information and Software Technology 88 (2017), 53–66.
  • Lehman and Belady (1985) Manny M Lehman and Laszlo A Belady. 1985. Program evolution: processes of software change. Academic Press Professional, Inc.
  • Lo (2009) Jung-Hua Lo. 2009. The implementation of artificial neural networks applying to software reliability modeling. In Control and Decision Conference, 2009. CCDC’09. Chinese. IEEE, 4349–4354.
  • Lyu (2007) Michael R Lyu. 2007. Software reliability engineering: A roadmap. In 2007 Future of Software Engineering. IEEE Computer Society, 153–170.
  • Lyu et al. (1996) Michael R Lyu et al. 1996. Handbook of software reliability engineering. (1996).
  • Menzies et al. (2007) Tim Menzies, Jeremy Greenwald, and Art Frank. 2007. Data mining static code attributes to learn defect predictors. IEEE transactions on software engineering 33, 1 (2007), 2–13.
  • Menzies et al. (2010) Tim Menzies, Zach Milton, Burak Turhan, Bojan Cukic, Yue Jiang, and Ayşe Bener. 2010. Defect prediction from static code features: current results, limitations, new approaches. Automated Software Engineering 17, 4 (2010), 375–407.
  • Misra et al. (2009) Subhas Chandra Misra, Vinod Kumar, and Uma Kumar. 2009. Identifying some important success factors in adopting agile software development practices. Journal of Systems and Software 82, 11 (2009), 1869–1890.
  • Munaiah et al. (2017) Nuthan Munaiah, Steven Kroh, Craig Cabrey, and Meiyappan Nagappan. 2017. Curating GitHub for engineered software projects. Empirical Software Engineering 22, 6 (2017), 3219–3253.
  • Neil and Fenton (1996) Martin Neil and Norman Fenton. 1996. Predicting software quality using Bayesian belief networks. In Proceedings of the 21st Annual Software Engineering Workshop. NASA/Goddard Space Flight Centre, 217–230.
  • Pai and Hong (2006a) Ping-Feng Pai and Wei-Chiang Hong. 2006a. Software reliability forecasting by support vector machines with simulated annealing algorithms. Journal of Systems and Software 79, 6 (2006), 747–755.
  • Pai and Hong (2006b) Ping-Feng Pai and Wei-Chiang Hong. 2006b. Software reliability forecasting by support vector machines with simulated annealing algorithms. Journal of Systems and Software 79, 6 (2006), 747–755.
  • Robinson and Dietrich (1987) David G Robinson and Duane Dietrich. 1987. A new nonparametric growth model. IEEE Transactions on Reliability 36, 4 (1987), 411–418.
  • Seber and Lee (2012) George AF Seber and Alan J Lee. 2012.

    Linear regression analysis

    . Vol. 936.
    John Wiley & Sons.
  • Singpurwalla and Soyer (1985) Nozer D. Singpurwalla and Refik Soyer. 1985. Assessing (software) reliability growth using a random coefficient autoregressive process and its ramifications. IEEE Transactions on Software Engineering 12 (1985), 1456–1464.
  • Tugend (2008) Alina Tugend. 2008. Multitasking Can Make You Lose … Um … Focus. (Oct 2008). https://nyti.ms/2jD6gzj
  • Turhan et al. (2009) Burak Turhan, Tim Menzies, Ayşe B Bener, and Justin Di Stefano. 2009. On the relative value of cross-company and within-company data for defect prediction. Empirical Software Engineering 14, 5 (2009), 540–578.
  • Turski (1996) Wladyslaw M Turski. 1996. Reference model for smooth growth of software systems. IEEE Transactions on Software Engineering 22, 8 (1996), 599.
  • Weinberg (1992) Gerald M Weinberg. 1992. Quality software management (Vol. 1): systems thinking. (1992).
  • Willmott and Matsuura (2005) Cort J Willmott and Kenji Matsuura. 2005. Advantages of the mean absolute error (MAE) over the root mean square error (RMSE) in assessing average model performance. Climate research 30, 1 (2005), 79–82.
  • Willmott and Matsuura (2006) Cort J Willmott and Kenji Matsuura. 2006.

    On the use of dimensioned measures of error to evaluate the performance of spatial interpolators.

    International Journal of Geographical Information Science 20, 1 (2006), 89–102.
  • Wiper et al. (2012) MP Wiper, AP Palacios, and JM Marín. 2012. Bayesian software reliability prediction using software metrics information. Quality Technology & Quantitative Management 9, 1 (2012), 35–44.
  • Wood (1997) Alan Wood. 1997. Software reliability growth models: assumptions vs. reality. In Software Reliability Engineering, 1997. Proceedings., The Eighth International Symposium on. IEEE, 136–141.
  • Wu and Holt (2006) Jingwei Wu and Richard Holt. 2006. Seeking empirical evidence for self-organized criticality in open source software evolution. (2006).
  • Xie and Ho (1999) M Xie and SL Ho. 1999. Analysis of repairable system failure data using time series models. Journal of Quality in Maintenance Engineering 5, 1 (1999), 50–61.
  • Yang et al. (2010) Bo Yang, Xiang Li, Min Xie, and Feng Tan. 2010. A generic data-driven software reliability model with model mining technique. Reliability Engineering & System Safety 95, 6 (2010), 671–678.
  • Zaidi et al. (2008) S Jamal H Zaidi, Syed Nasir Danial, and Bilal A Usmani. 2008. Modeling inter-failure time series using neural networks. In Multitopic Conference, 2008. INMIC 2008. IEEE International. IEEE, 409–411.
  • Zeitler (1991) David Zeitler. 1991. Realistic assumptions for software reliability models. In Software Reliability Engineering, 1991. Proceedings., 1991 International Symposium on. IEEE, 67–74.
