1 Introduction

We live in a 3D world composed of a plethora of 3D objects. To help humans perform everyday tasks, future home-assistant robots need to gain the capabilities of perceiving and manipulating a wide range of 3D objects in human environments. Articulated objects that contain functionally important and semantically interesting articulated parts (e.g.

, cabinets with drawers and doors) especially require significantly more attention, as they are more often interacted with by humans and artificial intelligent agents. Having much higher degree-of-freedom (DoF) state spaces, articulated objects are, however, generally more difficult to understand and subsequently to interact with, compared to 3D rigid objects that have only 6-DoF for their global poses.

There has been a long line of research studying the perception and manipulation of 3D articulated objects in computer vision and robotics. On the perception side, researchers have developed various successful visual systems for estimating kinematic structures

[1, 2], articulated part poses [3, 4, 5], and joint parameters [6, 7]. Then, with these estimated visual articulation models, robotic manipulation planners and controllers can be leveraged to produce action trajectories for robot executions [8, 9, 10, 11, 12]. While the commonly used two-stage solution underlying most of these systems reasonably breaks the whole system into two phases and thus allows bringing together well-developed techniques from vision and robotics communities, the current handshaking point – the standardized visual articulation models (i.e. kinematic structure, articulated part poses, and joint parameters), may not be the best choice, since essential geometric and semantic features for robotic manipulation tasks, such as interaction hotspots (e.g. edges, holes, bars) and part functionality (e.g. handles, doors), are inadvertently abstracted away in these canonical representations.

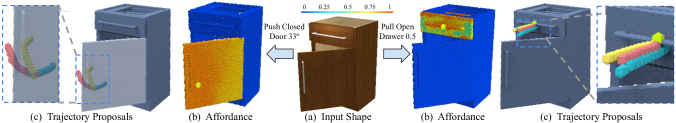

Figure 1: Given an input 3D articulated object (a), we propose a novel perception-interaction handshaking point for robotic manipulation tasks - object-centric actionable visual priors, including per-point visual action affordance predictions (b) indicating where to interact, and diverse trajectory proposals (c) for selected contact points (marked with green dots) suggesting how to interact.

We propose a new type of actionable visual representations [13, 14, 15] exploring a more geometry-aware, interaction-aware, and task-aware perception-interaction handshaking point for manipulating 3D articulated objects. Concretely, we train the perception system to predict action possibility and visual action trajectory proposals at every point over parts of 3D articulated objects (See Figure 1). In contrast to previous work that use standardized visual articulation models as visual representations, our framework VAT-Mart predicts per-point dense action trajectories that are adaptive to the change of geometric context (e.g., handles, door edges), interactions (e.g., pushing, pulling), and tasks (e.g., open a door for , close up a drawer by -unit-length). Abstracting away from concrete external manipulation environments, such as robot arm configurations, robot base locations, and scene contexts, we aim for learning unified object-centric visual priors with a dense and diverse superset of visual proposals that can be potentially applied to different manipulation setups, avoiding learning separate manipulation representations under different circumstances.

The proposed actionable visual priors, as a "preparation for future tasks" [16] or "visually-guided plans" [17, 18], can provide informative guidance for downstream robotic planning and control. Sharing a similar spirit with [14, 15], we formulate our visual action possibility predictions as per-point affordance maps, on which the downstream robotic planners may sample a position to interact according to the predicted likelihood of success. Then, for a chosen point for interaction, the discrete task planner may search for applicable interaction modes (e.g., whether to attempt a grasp) within a much smaller space formed by the visual action trajectory distribution, instead of searching in the entire solution space. Next, considering the robot kinematic constraints and physic collisions, the continuous motion planner can further select an open-loop trajectory from the set of proposed visual action trajectory candidates as an initial value for optimization, and finally pass to the robot controller for execution. More recent reinforcement learning (RL) based planners and controllers can also benefit from our proposed solution spaces for more efficient exploration.

To obtain such desired actionable visual priors, we design an interaction-for-perception learning framework VAT-Mart, as shown in Figure 2. By conducting trial-and-error manipulation with a set of diverse 3D articulated objects, we train an RL policy to learn successful interaction trajectories for accomplishing various manipulation tasks (e.g., open a door for , close up a drawer by -unit-length). In the meantime, the perception networks are simultaneously trained to summarize the RL discoveries and generalize the knowledge across points over the same shape and among various shapes. For discovering diverse trajectories, we leverage curiosity feedback [19] for enabling the learning of perception networks to reversely affect the learning of RL policy.

We conduct experiments using SAPIEN [20] over the large-scale PartNet-Mobility [21, 22] dataset of 3D articulated objects. We use 590 shapes in 7 object categories to perform our experiments and show that our VAT-Mart framework can successfully learn the desired actionable visual priors. We also observe reasonably good generalization capabilities over unseen shapes, novel object categories, and real-world data, thanks to large-scale training over diverse textureless geometry.

In summary, we make the following contributions in this work:

  • We formulate a novel kind of actionable visual priors making one more step towards bridging the perception-interaction gap for manipulating 3D articulated objects;

  • We propose an interaction-for-perception framework VAT-Mart to learn such priors with novel designs on the joint learning between exploratory RL and perception networks;

  • Experiments conducted over the PartNet-Mobility dataset in SAPIEN demonstrate that our system works at a large scale and learns representations that generalize over unseen test shapes, across object categories, and even real-world data.

2 Related Work

Perceiving and Manipulating 3D Articulated Objects

has been a long-lasting research topic in computer vision and robotics. A vast literature [23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41] has demonstrated successful systems, powered by visual feature trackers, motion segmentation predictors, and probabilistic estimators, for obtaining accurate link poses, joint parameters, kinematic structures, and even system dynamics of 3D articulated objects. Previous works [42, 43, 44, 45] have also explored various robotic planning and control methods for manipulating 3D articulated objects. More recent works further leveraged learning techniques for better predicting articulated part configurations, parameters, and states [6, 7, 4, 46, 3, 5, 47], estimating kinematic structures [1, 2], as well as manipulating 3D articulated objects with the learned visual knowledge [8, 9, 10, 11, 12]. While most of these works represented visual data with link poses, joint parameters, and kinematic structures, such standardized abstractions may be insufficient if fine-grained part geometry, such as drawer handles and faucet switches that exhibit rich geometric diversity among different shapes, matters for downstream robotic tasks and motion planning.

Learning Actionable Visual Representations

aims for learning visual representations that are strongly aware of downstream robotic manipulation tasks and directly indicative of action probabilities for robotic executions, in contrast to predicting standardized visual semantics, such as category labels

[48, 49], segmentation masks [50, 22], and object poses [51, 52], which are usually defined independently from any specific robotic manipulation task. Grasping [53, 54, 55, 56, 57, 58, 59, 60, 61] or manipulation affordance [62, 13, 63, 64, 14, 65, 66, 67, 15] is one major kind of actionable visual representations, while many other types have been also explored recently (e.g., spatial maps [68, 69], keypoints [70, 71], contact points [72], etc). Following the recent work Where2Act [15], we employ dense affordance maps as the actionable visual representations to suggest action possibility at every point on 3D articulated objects. Extending beyond Where2Act which considers task-less short-term manipulation, we further augment the per-point action predictions with task-aware distributions of trajectory proposals, providing more actionable information for downstream executions.

Learning Perception from Interaction

augments the tremendously successful learning paradigm using offline curated datasets [48, 50, 21, 22] by allowing learning agents to collect online active data samples, which are more task-aware and learning-efficient, during navigation [73, 16], recognition [74, 75, 76], segmentation [77, 78], and manipulation [79, 80]. Many works have also demonstrated the usefulness of simulated interactions for learning perception [81, 55, 82, 16, 65, 83, 15] and promising generalizability to the real world [84, 85, 86, 87, 88, 89, 90]. Our method follows the route of learning perception from interaction via using the action trajectories discovered by an RL interaction policy to supervise a jointly trained perception system, which reversely produces curiosity feedback [19] to encourage the RL policy to explore diverse action proposals.

3 Actionable Visual Priors: Action Affordance and Trajectory Proposals

We propose novel actionable visual representations for manipulating 3D articulated objects (see Fig. 1). For each articulated object, we learn object-centric actionable visual priors, which are comprised of: 1) an actionability map over articulated parts indicating where to interact; 2) per-point distributions of visual action trajectory proposals suggesting how to interact; and 3) estimated success likelihood scores rating the outcomes of the interaction. All predictions are interaction-conditioned (e.g., pushing, pulling) and task-aware (e.g., open a door for , close a drawer by -unit-length).

Concretely, given a 3D articulated object with its articulated parts , an interaction type , and a manipulation task , we train a perception system that makes dense predictions at each point over each articulated part : 1) an actionability score indicating how likely there exists an action trajectory of interaction type at point that can successfully accomplish the task ; 2) a distribution of visual action trajectories , from which we can sample diverse action trajectories of interaction type to accomplish the task at point ; and 3) a per-trajectory success likelihood score .

Inputs.

We represent the input 3D articulated object as a partial point cloud . We consider two typical interaction types: pushing and pulling. A pushing trajectory maintains a closed gripper and has 6-DoF motion performing the pushing, whereas a pulling trajectory first performs a grasping operation at the point of interaction by closing an initially opened gripper and then has the same 6-DoF motion during the pulling. For articulated objects we use in this work, we only consider 1-DoF part articulation and thus restrict the task specification . For example, a cabinet drawer has a 1-DoF prismatic translation-joint and a refrigerator door is modeled by a 1-DoF revolute hinge-joint. We use the absolute angular degrees in radian (i.e. ) for revolute joints and use the units of length (i.e. ) relative to the global shape scale for prismatic joints.

Outputs.

Both the actionability score and per-trajectory success likelihood score are scalars within , where larger values indicate higher likelihood. One can use a threshold of 0.5 to obtain binary decisions if needed. Every action trajectory is a sequence of 6-DoF end-effector waypoints , with variable trajectory length (). In our implementation, we adopt a residual representation for the action trajectory, as it empirically yields better performance. Each 6-DoF waypoint is comprised of a 3-DoF robot hand center and 3-DoF orientation . We use the 6D-rotation representation [91] for the orientation of and predict 3-DoF euler angles for subsequent orientation changes.

4 VAT-Mart: an Interaction-for-perception Learning Framework

The VAT-Mart system (Fig. 2) consists of two parts: an RL policy exploring diverse action trajectories and a perception system learning the proposed actionable visual priors. While the RL policy collects interaction trajectories for supervising the perception networks, the perception system provides curiosity feedback [19] for encouraging the RL policy to further explore diverse solutions. In our implementation, we first pretrain the RL policy, then train the perception network with RL-collected data, and finally finetune the two parts jointly with curiosity-feedback enabled. We describe the key system designs below.

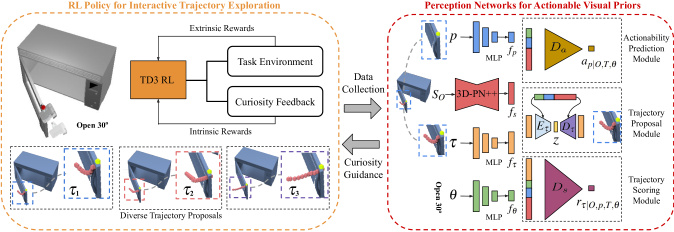

Figure 2: Our proposed VAT-Mart framework is composed of an RL policy (left) exploring interaction trajectories and a perception system (right) learning the desired actionable visual priors. We build bidirectional supervisory channels between the two parts: 1) the RL policy collects data to supervise the perception system, and 2) the perception system produces curiosity feedbacks encouraging the RL networks to explore diverse solutions.

4.1 The RL Policy for Interactive Trajectory Exploration

For every interaction type and part articulation type, we train a single conditional RL policy using TD3 [92] to collect trajectories that can accomplish the interaction of varying task specifications across all shapes and contact points . In the RL training, since the RL policy is trained in the simulation for only collecting training data to supervise the perception networks, we can have access to the ground-truth state information of the simulation environment, such as the part poses, joint axis, and gripper poses. At the test time, we discard the RL network and only use the learned perception networks to predict the proposed actionable visual priors.

Fig. 2 (left) illustrates the RL training scheme and example explored diverse trajectory proposals for the task of pulling open the microwave door for 30 degrees. Below, we describe the RL specifications.

Task Initialization.

For the shape to interact with, we first randomly sample a shape category with equal probability, alleviating the potential category imbalance issue, and then uniformly sample a shape from the selected category for training. For the task specification , we randomly sample within for revolute parts and for prismatic parts. We also randomly sample a starting part pose with the guarantee that the task can be accomplished. For the gripper, we initialize it with fingertip 0.02-unit-length away from the contact point and pointing within a cone of 45 degrees along the negative direction of the surface normal at .

State Space.

The RL state includes the 1-DoF part pose change at the current timestep, the target task , the difference , the gripper pose at the first timestep of interaction, the current gripper pose , the local positions for the gripper fingers , the current contact point location , a normalized direction of the articulated part joint axis , the articulated part joint location (defined as the closest point on the joint axis to the contact point ), the closest distance from the contact point to the joint axis

, and a directional vector

from the joint location to the contact point. We concatenate all the information together as a 33-dimensional state vector for feeding to the RL networks.

Action Space.

At each timestep, we predict a residual gripper pose to determine the next-step waypoint as the action output of the RL networks. We estimate a center offset and an euler angle difference .

Reward Design.

There are two kinds of rewards: extrinsic task rewards and intrinsic curiosity feedbacks. For the extrinsic task rewards, we use: 1) a final-step success reward of for a task completion when the current part pose reaches the target within 15% relative tolerance range, 2) a step-wise guidance reward of encouraging the current part pose to get closer to the target than previous part pose, and 3) a distance penalty of to discourage the gripper from flying away from the intended contact point , where denotes the distance from the contact point to the current fingertip position and is a zero or one function indicating the boolean value of the predicate . We will describe the curiosity rewards in Sec. 4.3.

Stopping Criterion.

We stop an interaction trial until the task’s success or after five maximal steps.

Implementation and Training.

We implement the TD3 networks using Multilayer Perceptron (MLP). We use a replayed buffer with size 2048. To improve the positive data rates for efficient learning, we leverage Hindsight Experience Replay

[93]: an interaction trial may fail to accomplish the desired task , but it finally achieves the task of . See supplementary for more details.

4.2 The Perception Networks for Actionable Visual Priors

The perception system learns from the interaction trajectories collected by the RL exploration policy and predicts the desired per-pixel actionable visual priors. Besides several information encoding modules, there are three decoding heads: 1) an actionability prediction module that outputs the actionability score , 2) a trajectory proposal module that models per-point distribution of diverse visual action trajectories , and 3) a trajectory scoring module that rates the per-trajectory success likelihood . Fig. 2 (right) presents an overview of the system. Below we describe detailed designs and training strategies.

Input Encoders.

The perception networks require four input entities: a partial object point cloud , a contact point , a trajectory , and a task . For the point cloud input , we use a segmentation-version PointNet++ [94] to extract a per-point feature . We employ three MLP networks that respectively encode the inputs , , and into , , and . We serialize each trajectory as a

-dimensional vector after flattening all waypoint information. We augment the trajectories that are shorter than five steps simply by zero paddings.

Actionability Prediction Module.

The actionability prediction network , similar to Where2Act [15], is implemented as a simple MLP that takes as inputs a feature concatenation of , , and , and predicts a per-point actionability score . Aggregating over all contact points , one can obtain an actionability map over the input partial scan , from which one can sample an interaction point at test time according to a normalized actionability distribution.

Trajectory Proposal Module.

The trajectory proposal module is implemented as a conditional variational autoencoder (cVAE), composed of a trajectory encoder

that maps the input trajectory into a Gaussian noise and a trajectory decoder that reconstructs the trajectory input from the noise vector. Both networks take additional input features of , , and

as conditions. We use MLPs to realize the two networks. We regularize the resultant noise vectors to get closer to a uniform Gaussian distribution so that one can sample diverse trajectory proposals by feeding random Gaussian noises to the decoder

with the conditional features as inputs.

Trajectory Scoring Module.

The trajectory scoring module , implemented as another MLP, takes as inputs features of , , and , as well as the trajectory feature , and learns to predict the success likelihood . One can use a success threshold of to obtain a binary decision.

Data Collection for Training.

We collect interaction data from the RL exploration to supervise the training of the perception system. We randomly pick shapes, tasks, and starting part poses similar to the RL task initialization. For positive data, we sample 5000 successful interaction trajectories outputted by the RL. We sample the same amount of negative data, which are produced by offsetting the desired task of a successful trajectory by a random value with for revolute parts and for prismatic parts. For the pulling experiments, we consider another type of negative data that the first grasping attempt fails.

Implementation and Training.

We find it beneficial to first train the trajectory scoring module and then jointly train all three. We use the standard binary cross-entropy loss to train the trajectory scoring module . To train the trajectory proposal cVAE of and , besides the KL divergence loss for regularizing Gaussian bottleneck noises, we use an loss to regress the trajectory waypoint positions and a 6D-rotation loss [91] for training the waypoints orientations. For training the actionability prediction module , we sample 100 random trajectories proposed by , estimate their success likelihood scores using , and regress the prediction to the mean score of the top-5 rated trajectories with a loss. See supplementary for more details.

4.3 Curiosity-driven Exploration

We build a bidirectional supervisory mechanism between the RL policy and the perception system. While the RL policy collects data to supervise the perception networks, we also add a curiosity-feedback [19] from the perception networks to inversely affect the RL policy learning for exploring more diverse and novel interaction trajectories, which will eventually diversify the per-point trajectory distributions produced by the trajectory proposal decoder . The intuitive idea is to encourage the RL network to explore novel trajectories that the perception system currently gives low success scores. In our implementation, during the joint training of the RL and perception networks, we generate an additional intrinsic curiosity reward of for a trajectory

proposed by the RL policy and use the novel interaction data to continue supervising the perception system. We make sure to have training trajectory proposals generated by the RL network at different epochs in the buffer to avoid mode chasing of training the generative model

.

5 Experiments

We perform large-scale learning and evaluation using the SAPIEN physical simulator [20] and PartNet-Mobility dataset [21, 22]. We evaluate the prediction quality of the learned visual priors and compare them to several baselines for downstream manipulation tasks. Qualitative results over novel shapes and real-world data show promising generalization capability of our approach.

Data and Settings.

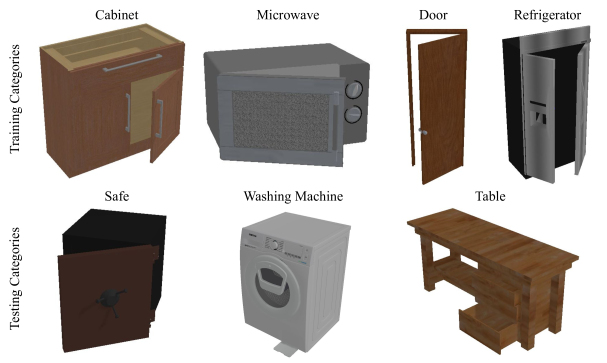

In total, we use 590 shapes from 7 categories in the PartNet-Mobility dataset. We conduct experiments over two commonly seen part articulation types: doors and drawers. For each experiment, we randomly split the applicable object categories into training and test categories. We further split the data from the training categories into training and test shapes. We train all methods over training shapes from the training categories and report performance over test shapes from the training categories and shapes from the test categories to test the generalization capabilities over novel shapes and unseen categories. We use the Panda flying gripper as the robot actuator and employ a velocity-based PID-controller to realize the actuation torques between consecutive trajectory waypoints. We use an RGB-D camera of resolution and randomly sample viewpoints in front of the objects. See supplementary for more data statistics and implementation details.

5.1 Actionable Visual Priors

We present qualitative and quantitative evaluations of our learned actionable visual priors.

Accuracy (%) Precision (%) Recall (%) F-score (%) Coverage (%)
door pushing 80.28 / 76.60 76.73 / 75.48 86.83 / 78.69 81.47 / 77.05 82.63 / 78.88
pulling 75.82 / 76.89 69.76 / 74.62 88.52 / 81.51 78.02 / 77.91 55.26 / 50.76
drawer pushing 84.36 / 84.48 77.78 / 79.29 96.08 / 93.28 85.96 / 85.71 95.49 / 95.46
pulling 87.9 / 90.48 88.60 / 90.25 87.11 / 90.76 87.85 / 90.50 93.05 / 91.62
Table 1: We report quantitative evaluations of the learned actionable visual priors. For each metric, we report numbers over test shapes from the training categories (before slash) and shapes from the test categories (after slash). Higher numbers indicate better results.

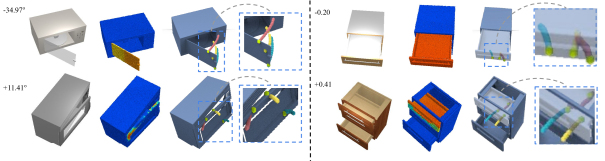

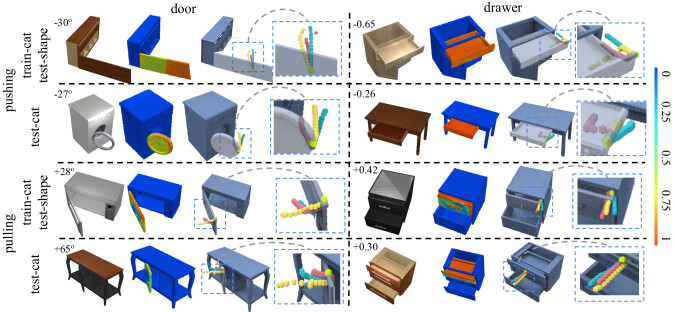

Figure 3: We show qualitative results of the actionability prediction and trajectory proposal modules. In each result block, from left to right, we present the input shape with the task, the predicted actionability heatmap, and three example trajectory proposals at a selected contact point.

Metrics.

For quantitatively evaluating the trajectory scoring module, we use standard metrics that are commonly used for evaluating binary classification problems: accuracy, precision, recall, and F-score. Since there is no ground-truth annotation of successful and failed interaction trajectories, we run our learned RL policy over test shapes and collect test interaction trajectories. In our implementation, we gather 350 positive and 350 negative trajectories for each experiment. To evaluate if the learned trajectory proposal module can propose diverse trajectories to cover the collected ground-truth ones, we compute a coverage score measuring the percentage of ground-truth trajectories that is similar enough to the closest predicted trajectory. See supplementary for detailed metric definitions.

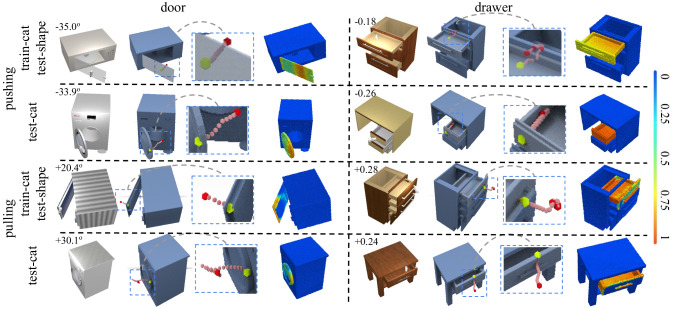

Figure 4: We present qualitative analysis of the learned trajectory scoring module. In each result block, from left to right, we show the input shape with the task, the input trajectory with its close-up view, and our network predictions of success likelihood applying the trajectory over all the points.

Results and Analysis.

Table 1 presents quantitative results which demonstrate that we successfully learn the desired representations and that our learned model also generalizes to shapes from totally unseen object categories. Since we are the first to propose such actionable visual priors, there is no baseline to compare against. Fig. 3 presents qualitative results of the actionability prediction and trajectory proposal modules, from which we can observe that, to accomplish the desired tasks: 1) the actionability heatmap highlights where to interact (e.g., to pull open a drawer, the gripper either grasp and pull open the handle from outside, or push outwards from inside), and 2) the trajectory proposals suggest diverse solutions for how to interact (e.g., to push closed the door, various trajectories may succeed). In Fig. 4, we additionally illustrate the trajectory scoring predictions using heatmap visualization, where we observe interesting learned patterns indicating which points to interact with when executing the input trajectories. In Fig. 5 (left), we further visualize the trajectory scoring predictions over the same input shape and observe different visual patterns given different trajectories and tasks.

5.2 Downstream Manipulation

We can easily use our learned actionable visual priors to accomplish the downstream manipulation of 3D articulated objects. To this end, we first sample a contact point according to the estimated actionability heatmap and then execute the top-rated trajectory among 100 random trajectory proposals.

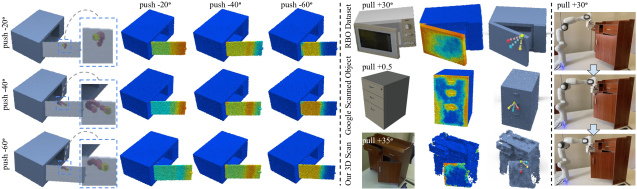

Figure 5: Left: qualitative analysis of the trajectory scoring prediction (each column shares the same task; every row uses the same trajectory); Middle: promising results testing on real-world data (from left to right: input, affordance prediction, trajectory proposals); Right: real-robot experiment.
pushing door pulling door pushing drawer pulling drawer
RL-baseline 1.43 / 3.72 0.0 / 0.0 0.43 / 0.43 0.0 / 0.0
Heuristic 15.00 / 11.48 1.14 / 0.0 13.45 / 12.54 21.04 / 18.00
Ours 17.65 / 21.65 7.76 / 6.02 24.37 / 18.77 23.88 / 14.57
Table 2: We report task success rates (within 15% tolerance to tasks) of manipulating articulated objects comparing our method against a naive RL baseline and a rule-based heuristic approach.

Baselines.

We compare to two baselines: 1) a naive TD3 RL that takes the shape point cloud together with the desired task as input and directly outputs trajectory waypoints for accomplishing the task, 2) a heuristic approach, in which we hand-engineer a set of rules for different tasks (e.g., to pull open a drawer, we grasp the handle and pull straight backward ). Note that we use ground-truth handle masks and joint parameters for the heuristic baseline. See supplementary for more details.

Metrics.

We run interaction trials in simulation and report success rates for quantitative evaluation.

Results and Analysis.

Table 2 presents the quantitative comparisons. Our method outperforms baselines on most comparisons. The naive RL baseline largely fails since we find it extremely difficult to train from scratch an end-to-end RL over highly diverse shapes for all tasks, which in fact implies the necessity of certain intermediate visual abstractions. For the heuristic baseline, we find that we win all comparisons except one task of drawer pulling. Knowing the ground-truth handle position and prismatic joint axis, it is quite easy to leverage the rule-based heuristics to pull a drawer along a straight-line trajectory, while our method does not take the ground-truth information and achieves slightly worse results since we have to predict such information. However, our method achieves better performance for the other three experiments since we find that the heuristic method fails severely when 1) there are no handle parts for pulling, 2) some grasps over intricate handle geometry may slip and fail, or 3) some locally subtle geometric patterns affect the intended pushing interaction. We provide more results and analysis in the supplementary material. Furthermore, our method provides a unified and automatic solution to various tasks instead of requiring hand-designed rules by humans.

5.3 Real-world Experiments

Fig. 5 (middle) presents qualitative results directly testing our learned perception model on some real-world data: a microwave model from the RBO dataset [95], one cabinet from Google Scanned Object [96], and one real-world 3D cabinet scan we capture using a ZED MINI RGB-D camera. We observe that our model trained on synthetic textureless data can generalize to real-world depth scans to some degree. We also show real-robot experiment in Fig. 5 (right) and supplementary video.

6 Conclusion

In this paper, we propose a novel perception-interaction handshaking point –object-centric actionable visual priors– for manipulating 3D articulated objects, which contains dense action affordance predictions and diverse visual trajectory proposals. We formulate a novel interaction-for-perception framework VAT-Mart to learn such representations. Experiments conducted on the large-scale PartNet-Mobility dataset and real-world data have proved the effectiveness of our approach.

Limitations and Future Works.

First, our work is only a first attempt at learning such representations and future works can further improve the performance. Besides, the current open-loop trajectory prediction is based on a single-frame input. One may obtain better results considering multiple frames during an interaction. Lastly, future works may study more interaction and articulation types.

Acknowledgements

We would like to thank Yourong Zhang for setting up ROS environment and helping in real robot experiments.
