1 Introduction

The human visual system routinely handles vast amounts of information at about to bits per second [2, 3, 4, 15]. An essential mechanism that allows the human visual system to process this amount of information in real time is its ability to selectively focus attention on salient parts of a scene. Which parts of a scene and what individual patterns particularly attract the viewer’s eyes (e.g

. salient areas) have been the subject of psychological research for decades, and designing computational models for predicting salient areas is a longstanding problem in computer vision. In recent years, we have observed a surge in the development of data-driven models of saliency based on deep neural networks. Such deep models have demonstrated significant performance improvements in comparison to classical models, which are based on hand-crafted features or psychological assumptions, outperforming them on most benchmarks. However, while there still remains a relatively large gap between deep models and the human visual system (see Table

1), the performance of deep models appears to have reached a ceiling. This raises the question of what is learned by deep models that drives their superior performance over classical models, and what are the remaining and missing ingredients to attain human-like performance. Internal representations of deep object recognition models have been visualized and analyzed extensively in recent years. Such efforts, however, are missing for saliency models and it is unclear how saliency models do what they do.

Model Backbone tuning NSS
Deep gaze [19] VGG-19 [23] 2.34
SAM  [8] ResNet-50 [11]/VGG-16 2.34/2.30
Deepfix [18] VGG-16 [23] 2.26
SALICON [14] VGG-16 2.12
PDP [16] VGG-16 2.05
Human IO - - 3.29
Table 1: Five state-of-the-art deep saliency models and their NSS scores [6] over the MIT300 saliency benchmark [5].

In this work, we shed light on what is learned by deep saliency models by analyzing their internal representations. Our contribution are as follows:
We annotate 3 datasets for analyzing the relationship between the deep model’s inner representation and the visual saliency in the image.
A new dataset based on synthetic pop-out search arrays is proposed to compare deep and classical saliency models.
We investigate what and how saliency information is encoded in a pre-trained deep model and look into the effect of fine-tuning on inner-representations of the deep saliency models.
Finally, we study the effect of the task type on the inner representations of a deep model by comparing a model fine-tuned for saliency prediction with a model fine-tuned for scene recognition.

2 Related Work

2.1 Deep saliency models

The SALICON challenge [17]

, by offering the first large scale dataset for saliency, facilitated the development of deep saliency models. Several such models learn a mapping from deep feature space to the saliency space, where a pre-trained object recognition network acts as the feature encoder. The encoder is then fine-tuned for the saliency task. For example, DeepNet

[22] learns saliency using 8 convolutional layers, where only the first 3 layers are initialized from a pre-trained image classification model. PDP [16]

treats the saliency map as a small scale probability map, and investigates different loss functions for gaze prediction. They also suggested the use of Bhattacharyya distance when the gaze map is treated as a small scale probability map. The SALICON

[14] model uses multi-resolution inputs, and combines feature representations in the deep layers for saliency prediction. Deepfix [18] combines deep architectures of VGG, GoogleNet [24], and Dilated convolutions [29] in a network and adds a central bias, to achieve a higher performance than previous models. SalGAN [21]

uses an encoder-decoder architecture and proposes the binary cross entropy (BCE) loss function to perform pixel-wise (rather than image-wise) saliency estimation. After pre-training the encoder-decoder, it uses a Generative Adversarial Network (GAN)

[9] to boost performance. DVA [26] uses multiple layer’s representations, builds a decoder for each layer, and fuses them at the final stage for pixel-wise gaze prediction. SAM [8] uses an attention module and a LSTM [13] network to attend to different salient regions in the image. DeepGaze 2 [19] uses the features at different layers of a pre-trained deep model and combines them with the prior knowledge (i.e. center-bias). DSCLRCN [20] uses multiple inputs by adding a contextual information stream, and concatenates the original representation and the contextual representation into a LSTM network for the final prediction.

2.2 Visualizing deep neural networks

The success of deep convolutional neural networks has raised the question of what representations are learned by neurons located in intermediate and deep layers. One approach towards understanding how CNNs work and learn is to visualize individual neurons’ activations and receptive fields. Zeiler and Fergus


proposed a deconvolution network in order to visualize the original patterns that activate the corresponding activation maps. A deconvolution network consists of the three steps of unpooling, transposed convolution, and the ReLU operation. Yosinski

et al[28] developed two tools for understanding deep convolutional neural networks. The first of these tools is designed to visualize the activation maps at different layers for a given input image. The second tool aims to estimate the input pattern which a network is maximally attuned to for a given object class. In practice, the last layer of a deep neural network typically consists of one neuron per object class. Yosinski et al. proposed to use gradient ascent (with regularization) to find the input image that maximizes the output of a specific neuron in regard to a specific object class. Hence, they derive the optimum input that appeals to the network for a specific class.

Both visualization methods discussed above are essentially qualitative. In contrast, Bau et al[1] proposed a quantitative method to give each activation map a semantic meaning. In their work, they proposed a dataset with 6 image categories and 63,305 images for network dissection, where each image is labeled with pixel-wise semantic meaning. At first, they forward all images in the dataset into a pre-trained deep model. For each activation map inside the model, different inputs have different patterns. Then, they compute the distribution of each unit activation map over the whole dataset, and determine a threshold for each unit based on its activation distribution. With the threshold for each unit, the activation map for each input image is quantized to a binary map. Finally, they compute the intersection over union (IOU) between the quantized activation map and the labeled ground truth to determine what objects or object parts a unit is detecting.

The aforementioned approaches provide useful insight into the internals of deep neural networks trained on ImageNet for the classification task. However, our understanding of the internal representations of deep saliency prediction models is somewhat limited. Bylinskii

et al[7] tried to understand deep models for saliency prediction. But their study was mostly focused on where models fails, rather than how they compute saliency. To our best of knowledge, our work is the first to study the representations learned by deep saliency models111All the codes, data, models and other details in the paper can be found at https://github.com/SenHe/uavdvsm.

3 Data and Annotation

We first introduce the data used in our experiments as well as our proposed annotated dataset.


is the largest database for saliency prediction at the moment. It contains

training images, validation images and testing images. Here, we use it to fine-tune a pre-trained model for saliency prediction.

OSIE-SR: This acronym stands for the “OSIE Saliency Re-annotated” (i.e. annotations of salient regions). The original OSIE dataset [27] has 700 images with rich semantics. It contains eye movements of 15 subjects for each image recorded during free-viewing, and also has the annotated masks for objects in the image according to 12 attributes. For our analysis, we extract clusters of fixation locations, called salient regions. We, then, manually annotate each salient region as belonging to one of the 12 saliency categories, including: person head, person part, animal head, animal part, object, text, symbol, vehicle, food, drink, plant, and other. Similar categories have been exploited in previous research (e.g[7, 27]). Fig. 1 provides an example where each annotated region has a label according to its salient category. The re-annotated data is used to measure the association between inner representations (activation maps) in the deep model (pre-trained and fine-tuned) and each salient category.

(a) image
(b) OSIE
Figure 1: (a) An example image from the OSIE dataset, (b) OSIE annotation, and (c) the re-annotated OSIE-SR labels.

Synthetic Images: We selected 80 synthetic search arrays [12], often used in pop-out experiments (Fig. 2). This dataset contains various pop-out patterns where a target stands out from the rest of the items in terms of color, orientation, density, curvature, etc. We provide mask annotation for the salient (i.e. pop-out) region in each image. This database is used to compare deep models and classical models on their ability to detect targets that pop-out in simple scenes. We also use it to study inner representations of deep models over synthetic patterns.

Figure 2: Example synthetic pop out search arrays

SALICON-SAL-SCE: We select a subset of images from the SALICON dataset and annotate each image with a scene category label based on the categories of the Place-CNN dataset [32]. We removed images belonging to the scene categories with fewer than 50 images. Eventually, we are left with 6,107 images with both fixation maps and scene category labels (26 categories in total, see supplement). We use this database to compare the effect of saliency prediction and scene recognition on learned inner representations.

4 Methods

4.1 Modified NSS score

We propose using normalized scanpath score (NSS) within salient regions as a method to interpret the inner representations. We, thus, can look into the association between the activation maps and the salient regions of the image for analyzing the inner representations of the deep visual saliency models. To implement this, we first forward each image into the deep model and extract the activation maps from different layers in the model. Then, the association between each activation map (actm) and each salient region (sr) in the image is computed as:


where is the activation map from the layer for the input image, and is the salient region in the image. is the fixation on the image, and is the annotated polygon mask in image for region . It is worth noting that all activation maps were normalized and reshaped to the size of the input image.

4.2 Saliency model

For our analysis, we develop a saliency model using the convolutional part of VGG-16 (conv1-1 to conv5-3) and a simple convolutional layer on top of the conv5-3 layer. The model has a single resolution with input of size and is optimized with as the loss function. We consider 2 setups to analyze the representations.

Setup I: We first look into the inner representations without fine-tuning the VGG part, i.e. we only learn the last convolution layer, motivated by the performance of some of the existing models that achieve state-of-the-art performance without fine-tuning. This can be observed in Table 1. In other words, we analyze what types of saliency information exist in the pre-trained VGG model and how it is distributed within different layers. In this setup, we analyze conv4-1 to conv5-3 layers, which correspond to the last two blocks in VGG-16. The activation maps from layers below conv4-1 are sensitive to edge-like patterns and do not correspond to annotated regions. We, thus, do not include them.

Setup II: We then look into the fine-tuned model. In this setup, we learn the last convolution layer and fine-tune the VGG part of the model for different number of layers (each time from scratch) and examine the responses of neurons in the conv5-3 layer.

4.3 Local saliency statistics

In the OSIE-SR dataset, each region corresponds to one saliency category (i.e. has one label). To compute the statistics for saliency category in each layer, we compute the mean value of the top 10 activation maps with high mean NSS values in Eq. (1) for all the regions of category . We also compute the number of activation maps whose mean NSS value is above a threshold (T) in Eq. (1) for all regions for category .

5 Analysis of Learned Representations

How does fine-tuning the VGG neurons for saliency prediction affect the network inner representation? To answer this question, we train two saliency models, one keeping the CNN features fixed during the training and the other one fine-tuning the CNN features in conjunction with the convolution layer for saliency prediction (corresponding to the two setups mentioned above).

layer person head person part animal head animal part object text symbol vehicle food plant drink other
mean NSS for top 10 activation maps
conv5-3 1.21 0.98 2.04 1.6 0.69 1.1 1.07 1.53 1.25 1.21 1.48 0.57
conv5-2 2.57 1.64 2.89 1.91 1.07 1.59 1.91 2.18 1.59 2.05 2.13 0.92
conv5-1 2.95 1.58 2.6 1.67 1.16 1.91 2.06 2.48 1.8 1.96 1.85 1
conv4-3 3.46 1.67 2.93 1.5 1.27 2.4 2.37 2.71 1.54 1.62 1.88 0.91
conv4-2 2.85 1.78 2.63 1.39 1.19 2.04 2.05 2.33 1.48 1.59 1.53 0.74
conv4-1 2.08 1.56 1.89 1.18 1.11 2.17 1.99 1.93 1.38 1.58 1.33 0.72
# activation maps above threshold ()
conv5-3 2 1 21 7 0 2 1 4 1 2 4 0
conv5-2 41 11 50 21 0 5 19 33 8 12 15 0
conv5-1 27 7 35 7 0 9 16 30 9 11 23 0
conv4-3 35 9 40 4 1 12 20 30 3 5 13 0
conv4-2 35 12 18 2 0 11 14 23 4 6 4 0
conv4-1 23 5 18 0 0 18 17 21 3 5 2 0
Table 2: Inner representations in the pre-trained visual saliency model (setup I; i.e. training the convolution layer) at different layers for all types of saliency categories (Please see text for details).
Figure 3: An example of the pre-trained model inner representation (Setup I). Top row: the original image, and the activation maps with highest activation at salient regions from layer conv5-1. Bottom row: the image with masked salient regions (1,2,3,4) and the activation maps that best respond to the salient regions of conv4-3.

5.1 Saliency representation before fine-tuning

Table 2 depicts the statistics of the inner representations within different layers of the deep visual saliency model, where the convolution part has not been fine-tuned (setup I). From Table 2, we can see that many visual saliency categories, including: person head, animal head, text, symbol, vehicle and drink, have been encoded in the pre-trained CNN features. We observe not only high mean NSS scores, but also a large number of active response maps for each saliency category. We also observe that the visual saliency information is encoded within various layers, e.g. person head, animal head, and text are present in conv4-3. Fig. 3 visualizes some examples of the activation maps in the model without fine-tuning the VGG features. As depicted, there is a relatively high association between salient regions and activation maps.

# layers tuned person head person part animal head animal part object text symbol vehicle food plant drink other
mean NSS for top 10 activation maps
0 1.21 0.98 2.04 1.6 0.69 1.1 1.07 1.53 1.25 1.21 1.48 0.57
1 2.61 1.63 2.44 1.7 1.31 1.17 1.56 2.21 1.97 1.89 1.99 1.09
2 3.25 1.77 2.75 1.78 1.25 1.32 1.56 1.91 1.89 1.66 1.65 1.12
3 3.28 1.78 3.04 1.79 1.28 1.34 1.57 1.94 1.96 1.81 1.68 1.2
4 3.38 1.83 3.08 1.78 1.24 1.25 1.47 1.97 1.87 1.73 1.63 1.12
5 3.32 1.78 2.84 1.82 1.28 1.38 1.59 2.1 1.95 1.75 1.77 1.17
6 3.08 1.83 2.57 1.78 1.25 1.25 1.45 2.03 1.99 1.8 1.66 1.11
all 2.85 1.75 2.36 1.65 1.14 1.2 1.41 1.72 1.84 1.71 1.33 1.07
# activation maps above threshold ()
0 2 1 21 7 0 2 1 4 1 2 4 0
1 30 11 31 11 0 0 6 15 10 11 12 1
2 35 11 36 15 0 0 7 19 11 8 11 0
3 43 16 54 21 0 0 10 17 16 14 16 0
4 53 18 63 19 0 0 1 25 14 16 16 0
5 71 28 77 37 0 0 25 46 24 20 28 0
6 56 30 68 27 0 0 0 38 27 23 25 0
all 27 11 27 10 0 0 0 14 11 11 0 0
Table 3: Inner representations in the last convolutional layer (conv5-3) before and after fine-tuning for all types of saliency categories. 0 in number of fine tuned layers indicate setup I, otherwise setup II.

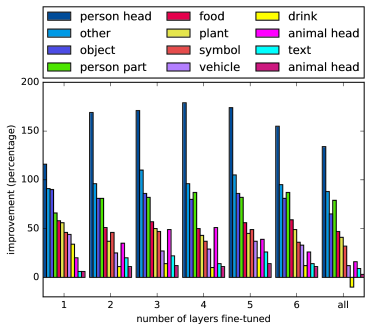

Figure 4: Top 10 mean NSS improvements for each category when fine-tuning different numbers of layers
Figure 5: The activation map in layer conv5-3 before and after fine-tuning for an input image. Notice that it becomes attuned to person head after fine-tuning.
Figure 6: The activation map in layer conv5-3 before and after fine-tuning (tuning 3 layers). (a) the input image, image overlapped with the activation map before fine-tuning (b), after fine-tuning (c), and the activation map after fine-tuning (d). After fine-tuning, despite the fact that this activation map has the highest mean NSS score for all regions annotated as text in the dataset, it still favors heads.

5.2 Saliency representation after fine-tuning

Table 3 reports the statistics of visual saliency in layer conv5-3, which is directly used for saliency prediction, after fine-tuning different number of layers in the model (0 indicates that only the final convolutional layer above the pre-trained model for regression was trained on saliency data, without fine-tuning the pre-trained model; 1 means fine-tuning the layer conv5-3, 2 means fine-tuning the layers conv5-3 and conv5-2, and so on).

From Table 3, we can see that after fine-tuning, the activation maps became more selective to visual saliency, as the mean NSS values improve for all saliency categories. The improvements are, however, uneven as can be seen in Fig. 4; i.e. some categories improve more. For example, person head improves the most from 1.21 to 3.38 when fine-tuning 4 layers (see Fig. 5), while for text, the improvement is relatively small (at most from 1.1 to 1.38 when fine-tuning 5 layers). Similar effects can be seen in Fig. 6, where activation maps which are most selective to texture regions in the image after fine-tuning still respond to head regions in the image, and with high activation values. It is withstanding that an ANOVA test and multiple comparisons indicate person head, animal head, and other are significantly different than all other categories and each other.

An interesting observation is that by fine-tuning more layers, i.e. more than 3 layers (and especially when fine-tuning all the layers), the mean NSS values or the number of activation maps for some saliency categories start to decrease. We also do not gain more saliency prediction improvement by fine-tuning more layers. We speculate that one reason behind this observation might be the quality and quantity of the current saliency data, which is biased towards specific salient objects and regions.

Figure 7: Top row: the relationship between the inner representation saliency and output saliency (left) and the output prediction difference (right). Bottom row: an example image, ground truth fixation map, and model prediction.

6 The Relationship between Intermediate and Final Representations

What is the relation between a model’s inner representation and its output? In other words, are the categories that are more salient in the inner representations also more active in the output saliency map? To what extend the salient categories within the inner representations agree with the ground truth salient categories? To answer these questions, we define the the inner saliency for each category as the mean NSS value of the top 10 activation maps for it, which is the same as the values in Table 3. Following steps of [25] for fine-grained contextual analysis, we assign the output saliency of a model, defined as for category , as the output’s mean NSS score of all salient regions in the OSIE-SR dataset that belong to category ,


where, is the total number of salient regions for category , is the total number of images, and is total number of regions for category in image, is the model prediction for image, is the annotated mask for the region in image for category (if category exists in the image) and is the fixation location on the image.

To measure the relation between salient categories and representations, we define the concept of output salient category difference, denoted as . It measures the mean difference of the NSS score between a model prediction and the ground truth with respect to the salient categories,


where, , and is the ground truth saliency map.

The results are shown in Fig. 7. As depicted in the top left of this figure, the model’s saliency output is correlated to the saliency of inner representations. In other words, we can see that if a category is more salient in the model’s inner representation, it is also more salient in the model’s output (Spearman’s correlation coefficient: ). The salient categories in inner representations and output, however, migh be different. The output salience category difference is lower for less salient inner categories and higher for more salient inner ones. For example, as depicted in top right panel of Fig. 7, the head category has more salient inner representations and higher output salient category difference (ANOVA test with measurements and clusters as factors showing significant difference ). In other words, the model has learned to fire on faces, irrespective of whether they are salient in the context of the given image.

7 Model Performance and Representations over Synthetic Search Arrays

How do deep saliency models perform over the synthetic images? We compare the performance of deep and classical saliency models on a set of synthetic images. These images are designed to simulate the feature pop-out, and have been extensively used to study human attention, but they have not been considered for evaluating deep saliency models. There exists no eye-fixation on such images, but is it easy to locate the target/salient item in the array (in fact we manually labeled the images). we assess the performance of the models using Normalized Mean value under the annotated Mask (NMM) for each image:


where and are the annotated mask and model prediction for the image, respectively.

Deep models Classical models
DeepGaze [19] SAM [8] DVA [26] GBVS [10] BMS [31]
1.66 1.25 1.19 2.57 3.65
Table 4: Performance comparison between deep models and classical models on synthetic images in terms of NMM.
Figure 8: Some qualitative examples for deep and classical models on synthetic images, from left to right: image, predictions from DeepGaze 2, SAM, DVA, GBVS, and BMS.

Table 4 shows the performance of deep and classic models on the synthetic images. Surprisingly, although deep models achieve state-of-the-art performance on the MIT300 benchmark, they completely fail on synthetic images and are outclassed by classical models, moreover, despite the DVA [26] has connections between shallow layer and output layer in their model, their performance is still not good on synthetic images. Fig. 8 illustrates saliency predictions on example stimuli by the considered methods. To investigate the reason behind this failure, we looked into the effect of fine-tuning on the inner representations and neuron responses to synthetic patterns. The results in Table 5 show that deep models do indeed capture the salient patterns within the middle layers of the architecture (e.g. conv4-1 layer). Some examples (including curvature, orientation, etc) are shown in Fig. 9. Nevertheless, as indicated in Table 6, no matter how many layers are fine-tuned, the output of the deep saliency model never highlights such salient patterns. One possible reason might be that the current large databases, e.g. SALICON, are biased towards natural scenes containing daily objects (text, faces, animals, cars, etc) and do not include any image similar to synthetic patters. The models, thus, do not learn anything about simple pop-out.

conv5-3 conv5-2 conv5-1 conv4-3 conv4-2 conv4-1
0.38 0.94 1.47 1.96 1.94 2.12
Table 5: The mean NMM for top 10 activation maps in each layer (from conv4-1 to conv5-3) in the pre-trained model for synthetic images.
Figure 9: Top row: synthetic search arrays with their annotated masks. Bottom row: the activation maps from layer conv4-1 that best correlated with the masked regions in the synthetic images.
# layers fine-tuned
0 1 2 3 4 5 6 all
0.38 0.8 0.98 0.92 0.65 0.86 0.83 0.73
Table 6: The mean NMM score for top 10 activation maps in the last convolutional layer for synthetic images, when fine-tuning different number of layers.

8 The Influence of Task on the Learned Representations

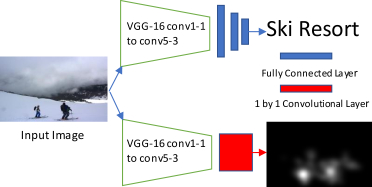

Figure 10: Our architecture to study task-dependency of representations (saliency prediction vs. scene classification). We use the same data to fine-tune the pre-trained model for different tasks.

What is the driving cause for the observed change in representations after fine-tuning in previous sections? Is it due to the network being fine-tuned to a new task (saliency prediction) or is it the network being fine-tuned to a different set of data (images from a saliency prediction dataset)? To figure out, we compare two tasks of saliency prediction and scene recognition on SALICON-SAL-SCE, which provides saliency information and scene type labels. Note that in both cases, the images used for fine-tuning are the same, therefore if the observed shift in representation is only due to the data, the inner representations should be similar in both tasks; conversely, if the task is what is driving the change, the representations should differ.

We check three CNN trunks, including, 1) a pre-traind CNN based on VGG network for scene recognition (pt), 2) a CNN fine-tuned for saliency prediction (sp), and 3) a CNN fine-tuned for scene recognition (sr). The saliency prediction is the same as explained above. The scene recognition network consists of the VGG and 3 fully connected layers (see Fig. 10). Due to the data limitation, we only fine-tuned 1 layer of the pre-trained model (layer conv5-3) for both tasks, weight balance was used when fine-tuning the scene recognition model to compensate imbalanced categories.

person head person part animal head animal part object text symbol vehicle food plant drink other
mean NSS for top 10 activation maps
pt 1.21 0.98 2.04 1.6 0.69 1.1 1.07 1.53 1.25 1.21 1.48 0.57
sp 2.51 1.6 2.32 1.7 1.3 1.44 1.74 2.29 1.86 1.58 2.01 1.13
sr 0.47 0.57 1.54 1.24 0.57 0.83 0.61 0.88 0.91 0.97 1.28 0.41
# activation maps above threshold ()
pt 2 1 21 7 0 2 1 4 1 2 4 0
sp 44 6 27 10 1 2 10 19 16 7 1 0
sr 0 0 4 1 0 0 0 0 0 2 3 0
Table 7: Inner representation for different tasks (saliency prediction and scene recognition) before and after fine-tuning (pt: pre-traind CNN based on VGG network scene recognition, sp: CNN fine-tuned for saliency prediction, sr: CNN fine-tuned for scene recognition).

Table 7 shows how the inner representation changes with respect to saliency categories, once the CNN is fine-tuned for different tasks using the same data. The results show that fine-tuning for saliency prediction drives the inner representations to became more selective to salient categories, while fine-tuning for scene recognition leads to less selectivity to salient categories and inhibition of some other salient regions. Examples of the activation map change for each task is provided in Fig. 11.

Figure 11: From left to right: Original image, image overlapped with the ground-truth fixation map, overlapped with the activation map by the pre-trained model, overlapped with the activation map after fine-tuning for scene recognition, overlapped with the activation map after fine-tuning for saliency prediction.
correct prediction wrong prediction
0.12 0.11
Table 8: The NSS scores of mean activation maps for correct and wrong prediction in scene recognition task.

To what degree the inner representations in the scene recognition network is consistent with human attention? Does the scene recognition model attend to the locations a human may find salient? We investigate this by computing the NSS score between the attention of model (the mean of 512 activation maps in layer conv5-3) and the human fixation on the image. The results are summarized in Table 8, showing that the NSS score is small irrespective of whether the model’s prediction is correct or not. In other words, the model’s attention in scene recognition is different from human attention in free-viewing.

To summarize, the above results indicate that the inner representations, during fine-tuning the same CNN for the two different tasks of saliency prediction and scene recognition on the same data, mostly change because of the task and not the data.

9 Discussion and Conclusion

In this work, we analyzed the internals of deep saliency models. To this end, we annotated 3 datasets and conducted several experiments to unveil the secrets of deep saliency models. Our analysis on this data revealed that a deep neural network pre-trained for image recognition already encodes some visual saliency in the image. Fine-tuning this pre-trained model for saliency prediction produces a model with uneven response to saliency categories, e.g. neurons sensitive to textual input start attending more to human head. We showed that although deep models do capture synthetic pop-out stimuli within their inner layers, they fail to predict such salient patterns in their output, contrary to classical models of saliency prediction. We also confirmed that the observed change in the inner representations after fine-tuning is mainly due to fine-tuning for the task and not the data. In our study, fine-tuning the model for saliency prediction resulted in more selective responses to salient regions, though uneven. On the other hand, fine-tuning the model for scene recognition had inhibitory effect and the inner representations were losing their selectivity to some of the existing salient patterns.

To conclude, pushing the development of better data-driven deep visual saliency models further may require delicate attention to the diversity of salient categories within images. In other words, we may need not only a large scale dataset, but also a dataset with rich saliency categories to ensure generalization.


This research was supported by the EPSRC project DEVA EP/N035399/1. Dr Pugeault acknowledges funding from the Alan Turing Institute (EP/N510129/1). H. R. Tavakoli acknowledges NVIDIA for the donation of GPUs used in his research.


  • [1] David Bau, Bolei Zhou, Aditya Khosla, Aude Oliva, and Antonio Torralba. Network dissection: Quantifying interpretability of deep visual representations. In

    Computer Vision and Pattern Recognition

    , 2017.
  • [2] Ali Borji. Saliency prediction in the deep learning era: An empirical investigation. arXiv preprint arXiv:1810.03716, 2018.
  • [3] Ali Borji and Laurent Itti.

    State-of-the-art in visual attention modeling.

    IEEE transactions on pattern analysis and machine intelligence, 35(1):185–207, 2013.
  • [4] Ali Borji, Dicky N Sihite, and Laurent Itti. Quantitative analysis of human-model agreement in visual saliency modeling: A comparative study. IEEE Transactions on Image Processing, 22(1):55–69, 2013.
  • [5] Zoya Bylinskii, Tilke Judd, Ali Borji, Laurent Itti, Frédo Durand, Aude Oliva, and Antonio Torralba. Mit saliency benchmark.
  • [6] Zoya Bylinskii, Tilke Judd, Aude Oliva, Antonio Torralba, and Frédo Durand.

    What do different evaluation metrics tell us about saliency models?

    IEEE transactions on pattern analysis and machine intelligence, 2018.
  • [7] Zoya Bylinskii, Adrià Recasens, Ali Borji, Aude Oliva, Antonio Torralba, and Frédo Durand. Where should saliency models look next? In European Conference on Computer Vision, pages 809–824. Springer, 2016.
  • [8] Marcella Cornia, Lorenzo Baraldi, Giuseppe Serra, and Rita Cucchiara. Predicting Human Eye Fixations via an LSTM-based Saliency Attentive Model. IEEE Transactions on Image Processing, 27(10):5142–5154, 2018.
  • [9] Ian Goodfellow, Jean Pouget-Abadie, Mehdi Mirza, Bing Xu, David Warde-Farley, Sherjil Ozair, Aaron Courville, and Yoshua Bengio. Generative adversarial nets. In Advances in neural information processing systems, pages 2672–2680, 2014.
  • [10] Jonathan Harel, Christof Koch, and Pietro Perona. Graph-based visual saliency. In Advances in neural information processing systems, pages 545–552, 2007.
  • [11] Kaiming He, Xiangyu Zhang, Shaoqing Ren, and Jian Sun. Deep residual learning for image recognition. In Proceedings of the IEEE conference on computer vision and pattern recognition, pages 770–778, 2016.
  • [12] Christopher Healey and James Enns. Attention and visual memory in visualization and computer graphics. IEEE transactions on visualization and computer graphics, 18(7):1170–1188, 2012.
  • [13] Sepp Hochreiter and Jürgen Schmidhuber. Long short-term memory. Neural computation, 9(8):1735–1780, 1997.
  • [14] Xun Huang, Chengyao Shen, Xavier Boix, and Qi Zhao. Salicon: Reducing the semantic gap in saliency prediction by adapting deep neural networks. In Proceedings of the IEEE International Conference on Computer Vision, pages 262–270, 2015.
  • [15] Laurent Itti, Christof Koch, and Ernst Niebur. A model of saliency-based visual attention for rapid scene analysis. IEEE Transactions on Pattern Analysis & Machine Intelligence, (11):1254–1259, 1998.
  • [16] Saumya Jetley, Naila Murray, and Eleonora Vig.

    End-to-end saliency mapping via probability distribution prediction.

    In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, pages 5753–5761, 2016.
  • [17] Ming Jiang, Shengsheng Huang, Juanyong Duan, and Qi Zhao. Salicon: Saliency in context. In Proceedings of the IEEE conference on computer vision and pattern recognition, pages 1072–1080, 2015.
  • [18] Srinivas SS Kruthiventi, Kumar Ayush, and R Venkatesh Babu. Deepfix: A fully convolutional neural network for predicting human eye fixations. IEEE Transactions on Image Processing, 26(9):4446–4456, 2017.
  • [19] Matthias Kümmerer, Thomas SA Wallis, Leon A Gatys, and Matthias Bethge. Understanding low-and high-level contributions to fixation prediction. In 2017 IEEE International Conference on Computer Vision, pages 4799–4808, 2017.
  • [20] Nian Liu and Junwei Han. A deep spatial contextual long-term recurrent convolutional network for saliency detection. IEEE Transactions on Image Processing, 27(7):3264–3274, 2018.
  • [21] Junting Pan, Cristian Canton Ferrer, Kevin McGuinness, Noel E O’Connor, Jordi Torres, Elisa Sayrol, and Xavier Giro-i Nieto. Salgan: Visual saliency prediction with generative adversarial networks. arXiv preprint arXiv:1701.01081, 2017.
  • [22] Junting Pan, Elisa Sayrol, Xavier Giro-i Nieto, Kevin McGuinness, and Noel E O’Connor. Shallow and deep convolutional networks for saliency prediction. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, pages 598–606, 2016.
  • [23] Karen Simonyan and Andrew Zisserman. Very deep convolutional networks for large-scale image recognition. arXiv preprint arXiv:1409.1556, 2014.
  • [24] Christian Szegedy, Wei Liu, Yangqing Jia, Pierre Sermanet, Scott Reed, Dragomir Anguelov, Dumitru Erhan, Vincent Vanhoucke, and Andrew Rabinovich. Going deeper with convolutions. In Proceedings of the IEEE conference on computer vision and pattern recognition, pages 1–9, 2015.
  • [25] Hamed R. Tavakoli, Fawad Ahmed, Ali Borji, and Jorma Laaksonen. Saliency revisited: Analysis of mouse movements versus fixations. In The IEEE Conference on Computer Vision and Pattern Recognition (CVPR), 2017.
  • [26] Wenguan Wang and Jianbing Shen. Deep visual attention prediction. IEEE Trans. Image Process, 27(5):2368–2378, 2018.
  • [27] Juan Xu, Ming Jiang, Shuo Wang, Mohan S Kankanhalli, and Qi Zhao. Predicting human gaze beyond pixels. Journal of vision, 14(1):28–28, 2014.
  • [28] Jason Yosinski, Jeff Clune, Anh Nguyen, Thomas Fuchs, and Hod Lipson. Understanding neural networks through deep visualization. arXiv preprint arXiv:1506.06579, 2015.
  • [29] Fisher Yu and Vladlen Koltun. Multi-scale context aggregation by dilated convolutions. arXiv preprint arXiv:1511.07122, 2015.
  • [30] Matthew D Zeiler and Rob Fergus. Visualizing and understanding convolutional networks. In European conference on computer vision, pages 818–833. Springer, 2014.
  • [31] Jianming Zhang and Stan Sclaroff. Saliency detection: A boolean map approach. In Proceedings of the IEEE international conference on computer vision, pages 153–160, 2013.
  • [32] Bolei Zhou, Agata Lapedriza, Aditya Khosla, Aude Oliva, and Antonio Torralba. Places: A 10 million image database for scene recognition. IEEE Transactions on Pattern Analysis and Machine Intelligence, 2017.
