1 Introduction

Deep neural networks (DNNs) have achieved significant success in various tasks. However, the essential reason for the superior performance of DNNs is not fully investigated, and many phenomena have not been well explained. Therefore, many methods have been proposed to explain DNNs,

e.g. investigating the phenomena of the lottery ticket hypothesis [15], explaining the phenomena of the double descent [21, 35, 17], understanding the information bottleneck hypothesis [45, 41], exploring the gradient noise and regularization [42, 32], and analyzing the nonlinear learning dynamics [40, 25, 37].

In this paper, we focus on the learning dynamics of the MLP. In general, the training process of the MLP can be considered to have two phases. In the first phase, the learning process does not find a clear optimization direction, and the training loss does not decrease. In the second phase, the training loss suddenly begins to decrease, as shown in Figure 1. The first phase may be very short or cannot be observed for simple tasks, but the first phase is long for complex tasks.

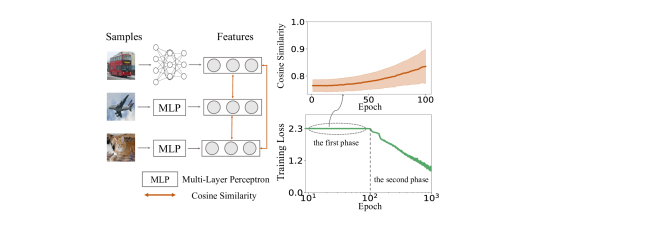

Figure 1:

The training process of a 9-layer MLP exhibits a two-phase phenomenon on the CIFAR-10 dataset. In the first phase, the training loss does not decrease significantly, and the average cosine similarity between intermediate features of different categories keeps increasing. We aim to explain the increase of feature similarity.

More specifically, this study investigates the learning dynamics of the MLP in the first phase. We find an interesting phenomenon that features of different categories become more and more similar to each other in the first phase, as Figure 2

(a) shows. The feature diversity keeps decreasing until the second phase. More crucially, we find that this phenomenon is widely shared by MLPs with different depths and widths, different activation functions, different learning rates, trained on different datasets. In fact, the investigation of feature diversity is of great value.

[38, 6], and [33] have pointed that the decrease of feature diversity may hurt the classification performance of DNNs.

In this paper, we aim to investigate why and how the feature diversity decreases during the early training process of the MLP. To this end, we explain the dynamics of features and parameters in intermediate layers of the MLP. We find that both the features and parameters of the MLP are mainly optimized towards a special direction, which is called the primary direction. Furthermore, the tendency of the optimization towards the primary direction can be boosted, just like a self-enhanced system, which decreases the diversity of features of different categories.

Besides the theoretical explanation of the decrease of feature diversity, we further propose two normalization operations to eliminate the two-phase phenomenon, in order to avoid the decrease of feature diversity.

Contributions of this study can be summarized as follows. (1) We discover the decrease of feature diversity in early iterations of learning the MLP. (2) We theoretically explain this phenomenon in terms of learning dynamics. (3) We further propose two normalization operations to avoid the decrease of feature diversity.

2 Related Work

The representation capacity of DNNs. Analyzing the representation capacity of DNNs is an important direction to explain DNNs. The information bottleneck theory [45, 41] quantitatively explained the information encoded by features in intermediate layers of DNNs. [46], [1], and [8] used the information bottleneck theory to evaluate and improve the DNN’s representation capacity. [5] analyzed the representation capacity of DNNs with real training data and noises. In addition, several metrics were proposed to measure the generalization capacity or robustness of DNNs, including the stiffness [14], the sensitivity metrics [36], the Fourier analysis [48], and the CLEVER score [44]. Some studies focused on proving the generalization bound of DNNs [30, 29].

In comparison, we explain the MLP from a new perspective, i.e. we explain the decrease of feature diversity in early iterations of the MLP.

The learning dynamics of DNNs. Analyzing the learning dynamics is another perspective to understand DNNs. Many studies analyzed the local minimal in the optimization landscape of linear networks [7, 40, 16, 12] and nonlinear networks [9, 23, 39]. Some studies discussed the convergence rate of gradient descent on separable data [43, 47, 34]. [18] and [22] have investigated the effects of the batch size and the learning rate on SGD dynamics. In addition, some studies analyzed the dynamics of gradient descent in the overparameterization regime [4, 20, 28, 13].

In comparison, we analyze the learning dynamics of features and weights of the MLP, in order to explain the decrease of feature diversity in the first phase.

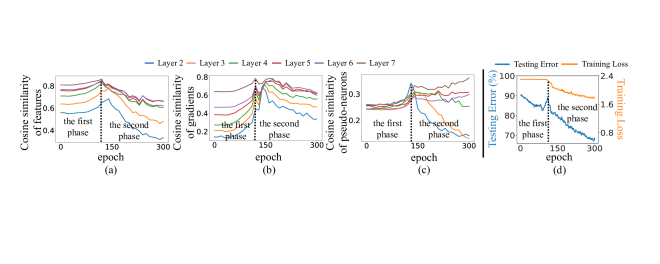

Figure 2:

We trained a 9-layer MLP on the CIFAR-10 dataset for 300 epochs, where each layer of the MLP had 512 neurons. (a) Cosine similarity of features between samples in different categories kept increasing in the first phase. The low cosine similarity indicated the high feature diversity. (b) Cosine similarity of gradients

w.r.t. features between different samples of a category kept increasing in the first phase. (c) Cosine similarity of weight changes between pseudo-neurons in a layer kept increasing. We reported the value averaged over different samples of a category. (d) The curve of the testing error and the curve of the training loss during the training process.

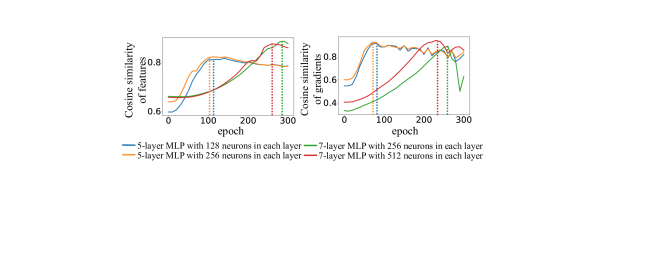

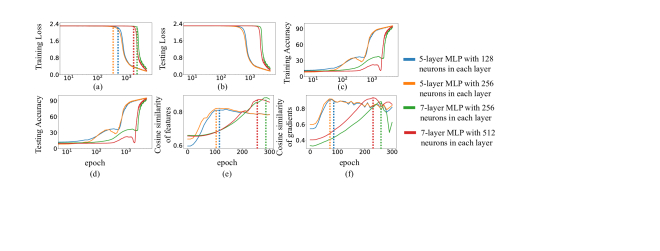

Figure 3:

We trained MLPs on the MNIST dataset, each MLP being designed with different depths and widths. (left) The cosine similarity of features between different training samples. (right) The cosine similarity of gradients

w.r.t. features between samples in a category. We computed the epoch-wise similarity curve for each MLP. Please see Appendix Section A for more discussion.

3 Algorithm

3.1 The decrease of feature diversity

In this paper, we aim to explain an interesting phenomenon when we train an MLP in early iterations. Specifically, the training process of the MLP can usually be divided into the following two phases according to the training loss. As Figure 2(d) shows, in the first phase, the training loss does not decrease significantly, and the training loss suddenly begins to decrease in the second phase.

We discover an interesting phenomenon in the first phase, i.e. both the diversity of features and the diversity of gradients w.r.t. features in intermediate layers over different samples keep decreasing.

As Figure 2(a)(b) shows, before the 130-th epoch (the first phase), both the feature diversity and the gradient diversity keep decreasing, i.e., both the cosine similarity between features over different samples and the cosine similarity between gradients keep increasing. After the 130-th epoch (the second phase), the feature diversity and the gradient diversity suddenly begin to increase, i.e. their similarities begin to decrease. Therefore, the MLP has the lowest feature diversity and the lowest gradient diversity at around the 130-th epoch.

Crucially, this phenomenon is widely shared by MLPs with different architectures for different tasks.

Specifically, we train MLPs with different activation functions (including ReLU and Leaky ReLU

[31] with the slope of 0.01, 0.1), different learning rates (= 0.1, 0.01), and different batch sizes (=100, 500). These MLPs are trained on the MNIST dataset [27], the CIFAR-10 dataset [24]

, and the first fifty categories in the Tiny ImageNet dataset

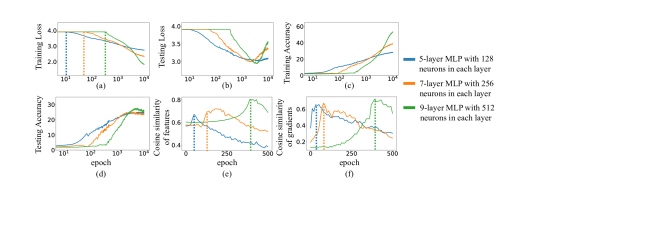

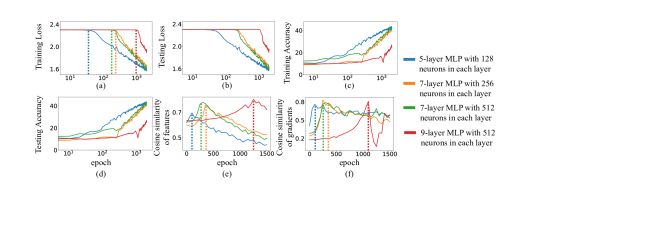

[26], respectively. Please see Appendix Section A for details. Figure 3 shows that in the first phase, both the feature diversity and the gradient diversity decrease in all MLPs.

Connection to the epoch-wise double descent. The above two-phase phenomenon is closely related to the epoch-wise double descent behavior, which was investigated by [35] and [17]. The epoch-wise double descent behavior has three stages during the training process of a DNN. The testing error decreases in the first stage, then increases in the second stage, and finally continues to decrease in the third stage. As Figure 2(d) shows, the first and the second stages in the epoch-wise double descent behavior are temporally aligned with the first phase in the aforementioned two-phase phenomenon, where the training loss does not change significantly. Please see Appendix Section B for more discussion about the epoch-wise double descent behavior. Instead of explaining the epoch-wise double descent behavior, in this paper, we mainly explain the decrease of feature diversity in the first phase.

3.2 Modeling the decrease of feature diversity

Notation. We consider an MLP with concatenated linear layers, each being followed by a ReLU layer, except the last linear layer before the softmax operation. Without loss of generality, we mainly focus on the learning dynamics of gradient descent. Let denote the weight matrix of the -th linear layer with neurons , which is learned after the -th iteration. Given an input sample , the layer-wise forward propagation of the -th layer is represented as , where denotes a ReLU layer, and denotes the output feature of the -th ReLU layer in the MLP after the -th iteration. denotes a diagonal matrix, where each element on the main diagonal represents the gating state of the -th neuron in the ReLU layer. Accordingly, gradients of the loss w.r.t output features of the -th ReLU layer are given as .

In Section 3.1, we have demonstrated the typical phenomena in the first phase of the learning process, i.e. both the similarity between features and the similarity between gradients w.r.t. features keep increasing. In this section, we mainly explore the reason for the increasing similarity between gradients w.r.t. features. Then, based on the analysis of the increasing similarity between gradients, we can explain the increasing similarity between features.

Basic idea. The theoretical explanation of the increasing similarity of gradients w.r.t. features is inspired by the following observation, i.e. weights of different neurons in the same layer are mainly changed towards a common direction.

Specifically, we disentangle the component of weight changes along the common direction. We prove that weight changes along the common direction are enhanced in the first phase. In other words, different neurons are more and more likely to be pushed towards the same direction. The enhanced common direction can explain both the increasing similarity between gradients w.r.t. features and the increasing similarity between features.

3.2.1 Observations: assuming and disentangling the common direction

We find that the increasing similarity of feature gradients in the first phase can be explained as the increasing similarity between neurons, i.e. being explained as the phenomenon that weights of different neurons are optimized towards a common direction. Given an input sample , we rewrite the back propagation in the -th linear layer as follows.

(1)

In this way, we can consider gradients computed in the back propagation as the result of a pseudo-forward propagation. In this pseudo-forward propagation, the input is gradients w.r.t. features of the -th layer , and the output is -dimensional gradients . Accordingly, the equivalent weight matrix can be considered consisting of pseudo-neurons.

Therefore, the increasing similarity between feature gradients over different samples can be explained as the increase of the similarity between pseudo-neurons in the weight matrix. The increasing similarity between weight changes of pseudo-neurons in the pseudo-forward propagation is illustrated in Figure 2

(c). Note that the initial weight of pseudo-neurons are orthogonal to each other according to the law of large numbers. Thus, Figure

2(c) shows that for most pseudo-neurons and , , which makes the cosine similarity between weights of different pseudo-neurons in the same layer keep increasing across different iterations in the first phase.

Disentangling the weight change along the common direction as the basis of the further proof. Based on the above analysis, we can roughly assume that weights of different pseudo-neurons are changed along a common direction . Thus, we aim to formulate the common direction , and disentangle the component of weight changes along the common direction . This can be served as the basis of further proof of the increasing similarity between feature gradients in the first phase.

Given a training sample after the -th iteration, let denote weight changes of pseudo-neurons in the -th layer. According to the above observation, we can decompose into the component along the common direction and the component in other directions , where denotes the common direction of weight changes .

(2)

where denotes the weight changes of different pseudo-neurons along the common direction . is relatively small and is called the “noise” term. denotes the -th row of

. We can estimate the common direction

by minimizing the noise term over different samples through different iterations as follows.

(3)
Lemma 1.

(Proof in Appendix Section C) For the decomposition , given and , reaches its minimum if and only if , where = , and .

Lemma 1 indicates that given the weight change and the common direction , we can compute and explicitly, and obtain .

Experiments to illustrate the significance of the common direction. Here, we illustrate that the weight change along the common direction is much greater than the weight change along other directions. Given the overall weight change made by all training samples after the -th iteration, we decompose into components along five common directions as , where = is termed the primary common direction. represents the secondary common direction, which is the most common direction when we remove the component of the weight change along the direction from the , i.e. . Then, we compute the by conducting Equation (3) on . Please see Appendix Section D for more discussion about the procedure of the decomposition. Similarly, and represent the third, forth, and fifth common directions, respectively. Theoretically, , , , , and are orthogonal to each other. In this way, measures the strength of weight changes along the -th common direction.

Specifically, in experiments, we trained 9-layer MLPs on the MNIST dataset [27], the CIFAR-10 dataset [24]

, and the Tiny ImageNet dataset

[26], respectively. Each layer of the MLP had 512 neurons. Figure 4 shows that the strength of the component of weights changes along the primary direction was approximately ten times greater than the strength of the component along the second direction .

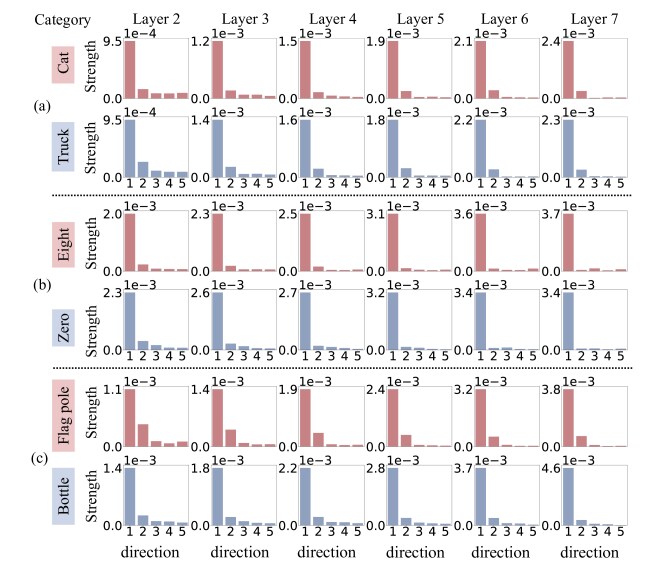

Figure 4: The strength of different common directions in the (a) CIFAR-10 dataset, (b) MNIST dataset, and (c) Tiny ImageNet dataset. We illustrated results on the two categories with the highest training accuracies. The strength of the primary direction was much greater than the strength of other directions.

3.2.2 Proof of the decrease of feature diversity

In the above analysis, we have illustrated, assumed, and disentangled the common direction of weight changes. Based on this common direction, we aim to prove the decrease of feature diversity in the first phase. The proof consists of the following three steps.
(1) We formulate common directions by investigating the learning dynamics of the weight change made by each specific training sample.
(2) Based on the learning dynamics made by a training sample, we prove that features and weight changes can enhance the significance of each other.
(3) Based on this, we can explain the increase of both the feature similarity and the gradient similarity.

CIFAR-10

Category Cat Truck
() Layer 2 Layer 3 Layer 4 Layer 5 Layer 6 Layer 2 Layer 3 Layer 4 Layer 5 Layer 6

MNIST

Category Eight Zero
() Layer 2 Layer 3 Layer 4 Layer 5 Layer 6 Layer 2 Layer 3 Layer 4 Layer 5 Layer 6

Tiny ImageNet

Category Flagpole Bottle
() Layer 2 Layer 3 Layer 4 Layer 5 Layer 6 Layer 2 Layer 3 Layer 4 Layer 5 Layer 6
Table 1: Strength of components of weight changes along the common direction and other directions. We trained 9-layer MLPs on the CIFAR-10 dataset, the MNIST dataset, and the Tiny ImageNet dataset, respectively. Each layer of the MLP had 512 neurons. The strength of the primary common direction was much greater than those of other directions. Appendix Section F discusses the reason for the phenomenon that , , and does not decrease monotonically.
Lemma 2.

(Proof in Appendix Section E) For the decomposition , given and , reaches its minimum if and only if , where = , and .

Lemma 2 reveals that given the weight matrix and the common direction , we can compute and explicitly, and obtain .

Theorem 1.

(Proof in Appendix Section F) The weight change made by a sample can be decomposed into terms after the -th iteration: , where , . , where the SVD of is given as , and denotes the

-th singular value

. and denote the -th column of the matrix and , respectively. Besides, we have .

Formulating the learning dynamics made by each specific training sample. Theorem 1 enables us to decompose common directions from the learning dynamics (weight changes) made by each specific training sample .

The primary term represents the component of weight changes along the common direction . The -th term represents the component of weight changes along the -th direction , which is orthogonal to the common direction .

Table 1 illustrates that the strength of the component of weight changes along the primary common direction is much more significant than strengths of components along other directions. To this end, we compute the average strength of weight changes along the common direction over all samples across different iterations . Similarly, the strength of weight changes along the -th direction is computed as .

Relationship between features and weight changes. Inspired by the above learning dynamics of weight changes made by each specific training sample, we discover a close relationship between features and weight changes. Specifically, according to Theorem 1, the change of weights made by a sample after the -th iteration can be computed as follows.

(4)

where , and . Please see Appendix Section F for the proof.

We discover that weight changes can be represented as both in Equation (4) and in Equation (2). Note that is highly related to the primary common direction in the -th layer. Thus, both terms and play dominant roles in . Therefore, we guess that the common direction is similar to , and the feature

is similar to the vector

. Figure 5 verifies the guess that the feature is in the similar direction of the vector , where .

The proof of the self-enhanced common direction. Inspired by the above relationship between features and weight changes, we aim to prove that features and weights become more and more similar to each other in the first phase. Such proof can explain the self-enhancement of the common direction in the first phase.

Theorem 2.

(Proof in Appendix Section G) Given an input sample and a common direction after the -th iteration, if the maximum singular value of is small enough, we can obtain , where , and .

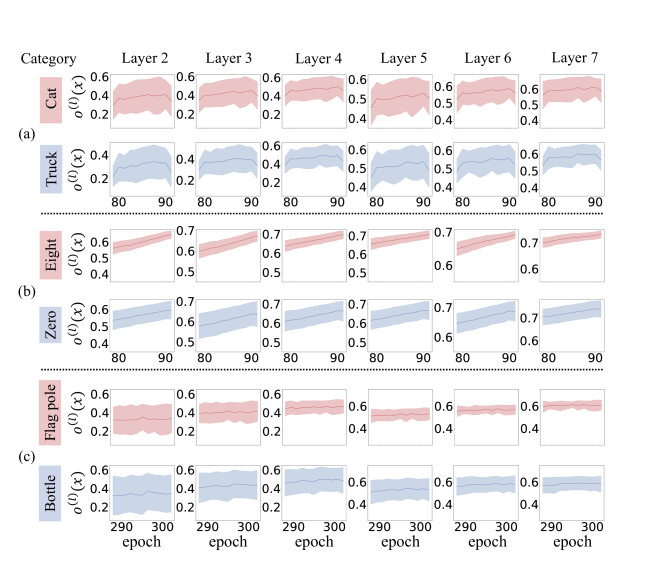

Figure 5: Cosine similarity between the feature and the vector

in the first phase. We conducted experiments on 9-layer MLPs trained on the (a) CIFAR-10 dataset, and (b) Tiny ImageNet dataset. The shade in each subfigure represents the standard deviation of the cosine similarity over different samples.

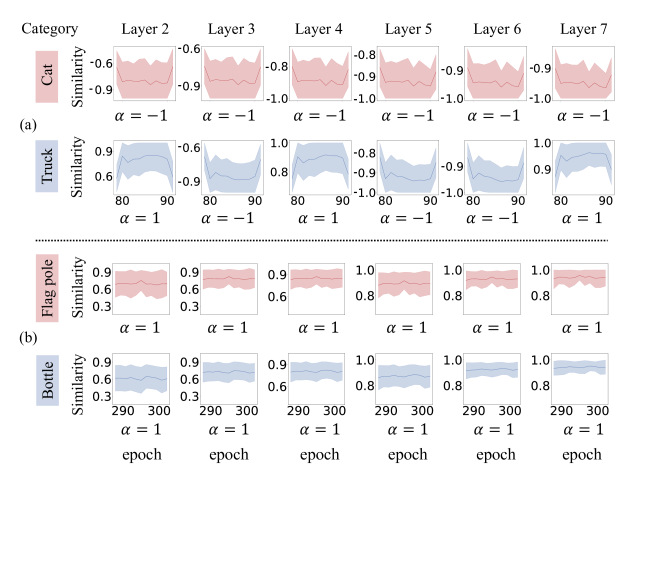

Figure 6: The change of in the first phase. We trained 9-layer MLPs on the CIFAR-10 (a), the MNIST (b), and the Tiny ImageNet (c). Each layer of the MLP had 512 neurons.

Theorem 2 describes two typical learning dynamics in the first phase, i.e. the feature is pushed towards either the coefficient vector or the coefficient vector . To this end, denotes the change of features after the -th iteration. In this paper, we roughly consider that the change of features is negatively related to the gradient w.r.t. features, i.e. and , although strictly speaking, the change of features is not exactly equal to the gradient w.r.t. features.

Theorem 2 shows the following two cases. In Case 1, if , then . In other words, if the coefficient vector is pushed towards the feature , then the feature is pushed towards the coefficient vector . In this way, we consider that the feature and the coefficient vector become more and more similar to each other in the first phase. Similarly, in Case 2, given another input training sample , if , then . In other words, if the coefficient vector is pushed towards the direction of the feature , then the feature is pushed towards the coefficient vector . In this way, the feature and the coefficient vector gradually become negatively related to each other.

Verification. We conducted experiments to verify the relationship between features and weights. To this end, we measured the change of the value in the first phase. Figure 6 reports the mean and the standard deviation of over different samples at each epoch. We repeatedly conducted experiments on the CIFAR-10 dataset, the MNIST dataset, and the Tiny ImageNet dataset, respectively, to measure the . For each sample , was always positive and usually increased over epochs, which verified Theorem 2. Besides, Theorem 2 is based on the assumption that the maximum singular value of is small enough. Experimental results in Appendix Section G verified that the maximum singular value of was usually small enough in the first phase.

Theorem 3.

(Proof in Appendix Section H) For each training sample belonging to the category , we have , and , where is constant for each category for the -th layer.

Theorem 3 indicates that training samples of the same category all push the vector towards the feature in the first phase, where is a constant shared by different samples of the same category . Figure 5 verifies that are consistently positive over different samples of the same category.

Assumption 1. We assume that the MLP encodes features of very few (a single or two) categories in the first phase, while other categories have not been learned in the first phase.

To verify this assumption, Figure 7 shows that only a single or two categories exhibit much higher accuracies than the random guessing at the end of the first phase. This indicates that the learning of the MLP is dominated by training samples of a single or two categories.

The combination of Theorem 3 and Assumption 1 clarifies the overall learning dynamics in the first phase. In other words, the overall learning effects of all training samples can be roughly considered as pushing the vector towards the feature . is determined by the dominating category/categories. In addition, , which means that the change of the feature is similar to the vector . Thus, we can consider that the change of the feature is modified towards the feature . In this way, the learning process of the MLP works just like a self-enhanced system. Besides, the weight coefficient vector and the feature enhance each other.

Proof the increasing feature similarity and the increasing gradient similarity. As aforementioned, features of different samples are consistently pushed towards the same vector . Therefore, the similarity between features of different samples increases in the first phase, which makes different training samples generate similar gating states in each ReLU layer. The increasing similarity between gating states of each ReLU layer over different samples leads to the increasing the similarity between gradients w.r.t. features over different samples of the same category. Please see Appendix Section I for more discussion.

How to escape from the first phase? In the first phase, the MLP only discovers a single direction to optimize a single or two categories. However, the optimization of a single or two categories will soon saturate, and the gradient mainly comes from training samples of other categories, which destroys the dominating roles of a single or two categories in the learning of the MLP. Therefore, the learning effects of training samples from different categories may conflict with each other. Thus, the self-enhanced system is destroyed, and the learning of the MLP enters the second phase.

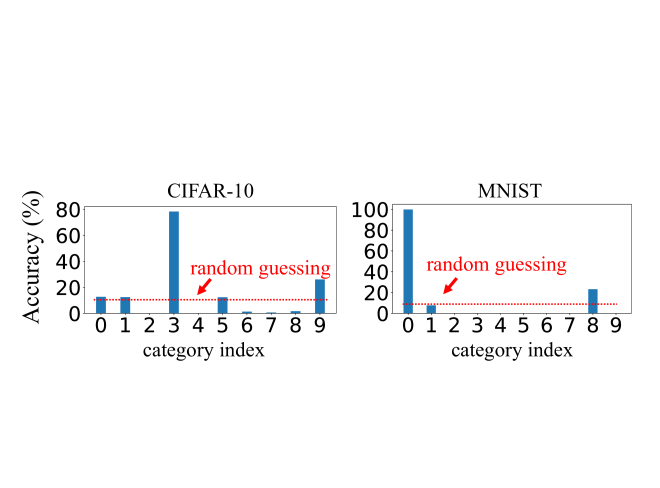

Figure 7: The training accuracy of MLPs on the CIFAR-10 dataset and the MNIST dataset. The accuracy was evaluated at the end of the first phase. The MLP only learned features of a single or two categories in the first phase.

3.3 Eliminating the decrease of feature diversity

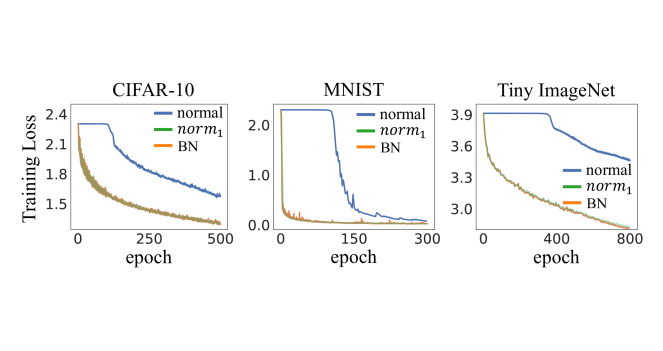

Figure 8: The training loss with and without normalization operations of 9-layer MLPs trained on the CIFAR-10, the MNIST, and the Tiny ImageNet dataset, respectively.
Figure 9: The relative strength of weight changes along other directions w.r.t. the primary direction. We compared the relative strength between MLPs with and without normalization operations. The experiment was conducted on the cat category and the truck category in the CIFAR-10 dataset.

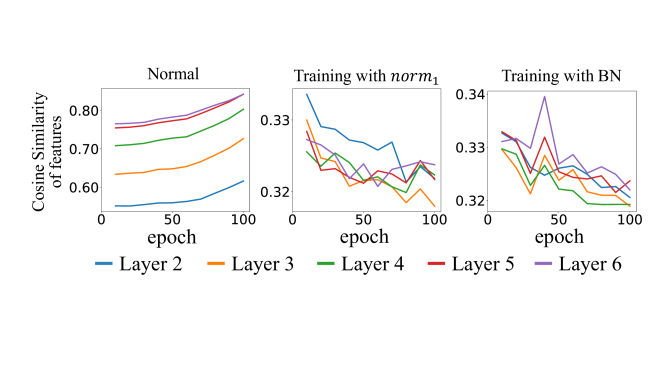

Figure 10: Cosine similarity of features between samples in different categories. We compared the cosine similarity between MLPs with and without normalization operations on the CIFAR-10 dataset.

In this section, we aim to eliminate the decrease of feature diversity in the first phase, in order to speed up the training process. The analysis in the above section shows that the similarity between features of different samples increases in the first phase. To this end, we propose to use two normalization operations to eliminate the decrease of feature diversity in the first phase.

We are given the output feature of the -th linear layer w.r.t. the input sample , where denotes the -th dimension of the feature. The first normalization operation is given as , where and denote the mean value and the standard deviation of

over different samples, respectively. This operation is similar to the batch normalization

[19], but we do not compute the scaling and shifting parameters in the batch normalization. The second normalization operation is the batch normalization. The above two normalization operations can prevent features of different samples from being similar to each other, because the mean feature is subtracted from features of all samples.

In order to verify the two normalization operations can eliminate the two-phase phenomenon during the training process of the MLP, we trained 9-layer MLPs with and without normalization operations. Specifically, for the normalization operation , we added the normalization operation after each linear layer, expect the last linear layer. Similarly, for the MLP with the batch normalization operation, we added a batch normalization layer after each linear layer. Each linear layer in the MLP had 512 neurons. Figure 8 shows that the two normalization operations successfully eliminated the two-phase phenomenon of the learning of MLPs and sped up the training process.

Figure 9 shows that in MLPs with normalization operations, weight changes along other common directions were strengthened than those in the MLP without normalization operations. To this end, we used to measure the relative strength of weight changes along the -th common direction w.r.t. the strength of weights changes along the primary common direction . Furthermore, Figure 10 shows that the feature similarity in MLPs with normalization operations kept decreasing, while the feature similarity of the MLP without normalization operations kept increasing. This indicated that the normalization operations avoided the decreasing of feature diversity.

4 Conclusion

In this paper, we find that in the early stage of the training process, the MLP exhibits a two-phase phenomenon, and the feature diversity keeps decreasing in the first phase. We formulate and explain this phenomenon by analyzing the learning dynamics of the MLP. Furthermore, we propose to use two normalization operations to eliminate the above two-phase phenomenon and speed up the training process.
