1 Introduction
Deep artificial neural networks (ANNs) have recently been very successful at solving image categorization problems. Early successes with the MNIST database
[1] were subsequently tested on the more difficult but similarly sized CIFAR10 [2] and Streetview house numbers [3] datasets. Recently, many groups have achieved better results on these small datasets (e.g. [4]), as well as on larger datasets (e.g. [5]). This work has culminated with the application of deep convolutional neural networks to ImageNet
[6], a very large and challenging dataset with 1.2 million images across 1000 categories.There has recently been considerable effort to introduce neural “spiking” into deep ANNs [7, 8, 9, 10, 11, 12], such that connected nodes in the network transmit information via instantaneous single bits (spikes), rather than transmitting realvalued activities. While one goal of this work is to better understand the brain by trying to reverse engineer it [7], another goal is to build energyefficient neuromorphic systems that use a similar spiking communication method, for image categorization [10, 11, 12] or other applications [13].
In this paper, we present a novel method for translating deep ANNs into spiking networks for implementation on neuromorphic hardware. Unlike previous methods, our method is applicable to a broad range of neural nonlinearities, allowing for implementation on hardware with idiosyncratic neuron types (e.g. [14]). We extend our previous results [15] to additional datasets, and most notably demonstrate that it scales to the large ImageNet dataset. We also perform an analysis demonstrating that neuromorphic implementations of these networks will be many times more powerefficient than the equivalent nonspiking networks running on traditional hardware.
2 Methods
We first train a network on static images using traditional deep learning techniques; we call this the ANN. We then take the parameters (weights and biases) from the ANN and use them to connect spiking neurons, forming the spiking neural network (SNN). A central challenge is to train the ANN in such a way that it
can be transferred into a spiking network, and such that the classification error of the resulting SNN is minimized.2.1 Convolutional ANN
We base our network off that of Krizhevsky et al. [6], which won the ImageNet ILSVRC2012 competition. A smaller variant of the network achieved 11% error on the CIFAR10 dataset. The network makes use of a series of generalized convolutional layers
, where one such layer is composed of a set of convolutional weights, followed by a neural nonlinearity, a pooling layer, and finally a local contrast normalization layer. These generalized convolutional layers are followed by either locallyconnected layers, fullyconnected layers, or both, all with a neural nonlinearity. In the case of the original network, the nonlinearity is a rectified linear (ReLU) function, and pooling layers perform maxpooling. The details of the network can be found in
[6] and code is available^{1}^{1}1https://github.com/akrizhevsky/cudaconvnet2.To make the ANN transferable to spiking neurons, a number of modifications are necessary. First, we remove the local response normalization layers. This computation would likely require some sort of lateral connections between neurons, which are difficult to add in the current framework since the resulting network would not be feedforward and we are using methods focused on training feedforward networks.
Second, we changed the pooling layers from max pooling to average pooling. Again, computing max pooling would likely require lateral connections between neurons, making it difficult to implement without significant changes to the training methodology. Average pooling, on the other hand, is very easy to compute in spiking neurons, since it is simply a weighted sum.
The other modifications—using leaky integrateandfire neurons and training with noise—are the main focus of this paper, and are described in detail below.
2.2 Leaky integrateandfire neurons
Our network uses a modified leaky integrateandfire (LIF) neuron nonlinearity instead of the rectified linear nonlinearity. Past work has kept the rectified linear nonlinearity for the ANN and substituted in the spiking integrateandfire (IF) neuron model in the SNN [11, 10], since the static firing curve of the IF neuron model is a rectified line. Our motivation for using the LIF neuron model is that it and it demonstrates that more complex, nonlinear neuron models can be used in such networks. Thus, these methods can be extended to the idiosyncratic neuron types employed by some neuromorphic hardware (e.g. [14]).
The LIF neuron dynamics are given by the equation
(1)
where is the membrane voltage, is its derivative with respect to time, is the input current, and is the membrane time constant. When the voltage reaches , the neuron fires a spike, and the voltage is held at zero for a refractory period of . Once the refractory period is finished, the neuron obeys Equation 1 until another spike occurs.
Given a constant input current , we can solve Equation 1 for the time it takes the voltage to rise from zero to one, and thereby find the steadystate firing rate
(2)
where .
Theoretically, we should be able to train a deep neural network using Equation 2 as the static nonlinearity and make a reasonable approximation of the network in spiking neurons, assuming that the spiking network has a synaptic filter that sufficiently smooths a spike train to give a good approximation of the firing rate. The LIF steady state firing rate has the particular problem that the derivative approaches infinity as
, which causes problems when employing backpropagation. To address this, we added smoothing to the LIF rate equation.
If we replace the hard maximum with a softer maximum , then the LIF neuron loses its hard threshold and the derivative becomes bounded. Further, we can use the substitution
(3)

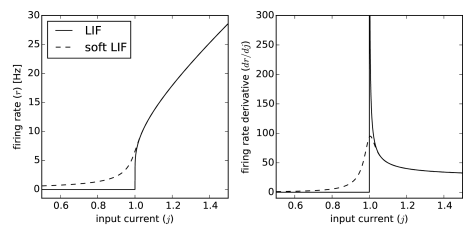

to allow us control over the amount of smoothing, where as . Figure 1 shows the result of this substitution.
2.3 Training with noise
Training neural networks with various types of noise on the inputs is not a new idea. Denoising autoencoders
[16] have been successfully applied to datasets like MNIST, learning more robust solutions with lower generalization error than their nonnoisy counterparts.In a biological spiking neural network, synapses between neurons perform some measure of filtering on the spikes, due to the fact that the postsynaptic current induced by the neurotransmitter release is distributed over time. We employ a similar mechanism in our networks to attenuate some of the variability introduced by spikes. The
function is a simple secondorder lowpass filter, inspired by biology [17]. We chose this as a synaptic filter for our networks since it provides better noise reduction than a firstorder lowpass filter.The filtered spike train can be viewed as an estimate of the neuron activity. For example, if the neuron is firing regularly at 200 Hz, filtering spike train will result in a signal fluctuating around 200 Hz. We can view the neuron output as being 200 Hz, with some additional “noise” around this value. By training our ANN with some random noise added to the output of each neuron for each training example, we can simulate the effects of using spikes on the signal received by the postsynaptic neuron.

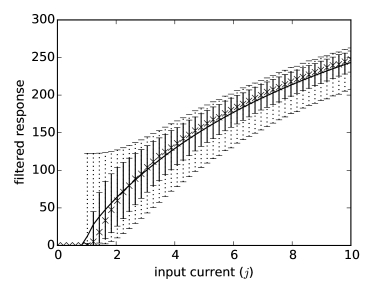

Figure 2 shows how the variability of filtered spike trains depends on input current for the LIF neuron. Since the impulse response of the filter has an integral of one, the mean of the filtered spike trains is equal to the analytical rate of Equation 2
. However, the statistics of the filtered signal vary significantly across the range of input currents. Just above the firing threshold, the distribution is skewed towards higher firing rates (i.e. the median is below the mean), since spikes are infrequent so the filtered signal has time to return to near zero between spikes. At higher input currents, on the other hand, the distribution is skewed towards lower firing rates (i.e. the median is above the mean). In spite of this, we used a Gaussian distribution to generate the additive noise during training, for simplicity. We found the average standard deviation to be approximately
across all positive input currents for an filter with . During training, we add Gaussian noise to the firing rate (Equation 2) when , and add no noise when .2.4 Conversion to a spiking network
Finally, we convert the trained ANN to a SNN. The parameters in the spiking network (i.e. weights and biases) are all identical to that of the ANN. The convolution operation also remains the same, since convolution can be rewritten as simple connection weights (synapses) between presynaptic neuron and postsynaptic neuron . (How the brain might learn connection weight patterns, i.e. filters, that are repeated at various points in space, is a much more difficult problem that we will not address here.) Similarly, the average pooling operation can be written as a simple connection weight matrix, and this matrix can be multiplied by the convolutional weight matrix of the following layer to get direct connection weights between neurons.^{2}^{2}2For computational efficiency, we actually compute the convolution and pooling separately.
The only component of the network that changes when moving from the ANN to the SNN is the neurons themselves. The most significant change is that we replace the soft LIF rate model (Equation 2) with the LIF spiking model (Equation 1). We remove the additive Gaussian noise used in training. We also add postsynaptic filters to the neurons, which removes a significant portion of the highfrequency variation produced by spikes.
3 Results
We tested our methods on five datasets: MNIST [1], SVHN [18], CIFAR10 and CIFAR100 [19], and the large ImageNet ILSVRC2012 dataset [20]. Our best result for each dataset is shown in Table 1. Using our methods has allowed us to build spiking networks that perform nearly as well as their nonspiking counterparts using the same number of neurons. All datasets show minimal loss in accuracy when transforming from the ANN to the SNN. ^{3}^{3}3
The ILSVRC2012 dataset actually shows a marginal increase in accuracy, though this is likely not statistically significant and could be because the spiking LIF neurons have harder firing thresholds than their softLIF rate counterparts. Also, the CIFAR100 dataset shows a considerable increase in performance when using softLIF neurons versus ReLUs in the ANN, but this could simply be due to the training hyperparameters chosen, since these were not optimized in any way.
Table 2 compares our results to the best spiking network results on these datasets in the literature. The most significant recent results are from [12], who implemented networks for a number of datasets on both one and eight TrueNorth chips. Their results are impressive, but are difficult to compare with ours since they use between 20 and 160 times more neurons. We surpass a number of their onechip results while using an order of magnitude fewer neurons. Furthermore, we demonstrate that our method scales to the large ILSVRC2012 dataset, which no other SNN implementation to date has done. The most significant difference between our results and that of [10] and [11] is that we use LIF neurons and can generalize to other neuron types, whereas their methods (and those of [12]) are specific to IF neurons.
We examined our methods in more detail on the CIFAR10 dataset. This dataset is composed of 60000 pixel labelled images from ten categories. We used the first 50000 images for training and the last 10000 for testing, and augmented the dataset by taking random patches from the training images and then testing on the center patches from the testing images. This methodology is similar to Krizhevsky et al. [6]
, except that they also used multiview testing where the classifier output is the average output of the classifier run on nine random patches from each testing image (increasing the accuracy by about 2%).
Table 3 shows the effect of each modification on the network classification error. Rows 15 show that each successive modification required to make the network amenable to running in spiking neurons adds additional error. Despite the fact that training with noise adds additional error to the ANN, rows 68 of the table show that in the spiking network, training with noise pays off, though training with too much noise is not advantageous. Specifically, though training with versus decreased the error introduced when switching to spiking neurons, it introduced more error to the ANN (Network 5), resulting in worse SNN performance (Network 8).
#  Modification  CIFAR10 error

0  Original ANN based on Krizhevsky et al. [6]  14.03%
1  Network 0 minus local contrast normalization  14.38%
2  Network 1 minus max pooling  16.70%
3  Network 2 with soft LIF  15.89%
4  Network 3 with training noise ()  16.28%
5  Network 3 with training noise ()  16.92%
6  Network 3 () in spiking neurons  17.06%
7  Network 4 () in spiking neurons  16.46%
8  Network 5 () in spiking neurons  17.04%
3.1 Efficiency
Running on standard hardware, spiking networks are considerably less efficient than their ANN counterparts. This is because ANNs are static, requiring only one forwardpass through the network to compute the output, whereas SNNs are dynamic, requiring the input to be presented for a number of time steps and thus a number of forward passes. On hardware that can take full advantage of the sparsity that spikes provide—that is, neuromorphic hardware—SNNs can be more efficient than the equivalent ANNs, as we show here.
First, we need to compute the computational efficiency of the original network, specifically the number of floatingpoint operations (flops) required to pass one image through the network. There are two main sources of computation in the image: computing the neurons and computing the connections.
flops  (4)
Since a rectified linear unit is a simple max function, it requires only one flop to compute (flops/neuron = 1). Each connection requires two flops, a multiply and an add (flops/connection = 2). We can determine the number of connections by “unrolling” each convolution, so that the layer is in the same form as a locally connected layer.
To compute the SNN efficiency on a prospective neuromorphic chip, we begin by identifying the energy cost of a synaptic event () and neuron update (), relative to standard hardware. In consultation with neuromorphic experts, and examining current reports of neuromorphic chips (e.g. [21]), we assume that each neuron update takes as much energy as 0.25 flops (), and each synaptic event takes as much energy as 0.08 flops (). (These numbers could potentially be much lower for analog chips, e.g. [14].) Then, the total energy used by an SNN to classify one image is (in units of the energy required by one flop on standard hardware)
(5)
For our CIFAR10 network, we find that on average, the network has rates of 2,693,315,174 synops/s and 49,536,000 updates/s. This results in , when each image is presented for 200 ms. Dividing by the number of flops per image on standard hardware, we find that the relative efficiency of the CIFAR10 network is 0.76, that is it is somewhat less efficient.
Equation 5 shows that if we are able to lower the amount of time needed to present each image to the network, we can lower the energy required to classify the image. Alternatively, we can lower the number of synaptic events per second by lowering the firing rates of the neurons. Lowering the number of neuron updates would have little effect on the overall energy consumption since the synaptic events require the majority of the energy.
To lower the presentation time required for each input while maintaining accuracy, we need to decrease the synapse time constant as well, so that the information is able to propagate through the whole network in the decreased presentation time. Table 4 shows the effect of various alternatives for the presentation time and synapse time constant on the accuracy and efficiency of the networks for a number of the datasets.
Dataset  [ms]  [ms]  [ms]  Error  Efficiency

CIFAR10  5  120  200  16.46%  0.76
CIFAR10  0  10  80  16.63%  1.64
CIFAR10  0  10  60  17.47%  2.04
MNIST  5  120  200  0.88%  5.94
MNIST  2  40  100  0.92%  11.98
MNIST  2  50  60  1.14%  14.42
MNIST  0  20  60  3.67%  14.42
ILSVRC2012  3  140  200  23.80%  1.39
ILSVRC2012  0  30  80  25.33%  2.88
ILSVRC2012  0  30  60  25.36%  3.51
Table 4 shows that for some datasets (e.g. CIFAR10 and ILSVRC2012) the synapses can be completely removed ( ms) without sacrificing much accuracy. Interestingly, this is not the case with the MNIST network, which requires at least some measure of synapses to function accurately. We suspect that this is because the MNIST network has much lower firing rates than the other networks (average of 9.67 Hz for MNIST, 148 Hz for CIFAR10, 93.3 Hz for ILSVRC2012). This difference in average firing rates is also why the MNIST network is significantly more efficient than the other networks.
It is important to tune the classification time, both in terms of the total length of time each example is shown for (), and when classification begins (). The optimal values for these parameters are very dependent on the network, both in terms of the number of layers, firing rates, and synapse time constants. Figure 3 shows how the classification time affects accuracy for various networks.
CIFAR10 ( ms)  CIFAR10 ( ms)
MNIST ( ms)  ILSVRC2012 ( ms)
Given that the CIFAR10 network performs almost as well with no synapses as with synapses, one may question whether noise is required during training at all. We retrained the CIFAR10 network with no noise and ran with no synapses, but could not achieve accuracy better than 18.06%. This suggests that noise is still beneficial during training.
4 Discussion
Our results show that it is possible to train accurate deep convolutional networks for image classification without adding neurons, while using more complex nonlinear neuron types—specifically the LIF neuron—as opposed to the traditional rectifiedlinear or sigmoid neurons. We have shown that networks can be run in spiking neurons, and training with noise decreases the amount of error introduced when running in spiking versus rate neurons. These networks can be significantly more energyefficient than traditional ANNs when run on specialized neuromorphic hardware.
The first main contribution of this paper is to demonstrate that stateoftheart spiking deep networks can be trained with LIF neurons, while maintaining high levels of classification accuracy. For example, we have described the first largescale SNN able to provide good results on ImageNet. Notably, all other stateoftheart methods use integrateandfire (IF) neurons [11, 10, 12], which are straightforward to fit to the rectified linear units commonly used in deep convolutional networks. We show that there is minimal drop in accuracy when converting from ANN to SNN. We also examine how classification time affects accuracy and energyefficiency, and find that networks can be made quite efficient with minimal loss in accuracy.
By smoothing the LIF response function so that its derivative remains bounded, we are able to use this more complex and nonlinear neuron with a standard convolutional network trained by backpropagation. Our smoothing method is extensible to other neuron types, allowing for networks to be trained for neuromorphic hardware with idiosyncratic neuron types (e.g. [14]). We found that there was very little error introduced by switching from the soft response function to the hard response function with LIF neurons for the amount of smoothing that we used. However, for neurons with harsh discontinuities that require more smoothing, it may be necessary to slowly relax the smoothing over the course of the training so that, by the end of the training, the smooth response function is arbitrarily close to the hard response function.
The second main contribution of this paper is to demonstrate that training with noise on neuron outputs can decrease the error introduced when transitioning to spiking neurons. The error decreased by 0.6% overall on the CIFAR10 network, despite the fact that the ANN trained without noise performs better. This is because noise on the output of the neuron simulates the variability that a spiking network encounters when filtering a spike train. There is a tradeoff between training with too little noise, which makes the SNN less accurate, and too much noise, which makes the initially trained ANN less accurate.
These methods provide new avenues for translating traditional ANNs to spikebased neuromorphic hardware. We have provided some evidence that such implementations can be significantly more energyefficient than their ANN counterparts. While our analyses only consider static image classification, we expect that the real efficiency of SNNs will become apparent when dealing with dynamic inputs (e.g. video). This is because SNNs are inherently dynamic, and take a number of simulation steps to process each image. This makes them best suited to processing dynamic sequences, where adjacent frames in the video sequence are similar to one another, and the network does not have to take time to constantly “reset” after sudden changes in the input.
Future work includes experimenting with lowering firing rates for greater energyefficiency. This could be done by changing the neuron refractory period to limit the firing below a particular rate, optimizing for both accuracy and low rates, using adapting neurons, or adding lateral inhibition in the convolutional layers. Other future work includes implementing maxpooling and local contrast normalization layers in spiking networks. Networks could also be trained offline as described here and then finetuned online using an STDP rule [22, 23] to help further reduce errors associated with converting from ratebased to spikebased networks, while avoiding difficulties with training a network in spiking neurons from scratch.
