1.1 What is MARF?

MARF stands for Modular Audio Recognition F

ramework. It contains a collection of algorithms for Sound, Speech, and Natural Language Processing arranged into an uniform framework to facilitate addition of new algorithms for preprocessing, feature extraction, classification, parsing, etc. implemented in Java.

MARF is also a research platform for various performance metrics of the implemented algorithms.

1.1.1 Purpose

Our main goal is to build a general open-source framework to allow developers in the audio-recognition industry (be it speech, voice, sound, etc.) to choose and apply various methods, contrast and compare them, and use them in their applications. As a proof of concept, a user frontend application for Text-Independent (TI) Speaker Identification has been created on top of the framework (the SpeakerIdentApp program). A variety of testing applications and applications that show how to use various aspects of MARF are also present. A new recent addition is some (highly) experimental NLP support, which is also included in MARF as of 0.3.0-devel-20050606 (0.3.0.2). For more information on applications that employ MARF see Chapter 11.

1.1.2 Why Java?

We have chosen to implement our project using the Java programming language. This choice is justified by the binary portability of the Java applications as well as facilitating memory management tasks and other issues, so we can concentrate more on the algorithms instead. Java also provides us with built-in types and data-structures to manage collections (build, sort, store/retrieve) efficiently [javanuttshell].

1.1.3 Terminology and Notation

The term “MARF” will be to refer to the software that accompanies this documentation. An application programmer could be anyone who is using, or wants to use, any part of the MARF system. A MARF developer is a core member of MARF who is hacking away the MARF system.

1.2 Authors, Contact, and Copyright Information

1.2.1 Copyright

MARF is Copyright 2002 - 2009 by the MARF Research and Development Group and is distributed under the terms of the BSD-style license below.

Permission to use, copy, modify, and distribute this software and its documentation for any purpose, without fee, and without a written agreement is hereby granted, provided that the above copyright notice and this paragraph and the following two paragraphs appear in all copies.

IN NO EVENT SHALL CONCORDIA UNIVERSITY OR THE AUTHORS BE LIABLE TO ANY PARTY FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, INCLUDING LOST PROFITS, ARISING OUT OF THE USE OF THIS SOFTWARE AND ITS DOCUMENTATION, EVEN IF CONCORDIA UNIVERSITY OR THE AUTHORS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

CONCORDIA UNIVERSITY AND THE AUTHORS SPECIFICALLY DISCLAIM ANY WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE SOFTWARE PROVIDED HEREUNDER IS ON AN “AS-IS” BASIS, AND CONCORDIA UNIVERSITY AND THE AUTHORS HAVE NO OBLIGATIONS TO PROVIDE MAINTENANCE, SUPPORT, UPDATES, ENHANCEMENTS, OR MODIFICATIONS.

1.2.2 Authors

Authors Emeritus, in alphabetical order:

Contributors:

Current maintainers:

If you have some suggestions, contributions to make, or for bug reports, don’t hesitate to contact us :-) For MARF-related issues please contact us at marf-devel@lists.sf.net. Please report bugs to marf-bugs@lists.sf.net.

1.3 Brief History of MARF

The MARF

project was initiated in September 26, 2002 by four students of Concordia University, Montréal, Canada as their course project for Pattern Recognition under guidance of Dr. C.Y. Suen. This included Ian Clément, Stephen Sinclair, Jimmy Nicolacopoulos, and Serguei Mokhov.

1.3.1 Developers Emeritus

  • Ian’s primary contributions were the LPC and Neural Network algorithms support with the

    Spectrogram dump.

  • Steve has done an extensive research and implementation of the FFT algorithm for feature extraction and filtering and Euclidean Distance with the WaveGrapher class.

  • Jimmy was focused on implementation of the WAVE file format loader and other storage issues.

  • Serguei designed the entire MARF framework and architecture, originally implemented general distance classifier and its Chebyshev, Minkowski, and Mahalanobis incarnations along with normalization of the sample data. Serguei designed the Exceptions Framework of MARF and was involved into the integration of all the modules and testing applications to use

    MARF.

1.3.2 Contributors

  • Shuxin ‘Susan’ Fan contributed to development and maintenance of some test applications (e.g. TestFilters) and initial adoption of the JUnit framework [junit] within MARF. She has also finalized some utility modules (e.g. marf.util.Arrays) till completion and performed MARF code auditing and “inventory”. Shuxin has also added NetBeans project files to the build system of MARF.

1.3.3 Current Status and Past Releases

Now it’s a project on its own, being maintained and developed as we have some spare time for it. When the course was over, Serguei Mokhov is the primary maintainer of the project. He rewrote Storage support and polished all of MARF during two years and added various utility modules and NLP support and implementation of new algorithms and applications. Serguei maintains this manual, the web site and most of the sample database collection. He also made all the releases of the project as follows:

  • 0.3.0-devel-20060226 (0.3.0.5), Sunday, February 26, 2006

  • 0.3.0-devel-20050817 (0.3.0.4), Wednesday, August 17, 2005

  • 0.3.0-devel-20050730 (0.3.0.3), Saturday, July 30, 2005

  • 0.3.0-devel-20050606 (0.3.0.2), Monday, June 6, 2005

  • 0.3.0-devel-20040614 (0.3.0.1), Monday, June 14, 2004

  • 0.2.1, Monday, February 17, 2003

  • 0.2.0, Monday, February 10, 2003

  • 0.1.2, December 17, 2002 - Final Project Deliverable

  • 0.1.1, December 8, 2002 - Demo

The project is currently geared towards completion planned TODO items on MARF and its applications.

1.4 MARF Source Code

1.4.1 Project Source and Location

Our project since the its inception has always been an open-source project. All releases including the most current one should most of the time be accessible via <http://marf.sourceforge.net> provided by SourceForge.net. We have a complete API documentation as well as this manual and all the sources available to download through this web page.

1.4.2 Formatting

Source code formatting uses a 4 column tab spacing, currently with tabs preserved (i.e. tabs are not expanded to spaces).

For Emacs, add the following (or something similar) to your /̃.emacs initialization file:

;; check for files with a path containing "marf"
(setq auto-mode-alist
  (cons ’("\\(marf\\).*\\.java\\’" . marf-java-mode)
        auto-mode-alist))
(setq auto-mode-alist
  (cons ’("\\(marf\\).*\\.java\\’" . marf-java-mode)
        auto-mode-alist))

(defun marf-java-mode ()
  ;; sets up formatting for MARF Java code
  (interactive)
  (java-mode)
  (setq-default tab-width 4)
  (java-set-style "bsd")      ; set java-basic-offset to 4, etc.
  (setq indent-tabs-mode t))  ; keep tabs for indentation

For vim, your /̃.vimrc or equivalent file should contain the following:

set tabstop=4

or equivalently from within vim, try

:set ts=4

The text browsing tools more and less can be invoked as

more -x4
less -x4

1.4.3 Coding and Naming Conventions

For now, please see http://marf.sf.net/coding.html.

1.5 Versioning

This section attempts to clarify versioning scheme employed by the MARF project for stable and development releases.

In the 0.3.0 series a four digit version number was introduced like 0.3.0.1 or 0.3.0.2 and so on. The first digit indicates a major version. This typically indicates a significant coverage of implementations of major milestones and improvements, testing and quality validation and verification to justify a major release. The minor version has to do with some smaller milestones achieved throughout the development cycles. It is a bit subjective of what the minor and major version bumps are, but the TODO list in Appendix E sets some tentative milestones to be completed at each minor or major versions. The revision is the third digit is typically applied to stable releases if there are a number of critical bug fixes in the minor release, it’s revision is bumped. The last digit represents the minor revision of the code release. This is typically used throughout development releases to make the code available sooner for testing. This notion was first introduced in 0.3.0 to count sort of increments in MARF development, which included bug fixes from the past increment and some chunk of new material. Any bump of major, minor versions, or revision, resets the minor revision back to zero. In the 0.3.0-devel release series these minor revisions were publicly displayed as dates (e.g. 0.3.0-devel-20050817) on which that particular release was made.

All version as of 0.3.0 can be programmatically queried for and validated against. In 0.3.0.5, a new Version class was introduced to encapsulate all versioning information and some validation of it to be used by the applications.

  • the major version can be obtained from marf.MARF.MAJOR_VERSION and marf.Version.MAJOR_VERSION where as of 0.3.0.5 the former is an alias of the latter

  • the minor version can be obtained from marf.MARF.MINOR_VERSION and marf.Version.MINOR_VERSION where as of 0.3.0.5 the former is an alias of the latter

  • the revision can be obtained from marf.MARF.REVISION and marf.Version.REVISION where as of 0.3.0.5 the former is an alias of the latter

  • the minor revision can be obtained from marf.MARF.MINOR_REVISION and marf.Version.MINOR_REVISION where as of 0.3.0.5 the former is an alias of the latter

The marf.Version class provides some API to validate the version by the application and report mismatches for convenience. See the API reference for details. One can also query a full marf.jar or marf-debug.jar release for version where all four components are displayed by typing:

    java -jar marf.jar --version

3.1 Requirements

In general, any modern platform should be able to run MARF provided a Java Virtual machine (JRE 1.4 and above) is installed on it. The following software packages are required for building MARF from sources:

  • You need a Java compiler. Recent versions of javac are recommended. You will need at least JDK 1.4 installed as JDKs lower than that are no longer supported (a patch can be made however if there is really a need for it). Additionally, you would need javadoc and jar (also a part of a JDK) if you want to build the appropriate API documentation and the .jar files.

  • On Linux and UNIX the GNU make [gmake] is required; other make programs will not work. GNU make is often installed under the name gmake; on some systems the GNU make is the default tool with the name make. This document will always refer to it by the name of “make”. To see which make version you are running, type make -v.

  • If you plan to run unit tests of MARF or use the marf-debug-*.jar release, then you will also need the JUnit [junit] framework’s jar somewhere in your CLASSPATH.

3.2 Marf Installation

There are several ways to “install” MARF.

  • Download the latest marf-ver.jar

  • Build it from sources

    • UNIXen

    • Windows

3.3 Downloading the Latest Jar Files

Just go to http://marf.sf.net, and download an appropriate marf-ver.jar from there. To install it, put the downloaded .jar file(s) somewhere from within the reach of your CLASSPATH or Java extensions directory, EXTDIRS. Et voila, since now on you can try to write some mini mind-blowing apps based on MARF. You can also get some demo applications, such as SpeakerIdentApp from the same exact web site to try out. This “install” is “platform-independent”.

As of MARF 0.3.0.5, there are several .jar files being released. Their number may increase based on the demand. The different jars contain various subsets of MARF’s code in addition to the full and complete code set that was always released in the past. The below is the description of the currently released jars:

  • marf-ver.jar contains a complete set of MARF’s code excluding JUnit tests and debug information, optimized.

  • marf-debug-ver.jar contains a complete set of MARF’s code including JUnit tests and debug information.

  • marf-util-ver.jar contains a subset of MARF’s code corresponding primarily to the contents of the marf.util package, optimized. This binary release is useful for apps which rely only on the quite comprehensive set of general-purpose utility modules and nothing else. This jar is quite small in size.

  • marf-storage-ver.jar contains a subset of MARF’s code corresponding primarily to the contents of the marf.Storage and some of the marf.util packages, optimized. This binary release is useful for apps which rely only on the set of general-purpose utility and storage modules.

  • marf-math-ver.jar contains a subset of MARF’s code corresponding primarily to the contents of the marf.math and some of the marf.util packages, optimized. This binary release is useful for apps which rely only on the set of general-purpose utility and math modules.

  • marf-utilimathstor-ver.jar contains a subset of MARF’s code corresponding primarily to the contents of the marf.util, marf.math, marf.Stats, and marf.Storage packages, optimized. This binary release is useful for apps which rely only on the set of general-purpose modules from these packages.

3.4 Building From Sources

You can grab the latest tarball of the current CVS, or pre-packaged -src release and compile it yourself producing the .jar file, which you will need to install as described in the Section 3.3. The MARF sources can be obtained from http://marf.sf.net. Extract:

    tar xvfz marf-src-<ver>.tar.gz

or

    tar xvfj marf-src-<ver>.tar.bz2

This will create a directory marf-ver under the current directory with the MARF sources. Change into that directory for the rest of the installation procedure.

3.4.1 UNIXen

We went with the makefile build approach. You will need GNU make (sometimes called ‘gmake’) to use it. Assuming you have unpacked the sources, ‘cd’ to src and type:

    make

This will compile and build marf-ver.jar in the current directory. (Remember to use GNU make.) The last line displayed should be:

(-: MARF build has been successful :-)

To install MARF enter:

    make install

This will install the .jar file(s) in the pre-determined place in the /usr/lib/marf directory.

    make apidoc

This will compile general API javadoc pages in ../../api.

    make apidoc-dev

This will compile developer’s API javadoc pages in ../../api-dev. Both APIs can be compiled at once by using make api. Of course, you can compile w/o the makefile and use javac, jar, and javadoc directly if you really want to.

3.4.2 Windows

We also used JBuilder [jbuilder] from version 5 through to 2005, so there is a project file marf.jpx in this directory. If you have JBuilder you can use this project file to build marf.jar. There are also Eclipse [eclipse] and NetBeans [netbeans] project files rooted at .project and .classpath for Eclipse that you can import and build.xml and nbproject/*.* for NetBeans. Otherwise, you are stuck with javac/java/jar

command-line tools for the moment.

3.4.3 Cygwin / under Windows

Follow pretty much the same steps as for UNIXen build above. You might need to hack Makefiles or a corresponding environment variable to support “;” directory separator and quoting instead of “:”.

3.5 Configuration

Typically, MARF does not really need much more configuration tweaking for itself other than having a JDK or a JRE installed to run it. The applications that use MARF should however be able to find marf.jar by either setting the CLASSPATH environment variable to point where the jar is or mention it explicitly on the command line (or otherwise JVM argument) with the -cp or -classpath options.

3.5.1 Environment Variables

3.5.1.1 Classpath

Similarly to a commonly-used PATH variable, CLASSPATH tells where to find .class or .jar files if they are not present in the standard, known to the JVM default directories. This is a colon-separated (“:”) for Linux/Windows and semicolon-separated (“;”) for Windows/Cygwin list of directories with .class files or explicitly mentioned .jar, .war, or .zip archives containing .class files.

MARF itself does not depend on any non-default classes or Java archives, so it requires no CLASSPATH by itself (except when used with unit testing with JUnit [junit], the junit.jar must be somewhere in CLASSPATH). However, applications wishing to use MARF should point their CLASSPATH to where find it unless it is in one of the default known to the JVM places.

3.5.1.2 Extdirs

This variable typically lists a set of directories for Java extensions where to find them. If you didn’t place a pointer in your CLASSPATH, you can place it in your EXTDIRS instead.

3.5.2 Web Applications

3.5.2.1 Tomcat

If for some reason you decide to use one of the MARF’s jars in a web app, the web app servlet/JSP container such as Tomcat [tomcat] is capable of setting the CLASSPATH itself as long as the jar(s) are in one of the shared/lib or webapp/your application here/WEB-INF/lib directories.

3.5.3 JUnit

If you intend to run unit tests or use marf-debug*.jar JUnit [junit] has to be “visible” to MARF and the apps through CLASSPATH.

3.6 Marf Upgrade

Normally, an upgrade would simply mean just yanking old .jar out, and plugging the new one in, UNLESS you depend on certain parts of MARF’s experimental/legacy API.

It is important to note that MARF’s API is still stabilizing, especially for the newer modules (e.g. NLP). Even older modules still get affected as the MARF is still flexible in that. Thus, the API changes do in fact happen every release insofar, for the better (not always incompatible). This, however, also means that the serialized version of the Serializable classes also change, so the corresponding data needs to be retrained until an upgrade utility is available. Therefore, please check the versions, ChangeLog, class revisions, and talk to us if you are unsure of what can affect you. A great deal of effort went into versioning each public class and interface of MARF, which you can check by running:

    java -jar marf.jar --verbose

To ask about more detailed changes if they are unclear from the ChangeLog, please write to us to marf-devel@lists.sf.net or post a question in one of our forums at:

Each release of MARF also supplies the Javadoc API comments, so you can and should consult those too. The bleeding edge API is located at:

3.7 Regression Tests

If you want to test the newly built MARF before you deploy it, you can run the regression tests. The regression tests are a test suite to verify that MARF runs on your platform in the way the developers expected it to. For now to do so the option is to run manually tests located in the marf.junit package as well as executing all the Test* applications described later on in the Applications chapter. A Regression testing application to do the comprehensive testing and grouping the other test applications as well as the JUnit tests. This application is still under development as of 0.3.0.5.

3.8 Uninstall

Simply remove the pertinent marf*.jar file(s).

3.9 Cleaning

After the installation you can make room by removing the built files from the source tree with the command make clean.

4.1 Application Point of View

An application, using the framework, has to choose the concrete configuration and submodules for preprocessing, feature extraction, and classification stages. There is an API the application may use defined by each module or it can use them through the MARF.

There are two phases in MARF’s usage by an application:

  • Training, i.e. train()

  • Recognition, i.e. recognize()

Training is performed on a virgin MARF installation to get some training data in. Recognition is an actual identification process of a sample against previously stored patterns during training.

4.2 Packages and Physical Layout

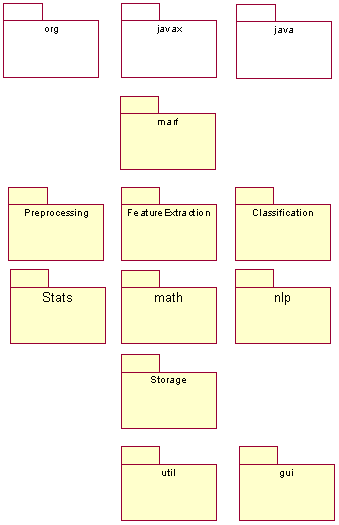

Figure 4.4: MARF Java Packages

The Java package structure is in Figure 4.4. The following is the basic structure of MARF:



marf.* MARF.java - The MARF Server Supports Training and Recognition mode and keeps all the configuration settings. marf.Preprocessing.* - The Preprocessing Package /marf/Preprocessing/ Preprocessing.java - Abstract Preprocessing Module, has to be subclassed PreprocessingExceotion.java /Endpoint/*.java - Endpoint Filter as implementation of Preprocessing /Dummy/ Dummy.java - Normalization only Raw.java - no preprocessing /FFTFilter/ FFTFilter.java LowPassFilter.java HighPassFilter.java BandpassFilter.java - Band-pass Filter as implementation of Preprocessing HighFrequencyBoost.java marf.FeatureExtraction.* - The Feature Extraction Package /marf/FeatureExtraction/ FeatureExtraction.java /FFT/FFT.java - FFT implementation of Preprocessing /LPC/LPC.java - LPC implementation of Preprocessing /MinMaxAmplitudes/MinMaxAmplitudes.java /Cepstral/*.java /Segmentation/*.java /F0/*.java marf.Classification.* - The Classification Package /marf/Classification/ Classification.java ClassificationException.java /NeuralNetwork/ NeuralNetwork.java Neuron.java Layer.java /Stochastic/*.java /Markov/*.java /Distance/ Distance.java EuclideanDistance.java ChebyshevDistance.java MinkowskiDistance.java MahalonobisDistance.java DiffDistance.java marf.Storage.* - The Physical Storage Management Interface /marf/Storage/ Sample.java ModuleParams.java TrainingSet.java FeatureSet.java Cluster.java Result.java ResultSet.java IStorageManager.java - Interface to be implemented by the above modules StorageManager.java - The most common implementation of IStorageManager ISampleLoader.java - All loaders implement this SampleLoader.java - Should know how to load different sample format /Loaders/*.* - WAV, MP3, ULAW, etc. IDatabase.java Database.java marf.Stats.* - The Statistics Package meant to collect various types of stats. /marf/Stats/ StatsCollector.java - Time took, noise removed, patterns stored, modules available, etc. Ngram.java Observation.java ProbabilityTable.java StatisticalEstimators StatisticalObject.java WordStats.java /StatisticalEstimators/ GLI.java KatzBackoff.java MLE.java SLI.java StatisticalEstimator.java /Smoothing/ AddDelta.java AddOne.java GoodTuring.java Smoothing.java WittenBell.java marf.gui.* - GUI to the graphs and configuration /marf/gui/ Spectrogram.java SpectrogramPanel.java WaveGrapher.java WaveGrapherPanel.java /util/ BorderPanel.java ColoredStatusPanel.java SmartSizablePanel.java marf.nlp.* - most of the NLP-related modules /marf/nlp/ Collocations/ Parsing/ Stemming/ util/ marf.math.* - math-related algorithms are here /marf/math/ Algorithms.java MathException.java Matrix.java Vector.java marf.util.* - important utility modules /marf/util/ Arrays.java BaseThread.java ByteUtils.java Debug.java ExpandedThreadGroup.java FreeVector.java InvalidSampleFormatException.java Logger.java MARFException.java Matrix.java NotImplementedException.java OptionProcessor.java SortComparator.java /comparators/ FrequencyComparator.java RankComparator.java ResultComparator.java



4.3 Current Limitations

Our current pipeline is maybe somewhat too rigid. That is, there’s no way to specify more than one preprocessing to process the same sample in one pass (as of 0.3.0.2 the preprocessing modules can be chained, however, e.g. one filter followed by another in a preprocessing pipeline).

Also, the pipeline often assumes that the whole sample is loaded before doing anything with it, instead of sending parts of the sample a bit at a time. Perhaps this simplifies things, but it won’t allow us to deal with large samples at the moment. However, it’s not a problem for our framework and the application because our samples are small enough and memory is cheap. Additionally, we have streaming support already in the WAVLoader and some modules support it, but the final conversion to streaming did not happen yet.

MARF provides only limited support for inter-module dependency. It is possible to pass module-specific arguments, but problems like number of parameters mismatch between feature extraction and classification, and so on are not tracked. There is also one instance of ModuleParams that exists in MARF for now limiting combination of non-default feature extraction modules.

5.1 Storage

Figure 5.1 presents basic Storage modules and their API.

Figure 5.1: Storage

5.1.1 Speaker Database

We store specific speakers in a comma-separated (CSV) file, speakers.txt within the application. It has the following format:

<id:int>,<name:string>,<training-samples:list>,<testing-samples:list>

Sample lists are defined as follows:

<*-sample-list> := filename1.wav|filename2.wav|...

5.1.2 Storing Features, Training, and Classification Data

We defined a standard StorageManager interface for the modules to use. That’s part of the StorageManager interface which each module will override because each a module has to know how to serialize itself, but the applications using MARF should not care. Thus, this StorageManager is a base class with abstract methods dump() and restore(). These methods would generalize the model’s serialization, in the sense that they are somehow “read” and “written”.

We have to store data we used for training for later use in the classification process. For this we pass FFT (Figure 5.4.2) and LPC (Figure 5.4.3) feature vectors through the TrainingSet/TrainingSample class pair, which, as a result, store mean vectors (clusters) for our training models.

In the Neural Network we use XML. The only reason XML and text files have been suggested is to allow us to easily modify values in a text editor and verify the data visually.

In the Neural Network classification, we are using one net for all the speakers. We had thought that one net for each speaker would be ideal, but then we’ll lose too much discrimination power. But doing this means that the net will need complete re-training for each new training utterance (or group thereof).

We have a training/testing script that lists the location of all the wave files to be trained along with the identification of the speaker - testing.sh.

5.1.3 Assorted Training Notes

For training we are using sets of feature vectors created by FFT or LPC and passing them to the NeuralNetwork in the form of a cluster, or rather probabilistic “cluster”. With this, there are some issues:

  1. Mapping. We have to have a record of speakers and IDs for these speakers. This can be the same for NeuralNetwork and Stochastic methods so long as the NeuralNetwork will return the proper number and the “clusters” in the Stochastic module have proper labeling.

  2. Feature vector generation. I think the best way to do this is for each application using MARF to specify a feature file or directory which will contain lines/files with the following info:

    [a1, a2, ... , an] : <speaker id>

    Retraining for a new speaker would involve two phases 1) appending the features to the file/dir, then 2) re-training the models. The Classification modules will be aware of the scheme and re-train on all data required.

5.1.3.1 Clusters Defined

Given a set of feature vectors in -dimensional space, if we want these to represent “items” (in our case, speakers), we can make groupings of these vectors with a center point (ie: center points which will then represent the “items”). Suen discussed an iterative algorithm to find the optimal groupings (or clusters). Anyway, I don’t believe that Suen’s clustering stuff is at all useful, as we will know, through info from training, which speaker is associated with the feature vector and can create the “clusters” with that information.

So for NeuralNetwork: no clusters, just regular training. So for Stochastic

: Clusters (kind of). I believe that we need to represent a Gaussian curve with a mean vector and a co-variance matrix. This will be created from the set of feature vectors for the speaker. But again, we know who it is so the Optimal Clustering business is useless.

5.1.4 File Location

We decided to keep all the data and intermediate files in the same directory or subdirectories of that of the application.

  • marf.Storage.TrainingSet.* - represent training sets (global clusters) used in training with different preprocessing and feature extraction methods; they can either be gzipped binary (.bin) or CSV text (.csv).

  • speakers.txt.stats - binary statistics file.

  • marf.Classification.NeuralNetwork.*.xml - XML file representing a trained Neural Net for all the speakers in the database.

  • training-samples/ - directory with WAV files for training.

  • testing-samples/ - directory with WAV files for testing.

5.1.5 Sample and Feature Sizes

Wave files are read and outputted as an array of data points that represents the waveform of the signal.

Different methods will have different feature vector sizes. It depends on what kind of precision one desires. In the case of FFT, a 1024 FFT will result in 512 features, being an array of “doubles” corresponding to the frequency range.

[shaughnessy2000] said about using 3 ms for phoneme analysis and something like one second for general voice analysis. At 8 kHz, 1024 samples represents 128 ms, this might be a good compromise.

5.1.6 Parameter Passing

A generic ModuleParams container class has been created to for an application to be able to pass module-specific parameters when specifying model files, training data, amount of LPC coefficients, FFT window size, logging/stats files, etc.

5.1.7 Result

When classification is over, its result should be stored somehow for further retrieval by the application. We have defined the Result object to carry out this task. It contains ID of the subject identified as well as some additional statistics (such as second closest speaker and distances from other speakers, etc.)

5.1.8 Sample Format

The sample format used for our samples was the following:

  • Audio Format: PCM signed (WAV)

  • Sample Rate: 8000 Hz

  • Audio Sample Size: 16 bit

  • Channels: 1 (mono)

  • Duration: from about 7 to 20 seconds

All training and testing samples were recorded through an external sound recording program (MS Sound Recorder) using a standard microphone. Each sample was saved as a WAV file with the above properties and stored in the appropriate folders where they would be loaded from within the main application. The PCM audio format (which stands for Pulse Code Modulation) refers to the digital encoding of the audio sample contained in the file and is the format used for WAV files. In a PCM encoding, an analog signal is represented as a sequence of amplitude values. The range of the amplitude value is given by the audio sample size which represents the number of bits that a PCM value consists of. In our case, the audio sample size is 16-bit which means that that a PCM value can range from 0 to 65536. Since we are using PCM-signed format, this gives an amplitude range between and . That is, the amplitude values of each recorded sample can vary within this range. Also, this sample size gives a greater range and thus provides better accuracy in representing an audio signal then using a sample size of 8-bit which limited to a range of . Therefore, a 16-bit audio sample size was used for our experiments in order to provide the best possible results. The sampling rate refers to the number of amplitude values taken per second during audio digitization. According to the Nyquist theorem, this rate must be at least twice the maximum rate (frequency) of the analog signal that we wish to digitize ([jervis]). Otherwise, the signal cannot be properly regenerated in digitized form. Since we are using an 8 kHz sampling rate, this means that actual analog frequency of each sample is limited to 4 kHz. However, this limitation does not pose a hindrance since the difference in sound quality is negligible ([shaughnessy2000]). The number of channels refers to the output of the sound (1 for mono and 2 for stereo – left and right speakers). For our experiment, a single channel format was used to avoid complexity during the sample loading process.

5.1.9 Sample Loading Process

To read audio information from a saved voice sample, a special sample-loading component had to be implemented in order to load a sample into an internal data structure for further processing. For this, certain sound libraries (javax.sound.sampled) were provided from the Java programming language which enabled us to stream the audio data from the sample file. However once the data was captured, it had to be converted into readable amplitude values since the library routines only provide PCM values of the sample. This required the need to implement special routines to convert raw PCM values to actual amplitude values (see SampleLoader class in the Storage package).

The following pseudo-code represents the algorithm used to convert the PCM values into real amplitude values ([javasun]):



function readAmplitudeValues(Double Array : audioData)
{
    Integer: MSB, LSB,
             index = 0;

    Byte Array: AudioBuffer[audioData.length * 2];

    read audio data from Audio stream into AudioBuffer;

    while(not reached the end of stream OR index not equal to audioData.length)
    {
        if(Audio data representation is BigEndian)
        {
            // First byte is MSB (high order)
            MSB = audioBuffer[2 * index];
            // Second byte is LSB (low order)
            LSB = audioBuffer[2 * index + 1];
        }
        else
        {
            // Vice-versa...
            LSB = audioBuffer[2 * index];
            MSB = audioBuffer[2 * index + 1];
        }

        // Merge high-order and low-order byte to form a 16-bit double value.
        // Values are divided by maximum range
        audioData[index] = (merge of MSB and LSB) / 32768;
    }
}



This function reads PCM values from a sample stream into a byte array that has twice the length of audioData; the array which will hold the converted amplitude values (since sample size is 16-bit). Once the PCM values are read into audioBuffer, the high and low order bytes that make up the amplitude value are extracted according to the type of representation defined in the sample’s audio format. If the data representation is big endian, the high order byte of each PCM value is located at every even-numbered position in audioBuffer

. That is, the high order byte of the first PCM value is found at position 0, 2 for the second value, 4 for the third and so forth. Similarly, the low order byte of each PCM value is located at every odd-numbered position (1, 3, 5, etc.). In other words, if the data representation is

big endian, the bytes of each PCM code are read from left to right in the audioBuffer. If the data representation is not big endian, then high and low order bytes are inversed. That is, the high order byte for the first PCM value in the array will be at position 1 and the low order byte will be at position 0 (read right to left). Once the high and low order bytes are properly extracted, the two bytes can be merged to form a 16-bit double value. This value is then scaled down (divide by 32768) to represent an amplitude within a unit range . The resulting value is stored into the audioData array, which will be passed to the calling routine once all the available audio data is entered into the array. An additional routine was also required to write audio data from an array into wave file. This routine involved the inverse of reading audio data from a sample file stream. More specifically, the amplitude values inside an array are converted back to PCM codes and are stored inside an array of bytes (used to create new audio stream). The following illustrates how this works:



public void writePCMValues(Double Array: audioData)
{
    Integer: word  = 0,
             index = 0;

    Byte Array: audioBytes[(number of ampl. values in audioData) * 2];

    while(index not equal to (number of ampl. values in audioData * 2))
    {
        word = (audioData[index] * 32768);
        extract high order byte and place it in appropriate position in audioBytes;
        extract low order byte and place it in appropriate position in audioBytes;
    }

    create new audio stream from audioBytes;
}



5.2 Assorted File Format Notes

We decided to stick to Mono-8000Hz-16bit WAV files. 8-bit might be okay too, but we could retain more precision with 16-bit files. 8000Hz is supposed to be all you need to contain all frequencies of the vocal spectrum (according to Nyquist anyways…). If we use 44.1 kHz we’ll just be wasting space and computation time.

There are also MP3 and ULAW and other file format loaders stubs which are unimplemented as of this version of MARF.

Also: I was just thinking I think I may have made a bit of a mistake downsampling to 8000Hz… I was saying that the voice ranges to about 8000Hz so that’s all we should need for the samples, but then I realized that if you have an 8000Hz sample, it actually only represents 4000Hz, which would account for the difference I noticed.. but maybe we should be using 16KHz samples. On the other hand, even at 4KHz the voice is still perfectly distinguishable…

I tried the WaveLoader with one of the samples provided by Stephen (jimmy1.wav naturally!) and got some nice results! I graphed the PCM obtained from the getaudioData() function and noticed quite a difference from the PCM graph obtained with my “test.wav”. With “test.wav”, I was getting unexpected results as the graph (“rawpcm.xls”) didn’t resemble any wave form. This lead me to believe that I needed to convert the data on order to represent it in wave form (done in the “getWaveform()” function). But after having tested the routine with “jimmy1.wav”, I got a beautiful wave-like graph with just the PCM data which makes more sense since PCM represents amplitude values! The reason for this is that my “test.wav” sample was actually 8-bit mono (less info.) rather than 16-bit mono as with Stephen’s samples. So basically, we don’t need to do any “conversion” if we use 16-bit mono samples and we can scrap the “getWaveform()” function. I will come up with a “Wave” class sometime this week which will take care of loading wave files and windowing audio data. Also, we should only read audio data that has actual sound, meaning that any silence (say -10 ¡ db ¡ 10) should be discarded from the sample when extracting audio data. Just thinking out loud!

I agree here. I was thinking perhaps the threshold could be determined from the “silence” sample.

5.3 Preprocessing



This section outlines the preprocessing mechanisms considered and implemented in MARF. We present you with the API and structure in Figure 5.2, along with the description of the methods.

Figure 5.2: Preprocessing

5.3.1 “Raw Meat”

5.3.1.1 Description

This is a basic “pass-everything-through” method that doesn’t do actually any preprocessing. Originally developed within the framework, it was meant to be a base line method, but it gives better top results out of many configurations. This method is however not “fair” to others as it doesn’t do any normalization so the samples compared on the original data coming in. Likewise silence and noise removal are not done in here.

5.3.1.2 Implementation Summary
  • Implementation: marf.Preprocessing.Dummy.Raw

  • Depends on: marf.Preprocessing.Dummy.Dummy

  • Used by: test, marf.MARF, SpeakerIdentApp

5.3.2 Normalization

Since not all voices will be recorded at exactly the same level, it is important to normalize the amplitude of each sample in order to ensure that features will be comparable. Audio normalization is analogous to image normalization. Since all samples are to be loaded as floating point values in the range , it should be ensured that every sample actually does cover this entire range.

The procedure is relatively simple: find the maximum amplitude in the sample, and then scale the sample by dividing each point by this maximum. Figure 5.3 illustrates normalized input wave signal.

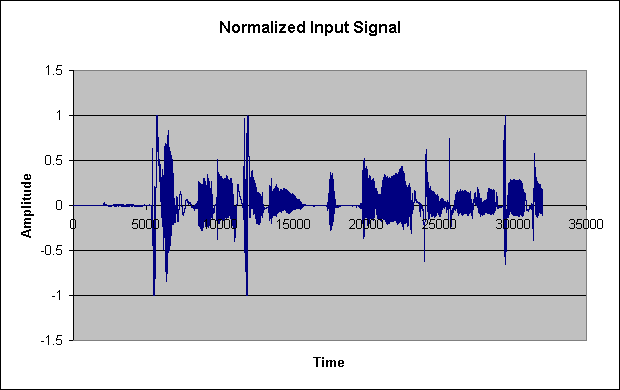

Figure 5.3: Normalization of aihua5.wav from the testing set.

5.3.3 Noise Removal

Any vocal sample taken in a less-than-perfect (which is always the case) environment will experience a certain amount of room noise. Since background noise exhibits a certain frequency characteristic, if the noise is loud enough it may inhibit good recognition of a voice when the voice is later tested in a different environment. Therefore, it is necessary to remove as much environmental interference as possible.

To remove room noise, it is first necessary to get a sample of the room noise by itself. This sample, usually at least 30 seconds long, should provide the general frequency characteristics of the noise when subjected to FFT analysis. Using a technique similar to overlap-add FFT filtering, room noise can then be removed from the vocal sample by simply subtracting the noise’s frequency characteristics from the vocal sample in question.

That is, if is the sample, is the noise, and is the voice, all in the frequency domain, then

Therefore, it should be possible to isolate the voice:

Unfortunately, time has not permitted us to implement this in practice yet.

5.3.4 Silence Removal

Silence removal got implemented in 0.3.0.6 in MARF’s Preprocessing.removeSilence() methods (and derivatives, except Raw). For better results, removeSilence() should be executed after normalization, where the default threshold of 1% (0.01) works well for the most cases.

The silence removal is performed in time domain where the amplitudes below the threshold are discarded from the sample. This also makes the sample smaller and less resemblent to other samples improving overall recognition performance.

The actual threshold can be a settable parameter through ModuleParams, which is a third parameter according to the preprocessing parameter protocol.

5.3.5 Endpointing

The Endpointing algorithm got implemented in MARF as follows. By the end-points we mean the local minimums and maximums in the amplitude changes. A variation of that is whether to consider the sample edges and continuous data points (of the same value) as end-points. In MARF, all these four cases are considered as end-points by default with an option to enable or disable the latter two cases via setters or the ModuleParams facility. The endpointing algorithm is implemented in Endpoint of the marf.Preprocessing.Endpoint package and appeared in 0.3.0.5.

5.3.6 FFT Filter

The FFT filter is used to modify the frequency domain of the input sample in order to better measure the distinct frequencies we are interested in. Two filters are useful to speech analysis: high frequency boost, and low-pass filter (yet we provided more of them, to toy around).

Speech tends to fall off at a rate of 6 dB per octave, and therefore the high frequencies can be boosted to introduce more precision in their analysis. Speech, after all, is still characteristic of the speaker at high frequencies, even though they have a lower amplitude. Ideally this boost should be performed via compression, which automatically boosts the quieter sounds while maintaining the amplitude of the louder sounds. However, we have simply done this using a positive value for the filter’s frequency response. The low-pass filter (Section 5.3.7) is used as a simplified noise reducer, simply cutting off all frequencies above a certain point. The human voice does not generate sounds all the way up to 4000 Hz, which is the maximum frequency of our test samples, and therefore since this range will only be filled with noise, it may be better just to cut it out.

Essentially the FFT filter is an implementation of the Overlap-Add method of FIR filter design [dspdimension]. The process is a simple way to perform fast convolution, by converting the input to the frequency domain, manipulating the frequencies according to the desired frequency response, and then using an Inverse-FFT to convert back to the time domain. Figure 5.4 demonstrates the normalized incoming wave form translated into the frequency domain.

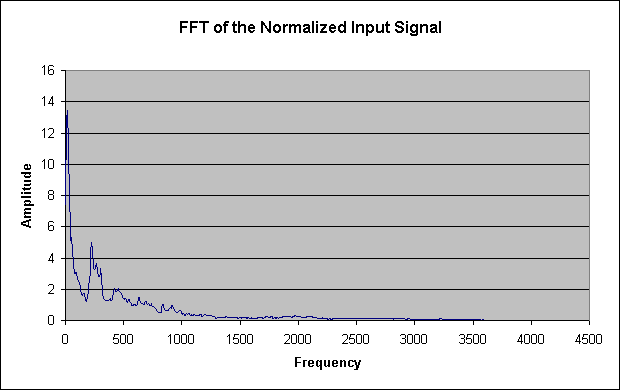

Figure 5.4: FFT of normalized aihua5.wav from the testing set.

The code applies the square root of the hamming window to the input windows (which are overlapped by half-windows), applies the FFT, multiplies the results by the desired frequency response, applies the Inverse-FFT, and applies the square root of the hamming window again, to produce an undistorted output.

Another similar filter could be used for noise reduction, subtracting the noise characteristics from the frequency response instead of multiplying, thereby remove the room noise from the input sample.

5.3.7 Low-Pass Filter

The low-pass filter has been realized on top of the FFT Filter, by setting up frequency response to zero for frequencies past certain threshold chosen heuristically based on the window size where to cut off. We filtered out all the frequencies past 2853 Hz.

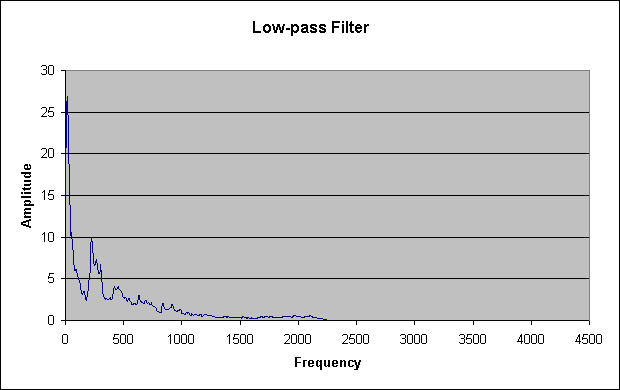

Figure 5.5 presents an FFT graph of a low-pass filtered signal.

Figure 5.5: Low-pass filter applied to aihua5.wav.

5.3.8 High-Pass Filter

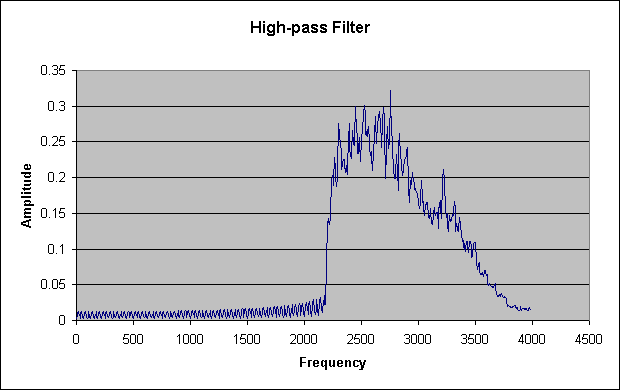

As the low-pass filter, the high-pass filter (e.g. is in Figure 5.6) has been realized on top of the FFT Filter, in fact, it is the opposite to low-pass filter, and filters out frequencies before 2853 Hz. The implementation of the high-pass filter can be found in marf.Preprocessing.FFTFilter.HighPassFilter.

Figure 5.6: High-pass filter applied to aihua5.wav.

5.3.9 Band-Pass Filter

Band-pass filter in MARF is yet another instance of an FFT Filter (Section 5.3.6), with the default settings of the band of frequencies of Hz. See Figure 5.7.

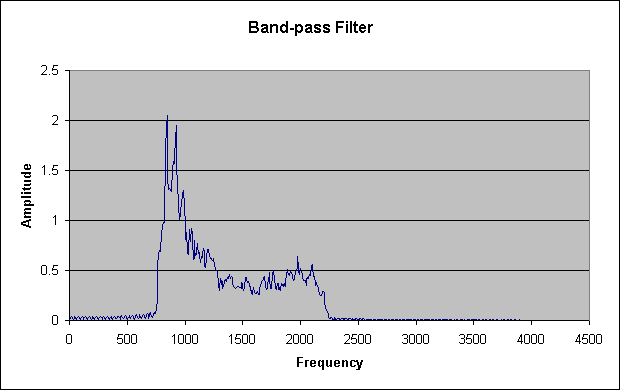

Figure 5.7: Band-pass filter applied to aihua5.wav.

5.3.10 High Frequency Boost

This filter was also implemented on top of the FFT filter to boost the high-end frequencies. The frequencies boosted after approx. 1000 Hz by a factor of , heuristically determined, and then re-normalized. See Figure 5.8. The implementation of the high-frequency boost preprocessor can be found in marf.Preprocessing.FFTFilter.HighFrequencyBoost.

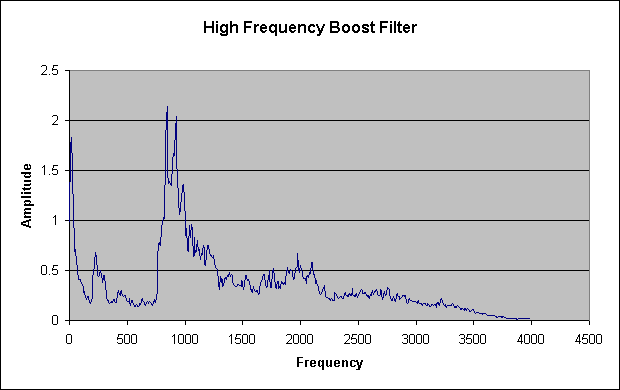

Figure 5.8: High frequency boost filter applied to aihua5.wav.

5.3.11 High-Pass High Frequency Boost Filter

For experimentation we said what would be very useful to do is to test a high-pass filter along with high-frequency boost. While there is no immediate class that does this, MARF now chains the former and the latter via the new addition to the preprocessing framework (in 0.3.0-devel-20050606) where a constructor of one preprocessing module takes up another allowing a preprocessing pipeline on its own. The results of this experiment can be found in the Consolidated Results section. While they did not yield a better recognition performance, it was a good try to see. More tweaking and trying is required to make a final decision on this approach as there is an issue with the re-normalization of the entire input instead of just the boosted part.

5.4 Feature Extraction

This section outlines some concrete implementations of feature extraction methods of the MARF project. First we present you with the API and structure, followed by the description of the methods. The class diagram of this module set is in Figure 5.9.

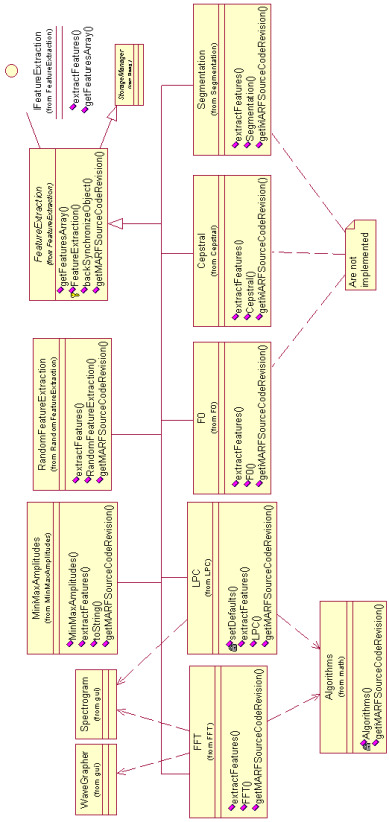

Figure 5.9: Feature Extraction Class Diagram

5.4.1 Hamming Window

5.4.1.1 Implementation

The Hamming Window implementation in MARF is in the marf.math.Algortithms.Hamming class as of version 0.3.0-devel-20050606 (a.k.a 0.3.0.2).

5.4.1.2 Theory

In many DSP techniques, it is necessary to consider a smaller portion of the entire speech sample rather than attempting to process the entire sample at once. The technique of cutting a sample into smaller pieces to be considered individually is called “windowing”. The simplest kind of window to use is the “rectangle”, which is simply an unmodified cut from the larger sample.

Unfortunately, rectangular windows can introduce errors, because near the edges of the window there will potentially be a sudden drop from a high amplitude to nothing, which can produce false “pops” and “clicks” in the analysis.

A better way to window the sample is to slowly fade out toward the edges, by multiplying the points in the window by a “window function”. If we take successive windows side by side, with the edges faded out, we will distort our analysis because the sample has been modified by the window function. To avoid this, it is necessary to overlap the windows so that all points in the sample will be considered equally. Ideally, to avoid all distortion, the overlapped window functions should add up to a constant. This is exactly what the Hamming window does. It is defined as:

where is the new sample amplitude, is the index into the window, and is the total length of the window.

5.4.2 Fast Fourier Transform (FFT)

The Fast Fourier Transform (FFT) algorithm is used both for feature extraction and as the basis for the filter algorithm used in preprocessing. Although a complete discussion of the FFT algorithm is beyond the scope of this document, a short description of the implementation will be provided here.

Essentially the FFT is an optimized version of the Discrete Fourier Transform. It takes a window of size and returns a complex array of coefficients for the corresponding frequency curve. For feature extraction, only the magnitudes of the complex values are used, while the FFT filter operates directly on the complex results.

The implementation involves two steps: First, shuffling the input positions by a binary reversion process, and then combining the results via a “butterfly” decimation in time to produce the final frequency coefficients. The first step corresponds to breaking down the time-domain sample of size into frequency-domain samples of size 1. The second step re-combines the samples of size 1 into 1 n-sized frequency-domain sample.

The code used in MARF has been translated from the C code provided in the book, “Numeric Recipes in C”, [numericalrecipes].

5.4.2.1 FFT Feature Extraction

The frequency-domain view of a window of a time-domain sample gives us the frequency characteristics of that window. In feature identification, the frequency characteristics of a voice can be considered as a list of “features” for that voice. If we combine all windows of a vocal sample by taking the average between them, we can get the average frequency characteristics of the sample. Subsequently, if we average the frequency characteristics for samples from the same speaker, we are essentially finding the center of the cluster for the speaker’s samples. Once all speakers have their cluster centers recorded in the training set, the speaker of an input sample should be identifiable by comparing its frequency analysis with each cluster center by some classification method.

Since we are dealing with speech, greater accuracy should be attainable by comparing corresponding phonemes with each other. That is, “th” in “the” should bear greater similarity to “th” in “this” than will “the” and “this” when compared as a whole.

The only characteristic of the FFT to worry about is the window used as input. Using a normal rectangular window can result in glitches in the frequency analysis because a sudden cutoff of a high frequency may distort the results. Therefore it is necessary to apply a Hamming window to the input sample, and to overlap the windows by half. Since the Hamming window adds up to a constant when overlapped, no distortion is introduced.

When comparing phonemes, a window size of about 2 or 3 ms is appropriate, but when comparing whole words, a window size of about 20 ms is more likely to be useful. A larger window size produces a higher resolution in the frequency analysis.

5.4.3 Linear Predictive Coding (LPC)

This section presents implementation of the LPC Classification module.

One method of feature extraction used in the MARF project was Linear Predictive Coding (LPC) analysis. It evaluates windowed sections of input speech waveforms and determines a set of coefficients approximating the amplitude vs. frequency function. This approximation aims to replicate the results of the Fast Fourier Transform yet only store a limited amount of information: that which is most valuable to the analysis of speech.

5.4.3.1 Theory

The LPC method is based on the formation of a spectral shaping filter, , that, when applied to a input excitation source, , yields a speech sample similar to the initial signal. The excitation source, , is assumed to be a flat spectrum leaving all the useful information in . The model of shaping filter used in most LPC implementation is called an “all-pole” model, and is as follows:

Where is the number of poles used. A pole is a root of the denominator in the Laplace transform of the input-to-output representation of the speech signal.

The coefficients are the final representation if the speech waveform. To obtain these coefficients, the least-square autocorrelation method was used. This method requires the use of the autocorrelation of a signal defined as:

where is the windowed input signal.

In the LPC analysis, the error in the approximation is used to derive the algorithm. The error at time n can be expressed in the following manner: . Thusly, the complete squared error of the spectral shaping filter is:

To minimize the error, the partial derivative is taken for each , which yields linear equations of the form:

For . Which, using the autocorrelation function, is:

Solving these as a set of linear equations and observing that the matrix of autocorrelation values is a Toeplitz matrix yields the following recursive algorithm for determining the LPC coefficients:

.

This is the algorithm implemented in the MARF LPC module.

5.4.3.2 Usage for Feature Extraction

The LPC coefficients were evaluated at each windowed iteration, yielding a vector of coefficient of size . These coefficients were averaged across the whole signal to give a mean coefficient vector representing the utterance. Thus a sized vector was used for training and testing. The value of chosen was based on tests given speed vs. accuracy. A value of around 20 was observed to be accurate and computationally feasible.

5.4.4 F0: The Fundamental Frequency

[WORK ON THIS SECTION IS IN PROGRESS AS WE PROCEED WITH F0 IMPLEMENTATION IN MARF]

F0, the fundamental frequency, or “pitch”.

Ian: “The text ([shaughnessy2000]

) doesn’t go into too much detail but gives a few techniques. Most seem to involve another preprocessing to remove high frequencies and then some estimation and postprocessing correction. Another, more detailed source may be needed.”

Serguei: “One of the prerequisites we already have: the low-pass filter that does remove the high frequencies.”

5.4.5 Min/Max Amplitudes

5.4.5.1 Description

The Min/Max Amplitudes extraction simply involves picking up maximums and minimums out of the sample as features. If the length of the sample is less than , the difference is filled in with the middle element of the sample.

TODO: This feature extraction does not perform very well yet in any configuration because of the simplistic implementation: the sample amplitudes are sorted and minimums and maximums are picked up from both ends of the array. As the samples are usually large, the values in each group are really close if not identical making it hard for any of the classifiers to properly discriminate the subjects. The future improvements here will include attempts to pick up values in and distinct enough to be features and for the samples smaller than the sum, use increments of the difference of smallest maximum and largest minimum divided among missing elements in the middle instead one the same value filling that space in.

5.4.6 Feature Extraction Aggregation

5.4.6.1 Description

This method appeared in MARF as of 0.3.0.5. This class by itself does not do any feature extraction, but instead allows concatenation of the results of several actual feature extractors to be combined in a single result. This should give the classification modules more discriminatory power (e.g. when combining the results of FFT and F0 together). FeatureExtractionAggregator itself still implements the FeatureExtraction API in order to be used in the main pipeline of MARF.

The aggregator expects ModuleParams to be set to the enumeration constants of a module to be invoked followed by that module’s enclosed instance ModuleParams. As of this implementation, that enclosed instance of ModuleParams isn’t really used, so the main limitation of the aggregator is that all the aggregated feature extractors act with their default settings. This will happen until the pipeline is re-designed a bit to include this capability.

The aggregator clones the incoming preprocessed sample for each feature extractor and runs each module in a separate thread. A the end, the results of each tread are collected in the same order as specified by the initial ModuleParams and returned as a concatenated feature vector. Some meta-information is available if needed.

5.4.6.2 Implementation

Class: marf.FeatureExtraction.FeatureExtractionAggregator.

5.4.7 Random Feature Extraction

By default given a window of size 256 samples, it picks at random a number from a Gaussian distribution, and multiplies by the incoming sample frequencies. This all adds up and we have a feature vector at the end. This should be the bottom line performance of all feature extraction methods. It can also be used as a relatively fast testing module.

5.5 Classification



This section outlines classification methods of the MARF project. First, we present you with the API and overall structure, followed by the description of the methods. Overall structure of the modules is in Figure 5.10.

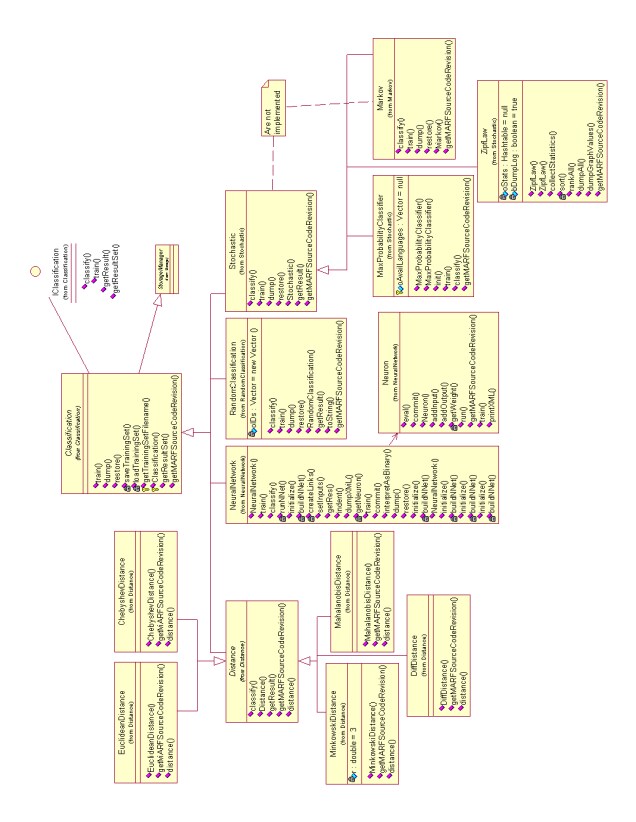

Figure 5.10: Classification

5.5.1 Chebyshev Distance

Chebyshev distance is used along with other distance classifiers for comparison. Chebyshev distance is also known as a city-block or Manhattan distance. Here’s its mathematical representation:

where and are feature vectors of the same length .

5.5.2 Euclidean Distance

The Euclidean Distance classifier uses an Euclidean distance equation to find the distance between two feature vectors.

If and are two 2-dimensional vectors, then the distance between and can be defined as the square root of the sum of the squares of their differences:

This equation can be generalized to n-dimensional vectors by simply adding terms under the square root.

or

or

A cluster is chosen based on smallest distance to the feature vector in question.

5.5.3 Minkowski Distance

Minkowski distance measurement is a generalization of both Euclidean and Chebyshev distances.

where is a Minkowski factor. When , it becomes Chebyshev distance, and when , it is the Euclidean one. and are feature vectors of the same length .

5.5.4 Mahalanobis Distance

5.5.4.1 Summary
  • Implementation: marf.Classification.Distance.MahalanobisDistance

  • Depends on: marf.Classification.Distance.Distance

  • Used by: test, marf.MARF, SpeakerIdentApp

5.5.4.2 Theory

This distance classification is meant to be able to detect features that tend to vary together in the same cluster if linear transformations are applied to them, so it becomes invariant from these transformations unlike all the other, previously seen distance classifiers.

where and are feature vectors of the same length , and is a covariance matrix, learnt during training for co-related features.

In this release, namely 0.3.0-devel, the covariance matrix being an identity matrix,

, making Mahalanobis distance be the same as the Euclidean one. We need to complete the learning of the covariance matrix to complete this classifier.

5.5.5 Diff Distance

5.5.5.1 Summary
  • Implementation: marf.Classification.Distance.DiffDistance

  • Depends on: marf.Classification.Distance.Distance

  • Used by: test, marf.MARF, SpeakerIdentApp

5.5.5.2 Theory

When Serguei Mokhov invented this classifier in May 2005, the original idea was based on the way the diff UNIX utility works. Later, for performance enhancements it was modified. The essence of the diff distance is to count how one input vector is different from the other in terms of elements correspondence. If the Chebyshev distance between the two corresponding elements is greater than some error , then this distance is accounted for plus some additional distance penalty is added. Both factors and can vary depending on desired configuration. If the two elements are equal or pretty close (the difference is less than ) then a small “bonus” of is subtracted from the distance.

where and are feature vectors of the same length.

5.5.6 Artificial Neural Network

This section presents implementation of the Neural Network Classification module.

One method of classification used is an Artificial Neural Network. Such a network is meant to represent the neuronal organization in organisms. Its use as a classification method lies is in the training of the network to output a certain value given a particular input [artificialintelligence].

5.5.6.1 Theory

A neuron consists of a set of inputs with associated weights, a threshold, an activation function (

) and an output value. The output value will propagate to further neurons (as input values) in the case where the neuron is not part of the “output” layer of the network. The relation of the inputs to the activation function is as follows:

where , “vector” is the input activations, “vector” is the associated weights and is the threshold of the network. The following activation function was used:

where is a constant. The advantage of this function is that it is differentiable over the region and has derivative:

The structure of the network used was a Feed-Forward Neural Network. This implies that the neurons are organized in sets, representing layers, and that a neuron in layer

, has inputs from layer and output to layer only. This structure facilitates the evaluation and the training of a network. For instance, in the evaluation of a network on an input vector , the output of neuron in the first layer is calculated, followed by the second layer, and so on.

5.5.6.2 Training

Training in a Feed-Forward Neural Network is done through the an algorithm called Back-Propagation Learning. It is based on the error of the final result of the network. The error the propagated backward throughout the network, based on the amount the neuron contributed to the error. It is defined as follows:

where

for neuron in the output layer

and

for neurons in other layers

The parameters and are used to avoid local minima in the training optimization process. They weight the combination of the old weight with the addition of the new change. Usual values for these are determined experimentally.

The Back-Propagation training method was used in conjunction with epoch training. Given a set of training input vectors

, the Back-Propagation training is done on each run. However, the new weight vectors for each neuron, “vector” , are stored and not used. After all the inputs in have been trained, the new weights are committed and a set of test input vectors , are run, and a mean error is calculated. This mean error determines whether to continue epoch training or not.

5.5.6.3 Usage as a Classifier

As a classifier, a Neural Network is used to map feature vectors to speaker identifiers. The neurons in the input layer correspond to each feature in the feature vector. The output of the network is the binary interpretation of the output layer. Therefore the Neural Network has an input layer of size , where is the size of all feature vectors and the output layer has size , where is the maximum speaker identifier.

A network of this structure is trained with the set of input vectors corresponding to the set of training samples for each speaker. The network is epoch trained to optimize the results. This fully trained network is then used for classification in the recognition process.

5.5.7 Random Classification

That might sound strange, but we have a random classifier in MARF. This is more or less testing module just to quickly test the PR pipeline. It picks an ID in the pseudo-random manner from the list of trained IDs of subjects to classification. It also serves as a bottom-line of performance (i.e. recognition rate) for all the other, slightly more sophisticated classification methods meaning performance of the aforementioned methods must be better than that of the Random; otherwise, there is a problem.

6.1 Statistics Collection

6.2 Statistical Estimators and Smoothing

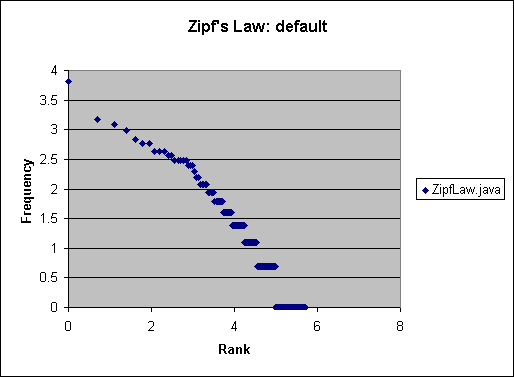

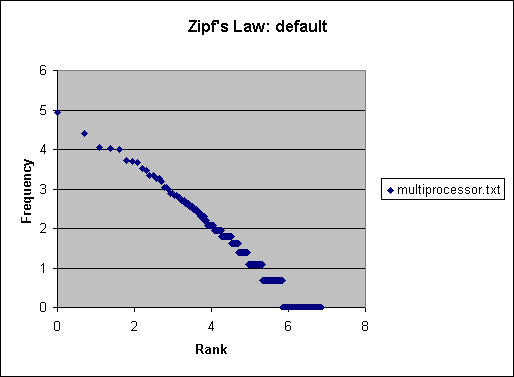

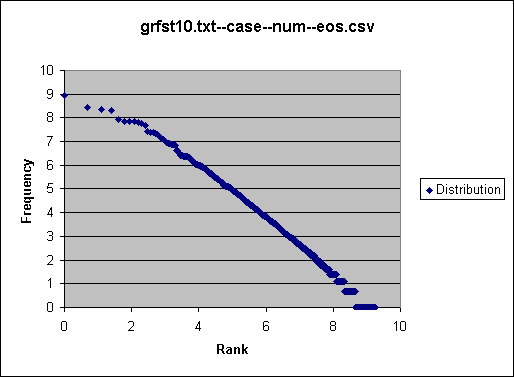

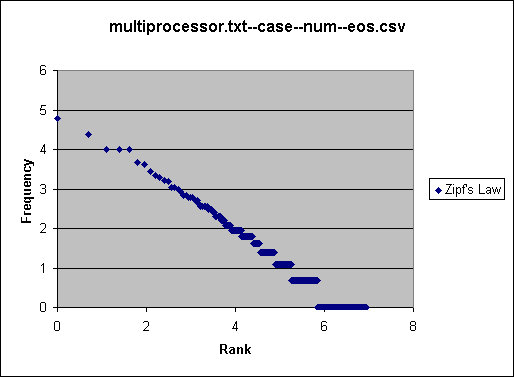

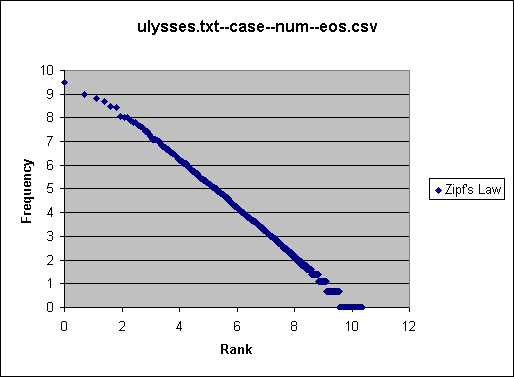

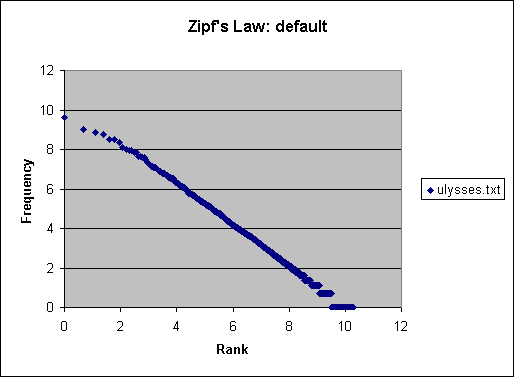

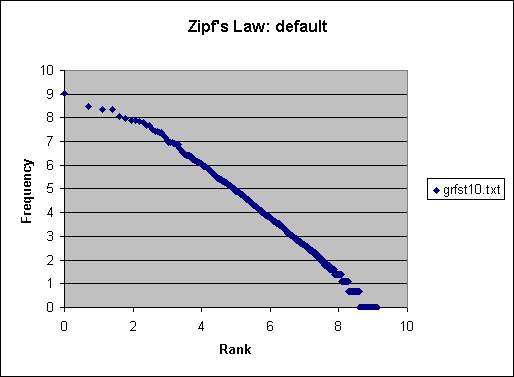

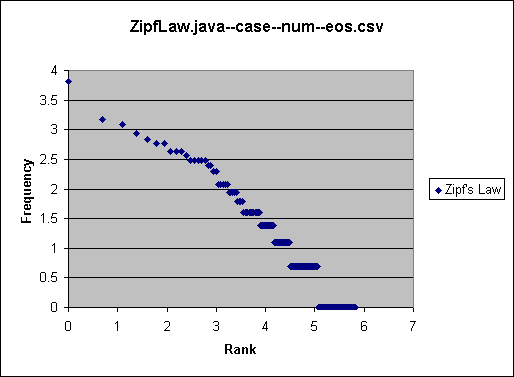

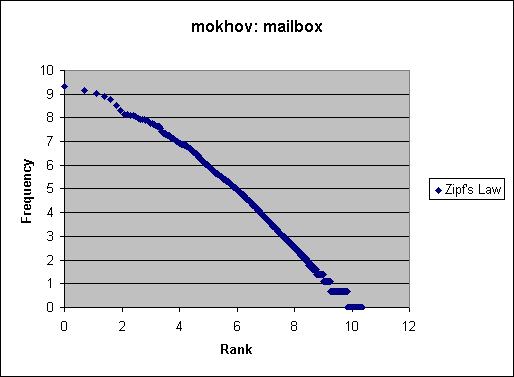

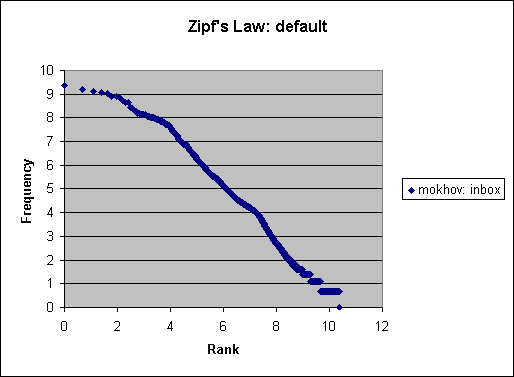

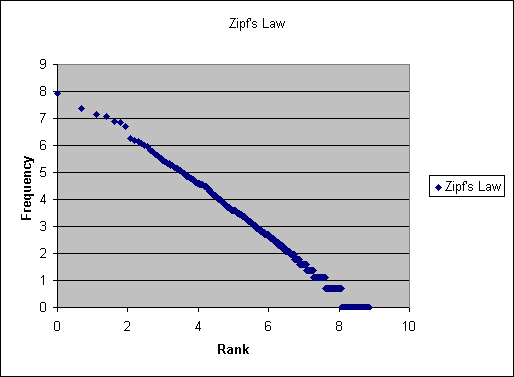

7.1 Zipf’s Law

See Section 11.1.2.1.5.

7.2 Statistical N-gram Models

See Section 11.1.3.10.4.

7.3 Probabilistic Parsing

See Section 11.1.4.

7.4 Collocations

7.5 Stemming

8.1 Spectrogram

Sometimes it is useful to visualize the data we are playing with. One of the typical thing when dealing with sounds, specifically voice, people are interested in spectrograms of frequency distributions. The Spectrogram class was designed to handle that and produce spectrograms from both FFT and LPC algorithms and simply draw them. We did not manage to make it a true GUI component yet, but instead we made it to dump the spectrograms into PPM-format image files to be looked at using some graphical package. Two examples of such spectrograms are in the Appendix A.

We are just taking all the Output[] for the spectrogram. It’s supposed to be only half ([shaughnessy2000]). We took a hamming window of the waveform at intervals of 128 samples (ie: 8 kHz, 16 ms). By half intervals we mean that the second half of the window was the first half of the next. O’Shaughnessy in [shaughnessy2000] says this is a good way to use the window. Thus, any streaming of waveform must consider this.

What we did for both the FFT spectrogram and LPC determination was to multiply the signal by the window and do a doFFT() or a doLPC() coefficient determination on the resulting array of windowed samples. This gave us an approximation of the stable signal at . Or course, we will have to experiment with windows and see which one is better, but there may be no definitive best.

8.2 Wave Grapher

WaveGrapher is another class designed, as the name suggests, to draw the wave form of the incoming/preprocessed signal. Well, it doesn’t actually draw a thing, but dumps the sample points into a tab-delimited text file to be loaded into some plotting software, such as gnuplot or Excel. We also use it to produce graphs of the signal in the frequency domain instead of time domain. Examples of the graphs of data obtained via this class are in the Preprocessing Section (5.3).

9.1 Sample Data

We have both female and male speakers, with age ranging from a college student to a University professor. The table 9.1 has a list of people who have contributed their voice samples for our project (with the first four being ourselves). We want to thank them once again for helping us out.

ID Name Training Samples Testing Samples 1 Serge 14 1 2 Ian 14 1 3 Steve 12 3 4 Jimmy 14 1 5 Dr. C.Y. Suen 2 1 6 Margarita Mokhova 14 1 7 Alexei Mokhov 14 1 8 Alexandr Mokhov 14 1 9 Graham Sinclair 12 2 10 Jihed Halimi 2 1 11 Madhumita Banerjee 3 1 13 Irina Dymova 3 1 14 Aihua Wu 14 1 15 Nick 9 1 16 Michelle Khalife 14 1 17 Shabana 7 1 18 Van Halen 8 1 19 RHCP 8 1 20 Talal Al-Khoury 14 1 21 Ke Gong 14 1 22 Emily Wu Rong 14 1 23 Emily Ying Lu 14 1 24 Shaozhen Fang 14 1 25 Chunlei He 14 1 26 Shuxin Fan 15 1 27 Shivani Bhat 14 1 28 Marinela Meladinova 14 1 29 Fei Fang 14 2 Total 27 319 32
Table 9.1: Speakers contributed their voice samples.

9.2 Comparison Setup

The main idea was to compare combinations (in MARF: configurations) of different methods and variations within them in terms of recognition rate performance. That means that having several preprocessing modules, several feature extraction modules, and several classification modules, we can (and did) try all their possible combinations.

That includes:

  1. Preprocessing: No-filtering, normalization, low-pass, high-pass, band-pass, and high-frequency boost, high-pass and boost filters, and endpointing.

  2. Feature Extraction: FFT/LPC/Min-Max/Random algorithms comparison.

  3. Classification: Distance classifiers, such as Chebyshev, Euclidean, Minkowski, Mahalanobis, and Diff distances, as well as Neural Network and Random classification.

For this purpose we have written a SpeakerIdentApp, a command-line application (so far, but GUI is planned) for TI speaker identification. We ran it for every possible configuration with the following shell script, namely testing.sh:



#!/bin/tcsh -f

#
# Batch Processing of Training/Testing Samples
# NOTE: Make take quite some time to execute
#
# Copyright (C) 2002 - 2009 The MARF Research and Development Group
#
# $Header: /cvsroot/marf/apps/SpeakerIdentApp/testing.sh,v 1.48 2009/02/22 02:11:41 mokhov Exp $
#

#
# Set environment variables, if needed
#

setenv CLASSPATH .:marf.jar
setenv EXTDIRS

#
# Set flags to use in the batch execution
#

set java = ’java -ea -verify -Xmx512m’
#set debug = ’-debug’
set debug = ’’
set graph = ’’
#set graph = ’-graph’
#set spectrogram = ’-spectrogram’
set spectrogram = ’’

if($1 == ’--reset’) then
    echo "Resetting Stats..."
    $java SpeakerIdentApp --reset
    exit 0
endif

if($1 == ’--retrain’) then
    echo "Training..."

    # Always reset stats before retraining the whole thing
    $java SpeakerIdentApp --reset

    foreach preprep ("" "-silence" "-noise" "-silence -noise")
        foreach prep (-norm -boost -low -high -band -bandstop -highpassboost -raw -endp -lowcfe -highcfe -bandcfe -bandstopcfe)
            foreach feat (-fft -lpc -randfe -minmax -aggr)

                # Here we specify which classification modules to use for
                # training.
                #
                # NOTE: for most distance classifiers it’s not important
                # which exactly it is, because the one of the generic Distance is used.
                # Exception from this rule is the Mahalanobis Distance, which needs
                # to learn its Covariance Matrix.

                foreach class (-cheb -mah -randcl -nn)
                    echo "Config: $preprep $prep $feat $class $spectrogram $graph $debug"
                    date

                    # XXX: We cannot cope gracefully right now with these combinations in the
                    # typical PC/JVM set up --- too many links in the fully-connected NNet,
                    # so can run out of memory quite often; hence, skip them for now.
                    if("$class" == "-nn" && ("$feat" == "-fft" || "$feat" == "-randfe" || "$feat" == "-aggr")) then
                        echo "skipping..."
                        continue
                    endif

                    time $java SpeakerIdentApp --train training-samples $preprep $prep $feat $class $spectrogram $graph $debug
                end

            end
        end
    end

endif

echo "Testing..."

foreach preprep ("" "-silence" "-noise" "-silence -noise")
    foreach prep (-norm -boost -low -high -band -bandstop -highpassboost -raw -endp -lowcfe -highcfe -bandcfe -bandstopcfe)
        foreach feat (-fft -lpc -randfe -minmax -aggr)
            foreach class (-eucl -cheb -mink -mah -diff -hamming -cos -randcl -nn)
                echo "=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-="
                echo "Config: $preprep $prep $feat $class $spectrogram $graph $debug"
                date
                echo "============================================="

                # XXX: We cannot cope gracefully right now with these combinations in the
                # typical PC/JVM set up --- too many links in the fully-connected NNet,
                # so can run out of memory quite often; hence, skip them for now.
                if("$class" == "-nn" && ("$feat" == "-fft" || "$feat" == "-randfe" || "$feat" == "-aggr")) then
                    echo "skipping..."
                    continue
                endif

                time $java SpeakerIdentApp --batch-ident testing-samples $preprep $prep $feat $class $spectrogram $graph $debug

                echo "---------------------------------------------"
            end
        end
    end
end

echo "Stats:"

$java SpeakerIdentApp --stats | tee stats.txt
$java SpeakerIdentApp --best-score | tee best-score.tex
date | tee stats-date.tex

echo "Testing Done"

exit 0

# EOF



The above script is for Linux/UNIX environments. To run a similar script from Windows, use testing.bat for classification and the retrain shortcut for re-training and classification. These have been completed during the development of the 0.3.0 series.

See the results section (10) for results analysis.

9.3 What Else Could/Should/Will Be Done

There is a lot more that we realistically could do, but due to lack of time, these things are not in yet. If you would like to contribute, let us know, meanwhile we’ll keep working at our speed.

9.3.1 Combination of Feature Extraction Methods

For example, assuming we use a combination of LPC coefficients and F0 estimation, we could compare the results of different combinations of these, and discuss them later. Same with the Neural Nets (modifying number of layers and number or neurons, etc.).

We could also do a 1024 FFT analysis and compare it against a 128 FFT analysis. (That is, the size of the resulting feature vector would be 512 or 64 respectively). With LPC, one can specify the number of coefficients you want, the more you have the more precise the analysis will be.

9.3.2 Entire Recognition Path

The LPC module is used to generate a mean vector of LPC coefficients for the utterance. F0 is used to find the average fundamental frequency of the utterance. The results are concatenated to form the output vector, in a particular order. The classifier would take into account the weighting of the features: Neural Network would do so implicitly if it benefits the speaker matching, and stochastic can be modified to give more weight to the F0 or vice versa, depending on what we see best (i.e.: the covariance matrix in the Mahalanobis distance (5.5.4)).

9.3.3 More Methods

Things like , stochastic, and some other methods have not made to this release. More detailed on this aspect, please refer to the TODO list in the Appendix.

10.1 Notes

Before we get to numbers, few notes and observations first:

  1. By increasing the number of samples our results got better; with few exceptions, however. This can be explained by the diversity of the recording equipment, a lot less than uniform number of samples per speaker, and absence of noise removal. All the samples were recorded in not the same environments. The results then start averaging after awhile.

  2. Another observation we made from our output, is that when the speaker is guessed incorrectly, quite often the second guess is correct, so we included this in our results as if we were “guessing” right from the second attempt.

  3. FUN. Interesting to note, that we also tried to take some samples of music bands, and feed it to our application along with the speakers, and application’s performance didn’t suffer, yet even improved because the samples were treated in the same manner. The groups were not mentioned in the table, so we name them here: Van Halen [8:1] and Red Hot Chili Peppers [10:1] (where numbers represent [training:testing] samples used).

10.2 SpeakerIdentApp’s Options

Configuration parameters were extracted from the command line, which SpeakerIdentApp can be invoked with. They mean the following:



Usage:
  java SpeakerIdentApp --train <samples-dir> [options]        -- train mode
                       --single-train <sample> [options]      -- add a single sample to the training set
                       --ident <sample> [options]             -- identification mode
                       --batch-ident <samples-dir> [options]  -- batch identification mode
                       --gui                                  -- use GUI as a user interface
                       --stats                                -- display stats
                       --best-score                           -- display best classification result
                       --reset                                -- reset stats
                       --version                              -- display version info
                       --help | -h                            -- display this help and exit

Options (one or more of the following):

Preprocessing:

  -silence      - remove silence (can be combined with any below)
  -noise        - remove noise (can be combined with any below)
  -raw          - no preprocessing
  -norm         - use just normalization, no filtering
  -low          - use low-pass FFT filter
  -high         - use high-pass FFT filter
  -boost        - use high-frequency-boost FFT preprocessor
  -band         - use band-pass FFT filter
  -endp         - use endpointing
  -lowcfe       - use low-pass CFE filter
  -highcfe      - use high-pass CFE filter
  -bandcfe      - use band-pass CFE filter
  -bandstopcfe  - use band-stop CFE filter

Feature Extraction:

  -lpc          - use LPC
  -fft          - use FFT
  -minmax       - use Min/Max Amplitudes
  -randfe       - use random feature extraction
  -aggr         - use aggregated FFT+LPC feature extraction

Classification:

  -nn           - use Neural Network
  -cheb         - use Chebyshev Distance
  -eucl         - use Euclidean Distance
  -mink         - use Minkowski Distance
  -diff         - use Diff-Distance
  -randcl       - use random classification

Misc:

  -debug        - include verbose debug output
  -spectrogram  - dump spectrogram image after feature extraction
  -graph        - dump wave graph before preprocessing and after feature extraction
  <integer>     - expected speaker ID




10.3 Consolidated Results

Our ultimate results 111authoritative as of Tue Jan 24 06:23:21 EST 2006 for all configurations we can have and samples we’ve got are below. Looks like our best results are with “-endp -lpc -cheb”, “-raw -aggr -eucl”, “-norm -aggr -diff”, “-norm -aggr -cheb”, “-raw -aggr -mah”, “-raw -fft -mah”, “-raw -fft -eucl”, and “-norm -fft -diff” with the top result being around 82.76 % and the second-best is around 86.21 % (see Table 10.1).

Guess Run # Configuration GOOD BAD Recognition Rate,% 1st 1 -endp -lpc -cheb 24 5 82.76 1st 2 -raw -aggr -eucl 22 7 75.86 1st 3 -norm -aggr -diff 22 7 75.86 1st 4 -norm -aggr -cheb 22 7 75.86 1st 5 -raw -aggr -mah 22 7 75.86 1st 6 -raw -fft -mah 22 7 75.86 1st 7 -raw -fft -eucl 22 7 75.86 1st 8 -norm -fft -diff 22 7 75.86 1st 9 -norm -fft -cheb 21 8 72.41 1st 10 -raw -aggr -cheb 21 8 72.41 1st 11 -endp -lpc -mah 21 8 72.41 1st 12 -endp -lpc -eucl 21 8 72.41 1st 13 -raw -fft -mink 21 8 72.41 1st 14 -norm -fft -mah 21 8 72.41 1st 15 -norm -fft -eucl 21 8 72.41 1st 16 -norm -aggr -eucl 20 9 68.97 1st 17 -low -aggr -diff 20 9 68.97 1st 18 -norm -aggr -mah 20 9 68.97 1st 19 -raw -fft -cheb 20 9 68.97 1st 20 -raw -aggr -mink 20 9 68.97 1st 21 -norm -aggr -mink 19 10 65.52 1st 22 -low -fft -cheb 19 10 65.52 1st 23 -raw -lpc -mink 19 10 65.52 1st 24 -raw -lpc -diff 19 10 65.52 1st 25 -raw -lpc -eucl 19 10 65.52 1st 26 -raw -lpc -mah 19 10 65.52 1st 27 -raw -lpc -cheb 19 10 65.52 1st 28 -low -aggr -eucl 19 10 65.52 1st 29 -norm -lpc -mah 19 10 65.52
Table 10.1: Consolidated results, Part 1.
Guess Run # Configuration GOOD BAD Recognition Rate,% 1st 30 -norm -lpc -mink 19 10 65.52 1st 31 -norm -lpc -diff 19 10 65.52 1st 32 -norm -lpc -eucl 19 10 65.52 1st 33 -low -aggr -cheb 19 10 65.52 1st 34 -norm -lpc -cheb 19 10 65.52 1st 35 -low -aggr -mah 19 10 65.52 1st 36 -low -fft -mah 19 10 65.52 1st 37 -norm -fft -mink 19 10 65.52 1st 38 -low -fft -diff 19 10 65.52 1st 39 -low -fft -eucl 19 10 65.52 1st 40 -raw -aggr -diff 19 10 65.52 1st 41 -high -aggr -mink 18 11 62.07 1st 42 -high -aggr -eucl 18 11 62.07 1st 43 -endp -lpc -mink 18 11 62.07 1st 44 -high -aggr -mah 18 11 62.07 1st 45 -raw -fft -diff 18 11 62.07 1st 46 -high -aggr -cheb 17 12 58.62 1st 47 -low -aggr -mink 17 12 58.62 1st 48 -low -fft -mink 17 12 58.62 1st 49 -high -fft -cheb 16 13 55.17 1st 50 -high -fft -mah 16 13 55.17 1st 51 -low -lpc -cheb 16 13 55.17 1st 52 -high -fft -mink 16 13 55.17 1st 53 -high -fft -eucl 16 13 55.17 1st 54 -low -lpc -eucl 15 14 51.72 1st 55 -low -lpc -mah 15 14 51.72 1st 56 -low -lpc -mink 14 15 48.28 1st 57 -low -lpc -diff 14 15 48.28 1st 58 -high -lpc -cheb 14 15 48.28 1st 59 -raw -lpc -nn 14 15 48.28
Table 10.2: Consolidated results, Part 2.
Guess Run # Configuration GOOD BAD Recognition Rate,% 1st 60 -band -aggr -diff 13 16 44.83 1st 61 -norm -lpc -nn 13 16 44.83 1st 62 -band -fft -diff 13 16 44.83 1st 63 -high -lpc -eucl 12 17 41.38 1st 64 -high -aggr -diff 12 17 41.38 1st 65 -endp -fft -diff 12 17 41.38 1st 66 -endp -fft -eucl 12 17 41.38 1st 67 -band -lpc -mink 12 17 41.38 1st 68 -band -lpc -mah 12 17 41.38 1st 69 -band -lpc -eucl 12 17 41.38 1st 70 -endp -fft -cheb 12 17 41.38 1st 71 -band -lpc -cheb 12 17 41.38 1st 72 -endp -fft -mah 12 17 41.38 1st 73 -high -lpc -mah 12 17 41.38 1st 74 -endp -aggr -diff 12 17 41.38 1st 75 -endp -aggr -eucl 12 17 41.38 1st 76 -endp -aggr -mah 12 17 41.38 1st 77 -endp -aggr -cheb 12 17 41.38 1st 78 -high -lpc -diff 11 18 37.93 1st 79 -band -aggr -eucl 11 18 37.93 1st 80 -endp -fft -mink 11 18 37.93 1st 81 -band -aggr -cheb 11 18 37.93 1st 82 -band -lpc -diff 11 18 37.93 1st 83 -band -aggr -mah 11 18 37.93 1st 84 -band -fft -mah 11 18 37.93 1st 85 -band -fft -eucl 11 18 37.93 1st 86 -endp -aggr -mink 11 18 37.93 1st 87 -high -fft -diff 11 18 37.93 1st 88 -high -lpc -mink 10 19 34.48 1st 89 -raw -minmax -mink 10 19 34.48
Table 10.3: Consolidated results, Part 3.
Guess Run # Configuration GOOD BAD Recognition Rate,% 1st 90 -raw -minmax -eucl 10 19 34.48 1st 91 -band -aggr -mink 10 19 34.48 1st 92 -raw -minmax -mah 10 19 34.48 1st 93 -endp -minmax -eucl 10 19 34.48 1st 94 -endp -minmax -cheb 10 19 34.48 1st 95 -endp -minmax -mah 10 19 34.48 1st 96 -band -fft -cheb 10 19 34.48 1st 97 -raw -minmax -cheb 9 20 31.03 1st 98 -endp -lpc -nn 9 20 31.03 1st 99 -endp -lpc -diff 9 20 31.03 1st 100 -endp -minmax -mink 8 21 27.59 1st 101 -endp -randfe -diff 7 22 24.14 1st 102 -endp -randfe -cheb 7 22 24.14 1st 103 -endp -minmax -diff 7 22 24.14 1st 104 -endp -minmax -nn 7 22 24.14 1st 105 -band -fft -mink 7 22 24.14 1st 106 -norm -randfe -eucl 6 23 20.69 1st 107 -raw -minmax -diff 6 23 20.69 1st 108 -endp -randfe -eucl 6 23 20.69 1st 109 -endp -randfe -mah 6 23 20.69 1st 110 -low -randfe -mink 6 23 20.69 1st 111 -norm -randfe -mah 6 23 20.69 1st 112 -norm -minmax -eucl 6 23 20.69 1st 113 -norm -minmax -cheb 6 23 20.69 1st 114 -low -minmax -mink 6 23 20.69 1st 115 -norm -minmax -mah 6 23 20.69 1st 116 -norm -randfe -mink 6 23 20.69 1st 117 -endp -randfe -mink 5 24 17.24 1st 118 -low -minmax -mah 5 24 17.24 1st 119 -low -randfe -eucl 5 24 17.24
Table 10.4: Consolidated results, Part 4.
Guess Run # Configuration GOOD BAD Recognition Rate,% 1st 120 -high -minmax -mah 5 24 17.24 1st 121 -raw -randfe -mink 5 24 17.24 1st 122 -low -randfe -mah 5 24 17.24 1st 123 -low -minmax -diff 5 24 17.24 1st 124 -high -minmax -diff 5 24 17.24 1st 125 -high -minmax -eucl 5 24 17.24 1st 126 -low -minmax -eucl 5 24 17.24 1st 127 -low -minmax -cheb 5 24 17.24 1st 128 -norm -randfe -diff 4 25 13.79 1st 129 -norm -randfe -cheb 4 25 13.79 1st 130 -high -randfe -mink 4 25 13.79 1st 131 -low -randfe -diff 4 25 13.79 1st 132 -high -randfe -diff 4 25 13.79 1st 133 -high -randfe -eucl 4 25 13.79 1st 134 -high -randfe -cheb 4 25 13.79 1st 135 -low -randfe -cheb 4 25 13.79 1st 136 -norm -minmax -mink 4 25 13.79 1st 137 -raw -randfe -eucl 4 25 13.79 1st 138 -band -lpc -nn 4 25 13.79 1st 139 -raw -randfe -mah 4 25 13.79 1st 140 -high -minmax -mink 4 25 13.79 1st 141 -raw -minmax -nn 4 25 13.79 1st 142 -high -randfe -mah 4 25 13.79 1st 143 -high -minmax -cheb 4 25 13.79 1st 144 -high -minmax -nn 4 25 13.79 1st 145 -endp -randfe -randcl 4 25 13.79 1st 146 -band -minmax -mink 3 26 10.34 1st 147 -band -minmax -diff 3 26 10.34 1st 148 -band -minmax -eucl 3 26 10.34 1st 149 -band -minmax -mah 3 26 10.34
Table 10.5: Consolidated results, Part 5.
Guess Run # Configuration GOOD BAD Recognition Rate,% 1st 150 -raw -minmax -randcl 3 26 10.34 1st 151 -band -minmax -cheb 3 26 10.34 1st 152 -low -lpc -nn 3 26 10.34 1st 153 -raw -randfe -diff 3 26 10.34 1st 154 -norm -minmax -diff 3 26 10.34 1st 155 -boost -lpc -randcl 3 26 10.34 1st 156 -raw -randfe -cheb 3 26 10.34 1st 157 -boost -minmax -nn 3 26 10.34 1st 158 -highpassboost -lpc -nn 3 26 10.34 1st 159 -norm -minmax -nn 3 26 10.34 1st 160 -highpassboost -minmax -nn 3 26 10.34 1st 161 -boost -minmax -randcl 3 26 10.34 1st 162 -boost -lpc -nn 3 26 10.34 1st 163 -raw -aggr -randcl 2 27 6.90 1st 164 -band -randfe -mah 2 27 6.90 1st 165 -highpassboost -lpc -randcl 2 27 6.90 1st 166 -band -randfe -diff 2 27 6.90 1st 167 -band -randfe -eucl 2 27 6.90 1st 168 -low -minmax -nn 2 27 6.90 1st 169 -boost -randfe -randcl 2 27 6.90 1st 170 -band -randfe -cheb 2 27 6.90 1st 171 -raw -lpc -randcl 2 27 6.90 1st 172 -highpassboost -aggr -randcl 2 27 6.90 1st 173 -boost -fft -randcl 2 27 6.90 1st 174 -highpassboost -minmax -diff 1 28 3.45 1st 175 -boost -randfe -eucl 1 28 3.45 1st 176 -highpassboost -minmax -eucl 1 28 3.45 1st 177 -boost -lpc -mink 1 28 3.45 1st 178 -boost -lpc -diff 1 28 3.45 1st 179 -boost -fft -mah 1 28 3.45
Table 10.6: Consolidated results, Part 6.
Guess Run # Configuration GOOD BAD Recognition Rate,% 1st 180 -boost -lpc -eucl 1 28 3.45 1st 181 -low -fft -randcl 1 28 3.45 1st 182 -low -minmax -randcl 1 28 3.45 1st 183 -boost -minmax -mah 1 28 3.45 1st 184 -highpassboost -minmax -mah 1 28 3.45 1st 185 -boost -randfe -cheb 1 28 3.45 1st 186 -high -randfe -randcl 1 28 3.45 1st 187 -highpassboost -minmax -cheb 1 28 3.45 1st 188 -highpassboost -fft -mah 1 28 3.45 1st 189 -boost -lpc -cheb 1 28 3.45 1st 190 -boost -aggr -mah 1 28 3.45 1st 191 -highpassboost -lpc -mink 1 28 3.45 1st 192 -highpassboost -lpc -diff 1 28 3.45 1st 193 -endp -lpc -randcl 1 28 3.45 1st 194 -highpassboost -lpc -eucl 1 28 3.45 1st 195 -high -minmax -randcl 1 28 3.45 1st 196 -highpassboost -lpc -cheb 1 28 3.45 1st 197 -norm -fft -randcl 1 28 3.45 1st 198 -band -aggr -randcl 1 28 3.45 1st 199 -low -randfe -randcl 1 28 3.45 1st 200 -boost -aggr -mink 1 28 3.45 1st 201 -boost -aggr -diff 1 28 3.45 1st 202 -endp -aggr -randcl 1 28 3.45 1st 203 -boost -aggr -eucl 1 28 3.45 1st 204 -boost -fft -mink 1 28 3.45 1st 205 -boost -randfe -mah 1 28 3.45 1st 206 -boost -fft -diff 1 28 3.45 1st 207 -boost -fft -eucl 1 28 3.45 1st 208 -highpassboost -randfe -mink 1 28 3.45 1st 209 -highpassboost -randfe -diff 1 28 3.45
Table 10.7: Consolidated results, Part 7.
Guess Run # Configuration GOOD BAD Recognition Rate,% 1st 210 -boost -minmax -mink 1 28 3.45 1st 211 -boost -minmax -diff 1 28 3.45 1st 212 -highpassboost -randfe -eucl 1 28 3.45 1st 213 -boost -minmax -eucl 1 28 3.45 1st 214 -low -aggr -randcl 1 28 3.45 1st 215 -band -fft -randcl 1 28 3.45 1st 216 -boost -aggr -cheb 1 28 3.45 1st 217 -band -randfe -randcl 1 28 3.45 1st 218 -boost -fft -cheb 1 28 3.45 1st 219 -highpassboost -aggr -mink 1 28 3.45 1st 220 -highpassboost -aggr -diff 1 28 3.45 1st 221 -highpassboost -fft -mink 1 28 3.45 1st 222 -endp -minmax -randcl 1 28 3.45 1st 223 -highpassboost -fft -diff 1 28 3.45 1st 224 -highpassboost -aggr -eucl 1 28 3.45 1st 225 -highpassboost -randfe -cheb 1 28 3.45 1st 226 -high -lpc -nn 1 28 3.45 1st 227 -boost -minmax -cheb 1 28 3.45 1st 228 -highpassboost -fft -eucl 1 28 3.45 1st 229 -boost -lpc -mah 1 28 3.45 1st 230 -norm -randfe -randcl 1 28 3.45 1st 231 -highpassboost -aggr -cheb 1 28 3.45 1st 232 -highpassboost -fft -cheb 1 28 3.45 1st 233 -band -minmax -randcl 1 28 3.45 1st 234 -boost -aggr -randcl 1 28 3.45 1st 235 -highpassboost -lpc -mah 1 28 3.45 1st 236 -highpassboost -aggr -mah 1 28 3.45 1st 237 -high -lpc -randcl 1 28 3.45 1st 238 -highpassboost -randfe -mah 1 28 3.45 1st 239 -boost -randfe -mink 1 28 3.45
Table 10.8: Consolidated results, Part 8.
Guess Run # Configuration GOOD BAD Recognition Rate,% 1st 240 -boost -randfe -diff 1 28 3.45 1st 241 -highpassboost -minmax -mink 1 28 3.45 1st 242 -raw -randfe -randcl 0 29 0.00 1st 243 -highpassboost -fft -randcl 0 29 0.00 1st 244 -band -lpc -randcl 0 29 0.00 1st 245 -endp -fft -randcl 0 29 0.00 1st 246 -raw -fft -randcl 0 29 0.00 1st 247 -norm -lpc -randcl 0 29 0.00 1st 248 -highpassboost -randfe -randcl 0 29 0.00 1st 249 -high -aggr -randcl 0 29 0.00 1st 250 -band -randfe -mink 0 29 0.00 1st 251 -low -lpc -randcl 0 29 0.00 1st 252 -highpassboost -minmax -randcl 0 29 0.00 1st 253 -norm -aggr -randcl 0 29 0.00 1st 254 -high -fft -randcl 0 29 0.00 1st 255 -band -minmax -nn 0 29 0.00 1st 256 -norm -minmax -randcl 0 29 0.00 2nd 1 -endp -lpc -cheb 24 5 82.76 2nd 2 -raw -aggr -eucl 24 5 82.76 2nd 3 -norm -aggr -diff 24 5 82.76 2nd 4 -norm -aggr -cheb 24 5 82.76 2nd 5 -raw -aggr -mah 24 5 82.76 2nd 6 -raw -fft -mah 24 5 82.76 2nd 7 -raw -fft -eucl 24 5 82.76 2nd 8 -norm -fft -diff 24 5 82.76 2nd 9 -norm -fft -cheb 24 5 82.76 2nd 10 -raw -aggr -cheb 22 7 75.86 2nd 11 -endp -lpc -mah 22 7 75.86 2nd 12 -endp -lpc -eucl 22 7 75.86 2nd 13 -raw -fft -mink 25 4 86.21
Table 10.9: Consolidated results, Part 9.
Guess Run # Configuration GOOD BAD Recognition Rate,% 2nd 14 -norm -fft -mah 24 5 82.76 2nd 15 -norm -fft -eucl 24 5 82.76 2nd 16 -norm -aggr -eucl 24 5 82.76 2nd 17 -low -aggr -diff 21 8 72.41 2nd 18 -norm -aggr -mah 24 5 82.76 2nd 19 -raw -fft -cheb 22 7 75.86 2nd 20 -raw -aggr -mink 25 4 86.21 2nd 21 -norm -aggr -mink 24 5 82.76 2nd 22 -low -fft -cheb 22 7 75.86 2nd 23 -raw -lpc -mink 23 6 79.31 2nd 24 -raw -lpc -diff 23 6 79.31 2nd 25 -raw -lpc -eucl 23 6 79.31 2nd 26 -raw -lpc -mah 23 6 79.31 2nd 27 -raw -lpc -cheb 23 6 79.31 2nd 28 -low -aggr -eucl 23 6 79.31 2nd 29 -norm -lpc -mah 23 6 79.31 2nd 30 -norm -lpc -mink 23 6 79.31 2nd 31 -norm -lpc -diff 23 6 79.31 2nd 32 -norm -lpc -eucl 23 6 79.31 2nd 33 -low -aggr -cheb 22 7 75.86 2nd 34 -norm -lpc -cheb 23 6 79.31 2nd 35 -low -aggr -mah 23 6 79.31 2nd 36 -low -fft -mah 23 6 79.31 2nd 37 -norm -fft -mink 24 5 82.76 2nd 38 -low -fft -diff 21 8 72.41 2nd 39 -low -fft -eucl 23 6 79.31 2nd 40 -raw -aggr -diff 22 7 75.86 2nd 41 -high -aggr -mink 21 8 72.41 2nd 42 -high -aggr -eucl 21 8 72.41 2nd 43 -endp -lpc -mink 20 9 68.97
Table 10.10: Consolidated results, Part 10.
Guess Run # Configuration GOOD BAD Recognition Rate,% 2nd 44 -high -aggr -mah 21 8 72.41 2nd 45 -raw -fft -diff 22 7 75.86 2nd 46 -high -aggr -cheb 20 9 68.97 2nd 47 -low -aggr -mink 24 5 82.76 2nd 48 -low -fft -mink 24 5 82.76 2nd 49 -high -fft -cheb 20 9 68.97 2nd 50 -high -fft -mah 21 8 72.41 2nd 51 -low -lpc -cheb 22 7 75.86 2nd 52 -high -fft -mink 19 10 65.52 2nd 53 -high -fft -eucl 21 8 72.41 2nd 54 -low -lpc -eucl 20 9 68.97 2nd 55 -low -lpc -mah 20 9 68.97 2nd 56 -low -lpc -mink 18 11 62.07 2nd 57 -low -lpc -diff 21 8 72.41 2nd 58 -high -lpc -cheb 19 10 65.52 2nd 59 -raw -lpc -nn 14 15 48.28 2nd 60 -band -aggr -diff 14 15 48.28 2nd 61 -norm -lpc -nn 15 14 51.72 2nd 62 -band -fft -diff 14 15 48.28 2nd 63 -high -lpc -eucl 17 12 58.62 2nd 64 -high -aggr -diff 18 11 62.07 2nd 65 -endp -fft -diff 17 12 58.62 2nd 66 -endp -fft -eucl 16 13 55.17 2nd 67 -band -lpc -mink 16 13 55.17 2nd 68 -band -lpc -mah 16 13 55.17 2nd 69 -band -lpc -eucl 16 13 55.17 2nd 70 -endp -fft -cheb 17 12 58.62 2nd 71 -band -lpc -cheb 17 12 58.62 2nd 72 -endp -fft -mah 16 13 55.17 2nd 73 -high -lpc -mah 17 12 58.62
Table 10.11: Consolidated results, Part 11.
Guess Run # Configuration GOOD BAD Recognition Rate,% 2nd 74 -endp -aggr -diff 18 11 62.07 2nd 75 -endp -aggr -eucl 17 12 58.62 2nd 76 -endp -aggr -mah 17 12 58.62 2nd 77 -endp -aggr -cheb 18 11 62.07 2nd 78 -high -lpc -diff 18 11 62.07 2nd 79 -band -aggr -eucl 15 14 51.72 2nd 80 -endp -fft -mink 14 15 48.28 2nd 81 -band -aggr -cheb 14 15 48.28 2nd 82 -band -lpc -diff 17 12 58.62 2nd 83 -band -aggr -mah 15 14 51.72 2nd 84 -band -fft -mah 15 14 51.72 2nd 85 -band -fft -eucl 15 14 51.72 2nd 86 -endp -aggr -mink 14 15 48.28 2nd 87 -high -fft -diff 18 11 62.07 2nd 88 -high -lpc -mink 14 15 48.28 2nd 89 -raw -minmax -mink 12 17 41.38 2nd 90 -raw -minmax -eucl 12 17 41.38 2nd 91 -band -aggr -mink 13 16 44.83 2nd 92 -raw -minmax -mah 12 17 41.38 2nd 93 -endp -minmax -eucl 12 17 41.38 2nd 94 -endp -minmax -cheb 12 17 41.38 2nd 95 -endp -minmax -mah 12 17 41.38 2nd 96 -band -fft -cheb 14 15 48.28 2nd 97 -raw -minmax -cheb 11 18 37.93 2nd 98 -endp -lpc -nn 12 17 41.38 2nd 99 -endp -lpc -diff 19 10 65.52 2nd 100 -endp -minmax -mink 12 17 41.38 2nd 101 -endp -randfe -diff 8 21 27.59 2nd 102 -endp -randfe -cheb 8 21 27.59 2nd 103 -endp -minmax -diff 12 17 41.38
Table 10.12: Consolidated results, Part 12.
Guess Run # Configuration GOOD BAD Recognition Rate,% 2nd 104 -endp -minmax -nn 7 22 24.14 2nd 105 -band -fft -mink 13 16 44.83 2nd 106 -norm -randfe -eucl 10 19 34.48 2nd 107 -raw -minmax -diff 10 19 34.48 2nd 108 -endp -randfe -eucl 9 20 31.03 2nd 109 -endp -randfe -mah 9 20 31.03 2nd 110 -low -randfe -mink 9 20 31.03 2nd 111 -norm -randfe -mah 10 19 34.48 2nd 112 -norm -minmax -eucl 9 20 31.03 2nd 113 -norm -minmax -cheb 10 19 34.48 2nd 114 -low -minmax -mink 8 21 27.59 2nd 115 -norm -minmax -mah 9 20 31.03 2nd 116 -norm -randfe -mink 10 19 34.48 2nd 117 -endp -randfe -mink 8 21 27.59 2nd 118 -low -minmax -mah 6 23 20.69 2nd 119 -low -randfe -eucl 9 20 31.03 2nd 120 -high -minmax -mah 6 23 20.69 2nd 121 -raw -randfe -mink 9 20 31.03 2nd 122 -low -randfe -mah 9 20 31.03 2nd 123 -low -minmax -diff 6 23 20.69 2nd 124 -high -minmax -diff 6 23 20.69 2nd 125 -high -minmax -eucl 6 23 20.69 2nd 126 -low -minmax -eucl 6 23 20.69 2nd 127 -low -minmax -cheb 6 23 20.69 2nd 128 -norm -randfe -diff 10 19 34.48 2nd 129 -norm -randfe -cheb 10 19 34.48 2nd 130 -high -randfe -mink 5 24 17.24 2nd 131 -low -randfe -diff 9 20 31.03 2nd 132 -high -randfe -diff 7 22 24.14 2nd 133 -high -randfe -eucl 6 23 20.69
Table 10.13: Consolidated results, Part 13.
Guess Run # Configuration GOOD BAD Recognition Rate,% 2nd 134 -high -randfe -cheb 7 22 24.14 2nd 135 -low -randfe -cheb 9 20 31.03 2nd 136 -norm -minmax -mink 10 19 34.48 2nd 137 -raw -randfe -eucl 8 21 27.59 2nd 138 -band -lpc -nn 4 25 13.79 2nd 139 -raw -randfe -mah 8 21 27.59 2nd 140 -high -minmax -mink 6 23 20.69 2nd 141 -raw -minmax -nn 4 25 13.79 2nd 142 -high -randfe -mah 6 23 20.69 2nd 143 -high -minmax -cheb 5 24 17.24 2nd 144 -high -minmax -nn 4 25 13.79 2nd 145 -endp -randfe -randcl 6 23 20.69 2nd 146 -band -minmax -mink 5 24 17.24 2nd 147 -band -minmax -diff 5 24 17.24 2nd 148 -band -minmax -eucl 5 24 17.24 2nd 149 -band -minmax -mah 5 24 17.24 2nd 150 -raw -minmax -randcl 3 26 10.34 2nd 151 -band -minmax -cheb 4 25 13.79 2nd 152 -low -lpc -nn 4 25 13.79 2nd 153 -raw -randfe -diff 6 23 20.69 2nd 154 -norm -minmax -diff 9 20 31.03 2nd 155 -boost -lpc -randcl 3 26 10.34 2nd 156 -raw -randfe -cheb 6 23 20.69 2nd 157 -boost -minmax -nn 4 25 13.79 2nd 158 -highpassboost -lpc -nn 4 25 13.79 2nd 159 -norm -minmax -nn 3 26 10.34 2nd 160 -highpassboost -minmax -nn 4 25 13.79 2nd 161 -boost -minmax -randcl 5 24 17.24 2nd 162 -boost -lpc -nn 4 25 13.79 2nd 163 -raw -aggr -randcl 4 25 13.79
Table 10.14: Consolidated results, Part 14.
Guess Run # Configuration GOOD BAD Recognition Rate,% 2nd 164 -band -randfe -mah 5 24 17.24 2nd 165 -highpassboost -lpc -randcl 2 27 6.90 2nd 166 -band -randfe -diff 4 25 13.79 2nd 167 -band -randfe -eucl 5 24 17.24 2nd 168 -low -minmax -nn 3 26 10.34 2nd 169 -boost -randfe -randcl 3 26 10.34 2nd 170 -band -randfe -cheb 4 25 13.79 2nd 171 -raw -lpc -randcl 3 26 10.34 2nd 172 -highpassboost -aggr -randcl 2 27 6.90 2nd 173 -boost -fft -randcl 3 26 10.34 2nd 174 -highpassboost -minmax -diff 2 27 6.90 2nd 175 -boost -randfe -eucl 2 27 6.90 2nd 176 -highpassboost -minmax -eucl 2 27 6.90 2nd 177 -boost -lpc -mink 2 27 6.90 2nd 178 -boost -lpc -diff 2 27 6.90 2nd 179 -boost -fft -mah 2 27 6.90 2nd 180 -boost -lpc -eucl 2 27 6.90 2nd 181 -low -fft -randcl 3 26 10.34 2nd 182 -low -minmax -randcl 2 27 6.90 2nd 183 -boost -minmax -mah 2 27 6.90 2nd 184 -highpassboost -minmax -mah 2 27 6.90 2nd 185 -boost -randfe -cheb 2 27 6.90 2nd 186 -high -randfe -randcl 2 27 6.90 2nd 187 -highpassboost -minmax -cheb 2 27 6.90 2nd 188 -highpassboost -fft -mah 2 27 6.90 2nd 189 -boost -lpc -cheb 2 27 6.90 2nd 190 -boost -aggr -mah 2 27 6.90 2nd 191 -highpassboost -lpc -mink 2 27 6.90 2nd 192 -highpassboost -lpc -diff 2 27 6.90 2nd 193 -endp -lpc -randcl 1 28 3.45
Table 10.15: Consolidated results, Part 15.
Guess Run # Configuration GOOD BAD Recognition Rate,% 2nd 194 -highpassboost -lpc -eucl 2 27 6.90 2nd 195 -high -minmax -randcl 1 28 3.45 2nd 196 -highpassboost -lpc -cheb 2 27 6.90 2nd 197 -norm -fft -randcl 3 26 10.34 2nd 198 -band -aggr -randcl 1 28 3.45 2nd 199 -low -randfe -randcl 1 28 3.45 2nd 200 -boost -aggr -mink 2 27 6.90 2nd 201 -boost -aggr -diff 2 27 6.90 2nd 202 -endp -aggr -randcl 3 26 10.34 2nd 203 -boost -aggr -eucl 2 27 6.90 2nd 204 -boost -fft -mink 2 27 6.90 2nd 205 -boost -randfe -mah 2 27 6.90 2nd 206 -boost -fft -diff 2 27 6.90 2nd 207 -boost -fft -eucl 2 27 6.90 2nd 208 -highpassboost -randfe -mink 2 27 6.90 2nd 209 -highpassboost -randfe -diff 2 27 6.90 2nd 210 -boost -minmax -mink 2 27 6.90 2nd 211 -boost -minmax -diff 2 27 6.90 2nd 212 -highpassboost -randfe -eucl 2 27 6.90 2nd 213 -boost -minmax -eucl 2 27 6.90 2nd 214 -low -aggr -randcl 2 27 6.90 2nd 215 -band -fft -randcl 2 27 6.90 2nd 216 -boost -aggr -cheb 2 27 6.90 2nd 217 -band -randfe -randcl 2 27 6.90 2nd 218 -boost -fft -cheb 2 27 6.90 2nd 219 -highpassboost -aggr -mink 2 27 6.90 2nd 220 -highpassboost -aggr -diff 2 27 6.90 2nd 221 -highpassboost -fft -mink 2 27 6.90 2nd 222 -endp -minmax -randcl 2 27 6.90 2nd 223 -highpassboost -fft -diff 2 27 6.90
Table 10.16: Consolidated results, Part 16.
Guess Run # Configuration GOOD BAD Recognition Rate,% 2nd 224 -highpassboost -aggr -eucl 2 27 6.90 2nd 225 -highpassboost -randfe -cheb 2 27 6.90 2nd 226 -high -lpc -nn 2 27 6.90 2nd 227 -boost -minmax -cheb 2 27 6.90 2nd 228 -highpassboost -fft -eucl 2 27 6.90 2nd 229 -boost -lpc -mah 2 27 6.90 2nd 230 -norm -randfe -randcl 1 28 3.45 2nd 231 -highpassboost -aggr -cheb 2 27 6.90 2nd 232 -highpassboost -fft -cheb 2 27 6.90 2nd 233 -band -minmax -randcl 2 27 6.90 2nd 234 -boost -aggr -randcl 2 27 6.90 2nd 235 -highpassboost -lpc -mah 2 27 6.90 2nd 236 -highpassboost -aggr -mah 2 27 6.90 2nd 237 -high -lpc -randcl 1 28 3.45 2nd 238 -highpassboost -randfe -mah 2 27 6.90 2nd 239 -boost -randfe -mink 2 27 6.90 2nd 240 -boost -randfe -diff 2 27 6.90 2nd 241 -highpassboost -minmax -mink 2 27 6.90 2nd 242 -raw -randfe -randcl 0 29 0.00 2nd 243 -highpassboost -fft -randcl 1 28 3.45 2nd 244 -band -lpc -randcl 0 29 0.00 2nd 245 -endp -fft -randcl 0 29 0.00 2nd 246 -raw -fft -randcl 2 27 6.90 2nd 247 -norm -lpc -randcl 1 28 3.45 2nd 248 -highpassboost -randfe -randcl 1 28 3.45 2nd 249 -high -aggr -randcl 0 29 0.00 2nd 250 -band -randfe -mink 1 28 3.45 2nd 251 -low -lpc -randcl 2 27 6.90 2nd 252 -highpassboost -minmax -randcl 2 27 6.90 2nd 253 -norm -aggr -randcl 1 28 3.45
Table 10.17: Consolidated results, Part 17.
Guess Run # Configuration GOOD BAD Recognition Rate,% 2nd 254 -high -fft -randcl 3 26 10.34 2nd 255 -band -minmax -nn 1 28 3.45 2nd 256 -norm -minmax -randcl 1 28 3.45
Table 10.18: Consolidated results, Part 18.

11.1 MARF Research Applications

11.1.1 SpeakerIdentApp - Text-Independent Speaker Identification Application

SpeakerIdentApp is an application for text-independent speaker identification that exercises the most of the MARF’s features. SpeakerIdentApp is broadly presented through the rest of this manual.

11.1.2 Zipf’s Law Application

Originally written on February 7, 2003.

11.1.2.0.1 The Program
11.1.2.0.2 Data Structures

The main statistics “place-holder” is a oStats Hashtable, nicely provided by Java, which hashes by words as keys to other data structures, called WordStats. The WordStats data structure contains word’s spelling, called lexeme (borrowed this term from compiler design), word’s frequency (initially ), and word’s rank (initially , i.e. unset). WordStats provides a typical variety of methods to access and alter any of those three values. There is an array, called oSortedStatRefs, which will eventually hold references to WordStats objects in the oStats hashtable in the sorted by the frequency.

Hashtable entry might look like this in pseudo-notation:

{ <word> } -> [ WordStats{ <word>, <f>, <r> } ]

11.1.2.1 Mini User Manual
11.1.2.1.1 System Requirements

The program was mostly developed under Linux, so there’s a Makefile and a testing shell script to simplify some routine tasks. For JVM, any JDK 1.4.* and above will do. bash would be nice to have to be able to run the batch script. Since the application itself is written in Java, it’s not bound to specific architecture, thus may be compiled and run without the makefiles and scripts on virtually any operating system.

11.1.2.1.2 How To Run It

There are at least three ways how to run the program, listed in order of complexity (in terms of number of learning and typing involved). In order for the below to work you’d need some corpora in the same directory as the application.

11.1.2.1.3 Using the testing.sh Script

The script is written using bash syntax; hence, bash should be present. The script ensures that the program was compiled first, by invoking make, then in a for loop feeds all the *.txt files (presumably our corpora) along with the ZipfLaw.java program itself to the executable, one by one, and redirects its standard output to the files as corpus-name[options>.log in the current directory. These files will contain the grouping of the 100 most frequent words every 1000 words as well as frequency-of-frequency counts at the end.

Type:

./testing.sh

to run the batch through with the default settings.

./testing.sh <options>

to override the default settings with options. options are the same as that of the ZipfLaw application (see 11.1.2.1.5).

11.1.2.1.4 Using Makefile

If you want to build and to run the application just for individual, pre-set corpora, use the make utility provided with UNIXen.

Type (assuming GNU-style make, or gmake):

make

to just compile the thing

make <corpus-name> [ > <filename>.log ]

to (possibly compile if not done yet) and run it for the corpus <corpus-name> and to optionally redirect output to the file named <filename>.log The <corpus-name> are described in the Makefile itself.

make clean

to clean up the *.class and *.log files that happened to be generated and so on.

make run

is actually equivalent to running testing.sh with no options.

make report

to produce a PDF file out of the LaTeX source of the report.

11.1.2.1.5 Running The ZipfLaw Application

You can run the application itself without any wrapping scripts and provide options to it. This is a command-line application, so there is no GUI associated with it yet. To run the application you have to compile it first. You can use either make with no arguments to compile or use the standard Java compiler.

make

or

javac -cp marf.jar:. ZipfLaw.java

After having compiled the thing, you can run it with the JVM. There is one required argument - either corpus file to analyze or --help. If it’s a corpus, it may be accompanied with one or more options overriding the default settings. Here are the options as per the application’s output:



Usage:
    java ZipfLaw --help | -h | [ OPTIONS ] <corpus-file>
    java ZipfLaw --list [ OPTIONS ] <corpus-file>

Options (one or more of the following):
    --case  - make it case-sensitive
    --num   - parse numerical values
    --quote - consider quotes and count quoted strings as one token
    --eos   - make typical ends of sentences (<?>, <!>, <.>) significant
    --nolog - dump Zipf’s law graph values as-is instead of log/log
    --list  - lists already pre-collected statistics for a given corpus



If the filename isn’t specified, that will be stated and the usage instructions above displayed. The output filename generated from the input file name with the options (if any) pre-pended and it ends with the extension of .csv, which can directly be opened by OpenOffice Calc or Microsoft Excel.

11.1.2.2 Experiments

Various experiments on diverse corpora were conducted to find out whether Zipf’s Law can possibly fail. For that purpose I used the following corpora:

  • a technical white paper of Dr. Probst ([probst95]) of 20k in size, the filename is multiprocessor.txt

  • three ordinary corpora (non-technical literature) ([greif, ulysses, speak]) – grfst10.txt, 853k; ulysses.txt, 1.5M; and hwswc10.txt, 271k

  • my personal mailbox in UNIX format, raw as is, 5.5M

  • the source code of this application itself, ZipfLaw.java, 8.0k

11.1.2.2.1 Default Setup

This is very simplistic approach in the application, where everything but a letter (26 caps, and 26 lowercase) is a blank, and as such is discarded. All the words were folded to the lower case as well. This default setup can be overridden by specifying the command-line options described above.

11.1.2.2.2 Extreme Setup

One of the option combinations, that makes the program case-sensitive, considers the numbers, and treats “!”, “.”, and “?” as special tokens.

11.1.2.3 Results

We failed to prove Zipf wrong. With any of the corpora and the settings. Further, the log/log graphs of the frequency and the rank for the default and the extreme setup are provided. The graphs don’t change very much in shape. For other option combinations, the graphs are not provided since they don’t vary much. It turned out to be the that capitalization, end of sentence symbols, and numbers, if treated as tokens, don’t make much of a difference, as if they simply aren’t there.

In the distribution archive, you will find the *.log and *.csv files of the test runs, which contain the described statistics. You are welcome to do make clean and re-run the tests on your own. NOTE, by default the output goes to the standard output, so it’s a good idea to redirect it to a file especially if a corpus is a very large one.

11.1.2.3.1 Graphs, The Default Setup
Figure 11.1: Zipf’s Law for the “Greifenstein” corpus with the default setup.
Figure 11.2: Zipf’s Law for the “How to Speak and Write Correctly” corpus with the default setup.
Figure 11.3: Zipf’s Law for my 5.6 Mb INBOX with the default setup.
Figure 11.4: Zipf’s Law for the white paper “The United States Needs a Scalable Shared-Memory Multiprocessor, But Might Not Get One!” with the default setup.
Figure 11.5: Zipf’s Law for the “Ulysses” corpus with the default setup.
Figure 11.6: Zipf’s Law for the “ZipfLaw.java” program itself with the default setup.
11.1.2.3.2 Graphs, The Extreme Setup
Figure 11.7: Zipf’s Law for the “Greifenstein” corpus with the extreme setup.
Figure 11.8: Zipf’s Law for the “How to Speak and Write Correctly” corpus with the extreme setup.
Figure 11.9: Zipf’s Law for my 5.6 Mb INBOX with the extreme setup.
Figure 11.10: Zipf’s Law for the white paper “The United States Needs a Scalable Shared-Memory Multiprocessor, But Might Not Get One! with the extreme setup
Figure 11.11: Zipf’s Law for the “Ulysses” corpus with the extreme setup.
Figure 11.12: Zipf’s Law for the “ZipfLaw.java” program itself with the extreme setup.
11.1.2.4 Conclusions

Zipf’s Law holds so far. However, more experimentation is required, for example, other punctuation characters than that ending a sentence were not considered. Then other languages than English is a good area to explore as well.

11.1.3 Language Identification Application

Originally written on March 17, 2003.

11.1.3.1 The Program

The Mini-User Manual is provided in the Section 11.1.3.10. The source is provided in the electronic form only from the release tarballs or the CVS repository.

NOTE: in the code there are a lot of files. Not all of them might be of a great interest to you since some of them are stubs right now and don’t provide much functionality in them or the functionality is not linked anyhow to the main application. These files are:

./marf/nlp/Collocations:
    ChiSquareTest.java
    CollocationWindow.java
    TTest.java

./marf/Stats/StatisticalEstimators:
    GLI.java
    KatzBackoff.java
    SLI.java

./marf/util/comparators:
    RankComparator.java

./marf/nlp/Stemming:
    StemmingEN.java
    Stemming.java
11.1.3.2 Hypotheses
11.1.3.2.1 Identifying Non-Latin-Script-Based Languages

The methodology, if implemented correctly, should work for natural languages that use non-Latin scripts for their writing. Of course, to test this, such scripts will have to be romanized (either transcribed or transliterated using Latin, more precisely, ASCII characters).

11.1.3.2.2 Identifying Programming Languages

I have thought of if the proposed methodology works well for natural languages, it would probably work at least as good for the programming languages.

11.1.3.2.3 Sophisticated Statistical Estimators Should Work Better

“Good” (or “better” if you will) statistical estimators presented in Chapter LABEL:chapt:statitstic-processing should give better results (higher language recognition rate) over simpler ones. By “simpler” we mean the MLE and Add-* family. By more sophisticated we mean Witten-Bell, Good-Turing, and the combination of the Statistical Estimators.

11.1.3.2.4 Zipf’s Law Can Also Be Effective in Language Identification

Zipf’s Law can be reasonably effective and very “cheap” in language identification task. This one is yet to be verified.

11.1.3.3 Initial Experiments Setup
11.1.3.3.1 Languages

Several natural and programming languages in were used in the experiments.

Natural Lanugages (NLs)
  • English (en - ISO 2-letter code code [iso-codes])

  • French (fr, desaccented)

  • Spanish (es, desaccented)

  • Italian (it)

  • Arabic (ar, transcribed in ASCII according to the qalam rules [qalam])

  • Hebrew (he, transcribed in ASCII)

  • Bulgarian (bg, transcribed in ASCII)

  • Russian (ru, transcribed in ASCII)

Programming Languages (PLs)
  • C/C++ (together, since C is a proper subset of C++)

  • Java

  • Perl

Statistical Estimators Implemented
  • MLE in MLE

  • Add-One in AddOne

  • Add-Delta (ELE) in AddDelta

  • Witten-Bell in WittenBell

  • Good-Turing in GoodTuring

N-gram Models
  • Unigram

  • Bigram

  • Trigram

11.1.3.3.2 Corpora
English

The English language corpora is (not very surprisingly) was the biggest one. To simplify the training process, we combined them all in one file en.txt. It includes [probst95, ulysses, greif, speak, fannyhill, lysistrata, canterby, defoe, rousseau, tasso]. Additionally, a few chapters of “The Little Prince”. Total size of the combined file is 7Mb.

French

For French we used few chapters of “Le Petit Prince”. The totals combined size is 12k, fr.txt.

Spanish

Like the French corpora, the Spanish one includes several chapters of “Le Petit Prince” in Spanish (from the same source). The total size is 12k, es.txt.

Arabic

We have compiled a few surah from transliterated Quran ([quran]) as well as a couple of texts transcribed by Michelle Khalifé from a proverb [jeha] and a passage from a newspaper in Arabic [arnews]. Total size: 208k, ar.txt.

Hebrew

We used a few poems written by their author ([hepoems]) in ASCII alphabet. Total size is 37k, he.txt.

Russian

Latinized classics (one whole book) was used (see [ohotnik]). Total size is 877k, ru.txt.

Bulgarian

A few transcribed poems were used for training from [bgpoems]. Total size: 21k, bg.txt.

Italian

We used the “Pinocchio” book [pinocchio] of the size of 245k, it.txt.

C/c++

Various .c and .cpp files were used from a variety of projects and examples for the “COMP444 - System Software Design”, “COMP471 - Computer Graphics”, “COMP361”, and “COMP229 - System Software courses”. The total size is 137k, cpp.txt.

Java

As Java “corpora” we used the sources of this application at some point in the development cycle and source files for the MARF project itself. The total size is 260k, java.txt.

Perl

For Perl, we used many of Serguei’s scripts written to help with marking of assignments and accept electronic submissions as well as a couple tools for CVS written in Perl from the Internet (Google keywords: cvs2cl.pl and cvs2html.pl). Size: 299k, perl.txt.

11.1.3.4 Methodology
11.1.3.4.1 Add-Delta Family

Add-Delta is defined as:

where is a vocabulary size, is the number of n-grams that start with ngram. By implementing this general Add-Delta smoothing we get MLE, ELE, and Add-One “for free” as special cases of Add-Delta:

  • is MLE

  • is Add One

  • is ELE

11.1.3.4.2 Witten-Bell and Good Turing

These two estimators were implemented as given in hopes to get a better recognition rate over the Add-Delta family.

11.1.3.5 Difficulties Encountered

During the experimentations we faced several problems, some of which are worth mentioning.

11.1.3.5.1 “Bag-of-Languages” and Alphabets

From this point now on, by an alphabet in this document we mean something more than what people understand by the language alphabet. In our case an alphabet may include characters other than letters, such as numbers, punctuation, even a blank sometimes, all being derived from a training corpus.

Initially, we attempted to treat programming languages as if they were natural ones. That way, from the developer’s standpoint we deal with them all uniformly. This assumption could be viewed as cheating to some extent however because programming languages have a lot larger alphabets that are necessary lexical parts of the language in addition to the statements written using ASCII letters. Therefore, this gives a lot of discriminatory power as compared to the NLs when these characters are inputted by an user. Treating PLs as using only ASCII Latin base should lead to a lot of confusion with English (and sometimes other NLs) because most of the keywords are English words in addition to literal text strings and comments present within the code.

Among NLs that were transcribed or transliterated in Latin there are alphabetical differences. For instance, in Arabic there are three h-like sounds that have no English equivalent, so sometimes numbers 3, 7, and 5 are used for that purpose (or in more standard LAiLA notation [qalam] capitals are used instead. To be more fair to others, we let numerals to be a part of the alphabet as well. Analogous problem existed when using capitals for different sounds as opposed to direct lowercase transliteration in Arabic making lowercasing a not necessarily good idea.

Russian and Bulgarian (transcribed from Cyrillic scripts) use (’) and some other symbols (like ([) or (]) in Bulgarian) to represent certain letters or sounds; hence, they always have to be a part of the alphabet. This has caused some problems again, and I thought of another separation that is needed: Latin-based, Cyrillic-based, and Semitic-based languages, and our “bag-of-languages” approach might no do so well. (We, however, just split PLs, Latin-based and non-Latin as the end result.)

Even for Latin-based languages that can be a problem. For example, the letter does not exist in Spanish or Italian (it may if referred to the foreign words, such as “kilogram” or proper names but is not used otherwise). So are and and maybe some others. The same with French – the letters and are very rare (so they didn’t happen to be in “Le Petit Prince” corpus used, for example).

11.1.3.5.2 Alphabet Normalization

We do get different alphabet sizes of my corpora for a language. The alphabets are derived from the corpora themselves, so depending on the size some characters that appear in one corpora might not appear in another. Thus, when we perform classification task for a given sentence, the models compared may be with differently-sized alphabets thereby returning a probability of 0.0 for the n-gram’s characters that have not been present yet in a given trained model. This can be viewed as a non-uniform smoothing of the models and implies necessity of the normalization of the alphabets of all the language models after accounting for n-grams has been made, and only then smooth.

Language model normalization in has not been implemented yet. Such normalization, however, will provoke a problem of data sparseness similar to the one described below. This presents a problem for smoothing techniques, because some counts we get, of either n-grams or (n-1)-grams, will have values of 0.0 and division by 0.0 will become a problem.

11.1.3.5.3 N-grams with

The implemented maximum so far is , but it is a general problem for any . The problem stems from the excessive data sparseness of the models for . Taking for example MLE — it won’t be able to cope with it properly without special care because there is now a two-dimensional matrix, which can easily be 0.0 in places and the division by zero is unavoidable. Analogous problem exists in the Good-Turing smoothing. To solve this we have said if make . Maybe by doing so (as this is a quite a kludge) we have created more trouble, but that was the “design decision” in the first implementation.

11.1.3.6 Experiments
11.1.3.6.1 Bag-of-Languages and the Language Split

We came up with a few testing sentences/statements for all languages (can be found in the test.langs file, see Figure 11.13). Then, based on my random observations above we conducted more guided experiments.



Note, the sentences below do not necessarily convey any meaning or information of interest;
they are here just for testing purposes including this one :-).
Esta noche salimos juntos a la fiesta.
We should abolish microprocessor use.
Shla Sasha po shosse i sosala sushku
Mon amour, tu me manques tellement beaucoup.
Buduchi chelovekom s borodoi let Misha slegka posgatyvalsya posle burnoi p’yanki s druz’yami
Te amo y te quiero muchisimo
troyer krekhtst in harts er.
Un burattino Pinocchio
chou habbibi
Na gara s nepoznato ime i lampi s mqtna svetlina
class foo extends bar
#include <foo.h>
cout << a;
vos makhn neshome farvundert
public interface doo
use strict;
Wa-innaka laAAala khuluqin AAatheemin
sub foo
etim letom mimiletom lyudi edut kto kuda
avant avoir capote mon ordi est devenu vraiment fou
ishtara jeha aacharat hamir
the assignment is due tomorrow, n’est-ce pas?
Figure 11.13: Sample sentences in various languages used for testing. Was used in “Bag-of-Languages” experiments.





Note, the sentences below does not necessarily convey any meaning or information of interest;
they are here just for testing purposes including this one :-).
Esta noche salimos juntos a la fiesta.
We should abolish microprocessor use.
Mon amour, tu me manques tellement beaucoup.
Te amo y te quiero muchisimo
Un burattino Pinocchio
avant avoir capote mon ordi est devenu vraiment fou
the assignment is due tomorrow, n’est-ce pas?
Figure 11.14: Subset of the sample sentences in languages with Latin base.



The sentences from the Figure 11.13 were used as-is to pipe to the program for classification for the bag-of-languages approach. This file has been split into parts (see Figure 11.14, Figure 11.15, and Figure 11.16) to try out other approaches as well (see Section 11.1.3.7).



Shla Sasha po shosse i sosala sushku
Buduchi chelovekom s borodoi let Misha slegka posgatyvalsya posle burnoi p’yanki s druz’yami
troyer krekhtst in harts er.
chou habbibi
Na gara s nepoznato ime i lampi s mqtna svetlina
vos makhn neshome farvundert
Wa-innaka laAAala khuluqin AAatheemin
etim letom mimiletom lyudi edut kto kuda
ishtara jeha aacharat hamir
Figure 11.15: Subset of the sample sentences in languages with non-Latin base.





class foo extends bar
#include <foo.h>
cout << a;
public interface doo
use strict;
sub foo
Figure 11.16: Subset of the sample statements in programming languages.



11.1.3.6.2 Tokenization

We used two types of tokenizer, restricted and unrestricted to experiment with the diverse alphabets. The “restricted tokenizer” means lowercase-folded ASCII characters and numbers (more corresponding to the original requirements). The “unrestricted tokenizer” means additional characters are allowed and it is case-sensitive. In both tokenizers blanks are discarded. An implementation of these tokenizer settings via command-line options is still a TODO, so we were simply changing the code and recompiling. The code has an unrestricted tokenizer (NLPStreamTokenizer.java under marf/nlp/util).

11.1.3.7 Training

We trained language models to include the following:

  • all the languages (both NLs and PLs) with the restricted tokenizer

  • all the languages with the unrestricted tokenizer

  • latin-based NLs (English, French, Spanish, and Italian) with the restricted tokenizer

  • non-latin-based romanized NLs (Arabic, Hebrew, Russian, and Bulgarian) with the unrestricted tokenizer

  • PLs (Java, C/C++, Perl) with the unrestricted tokenizer.

11.1.3.8 Results
11.1.3.8.1 Brief Summary

(Brief because there’s more elaborate Conclusion section).

So far, the results are good in places, sometimes pitiful. Trigrams alone generally were very poor and slow for us. Unigrams and bigrams performed quite well, however.

More detailed results can be observed in the Appendix 11.1.3.12. Below are the numbers as a recognition rate of the sentences presented earlier for every language model. Note that numbers by themselves may not convey enough information, one has to look at the detailed results further to actually realize that the number of samples is debatable to be good and so are the training corpora is not uniform. One might also want to look which languages get confused with each other.

11.1.3.8.2 Summary of Recognition Rates



Language Model:

  • “Bag-of-Languages”

  • Unrestricted tokenizer

                 unigram  bigram  trigram

MLE              54.17%   16.67%  16.67%
add-delta (ELE ) 58.33%   12.50%  16.67%
add-one          58.33%   12.50%  16.67%
Witten-Bell      16.67%   29.17%  16.67%
Good-Turing      16.67%   12.50%  16.67%



Language Model:

  • NLs transcribed in ASCII (Arabic, Hebrew, Bulgarian, and Russian)

  • Unrestricted tokenizer

                 unigram  bigram  trigram

MLE              66.67%   33.33%  33.33%
add-delta (ELE)  77.78%   11.11%  55.56%
add-one          77.78%   11.11%  55.56%
Witten-Bell      55.56%   66.67%  33.33%
Good-Turing      55.56%   55.56%  55.56%



Language Model:

  • PLs only (C/C++, Java, and Perl)

  • Unrestricted tokenizer

                 unigram  bigram  trigram

MLE              33.33%   33.33%  33.33%
add-delta (ELE)  33.33%   50.00%  33.33%
add-one          33.33%   50.00%  33.33%
Witten-Bell      33.33%   50.00%  33.33%
Good-Turing      33.33%   33.33%  33.33%



Language Model:

  • Latin-based Langauges only (English, French, Spanish, and Italian)

  • Restricted tokenizer

                 unigram  bigram  trigram

MLE              77.78%   33.33%  44.44%
add-delta (ELE)  77.78%   44.44%  55.56%
add-one          77.78%   55.56%  55.56%
Witten-Bell      44.44%   44.44%  44.44%
Good-Turing      44.44%   44.44%  55.56%



Language Model:

  • “Bag-of-Languages”

  • Restricted tokenizer

                 unigram  bigram  trigram

MLE              62.50%   16.67%  16.67%
add-delta (ELE)  62.50%    4.17%  12.50%
add-one          62.50%    8.33%  12.50%
Witten-Bell      16.67%   33.33%  16.67%
Good-Turing      16.67%   20.83%  25.00%
11.1.3.9 Conclusions
11.1.3.9.1 Concrete Points
  • The best results we’ve got so far from simpler language models; especially using languages with the Latin base only.

  • The methodology did work for non-Latin languages as well. Not 100% of the time, but around 60%, but this is a start.

  • Witten-Bell and Good-Turing performed rather poorly in our tests in general. We think we need a lot larger corpora to test out Witten-Bell and Good-Turing smoothing more thoroughly. This can be confirmed by some of the results where Good-Turing gave us all English and English is the biggest corpus we’ve got.

  • Identification of the Latin-based languages among themselves was the best one. It worked OK in the bag-of-languages approach.

  • The strict tokenizer and bag-of-languages were surprisingly good (or at least better than we expected).

  • Recognition of the programming languages according to the conducted experiments can be qualified as “so-so” when PLs are compared to each other only. They were recognized slightly better in the bag-of-languages approach (due to the larger alphabets).

11.1.3.9.2 Generalities

Some of the hypotheses didn’t hold (“better techniques would do better” and “PLs can be identified as easily as NLs”), some didn’t have time allotted to them yet (“try out Zipf’s Law for the purpose of the language identification”).

In the next releases, we want to experiment with more things, for example, cross-validation and held-out estimation as well as linear interpolations and Katz Backoff.

11.1.3.10 Mini User Manual
11.1.3.10.1 System Requirements

The application was primarily developed under Linux, so there’s a Makefile and a testing shell script to simplify some routine tasks. For JVM, any JDK 1.4.* and above will do. tcsh would be nice to have to be able to run the batch script. Since the application itself is written in Java, it’s not bound to specific architecture, thus may be compiled and run without the makefiles and scripts on virtually any operating system.

11.1.3.10.2 How To Run It

In order for the below to work you’d need some corpora in the same directory as the application. (Check the reference section for the corpora used in the experiments.) There are thousands of ways how to run the program. Some of them are listed below.

11.1.3.10.3 Using the Shell Scripts

There are two scripts out there – training.sh and testing.sh. The former is used to do batch training on all the languages and all the models, the latter to perform batch-testing of the models. They hide the complexity of typing many options to the users. If you are ever to use them, tweak them appropriately for the specific languages and n-gram models if you don’t all all-or-nothing testing.

The scripts are written using the tcsh syntax; hence, tcsh should be present. The scripts ensure that the program was compiled first, by invoking make, then in several for() loops feed all the options and filenames to the application.

Type:

./training.sh

to train the models.

./testing.sh

to test the models. NOTE: to start testing right away, you need the *.gzbin files (pre-trained models) which should be copied from a training-* directory of your choice to the application’s directory.

11.1.3.10.4 Running The LangIdentApp Application

You can run the application itself without any wrapping scripts and provide options to it. This is a command-line application, so there is no GUI associated with it yet (next release). To run the application you have to compile it first. You can use either make with no arguments to compile or use a standard Java compiler.

make

or

javac -cp marf.jar:. LangIdentApp.java

After having compiled the application, you can run it with the JVM. There are several required options:

  • -char makes sure we deal with characters instead of strings of characters as a part of an n-gram

  • one of the statistical estimators (see below); if none present, it won’t pick any default one

  • language parameter (it may seem awkward to require it for identification, but this will fixed, so for now use anything for it, like “foo”). Thus, the “language” is a typically two-to-four letter abbrieviation of the language you are trying to train on (w.g. “en”, “es”, “java”, etc.).

  • corpus - a path to the corpus file for training. For testing just use “bar”.

If you want an interactive mode to enter sentences yourself, use the -interactive option. E.g.:

java -cp marf.jar:. LangIdentApp --ident -char -interactive -bigram -add-delta foo bar

Here are the options as per the application’s output:



Language Identification Application, $Revision: 1.4 $, $Date: 2009/02/22 02:16:00 $
Serguei A. Mokhov, mokhov@cs.concordia.ca
March 2003 - 2009


Usage:
    java LangIdentApp --help | -h
    java LangIdentApp --version
    java LangIdentApp --train [ --debug ] [ OPTIONS ] <language> <corpus-file>
    java LangIdentApp --ident [ --debug ] [ OPTIONS ] foo <bar|corpus-file>

Options (one or more of the following):
    -interactive   interactive mode for classification instead of reading from a file
    -char          use characters as n-grams (should always be present for this app)

    -unigram       use UNIGRAM model
    -bigram        use BIGRAM model
    -trigram       use TRIGRAM model

    -mle           use MLE
    -add-one       use Add-One smoothing
    -add-delta     use Add-Delta (ELE, d=0.5) smoothing
    -witten-bell   use Witten-Bell smoothing
    -good-turing   use Good-Turing smoothing



If the filename isn’t specified, that will be stated and the usage instructions above displayed.

11.1.3.11 List of Files
11.1.3.11.1 Directories
  • marf/nlp – that’s where most of the code is for for use by this application, the marf.nlp package. As discussed at the beginning, it has all the possible implementation files, but some of them are just unimplemented stubs.

  • index/ – this directory contains indexing of file names of corpora per language (see Section 11.1.3.11.2)

  • test/ – this directory contains testing files with sentences in various languages for testing (see Section 11.1.3.11.6)

  • expected/ – this directory contains expected output files for classification (see Section 11.1.3.11.3)

  • training-*/ – these directories contain all pre-trained models by us for the described experiments and will be supplied in the training-sets tarballs.

11.1.3.11.2 Corpora per Language

The below is the list of files of “pointers” to the training corpora for the corresponding languages.

ar.train.corpora
bg.train.corpora
cpp.train.corpora
en.train.corpora
es.train.corpora
fr.train.corpora
he.train.corpora
it.train.corpora
java.train.corpora
perl.train.corpora
ru.train.corpora
11.1.3.11.3 Expected Results

The below files present the ideal results of batch identification that correspond the test.*.langs files below, and can be compared to those produced by the testing.sh script.

expected.langs
expected.latin.langs
expected.non-latin.langs
expected.pls.langs
11.1.3.11.4 Application

The application and its makefile.

LangIdentApp.java
Makefile
marf.jar
11.1.3.11.5 Scripts

The wrapper scripts for batch training and testing.

testing.sh
training.sh
11.1.3.11.6 Test Sentences
  • test.langs — the bag-of-languages

  • test.latin.langs — English, French, Spanish, and Italian sentences

  • test.non-latin.langs — Arabic, Hebrew, Russian, and Bulgarian sentences

  • test.pls.langs — Programming Languages (a few statements in C++, Java, and Perl)

11.1.3.12 Classification Results
11.1.3.12.1 “Bag-of-Languages”, Unrestricted Tokenizer



UNIGRAM, ADD-DELTA                                                 UNIGRAM, ADD-ONE

Ideal                        Actual                       Match    Ideal                        Actual                       Match

Language identified: [en]    Language identified: [en]    1        Language identified: [en]    Language identified: [en]    1
Language identified: [en]    Language identified: [en]    2        Language identified: [en]    Language identified: [en]    2
Language identified: [es]    Language identified: [fr]             Language identified: [es]    Language identified: [fr]
Language identified: [en]    Language identified: [en]    3        Language identified: [en]    Language identified: [en]    3
Language identified: [ru]    Language identified: [ru]    4        Language identified: [ru]    Language identified: [ru]    4
Language identified: [fr]    Language identified: [fr]    5        Language identified: [fr]    Language identified: [fr]    5
Language identified: [ru]    Language identified: [ru]    6        Language identified: [ru]    Language identified: [ru]    6
Language identified: [es]    Language identified: [es]    7        Language identified: [es]    Language identified: [es]    7
Language identified: [he]    Language identified: [he]    8        Language identified: [he]    Language identified: [he]    8
Language identified: [it]    Language identified: [it]    9        Language identified: [it]    Language identified: [it]    9
Language identified: [ar]    Language identified: [ru]             Language identified: [ar]    Language identified: [ru]
Language identified: [bg]    Language identified: [bg]    10       Language identified: [bg]    Language identified: [bg]    10
Language identified: [java]  Language identified: [es]             Language identified: [java]  Language identified: [es]
Language identified: [cpp]   Language identified: [perl]           Language identified: [cpp]   Language identified: [perl]
Language identified: [cpp]   Language identified: [perl]           Language identified: [cpp]   Language identified: [perl]
Language identified: [he]    Language identified: [he]    11       Language identified: [he]    Language identified: [he]    11
Language identified: [java]  Language identified: [it]             Language identified: [java]  Language identified: [it]
Language identified: [perl]  Language identified: [cpp]            Language identified: [perl]  Language identified: [cpp]
Language identified: [ar]    Language identified: [ar]    12       Language identified: [ar]    Language identified: [ar]    12
Language identified: [perl]  Language identified: [es]             Language identified: [perl]  Language identified: [es]
Language identified: [ru]    Language identified: [ru]    13       Language identified: [ru]    Language identified: [ru]    13
Language identified: [fr]    Language identified: [it]             Language identified: [fr]    Language identified: [it]
Language identified: [ar]    Language identified: [bg]             Language identified: [ar]    Language identified: [bg]
Language identified: [en]    Language identified: [en]    14       Language identified: [en]    Language identified: [en]    14

Total                        24                           14       Total                        24                           14
%                            58.33                                 %                            58.33





UNIGRAM, GOOD-TURING                                               UNIGRAM, MLE

Ideal                        Actual                       Match    Ideal                        Actual                       Match

Language identified: [en]    Language identified: [en]    1        Language identified: [en]    Language identified: [en]    1
Language identified: [en]    Language identified: [en]    2        Language identified: [en]    Language identified: [en]    2
Language identified: [es]    Language identified: [en]             Language identified: [es]    Language identified: [fr]
Language identified: [en]    Language identified: [en]    3        Language identified: [en]    Language identified: [en]    3
Language identified: [ru]    Language identified: [en]             Language identified: [ru]    Language identified: [bg]
Language identified: [fr]    Language identified: [en]             Language identified: [fr]    Language identified: [fr]    4
Language identified: [ru]    Language identified: [en]             Language identified: [ru]    Language identified: [ru]    5
Language identified: [es]    Language identified: [en]             Language identified: [es]    Language identified: [es]    6
Language identified: [he]    Language identified: [en]             Language identified: [he]    Language identified: [he]    7
Language identified: [it]    Language identified: [en]             Language identified: [it]    Language identified: [it]    8
Language identified: [ar]    Language identified: [en]             Language identified: [ar]    Language identified: [ru]
Language identified: [bg]    Language identified: [en]             Language identified: [bg]    Language identified: [bg]    9
Language identified: [java]  Language identified: [en]             Language identified: [java]  Language identified: [es]
Language identified: [cpp]   Language identified: [en]             Language identified: [cpp]   Language identified: [perl]
Language identified: [cpp]   Language identified: [en]             Language identified: [cpp]   Language identified: [perl]
Language identified: [he]    Language identified: [en]             Language identified: [he]    Language identified: [he]    10
Language identified: [java]  Language identified: [en]             Language identified: [java]  Language identified: [it]
Language identified: [perl]  Language identified: [en]             Language identified: [perl]  Language identified: [cpp]
Language identified: [ar]    Language identified: [en]             Language identified: [ar]    Language identified: [ar]    11
Language identified: [perl]  Language identified: [en]             Language identified: [perl]  Language identified: [es]
Language identified: [ru]    Language identified: [en]             Language identified: [ru]    Language identified: [ru]    12
Language identified: [fr]    Language identified: [en]             Language identified: [fr]    Language identified: [it]
Language identified: [ar]    Language identified: [en]             Language identified: [ar]    Language identified: [bg]
Language identified: [en]    Language identified: [en]    4        Language identified: [en]    Language identified: [en]    13

Total                        24                           4        Total                        24                           13
%                            16.67                                 %                            54.17





UNIGRAM, WITTEN-BELL                                               BIGRAM, ADD-DELTA

Ideal                        Actual                       Match    Ideal                        Actual                       Match

Language identified: [en]    Language identified: [en]    1        Language identified: [en]    Language identified: [bg]
Language identified: [en]    Language identified: [en]    2        Language identified: [en]    Language identified: [fr]
Language identified: [es]    Language identified: [en]             Language identified: [es]    Language identified: [es]    1
Language identified: [en]    Language identified: [en]    3        Language identified: [en]    Language identified: [bg]
Language identified: [ru]    Language identified: [en]             Language identified: [ru]    Language identified: [bg]
Language identified: [fr]    Language identified: [en]             Language identified: [fr]    Language identified: [fr]    2
Language identified: [ru]    Language identified: [en]             Language identified: [ru]    Language identified: [bg]
Language identified: [es]    Language identified: [en]             Language identified: [es]    Language identified: [fr]
Language identified: [he]    Language identified: [en]             Language identified: [he]    Language identified: [bg]
Language identified: [it]    Language identified: [en]             Language identified: [it]    Language identified: [fr]
Language identified: [ar]    Language identified: [en]             Language identified: [ar]    Language identified: [fr]
Language identified: [bg]    Language identified: [en]             Language identified: [bg]    Language identified: [es]
Language identified: [java]  Language identified: [en]             Language identified: [java]  Language identified: [fr]
Language identified: [cpp]   Language identified: [en]             Language identified: [cpp]   Language identified: [perl]
Language identified: [cpp]   Language identified: [en]             Language identified: [cpp]   Language identified: [cpp]   3
Language identified: [he]    Language identified: [en]             Language identified: [he]    Language identified: [bg]
Language identified: [java]  Language identified: [en]             Language identified: [java]  Language identified: [fr]
Language identified: [perl]  Language identified: [en]             Language identified: [perl]  Language identified: [es]
Language identified: [ar]    Language identified: [en]             Language identified: [ar]    Language identified: [bg]
Language identified: [perl]  Language identified: [en]             Language identified: [perl]  Language identified: [fr]
Language identified: [ru]    Language identified: [en]             Language identified: [ru]    Language identified: [bg]
Language identified: [fr]    Language identified: [en]             Language identified: [fr]    Language identified: [es]
Language identified: [ar]    Language identified: [en]             Language identified: [ar]    Language identified: [es]
Language identified: [en]    Language identified: [en]    4        Language identified: [en]    Language identified: [bg]

Total                        24                           4        Total                        24                           3
%                            16.67                                 %                            12.50





BIGRAM,ADD-ONE                                                     BIGRAM, GOOD-TURING

Ideal                        Actual                       Match    Ideal                        Actual                       Match

Language identified: [en]    Language identified: [bg]             Language identified: [en]    Language identified: [en]    1
Language identified: [en]    Language identified: [fr]             Language identified: [en]    Language identified: [perl]
Language identified: [es]    Language identified: [es]    1        Language identified: [es]    Language identified: [perl]
Language identified: [en]    Language identified: [bg]             Language identified: [en]    Language identified: [perl]
Language identified: [ru]    Language identified: [bg]             Language identified: [ru]    Language identified: [perl]
Language identified: [fr]    Language identified: [fr]    2        Language identified: [fr]    Language identified: [perl]
Language identified: [ru]    Language identified: [bg]             Language identified: [ru]    Language identified: [perl]
Language identified: [es]    Language identified: [fr]             Language identified: [es]    Language identified: [perl]
Language identified: [he]    Language identified: [bg]             Language identified: [he]    Language identified: [perl]
Language identified: [it]    Language identified: [fr]             Language identified: [it]    Language identified: [perl]
Language identified: [ar]    Language identified: [fr]             Language identified: [ar]    Language identified: [perl]
Language identified: [bg]    Language identified: [es]             Language identified: [bg]    Language identified: [perl]
Language identified: [java]  Language identified: [fr]             Language identified: [java]  Language identified: [perl]
Language identified: [cpp]   Language identified: [perl]           Language identified: [cpp]   Language identified: [perl]
Language identified: [cpp]   Language identified: [cpp]   3        Language identified: [cpp]   Language identified: [perl]
Language identified: [he]    Language identified: [bg]             Language identified: [he]    Language identified: [perl]
Language identified: [java]  Language identified: [fr]             Language identified: [java]  Language identified: [perl]
Language identified: [perl]  Language identified: [es]             Language identified: [perl]  Language identified: [perl]  2
Language identified: [ar]    Language identified: [bg]             Language identified: [ar]    Language identified: [perl]
Language identified: [perl]  Language identified: [fr]             Language identified: [perl]  Language identified: [perl]  3
Language identified: [ru]    Language identified: [bg]             Language identified: [ru]    Language identified: [perl]
Language identified: [fr]    Language identified: [es]             Language identified: [fr]    Language identified: [perl]
Language identified: [ar]    Language identified: [es]             Language identified: [ar]    Language identified: [perl]
Language identified: [en]    Language identified: [bg]             Language identified: [en]    Language identified: [perl]

Total                        24                           3        Total                        24                           3
%                            12.50                                 %                            12.50





BIGRAM, MLE                                                        BIGRAM, WITTEN-BELL

Ideal                        Actual                       Match    Ideal                        Actual                       Match

Language identified: [en]    Language identified: [en]    1        Language identified: [en]    Language identified: [java]
Language identified: [en]    Language identified: [en]    2        Language identified: [en]    Language identified: [java]
Language identified: [es]    Language identified: [en]             Language identified: [es]    Language identified: [es]    1
Language identified: [en]    Language identified: [en]    3        Language identified: [en]    Language identified: [java]
Language identified: [ru]    Language identified: [en]             Language identified: [ru]    Language identified: [java]
Language identified: [fr]    Language identified: [en]             Language identified: [fr]    Language identified: [es]
Language identified: [ru]    Language identified: [en]             Language identified: [ru]    Language identified: [java]
Language identified: [es]    Language identified: [en]             Language identified: [es]    Language identified: [ar]
Language identified: [he]    Language identified: [en]             Language identified: [he]    Language identified: [ar]
Language identified: [it]    Language identified: [en]             Language identified: [it]    Language identified: [it]    2
Language identified: [ar]    Language identified: [en]             Language identified: [ar]    Language identified: [ar]    3
Language identified: [bg]    Language identified: [en]             Language identified: [bg]    Language identified: [java]
Language identified: [java]  Language identified: [en]             Language identified: [java]  Language identified: [es]
Language identified: [cpp]   Language identified: [en]             Language identified: [cpp]   Language identified: [java]
Language identified: [cpp]   Language identified: [en]             Language identified: [cpp]   Language identified: [cpp]   4
Language identified: [he]    Language identified: [en]             Language identified: [he]    Language identified: [ru]
Language identified: [java]  Language identified: [en]             Language identified: [java]  Language identified: [java]  5
Language identified: [perl]  Language identified: [en]             Language identified: [perl]  Language identified: [ru]
Language identified: [ar]    Language identified: [en]             Language identified: [ar]    Language identified: [ar]    6
Language identified: [perl]  Language identified: [en]             Language identified: [perl]  Language identified: [java]
Language identified: [ru]    Language identified: [en]             Language identified: [ru]    Language identified: [ar]
Language identified: [fr]    Language identified: [en]             Language identified: [fr]    Language identified: [java]
Language identified: [ar]    Language identified: [en]             Language identified: [ar]    Language identified: [ar]    7
Language identified: [en]    Language identified: [en]    4        Language identified: [en]    Language identified: [java]

Total                        24                           4        Total                        24                           7
%                            16.67                                 %                            29.17





TRIGRAM, ADD-DELTA                                                 TRIGRAM, ADD-ONE

Ideal                        Actual                       Match    Ideal                        Actual                       Match

Language identified: [en]    Language identified: [he]             Language identified: [en]    Language identified: [he]
Language identified: [en]    Language identified: [fr]             Language identified: [en]    Language identified: [fr]
Language identified: [es]    Language identified: [fr]             Language identified: [es]    Language identified: [fr]
Language identified: [en]    Language identified: [he]             Language identified: [en]    Language identified: [he]
Language identified: [ru]    Language identified: [he]             Language identified: [ru]    Language identified: [he]
Language identified: [fr]    Language identified: [fr]    1        Language identified: [fr]    Language identified: [fr]    1
Language identified: [ru]    Language identified: [he]             Language identified: [ru]    Language identified: [he]
Language identified: [es]    Language identified: [fr]             Language identified: [es]    Language identified: [fr]
Language identified: [he]    Language identified: [ar]             Language identified: [he]    Language identified: [ar]
Language identified: [it]    Language identified: [fr]             Language identified: [it]    Language identified: [fr]
Language identified: [ar]    Language identified: [fr]             Language identified: [ar]    Language identified: [fr]
Language identified: [bg]    Language identified: [fr]             Language identified: [bg]    Language identified: [fr]
Language identified: [java]  Language identified: [fr]             Language identified: [java]  Language identified: [fr]
Language identified: [cpp]   Language identified: [java]           Language identified: [cpp]   Language identified: [java]
Language identified: [cpp]   Language identified: [java]           Language identified: [cpp]   Language identified: [java]
Language identified: [he]    Language identified: [he]    2        Language identified: [he]    Language identified: [he]    2
Language identified: [java]  Language identified: [fr]             Language identified: [java]  Language identified: [fr]
Language identified: [perl]  Language identified: [es]             Language identified: [perl]  Language identified: [es]
Language identified: [ar]    Language identified: [ar]    3        Language identified: [ar]    Language identified: [ar]    3
Language identified: [perl]  Language identified: [fr]             Language identified: [perl]  Language identified: [fr]
Language identified: [ru]    Language identified: [ar]             Language identified: [ru]    Language identified: [ar]
Language identified: [fr]    Language identified: [fr]    4        Language identified: [fr]    Language identified: [fr]    4
Language identified: [ar]    Language identified: [fr]             Language identified: [ar]    Language identified: [fr]
Language identified: [en]    Language identified: [he]             Language identified: [en]    Language identified: [he]

Total                        24                           4        Total                        24                           4
%                            16.67                                 %                            16.67





TRIGRAM, GOOD-TURING                                               TRIGRAM, MLE

Ideal                        Actual                       Match    Ideal                        Actual                       Match

Language identified: [en]    Language identified: [he]             Language identified: [en]    Language identified: [en]    1
Language identified: [en]    Language identified: [he]             Language identified: [en]    Language identified: [en]    2
Language identified: [es]    Language identified: [ar]             Language identified: [es]    Language identified: [en]
Language identified: [en]    Language identified: [he]             Language identified: [en]    Language identified: [en]    3
Language identified: [ru]    Language identified: [he]             Language identified: [ru]    Language identified: [en]
Language identified: [fr]    Language identified: [ar]             Language identified: [fr]    Language identified: [en]
Language identified: [ru]    Language identified: [he]             Language identified: [ru]    Language identified: [en]
Language identified: [es]    Language identified: [ar]             Language identified: [es]    Language identified: [en]
Language identified: [he]    Language identified: [ar]             Language identified: [he]    Language identified: [en]
Language identified: [it]    Language identified: [he]             Language identified: [it]    Language identified: [en]
Language identified: [ar]    Language identified: [ar]    1        Language identified: [ar]    Language identified: [en]
Language identified: [bg]    Language identified: [es]             Language identified: [bg]    Language identified: [en]
Language identified: [java]  Language identified: [ru]             Language identified: [java]  Language identified: [en]
Language identified: [cpp]   Language identified: [ar]             Language identified: [cpp]   Language identified: [en]
Language identified: [cpp]   Language identified: [ar]             Language identified: [cpp]   Language identified: [en]
Language identified: [he]    Language identified: [he]    2        Language identified: [he]    Language identified: [en]
Language identified: [java]  Language identified: [he]             Language identified: [java]  Language identified: [en]
Language identified: [perl]  Language identified: [ar]             Language identified: [perl]  Language identified: [en]
Language identified: [ar]    Language identified: [ar]    3        Language identified: [ar]    Language identified: [en]
Language identified: [perl]  Language identified: [ar]             Language identified: [perl]  Language identified: [en]
Language identified: [ru]    Language identified: [ar]             Language identified: [ru]    Language identified: [en]
Language identified: [fr]    Language identified: [he]             Language identified: [fr]    Language identified: [en]
Language identified: [ar]    Language identified: [ar]    4        Language identified: [ar]    Language identified: [en]
Language identified: [en]    Language identified: [he]             Language identified: [en]    Language identified: [en]    4

Total                        24                           4        Total                        24                           4
%                            16.67                                 %                            16.67





TRIGRAM, WITTEN-BELL

Ideal                        Actual                       Match

Language identified: [en]    Language identified: [en]    1
Language identified: [en]    Language identified: [en]    2
Language identified: [es]    Language identified: [en]
Language identified: [en]    Language identified: [en]    3
Language identified: [ru]    Language identified: [en]
Language identified: [fr]    Language identified: [en]
Language identified: [ru]    Language identified: [en]
Language identified: [es]    Language identified: [en]
Language identified: [he]    Language identified: [en]
Language identified: [it]    Language identified: [en]
Language identified: [ar]    Language identified: [en]
Language identified: [bg]    Language identified: [en]
Language identified: [java]  Language identified: [en]
Language identified: [cpp]   Language identified: [en]
Language identified: [cpp]   Language identified: [en]
Language identified: [he]    Language identified: [en]
Language identified: [java]  Language identified: [en]
Language identified: [perl]  Language identified: [en]
Language identified: [ar]    Language identified: [en]
Language identified: [perl]  Language identified: [en]
Language identified: [ru]    Language identified: [en]
Language identified: [fr]    Language identified: [en]
Language identified: [ar]    Language identified: [en]
Language identified: [ar]    Language identified: [en]    4

Total                        24                           4
%                            16.67



11.1.3.12.2 Non-Latin-Based Languages, Unrestricted Tokenizer



UNIGRAM, ADD-DELTA                                                 UNIGRAM, ADD-ONE

Ideal                        Actual                       Match    Ideal                        Actual                       Match

Language identified: [ru]    Language identified: [ru]    1        Language identified: [ru]    Language identified: [ru]    1
Language identified: [ru]    Language identified: [ru]    2        Language identified: [ru]    Language identified: [ru]    2
Language identified: [he]    Language identified: [he]    3        Language identified: [he]    Language identified: [he]    3
Language identified: [ar]    Language identified: [ru]             Language identified: [ar]    Language identified: [ru]
Language identified: [bg]    Language identified: [bg]    4        Language identified: [bg]    Language identified: [bg]    4
Language identified: [he]    Language identified: [he]    5        Language identified: [he]    Language identified: [he]    5
Language identified: [ar]    Language identified: [ar]    6        Language identified: [ar]    Language identified: [ar]    6
Language identified: [ru]    Language identified: [ru]    7        Language identified: [ru]    Language identified: [ru]    7
Language identified: [ar]    Language identified: [bg]             Language identified: [ar]    Language identified: [bg]

Total                        9                            7        Total                        9                            7
%                            77.78                                 %                            77.78





UNIGRAM, GOOD-TURING                                               UNIGRAM, MLE

Ideal                        Actual                       Match    Ideal                        Actual                       Match

Language identified: [ru]    Language identified: [ru]    1        Language identified: [ru]    Language identified: [bg]
Language identified: [ru]    Language identified: [ru]    2        Language identified: [ru]    Language identified: [ru]    1
Language identified: [he]    Language identified: [ru]             Language identified: [he]    Language identified: [he]    2
Language identified: [ar]    Language identified: [ru]             Language identified: [ar]    Language identified: [ru]
Language identified: [bg]    Language identified: [bg]    3        Language identified: [bg]    Language identified: [bg]    3
Language identified: [he]    Language identified: [ru]             Language identified: [he]    Language identified: [he]    4
Language identified: [ar]    Language identified: [ar]    4        Language identified: [ar]    Language identified: [ar]    5
Language identified: [ru]    Language identified: [ru]    5        Language identified: [ru]    Language identified: [ru]    6
Language identified: [ar]    Language identified: [ru]             Language identified: [ar]    Language identified: [bg]

Total                        9                            5        Total                        9                            6
%                            55.56                                 %                            66.67





UNIGRAM, WITTEN-BELL                                               BIGRAM, ADD-DELTA

Ideal                        Actual                       Match    Ideal                        Actual                       Match

Language identified: [ru]    Language identified: [ru]    1        Language identified: [ru]    Language identified: [bg]
Language identified: [ru]    Language identified: [ru]    2        Language identified: [ru]    Language identified: [bg]
Language identified: [he]    Language identified: [ru]             Language identified: [he]    Language identified: [bg]
Language identified: [ar]    Language identified: [ru]             Language identified: [ar]    Language identified: [bg]
Language identified: [bg]    Language identified: [bg]    3        Language identified: [bg]    Language identified: [bg]    1
Language identified: [he]    Language identified: [ru]             Language identified: [he]    Language identified: [bg]
Language identified: [ar]    Language identified: [ar]    4        Language identified: [ar]    Language identified: [bg]
Language identified: [ru]    Language identified: [ru]    5        Language identified: [ru]    Language identified: [bg]
Language identified: [ar]    Language identified: [ru]             Language identified: [ar]    Language identified: [bg]

Total                        9                            5        Total                        9                            1
%                            55.56                                 %                            11.11





BIGRAM, ADD-ONE                                                    BIGRAM, GOOD-TURING

Ideal                        Actual                       Match    Ideal                        Actual                       Match

Language identified: [ru]    Language identified: [bg]             Language identified: [ru]    Language identified: [ru]    1
Language identified: [ru]    Language identified: [bg]             Language identified: [ru]    Language identified: [ru]    2
Language identified: [he]    Language identified: [bg]             Language identified: [he]    Language identified: [ar]
Language identified: [ar]    Language identified: [bg]             Language identified: [ar]    Language identified: [ar]
Language identified: [bg]    Language identified: [bg]    1        Language identified: [bg]    Language identified: [bg]    3
Language identified: [he]    Language identified: [bg]             Language identified: [he]    Language identified: [ru]
Language identified: [ar]    Language identified: [bg]             Language identified: [ar]    Language identified: [ar]    4
Language identified: [ru]    Language identified: [bg]             Language identified: [ru]    Language identified: [ru]    5
Language identified: [ar]    Language identified: [bg]             Language identified: [ar]    Language identified: [ru]

Total                        9                            1        Total                        9                            5
%                            11.11                                 %                            55.56





BIGRAM, MLE                                                        BIGRAM, WITTEN-BELL

Ideal                        Actual                       Match    Ideal                        Actual                       Match

Language identified: [ru]    Language identified: [ru]    1        Language identified: [ru]    Language identified: [ru]    1
Language identified: [ru]    Language identified: [ru]    2        Language identified: [ru]    Language identified: [ru]    2
Language identified: [he]    Language identified: [ru]             Language identified: [he]    Language identified: [ar]
Language identified: [ar]    Language identified: [ru]             Language identified: [ar]    Language identified: [ar]    3
Language identified: [bg]    Language identified: [ru]             Language identified: [bg]    Language identified: [bg]    4
Language identified: [he]    Language identified: [ru]             Language identified: [he]    Language identified: [ru]
Language identified: [ar]    Language identified: [ru]             Language identified: [ar]    Language identified: [ar]    5
Language identified: [ru]    Language identified: [ru]    3        Language identified: [ru]    Language identified: [ar]
Language identified: [ar]    Language identified: [ru]             Language identified: [ar]    Language identified: [ar]    6

Total                        9                            3        Total                        9                            6
%                            33.33                                 %                            66.67





TRIGRAM, ADD-DELTA                                                 TRIGRAM, ADD-ONE

Ideal                        Actual                       Match    Ideal                        Actual                       Match

Language identified: [ru]    Language identified: [he]             Language identified: [ru]    Language identified: [he]
Language identified: [ru]    Language identified: [he]             Language identified: [ru]    Language identified: [he]
Language identified: [he]    Language identified: [ar]             Language identified: [he]    Language identified: [ar]
Language identified: [ar]    Language identified: [ar]    1        Language identified: [ar]    Language identified: [ar]    1
Language identified: [bg]    Language identified: [bg]    2        Language identified: [bg]    Language identified: [bg]    2
Language identified: [he]    Language identified: [he]    3        Language identified: [he]    Language identified: [he]    3
Language identified: [ar]    Language identified: [ar]    4        Language identified: [ar]    Language identified: [ar]    4
Language identified: [ru]    Language identified: [ar]             Language identified: [ru]    Language identified: [ar]
Language identified: [ar]    Language identified: [ar]    5        Language identified: [ar]    Language identified: [ar]    5

Total                        9                            5        Total                        9                            5
%                            55.56                                 %                            55.56





TRIGRAM, GOOD-TURING                                               TRIGRAM, MLE

Ideal                        Actual                       Match    Ideal                        Actual                       Match

Language identified: [ru]    Language identified: [he]             Language identified: [ru]    Language identified: [ru]    1
Language identified: [ru]    Language identified: [he]             Language identified: [ru]    Language identified: [ru]    2
Language identified: [he]    Language identified: [ar]             Language identified: [he]    Language identified: [ru]
Language identified: [ar]    Language identified: [ar]    1        Language identified: [ar]    Language identified: [ru]
Language identified: [bg]    Language identified: [bg]    2        Language identified: [bg]    Language identified: [ru]
Language identified: [he]    Language identified: [he]    3        Language identified: [he]    Language identified: [ru]
Language identified: [ar]    Language identified: [ar]    4        Language identified: [ar]    Language identified: [ru]
Language identified: [ru]    Language identified: [ar]             Language identified: [ru]    Language identified: [ru]    3
Language identified: [ar]    Language identified: [ar]    5        Language identified: [ar]    Language identified: [ru]

Total                        9                            5        Total                        9                            3
%                            55.56                                 %                            33.33





TRIGRAM, WITTEN-BELL

Ideal                        Actual                       Match

Language identified: [ru]    Language identified: [ru]    1
Language identified: [ru]    Language identified: [ru]    2
Language identified: [he]    Language identified: [ru]
Language identified: [ar]    Language identified: [ru]
Language identified: [bg]    Language identified: [ru]
Language identified: [he]    Language identified: [ru]
Language identified: [ar]    Language identified: [ru]
Language identified: [ru]    Language identified: [ru]    3
Language identified: [ar]    Language identified: [ru]

Total                        9                            3
%                            33.33



11.1.3.12.3 Programming Languages, Unrestricted Tokenizer



UNIGRAM,ADD-DELTA                UNIGRAM,ADD-ONE

Ideal                          Actual                         Match  Ideal                          Actual                         Match

Language identified: [java]    Language identified: [java]    1      Language identified: [java]    Language identified: [java]    1
Language identified: [cpp]     Language identified: [perl]           Language identified: [cpp]     Language identified: [perl]
Language identified: [cpp]     Language identified: [perl]           Language identified: [cpp]     Language identified: [perl]
Language identified: [java]    Language identified: [java]    2      Language identified: [java]    Language identified: [java]    2
Language identified: [perl]    Language identified: [cpp]            Language identified: [perl]    Language identified: [cpp]
Language identified: [perl]    Language identified: [cpp]            Language identified: [perl]    Language identified: [cpp]

Total    6    2        Total    6    2
%    33.33            %    33.33





UNIGRAM,GOOD-TURING                UNIGRAM,MLE

Ideal                          Actual                         Match  Ideal                          Actual                         Match

Language identified: [java]    Language identified: [perl]           Language identified: [java]    Language identified: [java]    1
Language identified: [cpp]     Language identified: [perl]           Language identified: [cpp]     Language identified: [perl]
Language identified: [cpp]     Language identified: [perl]           Language identified: [cpp]     Language identified: [perl]
Language identified: [java]    Language identified: [java]    1      Language identified: [java]    Language identified: [java]    2
Language identified: [perl]    Language identified: [java]           Language identified: [perl]    Language identified: [cpp]
Language identified: [perl]    Language identified: [perl]    2      Language identified: [perl]    Language identified: [cpp]

Total    6    2        Total    6    2
%    33.33            %    33.33





UNIGRAM,WITTEN-BELL                                                  BIGRAM,ADD-DELTA

Ideal                          Actual                         Match  Ideal                          Actual                         Match

Language identified: [java]    Language identified: [perl]           Language identified: [java]    Language identified: [perl]
Language identified: [cpp]     Language identified: [perl]           Language identified: [cpp]     Language identified: [perl]
Language identified: [cpp]     Language identified: [perl]           Language identified: [cpp]     Language identified: [cpp]     1
Language identified: [java]    Language identified: [java]    1      Language identified: [java]    Language identified: [perl]
Language identified: [perl]    Language identified: [java]           Language identified: [perl]    Language identified: [perl]    2
Language identified: [perl]    Language identified: [perl]    2      Language identified: [perl]    Language identified: [perl]    3

Total                          6                              2      Total                          6                              3
%                              33.33                                 %                              50.00





BIGRAM,ADD-ONE                                                       BIGRAM,GOOD-TURING

Ideal                          Actual                         Match  Ideal                          Actual                         Match

Language identified: [java]    Language identified: [perl]           Language identified: [java]    Language identified: [perl]
Language identified: [cpp]     Language identified: [perl]           Language identified: [cpp]     Language identified: [perl]
Language identified: [cpp]     Language identified: [cpp]     1      Language identified: [cpp]     Language identified: [perl]
Language identified: [java]    Language identified: [perl]           Language identified: [java]    Language identified: [perl]
Language identified: [perl]    Language identified: [perl]    2      Language identified: [perl]    Language identified: [perl]    1
Language identified: [perl]    Language identified: [perl]    3      Language identified: [perl]    Language identified: [perl]    2

Total                          6                              3      Total                          6                              2
%                              50.00                                 %                              33.33





BIGRAM,MLE                                                           BIGRAM,WITTEN-BELL

Ideal                          Actual                         Match  Ideal                          Actual                         Match

Language identified: [java]    Language identified: [java]    1      Language identified: [java]    Language identified: [java]    1
Language identified: [cpp]     Language identified: [java]           Language identified: [cpp]     Language identified: [java]
Language identified: [cpp]     Language identified: [java]           Language identified: [cpp]     Language identified: [cpp]     2
Language identified: [java]    Language identified: [java]    2      Language identified: [java]    Language identified: [java]    3
Language identified: [perl]    Language identified: [java]           Language identified: [perl]    Language identified: [java]
Language identified: [perl]    Language identified: [java]           Language identified: [perl]    Language identified: [java]

Total                          6                              2      Total                          6                              3
%                              33.33                                 %                              50.00





TRIGRAM,ADD-DELTA                                                    TRIGRAM,ADD-ONE

Ideal                          Actual                         Match  Ideal                          Actual                         Match

Language identified: [java]    Language identified: [java]    1      Language identified: [java]    Language identified: [java]    1
Language identified: [cpp]     Language identified: [java]           Language identified: [cpp]     Language identified: [java]
Language identified: [cpp]     Language identified: [java]           Language identified: [cpp]     Language identified: [java]
Language identified: [java]    Language identified: [java]    2      Language identified: [java]    Language identified: [java]    2
Language identified: [perl]    Language identified: [java]           Language identified: [perl]    Language identified: [java]
Language identified: [perl]    Language identified: [java]           Language identified: [perl]    Language identified: [java]

Total                          6                              2      Total                          6                              2
%                              33.33                                 %                              33.33





TRIGRAM,GOOD-TURING                                                  TRIGRAM,MLE

Ideal                          Actual                         Match  Ideal                          Actual                         Match

Language identified: [java]    Language identified: [perl]           Language identified: [java]    Language identified: [java]    1
Language identified: [cpp]     Language identified: [perl]           Language identified: [cpp]     Language identified: [java]
Language identified: [cpp]     Language identified: [perl]           Language identified: [cpp]     Language identified: [java]
Language identified: [java]    Language identified: [perl]           Language identified: [java]    Language identified: [java]    2
Language identified: [perl]    Language identified: [perl]    1      Language identified: [perl]    Language identified: [java]
Language identified: [perl]    Language identified: [perl]    2      Language identified: [perl]    Language identified: [java]

Total                          6                              2      Total                          6                              2
%                              33.33                                 %                              33.33





TRIGRAM,WITTEN-BELL

Ideal                          Actual                         Match

Language identified: [java]    Language identified: [java]    1
Language identified: [cpp]     Language identified: [java]
Language identified: [cpp]     Language identified: [java]
Language identified: [java]    Language identified: [java]    2
Language identified: [perl]    Language identified: [java]
Language identified: [perl]    Language identified: [java]

Total                          6                              2
%                              33.33



11.1.3.12.4 Latin-Based Languages, Restricted Tokenizer



unigram,add-delta                                                unigram,add-one

Ideal                        Actual                       Match  Ideal                        Actual                       Match

Language identified: [en]    Language identified: [en]    1      Language identified: [en]    Language identified: [en]    1
Language identified: [en]    Language identified: [en]    2      Language identified: [en]    Language identified: [en]    2
Language identified: [es]    Language identified: [fr]           Language identified: [es]    Language identified: [fr]
Language identified: [en]    Language identified: [en]    3      Language identified: [en]    Language identified: [en]    3
Language identified: [fr]    Language identified: [fr]    4      Language identified: [fr]    Language identified: [fr]    4
Language identified: [es]    Language identified: [es]    5      Language identified: [es]    Language identified: [es]    5
Language identified: [it]    Language identified: [it]    6      Language identified: [it]    Language identified: [it]    6
Language identified: [fr]    Language identified: [it]           Language identified: [fr]    Language identified: [it]
Language identified: [en]    Language identified: [en]    7      Language identified: [en]    Language identified: [en]    7

Total                        9                            7      Total                        9                            7
%                            77.78                               %                            77.78

\tiny
\hrule\vskip4pt
\begin{verbatim}
unigram,good-turing                                              unigram,mle

Ideal                        Actual                       Match  Ideal                        Actual                       Match

Language identified: [en]    Language identified: [en]    1      Language identified: [en]    Language identified: [en]    1
Language identified: [en]    Language identified: [en]    2      Language identified: [en]    Language identified: [en]    2
Language identified: [es]    Language identified: [en]           Language identified: [es]    Language identified: [fr]
Language identified: [en]    Language identified: [en]    3      Language identified: [en]    Language identified: [en]    3
Language identified: [fr]    Language identified: [en]           Language identified: [fr]    Language identified: [fr]    4
Language identified: [es]    Language identified: [en]           Language identified: [es]    Language identified: [es]    5
Language identified: [it]    Language identified: [en]           Language identified: [it]    Language identified: [it]    6
Language identified: [fr]    Language identified: [en]           Language identified: [fr]    Language identified: [it]
Language identified: [en]    Language identified: [en]    4      Language identified: [en]    Language identified: [en]    7

Total                        9                            4      Total                        9                            7
%                            44.44                               %                            77.78





unigram,witten-bell                                              bigram,add-one

Ideal                        Actual                       Match  Ideal                        Actual                       Match

Language identified: [en]    Language identified: [en]    1      Language identified: [en]    Language identified: [en]    1
Language identified: [en]    Language identified: [en]    2      Language identified: [en]    Language identified: [es]
Language identified: [es]    Language identified: [en]           Language identified: [es]    Language identified: [es]    2
Language identified: [en]    Language identified: [en]    3      Language identified: [en]    Language identified: [en]    3
Language identified: [fr]    Language identified: [en]           Language identified: [fr]    Language identified: [es]
Language identified: [es]    Language identified: [en]           Language identified: [es]    Language identified: [fr]
Language identified: [it]    Language identified: [en]           Language identified: [it]    Language identified: [es]
Language identified: [fr]    Language identified: [en]           Language identified: [fr]    Language identified: [es]
Language identified: [en]    Language identified: [en]    4      Language identified: [en]    Language identified: [en]    4

Total                        9                            4      Total                        9                            4
%                            44.44                               %                            44.44





bigram,add-one                                                   bigram,good-turing

Ideal                        Actual                       Match  Ideal                        Actual                       Match

Language identified: [en]    Language identified: [en]    1      Language identified: [en]    Language identified: [en]    1
Language identified: [en]    Language identified: [es]           Language identified: [en]    Language identified: [en]    2
Language identified: [es]    Language identified: [es]    2      Language identified: [es]    Language identified: [en]
Language identified: [en]    Language identified: [en]    3      Language identified: [en]    Language identified: [en]    3
Language identified: [fr]    Language identified: [es]           Language identified: [fr]    Language identified: [en]
Language identified: [es]    Language identified: [es]    4      Language identified: [es]    Language identified: [fr]
Language identified: [it]    Language identified: [es]           Language identified: [it]    Language identified: [en]
Language identified: [fr]    Language identified: [es]           Language identified: [fr]    Language identified: [en]
Language identified: [en]    Language identified: [en]    5      Language identified: [en]    Language identified: [en]    4

Total                        9                            5      Total                        9                            4
%                            55.56                               %                            44.44





bigram,mle                                                       bigram,witten-belll

Ideal                        Actual                       Match  Ideal                        Actual                       Match

Language identified: [en]    Language identified: [en]    1      Language identified: [en]    Language identified: [en]    1
Language identified: [en]    Language identified: [en]    2      Language identified: [en]    Language identified: [en]    2
Language identified: [es]    Language identified: [en]           Language identified: [es]    Language identified: [en]
Language identified: [en]    Language identified: [en]    3      Language identified: [en]    Language identified: [en]    3
Language identified: [fr]    Language identified: [en]           Language identified: [fr]    Language identified: [en]
Language identified: [es]    Language identified: [en]           Language identified: [es]    Language identified: [es]
Language identified: [it]    Language identified: [en]           Language identified: [it]    Language identified: [en]
Language identified: [fr]    Language identified: [en]           Language identified: [fr]    Language identified: [en]
Language identified: [en]    Language identified: [en]    4      Language identified: [en]    Language identified: [en]    4

Total                        9                            4      Total                        9                            4
%                            44.44                               %                            44.44





trigram,add-delta                                                trigram,add-one

Ideal                        Actual                       Match  Ideal                        Actual                       Match

Language identified: [en]    Language identified: [en]    1      Language identified: [en]    Language identified: [en]    1
Language identified: [en]    Language identified: [es]           Language identified: [en]    Language identified: [es]
Language identified: [es]    Language identified: [es]    2      Language identified: [es]    Language identified: [es]    2
Language identified: [en]    Language identified: [en]    3      Language identified: [en]    Language identified: [en]    3
Language identified: [fr]    Language identified: [es]           Language identified: [fr]    Language identified: [es]
Language identified: [es]    Language identified: [es]    4      Language identified: [es]    Language identified: [es]    4
Language identified: [it]    Language identified: [es]           Language identified: [it]    Language identified: [es]
Language identified: [fr]    Language identified: [es]           Language identified: [fr]    Language identified: [es]
Language identified: [en]    Language identified: [en]    5      Language identified: [en]    Language identified: [en]    5

Total                        9                            5      Total                        9                            5
%                            55.56                               %                            55.56





trigram,good-turing                                              trigram,mle

Ideal                        Actual                       Match  Ideal                        Actual                       Match

Language identified: [en]    Language identified: [en]    1      Language identified: [en]    Language identified: [en]    1
Language identified: [en]    Language identified: [fr]           Language identified: [en]    Language identified: [en]    2
Language identified: [es]    Language identified: [fr]           Language identified: [es]    Language identified: [en]
Language identified: [en]    Language identified: [en]    2      Language identified: [en]    Language identified: [en]    3
Language identified: [fr]    Language identified: [en]           Language identified: [fr]    Language identified: [en]
Language identified: [es]    Language identified: [fr]           Language identified: [es]    Language identified: [en]
Language identified: [it]    Language identified: [it]    3      Language identified: [it]    Language identified: [en]
Language identified: [fr]    Language identified: [fr]    4      Language identified: [fr]    Language identified: [en]
Language identified: [en]    Language identified: [en]    5      Language identified: [en]    Language identified: [en]    4

Total                        9                            5      Total                        9                            4
%                            55.56                               %                            44.44





trigram,witten-bell

Ideal                        Actual                       Match

Language identified: [en]    Language identified: [en]    1
Language identified: [en]    Language identified: [en]    2
Language identified: [es]    Language identified: [en]
Language identified: [en]    Language identified: [en]    3
Language identified: [fr]    Language identified: [en]
Language identified: [es]    Language identified: [en]
Language identified: [it]    Language identified: [en]
Language identified: [fr]    Language identified: [en]
Language identified: [en]    Language identified: [en]    4

Total                        9                            4
%                            44.44



11.1.3.12.5 “Bag-of-Languages”, Restricted Tokenizer



unigram, add-delta                                                unigram, add-one

Ideal                        Actual                       Match   Ideal                        Actual                       Match

Language identified: [en]    Language identified: [en]    1       Language identified: [en]    Language identified: [en]    1
Language identified: [en]    Language identified: [en]    2       Language identified: [en]    Language identified: [en]    2
Language identified: [es]    Language identified: [fr]            Language identified: [es]    Language identified: [fr]
Language identified: [en]    Language identified: [en]    3       Language identified: [en]    Language identified: [en]    3
Language identified: [ru]    Language identified: [ru]    4       Language identified: [ru]    Language identified: [ru]    4
Language identified: [fr]    Language identified: [fr]    5       Language identified: [fr]    Language identified: [fr]    5
Language identified: [ru]    Language identified: [ru]    6       Language identified: [ru]    Language identified: [ru]    6
Language identified: [es]    Language identified: [es]    7       Language identified: [es]    Language identified: [es]    7
Language identified: [he]    Language identified: [he]    8       Language identified: [he]    Language identified: [he]    8
Language identified: [it]    Language identified: [it]    9       Language identified: [it]    Language identified: [it]    9
Language identified: [ar]    Language identified: [ru]            Language identified: [ar]    Language identified: [ru]
Language identified: [bg]    Language identified: [bg]    10      Language identified: [bg]    Language identified: [bg]    10
Language identified: [java]  Language identified: [java]  11      Language identified: [java]  Language identified: [java]    11
Language identified: [cpp]   Language identified: [en]            Language identified: [cpp]   Language identified: [en]
Language identified: [cpp]   Language identified: [it]            Language identified: [cpp]   Language identified: [it]
Language identified: [he]    Language identified: [he]    12      Language identified: [he]    Language identified: [he]    12
Language identified: [java]  Language identified: [it]            Language identified: [java]  Language identified: [it]
Language identified: [perl]  Language identified: [cpp]           Language identified: [perl]  Language identified: [cpp]
Language identified: [ar]    Language identified: [ar]    13      Language identified: [ar]    Language identified: [ar]    13
Language identified: [perl]  Language identified: [perl]  14      Language identified: [perl]  Language identified: [perl]    14
Language identified: [ru]    Language identified: [he]            Language identified: [ru]    Language identified: [he]
Language identified: [fr]    Language identified: [it]            Language identified: [fr]    Language identified: [it]
Language identified: [ar]    Language identified: [bg]            Language identified: [ar]    Language identified: [bg]
Language identified: [en]    Language identified: [en]    15      Language identified: [en]    Language identified: [en]    15

Total                        24                           15      Total                        24                           15
%                            62.50                                %                            62.50





unigram, good-turing                                              unigram, mle

Ideal                        Actual                       Match   Ideal                        Actual                       Match

Language identified: [en]    Language identified: [en]    1       Language identified: [en]    Language identified: [en]    1
Language identified: [en]    Language identified: [en]    2       Language identified: [en]    Language identified: [en]    2
Language identified: [es]    Language identified: [en]            Language identified: [es]    Language identified: [fr]
Language identified: [en]    Language identified: [en]    3       Language identified: [en]    Language identified: [en]    3
Language identified: [ru]    Language identified: [en]            Language identified: [ru]    Language identified: [ru]    4
Language identified: [fr]    Language identified: [en]            Language identified: [fr]    Language identified: [fr]    5
Language identified: [ru]    Language identified: [en]            Language identified: [ru]    Language identified: [ru]    6
Language identified: [es]    Language identified: [en]            Language identified: [es]    Language identified: [es]    7
Language identified: [he]    Language identified: [en]            Language identified: [he]    Language identified: [he]    8
Language identified: [it]    Language identified: [en]            Language identified: [it]    Language identified: [it]    9
Language identified: [ar]    Language identified: [en]            Language identified: [ar]    Language identified: [ru]
Language identified: [bg]    Language identified: [en]            Language identified: [bg]    Language identified: [bg]    10
Language identified: [java]  Language identified: [en]            Language identified: [java]  Language identified: [java]    11
Language identified: [cpp]   Language identified: [en]            Language identified: [cpp]   Language identified: [en]
Language identified: [cpp]   Language identified: [en]            Language identified: [cpp]   Language identified: [it]
Language identified: [he]    Language identified: [en]            Language identified: [he]    Language identified: [he]    12
Language identified: [java]  Language identified: [en]            Language identified: [java]  Language identified: [it]
Language identified: [perl]  Language identified: [en]            Language identified: [perl]  Language identified: [cpp]
Language identified: [ar]    Language identified: [en]            Language identified: [ar]    Language identified: [ar]    13
Language identified: [perl]  Language identified: [en]            Language identified: [perl]  Language identified: [perl]    14
Language identified: [ru]    Language identified: [en]            Language identified: [ru]    Language identified: [he]
Language identified: [fr]    Language identified: [en]            Language identified: [fr]    Language identified: [it]
Language identified: [ar]    Language identified: [en]            Language identified: [ar]    Language identified: [bg]
Language identified: [en]    Language identified: [en]    4       Language identified: [en]    Language identified: [en]    15

Total                        24                           4       Total                        24                           15
%                            16.67                                %                            62.50





unigram, witten-bell                                              bigram,add-delta

Ideal                        Actual                       Match   Ideal                        Actual                       Match

Language identified: [en]    Language identified: [en]    1       Language identified: [en]    Language identified: [bg]
Language identified: [en]    Language identified: [en]    2       Language identified: [en]    Language identified: [es]
Language identified: [es]    Language identified: [en]            Language identified: [es]    Language identified: [es]    1
Language identified: [en]    Language identified: [en]    3       Language identified: [en]    Language identified: [he]
Language identified: [ru]    Language identified: [en]            Language identified: [ru]    Language identified: [bg]
Language identified: [fr]    Language identified: [en]            Language identified: [fr]    Language identified: [es]
Language identified: [ru]    Language identified: [en]            Language identified: [ru]    Language identified: [bg]
Language identified: [es]    Language identified: [en]            Language identified: [es]    Language identified: [bg]
Language identified: [he]    Language identified: [en]            Language identified: [he]    Language identified: [bg]
Language identified: [it]    Language identified: [en]            Language identified: [it]    Language identified: [es]
Language identified: [ar]    Language identified: [en]            Language identified: [ar]    Language identified: [fr]
Language identified: [bg]    Language identified: [en]            Language identified: [bg]    Language identified: [es]
Language identified: [java]  Language identified: [en]            Language identified: [java]  Language identified: [es]
Language identified: [cpp]   Language identified: [en]            Language identified: [cpp]   Language identified: [es]
Language identified: [cpp]   Language identified: [en]            Language identified: [cpp]   Language identified: [perl]
Language identified: [he]    Language identified: [en]            Language identified: [he]    Language identified: [bg]
Language identified: [java]  Language identified: [en]            Language identified: [java]  Language identified: [es]
Language identified: [perl]  Language identified: [en]            Language identified: [perl]  Language identified: [es]
Language identified: [ar]    Language identified: [en]            Language identified: [ar]    Language identified: [bg]
Language identified: [perl]  Language identified: [en]            Language identified: [perl]  Language identified: [es]
Language identified: [ru]    Language identified: [en]            Language identified: [ru]    Language identified: [bg]
Language identified: [fr]    Language identified: [en]            Language identified: [fr]    Language identified: [es]
Language identified: [ar]    Language identified: [en]            Language identified: [ar]    Language identified: [bg]
Language identified: [en]    Language identified: [en]    4       Language identified: [en]    Language identified: [bg]

Total                        24                           4       Total                        24                           1
%                            16.67                                %                            4.17





bigram,add-one                                                    bigram, good-turing

Ideal                        Actual                       Match   Ideal                        Actual                       Match

Language identified: [en]    Language identified: [bg]            Language identified: [en]    Language identified: [en]    1
Language identified: [en]    Language identified: [es]            Language identified: [en]    Language identified: [en]    2
Language identified: [es]    Language identified: [es]    1       Language identified: [es]    Language identified: [en]
Language identified: [en]    Language identified: [he]            Language identified: [en]    Language identified: [java]
Language identified: [ru]    Language identified: [bg]            Language identified: [ru]    Language identified: [he]
Language identified: [fr]    Language identified: [es]            Language identified: [fr]    Language identified: [en]
Language identified: [ru]    Language identified: [bg]            Language identified: [ru]    Language identified: [ru]    3
Language identified: [es]    Language identified: [es]    2       Language identified: [es]    Language identified: [ar]
Language identified: [he]    Language identified: [bg]            Language identified: [he]    Language identified: [en]
Language identified: [it]    Language identified: [es]            Language identified: [it]    Language identified: [ru]
Language identified: [ar]    Language identified: [fr]            Language identified: [ar]    Language identified: [ru]
Language identified: [bg]    Language identified: [es]            Language identified: [bg]    Language identified: [fr]
Language identified: [java]  Language identified: [es]            Language identified: [java]  Language identified: [java]    4
Language identified: [cpp]   Language identified: [es]            Language identified: [cpp]   Language identified: [fr]
Language identified: [cpp]   Language identified: [perl]          Language identified: [cpp]   Language identified: [en]
Language identified: [he]    Language identified: [bg]            Language identified: [he]    Language identified: [en]
Language identified: [java]  Language identified: [es]            Language identified: [java]  Language identified: [ru]
Language identified: [perl]  Language identified: [es]            Language identified: [perl]  Language identified: [en]
Language identified: [ar]    Language identified: [bg]            Language identified: [ar]    Language identified: [java]
Language identified: [perl]  Language identified: [es]            Language identified: [perl]  Language identified: [perl]    5
Language identified: [ru]    Language identified: [bg]            Language identified: [ru]    Language identified: [en]
Language identified: [fr]    Language identified: [es]            Language identified: [fr]    Language identified: [en]
Language identified: [ar]    Language identified: [fr]            Language identified: [ar]    Language identified: [java]
Language identified: [en]    Language identified: [bg]            Language identified: [en]    Language identified: [java]

Total                        24                           2       Total                        24                           5
%                            8.33                                 %                            20.83





bigram, mle                                                       bigram, witten-bell

Ideal                        Actual                       Match   Ideal                        Actual                       Match

Language identified: [en]    Language identified: [en]    1       Language identified: [en]    Language identified: [en]    1
Language identified: [en]    Language identified: [en]    2       Language identified: [en]    Language identified: [en]    2
Language identified: [es]    Language identified: [en]            Language identified: [es]    Language identified: [en]
Language identified: [en]    Language identified: [en]    3       Language identified: [en]    Language identified: [perl]
Language identified: [ru]    Language identified: [en]            Language identified: [ru]    Language identified: [perl]
Language identified: [fr]    Language identified: [en]            Language identified: [fr]    Language identified: [perl]
Language identified: [ru]    Language identified: [en]            Language identified: [ru]    Language identified: [ru]    3
Language identified: [es]    Language identified: [en]            Language identified: [es]    Language identified: [ar]
Language identified: [he]    Language identified: [en]            Language identified: [he]    Language identified: [en]
Language identified: [it]    Language identified: [en]            Language identified: [it]    Language identified: [ru]
Language identified: [ar]    Language identified: [en]            Language identified: [ar]    Language identified: [ar]    4
Language identified: [bg]    Language identified: [en]            Language identified: [bg]    Language identified: [cpp]
Language identified: [java]  Language identified: [en]            Language identified: [java]  Language identified: [es]
Language identified: [cpp]   Language identified: [en]            Language identified: [cpp]   Language identified: [perl]
Language identified: [cpp]   Language identified: [en]            Language identified: [cpp]   Language identified: [en]
Language identified: [he]    Language identified: [en]            Language identified: [he]    Language identified: [he]    5
Language identified: [java]  Language identified: [en]            Language identified: [java]  Language identified: [ru]
Language identified: [perl]  Language identified: [en]            Language identified: [perl]  Language identified: [en]
Language identified: [ar]    Language identified: [en]            Language identified: [ar]    Language identified: [ar]    6
Language identified: [perl]  Language identified: [en]            Language identified: [perl]  Language identified: [perl]    7
Language identified: [ru]    Language identified: [en]            Language identified: [ru]    Language identified: [en]
Language identified: [fr]    Language identified: [en]            Language identified: [fr]    Language identified: [en]
Language identified: [ar]    Language identified: [en]            Language identified: [ar]    Language identified: [en]
Language identified: [en]    Language identified: [en]    4       Language identified: [en]    Language identified: [en]    8

Total                        24                           4       Total                        24                           8
%                            16.67                                %                            33.33





trigram, add-delta                                                trigram, add-one

Ideal                        Actual                       Match   Ideal                        Actual                       Match

Language identified: [en]    Language identified: [bg]            Language identified: [en]    Language identified: [bg]
Language identified: [en]    Language identified: [es]            Language identified: [en]    Language identified: [es]
Language identified: [es]    Language identified: [es]    1       Language identified: [es]    Language identified: [es]    1
Language identified: [en]    Language identified: [bg]            Language identified: [en]    Language identified: [bg]
Language identified: [ru]    Language identified: [bg]            Language identified: [ru]    Language identified: [bg]
Language identified: [fr]    Language identified: [es]            Language identified: [fr]    Language identified: [es]
Language identified: [ru]    Language identified: [bg]            Language identified: [ru]    Language identified: [bg]
Language identified: [es]    Language identified: [es]    2       Language identified: [es]    Language identified: [es]    2
Language identified: [he]    Language identified: [ar]            Language identified: [he]    Language identified: [ar]
Language identified: [it]    Language identified: [es]            Language identified: [it]    Language identified: [es]
Language identified: [ar]    Language identified: [es]            Language identified: [ar]    Language identified: [es]
Language identified: [bg]    Language identified: [es]            Language identified: [bg]    Language identified: [es]
Language identified: [java]  Language identified: [es]            Language identified: [java]  Language identified: [es]
Language identified: [cpp]   Language identified: [es]            Language identified: [cpp]   Language identified: [es]
Language identified: [cpp]   Language identified: [es]            Language identified: [cpp]   Language identified: [es]
Language identified: [he]    Language identified: [ru]            Language identified: [he]    Language identified: [ru]
Language identified: [java]  Language identified: [es]            Language identified: [java]  Language identified: [es]
Language identified: [perl]  Language identified: [es]            Language identified: [perl]  Language identified: [es]
Language identified: [ar]    Language identified: [ar]    3       Language identified: [ar]    Language identified: [ar]    3
Language identified: [perl]  Language identified: [es]            Language identified: [perl]  Language identified: [es]
Language identified: [ru]    Language identified: [ar]            Language identified: [ru]    Language identified: [ar]
Language identified: [fr]    Language identified: [es]            Language identified: [fr]    Language identified: [es]
Language identified: [ar]    Language identified: [es]            Language identified: [ar]    Language identified: [es]
Language identified: [en]    Language identified: [bg]            Language identified: [en]    Language identified: [bg]

Total                        24                           3       Total                        24                           3
%                            12.50                                %                            12.50





trigram,good-turing                                               trigram,mle

Ideal                        Actual                       Match   Ideal                        Actual                       Match

Language identified: [en]    Language identified: [en]    1       Language identified: [en]    Language identified: [en]    1
Language identified: [en]    Language identified: [fr]            Language identified: [en]    Language identified: [en]    2
Language identified: [es]    Language identified: [fr]            Language identified: [es]    Language identified: [en]
Language identified: [en]    Language identified: [en]    2       Language identified: [en]    Language identified: [en]    3
Language identified: [ru]    Language identified: [en]            Language identified: [ru]    Language identified: [en]
Language identified: [fr]    Language identified: [en]            Language identified: [fr]    Language identified: [en]
Language identified: [ru]    Language identified: [en]            Language identified: [ru]    Language identified: [en]
Language identified: [es]    Language identified: [fr]            Language identified: [es]    Language identified: [en]
Language identified: [he]    Language identified: [ar]            Language identified: [he]    Language identified: [en]
Language identified: [it]    Language identified: [it]    3       Language identified: [it]    Language identified: [en]
Language identified: [ar]    Language identified: [fr]            Language identified: [ar]    Language identified: [en]
Language identified: [bg]    Language identified: [fr]            Language identified: [bg]    Language identified: [en]
Language identified: [java]  Language identified: [fr]            Language identified: [java]  Language identified: [en]
Language identified: [cpp]   Language identified: [fr]            Language identified: [cpp]   Language identified: [en]
Language identified: [cpp]   Language identified: [fr]            Language identified: [cpp]   Language identified: [en]
Language identified: [he]    Language identified: [en]            Language identified: [he]    Language identified: [en]
Language identified: [java]  Language identified: [fr]            Language identified: [java]  Language identified: [en]
Language identified: [perl]  Language identified: [fr]            Language identified: [perl]  Language identified: [en]
Language identified: [ar]    Language identified: [ar]    4       Language identified: [ar]    Language identified: [en]
Language identified: [perl]  Language identified: [fr]            Language identified: [perl]  Language identified: [en]
Language identified: [ru]    Language identified: [ar]            Language identified: [ru]    Language identified: [en]
Language identified: [fr]    Language identified: [fr]    5       Language identified: [fr]    Language identified: [en]
Language identified: [ar]    Language identified: [fr]            Language identified: [ar]    Language identified: [en]
Language identified: [en]    Language identified: [en]    6       Language identified: [en]    Language identified: [en]    4

Total                        24                           6       Total                        24                           4
%                            25.00                                %                            16.67





trigram,witten-bell

Ideal                        Actual                       Match

Language identified: [en]    Language identified: [en]    1
Language identified: [en]    Language identified: [en]    2
Language identified: [es]    Language identified: [en]
Language identified: [en]    Language identified: [en]    3
Language identified: [ru]    Language identified: [en]
Language identified: [fr]    Language identified: [en]
Language identified: [ru]    Language identified: [en]
Language identified: [es]    Language identified: [en]
Language identified: [he]    Language identified: [en]
Language identified: [it]    Language identified: [en]
Language identified: [ar]    Language identified: [en]
Language identified: [bg]    Language identified: [en]
Language identified: [java]  Language identified: [en]
Language identified: [cpp]   Language identified: [en]
Language identified: [cpp]   Language identified: [en]
Language identified: [he]    Language identified: [en]
Language identified: [java]  Language identified: [en]
Language identified: [perl]  Language identified: [en]
Language identified: [ar]    Language identified: [en]
Language identified: [perl]  Language identified: [en]
Language identified: [ru]    Language identified: [en]
Language identified: [fr]    Language identified: [en]
Language identified: [ar]    Language identified: [en]
Language identified: [en]    Language identified: [en]    4

Total                        24                           4
%                            16.67



11.1.4 CYK Probabilistic Parsing with ProbabilisticParsingApp

Originally written on April 12, 2003.

11.1.4.1 Introduction

This section describes the implementation of the CYK probabilistic parsing algorithm [cyk] implemented in Java and discusses the experiments, grammars used, the results, and difficulties encountered.

11.1.4.2 The Program
11.1.4.2.1 Manual and the Source Code

Mini User Manual along with instructions on how to run the application are provided in the Section 11.1.4.5. The source code is provided in the electronic form only with few extracts in the presented in the document.

11.1.4.2.2 Grammar File Format

Serguei has developed a “grammar compiler” for the Compiler Design course, and we have adapted it to accept probabilistic grammars. The grammar compiler reads a source grammar text file and compiles it (some rudimentary lexical and semantic checks are in place). As a result, a successfully “compiled” Grammar object has a set of terminals, non-terminals, and rules stored in a binary file. Parsers re-load this compiled grammar and do the main parsing of what they are supposed to parse.



<LHS> ::= PROBABILITY RHS %EOL

#  single-line comment; shell style

// single-line comment; C++ style

/*
 * multi-line comment; C style
 */
Figure 11.17: Grammar File Format



The grammar file for the grammar file has the format presented in Figure 11.17. Description of the elements is below. The example of the grammar rules is in Figure 11.18. Whenever one changes the grammar, it has to be recompiled to take effect.

  • <LHS> is a single non-terminal on the left-hand side of the rule.

  • ::= is a rule operator separating LHS and RHS.

  • PROBABILITY is a floating-point number indicating rule’s probability.

  • RHS for this particular assignment has to be in CNF, i.e. either <B> <C> or terminal with <A> and <B> being non-terminals.

  • All non-terminals have to be enclosed within the angle brackets < and >.

  • All grammar rules have to terminated by %EOL that acts a semicolon in C/C++ or Java. It indicates where to stop processing current rule and look for the next (in case a rule spans several text lines).

  • Amount of white space between grammar elements doesn’t matter much.

  • The grammar file has also a notion of comments. The grammar compiler accepts shell-like single line comments when lines start with # as well as C or C++ comments like // and /* */ with the same effect as that of C and C++.



/*
 * 80% of sentences are noun phrases
 * followed by verb phrases.
 */
<S> ::= 0.8 <NP> <VP> %EOL

// A very rare verb
<V> ::= 0.0001 disambiguate %EOL

# EOF
Figure 11.18: Grammar File Example



11.1.4.2.3 Data Structures

The main storage data structure is an instance of the Grammar class that holds vectors of terminals (see file marf/nlp/Parsing/GrammarCompiler/Terminal.java), non-terminals (see file marf/nlp/Parsing/GrammarCompiler/NonTerminal.java), and rules (see file
marf/nlp/Parsing/GrammarCompiler/ProbabilisticRule.java).

While the grammar is being parsed and compiled there are also various grammar tokens and their types involved. Since they are not very much relevant to the subject of this application we won’t talk about them (examine the contents of the marf/nlp/Parsing/ and marf/nlp/Parsing/GrammarCompiler/ directories if you care).

The CYK algorithm’s data structures, the and back arrays, are represented as 3-dimensional array of doubles and vectors of back-indices respectively: double[][][] oParseMatrix and Vector[][][] aoBack in marf/nlp/Parsing/ProbabilisticParser.java. There is also a vector of words of the incoming sentence to be parsed, Vector oWords.

11.1.4.3 Methodology

We have experimented (not to full extent yet) with three grammars: Basic, Extended, and Realistic. Description of the grammars and how they were obtained is presented below. The set of testing sentences was initially based on the given (Basic) grammar to see whether the CYK algorithm indeed parses all syntactically valid sentences and rejects the rest. Then the sentence set was augmented from various sources (e.g. the paper Serguei presented and on top of his head). Finally, the original requirements were attempted to be used as a source of grammar.

11.1.4.3.1 Basic Grammar

The basic grammar given in the requirements has been used at first to develop and debug the application. The basic grammar is in Figure 11.19.



<S>            ::= 0.8 <NP> <VP> %EOL
<S>            ::= 0.2 <V> <NP> %EOL
<NP>        ::= 1.0 <DET> <NOMINAL> %EOL
<NOMINAL>    ::= 1.0 <ADJ> <NOMINAL> %EOL
<VP>        ::= 1.0 <V> <NP> %EOL
<DET>         ::= 0.5 the %EOL
<DET>         ::= 0.4 a %EOL
<DET>         ::= 0.1 my %EOL
<NOMINAL>    ::= 0.4 rabbit %EOL
<NOMINAL>    ::= 0.2 smile %EOL
<NOMINAL>    ::= 0.4 cat %EOL
<V>            ::= 0.8 has %EOL
<V>            ::= 0.2 eats %EOL
<ADJ>        ::= 1.0 white %EOL
Figure 11.19: Original Basic Grammar



11.1.4.3.2 Extended Grammar

The basic grammar was extended with few rules from [jurafsky], p. 449. The probability scores are artificial and adapted from the basic grammar and the book’s grammar, and recomputed approximately111Preserving proportional relevance from all sources and making sure they all add up to 100% by hand. The extended grammar is in Figure 11.20. Both basic and extended grammars used the same set of testing sentences presented in Figure 11.21. There is a number of sentences for which we have never come up with rules as initially intended, so there are no parses for the them in the output can be seen yet, a TODO.



<S>            ::= 0.35 <NP> <VP> %EOL
<S>         ::= 0.25 <Pronoun> <VP> %EOL
<S>         ::= 0.03 <NOMINAL> <VP> %EOL
<S>            ::= 0.05 <V> <NP> %EOL
<S>            ::= 0.17 <V> <Pronoun> %EOL
<S>            ::= 0.05 <V> <NOMINAL> %EOL
<S>            ::= 0.10 <AuxNP> <VP> %EOL
<NP>        ::= 0.35 <DET> <NOMINAL> %EOL
<NP>        ::= 0.65 <ProperNoun> <NOMINAL> %EOL
<NOMINAL>   ::= 0.10 <ProperNoun> <NOMINAL> %EOL
<NOMINAL>    ::= 0.90 <ADJ> <NOMINAL> %EOL
<VP>        ::= 0.95 <V> <NP> %EOL
<VP>        ::= 0.05 <VP> <NP> %EOL
<AuxNP>        ::= 0.20 <Aux> <NP> %EOL
<AuxNP>     ::= 0.60 <Aux> <Pronoun> %EOL
<AuxNP>     ::= 0.20 <Aux> <NOMINAL> %EOL
<DET>         ::= 0.50 the %EOL
<DET>         ::= 0.40 a %EOL
<DET>         ::= 0.05 my %EOL
<DET>         ::= 0.05 that %EOL
<NOMINAL>    ::= 0.20 rabbit %EOL
<NOMINAL>    ::= 0.10 smile %EOL
<NOMINAL>    ::= 0.20 cat %EOL
<NOMINAL>    ::= 0.05 book %EOL
<NOMINAL>   ::= 0.25 flights %EOL
<NOMINAL>   ::= 0.20 meal %EOL
<V>            ::= 0.50 has %EOL
<V>            ::= 0.10 eats %EOL
<V>            ::= 0.10 book %EOL
<V>            ::= 0.10 include %EOL
<V>            ::= 0.20 want %EOL
<Aux>        ::= 0.40 can %EOL
<Aux>        ::= 0.30 does %EOL
<Aux>        ::= 0.30 do %EOL
<ADJ>        ::= 0.80 white %EOL
<ADJ>        ::= 0.20 blue %EOL
<Pronoun>    ::= 0.40 you %EOL
<Pronoun>    ::= 0.60 I %EOL
<ProperNoun> ::= 0.40 TWA %EOL
<ProperNoun> ::= 0.60 Denver %EOL
Figure 11.20: Extended Grammar



 my rabbit has a white smile

my rabbit has a smile

my rabbit has a telephone

rabbit my a white has smile

a slim blue refrigerator jumped gracefully out of the bottle

my smile has a rabbit

the cat eats my white rabbit

a white smile eats the cat

my cat has a white rabbit

my cat has white rabbit

cat has a white rabbit

smile has my cat

can you book TWA flights

the lion jumped through the hoop

the trainer jumped the lion through the hoop

the butter melted in the pan

the cook melted the butter in the pan

the rich love their money

the rich love sometimes too

the contractor built the houses last summer

the contractor built last summer

Figure 11.21: Input sentences for the Basic and Extended Grammars



11.1.4.3.3 Realistic Grammar

Without having 100% completed the extended grammar, we jumped to develop something more “realistic”, the Realistic Grammar. Since the two previous grammars are quite artificial, to test out it on some more “realistic” data we came up with the best grammar we could from the sentences of the requirements (other than the sample grammar; the actual requirements were used). The sentences, some were expanded, are in Figure 11.22, and the grammar itself is in Figure 11.23. Many of the rules of the form of A->BC still may not have truly correct probabilities corresponding to the paper due to the above two reasons.

 you should submit a paper listing and report and an electronic version of your code

implement the CYK algorithm to find the best parse for a given sentence

your program should take as input a probabilistic grammar and a sentence and display the best parse tree along with its probability

you are not required to use a specific programming language

Perl, CPP, C or Java are appropriate for this task

as long as you explain it, your grammar can be in any format you wish

your grammar can be in any format you wish as long as you explain it

experiment with your grammar

is it restrictive enough

does it refuse ungrammatical sentences

does it cover all grammatical sentences

write a report to describe your code and your experimentation

your report must describe the program

your report must describe the experiments

describe your code itself

indicate the instructions necessary to run your code

describe your choice of test sentences

describe your grammar and how you developed it

what problems do you see with your current implementation

what problems do you see with your current grammar

how would you improve it

both the code and the report must be submitted electronically and in paper

in class, you must submit a listing of your program and results and the report

through the electronic submission form you must submit the code of your program and results and an electronic version of your report

Figure 11.22: Requirements’ sentences used as a parsed “corpus”





<S>            ::= 0.35 <NP> <VP> %EOL
<S>            ::= 0.25 <Pronoun> <VP> %EOL
<S>            ::= 0.03 <NOMINAL> <VP> %EOL
<S>            ::= 0.05 <V> <NP> %EOL
<S>            ::= 0.17 <V> <Pronoun> %EOL
<S>            ::= 0.05 <V> <NOMINAL> %EOL
<S>            ::= 0.10 <AuxNP> <VP> %EOL
<S>            ::= 0.10 <S> <ConjS> %EOL
<S>            ::= 0.10 <WhNP> <VP> %EOL
<S>            ::= 0.10 <WhAuxNP> <VP> %EOL
<WhAuxNP>    ::= 1.00 <WhNP> <AuxNP> %EOL
<WhNP> ::= 0.34 <WhWord> <NP> %EOL
<WhNP> ::= 0.33 <WhWord> <Pronoun> %EOL
<WhNP> ::= 0.33 <WhWord> <NOMINAL> %EOL
<ConjS>        ::= 1.00 <Conj> <S> %EOL
<NP>        ::= 0.35 <DET> <NOMINAL> %EOL
<NP>        ::= 0.10 <ProperNoun> <NOMINAL> %EOL
<NP>        ::= 0.30 <NP> <ConjNP> %EOL
<NP>        ::= 0.10 <Pronoun> <ConjNP> %EOL
<NP>        ::= 0.05 <NOMINAL> <ConjNP> %EOL
<NP>        ::= 0.10 <PreDet> <NOMINAL> %EOL
<ConjNP>    ::= 0.34 <Conj> <NP> %EOL
<ConjNP>    ::= 0.33 <Conj> <Pronoun> %EOL
<ConjNP>    ::= 0.33 <Conj> <NOMINAL> %EOL
<NOMINAL>   ::= 0.08 <ProperNoun> <NOMINAL> %EOL
<NOMINAL>    ::= 0.80 <ADJ> <NOMINAL> %EOL
<NOMINAL>    ::= 0.12 <NOMINAL> <PP> %EOL
<VP>        ::= 0.34 <V> <NP> %EOL
<VP>        ::= 0.18 <V> <Pronoun> %EOL
<VP>        ::= 0.01 <V> <Adv> %EOL
<VP>        ::= 0.17 <V> <NOMINAL> %EOL
<VP>        ::= 0.05 <VP> <NP> %EOL
<VP>        ::= 0.05 <VP> <Pronoun> %EOL
<VP>        ::= 0.05 <VP> <NOMINAL> %EOL
<VP>        ::= 0.05 <VP> <ConjVP> %EOL
<VP>        ::= 0.02 <V> <S> %EOL
<VP>        ::= 0.03 <V> <PP> %EOL
<VP>        ::= 0.05 <V> <NPPP> %EOL
<ConjVP>    ::= 1.00 <Conj> <VP> %EOL
<NPPP>        ::= 0.34 <NP> <PP> %EOL
<NPPP>        ::= 0.33 <Pronoun> <PP> %EOL
<NPPP>        ::= 0.33 <NOMINAL> <PP> %EOL
<PP>        ::= 1.00 <Prep> <NP> %EOL
<AuxNP>        ::= 0.20 <Aux> <NP> %EOL
<AuxNP>        ::= 0.60 <Aux> <Pronoun> %EOL
<AuxNP>        ::= 0.20 <Aux> <NOMINAL> %EOL
<DET>         ::= 0.48 the %EOL
<DET>         ::= 0.32 a %EOL
<DET>         ::= 0.08 an %EOL
<DET>         ::= 0.08 any %EOL
<DET>         ::= 0.04 this %EOL
<DET>         ::= 0.00 my %EOL
<DET>         ::= 0.00 that %EOL
<DET>         ::= 0.00 those %EOL
<DET>         ::= 0.00 these %EOL
<NOMINAL>    ::= 0.0188679 paper %EOL
<NOMINAL>    ::= 0.0188679 algorithm %EOL
<NOMINAL>    ::= 0.0188679 parse %EOL
<NOMINAL>    ::= 0.0188679 input %EOL
<NOMINAL>    ::= 0.0188679 tree %EOL
<NOMINAL>    ::= 0.0188679 probability %EOL
<NOMINAL>    ::= 0.0188679 language %EOL
<NOMINAL>    ::= 0.0188679 task %EOL
<NOMINAL>    ::= 0.0188679 experimentation %EOL
<NOMINAL>    ::= 0.0188679 experiments %EOL
<NOMINAL>    ::= 0.0188679 instructions %EOL
<NOMINAL>    ::= 0.0188679 choice %EOL
<NOMINAL>    ::= 0.0188679 implementation %EOL
<NOMINAL>    ::= 0.0188679 class %EOL
<NOMINAL>    ::= 0.0188679 form %EOL
<NOMINAL>    ::= 0.0377358 listing %EOL
<NOMINAL>    ::= 0.0377358 version %EOL
<NOMINAL>    ::= 0.0377358 sentence %EOL
<NOMINAL>    ::= 0.0377358 format %EOL
<NOMINAL>    ::= 0.0377358 problems %EOL
<NOMINAL>    ::= 0.0377358 results %EOL
<NOMINAL>    ::= 0.0566038 sentences %EOL
<NOMINAL>    ::= 0.0754717 program %EOL
<NOMINAL>    ::= 0.113208 code %EOL
<NOMINAL>    ::= 0.113208 grammar %EOL
<NOMINAL>    ::= 0.132075 report %EOL
<NOMINAL>    ::= 0.00 rabbit %EOL
<NOMINAL>    ::= 0.00 smile %EOL
<NOMINAL>    ::= 0.00 cat %EOL
<NOMINAL>    ::= 0.00 book %EOL
<NOMINAL>   ::= 0.00 flights %EOL
<NOMINAL>   ::= 0.00 meal %EOL
<V>            ::= 0.0344828 implement %EOL
<V>            ::= 0.0344828 take %EOL
<V>            ::= 0.0344828 display %EOL
<V>            ::= 0.0344828 experiment %EOL
<V>            ::= 0.0344828 refuse %EOL
<V>            ::= 0.0344828 cover %EOL
<V>            ::= 0.0344828 write %EOL
<V>            ::= 0.0344828 developed %EOL
<V>            ::= 0.0344828 improve %EOL
<V>            ::= 0.0344828 submitted %EOL
<V>            ::= 0.0344828 indicate %EOL
<V>            ::= 0.0344828 find %EOL
<V>            ::= 0.0344828 run %EOL
<V>            ::= 0.0344828 required %EOL
<V>            ::= 0.0689655 explain %EOL
<V>            ::= 0.0689655 see %EOL
<V>            ::= 0.0689655 wish %EOL
<V>            ::= 0.103448 submit %EOL
<V>            ::= 0.206897 describe %EOL
<V>            ::= 0.00 has %EOL
<V>            ::= 0.00 eats %EOL
<V>            ::= 0.00 book %EOL
<V>            ::= 0.00 include %EOL
<V>            ::= 0.00 want %EOL
<Aux>        ::= 0.05 is %EOL
<Aux>        ::= 0.05 would %EOL
<Aux>        ::= 0.10 should %EOL
<Aux>        ::= 0.10 do %EOL
<Aux>        ::= 0.10 can %EOL
<Aux>        ::= 0.10 does %EOL
<Aux>        ::= 0.10 are %EOL
<Aux>        ::= 0.15 be %EOL
<Aux>        ::= 0.25 must %EOL
<ADJ>        ::= 0.0243902 paper %EOL
<ADJ>        ::= 0.0243902 parse %EOL
<ADJ>        ::= 0.0243902 probabilistic %EOL
<ADJ>        ::= 0.0243902 specific %EOL
<ADJ>        ::= 0.0243902 programming %EOL
<ADJ>        ::= 0.0243902 restrictive %EOL
<ADJ>        ::= 0.0243902 ungrammatical %EOL
<ADJ>        ::= 0.0243902 grammatical %EOL
<ADJ>        ::= 0.0243902 test %EOL
<ADJ>        ::= 0.0243902 submission %EOL
<ADJ>        ::= 0.0243902 appropriate %EOL
<ADJ>        ::= 0.0243902 given %EOL
<ADJ>        ::= 0.0243902 enough %EOL
<ADJ>        ::= 0.0243902 necessary %EOL
<ADJ>        ::= 0.0487805 current %EOL
<ADJ>        ::= 0.0487805 best %EOL
<ADJ>        ::= 0.0487805 long %EOL
<ADJ>        ::= 0.0731707 electronic %EOL
<ADJ>        ::= 0.439024 your %EOL
<ADJ>        ::= 0.00 white %EOL
<ADJ>        ::= 0.00 blue %EOL
<ADJ>        ::= 0.00 other %EOL
<Pronoun>    ::= 0.047619 its %EOL
<Pronoun>    ::= 0.047619 itself %EOL
<Pronoun>    ::= 0.333333 it %EOL
<Pronoun>    ::= 0.571429 you %EOL
<Pronoun>    ::= 0.00 I %EOL
<Pronoun>    ::= 0.00 me %EOL
<Pronoun>    ::= 0.00 she %EOL
<Pronoun>    ::= 0.00 he %EOL
<Pronoun>    ::= 0.00 they %EOL
<Pronoun>    ::= 0.00 her %EOL
<Pronoun>    ::= 0.00 him %EOL
<Pronoun>    ::= 0.00 them %EOL
<Conj>        ::= 0.92 and %EOL
<Conj>        ::= 0.08 or %EOL
<Conj>        ::= 0.00 but %EOL
<Prep>        ::= 0.0384615 along %EOL
<Prep>        ::= 0.0384615 through %EOL
<Prep>        ::= 0.0769231 for %EOL
<Prep>        ::= 0.153846 to %EOL
<Prep>        ::= 0.153846 in %EOL
<Prep>        ::= 0.153846 with %EOL
<Prep>        ::= 0.192308 of %EOL
<Prep>        ::= 0.192308 as %EOL
<Prep>        ::= 0.00 on %EOL
<Prep>        ::= 0.00 from %EOL
<ProperNoun> ::= 0.20 CYK %EOL
<ProperNoun> ::= 0.20 C %EOL
<ProperNoun> ::= 0.20 CPP %EOL
<ProperNoun> ::= 0.20 Java %EOL
<ProperNoun> ::= 0.20 Perl %EOL
<ProperNoun> ::= 0.00 TWA %EOL
<ProperNoun> ::= 0.00 Denver %EOL
<WhWord>    ::= 0.50 what %EOL
<WhWord>    ::= 0.50 how %EOL
<PreDet>    ::= 0.50 both %EOL
<PreDet>    ::= 0.50 all %EOL
<Adv>        ::= 0.50 electronically %EOL
<Adv>        ::= 0.50 not %EOL
Figure 11.23: Realistic Grammar



11.1.4.3.4 Grammar Restrictions

All incoming sentences, though case-sensitive, are required to be in the lower-case unless a given word is a proper noun or the pronoun I. The current system doesn’t deal with punctuation either, so complex sentences that use commas, semicolons, and other punctuation characters may not (and appear not to) be parsed correctly (such punctuation is simply ignored).

However, all the above restrictions can be solved just at the grammar level without touching a single line of code, but they were not dealt with yet in the first prototype.

11.1.4.3.5 Difficulties Encountered
Learning Probabilistic Grammars

The major problem of this type of grammars is to learn them. This requires at least having a some decent POS tagger (e.g. in [brill]) and decent knowledge of the English grammar and then sitting down and computing the probabilities of the rules manually. This is a very time-consuming and unjustified enormous effort for documents of relatively small size (let alone medium-size or million-word corpora). Hence, there is a need for automatic tools and/or pre-existing (and freely available!) treebanks to learn the grammars from. For example, we have spent two days developing grammar for a one-sheet document (see Section 11.1.4.3.3) and the end result is that we can only parse 3 (three) sentences so far with it.

Chomsky Normal Form

Another problem is the conversion of existing grammars or maintaining the current grammar to make sure it is in the CNF as the CYK algorithm [cyk] requires. This is a problem because for a human maintainer the number of rules grows, so it becomes less obvious what a initial rule was like, and there’s always a possibility to create more undesired parses that way. We had to do that for the Extended and Realistic Grammars that were based on the grammar rules from the book [jurafsky].

To illustrate the problem, the rules similar to the below have to be converted into CNF:

<A> -> <B>
<A> -> t <C>
<A> -> <B> <C> <D>
<A> -> <B> <C> t <D> <E>

The conversion implies creating new non-terminals augmenting the number of rules, which may be hard to trace later on when there are many.

<A>   -> <B> <A>
<A>   -> <T> <C>
<A>   -> <BC> <D>
<A>   -> <BCT> <DE>
<T>   -> t
<BC>  -> <B> <C>
<DE>  -> <D> <DE>
<BCT> -> <BC> <T>

The rule-set has been doubled in the above example. That creates a problem of distributing the probability to the new rules as well as the problem below.

Exponential Growth of Storage Requirements and Run Time

While playing with the Basic and Extended grammars, we didn’t pay much attention to the run-time aspect of the algorithm (even though the number of the nested for-loops looked alerting) because it was a second or less for the sentence set in Figure 11.21. It became a problem, however, when we came up with the Realistic grammar. The run-time for this grammar has jumped to 16 (sixteen !!!) minutes (!!!) in average for the sentence set in Figure 11.22. This was rather discouraging (unless the goal is not the speed but the most correct result at the hopefully near end). The problem stems from the algorithm’s complexity and huge data sparseness for large grammars. One of the major reasons of the data sparseness problem is the CNF requirement as described above: the number of non-terminals grows rapidly largely increasing one of the dimensions of our and back arrays causing number of iteration of the parsing algorithm to increase exponentially (or it is at least cubic). And a lot of time is spent to find out that there’s no a parse for a sentence (given all the words of the sentence in the grammar).

Data Sparseness and Smoothing

The bigger grammar is the more severe the data sparseness is in our arrays in this algorithm causing the above problem of the run-time and storage requirements. Smoothing techniques we previously implemented in LangIdentApp can be applied to at least get rid of zero-probabilities in the

array, but we believe the smoothing might hurt rather than improve the parsing performance; yet we haven’t tested this claim out yet (a TODO). A better way could be smooth the grammar rules’ probabilities.

11.1.4.4 Results and Conclusions
11.1.4.4.1 Generalities

The algorithm does indeed seem to work and accept syntactically-valid sentences while rejecting the ungrammatical ones. Though to exhaust all the possible grammatical and ungrammatical sentences in testing would require a lot more time. There is also some disappointment with respect to the running time increase when the grammar grows and the other problems mentioned before.

To overcome the run-time problem, we’d have to use some more sophisticated data structures than a plain 3D array of doubles, but this is like fighting with the disease, instead of its cause. The CYK algorithm has to be optimized or even re-born to allow more than just CNF grammars and be faster at the same time.

The restrictions on the sentences mentioned earlier can all be overcome by just only tweaking the grammar (but increasing the run-time along the way).

While most of the results of my test runs are in the further sections, below we present one interactive session sample as well as our favorite parse.

11.1.4.4.2 Sample Interactive Run
junebug.mokhov [a3] % java ProbabilisticParsingApp --parse

Probabilistic Parsing
Serguei A. Mokhov, mokhov@cs
April 2003



Entering interactive mode... Type \q to exit.
sentence> my rabbit has a white smile
my rabbit has a white smile

Parse for the sentence [ my rabbit has a white smile ] is below:

SYNOPSIS:

<NONTERMINAL> (PROBABILITY) [ SPAN: words of span ]

<S> (0.0020480000000000008) [ 0-5: my rabbit has a white smile ]
        <NP> (0.04000000000000001) [ 0-1: my rabbit ]
                <DET> (0.1) [ 0-0: my ]
                <NOMINAL> (0.4) [ 1-1: rabbit ]
        <VP> (0.06400000000000002) [ 2-5: has a white smile ]
                <V> (0.8) [ 2-2: has ]
                <NP> (0.08000000000000002) [ 3-5: a white smile ]
                        <DET> (0.4) [ 3-3: a ]
                        <NOMINAL> (0.2) [ 4-5: white smile ]
                                <ADJ> (1.0) [ 4-4: white ]
                                <NOMINAL> (0.2) [ 5-5: smile ]


sentence> my rabbit has a smile
my rabbit has a smile

Parse for the sentence [ my rabbit has a smile ] is below:

SYNOPSIS:

<NONTERMINAL> (PROBABILITY) [ SPAN: words of span ]

<S> (0.0020480000000000008) [ 0-4: my rabbit has a smile ]
        <NP> (0.04000000000000001) [ 0-1: my rabbit ]
                <DET> (0.1) [ 0-0: my ]
                <NOMINAL> (0.4) [ 1-1: rabbit ]
        <VP> (0.06400000000000002) [ 2-4: has a smile ]
                <V> (0.8) [ 2-2: has ]
                <NP> (0.08000000000000002) [ 3-4: a smile ]
                        <DET> (0.4) [ 3-3: a ]
                        <NOMINAL> (0.2) [ 4-4: smile ]


sentence> my rabbit has a telephone
my rabbit has a telephone

There’s no parse for [ my rabbit has a telephone ]

sentence> the cat eats the rabbit
the cat eats the rabbit

Parse for the sentence [ the cat eats the rabbit ] is below:

SYNOPSIS:

<NONTERMINAL> (PROBABILITY) [ SPAN: words of span ]

<S> (0.006400000000000002) [ 0-4: the cat eats the rabbit ]
        <NP> (0.2) [ 0-1: the cat ]
                <DET> (0.5) [ 0-0: the ]
                <NOMINAL> (0.4) [ 1-1: cat ]
        <VP> (0.04000000000000001) [ 2-4: eats the rabbit ]
                <V> (0.2) [ 2-2: eats ]
                <NP> (0.2) [ 3-4: the rabbit ]
                        <DET> (0.5) [ 3-3: the ]
                        <NOMINAL> (0.4) [ 4-4: rabbit ]


sentence> a white cat has a white smile
a white cat has a white smile

Parse for the sentence [ a white cat has a white smile ] is below:

SYNOPSIS:

<NONTERMINAL> (PROBABILITY) [ SPAN: words of span ]

<S> (0.008192000000000003) [ 0-6: a white cat has a white smile ]
        <NP> (0.16000000000000003) [ 0-2: a white cat ]
                <DET> (0.4) [ 0-0: a ]
                <NOMINAL> (0.4) [ 1-2: white cat ]
                        <ADJ> (1.0) [ 1-1: white ]
                        <NOMINAL> (0.4) [ 2-2: cat ]
        <VP> (0.06400000000000002) [ 3-6: has a white smile ]
                <V> (0.8) [ 3-3: has ]
                <NP> (0.08000000000000002) [ 4-6: a white smile ]
                        <DET> (0.4) [ 4-4: a ]
                        <NOMINAL> (0.2) [ 5-6: white smile ]
                                <ADJ> (1.0) [ 5-5: white ]
                                <NOMINAL> (0.2) [ 6-6: smile ]


sentence> cat white my has rabbit
cat white my has rabbit

There’s no parse for [ cat white my has rabbit ]

sentence> smile rabbit eats my cat
smile rabbit eats my cat

There’s no parse for [ smile rabbit eats my cat ]

sentence> cat eats rabbit
cat eats rabbit

There’s no parse for [ cat eats rabbit ]

sentence> the cat eats the rabbit
the cat eats the rabbit

Parse for the sentence [ the cat eats the rabbit ] is below:

SYNOPSIS:

<NONTERMINAL> (PROBABILITY) [ SPAN: words of span ]

<S> (0.006400000000000002) [ 0-4: the cat eats the rabbit ]
        <NP> (0.2) [ 0-1: the cat ]
                <DET> (0.5) [ 0-0: the ]
                <NOMINAL> (0.4) [ 1-1: cat ]
        <VP> (0.04000000000000001) [ 2-4: eats the rabbit ]
                <V> (0.2) [ 2-2: eats ]
                <NP> (0.2) [ 3-4: the rabbit ]
                        <DET> (0.5) [ 3-3: the ]
                        <NOMINAL> (0.4) [ 4-4: rabbit ]


sentence> \q
junebug.mokhov [a3] %
11.1.4.4.3 Favorite Parse

As of this release, we were able to only parse the three sentences from the “requirements corpus” and below is the favorite:

<S> (7.381879524149979E-10) [ 0-7: describe your grammar and how you developed it ]
    <S> (4.11319751814313E-4) [ 0-2: describe your grammar ]
        <V> (0.206897) [ 0-0: describe ]
        <NOMINAL> (0.039760823193600005) [ 1-2: your grammar ]
            <ADJ> (0.439024) [ 1-1: your ]
            <NOMINAL> (0.113208) [ 2-2: grammar ]
    <ConjS> (1.7946815078995936E-5) [ 3-7: and how you developed it ]
        <Conj> (0.92) [ 3-3: and ]
        <S> (1.9507407694560798E-5) [ 4-7: how you developed it ]
            <WhNP> (0.094285785) [ 4-5: how you ]
                <WhWord> (0.5) [ 4-4: how ]
                <Pronoun> (0.571429) [ 5-5: you ]
            <VP> (0.002068965931032) [ 6-7: developed it ]
                <V> (0.0344828) [ 6-6: developed ]
                <Pronoun> (0.333333) [ 7-7: it ]
11.1.4.5 Mini User Manual
11.1.4.5.1 System Requirements

The program was mostly developed under Linux, so there’s a Makefile and a testing shell script to simplify some routine tasks. For JVM, any JDK 1.4.* and above will do. bash would be nice to have to be able to run the batch script. Since the application itself is written in Java, it’s not bound to a specific architecture, thus may be compiled and run without the makefiles and scripts on virtually any operating system.

11.1.4.5.2 How To Run It

There are thousands of ways how to run the program. Some of them are listed below.

Using the Shell Script

There is a script out there – testing.sh. It simply does compilation and batch processing for all the three grammars and two sets of test sentences in one run. The script is written using bash syntax; hence, bash should be present.

Type:

./testing.sh

or

time ./testing.sh

to execute the batch (and time it in the second case). And example of what one can get is below. NOTE: processing the first grammar, in grammar.asmt.txt, may take awhile (below it took us 16 minutes), so be aware of that fact (see the reasons in Section 11.1.4.3.5).

E.g.:

junebug.mokhov [a3] % time ./testing.sh
Making sure java files get compiled...
javac -g ProbabilisticParsingApp.java
Testing...
Compiling grammar: grammar.asmt.txt
Parsing...991.318u 1.511s 16:35.55 99.7%        0+0k 0+0io 5638pf+0w
Done
Look for parsing results in grammar.asmt.txt-parse.log

Compiling grammar: grammar.extended.txt
Parsing...1.591u 0.062s 0:01.82 90.6%   0+0k 0+0io 5637pf+0w
Done
Look for parsing results in grammar.extended.txt-parse.log

Compiling grammar: grammar.original.txt
Parsing...0.455u 0.066s 0:00.72 70.8%   0+0k 0+0io 5599pf+0w
Done
Look for parsing results in grammar.original.txt-parse.log

Testing done.
995.675u 1.906s 16:41.68 99.5%  0+0k 0+0io 42211pf+0w
junebug.mokhov [a3] %
Running ProbabilisitcParsingApp

You can run the application itself without any wrapping scripts and provide options to it. This is a command-line application, so there is no GUI associated with it yet. To run the application you have to compile it first. You can use either make with no arguments to compile or use a standard Java compiler.

Type:

make

or

javac -cp marf.jar:. ProbabilisitcParsingApp.java

After having compiled the application, you can run it with a JVM. There are mutually-exclusive required options:

  • --train <grammar-file> – to compile a grammar from the specified text file. This is the first thing you need to do before trying to parse any sentences. Once compiled, you don’t need to recompile it each time you run the parser unless you made a fresh copy of the application or made changes to the grammar file or plan to use a grammar from another file.

  • --parse – to actually run the parser in the interactive mode (or batch mode, just use input file redirection with your test sentences). To run the parser successfully there should be compiled grammar first (see --train).

E.g.:

To compile the Basic Grammar:

java -cp marf.jar:. ProbabilisitcParsingApp.java --train grammars/grammar.original.txt

To batch process the sentence set from a file:

java -cp marf.jar:. ProbabilisitcParsingApp.java --parse < data/test-sentences.txt

To run the application interactively:

java -cp marf.jar:. ProbabilisitcParsingApp.java --parse

Complete usage information:



Probabilistic Parsing
Serguei A. Mokhov, mokhov@cs.concordia.ca
April 2003 - 2009


Usage:
    java ProbabilisticParsingApp --help | -h
        : to display this help and exit

    java ProbabilisticParsingApp --version
        : to display version and exit

    java ProbabilisticParsingApp --train [ OPTIONS ] <grammar-file>
        : to compile grammar from the <grammar-file>

    java ProbabilisticParsingApp --parse [ OPTIONS ]
        : to parse sentences from standard input

Where options are of the following:

    --debug  - enable debugging (more verbose output)
    -case    - make it case-sensitive
    -num     - parse numerical values
    -quote   - consider quotes and count quoted strings as one token
    -eos     - make typical ends of sentences (<?>, <!>, <.>) significant




11.1.4.5.3 List of Files of Interest
Directories
  • marf/nlp/ – that’s where most of the code is for this application is, the marf.nlp package.

  • marf/nlp/Parsing/ – that’s where most of the Parsing code is for Probabilistic Grammars and Grammars in general

  • marf/nlp/Parsing/GrammarCompiler/ – that’s where the Grammar Compiler modules are

The Application

The application, its makefile, and the wrapper script for batch training and testing.

ProbabilisticParsingApp.java
Makefile
testing.sh
marf.jar
Grammars

grammars/grammar.original.txt – The Basic Grammar

grammars/grammar.extended.txt – The Extended Grammar

grammars/grammar.asmt.txt – The Realistic Grammar

Test Sentences

data/test-sentences.txt – the sample sentences from all over the place.

data/asmt-sentences.txt – the sentences derived from the requirements sheet.

11.1.4.6 Results
11.1.4.6.1 Basic Grammar



Probabilistic Parsing
Serguei A. Mokhov, mokhov@cs
April 2003



Entering interactive mode... Type \q to exit.
sentence> my rabbit has a white smile

Parse for the sentence [ my rabbit has a white smile ] is below:

SYNOPSIS:

<NONTERMINAL> (PROBABILITY) [ SPAN: words of span ]

<S> (0.0020480000000000008) [ 0-5: my rabbit has a white smile ]
    <NP> (0.04000000000000001) [ 0-1: my rabbit ]
        <DET> (0.1) [ 0-0: my ]
        <NOMINAL> (0.4) [ 1-1: rabbit ]
    <VP> (0.06400000000000002) [ 2-5: has a white smile ]
        <V> (0.8) [ 2-2: has ]
        <NP> (0.08000000000000002) [ 3-5: a white smile ]
            <DET> (0.4) [ 3-3: a ]
            <NOMINAL> (0.2) [ 4-5: white smile ]
                <ADJ> (1.0) [ 4-4: white ]
                <NOMINAL> (0.2) [ 5-5: smile ]


sentence> my rabbit has a smile

Parse for the sentence [ my rabbit ha
