1 Introduction

With the development of information society, various industries have produced a great deal of data and how to effectively analyze these data becomes an urgent problem (1). Classification is as a basic form of data analysis; it has attracted scholars much attention (2; 3). In 2006, extreme learning machine is proposed by Huang as a new classification method(4; 5; 6; 7). In recent years, ELM has been extensively studied by researchers (8; 9; 10). Zhang et al. proposed a privileged knowledge extreme learning machine called ELM+ for radar signal recognition (11); in practical applications, many classification tasks has privileged knowledge, but the traditional ELM (4; 5) does not take advantage of these privileged knowledge; ELM+ makes full use of privileged knowledge to map input data into a feature space and a correction space; it uses the traditional ELM and the privileged knowledge to get a corrected hidden layer output matrix and output layer weights; by solving the corrected optimization problem, the solution of the ELM+ is obtained. Aiming at classification in blind domain adaptation, Uzair et al. developed a new ELM model named A-ELM (12)

. In order to cope with the problem that there is a big difference between the distribution of training data and target domain data, A-ELM uses a multiple classifiers system; For A-ELM algorithm, a global classifier is trained by whole training data which can classify all classes data; then the data is divided into

c subsets (c is the number of classes) and c local classifiers are also trained based on the c subsets. When a new data coming, the algorithm utilizes the (c+1) classifiers to classify the new data. The local classier whose square error is least with global classifier is as final training classification model. Deng et al. proposed a fast and accurate kernel-based supervised extreme learning machine referred to as RKELM (13)

. RKELM introduces kernel function and random selection mechanism to improve the performance of the algorithm. Aiming at reducing the size of the output matrix of the hidden layer, support vectors of RKELM is are randomly selected from training set and the number of support vectors is limited to less than the number of neurons in hidden layer. The traditional ELM is easily affected by noise, but with fast speed; sparse representation classification (SRC) has a good ability to resist noise, but its speed does not have too many advantages. So Cao et al. designed a new extreme learning machine method based on adaptive sparse representation for image classification called EA-SRC

(14). EA-SRC combines ELM with SRC, and employs regularization mechanism to improve generalization performance. For the sake of optimal regularization parameter selection, it adopts the leave-one-out cross validation (LOO) scheme. In addition, considering reducing computational complexity in or

, EA-SRC uses SVD(Singular Value Decomposition) to reduce the dimensions of

or

. Li et al. proposed an extreme learning machine method with transfer learning mechanism called TL-ELM

(15). Different from the traditional ELM, TL-ELM asks the difference between the old domain knowledge and the new domain knowledge must be as small as possible. By solving the optimization problem, the output weights of the new ELM can be got. For imbalanced and big data classification problem, Wang et al. proposed a distributed weighted extreme learning machine referred to as DWELM (16). To handle big data and imbalanced data, DWELM draws into MapReduce framework and sample weighting method. Aiming at data stream classification containing concept drift, Mirza et al. designed a meta-cognitive online sequential extreme learning machine called MOS-ELM (17). MOS-ELM is a development of OS-ELM (18), and uses online sequential learning method to learn data stream and deal with concept drift (19; 20; 21; 22); the sliding window can be adaptively adjusted according to the accuracy of classification; if a sample is correctly classified, it will be deleted from sliding window; if misclassified, it will be added to sliding window again and then SMOTE algorithm (23) is executed to retrain classifier.

Rough set is a mathematical tool to analyze data proposed by Z. Pawlak (24)

. Because it can deal with imprecise, inconsistent and incomplete information and eliminate redundant attributes from feature sets without any preliminary or prior information, it has been widely used in pattern recognition, image processing, biological data analysis, expert systems and other fields in recent years

(25; 26; 27). Some researchers have investigated methods to combine rough set with neural network to better get classification models (28). Kothari et al. applied rough set theory in the architecture of unsupervised neural network (29) and the proposed algorithm uses the Kohonen learning rule to train neural network. Azadeh proposed an integrated data envelopment analysis-artificial (DEA) neural network-rough set algorithm for assessment of personnel efficiency (30); at first, it uses rough set to determine many candidate reductions and then calculates the performance of neural network for each reduct; the best reduct is selected by ANN results though DEA. Ahn et al. proposed a hybrid intelligent system combining rough set with artificial neural network to predict the failure of firms (31) and a new reduction algorithm called 2D reduction was designed; in 2D reduction method, rough set is utilized to eliminate irrelevant or redundant attributes and then scans samples to delete the samples of inconsistent decisions; at last, association rules can be extracted from the data; for Ahn’s hybrid classification model, if a new instance matches some association rules, the instance will be classified by the association rules; otherwise, the algorithm will use the data reduced by 2D reduction method to train a classifier to classify this instance. Xu et al. introduced a rough rule granular extreme learning machine called RRGELM(32); RRGELM uses rough set to extract association rules and the number of neurons in hidden layer is decided by the number of the association rules; the weights of input layer is not randomly generated, they are determined by the conditions whether instances are covered by the association rules or not. The above works have promoted the developments of rough set and neural network. However, those models only utilize rough set to reduce attributes or the cost of training rough neural networks is too large. Inspired by the above models, a new classification method combined extreme learning machine with rough set referred to as RELM was proposed in this paper. For RELM, the input weights and biases of hidden layer are randomly generated, and the training set is divided into two parts: upper approximation set and lower approximation set to train upper approximation neurons and lower approximation neurons. In addition, attributes reduction is introduced to eliminate the influence of redundant attributes on classification results. Because the input weights and biases of hidden layer are randomly generated and the output weights can analytically determined, RELM can overcome the some disadvantages of conventional neural networks and has a fast training speed.

The contributions of this paper are as follows:

  • A new extreme learning machine is designed in this paper. Different from the traditional ELM (4), RELM utilizes rough set to divide data into upper approximation set and lower approximation set and then uses the upper approximation set and lower approximation set to train upper boundary neurons and lower boundary neurons correspondingly. Every neuron of RELM cantains two neurons: a upper boundary neuron and a lower boundary neuron. The final classification result is decided by the two kind of neurons.

  • Attribute reduction is introduced for RELM. Rough set has obvious advantages in attribute reduction and it can preprocess data according to the data itself and dose not need any prior knowledge. By using rough set, RELM can remove redundant attributes without any information loss and improve the performance of the proposed extreme learning machine algorithm.

  • A new method for determining the number of neurons in hidden layer is proposed. In RELM, the number of neurons in hidden layer is determined by the sizes of positive region and boundary region. It can reduce the blindness of selecting the number of neurons in hidden layer.

  • Rough set is used to guide the learning process of ELM. Traditional algorithms often separate rough sets and neural networks and do not fuse ELM and rough sets very well. Different from existing algorithms which only use rough set to reduce attributes or determine the number of neurons in hidden layer (31; 32), RELM uses the results of the data divided by rough set to train different kinds of neurons; it preferably combines rough set with extreme learning machine.

The rest of this paper is organized as follows. In Section 2, the basic concepts and principles of ELM and rough set are reviewed. Section 3 introduces the proposed algorithm and describes the implementation process and principle of RELM. In Section 4, RELM and comparison algorithms are evaluated on data sets and the results are analysed in detail. Finally, the conclusions are stated in section 5.

2 Preliminaries

In this section, we give a description of necessary preparatory knowledge in this paper. Firstly, we look into the essence of extreme learning machine and introduces the steps of ELM. Then rough set is reviewed and we describes the basic concepts and principles of rough set in detail.

2.1 The model of ELM

ELM is a single-hidden layer feedback neural network; the input weights and biases of hidden layer nodes are randomly selected, and the output weights can be analytically determined by the least square method. ELM is very fast in speed and has a good generalization ability (9).

For N distinct sample , and , the output of ELM with L hidden layer nodes is as (33; 34):

(1)

where is the input weights between the nodes of input layer and the nodes of hidden layer; is the output weights of the nodes of hidden layer and

is the active function of hidden nodes which is a nonlinear piecewise continuous function. From the literatures

(4; 35), ELM can approximate any target function with zero error. So Eq.(1) can be written as:

(2)

is output matrix of hidden layer nodes:

(3)

is the output weights of hidden nodes and is the target matrix of ELM, where

(4)

The smallest norm least-squares solution of Eq.(2) (36) is

(5)

is the Moore-Penrose generalized inverse (22), and it can be calculated by orthogonal projection method, orthogonalization method and singular value composition (SVD) (37).

In order to reduce the influence of ill conditioned matrix on the calculation results and improve the robustness, ridge parameter is used in ELM

(38; 39; 40). The optimization problem of ELM can be described as

(6)

Where C is penalty factor; is the resident between target value and real value of the sample. According to KKT conditions, if , the solution of Eq.(6) can be expressed as (40):

(7)

So the output of ELM is

(8)

If , the solution of Eq.(6) can be expressed as

(9)

So the output of ELM is

(10)

For binary classification problem, the decision result of ELM is:

(11)

For classification problem, the decision result of ELM is

(12)

Where .

From the above descriptions, the main steps of ELM are summarized as follows:

a training data set ; the number of nodes in hidden layer L. the activation function ;
ELM classifier.
: Randomly generate the input weights and biases , ;
: Calculate the output matrix of hidden layer for data set ;
: Obtain the output weights according to Eq.(7) or Eq.(9);
Algorithm 1 ELM model.

2.2 The basics of rough set theory

Rough set is a useful tool for the study of imprecise and uncertain knowledge. Rough set can analyze categorical data according to data itself and it dose not need any prior knowledge; it has been successfully applied in attribute reduction (41). Rough set claims that the objects with the same attribute value should belong to the same decision class, otherwise, it violates the principle of classification consistency (42).

Let be an information system (43), where is the universe with a non-empty set of finite objects, is an attributes set, is the values set when the attribute is a and is the values set of attributes set A. f is a information function: if , it has . For an information system, and , where C is a conditional attributes set and D is a decision attribute set; the information system is also be named decision table. So it has the following definitions from the literatures (44; 45; 46).

Definition 2.1.

For an information system , let and the relation between attributes set B and universe is defined as:

(13)

IND(B) is called indiscernibility relation (equivalence relation).

It is known that the objects x and y have the same values on the attribute set B if and it can also say x and y are indiscernible by attributes set B.

Definition 2.2.

For , the x’s equivalence class of the B-indiscernibillity relation is defined as follow:

(14)

The partition of U generated by IND(B) is denoted U/IND(B) or abbreviated as U/B.

From Definition 2.2, it is known that equivalence class is a set that all objects has the same attributes values; if , it has and for .

Definition 2.3.

Let be an information system, and is an equivalence relation of universe U generated by ; we call is an approximation space, If , so the -lower approximation and -upper approximation are defined as:

(15)

Rough set divides the universe into three regions: positive region, negative region and boundary region; it can be seen as Fig.1.

B-positive region of X is as:

(16)

B-negative region of X is as:

(17)

B-boundary region of X is as:

(18)

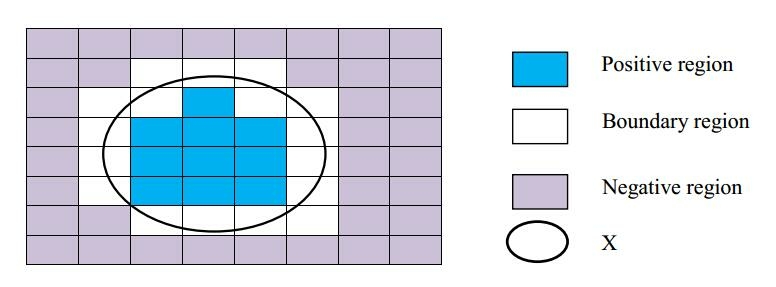

Fig. 1: Rough set diagrammatic sketch

means the basic concepts of can be certainly assigned to X; means the basic concepts of can be possibly assigned to X; means we can not sure whether the basic concepts of U belong to X or not. If the boundary region of X is empty which indicates , so the set X is crisp; if , the set X is rough (47). When the attributes contain more knowledge, the crisper the concepts will be; boundary region represents the uncertainty degree of knowledge; the greater the boundary is, the greater the uncertainty of knowledge will be (48). In order to measure the uncertainty of rough set, the following definition is introduced.

Definition 2.4.

(49) For an information system , , and C is the condition attributes set, D is the decision attribute set. , so the approximate quality of B for D is defined as:

(19)

Approximate precision is as:

(20)

Where .

is also called as dependence degree of B on D. If , it says B is completely dependent on D. If , B is partial dependent on D.

Definition 2.5.

(50) Give a decision table , C is the condition attributes set, D is the decision attribute set, and . For , if , it is said that a is redundant for D; otherwise a is essential for D.

It is obvious that removing the redundant attributes relative to D in B will not change the approximate ability of B to D.

3 The model of RELM

In this section, we give an introduction about the structure of RELM, and then describes the basic principles of RELM. How to train hidden nodes of RELM using rough set theory can be also found in this section. The detailed execution steps of RELM can be seen in Algorithm 3.

3.1 The structure of RELM

RELM is a development of ELM (4), but different from the conventional ELM, the neurons of RELM are rough neurons which are trained by the data divided by rough set. Rough set divide a universe into two distinct parts: lower approximation set and upper approximation set. For RELM, each neuron contains two neurons: upper approximation neuron which is trained by upper approximation set and lower approximation neuron which is trained by lower approximation set. The input weights and biases of upper approximation neurons and lower approximation neurons are randomly generated. The output weights of upper approximation neurons and lower approximation neurons are analytically determined as the method of ELM. The classification result of RELM is decided by the outputs of upper approximation neurons and lower approximation neurons although the training process of these two kinds of neurons is relatively independent. It is known that RELM closely combines ELM with rough sets and the division result of a universe by rough set is used to guide the learning process of RELM. So RELM is a kind of ELM based on uncertainty measure and can effectively analyze imprecise, inconsistent and incomplete information. The structure of RELM is showed as Fig.2.

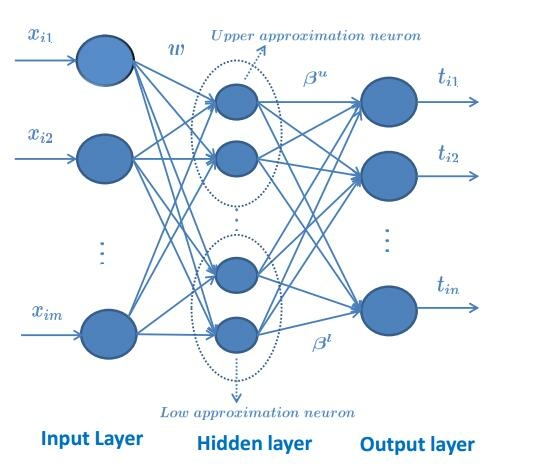

Fig. 2: The structure of RELM

3.2 Rough extreme learning machine for data classification

In the algorithm of RELM, the most important is training rough neurons. From Fig.2, it is known that there are two kinds of neurons: lower approximation neuron and upper approximation neuron. Each neuron actually contains one lower approximation neuron and one upper approximation neuron. For a training data set , A is the condition attributes set and D is the decision attribute set. So is divided into two parts by rough set: lower approximation set and upper approximation set .

(21)

Let L is the number of neurons in hidden layer, is the input weights connecting input neurons with lower approximation neurons and is the biases of lower approximation neurons. Lower approximation neurons of RELM are trained by . According to the ELM theory, if , the output weights of lower approximation neurons are as:

(22)

Where is the number of samples in , C is a ridge parameter, is the output matrix of lower approximation neurons in hidden layer, is the target matrix of and

is an identity matrix.

and in Eq.(22) are as follows:

(23)

If , the output weights of lower approximation neurons are as:

(24)

Let is the input weights connecting input neurons with upper approximation neurons and is the biases of upper approximation neurons. Upper approximation neurons of RELM are trained by . So if , the output weights of upper approximation neurons are as:

(25)

Where is the number of samples in upper approximation set. and are as:

(26)

If , the output weights of lower approximation neurons are as:

(27)

Suppose the test data set is , and are the output matrices of lower approximation neurons and upper approximation neurons for correspondingly. The final output matrices of hidden layer are as:

(28)

So the target matrix of RELM for is

(29)

Where c is a weight to balance the output matrices of lower approximation neurons and upper approximation neurons. is the output target matrix of lower approximation neurons and is the output target matrix of upper approximation neurons.

In order to eliminate the influence of redundant attributes on classification result, attribute reduction is introduced in RELM. From rough set theory, it is known that rough set can remove redundant attributes without any empirical knowledge. For the training data set , C is the condition attributes set, D is the decision attribute set and ; , the significance of the attribute a for the decision attribute set D based on the condition attributes set B is as:

(30)

The greater the value of is, the more important a is for D. So can be used to select non-redundant attributes. The attribute reduction method is as follow.

1:A decision table
2:Relative reduction .
3:;
4:Calculate the approximate quality of C for ;
5:for each  do
6:     Calculate ;
7:end for
8:Select an attribute with maximum ;
9:if  then
10:     ;
11:     Go to ;
12:end if
13:for  do
14:     if  then
15:         ;
16:     end if
17:end for
18:Output the attributes set B;
Algorithm 2 Attributes reduction.

The number of neurons in the hidden layer plays an important role in RLM. If the number of neurons in the hidden layer L of RELM is too large, it may be overfitting; if L is too small, the under fitting problem may appear. So RELM uses the dividing result of data by rough set to determine the number of neurons in the hidden layer. For a data set, if the larger the positive region is, it presents that the attributes set has a good ability to distinguish data, so it is better for RELM to determine a small L; if the larger the boundary region is, it indicates the attributes set can not divide data well, and it has a trend to choose a large L. The number of neurons in the hidden layer L is decided as

(31)

Where and are the parameters predefined by user which mean the weights of positive region and boundary region correspondingly for determining L. It is obvious that L is decided according to the division of data self, in other words, it decreases the dependence on empirical knowledge; so the number of neurons in the hidden layer is determined by Eq.(31) can reduce the blindness of selecting L to a certain extent.

From the above descriptions, the steps of RELM are summarized as Algorithm 3.

1:A training data set ; a testing data set ; the parameters , and c; the activation function .
2:The classification result of .
3:Training:
4:Divide the data set into the two parts by rough set: upper approximation set and lower approximation set ;
5:Get the reduction set red from and remove the redundant attributes from the data set: , and ;
6:Randomly generate the input weights and bias in hidden layer for upper approximation neurons and lower approximation neurons;
7:Determining the number of neurons in the hidden layer L according Eq.(31);
8:Train upper approximation neurons using and obtain the output weights ;
9:Train lower approximation neurons using and obtain the output weights ;
10:Testing:
11:Calculate the final output matrices of hidden layer of the testing data set : and according to Eq.(28);
12:

Get the target output matrix of upper approximation neurons and lower approximation neurons:

and ;
13:Calculate the target output matrix according to Eq.(29);
Algorithm 3 RELM algorithm.

From the algorithm 3, the steps of RELM and ELM are very different from each other. The neurons of RELM are rough neurons, which are trained based on the division of data by rough set, so RELM is a classification method based on uncertainty measure; the method of uncertainty measure has a good advantage in dealing with inconsistent and incomplete information and the number of neurons in hidden layer is also decided by the information provided by rough set which does not need too much experience knowledge. By utilizing the output results of the upper approximation neurons and lower approximation neurons, RELM can make full use of the information provided by rough sets to get a better classification result.

4 Experiment and results

In this section, we demonstrate the effectiveness of the proposed method and comparison algorithms on 19 data sets. To verify the capabilities of our algorithm, we choose CELM, CSELM, DELM, MELM, RandomSampleELM and SELM etc as comparison algorithms, all algorithms are executed on MATLAB R2017a platform. The configurations of the computer are as: Windows 7 OS, 8GB RAM memory, Intel i3-2120 dual core CPU.

4.1 Data set descriptions

In the experiments, there are 16 real data sets from the UCI data sets website222http://archive.ics.uci.edu/ml/datasets.html and 3 man-made data sets which are generated by MOA platform 333http://moa.cms.waikato.ac.nz/ (51). The descriptions of the 16 real data sets can be seen from the UCI data sets website, so we only give a brief introduction about the 3 man-made data sets. The information of all data sets can be seen in Table 1.

Hyperplane data set: For a d

-dimensional space, a hyperplane is defined as

where and . If , the label of is remarked as a positive sample; otherwise the label of is marked as a negative sample. There are 10% noise in the Hyperplane data set.

Waveform data set: There are 3 classes, 21 attributes in the data set. The goal of the task is to differentiate the three types of waveform. There are 2% noise in the Hyperplane data set.

STAGGER data set: There are 3 attributes for each sample in the data set: , , and . The concepts of the data are as: , and .

Data set Attributes Numerical attributes Categorical attributes Samples Type
Horse 26 9 17 300 mixed
glass 9 9 0 214 numerical
biodeg 41 17 24 500 mixed
haberman 3 0 3 301 numerical
lungcancer 31 31 0 57 categorical
votes 6 6 0 435 categorical
Germany 24 3 21 500 mixed
Echocardiogra 12 4 8 131 mixed
Tic 9 0 9 958 categorical
parkinsons 22 22 0 195 numerical
yeast 8 8 0 500 numerical
vehicle 18 18 0 846 numerical
pima 8 1 7 500 mixed
segment 19 19 0 500 numerical
Hepatitis 19 1 18 156 mixed
STAGGER 3 0 3 500 categorical
adult 13 5 8 500 mixed
Hyperplane 40 40 0 500 numerical
Wavefrom 21 21 0 500 numerical
Table 1: The information of the experimental data sets

Because rough set can only analyse categorical data, the numerical data sets and fixed data sets are discretized. The discretization method is equal interval discretization, and the number of intervals is set as the number of labels in data set.

4.2 The comparison results of RELM with other ELM algorithms

In order to test the efficiency of RELM, in this section, we choose CELM(52), CSELM, DELM, MELM, RandomSampleELM and SELM as comparison algorithms(53). For RELM, c=0.5; the activation function is chosen from sigmoid, radbas, tribas, sine and hardlim. The other parameters of RELM and comparison algorithms are as in Tables 2 and 3. The test results and time overheard are also showed in Tables 2 and 3.

CELM CSELM DELM MELM RandSampleELM SELM RELM L C function
Horse 0.64700.02163 0.09700.0221 0.66500.0877 0.66800.1223 0.46300.1671 0.6480 0.00632 0.65500.0513 2 100 hardlim
glass 0.74300.0219 0.09800.0225 0.75300.1011 0.74500.1032 0.74100.3956 0.64500.0401 0.61600.0474 20 100 hardlim
biodeg 0.65370.0163 0.04370.0033 0.65590.0127 0.66050.0245 0.48460.5076 0.66900.0057 0.66140.0913 5 100 hardlim
haberman 0.71880.0069 0.03170.0160 0.71280.0104 0.71280.0224 0.62270.4778 0.69400.0031 0.74350.0490 5 100 tribas
lungcancer 0.38180.0575 10 0.43640.0717 0.36360.1212 0.43630.1858 0.36360.0383 0.31820.1154 20 100 tribas
votes 0.77450.0298 0.65790.0022 0.79650.0327 0.92760.01810 0.54890.0146 0.93310.0033 0.93550.1044 1000 100 radbas
Germany 0.68740.0025 0.41310.0101 0.68410.0047 0.68320.0019 0.38920.1956 0.68050.0104 0.69580.0197 2 1000 tribas
Echocardiogram 0.73860.0482 0.01130.0120 0.72270.0869 0.67950.0783 0.19770.3127 0.67270.0618 0.74090.0565 2 1000 tribas
Tic 0.65710.0179 0.49340.0252 0.64750.0243 0.65530.0190 0.43560.0190 0.65590.0154 0.66030.0114 5 1000 sigmoid
parkinsons 0.80610.050 00 0.80760.0424 0.77690.0621 0.16920.3458 0.76760.0419 0.81690.0816 800 1000 hardlim
yeast 0.54000.0189 0.02550.0079 0.54780.0307 0.67910.0156 0.56400.1990 0.70580.0209 0.60240.1589 1000 1000 hardlim
vehicle 0.73220.1120 0.07160.0119 0.74780.0674 0.74570.0641 0.50420.4190 0.75920.0188 0.76910.0217 2 1000 radbas
pima 0.66090.0320 0.16250.0235 0.67420.0461 0.66560.0409 0.26130.1118 0.63670.0276 0.68200.0201 5 1000 tribas
segment 0.85510.0209 0.02390.0085 0.85510.0304 0.86160.0282 0.32330.3480 0.85980.0303 0.86580.0302 5 1000 hardlim
Hepatitis 0.68070.0553 0.11340.0400 0.68650.0588 0.76920.0351 0.61350.1987 0.66530.0943 0.77690.0553 100 1000 tribas
STAGGER 0.98980.0057 0.62030.0328 10 0.50650.0360 0.62810.0351 0.50590.0251 10 100 1000 hardlim
adult 0.71970.0297 0.01610.0080 0.68800.0396 0.72930.0203 0.60240.5134 0.74910.0356 0.76820.0217 100 1000 tribas
Table 2: The test results of RELM and comparison algorithms on the data sets
CELM CSELM DELM MELM RandSampleELM SELM RELM
Horse 0.0147 0.0087 0.0091 0.0099 0.0156 0.0087 18.0397
glass 0.0033 0.0629 0.0051 0.0092 0.0046 0.0080 0.2921
biodeg 0.0072 0.3173 0.0119 0.0142 0.0188 0.0059 90.9761
haberman 0.0072 0.0191 0.0053 0.0059 0.0073 0.0043 0.035092
lungcancer 0.0031 0.0027 0.0033 0.0036 0.0048 0.0033 10.5244
votes 0.8055 0.1512 0.1584 0.1735 2.9999 0.1204 4.0429
Germany 0.0123 0.0091 0.0083 0.0164 0.0095 0.0090 39.0233
Echocardiogram 0.0020 0.0107 0.0033 0.0029 0.0020 0.0026 0.6670
Tic 0.0092 0.0563 0.0087 0.0085 0.0108 0.0087 3.435405
parkinsons 0.0792 0.0204 0.0621 0.0916 1.9678 0.0508 2.3083
yeast 0.2022 0.3253 0.2162 0.1776 2.9894 0.1848 0.5858
vehicle 0.0068 0.0142 0.0073 0.0075 0.0098 0.0088 3.7902
pima 0.0078 0.0091 0.0085 0.0073 0.0100 0.0062 0.0059
segment 0.0069 0.2842 0.0069 0.0050 0.0082 0.0072 3.0836
Hepatitis 0.0089 0.0142 0.0076 0.0078 0.0407 0.0069 4.9032
STAGGER 0.0095 0.0099 0.0082 0.0141 0.0358 0.0114 0.0407
adult 0.0107 0.0432 0.0092 0.0103 0.0382 0.0087 3.3013
Table 3: The time overheard of RELM and comparison algorithms on the data sets

From Table 2, it is obvious that RELM is better than CELM, CSELM, DELM, MELM, RandSampleELM, SELM and RELM on most data sets; RELM gets the highest accuracy on 12 data sets and gets the second best on biodeg data set; it only loses to DELM, CSELM, MELM and SELM on Horse, glass, biodeg, lungcncer, and yeast data sets; the results indicate that the approximation ability of RELM is effective for classification task. Table 3 is the time overheard of RELM and the comparison algorithms. By analyzing the data, it is known that the proposed algorithm does not have much advantage on time overheard and it is not the least time-consuming algorithm on most data sets, in other words, RELM is a time-consuming algorithm. According to the ELM theory, ELM has a fast speed, so the most time is consumed in the rough set method. If combining the data from Table 2, it shows that rough set can improve the performance of the proposed algorithm; therefore for the classification task with low real-time requirement, it is worth considering using RELM.

4.3 The effect of activation function on the performance of the algorithm

For testing the effect of activation function on the performance of RELM, we choose sigmoid, radbas, tribas, sine, and hardlim as activation functions. Every data set is tested on the 5 activation functions and RELM is tested on 17 data sets. The number of neurons and test results are showed in Table 4.

sigmoid radbas tribas sine hardlim L
Horse 0.66500.0375 0.59000.0956 0.65100.0387 0.62100.0927 0.65800.0537 20
glass 0.88080.0329 0.86440.0332 0.85750.0377 0.69860.3069 0.88360.0378 90
biodeg 0.59340.0351 0.53410.0669 0.55990.0895 0.57190.1030 0.56640.07752 100
haberman 0.66830.1556 0.62280.1969 0.72970.0371 0.54850.1089 0.72670.0234 50
lungcancer 0.36360.1050 0.30910.1497 0.290910.0939 0.30000.1425 0.28180.1246 100
votes 0.62960.1351 0.58070.0657 0.58000.1611 0.55520.0696 0.56760.1328 20
Germany 0.69850.0171 0.61530.1639 0.66860.0988 0.51530.0987 0.70210.0148 30
Echocardiogram 0.59090.1680 0.65000.1189 0.69090.0559 0.47960.1156 0.72050.0372 50
Tic 0.65910.0289 0.65250.0143 0.66530.0161 0.58440.1329 0.65280.0115 50
parkinsons 0.74310.0513 0.38620.2113 0.22310.0364 0.54770.1395 0.6046 30
yeast 0.74130.0266 0.73650.0385 0.72700.0405 0.67550.1635 0.74970.0211 100
vehicle 0.74610.0203 0.73790.0260 0.75070.0197 0.57660.1410 0.74150.0231 25
pima 0.58500.1197 0.62040.0450 0.64370.0279 0.49700.0881 0.63830.0323 75
segment 0.86890.0192 0.85930.0273 0.86950.0292 0.44790.2288 0.86650.0312 45
Hepatitis 0.81920.0603 0.81540.0427 0.81350.0301 0.70580.2277 0.42130.2840 80
STAGGER 0.55390.0971 0.48080.02526 0.52220.1179 0.66470.1967 0.47730.0536 50
adult 0.77670.0245 0.77130.0359 0.76890.0287 0.53590.1859 0.77310.0252 50
Table 4: The test results of RELM with different activation functions

From Table 4, it can conclude that the accuracies of RELM are different with different activation functions. When the activation function is sigmoid, RELM gets 7 best accuracies; when the activation function is tribas, RELM gets 5 best accuracies; when the activation function is hardlim, RELM gets 4 best accuracies; the test results of the proposed algorithm are not very well for those experimental data sets if choosing radbas or sine as activation function, because there is no best accuracy for radbas and there is only one best accuracy for sine

. For every data set, the standard deviations of accuracies are also different with activation function. For example, the activation function is

sigmoid, the standard deviation is 0.0375; if the activation function is radbas, it changes to 0.0956. the similar situations can be found on the other data sets. From the test results, it is obvious that the activation function has a great impact on the performance of RELM; the activation functions of the best results on different data sets are also different, so how to select activation function depending on experimental data set. If users do not have too much empirical knowledge about choosing activation functions, sigmoid, tribas or hardlim seems be a good initial selection for those experimental data sets.

4.4 The effect of the number of neurons in hidden layer on the performance of RELM

In order to test the effect of the number of nodes in hidden layer on performance of RELM, we set the activation function of RELM as sigmoid, the ridge parameter C is set as 1000 and the number of neurons in hidden layer varies from 1 to 1000. The test accuracies of RELM with different number of the neurons in hidden layer are showed as in Table 5.

L 5 50 200 500 800 1000
Horse 0.61000.1505 0.53700.1245 0.46400.1342 0.47700.1084 0.50400.1424 0.50300.1216
glass 0.72460.3046 0.77390.2346 0.55620.3631 0.48360.3667 0.49720.3663 0.55070.3667
biodeg 0.53890.1559 0.55030.1160 0.49040.1169 0.48680.0945 0.43530.0727 0.50720.1196
haberman 0.58910.1929 0.62670.2079 0.50690.1772 0.53560.1924 0.49700.2082 0.43270.1956
lungcancer 0.20000.0717 0.28180.1512 0.30910.0636 0.39090.0963 0.26360.1572 0.34550.1032
votes 0.67790.2021 0.62070.2469 0.62690.2145 0.50690.2220 0.59100.2294 0.62270.2320
Germany 0.52640.2160 0.67010.1807 0.56530.1987 0.55990.1573 0.44910.1947 0.47190.1459
Echocardiogram 0.73180.1354 0.61820.2096 0.63860.1447 0.60910.1827 0.59550.2221 0.61140.2745
Tic 0.65630.0304 0.65310.0256 0.65000.0177 0.65880.0311 0.65500.0287 0.64380.0231
parkinsons 0.75690.0422 0.56770.2581 0.43390.2316 0.57850.2181 0.54310.1860 0.53690.216
yeast 0.46350.2474 0.69940.1549 0.62220.2063 0.67130.1699 0.59220.2214 0.54310.2452
vehicle 0.75450.0238 0.50060.2552 0.62460.2233 0.65150.2149 0.60600.2230 0.54970.2287
pima 0.59040.0765 0.52460.1099 0.46830.1204 0.53890.1197 0.5410.1155 0.49940.1026
segment 0.81200.1916 0.67610.2353 0.36350.2873 0.49220.2505 0.63650.2100 0.51500.2019
Hepatitis 0.79420.0666 0.78080.0446 0.81730.0408 0.80960.0492 0.79810.0187 0.80000.0317
STAGGER 0.71680.1956 0.54250.1100 0.51500.0314 0.50420.0176 0.52040.0287 0.51680.0360
adult 0.76710.0234 0.78920.0243 0.75210.0821 0.54670.2901 0.60060.2756 0.64970.2323
Table 5: The test results of RELM with different numbers of neurons in hidden layer

From Table 5, it is known that the number of neurons in hidden layer has a significant impact on the performance of RELM. If the numbers of neurons in hidden layer are different, the test results will be also different. Because the sizes of the experimental data sets are not very large, most data sets get the best results on a small L. By analyzing the test results, it can conclude that the performance of the proposed algorithm does not increase with the increase of the number of neurons in hidden layer. If the number of neurons in hidden layer is too large or too small, the performance of the algorithm will be decreased. The reason for this phenomenon is that if L is too large, it will cause the structure of RELM is too complex and RLEM may be over-fitting for training data; if L is too small, it will cause the target classification model cannot be effectively approximated by RELM and under-fitting may appear. When combining Tables 2 and 5, it can be found that RELM has a trend to choose a small L under the condition of guaranteeing its performance; it indicates that the method determining the number of neurons in hidden layer is efficient.

4.5 The research about the reduction mechanism of RELM

In order to test the reduction mechanism of RELM, we execute the proposed algorithm and RELM without reduction mechanism (denoted URELM) on 14 data sets; The number of neurons in hidden layer L is 150, the activation function is hardlim and C is set as 1000. RELM and URELM are tested 10 times and the results are showed in Tables 6,7 and Fig.3.

From Fig.3, it is found that the performances of RELM and URELM have a fluctuation, and the main reason is that the input weights and the biases are randomly generated but the number of neurons in hidden layer L is fixed; randomness results in the fluctuation of RELM’s performance. After analysing of the curves in Fig.3, it can see RELM is better than URELM in most cases. The results in Table 6 are the average accuracies of 10 executing results. From the results in Table 6, it is obvious that the performance of RELM is significantly better than that of URELM on all experimental data sets and the results indicate that the reduction mechanism of RELM can improve the performance of RELM. The data in Table 7 is the reduction results of RELM. From Table 7, RELM can remove redundant attributes without changing the distinguish ability of condition attributes; it can conclude that the reduction mechanism is effective for RELM. However, the reduction mechanism gets an abnormal reduction result on Hepatitis data set. For Hepatitis data set, there are 19 attributes, but all condition attributes are removed as redundant attributes. The reason why the reduction mechanism produces this result is that the dependence of condition attributes on decision attributes is not very large. In other words, relative positive region does not decrease when removing any condition attribute; so the reduction algorithm removed all condition attributes.

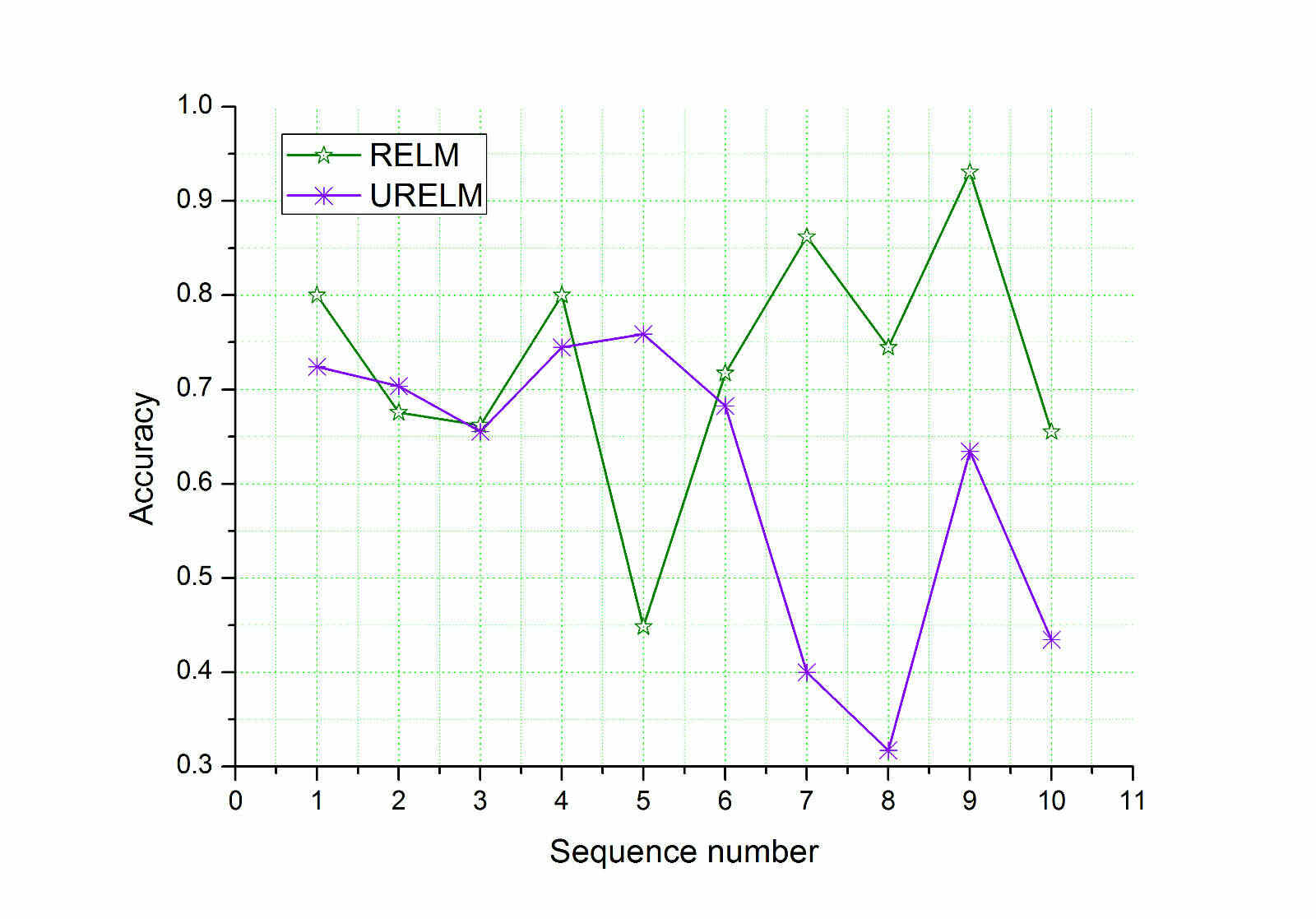

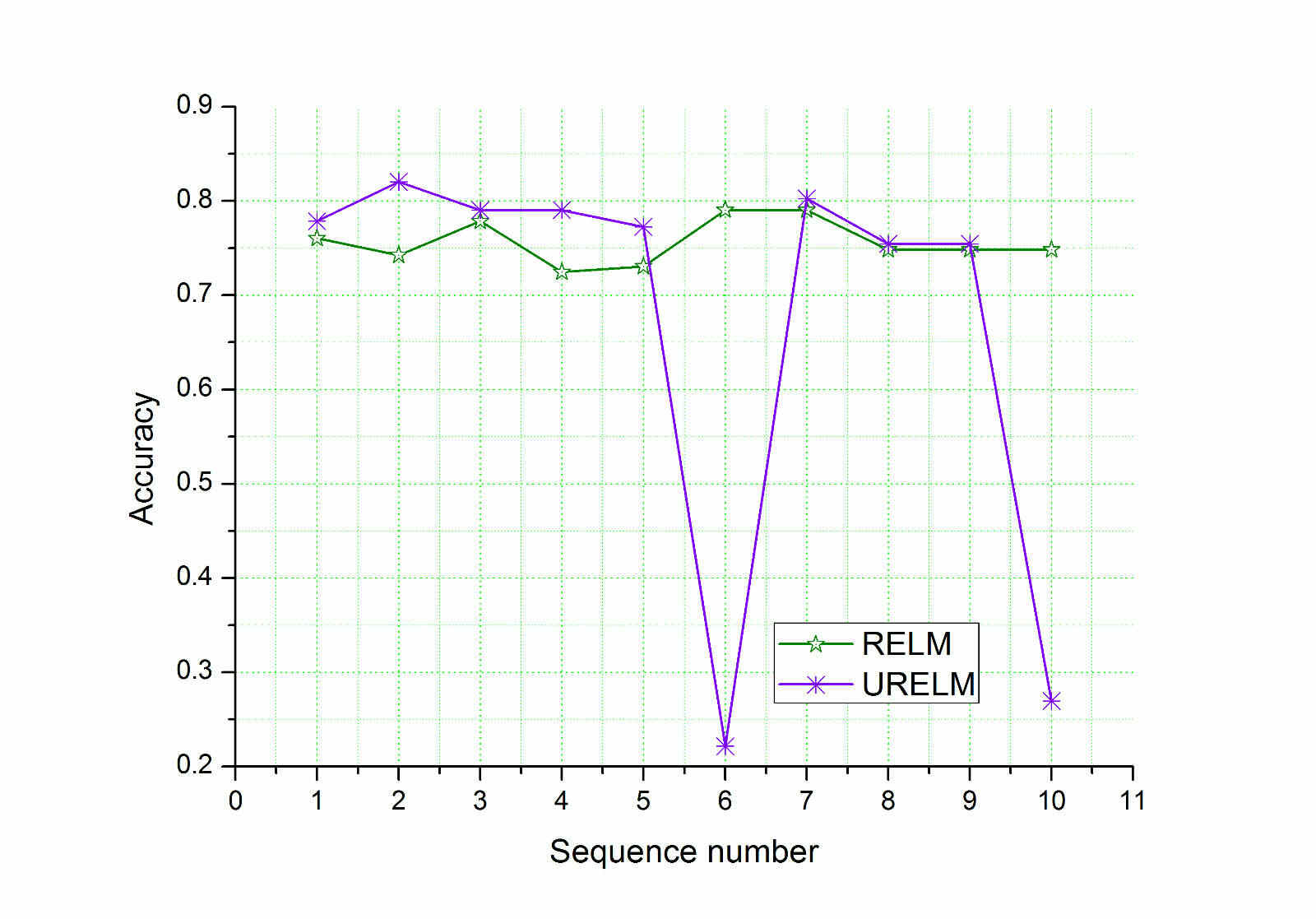

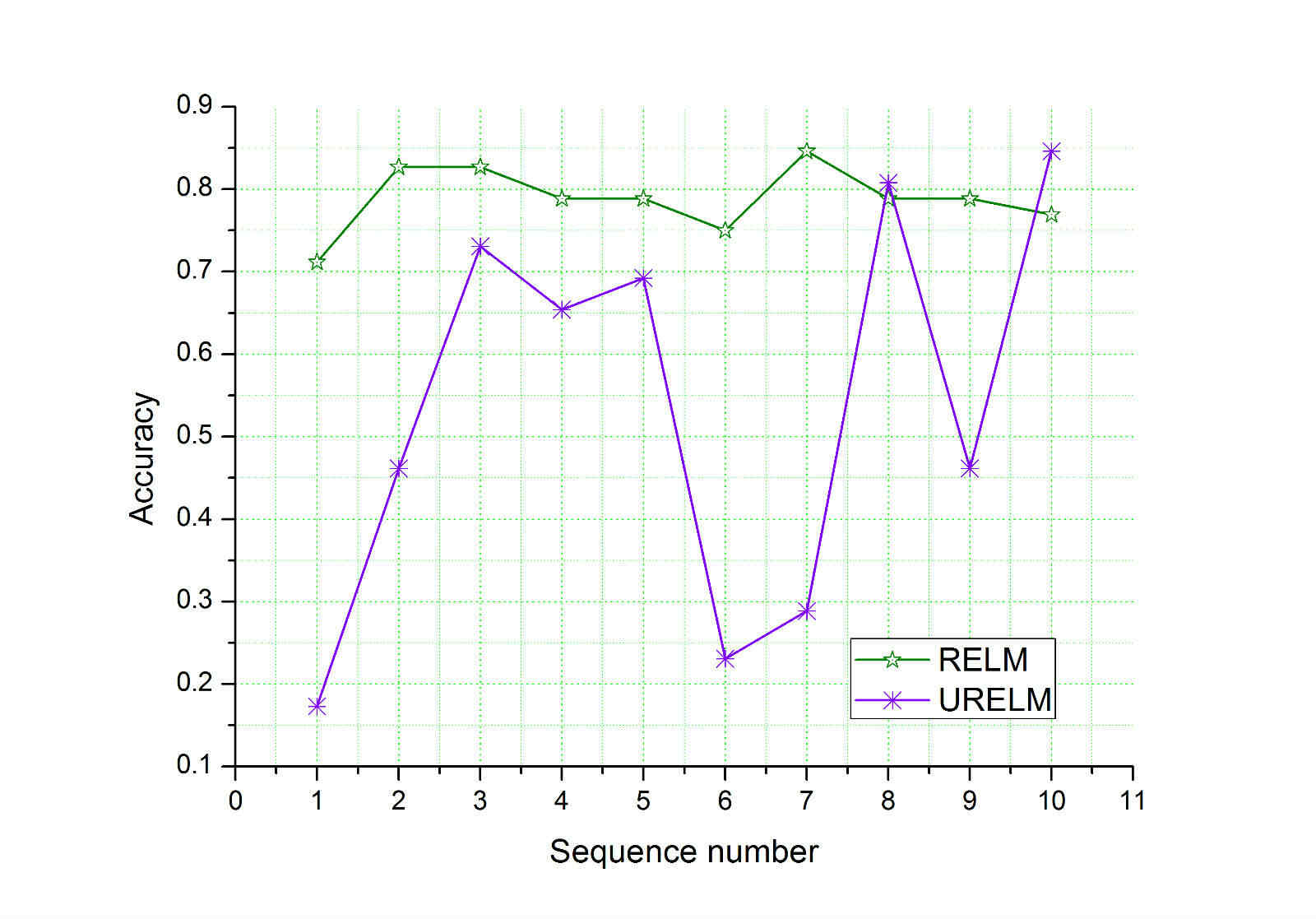

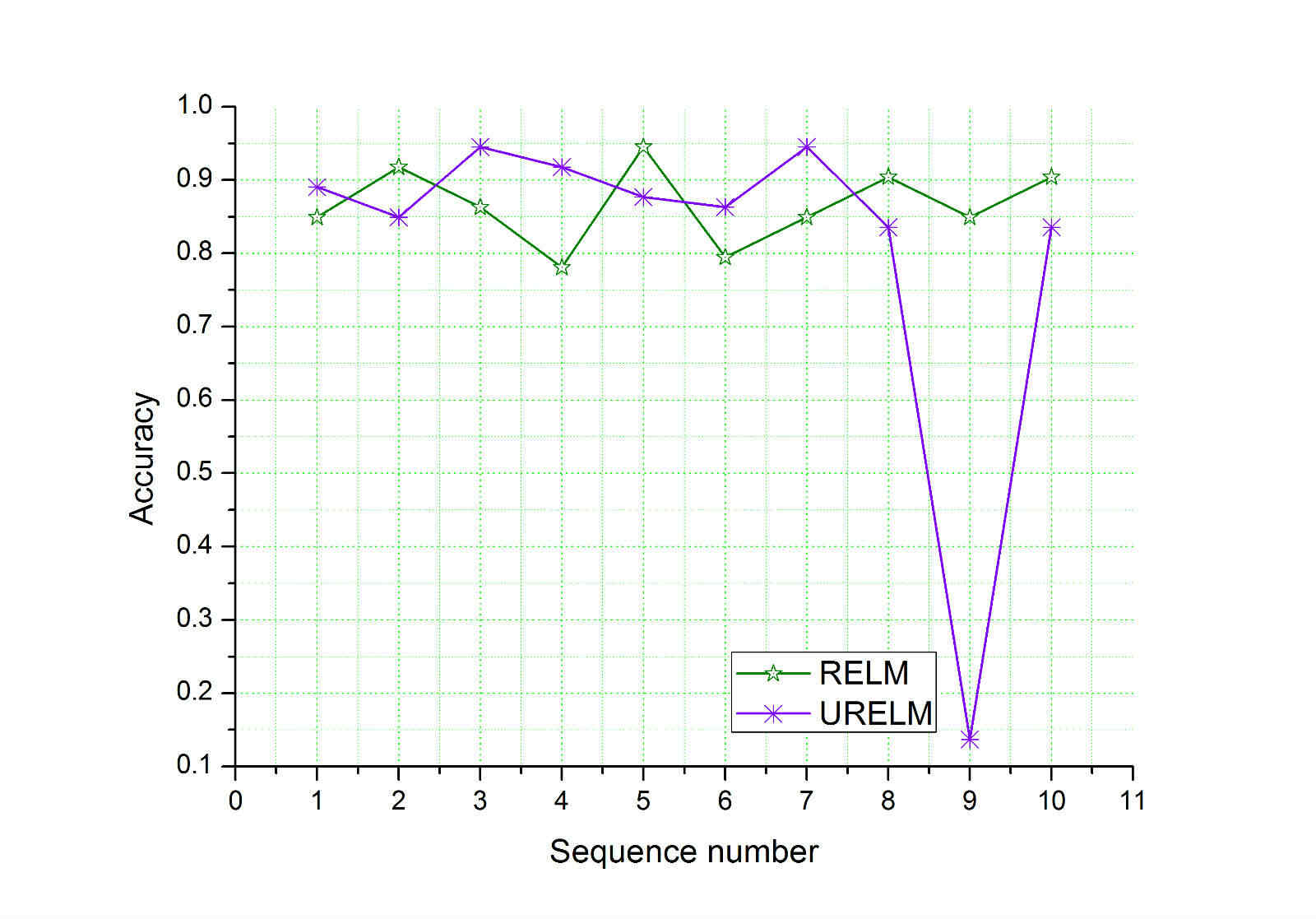

3-a Horse 3-b glass 3-c haberman 3-d votes 3-e Echocardiogram 3-f Germany 3-g parkinsons 3-h yeast 3-i vehicle 3-j pima 3-k segment 3-l STAGGER 3-m adult 3-n Hepatitis

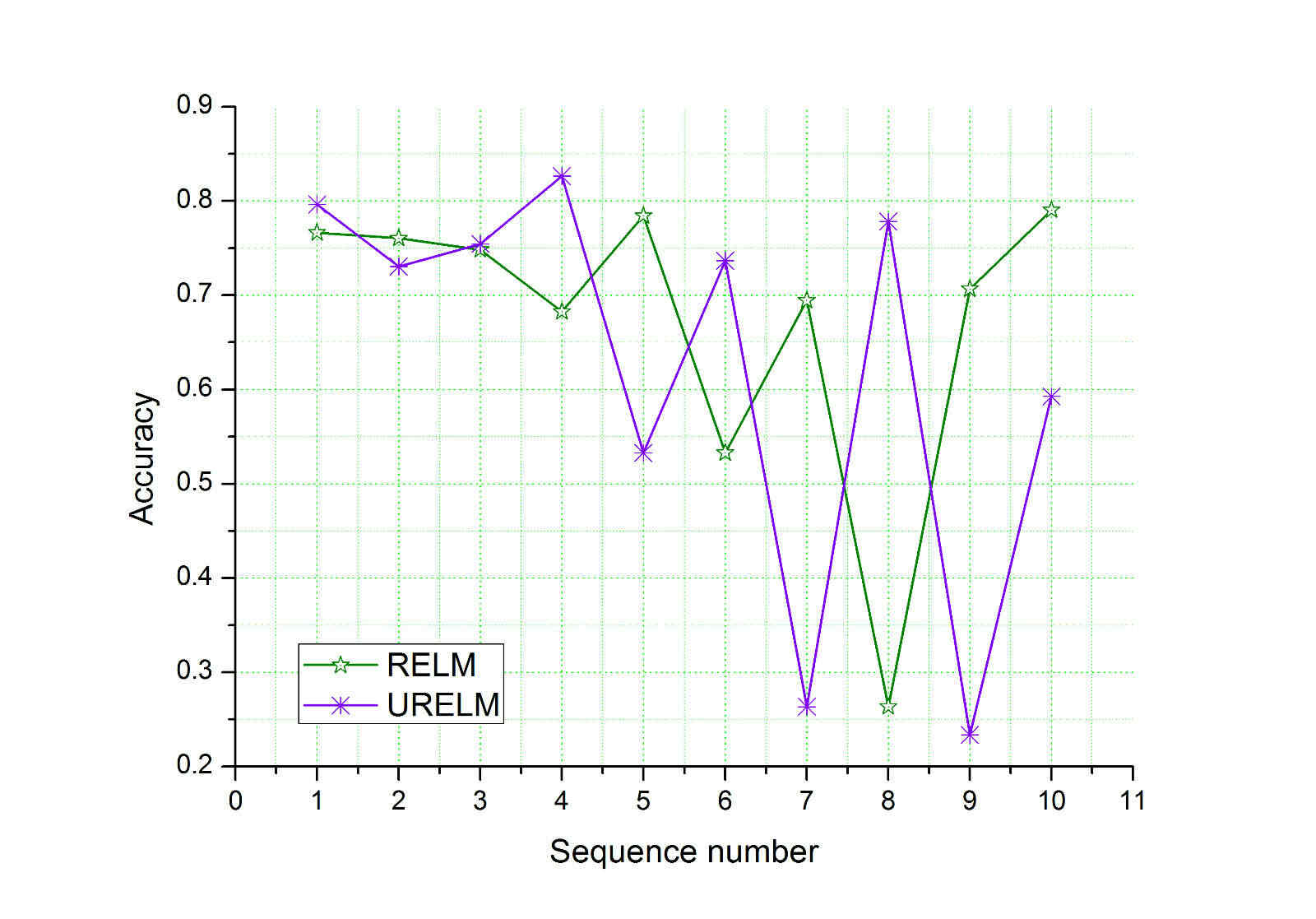

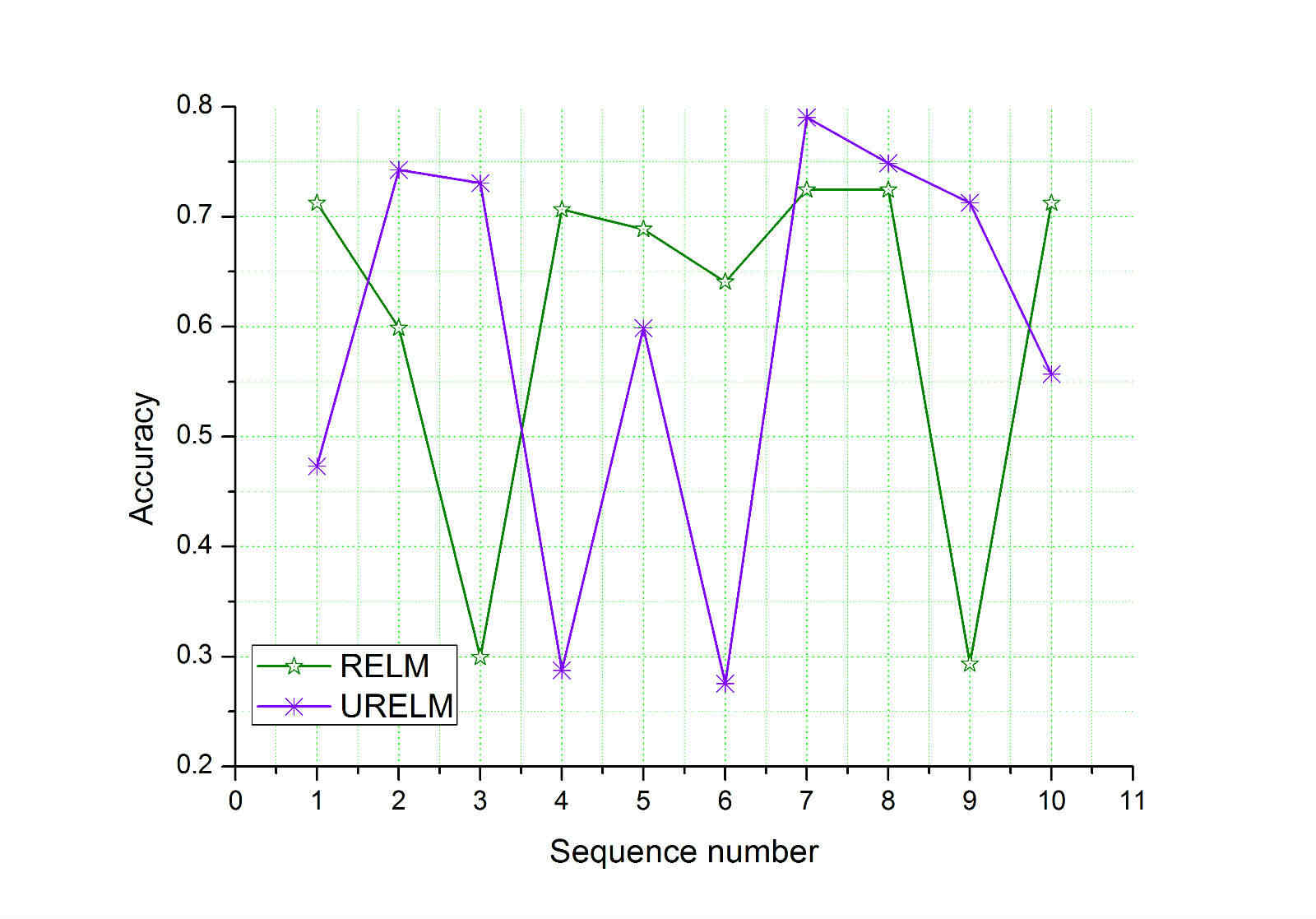

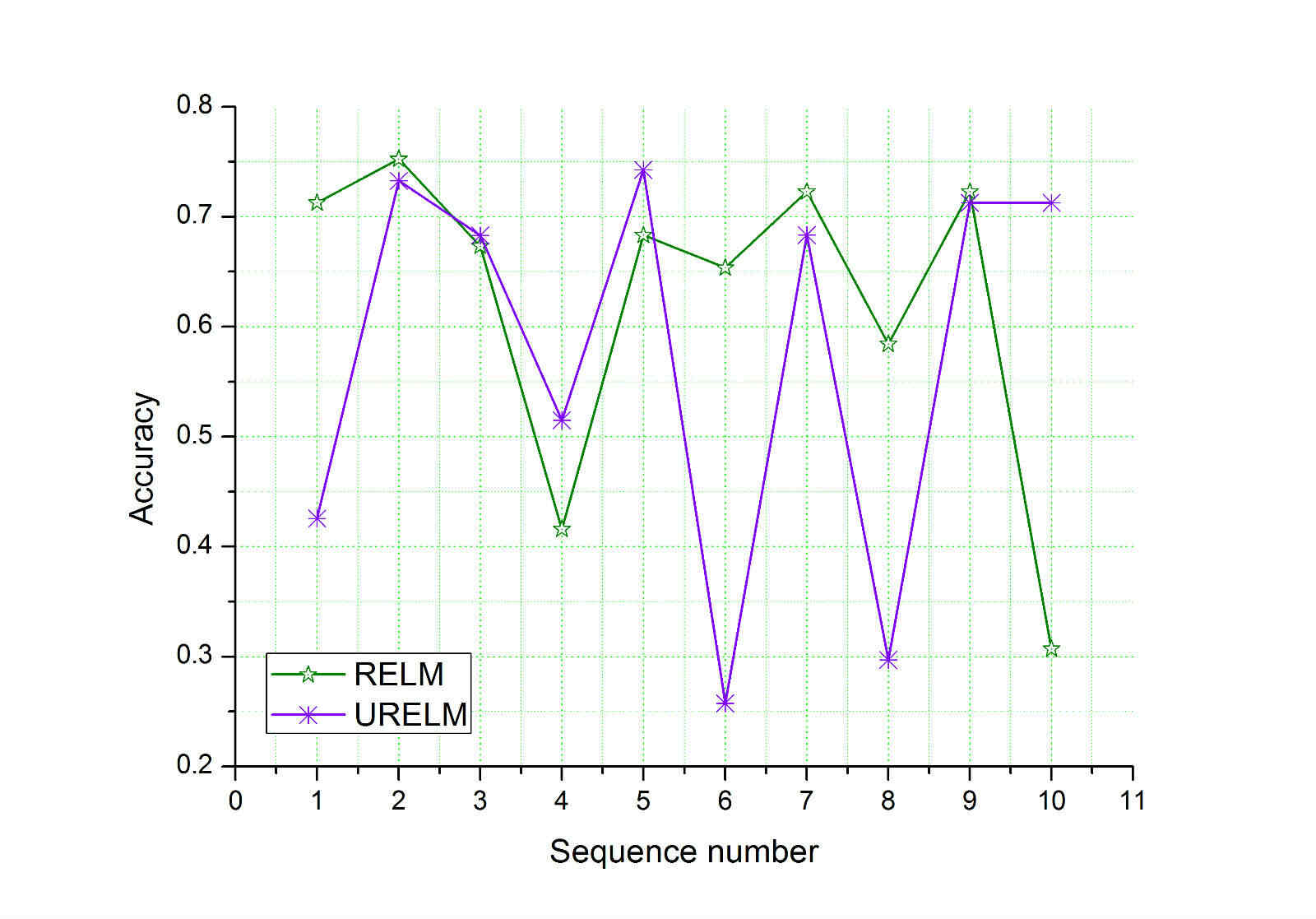

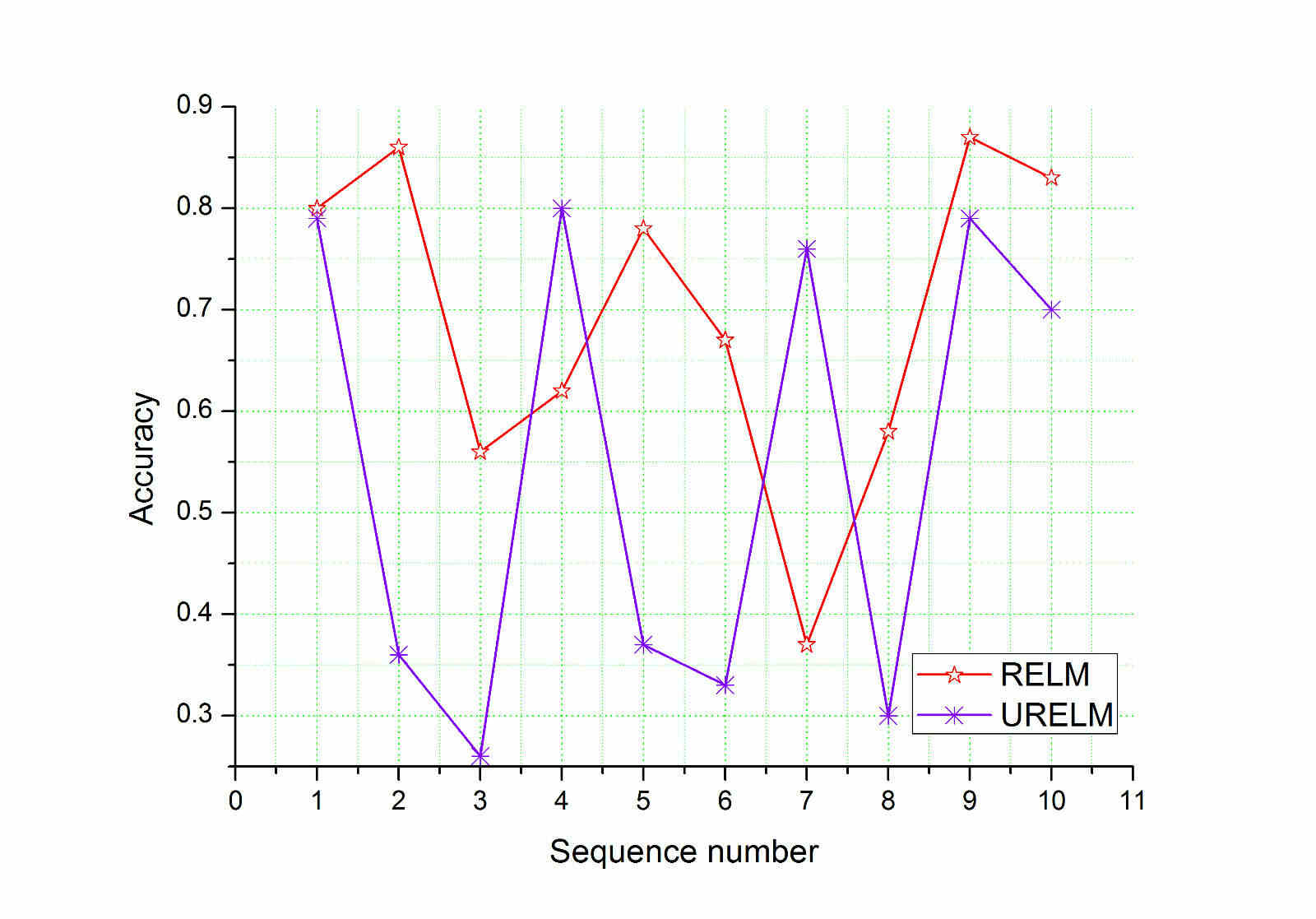

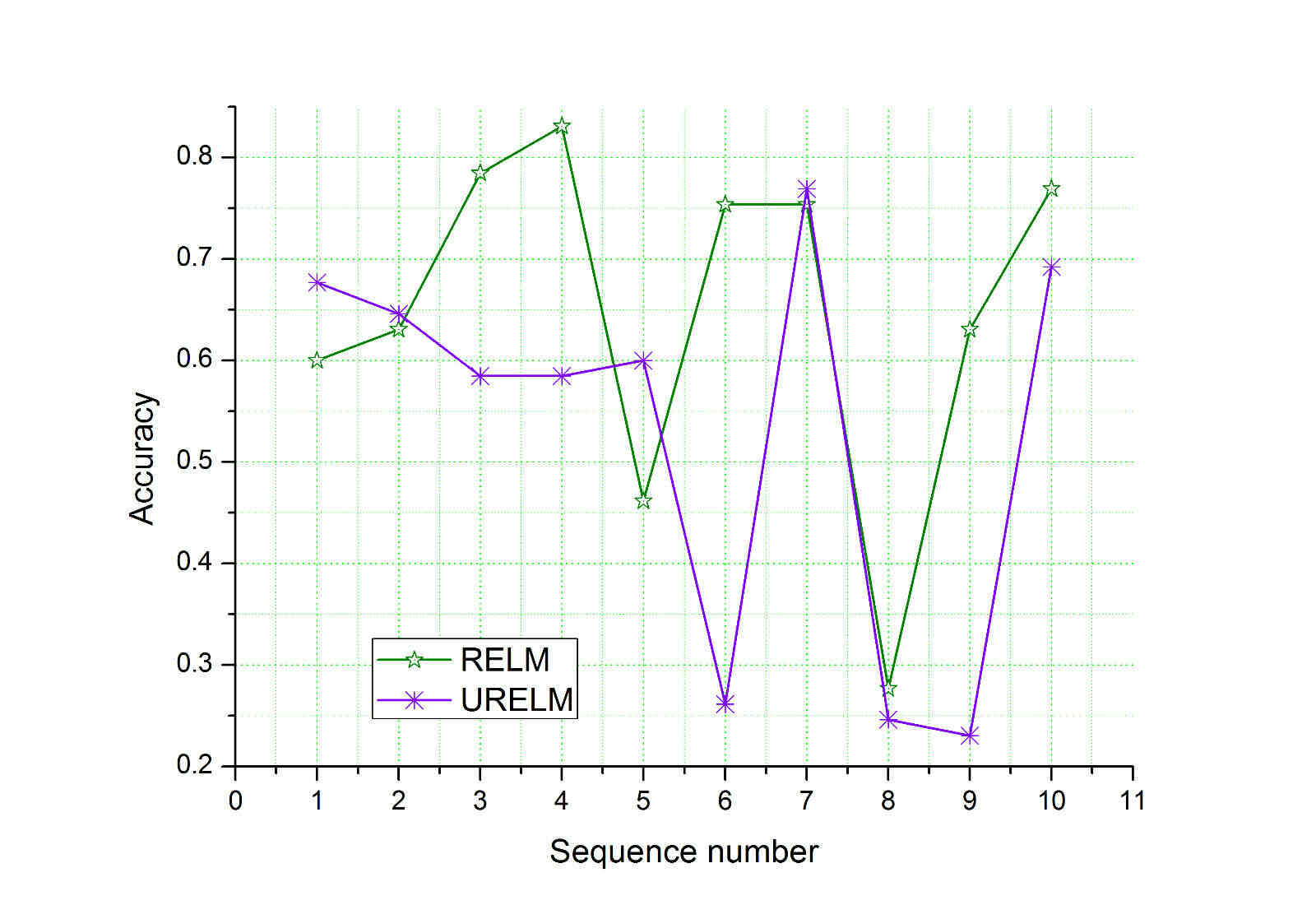

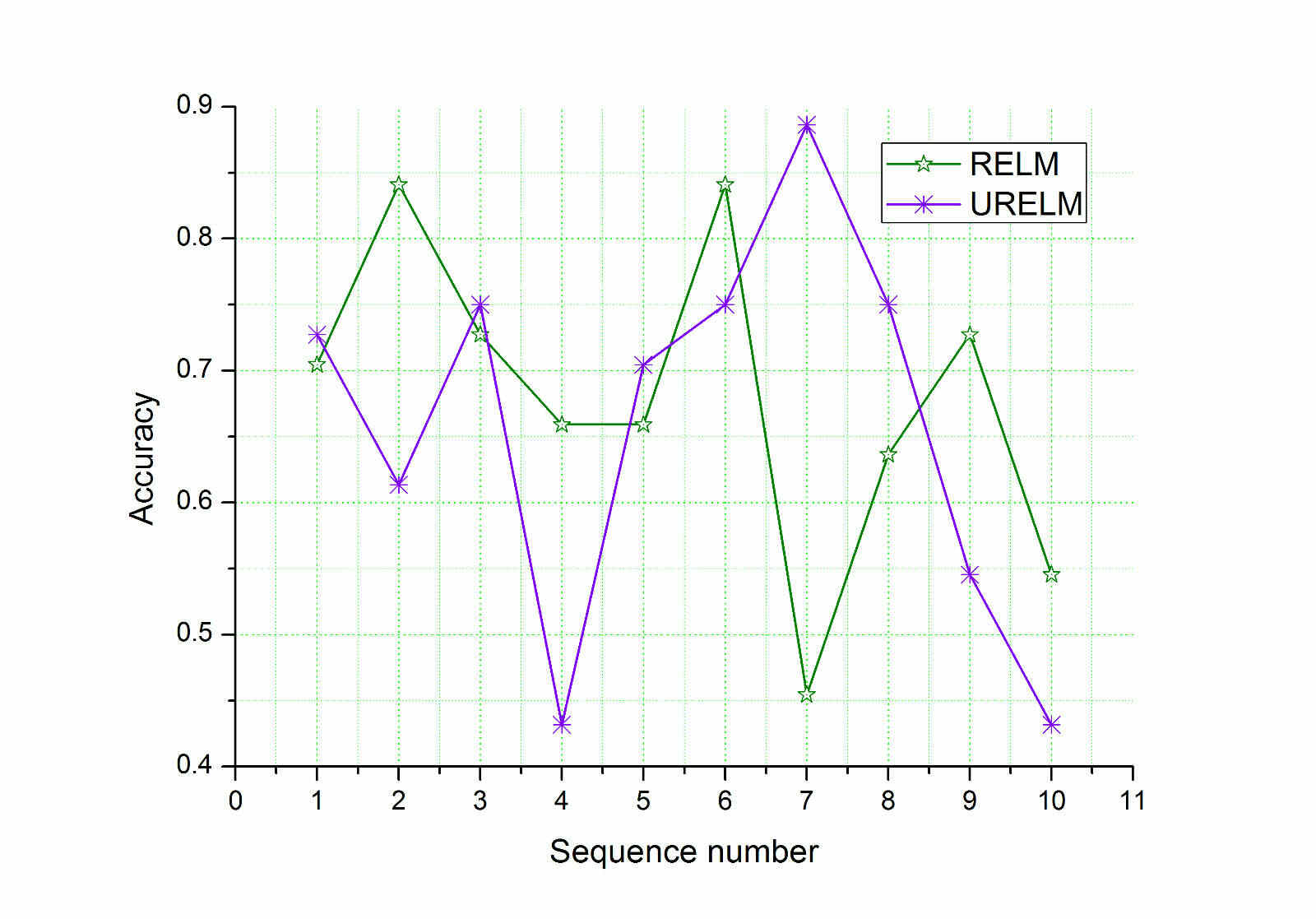

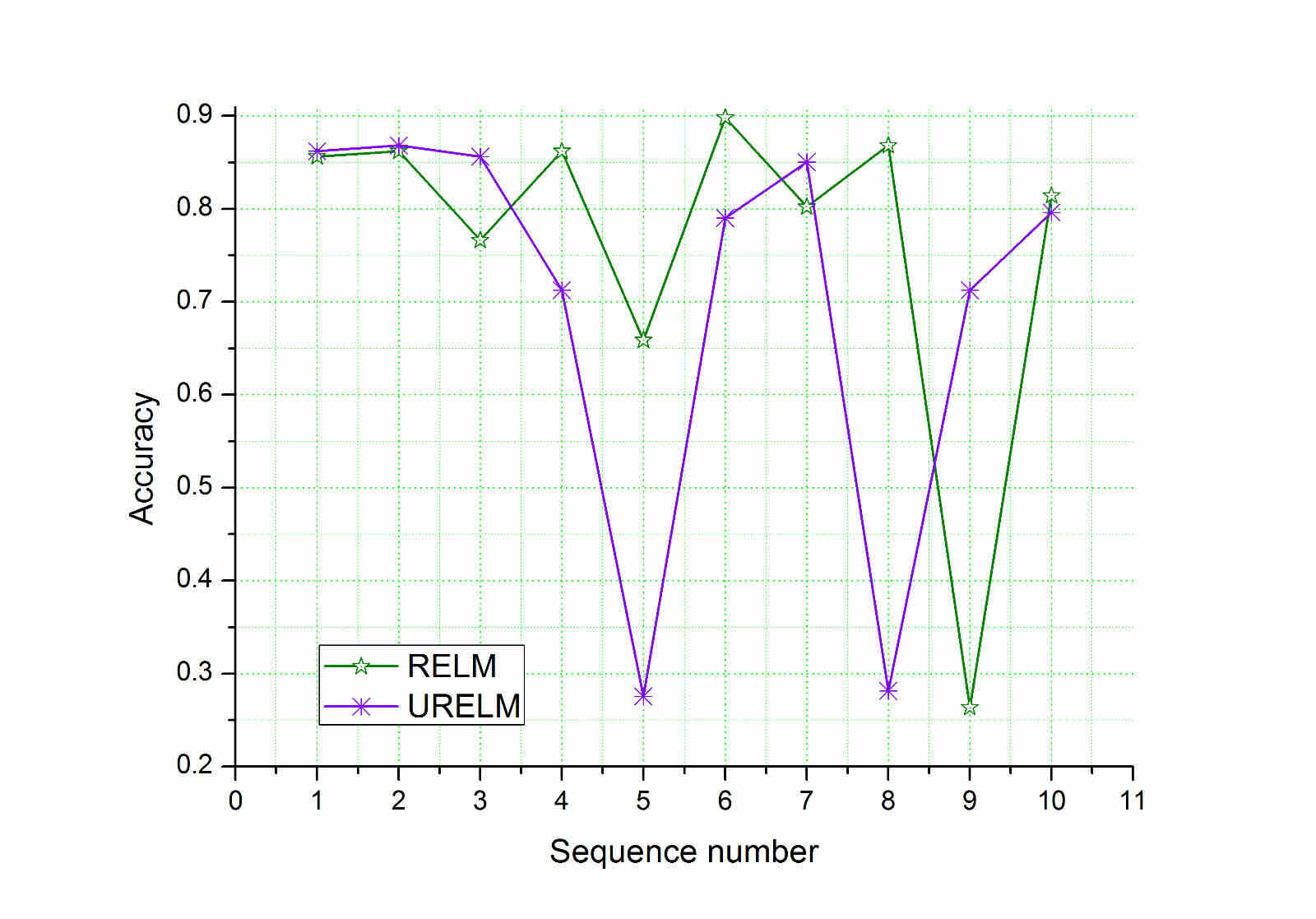

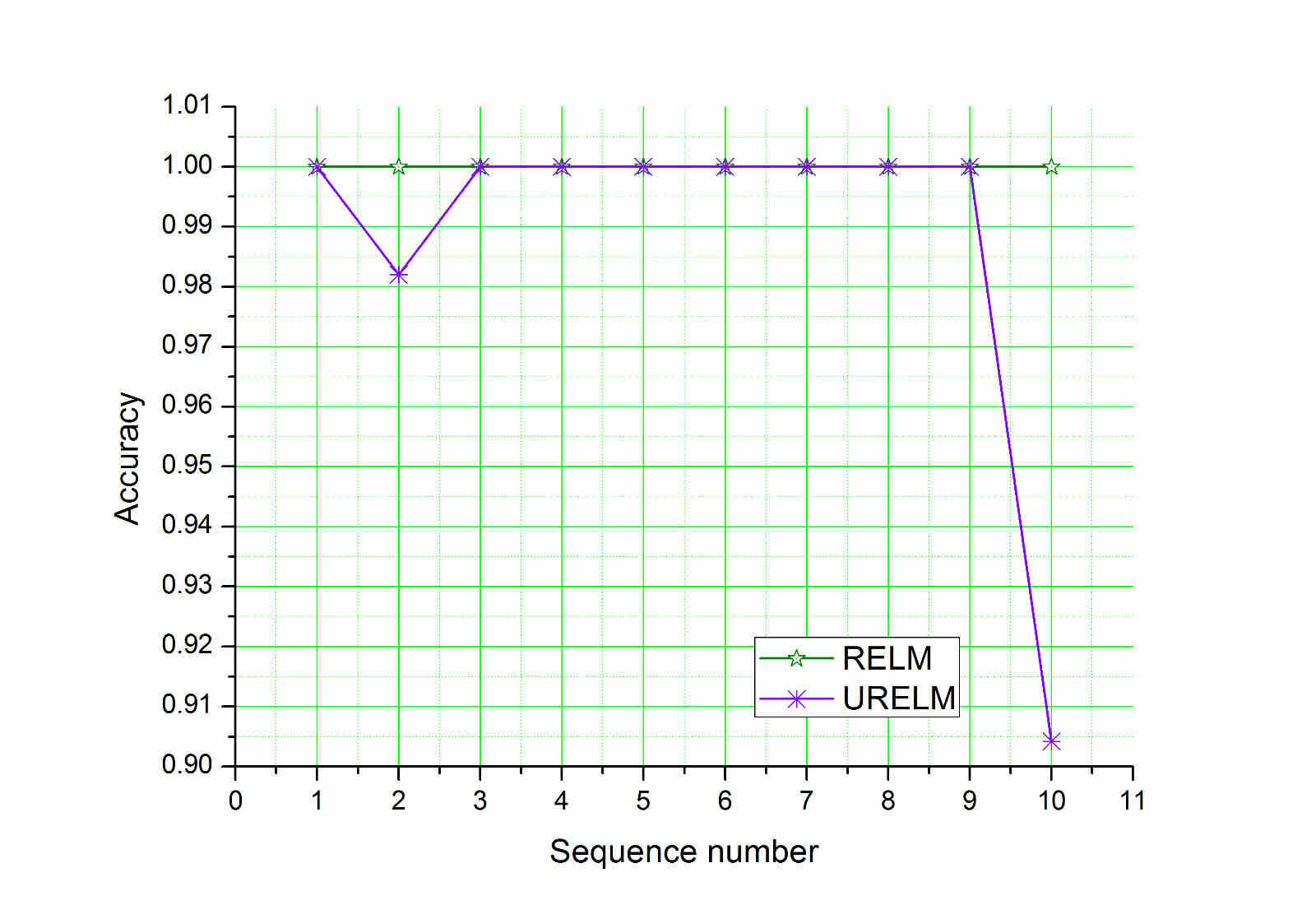

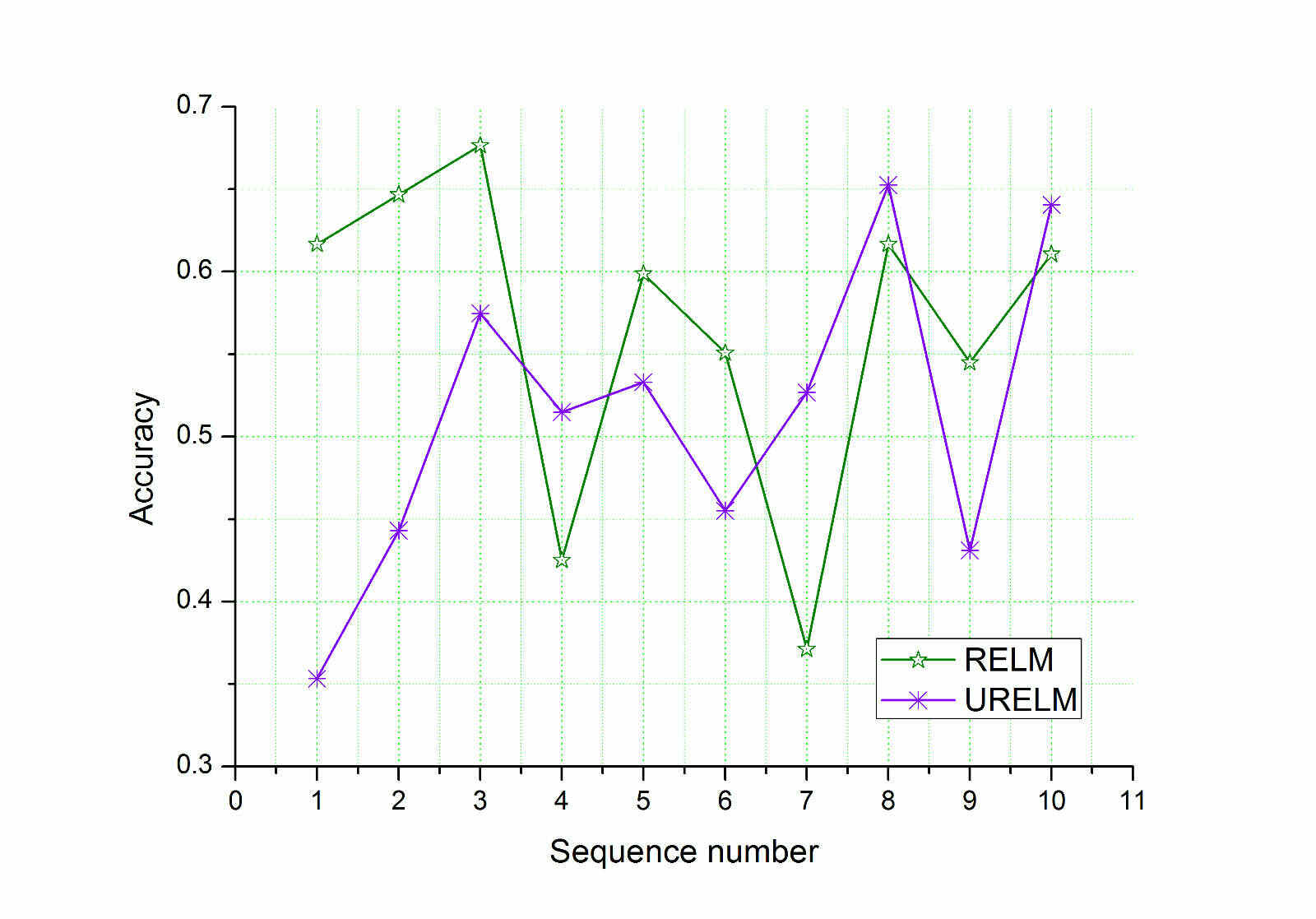

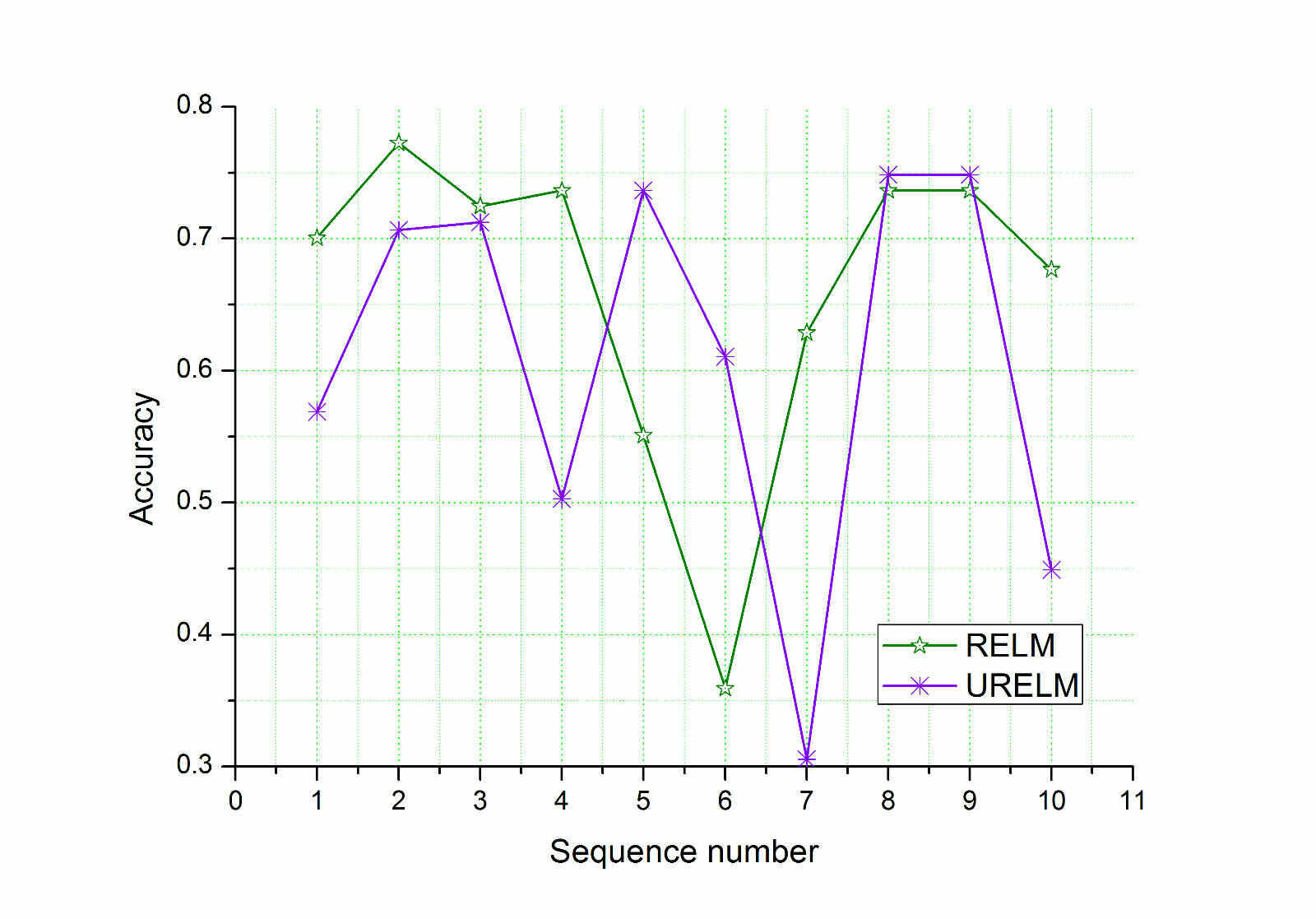

Fig. 3: The test results of RELM and URELM on different data sets
Algorithms RELM URELM
Horse 0.6940.1625 0.54600.2375
glass 0.86560.0528 0.80950.2398
haberman 0.62280.1476 0.57620.1881
votes 0.72970.1336 0.60550.1600
Echocardiogram 0.67960.1195 0.65910.1496
Germany 0.61020.1702 0.59160.1911
parkinsons 0.64920.1714 0.52920.2032
yeast 0.66230.1245 0.60890.1513
vehicle 0.67310.1624 0.62460.2179
pima 0.56590.0974 0.51250.0947
segment 0.76530.1893 0.70060.2297
STAGGER 1.00000.0000 0.98860.0302
adult 0.75630.0233 0.67550.2278
Hepatitis 0.78850.0395 0.53460.2457
Table 6: The accuarcies of RELM and URELM on different data sets
Data sets Before reduction After reduction Reduced dimensions Reduced dimensions/Befor reduction
Horse 26 3 23 0.8846
glass 9 4 5 0.5556
haberman 3 2 1 0.3333
votes 16 9 7 0.4375
Echocardiogram 12 9 3 0.2500
Germany 24 7 17 0.7083
parkinsons 22 7 15 0.6818
yeast 8 8 0 0.0000
vehicle 18 13 5 0.2778
pima 8 8 0 0.0000
segment 19 11 8 0.4211
STAGGER 3 2 1 0.3333
adult 13 12 1 0.0769
Hepatitis 19 19 19 1.0000
Table 7: The Reduction efficiency of RELM algorithm on the experimental data sets

4.6 The impact of data dimensions on time overheard

In order to test the impact of data dimensions on time overheard, we choose Horse, biodeg, lungcancer, Germany, parkinsons, vehicle, segement, Hypelane and Waveform as experimental data sets; the activation function is radbas; the number of neurons in hidden layer L is 650 and C is 1000. BP algorithm (2) with rough set reduction method (remarked as RS+BP) is as comparison algorithm. The time overheard is showed as Fig.4-12.

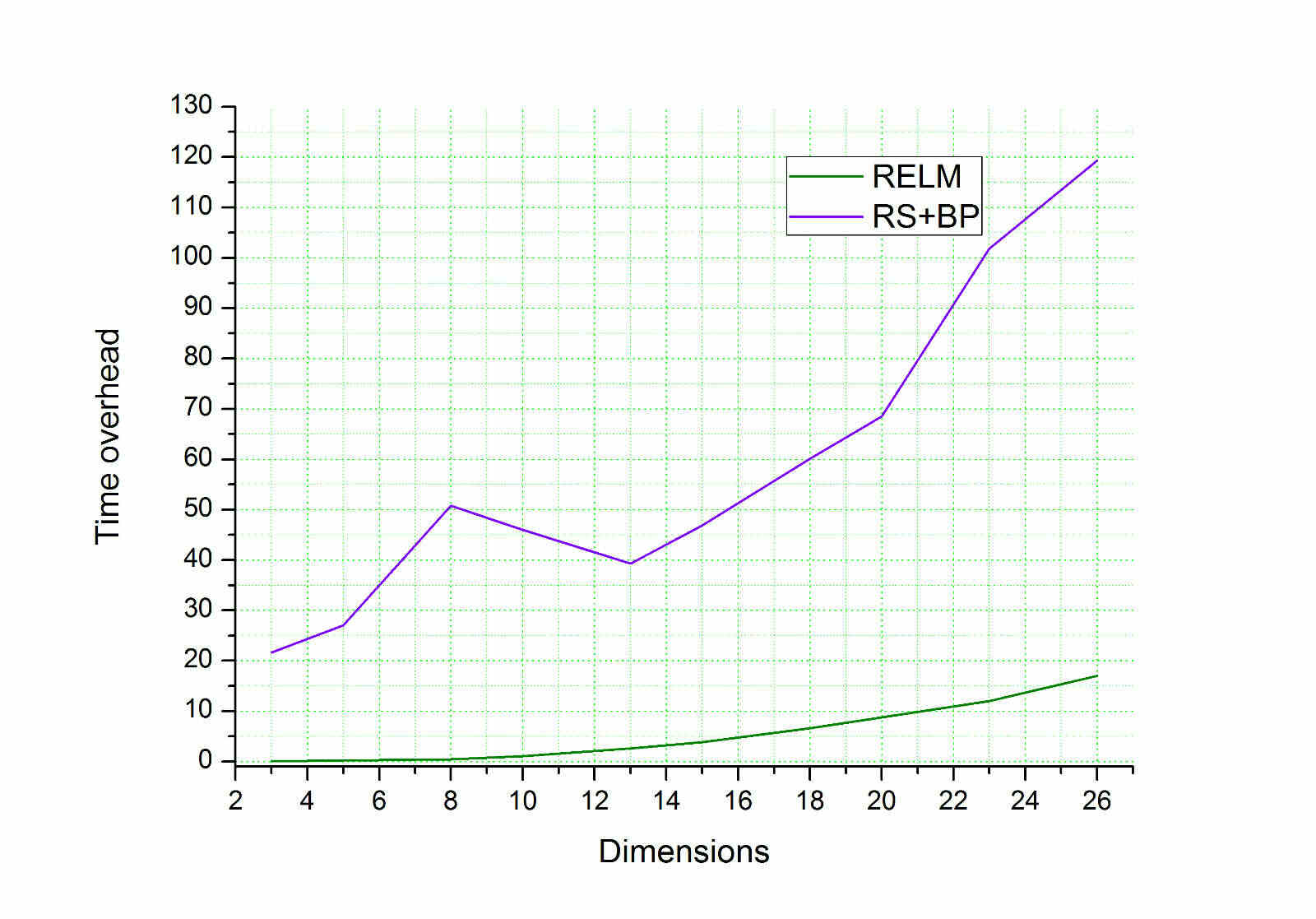

Fig. 4: Horse

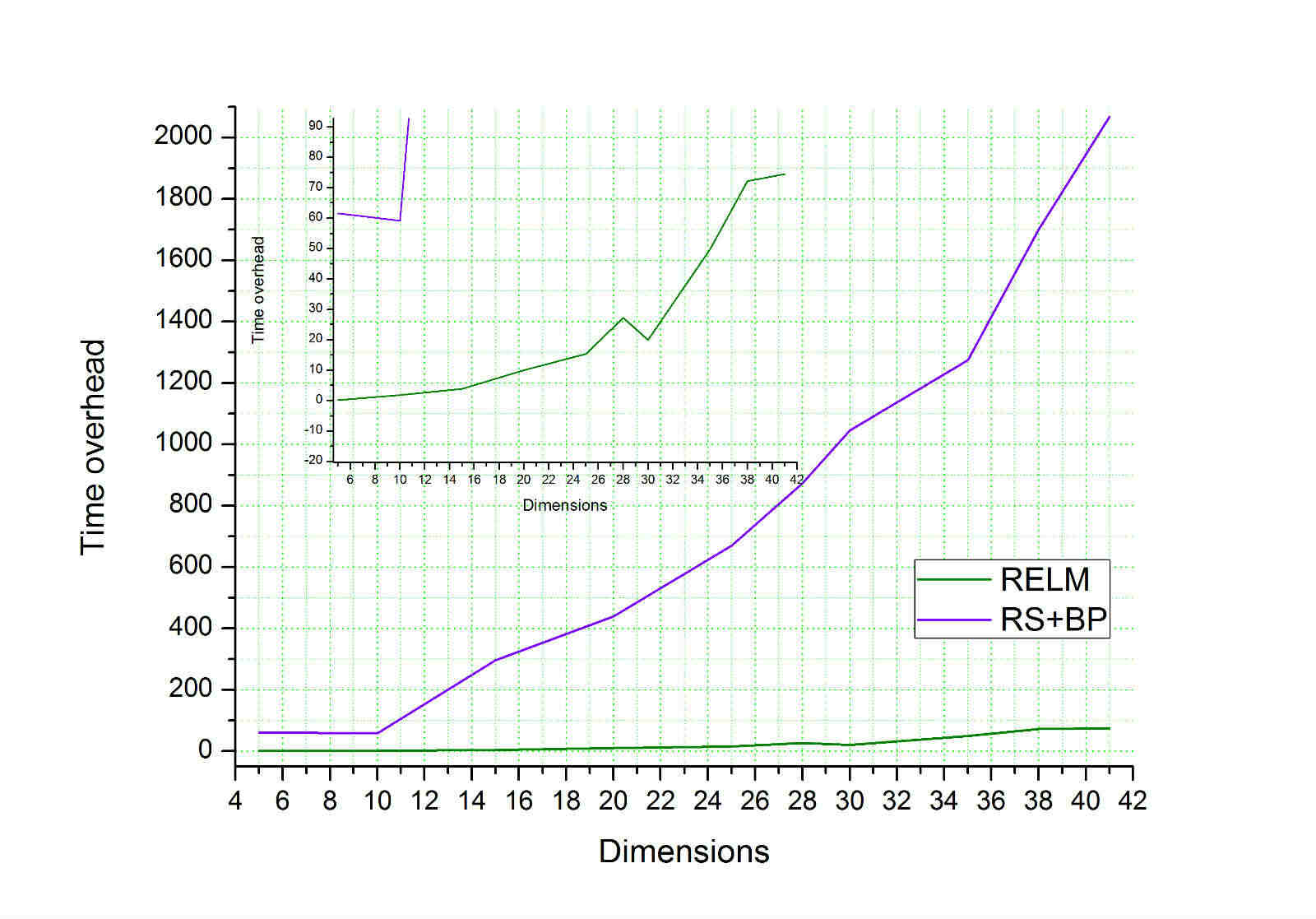

Fig. 5: biodeg

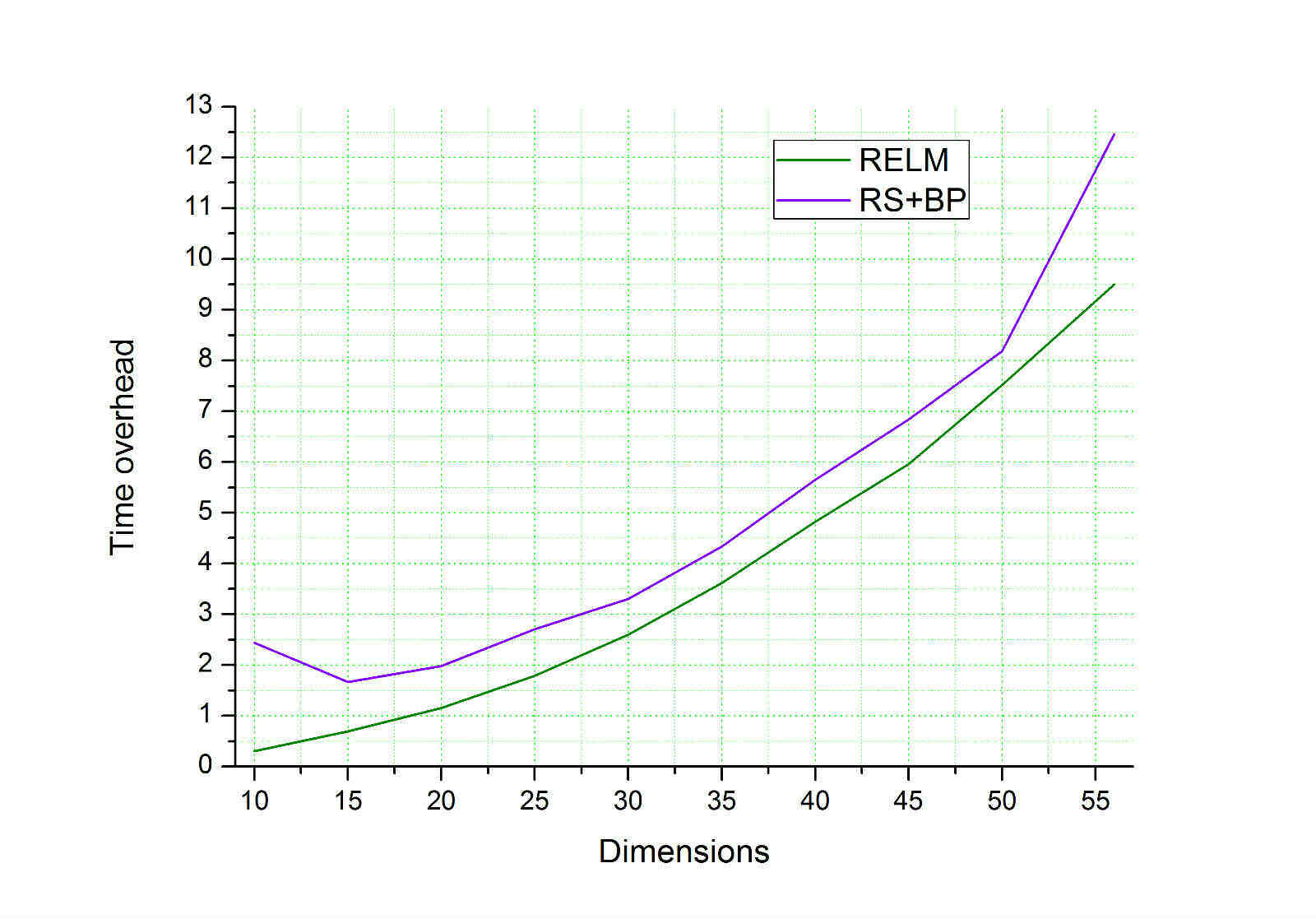

Fig. 6: lungcancer

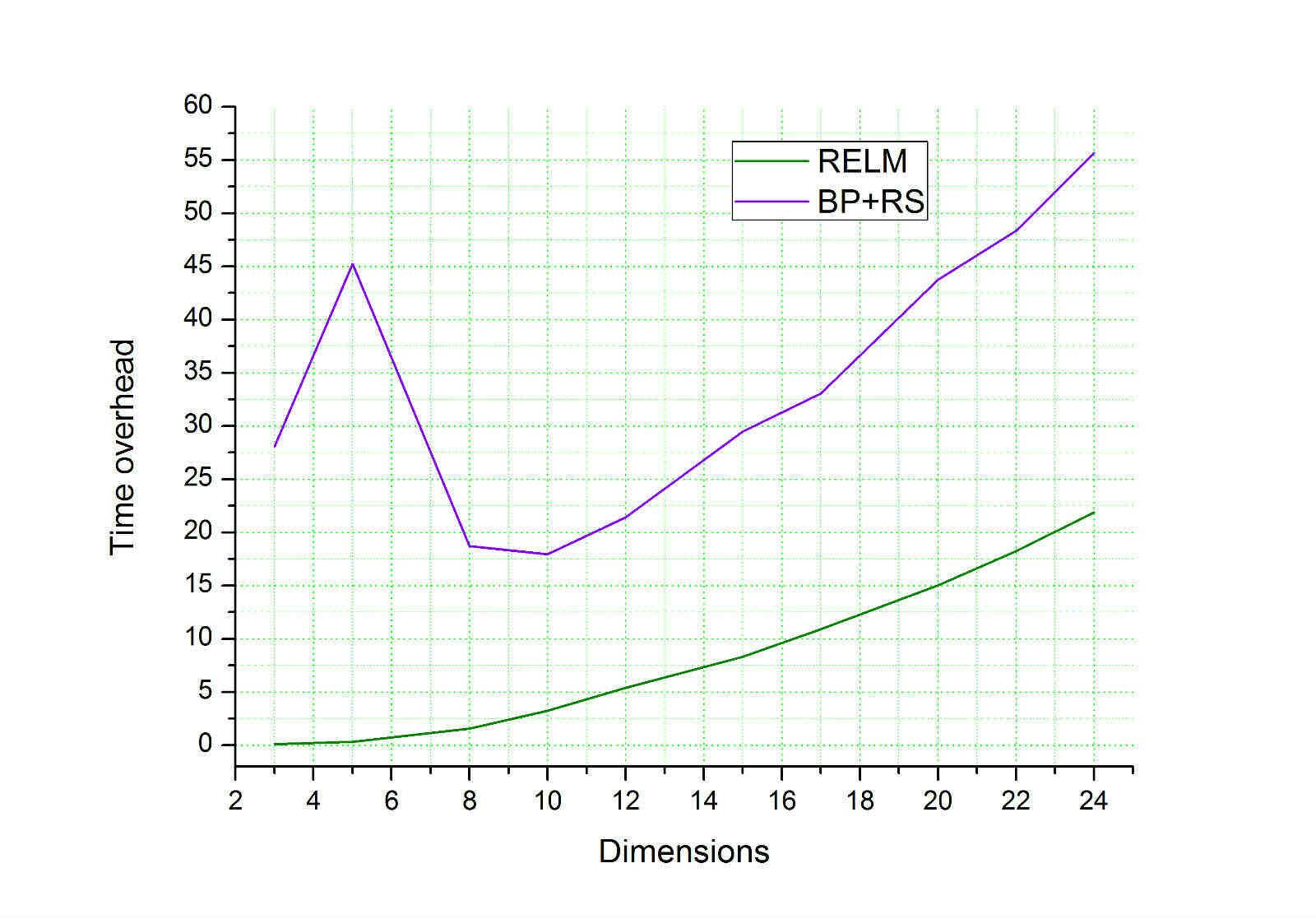

Fig. 7: Germany

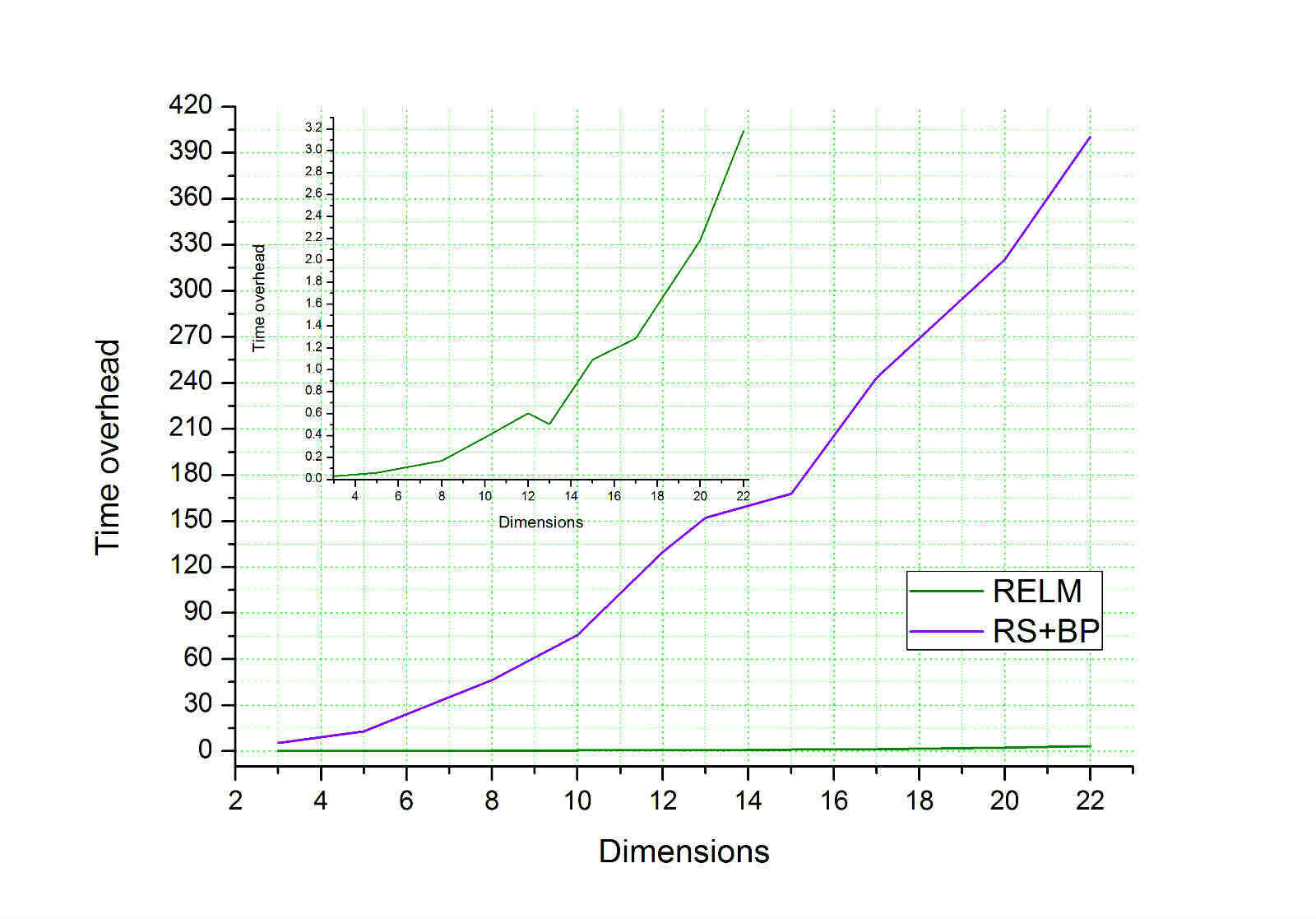

Fig. 8: parkinsons

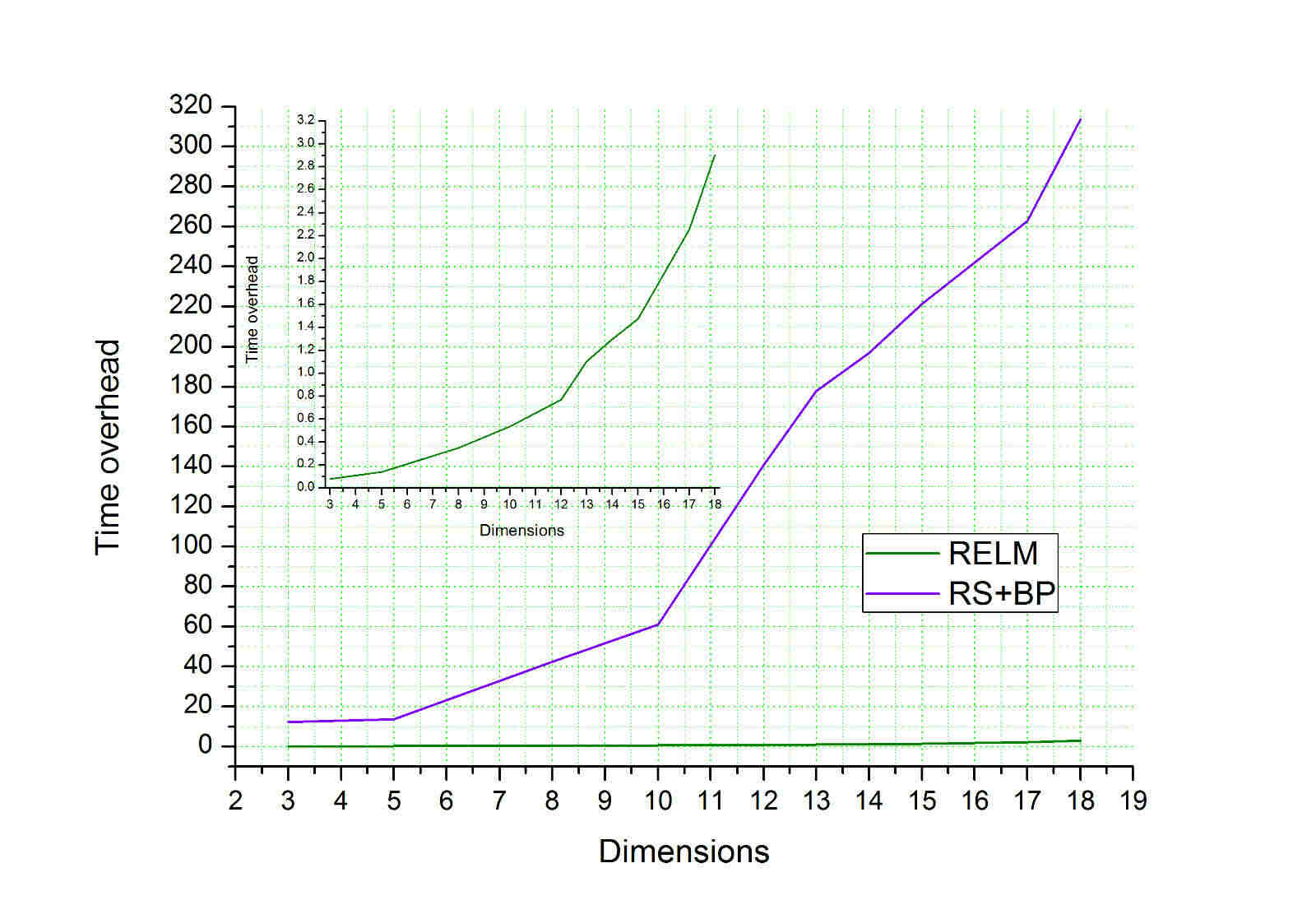

Fig. 9: vehicle

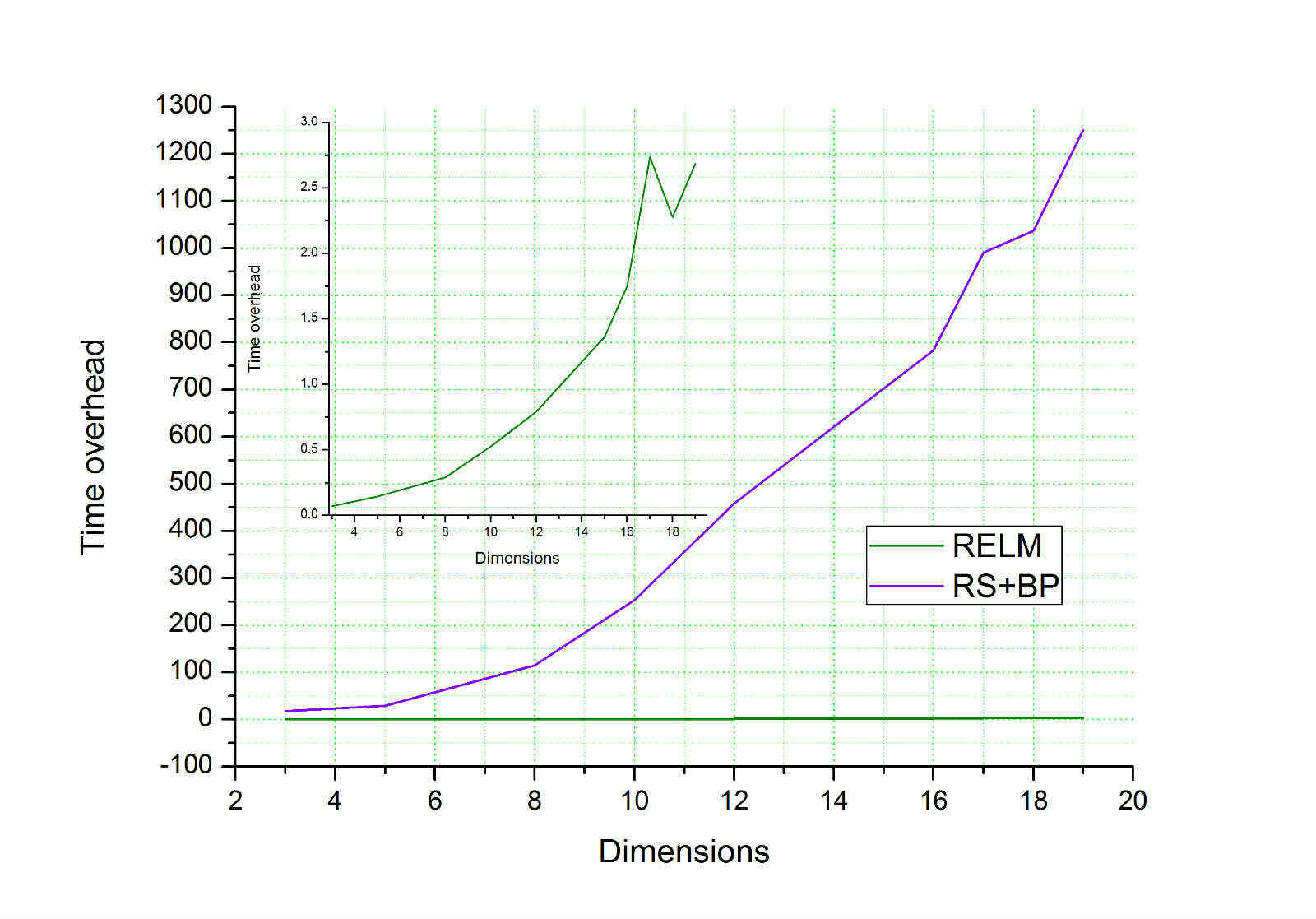

Fig. 10: segment

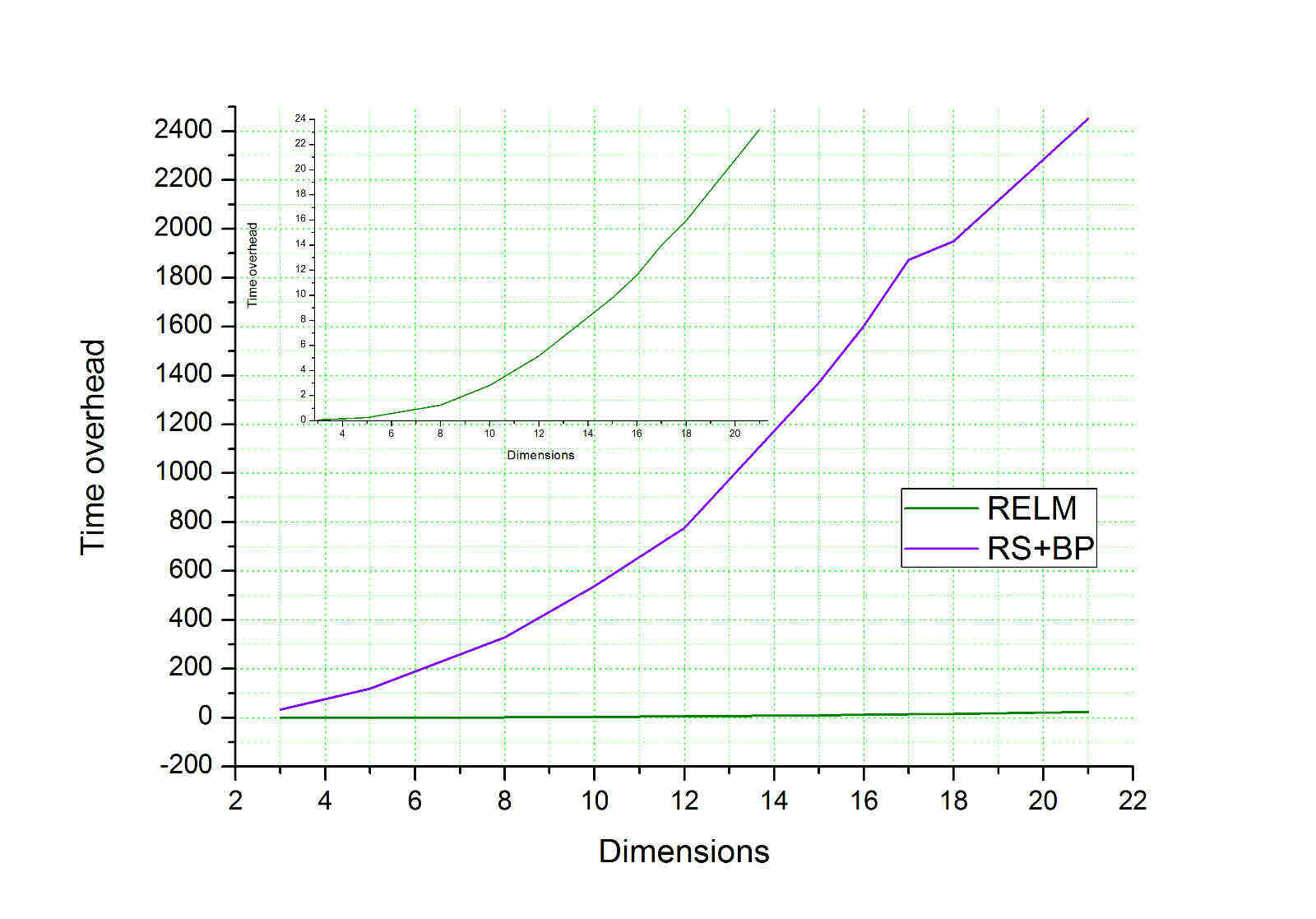

Fig. 11: Waveform

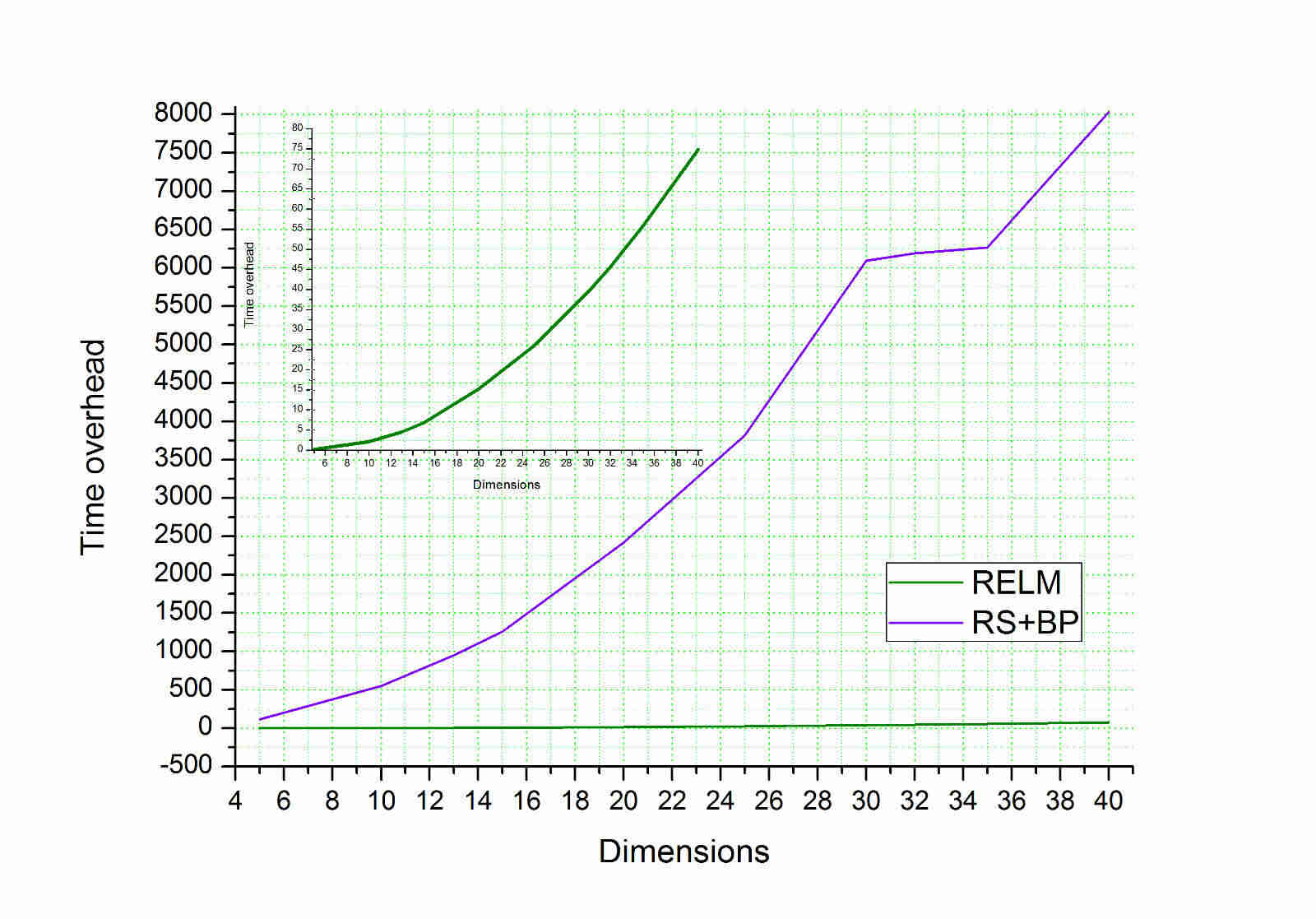

Fig. 12: Hyperplane

Fig.4-Fig.12 are the time overhead of RELM and RS+BP. The subgraph in each graph is the local graph of the change trend of RELM’s time overhead. From Fig.4-Fig.12, it can be seen that the time overhead of RELM and RS+BP increases with the increase of data dimensions. RS+BP is a very time-consuming algorithm, and the time overhead of RS+BP is much more than that of RELM. Because RELM has utilized the ELM mechanism, the cost of RELM Keeps at a lower level although the time expenditure is also showing a significant increasing trend. In a word, the time complexity of RELM is less sensitive to data dimension than RS+BP.

5 Conclusion and future work

In this paper, we proposed a new extreme learning machine algorithm with rough set method called RELM. RELM utilizes the data division result of rough set to train upper approximation neurons and lower approximation neurons; and the output weights can be analytically determined. The final classification result is decided by the two kinds of neurons. In addition, the attribute reduction method is introduced to remove redundant attributes. The experimental results showed that RELM is an effective algorithm. However, in some experiments, it can be found the performance of RELM seems unstable; the variances of accuracies is somewhat large on some data sets. From Fig.4-Fig.12, it can be seen that the time cost of RELM almost increases exponentially. So how to improve the performance’s stability of RELM and further reduce the time complexity will be research directions in our future work.

Acknowledgments

This work was supported by National Natural Science Fund of China (Nos.61672130, 61602082, 61370200), the Open Program of State Key Laboratory of Software Architecture (No. SKLSAOP1701), China Postdoctoral Science Foundation (No.2015M581331), Foundation of LiaoNing Educational Committee (Nos.201602151) and MOE Research Center for Online Education (2016YB121).

References

References

  • (1) X. Wu, X. Zhu, G. Q. Wu, W. Ding, Data mining with big data, IEEE Transactions on Knowledge Data Engineering 26 (1) (2013) 97–107.
  • (2) J. Han, M. Kamber, J. Pei, Data Mining Concept and Techniques, Morgan Kaufmann Publishers, 2012.
  • (3) D. S. Parker, D. S. Parker, Empirical comparisons of various voting methods in bagging, in: ACM SIGKDD International Conference on Knowledge Discovery and Data Mining, 2003, pp. 595–600.
  • (4) G. B. Huang, Q. Y. Zhu, C. K. Siew, Extreme learning machine: Theory and applications, Neurocomputing 70 (2006) 489–501.
  • (5) G. B. Huang, H. Zhou, X. Ding, R. Zhang, Extreme learning machine for regression and multiclass classification, IEEE Transactions on Systems Man Cybernetics Part B 42 (2) (2012) 513–529.
  • (6) G. B. Huang, X. Ding, H. Zhou, Optimization method based extreme learning machine for classification, Neurocomputing 74 (2010) 155–163.
  • (7) G. B. Huang, L. Chen, Enhanced random search based incremental extreme learning machine, Neurocomputing 71 (2008) 3460–3468.
  • (8)

    J. Zhang, S. Ding, N. Zhang, Z. Shi, Incremental extreme learning machine based on deep feature embedded, International Journal of Machine Learning

    Cybernetics 7 (1) (2016) 111–120.
  • (9)

    J. Tang, C. Deng, G. B. Huang, Extreme learning machine for multilayer perceptron, IEEE Transactions on Neural Networks

    Learning Systems 27 (4) (2017) 809–821.
  • (10)

    L. Cornejo-Bueno, A. Aybar-Ruiz, S. Jim nez-Fern ndez, E. Alexandre, J. C. Nieto-Borge, S. Salcedo-Sanz, A grouping genetic algorithm extreme learning machine approach for optimal wave energy prediction, in: Evolutionary Computation, 2016, pp. 3817–3823.

  • (11) W. Zhang, H. Ji, G. Liao, Y. Zhang, A novel extreme learning machine using privileged information, Neurocomputing 168 (2015) 823–828.
  • (12) M. Uzair, A. Mian, Blind domain adaptation with augmented extreme learning machine features, IEEE Transactions on Cybernetics 47 (3) (2017) 651–660.
  • (13) W.-Y. Deng, Y.-S. Ong, Q.-H. Zheng, A fast reduced kernel extreme learning machine, Neural Networks 76 (2016) 29 – 38.
  • (14) J. Cao, K. Zhang, M. Luo, C. Yin, X. Lai, Extreme learning machine and adaptive sparse representation for image classification, Neural Networks 81 (2016) 91–102.
  • (15) X. Li, W. Mao, W. Jiang, Extreme learning machine based transfer learning for data classification, Neurocomputing 174 (2016) 203–210.
  • (16) Z. Wang, J. Xin, S. Tian, G. Yu, A grouping genetic algorithm extreme learning machine approach for optimal wave energy prediction, in: Proceedings of ELM-2015 Volume 1: Theory, Algorithms and Applications (I), Springer International Publishing, 2016, pp. 319–332.
  • (17) B. Mirza, Z. Lin, Meta-cognitive online sequential extreme learning machine for imbalanced and concept-drifting data classification, Neural Networks 80 (2016) 79–94.
  • (18) G. B. Huang, N. Y. Liang, H. J. Rong, P. Saratchandran, N. Sundararajan, On-line sequential extreme learning machine., in: Iasted International Conference on Computational Intelligence, Calgary, Alberta, Canada, July, 2005, pp. 232–237.
  • (19) A. Bifet, M. Pechenizkiy, A. Bouchachia, A survey on concept drift adaptation, Acm Computing Surveys 46 (4) (2014) 44:1–44:37.
  • (20) S. Xu, J. Wang, A fast incremental extreme learning machine algorithm for data streams classification, Expert Systems with Applications 65 (2016) 332–344.
  • (21)

    N. Lu, G. Zhang, J. Lu, Concept drift detection via competence models, Artificial Intelligence 209 (1) (2014) 11–28.

  • (22) S. Xu, J. Wang, Dynamic extreme learning machine for data stream classification, Neurocomputing 238 (2017) 433–449.
  • (23) N. V. Chawla, K. W. Bowyer, L. O. Hall, W. P. Kegelmeyer, Smote: synthetic minority over-sampling technique, Journal of Artificial Intelligence Research 16 (1) (2002) 321–357.
  • (24) Z. Pawlak, Rough set, International Journal of Computer Information Sciences 11 (5).
  • (25) S. An, Q. Hu, W. Pedrycz, P. Zhu, E. C. C. Tsang, Data-distribution-aware fuzzy rough set model and its application to robust classification, IEEE Transactions on Cybernetics 46 (12) (2016) 3073–3085.
  • (26) J. Meng, J. Zhang, Y. Luan, Gene selection integrated with biological knowledge for plant stress response using neighborhood system and rough set theory, IEEE/ACM Transactions on Computational Biology Bioinformatics 12 (2) (2015) 433–444.
  • (27) Y. Kim, D. Enke, Developing a rule change trading system for the futures market using rough set analysis, Expert Systems with Applications 59 (2016) 165–173.
  • (28) P. Lingras, Comparison of neofuzzy and rough neural networks, Information Sciences 110 (1998) 207–215.
  • (29) A. Kothari, A. Keskar, R. Chalasani, S. Srinath, Rough neuron based neural classifier, in: First International Conference on Emerging Trends in Engineering and Technology, 2008, pp. 624–628.
  • (30) A. Azadeh, M. Saberi, R. T. Moghaddam, L. Javanmardi, An integrated data envelopment analysis cartificial neural network crough set algorithm for assessment of personnel efficiency, Expert Systems with Applications An International Journal 38 (2011) 1364–1373.
  • (31) B. S. Ahn, S. S. Cho, C. Y. Kim, The integrated methodology of rough set theory and artificial neural network for business failure prediction, Expert Systems with Applications 18 (2000) 65–74.
  • (32)

    X. Xu, G. Wang, S. Ding, X. Jiang, Z. Zhao, A new method for constructing granular neural networks based on rule extraction and extreme learning machine, Pattern Recognition Letters 67 (2015) 138–144.

  • (33) G. Feng, G. B. Huang, Q. Lin, R. Gay, Error minimized extreme learning machine with growth of hidden nodes and incremental learning, IEEE Transactions on Neural Networks 20 (8) (2009) 1352–1357.
  • (34) F. Sun, G. B. Huang, Q. M. J. Wu, S. Song, D. C. W. Ii, Efficient and rapid machine learning algorithms for big data and dynamic varying systems, IEEE Transactions on Systems Man Cybernetics Systems 47 (10) (2017) 2625–2626.
  • (35) G. G. Wang, M. Lu, Y. Q. Dong, X. J. Zhao, Self-adaptive extreme learning machine, Neural Computing Applications 27 (2) (2016) 291–303.
  • (36) G. B. Huang, M. B. Li, L. Chen, C. K. Siew, Incremental extreme learning machine with fully complex hidden nodes, Neurocomputing 71 (2008) 576–583.
  • (37) X. Zhang, Matix Analysis and Applictions, Tsinghua University Press, 2008.
  • (38) E. Cambria, G. B. Huang, L. L. C. Kasun, H. Zhou, C. M. Vong, J. Lin, J. Yin, Z. Cai, Q. Liu, K. Li, Extreme learning machines, IEEE Intelligent Systems 28 (6) (2013) 30–59.
  • (39) G. B. Huang, D. H. Wang, Y. Lan, Extreme learning machines: a survey, International Journal of Machine Learning Cybernetics 2 (2) (2011) 107–122.
  • (40) G. Huang, G. B. Huang, S. Song, K. You, Trends in extreme learning machines, Neural Networks the Official Journal of the International Neural Network Society 61 (2015) 32–48.
  • (41) H. Chen, T. Li, C. Luo, S. J. Horng, G. Wang, A decision-theoretic rough set approach for dynamic data mining, IEEE Transactions on Fuzzy Systems 23 (6) (2015) 1958–1970.
  • (42) Z. Pawlakab, Rough set approach to knowledge-based decision support, European Journal of Operational Research 99 (1997) 48–57.
  • (43)

    W. Shu, H. Shen, Incremental feature selection based on rough set in dynamic incomplete data, Pattern Recognition 47 (2014) 3890–3906.

  • (44) M. S. Lazo-Cort s, J. F. Mart nez-Trinidad, J. A. Carrasco-Ochoa, G. Sanchez-Diaz, On the relation between rough set reducts and typical testors, Information Sciences 294 (2015) 152–163.
  • (45) Y. Yao, Y. She, Rough set models in multigranulation spaces, Information Sciences 327 (2016) 40 – 56.
  • (46) X. Y. Luan, Z. P. Li, T. Z. Liu, A novel attribute reduction algorithm based on rough set and improved artificial fish swarm algorithm, Neurocomputing 174 (2016) 522–529.
  • (47) Y. Chen, Y. Xue, Y. Ma, F. Xu, Measures of uncertainty for neighborhood rough sets, Knowledge-Based Systems 120 (2017) 226 – 235.
  • (48) Z. Ma, J. Li, J. Mi, Some minimal axiom sets of rough sets, Information Sciences 312 (2015) 40 – 54.
  • (49) Q. Zhang, Q. Xie, G. Wang, A survey on rough set theory and its applications, CAAI Transactions on Intelligence Technology 1 (4) (2016) 323 – 333.
  • (50) Y. Yao, X. Zhang, Class-specific attribute reducts in rough set theory, Information Sciences 418 (2017) 601 – 618.
  • (51) A. Bifet, G. Holmes, R. B. Kirkby, B. Pfahringer, Moa: Massive online analysis, Journal of Machine Learning Research 11 (2010) 1601–1604.
  • (52) W. Zhu, J. Miao, L. Qing, Constrained extreme learning machine: A novel highly discriminative random feedforward neural network, in: International Joint Conference on Neural Networks, 2014, pp. 800–807.
  • (53) W. Zhu, J. Miao, L. QingarXiv:arXiv:1501.06115v2.
