The human body pose is rich of information. Many algorithms and applications, such as Action Recognition [1, 2, 3], People Re-identification , Human-Computer-Interaction (HCI)  and Industrial Robotics [6, 7, 8] rely on this type of data. The recent availability of smart cameras [9, 10, 11] and affordable RGB-Depth sensors as the first and second generation Microsoft Kinect, allow to estimate and track body poses in a cost-efficient way. However, using a single sensor is often not reliable enough because of occlusions and Field-of-View (FOV) limitations. For this reason, a common solution is to take advantage of camera networks. Nowadays, the most reliable way to perform human Body Pose Estimation (BPE) is to use marker-based motion capture systems. These systems show great results in terms of accuracy (less than 1mm), but they are very expensive and require the users to wear many markers, thus imposing heavy limitations to their diffusion. Moreover, these systems usually require offline computations in complicated scenarios with many markers and people, while the system we propose provides immediate results. A real-time response is usually needed in security applications, where person actions should be detected in time, or in industrial applications, where human motion is predicted to prevent collisions with robots in shared workspaces. Aimed by those reasons, the research on marker-less motion capture systems has been particularly active in recent years.

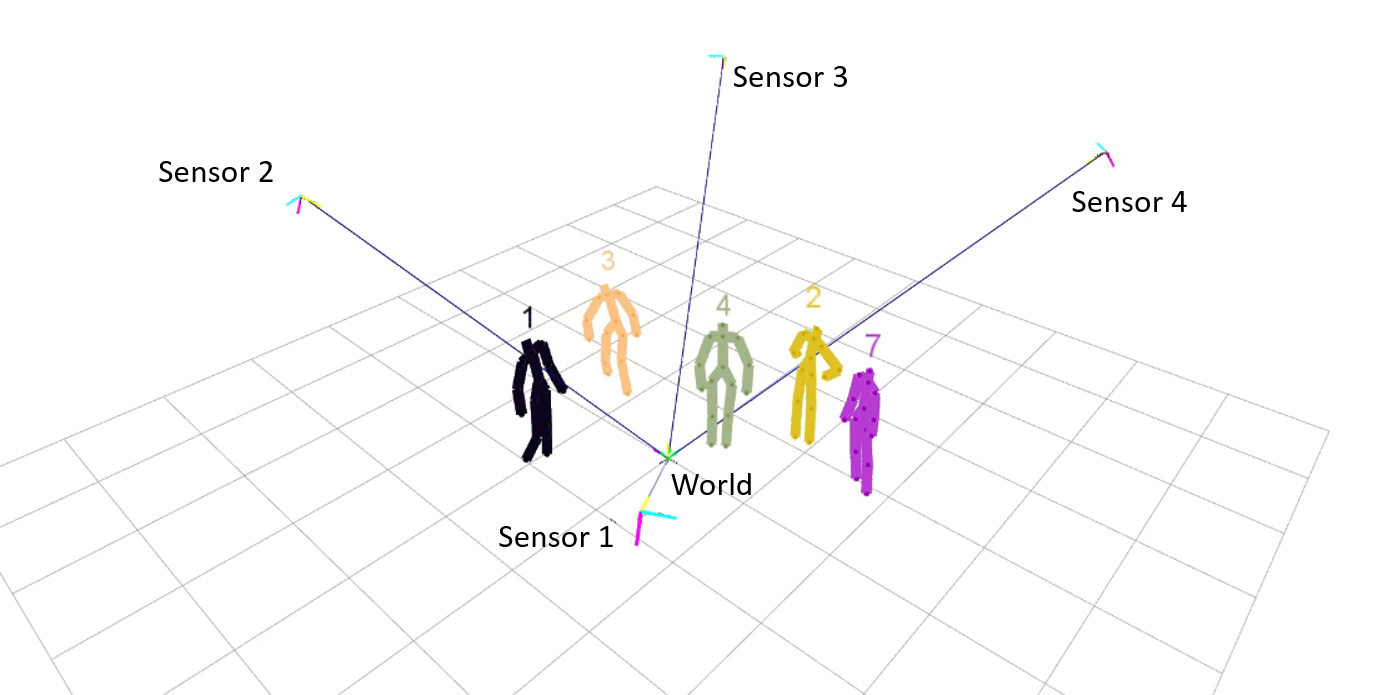

In this work, we propose a novel system to estimate the 3D human body pose in real-time. To the best of our knowledge, this is the first open-source and real-time solution to the multi-view, multi-person 3D body pose estimation problem. Figure 1 depicts our system output. The system relies on the feed of multiple RGB-D sensors (from 1 to N) placed in the scene and on an extrinsic calibration of the network. in this work, this calibration is performed with the calibration_toolkit 111https://github.com/iaslab-unipd/calibration_toolkit. The multi-view poses are obtained by fusing the single view outcomes of each detector, that runs a state-of-the-art 2D body pose estimator [13, 14] and extend it to 3D by means of the sensor depth. The contribution of the paper is two-fold: i) we propose a novel system to fuse and update 3D body poses of multiple persons in the scene and ii) we enriched a state-of-the-art single-view 2D pose estimation algorithm to provide 3D poses. As a further contribution, the code of the project has been released as open-source as part of the OpenPTrack [15, 16] repository. The proposed system is:
multi-view: The fused poses are computed taking into account the different poses of the single-view detectors;
asynchronous: The fusion algorithm does not require the different sensors to be synchronous or have the same frame rate. This allows the user to choose the detector computing node accordingly to his needs and possibilities;
multi-person: The system does not make any assumption on the number of persons in the scene. The overhead due to the different number of persons is negligible;
scalable: No assumptions are made on the number or positions of the cameras. The only request is an offline one-time extrinsic calibration of the network;
real-time: The final pose framerate is linear to the number of cameras in the network. In our experiments, a single-camera network can provide from 5 fps to 15 fps depending on the Graphical Processing Unit (GPU) exploited by the detector. The final framerate of a camera network composed of nodes is the sum of their single-view framerate;
low-cost: The system relies on affordable low-cost RGB-D sensors controlled by consumer GPU-enabled computers. No specific hardware is required.
The remainder of the paper is organized as follows: in Section II we review the literature regarding human BPE from single and multiple views, while Section III describes our system and the approach used to solve the problem. In Section IV experimental results are presented, and, finally in Section V we present our final conclusions.
Ii Related Work
Ii-a Single-view body pose estimation
Since a long time, there have been a great interest about single-view human BPE, in particular for gaming purposes or avatar animation. Recently, the advent of affordable RGB-D sensors boosted the research in this and other Computer Vision fields. Shotton et al.
proposed the skeletal tracking system licensed by Microsoft used by the XBOX console with the first-generation Kinect. This approach used a random forest classifier to classify the different pixels as belonging to the different body parts. This work inspired an open-source approach that was released by Buys et al.. This same work was then improved by adding the OpenPTrack people detector module as a preprocessing step . Still, the performance of the detector remained very poor for non frontal persons. In these last years, many challenging Computer Vision problems have been finally resolved by using Convolutional Neural Networks (CNNs) solutions. Also single-view BPE has seen a great benefit from these techniques [20, 21, 22, 14]. The impressive pose estimation quality provided by those solution is usually paid in terms of computational time. Nevertheless, this limitation is going to be leveraged with newer network layouts and Graphical Processing Units (GPU) architectures, as proved by some recent works [22, 14]. In particular, the work of Cao et. al  was one of the first to implement a CNN solution to solve people BPE in real-time using a bottom-up approach. The authors were able to compute 2D poses for all the people in the scene with a single forward pass of their CNN. This work has been adopted here as part of our single-view detectors.
Ii-B Multi-view body pose estimation
Multiple views can be exploited to be more robust against occlusions, self-occlusions and FOV limitations. In  a Convolutional Neural Network (CNN) approach is proposed to estimate the body poses of people by using a low number of cameras also in outdoor scenarios. The solution combines a generative and discriminative approach, since they use a CNN to compute the poses which are driven by an underlying model. For this reason, the collaboration of the users is required for the initialization phase. In our previous work , we solved the single-person human BPE by fusing the data of the different sensors and by applying an improved version of  to a virtual depth image of the frontalized person. In this way, the skeletonization is only performed once, on the virtual depth map of the person in frontal pose. In , a 3D model is registered to the point clouds of two Kinects. The work provides very accurate results, but it is computationally expensive and not scalable to multiple persons. The authors of  proposed a pure geometric approach to infer the multi-view pose from a synchronous set of 2D single-view skeletons obtained using . The third dimension is computed by imposing a set of algebraic constraints from the triangulation of the multiple views. The final skeleton is then computed by solving a least square error method. While the method is computationally promising (skeleton computed in 1s per set of synchronized images with an unoptimized version of the code), it does not scale with the number of persons in the scene. In  a system composed of common RGB cameras and RGB-D sensors are used together to record a dance motion performed by a user. The fusion method is obtained by selecting the best skeleton match between the different ones obtained by using a probabilistic approach with a particle filter. The system performs well enough for its goal, but it does not scale to multiple people and requires an expensive setup. In  the skeletons obtained from the single images are enriched with a 3D model computed with the visual hull technique. In  two orthogonal Kinects are used to improve the single-view outcome of both sensors. They used a constrained optimization framework with the bone lengths as hard constraints. While the work provides a real-time solution and there are no hard assumption on the Kinect positions, it was tested just with one person and two orthogonal Kinect sensors. Similarly to many recent works [25, 28, 27], we use a single-view state-of-the-art body pose estimator, but we augment this result with 3D data and we then combine the multiple views to improve the overall quality.
Iii System Design

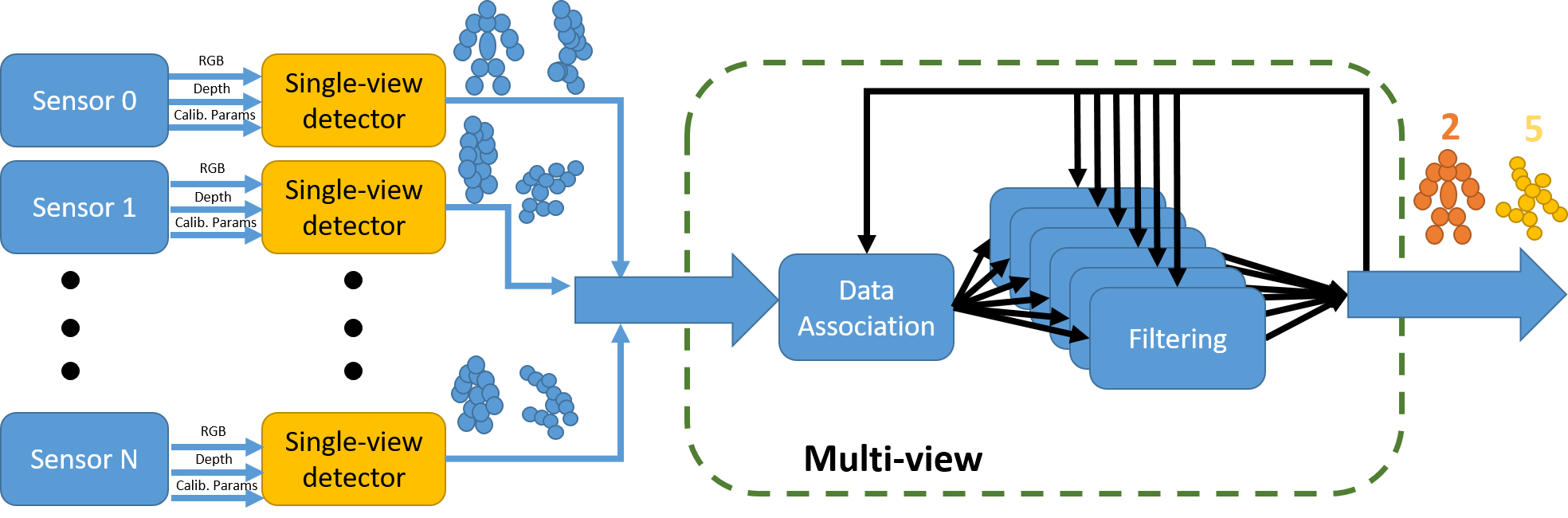

Figure 2 shows an overview of the proposed system. It can be split into two parts: i) the single view, which is the same for each sensor and it is executed locally and ii) the multi-view part which is executed just by the master computer. In the single-view part (see Figure 3), each detector estimates the 2D body pose of each person in the scene using an open-source state-of-the-art single-view body pose estimator. In this work, we use the OpenPose222https://github.com/CMU-Perceptual-Computing-Lab/openpose[13, 14]

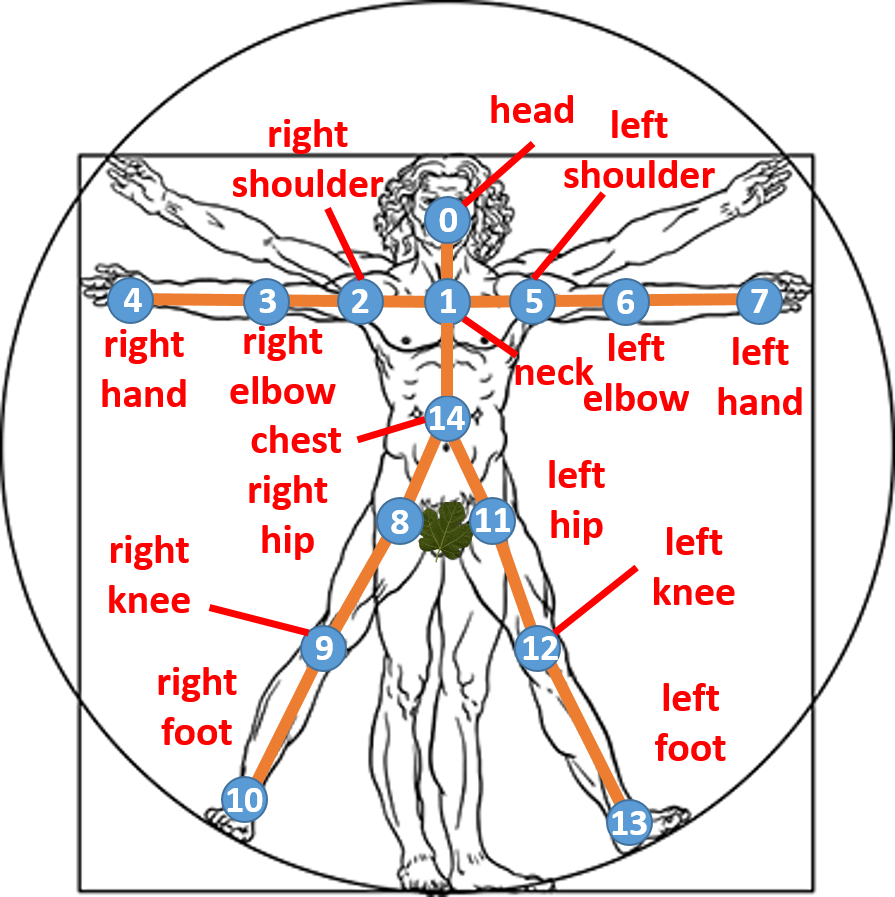

library, but the overall system is totally independent of the single-view algorithm used. The last operation made by the detector is to compute the 3D positions of each joint returned by OpenPose. This fusion is done by exploiting the depth information coming from the RGB-D sensor used. The 3D skeleton is then sent to the master computer for the fusion phase. This is done by means of multiple Unscented Kalman Filters used on the detection feeds, as explained in SectionIII-C.
Iii-a Camera Network setup
The camera network can be composed of several RGB-D sensors. In order to know the relative position of each camera, we calibrate the system using a solution similar to our previous works [16, 15]. From this passage we fix a common world reference frame and we obtain a transformation , for each camera in the network, which transforms points in the camera coordinate system to the world reference system.
Iii-B Single-view Estimation of 3D Poses

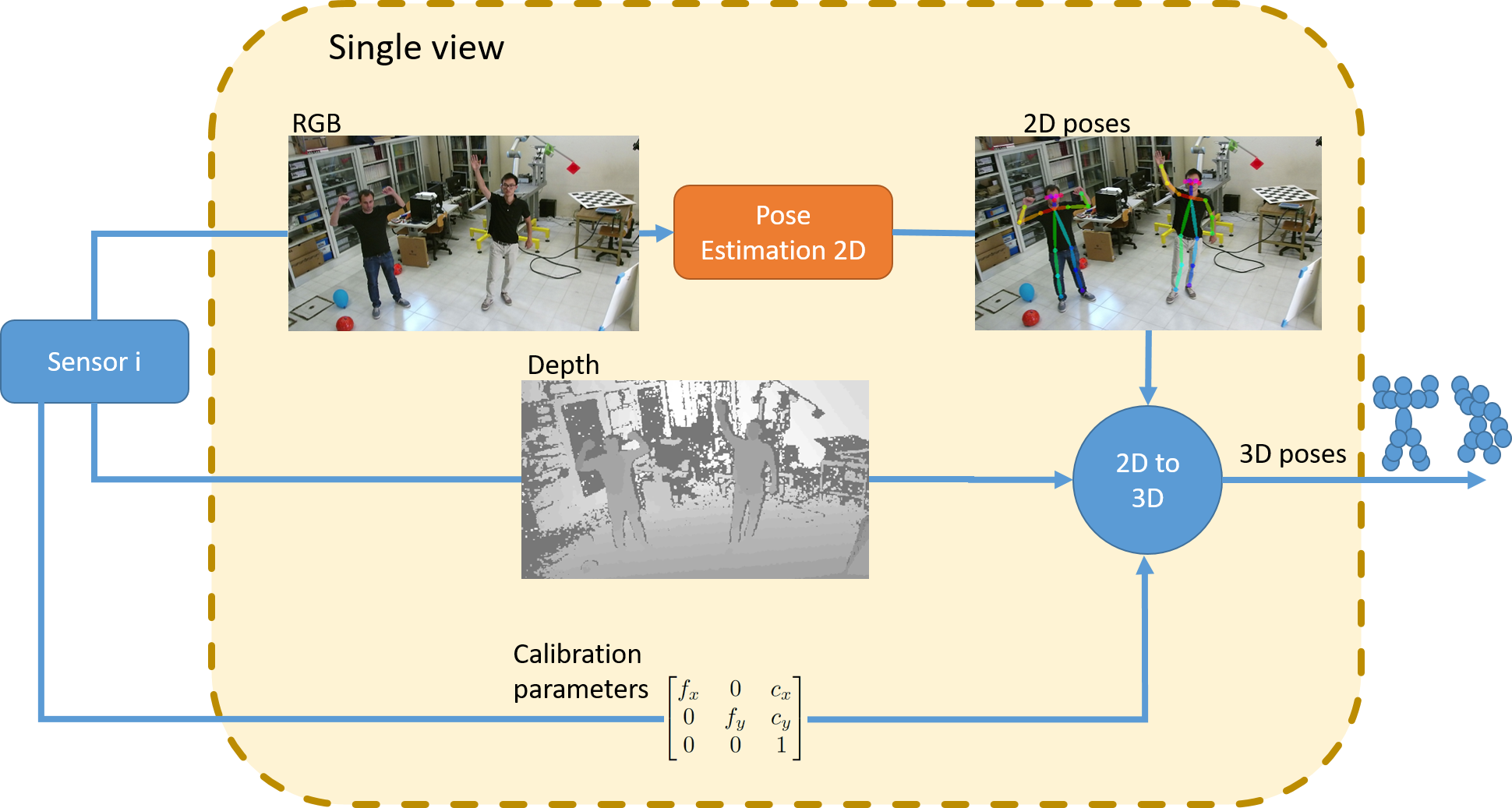

Each node in the network is composed of an RGB-D sensor and a computer to elaborate the images. Let be a frame captured by the detector and composed of the color image C and the depth image D all in the reference frame. The color and depth images in are considered as synchronized. We then apply OpenPose to obtaining the raw two dimensional skeletons . Each is a set of 2D joints which follows the human model depicted in Figure 4. The goal of the single-view detector is to transform in the set of skeletons where each is a three dimensional skeleton. Given the RGB image , let’s consider a point and its corresponding depth . Considering and respectively the focal point and the optical center of the sensor, the relationship to compute the 3D point in the camera reference system R is explained in Equation 1.
Given , we then proceed to the calculation of as shown in Equation 4.
|Ours||54.9 58.6||42.4 47.4||42.4 40.0||77.7 74.4||79.1 82.7||70.0 61.8||51.7 43.7||54.5 31.0||63.3 34.2||97.8 30.3||57.5 38.9||69.2 37.6|
|2-camera network||62.0 33.0||62.9 32.0||63.1 34.5||83.3 33.4||85.8 37.8||94.8 45.4||76.4 30.6||75.9 27.4||88.3 35.6||>100||85.4 35.5||93.3 37.0|
|83.7 41.8||84.0 40.9||83.1 43.7||>100||>100||>100||99.2 40.4||96.3 38.0||>100||>100||>100||>100|
|Ours||20.7 17.2||21.0 17.5||24.3 17.5||32.1 23.0||33.4 26.3||39.8 35.1||22.4 16.7||42.8 17.2||59.7 28.6||98.3 21.2||39.9 18.3||58.6 27.1|
|4-camera network||28.7 16.4||31.0 16.9||32.2 22.5||41.5 17.9||39.9 19.6||44.7 29.5||40.2 15.0||48.7 12.8||58.6 21.2||94.1 26.1||52.1 17.8||57.8 27.9|
|38.4 21.2||40.8 21.7||41.6 26.3||53.0 23.2||52.7 24.6||57.6 33.1||50.7 19.4||56.2 16.7||66.0 24.5||96.6 30.8||61.2 23.1||67.5 31.6|
|Ours||22.7 18.9||21.3 18.5||26.3 19.9||22.5 22.1||26.7 25.9||31.8 29.7||23.9 18.0||46.5 19.7||55.9 25.1||95.4 22.0||45.1 20.5||49.1 25.2|
The results of the experiments. Each number represents the mean and the standard deviation of the reprojection error on a reference camera (see Equation5)
Iii-C Multi-view fusion of 3D poses
The master computer is in charge of fusing the different information it is receiving from the single-view detectors in the network. One of the common limitations in motion capture systems is the necessity to have synchronized cameras. Moreover, off-the-shelves RGB-D sensors, such as the Microsoft Kinect v2, do not have the possibility to trigger the image acquisition. In order to overcome this limitation, our solution merges the different data streams asynchronously. This allows the system to work also with other RGB-D sensors or other low-cost embedded machine. At time , the master computer maintains a set of tracks where each pose tracked is composed of the set of states of different Kalman Filters, one per each joint, i.e: . The additional Kalman Filter is mantained for the data association algorithm. At time , it may arrive a detection from the sensor of the network. The master computer first refers the detection to the common world coordinate system (see Section III-A):
Then, it associates the different skeletons in as new observations for the different tracks in if they belong to them or initializes new tracks if some of the skeletons do not belong to any . At this stage, the system also decides if a track is old and has to be removed from . This step is important to prevent to grow big causing time computing problems with systems which are running for hours. We refer to this phase as data association. Algorithm 1 shows how it is performed. The data association is done by considering the centroid of each skeleton contained in the detection . The centroid is calculated as the chest joint , if this is valid, otherwise it is replaced with a weighted mean of the neighbor joints. Lines [6-9] of Algorithm 1 refers to the calculation of a cost associated to the case if the detection pose would be associated to the track
. To calculate this, we consider the Mahalanobis distance between the likelihood vector at timeand : the covariance matrix of the Kalman filter associated to the centroid of . At this point, computing the optimal association between tracks and detections is the same as solving the Hungarian algorithm associated to the cost matrix ; Line 11 refers to the use of the Munkres algorithm which efficiently computes the optimal matrix with a on the associated couples. Nevertheless, this algorithm does not consider a maximum distance between tracks and detections. Thus, it may happen that a couple is wrongly associated in the optimal assignment. For this reason, when inserting the couples in , we check also if the cost of the couple in the initial cost matrix is below a threshold.
Once solved the data association problem, we can assign the tracks ID to the different skeletons. Indeed, we know which are the detection at the current time belonging to the tracks in the system and, additionally, we know also which tracks need to be created (i.e. new detections with no associated track) and the tracks to consider for the removal. Let be the number of people in the scene, we used a set of Unscented Kalman Filters where the generic is in charge of computing the new position of the joint of the person at time , given the new detection received from one of the detectors at time and the prediction of the filter computed from the previous position at time of the same joint .
The state of each Kalman Filter is dimensioned with the three dimensional position of the joint . We used as motion model a constant velocity model, since it is good to predict joint movements in the small temporal space between two good detections of that joint.
The algorithm described in this paper does not require any synchronization between the cameras in the networks. This fact makes particularly difficult to find a fair comparison between our proposed system and other state-of-the-art works. Thus, in order to provide useful indication on how our system performs, we recorded and manually annotated a set of RGB-D frames while a person was freely moving in the field-of-view of a 4-sensors camera network. We compare our algorithm with a baseline method called MAF (Moving Average Filter), in which the outcome of the generic joint at time is computed as an average of the last frames. In order to be as fair as possible, we fixed to provide comparable results in terms of smoothness. We also demonstrated the effectiveness of the multi-view fusion by comparing our results with the poses obtained by considering just one and two cameras of the same network. In this comparison, we report the average reprojection error with respect to one of the cameras, . Equation 5 shows how this error is calculated with as the generic joint expressed in the world reference system and as the corresponding ground truth :
Table I shows the results we achieved. As depicted, the proposed method outperforms the baseline in all the cases: single-view, 2-camera network and 4-camera network. In the first two cases (single and 2-camera network) the improvement is from 50% to 60%, while, when multiple views are available, it is from 18% to 32%. It is also interesting to note that the most noisy joints are the ones relative to the legs as confirmed by other state-of-the-art works [14, 20, 21].
Iv-a Implementation Details
The system has been implemented and tested with Ubuntu 14.04 and Ubuntu 16.04 operating system using the Robot Operating System (ROS)  middleware. The code is entirely written in C++ using the Eigen, OpenCV and PCL libraries.
V Conclusions and Future Works
In this paper we presented a framework to compute the 3D body pose of each person in a RGB-D camera network using only its extrinsic calibration as a prior. The system does not make any assumption on the number of cameras, on the number of persons in the scene, on their initial poses or clothes and does not require the cameras to be synchronous. In our experimental setup we demonstrated the validity of our system over both single-view and multi-view approaches. In order to provide the best service to the Computer Vision community and to provide also a future baseline method to other researchers, we released the source code under the BSD license as part of the OpenPTrack library333https://github.com/marketto89/open_ptrack. As future works, we plan to add a human dynamic model to guide the prediction of the Kalman Filters to further improve the performance achievable by our system (in particular for the lower joints) and to further validate the proposed system on a new RGB-Depth dataset annotated with the ground truth of the single links of the persons’ body pose. The ground truth will be provided by a marker based commercial motion capture system.
This work was partially supported by U.S. National Science Foundation award IIS-1629302
