QANUS: An Open-source Question-Answering Platform

01/01/2015 ∙ by Jun-Ping Ng, et al. ∙ National University of Singapore 0

In this paper, we motivate the need for a publicly available, generic software framework for question-answering (QA) systems. We present an open-source QA framework QANUS which researchers can leverage on to build new QA systems easily and rapidly. The framework implements much of the code that will otherwise have been repeated across different QA systems. To demonstrate the utility and practicality of the framework, we further present a fully functioning factoid QA system QA-SYS built on top of QANUS.



There are no comments yet.


page 1

page 2

page 3

page 4

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

There has been much research into question-answering (QA) over the past decades. However the community is still lacking QA systems which are readily available for use. This translates into a high barrier of entry for researchers who are new to the field. The absence of easily accessible systems also means that there is a lack of credible, reproducible baseline systems against which new QA systems can be evaluated.

To address the highlighted limitations, we are releasing an open-source, Java-based, QA framework Qanus (pronounced KAY-NESS). Qanus is a framework on which new QA systems can be easily and rapidly developed. Qanus makes it easy to build new QA systems as only a minimal set of components needs to be implemented on top of the provided framework. To demonstrate the utility and practicality of Qanus, a reference implementation of a QA system Qa-Sys has also been developed using the framework. Qa-Sys is also made available to the community. When it matures, it can serve as an accessible, reproducible baseline system for evaluations.

To ensure the availability of the system to the community, as well as to maximise the benefits of any derivative projects for everyone, Qanus is released under the Open Software License (OSL) v3.0.

2 Related Work

There has been previous efforts in generalising the architecture of QA systems. Hirschman and Gaizauskas Hirschman2001 for example described a pipelined approach to QA (HG-01), where different stages are combined serially into a QA system. Figure 1 highlights the different stages in their pipeline vis-a-vis the stages found in Qanus. The informal correspondence between the various stages of the two pipelines are also shown in the figure.

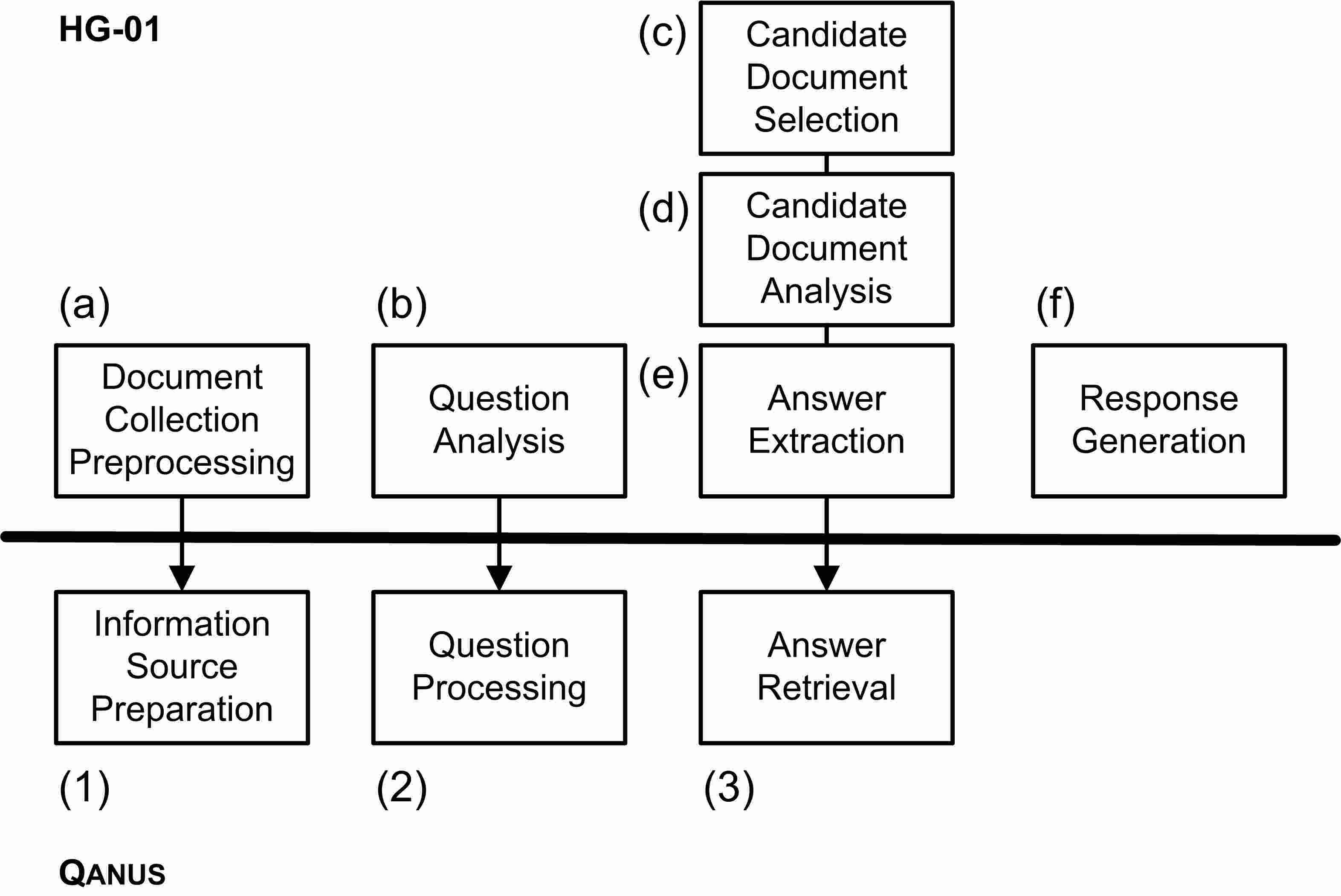

Figure 1: Comparing pipeline stages of HG-01 and Qanus.

The architecture of HG-01 is slanted towards QA systems based on current state-of-the-art information retrieval (IR) techniques. These techniques typically involve manipulating the lexical and syntactic form of natural language text and do not attempt to comprehend the semantics expressed by the text. Systems which make use of these techniques [Hickl et al.2007, Y. Chali2007] have been able to perform ahead of their peers in the Text Retrieval Conference (TREC) QA tracks [Dang et al.2007].

In IR-based systems, answer processing revolves around units of information stored in documents. To reflect the importance of this organisation two separate stages (c) candidate document selection and (d) candidate document analysis are described in Hirschman’s architecture. Further, (f) answer generation is included as they considered interactive QA systems which could participate in a dialogue with end-users.

Not all QA systems are IR-centric however, and interactive QA systems are likely not imminent given the limitations of natural language understanding and generation. Qanus thus generalises stages (c), (d) and (e) into one to avoid over-committing to any particular architecture or paradigm, and leaves out (f).

Another important point of comparison is that Qanus is an implemented, functional QA architecture whereas HG-01 serves mainly as a general discussion and introduction to the architecture of QA systems.

Though few in numbers, some QA systems have previously been made available to the community. One such system is Aranea111Available for download at [Lin2007]. Aranea is a factoid QA system which seeks to exploit the redundancy of data on the web and has achieved credible performances at past TREC evaluations. Aranea is not designed however as a generic QA platform. We argue that a framework such as Qanus which is designed from the start with extensibility and flexibility in mind will greatly reduce the effort needed for any such customisation.

Qanda by Mitre222 is another QA system which has featured in the TREC QA track. It has a project page on SourceForge. However currently only one module of the system is made available for download. We are at the time of writing unable to verify if there are plans for the release of the rest of the system in the near future.

3 Qanus Framework

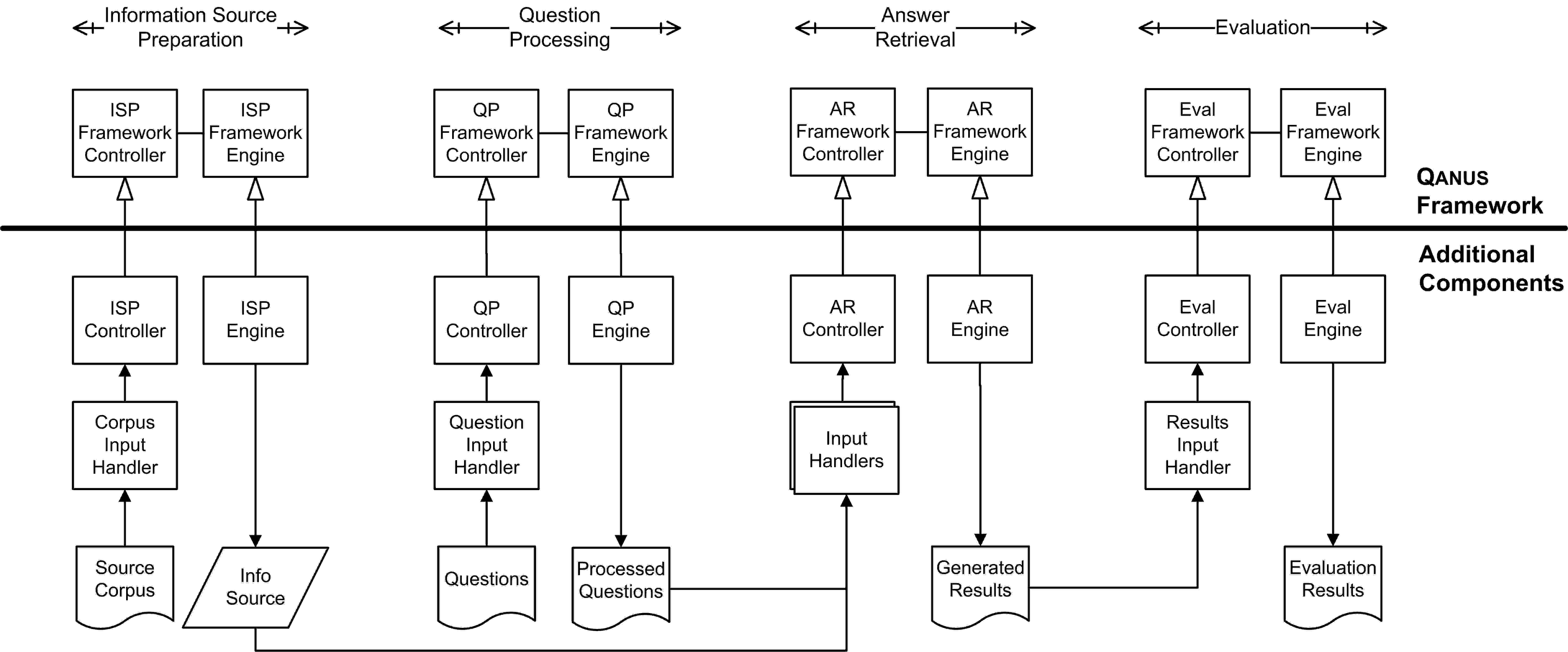

Figure 2: Full QA system with Qanus framework and additional components.

The Qanus framework adopts a pipelined approach to QA. The pipeline consists of four stages executed serially.. The stages include (1) information source preparation, (2) question processing, (3) answer retrieval and (4) evaluation. Within the framework we have implemented much of the programming code that will otherwise have been repeated across different QA systems. The framework can thus be likened to a foundation on top of which components can be added to obtain a complete QA system.

Figure 2 illustrates a complete QA system built with the framework. The upper-half of the figure delineates clearly the key classes that constitute the four stages of the framework listed earlier. The bottom-half of the figure shows additional components that can be added to the framework to complete the QA system. For completeness, the input and output to the various stages of the system are also depicted as shaded boxes at the bottom of the figure.

The top half of Figure 2 shows that each of the stages share a common architecture, composed of two main classes. The FrameworkController is responsible for directing the program flow and managing any input and output required or produced by the stage. It also invokes appropriate methods in the latter to process any input sent to the stage. The FrameworkEngine class provides the required processing that is needed on the various pieces of input to the stage. The processing that is required in each stage differs. For example, in the information source preparation stage, processing may involve part-of-speech tagging an input corpus, while in question processing

, processing may instead be classifying the expected answer type of the posed questions.

Due to space constraints, the individual interfaces and function calls presented by Qanus are not explained in detail here. The full documentation together with the source code for the framework are available at the Qanus download site333

We briefly explain the operations that may be carried out in each stage. Note that this description serves merely as a guide, and users of the framework have full flexibility in deciding the operations to be carried out at each stage.

Information Source Preparation. In this stage, an information source from which answers are to be obtained is set up. The framework is not restricted to any particular type of information source. Depending on the required needs and specifications, the eventual information source can be as varied as a Lucene444Open-source text search engine written in Java index of the source documents, a full-fledged ontology or the Internet. Any necessary pre-processing to set up the information source is done here. Note that this stage prepares static information sources. Using the Web dynamically as an information source is done in the subsequent answer retrieval stage.

Question Processing. Typically, questions posed to the system need to be parsed and understood before answers can be found. Necessary question processing is carried out here. Typical operations here can include forming a query suitable for the information source from the posed questions, question classification to determine the expected answer type, as well as part-of-speech tagging and parsing. The outputs of these various operations are stored so that they can subsequently be used by the next stage in the QA pipeline.

Answer Retrieval. The answer retrieval stage makes use of the annotations from the question processing stage, and looks up the information source for suitable answers to the posed questions. Incorporating candidate answers from dynamic sources, such as the Web or online databases, can also be incorporated here. Proper answer strings that can answer the questions are extracted in this stage. If desired, answer validation can be performed as well.

Evaluation. With the three stages above, Qanus already provides the support necessary for a fully functional QA system. The evaluation stage is introduced to complement the earlier stages and ease the verification of the performance of the developed QA system. It is optional and may be omitted if desired. The evaluation stage cross-checks the answers computed previously by the answer retrieval stage with a set of gold-standard answers. The results of the evaluation are then output for easy review.

3.1 Additional Components

The four stages of the Qanus framework establish the flow of data through the entire QA pipeline, and form the backbone of any instantiated QA system. To realise the framework and obtain a fully functional QA system, additional components such as those shown in the bottom half of Figure 2 must be coupled to the Qanus framework.

The classes in the framework enforce the required interfaces that need to be adhered to by these additional components. By following the specified interfaces, any desired functionality can be plugged into the framework.

To give a better picture of how these components can be easily added to the Qanus framework to complete a QA system, let us walk through an example for the question processing (QP) stage. From Figure 2, the minimum set of components that need to be implemented for QP include the QPController, QuestionInputHandler, and QPEngine.

QPController. QPController inherits from the QPFrameworkController component of the Qanus framework. This component is responsible for initializing and integrating any text processing modules that will be used to process input questions with the framework. Suppose we want to perform part-of-speech tagging on the input questions, a part-of-speech component module needs to be created in QPController. QPController next notifies the QPEngine component about this part-of-speech tagger component.

QuestionInputHandler. This component is responsible for reading in provided input questions. The implementation is thus dependent on how the input questions are formatted and presented.

QPEngine. This component is derived from the QPFrameworkEngine component of the Qanus framework. It makes use of the earlier QuestionInputHandler component to read in input questions, and invokes any text processing modules registered with it by the QPController to annotate the question text.

It is useful to emphasise here the ease and flexibility provided by the Qanus framework: (1) The abstraction provided by the framework greatly reduces the amount of code that needs to be written for a QA system. Only a minimal set of customisation needs to be carried out to complete the implementation of the QP stage. (2) The framework is sufficiently flexible to allow for a range of QA systems to be built. In the explanation here, only a part-of-speech tagger is described. Depending on requirements, other text processing algorithms and techniques can also be incorporated.

4 Implementation of Qa-Sys

To demonstrate the utility and practicality of the Qanus framework, we have developed a QA system, referenced to as Qa-Sys on top of the framework. The implementation of Qa-Sys is included when downloading Qanus  to serve as an effective reference implementation and help reduce the learning curve for researchers in using the framework.

Qa-Sys is a fully functioning QA system developed to run on the well-known dataset from the TREC 2007 QA track [Dang et al.2007]. Qa-Sys

 makes use of IR-based techniques to perform the QA task. As can be seen later, this includes making use of a text search engine to perform document lookup, as well as lexicon-based techniques including named entity recognition for answer retrieval. An IR-based approach is adopted because it has been shown to turn in credible performances as explained earlier

[Hickl et al.2007, Y. Chali2007].

Conforming to the description of the Qanus framework, Figure 3 shows the various classes that have been implemented as part of Qa-Sys. This figure is similar to Figure 2, which shows possible components needed to obtain a complete QA system.

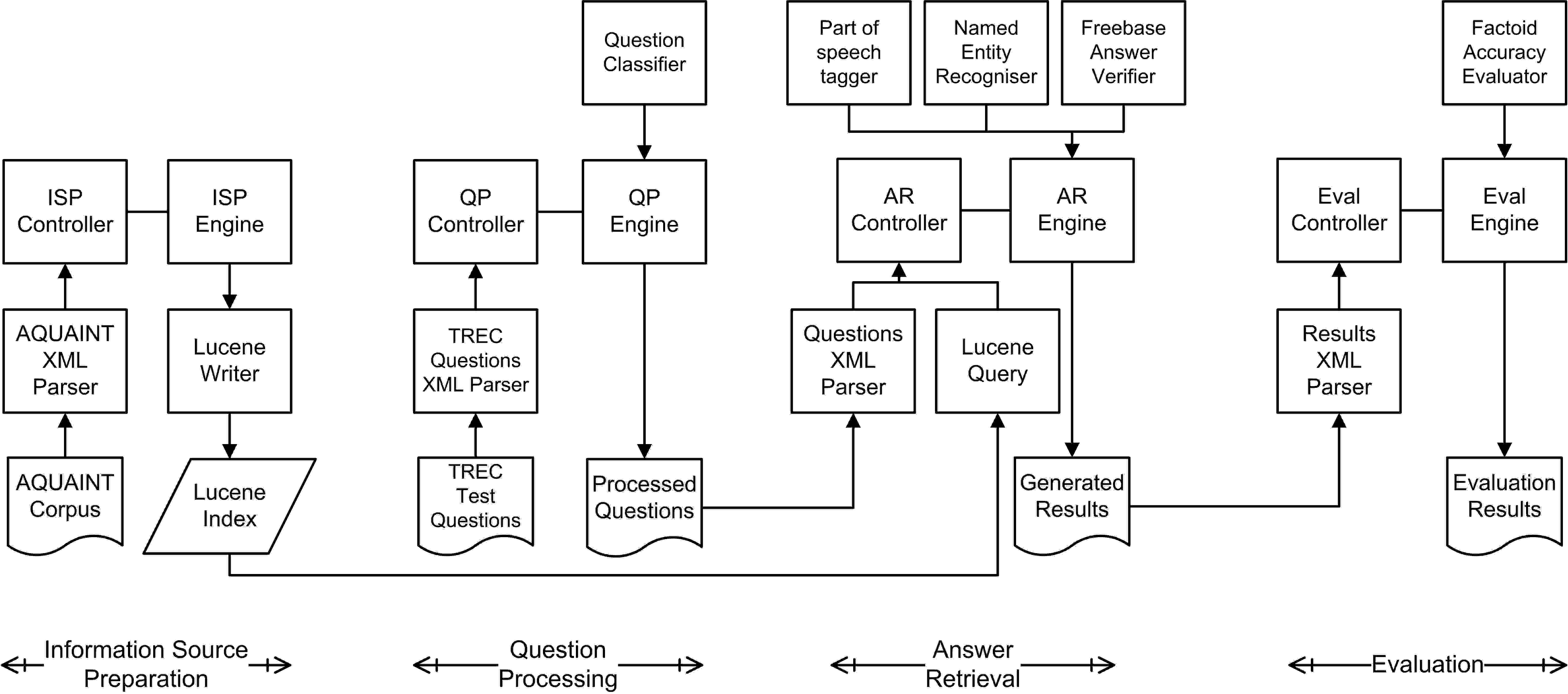

Figure 3: Actual components implemented in Qa-Sys on top of the Qanus framework.

Information Source Preparation. Similar to the participating machines of the TREC 2007 QA track, Qa-Sys makes use of the Aquaint-2 corpus555The corpus is not included with the download for Qa-Sys as it is the intellectual property of the Linguistic Data Consortium. which is stored in XML format. A XML parser AQUAINTXMLParser is written to interface the corpus with Qanus. LuceneWriter makes use of Lucene to build an index of the input corpus. We will subsequently make use of this index to retrieve documents relevant to posed questions in the later stages of the QA pipeline.

Question Processing. In this stage, Qa-Sys attempts to classify the expected answer type of the input questions based on the taxonomy described in Li and Roth Li2002 with QuestionClassifier. We built the classifier used by training the Stanford Classifier [Manning and Klein2003] on the data described in Li and Roth Li2002. The classification assigned to each question is stored and passed on to the answer retrieval stage.

Answer Retrieval. To look up answers to the posed questions, Qa-Sys form a query out of the question by dropping stop-words found in the question. LuceneQuery uses this query to search through the Lucene index built earlier in the information source preparation stage. Documents retrieved by the Lucene search engine are then broken down into individual passages. AnswerRetrieval

scores each of these passages using a variety of heuristics such as by tabulating the occurrences of the query terms within the passages.

From the ranked passages, answer candidates are extracted depending on the expected answer type previously determined in question processing. For a question seeking a person name for example, a named entity recogniser [Finkel et al.2005] is used to extract candidate people names from the ranked passages. For other expected answer types such as dates, hand-written regular expressions are used to aid in the extraction of answer candidates.

Finally, the answer candidates are ranked based again on a set of heuristics which include the proximity of the candidates within the ranked passages to the query terms for example. The highest ranked candidate is returned as the preferred answer.

Evaluation. The evaluation stage provided by the Qanus framework makes it possible to easily test the performance of Qa-Sys. Currently Qa-Sys

 supports only factoid questions, and so the evaluation metric used here is factoid

accuracy [Dang et al.2007], defined as:

which is implemented in FactoidAccuracyEvaluator.

The top system in the TREC 2007 QA track LymbaPA07 and the tenth-placed system Quanta achieved accuracy scores of 0.706 and 0.206 respectively. Qa-Sys currently obtains an accuracy of 0.119.

There is room for improvement before Qa-Sys can catch up with the state-of-the-art. The current implementation is simplistic and does not do much processing of the input questions, nor does it perform elaborate ranking of retrieved documents. As work on the system progresses and more sophisticated components are included into the system, Qa-Sys should be able to achieve better results.

5 Future Work

Qanus and Qa-Sys are currently under development. Qanus is relatively mature, having undergone several iterations of improvements and our work is now focused on improving the performance and functionalities of Qa-Sys.

Performance. Conventionally, QA systems have been benchmarked against the systems participating in the TREC QA track. However recently the QA track has been dropped from both TREC and the Text Analysis Conference (TAC). As the years go by, the results from the QA track will age and become irrelevant. There is also a trend towards the use of the Web as an aid for QA. The Web is dynamic and any such QA system will likely not generate the same results in different instances of time. For useful benchmarking, it is thus important to be able to use a baseline system which makes use of the Internet at the same time instance as the QA system being compared to. Having access to such a baseline system is thus critical and essential. This is the niche that Qa-Sys serves to address.. When the performance of Qa-Sys catches up with the state-of-the-art, it will be a useful baseline system against which other QA systems can be evaluated against.

To boost performance, more work needs to be done for the question processing and answer retrieval stages. There are plans to include a query expansion component which will be helpful in boosting the precision of the documents retrieved by Lucene. To improve on answer retrieval, soft patterns as described in Cui et al. Cui2007 can replace the current hard hand-written patterns used in the system. More advanced measures like the use of dependency relations [Cui et al.2005] can also be adopted to improve on the current passage ranking implementation.

List questions. Besides performance, it will also be useful to expand the functionalities of Qa-Sys

. It does not handle list questions for the moment. An implementation based on the use of redundancies found within the source text

[Banko et al.2002, Lin2007] is being considered.

Internet front-end. An online demonstration of Qa-Sys is currently hosted online666 and supports querying over a pre-indexed Aquaint-2 corpus or the Internet. The answer retrieval component working with data from the Internet is rudimentary and lacks techniques to process the noise that accompanies data downloaded from the Internet. It will be useful to improve on this Internet-querying component by adding better post-processing over the retrieved data.

6 Conclusion

The lack of community-available QA systems has made it difficult to create new QA systems and perform comparisons across published studies. This motivated our work on an open-source QA framework Qanus. The framework implements much of the code needed for a QA system and reduces the development effort needed to build new systems. It is carefully designed to be flexible and supports the use of a wide range of QA techniques.

As a demonstration of the utility and practicality of Qanus, we have also implemented a fully functional factoid QA system Qa-Sys on top of the framework. Our goal is to improve Qa-Sys so that it will serve as a useful and accessible baseline to benchmark future QA systems and technologies against. Through this work, we hope to lower the high barriers of entry facing new QA researchers and reduce the time needed for them to begin productive research in this area.


  • [Banko et al.2002] M. Banko, E. Brill, S. Dumais, and J. Lin. 2002. AskMSR: Question answering using the worldwide Web. In Proceedings of AAAI Spring Symposium on Mining Answers from Texts and Knowledge Bases, pages 7–9.
  • [Cui et al.2005] Hang Cui, Renxu Sun, Keya Li, Min-Yen Kan, and Tat-Seng Chua. 2005. Question Answering Passage Retrieval using Dependency Relations. In Proceedings of the International ACM SIGIR conference on Research and Development in Information Retrieval, pages 400–407, New York, USA.
  • [Cui et al.2007] Hang Cui, Min-Yen Kan, and Tat-Seng Chua. 2007.

    Soft Pattern Matching Models for Definitional Question Answering.

    ACM Transactions on Information Systems, 25(2), April.
  • [Dang et al.2007] Hoa Trang Dang, Diane Kelly, and Jimmy Lin. 2007. Overview of the TREC 2007 Question Answering Track. In Proceedings of the Text Retrieval Conference.
  • [Finkel et al.2005] Jenny Rose Finkel, Trond Grenager, and Christopher Manning. 2005. Incorporating Non-local Information into Information Extraction Systems by Gibbs Sampling. In Proceedings of the Annual Meeting of the Association for Computational Linguistics, pages 363–370.
  • [Hickl et al.2007] Andrew Hickl, Kirk Roberts, Bryan Rink, Jeremy Bensley, Tobias Jungen, Ying Shi, and John Williams. 2007. Question Answering with LCC s CHAUCER-2 at TREC 2007. In Proceedings of Text Retrieval Conference.
  • [Hirschman and Gaizauskas2001] L. Hirschman and R. Gaizauskas. 2001. Natural Language Question Answering: The View From Here. Natural Language Engineering, 7, Issue 4:275–300, December.
  • [Li and Roth2002] Xin Li and Dan Roth. 2002. Learning Question Classifiers. In International Conference on Computational Linguistics.
  • [Lin2007] Jimmy Lin. 2007. An Exploration of the Principles Underlying Redundancy-Based Factoid Question Answering. ACM Transactions on Information Systems, 27(2):1–55.
  • [Manning and Klein2003] Christopher Manning and Dan Klein. 2003.

    Optimization, Maxent Models, and Conditional Estimation without Magic.

    In Proceedings of the Conference of the North American Chapter of the Association for Computational Linguistics on Human Language Technology: Tutorials.
  • [Y. Chali2007] S. R. Joty Y. Chali. 2007. University of Lethbridge’s Participation in TREC 2007 QA Track. In Proceedings of Text Retrieval Conference.
