OpenMX Viewer: A web-based crystalline and molecular graphical user interface program

03/26/2019 ∙ by Yung-Ting Lee, et al. ∙ The University of Tokyo 0

The OpenMX Viewer (Open source package for Material eXplorer Viewer) is a web-based graphical user interface (GUI) program for visualization and analysis of crystalline and molecular structures and 3D grid data in the Gaussian cube format such as electron density and molecular orbitals. The web-based GUI program enables us to quickly visualize crystalline and molecular structures by dragging and dropping XYZ, CIF, or OpenMX input/output files, and analyze static/dynamic structural properties conveniently in a web browser. Several basic functionalities such as analysis of Mulliken charges, molecular dynamics, geometry optimization and band structure are included. In addition, based on marching cubes, marching tetrahedra and surface nets algorithms with Affine transformation, 3D isosurface techniques are supported to visualize electron density and molecular/crystalline orbitals in the cube format with superposition of a crystalline or molecular structure. Furthermore, the Band Structure Viewer is implemented for showing a band structure in a web browser. By accessing the website of the OpenMX Viewer, the latest OpenMX Viewer is always available for users to visualize various structures and analyze their properties without installations, upgrades, updates, registration, sign-in and terminal commands.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

Recently, a number of theoretical and computational research studies based on first-principles electronic structure calculations have grown in a variety of scientific fields ref1 ; ref2 ; ref3 ; ref4 . To analyze complicated data obtained by density functional theory (DFT) or other first-principles approaches, many visualization software such as XCrySDen XCrySDen1 ; XCrySDen2 , VMD VMD , VESTA VESTA and Mercury Mercury1 ; Mercury2 , have provided platforms to visualize various crystalline or molecular structures and to analyze data from simulations to explain static and dynamic properties of materials. These visualization software are useful and important to reduce time for building or modifying structures, analyzing complicated calculation results, and measuring structural information. The use of such software enhances the efficiency of dealing with the input/output data for calculations and analyzing simulation results.
Since its release in 2008, HTML5 has introduced application programming interfaces (APIs) that can be connected with Javascript for constructing web applications in web browsers 3DGraphicsOnTheWeb . Also, Web Graphics Library (WebGL) (https://www.khronos.org/webgl/) is a Javascript-based API developed for interactive 3D graphical objects without plug-in in web browsers, which is able to accelerate image processing by GPU for web canvas. With the advent of WebGL, Three.js, a cross-browser Javascript library, is able to utilize WebGL rendering techniques and to display animated 3D computer graphics in modern web browsers ThreeJS . Based on HTML5 and WebGL, one can build an application in a web browser with the same functions as one installed in conventional operating systems. There are several well-established examples of web-based viewers for chemistry NGLref9 , biochemistry NGLref19 and medical imaging MedicalImaging such as: JSmol JSmol ; ChemDoodle ChemDoodle ; Chemozart Chemozart ; Web3DMol Web3DMol ; 3Dmol.js 3Dmol ; LiteMol LiteMol ; and, NGL Viewer NGLViewer . Therefore, it will be expected that a web application can be developed to visualize crystalline and molecular structures which may provide versatile tools for analyzing simulation data. Furthermore, it is possible to use the same functions as applications in a web browser when users are offline.
The OpenMX Viewer is an interactive web-based crystalline and molecular structure viewer based on HTML5 Canvas 2D combined with Javascript and Three.js libraries for existing or potential users of OpenMX OpenMX1

: (1) to visualize crystal structures, isosurfaces, and band strucutres; (2) to analyze static/dynamic data of OpenMX; and, (3) to save structural information in a XYZ format, a CIF format, or an OpenMX input format by using our unique javascript libraries and functions. It contains three kinds of viewers - Structure Viewer, Cube 3D Viewer and Band Structure Viewer. In particular, we develop a new on-line 3D-isosurface viewer for lattice systems, i.e. Cube 3D Viewer, by using the Three.js library, isosurface algorithms, our parsing Gaussian cube file library and a transformation of lattice vectors to visualize an isosurface image in a crystal lattice in a web browser. The OpenMX Viewer provides a convenient GUI interface to examine a structure or simulation data by dragging-and-dropping a file in a compatible web browser, such as Chrome, Firefox or Safari, without any installations, upgrades, updates, registration, sign-in or terminal commands. In addition to OpenMX input/output formats, XYZ, CIF, and Gaussian cube formats are accepted as an input file by the OpenMX Viewer with our parsing file libraries in javascript. The latest version of the OpenMX Viewer is always on the Internet for users to use freely anywhere and at any time. It is also noted that the OpenMX Viewer has been released under the GNU General Public License. Furthermore, the OpenMX Viewer has been developed not only for analyzing OpenMX input/output files but also for supporting XYZ, CIF, and cube file formats as an input file to visualize structures and electron density, enabling a wide variety of people using other software to obtain benefits with the OpenMX Viewer. This paper gives a brief overview of the OpenMX Viewer as below.

2 The features of the OpenMX Viewer

The OpenMX Viewer is built to connect with first-principle calculations for analyzing crystalline and molecular static/dynamic structures and relevant physical and chemical properties in the first and last step of simulations. Although the GUI has been originally developed for first-principles calculations by a DFT code, OpenMX, many functionalities explained later on can be utilized by users using other DFT codes because of the use of common file formats, such as XYZ, CIF, and cube. The OpenMX Viewer can be utilized directly by dragging-and-dropping files to the OpenMX Viewer webpage OpenMXViewer without installations, upgrades, and terminal commands. The main features of the OpenMX Viewer include: (1) Structure Viewer; (2) Cube 3D Viewer; and, (3) Band Structure Viewer. It supports several kinds of data formats listed in Table 1. After dragging and dropping a file to the OpenMX Viewer, it can automatically recognize a file type, read data and show results on the corresponding viewer. The Chrome and Firefox browsers are preferred for the OpenMX Viewer due to its good compatibility and performance. The main functionalities and implementations of the OpenMX Viewer are described in the following sections.

Viewer Supported file types
Structure Viewer (Static) XYZ type (.xyz), CIF type (.cif), OpenMX input (.dat)
Structure Viewer (Dynamic) XYZ type (.xyz), OpenMX output files (.md)
Cube 3D Viewer Gaussian cube files (.cube)
Band Structure Viewer Band files (.Band)
Table 1: Viewers and corresponding supported file types

3 The functionalities of the OpenMX Viewer

3.1 Structure Viewer

The Structure Viewer is capable of reading a crystalline or molecular structure from standard file formats, such as XYZ files, CIF files CIF , OpenMX input files (.dat) and OpenMX output files (.md), and displaying a structure by using drag-and-drop on the Structure Viewer to show static or dynamic structures in the orthographic or perspective view. It also includes analysis of Mulliken charges, spins, forces and velocities. Users can use the Analysis of Structure panel to measure: (1) a bond distance between two selected atoms; (2) a bond angle; and, (3) a dihedral angle as shown in Fig. 1. If a dropped file is relevant to structural optimization or molecular dynamics simulations, users can select Structural Change to check structural changes at each optimization or molecular dynamics step as shown in Fig. 2. In addition, after dragging and dropping a file to visualize the structure, users can save the structural information to another format, such as the XYZ format, CIF format or OpenMX input file format with Cartesian coordinates or fractional coordinates.

3.2 Cube 3D Viewer

The Cube 3D Viewer is built for showing 3D isosurface images in the Gaussian cube format Gaussian such as electron density, difference electron density taken from superposition of atomic densities of constituent elements and molecular orbitals. To show an isosurface image, users can drag and drop a cube file to the OpenMX Structure Viewer window or the Cube 3D Viewer window as shown in Fig. 3. Atoms, a unit cell, and positive/negative isosurfaces can be rendered in the Cube 3D Viewer at the same time. Moreover, an isosurface image in a crystal structure can be extended to a larger supercell.

3.3 Band Structure Viewer

The Band Structure Viewer allows us to show and check a band structure quickly by dragging-and-dropping a Band file in the end of OpenMX’s band structure calculation. It also includes a function to rescale a band structure by using mouse wheel or buttons.

4 The implementations of the OpenMX Viewer

4.1 Structure Viewer

The Structure Viewer is developed by HTML5 canvas 2D to display a static/dynamic crystalline or molecular structure in the orthographic or perspective view by dragging-and-dropping and parsing a XYZ/CIF/OpenMX file. After reading structural information, the spheres of atoms and bond stickers between two atoms are prepared and saved first. In the case of bond stickers, 91 bond stickers with tilted angles from 0 degrees to 90 degrees are drawn and stored in advance in order to reduce the effort of plotting bond stickers at each operation e.g. translations or rotations. Also, the images of spheres of atoms are created at the beginning of rendering operations. During the drawing of a crystal structure at each operation, these images of spheres and bond stickers are adjusted in size and pasted to their proper place. Then, the structure with spheres and bond stickers will be visualized on the center of the Structure Viewer. In Table 2, we show the performance of the OpenMX Structure Viewer, indicating that the OpenMX Viewer provides a quick visualization of crystalline and molecular structures. In addition, the OpenMX Structure Viewer provides plenty of options listed in Table 3 for users to show structural properties. Here, eight practical options for examining structures are described as below:

  1. A supercell can be chosen by ’Supercell’ options directly. After selecting a supercell, the supercell structures will be changed and visualized simultaneously.

  2. ’Number’ can be checked to show all of serial numbers on the top of spheres.

  3. ’Symbol’ stands for printing a symbol of atomic species on the top of each sphere.

  4. When ’Structure’ is checked, the ’Analysis of Structure’ panel will be shown at the top-left corner of the Structure Viewer.

  5. When ’Dynamics’ is checked, the ’Strucutral Change’ panel will be shown at the bottom of the Structure Viewer.

  6. In the ’Spin’ option, there are four cases: (1) off; (2) spin; (3) spin-C; and, (4) spin-V. If the second case is selected, numerical values of the spin of elements in units of will be printed on the top of spheres. And, ’-C’ represents the magnitude of spin by colors, while ’-V’ represents them by vectors.

  7. For ’Force’ and ’Velocity’ options, both of them are shown by vectors pointing to a direction, while length of the vectors depends on their magnitude.

  8. In the ’Save’ option, there are four cases for saving the structural information: (1) ’xyz’ is for saving a XYZ file; (2) ’cif’ is for saving a CIF file; (3) ’OMX(xyz)’ is for generating an OpenMX input file in a Cartesian coordinate system; and, (4) ’OMX(frac)’ is for generating an OpenMX input file with fractional coordinates.

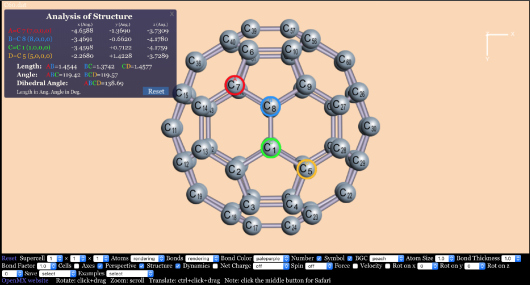

Figure 1: The OpenMX Structure Viewer with a C60 structure in the perspective view. The panel of Analysis of Structure is in the top-left corner. The options of structural properties and styles are listed at the bottom.
System File parsing [s] Creating images and rendering [s] Rotation and rendering [s] Number of atoms Javascript Memory [MB]
XYZ CIF OpenMX
Si 555 supercell 0.022 0.025 0.022 0.203 0.008 1000 11.703
Si 101010 supercell 0.088 0.388 0.090 1.233 0.010 8000 29.703
Si 151515 supercell 0.199 2.802 0.185 10.397 0.193 27000 59.297
  • Notes: Tests for the OpenMX Structure Viewer were performed in a Chrome browser in Linux Ubuntu 16.04 with a 4.2 GHz Intel Core i7-7700K Processor and 32 GB DDR4-2400 MHz Memory.

Table 2: Performance of parsing and structure rendering a Si conventional cell with 3 different supercells.

4.1.1 Structural measurement

The Analysis of Structure panel is designed to show measurements of a bond distance between two selected atoms, a bond angle from three selected atoms and a dihedral angle formed by four selected atoms. After users select any four atoms in sequence, the panel will show the element symbols and their serial number and Cartesian coordinates as shown in Fig. 1. The three bond lengths between two selected atoms, two angles among three selected atoms, and one dihedral angle from four selected atoms are printed in the same panel.

4.1.2 Animation panel

The Structural Change panel is capable of showing animation of optimizations or molecular dynamics simulations and printing total energy in Hartree at each step as shown in Fig. 2. Users can play an animation step-by-step or continuously from beginning to end and switch steps forward or backward. At the same time, selected bond lengths, bond angles, and a dihedral angle at each step are shown in the Analysis of Structure panel.

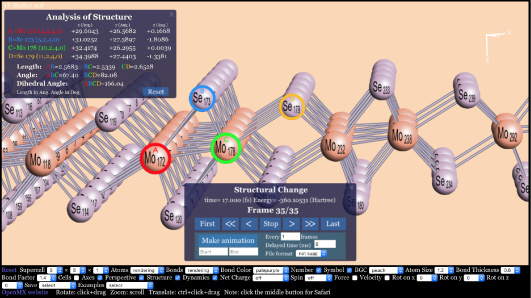

Figure 2: The OpenMX Structure Viewer with 1T-MoSe2 structure in the perspective view. The Analysis of Structure panel and the Structural Change panel are in the top-left corner and the bottom, respectively.
Options Description Default Value
Supercell Setup the size of supercell ( a b c ) 1 1 1
Number Show the serial number of atoms off
Symbol Show the element symbols off
Bond Factor Show bonds between two atoms within a certain range 1.0
Cells Show the unit cell off
Axes Show the axes off
Structure Show the panel of Analysis of Structure off
Dynamics Show the panel of Structural Change off
Net charge Show Mulliken charge / Mulliken charge-C (with colors) off
Spin Show spin / spin-C (with colors) / spin-V (with vectors) off
Force Show atomic forces off
Velocity Show atomic velocity off
Rot on x/y/z Rotate the structure on x/y/z axis by selecting an angle 0
Save Saving files: (1) a XYZ file, (2) a CIF file, -
(3) an OpenMX input file (.dat) in a Cartesian coordinate system,
(4) an OpenMX input file (.dat) in a fractional coordinate system.
Examples Select an existing data to show crystalline or molecular structure. -
Table 3: The key options of display styles and structural properties in the OpenMX Structure Viewer

4.1.3 Parsing CIF files

The original program, CIF2CELL, for parsing CIF files is written in python CIF by using routines in the library PyCIFRW PyCIFRW . We convert this Python code to a Javascript version, i.e. cif.js, and build it as a CIF parsing function to connect with the Structure Viewer for parsing CIF files. After a user drags and drops a CIF file to the Structure Viewer, the Structure Viewer will (1) analyze the CIF file by using the CIF parsing function, (2) get the atomic coordinates, cell vectors and corresponding symmetry, (3) send structural data to plot the structure, and (4) select a conventional cell or a primitive cell to show. After showing the structure, users can start to operate the structure in the Structure Viewer.

4.2 Cube 3D viewer

The Cube 3D Viewer is based on WebGL, Three.js ThreeJS , DAT.GUI (https://github.com/dataarts/dat.gui), marching cube MarchingCube , marching tetrahedra Tetrahedra and surface net SurfaceNets libraries to show 3D isosurface images in the Gaussian Cube format Gaussian such as electron density, difference electron density taken from superposition of atomic densities of constituent elements and molecular orbitals. The Three.js and isosurface libraries are released under the MIT license and DAT.GUI is released under the Apache License 2.0. Originally, the libraries of isosurface algorithms come from Paul Bourke’s work PaulBourke . And, Mikola Lysenko transformed the codes to Javascript version and connected with Three.js to show isosurface images in a web browser MikolaLysenko . We followed his demo for drawing isosurfaces and modified the source code to transform each small cubic cell to one of seven lattice systems for constructing crystal isosurface images.

In order to show an isosurface image, users can drag and drop a cube file to the OpenMX Structure Viewer window or the Cube 3D Viewer window as shown in Fig. 3. After reading a cube data in the ’cube.js’ function and declaring two float arrays to store positive and negative values with a default isovalue in ’read3ddata.js’ function, these two positive and negative data sets are sent to one of the isosurface algorithms for producing facets or edges of two isosurfaces with different colors, respectively. In the last part, by Three.js, atoms, the unit cell, and the isosurface can be presented on the Cube 3D Viewer. In addition, a default isovalue is automatically determined by a largest absolute value divided by 200. And, the isovalue can be adjusted or changed continuously with a delay time by using the drop-down menu. In Table 4, the performance of the Cube 3D Viewer is given for reference. The speed of compression depends on the size of a cube data. The rendering time depends on the total number of grids and an isovalue because it is related to the numbers of vertices and edges created by isosurface algorithms and plotted by the Three.js library. In the case of surface nets, the numbers of vertices and edges required for creating an isosurface image are usually less than those in the marching cubes algorithm and marching tetrahedra algorithm. The use of memory and performance are better than other two cases. Moreover, the drop-down menu provides several options of display styles for users to choose. These options are listed in Table 5. Among them, four useful options are described as below:

  1. A supercell can be chosen to generate larger and continuous isosurface images. However, it should be noted that plotting isosurface images will become heavier if there are many facets needed to plot in the original crystal lattice. Drawing facets or edges is the most time-consuming part in the Cube 3D Viewer.

  2. Edges of isosurface images can be shown by selecting ’Edges’. After edges are shown, facets will be hidden at the same time, and vice versa.

  3. Atoms can be presented in the unit cell by checking the ’atoms’ option. But, if atoms are behind facets, atoms will become hidden.

  4. Evolution of isosurface can be performed by checking the ’start’ option. Both of the isovalue and isosurface will be changed gradually with a positive or negative increment after a time delay, where a positive or negative increment can be controlled by checking the ’direction’ option.

System (Grids) File compressing and decompressing [s] Isovalue Creating meshes and rendering [s] JavaScript Memory [MB]
Marching
cubes
Marching
tetrahedra
Surface
nets
Marching
cubes
Marching
tetrahedra
Surface
nets
C60 (848484) 1.955 / 0.411 0.0284 1.097 2.305 0.957 213.9 597.1 103.9
C60 (125125125) 6.369 / 1.354 0.0349 4.121 7.712 3.668 357.4 897.8 263.6
C60 (150150150) 11.956 / 2.374 0.0349 7.942 16.859 7.111 750.6 1272.8 465.0
  • Notes: Tests for the Cube 3D Viewer were performed in a Chrome browser in Linux Ubuntu 16.04 with a 4.2 GHz Intel Core i7-7700K Processor and 32 GB DDR4-2400 MHz Memory.

Table 4: Performance of creating and rendering an isosurface of fullerene-C60 with 3 different meshes.

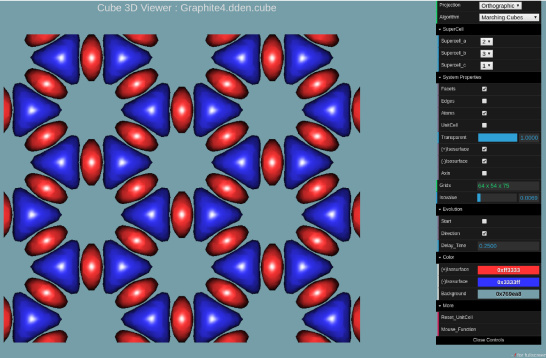

Figure 3: An isosurface of difference electron density of graphene is shown by the Cube 3D Viewer. The drop-down menu is in the top-right corner.
Options Description Default Value
Projection Orthographic or Perspective projection Orthographic
Algorithm
3D isosurface algorithm:
Marching Cubes / Marching Tetrahedra / Naive Surface Nets
Marching Cubes
Supercell Setup the size of supercell a b c 1 1 1
System Properties:
Facets Show facets of isosurface On
Edges Show lines of isosurface Off
Atoms Show atoms Off
Unit Cell Show the unit cell On
Opacity
The percentage of allowing the transmission of light
through a material (Range = 0.01.0.)
1.0
(+) Isosurface Show the positive isosurface On
(-) Isosurface Show the negative isosurface On
Axis Show axes Off
Isovalue Setup an isovalue to show corresponding isosurface
Evolution:
Start Start to change isovalue continuously Off
Direction Increase a positive (on) or negative (off) isovalue continuously On
Delay_Time Change in isovalue per delay time (Unit = second) 0.25 (s)
Table 5: The options of display styles in the Cube 3D Viewer

4.2.1 Reading a cube file to get 3D-data

In order to show a 3D isosurface, analysis functions in Javascript for reading the cube format and storing a cube data in two float arrays are prepared first. Once the cube data is obtained, an isosurface with a default isovalue will be plotted by using one of the isosurface algorithms. However, when the cube data is larger than 5 megabytes (MB), web browsers usually do not allow us to transfer the data from the OpenMX Structure Viewer window to the Cube 3D Viewer window because the localStorage in a web browser is usually limited to 5 MB. The dropped data will be compressed to strings first by using a MIT-licensed ’lz-string’ compressed library (https://github.com/pieroxy/lz-string) and then these compressed strings are transferred to the Cube 3D Viewer window. In case of a large-sized cube data, the step of compressing the data can be a bottleneck, leading to time lag in the response. If users want to analyze a huge cube data, they have to recognize this issue because it will cause the computer to lag.

4.2.2 Transformation of cell vectors

Originally, a 3D isosurface image by using marching cubes algorithm, marching tetrahedra algorithm, or surface nets is composed of many small cubic cells. A dropped cube file is first analyzed by assuming that the lattice system is cubic, regardless of the actual lattice, to calculate facets using one of the isosurface algorithms. In order to apply isosurface algorithms for all kinds of lattice systems, Affine transformation is used to transform basis vectors of each small cubic cell to corresponding lattice vectors. After all of small cells are transformed, vertices and edges in small cells can be established and plotted by the Three.js library to visualize an isosurface image.

4.3 Band Structure Viewer

The Band Structure Viewer is developed for showing a band structure quickly by dragging-and-dropping a Band file in the end of OpenMX’s band structure calculation as shown in Fig. 4. It supports a function for zooming in/out to a certain band structure range by controlling the mouse wheel or buttons. The drop-down menu provides options for scaling a band structure and setting display styles.

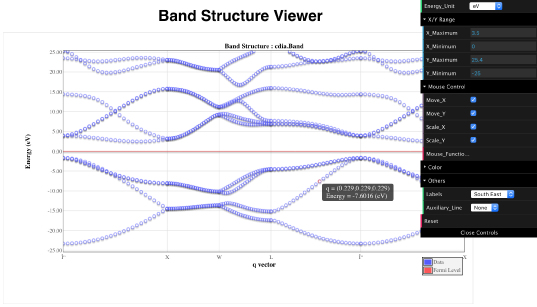

Figure 4: The band structure of diamond in the Band Structure Viewer, where the Fermi level is set to zero.

5 Conclusions

The OpenMX Viewer is an interactive web-based crystalline and molecular structure viewer for users to: (1) visualize crystal structures, isosurfaces and band strucutres; (2) analyze static/dynamic data of OpenMX; and, (3) save structural information in a XYZ format, a CIF format, or an OpenMX input format. It provides three kinds of viewers, Structure Viewer, Cube 3D Viewer and Band Structure Viewer, to check various properties by dragging-and-dropping files conveniently in a compatible web browser without any installations, upgrades, updates and terminal commands. The Structure Viewer is capable of showing crystal structures, measuring bond lengths, bond angles, and a dihedral angle, and playing an animation of molecular dynamics simulations step-by-step or continuously. The Cube 3D Viewer can show an isosurface of electron density or molecular orbitals by reading a cube file. The Band Structure Viewer can be utilized by dragging-and-dropping a Band file to show a band structure directly in a web browser. In addition to OpenMX input/output formats, XYZ, CIF, and cube formats are accepted as an input file by the OpenMX Viewer. Users can always use the newest version of the OpenMX Viewer by accessing the website. In the near future, we plan to release the OpenMX Structure Builder for users to construct or modify their structures.

Acknowledgments

This paper is partly based on results obtained from a project commissioned by the New Energy and Industrial Technology Development Organization of Japan (NEDO) Grant (P16010). We thank Dr. Adam D. Sproson (Atmosphere and Ocean Research Institute, Univeristy of Tokyo) for proofreading the manuscript and reviewers for giving valuable comments and suggestions.
