I Nonequilibrium Nonlocal Monte Carlo
The common picture for a complex energy landscape is that of a function defined in a very high-dimensional space with a large number of local minima and large barriers between them. The computational complexity in sampling such a corrugated landscape comes from the conflicting needs of visiting low-energy minima, while simultaneously being able to overcome high barriers. It is worth mentioning that often these complex landscapes in high dimensional spaces also present entropic barriers that affect both classical and quantum algorithms bellitti_entropic_2021. However at low enough temperatures the energetic barriers are the main obstacle.
The most widely used algorithms for performing the sampling of a complex energy landscape are based on MCMC. However, standard MCMC where the temperature of the bath is kept constant to is deemed to fail: large values of are required for jumping over large barriers, but small values of are required to visit low-energy configurations, thus trapping the evolution of the system in some local minima.
A straightforward approach to this problem is to allow the temperature to change during the simulation. If one is interested in finding just one low energy configuration in a optimization problem then the use of Simulated Annealing Kirkpatrick671 where the temperature is gradually decreased during the simulation may be of great help. However, if one is interested in the sampling problem, many different low energy minima must be visited by the algorithm and thus the temperature needs to be raised and lowered back again many times. This is the idea behind replica-exchange MC or parallel tempering which is currently the best general purpose algorithm for sampling complex energy landscapes PTreview; katzgraber_introduction_2011.
Nevertheless all the above algorithms have a strong limitation: they use the same global temperature for updating each microscopic variable of the system under study. In other words, the temperature is constant over the entire system. This is required if one wants to sample from the Gibbs-Boltzmann distribution at a given temperature. However, if the main aim of the simulation is to bring the temperature sufficiently close to zero to eventually sample from the many low energy states, then it is not clear why one should keep the temperature uniformly constant over the entire system, as the system response to temperature is not uniform. There might be alternative inhomogeneous schemes for updating the temperatures. Generally, it is not obvious why changing the temperature from region to region of the system could significantly help navigating between low energy minima. We provide an intuitive argument for these inhomogeneous temperature profiles before developing our algorithm and showing convincing numerical evidence.
Very strong heterogeneities are common in disordered and frustrated systems glotzer1998dynamical; banos2010static. For typical configurations obtained by sampling at a given low temperature, there are regions where the interactions are mostly satisfied and thus variables are very rigid (almost frozen); while, there are other regions where interactions are much less satisfied, and consequently the variables are less constrained and can vary more easily lage2014message. This strong heterogeneity in the rigidity of different parts of the system under study produces very different time scales in its evolution ricci2000glassy.
For simplicity let us assume the system can be decomposed in two parts or regions: a more rigid and a more floppy region. In order to optimize the system, one needs to bring the temperature low enough, but at such low temperature the more rigid part is completely frozen and does not evolve at all. On the contrary, when the temperature is raised high enough to update the more rigid part, any correlation in the less rigid part is completely washed out and the optimization process on that part will need to be restarted from scratch. This is the problem when using any uniform or homogeneous temperature changing protocol on a very heterogeneous system: to update the most rigid parts of the system, the algorithm must increase the temperature globally and so forgets any good correlation that has developed in the less rigid part of the system.
Starting from this observation, our idea is to use different temperatures in different parts of the system. In this way one can update the most rigid parts of a system without destroying the correlations that have been developed in the least rigid part. These nonuniform updates would violate detailed balance, so it can not be used as a dominating mechanism for fair sampling at a non-zero temperature over the microscopic degrees of freedom. However, as we show below, when invoked occasionally in conjunction with standard MCMC, they lead to a nonequilibrium steady state with an effective balance condition that samples from the low-energy states. Moreover, in the optimization problems and in sampling at, the aim is to find one (or many) lowest energy configurations. In this case the heuristic algorithm based on the idea of using different temperatures in different parts of the system is fine as long as all temperatures are eventually made sufficiently small.
In terms of the corrugated energy landscape, our aim is to move between low-energy minima without bringing the entire system to a high energy above the barriers; something that in principle could be achieved by quantum tunneling. Here, however, our idea is to implement classical cluster moves where only very rigid variables are given a larger thermal (i.e. stochastic) energy. The rationale beyond this choice is the following: in a low-energy minimum where variables have different levels of rigidity, i.e. very different correlations among variables, the curvature of the landscape strongly depends on the direction, i.e. on the subset of variables that are flipping at each step of the algorithm. For instance, flipping a very correlated set of variables could significantly increase the energy, thus it corresponds to climbing up an energy barrier. By coupling only this subset of variables to a high temperature bath we are effectively lowering the barrier, which facilitate transitions between different low-energy minima. In principle, we could flip all of the correlated variables at once, which would be more effective when there is inherent symmetry, and subsequently boost their local temperature. Overall, in contrast with an algorithm where the temperature is raised everywhere, here the minima that we are trying to connect are still well defined thanks to the fact that the majority of variables are still coupled to a bath with a very low temperature.

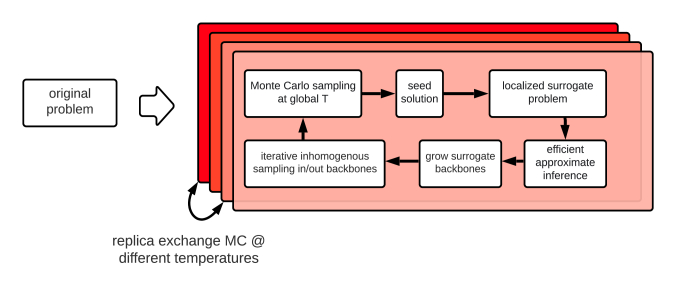

We overcome the failures of local and homogeneous Monte Carlo sampling by iterating between subroutines that are customized towards exploitation and exploration of the energy landscape. To construct such paradigm of computation, however, there are several major outstanding challenges and open questions: how can we actually compute or learn such elusive subsets of rigid variables in a given basin of attraction for strongly disordered and frustrated systems? How can we use such information to grow meaningful clusters? And ultimately how can we create the desired nonlocal moves? We address all these questions in the subsequent sections. Motivated by the phenomenological description of local homogeneous stochastic search strategies presented in this section, we first provide a high-level and intuitive illustration of the algorithm in Fig. 1. A particular realization of NMC that is build on top of an APT framework is presented in Algorithm 1 and Fig. 2. For a short description of our APT algorithm see App. A. In the next section, we provide a detailed construction of our algorithm.
Ii Constructing localized surrogate Hamiltonians
We are interested in finding many different low energy configurations for an energy function . Let’s consider a generalized spin-glass system including interactions up to the -th order:
where is the edge-set of the interactions in the hypergraph. For simplicity, in this section we first build our algorithm for systems with pairwise interactions. We will provide the generalization to high order interactions in Sec. IV.
Let’s start with running any state-of-the-art Monte Carlo sampling techniques, such as replica-exchange MC or parallel tempering (PT) katzgraber_introduction_2011, to arrive at a fairly high-quality spin configuration at a given replica. If the running time of PT is sufficiently long, then the state will likely be a low-energy configuration close to a minimum of the energy landscape and departing from such configuration would be difficult with PT and practically impossible for Monte Carlo replicas at fixed low temperatures. Even if is low enough to satisfy our goals, it is often useful to find a diversity of configurations of the same low energy. Recently, a notion of diversity measure for spin glasses has been introduced which can be enhanced for low-dimensional systems using inhomogeneous quantum annealing schedules guided by approximate tensor-network contraction preprocessing mohseni_diversity_2021. However, there is no known technique for how to enhance the diversity of solutions over general problems living over arbitrary hypergraphs. To this end, we would like to propose nonlocal cluster moves involving a large number of spin variables. It is known that cluster algorithms for strongly disordered systems do not work because strong correlations (used to define clusters) percolate at a wide range of temperatures zhu_efficient_2015. To avoid percolation, we resort to heuristic approaches that might not satisfy the detailed balance condition, but could be very effective if the proposed change has with Hamming distance .
The main idea of this work is to compute the local properties of the energy landscape and use that information to build nonlocal moves in the configuration space. It should be noted that we are in a discrete space and we cannot simply compute derivatives to get an idea of local geometry, thus we need to estimate the corresponding measures that are first and second order marginals, namely magnetizations and correlations. Unfortunately, standard MCMC sampling schemes katzgraber_introduction_2011 are not reliable to provide good estimates of such local quantities as their dynamics are designed to recover ergodicity, and thus often wander among few different metastable states. Ironically, the key challenge in discovering the possible nonlocal moves is to remain sufficiently close to the reference configuration in order to get reliable local information that can eventually help “jumping out” or “escaping” from the low-energy minimum along a low-energy saddle. This most probably will bring the system close to a different and far away low-energy basin of attraction.
To discover local information on frozen variables, we keep the reference configuration fixed and introduce a surrogate variable r that initially are set equal to . In order to use the surrogate variable r as a probe of the local energy landscape, we evolve it according to the following biased surrogate Hamiltonian , where
denotes entrywise product between an inhomogeneous vectorand reference configuration . For large the surrogate system will stay very close to the reference configuration, while for the surrogate system becomes an independent replica. It is more convenient to factor out a global scaling parameter to control the radius of sampling with respect to the reference configuration; that is we rescale as where is now fixed and only can vary to control locality of surrogate Hamiltonian. Here, we define and initially set to ensure that the initial for each site is large compared to the energy scale of the site. This inhomogeneous construction of the vector guarantees the locality of the surrogate Hamiltonian over certain core variables for problems with highly heterogeneous underlying graph topology: namely variables with many edges and/or very strong couplings; e.g., the hubs in the scale-free networks with small-world properties barabasi_emergence_1999. We can recover the limit that the surrogate system could act as an independent replica for . More explicitly the surrogate local Hamiltonian becomes:
Magnetizations and correlations of the surrogate Hamiltonian variables depend on , but we are interested only in the ordering of variables according to some criterion (e.g., decreasing order in magnetization or correlation). Such ordering is preserved in a broad range of . This will allow us to introduce a robust mechanism for thresholding correlations to capture the degree of rigidity among variables for a variety of replicas in a fairly large range of temperatures.
Iii Efficient sampling of localized surrogate Hamiltonians via LBP
Belief Propagation (BP) is an iterative message-passing algorithm that solves the self consistency equations obtained within the Bethe approximation, and thus computes approximate marginal probabilities on small sets of variables (e.g. magnetizations and correlations) BP03. In this context it is similar to tensor-network contraction techniques in quantum many-body physics. Indeed, both techniques can be captured as variants of the Bethe-Peierls approximation in statistical physics Arad_tensornetwork_BP_2020. BP is known to be exact only on trees or when graphs have at most one loop MezardBook. The convergence and reliability of BP can also be understood in terms of the Bethe approximation which is exact on trees. Generalized Belief Propagation (GBP), inspired from the Kikuchi cluster variational approximation to the Gibbs free energy, can be efficiently extended to situations where there are many frustrated loops, but all such loops need to be local BP03. Unfortunately, the complexity of the GBP algorithm grows exponentially with the length scale of the frustrated loops. In practice, however, one can apply BP to loopy graphs, namely Loopy Belief Propagation (LBP), which can return highly accurate local marginals in problems where connected correlations decay fast enough along the interacting graph. This actually corresponds to models having a single pure state MezardBook.
In this work, we show that by properly rescaling the inhomogeneous vector as a localizing penalty term in the Hamiltonian, we can control the surrogate problem to be sampled from the pure state or the basin of attraction that belongs to. Thus, we can safely use LBP for our surrogate Hamiltonian given by Eq. 2. For energy functions with pairwise interactions the measure to be sampled is proportional to
This is a general Ising model, where the external field has been modified by the presence of the coupling with the reference configuration. The corresponding LBP equations are the following:
where is the set of neighbors of . These are equations in the so-called cavity fields and can be solved e.g. iteratively. From the solution of the above equations one can obtain the magnetizations as:
and correlations between nearest neighbors, i.e. for :
It is known that a much better estimate of correlations can be achieved via linear response; however, this requires a slower algorithm than LBP.
In order to estimate and for many different values of , we perform LBP in an adiabatic fashion by starting from a large and initialize the LBP messages as and . After estimation of magnetizations and correlations at each step, the value of is gradually decreased, but we do not reinitialize the LBP messages: indeed changing by a small amount leads to small changes in solution, and thus we can converge quickly if we start from the previous solution to LBP which is obtained in the previous step.
When becomes too small the surrogate Hamiltonian will start sampling from configurations that are outside the pure state that belongs to. This may lead to either very small values of the overlap with the reference configuration
or lack of convergence of the iterative method to solve the LBP equations. In the latter case, we then use the information collected in the previous iteration.
A possible criterion to understand the range of values of leading to a sampling within the pure state – that belongs to – involve the comparison of the overlap with the self overlap
Indeed if both and are typical configurations of the same state the equality holds. In App. B, we provide an alternative sampling techniques by cloning Monte Carlo replicas over localized surrogate Hamiltonians. However, this MC-based approach is not as efficient or as reliable as LBP, since it does not guarantee a linear scaling with input size nor provide any signal if we have left the basin of attraction, which is characterized by , in an uncontrolled way.
Iv Efficient sampling of k-local surrogate Hamiltonians
Before constructing the surrogate backbones and nonlocal moves using the knowledge of LBP, we first consider a generalization of problem classes from 2-local to -local Hamiltonians. In this context, the key ingredients of our algorithm, such as the construction of localized surrogate Hamiltonians and LBP evaluations described in the previous sections, require generalization to higher interacting systems with . These generalizations are important from both fundamental and practical perspectives. They provide us the flexibility of choosing hard benchmark problem instances. Many industrial Max-SAT problems, including those in international SAT and Max-SAT competitions, usually involve clauses with variables. Random k-SAT problems near the computational phase transition exhibit average-case hardness involving a first order phase transition for . The k-local formalism also allows us to implement both the replica-exchange MC and LBP subroutines directly on the CNF formulation, as we show in Sec. VIII and App. C. This considerably reduces the computational overhead of mapping or embedding the problems to 2-local Ising models, so the algorithm can be implemented much more efficiently and be numerically benchmarked for significantly larger problem sizes involving or more variables. Moreover, these generalizations could be used to abstract-out the advanced spin-glass physics.
In the first step, we change the representation of the generalized spin-glass systems to be modelled as factor graphs. We then generalize our LBP calculations on the surrogate k-local Hamiltonians, including calculations of k-local correlation functions to be able to grow clusters of rigid or frozen variables.
The factor graph is a bipartite graph where edges connect factor nodes in the set with variable nodes in the set. Let us write the generalized Ising model over a factor graph as:
where is the set of all vertices, each one representing a single Ising variable; and is the set of all factor nodes, each one representing a particular multi-spin interaction. We mostly adopt the notations for factor graphs that are consistent with Ref. MezardBook. In this notation, is the set of variables entering in the -th interaction. For pairwise interactions , while for -spin interactions . Sometimes, we may use a shorthand notation for the external field, , but we remind the reader that whenever we are dealing with the surrogate Hamiltonians, one has to substitute .
LBP on factor graphs requires keeping track of two distinct types of messages, those from a vertex to a factor node , , and those messages from a factor node to vertex , . These messages satisfy the following equations:
where is the set of factor nodes connected to vertex and is the set of variable nodes connected to . At convergence the LBP messages can be used to infer local marginals as follows
Pairwise correlations bring almost no information in high-order interacting models. The lowest order non trivial correlation is the following
where the first and higher-order marginals can be used to discover the backbones by imposing a threshold cutoff based on certain general criteria as we will describe in Sec. V. A generalization of our k-local algorithm for the general factor graph on CNF is presented in the App. C.
V Generating backbones of rigid variables
Here, we outline our main algorithms for growing clusters of connected variables based on LBP sampling. In App. D, we outline two alternative methods for creating disconnected clusters that are using simple thresholding of the 2-point correlation functions, and illustrate the basic concepts, but they are not very effective in practice. The main method that we employ in our simulations and benchmarking has a direct physical interpretation. In this method, we grow connected clusters of correlated spins that are forming the backbones of surrogate Hamiltonians and can be understood as droplet-like excitations of the original spin-glass problem.
In all of our cluster growing algorithms, we first strongly enforce the locality of surrogate Hamiltonians by initially pining each to the basin of attraction characterized by re-scaled by an inhomogeneous vector, with large enough . Each entry in the epsilon vectors is set to to ensure that the initial epsilon for each site is large compared to the energy scale of the site. These inhomogeneous vector guarantee the locality of surrogate Hamiltonian over the key variables. These heavyweight variables likely belong to the unknown backbone of the problem, but that is not always the case within each pure state of a given replica. Next, we calculate the initial LBP messages and by doing one iteration over the LBP equations, within the large limit, of and . We then reduce incrementally and update the LBP messages accordingly. The criteria for stopping the LBP and how to grow the cluster of rigid variables vary among various strategies for growing clusters.
In our main strategy in this work, we grow a set of connected clusters that provide a direct physical interpretation as a generalization of the droplet excitations which are traditionally studied in the low-dimensional spin-glass systems and recently being characterized by approximate tensor-network contractions for quasi-2D spin glass systems with local fields rams_tensors_2021; mohseni_diversity_2021. Historically, the droplet picture for excitations was first introduced in the context the Edwards-Anderson model of spin glasses by D. Fisher and D. Huse fisher_equilibrium_1988. In simple terms, droplets are the cheapest spin cluster measured in terms of excitation energy. In principle, if one could efficiently evaluate partition functions exactly, one could use such enormous computational power to create droplets following these steps: one could first evaluate the ground state according to free boundary conditions which yields a reference spin configuration. Then one would fix some boundary spins and flip a random (central) spin, and calculate a new ground state accordingly. Thus, the droplets could be fully characterized by finding the orientation of the spins in the new ground state relative to the reference spin configuration. In finite temperatures, droplets are a collection of highly correlated clusters of variables that are highly likely to be separated from the rest of variables by domain walls or topological defects. These droplets could have compact or fractal boundaries organizing themselves into geometries with embedded hierarchy; sometimes resembling sponge-like structures. Recently, we have used strong-disorder renormalization group and approximate tensor-network contraction techniques to estimate the boundary of droplets for quasi-1D and quasi-2D spin-glasses with local fields mohseni_engineering_2018; mohseni_diversity_2021. That information was used as a preprocessing step to develop inhomgeneous quantum annealing algorithms for low-dimensional Ising Hamiltonians with significant speedup. Our work here generalizes such works to higher dimensional systems by dynamically estimating such droplet boundaries during the runtime of our algorithm.
Algorithmically, in the context of this work, a droplet is basically a large cluster of rigid variables that would not flip via local moves in polynomial time unless the temperature is increased. When local and homogeneous MCMC algorithms are employed, the structure of low-energy states can manifest itself as local fluctuations and adjustments/relaxations over a power-law distribution of droplet sizes. The relaxation time for each droplet grows exponentially with size of the droplet and could be understood as one important mechanism behind extremely long aging of spin-glass systems111It is fair to say that energetic barriers are not the only bottleneck to relaxation in frustrated models, as entropic barriers can play an important role as well bellitti_entropic_2021. Here we employ LBP on the surrogate Hamiltonian to efficiently estimate the boundary of such droplets on the original problem. This could provide a significant computational speedup, since we can control collective spin updates over such droplets causing significant variations in Hamming distance in configuration space, while keeping the energy of the overall systems fairly constant within a target approximation ratio. This nonlocal mechanism for state transitions in a low energy mini-band can be seen as a classical analogue to quantum many-body delocalization algorithms introduced recently Smelyanskiy_MBDL_2020, although they rely on fundamentally different many-body effects.
Here, we first find the smallest possible global , characterized by the scaling factor , in which LBP iterations still converge within some desired precision, and calculate the single and higher-order marginals according to Eqs. (12) and (13). We then define effective interactions/couplings for 2-local and k-local Hamiltonians as:
where and denote the effective coupling and the effective factor node that corresponds to interactions and factor node in the original Hamiltonians respectively, and and are two or higher order correlations calculated with LBP. These effective couplings are the key variables that are used for quantifying the rigidity of variables and will be compared against the correlation thresholds for growing clusters.
In order to grow connected clusters/droplets, we set up two different correlation thresholds that are typically a few percent apart from each other. The first one which we call the seed correlation threshold is used to find the seeds of the surrogate backbones. The second one, which we call the correlation threshold cutoff, determines the size of such clusters. Specifically all variables with effective couplings larger than the seed correlation threshold are selected as a nuclei or seeds to form a cluster. From each seed a connected cluster is grown by adding all neighboring spins connected to a seed spin with effective couplings above correlation threshold cutoff. The next spins to be added are those spins outside the cluster that are connected to one or more spins inside the cluster and their effective couplings or marginals are above the threshold cutoff. This is repeated until the correlation between new spins outside the cluster and spins inside the cluster drop below the correlation threshold cutoff and no more spins can be added to the cluster. Then, we move to the next seed and grow it to maximum size such that all effective interactions within the droplet are above the correlation cutoff. We repeat this procedure until there is no more large effective couplings which can qualify as a seed for a new droplet. For alternative strategies to grow disconnected clusters see App. D.
Vi Correlation threshold cutoff
The correlation threshold cutoff is the key parameter in our algorithm which significantly impacts the size and shape of surrogate backbones and consequently the efficacy of the cluster updates or nonlocal moves. There are several important aspects of the correlation threshold that we have examined: (i) We have empirically verified, over several different problem classes, that there exists an acceptable value of the correlation threshold cutoff such that the surrogate Hamiltonian backbones can have meaningful large sizes without percolating (e.g., between to ); (ii) we have found that the value of the correlation threshold is robust over a wide range of values; i.e., emerging clusters do not percolate suddenly from very small clusters to very large ones in a very small range of values for the correlation threshold cutoff, see App. E; (iii) we have observed that, within the acceptable range of correlation thresholds, we could grow backbones that lead to useful nonlocal cluster moves to accelerate the sampling for a single MCMC replica, see App. E.
In our numerics we have adopted two alternative approaches to tune the optimal value(s) of the correlation threshold within an acceptable range. In the first approach, we use a machine learning technique to train a black-box hyperparameter optimizer. This tool, which is publicly offered by Google cloud platform, known as “Vizier ”which predominantly employs a Bayesian learning toolbox, such as Gaussian processesgoogle_vizier. This approach is more effective in finding the optimal value of the correlation threshold on the runtime in an instance-wise fashion as we demonstrate for solving hard instances of QAP in Sec. VIII. In the second approach, which was adopted for solving hard random 4-SAT instances near phase transition, we develop a quantum-inspired approach and “adiabatically” anneal the values of the correlation thresholds from relatively low values (with cluster sizes of ) to very conservative values near unity (with the maximum size of clusters in single digits). For more details on this variant of NMC algorithm see App. F. We will discuss how the NMC algorithm will arrive at its nonequilibrium steady state in the section.
Vii Nonequilibrium inhomogeneous sampling over subgraphs
In this section, we describe our inhomogeneous MCMC algorithm and discuss its nonequilibrium steady states. We first focus on the simplest possible scenario which is a single replica in a single round of APT. Using our estimation about the backbone’s boundary in a given basin of attraction, we construct two different Markov chains at two different high and low temperatures for variables inside and outside of the backbone respectively. In our numerical study, the temperature of backbone variables is typically elevated from the rest of variables by a factor of 2 to 10, although extremely high temperatures could become beneficial for certain backbones. We then iterate between these two Markov chains with a relatively high frequency. Since any finite Markov chain whose transition probabilities do not have an explicit time dependence admits a stationary distribution, both chains in each iteration are able to arrive at a new stationary state over their corresponding subgraphs, which asymptotically lead to a steady state for the combined system. Next we argue how our algorithm can robustly sample from the relevant low energy manifold of the problem, despite not satisfying a global detailed balance condition.
Let’s assume that we can perfectly identify all the frozen variables; that is, we can grow the correct backbone for each localized surrogate Hamiltonian after thresholding the marginals. Given that assumption we argue that each of the two inhomogeneous MCMC for two induced subgraphs (backbone and non-backbone variables), for a given replica in a given cycle, can efficiently sample from their corresponding low energy states. We note that the inhomogeneous (high-T) MCMC by construction obeys detailed balance over the subgraph defined by the backbone and thus has a stationary state. Thus in principle we will be able to sample in a reversible fashion from all the basin of attractions corresponding to the low energy configurations of that backbone. We also note that for each basin of attraction we are sampling over the complement graph with another MCMC (over those variables not in the backbone). By construction, this second (low-T) MCMC also satisfies detailed balance, implying efficient sampling from low energy states corresponding to a single basin of attraction. Therefore, by iterating these two MCMC, over all the replicas residing in various base temperatures in various APT rounds, we are reversibly sampling all their basins of attraction and their low energy states asymptotically. Therefore, we are effectively sampling all the relevant low energy states that can make major contributions in evaluating the partition function without strictly satisfying detailed balance globally, assuming we have full characterization of the backbones.
Given the fact that we cannot directly verify the ground truth for the surrogate backbones, in practice we invoke unlearning phases in which we apply standard (local and homogeneous) MCMC frequently (after each application of the inhomogeneous MCMC) to mitigate the inductive bias in our model for the backbones and thus smooth out our sampling mechanism. Consequently, we can asymptotically arrive at a global steady state which essentially captures the important low energy properties of the original problem. This leads to a robust performance of our algorithm as evident by our numerical simulations. In fact, NMC exhibits significantly less fluctuations for the best seen states across several repetitions compared to standard APT, while capturing significantly higher diversity in exploring the configuration space within one repetition. This is numerically verified using the whitening procedure (see Sec. IX).
Viii Numerical simulations
We have applied our framework to several classes of discrete optimization problems. Here, we mainly focus on reporting numerical simulations on two important and well-studied classes of hard discrete optimization problems: Random K-SAT moore_nature_2011, and Quadratic Assignment Problems (QAP) burkard_QAP_1998
. In the first class, we studied random 4-SAT problems with 5000 variables deep into the rigidity regime. In the second class we benchmarked our algorithm on random QAP instances, with sizes ranging from 256 to 1600 binary variablesdrugan_generating_2015, as well as some industrial instances from the QAPLIB public library burkard_qaplib_1997. We also applied NMC algorithm to other combinatorial optimization problems with various dimensionality and structure. We observed that our main algorithmic subroutines for finding frozen variables, discovering computationally relevant surrogate backbones, and building useful inhomogeneous MCMC perform reliably across different problem classes. In App. E, we provide a few examples from structured instances with local fields on the Chimera graph, based on the architecture of the D-Wave quantum processors with quasi-2D geometry, and other structured instances from weighted Max-Cut problems.
For various problems we have generally employed three main performance metrics: (i) quality of the solutions (e.g., number of violations, approximation ratio, or the residual energy) obtained in a given time, (ii) success rate per run/repetition, and (iii) time to arrive at an approximate solution with a desired quality. For the random 4-SAT problems we additionally investigated the existence and size of frozen clusters in the best found solutions using a whitening procedure parisi_local_2005. We compared the performance of NMC against various generic stochastic solvers such as APT and WalkSAT, and several best known deterministic SAT solvers, based on Conflict Driven Clause Learning (CDCL) biere_handbook_2021 or core-guided Max-SAT solvers, such as MiniSat Goos_extensible_2004, RC2 rc2_2019, EvalMaxSat, and state-of-the-art specialized message-passing solvers such as Survey Propagation and BSP marino_backtracking_2016 (for a summary of SP and BSP algorithms see App. G). The benchmarking was performed on Google’s distributed computing platform borg_2015 and the automatic hyper parameter optimization was performed with Vizier google_vizier.
viii.1 4-SAT Problems Near Computational Phase Transitions
The Boolean Satisfiability (SAT) pulina2020theory; yolcu2019learning is the problem of determining if there is an assignment that satisfies a given Boolean formula. A Boolean formula is any operation made with Boolean variables, where each variable can take the value or , or respectively. For example, a CNF (conjunctive normal form) chang2021boolean formula is a conjunction of one or more clauses, where a clause is a disjunction of literals. When there are exactly literals for each clause in a CNF formula, the problem is named -SAT. A CNF formula is satisfiable if and only if the Boolean variables’ configuration satisfies all the clauses simultaneously. The -SAT problem for is central in combinatorial optimization: it was among the first problems that were characterized as NP-complete cook1971complexity; garey1979computers.
The maximization problem associated with -SAT is called MAX-E--SAT. In this case, a solver tries to satisfy the maximum number of clauses given a CNF formula of the
-SAT problem. The MAX-SAT is of considerable interest not only from the theoretical side but also for applications. For instance, software and hardware verification problems, automated resonating, and several open problems in artificial intelligence such as training and inference in graphical models can be expressed in the form of satisfiability or some of its variants. From the theoretical point of view, the MAX-SAT problem is studied to give optimal inapproximability results. For the-SAT problem, the most important work given for inapproximability was due by Håstad in 1997 haastad2001some. He proved optimal inapproximability results, up to an arbitrary , for MAX-E--SAT with . The approximation algorithms do not tell us how well we might be able to do, instead they will tell us how hard is to satisfy the sufficient condition for the worst-case, i.e., how badly we might perform. Here, we want to explore how well we can approximate k-SAT for smallest value of , that is , such that even median instances are hard to solve for sufficiently dense clauses to variable ratio near the computational phase transition montanari-clusters-2008.
In order to benchmark our algorithms on random 4-SAT instances, we developed an adaptive PT that works directly on the CNF formulation with arbitrary k-local clauses. We obtained 10x wall-clock time speedup by running PT directly on CNF instead of an Ising formulation of the problem. We then generalized the LBP algorithm for general factor graphs representing a k-local CNF formulation. Here, we provide a summary of the main results; for more details see App. C. Using the notation introduced in Sec. IV, the LBP equations over a CNF Boolean formula, for messages from variable/literal to clause and from clause to variable/literal , can be written as:
where denotes the set of clauses in agreeing with clause on what values should take. Similarly, denotes the set of clauses in disagreeing with clause on what values should take. The messages from clause to variables, , satisfy:
Using the above relations, the local magnetization or polarization of variables becomes:
The high-order correlation function is obtained as:
where are the set of constants that define the constraint represented by clause involving k variables.
We generated 100 random 4-SAT instances each containing 5000 variables with a clauses to variables ratio of . These instances are essentially deep into the rigidity region, with the rigidity threshold of estimated with cavity methods montanari-clusters-2008; marino_backtracking_2016. At this value of for the 4-SAT near the SAT/UNSAT computational phase transition, the instances are believed to be median case NP-hard and exhibit random first order phase transitions, whereas the 3-SAT instances are worst-case hard and undergo a second order phase transition montanari-clusters-2008. Thus one expects that generic SAT or Max-SAT solvers, such as APT or CDCL-based algorithms experience an exponential increase in runtime to solve these 4-SAT instances, or approximate with a constant cost, even for typical cases. Indeed, we have also tried several generic solvers including MiniSat Goos_extensible_2004, RC2 rc2_2019, and EvalMaxSat, that have been among top performing solvers over previous years of SAT and Max-SAT competitions in many different categories. Neither solvers could generate a meaningful output on any of the instances in several weeks. Thus, these instances exhibit exponential hardness for these classes of deterministic SAT or Max-SAT solvers as expected. In general, SP and BSP are recognized as the current best solvers for this class of problems at sufficiently large sizes marino_backtracking_2016. Thus, here we mainly focus on comparing and contrasting the best approximate solutions and the minimal number of violations computed by NMC, APT, SP, BSP, and WalkSAT algorithms.
Fig. 3 shows the number of violations, or cost, for each instance using NMC at total sweeps in comparison with best solutions found by SP. We note that NMC outperforms SP on 95% of instances and could solve 75% of them within an approximation ratio of , which is equal to having 5 or less violations from a total of clauses. In contrast SP is able to solve only 30% of all instances within the same approximation ratio, and no instance to ground state. For the hardest 10% instances the quality of solutions are improved by NMC algorithm by an order of magnitude. Since SP is a deterministic solver, the hard instances that can not be solved in a target approximation ratio remain inaccessible by this solver irrespective of any arbitrary additional computational time.
In order to be conservative on our estimation of the approximation ratio, we assumed all instances are satisfied at this which is smaller than the critical SAT/UNSAT value of . However, this is not the case for some of the instances as they are not strictly at the thermodynamic limit. More importantly, the outcome of the NMC algorithm is very robust as the worst case result is close to the median. This is expected for standard MCMC-based algorithms, but in our new algorithm the proposed moves are more nonlocal and keep the system out of equilibrium - a situation where one would have expected more sample to sample fluctuations. On the contrary, there are significant fluctuations in the performance of SP, as well as BSP, across various instances as we will discuss below and in App. H.

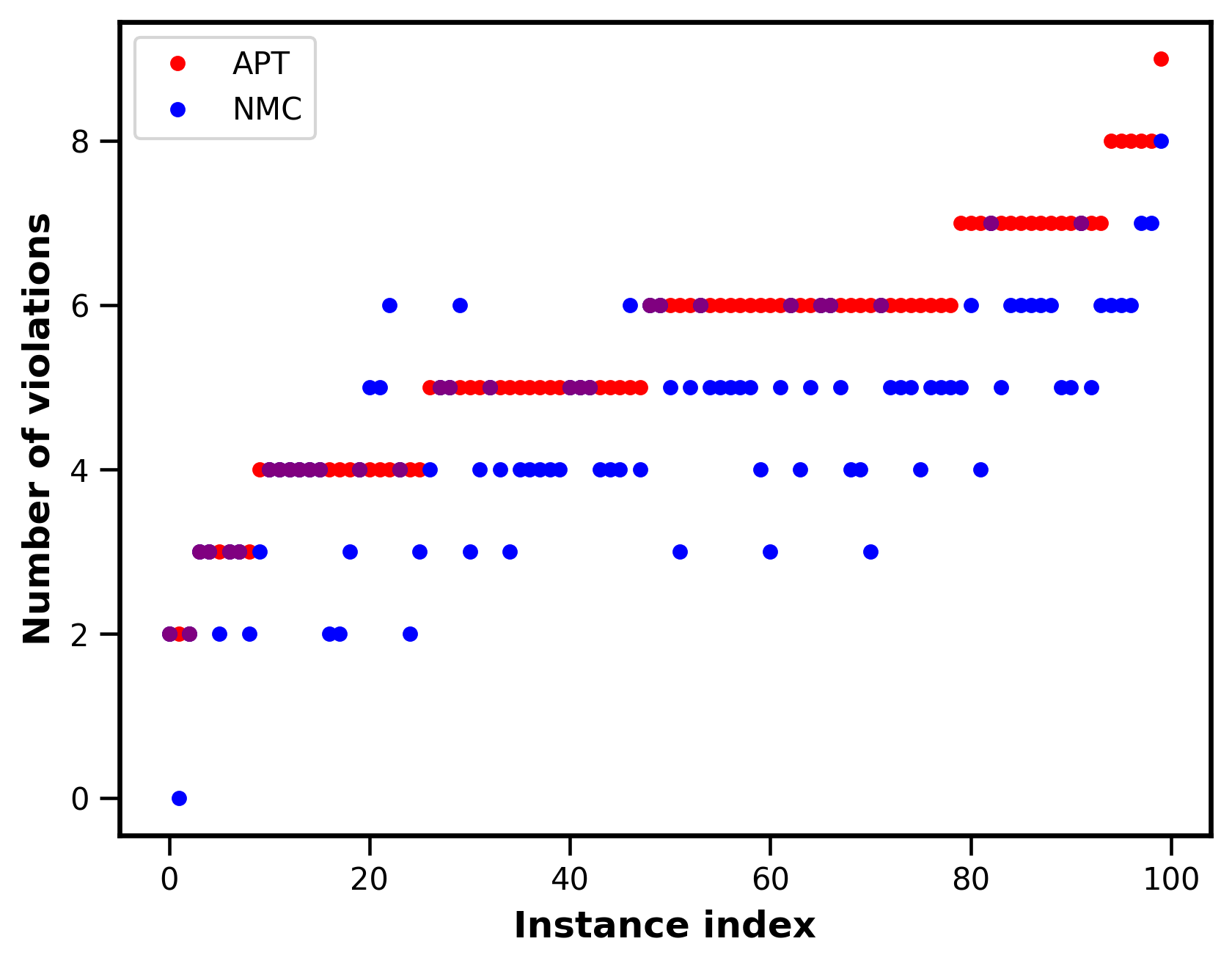

An instance-wise comparison of APT and NMC is presented in Fig. 4, for best of four repetitions at sweeps, where NMC matches or outperforms APT for 95% of instances. For random 4-SAT at the rigidity threshold and very low approximation ratio of about resolving every single violations often amounts to an order of magnitude increase in computational resources for local stochastic solvers such as APT. We note that NMC additional subroutines, including LBP runs and inhomogeneous MCMC sweeps, usually add up to a computational overhead of 5% to 15% on top of the baseline APT for these instances.

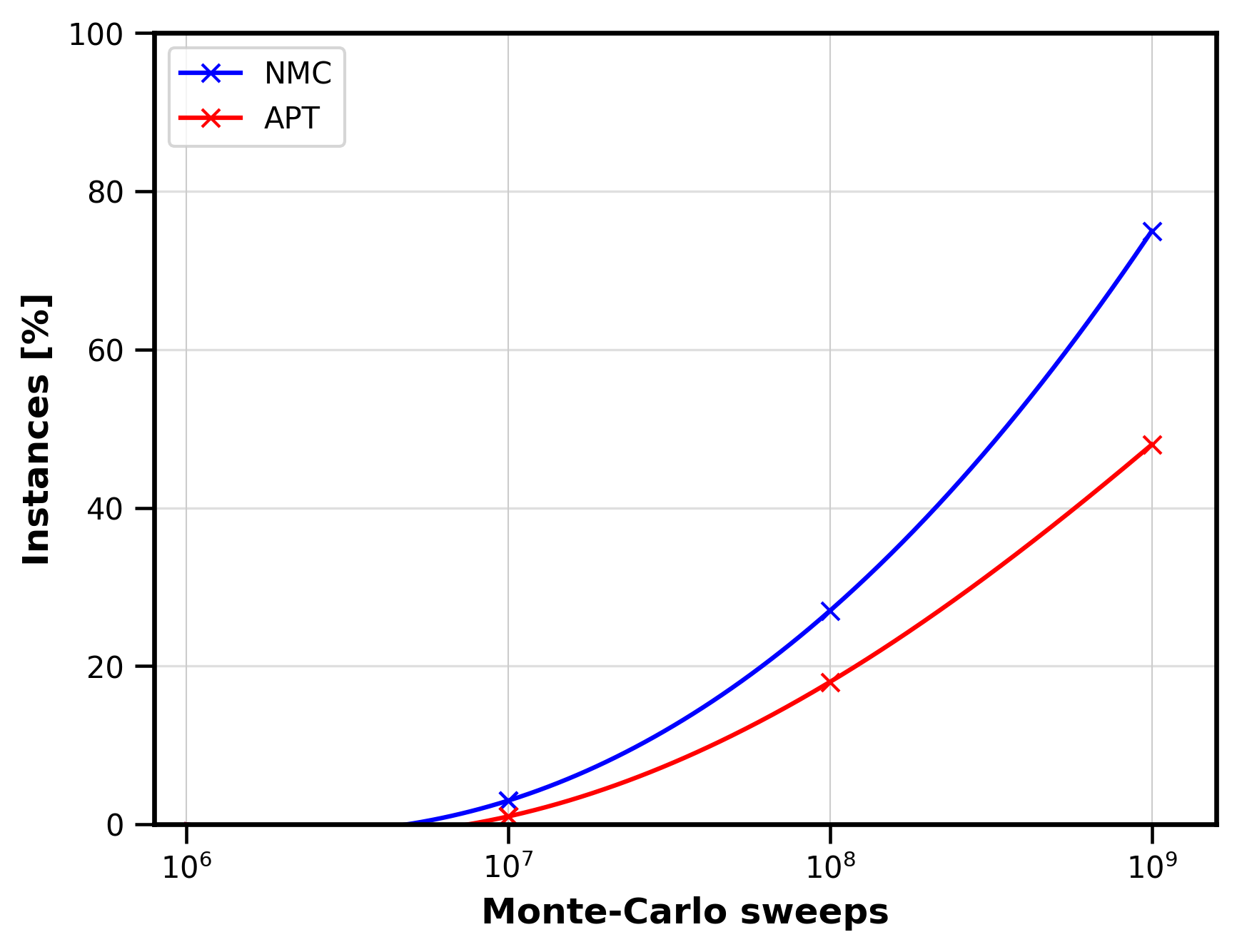

The fraction of instances that were approximated by APT and NMC as a function of the number of sweeps is shown in Fig 5, where nonlocal moves become significantly more advantageous as we employ more MC sweeps to tackle increasingly harder instances. We observe that a majority of instances remain out of reach for APT as we increase the computational effort by orders of magnitude but the nonlocal strategy keeps finding high quality states for harder instances, presumably penetrating exponentially tall barriers created by large frozen backbones. In order to quantify the underlying cause of slowdown for APT, we use a technique known as whitening procedure (see Sec. IX for more details). Using this approach, we characterize all high quality solutions that are obtained by NMC and observe that 74 instances contain a frozen backbone of size , where a great majority of such frozen clusters are absent for solutions found by APT. For some of these instances, the cluster of solutions with frozen backbone were not observed with the APT algorithm even with up to repetitions. We present the cumulative percentage of instances that were approximated with NMC, APT and SP for a given number of violations in Fig 6.

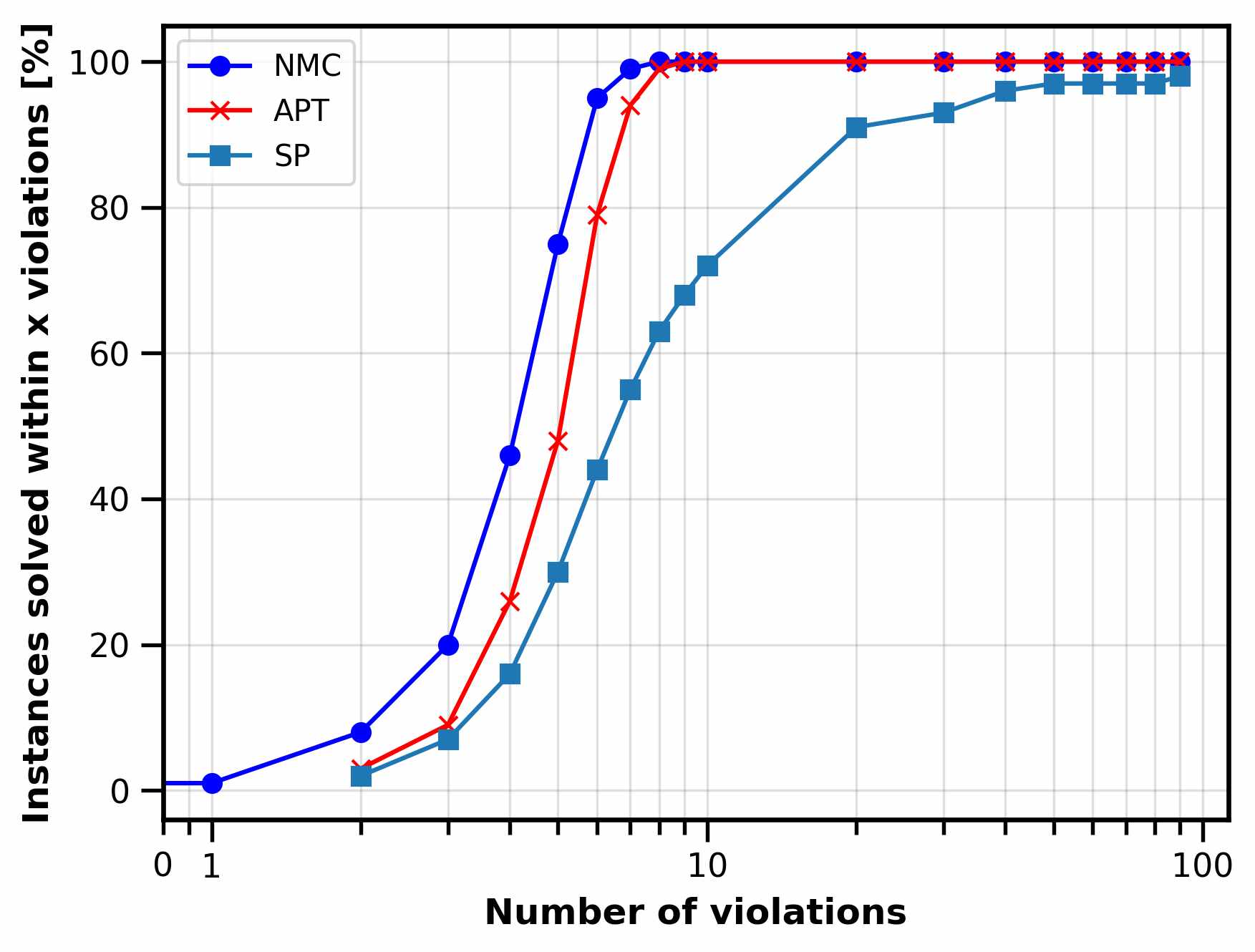

We have also investigated the performance of BSP as the best known specialized stochastic solver for random k-SAT problems. BSP consists of an important stochastic procedure that ideally compiles the original formula into smaller and easier residual formula that can be efficiently handled by a standard WalkSAT solver. BSP employs the information, or beliefs, that become available at the fixed point of standard SP to build this stochastic procedure by applying iterative Survey-Inspired Decimation (SID) or backtracking over subsets of variables with higher marginal probability distributions. For a short description of SP and BSP algorithm see App. G.

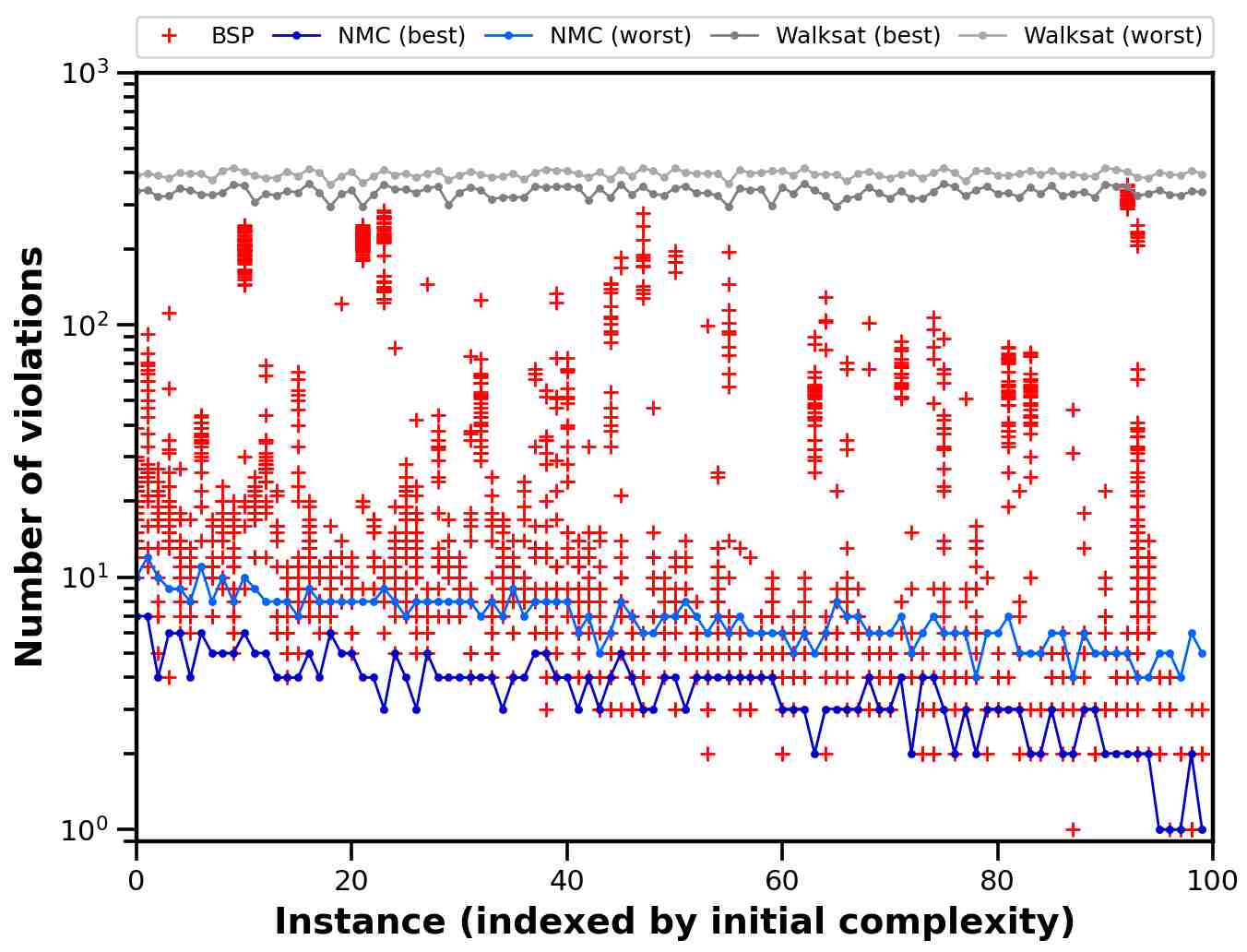

The number of violations obtained for up to 50 repetitions of BSP and NMC and 200 repetitions of the standard (pure) WalkSAT algorithm are shown in Fig. 7. We observe significant performance fluctuations for BSP in various repetitions across all instances. The wall-clock time of BSP for each instance was about five hours, for a high backtracking rate of marino_backtracking_2016, which is a factor two faster than a typical runtime of NMC (between blue curves). The WalkSAT runtime is comparable at 12 hours per instance. A typical run of NMC finds solutions between one to two orders of magnitude better than the best of WalkSAT runs for all instances. We can also see that BSP performs much better than WalkSAT on the best repetitions but their worse runs could become comparable to WalkSAT for about 30% of instances. The strong fluctuation of BSP is indeed related to the size of the residual subformulas when WalkSAT is applied, see App. H. Whenever the residual formula is constituted by a small number of clauses, the WalkSAT can return excellent results. However, for a large number of residual clauses, it becomes practically impossible for WalkSAT to find a high quality assignment for the subformula leading to a large number of violations. The latter cases are indeed computationally as inefficient as a pure WalkSAT run on the original formula.
Remarkably, the best performance of BSP runs is strongly correlated with initial complexity of each instance (see detailed discussion in App. H). To highlight this feature in Fig. 7, we have ordered the instances according to their intial complexity, , that can be estimated using standard SP on original problem/formula before any decimation. The complexity is related to the number of clusters of solutions as:
and is the length of clause (initially ). Here or are messages or surveys in SP that can be interpreted as the probability that the clause (variable ) sends a message to variable (or clause ) respectively parisi2003probabilistic; maneva_new_2007; see App. G for more details. We note the number of violations for best run of BSP are inversely proportional to instance complexity. In App. H, we consider this initial complexity as a candidate for instance-wise hardness measure and discuss the origins of the instance dependent large and small fluctuations for BSP and NMC respectively.
Here, it is worth stressing that in the present work we have done a comparison between NMC and BSP running in the playground which is in principle ideal to BSP, that is random -SAT instances. Indeed the BSP algorithm has derived from the SID algorithm (see App. G), which is based on the analytical solution to random -SAT problems obtained via the Bethe approximation and the cavity method. Such an approximation is valid for graphs which are locally tree-like and random graphs have this key feature. Moving away from random instances we expect BSP, as well as any message-passing algorithm based on the Bethe approximation, to perform much more poorly. In particular, SAT instances derived from real world application (e.g. industrial instance in the SAT competition) are often rich in loopy structures and motifs that make them far from random instances.
On such non-random instances we expect BSP to face several problems and limitations. Indeed, the presence of short loops breaks the main assumption underlying the Bethe approximation, where one assumes the probability distribution over the neighbours of any given variable can be factorized once conditioning on the value of on itself MezardBook. The breaking of this factorization assumption generates correlations between cavity messages arriving on variable , which in turn have two main effects on the corresponding message-passing algorithm: (i) the iterative solution to the cavity equations may not converge to any fixed point and (ii) even if convergence is achieved, marginal probabilities may be poorly estimated.
The lack of convergence of message-massing algorithms has been clearly measured in the low temperature phase of disordered models, where the effect of frustration becomes particularly strong parisi2014diluted. The lack of convergence is enhanced if the model is defined on a regular lattice, or problems with fully connected graphs, due to the presence of many short or intermediate-scale loops dominguez2011characterizing. Moreover the presence of loops makes marginals often inaccurate and thus their use (e.g. in inference problems) may lead to poor results ricci2012bethe. We expect all these problems to arise when running BSP on non-random SAT instances, or problems with underlying structured scale-free networks, or other high-dimensional problems. For all of those applications, such as QAP that we will study in the next section, SP and BSP will not be competitive with NMC.
viii.2 Quadratic Assignment Problems
QAP is one of the hardest discrete optimization problems, with variables often residing on a fully connected graph. Thus it serves as a practically relevant use case for our NMC algorithm on a high dimensional problem class burkard_QAP_1998. QAP was originally introduced by Koopmans and Beckmann as the problem of allocating a set of indivisible resources (e.g., economical activities or facilities) to a certain set of locations koopmans_assignment_1957. The cost of each particular allocation generally depends on the distance between facilities and their pair-wise flows plus the placement cost of a particular facility at a given location. The problem is finding the optimal assignment of the facilities to the locations that minimize the total cost. QAP is NP-hard and can be formulated as a Quadratic Integer Program, which is a generalization of binary Linear Integer Programming. QAP can also be represented by Quadratic Unconstrained Binary Optimization (QUBO) burkard_QAP_1998 which becomes equivalent to highly structured fully-connected spin-glass Hamiltonians containing significant disorder and frustration.
We first establish the performance of the APT algorithm on a set of random QAP problem instances as introduced in drugan_generating_2015. These instances are designed to be hard for both generic and specialized solvers and, by construction, their optimal solutions are known which greatly facilitates the benchmarking. In Table 1, we compare the performance of our APT against some well-known generic and dedicated solvers, including Tabu, Glim, Eilm, and GRASP, on 7 random QAP instances with various sizes from 256 to 1600 binary variables drugan_generating_2015. The best solutions found by each solver and their non-zero gaps to the optimal solutions were provided in Table 3 of Ref. drugan_generating_2015. Remarkably, the optimal solutions for all of these instances were obtained by our APT in only MC sweeps, which corresponds to a few seconds wall-clock time. In contrast the gap to optimal solutions varies from 5% to 80% for all other solvers across these instances. These results indicate that APT is a very effective generic algorithm to solve this class of random QAP problems, thus invoking nonlocal moves for these instances was unnecessary.
|% Gap to Ground State|
In order to explore the performance separation of our nonlocal NMC against local APT for structured problems, we have benchmarked them on some intermediate-size industrial instances, with thousands of variables and millions of interacting terms, from QAPLIB burkard_qaplib_1997, see App. I. We observed that NMC achieves two orders of magnitude speedup over APT for obtaining relatively high quality solutions of certain QAP instances, as both were tuned by a ML-based hyperparameter optimization framework known as Vizier google_vizier, see Fig. 18. Moreover, NMC demonstrated a robust performance such that on its worst worse runs it could beat the best APT runs over a wide range of time-scales, see Fig. 17, which is remarkable considering its inherent nonequilibrium nature.
Ix Whitening procedure for low energy states
One important question regarding the power of NMC for sampling discrete configuration spaces is to quantify how many rare high quality solutions can be reached that are practically inaccessible with other solvers. There are various ways to look at the distribution of solutions in configuration space, including generalized entropic measures, such as the Simpson diversity simpson_measurement_1949 and Renyi/Shannon entropies spellerberg_tribute_2003, or the Parisi order parameter MezardBook. Recently, a new metric to quantify diversity of rare solutions in combinatorial optimization was introduced in Ref. mohseni_diversity_2021. However, such measures do not directly quantify the size of frozen backbones in each solution. Here, we employ an approach known as the whitening procedure, originally proposed by Parisi parisi_local_2005, that finds a lower bound for the number of frozen variables for the ground state of -SAT problems marino_backtracking_2016, which we extend to low-energy states. For random 4-SAT near the computational phase transition, finding frozen cores of size via the whitening procedure indicates the existence of rarely observed low-energy solutions residing beyond energy barriers that are widely believed to be exponentially hard to penetrate marino_backtracking_2016. This is related to the concept of “overlap gap property ”, or topological barrier in solution space of random structures, that has been recently used to explain algorithmic gaps, or absence of polynomial performance for a large class of algorithms in a regime between condensation phase transition and the actual computational phase transition gamarnik2021overlap.
The whitening procedure is a deterministic algorithm for a systematic inspection of all variables in a known solution. It assigns the white label “” to any unfrozen variable, defined as those variables that can take different values without violating any clause in the Boolean formula. The procedure is iterative in nature and starts by inspecting one variable at a time and labeling it as a only if all the clauses that the variable belongs to are either already satisfied by other variables or have another variable. At each iteration, an increasing number of variables are labeled white until we arrive at the steady state. At this fixed point any remaining variables must be frozen, since by construction such variables should belong to at least one clause that is only satisfied by this variable and contains no variables. We note that the whitening procedure overestimates the number of white or variables, since it is essentially convexifing the cluster of solutions and thus provides a lower bound for the size of frozen backbones.
We generalize the whitening procedure to low-energy states by adding a single additional verification step: any clauses containing a candidate frozen variable (those variables that have not been marked at the steady state of the whitening procedure) must be satisfied by that variable. In other words, clauses that have been violated in a given low energy-state cannot report a frozen variable. This additional step increases the overwhitening nature of the procedure, as it could mark some extra variables where otherwise would be considered frozen in the ground state. However, the advantage of our approach is that whenever we report a low energy state with a frozen variable, the result will be a conclusive outcome; i.e., we do not have false positives when reporting the existence of frozen variables.
We used this whitening procedure to estimate the number of frozen variables in the low energy solutions found by our algorithm against those solutions found by the APT algorithm. In Fig. 8 (top), we show 73 instances that either NMC or APT could find the best low-energy solutions, within the approximation ratio of . We then computed the number of frozen clusters/backbones in such solutions that are involving at least variables. We note that for 75% of such instances the best seen solutions with frozen clusters were obtained by NMC versus about 3% for APT. For 10 of these instances that were solved with very small number of violations (less than 4), we observed that the assignments with large number of frozen variables that were routinely found by NMC for 70% of them, in just 4 repetitions, could not be found by APT even with O(1000) repetitions. In Fig. 8 (bottom), we focus on the remaining 27 instances when the quality of best observed solutions were the same for both solvers. We note that APT did not report multiple solutions with frozen clusters for any single instance. In contrast, NMC could find multiple frozen solutions for 60% of them, indicating a higher diversity, or better sampling, even when the performance of these two solvers matches with respect to the number of violations. We note that the lowest energy states found by a single run of SP (BSP) contained large frozen clusters for only one (three) instance(s) respectively.
Thus, the NMC algorithm robustly reports many more solutions with a large fraction of frozen variables. This illustrates the existence of a new build-in mechanism for sampling the low energy manifold of the configuration space which is different in nature than other solvers studied in this work. This is a strong indication that NMC is effectively able to surpass certain barriers and enter into low-energy states that would be eventually inaccessible to other samplers.
X Conclusions and future directions
In this work, we have demonstrated that the quantum-inspired Nonequilibrium Monte Carlo algorithm leads to effective shortcuts in configuration space, by unfreezing variables that are otherwise unresponsive to local moves at low temperatures. In this approach, we avoid the normal trade-off between exploration and exploitation via an adaptive interplay between two subroutines that are separately specialized for exploration and exploitation. More specifically, we use LBP on localized surrogate Hamiltonians to discover collective correlations among variables. We then build nonequilibrium inhomogenous MCMC for creating nonlocal updates to efficiently explore other possible basins of attraction in the configuration space. The interplay between these subroutines has the capacity for learning the correlations over discrete variables in different length scales.
We were able to get significant performance improvements over both generic and specialized solvers for QAP and random 4-SAT problems. In particular, for the 10% of hardest random 4-SAT instances we observed one or two orders of magnitude improvements in the quality of solutions over specialized solvers such as SP and BSP. The improvement in performance over local MC-based strategies, such APT, grows with the number of required MC sweeps leading to several orders of magnitude reduction in time-to-solution. This indicates that the larger and harder the problems are, the more benefit one will get from nonlocal moves. We quantified that the LBP subroutine only adds 5% to 20% overhead compared to local strategies and grows linearly with the size of the system.
There are several alternative algorithmic interpretations of our approach that might be worth discussing here. One can understand inhomogeneous MCMC as selectively flattening regions of the energy landscape that are related to the bottleneck energy barriers, without wiping out the other features in the rest of the energy landscape, as illustrated in Fig. 1
. In other words, inhomogeneous MCMC profiles with considerable maximum temperatures opens up saddle regions or crossways that can extend over a large area of configuration space and can be navigated with local moves. Alternatively, our approach can be considered as a new and generalized way of pruning the decision trees, in the same spirit of the CDCL-based SAT solversbiere_handbook_2021, for seemingly unstructured optimization problems. One can envision our approach as a generalized probabilistic version of deterministic approaches that use the locality of the underlying structure for computational efficiency. For example, tensor-network contractions for 1D, 2D systems, or BP over tree-like structures lead to efficient factorizing of the joint probability distribution, or efficient ordering of summations over the relevant degrees of freedom, by partitioning it over local regions. Essentially, we find a new approximate technique by inducing novel conditional independence of variables that are induced based on our instance-wise models of the backbone structures. This leads to a novel factorization over the localized subsystems, that are characterized by our surrogate backbones, even for high-dimensional strongly-disordered and highly-frustrated systems that do not have any apparent notion of locality. We note that such structures could be hidden to the known deterministic and probabilistic approaches, since the factorization of joint probability distributions is usually based on rather strong assumptions on the underlying symmetries, conditional independence and/or prior knowledge.
Overall, we believe that our algorithm could have wide range of applications for combinatorial problems, mostly as a subroutine in conjunction with existing high performant solvers, by essentially reducing the cardinality of the subset of worst-case instances, or reducing the algorithmic gap gamarnik2021overlap
. There are also significant challenges for learning and inference in structured graphical models with well-known computational bottlenecks related to the hardness of evaluation of marginal probability distributions or evaluation of partition functions. Thus, our approach could provide a new tool for approximate inference in Bayesian networks, Markov random fields, and training and inference in Boltzmann machines when known relaxation methods and variational techniques are ineffective. Recently, there has been a considerable interest in deep learning models with a mixture of discrete and continuous variablesoord2018neural. We believe that our algorithm can be incorporated as a new computational primitive in such models for sampling over discrete data structures with underlying complex multimodal distributions.
Acknowledgment.— We would like to acknowledge useful discussions with Edward Farhi, Giorgio Parisi, John Platt, Vadim Smelyanskiy, and Jascha Sohl-dickstein. We would like to also thank David Applegate, Frederic Didier, Daniel Fisher, Pawel Lichocki, Jarrod McClean, Jon Orwant, Benjamin Villalonga, and Rif A. Saurous for feedback on this manuscript.
Appendix A Adaptive Parallel Tempering
Models that have many local minima and high entropic barriers, such as spin glasses and hard optimization problems, are very hard to simulate. Conventional Monte Carlo methods with local updates get trapped within local minima and suffer from very long equilibration times. Cluster methods Swendsen_Wang87; Wolf89 do not work for such models because of frustration. Parallel tempering SwendsenWang1986; Geyer1991; HukushimaNemoto1996 is a generalization of the conventional Monte Carlo method. Many replicas are simulated at different temperatures. After a fixed number of conventional Monte Carlo sweeps, replica swaps are performed. This procedure is repeated many times. Parallel tempering has much faster convergence to equilibrium than conventional Monte Carlo. The acceptance probability to swap two replicas at adjacent temperatures and satisfies detailed balance and can be written as:
where is the inverse temperature and is the configuration energy.
The inverse temperature spacings should be chosen in such a way that the swap probabilities are not too high and not too low (typically, a value from the range is good enough). In general, a simple choice of geometrical schedule ( with fixed ) is not necessarily efficient in this respect. A temperature schedule that maintains the fixed swap probability that is independent of the temperature is much more efficient KoneKofke2005. A number of methods have been developed to construct such a schedule adaptively Kofke2002; Rathore2005; Predescu2004; Predescu2005. There are also methods that maintain denser temperature spacings in the vicinity of simulation bottlenecks such as phase transitions Katzgraber2006. In this work, we are not exploring the algorithm space for adaptive versus non-adaptive PT. The main objective is to devise an adaptive strategy that allows for a simple hyper-parameter optimization and efficient benchmarking of nonlocal versus local PT.
Here, we present a simple version of our adaptive algorithm. The basic intuition behind this algorithm is that the inverse temperature spacings should be small in the regions of high energy fluctuations, i.e. in the regions with large specific heat. Our algorithm automatically calculates the optimal number of replicas, temperature spacings between replicas, and minimum replica temperature. The adaptive temperature profile is calculated for each problem instance in the following prepprocessing procedure. Start with input parameters: maximum replica temperature (minimum inverse temperature ) and fixed parameter
. Iteratively measure the energy variance(proportional to the specific heat) from
by performing a number of Monte-Carlo sweeps at inverse temperature and calculate the next inverse temperatures from
New values are generated until for a specified at which point the temperature is low enough for this problem instance and we do not need any more replicas at lower temperatures and the preprocessing step is finished. This algorithm maintains the replica swap probability that is more or less independent of temperature and loosely related to the parameter via .
Good values for and are easy to find. These values do not vary much between problem classes, for example, is usually good enough for most problems and optimal values are rarely outside .
Appendix B Sampling localized replicas by Monte Carlo
Here, we would like to demonstrate that in principle sampling over each localized surrogate Hamiltonian of our problem can be also done with standard Monte Carlo (MC) methods, but not as efficient or as reliable as LBP. This can be achieved as long as we stay within a single pure state where the ergodicity will not be an issue. In other words one samples by MC the measure proportional to
in order to estimate and , where is defined according to Eq. 2.
In this approach one can create clones, all initially identical to and sample by MC the measure proportional to
This increases statistics, as one can take empirical averages over all the clones. In the measure (23) the clones evolve independently, but all are constrained to have a given overlap with (depending on ). Such a constraint induces in practice an effective coupling among the clones. Thus one can imagine to study a different measure where the clones are directly interacting
Starting with all clones equal to and large enough, the MC should sample only the pure state belongs to. When is decreased, however, the clones can move away from in a different form than the sampling measure (23) because in the latter clones are forced to stay at a given overlap with the reference configuration, while in measure (24) the coupling fixes the overlap between a pair of clones
Overall, we have 3 global parameters (), given by the measure (24), to describe the configurational space visited by the clones. In principle, in the regime we are interested to sample the two measures (23) and (24) should be equivalent. This can be one additional criterion that the sampling method is faithful.
In this work, we exclusively use LBP for discovering the correlations among the rigid variables as LBP guarantees linear scaling with respect to the surrogate Hamiltonians each forced to stay within a single pure state for sufficiently large . Moreover, lack of convergence for LBP for too small values of provides evidence for leaving the basin of attraction. This feature will be absent if we evolve the clones by MCMC-based sampling.
Appendix C Loopy Belief propagation for k-local Hamiltonians over conjugate normal form
Here, we provide the basic LBP equations for Surrogate Hamiltonians with k-local interactions over CNF:
where is the set of factor nodes connected to vertex and is the set of variable nodes connected to . At convergence the LBP messages can be used to infer local marginals as follows
The high-order correlations are:
We set up the initial LBP messages for Ising as:
where is the weight for factor node .
The LBP equations for the CNF formulation become:
where denotes the set of clauses in agreeing with factor node on what values should take. Similarly, denotes the set of clauses in disagreeing with factor node on what values should take. The messages from factor node to variables, , satisfy:
We set up the initial LBP messages for CNF as:
The marginal probability for a given variable i becomes:
and local magnetization becomes:
The joint probability distribution of variables in clause is
where are a set of constants that define the constraints in the k-local factor node . Also, is a weight for a factor node that equals 1 for all configurations that satisfy this clause and for the single configuration that violates this clause. The normalization is defined as
The high-order correlation function then becomes:
Appendix D Generating disconnected clusters
d.1 Generating rigid clusters within local neighborhood of pure states
In our first disconnected cluster grow strategy, we use the value of as a guiding principle to set the size of the clusters of correlated spins. By construction, quantifies the average distance of surrogate Hamiltonians variables that are sampled via LBP from the reference configuration. In general, certain (typically small) threshold value of p could exist in which beyond that the correlations cannot be reliably estimated by LBP. This imposes a natural upperbound on the number of variables that can be possibly included into rigid clusters. We define , which is the target value of using , where is a target cluster size; e.g., . We start with sufficiently large value of and decrement it as we perform LBP iteratively until becomes sufficiently close to or until reaches a constant fixed point with respect to . We then grow the cluster by adding the top nearest-neighbor correlated pairs of spins until it reaches the size set by .
d.2 Generating disconnected rigid clusters while LBP converges
In this strategy, we first find the smallest possible global for LBP iterations that still converge within some desired convergence precision, then we calculate the marginals and two-point correlations. We grow the clusters by including all pairs of spins with effective couplings above a specified correlation threshold. Here, we start off with a sufficiently large value of the and gradually reduce its rescaling factor. In each step, we perform LBP iteratively until the LBP messages do not converge or reaches a preassigned lower bound. We then pick the smallest for which the LBP messages had already converged. We then calculate the nearest neighbor correlations and nearest neighbor effective couplings for all spins and re-scale the effective couplings by . We create the cluster by adding all spin pairs with re-scaled effective coupling above the correlation threshold.
Appendix E Testing NMC primitives
In this section, we provide a few examples on versatility of NMC algorithm as a generic solver. We observed that all of our algorithmic primitives for discovering frozen variables, growing meaningful backbones, and the construction of nonequilibrium inhomogeneous MCMC work reliably on problems with different dimensionality and distributions of interactions.
We studied the performance of our subroutines on some random and structured instances generated over the Chimera graph, with a quasi-2D geometry. We also tested these subroutines on some of the random and structured Max-Cut instances. For different problem classes, we observed that the size of surrogate Hamiltonian backbones does not suddenly percolate as a function of the correlations and shows a power law distribution. Thus, one can use correlation threshold as a new hyperparameter to explore emerging correlations in various length scales by tuning this as an effective control knob.

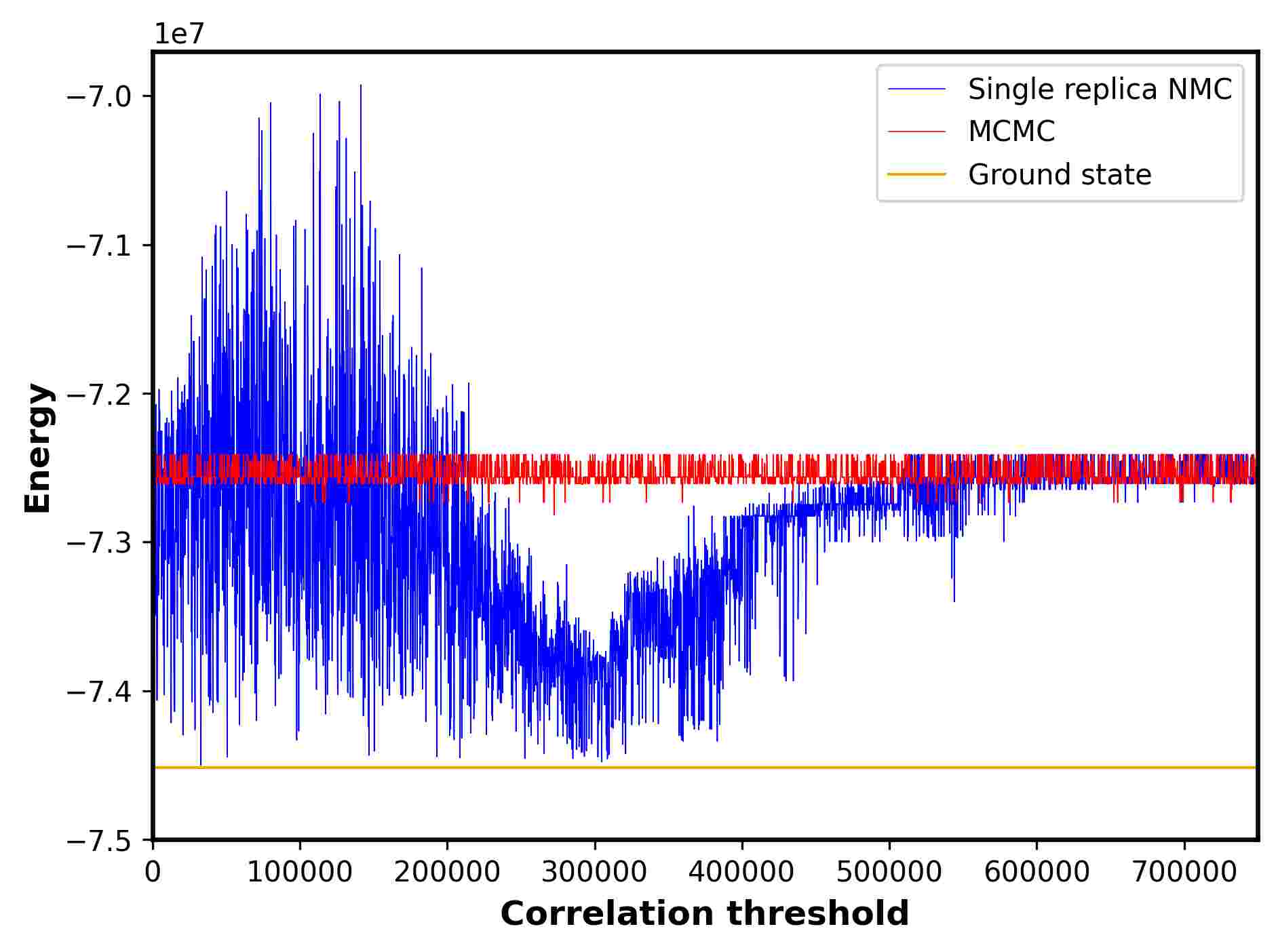

In Fig. 9, we investigate the robustness of the correlation threshold cutoff for a structured Max-Cut instance with about 380 variables over a single MCMC replica. The best residual energy obtained by inhomogeneous MCMC can be substantially improved with optimal values of correlation threshold as a free hyperparameter. This demonstrates that our approach is not ultra sensitive to correlation threshold cutoff since a significant performance separation between NMC versus the standard MCMC can be observed over a wide range of correlation threshold. At the two extreme limits of very large or very small correlation threshold cutoff one can recover the performance of standard (local) MCMC and random cluster update strategies.

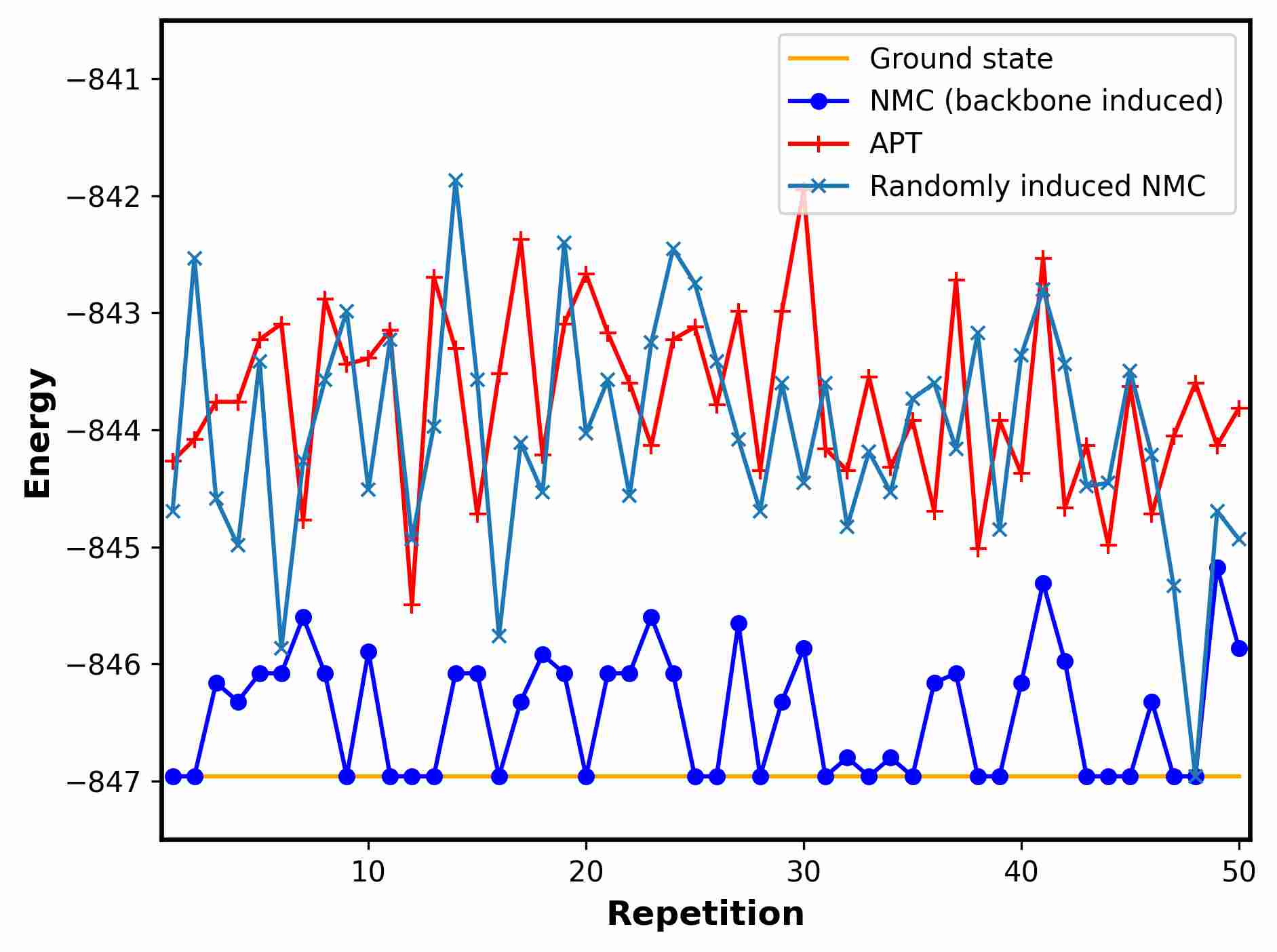

Fig. 10, show the results of our study on one of the structured Chimera instances from Ref. rams_tensors_2021 for a total sweeps. It can be seen that, except one run, there is not significant performance improvement for various repetitions of standard APT versus an alternative inhomogeneous APT, in which the inhomogeneity schedule is simply induced by random clusters. However, the performance of NMC, with inhomogeneoity driven by the surrogate backbones, generate significantly lower energy states (founding ground state in many runs), such that in its worse runs outperforms best runs of both standard APT and randomly-induced inhomogeneous APT.
Appendix F NMC with annealed correlation thresholds
For solving an ensemble of hard random 4-SAT problems at the computational phase transition, we develop a quantum-inspired approach and quasi-adiabatically anneal the values of the correlation threshold cutoffs from low values (where the maximum size of emergent backbones would be around ) to high values near unity (where the maximum size of clusters would be in the single digits). See Algorithm 2. The range of correlation thresholds values for this adiabatic transitions can be obtained with a comparison of the estimated correlations with the largest energy-scale of system or with a few preprcessing trials. In this quasi-adiabatic strategy, we invoke aggressive nonlocal moves with very large fluctuations in the configuration space at the beginning phase of the algorithm, in analogy with large Hamming distance variations in quantum annealing due to initially large quantum fluctuations in the annealing schedule. These nonlocal moves can be implemented either by increasing the temperature within the backbone, as we will explain in Sec. VII and also shown in the Fig. 1 (d) and (f), or with a collective spin-flip update over the backbone (shown in the Fig. 1 (c)). We note that similar aggressive collective-like updates can also be realized via an infinite temperature inhomogeneity similar to those finite temperatures inhomogeneity that are depicted in Fig. 1 (d) and (f).
We then adiabatically became more conservative, by increasing the value of the correlation threshold monotonically which consequently reduced the size of clusters. We spend a considerable amount of time near the critical point where the size of clusters exhibit a power-law distribution. Eventually the algorithm phase out all nonlocal moves and ends up with pure local MCMC; e.g., for the last to of the overall run time, focusing on exploitation instead of more exploration resulting in global steady state without strictly satisfying a detailed balance condition.
Appendix G The Survey Propagation Algorithm and the Backtracking Survey Propagation
The Survey Propagation algorithm (SP) is a heuristic message passing algorithm, developed by Mezard, Parisi, and Zecchina mezard_analytic_2002 from the assumption of one-step replica symmetry breaking and the cavity method of spin glasses. SP works on the factor graph with underlying CNF formula. For larger , SP is conjectured to work better as it runs over locally-tree like factor graphs, and cycles into the graph are . A detailed description of the Survey Propagation algorithm can be found in mezard_analytic_2002; braunstein2005survey, but here we summarize the main results.
Broadly speaking, SP exchanges messages between the variables and clauses in order to guess the value that each variable needs to be set for satisfying all clauses. More precisely, a message of SP, called a survey, passed from one function node to a variable node (connected by an edge) is a real number . The messages have a probabilistic interpretation under the assumption that SP runs over a tree-like factor graph. In particular, the message corresponds to the probability that the clause sends a warning to variable , telling which value the variable should adopt to satisfy itself parisi2003probabilistic; maneva_new_2007.
The iterative equations of SP are:
where the symbol defines the set of variables nodes connected with the functional node , i.e., the variable in clause , and the symbol defines the set of functional nodes connected with the variable node , i.e., the set of clauses where the literal , or , appears. The cardinality of the set is the degree of a variable node , i.e., the number of links connected to it, and is defined with . The set is composed of two subsets, namely that contains the functional nodes where the variable node appears not negated, and that contains the functional nodes where the variable node appears negated. Obviously, the relation holds.
With the symbol (respectively ) we define the set of functional nodes containing the variable node , excluding the functional node itself, satisfied (respectively not satisfied) when the variable is assigned to satisfy clause . In other words, if the literal is not negated in the clause , then the is the set of functional nodes containing the variable node , excluding the functional node itself, where the literal appears not negated, while is the set of functional nodes containing the variable node , where the literal appears negated. In contrast, if the variable is negated in the clause , then the is the set of functional nodes containing the variable node , excluding the functional node itself, where the literal appears negated, while is the set of functional nodes containing the variable node , where the literal appears not negated.
SP is a local algorithm that extracts information on the underlying graph of a CNF formula. As input, it takes a CNF formula of a random SAT Problem, and it performs a message-passing procedure to obtain convergence of the messages. More precisely, we are given a random initialization to all messages, and at each iteration, each message is updated following eq. (39). SP runs until all messages would satisfy a convergence criterion. This convergence criterion is defined as a small number such that the iteration is halted at the first time when no message has changed by more than over the last iteration. If this convergence criterion is not satisfied after iterations, SP stops and returns a failure output. Once a convergence of all messages is found, SP computes the marginals for each variable :
The SP marginal () represents the probability that the variable must be forced to take the value (), conditional on the fact that it does not receive a contradictory message, while provides the information that the variable is not forced to take a particular value.
Once all the SP marginals have been computed, the decimation strategy can be applied. This algorithm is called Survey Inspired Decimation (SID). Decimating a variable node means fixing the variable to or depending on the SP marginals, removing all satisfied functional nodes and the variable node from the factor graph, and removing all the literals into the clauses that have not been satisfied by the fixing. How to choose the variable node to decimate? The answer is simple, just selecting a variable with the maximum bias . Decimated the variable node , the SP algorithm tries to find out a new state of convergence and uses decimation again until one of these three different outcomes appears: (i) a contradiction is found, then the algorithm returns exit failure; (ii) SP does not find a convergence, then the algorithm returns exit failure; (iii) all the messages converge to a trivial fixed point, i.e., all the messages are equal to . In all these cases, the algorithm calls WalkSAT, either because the residual formula should be easy to treat (case iii) or because the lack of convergence or the contradiction can be due to the formula acquiring non-random structure upon decimation, and keep running SP would not lead to any improvement (cases i and ii). WalkSAT then tries to solve the residual formula and eventually builds the complete solution of the problem. For the numerical analysis displayed above, we modified step (ii) of the algorithm as: (ii) SP does not find a convergence after iterations, then calls WalkSAT, which builds a low energy assignment of the problem.
This algorithm has low complexity. Each SP iteration requires operations, which yields , where is the maximum time allowed for finding a convergence, i.e., a big constant. In the implementation described above, the SID has a computational complexity of , where the comes from the sorting of the biases. This can be reduced to by noticing that fixing a single variable does not affect the SP messages significantly. Consequently, SP can be called every decimation step by selecting a fraction of variables at each decimation step. The efficiency of the algorithm recalled above can be improved by introducing a backtracking strategy. We refer to marino_backtracking_2016 and references therein for a complete explanation of this strategy. Here, we summarize it.
The fact the SID algorithm assigns each variable only once is clearly a strong limitation, especially in a situation where correlations between variables becomes strong and long-ranged. In difficult problems it can easily happen that one realizes that a variable is taking the wrong value only after having assigned some of its neighbours variables. The backtracking survey propagation (BSP) algorithms parisi2003backtracking tries to solve this kind of problematic situations by introducing a new backtracking step, where a variable already assigned can be released and eventually re-assigned in a future decimation step. It is not difficult to understand when it is worth releasing a variable. The strategy is to release the variables with a value of the bias which is smaller than those variables already fixed.
The BSP algorithm then proceeds similarly to the SID algorithm above described. It applies either a step of decimation or a step of backtracking on a fraction of variables, after the iterative solution of the SP equations are obtained. The choice between a decimation or a backtracking step is taken according to a stochastic rule with a parameter . This parameter represents the ratio between backtracking steps to decimation steps. Obviously for , we recover the SID since no backtracking step is ever done. Increasing the algorithm becomes slower by a factor , because variables are reassigned on average times each before the BSP algorithm reaches the end, but its complexity remains at most in the problem size marino_backtracking_2016.
The BSP algorithm introduces only a new decimation strategy, and therefore it can stop for the same reasons the SID algorithm does: either the SP equations cannot be solved iteratively or the generated subproblem has a contradiction. In the case all the messages converge to a trivial fixed point, the subproblem can be given to WalkSat which solves the residual formula and builds the complete solution of the problem. Again, for our numerical analysis the modification on step (ii) of SID holds.
Appendix H Instance-wise hardness: Large/Small performance fluctuations for BSP/NMC algorithms
In this section, we quantify the instance-wise performance of BSP based on the entropy of clusters of solutions for the original formulas and the size of residuals formula when it fails to converge. We then compare and contrast the BSP vast dispersion in the quality of solutions with highly robust and reliable performance of NMC across various repetitions over a wide range of instance-wise complexity.
As explained in App. G the SID algorithm is essentially a deterministic algorithm as its output depends mildly on the few parameters required, e.g. the fraction of variables decimated at each step or the maximum number of SP iterations. So, running SID once would be enough to make a fair comparison with our new NMC algorithm. On the contrary, the BSP algorithm follows a more stochastic rule. Indeed at each step the decision between decimating a fraction of most biased variables or backtracking, removing the assignment to the least bias variables, is taken according to a random number. This means each run of the BSP algorithm can follow a different path in the assignment of variables searching for a solution and this in turn can lead to very different outputs. Here, we analyze the performance of the BSP algorithm, focusing in particular to the variations between different instances and different runs in the same instance.
In Ref. marino_backtracking_2016 the BSP algorithm was used to solve extremely large formulas, that were essentially at the thermodynamic limit, and no relevant fluctuations between instances and/or runs were observed. On the contrary, in the present work we are focusing on formulas which their sizes are comparable to typical large real-word applications, yet they are not strictly at the thermodynamic limit. Moreover, these instances are generated deep into the rigidity phase (i.e. the range of values where frozen variables dominate typical solutions in the large limit). For these reasons we expect much larger fluctuations in the behavior of the BSP algorithm which have not yet been previously explored.
The most relevant parameter in the BSP algorithm is the ratio between backtracking and decimation moves that we fix to in order to make contact with previous studies. As in the SID algorithm the other parameters are not so crucial: we fix the fraction of variables to decimate/backtrack at each step to and the maximum number of SP iterations to .
In the BSP algorithm, after a certain number of decimation/backtracking rounds, eventually SP stops converging and the algorithm generates a residual formula to be passed as input to the WalkSAT solver in the search for the optimal configuration or even a solution. The residual formula has variables and clauses. The two quantities are strongly dependent as shown in Fig. 11 where we plot the data from all the BSP runs on the 100 different instances with and . The effective ratio becomes smaller for smaller , indicating that formulas with a smaller are expected to be easier to solve. This is clear from the data shown in Fig. 12 where we are plotting the smallest number of violations or minimal energy found by running WalkSAT on the residual formula returned by BSP. In practice low energy configurations can be reached only if BSP outputs a small enough residual formula. However, BSP can fail spectacularly when there is a large residual formula. We observe BSP can report a significant number of violations or final energy, up to two orders of magnitude larger than the typical lowest energies.

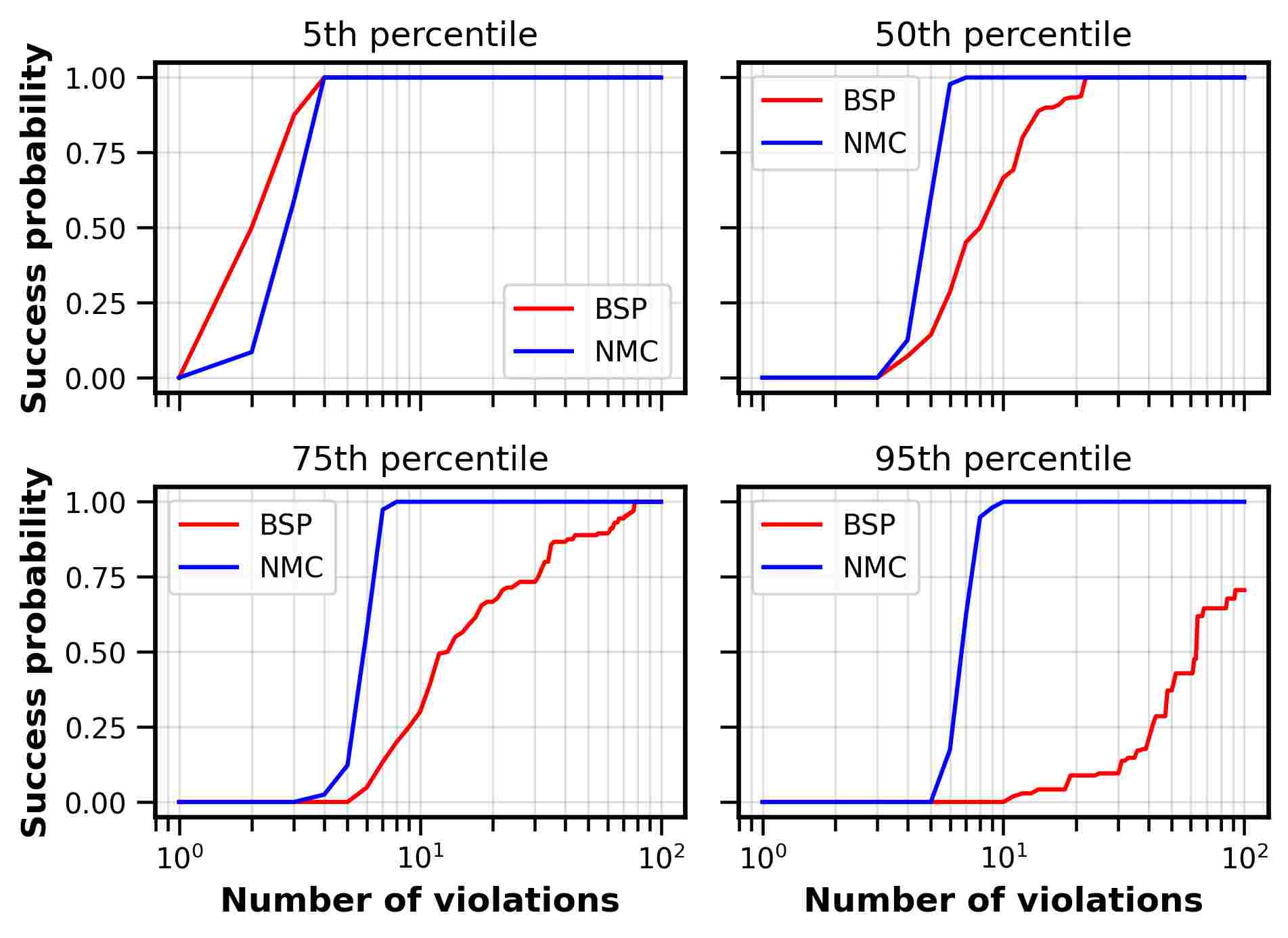

Here, we would like to address two key questions: how often does BSP return a residual formula that is too large such that the final solutions are very low quality? Is this poor performance of BSP correlated with the intrinsic hardness of the instance? Even if all instances have been generated with and , we expect measurable variations in the actual hardness in solving these instances: indeed being very close to the SAT/UNSAT threshold and deep into the rigidity phase, even a small fluctuation in the structure of the instance may lead to visible changes in hardness.
In general, there is no explicit “measure of hardness”, but here we can resort to an empirical one. For each instance, we consider the BSP run that returned the best final energy. We then plot this energy as a function of the complexity of the original formula computed from the first fixed point reached by SP. We report the result in Fig. 13 which exhibits a strong correlation between this two physical quantities. The advantage of this notation of complexity is that it can be computed on the original formula, before any decimation taking place. This notation of complexity, , is related to the number of clusters of solutions according to Eqs: 19, 20, and 21. For random -SAT problems, it appears discontinuously at the clustering threshold for montanari-clusters-2008 in the large limit, and then decreasing with increasing until the condensation transition at where it becomes null. Thus, for random -SAT formulas in the rigidity phase, we expect a larger complexity to possibly correspond to an easier problem. This is confirmed by observation of fairly monotonic decrease in the number of violations as a function of initial complexity as shown in Fig. 13.
Hereafter, we use the initial complexity as a proxy for the instance hardness. We plot in Fig. 14 the energy or number of violations reached by each BSP repetition on the 100 instances of random 4-SAT studied. Instances are sorted according to the initial complexity which correlates well with the instances hardness as explained above. Indeed, except a few exceptions, the lowest energy decreases with increasing complexity. We notice that for many instances, and without any evident correlation with the instance hardness, the BSP can often get trapped in configurations of very high energy, up to 2 order of magnitude larger than the optimum. This is a very delicate point which was not noticed before, because the BSP algorithm were used for instances at large limit with sufficiently less constraints which corresponded to a smaller value well before the estimated rigidity threshold. Fig. 14 is alarming since it indicates that the behavior of BSP is far from being deterministic (on this sizes), at variance with its precedent algorithm SP, and it has high volatility and unreliable performance across various runs for various instances. Thus, we need to estimate the number of repetitions required to ensure convergence to the optimal energy with a reasonable certainty. Moreover in many instances we observe a fairly large gap between the high energy local minima reached by the majority of runs and the low energy minima: this gap is particularly significant as it preclude a smooth convergence towards the optimal minima by increasing the number of repetitions. In other words, the behavior of the BSP algorithm seems to undergo a kind of first order transition between a poorly informative fixed point to a highly informative one. This behavior has been observed in many high-dimensional inference problems zdeborova2016statistical and it is a the basis of the algorithmic gap in many hard inference problems gamarnik2021overlap.
Having understood the existence of large energy fluctuations in the output of the BSP algorithm, we would like to quantify how often the BSP algorithm can report a very bad configuration, i.e. a configuration of very high energy. In Fig. 15 we show data from 4 different instances where fluctuations look severe (left and central panels), plus 2 instances where BSP failed to find close-to-optimal configurations (right panels). Each red data point corresponds to the energy or number of violations obtained in a single BSP run. For each instance there are many runs obtained with a total running time of 5 hours. We observe that the majority or even the totality of runs returns a very poor configuration, whose energy is higher by at least one order of magnitude, and even more, with respect to the optimal one obtained via NMC (lower blue dots). Only rarely BSP is able to “break the ceiling” and enter the region of very low energy configurations.
What is even more impressive in Fig. 15 is that all runs of NMC return consistently high-quality solutions which even at worse cases outperform BSP runs. This means the output of NMC is extremely robust and stable. We expected this behavior in Monte Carlo based algorithms, but here the energy landscape is full of local minima at high energies as evident from BSP highly fluctuating performance and WalkSAT consistently poor performance, shown by grey dots in Fig. 15). Consequently, consistently reaching the lowest minima is a non-trivial result for NMC implying the ability to bypass or penetrate though tall energy barriers that are hindering other solvers. In Fig. 16, we compare the success rate of NMC and BSP for a wide spectrum of instances from easiest 5th percentile to hardest 95th percentile showing a commanding advantage for NMC. For example, in order to reach approximation ratio (i.e. around 5-10 violated clauses) for top 25% hardest instances, NMC is doing very well with a success probability close to 1, while BSP has essentially a success probability very close to zero.
In summary, running BSP for a finite (and small) number of repetitions looks to have a serious flaw for hardest random 4-SAT instances in the rigidity phase. With high probability the algorithm can get stuck in the high energy minima and misses the optimal configurations. This is due to the fact that the BSP algorithm is not able to decimate enough variables for such instances and WalkSAT cannot handle too large residual formula leading to very poor solutions. How this phenomenon will change by increasing the size of the formulas is out of the scope of the present paper and will be presented in a forthcoming study. Nonetheless the appearance of this kind of problem on formulas comparable in size to realistic application is of considerable importance. We expect all these problems to arise when running BSP on non-random SAT instances, as industrial instances are. In all such applications, we anticipate that the use of NMC is preferred by a large margin to SP and BSP.
Appendix I Industrial QAP problems

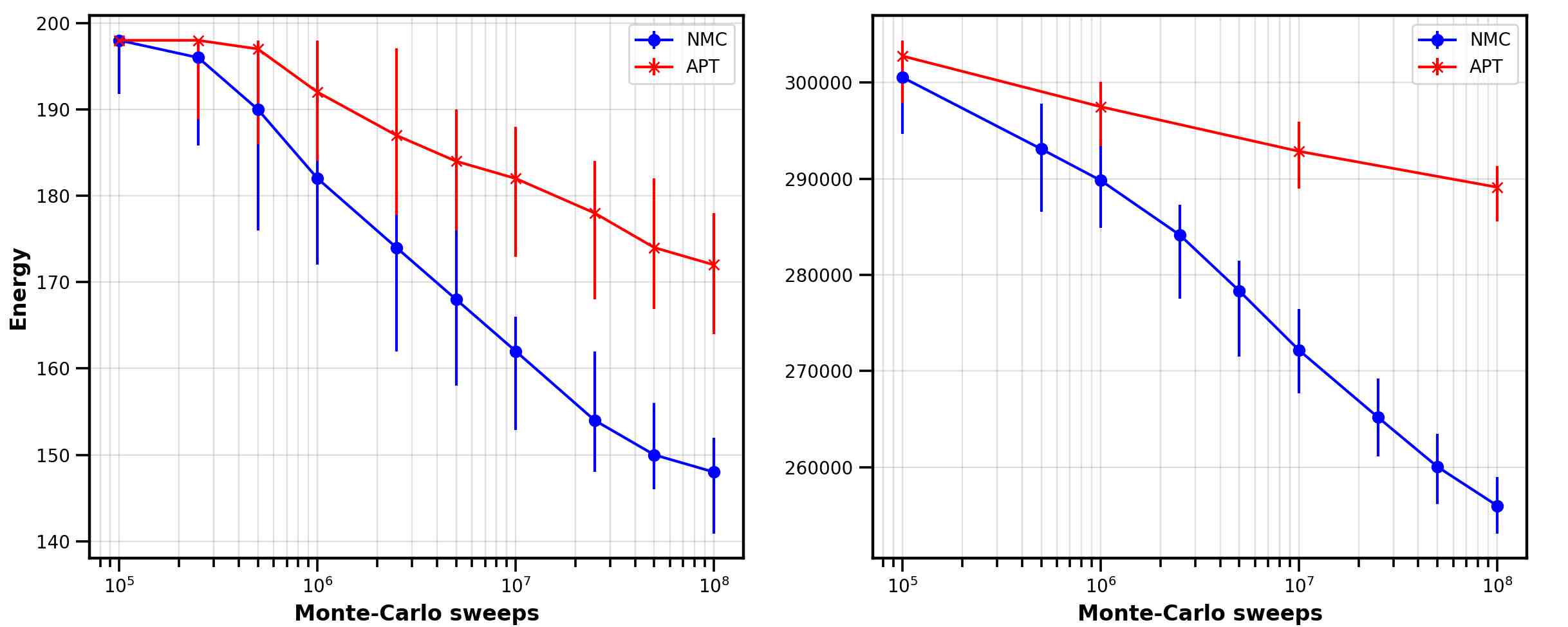

We investigated the performance of our nonlocal NMC against local APT on some of the industrial instances from QAPLIB burkard_qaplib_1997. These instances have either known optimal solutions or empirical best feasible solutions with tight lower bounds. For a majority of the instances in the Esc32 class, using our benchmarking framework for APT on Google’s distributed computing platform, we could complete 50 repetitions of millions of MC sweeps, in less than 1 min and 30 seconds to find their optimal solutions (with a total number of sweeps for each run ranging from to ). In Fig. 17, we show the cost for the median, 5% and 95% percentile runs from 50 repetitions on two of the hardest instances: Esc32a which contains 1032 binary variables and over one million interactions, and instance Tho40 involving 1600 binary variables and 2.5 million interacting terms. The optimal solution for Tho40 is not known and the best feasible solution is actually obtained with simulated annealing QAPLIB_website, which is generally believed to be suboptimal compared to the APT algorithm for sufficiently hard problem classes. We observe that, by increasing the MC sweeps, the NMC penetrates significantly lower energy levels such that its worse runs completely outperform the APT best runs out of 50 repetitions. The wall-clock time to complete total sweeps for APT over a couple of cores for Esc32a and Tho40 were about 30 minutes and 3 hours respectively. The overhead of nonlocal moves including LBP runs amounts to 5% to 20% on various QAP instances but can be significantly reduced. For each point in these plots, we have used the Vizier hyper-parameter optimization as demonstrated in Fig. 18.

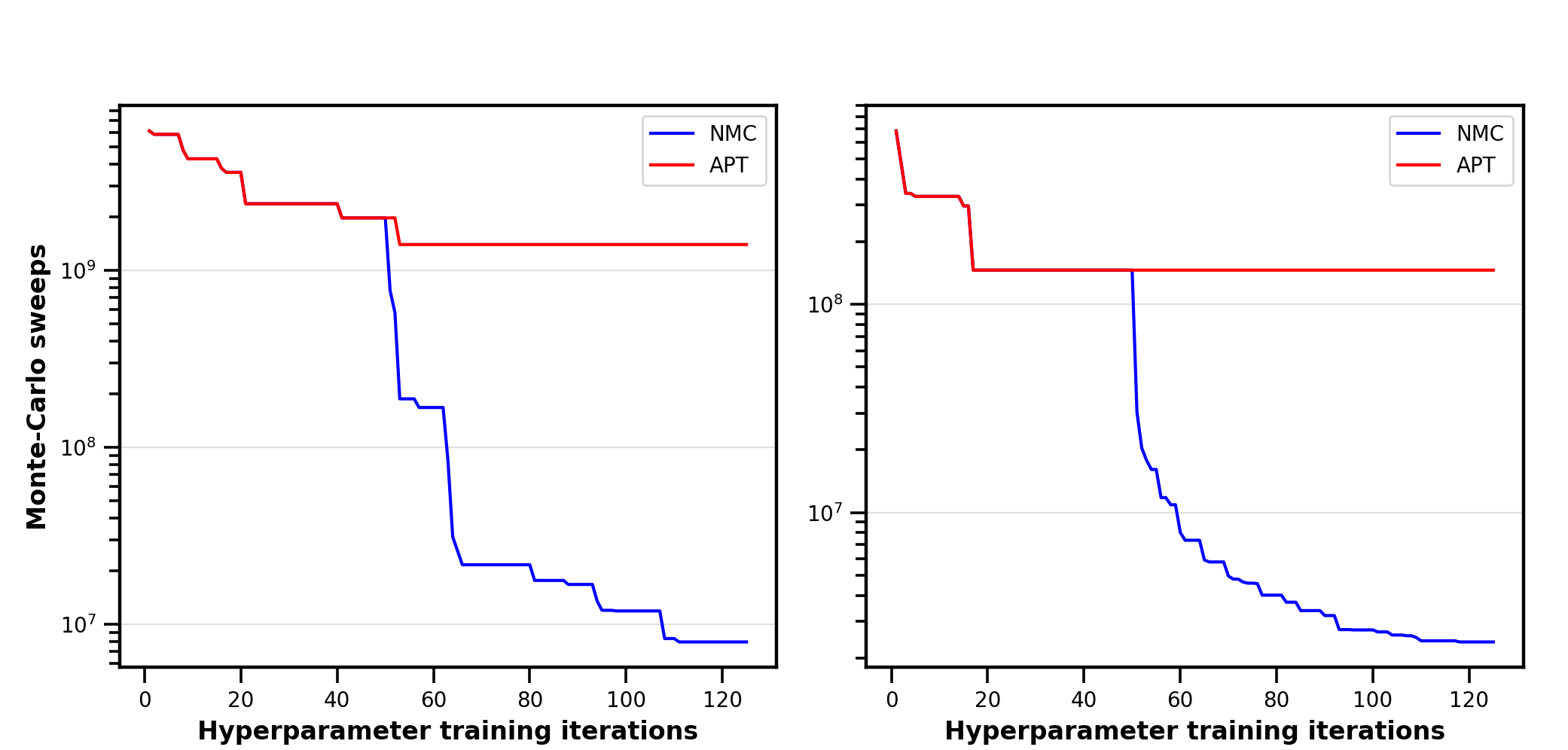

We note that the Vizier could find in less than 100 trials a set of hyperparameters for NMC that leads to more than 2 orders of magnitude speedup for approximating these instances. However, Vizier could not improve the running time of APT even with thousands of trials to achieve anywhere near the NMC performance. We expect that the speedup observed here over APT will increase with the size and hardness of industrial QAP instances.
