1 Introduction

Overlap between chemistry and statistical learning has had a long history. The field of cheminformatics has been utilizing machine learning methods in chemical modeling(e.g. quantitative structure activity relationships, QSAR) for decades.gasteiger1993neural, zupan1999neural, varnek2012machine, mitchell2014machine, devillers1996neural, schneider1998artificial

In the recent 10 years, with the advent of sophisticated deep learning methods

DeepLearning, schmidhuber2015deep, machine learning has gathered increasing amounts of attention from the scientific community. Data-driven analysis has become a routine step in many chemical and biological applications, including virtual screeningma2015deep, ramsundar2015massively, unterthiner2014deep, AtomNet, chemical property predictionESOL_dataset, lusci2013deep, SAMPL4, FreeSolv, and quantum chemistry calculationsGDB7_dataset_prl, GDB7_dataset_arxiv, schutt2016quantum, mcgibbon2017improving.

In many such applications, machine learning has shown strong potential to compete with or even outperform conventional ab-initio computationsFreeSolv, GDB7_dataset_arxiv. It follows that introduction of novel machine learning methods has the potential to reshape research on properties of molecules. However, this potential has been limited by the lack of a standard evaluation platform for proposed machine learning algorithms. Algorithmic papers often benchmark proposed methods on disjoint dataset collections, making it a challenge to gauge whether a proposed technique does in fact improve performance.

Data for molecule-based machine learning tasks are highly heterogeneous and expensive to gather. Obtaining precise and accurate results for chemical properties typically requires specialized instruments as well as expert supervision (contrast with computer speech and vision, where lightly trained workers can annotate data suitable for machine learning systems). As a result, molecular datasets are usually much smaller than those available for other machine learning tasks. Furthermore, the breadth of chemical research means our interests with respect to a molecule may range from quantum characteristics to measured impacts on the human body. Molecular machine learning methods have to be capable of learning to predict this very broad range of properties. Complicating this challenge, input molecules can have arbitrary size and components, highly variable connectivity and many three dimensional conformers (three dimensional molecular shapes). To transform molecules into a form suitable for conventional machine learning algorithms (that usually accept fixed length input), we have to extract useful and related information from a molecule into a fixed dimensional representation (a process called featurization).ECFP, graphconv_feat, kearnes2016graphconv.

To put it simply, building machine learning models on molecules requires overcoming several key issues: limited amounts of data, wide ranges of outputs to predict, large heterogeneity in input molecular structures and appropriate learning algorithms. Therefore, this work aims to facilitate the development of molecular machine learning methods by curating a number of dataset collections, creating a suite of software that implements many known featurizations of molecules, and providing high quality implementations of many previously proposed algorithms. Following the footsteps of WordNetwordnet

and ImageNet

imagenet_cvpr09, we call our suite MoleculeNet, a benchmark collection for molecular machine learning.

In machine learning, a benchmark serves as more than a simple collection of data and methods. The introduction of the ImageNet benchmark in 2009 has triggered a series of breakthroughs in computer vision, and in particular has facilitated the rapid development of deep convolutional networks. The ILSVRC, an annual contest held by the ImageNet team

ILSVRC15, draws considerable attention from the community, and greatly stimulates collaborations and competitions across the field. The contest has given rise to a series of prominent machine learning models such as AlexNetalexnet, GoogLeNetgooglenet, ResNetresnet which have had broad impact on the academic and industrial computer science communities. We hope that MoleculeNet will trigger similar breakthroughs by serving as a platform for the wider community to develop and improve models for learning molecular properties.

In particular, MoleculeNet contains data on the properties of over 700,000 compounds. All datasets have been curated and integrated into the open source DeepChem package.deepchem Users of DeepChem can easily load all MoleculeNet benchmark data through provided library calls. MoleculeNet also contributes high quality implementations of well known (bio)chemical featurization methods. To facilitate comparison and development of new methods, we also provide high quality implementations of several previously proposed machine learning methods. Our implementations are integrated with DeepChem, and depend on Scikit-Learn pedregosa2011scikit

and Tensorflow

abadi2016tensorflow underneath the hood. Finally, evaluation of machine learning algorithms requires defined methods to split datasets into training/validation/test collections. Random splitting, common in machine learning, is often not correct for chemical data sheridan2013time. MoleculeNet contributes a library of splitting mechanisms to DeepChem and evaluates all algorithms with multiple choices of data split. MoleculeNet provide a series of benchmark results of implemented machine learning algorithms using various featurizations and splits upon our dataset collections. These results are provided within this paper, and will be maintained online in an ongoing fashion as part of DeepChem.

The related work section will review prior work in the chemistry community on gathering curated datasets and discuss how MoleculeNet differs from these previous efforts. The methods section reviews the dataset collections, metrics, featurization methods, and machine learning models included as part of MoleculeNet. The results section will analyze the benchmarking results to draw conclusions about the algorithms and datasets considered.

2 Related Work

MoleculeNet draws upon a broader movement within the chemical community to gather large sources of curated data. PubChem bolton2008pubchem and PubChem BioAssasy pcba_dataset gather together thousands of bioassay results, along with millions of unique molecules tested within these assays. The ChEMBL database offers a similar service, with millions of bioactivity outcomes across thousands of protein targets. Both PubChem and ChEMBL are human researcher oriented, with web portals that facilitate browsing of the available targets and compounds. ChemSpider is a repository of nearly 60 million chemical structures, with web based search capabilities for users. The Crystallography Open Database gravzulis2009crystallography and Cambridge Structural Database groom2016cambridge offer large repositories of organic and inorganic compounds. The protein data bank berman2003announcing offers a repository of experimentally resolved three dimensional protein structures. This listing is by no means comprehensive; the methods section will discuss a number of smaller data sources in greater detail.

These past efforts have been critical in enabling the growth of computational chemistry. However, these previous databases are not machine-learning focused. In particular, these collections don’t define metrics which measure the effectiveness of algorithmic methods in understanding the data contained. Furthermore, there is no prescribed separation of the data into training/validation/test sets (critical for machine learning development). Without specified metrics or splits, the choice is left to individual researchers, and there are indeed many chemical machine learning papers which use subsets of these data stores for machine learning evaluation. Unfortunately, the choice of metric and subset varies widely between groups, so two methods papers using PubChem data may be entirely incomparable. MoleculeNet aims to bridge this gap by providing benchmark results for a reasonable range of metrics, splits, and subsets of these (and other) data collections.

It’s important to note that there have been some efforts to create benchmarking datasets for machine learning in chemistry. The Quantum Machine group QuantumMachine and previous work on multitask learning ramsundar2015massively both introduce benchmarking collections which have been used in multiple papers. MoleculeNet incorporates data from both these efforts and significantly expands upon them.

3 Methods

MoleculeNet is based on the open source package DeepChemdeepchem. Figure 1 shows an annotated DeepChem benchmark script. Note how different choices for data splitting, featurization, and model are available. DeepChem also directly provides molnet sub-module to support benchmarking. The single line below runs benchmarking on the specified dataset, model and featurizer. User defined models capable of handling DeepChem datasets are also supported.

deepchem.molnet.run_benchmark(datasets, model, split, featurizer)

In this section, we will further elaborate the benchmarking system, introducing available datasets as well as implemented splitting, metrics, featurization, and learning methods.

Figure 1: Example code for benchmark evaluation with DeepChem, multiple methods are provided for data splitting, featurization and learning.

3.1 Datasets

MoleculeNet is built upon multiple public databases. The full collection currently includes over 700,000 compounds tested on a range of different properties. These properties can be subdivided into four categories: quantum mechanics, physical chemistry, biophysics and physiology. As illustrated in Figure 2, separate datasets in the MoleculeNet collection cover various levels of molecular properties, ranging from molecular-level properties to macroscopic influences on human body. For each dataset, we propose a metric and a splitting pattern(introduced in the following texts) that best fit the properties of the dataset. Performances on the recommended metric and split are reported in the results section.

In most datasets, SMILES stringsSMILES are used to represent input molecules, 3D coordinates are also included in part of the collection as molecular features, which enabled different methods to be applied. Properties, or output labels, are either 0/1 for classification tasks, or floating point numbers for regression tasks. At the time of writing, MoleculeNet contains 17 datasets prepared and benchmarked, but we anticipate adding further datasets in an on-going fashion. We also highly welcome contributions from other public data collections. For more detailed dataset structure requirements and instructions on curating datasets, please refer to the tutorial on DeepChem webpage.

Table 1 lists details of datasets in the collection, including tasks, compounds and their features, recommended splits and metrics. Contents of each dataset will be elaborated in this subsection.

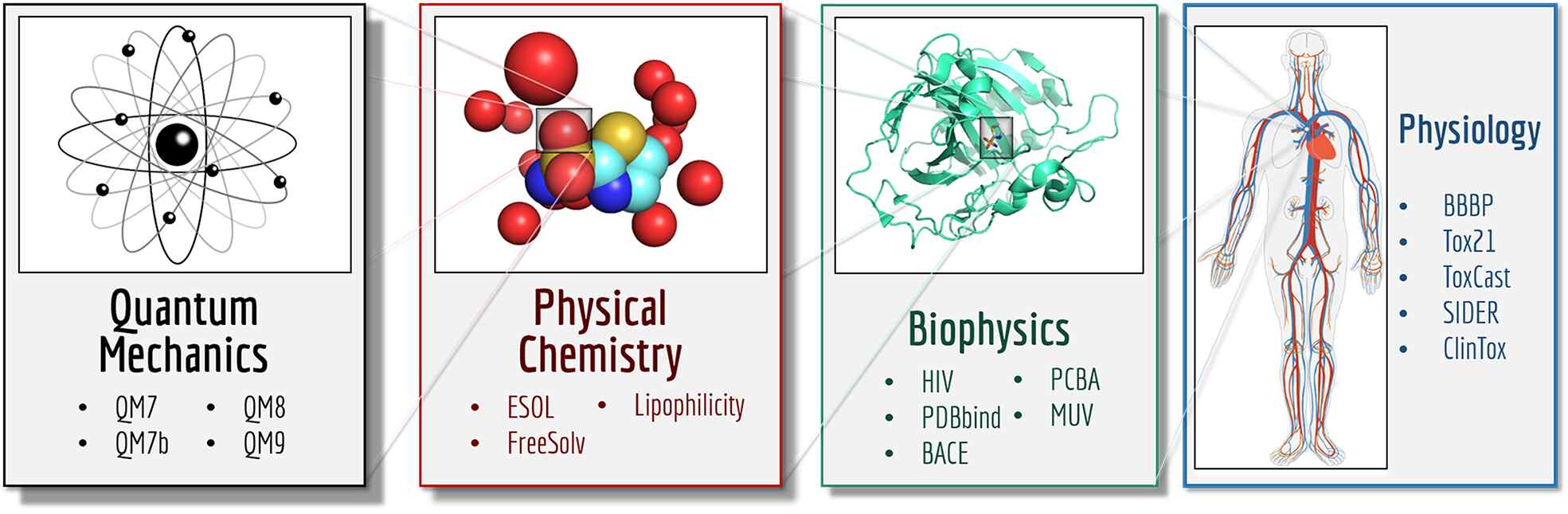

Figure 2: Tasks in different datasets focus on different levels of properties of molecules.
Category Dataset Data Type # Tasks Task Type # Compounds Rec - Split Rec - Metric
Quantum Mechanics QM7 SMILES, 3D coordinates 1 Regression 7160 Stratified MAE
QM7b 3D coordinates 14 Regression 7210 Random MAE
QM8 SMILES, 3D coordinates 12 Regression 21786 Random MAE
QM9 SMILES, 3D coordinates 12 Regression 133885 Random MAE
Physical Chemistry ESOL SMILES 1 Regression 1128 Random RMSE
FreeSolv SMILES 1 Regression 642 Random RMSE
Lipophilicity SMILES 1 Regression 4200 Random RMSE
Biophysics PCBA SMILES 128 Classification 437929 Random PRC-AUC
MUV SMILES 17 Classification 93087 Random PRC-AUC
HIV SMILES 1 Classification 41127 Scaffold ROC-AUC
PDBbind SMILES, 3D coordinates 1 Regression 11908 Time RMSE
BACE SMILES 1 Classification 1513 Scaffold ROC-AUC
Physiology BBBP SMILES 1 Classification 2039 Scaffold ROC-AUC
Tox21 SMILES 12 Classification 7831 Random ROC-AUC
ToxCast SMILES 617 Classification 8575 Random ROC-AUC
SIDER SMILES 27 Classification 1427 Random ROC-AUC
ClinTox SMILES 2 Classification 1478 Random ROC-AUC
Table 1: Dataset Details: number of compounds and tasks, recommended splits and metrics

3.1.1 QM7/QM7b

The QM7/QM7b datasets are subsets of the GDB-13 databaseGDB13

, a database of nearly 1 billion stable and synthetically accessible organic molecules, containing up to seven “heavy” atoms (C, N, O, S). The 3D Cartesian coordinates of the most stable conformation and electronic properties (atomization energy, HOMO/LUMO eigenvalues, etc.) of each molecule were determined using

ab-initio density functional theory (PBE0/tier2 basis set).GDB7_dataset_prl, GDB7_dataset_arxiv Learning methods benchmarked on QM7/QM7b are responsible for predicting these electronic properties given stable conformational coordinates. For the purpose of more stable performances as well as better comparison, we recommend stratified splitting(introduced in the next subsection) for QM7.

3.1.2 Qm8

The QM8 dataset comes from a recent study on modeling quantum mechanical calculations of electronic spectra and excited state energy of small molecules.QM8 Multiple methods, including time-dependent density functional theories (TDDFT) and second-order approximate coupled-cluster (CC2), are applied to a collection of molecules that include up to eight heavy atoms (also a subset of the GDB-17 databaseGDB-17). In total, four excited state properties are calculated by three different methods on 22 thousand samples.

3.1.3 Qm9

QM9 is a comprehensive dataset that provides geometric, energetic, electronic and thermodynamic properties for a subset of GDB-17 databaseGDB-17, comprising 134 thousand stable organic molecules with up to nine heavy atomsQM9. All molecules are modeled using density functional theory (B3LYP/6-31G(2df,p) based DFT). In our benchmark, geometric properties (atomic coordinates) are integrated into features, which are then applied to predict other properties.

The datasets introduced above (QM7, QM7b, QM8, QM9) were curated as part of the Quantum-Machine effort QuantumMachine, which has processed a number of datasets to measure the efficacy of machine-learning methods for quantum chemistry.

3.1.4 Esol

ESOL is a small dataset consisting of water solubility data for 1128 compounds.ESOL_dataset

The dataset has been used to train models that estimate solubility directly from chemical structures (as encoded in SMILES strings).

graphconv_feat Note that these structures don’t include 3D coordinates, since solubility is a property of a molecule and not of its particular conformers.

3.1.5 FreeSolv

The Free Solvation Database (FreeSolv) provides experimental and calculated hydration free energy of small molecules in waterFreeSolv. A subset of the compounds in the dataset are also used in the SAMPL blind prediction challengeSAMPL4. The calculated values are derived from alchemical free energy calculations using molecular dynamics simulations. We include the experimental values in the benchmark collection, and use calculated values for comparison.

3.1.6 Lipophilicity

Lipophilicity is an important feature of drug molecules that affects both membrane permeability and solubility. This dataset, curated from ChEMBL database,Hersey2015lipo provides experimental results of octanol/water distribution coefficient (logD at pH 7.4) of 4200 compounds.

3.1.7 Pcba

PubChem BioAssay (PCBA) is a database consisting of biological activities of small molecules generated by high-throughput screening.pcba_dataset We use a subset of PCBA, containing 128 bioassays measured over 400 thousand compounds, used by previous work to benchmark machine learning methods.ramsundar2015massively

3.1.8 Muv

The Maximum Unbiased Validation (MUV) group is another benchmark dataset selected from PubChem BioAssay by applying a refined nearest neighbor analysis.muv_dataset The MUV dataset contains 17 challenging tasks for around 90 thousand compounds and is specifically designed for validation of virtual screening techniques.

3.1.9 Hiv

The HIV dataset was introduced by the Drug Therapeutics Program (DTP) AIDS Antiviral Screen, which tested the ability to inhibit HIV replication for over 40,000 compounds.HIV Screening results were evaluated and placed into three categories: confirmed inactive (CI), confirmed active (CA) and confirmed moderately active (CM). We further combine the latter two labels, making it a classification task between inactive (CI) and active (CA and CM). As we are more interested in discover new categories of HIV inhibitors, scaffold splitting(introduced in the next subsection) is recommended for this dataset.

3.1.10 PDBbind

PDBbind is a comprehensive database of experimentally measured binding affinities for bio-molecular complexes.PDBbind1, PDBbind2 Unlike other ligand-based biological activity datasets, in which only the structures of ligands are provided, PDBbind provides detailed 3D Cartesian coordinates of both ligands and their target proteins derived from experimental (e.g., X-Ray crystallography) measurements. The availability of coordinates of the protein-ligand complexes permits structure-based featurization that is aware of the protein-ligand binding geometry. We use the “refined” and “core” subsets of the databasePDBbind3, more carefully processed for data artifacts, as additional benchmarking targets. Samples in PDBbind dataset are collected over a relatively long period of time(since 1982), hence a time splitting pattern(introduced in the next subsection) is recommended to mimic actual development in the field.

3.1.11 Bace

The BACE dataset provides quantitative () and qualitative (binary label) binding results for a set of inhibitors of human -secretase 1 (BACE-1)BACE-1. All data are experimental values reported in scientific literature over the past decade, some with detailed crystal structures available. We merged a collection of 1522 compounds with their 2D structures and binary labels in MoleculeNet, built as a classification task. Similarly, regarding a single protein target, scaffold splitting will be more practically useful.

3.1.12 Bbbp

The Blood-brain barrier penetration (BBBP) dataset comes from a recent studyBBBP on the modeling and prediction of the barrier permeability. As a membrane separating circulating blood and brain extracellular fluid, the blood-brain barrier blocks most drugs, hormones and neurotransmitters. Thus penetration of the barrier forms a long-standing issue in development of drugs targeting central nervous system. This dataset includes binary labels for over 2000 compounds on their permeability properties. Scaffold splitting is also recommended for this well-defined target.

3.1.13 Tox21

The “Toxicology in the 21st Century” (Tox21) initiative created a public database measuring toxicity of compounds, which has been used in the 2014 Tox21 Data Challenge Tox21. This dataset contains qualitative toxicity measurements for 8014 compounds on 12 different targets, including nuclear receptors and stress response pathways.

3.1.14 ToxCast

ToxCast is another data collection (from the same initiative as Tox21) providing toxicology data for a large library of compounds based on in vitro high-throughput screening.toxcast_dataset The processed collection in MoleculeNet includes qualitative results of over 600 experiments on 8615 compounds.

3.1.15 Sider

The Side Effect Resource (SIDER) is a database of marketed drugs and adverse drug reactions (ADR) sider_dataset. The version of the SIDER dataset in DeepChem altae2016low has grouped drug side-effects into 27 system organ classes following MedDRA classifications meddra measured for 1427 approved drugs (following previous usage altae2016low).

3.1.16 ClinTox

The ClinTox dataset, introduced as part of this work, compares drugs approved by the FDA and drugs that have failed clinical trials for toxicity reasons. PrOCTOR2016, InSilicoMed2016 The dataset includes two classification tasks for 1491 drug compounds with known chemical structures: (1) clinical trial toxicity (or absence of toxicity) and (2) FDA approval status. List of FDA-approved drugs are compiled from the SWEETLEAD database,SWEETLEAD_database and list of drugs that failed clinical trials for toxicity reasons are compiled from the Aggregate Analysis of ClinicalTrials.gov (AACT) database.AACT

3.2 Dataset splitting

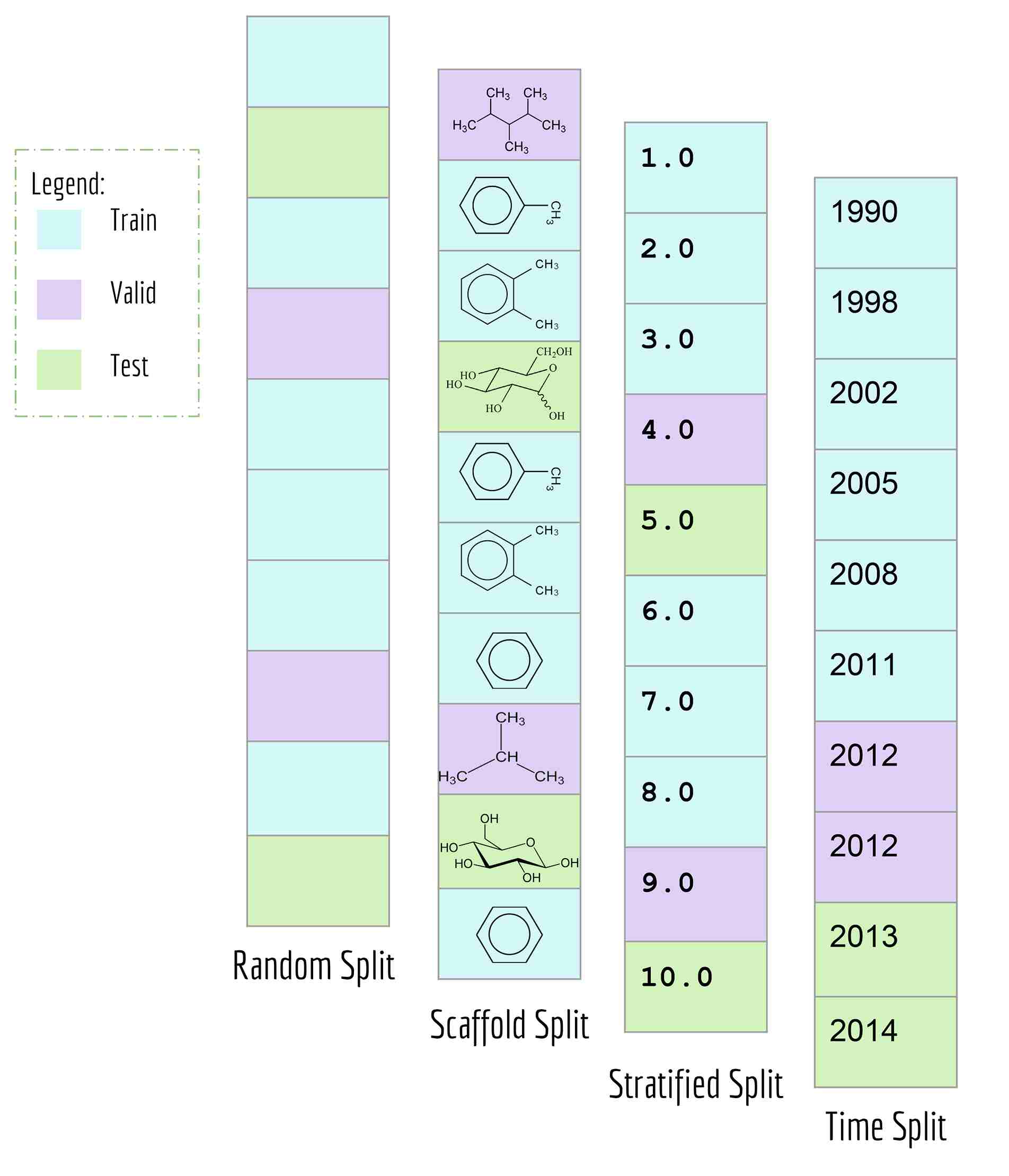

Figure 3: Representation of Data Splits in MoleculeNet.

Typical machine learning methods require datasets to be split into training/validation/test subsets (or alternatively into

-folds) for benchmarking. All MoleculeNet datasets are split into training, validation and test, following a 80/10/10 ratio. Training sets were used to train models, while validation sets were used for tuning hyperparameters, and test sets were used for evaluation of models.

As mentioned previously, random splitting of molecular data isn’t always best for evaluating machine learning methods. Consequently, MoleculeNet implements multiple different splittings for each dataset. Random splitting randomly splits samples into the training/validation/test subsets. Scaffold splitting splits the samples based on their two-dimensional structural frameworks,scaffold as implemented in RDKit.RDKit Since scaffold splitting attempts to separate structurally different molecules into different subsets, it offers a greater challenge for learning algorithms than the random split.

In addition, a stratified random sampling method is implemented on the QM7 dataset to reproduce the results from the original work.GDB7_dataset_arxiv This method sorts datapoints in order of increasing label value (note this is only defined for real-valued output). This sorted list is then split into training/validation/test by ensuring that each set contains the full range of provided labels. Time splitting is also adopted for dataset that includes time information(PDBbind). Under this splitting method, model will be trained on older data and tested on newer data, mimicking real world development condition.

MoleculeNet contributes the code for these splitting methods into DeepChem. Users of the library can use these splits on new datasets with short library calls.

3.3 Metrics

MoleculeNet contains both regression datasets (QM7, QM7b, QM8, QM9, ESOL, FreeSolv, Lipophilicity and PDBbind) and classification datasets (PCBA, MUV, HIV, BACE, BBBP, Tox21, ToxCast and SIDER). Consequently, different performance metrics need to be measured for each. Following suggestions from the communitymetric_suggestion, regression datasets are evaluated by mean absolute error (MAE) and root-mean-square error (RMSE), classification datasets are evaluated by area under curve (AUC) of the receiver operating characteristic (ROC) curveAUC-ROC and the precision recall curve (PRC)PRC. For datasets containing more than one task, we report the mean metric values over all tasks.

Figure 4:

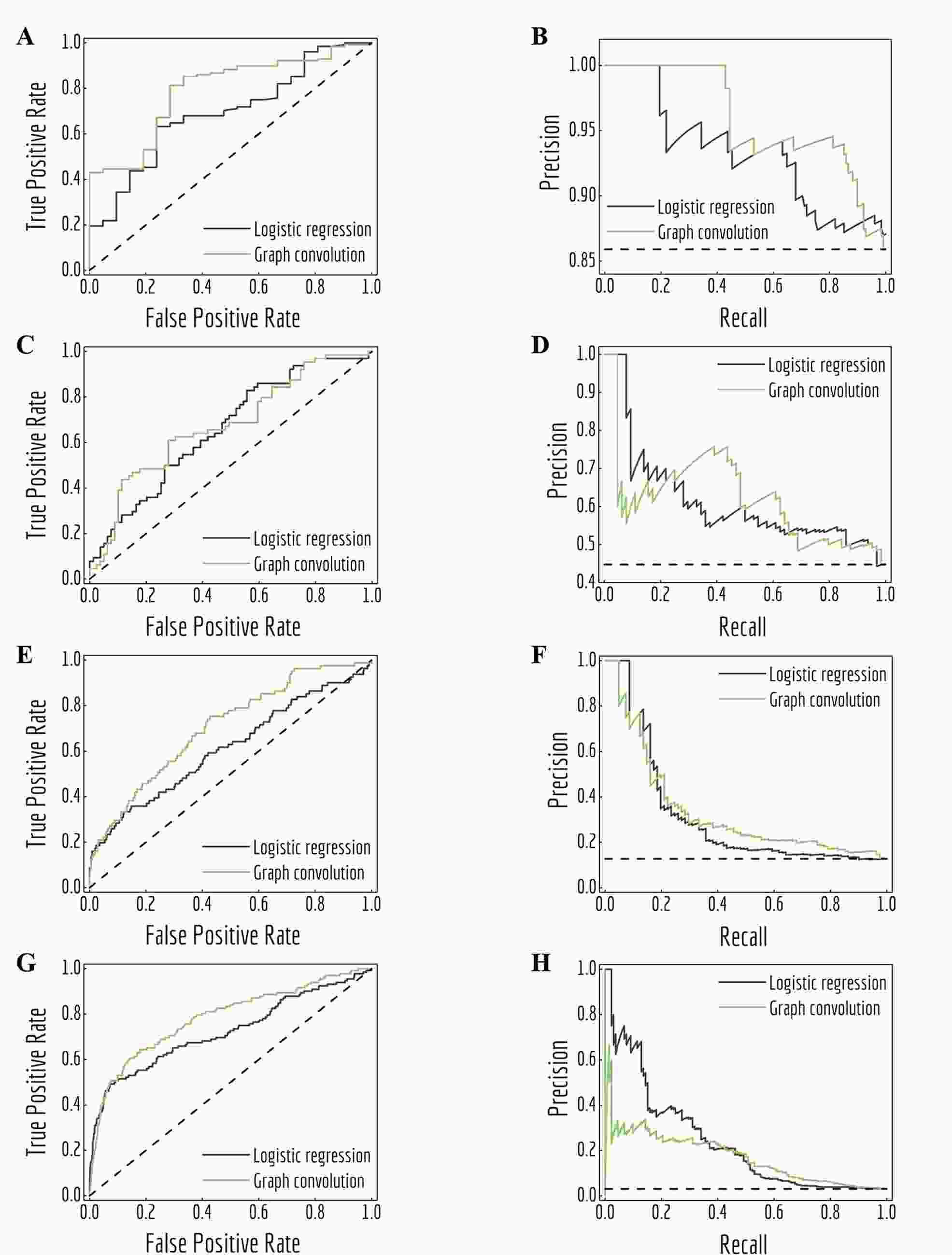

Receiver operating characteristic (ROC) curves and precision recall curves (PRC) for predictions of logistic regression and graph convolutional models under different class imbalance condition.(Details listed in Table

2): A, B: task ”FDA_APPROVED” from ClinTox, test subset; C, D: task ”Hepatobiliary disorders” from SIDER, test subset; E, F: task ”NR-ER” from Tox21, validation subset; G, H

: task ”HIV_active” from HIV, test subset. Black dashed lines are performances of random classifiers.

Task P/N* Model ROC PRC
“FDA_APPROVED”
ClinTox, test subset
128/21 Logistic Regression 0.691 0.932
Graph Convolution 0.791 0.959
“Hepatobiliary disorders”
SIDER, test subset
64/79 Logistic Regression 0.659 0.612
Graph Convolution 0.675 0.620
“NR-ER”
Tox21, valid subset
81/553 Logistic Regression 0.612 0.308
Graph Convolution 0.705 0.333
“HIV_active”
HIV, test subset
132/4059 Logistic Regression 0.724 0.236
Graph Convolution 0.783 0.169
  • * Number of positive samples/Number of negative samples

Table 2: Task details and area under curve(AUC) values of sample curves

To allow better comparison, we propose regression metrics according to previous work on either same models or datasets. For classification datasets, we propose recommended metrics from the two commonly used metrics: AUC-PRC and AUC-ROC. Four representative sets of ROC curves and PRCs are depicted in Figure 4, resulting from the predictions of logistic regression and graph convolutional models on four tasks. Details about these tasks and AUC values of all curves are listed in Table 2. Note that these four tasks have different class imbalances, represented as the number of positive samples and negative samples.

As noted in previous literaturePRC, ROC curves and PRCs are highly correlated, but perform significantly differently in case of high class imbalance. As shown in Figure 4, the fraction of positive samples decreases from over 80% (panels A and B) to less than 5% (panels G and H). This change accompanies the difference in how the two metrics treat model performances. In particular, PRCs put more emphasis on the low recall (also known as true positive rate (TPR)) side in case of highly imbalanced data: logistic regression slightly outperforms graph convolutional models in the low TPR side of ROC curves (panels C, E and G, lower left corner), which creates different margins on the low recall side of PRCs.

ROC curves and PRCs share one same axis, while using false positive rate (FPR) and precision for the other axis respectively. Recall that FPR and precision are defined as follows:

When positive samples form only a small proportion of all samples, false positive predictions exert a much greater influence on precision than FPR, amplifying the difference between PRC and ROC curves. Virtual screening experiments do have extremely low positive rates, suggesting that the correct metric to analyze may depend on the experiment at hand. In this work, we hence propose recommended metrics based on positive rates, PRC-AUC is used for datasets with positive rates less than 2%, otherwise ROC-AUC is used.

3.4 Featurization

A core challenge for molecular machine learning is effectively encoding molecules into fixed-length strings or vectors. Although SMILES strings are unique representations of molecules, most molecular machine learning methods require further information to learn sophisticated electronic or topological features of molecules from limited amounts of data. (Recent work has demonstrated the ability to learn useful representations from SMILES strings using more sophisticated methods

gomez2016automatic, so it may be feasible to use SMILES strings for further learning tasks in the near future.) Furthermore, the enormity of chemical space often requires representations of molecules specifically suited to the learning task at hand. MoleculeNet contains implementations of six useful molecular featurization methods.

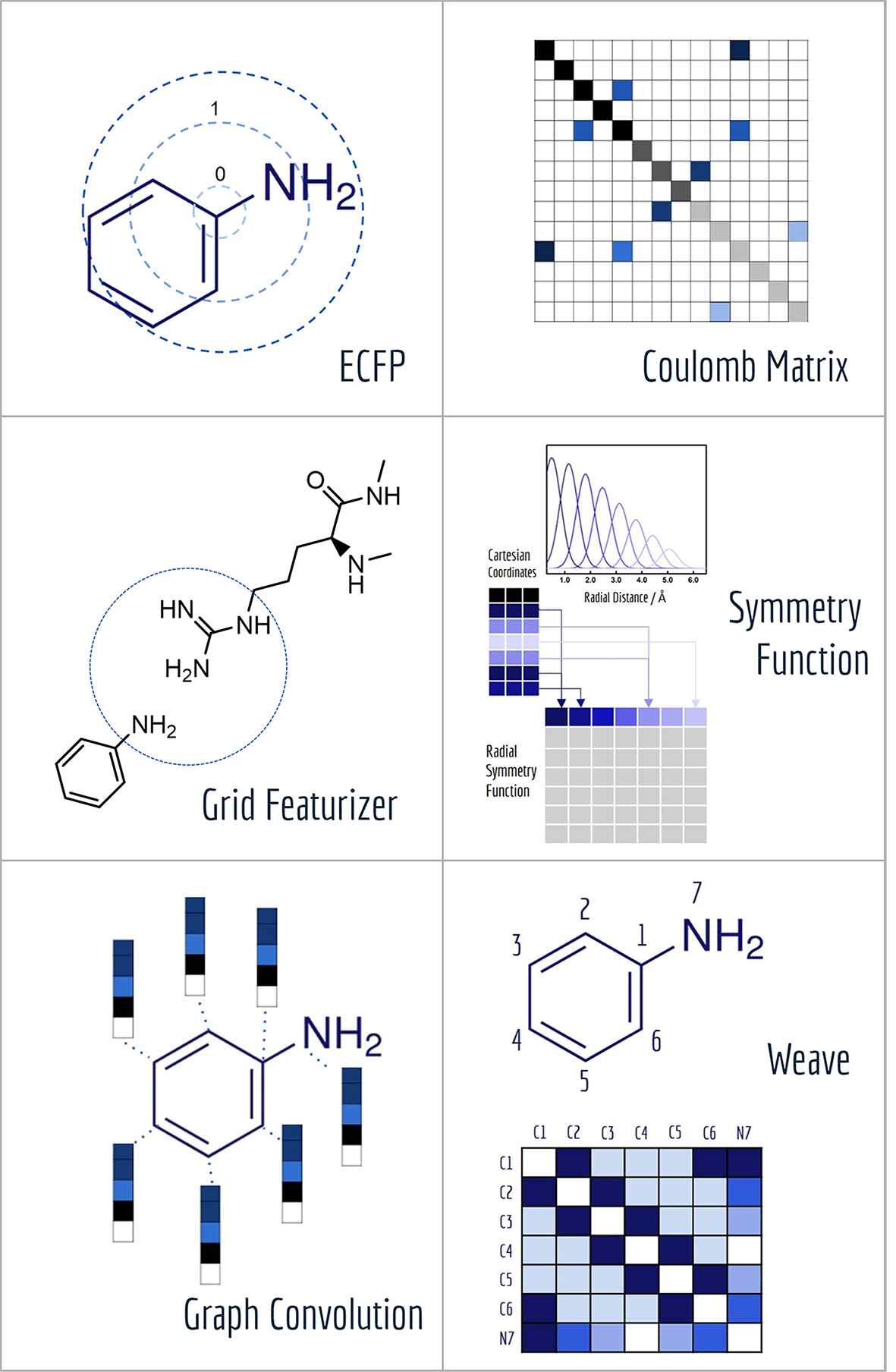

Figure 5: Diagrams of featurizations in MoleculeNet.

3.4.1 Ecfp

Extended-Connectivity Fingerprints (ECFP) are widely-used molecular characterizations in chemical informatics.ECFP During the featurization process, a molecule is decomposed into submodules originated from heavy atoms, each assigned with a unique identifier. These segments and identifiers are extended through bonds to generate larger substructures and corresponding identifiers.

After hashing all these substructures into a fixed length binary fingerprint, the representation contains information about topological characteristics of the molecule, which enables it to be applied to tasks such as similarity searching and activity prediction. The MoleculeNet implementation uses ECFP4 fingerprints generated by RDKit.RDKit

3.4.2 Coulomb Matrix

Ab-initio electronic structure calculations typically require a set of nuclear charges {Z} and the corresponding Cartesian coordinates {R} as input. The Coulomb Matrix (CM) M, proposed by Rupp et al.GDB7_dataset_prl and defined below, encodes this information by use of the atomic self-energies and internuclear Coulomb repulsion operator.

Here, the off-diagonal elements correspond to the Coulomb repulsion between atoms I and J, and the diagonal elements correspond to a polynomial fit of atomic self-energy to nuclear charge. The Coulomb Matrix of a molecule is invariant to translation and rotation of that molecule, but not with respect to atom index permutation. In the construction of coulomb matrix, we first use the nuclear charges and distance matrix generated by RDKitRDKit to acquire the original coulomb matrix, then an optional random atom index sorting and binary expansion transformation can be applied during training in order to achieve atom index invariance, as reported by Montavon et al.GDB7_dataset_arxiv

3.4.3 Grid Featurizer

The grid featurizer is a featurization method (introduced in the current work) initially designed for the PDBbind dataset in which structural information of both the ligand and target protein are considered. Since binding affinity stems largely from the intermolecular forces between ligands and proteins, in addition to intramolecular interactions, we seek to incorporate both the chemical interaction within the binding pocket as well as features of the protein and ligand individually.

The grid featurizer was inspired by the NNscore featurizer NNscore and SPLIF da2014structural but optimized for speed, robustness, and generalizability. The intermolecular interactions enumerated by the featurizer include salt bridges and hydrogen bonding between protein and ligand, intra-ligand circular fingerprints, intra-protein circular fingerprints, and protein-ligand SPLIF fingerprints. A more detailed breakdown can be found in the Appendix.

3.4.4 Symmetry Function

Symmetry function, first introduced by Behler and ParrinelloSymmetryFunction, is another common encoding of atomic coordinates information. It focuses on preserving the rotational and permutation symmetry of the system. The local environment of an atom in the molecule is expressed as a series of radial and angular symmetry functions with different distance and angle cutoffs, the former focusing on distances between atom pairs and the latter focusing on angles formed within triplets of atoms.

As symmetry function put most emphasis on spatial positions of atoms, it is intrinsically hard for it to distinguish different atom types(H, C, O). MoleculeNet utilized a slightly modified version of original symmetry functionANI-1 which further separate radial and angular symmetry terms according to the type of atoms in the pair or triplet. Further details can be found in the articleANI-1 or our implementation.

3.4.5 Graph Convolutions

The graph convolutions featurization support most graph-based models. It computes an initial feature vector and a neighbor list for each atom. The feature vector summarizes the atom’s local chemical environment, including atom-type, hybridization type, and valence structure. Neighbor lists represent connectivity of the whole molecule, which are further processed in each model to generate graph structures (discussed in further details in following parts).

3.4.6 Weave

Similar to graph convolutions, the weave featurization encodes both local chemical environment and connectivity of atoms in a molecule. Atomic feature vectors are exactly the same, while connectivity is represented by more detailed pair features instead of neighbor listing. The weave featurization calculates a feature vector for each pair of atoms in the molecule, including bond properties (if directly connected), graph distance and ring info, forming a feature matrix. The method supports graph-based models that utilize properties of both nodes (atoms) and edges (bonds).

3.5 Models - Conventional Models

MoleculeNet tests the performance of various machine learning models on the datasets discussed previously. These models could be further categorized into conventional methods and graph-based methods according to their structures and input types. The following sections will give brief introductions to benchmarked algorithms. The results section will discuss performance numbers in detail. Here we briefly review conventional methods including logistic regression, support vector classification, kernel ridge regression, random forests

breiman2001random

, gradient boosting

friedman2001greedy, multitask networksramsundar2015massively, ma2015deep, bypass networks Bypass_network and influence relevance votingIRV. The next section graph-based models will give introductions to graph convolutional modelsgraphconv_feat, weave modelskearnes2016graphconv, directed acyclic graph modelslusci2013deep

, deep tensor neural networks

schutt2016quantum, ANI-1ANI-1 and message passing neural networksMPNN. As part of this work, all methods are implemented in the open source DeepChem packagedeepchem.

3.5.1 Logistic Regression

Logistic regression models (Logreg) apply the logistic function to weighted linear combinations of their input features to obtain model predictions. It is often common to use regularization to encourage learned weights to be sparse. friedman2000additive Note that logistic regression models are only defined for classification tasks.

3.5.2 Support Vector Classification

Support vector machine (SVM) is one of the most famous and widely-used machine learning method.cortes1995support

As in classification task, it defines a decision plane which separates data points of different class with maximized margin. To further increase performance, we incorporates regularization and a radial basis function kernel (KernelSVM).

3.5.3 Kernel Ridge Regression

Kernel ridge regression(KRR) is a combination of ridge regression and kernel trick. By using a nonlinear kernel function(radial basis function), it learns a non-linear function in the original space that maps features to predicted values.

3.5.4 Random Forests

Random forests (RF) are ensemble prediction methods.breiman2001random

A random forest consists of many individual decision trees, each of which is trained on a subsampled version of the original dataset. The results for individual trees are averaged to provide output predictions for the full forest. Random forests can be used for both classification and regression tasks. Training a random forest can be computationally intensive, so benchmarks only include random forest results for smaller datasets.

3.5.5 Gradient Boosting

Gradient boosting is another ensemble method consisting of individual decision trees.friedman2001greedy

In contrast to random forests, it builds relatively simple trees which are sequentially incorporated to the ensemble. In each step, a new tree is generated in a greedy manner to minimize loss function. A sequence of such ”weak” trees are combined together into an additive model. We utilize the XGBoost implementation of gradient boosting in DeepChem.

XGBoost

3.5.6 Multitask/Singletask Network

In a multitask network,ramsundar2015massively input featurizations are processed by fully connected neural network layers. The processed output is shared among all learning tasks in a dataset, and then fed into separate linear classifiers/regressors for each different task. In the case that a dataset contains only a single task, multitask networks are just fully connected neural networks(Singletask Network). Since multitask networks are trained on the joint data available for various tasks, the parameters of the shared layers are encouraged to produce a joint representation which can share information between learning tasks. This effect does seem to have limitations; merging data from uncorrelated tasks has only moderate effect.kearnes2016modeling As a result, MoleculeNet does not attempt to train extremely large multitask networks combining all data for all datasets.

3.5.7 Bypass Multitask Networks

Multitask modeling relies on the fact that some features have explanatory power that is shared among multiple tasks. Note that the opposite may well be true; features useful for one task can be detrimental to other tasks. As a result, vanilla multitask networks can lack the power to explain unrelated variations in the samples. Bypass networks attempt to overcome this variation by merging in per-task independent layers that “bypass” shared layers to directly connect inputs with outputs.Bypass_network In other words, bypass multitask networks consist of independent components: one “multitask” layer mapping all inputs to shared representations, and “bypass” layers mapping inputs for each specific task to their labels. As the two groups have separate parameters, bypass networks may have greater explanatory power than vanilla multitask networks.

3.5.8 Influence Relevance Voting

Influence Relevance Voting (IRV) systems are refined K-nearest neighbor classifiers.IRV Using the hypothesis that compounds with similar substructures have similar functionality, the IRV classifier makes its prediction by combining labels from the top K compounds most similar to a provided test sample.

The Jaccard-Tanimoto similarity between fingerprints of compounds is used as the similarity measurement:

Then IRV model calculates a weighted sum of the labels of top K similar compounds to predict the result, in which weights are the outputs of a one-hidden layer neural network with similarities and rankings of top K compounds as input. Detailed descriptions of the model can be found in the original article.IRV

3.6 Models - Graph Based Models

Early attempts to directly use molecular structures instead of selected features has emerged in 1990sbaskin1997neural, kireev1995chemnet. While in recent years, models propelled by the very similar idea start to grow rapidly. These specifically designed methods, namely graph-based models, are naturally suitable for modeling molecules. By defining atoms as nodes, bonds as edges, molecules can be modeled as mathematical graphs. As noted in a recent paperMPNN, this natural similarity has inspired a number of models to utilize the graph structure of molecules to gain higher performances. In general, graph-based models apply adaptive functions to nodes and edges, allowing for a learnable featurization process. MoleculeNet provides implementations of multiple graph-based models which use different variants of molecular graphs. We describe these methods in the following sections. Figure 6 provide simple illustrations of these methods’ core structures.

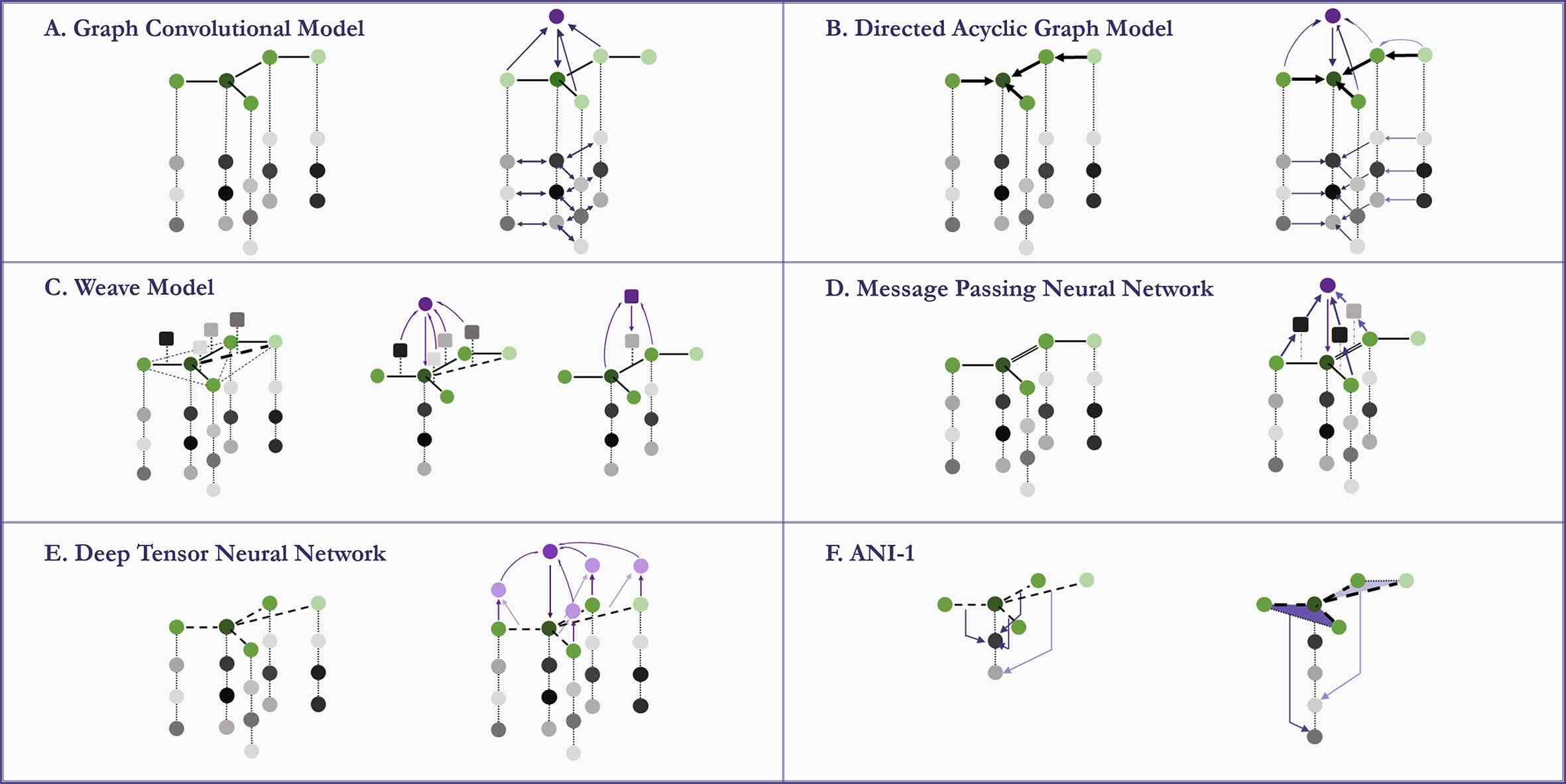

Figure 6: Core structures of graph-based models implemented in MoleculeNet. To build features for the central dark green atom: A Graph Convolutional Model: features are updated by combination with neighbor atoms; B Directed Acyclic Graph Model: all bonds are directed towards the central atom, features are propagated from the farthest atom to the central atom through directed bonds; C Weave Model: Pairs are formed between each pair of atoms(including not directly bonded pairs), features for the central atom are updated using all other atoms and their corresponding pairs, pair features are also updated by combination of the two pairing atoms; D Message Passing Neural Network: Neighbor atoms’ features are input into bond-type dependent neural networks, forming outputs(messages). Features of the central atom are then updated using the outputs; E Deep Tensor Neural Network: No explicit bonding information is included, features are updated using all other atoms based on their corresponding physical distances; F ANI-1: features are built on distance information between pairs of atoms(radial symmetry functions) and angular information between triplets of atoms(angular symmetry functions).

3.6.1 Graph Convolutional models

Graph convolutional models (GC) extend the decomposition principles of circular fingerprints. Both methods gradually merge information from distant atoms by extending radially through bonds. This information is used to generate identifiers for all substructures. However, instead of applying fixed hash functions, graph convolutional models allow for adaptive learning by using differentiable network layers. This creates a learnable process capable of extracting useful representations of molecules suited to the task at hand. (Note that this property is shared, to some degree, by all deep architectures considered in MoleculeNet. However, graph convolutional architectures are more explicitly designed to encourage extraction of useful featurizations).

On a higher level, graph convolutional models treat molecules as undirected graphs, and apply the same learnable function to every node (atom) and its neighbors (bonded atoms) in the graph. This structure recapitulates convolution layers in visual recognition deep networks.

MoleculeNet uses the graph convolutional implementation in DeepChem from previous work.altae2016low This implementation converts SMILES strings into molecular graphs using RDKit RDKit

As mentioned previously, the initial representations assign to each atom a vector of features including its element, connectivity, valence, etc. Then several graph convolutional modules, each consisting of a graph convolutional layer, a batch normalization layer and a graph pool layer, are sequentially added, followed by a fully-connected dense layer. Finally, the feature vectors for all nodes (atoms) are summed, generating a graph feature vector, which is fed to a classification or regression layer.

3.6.2 Weave models

The Weave architecture is another graph-based model that regards each molecule as a undirected graph. Similar to graph convolutional models, it utilizes the idea of adaptive learning on extracting meaningful representations.kearnes2016graphconv The major difference is the size of the convolutions: To update features of an atom, weave models combine information from all other atoms and their corresponding pairs in the molecule. Weave models are more efficient at transmitting information between distant atoms, at the price of increased complexity for each convolution.

In our implementation, a molecule is first encoded into a list of atomic features and a matrix of pair features by the weave model’s featurization method. Then in each weave module, these features are input into four sets of fully connected layers (corresponding to four paths from two original features to two updated features) and concatenated to form new atomic and pair features. After stacking several weave modules, a similar gather layer combines atomic features together to form molecular features that are fed into task-specific layers.

3.6.3 Directed Acyclic Graph models

Directed Acyclic Graph (DAG) models regard molecules as directed graphs. While chemical bonds typically do not have natural directions, one can arbitrarily generate a DAG on a molecule by designating a central atom and then define directions of all bonds in certain orientations towards the atom.lusci2013deep In the case of small molecules, taking all possible orientations is computationally feasible. In other words, for a molecule with atoms, the model will generate DAGs, each centered on a different atom.

In the actual calculations of a graph, a vector of graph features is calculated for each atom based on its atomic features (reusing the graph convolutions featurizer) and its parents’ graph features. As features gradually propagate through bonds, information converges on the central atom. Then a final sum of all graphs gives the molecular features, which are fed into classification or regression tasks. Note that graphs are evaluated for each molecule, which can cause a significant increase in required calculations.

3.6.4 Deep Tensor Neural Networks

Deep Tensor Neural Networks (DTNN) are adaptable extensions of the Coulomb Matrix featurizer.schutt2016quantum The core idea is to directly use nuclear charge (atom number) and the distance matrix to predict energetic, electronic or thermodynamic properties of small molecules. To build a learnable system, the model first maps atom numbers to trainable embeddings(randomly initialized) as atomic features. Then each atomic feature is updated based on distance information and other atomic features . Comparing with Weave models, DTNNs share the same idea in terms of updating based on both atomic and pair features, while the difference is using physical distance instead of graph distance. Note that the use of 3D coordinates to calculate physical distances limits DTNNs to quantum mechanical (or perhaps biophysical) datasets.

We reimplement the model proposed by Schütt et al.schutt2016quantum in a more generalized fashion. Atom numbers and a distance matrix are calculated by RDKitRDKit, using the Coulomb matrix featurizer. After embedding atom numbers into feature vectors , we update in each convolutional layer by adding the outputs from all network layers which use and () as input. After several layers of convolutions, all atomic features are summed together to form molecular features, used for classification and regression tasks.

3.6.5 Ani-1

ANI-1 is designed as a deep neural network capable of learning accurate and transferable potentials for organic molecules. It is based on the symmetry function methodSymmetryFunction, with additional changes enabling it to learn different potentials for different atom types. Feature vector, a series of symmetry functions, is built for each atom in the molecule based on its atom type and interaction with other atoms. Then the feature vectors are fed into different neural network potentials(depending on atom types) to generate predictions of properties.

This model is first introduced by Smith et al.ANI-1. In their original article, the model is trained on  58k small molecules with 8 or less heavy atoms, each with multiple poses and potentials. Training set in total has  17.2 million data points, which is far bigger than qm8 or qm9 in our collection. Since we only have molecules in their most stable configuration, we cannot expect similar level of accuracy. Further comparison and benchmarking with similar size of training set is left to future work.

3.6.6 Message Passing Neural Networks

Message Passing Neural Network(MPNN) is a generalized model proposed by Gilmer et al.MPNN that targets to formulate a single framework for graph based model. The prediction process is separated into two phases: message passing phase and readout phase. Multiple message passing phases are stacked to extract abstract information of the graph, then the readout phase is responsible for mapping the graph to its properties.

Here we reimplemented the best-performing model in the original article: using an edge network as message passing function and a set2set modelset2set

as readout function. In message passing phase, an edge-dependent neural network maps all neighbor atoms’ feature vectors to updated messages, which are then merged using gated recurrent units. In the final readout phase, feature vectors for all atoms are regarded as a set, then an LSTM with attention mechanism is applied on the top for multiple steps, exporting the final state as outputs for the molecule.

4 Results and Discussion

In this section, we discuss the performances of benchmarked models on MoleculeNet datasets. Different models are applied depending on the size, features and task types of the dataset. All graph models use their corresponding featurizations. Non-graph models use ECFP featurizations by default, Coulomb Matrix (CM) and Grid featurizer are also applied for certain datasets.

We run a brief Gaussian process hyperparameter optimization on each combination of dataset and model. Then three independent runs with different random seeds are performed. More detailed description of optimization method and performance tables can be found in the Appendix. Note that all benchmark results presented here are the average of three runs, with standard deviations listed or illustrated as error bars.

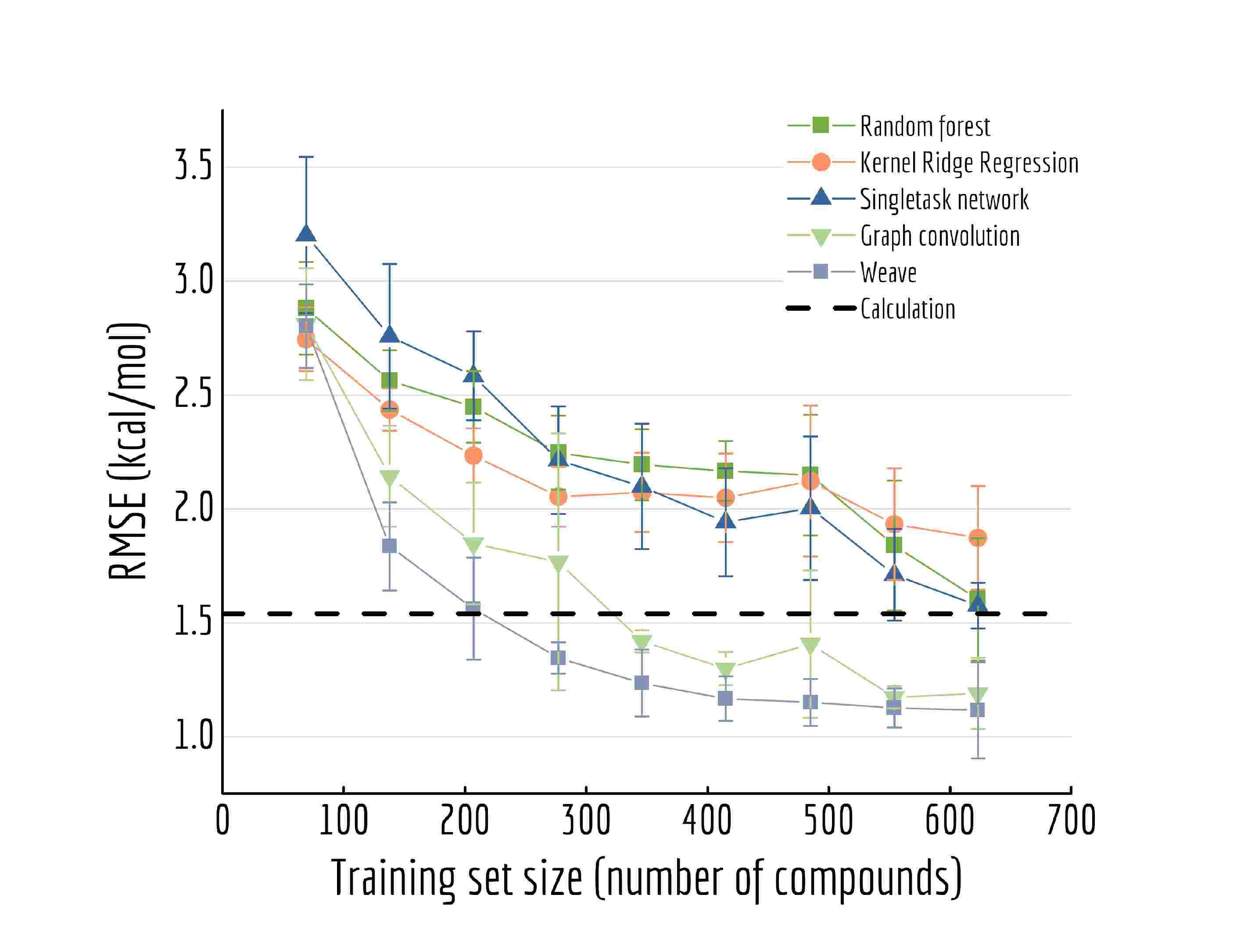

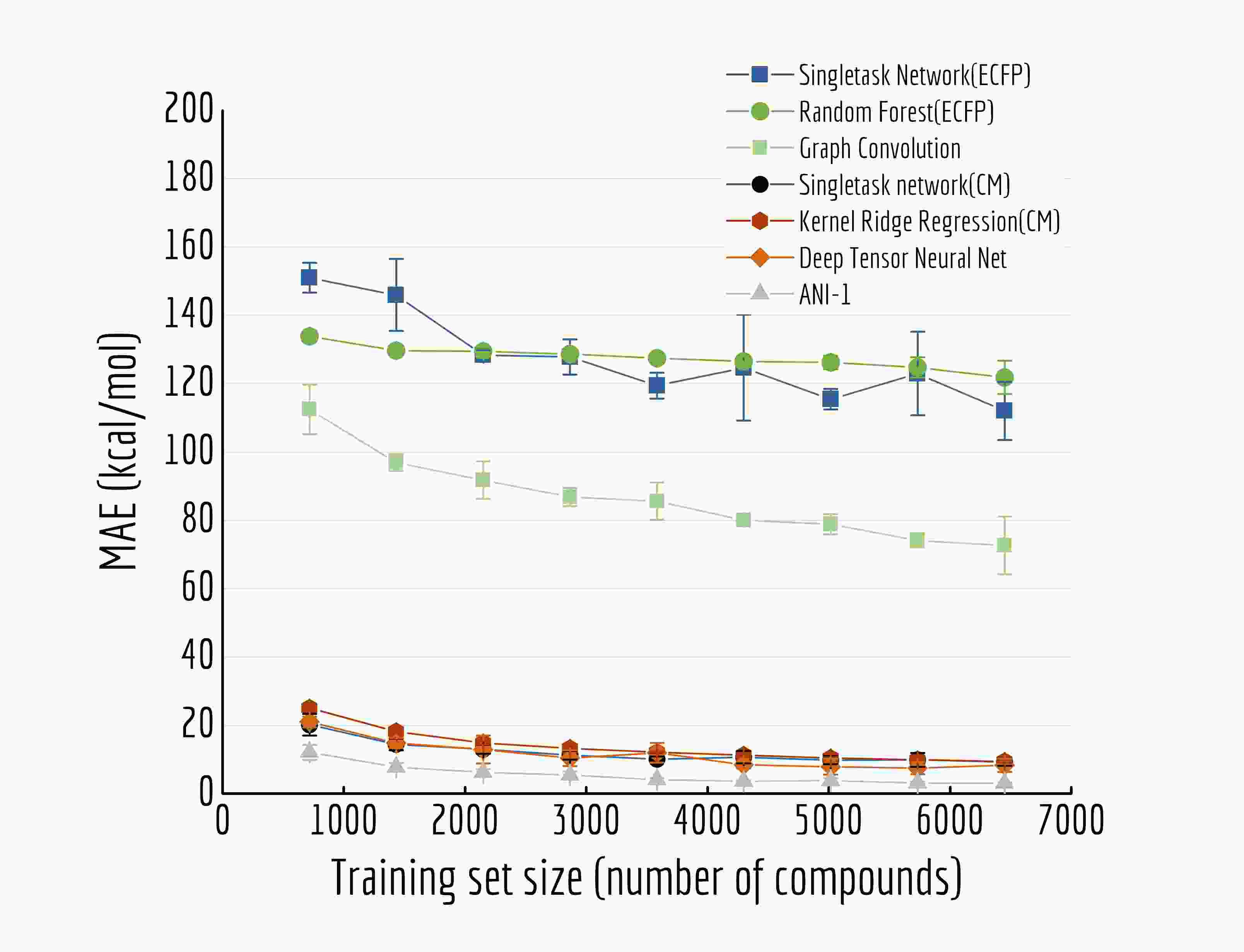

We also run a set of experiments focusing on how variable size of training set affect model performances.(Tox21, FreeSolv and QM7) Details will be presented in the following texts.

4.1 Physiology and Biophysics Tasks

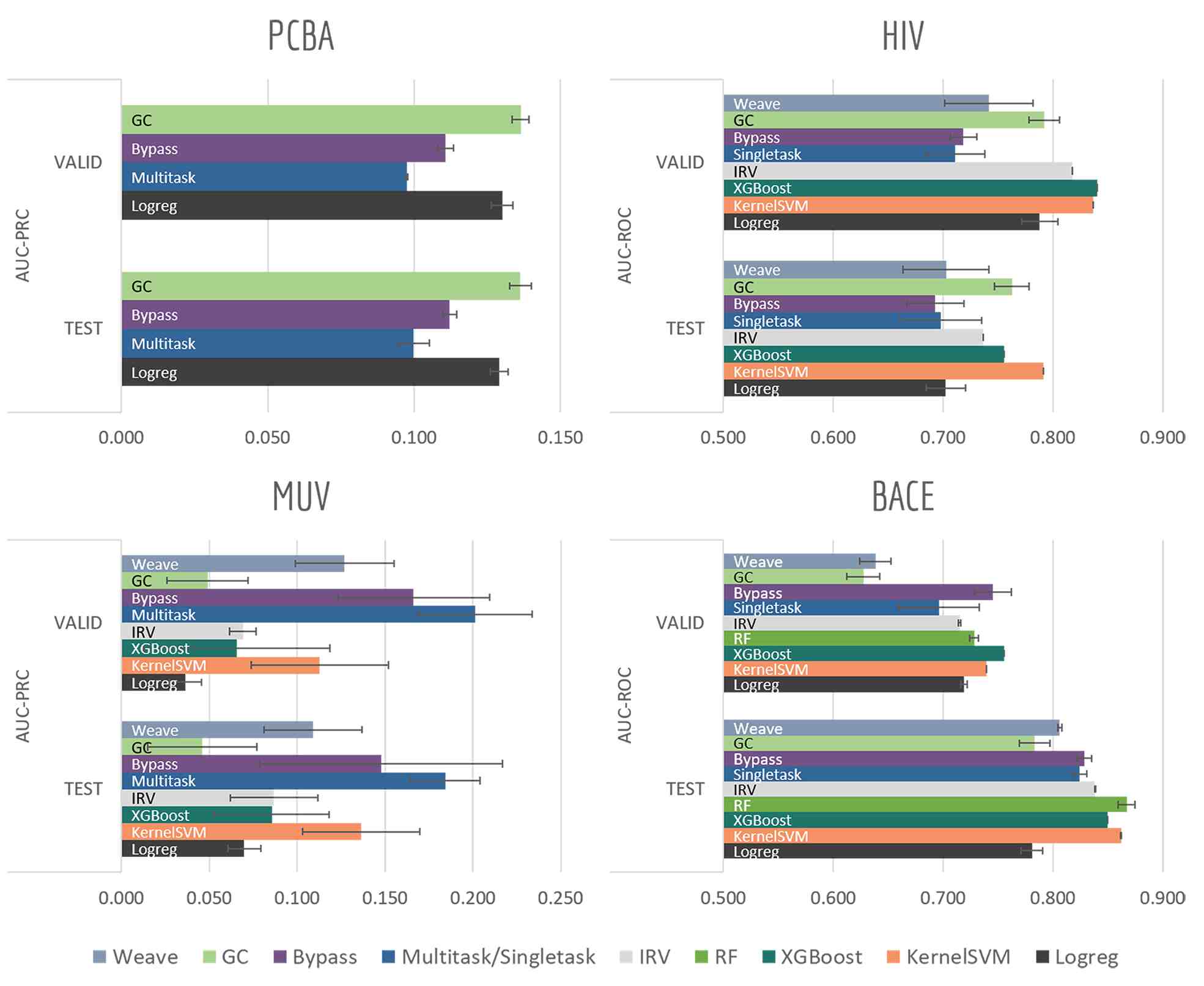

Figure 7: Benchmark performances for biophysics tasks: PCBA, 4 models are evaluated by AUC-PRC on random split; MUV, 8 models are evaluated by AUC-PRC on random split; HIV, 8 models are evaluated by AUC-ROC on scaffold split; BACE, 9 models are evaluated by AUC-ROC on scaffold split. For AUC-ROC and AUC-PRC, higher value indicates better performance(to the right).

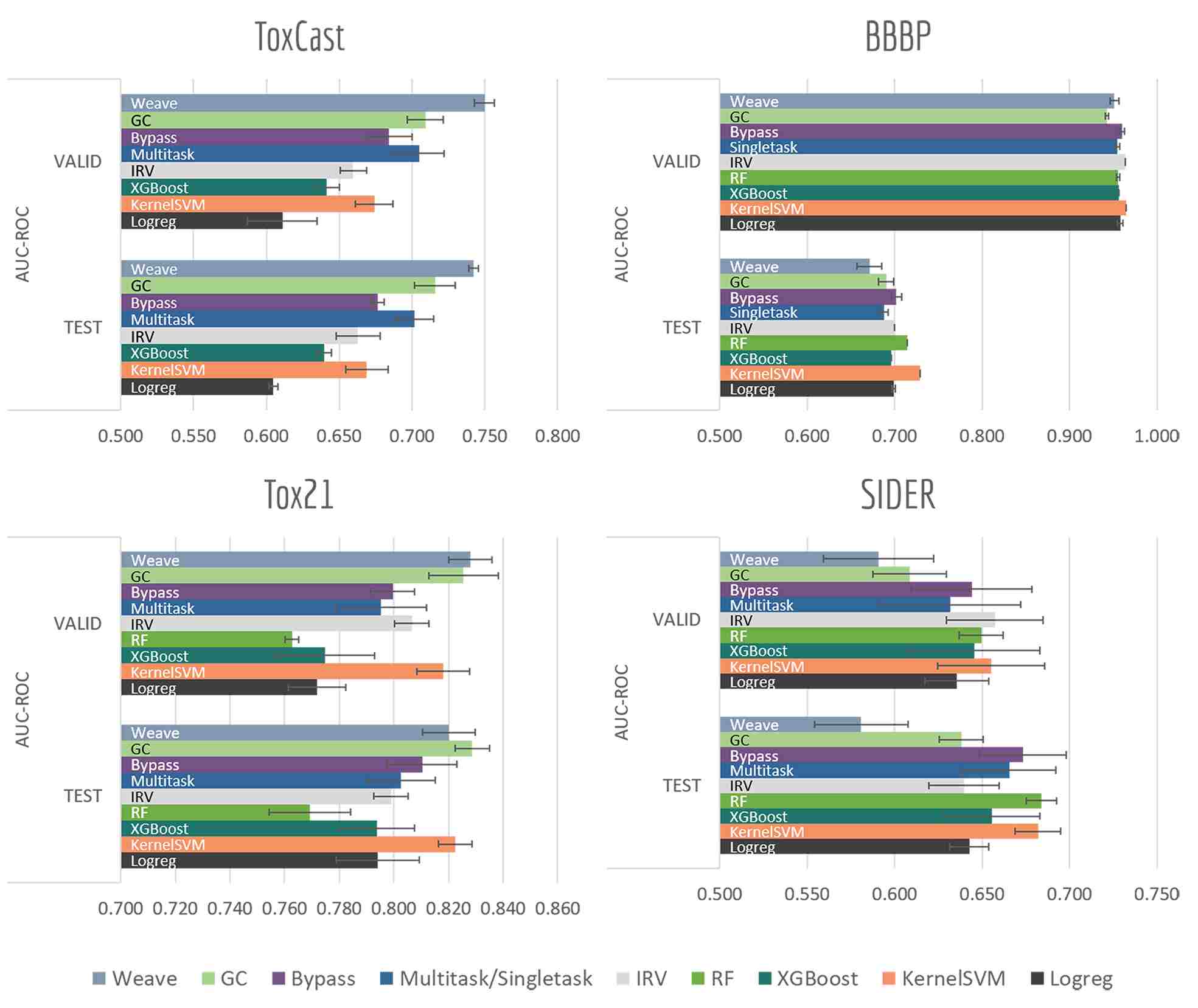

Figure 8: Benchmark performances for physiology tasks: ToxCast, 8 models are evaluated by AUC-ROC on random split; Tox21, 9 models are evaluated by AUC-ROC on random split; BBBP, 9 models are evaluated by AUC-ROC on scaffold split; SIDER, 9 models are evaluated by AUC-ROC on random split. For AUC-ROC, higher value indicates better performance(to the right).

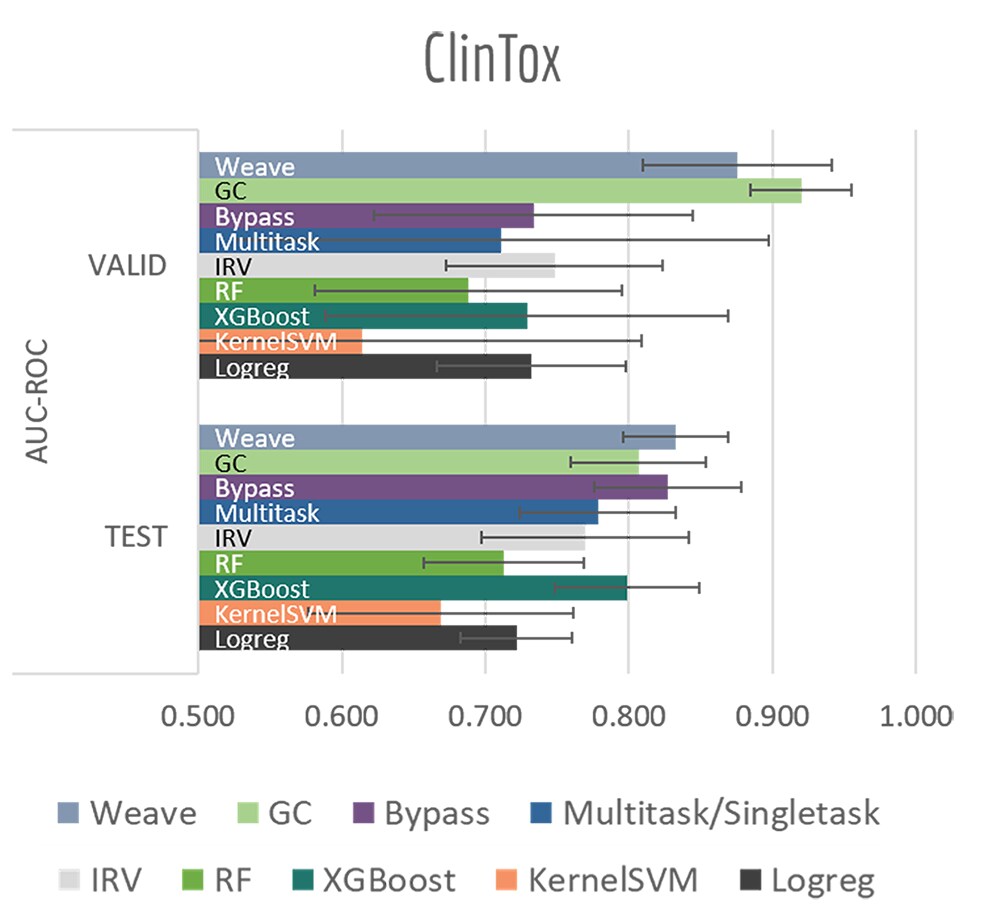

Figure 9: Benchmark performances for physiology tasks: ClinTox, 9 models are evaluated by AUC-ROC on random split.

Tables 5, 6 and Figures 7, 8, 9 report AUC-ROC or AUC-PRC results of to different models on biophysics datasets (PCBA, MUV, HIV, BACE) and physiology datasets (BBBP, Tox21, Toxcast, SIDER, ClinTox). Some models were too computationally expensive to be run on the larger datasets. All of these datasets contain only classification tasks.

Most models have train scores (listed in Tables 5, 6) higher than validation/test scores, indicating that overfitting is a general issue. Singletask logistic regression exhibits the largest gaps between train scores and validation/test scores, while models incorporating multitask structure generally show less overfit, suggesting that multitask training has a regularizing effect. Most physiological and biophysical datasets in MoleculeNet have only a low volume of data for each task. Multitask algorithms combine different tasks, resulting in a larger pool of data for model training. In particular, multitask training can, to some extent, compensate for the limited data amount available for each individual task.

Graph convolutional models and weave models, each based on an adaptive method of featurizationgraphconv_feat, kearnes2016graphconv, show strong validation/test results on larger datasets, along with less overfit. Similar results are reported in previous graph-based algorithms kearnes2016graphconv, graphconv_feat, MPNN, schutt2016quantum, lusci2013deep, showing that learnable featurizations can provide a large boost compared with conventional featurizations.

For smaller singletask datasets (less than 3000 samples), differences between models are less clear. Kernel SVM and ensemble tree methods (gradient boosting and random forests) are more robust under data scarcity, while they generally need longer running time (see Table 4). Worse performances of graph-based models are within expectation as complex models generally require more training data.

Bypass networks show higher train scores and equal or higher validation/test scores compared with vanilla multitask networks, suggesting that the bypass structure does add robustness. IRV models achieve performance broadly comparable with multitask networks. However, the quadratic nearest neighbor search makes the IRV models slower to train than the multitask networks (see Table 4).

Three datasets (HIV, BACE, BBBP) in these two categories are evaluated under scaffold splitting. As compounds are divided by their molecular scaffolds, increasing differences between train, validation and test performances are observed. Scaffold splits provide a stronger test of a given model’s generalizability compared with random splitting. Two datasets (PCBA, MUV) are evaluated by AUC-PRC, which is more practically useful under high class imbalance as discussed above. Graph convolutional model performs the best on PCBA (positive rate ), while results on MUV (positive rate ) are much less stable, which is most likely due to its extreme low amount of positive samples. Under such high imbalance, graph-based models are still not robust enough in controlling false positives.

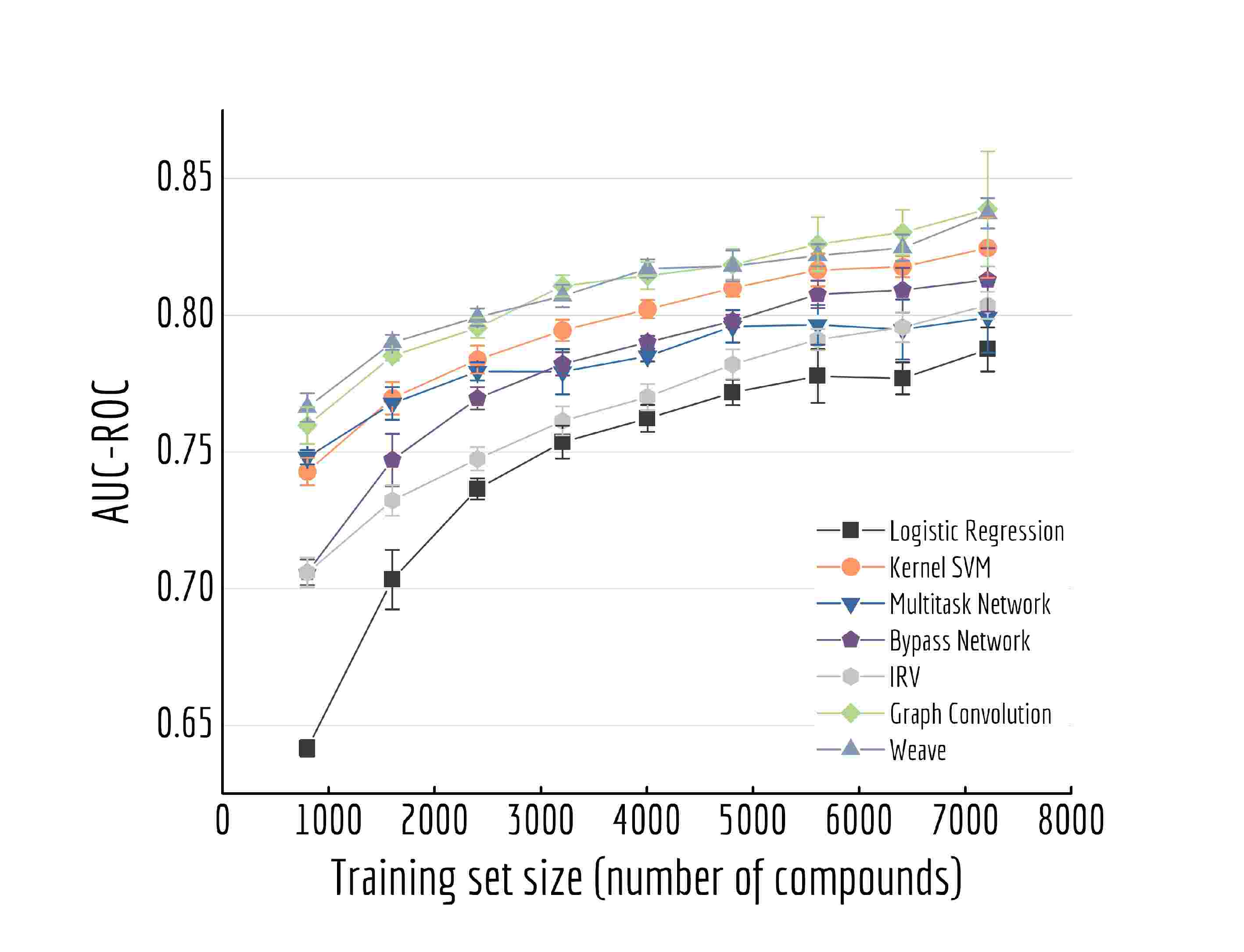

Figure 10: Out-of-sample performances with different training set sizes on Tox21. Each datapoint is the average of 5 independent runs, with standard deviations shown as error bars.

Here we performed a more detailed experiment to illustrate how model performances change with increasing training samples. We trained multiple models on Tox21 with training sets of different size( to of the whole dataset) Figure 10 displayed mean out-of-sample performances (and standard deviations) of five independent runs. A clear increase on performance is observed for each model, and graph-based models (Graph convolutional model and weave model) always stay on top of the lines. By drawing a horizontal line at around 0.80, we can see graph-based models achieve the similar level of accuracy with multitask networks by using only one-third of the training samples( versus ).

4.2 Biophysics Task - PDBbind

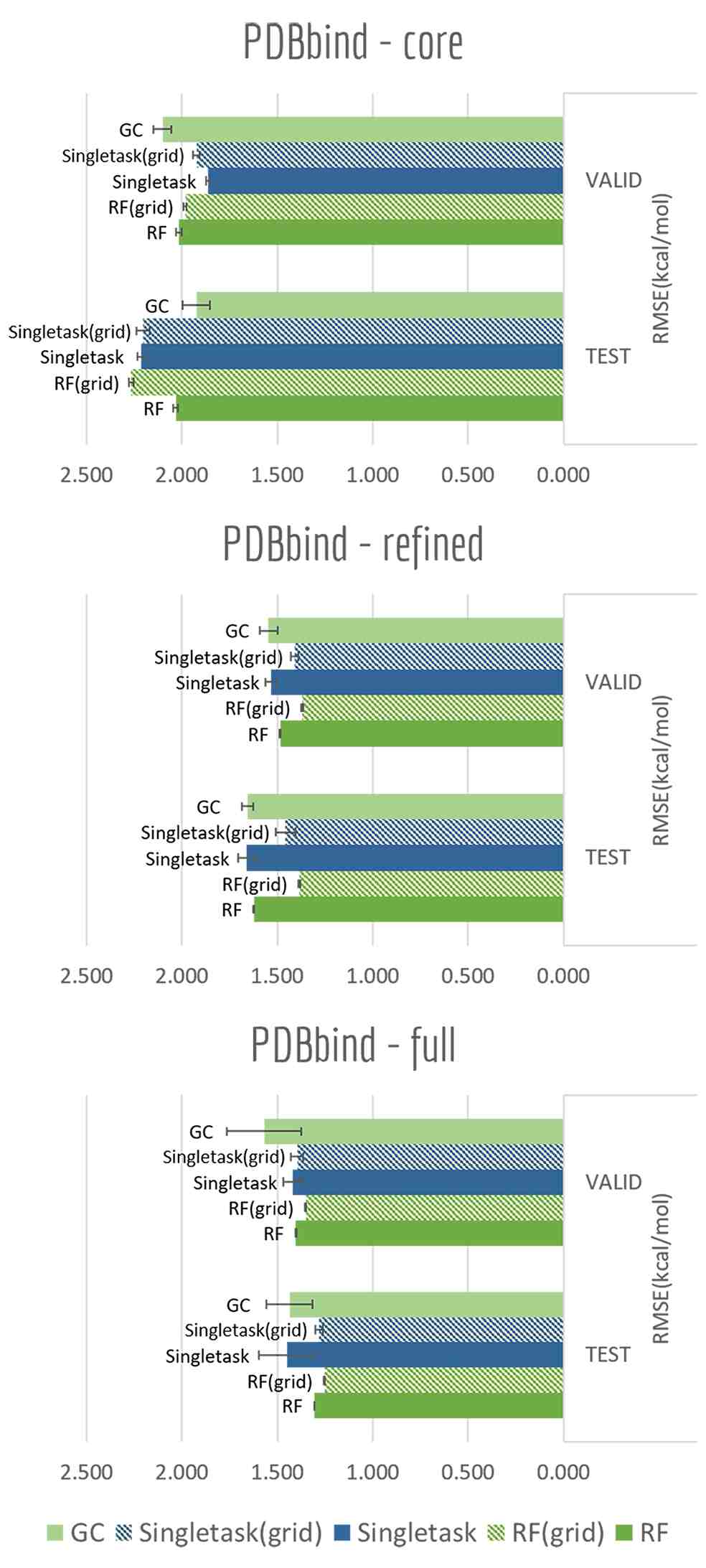

Figure 11: Benchmark performances of PDBbind: 5 models are evaluated by RMSE on the three subsets: core, refined and full. Time split is applied to all three subsets. Noe that for RMSE, lower value indicates better performance(to the right).

The PDBBind dataset maps distinct ligand-protein structures to their binding affinities. As discussed in the datasets section, we created grid featurizer to harness the joint ligand-protein structural information in PDBBind to build a model that predicts the experimental of binding. We applied time splitting to all three subsets: core, refined, and full subsets of PDBbind(Core contains roughly 200 structures, refined 4000, and full 15000. The smaller datasets are cleaned more thoroughly than larger datasets.), with all results displayed in Table 7 and Figure 11. Clearly as dataset size increased, we can see a significant boost on validation/test set performances. At the same time, for the two larger subsets: refined and full, switching from pure ligand-based ECFP to grid featurizer do increase the performances by a small margin in both Singletask networks and random forests. While for core subset, all models are showing relatively high errors and two featurizations do not show clear differences, which is within expectation as sample amount in core subset is too small to support a stable model performance. Note that models on the full set aren’t significantly superior to models with less data; this effect may be due to the additional data being less clean.

Note that all models display heavy overfitting. Additional clean data may be required to create more accurate models for protein-ligand binding.

4.3 Physical Chemistry Tasks

Solubility, solvation free energy and lipophilicity are basic physical chemistry properties important for understanding how molecules interact with solvents. Figure 13 and Table 8 presented performances on predicting these properties.

Graph-based methods: graph convolutional model, DAG, MPNN and weave model all exhibit significant boosts over vanilla singletask network, indicating the advantages of learnable featurizations. Differences between graph-based methods are rather minor and task-specific. The best-performing models in this category can already reach the accuracy level of ab-initio predictions(+/- 0.5 for ESOL, +/- 1.5 kcal/mol for FreeSolv).

We performed a more detailed comparison between data-driven methods and ab-initio calculations on FreeSolv. Hydration free energy has been widely used as a test of computational chemistry methods. With free energy values ranging from to kcal/mol in the FreeSolv dataset, RMSE for calculated results reached up to kcal/mol.SAMPL4 On the other hand, though machine learning methods typically need large amounts of training data to acquire predictive power, they can achieve higher accuracies given enough data. We investigated how the performance of machine learning methods on FreeSolv changes with the volume of training data. In particular, we want to know the amount of data required for machine learning to achieve accuracy similar to that of physically inspired algorithms.

Figure 12: Out-of-sample performances with different training set sizes on FreeSolv. Each datapoint is the average of 5 independent runs, with standard deviations shown as error bars.

For Figure 12, we similarly generated a series of models with different training set volumes and calculated their out-of-sample RMSE. Each data point displayed is the average of 5 independent runs, with standard deviations displayed as error bars. Both graph convolutional model and weave model are capable of achieving better performances with enough training samples ( and of the data respectively). Given the size of FreeSolv dataset is only around 600 compounds, a weave model can reach state-of-the-art free energy calculation performances by training on merely 200 samples. On the other hand, comparing with singletask network’s performance, weave model achieved the same level of accuracy with only one-third of the training samples.

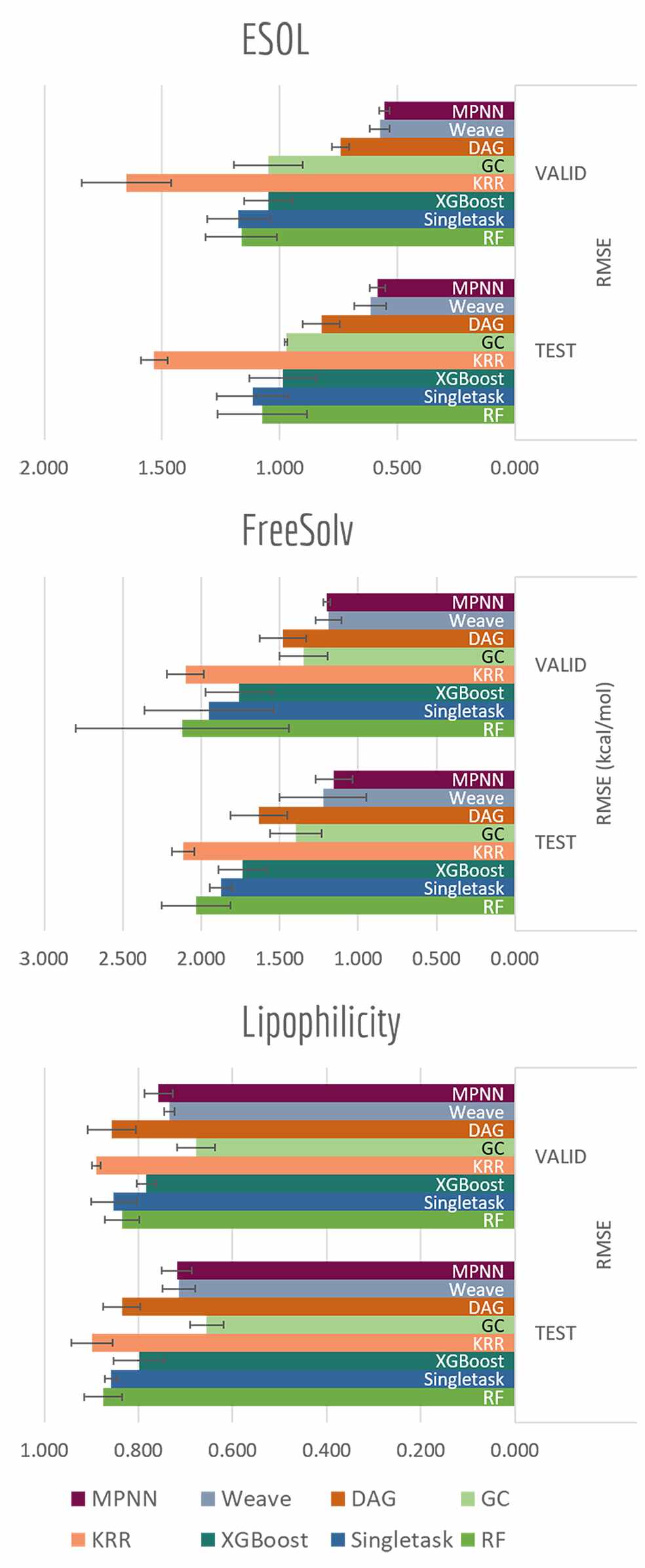

Figure 13: Benchmark performances for physical chemistry tasks: ESOL, 8 models are evaluated by RMSE on random split; FreeSolv, 8 models are evaluated by RMSE on random split; Lipophilicity, 8 models are evaluated by RMSE on random split. Note that for RMSE, lower value indicates better performance(to the right).

4.4 Quantum Mechanics Tasks

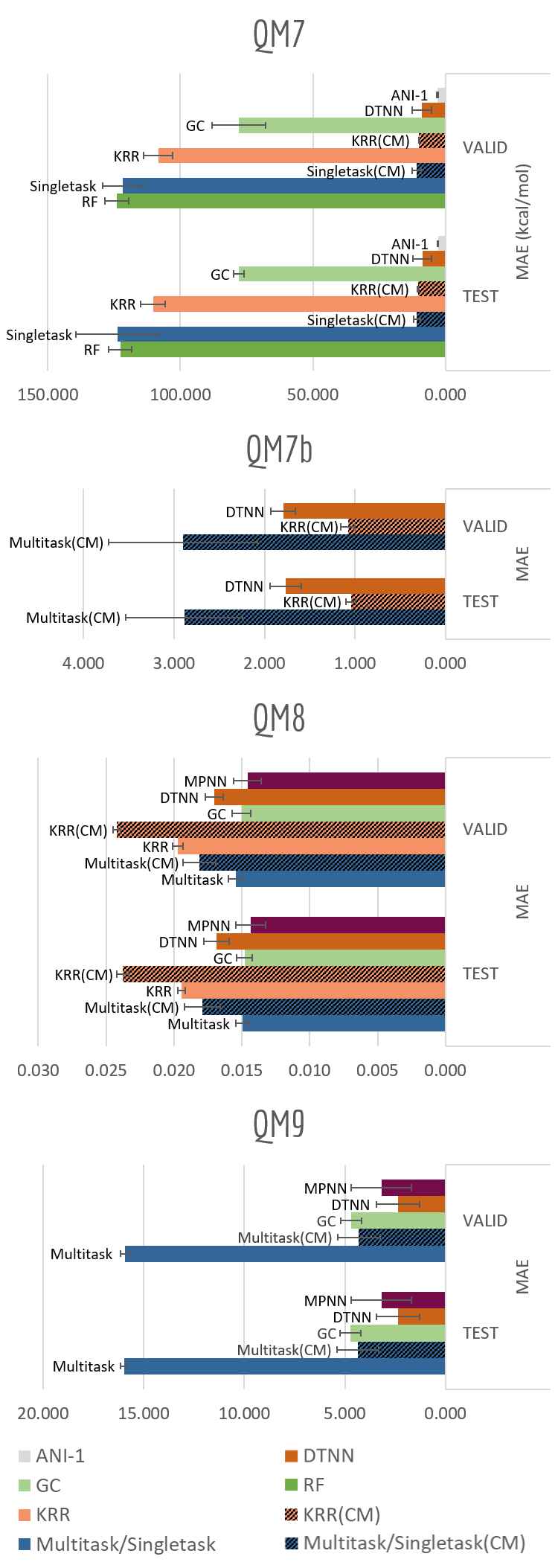

Figure 14: Benchmark performances for quantum mechanics tasks: QM7, 8 models are evaluated by MAE on stratified split; QM7b, 3 models (QM7b only provides 3D coordinates) are evaluated by MAE on random split; QM8, 7 models are evaluated by MAE on random split; QM9, 5 models are evaluated by MAE on random split. Note that for MAE, lower value indicates better performance(to the right)

The QM datasets (QM7, QM7b, QM8, QM9) represent another distinct category of properties that are typically calculated through solving Schrödinger’s equation (approximately using techniques such as DFT). As most conventional methods are slower than data-driven methods by orders of magnitude, we hope to learn effective approximators by training on existing datasets.

Table 9 and Figure 14 display the performances in mean absolute error of multiple methods. Table 10, 11 and 12

show detailed performances for each task.(Due to difference in range of labels, mean performances of QM7b and QM9 are more skewed) Unsurprisingly, significant boosts on performances and less overfitting are observed for models incorporating distance information (multitask networks and KRR with Coulomb Matrix featurization, ANI-1, DTNN, MPNN). In particular, KRR and multitask networks(CM) outperform their corresponding baseline models in QM7 and QM9 by a large margin, while ANI-1, DTNN and MPNN display less error comparing with graph convolutional models as well. At the same time, graph-based methods gain better performances than multitask networks and KRR (CM) on most tasks. Table

10 shows that DTNN outperforms KRR(CM) on 12/14 tasks in QM7b(Though the mean error shows the opposite result due to averaging errors on different magnitudes). In total, ANI-1, DTNN and MPNN covered the best-performing models on 28/39 of all tasks in this category, again reflecting the superiority of learnable featurization.

Another variable training size experiment is performed on QM7: predicting atomization energy. All mean absolute error performances are displayed in Figure 15. Clearly incorporation of spatial position creates the huge gap between models, DTNN and multitask networks(CM) reach similar level of accuracy as reported in previous work on this dataset. (There is still a gap between the MoleculeNet implementation and best reported numbers from previous workGDB7_dataset_arxiv, schutt2016quantum, which should be closed by training models longer, as indicated in Appendix, model validation part). ANI-1 reached the best performance on this task, illustrating overall lower mean absolute errors.

Figure 15: Out-of-sample performances with different training set sizes on QM7. Each datapoint is the average of 5 independent runs, with standard deviations shown as error bars.

For QM series, proper choice of featurization appears critical. As mentioned previously, ECFP only consider graph substructures, while Coulomb Matrix and graph featurizations used by ANI-1, DTNN and MPNN are explicitly calculated on charges and physical distances, which are exactly the required inputs for solving Schrödinger’s equation.

5 Conclusion

[b] Category Dataset Metric Best performances - Best performances - conventional methods graph-based methods Quantum Mechanics QM7 MAE KRR(CM): 10.22 ANI-1: 2.86 QM7b MAE KRR(CM): 1.05 DTNN: 1.77* QM8 MAE Multitask: 0.0150 MPNN: 0.0143 QM9 MAE Multitask(CM): 4.35 DTNN: 2.35 Physical Chemistry ESOL RMSE XGBoost: 0.99 MPNN: 0.58 FreeSolv RMSE XGBoost: 1.74 MPNN: 1.15 Lipophilicity RMSE XGBoost: 0.799 GC: 0.655 Biophysics PCBA AUC-PRC Logreg: 0.129 GC: 0.136 MUV AUC-PRC Multitask: 0.184 Weave: 0.109 HIV AUC-ROC KernelSVM: 0.792 GC: 0.763 BACE AUC-ROC RF: 0.867 Weave: 0.806 PDBbind(full) RMSE RF(grid): 1.25 GC: 1.44 Physiology BBBP AUC-ROC KernelSVM: 0.729 GC: 0.690 Tox21 AUC-ROC KernelSVM: 0.822 GC: 0.829 ToxCast AUC-ROC Multitask: 0.702 Weave: 0.742 SIDER AUC-ROC RF: 0.684 GC: 0.638 ClinTox AUC-ROC Bypass: 0.827 Weave: 0.832

  • * As discussed in section 4.4, DTNN outperforms KRR(CM) on 14/16 tasks in QM7b while the mean-MAE is skewed due to different magnitudes of labels.

Table 3: Summary of performances(test subset): conventional methods versus graph-based methods. Graph-based models outperform conventional methods on 11/17 datasets.

This work introduces MoleculeNet, a benchmark for molecular machine learning. We gathered data for a wide range of molecular properties: 17 dataset collections including over 800 different tasks on 700,000 compounds. Tasks are categorized into 4 levels as illustrated in Figure 2: (i) quantum mechanical properties; (ii) physical chemistry properties; (iii) biophysical affinity and activity with bio-macromolecules; (iv) macroscopic physiological effects on human body.

MoleculeNet contributes a data-loading framework, featurization methods, data splitting methods, and learning models to the open source DeepChem package (Figure 1). By adding interchangeable featurizations, splits and learning models into the DeepChem framework, we can apply these primitives to the wide range of datasets in MoleculeNet.

Broadly, our results show that graph-based models outperformed other methods by comfortable margins on most datasets(11/17, best performances comparison in Table 3), revealing a clear advantage of learnable featurizations. However, this effect has some caveats: Graph-based methods are not robust enough on complex tasks under data scarcity; on heavily imbalanced classification datasets, conventional methods such as kernel SVM outperform learnable featurizations with respect to recall of positives. Furthermore, for the PDBBind and quantum mechanics datasets, the use of appropriate featurizations which contain pertinent information is very significant. Comparing fully connected neural networks, random forests, and other comparatively simple algorithms, we claim that the PDBbind and QM7 results emphasize the necessity of using specialized features for different tasks. DTNN and MPNN which use distance information perform better on QM datasets than simple graph convolutions. While out of the scope of this paper, we note similarly that customized deep learning algorithms AtomNet could in principle supplant the need for hand-derived, specialized features in such biophysical settings. On the FreeSolv dataset, comparison between conventional ab-initio calculations and graph-based models for the prediction of solvation energies shows that data-driven methods can outperform physical algorithms with moderate amounts of data. These results suggest that data-driven physical chemistry will become increasingly important as methods mature. Results for biophysical and physiological datasets are currently weaker than for other datasets, suggesting that better featurizations or more data may be required for data-driven physiology to become broadly useful.

By providing a uniform platform for comparison and evaluation, we hope MoleculeNet will facilitate the development of new methods for both chemistry and machine learning. In future work, we hope to extend MoleculeNet to cover a broader range of molecular properties than considered here. For example, 3D protein structure prediction, or DNA topological modeling would benefit from the presence of strong benchmarks to encourage algorithmic development. We hope that the open-source design of MoleculeNet will encourage researchers to contribute implementations of other novel algorithms to the benchmark suite. In time, we hope to see MoleculeNet grow into a comprehensive resource for the molecular machine learning community.

We would like to thank the Stanford Computing Resources for providing us with access to the Sherlock and Xstream GPU nodes. Thanks to Steven Kearnes and Patrick Riley for early discussions about the MoleculeNet concept. Thanks to Aarthi Ramsundar for help with diagram construction.

Thanks to Zheng Xu for feedback on the MoleculeNet API. Thanks to Patrick Hop for contribution of the Lipophilicity dataset to MoleculeNet. Thanks to Anthony Gitter and Johnny Israeli for suggesting the addition of AuPRC for imbalanced datasets.

The Pande Group is broadly supported by grants from the NIH (R01 GM062868 and U19 AI109662) as well as gift funds and contributions from Folding@home donors.

We acknowledge the generous support of Dr. Anders G. Frøseth and Mr. Christian Sundt for our work on machine learning.

B.R. was supported by the Fannie and John Hertz Foundation.

6 Appendix

6.1 Model Training and Hyperparameter Optimization

All models were trained on Stanford’s GPU clusters via DeepChem. No model was allowed to train for more than 10 hours(time profile in Table 4. Users can reproduce benchmarks locally by following directions from DeepChem.

Hyperparameters were determined using Gaussian Process Optimization via pyGPGO (https://github.com/hawk31/pyGPGO), with max number of iterations set to 20. Optimized hyperparameters for each model are listed, detailed hyperparameters can be found on Deepchem.

6.1.1 Logistic Regression (Logreg)

  • Learning rate

  • L2 regularization

  • Batch size

6.1.2 Support Vector Classification (KernelSVM)

  • Penalty parameter C

  • Kernel coefficient gamma for radial basis function

6.1.3 Kernel Ridge Regression (KRR)

  • Penalty parameter

6.1.4 Random Forest (RF)

  • Number of trees in the forest: 500

6.1.5 Gradient Boosting (XGBoost)

  • Maximum tree depth

  • Learning rate

  • Number of boosted tree

6.1.6 Multitask/Singletask Networks

  • Layer size

  • Weight - initial standard deviation

  • Bias - initial constant

  • Learning rate

  • L2 regularization

  • Batch size

6.1.7 Bypass Networks

  • Layer size(main layer and bypass layer)

  • Weight - initial standard deviation(main layer and bypass layer)

  • Bias - initial constant(main layer and bypass layer)

  • Learning rate

  • L2 regularization

  • Batch size

6.1.8 Influence Relevance Voting (IRV)

  • K(number of nearest neighbors)

  • Learning rate

  • Batch size

6.1.9 Graph Convolutional models (GC)

  • Layer size of convolutional layers

  • Layer size of fully-connected layer

  • Learning rate

  • Batch size

6.1.10 Weave models

  • Length of output features(layer size) of convolutional layers

  • Learning rate

  • Batch size

6.1.11 Deep Tensor Neural Networks (DTNN)

  • Length of atom embedding(features)

  • Size of distance bin(from -1Å to 19Å)

  • Learning rate

  • Batch size

6.1.12 Directed Acyclic Graph models (DAG)

  • Length of features in the convolutional layer

  • Maximum number of propagation of a graph

  • Learning rate

  • Batch size

6.1.13 Message Passing Neural Networks (MPNN)

  • Number of message passing phases

  • Number of steps(iterations) in readout phase

  • Learning rate

  • Batch size

6.1.14 Ani-1

  • Layer size

  • Length of radial and angular symmetry functions

  • Learning rate

  • Batch size

All final performances were run three times with different fixed numerical seeds on the best-performing hyperparameters, and data splitting methods have been set to maintain determistic behavior. These settings control most randomness in learning process, but benchmark runs(on the same seed) may vary on the order of 1% due to other sources of nondeterminism. Mean and standard deviations of all results are presented in the Performances section of Appendix.

We measured model running time of Tox21, MUV, QM8 and Lipophicility on a single node in Stanford’s GPU clusters(CPU: Intel Xeon E5-2640 v3 @2.60 GHz, GPU: NVIDIA Tesla K80), results listed below:

Model Tox21 MUV QM8 Lipophilicity
Logreg 93 522
KernelSVM 2574 2231
KRR 3390/5153* 24
RF 24273 186
XGBoost 2082 2418 410
Multitask/Singletask 22 858 275/701* 21
Bypass 31 938
IRV 58 2674
GC 246 2320 512 131
Weave 323 4593 255
DAG 5142
DTNN 940
MPNN 3383 1626
  • * ECFP/Coulomb Matrix

Table 4: Time Profile for Tox21, MUV, QM8 and Lipophilicity(second)

6.2 Performances

Model Model Training Validation Test
PCBA Logreg
Multitask
Bypass
GC
MUV Logreg
KernelSVM
XGBoost
IRV
Multitask
Bypass
GC
Weave
HIV Logreg
KernelSVM
XGBoost
IRV
Multitask
Bypass
GC
Weave
BACE Logreg
KernelSVM
XGBoost
RF
IRV
Multitask
Bypass
GC
Weave
Table 5: PCBA, MUV, HIV and BACE Performances: AUC-PRC for PCBA and MUV, AUC-ROC for HIV and BACE
Model Model Training Validation Test
BBBP Logreg
KernelSVM
XGBoost
RF
IRV
Multitask
Bypass
GC
Weave
Tox21 Logreg
KernelSVM
XGBoost
RF
IRV
Multitask
Bypass
GC
Weave
ToxCast Logreg
KernelSVM
XGBoost
IRV
Multitask
Bypass
GC
Weave
SIDER Logreg
KernelSVM
XGBoost
RF
IRV
Multitask
Bypass
GC
Weave
ClinTox Logreg
KernelSVM
XGBoost
RF
IRV
Multitask
Bypass
GC
Weave
Table 6: BBBP, Tox21, ToxCast, SIDER, ClinTox Performances (AUC-ROC)
Model Model Training Validation Test
PDBbind - core RF
RF(grid)
Multitask
Multitask(grid)
GC
PDBbind - refined RF
RF(grid)
Multitask
Multitask(grid)
GC
PDBbind - full RF
RF(grid)
Multitask
Multitask(grid)
GC
Table 7: PDBbind Performances (Root-Mean-Square Error)
Model Model Training Validation Test
ESOL RF
Multitask
XGBoost
KRR
GC
DAG
Weave
MPNN
FreeSolv RF
Multitask
XGBoost
KRR
GC
DAG
Weave
MPNN
Lipophilicity RF
Multitask
XGBoost
KRR
GC
DAG
Weave
MPNN
Table 8: ESOL, FreeSolv, Lipophilicity Performances (Root-Mean-Square Error)
Model Model Training Validation Test
QM7 RF
Multitask
KRR
GC
Multitask(CM)
KRR(CM)
DTNN
ANI-1
QM7b Multitask(CM)
KRR(CM)
DTNN
QM8 Multitask
KRR
GC
Multitask(CM)
KRR(CM)
DTNN
MPNN
QM9 Multitask
GC
Multitask(CM)
DTNN
MPNN
Table 9: QM7, QM7b, QM8 and QM9 Performances (Mean Absolute Error)
Task Multitask(CM) KRR(CM) DTNN
Atomization energy - PBE0
Excitation energy of maximal optimal absorption - ZINDO
Highest absorption - ZINDO
HOMO - ZINDO
LUMO - ZINDO
1st excitation energy - ZINDO
Ionization potential - ZINDO
Electron Affinity - ZINDO
HOMO - KS
LUMO - KS
HOMO - GW
LUMO - GW
Polarizability - PBE0
Polarizability - SCS
Table 10: QM7b Test Set Performances of All Tasks(Mean Absolute Error)
Task Multitask GC KRR Multitask(CM) KRR(CM) DTNN MPNN
E1 - CC2
E2 - CC2
f1 - CC2
f2 - CC2
E1 - PBE0
E2 - PBE0
f1 - PBE0
f2 - PBE0
E1 - CAM
E2 - CAM
f1 - CAM
f2 - CAM
Table 11: QM8 Test Set Performances of All Tasks(Mean Absolute Error)
Task Multitask Multitask(CM) GC DTNN MPNN
mu
alpha
HOMO
LUMO
gap
R2
ZPVE
U0
U
H
G
Cv
Table 12: QM9 Test Set Performances of All Tasks(Mean Absolute Error)

6.3 Grid Featurizer

In our implementation, we generate a vector with length 2052 for each pair of ligand and protein. Detailed process listed below:

First, binding pocket atoms of the protein are extracted using a distance cutoff of 4.5 Å. In this process, atom in the protein will be extracted only if it locates within this distance from any atom in the ligand molecule.

Intra-ligand and intra-protein fingerprints are generated (using the ordinary circular fingerprint with radius of 2) respectively on the atoms from the ligand and atoms in the binding pocket of the protein, and then hashed together to form a vector of length 512.

Then we form three different sets of contacting atom pairs between ligand and protein, whose intra-pair distance falls within bins: Å, Åand Å. Each set of pairs is hashed into a fixed length fingerprint with length 512.

Finally, salt bridges are counted, hydrogen bonds are counted in three different distance bins, forming the last four digits. In total the fingerprints have length of 2052.

6.4 ClinTox

The ClinTox dataset addresses clinical drug toxicity by providing a qualitative comparison of drugs approved by the FDA and those that have failed clinical trials for toxicity reasons. We compiled the FDA-approved drug names from annotations in the SWEETLEAD database. We compiled the names of drugs that failed clinical trials for toxicity reasons from the Aggregate Analysis of ClinicalTrials.gov (AACT) database. To identify these drug names, we relied on annotations from the clinical study table titled ”clinical_study_noclob.txt” in the AACT database. From this table, we selected clinical trials where the overall status was ”terminated,” ”suspended,” or ”withdrawn,” and the explanation for the status included the terms ”adverse,” ”toxic,” or ”death.”

6.5 Dataset and model access

Table 13 listed DeepChem commands to load datasets and models in MoleculeNet. For more detailed instructions please refer to the docs and examples. Tutorial for building customized datasets can be found at https://github.com/deepchem/deepchem/blob/master/examples/notebooks/dataset_preparation.ipynb

Dataset Command
QM7 deepchem.molnet.load_qm7_from_mat
QM7b deepchem.molnet.load_qm7b_from_mat
QM8 deepchem.molnet.load_qm8
QM9 deepchem.molnet.load_qm9
ESOL deepchem.molnet.load_delaney
FreeSolv deepchem.molnet.load_sampl
Lipophilicity deepchem.molnet.load_lipo
PCBA deepchem.molnet.load_pcba
MUV deepchem.molnet.load_muv
HIV deepchem.molnet.load_hiv
BACE deepchem.molnet.load_bace_classification
PDBbind deepchem.molnet.load_pdbbind_grid
BBBP deepchem.molnet.load_bbbp
Tox21 deepchem.molnet.load_tox21
ToxCast deepchem.molnet.load_toxcast
SIDER deepchem.molnet.load_sider
ClinTox deepchem.molnet.load_clintox
Model Command
Logreg sklearn.linear_model.LogisticRegression
KernelSVM sklearn.svm.SVC
KRR sklearn.kernel_ridge.KernelRidge
RF sklearn.ensemble.RandomForestClassifier
sklearn.ensemble.RandomForestRegressor
XGBoost deepchem.models.xgboost_models.XGBoostModel
Multitask/Singletask deepchem.models.MultitaskClassifier
deepchem.models.MultitaskRegressor
Bypass deepchem.models.RobustMultitaskClassifier
IRV deepchem.models.TensorflowMultitaskIRVClassifier
GC deepchem.models.GraphConvModel
Weave deepchem.models.WeaveModel
DAG deepchem.models.DAGModel
DTNN deepchem.models.DTNNModel
ANI-1 deepchem.models.ANIRegression
MPNN deepchem.models.MPNNModel
  • These models are based on scikit-learn package.sklearn

  • XGBoost is based on xgboost package.xgb

Table 13: DeepChem commands to load MoleculeNet datasets and models

6.6 Model validation

MoleculeNet includes multiple models that are previously proposed. To validate our reimplementation, here we compare the performances of our implementation with reported values in previous papers. All model validation scripts and trained models can be found in DeepChem.

Note that performances of our models might be different from values in the benchmark tables due to no limitation imposed on running time(more epochs), different random splitting patterns, etc.

6.6.1 Graph Convolutional models

We evaluate the model on ESOL dataset, note that we provide performances based on a 80/10/10 random train, valid, test splitting, while the original paper reported performance under cross validation.graphconv_feat

RMSE in logS(log solubility in mol per litre):

  • Original result:

  • Reimplementation: for valid subset, for test subset

6.6.2 Directed Acyclic Graph models

We evaluate the model on ESOL dataset with the same splitting pattern, the original paper reported performance under 10-fold cross validation.lusci2013deep

RMSE in logS(log solubility in mol per litre):

  • Original result:

  • Reimplementation: for valid subset, for test subset

6.6.3 Weave models

We evaluate the model on Tox21 dataset, using 80/10/10 random train, valid, test splitting. The original paper reported performance as median score of 5-fold cross validation.kearnes2016graphconv

mean ROC-AUC:

  • Original result: for different model structure settings.

  • Reimplementation: for valid subset, for test subset

6.6.4 Deep Tensor Neural Network

We evaluate the model on the atomization energy task of qm9, using 80/10/10 random train, valid, test splitting.(train subset with 106,400 samples) The original paper reported performance using different size of training set.schutt2016quantum

MAE in kcal/mol:

  • Original result: with 2 DTNN layers and 100,000 training samples.

  • Reimplementation: for valid subset, for test subset

6.6.5 Message Passing Neural Network

We evaluate the model on the HOMO-LUMO gap task of qm9, using 80/10/10 random train, valid, test splitting.(train subset with 106,400 samples) The original paper reported performance with a training set containing 110,462 randomly picked samples.MPNN Due to that no hyperparameter is specified for the model, we are not able to fully repeat the results.

Note that the original paper trained a single model for each task in the qm9 dataset. Here we only picked one representative task to compare.

MAE in eV:

  • Original result:

  • Reimplementation: for valid subset, for test subset

6.6.6 Influence Relevance Voting

We evaluate the model on the HIV dataset, using 80/10/10 random train, valid, test splitting. The original paper reported performance under 10-fold cross validation.IRV

ROC-AUC:

  • Original result:

  • Reimplementation: for valid subset, for test subset

References
