Leveraging Language for Accelerated Learning of Tool Manipulation

06/27/2022
by   Allen Z. Ren, et al.
Princeton University
0

Robust and generalized tool manipulation requires an understanding of the properties and affordances of different tools. We investigate whether linguistic information about a tool (e.g., its geometry, common uses) can help control policies adapt faster to new tools for a given task. We obtain diverse descriptions of various tools in natural language and use pre-trained language models to generate their feature representations. We then perform language-conditioned meta-learning to learn policies that can efficiently adapt to new tools given their corresponding text descriptions. Our results demonstrate that combining linguistic information and meta-learning significantly accelerates tool learning in several manipulation tasks including pushing, lifting, sweeping, and hammering.

READ FULL TEXT VIEW PDF

page 1

page 8

page 15

11/03/2020

Meta-Learning for Natural Language Understanding under Continual Learning Framework

Neural network has been recognized with its accomplishments on tackling ...
08/27/2019

Investigating Meta-Learning Algorithms for Low-Resource Natural Language Understanding Tasks

Learning general representations of text is a fundamental problem for ma...
06/02/2022

Code Generation Tools (Almost) for Free? A Study of Few-Shot, Pre-Trained Language Models on Code

Few-shot learning with large-scale, pre-trained language models is a pow...
05/23/2022

Using Natural Language and Program Abstractions to Instill Human Inductive Biases in Machines

Strong inductive biases are a key component of human intelligence, allow...
11/01/2017

Learning with Latent Language

The named concepts and compositional operators present in natural langua...
05/24/2019

Personalizing Dialogue Agents via Meta-Learning

Existing personalized dialogue models use human designed persona descrip...
04/13/2022

What Matters in Language Conditioned Robotic Imitation Learning

A long-standing goal in robotics is to build robots that can perform a w...

1 Introduction

The ability to quickly learn how to use a broad range of new tools is considered one of the hallmarks of human intelligence [1]. Humans are able to attain a degree of proficiency with a new tool (e.g., a new hand tool or a virtual tool such as a joystick or remote) within just a few minutes of interaction [2]. This rapid learning relies on the ability to understand or discover the affordances [3] of a new tool, i.e., the ability to perform a certain action with the tool in a given environment. For example, a hammer affords the opportunity to grasp it, use it to hammer a nail, or use it to push another object. In contrast, a spatula affords the opportunity to flip a pancake or sweep food ingredients into a bowl. Endowing robots with the ability to quickly discover and exploit affordances of a new tool in order to learn how to perform a given task has been a long-standing grand challenge in robotics [4].

While humans routinely rely on geometric priors and visual observations for tool manipulation, they can also ‘read’ text manuals or linguistic descriptions to understand affordances of new tools and quickly adapt to using them. In this work, we investigate whether language can help robots accelerate the process of learning to use a new tool. In particular, consider the following descriptions of two types of tools:

The shape of tongs is typically that of a V, with two long, thin handles that come to a point at the top, and a gripping area in the middle.
A spatula is a kitchen utensil for flipping over food while cooking. The head of the spatula is usually rectangular or oval in shape. The handle of the spatula is usually long and thin.

Our key intuition is that such natural language descriptions of tools contain information about the affordances of the tools, how to exploit these affordances for a given task, and how perceptual features of tools (e.g., their visual appearance and geometry) relate to their affordances. Moreover, language can help capture the shared structure of tools and their affordances. Thus, if one has previously learned to use a set of tools (with corresponding language descriptions), a description of a new tool can help to exploit this prior knowledge in order to accelerate learning.

Statement of Contributions. Our primary contribution is to propose ATLAAccelerated Learning of Tool Manipulation with LAnguage — a meta-learning framework leveraging large language models (LLMs) to accelerate learning of tool manipulation skills. The overall approach is illustrated in Fig. 1. ATLA utilizes LLMs in two distinct ways: to generate the language descriptions for tools and to obtain the corresponding feature representations. At meta-training time, the meta-learner updates a base-learner that quickly fine-tunes a manipulation policy; this fine-tuning process is conditioned on the LLM representations corresponding to the language descriptions of each tool. Specifically, we propose a simple gradient-based meta-learning setup based on Reptile [5] that performs off-policy updates. At test time, the base-learner adapts to a new tool using its language descriptions and interactions with it. To our knowledge, our approach is the first to utilize LLMs to accelerate learning of new tools. We demonstrate the benefits of using language in a diverse set of tool-use tasks including pushing, lifting, sweeping, and hammering.

2 Related Work

Tool Manipulation. Tool manipulation [6, 7, 8, 9, 10] is one of the long-standing problems in robotics research. A major challenge is understanding the affordances of the tool in different tasks. Previous work has modeled and learned affordances from parameterized keypoints on the tools [7, 10], from human demonstrations [8], and from spatial-temporal parsed graphs of the tools [11]. Our work instead leverages natural language (e.g., describing affordances of the tools in words) for generalization of affordances in tool manipulation and is compatible with previous approaches.

Language-informed Control. Natural language has been applied to enable efficient robotic learning through (1) generating primitive language instructions for producing control actions (i.e., instruction following task) [12, 13, 14, 15, 16, 17, 18, 19], (2) learning language-informed reward functions for training control policies [20, 21, 22, 23, 24, 25], and (3) using language to correct or adapt the behavior of the robot [26, 27]. However, these works primarily translate natural language into action policies for a specific task with the text providing information on the desired actions that optimize returns (e.g.,push the door”). This means that the text is tightly coupled with the task seen during training, making it difficult to generalize to a new distribution of tasks with different dynamics. In contrast, the text in our work only provides a high-level description of the property of each tool, encouraging the agent to extract useful information to generalize to a new task. Some prior work [28, 29, 30, 31] also uses language descriptions of environment dynamics to enable generalization of policies but does not leverage meta-learning.

Meta-learning. Our work uses the framework of meta-learning [32, 33, 34, 35, 36], in which the agent is trained with a distribution of tasks, and later adapts quickly to a previously unseen task. “Reptile” is proposed in [5]

as a simple first-order, gradient-based meta-learning algorithm that learns an initialization of the neural network’s parameters for fast adaptation at test time. Recent papers

[37, 38, 39, 40] have also explored providing additional context information (e.g., the property of the task) to encode task-specific knowledge for a meta-learning agent. However, all these works directly provide the context information either through scalar signals or a learned task embedding, which require domain expertise or a pre-training stage. In this work, we assume that the agent is provided with a text description of the tool, which is more accessible and easier to collect.

3 Problem Formulation

We consider the following goal: given a new tool and corresponding language description(s), we aim to quickly learn a policy for using the tool to achieve a given task. We pose this problem in a meta-learning setting in which a policy is trained with a distribution of tools, and later adapts quickly to a previously unseen tool sampled from this distribution.

Meta-training. During meta-training, we assume access to a set of tools, where is the number of available tools. For each tool , we are also provided a set of corresponding language descriptions , where is the number of available descriptions for tool and is the set of possible textual descriptions. In addition, each can describe a different property of tools such as shape and common use. Given a particular robotic manipulator and a particular task (e.g., pushing, lifting, sweeping, or hammering), each tool

induces a partially-observable Markov decision process (POMDP):

. Here, is the state of the entire environment (i.e., combined state of the robot, tool, and potentially other objects to be manipulated using the tool). The robot’s action space (e.g., corresponding to robot joint torques) and observation space (e.g.,

the space of RGB-D observations from a camera) are fixed across tools. The transition probabilities are given by

, and the reward function is . During meta-training, our goal is to learn a policy parameterized by (e.g., weights of a neural network) that can be quickly fine-tuned at test time.

Meta-testing. At test time, we are provided a new tool and corresponding language descriptions . We aim to let the meta-learned policy quickly adapt to this new tool in a fixed number of interactions with the tool in order to maximize the expected cumulative reward. This is a challenging task since the new tool can be quite different in terms of visual appearance and affordances as compared to previously seen tools in meta-training.

4 Approach

The key idea behind our approach is to collect and embed language information of the environment into meta-learning, allowing the policy to adapt faster and better to unseen environments.

4.1 Collecting Language Information Using Pre-Trained Large Language Models

A common use of language in robotics is to use it to provide an instruction to the robot (e.g.,pick up the green block on the table”). Such instructions are typically specified by humans manually through crowd-sourcing, which can be labor intensive. In our setting, we consider language as additional information about the environment (e.g.,the hammer has a long handle and large head at the top”). The language here is not used to describe the goal (e.g., what to do), but to provide information about properties of the environment (e.g., tool shape). This makes the text here task-agnostic, forcing the agent to learn generalizable policies. To obtain a diverse set of language descriptions, we are inspired by the recent advances in LLMs that are trained with vast amounts of online data and imbued with rich, semantic knowledge of different objects. We propose using LLMs to provide language descriptions of the tools in the form of question answering. Specifically, we provide the GPT-3 [41] model with the following template prompt through the OpenAI API:

   “Describe the [feature] of [name] in a detailed and scientific response:

where “feature” is selected from one of [“shape”, “geometry”] or one of [“common use”, “purpose”] and “name” describes the tool (e.g.,a hammer”, “a pair of tongs”). We find that adding “detailed and scientific” to the prompt significantly improves the quality of the texts generated. For each tool, we generate 10 different paragraphs of descriptions for each of the four features, and then combine paragraphs in each of the four permutations of the features (“shape” and “common use”, etc). Each tool is thus paired with a diverse set of 800 language descriptions (see Appendix A1 for more examples). Each description is approximately 2-4 sentences long.

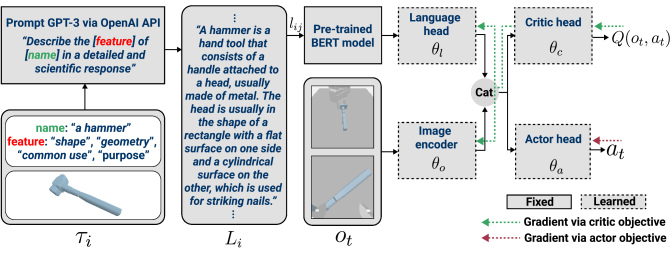

Figure 2: Model Overview. First, we prompt OpenAI GPT-3 to obtain a diverse set of language descriptions of the tool . Then for each episode collected, we sample a language description randomly from , which is then fed into a pre-trained BERT model to obtain the representation. The language head further distills the language information. We concatenate the representations from the language head and the image encoder, and then the features are shared by the critic head and the actor head.

4.2 Obtaining Feature Representations from Large Language Models

With the collected language descriptions, we now incorporate them into policy training. One common choice is to train a language module (e.g.,long short-term memory (LSTM) [42]) from scratch to embed features of the language input, which can take substantial time and effort to tune. Instead, we use a pre-trained LLM to distill the language descriptions into feature representations. Since LLMs are trained with vast amounts of data, they can better interpret and generalize to the diverse set of long descriptions. Since the GPT-3 model is not publicly available, we opt for the Google BERT-Base [43]

model on HuggingFace, which has 110.1M parameters and outputs a 768-dimensional vector representation for each description input. T-SNE analysis shown in Fig.

3 demonstrates that, without any fine-tuning, the model already captures semantic meanings of the descriptions among tools (e.g., hammer and mallet are close to each other).

Figure 3: T-SNE results of BERT output for multiple language descriptions of each tool.

Fig. 2 shows the overall neural network architecture. We first prompt GPT-3 to obtain a set of text descriptions for tool via the procedure in Sec. 4.1. During meta-training, we randomly sample from

for each episode to ensure that the policy sees a diverse set of descriptions. We then freeze the BERT model during policy training. The output from BERT is fed into a single fully-connected layer with ReLU (language head,

). The image observations (possibly from two camera angles–one from overhead and one from the wrist) are passed through convolutional layers (image encoder, ), whose output is then concatenated with that from the language head. The actor head () and critic head () then output the action and the corresponding value for the Q function . See Appendix A3 for more details of the neural network setup.

4.3 Meta-training and Testing Language-Conditioned Manipulation Policies

We hypothesize that additional language information of the tools promotes generalization. However, zero-shot transfer to unseen tools can be difficult given the distinct geometries and affordances. Thus we perform meta-training for explicitly training the policy to adapt to distinct tools. Our algorithm (shown in Algorithm 1) is based on Reptile [5], a simple first-order gradient-based meta-learning algorithm, but with an additional sampling strategy to prevent overfitting. At each iteration of the meta-training, one tool is sampled from the training set At the base level (line 5), we run the current policy with the language description sampled from . We then add the collected experiences in a base replay buffer and perform iterations of off-policy updates using Soft Actor Critic (SAC) [44] in order to obtain the final policy parameters Then at the meta level (line 12), the network is updated with a gradient step towards :

(1)

where is the meta-learning rate and is the collection of the old policy parameters We also highlight the following remarks including differences to the Reptile algorithm:

  • [leftmargin=*]

  • To reduce variance, the actor and critic share the parameters of language head

    and the image encoder , and both modules are updated only with the critic objective.

  • To prevent overfitting to language descriptions of one tool during training, experiences collected from all tools are saved in a meta replay buffer (line 14), and for each tool is initialized with random samples from (line 3). During policy update at base training, of the experiences are sampled from . During test time, we do not use any experiences from . We demonstrate the effectiveness in Sec. 6.

  • In applications of Reptile in supervised learning, the meta update is often averaged over

    sampled tasks: . However, we find that trains faster and also matches the test objective of adapting to a single tool.

  • Performing only a single meta update after iterations of base update can be inefficient. Instead of using a large learning rate which causes unstable training, we perform meta updates for each adaptation to one tool, but collect experiences to only at the first update.

Algorithm 2 shows the procedure of adaption at test time. First, the model is provided with a target test tool and a set of language descriptions. With the adaptation budget we run the policy with the language description sampled from The collected experiences are stored in the buffer and used to update the policy parameters.

1:: training set of tools; : sets of language descriptions; : policy modules; : meta replay buffer.
2:while meta-training do
3:     Sample from # meta level
4:     Reset with samples from
5:     for  do
6:         for  do# base level
7:              if  then
8:                  Collect episodes each with ; add to
9:              end if
10:              Sample from and update with the critic objective
11:              Sample from and update with the actor objective
12:         end for
13:         Meta update with Eq. 1
14:     end for
15:     Add to
16:end while
Algorithm 1 ATLA: Meta-training,
1:: test tool; : set of language descriptions; : policy modules; : base replay buffer
2:for  do
3:     Collect episodes each with ; add to
4:     Sample from and update with the critic objective
5:     Sample from and update with the actor objective
6:end for
Algorithm 2 Adaption at test time

5 Experiment Setup

Through different tool manipulation tasks in simulation, we aim to investigate the following questions: (1) Does language information help achieve better adaptation to new tools? (2) Does meta-learning improve adaptation to new tools? (3) How does the choice of pre-trained LLMs affect policy training? (4) Does language information help the policy utilize tools’ affordances effectively?

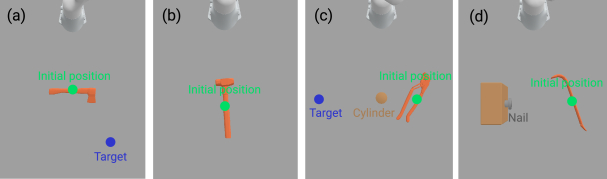

Tasks. Four different tool manipulation tasks are implemented (see bottom of Fig. 1): (1) pushing: pushing the tool to a fixed location on the table; (2) lifting: reaching and lifting the tool up from the table to some target height; (3) sweeping: using the tool to sweep a cylinder to a fixed location on the table; (4) hammering: using the tool to hammer a peg further into a hole in a block. Solving these tasks benefits from an understanding of the geometric affordances of the tools such as the grasp location. See App. A2 for more details of the task setup including the reward functions.

Robot. We build custom simulation environments with a 7-DOF Franka Panda arm in the PyBullet simulator [45]. We use RGB cameras with

image outputs, placed at different off-arm locations and at the arm wrist depending on the needs of the tasks. For all tasks, we use 4-DOF cartesian velocity (3D translation and yaw) as the action output from the policy. The arm joints are then commanded with a jacobian-based velocity controller at 5Hz. The policy does not command the gripper; instead, we use the heuristic that once the gripper is below some height, the gripper closes to grasp the object. If the grasp fails, the gripper re-opens if it rises above the threshold.

Tools. We collect a total of 36 objects (See App. A1

for the full list) from open sources. Most of the objects are common tools such as a hammer and an axe. Some of them are less used as tools but have distinct geometry and affordances, such as a banana whose inner curvature may help push other objects. We split the objects into a training set of 27 and a test set of 9 — we try to separate objects with similar geometry or affordances (

e.g., hammer and mallet) into different sets.

Baselines. For all tasks we compare ATLA (ours) with the following baselines (Table 4): (a) AT-TinyLA (ours): ATLA with a smaller BERT encoder (BERT-Tiny [43] with 4.4 million parameters and 128-dimensional output). (b) AT: ATLA without language information. (c) AT-XL: ATLA without language information but larger networks for and (matching the number of parameters of ATLA). (d) SAC-LA: vanilla multi-environment training with SAC and language information but without meta-training objective. (e) SAC: SAC-LA but without language information.

Metric. For all experiments, we save the model checkpoint with the highest running-average reward on the training dataset. After training, for each test tool we load the checkpoint and run a fixed number of iterations of adaptation. In Fig. 4, we report the highest reward at adaptation, averaged over 3 seeds for each test tool. See Appendix A5 for reward in numbers for each tool and task.

6 Results

Figure 4:

Post-adaptation reward in mean and standard deviation over 3 seeds across 4 tasks and 9 test tools.

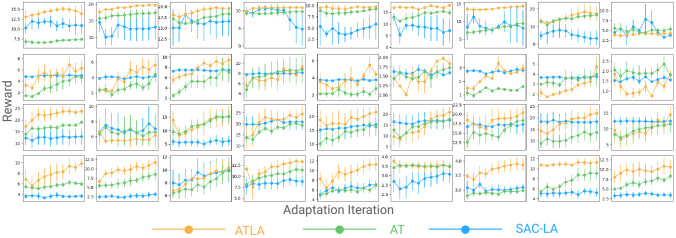

Figure 5: Curves of adaptation iteration vs. reward of the test tools (columns) in the four tasks (rows).

Q1: Does language information help achieve better adaptation to new tools? Fig. 4 shows that ATLA and AT-TinyLA perform better than AT and AT-XL among most tools in the 4 tasks. The differences are more significant in sweeping and hammering, which are more difficult and language information can better inform the affordances of the tools. Among the 9 tools, ATLA and AT-TinyLA always perform better with crowbar, plier, hammer, scissors, faucet, and trowel. ATLA and AT-TinyLA do not perform better mostly when low reward is achieved for all baselines for that tool, such as wineglass in pushing and lifting and paint roller in sweeping. Fig. 5 also shows that language helps faster learning in ATLA compared to AT in most cases, with the agent achieving higher rewards with fewer episodes of adaptation.

We also find that different tools learn better for different tasks. For example, hammer is better in sweeping than plier probably due to its long bar, but worse in pushing also due to the small inertia along the long bar causing instability during pushing. As ATLA performs better among most tools, language information can provide useful information about the tool affordances in different tasks.

Q2: Does meta-learning improve adaptation to new tools? Table 4 shows that with or without language information (ATLA / AT-TinyLA vs. SAC-LA, or AT / AT-XL vs. SAC), meta-learning improves final performance after adaptation. Without meta-learning, SAC-LA shows smaller improvement over SAC (e.g., plier, hammer, scissors, and trowel). This demonstrates that language information particularly helps when combined with meta-learning.

Figure 6: Using meta replay buffer also accelerates training.

Fig. 5 also compares the adaptation curves between ATLA and SAC-LA: those of SAC-LA tend to stagnate or fluctuate while those of ATLA tend to rise steadily. This indicates meta-learning trains the policy to better adapt to new tools after training.

Ablation: meta replay buffer. We investigate the effect of re-using experiences from other tools (saved in during adaptation). For this, we run ATLA without on the pushing task. Across the 9 test tools, the post-adaptation reward is mostly lower () compared to ATLA with . Note that the effect is more prominent when the reward difference between ATLA and AT is larger (e.g., 20% with crowbar and 25% with scissors), indicating that language information is more effective if is applied. We also find using accelerates the meta-learning process (Fig. 6) — demonstrating that sharing experiences among tools makes training more efficient.

Q3: How does the choice of pre-trained LLMs affect policy training? Table 4 shows that ATLA usually attains higher post-adaptation reward than AT-TinyLA, which uses a smaller pre-trained BERT model, indicating that the policies benefit from the richer representation of the language descriptions that the bigger BERT model offers.

Q4: Does language information help the policy utilize tools’ affordances effectively? The results above have shown that language descriptions of the geometric features and common use of the tools help policies adapt to new tools for a given task. Fig. 7(a) visualizes the effect in the example of using a crowbar for sweeping. Language descriptions of a crowbar often contain phrases including “long and thin bar”, “curved”, “hook”, “used to leverage”, and “used to pry open things”. With the descriptions, ATLA (orange curve in Fig. 7(a)) enables the policy to adapt quickly to this tool unseen during meta-training — the policy learns to use the curved hook to better steer the cylinder towards the target. As a comparison, we replace the descriptions with only the sentence “A crowbar is a long and thin bar,” and the policy (green curve in Fig. 7(a)) does not adapt as well.

One common feature among tools is the handle. Language descriptions of a trowel includes phrases like “flat, triangular blade”, “handle to be grasped”, and “used for scooping”. While ATLA learns to grasp at the handle (Fig. 7(b) top), when we remove “handle” from all the descriptions, the robot fails to grip firmly on the handle and loses the grip eventually (Fig. 7(b) bottom).

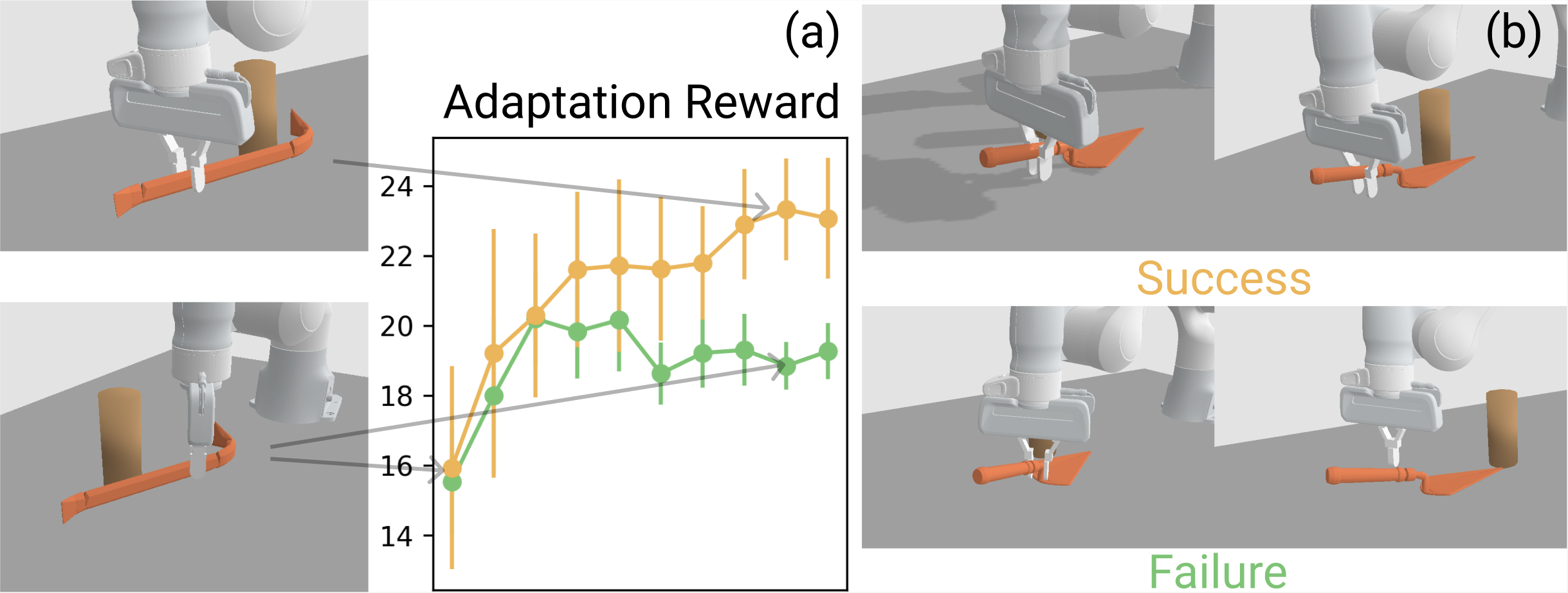

Figure 7: With language information, ATLA is able to adapt the policy to utilize the affordances of the tools – (a) curved hook on a crowbar; (b) handle on a trowel. Figure 8: Policies may fail to correctly utilize affordances.

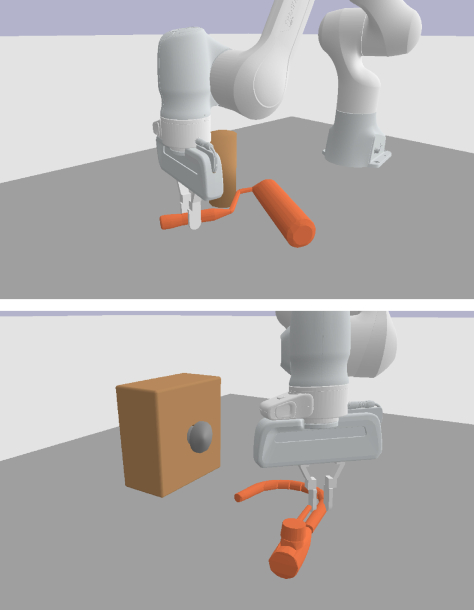

Limitations. In some cases, we observe that the policies can still fail to correctly utilize the tool affordances with language information. In the sweeping task, the paint roller is the only tool that ATLA fails to perform the best with. Fig. 8 (top) shows the grasp learned by the policy. It failed to use the bigger opening between the roller and the handle on the other side to sweep the cylinder. Fig. 8 (bottom) shows that in the hammering task, the policy fails to use the faucet, specifically, its relatively flat head to push towards the nail. However, these affordances can be sensitive to the initial pose of the tool and can be difficult to explore. This also highlights one of the limitations of our work. We use a relatively simple task policy setup for tool manipulation tasks, which is directly mapping image inputs to Cartesian velocity commands. This creates challenges in exploration and learning the skills even with language information. One remedy is to combine with approaches like keypoint-based methods [7] that inject additional domain knowledge into the policy. In addition, we use a relatively small dataset of tools, which may limit the potential of using language information. It would be particularly interesting to model revolute joints of the tools and perform more complex tasks such as picking up objects with a pair of tongs. Furthermore, our current evaluation does not consider real robot experiments, which is not the focus of this work. However, we expect that our approach can generalize to the real world without significant changes since language information is not involved in simulation and the arm does not operate near its dynamics limits.

7 Conclusion

In this work, we investigate using large language models (LLMs) to accelerate adaptation of policies to new tools in tool manipulation tasks. We use LLMs to both (1) generate diverse language descriptions of the tool geometry and common use, and (2) obtain vector representations of the descriptions. We then propose language-conditioned meta-learning that trains policies to quickly adapt to new tools. The results demonstrate that combining language information and meta-learning significantly improves the performance when adapting to unseen tools.

The authors were partially supported by the Toyota Research Institute (TRI), the NSF CAREER Award [#2044149], the Office of Naval Research [N00014-21-1-2803, N00014-18-1-2873], and the School of Engineering and Applied Science at Princeton University through the generosity of William Addy ’82. This article solely reflects the opinions and conclusions of its authors and not NSF, ONR, Princeton SEAS, TRI or any other Toyota entity.

References

  • Taylor and Gray [2014] A. H. Taylor and R. D. Gray. Is there a link between the crafting of tools and the evolution of cognition? Wiley Interdisciplinary Reviews: Cognitive Science, 5(6):693–703, 2014.
  • Gibson [2002] K. R. Gibson. Evolution of human intelligence: The roles of brain size and mental construction. Brain, Behavior and Evolution, 59(1-2):10–20, 2002.
  • Gibson [1977] J. J. Gibson. The theory of affordances. Hilldale, USA, 1(2):67–82, 1977.
  • Mason [2018] M. T. Mason. Toward robotic manipulation. Annual Review of Control, Robotics, and Autonomous Systems, 1(1), 2018.
  • Nichol et al. [2018] A. Nichol, J. Achiam, and J. Schulman. On first-order meta-learning algorithms. arXiv preprint arXiv:1803.02999, 2018.
  • Kemp et al. [2007] C. C. Kemp, A. Edsinger, and E. Torres-Jara. Challenges for robot manipulation in human environments. IEEE Robotics & Automation Magazine (RAL), 14(1):20–29, 2007.
  • Fang et al. [2020] K. Fang, Y. Zhu, A. Garg, A. Kurenkov, V. Mehta, L. Fei-Fei, and S. Savarese. Learning task-oriented grasping for tool manipulation from simulated self-supervision. The International Journal of Robotics Research (IJRR), 39(2-3):202–216, 2020.
  • Xie et al. [2019] A. Xie, F. Ebert, S. Levine, and C. Finn. Improvisation through physical understanding: Using novel objects as tools with visual foresight. arXiv preprint arXiv:1904.05538, 2019.
  • Holladay et al. [2019] R. Holladay, T. Lozano-Pérez, and A. Rodriguez. Force-and-motion constrained planning for tool use. In Proceedings of the IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS), 2019.
  • Qin et al. [2021] M. Qin, J. Brawer, and B. Scassellati. Rapidly learning generalizable and robot-agnostic tool-use skills for a wide range of tasks. Frontiers in Robotics and AI, 8, 2021.
  • Zhu et al. [2015] Y. Zhu, Y. Zhao, and S. Zhu. Understanding tools: Task-oriented object modeling, learning and recognition. In

    Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR)

    , 2015.
  • Yang et al. [2020] T.-Y. Yang, A. Lan, and K. Narasimhan. Robust and interpretable grounding of spatial references with relation networks. In Findings of the Association for Computational Linguistics: EMNLP, 2020.
  • Ahn et al. [2022] M. Ahn, A. Brohan, N. Brown, Y. Chebotar, O. Cortes, B. David, C. Finn, K. Gopalakrishnan, K. Hausman, A. Herzog, D. Ho, J. Hsu, J. Ibarz, B. Ichter, A. Irpan, E. Jang, R. J. Ruano, K. Jeffrey, S. Jesmonth, N. Joshi, R. Julian, D. Kalashnikov, Y. Kuang, K.-H. Lee, S. Levine, Y. Lu, L. Luu, C. Parada, P. Pastor, J. Quiambao, K. Rao, J. Rettinghouse, D. Reyes, P. Sermanet, N. Sievers, C. Tan, A. Toshev, V. Vanhoucke, F. Xia, T. Xiao, P. Xu, S. Xu, and M. Yan. Do as I can and not as I say: Grounding language in robotic affordances. In arXiv preprint arXiv:2204.01691, 2022.
  • Tellex et al. [2011] S. Tellex, T. Kollar, S. Dickerson, M. R. Walter, A. G. Banerjee, S. J. Teller, and N. Roy. Understanding natural language commands for robotic navigation and mobile manipulation. In

    Proceedings of the AAAI Conference on Artificial Intelligence

    , 2011.
  • Matuszek et al. [2013] C. Matuszek, E. Herbst, L. Zettlemoyer, and D. Fox. Learning to parse natural language commands to a robot control system. In Proceedings of the International Symposium on Experimental Robotics, 2013.
  • Artzi and Zettlemoyer [2013] Y. Artzi and L. Zettlemoyer. Weakly supervised learning of semantic parsers for mapping instructions to actions. Transactions of the Association for Computational Linguistics, 1:49–62, 2013.
  • Chen and Mooney [2011] D. Chen and R. Mooney. Learning to interpret natural language navigation instructions from observations. In Proceedings of AAAI Conference on Artificial Intelligence, 2011.
  • Anderson et al. [2018] P. Anderson, Q. Wu, D. Teney, J. Bruce, M. Johnson, N. Sünderhauf, I. Reid, S. Gould, and A. Van Den Hengel. Vision-and-language navigation: Interpreting visually-grounded navigation instructions in real environments. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR), 2018.
  • Branavan et al. [2009] S. R. Branavan, H. Chen, L. Zettlemoyer, and R. Barzilay. Reinforcement learning for mapping instructions to actions. In

    Proceedings of the Joint Conference of the 47th Annual Meeting of the ACL and the 4th International Joint Conference on Natural Language Processing of the AFNLP

    , 2009.
  • MacGlashan et al. [2015] J. MacGlashan, M. Babes-Vroman, M. desJardins, M. L. Littman, S. Muresan, S. Squire, S. Tellex, D. Arumugam, and L. Yang. Grounding english commands to reward functions. In Proceedings of Robotics: Science and Systems (RSS), 2015.
  • Bahdanau et al. [2019] D. Bahdanau, F. Hill, J. Leike, E. Hughes, S. A. Hosseini, P. Kohli, and E. Grefenstette. Learning to understand goal specifications by modelling reward. In Proceedings of the International Conference on Learning Representations (ICLR), 2019.
  • Goyal et al. [2019] P. Goyal, S. Niekum, and R. J. Mooney. Using natural language for reward shaping in reinforcement learning. In Proceedings of the International Joint Conference on Artificial Intelligence (IJCAI), 2019.
  • Williams et al. [2018] E. C. Williams, N. Gopalan, M. Rhee, and S. Tellex. Learning to parse natural language to grounded reward functions with weak supervision. In Proceedings of the IEEE/RSJ International Conference on Robotics and Automation (ICRA), 2018.
  • Yang et al. [2021] T.-Y. Yang, M. Y. Hu, Y. Chow, P. J. Ramadge, and K. Narasimhan. Safe reinforcement learning with natural language constraints. In Advances in Neural Information Processing Systems (NeurIPS), 2021.
  • Sumers et al. [2021] T. R. Sumers, M. K. Ho, R. D. Hawkins, K. Narasimhan, and T. L. Griffiths. Learning rewards from linguistic feedback. In Proceedings of the AAAI Conference on Artificial Intelligence, 2021.
  • Co-Reyes et al. [2019] J. D. Co-Reyes, A. Gupta, S. Sanjeev, N. Altieri, J. Andreas, J. DeNero, P. Abbeel, and S. Levine. Guiding policies with language via meta-learning. In Proceedings of the International Conference on Learning Representations (ICLR), 2019.
  • Karamcheti et al. [2020] S. Karamcheti, D. Sadigh, and P. Liang. Learning adaptive language interfaces through decomposition. In Proceedings of the First Workshop on Interactive and Executable Semantic Parsing, 2020.
  • Hanjie et al. [2021] A. W. Hanjie, V. Y. Zhong, and K. Narasimhan. Grounding language to entities and dynamics for generalization in reinforcement learning. In

    Proceedings of the International Conference on Machine Learning (ICML)

    , 2021.
  • Branavan et al. [2011] S. Branavan, D. Silver, and R. Barzilay. Learning to win by reading manuals in a Monte-Carlo framework. In Proceedings of the 49th Annual Meeting of the Association for Computational Linguistics: Human Language Technologies, 2011.
  • Zhong et al. [2019] V. Zhong, T. Rocktäschel, and E. Grefenstette. Rtfm: Generalising to novel environment dynamics via reading. In Proceedings of the International Conference on Learning Representations (ICLR), 2019.
  • Narasimhan et al. [2018] K. Narasimhan, R. Barzilay, and T. Jaakkola. Grounding language for transfer in deep reinforcement learning. Journal of Artificial Intelligence Research, 63:849–874, 2018.
  • Finn et al. [2017] C. Finn, P. Abbeel, and S. Levine. Model-agnostic meta-learning for fast adaptation of deep networks. In Proceedings of the International Conference on Machine Learning (ICML), 2017.
  • Mishra et al. [2018] N. Mishra, M. Rohaninejad, X. Chen, and P. Abbeel. A simple neural attentive meta-learner. In Proceedings of the International Conference on Learning Representations (ICLR), 2018.
  • Rajeswaran et al. [2019] A. Rajeswaran, C. Finn, S. M. Kakade, and S. Levine. Meta-learning with implicit gradients. In Advances in Neural Information Processing (NeurIPS), 2019.
  • Ren et al. [2018] M. Ren, E. Triantafillou, S. Ravi, J. Snell, K. Swersky, J. B. Tenenbaum, H. Larochelle, and R. S. Zemel. Meta-learning for semi-supervised few-shot classification. In Proceedings of the International Conference on Learning Representations (ICLR), 2018.
  • Finn et al. [2018] C. Finn, K. Xu, and S. Levine. Probabilistic model-agnostic meta-learning. In Advances in Neural Information Processing Systems (NeurIPS), 2018.
  • Dubey et al. [2020] R. Dubey, E. Grant, M. Luo, K. Narasimhan, and T. Griffiths. Connecting context-specific adaptation in humans to meta-learning. arXiv preprint arXiv:2011.13782, 2020.
  • Vuorio et al. [2019] R. Vuorio, S.-H. Sun, H. Hu, and J. J. Lim. Multimodal model-agnostic meta-learning via task-aware modulation. In Advances in Neural Information Processing Systems (NeurIPS), 2019.
  • Yoon et al. [2019] S. W. Yoon, J. Seo, and J. Moon. Tapnet: Neural network augmented with task-adaptive projection for few-shot learning. In Proceedings of the International Conference on Machine Learning (ICML), 2019.
  • Lan et al. [2019] L. Lan, Z. Li, X. Guan, and P. Wang. Meta reinforcement learning with task embedding and shared policy. In Proceedings of the International Joint Conference on Artificial Intelligence (IJCAI), 2019.
  • Brown et al. [2020] T. B. Brown, B. Mann, N. Ryder, M. Subbiah, J. Kaplan, P. Dhariwal, A. Neelakantan, P. Shyam, G. Sastry, A. Askell, S. Agarwal, A. Herbert-Voss, G. Krueger, T. Henighan, R. Child, A. Ramesh, D. M. Ziegler, J. Wu, C. Winter, C. Hesse, M. Chen, E. Sigler, M. Litwin, S. Gray, B. Chess, J. Clark, C. Berner, S. McCandlish, A. Radford, I. Sutskever, and D. Amodei. Language models are few-shot learners. In Advances in Neural Information Processing Systems (NeurIPS), 2020.
  • Hochreiter and Schmidhuber [1997] S. Hochreiter and J. Schmidhuber. Long short-term memory. Neural computation, 9(8):1735–1780, 1997.
  • Turc et al. [2019] I. Turc, M.-W. Chang, K. Lee, and K. Toutanova. Well-read students learn better: On the importance of pre-training compact models. arXiv preprint arXiv:1908.08962, 2019.
  • Haarnoja et al. [2018] T. Haarnoja, A. Zhou, P. Abbeel, and S. Levine. Soft actor-critic: Off-policy maximum entropy deep reinforcement learning with a stochastic actor. In Proceedings of the International Conference on Machine Learning (ICML), 2018.
  • Coumans and Bai [2016] E. Coumans and Y. Bai. Pybullet, a Python module for physics simulation for games, robotics and machine learning. 2016.
  • Ba et al. [2016] J. L. Ba, J. R. Kiros, and G. E. Hinton. Layer normalization. arXiv preprint arXiv:1607.06450, 2016.

Appendix

A1 Tool Information

Table A1 shows additional information about the tools used in the paper, including a sample view of the object mesh, sample language descriptions, and the train-test split.

Tool Sample view Sample Language description Used for testing
axe [-.5] An axe typically has a long, cylindrical handle with a flared end. The head of the axe typically has a slightly curved blade. An axe is often used for chopping wood. No
chisel [-.5] Chisel can make clean, precise cuts using the beleveled edge. A chisel is a hand tool with a blade attached to a handle. No
crowbar [-.5] A crowbar is used as a lever to pry things open. One end of a crowbar is usually curved or hooked so that it can be jammed under an object to apply leverage. Yes
shovel [-.5] A shovel has a long, cylindrical handle and a scoop-shaped blade. The shovel typically has a curved part for digging into and scooping up materials. No
hacksaw [-.5] A hacksaw is a hand saw with a thin blade attached to a handle, used for cutting various such as metal, plastic, or wood. A hacksaw is a saw with a thin, toothed blade on a rigid frame, used for cutting wood or metal. No
paintroller [-.5] One common use of a paint roller is to apply paint evenly to a surface such as walls or ceilings. A paint roller consists of a long, cylindrical body with a handle on one end. Yes
tweezer [-.5] A tweezer is a hand-held tool with two arms that meet at a point. A tweezer is a small hand-held tool with two pointed jaws that are used to pick up small objects or to remove unwanted hair or debris from the body. No
whisk [-.5] A whisk typically has a long, thin handle with a series of loops at the end. The loops are usually made of metal and are arranged in a spiral pattern. A whisk is a common kitchen utensil that is used to mix ingredients together or to incorporate air into a mixture. No
needlenose [-.5] A needlenose plier has a long, tapered nose with a small jaw, and is used for gripping and bending wire. Needlenose pliers are a type of plier that has a long, slender nose and is used for gripping small objects and for working in tight spaces. NO
plier [-.5] A plier is a hand tool used for gripping objects. It consists of a pair of metal jaws with teeth that open and close when the handles are moved. Plier typically has a long, narrow neck and a tapered head that becomes progressively thinner as it extends from the neck to the tip. Yes
gooseneck [-.5] A gooseneck plier is a type of plier that has a long, narrow neck and a slightly curved head. The neck allows the plier to reach into tight spaces, and the curved head provides extra leverage. A gooseneck plier is commonly used to grip and bend small objects. No
plier-open [-.5] The shape of a plier is typically long and skinny with a grip at the end. Plier is a hand tool used for various purposes such as gripping, bending and cutting. No
mallet [-.5] A mallet is a tool that is used to strike another object. A mallet is a type of hammer that usually has a large head and a long handle. No
hammer [-.5] The purpose of a hammer is to strike or hit another object. A hammer typically has a long, cylindrical handle and a heavy head. Yes
banana [-.5] The shape of a banana is generally long and curved, with a thin skin and fleshy inside. A banana is a curved, yellow fruit with a thick peel. No
fork [-.5] A fork is long and thin, with three tines (prongs) at the end. A fork is a utensil that consists of a handle with several narrow tines on one end. The tines are used for piercing food and then lifting it to the mouth. No
spoon [-.5] The purpose of a spoon is to transfer a liquid or semi-solid food from a container to the mouth. A typical spoon consists of a bowl-shaped container with a handle extending from one side. The bowl is generally oval or round, and the handle generally tapers towards the end. Yes
knife [-.5] A knife typically has a sharp, narrow blade with a pointed tip. A knife is a common kitchen utensil used for cutting and slicing food. No
spatula [-.5] A spatula is a kitchen utensil that is used to turn or lift food that is being cooked. It has a flat, usually slightly convex, blade that is attached to a handle. A spatula is commonly used to mix, spread, and flip food items. No
scissors [-.5] A pair of scissors is a cutting tool that consists of two metal blades that are connected at a pivot point. A pair of scissors typically has two blades that are joined at a pivot point. Yes
wrench [-.5] A wrench is a tool that is used to apply torque to an object in order to loosen or tighten it. A wrench is typically long and slender with a small, metal handle. No
screwdriver [-.5] The geometry of a screwdriver can be described as a cylindrical shape with a pointed end. A screwdriver is a tool that is used to insert and remove screws. No
clamp [-.5] A clamp is a mechanical device that is used to temporarily hold two or more objects together. The geometry of a clamp is typically that of a rectangular or U-shaped object with two handles. No
wok [-.5] The shape of a wok is a deep, round bowl with sloping sides. A wok is a concave-shaped cooking utensil that is most commonly used in Chinese cuisine. No
pickaxe [-.5] A pickaxe is used to break up rocks and other materials. A pickaxe is a tool that has a handle attached to a head. No
faucet [-.5] A faucet is typically a small, thin, spout-like fixture that protrudes from a wall or sink. A faucet is a valve used to release water from a plumbing fixture, such as a sink or bathtub. Yes
dustpan [-.5] A dustpan is a tool used for sweeping up dust and small debris from floors and other surfaces. It consists of a small, shallow pan with a handle attached to one side. A dustpan is a concave scoop with a flat bottom and flared sides. No
trowel [-.5] A trowel is generally a small hand tool with a pointed, scoop-shaped blade on one end and a flat surface on the other. A trowel is a small, hand-held gardening tool with a curved, pointed blade that is used for digging, planting, and transferring small amounts of soil or other materials. Yes
ladle [-.5] A ladle is a tool used to transfer liquids from one container to another. A ladle typically has a long, curved handle and a large, deep, spoon-like bowl. No
tongs [-.5] A pair of tongs has a thin, curved metal shaft with two flat metal paddles at the end. A pair of tongs is a device used to grip and hold objects. No
gavel [-.5] A gavel is a small hammer that is used to strike a sound block, typically made of wood. A gavel is a mallet used to strike a block of wood, typically used by a presiding officer or auctioneer to maintain order or to signal the start and end of an auction. No
squeegee [-.5] The purpose of a squeegee is to remove water or other liquid from a surface. A squeegee is a rod-shaped tool with a flat, blunt edge, and a small handle. No
powerdrill [-.5] A powerdrill is typically cylindrical in shape, with a handle attached to one side and a chuck on the other side for holding drill bits. A power drill is a tool that is used to create holes in various materials, or to fasten screws or bolts. No
wineglass [-.5] A wineglass is a glass with a small bowl and a long stem. They are used to serve wine and are often used in restaurants. A wineglass is typically shaped with a long, thin stem and a bowl that is larger at the bottom than the top. Yes
shoehorn [-.5] A shoehorn is a curved, rod-shaped object used to assist in putting on shoes. A shoehorn is a curved or stepped tool designed to help slide a shoe onto the foot. No
horseshoe [-.5] A horseshoe is a U-shaped metal bar that is nailed to the hooves of a horse. A horseshoe is typically U-shaped, with two large curves and two smaller curves at either end. No
Table A1: Sample views, sample language descriptions, and the train-test split of the 36 tools considered in the paper.

Fig. 3 shows the t-SNE analysis of the BERT embeddings of all the tools. First we use PCA to project the 768-dimensional embeddings to 50-dimensional, and then perform t-SNE to project them to 2-dimensional for visualization.

A2 Task Information

Table. A2 shows the episode length, reward function, and action space of the tasks. We find the policy can explore well in pushing and lifting tasks with relatively simple reward functions; in sweeping and hammering task, we tune the reward function carefully to guide the arm towards the cylinder/nail. Fig. A1 shows the camera observations for the four tasks. We use a single view for the pushing task as it is sufficient for the task, and dual views for other tasks. A wrist view is used in the lifting task. Fig. A2 visualizes the workspace of the tasks including the initial position of the tools and the target.

For the hammering task, we set the lateral and torsional friction coefficient of the nail to be high ( and ) in the simulator. We also make the gripper fingers longer to prevent the gripper hitting the block when attempting to hammer the nail.

Please see the included video for more visualization of the tasks.

Task Episode length Reward function Action space
Pushing 25
in
in
in yaw
Lifting 25
in , , and
in yaw
Sweeping 40
in , , and
in yaw
Hammering 40
in , , and
in yaw
Table A2: Episode length, reward function, and action space for the four tasks. Distance-{A}-{B} denotes distance from A to B, normalized by the initial distance. EE denotes end-effector of the arm. See Fig. A2 for visualization of the task space and target.
Figure A1: Camera observations of the tasks: (a) pushing (single view only); (b) lifting (including a wrist view); (c) sweeping; (d) hammering.
Figure A2: Top-down visualization of the workspace of the tasks: (a) pushing; (b) lifting; (c) sweeping; (d) hammering.

A3 Model Architecture

For all policies, the image encoder contains three convolutional layers for either view of the image input; the three layers have kernel size

, stride size

, no padding, and channel size

. The language head contains a single fully-connected layers with 128-dimensional output. Both the actor head and critic head have two hidden layers of size 128 (except for AT-XL with hidden size 256). All convolutional layers and fully-connected layers are followed with a ReLU activation. The first layer in and are additionally normalized by Layernorm [46].

A4 Training Hyper-parameters

The hyper-parameters used for meta-learning (shared among AT-LA, AT-TinyLA, AT, AT-XL) and vanilla multi-task learning (shared between SAC-LA, SAC) are outlined in Table A3. We ensure meta-learning and multi-task learning sample the same amount of transitions from environments.

Setting Meta-learning Multi-task learning
training steps 1000 (iteration)
2.5e6 (pushing/lifting)
4e6 (sweeping/hammering)
Meta replay buffer size 30000
Base replay buffer size 100000
Replay ratio 16
1
2
5
10
Optimization
Optimizer Adam
Batch size 128
Discount factor 0.99
SAC entropy coefficient 0.01
SAC actor update period 1
Base learning rate 3e-4
Meta learning rate 1e-3
Hardware Resource
CPU threads 20
GPU Nvidia RTX 2080Ti
hours for runtime 6 (pushing/lifting), 10 (sweeping), 16 (hammering)
Table A3: Hyper-parameters used for meta-learning and multi-task learning.

A5 Results

Table A4 below shows the results in Fig. 4 in numbers.

Pushing
Method Crowbar Paint Roller Plier Hammer Spoon Scissors Faucet Trowel Wineglass
ATLA 15.4 0.6 19.9 0.2 19.9 0.4 11.1 0.1 10.0 0.3 18.2 0.5 14.4 0.5 16.9 2.2 4.5 0.3
AT-TinyLA 12.3 1.8 19.2 0.9 20.4 0.2 10.7 0.3 10.5 0.8 17.0 0.8 8.8 0.9 12.5 1.1 7.4 1.6
AT 7.8 0.3 17.4 1.0 18.4 0.5 10.0 0.4 9.4 0.2 15.6 0.4 9.6 1.2 15.8 1.5 6.1 0.9
AT-XL 12.2 2.5 19.0 0.8 19.6 0.5 10.8 0.1 11.3 0.2 16.3 1.4 14.1 1.8 15.4 0.7 7.1 0.6
SAC-LA 13.4 0.8 16.8 0.6 18.4 0.5 10.7 1.0 7.8 1.9 14.2 1.3 10.1 1.6 12.7 2.5 7.8 1.1
SAC 12.9 1.1 12.2 4.7 16.9 1.5 10.6 0.6 9.2 1.5 12.0 5.6 10.4 3.8 11.2 3.3 6.4 0.2
Lifting
ATLA 7.4 0.8 6.5 0.8 9.0 0.9 9.6 1.3 5.5 1.0 2.1 0.0 3.5 0.5 5.0 0.5 2.3 0.6
AT-TinyLA 2.6 0.3 5.7 0.8 9.0 1.2 10.4 0.3 5.0 0.8 2.0 0.4 2.3 0.4 1.9 0.2 2.4 0.5
AT 5.0 0.5 4.6 0.8 7.7 1.3 9.1 2.3 3.7 0.8 2.0 0.3 1.8 0.2 3.4 0.9 2.5 0.6
AT-XL 6.8 1.0 5.7 1.0 8.5 0.3 9.0 0.4 4.9 0.8 1.8 0.0 2.4 0.2 4.2 1.2 2.9 0.7
SAC-LA 5.1 0.1 4.4 0.3 7.7 0.2 8.3 0.1 4.9 0.1 1.8 0.0 3.0 0.1 3.8 0.1 1.8 0.1
SAC 6.6 1.5 4.9 1.1 6.9 1.4 7.9 1.5 4.2 0.6 1.6 0.6 3.0 0.4 3.6 0.6 2.2 0.6
Sweeping
ATLA 25.5 1.0 5.2 2.4 18.4 3.5 26.8 2.6 22.5 2.7 21.7 2.0 20.9 1.6 24.3 2.2 14.4 1.8
AT-TinyLA 21.2 0.7 4.6 0.2 16.5 0.6 22.3 0.8 18.0 0.1 19.2 1.0 15.2 0.8 21.2 0.6 12.5 0.4
AT 20.0 0.8 7.7 3.7 17.4 3.5 19.3 1.5 18.4 1.3 18.0 3.0 18.0 3.2 14.9 2.9 12.0 2.2
AT-XL 19.0 3.0 6.1 1.4 18.2 2.8 21.0 2.8 17.1 2.4 16.8 3.7 16.3 3.4 15.1 8.4 7.6 3.6
SAC-LA 18.4 4.0 9.0 3.7 15.5 3.2 20.7 2.2 17.4 3.0 18.4 3.7 16.7 2.9 18.6 1.8 12.2 1.1
SAC 17.6 2.5 7.7 2.1 12.4 2.4 12.3 4.7 17.3 5.4 17.8 2.4 15.9 2.8 17.1 0.2 10.6 3.3
Hammering
ATLA 12.9 1.0 12.5 1.3 10.9 1.7 14.4 0.9 12.4 1.3 3.9 0.3 3.8 0.6 11.7 1.2 10.4 1.5
AT-TinyLA 12.1 1.9 12.0 2.3 10.8 1.5 16.8 1.0 11.5 1.4 4.4 0.2 4.1 0.8 10.3 0.8 11.2 0.8
AT 6.0 0.9 9.7 2.0 10.3 2.6 12.4 1.9 7.2 1.7 3.7 0.1 3.1 0.1 9.0 2.8 7.1 2.0
AT-XL 6.5 1.2 8.3 1.5 11.3 1.6 12.1 1.7 7.2 1.6 3.7 0.1 3.1 0.3 10.4 3.4 8.2 1.7
SAC-LA 4.3 1.1 3.8 1.3 9.0 3.2 9.3 2.0 7.8 1.6 3.2 0.5 3.3 0.3 4.7 1.3 3.0 0.7
SAC 5.3 3.1 5.1 3.2 6.8 4.2 7.4 5.3 3.4 1.1 3.0 0.6 3.2 0.6 3.5 0.4 3.2 1.0
Table A4: Post-adaptation reward in mean and standard deviation over 3 seeds across 4 tasks and 9 test tools.
