Learning to Update Natural Language Comments Based on Code Changes

04/25/2020 ∙ by Sheena Panthaplackel, et al. ∙ The University of Texas at Austin 0

We formulate the novel task of automatically updating an existing natural language comment based on changes in the body of code it accompanies. We propose an approach that learns to correlate changes across two distinct language representations, to generate a sequence of edits that are applied to the existing comment to reflect the source code modifications. We train and evaluate our model using a dataset that we collected from commit histories of open-source software projects, with each example consisting of a concurrent update to a method and its corresponding comment. We compare our approach against multiple baselines using both automatic metrics and human evaluation. Results reflect the challenge of this task and that our model outperforms baselines with respect to making edits.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 1

page 2

page 3

page 4

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

Software developers include natural language comments alongside source code as a way to document various aspects of the code such as functionality, use cases, pre-conditions, and post-conditions. With the growing popularity of open-source software that is widely used and jointly developed, the need for efficient communication among developers about code details has increased. Consequently, comments have assumed a vital role in the development cycle. With developers regularly refactoring and iteratively incorporating new functionality, source code is constantly evolving; however, the accompanying comments are not always updated to reflect the code changes Tan et al. (2007); Ratol and Robillard (2017). Inconsistency between code and comments can not only lead time-wasting confusion in tight project schedules Hu et al. (2018) but can also result in bugs Tan et al. (2007). To address this problem, we propose an approach that can automatically suggest comment updates when the associated methods are changed.

Prior work explored rule-based approaches for detecting inconsistencies for a limited set of cases; however, they do not present ways to automatically fix these inconsistencies Tan et al. (2007); Ratol and Robillard (2017). Recent work in automatic comment generation aims to generate a comment given a code representation Liang and Zhu (2018); Hu et al. (2018); Fernandes et al. (2019); although these techniques could be used to produce a completely new comment that corresponds to the most recent version of the code, this could potentially discard salient content from the existing comment that should be retained. To the best of our knowledge, we are the first to formulate the task of automatically updating an existing comment when the corresponding body of code is modified.

Previous Versionp

Updated Version
Figure 1: Changes in the getRotX method and its corresponding @return comment between two subsequent commits of the rajawali-rajawali project, available on GitHub.

This task is intended to align with how developers edit a comment when they introduce changes in the corresponding method. Rather than deleting it and starting from scratch, they would likely only modify the specific parts relevant to the code updates. For example, Figure 1 shows the getRotX method being modified to have the return value parsed into degrees. Within the same commit, the corresponding comment is revised to indicate this, without imposing changes on parts of the comment that pertain to other aspects of the return value. We replicate this process through a novel approach which is designed to correlate edits across two distinct language representations: source code and natural language comments. Namely, our model is trained to generate a sequence of edit actions, which are to be applied to the existing comment, by conditioning on learned representations of the code edits and existing comment. We additionally incorporate linguistic and lexical features to guide the model in determining where edits should be made in the existing comment. Furthermore, we develop an output reranking scheme that aims to produce edited comments that are fluent, preserve content that should not be changed, and maintain stylistic properties of the existing comment.

We train and evaluate our system on a corpus constructed from open-source Java projects on GitHub, by mining their commit histories and extracting examples from consecutive commits in which there was a change to both the code within a method as well as the corresponding Javadoc comment, specifically, the @return Javadoc tag. These comments, which have been previously studied for learning associations between comment and code entities Panthaplackel et al. (2020), follow a well-defined structure and describe characteristics of the output of a method. For this reason, as an initial step, we focus on @return comments in this work. Our evaluation consists of several automatic metrics that are used to evaluate language generation tasks as well as tasks that relate to editing natural language text. We also conduct human evaluation, and assess whether human judgments correlate with the automatic metrics.

The main contributions of this work include (1) the task of automatically updating an existing comment based on source code changes and (2) a novel approach for learning to relate edits between source code and natural language that outperforms multiple baselines on several automatic metrics and human evaluation. Our implementation and data are publicly available.111https://github.com/panthap2/LearningToUpdateNLComments

2 Task

Given a method, its corresponding comment, and an updated version of the method, the task is to update the comment so that it is consistent with the code in the new method. For the example in Figure 1, we want to generate @return double the roll euler angle in degrees.” based on the changes between the two versions of the method and the existing comment @return double the roll euler angle.” Concretely, given (Mold, Cold) and Mnew, where Mold and Mnew denote the old and new versions of the method, and Cold signifies the previous version of the comment, the task is to produce Cnew, the updated version of the comment.

3 Edit Model Overview

We design a system that examines source code changes and how they relate to the existing comment in order to produce an updated comment that reflects the code modifications. Since Cold and Cnew are closely related, training a model to directly generate Cnew risks having it learn to just copy Cold

. To explicitly inform the model of edits, we define the target output as a

sequence of edit actions, Cedit, to indicate how the existing comment should be revised (e.g., for Cold=ABC, Cedit=<Delete>A<DeleteEnd> implies that A should be deleted to produce Cnew=BC). Furthermore, in order to better correlate these edits with changes in the code, we unify Mold and Mnew into a single diff sequence that explicitly identifies code edits, Medit. We discuss in more detail how Medit and the training Cedit are constructed in §4.

Figure 2: High-level overview of our system.

Figure 2 shows a high-level overview of our system. We design an encoder-decoder architecture consisting of three components: a two-layer, bi-directional GRU Cho et al. (2014) that encodes the code changes (Medit), another two-layer, bi-directional GRU that encodes the existing comment (Cold), and a GRU that is trained to decode a sequence of edit actions (Cedit).222

We refrain from using the self-attention model

Vaswani et al. (2017) because prior work Fernandes et al. (2019) suggests that it yields lower performance for comment generation.

We concatenate the final states of the two encoders to form a vector that summarizes the content in M

edit and Cold, and use this vector as the initial state of the decoder. The decoder essentially has three subtasks: (1) identify edit locations in Cold; (2) determine parts of Medit that pertain to making these edits; and (3) apply updates in the given locations based on the relevant code changes. We rely on an attention mechanism Luong et al. (2015) over the hidden states of the two encoders to accomplish the first two goals. At every decoding step, rather than aligning the current decoder state with all the encoder hidden states jointly, we align it with the hidden states of the two encoders separately. We concatenate the two resulting context vectors to form a unified context vector that is used in the final step of computing attention, ensuring that we incorporate pertinent content from both input sequences. Consequently, the resulting attention vector carries information relating to the current decoder state as well as knowledge aggregated from relevant portions of Cold and Medit.

Using this information, the decoder performs the third subtask, which requires reasoning across language representations. Specifically, it must determine how the source code changes that are relevant to the current decoding step should manifest as natural language updates to the relevant portions of Cold. At each step, it decides whether it should begin a new edit action by generating an edit start keyword, continue the present action by generating a comment token, or terminate the present action by generating an end-edit keyword. Because actions relating to deletions will include tokens in Cold, and actions relating to insertions are likely to include tokens in Medit, we equip the decoder with a pointer network Vinyals et al. (2015) to accommodate copying tokens from Cold and Medit. The decoder generates a sequence of edit actions, which will have to be parsed into a comment (§4.4).

4 Representing Edits

Here we define the edit lexicon that is used to construct the input code edit sequence, M

edit, and the target comment edit sequence, Cedit.

4.1 Edit Lexicon

We use difflib333https://docs.python.org/3/library/difflib.html to extract code edits and target comment edits. Both the input code edit sequence and the target comment edit sequence consist of a series of edit actions; each edit action is structured as <Action> [span of tokens] <ActionEnd>.444Preliminary experiments showed that this performed better than structuring edits at the token-level as in other tasks Shin et al. (2018); Li et al. (2018); Dong et al. (2019); Awasthi et al. (2019).

We define four types of edit actions: Insert, Delete, Replace, and Keep. Because the Replace action must simultaneously incorporate distinct content from two versions (i.e., tokens in the old version that will be replaced, and tokens in the new version that will take their place), it follows a slightly different structure:

4.2 Code Edits

We extract the edits between Mold and Mnew using the edit lexicon to construct Medit, the code edit sequence used as input in one of the encoders. Figure 2 (top right) shows the Medit corresponding to code changes in Figure 1.

In contrast to line-level code diffs that are commonly used for commit message generation Loyola et al. (2017); Jiang et al. (2017); Xu et al. (2019), this representation allows us to explicitly capture more fine-grained edits. While we could exploit the abstract syntax tree (AST) structure of source code and represent the changes between the ASTs corresponding to the two versions of code, prior work suggests that such techniques do not always lead to improved performance Yin et al. (2019). We leave it to future work to investigate how the AST structure can be leveraged for this task.

4.3 Comment Edits

We identify the changes between Cold and Cnew to construct Cedit, the target comment edit sequence. During inference, the output comment is produced by parsing the predicted edit sequence (§4.4). We introduce a slightly modified set of specifications that disregards the Keep type when constructing the sequence of edit actions, referred to as the condensed edit sequence.

The intuition for disregarding Keep and the span of tokens to which it applies is that we can simply copy the content that is retained between Cold and Cnew, instead of generating it anew. By doing post-hoc copying, we simplify learning for the model since it has to only learn what to change rather than also having to learn what to keep.

We design a method to deterministically place edits in their correct positions in the absence of Keep spans. For the example in Figure 1, the raw sequence <Insert>in degrees<InsertEnd> does not encode information as to where “in degrees” should be inserted. To address this, we bind an insert sequence with the minimum number of words (aka “anchors”) such that the place of insertion can be uniquely identified. This results in the structure that is shown for Cedit in Figure 2. Here “angle” serves as the anchor point, identifying the insert location. Following the structure of Replace, this sequence indicates that “angle” should be replaced with “angle in degrees,” effectively inserting “in degrees” and keeping “angle” from Cold, which appears immediately before the insert location. See Appendix A for details on this procedure.

4.4 Parsing Edit Sequences

Since the decoder is trained to predict a sequence of edit actions, we must align it with Cold and copy unchanged tokens in order to produce the edited comment. We denote the predicted edit sequence as C’edit and the corresponding parsed output as C’new. This procedure entails simultaneously following pointers, left-to-right, on Cold and C’edit, which we refer to as Pold and Pedit respectively. Pold is advanced, copying the current token into C’new at each point, until an edit location is reached. The edit action corresponding to the current position of Pedit is then applied, and the tokens from its relevant span are copied into C’new if applicable. Finally, Pedit is advanced to the next action, and Pold is also advanced to the appropriate position in cases involving deletions and replacements. This process repeats until both pointers reach the end of their respective sequences.

5 Features

We extract linguistic and lexical features for tokens in Medit and Cedit, many of which were shown to improve learning associations between @return comment and source code entities in our prior work Panthaplackel et al. (2020). We incorporate these features into the network as one-hot vectors that are concatenated to Medit and Cedit embeddings and then passed through a linear layer. These vectors are provided as inputs to the two encoders. All sequences are subtokenized, e.g., camelCase camel, case.

Features specific to Medit: We aim to take advantage of common patterns among different types of code tokens by incorporating features that identify certain categories: edit keywords, Java keywords, and operators. If a token is not an edit keyword, we have indicator features for whether it is part of a Insert, Delete, ReplaceNew, ReplaceOld, or Keep span. We believe this will be particularly helpful for longer spans since edit keywords only appear at either the beginning or end of a span. Finally, we include a feature to indicate whether the token matches a token in Cold. This is intended to help the model identify locations in Medit that may be relevant to editing Cold.

Features specific to Cold: We include whether a token matches a code token that is inserted, deleted, or replaced in Medit. These help align parts of Cold with code edits, assisting the model in determining where edits should be made. In order to exploit common patterns for different types of tokens, we incorporate features that identify whether the token appears more than once in Cold or is a stop word, and its part-of-speech.

Shared features: We include whether the token is a subtoken that was originally part of a larger token and its index if so (e.g., split from camelCase, camel and case are subtokens with indices 0 and 1 respectively). These features aim to encode important relationships between adjacent tokens that are lost once the body of code and comment are transformed into a single, subtokenized sequences. Additionally, because we focus on @return comments, we introduce features intended to guide the model in identifying relevant tokens in Medit and Cold. Namely, we include whether a given token matches a token in a return statement that is unique to Mold, unique to Mnew, or present in both. Similarly, we indicate whether the token matches a token in the subtokenized return type that is unique to Mold, unique to Mnew, or present in both.

6 Reranking

Reranking allows the incorporation of additional priors that are difficult to back-propagate, by re-scoring candidate sequences during beam search Neubig et al. (2015); Ko et al. (2019); Kriz et al. (2019)

. We incorporate two heuristics to re-score the candidates: 1) generation likelihood and 2) similarity to C

old. These heuristics are computed after parsing the candidate edit sequences (§4.4).

Generation likelihood. Since the edit model is trained on edit actions only, it does not globally score the resulting comment in terms of aspects such as fluency and overall suitability for the updated method. To this end, we make use of a pre-trained comment generation model (§8.2) that is trained on a substantial amount of data for generating Cnew given only Mnew

. We compute the length-normalized probability of this model generating the parsed candidate comment, C’

new, (i.e., where is the number of tokens in C’new). This model gives preference to comments that are more likely for Mnew and are more consistent with the general style of comments.555We attempted to integrate this model into the training procedure of the edit model through joint training; however, this deteriorated performance.

Similarity to Cold. So far, our model is mainly trained to produce accurate edits; however, we also follow intuitions that edits should be minimal (as an analogy, the use of Levenshtein distance in spelling correction). To give preference to predictions that accurately update the comment with minimal modifications, we use similarity to Cold as a heuristic for reranking. We measure similarity between the parsed candidate prediction and Cold using METEOR Banerjee and Lavie (2005).

Reranking score. The reranking score for each candidate is a linear combination of the original beam score, the generation likelihood, and the similarity to Cold with coefficients 0.5, 0.3, and 0.2 respectively (tuned on validation data).

7 Data

Train Valid Test
Examples 5,791 712 736
Projects 526 274 281
Edit Actions 8,350 1,038 1,046
Sim (Mold, Mnew) 0.773 0.778 0.759
Sim (Cold, Cnew) 0.623 0.645 0.635
Code Unique 7,271 2,473 2,690
Mean 86.4 87.4 97.4
Median 46 49 50
Comm. Unique 4,823 1,695 1,737
Mean 10.8 11.2 11.1
Median 8 9 9


Table 1: Number of examples, projects, and edit actions; average similarity between Mold and Mnew as the ratio of overlap; average similarity between Cold and Cnew as the ratio of overlap; number of unique code tokens and mean and median number of tokens in a method; and number of unique comment tokens and mean and median number of tokens in a comment.

We extracted examples from popular, open-source Java projects using GitHub’s commit history. We extract pairs of the form (method, comment) for the same method across two consecutive commits where there is a simultaneous change to both the code and comment. This creates somewhat noisy data for the task of comment update; Appendix B describes filtering techniques to reduce this noise. We first tokenize Mold and Mnew using the javalang666https://pypi.org/project/javalang/ library. We subtokenize based on camelCase and snake_case, as in previous work Allamanis et al. (2016); Alon et al. (2019); Fernandes et al. (2019). We then form Medit from the subtokenized forms of Mold and Mnew. We tokenize Cold and Cnew by splitting by space and punctuation. We remove HTML tags and the “@return” that precedes all comments, and also subtokenize tokens since code tokens may appear in comments as well. The gold edit action sequence, Cedit, is computed from these processed forms of Cold and Cnew.

To avoid having examples that closely resemble one another in training and test, the projects in the training, test, and validation sets are disjoint, similar to  Movshovitz-AttiasCohen13PredictingProgrammingComments. Table 1 gives dataset statistics. Of the 7,239 examples in our final dataset, 833 of them were extracted from the diffs used in  panthaplackel2020associating. Including code and comment tokens that appear at least twice in the training data as well as the predefined edit keywords, the code and comment vocabulary sizes are 5,945 and 3,642 respectively.

8 Experimental Method

We evaluate our approach against multiple rule-based baselines and comment generation models.

8.1 Baselines

Copy: Since much of the content of Cold is typically retained in the update, we include a baseline that merely copies Cold as the prediction for Cnew.

Return type substitution: The return type of a method often appears in its @return comment. If the return type of Mold appears in Cold and the return type is updated in the code, we substitute the new return type while copying all other parts of Cold. Otherwise, Cold is copied as the prediction.

Return type substitution w/ null handling: As an addition to the previous method, we also check whether the token null is added to either a return statement or if statement in the code. If so, we copy Cold and append the string or null if null, otherwise, we simply copy Cold. This baseline addresses a pattern we observed in the data in which ways to handle null input or cases that could result in null output were added.

8.2 Generation Model

One of our main hypotheses is that modeling edit sequences is better suited for this task than generating comments from scratch. However, a counter argument could be that a comment generation model could be trained from substantially more data, since it is much easier to obtain parallel data in the form (method, comment), without the constraints of simultaneous code/comment edits. Hence the power of large-scale training could out-weigh edit modeling. To this end, we compare with a generation model trained on 103,473 method/@return comment pairs collected from GitHub.

We use the same underlying neural architecture as our edit model to make sure that the difference in results comes from the amount of training data and from using edit of representations only: a two-layer, bi-directional GRU that encodes the sequence of tokens in the method, and an attention-based GRU decoder with a copy mechanism that decodes a sequence of comment tokens. We expect the incorporation of more complicated architectures, e.g., tree-based Alon et al. (2019) and graph-based Fernandes et al. (2019) encoders which exploit AST structure, can be applied to both an edit model and a generation model, which we leave for future work.

Evaluation is based on the 736 (Mnew, Cnew) pairs in the test set described in §7. We ensure that the projects from which training examples are extracted are disjoint from those in the test set.

8.3 Reranked Generation Model

In order to allow the generation model to exploit the old comment, this system uses similarity to Cold (cf. §6) as a heuristic for reranking the top candidates from the previous model. The reranking score is a linear combination of the original beam score and the METEOR score between the candidate prediction and Cold, both with coefficient 0.5 (tuned on validation data).

8.4 Model Training

Model parameters are identical across the edit model and generation model, tuned on validation data. Encoders have hidden dimension 64, the decoder has hidden dimension 128, and the dimension for code and comment embeddings is 64. The embeddings used in the edit model are initialized using the pre-trained embedding vectors from the generation model. We use a dropout rate of 0.6, a batch size of 100, an initial learning rate of 0.001, and Adam optimizer. Models are trained to minimize negative log likelihood, and we terminate training if the validation loss does not decrease for ten consecutive epochs. During inference, we use beam search with beam width=20.

9 Evaluation

9.1 Automatic Evaluation

Model xMatch (%) METEOR BLEU-4 SARI GLEU
Baselines Copy 0.000 34.611 46.218 19.282 35.400
Return type subt. 13.723 43.106 50.796 31.723 42.507
Return type subst. + null 13.723 43.359 51.160 32.109 42.627
Models Generation 1.132 11.875 10.515 21.164 17.350
Edit 17.663 42.222 48.217 46.376 45.060
Reranked models Generation 2.083 18.170 18.891 25.641 22.685
Edit 18.433 44.698 50.717 45.486 46.118
Table 2: Exact match, METEOR, BLEU-4, SARI, and GLEU scores. Scores for which the difference in performance is not statistically significant (p < 0.05) are indicated with matching symbols.

Metrics:

We compute exact match, i.e., the percentage of examples for which the model prediction is identical to the reference comment Cnew. This is often used to evaluate tasks involving source code edits Shin et al. (2018); Yin et al. (2019). We also report two prevailing language generation metrics: METEOR Banerjee and Lavie (2005), and average sentence-level BLEU-4 Papineni et al. (2002) that is previously used in code-language tasks Iyer et al. (2016); Loyola et al. (2017).

Previous work suggests that BLEU-4 fails to accurately capture performance for tasks related to edits, such as text simplification Xu et al. (2016), grammatical error correction Napoles et al. (2015), and style transfer Sudhakar et al. (2019), since a system that merely copies the input text often achieves a high score. Therefore, we also include two text-editing metrics to measure how well our system learns to edit: SARI Xu et al. (2016)

, originally proposed to evaluate text simplification, is essentially the average of N-gram F1 scores corresponding to add, delete, and keep edit operations;

777Although the original formulation only used precision for the delete operation, more recent work computes F1 for this as well Dong et al. (2019); Alva-Manchego et al. (2019). GLEU Napoles et al. (2015), used in grammatical error correction and style transfer, takes into account the source sentence and deviates from BLEU by giving more importance to n-grams that have been correctly changed.

Results:

We report automatic metrics averaged across three random initializations for all learned models, and use bootstrap tests Berg-Kirkpatrick et al. (2012) for statistical significance. Table 2 presents the results. While reranking using Cold appears to help the generation model, it still substantially underperforms all other models, across all metrics. Although this model is trained on considerably more data, it does not have access to Cold during training and uses fewer inputs and consequently has less context than the edit model. Reranking slightly deteriorates the edit model’s performance with respect to SARI; however, it provides statistically significant improvements on most other metrics.

Although two of the baselines achieve slightly higher BLEU-4 scores than our best model, these differences are not statistically significant, and our model is better at editing comments, as shown by the results on exact match, SARI, and GLEU. In particular, our edit models beat all other models with wide, statistically significant, margins on SARI, which explicitly measures performance on edit operations. Furthermore, merely copying Cold, yields a relatively high BLEU-4 score of 46.218. The return type substitution and return type substitution w/ null handling baselines produce predictions that are identical to Cold for 74.73% and 65.76% of the test examples, respectively, while it is only 9.33% for the reranked edit model. In other words, the baselines attain high scores on automatic metrics and even beat our model on BLEU-4, without actually performing edits on the majority of examples. This further underlines the shortcomings of some of these metrics and the importance of conducting human evaluation for this task.

9.2 Human Evaluation

Automatic metrics often fail to incorporate semantic meaning and sentence structure in evaluation as well as accurately capture performance when there is only one gold-standard reference; indeed, these metrics do not align with human judgment in other generation tasks like grammatical error correction Napoles et al. (2015) and dialogue generation Liu et al. (2016). Since automatic metrics have not yet been explored in the context of the new task we are proposing, we find it necessary to conduct human evaluation and study whether these metrics are consistent with human judgment.

User study design:

Our study aims to reflect how a comment update system would be used in practice, such as in an Integrated Development Environment (IDE). When developers change code, they would be shown suggestions for updating the existing comment. If they think the comment needs to be updated to reflect the code changes, they could select the one that is most suitable for the new version of the code or edit the existing comment themselves if none of the options are appropriate.

We simulated this setting by asking a user to select the most appropriate updated comment from a list of suggestions, given Cold as well as the diff between Mold and Mnew displayed using GitHub’s diff interface. The user can select multiple options if they are equally good or a separate None option if no update is needed or all suggestions are poor.

The list of suggestions consists of up to three comments, predicted by the strongest benchmarks and our model : (1) return type substitution w/ null handling, (2) reranked generation model, and (3) reranked edit model, arranged in randomized order. We collapse identical predictions into a single suggestion and reward all associated models if the user selects that comment. Additionally, we remove any prediction that is identical to Cold to avoid confusion as the user should never select such a suggestion. We excluded 6 examples from the test set for which all three models predicted Cold for the updated comment.

Nine students (8 graduate/1 undergraduate) and one full-time developer at a large software company, all with 2+ years of Java experience, participated in our study. To measure inter-annotator agreement, we ensured that every example was evaluated by two users. We conducted a total of 500 evaluations, across 250 distinct test examples.

Results:

Baseline Generation Edit None
18.4% 12.4% 30.2% 55.0%

Table 3: Percentage of annotations for which users selected comment suggestions produced by each model. All differences are statistically significant (p < 0.05).

Table 3 presents the percentage of annotations (out of 500) for which users selected comment suggestions that were produced by each model. Using Krippendorff’s  Krippendorff (2011) with MASI distance  Passonneau (2006) (which accommodates our multi-label setting), inter-annotator agreement is 0.64, indicating satisfactory agreement. The reranked edit model beats the strongest baseline and reranked generation by wide statistically-significant margins. From rationales provided by two annotators, we observe that some options were not selected because they removed relevant information from the existing comment, and not surprisingly, these options often corresponded to the comment generation model.

Users selected none of the suggested comments 55% of the time, indicating there are many cases for which either the existing comment did not need updating, or comments produced by all models were poor. Based on our inspection of a sample these, we observe that in a large portion of these cases, the comment did not warrant an update. This is consistent with prior work in sentence simplification which shows that, very often, there are sentences that do not need to be simplified Li and Nenkova (2015)

. Despite our efforts to minimize such cases in our dataset through rule-based filtering techniques, we found that many remain. This suggests that it would be beneficial to train a classifier that first determines whether a comment needs to be updated before proposing a revision. Furthermore, the cases for which the existing comment does need to be updated but none of the models produce reasonable predictions illustrate the scope for improvement for our proposed task.

Previous Versionp

Updated Version
Figure 3: Changes in the getComplex method and its corresponding @return comment between two subsequent commits of the eclipse-january project, available on GitHub.

10 Error Analysis

We find that our model performs poorly in cases requiring external knowledge and more context than that provided by the given method. For instance, correctly updating the comment shown in Figure 3 requires knowing that get returns the item in the first position if no argument is provided. Our model does not have access to this information, and it fails to generate a reasonable update: “@return complex in given position." On the other hand, the reranked generation model produces “@return the complex value" which is arguably reasonable for the given context. This suggests that incorporating more code context could be beneficial for both models. Furthermore, we find that our model tends to make more mistakes when it must reason about a large amount of code change between Mold and Mnew, and we found that in many such cases, the output of the reranked generation model was better. This suggests that when there are substantial code changes, Mnew effectively becomes a new method, and generating a comment from scratch may be more appropriate. Ensembling generation with our system through a regression model that predicts the extent of editing that is needed may lead to a more generalizable approach that can accommodate such cases. Sample outputs are given in Appendix C.

Inputs Output xM (%) METEOR BLEU-4 SARI GLEU
Cold, Mnew Cnew 5.707 29.259 33.534 28.024 30.000
Cedit 4.755 33.796 43.315 35.516 37.970
Cold, Mold, Mnew Cnew 3.714 18.729 20.060 23.914 21.956
Cedit 5.163 34.895 44.006 33.479 37.618
Cold, Medit Cnew 6.114 29.968 34.164 28.980 30.491
Cedit 8.922 36.229 44.283 40.538 39.879
Table 4: Exact match, METEOR, BLEU-4, SARI, and GLEU for various combinations of code input and target comment output configurations. Features and reranking are disabled for all models. Scores for which the difference in performance is not statistically significant (p < 0.05) are indicated with matching symbols.
Model xM (%) METEOR BLEU-4 SARI GLEU
Models Edit 17.663 42.222 48.217 46.376 45.060
- feats. 8.922 36.229 44.283 40.538 39.879
Reranked models Edit 18.433 44.698 50.717 45.486 46.118
- feats. 8.877 38.446 46.665 36.924 40.317
Table 5: Exact match, METEOR, BLEU-4, SARI, and GLEU scores of ablated models. Scores for which the difference in performance is not statistically significant (p < 0.05) are indicated with matching symbols.

11 Ablations

We empirically study the effect of training the network to encode explicit code edits and decode explicit comment edits. As discussed in Section 3, the edit model consists of two encoders, one that encodes Cold and another that encodes the code representation, Medit. We conduct experiments in which the code representation instead consists of either (1) Mnew or (2) both Mold and Mnew (encoded separately and hidden states concatenated). Additionally, rather than having the decoder generate comment edits in the form Cedit, we introduce experiments in which it directly generates Cnew, with no intermediate edit sequence. For this, we use only the underlying architecture of the edit model (without features or reranking). The performance for various combinations of input code and target comment representations are shown in Table 4.

By comparing performance across combinations consisting of the same input code representation and varying target comment representations, the importance of training the decoder to generate a sequence of edit actions rather than the full updated comment is very evident. Furthermore, comparing across varying code representations under the Cedit target comment representation, it is clear that explicitly encoding the code changes, as Medit, leads to significant improvements across most metrics.

We further ablate the features introduced in §5. As shown in Table 5, these features improve performance by wide margins, across all metrics.

12 Related Work

Learning from source code changes:  apiUpdate use rule-based techniques to automatically detect and revise outdated API names in code documentation; however, their approach cannot be extended to full natural language comments that are the focus of this work.  ZhaiCPC propose a technique for updating incomplete and buggy comments by propagating comments from different code elements (e.g., variables, methods, classes) based on program analysis and several heuristics. Rather than simply copying a related comment, we aim to revise an outdated comment by reasoning about code changes. yin19iclr present an approach for learning structural and semantic properties of source code edits so that they can be generalized to new code inputs. Similar to their work, we learn vector representations from source code changes; however, unlike their setting, we apply these representations to natural language. Prior work in automatic commit message generation aims to learn from code changes in order to generate a natural language summary of these changes Loyola et al. (2017); Jiang et al. (2017); Xu et al. (2019). Instead of generating natural language content from scratch as done in their work, we focus on applying edits to existing natural language text. We also show that generating a comment from scratch does not perform as well as our proposed edit model for the comment update setting.

Editing natural language text: Approaches for editing natural language text have been studied extensively through tasks such as sentence simplification Dong et al. (2019), style transfer Li et al. (2018), grammatical error correction Awasthi et al. (2019), and language modeling Guu et al. (2018). The focus of this prior work is to revise sentences to conform to stylistic and grammatical conventions, and it does not generally consider broader contextual constraints. On the contrary, our goal is not to make cosmetic revisions to a given span of text, but rather amend its semantic meaning to be in sync with the content of a separate body of information on which it is dependent. More recently,  Shah2020AutomaticFS proposed an approach for rewriting an outdated sentence based on a sentence stating a new factual claim, which is more closely aligned with our task. However, in our case, the separate body of information is not natural language and is generally much longer than a single sentence.

13 Conclusion

We have addressed the novel task of automatically updating an existing programming comment based on changes to the related code. We designed a new approach for this task which aims to correlate cross-modal edits in order to generate a sequence of edit actions specifying how the comment should be updated. We find that our model outperforms multiple rule-based baselines and comment generation models, with respect to several automatic metrics and human evaluation.

Acknowledgements

We thank reviewers for their feedback on this work and the participants of our user study for their time. This work was partially supported by a Google Faculty Research Award and the US National Science Foundation under Grant Nos. CCF-1652517 and IIS-1850153.

References

  • Allamanis (2019) Miltiadis Allamanis. 2019.

    The adverse effects of code duplication in machine learning models of code.

    In SPLASH, Onward!, pages 143–153.
  • Allamanis et al. (2016) Miltiadis Allamanis, Hao Peng, and Charles Sutton. 2016. A convolutional attention network for extreme summarization of source code. In International Conference on Machine Learning, pages 2091–2100.
  • Alon et al. (2019) Uri Alon, Shaked Brody, Omer Levy, and Eran Yahav. 2019. code2seq: Generating sequences from structured representations of code. In International Conference on Learning Representations.
  • Alva-Manchego et al. (2019) Fernando Alva-Manchego, Louis Martin, Carolina Scarton, and Lucia Specia. 2019. EASSE: Easier automatic sentence simplification evaluation. In

    Conference on Empirical Methods in Natural Language Processing and International Joint Conference on Natural Language Processing: System Demonstrations

    , pages 49–54.
  • Awasthi et al. (2019) Abhijeet Awasthi, Sunita Sarawagi, Rasna Goyal, Sabyasachi Ghosh, and Vihari Piratla. 2019. Parallel iterative edit models for local sequence transduction. In Conference on Empirical Methods in Natural Language Processing and International Joint Conference on Natural Language Processing, pages 4251–4261.
  • Banerjee and Lavie (2005) Satanjeev Banerjee and Alon Lavie. 2005. Meteor: An automatic metric for MT evaluation with improved correlation with human judgments. In Workshop on Intrinsic and Extrinsic Evaluation Measures for Machine Translation and/or Summarization, pages 65–72.
  • Berg-Kirkpatrick et al. (2012) Taylor Berg-Kirkpatrick, David Burkett, and Dan Klein. 2012. An empirical investigation of statistical significance in NLP. In Joint Conference on Empirical Methods in Natural Language Processing and Computational Natural Language Learning, pages 995–1005.
  • Cho et al. (2014) Kyunghyun Cho, Bart van Merriënboer, Caglar Gulcehre, Dzmitry Bahdanau, Fethi Bougares, Holger Schwenk, and Yoshua Bengio. 2014. Learning phrase representations using RNN encoder–decoder for statistical machine translation. In Conference on Empirical Methods in Natural Language Processing, pages 1724–1734.
  • Dong et al. (2019) Yue Dong, Zichao Li, Mehdi Rezagholizadeh, and Jackie Chi Kit Cheung. 2019. EditNTS: An neural programmer-interpreter model for sentence simplification through explicit editing. In Annual Meeting of the Association for Computational Linguistics, pages 3393–3402.
  • Fernandes et al. (2019) Patrick Fernandes, Miltiadis Allamanis, and Marc Brockschmidt. 2019. Structured neural summarization. In International Conference on Learning Representations.
  • Guu et al. (2018) Kelvin Guu, Tatsunori B Hashimoto, Yonatan Oren, and Percy Liang. 2018. Generating sentences by editing prototypes. Transactions of the Association for Computational Linguistics, 6:437–450.
  • Hu et al. (2018) Xing Hu, Ge Li, Xin Xia, David Lo, and Zhi Jin. 2018. Deep code comment generation. In International Conference on Program Comprehension, pages 200–210.
  • Iyer et al. (2016) Srinivasan Iyer, Ioannis Konstas, Alvin Cheung, and Luke Zettlemoyer. 2016. Summarizing source code using a neural attention model. In Annual Meeting of the Association for Computational Linguistics, pages 2073–2083.
  • Jiang et al. (2017) Siyuan Jiang, Ameer Armaly, and Collin McMillan. 2017.

    Automatically generating commit messages from diffs using neural machine translation.

    In International Conference on Automated Software Engineering, pages 135–146.
  • Ko et al. (2019) Wei-Jen Ko, Greg Durrett, and Junyi Jessy Li. 2019. Linguistically-informed specificity and semantic plausibility for dialogue generation. In North American Chapter of the Association for Computational Linguistics: Human Language Technologies, pages 3456–3466.
  • Krippendorff (2011) Klaus Krippendorff. 2011. Computing Krippendorff’s alpha reliability. Technical report, University of Pennsylvania.
  • Kriz et al. (2019) Reno Kriz, João Sedoc, Marianna Apidianaki, Carolina Zheng, Gaurav Kumar, Eleni Miltsakaki, and Chris Callison-Burch. 2019. Complexity-weighted loss and diverse reranking for sentence simplification. In North American Chapter of the Association for Computational Linguistics: Human Language Technologies, pages 3137–3147.
  • Lee et al. (2019) Seonah Lee, Rongxin Wu, S.C. Cheung, and Sungwon Kang. 2019. Automatic detection and update suggestion for outdated API names in documentation. Transactions on Software Engineering.
  • Li et al. (2018) Juncen Li, Robin Jia, He He, and Percy Liang. 2018. Delete, retrieve, generate: a simple approach to sentiment and style transfer. In North American Chapter of the Association for Computational Linguistics: Human Language Technologies, pages 1865–1874.
  • Li and Nenkova (2015) Junyi Jessy Li and Ani Nenkova. 2015. Fast and accurate prediction of sentence specificity. In

    AAAI Conference on Artificial Intelligence

    , pages 2281–2287.
  • Liang and Zhu (2018) Yuding Liang and Kenny Q. Zhu. 2018. Automatic generation of text descriptive comments for code blocks. In AAAI Conference on Artificial Intelligence, pages 5229–5236.
  • Liu et al. (2016) Chia-Wei Liu, Ryan Lowe, Iulian Serban, Mike Noseworthy, Laurent Charlin, and Joelle Pineau. 2016.

    How NOT to evaluate your dialogue system: An empirical study of unsupervised evaluation metrics for dialogue response generation.

    In Conference on Empirical Methods in Natural Language Processing, pages 2122–2132.
  • Loyola et al. (2017) Pablo Loyola, Edison Marrese-Taylor, and Yutaka Matsuo. 2017. A neural architecture for generating natural language descriptions from source code changes. In Annual Meeting of the Association for Computational Linguistics, pages 287–292.
  • Luong et al. (2015) Thang Luong, Hieu Pham, and Christopher D. Manning. 2015. Effective approaches to attention-based neural machine translation. In Conference on Empirical Methods in Natural Language Processing, pages 1412–1421.
  • Movshovitz-Attias and Cohen (2013) Dana Movshovitz-Attias and William W. Cohen. 2013. Natural language models for predicting programming comments. In Annual Meeting of the Association for Computational Linguistics, pages 35–40.
  • Napoles et al. (2015) Courtney Napoles, Keisuke Sakaguchi, Matt Post, and Joel Tetreault. 2015. Ground truth for grammatical error correction metrics. In Annual Meeting of the Association for Computational Linguistics and the International Joint Conference on Natural Language Processing, pages 588–593.
  • Neubig et al. (2015) Graham Neubig, Makoto Morishita, and Satoshi Nakamura. 2015. Neural reranking improves subjective quality of machine translation: NAIST at WAT2015. In Workshop on Asian Translation, pages 35–41.
  • Panthaplackel et al. (2020) Sheena Panthaplackel, Milos Gligoric, Raymond J. Mooney, and Junyi Jessy Li. 2020. Associating natural language comment and source code entities. In AAAI Conference on Artificial Intelligence.
  • Papineni et al. (2002) Kishore Papineni, Salim Roukos, Todd Ward, and Wei-Jing Zhu. 2002. BLEU: a method for automatic evaluation of machine translation. In Annual Meeting of the Association for Computational Linguistics, pages 311–318.
  • Passonneau (2006) Rebecca Passonneau. 2006. Measuring agreement on set-valued items (MASI) for semantic and pragmatic annotation. In International Conference on Language Resources and Evaluation.
  • Ratol and Robillard (2017) Inderjot Kaur Ratol and Martin P. Robillard. 2017. Detecting fragile comments. International Conference on Automated Software Engineering, pages 112–122.
  • Shah et al. (2020) Darsh J. Shah, Tal Schuster, and Regina Barzilay. 2020. Automatic fact-guided sentence modification. In AAAI Conference on Artificial Intelligence.
  • Shin et al. (2018) Richard Shin, Illia Polosukhin, and Dawn Song. 2018. Towards specification-directed program repair. In International Conference on Learning Representations Workshop.
  • Sudhakar et al. (2019) Akhilesh Sudhakar, Bhargav Upadhyay, and Arjun Maheswaran. 2019. “Transforming” delete, retrieve, generate approach for controlled text style transfer. In Conference on Empirical Methods in Natural Language Processing and the International Joint Conference on Natural Language Processing, pages 3267–3277.
  • Tan et al. (2007) Lin Tan, Ding Yuan, Gopal Krishna, and Yuanyuan Zhou. 2007. /*iComment: Bugs or bad comments?*/. In Symposium on Operating Systems Principles, pages 145–158.
  • Vaswani et al. (2017) Ashish Vaswani, Noam Shazeer, Niki Parmar, Jakob Uszkoreit, Llion Jones, Aidan N Gomez, Łukasz Kaiser, and Illia Polosukhin. 2017. Attention is all you need. In Advances in Neural Information Processing Systems, pages 5998–6008.
  • Vinyals et al. (2015) Oriol Vinyals, Meire Fortunato, and Navdeep Jaitly. 2015. Pointer networks. In Advances in Neural Information Processing Systems, pages 2692–2700.
  • Xu et al. (2019) Shengbin Xu, Yuan Yao, Feng Xu, Tianxiao Gu, Hanghang Tong, and Jian Lu. 2019. Commit message generation for source code changes. In International Joint Conference on Artificial Intelligence, pages 3975–3981.
  • Xu et al. (2016) Wei Xu, Courtney Napoles, Ellie Pavlick, Quanze Chen, and Chris Callison-Burch. 2016. Optimizing statistical machine translation for text simplification. Transactions of the Association for Computational Linguistics, 4:401–415.
  • Yao et al. (2018) Ziyu Yao, Daniel S. Weld, Wei-Peng Chen, and Huan Sun. 2018. StaQC: A systematically mined question-code dataset from Stack Overflow. In International Conference on World Wide Web, pages 1693–1703.
  • Yin et al. (2018) Pengcheng Yin, Bowen Deng, Edgar Chen, Bogdan Vasilescu, and Graham Neubig. 2018. Learning to mine aligned code and natural language pairs from Stack Overflow. In International Conference on Mining Software Repositories, pages 476–486.
  • Yin et al. (2019) Pengcheng Yin, Graham Neubig, Miltiadis Allamanis, Marc Brockschmidt, and Alexander L. Gaunt. 2019. Learning to represent edits. In International Conference on Learning Representations.
  • Zhai et al. (2020) Juan Zhai, Xiangzhe Xu, Yu Shi, Guanhong Tao, Minxue Pan, Shiqing Ma, Lei Xu, Weifeng Zhang, Lin Tan, and Xiangyu Zhang. 2020. CPC: Automatically classifying and propagating natural language comments via program analysis. In International Conference on Software Engineering.

Appendix A Modified Comment Edit Lexicon

Train Valid Test
Total actions 8,350 1,038 1,046
Avg. # actions per example 1.44 1.46 1.42
Replace 51.9% 49.7% 50.1%
ReplaceKeepBefore 2.9% 2.6% 3.5%
ReplaceKeepAfter 0.7% 0.3% 0.4%
InsertKeepBefore 21.5% 24.1% 23.2%
InsertKeepAfter 4.2% 4.0% 3.3%
Delete 17.4% 18.0% 17.8%
DeleteKeepBefore 1.3% 0.7% 1.1%
DeleteKeepAfter 0.2% 0.5% 0.6%

Table 6: Total number of edit actions; average number of edit actions per example; percentage of total actions that is accounted by each edit action type.

We first transform insertions and ambiguous deletions into a structure that resembles Replace, characterized by InsertOld/InsertNew and DeleteOld/DeleteNew spans respectively. Next, we require the span of tokens attached to ReplaceOld, InsertOld, and DeleteOld to be unique across Cold so that we can uniquely identify the edit location. We enforce this by iteratively searching through unchanged tokens before and after the span, incorporating additional tokens into the span, until the span becomes unique. These added tokens are then included in both components of the action. For instance, if the last A is to be replaced with C in ABA, the ReplaceOld span would be BA and the ReplaceNew span would be BC. We also augment the edit types to differentiate between the various scenarios that may arise from this search procedure.

Replace actions for which this procedure is performed deviate from the typical nature of Replace in which there is no overlap between the spans attached to ReplaceOld and ReplaceNew. This is because the tokens that are added to make the ReplaceOld span unique will appear in both spans. These tokens, which are effectively kept between Cold and Cnew, could appear before or after the edit location. We differentiate between these scenarios by augmenting the edit lexicon with new edit types. In addition to Replace, we have ReplaceKeepBefore and ReplaceKeepAfter to signify that the action entails retaining some content before or after, respectively. We include the same for the other types as well with InsertKeepBefore, InsertKeepAfter, DeleteKeepBefore, DeleteKeepAfter. Table 6 shows statistics on how often each of these edit actions are used. We present more details about the actions in the sections that follow.

a.1 Replacements

Replace

This action is defined as shown below:

It prescribes that the tokens attached to ReplaceOld are deleted and the tokens attached to ReplaceNew are inserted in their place. There is almost never overlap between the span of tokens attached to ReplaceOld and ReplaceNew. Example: if B is to be replaced with C in Cold=AB to produce Cnew=AC, the corresponding Cedit is:

Note that the span attached to ReplaceOld must be unique across Cold for this edit type to be used.

ReplaceKeepBefore

This action is defined as shown below:

Replace is transformed into this structure if the span attached to ReplaceOld is not unique. For example, suppose the first B is to be replaced with D in Cold=ABCB to produce Cnew=ADCB. If Cedit consists of a ReplaceOld span carrying just B, it is not obvious whether the first or last B should be replaced. To address this, we introduce a new edit type, ReplaceKeepBefore, which forms a unique span by searching before the edit location. It prescribes that the tokens attached to ReplaceOldKeepBefore are deleted and the tokens attached to ReplaceNewKeepBefore are inserted in their place. Unlike Replace, there will be some overlap at the beginning of the spans attached to ReplaceOldKeepBefore and ReplaceNewKeepBefore. Therefore, to represent editing Cold=ABCB to produce Cnew=ADCB, Cedit is:

The span attached to ReplaceOldKeepBefore is unique, making it clear that the first B is to be replaced with D. It also indicates that we are effectively keeping A, which appears before the edit location.

ReplaceKeepAfter

This action is defined as shown below:

Replace is transformed into this structure if the span attached to ReplaceOld is not unique and ReplaceKeepBefore cannot be used because we are unable to find a unique sequence of unchanged tokens before the edit location. For example, suppose the first B is to be replaced with D in Cold=ABCAB to produce Cnew=ADCAB. Searching before the edit location, we find only AB, which is not unique across Cold, and so it would still not be clear which B is to be edited. To address this, we introduce a new edit type, ReplaceKeepAfter, which forms a unique span by searching after the edit location. It prescribes that the tokens attached to ReplaceOldKeepAfter are deleted and the tokens attached to ReplaceNewKeepAfter are inserted in their place. Unlike Replace and ReplaceKeepBefore, there will be some overlap at the end of the spans attached to ReplaceOldKeepAfter and ReplaceNewKeepAfter. Therefore, to represent editing Cold=ABCAB to produce Cnew=ADCAB, Cedit is:

The span attached to ReplaceOldKeepAfter is unique, making it clear that the first B is to be replaced with D. It also indicates that we are effectively keeping C, which appears after the edit location.

a.2 Insertions

We disregard basic Insert actions since it is always ambiguous where an insertion should occur without an anchor point. Following what is done for ambiguous Replace actions, we introduce InsertKeepBefore and InsertKeepAfter.

InsertKeepBefore

This action is defined as shown below:

In this representation, the span of tokens attached to InsertOldKeepBefore must be unique and serve as the anchor point for where the new tokens should be inserted. We do this by searching before the edit location. The structure is identical to that of ReplaceKeepBefore in that the tokens attached to InsertOldKeepBefore are replaced with the tokens in InsertNewKeepBefore and that there is some overlap at the beginning of the two spans. As an example, suppose C is to be inserted at the end of Cold=AB to form Cnew=ABC. Then the corresponding Cedit is as follows:

This states that we are effectively inserting C and keeping B, which appears before the edit location.

InsertKeepAfter

This action is defined as shown below:

We rely on this when we are unable to use InsertKeepBefore because we cannot find a unique span of tokens to identify the anchor point, by searching before the edit location. For instance, suppose C is to be inserted at the beginning of Cold=AB to form Cnew=CAB. There are no tokens that appear before the insert point, so we instead choose to search after. The structure is identical to that of ReplaceKeepAfter in that the tokens attached to InsertOldKeepAfter are replaced with the tokens in InsertNewKeepAfter and that there is some overlap at the end of the two spans. The corresponding Cedit from our example is as follows:

This states that we are effectively inserting C and keeping A, which appears after the edit location.

a.3 Deletions

Delete

This action is defined as shown below:

It prescribes that the tokens that appear in the Delete span are removed from Cold. Example: if B is to be deleted from Cold=AB to produce Cnew=A, the corresponding Cedit is:

Note that the Delete span must be unique across Cold for this edit type to be used.

DeleteKeepBefore

This action is defined as shown below:

Delete is transformed into this structure if the Delete span is not unique. For example, suppose the first B is to be deleted from Cold=ABCB to produce Cnew=ACB. From just Cedit=<Delete>B<DeleteEnd>, it is unclear which B is to be deleted. To address this, we introduce a new edit type, DeleteKeepBefore, which forms a unique span by searching before the edit location. The structure is identical to that of ReplaceKeepBefore in that the tokens attached to DeleteOldKeepBefore are replaced with the tokens in DeleteNewKeepBefore and that there is some overlap at the beginning of the two spans. For the example under consideration, the corresponding Cedit is given below:

The span attached to DeleteOldKeepBefore is unique, making it clear that the first B is to be deleted. It also indicates that we are effectively keeping A, which appears before the edit location.

DeleteKeepAfter

This action is defined as shown below:

Delete is transformed into this structure if the Delete span is not unique and DeleteKeepBefore cannot be used because we are unable to find a unique sequence of unchanged tokens before the edit location. For example, suppose the first B is to be deleted from Cold=ABCAB to produce Cnew=ACAB. Searching before the edit location, we find only AB, which is not unique across Cold, and so it would still not be clear which B is to be deleted. To address this, we introduce a new edit type, DeleteKeepAfter, which forms a unique span by searching after the edit location. The structure is identical to that of ReplaceKeepAfter in that the tokens attached to DeleteOldKeepAfter are replaced with the tokens in DeleteNewKeepAfter and that there is some overlap at the end of the two spans. For the example under consideration, Cedit is given below:

The span attached to DeleteOldKeepAfter is unique, making it clear that the first B is to be deleted. It also indicates that we are effectively keeping C, which appears after the edit location.

Appendix B Data Filtering

As done in panthaplackel2020associating, we apply heuristics to reduce the number of cases in which the code and comment changes are unrelated. First, because we focus on @return comments that pertain to the return values of a given method, we discard any example in which the code change does not entail either a change to the return type or at least one return statement. Then, to identify the correct mapping of two versions of a method among other changes in a commit, we focus on the code changes that preserve the method names. It may happen sometimes that developers change the method name as well as code and comment in one commit, but we leave it as future work to improve this filtering heuristic. Next, we attempt to remove examples in which the comment change appears to be purely stylistic (e.g. spelling corrections, re-formatting, and rephrasing). Furthermore, prior work Allamanis (2019) has shown that duplication can adversely affect evaluation of machine learning models for code and language tasks. For this reason, we remove duplicates from our corpus.

Despite having mined commit histories for thousands of projects, upon filtering, we are left with a total of 7,239 examples belonging to 1,081 different projects. This demonstrates the challenge of collecting large datasets with relatively low levels of noise in this domain. Although online code resources like GitHub and StackOverflow host large quantities of data that can be exploited for transduction tasks between source code and natural language, prior work has shown that much of this data is unusable without cleaning Yin et al. (2018).

Some have used rule-based techniques to do data cleaning Allamanis et al. (2016); Hu et al. (2018); Fernandes et al. (2019), and others train classifiers on hand-labeled examples that can be applied to a much larger pool of examples in order to differentiate between clean and noisy examples Iyer et al. (2016); Yao et al. (2018); Yin et al. (2018). Most of these approaches focus on code summarization or comment generation which only require single code-NL pairs for training and evaluation as the task entails generating a natural language summary of a given code snippet. On the contrary, our proposed task requires two code-NL pairs that are assumed to hold specific parallel relationships with one another. Namely, the relationship between Cnew and Mnew is expected to be similar to that of Cold and Mold. The relationship between Cnew and Cold is expected to correlate with the relationship between Mnew and Mold. Not only does having four moving parts in one example magnify noise, but the need to hold these relationships makes data cleaning particularly difficult. We leave building classifiers for aiding this process as future work.

Appendix C Sample Output

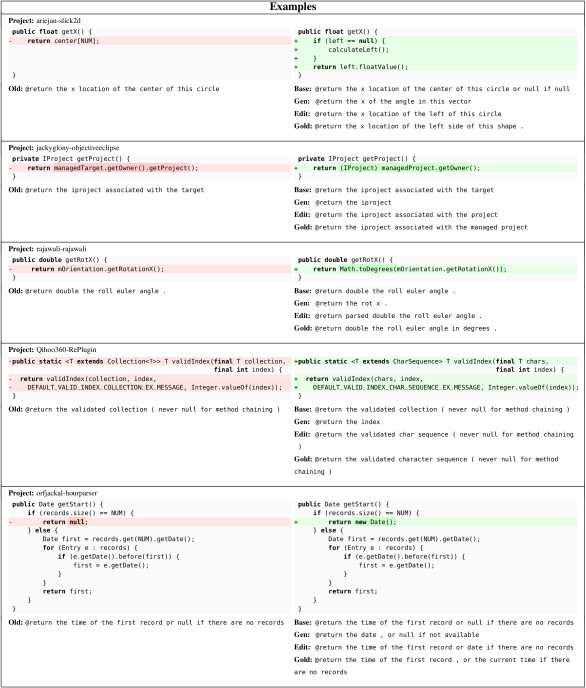

Table 7: Examples from open-source software projects. For each example, we show the diff between the two versions of the method (left: old version, right: new version, diff lines are highlighted), the existing @return comment prior to being updated (left), and predictions made by the return type substitution w/ null handling baseline, reranked generation model, and reranked edit model, and the gold updated comment (right, from top to bottom).

In Table 7, we show predictions for various examples in the test set.
