Introduction
Given an encrypted sequence, a key and a decryption of that sequence, can we reconstruct the decryption function? We might begin by looking for small patterns shared by the two sequences. When we find these patterns, we can piece them together to create a rough model of the unknown function. Next, we might use this model to predict the translations of other sequences. Finally, we can refine our model based on whether or not these guesses are correct.
During WWII, Allied cryptographers used this process to make sense of the Nazi Enigma cipher, eventually reconstructing the machine almost entirely from its inputs and outputs [Rejewski1981]. This achievement was the product of continuous effort by dozens of engineers and mathematicians. Cryptography has improved in the past century, but piecing together the decryption function of a black box cipher such as the Enigma is still a problem that requires expert domain knowledge and days of labor.
The process of reconstructing a cipher’s inner workings is the first step of cryptanalysis. Several past works have sought to automate – and thereby accelerate – this process, but they generally suffer from a lack of generality (see Related Work). To address this issue, several works have discussed the connection between machine learning and cryptography
[Kearns and Valiant1994] [Prajapat and Thankur2015]. Early work at the confluence of these two fields has been either theoretical or limited to toy examples. We improve upon this work by introducing a generalpurpose model for learning and characterizing polyalphabetic ciphers.Our approach is to frame the decryption process as a sequencetosequence translation task and use a Recurrent Neural Network (RNN) based model to learn the translation function. Unlike previous works, our model can be applied to any polyalphabetic cipher. We demonstrate its effectiveness by using the same model and hyperparameters (except for memory size) to learn three different ciphers: the Vigenere, Autokey, and Enigma. Once trained, our model performs well on 1) unseen keys and 2) ciphertext sequences much longer than those of the training set. All code is available online
^{1}^{1}1https://github.com/greydanus/cryptornn.By visualizing the activations of our model’s memory vector, we argue that it can learn efficient internal representations of ciphers. To confirm this theory, we show that the amount of memory our model needs to master each cipher scales with the cipher’s degree of timedependence. Finally, we train our model to perform knownplaintext attacks on the Vigenere and Autokey ciphers, demonstrating that these internal representations are useful tools for cryptanalysis.
To be clear, our objective was not to crack the Enigma. The Enigma was cracked nearly a century ago using fewer computations than that of a single forward pass through our model. The best techniques for cracking ciphers are handcrafted approaches that capitalize on weaknesses of specific ciphers. This project is meant to showcase the impressive ability of RNNs to uncover information about unknown ciphers in a fully automated way.
In summary, our key contribution is that RNNs can learn algorithmic representations of complex polyalphabetic ciphers and that these representations are useful for cryptanalysis.
Related work
Recurrent models, in particular those that use Long ShortTerm Memory (LSTM), are a powerful tool for manipulating sequential data. Notable applications include stateofthe art results in handwriting recognition and generation [Graves2014], speech recognition [Graves, Mohamed, and Hinton2013], machine translation [Sutskever, Vinyals, and Le2014]
, deep reinforcement learning
[Mnih et al.2016], and image captioning [Karpathy and FeiFei2015]. Like these works, we frame our application of RNNs as a sequencetosequence translation task. Unlike these works, our translation task requires 1) a keyphrase and 2) reconstructing a deterministic algorithm. Fortunately, a wealth of previous work has focused on using RNNs to learn algorithms.Past work has shown that RNNs can find general solutions to algorithmic tasks. Zaremba and Sutskever [Zaremba and Sutskever2015] trained LSTMs to add 9digit numbers with 99% accuracy using a variant of curriculum learning. Graves et. al. [Graves, Wayne, and Danihelka2014]
compared the performance of LSTMs to Neural Turing Machines (NTMs) on a range of algorithmic tasks including sort and repeatcopy. More recently, Graves et al.
[Graves et al.2016] introduced the Differentiable Neural Computer (DNC) and used it to solve more challenging tasks such as relational reasoning over graphs. As with these works, our work shows that RNNs can master simple algorithmic tasks. However, unlike tasks such as long addition and repeatcopy, learning the Enigma is a task that humans once found difficult.In the 1930s, Allied nations had not yet captured a physical Enigma machine. Cryptographers such as the Polish Marian Rejewski were forced to compare plaintext, keyphrase, and ciphertext messages with each other to infer the mechanics of the machine. After several years of carefully analyzing these messages, Rejewski and the Polish Cipher Bureau were able to construct ’Enigma doubles’ without ever having seen an actual Enigma machine [Rejewski1981]. This is the same problem we trained our model to solve. Like Rejewski, our model uncovers the logic of the Enigma by looking for statistical patterns in a large number of plaintext, keyphrase, and ciphertext examples. We should note, however, that Rejewski needed far less data to make the same generalizations. Later in World War II, British cryptographers led by Alan Turing helped to actually crack the Enigma. As Turing’s approach capitalized on operator error and expert knowledge about the Enigma, we consider it beyond the scope of this work [SebagMontefiore2000].
Characterizing unknown ciphers is a central problem in cryptography. The comprehensive Applied Cryptography [Schneier1996] lists a wealth of methods, from frequency analysis to chosenplaintext attacks. Papers such as [Dawson, Gustafson, and Davies1991] offer additional methods. While these methods can be effective under the right conditions, they do not generalize well outside certain classes of ciphers. This has led researchers to propose several machine learningbased approaches. One work [Spillman et al.2017]
used genetic algorithms to recover the secret key of a simple substitution cipher. A review paper by Prajapat et al.
[Prajapat and Thankur2015] proposes cipher classification with machine learning.Alallayah et al. [Alallayah et al.2010] succeeded in using a small feedforward neural network to decode the Vigenere cipher. Unfortunately, they phrased the task in a cipherspecific manner that dramatically simplified the learning objective. For example, at each step, they gave the model the single keyphrase character that was necessary to perform decryption. One of the things that makes learning the Vigenere cipher difficult is choosing that keyphrase character for a particular time step. We avoid this pitfall by using an approach that generalizes well across several ciphers.
There are other interesting connections between machine learning and cryptography. Abadi and Andersen trained two convolutional neural networks (CNNs) to communicate with each other while hiding information from from a third. The authors argue that the two CNNs learned to use a simple form of encryption to selectively protect information from the eavesdropper. Another work by Ramamurthy et al.
[Ramamurthy et al.2017] embedded images directly into the trainable parameters of a neural network. These messages could be recovered using a second neural network. Like our work, these two works use neural networks to encrypt information. Unlike our work, the models were neither recurrent nor were they trained on existing ciphers.Problem setup
We consider the decryption function of a generic polyalphabetic cipher where is the ciphertext, is a key, and is the plaintext message. Here, , , and are sequences of symbols drawn from alphabet (which has length ). Our objective is to train a neural network with parameters to make the approximation such that
(1)
where
is L2 loss. We chose this loss function because it penalizes outliers more severely than other loss functions such as L1. Minimizing outliers is important as the model converges to high accuracies (e.g. 95
%) and errors become infrequent. In this equation, is a onehot vector and is a realvalued softmax distribution over the same space.Representing ciphers. In this work, we chose as the uppercase Roman alphabet plus the null symbol, ’’. We encode each symbol as a onehot vector. The sequences , , and then become matrices with a time dimension and a onehot dimension (see Figure 1(a)). We allow the key length to vary between 1 and 6 but choose a standard length of 6 for
and pad extra indices with the null symbol. If
is the number of time steps to unroll the LSTM during training, then and are matrices and is a matrix. To construct training example , we concatenate the key, plaintext, and ciphertext matrices according to Equations 2 and 3.(2)
(3)
Concretely, for the Autokey cipher, we might obtain the following sequences:
input : KEYISSIBIGACPUWGNRBTBBBO
target: KEYYOUKNOWNOTHINGJONSNOW
We could also have fed the model the entire key at each time step. However, this would have increased the size of the input layer (and, as a result, total size of ) introducing an unnecessary computational cost. We found that the LSTM could store the keyphrase in its memory cell without difficulty so we chose the simple concatenation method of Equations 2 and 3 instead. We found empirical benefit in appending the keyphrase to the target sequence; loss decreased more rapidly early in training.
Our model
Recurrent neural networks (RNNs). The simplest RNN cell takes as input two hidden state vectors: one from the previous time step and one from the previous layer of the network. Using indices for time and for depth, we label them and respectively. Using the notation of Karpathy et al. [Karpathy, Johnson, and FeiFei2016], the RNN update rule is
where , is a parameter matrix, and the is applied elementwise.
The Long ShortTerm Memory (LSTM) cell is a variation of the RNN cell which is easier to train in practice [Hochreiter and Schmidhuber1997]. In addition to the hidden state vector, LSTMs maintain a memory vector, . At each time step, the LSTM can choose to read from, write to, or reset the cell using three gating mechanisms. The LSTM update takes the form:
The sigmoid () and functions are applied elementwise, and is a matrix. The three gate vectors control whether the memory is updated, reset to zero, or its local state is revealed in the hidden vector, respectively. The entire cell is differentiable, and the three gating functions reduce the problem of vanishing gradients [Bengio, Simard, and
Frasconi1994] [Hochreiter and
Schmidhuber1997].

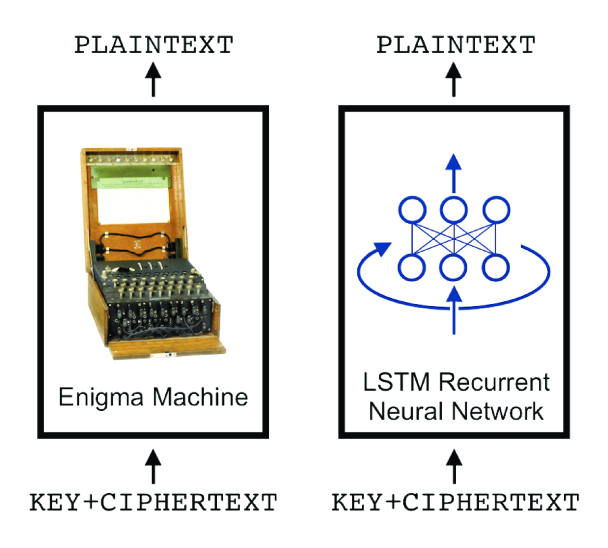

We used a single LSTM cell capped with a fullyconnected softmax layer for all experiments (Figure
1(b)). We also experimented with two and three stacked LSTM layers and additional fully connected layers between the input and LSTM layers, but these architectures learned too slowly or not at all. In our experience, the simplest architecture worked best.Experiments
We considered three types of polyalphabetic substitution ciphers: the Vigenere, Autokey, and Enigma. Each of these ciphers is composed of various rotations of , called Caesar shifts. A oneunit Caesar shift would perform the rotation .
The Vigenere cipher performs Caesar shifts with distances that correspond to the indices of a repeated keyphrase. For a keyphrase of length , the Vigenere cipher decrypts a plaintext message according to:
(4)
where the lower indices of and correspond to time and the upper indices correspond to the index of the symbol in alphabet .
The Autokey cipher is a variant of this idea. Instead of repeating the key, it concatenates the plaintext message to the end of the key, effectively creating a new and nonrepetitive key:
(5)
The Enigma also performs rotations over , but with a function that is far more complex. The version used in World War II contained 3 wheels (each with 26 ring settings), up to 10 plugs, and a reflector, giving it over possible configurations [Miller2017]. We selected a constant rotor configuration of AIIIIII, ring configuration of 2, 14, 8 and no plugs. For an explanation of these settings, see [Rejewski1981]. We set the rotors randomly according to a 3character key, giving a subspace of settings that contained possible mappings. With these settings, our model required several days of compute time on a Tesla k80 GPU. The rotor and ring configurations could also be allowed to vary by appending them to the keyphrase. We tried this, but convergence was too slow given our limited computational resources.
Synthesizing data. The runtime of was small for all ciphers so we chose to synthesize training data onthefly, eliminating the need to synthesize and store large datasets. This also reduced the likelihood of overfitting. We implemented our own Vigenere and Autokey ciphers and used the historically accurate cryptoenigma^{2}^{2}2http://pypi.python.org/pypi/cryptoenigma Python package as our Enigma simulator.
The symbols of the input sequences and
were drawn randomly (with uniform probability) from the Roman alphabet,
. We chose characters with uniform distribution to make the task more difficult. Had we used grammatical (e.g. English) text, our model could have improved its performance on the task simply by memorizing common ngrams. Differentiating between gains in accuracy due to learning the Enigma versus those due to learning the statistical distributions of English would have been difficult.
Optimization. Following previous work by Xavier et al. [Glorot and Bengio2010]
, we use the ’Xavier’ initialization for all parameters. We use minibatch stochastic gradient descent with batch size 50 and select parameterwise learning rates using Adam
[Kingma and Ba2014] set to a base learning rate of and . We trained on ciphertext sequences of length 14 and keyphrase sequences of length 6 for all tasks. As our Enigma configuration accepted only 3character keys, we padded the last three entries with the null character, ’’.On the Enigma task, we found that our model’s LSTM required a memory size of at least 2048 units. The model converged too slowly or not at all for smaller memory sizes and multicell architectures. We performed experiments on a model with 3000 hidden units because it converged approximately twice as quickly as the model with 2048 units. For the Vigenere and and Autokey ciphers, we explored hidden memory sizes of 32, 64, 128, 256, and 512. For each cipher, we halted training after our model achieved accuracy; this occurred around train steps on the Enigma task and train steps on the others.
The number of possible training examples, , far exceeded the total number of examples the model encountered during training, (each of these examples were generated onthefly). We were, however, concerned with another type of overfitting. On the Enigma task, our model contained over thirty million learnable parameters and encountered each threeletter key hundreds of times during training. Hence, it was possible that the model might memorize the mappings from ciphertext to plaintext for all possible () keys. To check for this sort of overfitting, we withheld a single key, KEY, from training and inspected our trained model’s performance on a message encrypted with this key.

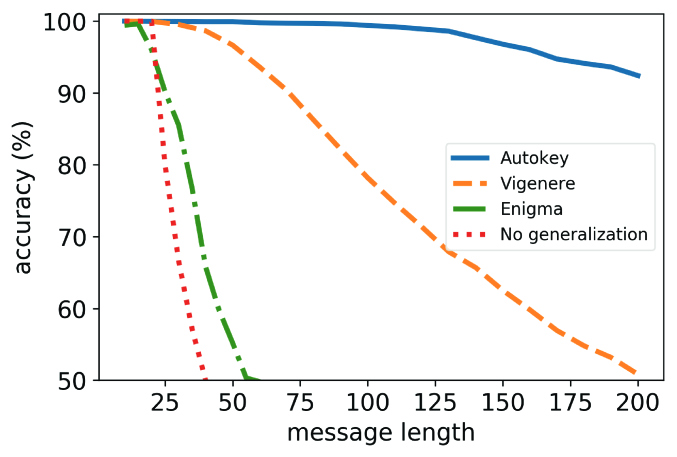

Generalization. We evaluated out model on two metrics for generalization. First, we tested its ability to decrypt 20 randomlygenerated test messages using an unseen keyphrase (’KEY’). It passed this test on all three ciphers. Second, we measured its ability to decrypt messages longer than those of the training set. On this test, our model exhibited some generalization for all three ciphers but performed particularly well on the Vigenere task, decoding sequences an order of magnitude longer than those of the trainign set (see Figure 4). We observed that the norm of our model’s memory vector increased linearly with the number of time steps, leading us to hypothesize that the magnitudes of some hidden activations increase linearly over time. This phenomenon is probably responsible for reduced decryption accuracy on very long sequences.
(a) Hidden unit 252 of the Vigenere model has a negative activation once every steps where is the length of the keyphrase (examples for are shown). We hypothesize that this is a timing unit which allows the model to index into the keyphrase as a function of the encryption step.
(b) The 30th hidden unit of the Autokey model has negative activations for specific character indices (e.g. 2 and 14) and positive activations for others (e.g. 6 and 18). We hypothesize that this shift unit helps the model compute the magnitude of the Caesar shift between the ciphertext and plaintext.
(c) The hidden activations of the Enigma model were generally sparse. Hidden unit 1914 is no exception. For different messages, only its activation magnitude changes. For different keyphrases, its entire activation pattern (signs and magnitudes) change. We hypothesize that it is a switch unit which activates only when the Enigma enters a particular rotor configuration.
Memory usage. Based on our model’s ability to generalize over unseen keyphrases and message lengths, we hypothesized that it learns an efficient internal representation of each cipher. To explore this idea, we first examined how activations of various units in the LSTM’s memory vector changed over time. We found, as shown in Figure 5, that 1) these activations mirrored qualitative properties of the ciphers and 2) they varied considerably between the three ciphers.
We were also interested in how much memory our model required to learn each cipher. Early in this work, we observed that the model required a very large memory vector (at least 2048 hidden units) to master the Enigma task. In subsequent experiments (Figure 6), we found that the size of the LSTM’s memory vector was more important when training on the Autokey task than the Vigenere task. We hypothesize that this is because the model must continually update its internal representation of the keyphrase during the Autokey task, whereas on the Vigenere task it needs only store a static representation of the keyphrase. The Enigma, of course, requires dramatically more memory because it must store the configurations of three 26character wheels, each of which may rotate at a given time step.
Based on these observations, we claim that the amount of memory our model requires to learn a given cipher can serve as an informal measure of how much each encryption step depends on previous encryption steps. When characterizing a black box cipher, this information may be of interest.
Reconstructing keyphrases. Having verified that our model learned internal representations of the three ciphers, we decided to take this property one step further. We trained our model to predict keyphrases as a function of plaintext and ciphertext inputs. We used the same model architecture as described earlier, but the input at each timestep became two concatenated onehot vectors (one corresponding to the plaintext and one to the ciphertext). Reconstructing the keyphrase for a Vigenere cipher with known keylength is trivial: the task reduces to measuring the shifts between the plaintext and ciphertext characters. We made this task more difficult by training the model on target keyphrases of unknown length (16 characters long). In most realworld cryptanalysis applications, the length of the keyphrase is unknown which also motivated our choice. Our model obtained accuracy on the task.
Reconstructing the keyphrase of the Autokey was a more difficult task, as the keyphrase is used only once. This happens during the first 16 steps of encryption. On this task, accuracy exceeded 95%. In future work, we hope to reconstruct the keyphrase of the Engima from plaintext and ciphertext inputs.
Limitations. Our model is data inefficient; it requires at least a million training examples to learn a cipher. If we were interested in characterizing an unknown cipher in the real world, we would not generally have access to unlimited examples of plaintext and ciphertext pairs.
Most modern encryption techniques rely on publickey algorithms such as RSA. Learning these functions requires multiplying and taking the modulus of large numbers. These algorithmic capabilities are well beyond the scope of our model. Better machine learning models may be able to learn simplified versions of RSA, but even these would probably be data and computationinefficient.
Conclusions
This work proposes a fullydifferentiable RNN model for learning the decoding functions of polyalphabetic ciphers. We show that the model can achieve high accuracy on several ciphers, including the the challenging 3wheel Enigma cipher. Furthermore, we show that it learns a general algorithmic representation of these ciphers and can perform well on 1) unseen keyphrases and 2) messages of variable length.
Our work represents the first general method for reconstructing the functions of polyalphabetic ciphers. The process is fully automated and an inspection of trained models offers a wealth of information about the unknown cipher. Our findings are generally applicable to analyzing any black box sequencetosequence translation task where the translation function is a deterministic algorithm. Finally, decoding Enigma messages is a complicated algorithmic task, and thus we suspect learning this task with an RNN will be of general interest to the machine learning community.
Acknowledgements
We are grateful to Dartmouth College for providing access to its cluster of Tesla K80 GPUs. We thank Jason Yosinski and Alan Fern for insightful feedback on preliminary drafts.
References
 [Alallayah et al.2010] Alallayah, K.; Amin, M.; ElWahed, W. A.; and Alhamami, A. 2010. Attack and Construction of Simulator for Some of Cipher Systems Using NeuroIdentifier. The International Arab Journal of Information Technology 7(4):365–371.
 [Bengio, Simard, and Frasconi1994] Bengio, Y.; Simard, P.; and Frasconi, P. 1994. Learning longterm dependencies with gradient descent is difficult. Neural Networks, IEEE Transactions 5(2):157–166.
 [Dawson, Gustafson, and Davies1991] Dawson, E.; Gustafson, N.; and Davies, N. 1991. Black Box Analysis of Stream Ciphers. Australasian Journal of Combinatorics 4:59–70.

[Glorot and
Bengio2010]
Glorot, X., and Bengio, Y.
2010.
Understanding the difficulty of training deep feedforward neural
networks.
Proceedings of the Thirteenth International Conference on Artificial Intelligence and Statistics
9.  [Graves et al.2016] Graves, A.; Wayne, G.; Reynolds, M.; Harley, T.; Danihelka, I.; GrabskaBarwinska, A.; Colmenarejo, S. G.; Grefenstette, E.; Ramalho, T.; Agapiou, J.; Badia, A. P.; Hermann, K. M.; Zwols, Y.; Ostrovski, G.; Cain, A.; King, H.; Summerfield, C.; Blunsom, P.; Kavukcuoglu, K.; and Hassabis, D. 2016. Hybrid computing using a neural network with dynamic external memory. Nature 538(7626):471–476.
 [Graves, Mohamed, and Hinton2013] Graves, A.; Mohamed, A.R.; and Hinton, G. 2013. Speech recognition with deep recurrent neural networks. Acoustics, Speech and Signal Processing (ICASSP), IEEE International Conference 6645–6649.
 [Graves, Wayne, and Danihelka2014] Graves, A.; Wayne, G.; and Danihelka, I. 2014. Neural Turing Machines. ArXiv Preprint (1410.5401v2 ).
 [Graves2014] Graves, A. 2014. Generating Sequences With Recurrent Neural Networks. ArXiv Preprint (1308.0850v5 ).
 [Hochreiter and Schmidhuber1997] Hochreiter, S., and Schmidhuber, J. 1997. Long ShortTerm Memory. Neural Computation 9(8):1735–1780.
 [Karpathy and FeiFei2015] Karpathy, A., and FeiFei, L. 2015. Deep VisualSemantic Alignments for Generating Image Descriptions. CVPR.
 [Karpathy, Johnson, and FeiFei2016] Karpathy, A.; Johnson, J.; and FeiFei, L. 2016. Visualizing and Understanding Recurrent Networks. International Conference on Learning Representations.
 [Kearns and Valiant1994] Kearns, M., and Valiant, L. 1994. Cryptographic Limitations on Learning Boolean Formulae and Finite Automata. Journal of the ACM (JACM) 41(1):67–95.
 [Kingma and Ba2014] Kingma, D. P., and Ba, J. L. 2014. Adam: A Method for Stochastic Optimization. ArXiv Preprint (1412.6980 ).
 [Miller2017] Miller, R. 2017. The Cryptographic Mathematics of Enigma. Cryptologia 19(1):65–80.
 [Mnih et al.2016] Mnih, V.; Puigdomènech Badia, A.; Mirza, M.; Graves, A.; Harley, T.; Lillicrap, T. P.; Silver, D.; and Kavukcuoglu, K. 2016. Asynchronous Methods for Deep Reinforcement Learning. International Conference on Machine Learning 1928–1937.
 [Prajapat and Thankur2015] Prajapat, S., and Thankur, R. 2015. Various approaches towards cryptanalysis. International Journal of Computer Applications 127(14).
 [Ramamurthy et al.2017] Ramamurthy, R.; Bauckhage, C.; Buza, K.; and Wrobel, S. 2017. Using Echo State Networks for Cryptography.
 [Rejewski1981] Rejewski, M. 1981. How Polish Mathematicians Broke the Enigma Cipher. IEEE Annals of the History of Computing 3(3):213–234.
 [Schneier1996] Schneier, B. 1996. Applied cryptography : protocols, algorithms, and source code in C. Wiley.
 [SebagMontefiore2000] SebagMontefiore, H. 2000. Enigma : the battle for the code. J. Wiley.
 [Spillman et al.2017] Spillman, R.; Janssen, M.; Nelson, B.; and Kepner, M. 2017. Use of a Genetic Algorithm in the Cryptanalysis of Simple Substitution Ciphers. Cryptologia 17(1):31–44.
 [Sutskever, Vinyals, and Le2014] Sutskever, I.; Vinyals, O.; and Le, Q. V. 2014. Sequence to Sequence Learning with Neural Networks. Advances in Neural Information Processing Systems 3104–3112.
 [Zaremba and Sutskever2015] Zaremba, W., and Sutskever, I. 2015. Learning to Execute. Conference paper at ICLR 2015.
