I Introduction

There are currently two dominant approaches in dynamical systems modeling: 1) deriving equations of motion from governing physical principles, and 2) data-driven system identification. These two approaches are typically used in isolation to develop an end-to-end model. Data-driven models, based on emerging techniques in machine learning, are promising for the description of complex systems

[1]. However, these models are often opaque, and it is difficult to capture the correct dynamical system structure to satisfy basic constraints and conservation laws. In contrast, first-principles physics models capture constraints and conservation laws by design [2], but for complex systems, these models are either overly simplistic or exceedingly expensive to resolve all multiscale interactions. In this work, we propose a hybrid modeling approach, where we employ data-driven techniques to model the discrepancy between a simplified or insufficient physical model and observed measurements. We employ the sparse identification of nonlinear dynamics (SINDy) framework [3] to discover parsimonious and interpretable discrepancy models. Thus, we leverage prior knowledge of the simplified physics, while more accurately modeling details of the true system.

As an illustrative example for this paper, we consider a double pendulum on a cart experiment. We typically model this type of experiment as a simple mechanical system with a few degrees of freedom, described by either a Hamiltonian or Lagrangian

[2]. However, this model neglects real-world effects such as nonlinear friction, bearing chatter, and wind resistance. These factors may all reduce control performance, for example, in model predictive control (MPC) [4, 5, 6], where prediction errors adversely affect robustness [7]. For this specific system, designing a feed-forward control law to swing up the pendulum from rest requires a highly accurate model. Even a small mismatch in the system model may result in a considerable deviation in the computed trajectory, since it is a chaotic system. It is also challenging to obtain a data-driven model of this system with the correct structure, so it is beneficial to incorporate prior physical knowledge in the form of a simplified Hamiltonian or Lagrangian.

I-a Problem statement: Discrepancy modeling

There are several reasons why model discrepancies occur [8, 9]

. First, there may be measurement noise and exogenous disturbances. In this case, the Kalman filter may be thought of as a discrepancy model where the mismatch between a simplified model and observations is assumed to be a Gaussian process

[10]. Next, the parameters of the system may be inaccurately modeled. Even worse, the structure of the model may not be correct, either because important terms are missing or erroneous terms are present. This is known as model inadequacy or model structure mismatch. Other challenges include incomplete measurements and latent variables, delays, and sensitive dependence on initial data in chaotic systems.

In this work, we focus on parameter and structural uncertainties, although a broader framework is the subject of ongoing work. We consider dynamical systems of the form

(1)

where is the state, is the control input, are the parameters, and

are the dynamics. We assume full-state measurements, although generally the state must be estimated from limited measurements.

The discrepancy modeling problem seeks to model the difference between a quantity of interest from a physical model and the observed value :

(2)

where is the discrepancy. Here, we consider the quantity of interest to be the dynamics themselves, or more precisely the rate of change of the state in time. However, this framework is more general and can incorporate several other forms of model discrepancy. For example, may be a conserved quantity, such as the Hamiltonian, from which the dynamics are derived.

I-B Related work

Accurate system modeling is a critical task in science and engineering, including for autonomous robotics [11, 12] and process control [13, 14, 15]. A model that is able to accurately predict the future state of a system is imperative for prediction and control. However, the high-dimensional, nonlinear, and multi-scale nature of many systems renders modeling a challenging task.

System identification has reached a high degree of maturity encompassing myriad techniques to identify linear and nonlinear systems [16, 17] from data, including state-space modeling via the eigensystem realization algorithm (ERA) [18] and other subspace identification methods, Volterra series [19, 20]

, linear and nonlinear autoregressive models

[21]

(e.g., ARX, ARMA, NARX, and NARMAX), and neural network models

[22, 23]

, to name only a few. Machine learning techniques such as manifold learning and non-parametric modeling have also been useful for identifying nonlinear systems

[24, 25].

There is an increasing shift from black-box modeling to developing models that are physically intuitive and interpretable, as well as models that are constrained models with known prior information. For instance, genetic programming can be used to infer governing equations from data

[26, 27]. The recent SINDy approach [3] identifies parsimonious and interpretable models by promoting sparsity, and it has been extended to incorporate the effect of control [6] and to take into account expert knowledge, such as symmetries and conservation laws [28]. However, it may be challenging to identify certain types of systems, such as those containing rational function nonlinearities [29]. Instead of modeling the system entirely from data, when partial information is available, such as an idealized Hamiltonian, data-driven modeling procedures may focus only on modeling the discrepancy.

One way to compensate for model discrepancy is with Bayesian approaches [8], where a model discrepancy function is learned and the model output uncertainty is quantified from data [30]. However, this method requires the selection of a prior form for the model discrepancy function, which is difficult due to the lack of physical knowledge about the model structure [31]. Furthermore, this method may potentially introduce bias in the model parameters if calibration is performed without knowledge of the model discrepancy [32, 33]

. Alternatively, reinforcement learning can be used to learn the mismatch between a model and the actual dynamics, for example in robotics

[34]. The learned dynamics are then used with the conceptual model to control the real system. However, neither Bayesian methods nor reinforcement learning can provide an interpretable representation for the model mismatch, and thus conceal the physical meaning of the discrepancy model discovered.

I-C Contributions of this work

In the present work, we leverage SINDy to compensate for model parameter and structure mismatch given an imperfect model of the system. This serves several purposes: (1) Prior partial knowledge on the system or a previously learned model may be available and can be incorporated to aid the modeling process and improve prediction accuracy. (2) The SINDy algorithm suffers from the curse of dimensionality due to the growth of the library size with increasing number of variables in the system, which makes it challenging to discover the full governing equations when a large library size is required. However, learning the model mismatch significantly reduces this burden, focusing SINDy only on modeling the mismatch. (3) Learning interpretable representations of the model mismatch may inform physical intuition and generalize beyond the training data. We will demonstrate that SINDy is able to model discrepancies such as incorrect system parameters and model inadequacy (or structure) errors. The learned SINDy discrepancy model can then be used to enhance the imperfect model, providing an improved description of the system dynamics.

Ii Background: Sparse Identification of Nonlinear Dynamics

Here, we briefly introduce the SINDy algorithm for identifying dynamics from data [3]

. We consider a system of coupled nonlinear ordinary differential equations (ODE):

(3)

with time-dependent state . The function describes the underlying dynamics of the system; it is possible to extend this formulation to include control [6], although we omit it here for simplicity. is often sparse in the space of candidate functions.

If this assumption holds, sparse regression [3, 35] can be used to infer from measurement data as explained in the following.

  1. Form a data matrix and matrix of derivatives sampled at times :

    (4a)
    (4b)
  2. Construct a library of candidate functions

    (5)

    where is a candidate function that may be present in the dynamics . For example, trigonometric functions or polynomial functions may be considered. The data matrix is obtained by evaluating these functions at all entries of the data matrix .

  3. Form the sparse regression problem such that

    (6)

    where the matrix

    comprises sparse vectors

    that select the active terms in the library . These are found via sparse optimization [35] to minimize the following:

    (7)

Iii Data-Driven Discovery of Model Discrepancy

In this section, we use SINDy to model discrepancies.

Iii-a Discrepancy modeling for systems without control

Although it is possible to model any physical quantity, we consider modeling the dynamics themselves [3]. Consider noisy measurements from a true dynamical system

(8)

where is the measurement noise. The model output for this system is represented as

(9)

Parameter error, , model inadequacy, , and measurement error will cause a model mismatch, given by

(10)

We then construct a model for the discrepancy as a function of the state and new parameters , capturing the parameter and structure mismatch:

(11)

Model error data is collected in

(12)

where .

Given data and , we use SINDy to sparsely represent in a library of candidate functions . Constructing this library typically requires some prior knowledge of the system to select a suitable basis in which the discrepancy model will be sparse. The sparse regression problem is then formulated as

(13)

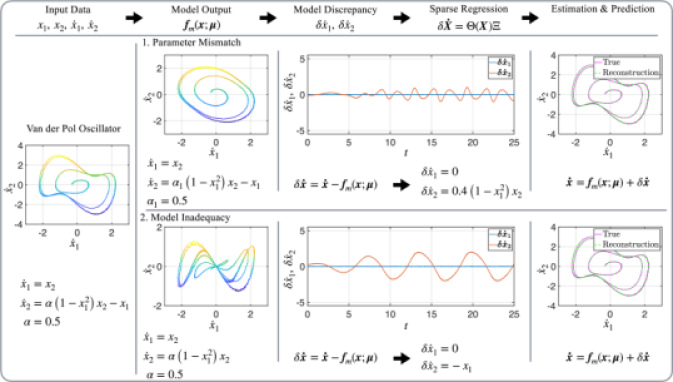

Fig. 1: Illustration of SINDy to discover the system-model mismatch for the Van der Pol oscillator. The system is simulated to generate the measurement data. Measurement data and are provided to calculate the output estimated by our imperfect model. Sparse regression is used to infer the discrepancy model for the difference between the actual output and estimated output. The discrepancy model is then combined with the imperfect model to provide a better estimation of system dynamics. The model is then cross-validated on a new initial condition . As we can see, the model discovered by SINDy is able to compensate for the discrepancy between the actual system and flawed model.

Realistically, we will only have access to measurements of , from which we may derive , and the quantity of interest becomes . The model output is , the discrepancy is , and we have

(14)

We solve for the sparsest coefficient matrix that satisfies Eq. (14) using the SINDy approach. A schematic of the method is displayed in Fig. 1.

Iii-B Discrepancy modeling for systems with control

We now extend the formulation above to identify dynamics that are affected by a control input :

(15)

The model output for this system is represented as

(16)

As with the uncontrolled case, due to the model inadequacy or parameter error, there will be a discrepancy

(17)

Our goal is to model and we further assume it is a function of the system state , control input , and new parameters :

(18)

To achieve this goal, we form a sparse regression problem

(19)

where is

(20)

As before, we will actually be observing with model . The discrepancy becomes , resulting in the following regression problem:

(21)

Note that the library has the form

(22)

where is a candidate function that may explain the discrepancy . The functions can be any combination of and . For example, , . By solving Eq. (19) we are able to model .

Iv Examples

In this section, we demonstrate applications of the proposed approach to discover model discrepancies. We start with an illustrative example and then apply this method to experimental data from a double pendulum on a cart.

Iv-a Van der Pol oscillator

To begin, we will focus on an illustrative example, the Van der Pol oscillator, and show how the SINDy method can be used to compensate for both parameter errors and model inadequacy. The Van der Pol oscillator is given by

(23a)
(23b)

with parameter .

Iv-A1 Parameter mismatch

Suppose we do not know the true parameter , but instead have an approximation . It is possible to compensate for this model discrepancy caused by parameter mismatch. We first gather the measurement data of the actual system, in this case by integrating the true dynamics using a fourth order Runge Kutta scheme.

We integrate for time units with time step and initial condition is . Random Gaussian measurement noise with amplitude is added to the data.

We evaluate the model dynamics , with the measured trajectory and the inaccurate parameter . The discrepancy between the true system output and the model is then given by . The augmented error matrix is formed as

(24)

and the augmented state is

(25)

The next step is to evaluate the library on the data. Here, we construct the library as

(26)

with polynomial terms up to second order. Finally, we form the sparse regression problem

(27)

and solve for the coefficient matrix . Results are shown in the top row of Fig. 1. SINDy successfully identifies the model discrepancy.

Iv-A2 Model Inadequacy (or structure mismatch)

We now assume that the model discrepancy is caused by model inadequacy, where the model is missing the linear term in the second equation of the Van der Pol system:

(28a)
(28b)

We assume that the parameter is correct. The data, is collected and the library of functions is constructed as before. The sparse coefficient matrix is determined via SINDy, and the model discrepancy is successfully modeled as shown in the bottom row of Fig. 1.

To summarize, the SINDy method successfully identifies the discrepancy between the underlying governing equation and an inaccurate model. The imperfect model is then combined with the SINDy discrepancy model, resulting in an accurate prediction of the true system dynamics.

Iv-B Experimental double pendulum on a cart

We now demonstrate the use of SINDy to identify the time-dependent Hamiltonian function for the double pendulum on a cart from experimental data. A non-dissipative pendulum is a quintessential example of a conservative system, which admits invariants such as the Hamiltonian function, from which the governing equations can be derived. The conservative Hamiltonian is given by , where and are the generalized position and momentum of the system, and and represent the kinetic and potential energy of the system; the Hamiltonian is the total energy, which is constant along a trajectory. Since we measure and compute the time derivative , we will represent as a function of and in the following.

Real-world mechanical systems are, however, generally not conservative, but instead exhibit friction and damping from joints and wind resistance. Thus, the total energy is not conserved, and instead decays over time without additional exogenous energy input. While the potential and kinetic energy terms can be easily formulated, dissipation terms can be more challenging to derive. In this work, we seek to identify the time-dependent dissipative effects, by modeling the difference between the conservative model Hamiltonian and the measured energy of the system. In practice, the observed energy is obtained by evaluating the idealized conservative Hamiltonian, consisting of the kinetic and potential terms and , on the measured trajectory. The model energy is given by evaluating the idealized Hamiltonian on the initial condition. Thus, the difference gives the energy dissipation, which we will model with SINDy:

(29)

Iv-B1 Problem Formulation

We consider the double pendulum on a cart as shown in Fig. 2.

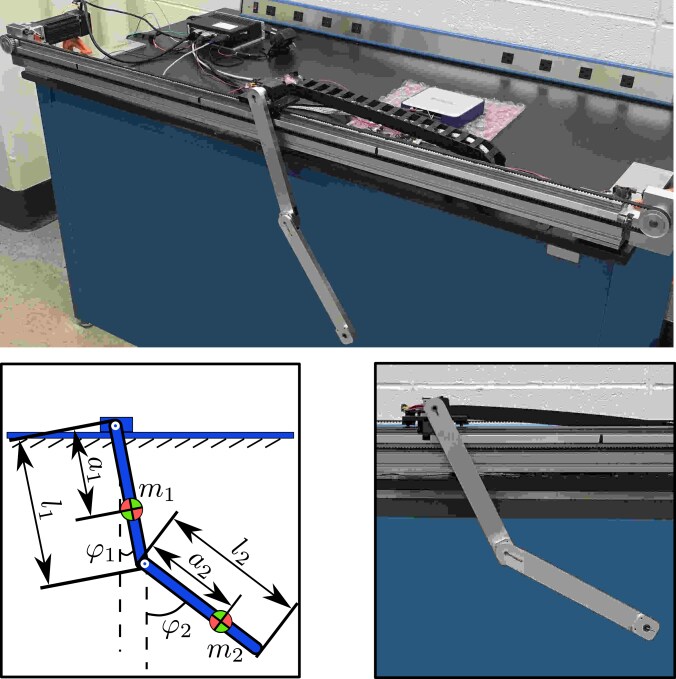

Fig. 2: Double pendulum on a cart system with schematic (bottom left) and zoom of the two-link pendulum (bottom right). The pendulum cart is locked at its position to prevent horizontal movement.

The kinetic and potential energy of the double pendulum (assuming a locked cart position) are

(30a)
(30b)

where and are the inertia, and are the masses, and and are the lengths of each pendulum arm, respectively. and are the angles and and are the angular velocity of the first and second pendulum arm. The relative lengths to the center of mass of the first and second pendulum arm are given by and .

The position of each pendulum arm’s center of mass and in (30) can be determined as

(31a)
(31b)
(31c)
(31d)

We assume that we can accurately determine the kinetic and potential energy of the system

(32)

which represents the insufficient model for the total energy. The discrepancy model then comprises the dissipative energy terms.

The frictional torque of the pendulum arm can be modeled as and ,

where and are damping coefficients. Then, is given by

(33)

In many engineering applications, the direct measurement of the frictional term is difficult if not impossible. Thus, we would like to use our data-driven approach to learn a model for the dissipated energy (33). Suppose that all the states can be measured or estimated, then can be immediately calculated. Also, we can use the energy at the initial measurement time as reference for the total energy of the system, .

This allows us to calculate the dissipated energy as

(34)

To model this energy discrepancy, we define a library that contains polynomial and Fourier terms up to the third order. Then, the discrepancy can be represented by

(35)

where is a sparse vector that contains the coefficients of the active terms in the library.

Pendulum Mass () Center of Mass () Inertia () Length () Damping Coefficient Gravity Constant ()
1st Arm
2nd Arm
TABLE I: The parameters of the experimental double pendulum system.
(a) Left: Initial energy of the system and the sum of kinetic and potential energy , which decreases due to friction. Right: The difference between and representing the energy dissipated by friction.
(b) The magnitude of energy dissipated by the friction and the SINDy identified dynamics. Note that the discrepancy is positive, since it is defined as the ideal conserved energy minus the measured dissipative energy.
(c) The SINDy estimation error on the training data. The percentage is calculated using
Fig. 3: Results for the identified model discrepancy caused by friction, demonstrated on training data.
(a) The magnitude of energy dissipated by the friction and the SINDy estimation evaluated on validation data.
(b) The SINDy estimation error on validation data. The percentage is calculated using
Fig. 4: Results for the identified model discrepancy caused by friction, demonstrated on validation data.

Iv-B2 Results

Here, we present results for modeling the dissipation . The parameters of our experimental system are displayed in Table. I. All parameters are obtained using a parameter estimation technique [36]. The pendulum mass and length are constrained during the parameter estimation so that there won’t be a large deviation from the measured value. The experiment was initialized at a random position, and the angles and were collected with a sampling rate of for a duration of s. We used a US Digital HUBDISK-1 1” transmissive rotary encoder disk, which provides 5000 counts per revolution. Then the angular velocities and are approximated by taking numerical derivatives on the raw data. To mitigate noise, we first smooth the raw and data using the Savitzky-Golay filter and afterwards compute the derivative by numerical differentiation.

Results of the discrepancy model, identified with SINDy on the time series of , are shown in Fig. 3 for the training data and in Fig. 4 for validation data. Note that in Fig. (a)a the signal does not decrease asymptoticly. We observe that the table on which the pendulum in mounted oscillates with the pendulum, storing a small amount of potential energy. The error of the SINDy prediction and the measured is shown in Fig. (b)b. From Fig. (c)c we see that SINDy accurately describes the effect of friction, explaining the model discrepancy.

Crossvalidation is critical to avoid overfitting. Hence, we test the identified model on a new validation dataset unseen during the training stage. The performance of the SINDy-discovered model on the validation data is shown in Fig. (a)a. Although the errors are larger on the validation dataset, the SINDy model is quite accurate in modeling the missing friction term, demonstrating the ability of the discrepancy model to generalize to new test cases.

Iv-C Double pendulum on a cart with control

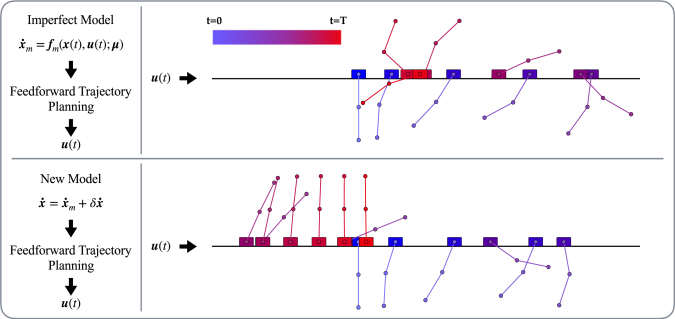

Fig. 5: Swing-up of the double pendulum on a cart using feed-forward control. Top: The feed-forward control input is calculated using the imperfect model, which is in then applied to the actual system. The pendulum cannot reach the up-right position. Bottom: System’s response under the control input calculated using the hybrid model, which is comprised of the imperfect model and the identified discrepancy model. Since the discrepancy is identified, the new model mimics the true dynamics of the double pendulum on a cart system.

In the previous section, SINDy is utilized to discover discrepancy models in the total energy caused by dissipation when given an insufficient conservative energy model. We now consider the case of an actuated double pendulum on a cart, where a control input is added to the system. This is an important generalization, since many real-life system are affected by control, which requires additional modeling. To discover the model discrepancy in systems with control, we follow the steps outlined in Sec. III-B.

Iv-C1 Problem formulation

In this example, we consider data from a numerical simulation of the double pendulum on a cart, shown in Fig. 2, with parameters provided in Tab. I. The equations of motion can be represented as

(36)

where is the state vector and represents the displacement of the pendulum cart. We choose the acceleration of the pendulum cart as control input so that . We refer to [36] for a derivation of the equations of motion and a technique to estimate parameters from experimental data.

We seek to perform the swing-up control of the double pendulum. However, the employed model is flawed, as it contains an additional term and an incorrect parameter:

(37)

The discrepancy model is then

(38)

which we seek to model.

First, we generate data for the identification using the imperfect model. Specifically, we design a feed-forward control input to swing up the double pendulum based on the imperfect model . When this control signal is applied to the actual system, the observed behavior deviates from the pre-planned trajectory due to the model discrepancy. This difference is then used to form a sparse regression problem, as in Eq. (22), to identify the discrepancy . Finally, a new swing-up trajectory is designed using the hybrid model consisting of the imperfect model, augmented with the discrepancy model.

Iv-C2 Results

Simulation results for the swing-up of the double pendulum are shown in Fig. 5. The feed-forward trajectory is determined as the solution to an optimization problem [37]. The simulation time step is , the prediction horizon is , and the total swing-up time is chosen to be . The weight matrices are and for the state and input, respectively. It is demonstrated in Fig. 5 that SINDy correctly identifies the model mismatch shown in Eq. (38) and that the new model mimics the actual dynamics of the system, which results in a successful swing-up of the pendulum.

V Conclusion

In this work, we present a data-driven framework to model discrepancies between observations and simplified or incorrect physical models. In particular, we leverage the sparse identification of nonlinear dynamics (SINDy) [3] algorithm to discover model discrepancies caused by parameter mismatch or model inadequacy. We demonstrate this approach on several systems, including the Van der Pol oscillator and experimental and numerical data from a double pendulum on an actuated cart.

Our results suggest that a hybrid discrepancy modeling approach, involving a physics-based model and a data-driven correction, may have several benefits. First, we incorporate prior knowledge and enforce conservation laws and constraints that are notoriously challenging in data-driven approaches. In addition, focusing SINDy on the model mismatch is a much simpler task than trying to model all system dynamics at once, which would involve a large library of candidate terms and a potentially ill-conditioned inverse problem. This ill-conditioned problem often leads to the mis-estimation of parameters, such as the mass and length of the pendulum arms, which are accurately measured ahead of time. Instead, we are able to focus the data-driven effort on modeling the few terms and parameters that cause the discrepancy.

There are several future directions suggested by this work. First, it will be important to extend this framework to include noise and exogenous disturbances, as in the Kalman filter, along with partial measurements. It will also be interesting to use our discrepancy models for the experimental swing-up control of the double pendulum on a cart, which is the subject of ongoing work.

Acknowledgment

SLB would like to acknowledge funding support from the Army Research Office (ARO W911NF-17-1-0306, W911NF-17-1-0422, and W911NF-19-01-0045). EK gratefully acknowledges support by the “Washington Research Foundation Fund for Innovation in Data-Intensive Discovery” and a Data Science Environments project award from the Gordon and Betty Moore Foundation (Award #2013-10-29) and the Alfred P. Sloan Foundation (Award #3835) to the University of Washington eScience Institute, and funding through the Mistletoe Foundation. JNK and SLB acknowledge support from the Defense Advanced Research Projects Agency (DARPA- PA-18-01-FP-125). We would like to acknowledge valuable discussions with Brian DeSilva, Tony Piaskowy, and Aditya Nair.

References

  • [1] S. L. Brunton and J. N. Kutz, Data-Driven Science and Engineering: Machine Learning, Dynamical Systems, and Control.   Cambridge University Press, 2019.
  • [2] J. E. Marsden and T. S. Ratiu, Introduction to mechanics and symmetry, 2nd ed.   Springer-Verlag, 1999.
  • [3] S. L. Brunton, J. L. Proctor, and J. N. Kutz, “Discovering governing equations from data by sparse identification of nonlinear dynamical systems,” Proceedings of the National Academy of Sciences, vol. 113, no. 15, pp. 3932–3937, 2016.
  • [4] E. F. Camacho and C. B. Alba, Model predictive control.   Springer Science & Business Media, 2013.
  • [5] U. Eren, A. Prach, B. B. Koçer, S. V. Raković, E. Kayacan, and B. Açıkmeşe, “Model predictive control in aerospace systems: Current state and opportunities,” J. Guid. Control & Dyn., 2017.
  • [6] E. Kaiser, J. N. Kutz, and S. L. Brunton, “Sparse identification of nonlinear dynamics for model predictive control in the low-data limit,” Proc. Roy. Soc. A, vol. 474, no. 2219, 2018.
  • [7] V. Botelho, J. O. Trierweiler, M. Farenzena, and R. Duraiski, “Methodology for detecting model–plant mismatches affecting model predictive control performance,” Industrial & Engineering Chemistry Research, vol. 54, no. 48, pp. 12 072–12 085, Nov 2015.
  • [8] M. C. Kennedy and A. O Hagan, “Bayesian calibration of computer models,” Journal of the Royal Statistical Society: Series B (Statistical Methodology), vol. 63, no. 3, pp. 425–464, Aug 2001.
  • [9] P. Arendt, D. W. Apley, and W. Chen, “Quantification of model uncertainty: Calibration, model discrepancy, and identifiability,” Journal of Mechanical Design, vol. 134, p. 100908, 09 2012.
  • [10] R. E. Kalman, “A new approach to linear filtering and prediction problems,” J. Fluids Eng., vol. 82, no. 1, pp. 35–45, 1960.
  • [11] B. Kim, D. Necsulescu *, and J. Sasiadek, “Autonomous mobile robot model predictive control,” International Journal of Control, vol. 77, no. 16, pp. 1438–1445, Nov 2004.
  • [12] A. Rezaee, “Model predictive controller for mobile robot,” Trans. Environ. & Elec. Eng., vol. 2, no. 2, p. 18, 2017.
  • [13] O. Aarna, “Dynamic chemical plant model and its application,” IFAC Proceedings Volumes, vol. 11, no. 1, pp. 279 – 286, 1978, 7th Triennial World Congress of the IFAC on A Link Between Science and Applications of Automatic Control, Helsinki, Finland, 12-16 June.
  • [14] B. Pyakillya and S. Kladiev, “Identification of chemical reactor plant’s mathematical model,” MATEC Web of Conferences, vol. 37, p. 01045, 2015.
  • [15] K. Arulmaran and J. Liu, “Handling model plant mismatch in state estimation using a multiple-model-based approach,” Indust. & Eng. Chem. Research, vol. 56, no. 18, pp. 5339–5351, 2017.
  • [16] O. Nelles, Nonlinear system identification: from classical approaches to neural networks and fuzzy models.   Springer, 2013.
  • [17] L. Ljung, “Perspectives on system identification,” Annual Reviews in Control, vol. 34, no. 1, pp. 1–12, 2010.
  • [18] J. N. Juang and R. S. Pappa, “An eigensystem realization algorithm for modal parameter identification and model reduction,” J. of Guidance, Control, and Dynamics, vol. 8, no. 5, pp. 620–627, 1985.
  • [19] R. W. Brockett, “Volterra series and geometric control theory,” Automatica, vol. 12, no. 2, pp. 167–176, 1976.
  • [20] B. R. Maner, F. J. Doyle, B. A. Ogunnaike, and R. K. Pearson, “A nonlinear model predictive control scheme using second order Volterra models,” in ACC, vol. 3, 1994, pp. 3253–3257.
  • [21] H. Akaike, “Fitting autoregressive models for prediction,” Ann Inst Stat Math, vol. 21, no. 1, pp. 243–247, 1969.
  • [22] R. Lippmann, “An introduction to computing with neural nets,” IEEE Assp magazine, vol. 4, no. 2, pp. 4–22, 1987.
  • [23] A. Draeger, S. Engell, and H. Ranke, “Model predictive control using neural networks,” IEEE Control Systems Magazine, vol. 15, no. 5, pp. 61–66, 1995.
  • [24]

    J. C. Principe, L. Wang, and M. A. Motter, “Local dynamic modeling with self-organizing maps and applications to nonlinear system identification and control,”

    Proceedings of the IEEE, vol. 86, no. 11, pp. 2240–2258, 1998.
  • [25] J. Ko, D. J. Klein, D. Fox, and D. Haehnel, “Gaussian processes and reinforcement learning for identification and control of an autonomous blimp,” in IEEE ICRA.   IEEE, 2007, pp. 742–747.
  • [26] J. Bongard and H. Lipson, “Automated reverse engineering of nonlinear dynamical systems,” Proc. Natl. Acad. Sciences, vol. 104, no. 24, pp. 9943–9948, 2007.
  • [27] M. Schmidt and H. Lipson, “Distilling free-form natural laws from experimental data,” Science, vol. 324, no. 5923, pp. 81–85, 2009.
  • [28] J.-C. Loiseau and S. L. Brunton, “Constrained sparse Galerkin regression,” Journal of Fluid Mechanics, vol. 838, pp. 42–67, 2018.
  • [29] N. M. Mangan, S. L. Brunton, J. L. Proctor, and J. N. Kutz, “Inferring biological networks by sparse identification of nonlinear dynamics,” IEEE Transactions on Molecular, Biological, and Multi-Scale Communications, vol. 2, no. 1, pp. 52–63, 2016.
  • [30] J. A. McMahan and R. C. Smith, “Parameter estimation for predictive simulation of oscillatory systems with model discrepancy,” IFAC-PapersOnLine, vol. 49, no. 18, pp. 428 – 433, 2016, 10th IFAC Symposium on Nonlinear Control Systems NOLCOS 2016.
  • [31] Y. Ling, J. Mullins, and S. Mahadevan, “Selection of model discrepancy priors in Bayesian calibration,” Journal of Computational Physics, vol. 276, pp. 665 – 680, 2014.
  • [32] J. Brynjarsdóttir and A. O Hagan, “Learning about physical parameters: the importance of model discrepancy,” Inverse Problems, vol. 30, no. 11, p. 114007, Oct 2014.
  • [33] J. A. Burns, E. M. Cliff, and K. Farlow, “Parameter estimation and model discrepancy in control systems with delays,” IFAC Proceedings, vol. 47, no. 3, pp. 11 679 – 11 684, 2014.
  • [34] I. Koryakovskiy, M. Kudruss, H. Vallery, R. Babuska, and W. Caarls, “Model-plant mismatch compensation using reinforcement learning,” IEEE Robot. & Aut. Lett., vol. 3, no. 3, pp. 2471–2477, Jul 2018.
  • [35] P. Zheng, T. Askham, S. L. Brunton, J. N. Kutz, and A. Y. Aravkin, “Sparse relaxed regularized regression: SR3,” IEEE Access, vol. 7, no. 1, pp. 1404–1423, 2019.
  • [36] K. Graichen, M. Treuer, and M. Zeitz, “Swing-up of the double pendulum on a cart by feedforward and feedback control with experimental validation,” Automatica, vol. 43, no. 1, pp. 63 – 71, 2007.
  • [37] H. Deng and T. Ohtsuka, “A highly parallelizable Newton-type method for nonlinear model predictive control,” IFAC-PapersOnLine, vol. 51, no. 20, pp. 349 – 355, 2018, 6th IFAC Conference on Nonlinear Model Predictive Control NMPC 2018.
