Jaccard analysis and LASSO-based feature selection for location fingerprinting with limited computational complexity

by   Caifa Zhou, et al.
ETH Zurich

We propose an approach to reduce both computational complexity and data storage requirements for the online positioning stage of a fingerprinting-based indoor positioning system (FIPS) by introducing segmentation of the region of interest (RoI) into sub-regions, sub-region selection using a modified Jaccard index, and feature selection based on randomized least absolute shrinkage and selection operator (LASSO). We implement these steps into a Bayesian framework of position estimation using the maximum a posteriori (MAP) principle. An additional benefit of these steps is that the time for estimating the position, and the required data storage are virtually independent of the size of the RoI and of the total number of available features within the RoI. Thus the proposed steps facilitate application of FIPS to large areas. Results of an experimental analysis using real data collected in an office building using a Nexus 6P smart phone as user device and a total station for providing position ground truth corroborate the expected performance of the proposed approach. The positioning accuracy obtained by only processing 10 automatically identified features instead of all available ones and limiting position estimation to 10 automatically identified sub-regions instead of the entire RoI is equivalent to processing all available data. In the chosen example, 50 less than 1.8 m and 90 the automatically identified subset of data is only about 1 for processing the entire data set.


An iterative scheme for feature based positioning using a weighted dissimilarity measure

We propose an iterative scheme for feature-based positioning using a new...

Joint Positioning and Radio Map Generation Based on Stochastic Variational Bayesian Inference for FWIPS

Fingerprinting based WLAN indoor positioning system (FWIPS) provides a p...

An iterative scheme for feature based positioning using weighted dissimilarity measure

We propose an iterative scheme for feature-based positioning using the w...

Bayesian estimate of position in mobile phone network

The traditional approach to mobile phone positioning is based on the ass...

DIY-IPS: Towards an Off-the-Shelf Accurate Indoor Positioning System

We present DIY-IPS - Do It Yourself - Indoor Positioning System, an open...

Analysing the Data-Driven Approach of Dynamically Estimating Positioning Accuracy

The primary expectation from positioning systems is for them to provide ...

1 Introduction

Fingerprinting-based indoor positioning systems (FIPSs) are attractive for providing location of users or mobile assets because they can exploit signals of opportunity and infrastructure already existing for other purposes. They require no or little extra hardware, He and Chan (2016), and differ in that respect from many other approaches to indoor positioning like e.g., the ones using infrared beacons Lee et al. (2004), ultrasonic signals Hazas and Hopper (2006), radio frequency identification (RFID) tags Bekkali et al. (2007), ultra wideband (UWB) signals Ingram et al. (2004), or foot-mounted inertial measurement units (IMUs) Gu et al. (2017). FIPS benefit from the spatial variability of a wide variety of observable features or signals like received sigal strength (RSS) from wireless local area network (WLAN) access points (APs), magnetic field strengths, or ambient noise levels. FIPS are therefore also called feature-based indoor positioning systems Kasprzak et al. (2013). The attainable quality of the position estimation using FIPS mainly depends on the spatial gradient of the features and on their stability or predictability over time Niedermayr et al. (2014).

Key challenges of FIPS are discussed e.g., in Kushki et al. (2007) and more recently in He and Chan (2016). The former publication focuses on four challenges of FIPS

utilizing vectors of

RSS from WLAN AP as fingerprints. In particular, the paper addresses i) the generation of a fingerprint database to provide a reference fingerprint map (RFM) for positioning, ii) pre-processing of fingerprints for reducing computational complexity and enhancing accuracy, iii) selection of APs for positioning, and iv) estimation of the distance between a fingerprint measured by the user and the fingerprints represented within in the reference database. Extensions to large indoor regions and handling of variations of observable features caused by the changes of indoor environments or signal sources of the features (e.g., replacement of broken APs) are addressed in He and Chan (2016).

Two widely used fingerprinting-based location methods, which we also employ herein are, -nearest neighbors (NN) Padmanabhan et al. (2000) and maximum a posteriori (MAP) Youssef and Agrawala (2008). The time and storage computational complexity of both methods is proportional to the number of reference locations in the RFM (i.e. the area of the RoI) and the number of observable features. This means that these approaches become computationally expensive in large RoIs with many APs.

The goal of this paper is to propose three steps in order to facilitate accurate and flexible indoor positioning in a large region of interest (RoI) with potentially very high numbers of available features and feature availability varying across the RoI. For flexibility e.g., with respect to including different types of features, performing quality prediction of estimated locations, and performing quality control of measured and modeled feature values, we choose a Bayesian approach to position estimation using the maximum a posteriori (MAP) principle. The three steps proposed herein are intended to reduce the computational complexity in terms of processing time and storage requirements, in particular during the position estimation stage which may either have to be carried out for a single user on the mobile device or for a potentially large number of users concurrently on a server. Furthermore, the steps help to make the computational effort for position estimation almost independent of the size of the RoI and of the total number of observable features within the RoI, which are important aspects for application of FIPS in large areas.

The first step is the segmentation of the entire RoI into non-overlapping sub-regions. The next step is the identification of approximations of the user location with a granularity corresponding to the size of the sub-regions such that the actual position estimation can be restricted to a search or optimization within a few candidate sub-regions. We apply a modified Jaccard index, Park et al. (2010); Jani et al. (2015), within this step, see Sect. 3.2. The final step is the identification of relevant features within each sub-region and the subsequent selection of a small number of relevant features available both in the measured fingerprint and in the RFM for the actual position estimation. We base this feature selection on a randomized least absolute shrinkage and selection operator (LASSO) approach, Tibshirani (1996), see Sect. 3.3.

2 Related work

2.1 Sub-region selection

There are mainly two types of approaches for sub-region selection111In other publications, sub-region selection is called spatial filtering Kushki et al. (2007), location-clustering Youssef et al. (2003), or coarse localization Feng et al. (2012).: approaches based on clustering and approaches based on similarity metrics. Feng et al. (2012) and Chen et al. (2006) applied affinity propagation and a -means algorithm, respectively, to divide the RoI into a given number of sub-regions according to the features collected within the RoI. Both papers present clustering-based sub-region selection and require prior definition of the desired number of sub-regions and knowledge of all features observable within the entire RoI. These clustering-based approaches take the fingerprint measured by the user into account during the clustering process which may thus have to be repeated with each new user fingerprint obtained.

Similarity metric-based sub-region selection instead identifies the sub-region whose fingerprints contained in the RFM are most similar to the fingerprint observed by the user. They differ depending on the chosen similarity metric. E.g., Kushki et al. (2007) use the Hamming distance for this purpose, measuring only the difference in terms of observability of the features, not their actual values. Still, these approaches typically need prior information on all observable features within the entire RoI when associating a user observed fingerprint with a sub-region. This may be a severe limitation in case of a large RoI or changes of availability of the features. Modified Jaccard index-based sub-region selection as used in this paper belongs to the latter category. However, the approach proposed herein requires only the prior knowledge of the features observable within each sub-region when computing the similarity metric between the observations in the RFM and in the observed user fingerprint.

2.2 Selection of relevant features

Approaches to selection of features actually used for positioning differ w.r.t. several perspectives. We focus on three: i) whether they take the relationship between positioning accuracy and selected features into account, ii) whether they help to reduce the computational complexity of position estimation, and iii) whether they are applicable to a variety of features or only features of a certain type. The chosen features for positioning should be the ones allowing to achieve the best positioning accuracy using the specific fingerprinting-based positioning method or achieving a useful compromise between accuracy and reduced computational burden.

Previous publications focused on feature selection for FIPS using RSS from WLAN APs and consequently addressed the specific problem of AP selection rather than the more general feature selection. Chen et al. (2006) and Feng et al. (2012) proposed using the subsets of APs whose RSS

readings are the strongest assuming that the strongest signals provide the highest probability of coverage over time and the highest accuracy.

Kushki et al. (2007) and Chen et al. (2006) applied a divergence metric (Bhattacharyya distance and information gain, respectively) to minimize the redundancy and maximize the information gained from the selected APs. The limitations of these approaches are: i) they are only applicable to the FIPS based on RSS from WLAN APs, and ii) they only take the values of the features into account as selection criteria instead of the actual positioning accuracy. Kushki et al. (2010) proposed an AP selection strategy able to choose APs ensuring a certain positioning accuracy using a nonparametric information filter. However, this approach uses continuously measured fingerprints to select the subset of APs maximizing the discriminative ability w.r.t. localization. This method therefore needs several online observations for estimating one current position.

In this paper, we propose an approach based on randomized LASSO to choose the most relevant features for fingerprinting-based positioning. This method differs from previous ones in three ways: i) it takes the positioning error into account, ii) the feature selection can be pre-computed and thus allows reducing the computational complexity of position estimation, and iii) it is a general feature selection method applicable also to fingerprints containing different types of features simultaneously.

3 The proposed approach

In this section, we briefly summarize the fundamentals of fingerprinting-based positioning and present the main contributions of this paper, contributing to reduced computational complexity independent of the size of the RoI. In particular we present i) candidate sub-region selection using a modified Jaccard index, ii) selection of relevant features using randomized LASSO, and iii) MAP-based positioning benefiting from the previous two steps. Finally we briefly discuss the computational complexity of the proposed method.

3.1 Problem formulation

Generally, an FIPS is realized using two stages: offline and online stage (Fig. 1). The result of the former is the reference fingerprint map (RFM), i.e., a model representing the relation between the observable features and location. At the online stage, the user’s location is estimated by matching the currently measured fingerprint to the RFM using a fingerprinting-based positioning method (e.g., maximum a posteriori (MAP)-based positioning).

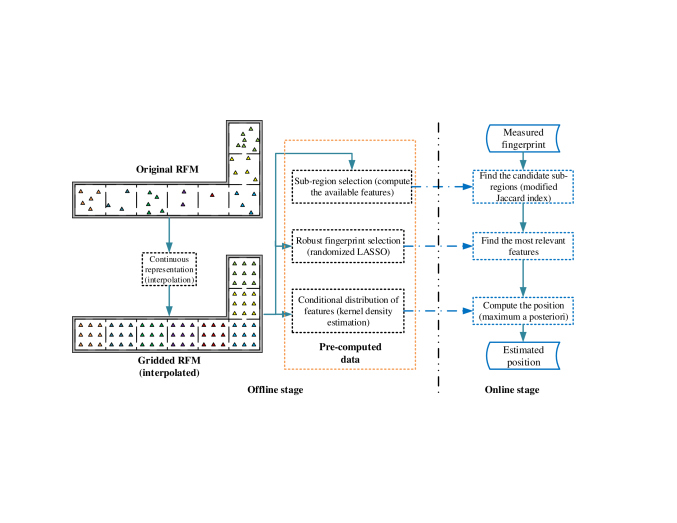

Figure 1:

The proposed framework. In order to make the number of reference points within all sub-regions equal we interpolate the reference data in the original

reference fingerprint map (RFM) to provide a denser regular grid of reference points. This interpolated RFM is used to calculate the pre-computed data for online positioning.

We chose a representation herein where the RFM is a discrete set of fingerprints associated with chosen reference positions throughout the region of interest (RoI). Each fingerprint is an associative array consisting of a collection of (key, value) pairs. The key is a unique identifier of the respective feature, e.g., in case of WiFi-based fingerprinting an integer obtained by hashing the media access control (MAC) address of an AP. In case of a measured fingerprint the value is the measurement of the corresponding feature. In case of a fingerprint within the RFM the value is the expected value of the feature at the corresponding reference position.

Herein we assume that the measurements for establishing the RFM have been made at arbitrary locations across the RoI and the RFM is obtained by spatial interpolation using nearest-neighbor Watson and Philip (1984) to obtain the fingerprints at a regular gird of reference points. Further details are given in Sect. 4.

For reducing the computational effort during the online stage, we propose to divide the RoI into non-overlapping grid cells (sub-regions) such that . In the 2D case each sub-region can simply be a rectangle or square in the coordinate space 222An analysis of strategies for optimum definition of the sub-regions in terms of size and shape is left for future work.. Let there be fingerprints within the grid cell of the RFM where and is the number of features observed or observable at the corresponding location. Each of these fingerprints is associated with a position where is the dimension of the coordinate space. Later on, we use the symbols and to represent the vectors of keys and values separately such that . For arguments where the sequence of the elements is irrelevant we will later use the same symbols to also indicate the sets of keys and values with , where denotes the cardinality of a set.

At the online stage a newly measured fingerprint becomes available at the unknown user location where denotes the number of observed features at this location. This fingerprint is also represented by keys and values, i.e. . The positioning process consists in inferring the estimated user location as a function of the fingerprint and the RFM where is a suitable mapping from fingerprint to location, i.e. . We subsequently focus on the following proposed solutions to mitigate the computational load associated with offline and online stage:

  • selecting the sub-region as a coarse approximation of the actual user location based on a modified Jaccard index;

  • identifying the most relevant features within each grid cell using the randomized least absolute shrinkage and selection operator (LASSO) algorithm such that the actual location calculation can later be carried out using only those instead of using all features;

  • combining the above two steps with a maximum a posteriori (MAP)-based positioning approach and implementing it in a way to keep the computational complexity of the online stage almost independent of the size of the RoI and of the total number of observable features within the RoI.

3.2 Sub-region selection using modified Jaccard index

By analyzing the similarity between the keys of the measured fingerprints and the keys associated with the individual sub-regions in the RFM we can identify candidates of sub-regions most likely containing the actual user location. The subsequent estimation of the user location can then be limited to the selected candidate regions thus reducing the computational load assuming that the index calculation is computationally less expensive than the position estimation. We use a modified Jaccard index , Jani et al. (2015), as the similarity metric. It is calculated for the observed fingerprint and each sub-region by:


Here, is the set of unique keys representing the observable features within the grid cell, i.e., the union of the keys ( now considered as sets) of all fingerprints within this cell:


The first term in (1) is the Jaccard index Park et al. (2010), which indicates the fraction of features common to the currently measured fingerprint and to the sub-region. The maximum value of 1 is obtained for this term (and the entire expression) if the features in the fingerprint are exactly all the features available within the sub-region. A lower value indicates that there are features which are missing either in the current fingerprint or in the RFM of the sub-region. The second term in (1) is a modifier causing the index to favor sub-regions containing all or most features observed by the user over sub-regions lacking some of these features. The underlying assumption is that the user may not be able to observe all actually available features while the RFM is nearly complete and it is therefore unlikely to observe features missing in the RFM.

The sub-regions with the highest values of the modified Jaccard index are selected as candidate sub-regions for the subsequent positioning. Their cell indices are collected in the vector for further processing. If the sub-regions are non-overlapping, as introduced above, needs to be large enough to accommodate situations where the actual user location is close to the border between certain sub-regions and small enough to reduce the computational burden of the subsequent user location estimation. We will further discuss this in Sect. 4.

3.3 Feature selection using randomized Lasso

In a real-world environment there may be a large number of features available for positioning, e.g., hundreds of APs may be visible to the mobile user device in certain locations. Not all of them will be necessary to estimate the user location. In fact using only a well selected subset of the available signals instead of all may provide a more accurate estimate and will reduce the computational burden. Furthermore the number of observable features typically varies across the RoI e.g., due to Wifi AP antenna gain patterns, structure and furniture within a building. However, it is preferable to use the same number of features throughout the candidate sub-regions for assessing the similarity between the measured fingerprint and the ones extracted from the RFM during the on-line phase.

We therefore recommend selecting a fixed number of features per candidate sub-region for the final position estimation. To facilitate this selection during the on-line phase, the relevant features within each sub-region are already identified beforehand once the RFM is available. We use an approach based on randomized LASSO, an

-regularized linear regression model

Tibshirani (1996), for this step. Each feature within the sub-region is associated with an estimated coefficient by this approach. If the coefficient is sufficiently different from zero the corresponding feature is identified as relevant. During the on-line phase features (possibly different for each sub-region) are selected among the identified ones such that they are available both within the RFM and the user fingerprint.

The total number of observable features within the subregion is . To represent all fingerprints of this sub-region in the RFM by vectors of the same dimension we replace each by , see (2), and the corresponding vector of values by a vector which contains just the corresponding element from for each feature whose key is in . For all other features it contains a value indicating that the feature is missing (e.g., a value lower than the minimum observable value of the corresponding feature).

Feature selection using LASSO is based on estimating the coefficients of a linear regression of position onto features according to:



is a hyperparameter which needs to be set appropriately, and the

-norm term on the right hand side is used for regularization. Any zero element within indicates that the corresponding features does not contribute to the position estimation. Therefore, we identify the rows of whose absolute values exceed a given threshold (e.g., ) and consider the corresponding features relevant. Their keys are collected in the vector .

However, the results are affected by the choice of and the optimum choice depends on the data. So, feature selection based on LASSO with any fixed priorly chosen value is unstable Fastrich et al. (2015). In order to get an appropriate fixed value of , we use cross validation. However, the stability of LASSO-based feature selection can be improved by repeating the above process several times (e.g., 200 times) using a randomly sampled subset of fingerprints from the respective sub-region each time and finally taking the features most frequently contained in as the actually most relevant ones. This approach is called randomized LASSO Meinshausen and Bühlmann (2010); Wang et al. (2011). Although the computational cost of this process increases with increasing of size of the dataset (number of RPs and features, thus size of the RoI), it needs to be carried out only once at the offline stage. If need be, it can be implemented on a powerful computer and using parallel programming 333For the dataset used in Sect. 4, it took about 64 mins for one randomization on a Windows 10 PC with 6 cores Intel Xeon CPU, 32G RAM.. Table 1 displays its realization for the present application in terms of pseudocode, where represents the finally chosen vector of relevant keys of the sub-region.

Algorithm: randomized LASSO
1: Input: = {, } ; sampling ratio ; number of randomizations ; threshold
2: Output: relevant features of grid
3: for :
4: = sampling with replacement from with ratio
5: = LASSO-based fingerprint selection using
6: end for
7: computing the frequency of selection of each feature according to
8: return : set of features selected most frequently
Table 1: Pseudocode of randomized LASSO

3.4 Map-based positioning

Given an RFM, i.e. a database of fingerprints and associated reference positions, the aim of positioning is to infer the most probable location of the user according to the fingerprint observed at the actual but unknown location . We use a variety of discrete candidate locations and apply Bayes’ rule to compute for each of them the degree of belief in the assumption that the current location of the user is given the available RFM and the currently observed fingerprint. This is an MAP-based positioning method as proposed, e.g., by Park et al. (2010); Madigan et al. (2005).

The posterior probability

of being at location is computed by:


where is the conditional probability of the fingerprint given the assumed location , and and

are the prior probabilities of location and fingerprint respectively. Since the prior probability of the fingerprint is independent of the candidate location the

MAP estimate can be obtained from:


Assuming that the observable features are conditionally independent of each other (5) can be represented by the naïve Bayes model:


where denotes the observed feature at the current location. In this paper, we introduce sub-region and relevant feature selection into MAP-based positioning. Therefore, we only take candidate locations in the chosen sub-regions and calculate the posterior using only the previously selected most relevant features.

Thus, (6) is modified to be:


where is the vector denoting the indices of the candidate sub-regions (see Sect. 3.2) and is the set of selected relevant features of the sub-region (see Sect. 3.3). The conditional probability , which models the density of the feature for a given location

, is estimated using kernel density estimation with a Gaussian kernel from the observations stored in the

RFM, see details e.g., in Scott (2015); Kushki et al. (2007).

Prior knowledge of the user location, e.g. derived from previous estimates of user locations and a motion model, could be used to represent the prior probability of the locations. However, as in Sect. 3.2, we assume also now that no such prior information is available and can hence use equal probability of across all candidate sub-regions such that also can be dropped from (7).

3.5 Computational complexity of online positioning

In this part, we analyze the computational complexity of the proposed approach and compare it to MAP-based positioning without sub-region and feature selection. For the latter, the computational complexity of estimating one position is , where is the number of candidate locations in each of the sub-regions, and denotes the total number of observable features in the entire RoI:


The computational complexity of the proposed method is , where is the number of selected sub-regions and is the number of selected features. So, clearly the computational complexity of the proposed approach is significantly less than for the MAP-based approach without sub-region and feature selection. Furthermore, it is independent of the size of the RoI and of the total number of available features within the RoI. The proposed approach is to constrain and limit the search to a set of candidate reference locations and selected features for the online positioning. Though we only give the analytical formula of the computational complexity of MAP, other fingerprinting-based location methods will also benefit from the proposed approach, because the computational complexity of fingerprinting-based positioning is proportional to the size of the search space.

The computational complexity of the proposed approach can also be kept low by an appropriate implementation strategy. Besides the RFM further data required during the online positioning stage can be precomputed already during the offline stage (Fig. 1). This holds in particular for:

  • the set of available feature keys of each sub-region required for calculating the modified Jaccard index at the online stage,

  • the set of relevant features of each sub-region calculated using randomized LASSO,

  • and the conditional distribution () of the selected relevant features within each sub-region obtained from kernel density estimation.

At the online stage these pre-computed data are cached to the user device to achieve location estimation while realizing mobile positioning. The proposed preprocessing steps also reduce the required storage space for saving the cached pre-computed data because these data only need to cover the selected relevant features instead of all the features observable within the RoI.

4 Experimental results and discussion

In this section we analyze data obtained from real measurements collected using a Nexus 6P smart phone (for WLAN RSS) and a Leica MS50 total station (for position ground truth) within an L-shaped RoI of about 150  in an office building for fingerprinting-based WLAN indoor positioning, in which there are 399 observable access points. The shape of the actual floorplan corresponds to the shape given in Fig. 1.

We use a kinematically mapped RFM from about 2000 reference fingerprints obtained by recording data approximately every 1.5 seconds while a user walked through the RoI. The total station tracked a prism attached to the Nexus smart phone with an accuracy of about 5 mm. This approach is a compromise between the high accuracy attainable by stop & go measurements at carefully selected and previously marked reference positions and the low extra effort of crowd-sourced RFM data collection as outlined e.g., in Radu and Marina (2013). In order to evaluate the performance of the proposed approach independently an additional test data set was collected comprising fingerprints at approximately 500 test positions (TPs) located throughout the RoI.

The coordinates of the TPs as measured by the total station were later used as ground truth for calculating the positioning error in terms of mean squared error (MSE) of the Euclidean distance between estimated and true coordinates. Data processing according to the proposed algorithms, as outlined in Fig. 1, was implemented in Python using the scikit-learn package Pedregosa et al. (2011).

Figure 2: Analysis of modified Jaccard index. (a): Spatial distribution of the modified Jaccard index. (b): Euclidean distance between centroids of each pair of sub-regions.

We divided the RoI into 34 square grid cells (sub-regions) of approximately and densified the original RFM to a regular grid of about 100 reference points per (i.e. spacing about ) by interpolation. The resulting gridded RFM was used for all further processing steps.

Fig. (a)a shows the modified Jaccard index for all pairs of sub-regions indicating that the index is related to the Euclidean distance (Fig. (b)b). This corresponds to the expectation that the APs available in nearby sub-regions are similar while different APs are observed in sub-regions far from each other.

We have then investigated the number of relevant features to be used for positioning. The keys of the relevant features per sub-region are the result of a randomized process and are thus random themselves. We have therefore carried out the feature selection and subsequent position estimation of the TPs three times independently. For each of these simulation runs the MSE of the estimated coordinates of the TPs is plotted in Fig. 3 as a function of the number of selected features actually used for positioning. The difference of MSE of each run is caused by the randomization of LASSO-based feature selection. This figure only shows 3 out of the 200 randomized runs from which, according to Table 1, the final feature selection is chosen. The figure shows that the accuracy of the estimated positions generally increases as the number of features used is increased from 1 to 20. However, the gain in accuracy is negligible if the number of features is increased above 6-10, in particular if the variability due to the randomized feature selection process is taken into account (different curves in Fig. 3).


Figure 3: Empirically determined accuracy (MSE) of TP coordinates estimated using the proposed approach with different number of selected relevant features.

Fig. 4 illustrates the positioning accuracy and processing time for different choices of parameters within the proposed approach. The accuracy is plotted in terms of cumulative positioning accuracy (CPA) i.e., cumulative density function of the positioning errors. When introducing the sub-region selection with 10 sub-regions into MAP-based positioning (but using all available features), the CPA is comparable to that of MAP-based positioning without sub-region or feature selection but the average processing time 444We used Python to implement the proposed method and evaluate the processing time using the time package ( for estimating the coordinates of one test position (TP) is 0.35 seconds (see Table 2), which is only about 1/4 of that of MAP-based positioning without sub-region or feature selection. Using only 3 sub-regions of course reduces the processing time further but leads to a considerable loss in accuracy.

Methods Time consumption (in s) for positioning one TP
Mean Min Max Std

MAP (34 sub-regions, 399 features) 1.223 1.222 1.247 0.003
MAP (3 sub-regions, 399 features) 0.106 0.104 0.137 0.002
MAP (10 sub-regions, 399 features) 0.353 0.347 0.388 0.003
MAP (10 sub-regions, 6 features) 0.008 0.007 0.009 0.0002
MAP (10 sub-regions, 10 features) 0.012 0.011 0.013 0.0002
Table 2: The processing times

By introducing both sub-region and feature selection the computational complexity and the data storage requirements can be reduced. Using 10 sub-regions and 10 features the average time of computing the coordinates of one TP is only 1% of that of MAP-based positioning with neither sub-region nor feature selection while the attained accuracy is virtually equal to the one obtained using all data. In agreement with the results depicted in Fig. 3 there is no significant loss in accuracy when using 6 features instead of 10, while the processing time decreases roughly by a factor of 2.

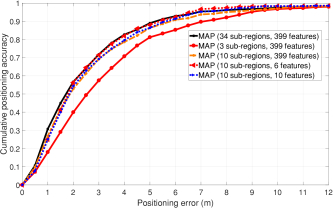

Figure 4: Empirical cumulative positioning accuracy for different choices of parameters. The positioning error herein is the Euclidean distance between the estimated and true coordinates of the TPs.

5 Conclusion

We proposed herein an approach to fingerprinting-based indoor positioning using the maximum a posteriori (MAP) principle for coordinate estimation. The main contributions are proposals to reduce data storage requirements and computational complexity in terms of processing times by segmentation of the entire RoI into sub-regions, identification of a few candidate sub-regions during the online positioning stage, and use of a selected subset of features instead of all available features for position estimation. Sub-region selection is based on a modified Jaccard index measuring the similarity between the features obtained by the user and those available within the reference fingerprint map (RFM). Feature selection is based on the randomized least absolute shrinkage and selection operator (LASSO) yielding a pre-computed set of relevant features for each sub-region. The reduction of computational complexity is obtained both from the reduction of the number of candidate locations needed to analyze during online positioning and from the reduction of the number of features to be compared.

The experimental results corroborated the claim of reduced complexity while indicating that the positioning accuracy is hardly reduced by processing only 10 candidate subregions instead of the entire RoI and by selecting only 6-10 features instead of using all available ones. Given a fixed number of candidate sub-regions and a fixed, low number of features the computational burden of the entire algorithm is almost independent of the size of the entire RoI and of the number of available features across the RoI.

Further work will concentrate on increasing the stability of the feature selection via adaptive forward-backward greedy feature selection Zhang (2011), on ranking features with respect to quality and impact, on taking into account user motion during sub-region selection and on handling temporal changes of the RFM. Furthermore, we are currently applying the proposed approach to larger and more complex datasets Montoliu et al. (2017) and migrating to a mobile phone.

The China Scholarship Council (CSC) financially supports the first author’s doctoral research. Questions and proposals by three anonymous reviewers are acknowledged for contributing to improved quality of the paper.


  • Bekkali et al. (2007) Bekkali, A., Sanson, H., and Matsumoto, M. (2007).

    Rfid indoor positioning based on probabilistic rfid map and kalman filtering.

    In Wireless and Mobile Computing, Networking and Communications, 2007. WiMOB 2007. Third IEEE International Conference on, pages 21–21. IEEE.
  • Chen et al. (2006) Chen, Y., Yang, Q., Yin, J., and Chai, X. (2006). Power-efficient access-point selection for indoor location estimation. IEEE Transactions on Knowledge and Data Engineering, 18(7):877–888.
  • Fastrich et al. (2015) Fastrich, B., Paterlini, S., and Winker, P. (2015). Constructing optimal sparse portfolios using regularization methods. Computational Management Science, 12(3):417–434.
  • Feng et al. (2012) Feng, C., Au, W. S. A., Valaee, S., and Tan, Z. (2012). Received-signal-strength-based indoor positioning using compressive sensing. IEEE Transactions on Mobile Computing, 11(12):1983–1993.
  • Gu et al. (2017) Gu, Y., Zhou, C., Wieser, A., and Zhou, Z. (2017). Pedestrian Positioning Using WiFi Fingerprints and A Foot-mounted Inertial Sensor. arXiv preprint arXiv:1704.03346, (1):1–9.
  • Hazas and Hopper (2006) Hazas, M. and Hopper, A. (2006). Broadband ultrasonic location systems for improved indoor positioning. IEEE Transactions on mobile Computing, 5(5):536–547.
  • He and Chan (2016) He, S. and Chan, S.-H. G. (2016). Wi-fi fingerprint-based indoor positioning: Recent advances and comparisons. IEEE Communications Surveys & Tutorials, 18(1):466–490.
  • Ingram et al. (2004) Ingram, S., Harmer, D., and Quinlan, M. (2004). Ultrawideband indoor positioning systems and their use in emergencies. In Position Location and Navigation Symposium, 2004. PLANS 2004, pages 706–715. IEEE.
  • Jani et al. (2015) Jani, S. S., Lamb, J. M., White, B. M., Dahlbom, M., Robinson, C. G., and Low, D. A. (2015). Assessing margin expansions of internal target volumes in 3d and 4d pet: a phantom study. Annals of Nuclear Medicine, 29(1):100–109.
  • Kasprzak et al. (2013) Kasprzak, S., Komninos, A., and Barrie, P. (2013). Feature-based indoor navigation using augmented reality. In 2013 9th International Conference on Intelligent Environments, pages 100–107.
  • Kushki et al. (2007) Kushki, A., Plataniotis, K. N., and Venetsanopoulos, A. N. (2007). Kernel-based positioning in wireless local area networks. IEEE Transactions on Mobile Computing, 6(6):689–705.
  • Kushki et al. (2010) Kushki, A., Plataniotis, K. N., and Venetsanopoulos, A. N. (2010). Intelligent dynamic radio tracking in indoor wireless local area networks. IEEE Transactions on Mobile Computing, 9(3):405–419.
  • Lee et al. (2004) Lee, C., Chang, Y., Park, G., Ryu, J., Jeong, S.-G., Park, S., Park, J. W., Lee, H. C., shik Hong, K., and Lee, M. H. (2004). Indoor positioning system based on incident angles of infrared emitters. In 30th Annual Conference of IEEE Industrial Electronics Society, 2004. IECON 2004, volume 3, pages 2218–2222 Vol. 3.
  • Madigan et al. (2005) Madigan, D., Einahrawy, E., Martin, R. P., Ju, W. H., Krishnan, P., and Krishnakumar, A. S. (2005). Bayesian indoor positioning systems. In Proceedings IEEE 24th Annual Joint Conference of the IEEE Computer and Communications Societies., volume 2, pages 1217–1227.
  • Meinshausen and Bühlmann (2010) Meinshausen, N. and Bühlmann, P. (2010). Stability selection. Journal of the Royal Statistical Society: Series B (Statistical Methodology), 72(4):417–473.
  • Montoliu et al. (2017) Montoliu, R., Sansano, E., Torres-Sospedra, J., and Belmonte, O. (2017). Indoorloc platform: A public repository for comparing and evaluating indoor positioning systems. In 8th International Conference on Indoor Positioning and Indoor Navigation, 2017. IPIN 2017, pages 1–8. IEEE.
  • Niedermayr et al. (2014) Niedermayr, S., Wieser, A., and Neuner, H. (2014). Expressing location uncertainty in combined feature-based and geometric positioning. In Proceedings European Navigation Conference 2014, pages 154–166. EUGIN.
  • Padmanabhan et al. (2000) Padmanabhan, P. B., N., V., and N., V. (2000). RADAR: An in-building RF based user location and tracking system. Proceedings IEEE INFOCOM 2000. Conference on Computer Communications. Nineteenth Annual Joint Conference of the IEEE Computer and Communications Societies (Cat. No.00CH37064), 2(c):775–784.
  • Park et al. (2010) Park, J.-g., Charrow, B., Curtis, D., Battat, J., Minkov, E., Hicks, J., Teller, S., and Ledlie, J. (2010). Growing an organic indoor location system. In Proceedings of the 8th international conference on Mobile systems, applications, and services, pages 271–284. ACM.
  • Pedregosa et al. (2011) Pedregosa, F., Varoquaux, G., Gramfort, A., Michel, V., Thirion, B., Grisel, O., Blondel, M., Prettenhofer, P., Weiss, R., Dubourg, V., Vanderplas, J., Passos, A., Cournapeau, D., Brucher, M., Perrot, M., and Duchesnay, E. (2011).

    Scikit-learn: Machine learning in Python.

    Journal of Machine Learning Research, 12:2825–2830.
  • Radu and Marina (2013) Radu, V. and Marina, M. K. (2013). Himloc: Indoor smartphone localization via activity aware pedestrian dead reckoning with selective crowdsourced wifi fingerprinting. In International Conference on Indoor Positioning and Indoor Navigation, pages 1–10.
  • Scott (2015) Scott, D. W. (2015). Multivariate density estimation: theory, practice, and visualization. John Wiley & Sons.
  • Tibshirani (1996) Tibshirani, R. (1996). Regression shrinkage and selection via the lasso. Journal of the Royal Statistical Society. Series B (Methodological), pages 267–288.
  • Wang et al. (2011) Wang, S., Nan, B., Rosset, S., and Zhu, J. (2011). Random lasso. The annals of applied statistics, 5(1):468–485.
  • Watson and Philip (1984) Watson, D. F. and Philip, G. M. (1984). Triangle based interpolation. Journal of the International Association for Mathematical Geology, 16(8):779–795.
  • Youssef and Agrawala (2008) Youssef, M. and Agrawala, A. (2008). The Horus location determination system. Wireless Networks, 14(3):357–374.
  • Youssef et al. (2003) Youssef, M. A., Agrawala, A., and Shankar, A. U. (2003).

    Wlan location determination via clustering and probability distributions.

    In Pervasive Computing and Communications, 2003.(PerCom 2003). Proceedings of the First IEEE International Conference on, pages 143–150. IEEE.
  • Zhang (2011) Zhang, T. (2011). Adaptive forward-backward greedy algorithm for learning sparse representations. IEEE transactions on information theory, 57(7):4689–4708.
