Impact of Change Granularity in Refactoring Detection

04/24/2022
by   Lei Chen, et al.
0

Detecting refactorings in commit history is essential to improve the comprehension of code changes in code reviews and to provide valuable information for empirical studies on software evolution. Several techniques have been proposed to detect refactorings accurately at the granularity level of a single commit. However, refactorings may be performed over multiple commits because of code complexity or other real development problems, which is why attempting to detect refactorings at single-commit granularity is insufficient. We observe that some refactorings can be detected only at coarser granularity, that is, changes spread across multiple commits. Herein, this type of refactoring is referred to as coarse-grained refactoring (CGR). We compared the refactorings detected on different granularities of commits from 19 open-source repositories. The results show that CGRs are common, and their frequency increases as the granularity becomes coarser. In addition, we found that Move-related refactorings tended to be the most frequent CGRs. We also analyzed the causes of CGR and suggested that CGRs will be valuable in refactoring research.

READ FULL TEXT VIEW PDF

Authors

page 1

page 2

page 3

page 4

03/10/2020

Refactoring Graphs: Assessing Refactoring over Time

Refactoring is an essential activity during software evolution. Frequent...
07/27/2020

Long-Term Evaluation of Technical Debt in Open-Source Software

Existing software tools enable characterizing and measuring the amount o...
03/27/2019

Microservice Transition and its Granularity Problem: A Systematic Mapping Study

Microservices have gained wide recognition and acceptance in software in...
01/20/2022

Evaluating the Performance of Clone Detection Tools in Detecting Cloned Co-change Candidates

Co-change candidates are the group of code fragments that require a chan...
10/11/2020

SDMTL: Semi-Decoupled Multi-grained Trajectory Learning for 3D human motion prediction

Predicting future human motion is critical for intelligent robots to int...
10/19/2018

Coming: a Tool for Mining Change Pattern Instances from Git Commits

Software repositories such as Git have become a relevant source of infor...
This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1. Introduction

Mining refactorings in commit history is essential to help programmers comprehend code changes and code reviews (Kim et al., 2012),and this can provide valuable information for empirical studies on software evolution(Bavota et al., 2012; Kim et al., 2014). For example, Chávez et al. (Chávez et al., 2017) and Fernandes et al. (Fernandes et al., 2020) detected and analyzed refactorings to investigate the refactoring performance in improving internal quality attributes.

Refactoring detectors (Dig et al., 2006; Kim et al., 2010; Weißgerber and Diehl, 2006; Prete et al., 2010; Silva and Valente, 2017; Tsantalis et al., 2018) detect refactorings by comparing two source code snapshots. Although traditional approaches aim to detect refactorings over releases (Weißgerber and Diehl, 2006; Prete et al., 2010), recent detectors such as RefDiff (Silva and Valente, 2017; Silva et al., 2021) and RefactoringMiner (Tsantalis et al., 2018; Tsantalis et al., 2020) use a commit as a change unit to detect refactorings, which means that two snapshots before and after a single commit are compared. These methods have achieved high accuracy in detecting refactoring in commits.

However, refactorings that are performed over multiple commits may not be detected. The sample history shown in Figure 1 consists of two commits extracted from the mbassador repository (mba, 2012), where commit 2ae0e5f is the parent of commit 9ce3ceb. The intention of the developer, as expressed by these two commits, is to decompose the source file Mbassador.java, which contains multiple top-level classes, into multiple source files to ensure that each file contains only one top-level class. In the first commit, the developer copied the implementation of class FilteredAsynchronousSubscription in Mbassador.java to a new file FilteredAsynchronousSubscription.java, and then she/he removed that class from the source file Mbassador.java in the second commit. Overall, she/he moved a class from Mbassador.java to a new source file. A detection based on either of the single commits shown in Figure 1 cannot reveal this kind of refactoring because each commit contains only part of the code changes for detecting Move Class refactoring. However, this refactoring can be detected if we consider a coarse-grained commit generated by merging the changes from the two commits.

The existence of refactorings detected only in the granularity of coarse-grained commits suggests that detectors based on single commits may have missed some refactorings. We conducted an empirical study on 19 open-source Git-based Java repositories to investigate the impact of change granularity in refactoring detection. To change the granularity of commits, we squashed multiple fine-grained commits into one to form a coarse-grained commit. The number of fine-grained commits squashed into one coarse-grained commit is referred to as coarse granularity. Refactoring detection is conducted on both fine-grained and coarse-grained commits using the state-of-the-art tool RefactoringMiner (Tsantalis et al., 2020; Tsantalis et al., 2018). If a refactoring type is detected in the coarse-grained commit but not in the fine-grained commits, which formed the coarse one, this refactoring is defined as a coarse-grained refactoring (CGR).

Our results indicate that CGRs are common, and their frequency increases as the granularity becomes coarser. The type of refactoring that is most likely to be coarse-grained varies in each repository; however, in general, the Move-related refactoring type tends to be CGR.

In summary, our study makes the following contributions:

  • We propose the definition of CGR.

  • We evaluate features of CGRs to understand its effect on refactoring detection.

  • We analyze the reason for the occurrence of CGR.

The remainder of this paper is organized as follows. The next section explains our study design. Then, we present a preliminary evaluation of 19 open-source projects and the answers to the three research questions in Section 3. Finally, in Section 4, we conclude and state our plans for future work.

Figure 1. Two commits in mbassador.

2. Study Design

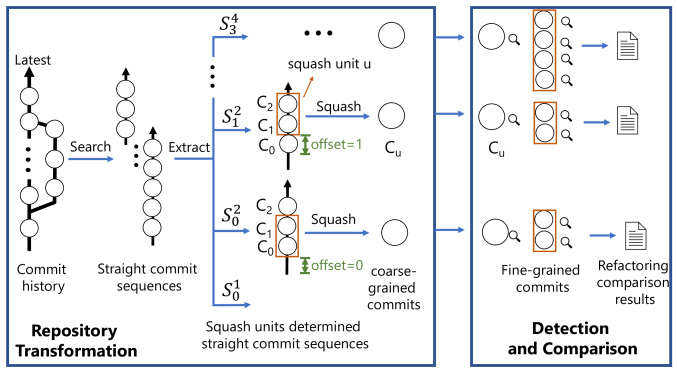

The overview of our study procedure is shown in Figure 2. Our procedure can be divided into two phases: repository transformation and detection and comparison. In the repository transformation phase, squash units that contain multiple fine-grained commits and can be squashed into coarse-grained ones are extracted from the commit history. In the detection and comparison phase, refactoring detection is conducted on both fine-grained and coarse-grained commits, and their results are compared.

Figure 2. Overview of the study procedure

2.1. Repository Transformation

In this phase, firstly, the Git-based commit history, as a set of fine-grained commits , is extracted from the given repository, where is the universal set of commits. By searching the commit history, we can extract straight commit sequences. Each sequence consists of fine-grained commits that excludes merge commits, which have more than one parent, and branch sources, which have multiple children. Merge commits are excluded to avoid duplicate detection of refactoring in the later phase, and branch sources are excluded for simplicity when extracting squash units.

A squash unit is a set of multiple adjacent fine-grained commits that are squashed into a single coarse-grained commit. Here, if a commit is the parent or child of another commit, these two commits are considered adjacent. The adjacent commits are shown as circles next to each other in Figure 2. Different strategies labelled (for appropriate values of and ) are used to extract squash units from straight commit sequences. Here, the granularity level specifies the size of the squash units, and straight commit sequences are divided into multiple squash units of the specified size. Because each unit is squashed into one coarse-grained commit, this level expresses the coarse granularity of the coarse-grained commits to be generated. The granularity level exactly produces original fine-grained commits. The offset is the number of commits to be skipped from the beginning of the given straight commit sequence when extracting the squash units to adjust which commits will be merged. For example, the commit in Figure 2 is squashed together with when strategy is used, whereas it is squashed together with when strategy is used. For each squash unit , is used to squash all the commits in into a single coarse-grained commit, which we name .

2.2. Detection and Comparison

Refactoring detection is conducted on each commit in all extracted squash units and on coarse-grained commits, and the results are compared for each pair of commits. From commit , a set of refactorings are detected, where is the universal set of refactorings. The detection result for one commit contains: 1) the refactoring type, 2) a description of how this refactoring is conducted, and 3) the location where this refactoring is applied in the source code. Because the location and description of a refactoring may change owing to squashing, we conservatively compared only the type of detected refactorings. Refactorings detected with invalid locations were excluded. For a squash unit and its coarse-grained commit , we judged refactoring as coarse-grained if and only if no refactoring of its type was found in the detected refactorings from each fine-grained commit in . More specifically, the set of CGRs of can be explained as

(1)

A squash unit is regarded as an effective squash when at least one CGR is detected from it:

(2)

When the coarse granularity is set to , the set of squash units for the repository is

(3)

where denotes the squash units extracted from according to strategy .

3. Preliminary Evaluation

3.1. Research Questions

Our objective in this study is to investigate features of CGRs. We answer the following research questions (RQs) to better achieve this goal.

  • RQ: How frequently do CGRs appear because of granularity change?

  • RQ: Which types of refactorings tend to be coarse-grained?

  • RQ: What are the reasons for the occurrence of CGRs?

A quantitative analysis is provided for RQ and RQ. We manually examine the experiment results to present a qualitative explanation for RQ.

3.2. Experimental Setup

We used the Git repository rewriting tool git-stein (Hayashi, 2018) to change the granularity and the latest version of RefactoringMiner (ver. 2.2) to detect refactoring in 19 open source Git-based Java repositories.

3.2.1. Data Collection

The repositories that we selected are from a dataset collected by Silva et al. (Silva et al., 2016), containing 185 GitHub-hosted Java projects. Refactorings exist in these projects, some of which have been identified by RefactoringMiner, studied, and confirmed by researchers. On account of computation time, we chose 19 repositories whose number of commits is no more than 7,000 from the dataset. To be specific, the number of commits ranges from 342 (mbassador) to 6,955 (redisson (red, 2014)).

3.3. Rq: How frequently do CGRs appear because of granularity change?

3.3.1. Study Design

The techniques introduced in Section 2 are applied to the selected repositories to extract squash units, change the granularity of commits, and compare the refactoring detection results to find CGRs.

The frequency of CGRs in the commit history can be expressed as the ratio of the number of squash units that can generate at least one CGR:

(4)

We calculate Frequency for our dataset when the coarse granularity is set to 2, 3, and 4, respectively.

Figure 3. Frequency of CGRs.

3.3.2. Results and Discussion

Figure 3 shows box plots of the CGR frequency at different levels of coarse granularity in the 19 repositories. The minimum values of all three box plots are greater than zero, indicating that CGRs were detected in all the repositories at all levels of coarse granularity.

We can conclude that the CGR is a common phenomenon in refactoring detection. The highest frequency was observed in the repository goclipse (goc, 2013), which was 0.071, 0.135, and 0.178 when the coarse granularity was set to 2, 3, and 4, respectively. The box plots show that the more the coarse granularity increases, the more the frequency increases in all repositories. The minimum increase in the frequency when the coarse granularity was changed from 2 to 3 was in the repository baasbox (baa, 2013), which increased by 14.1%, whereas the maximum increase was 331.9% in javapoet (jav, 2013). The average increase for all repositories was 129.4%. When the coarse granularity increases from 3 to 4, a minimum increase of 24.4% appears in seyren (sey, 2012), a maximum increase of 147.6% appears in mbassador, and the average increase is 65.6%. The average frequencies for all the repositories were 2.0%, 4.3%, and 6.9% when the coarse granularities were 2, 3, and 4, respectively. The observed tendency of frequency to increase as the coarse granularity increases can be explained as follows. The CGR detected in the commits with finer granularity may also exist in those with coarser granularity. In addition, a new CGR may be detected in coarser-grained commits because more code changes are transferred into these commits through the granularity change.

However, we also observed that not all CGRs detected in commits of finer granularity could be detected in a coarser-grained one. Code changes in other commits may hinder the currently detected CGR when those commits are squashed with the current coarse-grained commit.

CGR is a common phenomenon in all repositories. The average frequencies of CGR for all repositories were 2.0%, 4.3%, and 6.9% when the coarse granularities were 2, 3, and 4, respectively. CGRs are more frequent when coarse granularity increases.

3.4. Rq: Which types of refactorings tend to be coarse-grained?

3.4.1. Study Design

To investigate this RQ, we calculate the appearance ratio of a specific CGR type at all the three granularity levels. The ratio expresses the average number of CGRs in one effective squash. For a certain refactoring type in commit history , the ratio can be expressed as follows:

(5)

We calculate the ratio of each type of CGR in our dataset.

repository refactoring type ratio
jfinal Change Method Access Modifier 0.49
mbassador Change Class Access Modifier 2.00
javapoet Replace Variable With Attribute 0.80
jeromq Move Class 0.19
seyren Merge Package 1.00
retrolambda Push Down Method 1.21
baasbox Replace Variable With Attribute 0.29
sshj Remove Parameter 0.34
xabber-android Move Method 0.30
android-async-http Remove Parameter Modifier 1.40
giraph Remove Variable Modifier 0.91
spring-data-rest Move Attribute 0.19
blueflood Parameterize Variable 0.08
HikariCP Move Attribute 1.82
redisson Push Down Method 0.12
goclipse Move Package 0.05
atomix Move And Rename Class 0.33
morphia Move Attribute 0.71
PocketHub Move And Rename Class 0.12
Table 1. Highest ratio CGR type

3.4.2. Results and Discussion

The CGR type with the highest ratio for each repository is listed in Table 1. Among the 19 repositories, we found that Change Class Access Modifier occurs at the highest ratio (2.00) in mbassador, and Move Attribute in HikariCP reaches 1.82.

We find that the CGR type with the highest ratio varies with repositories. In our dataset, we also find that Move-related refactoring types, e.g., Move Class and Move Attribute, appear most frequently for eight repositories. By calculating the average ratio over our dataset for all types of refactorings, we observed that the top three highest-ratio refactoring types were Move And Rename Class (0.46%), Move Method (0.34%), and Move And Inline Method (2.9%).

As a result, we can conclude that Move-related refactoring types are most likely to be coarse-grained. A possible explanation for this is that in Move-related refactoring, Move on the refactored object is not performed directly but is performed in two steps. First, an object is copied to the destination and is potentially followed by other changes, e.g., renaming, inline, or no change. Second, the original object is removed. These two steps may be included in separate commits. Another possible reason is that Move-related refactoring can be combined with other refactoring, such as Rename or Inline.

Considering the average ratio over the whole dataset, the top three types are Move And Rename Class, Move Method, Move And Inline Method. We conclude that Move-related refactoring types are most likely to be coarse-grained.

3.5. Rq: What are the reasons for the occurrence of CGRs?

3.5.1. Study Design

The git diff command is used to extract code changes from the fine-grained and coarse-grained commits. After extraction, we manually compare and analyze the changes and refactorings detected.

3.5.2. Results and Discussion

The reasons for the occurrence of CGRs are categorized into two types according to their composition: Generation and Combination.

Generation. This type of CGR is generated from non-refactoring changes. The example shown in Figure 1 belongs to this type; the Move Method refactoring is generated by two non-refactoring changes: 1) copy the class implementation to a new file 2) remove the origin class. Another example is in repository javapoet. In the parent commit 6a3595c, the attribute body is defined, and the method call methodWriter.write() is removed. In child commit 4ff9adf, the developer adds method call body.write(). In the coarse-grained commit, the above code changes are detected as Rename Variable with Attribute; the variable methodWriter is renamed to attribute body.

Combination. In contrast with Generation, this type is the combined result of multiple refactorings detected in finer-grained commits. Figure 4 shows an example of this type. For clarity, only part of the package hierarchy of the repository is shown in the figure. In the parent commit ce2a9e9, the developer moves class PropertyMailSender under package services to package core.util, which is detected as refactoring Move Class. In child commit 989bf50, she/he split package core.value into core.util.email and another one, and then she/he move class PropertyMailSender to the package core.util.email, which are detected as Split Package and Move Class. In terms of result, she/he applied Merge Package to merge part of the package core.value and the entire package services into a new package core.util.email.

Generation type CGRs will influence judgments of whether a module is refactored or not. We note that this type may also occur because of developers’ awareness of refactoring; developers do not realize that the conducted code changes belong to refactoring operations. Supporting tools to guess developers’ manual edits and recognize refactoring activities (Foster et al., 2012; Ge and Murphy-Hill, 2014) may assist them in development. Because the Combination type may influence type-based refactoring studies, such as investigations on frequently-performed refactoring types, researchers may reconsider their results by covering coarse-grained types.

Figure 4. Example of coarse-grained Merge Package.

We found reasons for two categories. Generation refers to new refactorings generated by non-detected fine-grained ones. Combination is a high-level refactoring combined with detected fine-grained ones.

4. Conclusion and Future Work

In this study, we investigated the impact of refactoring detection on different granularities of commits in 19 open source Git-based Java repositories. We observed that it is common for a CGR to occur, and its frequency increases as the granularity becomes coarser. Move-related refactoring types tend to be coarse-grained. We analyzed the causes of CGR and categorized them into two types according to their composition: Generation and Combination. The studied list of CGR is attached as a supplemental material (Chen and Hayashi, 2022). We suggest that refactoring detectors should cover CGRs. For future work, we plan to extend the current experiment by comparing different refactoring detection tools on a larger dataset.
