1 Introduction

Named entity classification (EC) and relation extraction (RE) are important topics in natural language processing. They are relevant, e.g., for populating knowledge bases or answering questions from text, such as “Where does X live?”

Most approaches consider the two tasks independent from each other or treat them as a sequential pipeline by first applying a named entity recognition tool and then classifying relations between entity pairs. However, named entity types and relations are often mutually dependent. If the types of entities are known, the search space of possible relations between them can be reduced and vice versa. This can help, for example, to resolve ambiguities, such as in the case of “Mercedes”, which can be a person, organization and location. However, knowing that in the given context, it is the second argument for the relation “live_in” helps concluding that it is a location. Therefore, we propose a single neural network (NN) for both tasks. In contrast to joint training and multitask learning, which calculate task-wise costs, we propose to learn a

joint classification layer which is globally normalized on the outputs of both tasks. In particular, we train the NN parameters based on the loss of a linear-chain conditional random field (CRF) (Lafferty et al., 2001). CRF layers for NNs have been introduced for token-labeling tasks like named entity recognition (NER) or part-of-speech tagging (Collobert et al., 2011; Lample et al., 2016; Andor et al., 2016). Instead of labeling each input token as in previous work, we model the joint entity and relation classification problem as a sequence of length three for the CRF layer. In particular, we identify the types of two candidate entities (words or short phrases) given a sentence (we call this entity classification to distinguish it from the token-labeling task NER) as well as the relation between them. To the best of our knowledge, this architecture for combining entity and relation classification in a single neural network is novel. Figure 1 shows an example of how we model the task: For each sentence, candidate entities are identified. Every possible combination of candidate entities (query entity pair) then forms the input to our model which predicts the classes for the two query entities as well as for the relation between them.

Model inputs (query entity pairs) Model outputs:

(“Anderson”, “,”) PER - N - O

(“Anderson”, “41”) PER - N - O

(“Anderson”, “chief”) PER - N - O

(“Anderson”, “Middle East”) PER - live_in - LOC

(“was”, “for”) O - N - O

(“for”, “The Associated Press”) O - N - ORG

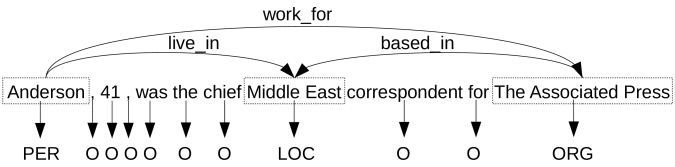

Figure 1: Examples of our task

To sum up, our contributions are as follows: We introduce globally normalized convolutional neural networks for a sentence classification task. In particular, we present an architecture which allows us to model joint entity and relation classification with a single neural network and classify entities and relations at the same time, normalizing their scores globally. Our experiments confirm that a CNN with a CRF output layer outperforms a CNN with locally normalized softmax layers. Our source code is available at http://cistern.cis.lmu.de.

2 Related Work

Some work on joint entity and relation classification uses distant supervision for building their own datasets, e.g., (Yao et al., 2010; Yaghoobzadeh et al., 2016). Other studies, which are described in more detail in the following, use the “entity and relation recognition” (ERR) dataset from (Roth and Yih, 2004, 2007) as we do in this paper. Roth and Yih (2004)

develop constraints and use linear programming to globally normalize entity types and relations.

Giuliano et al. (2007) use entity type information for relation extraction but do not train both tasks jointly. Kate and Mooney (2010)

train task-specific support vector machines and develop a card-pyramid parsing algorithm to jointly model both tasks.

Miwa and Sasaki (2014) use the same dataset but model the tasks as a table filling problem (see Section 4.2). Their model uses both a local and a global scoring function. Recently, Gupta et al. (2016)

apply recurrent neural networks to fill the table. They train them in a multitask fashion. Previous work also uses a variety of linguistic features, such as part-of-speech tags. In contrast, we use convolutional neural networks and only word embeddings as input. Furthermore, we are the first to adopt global normalization of neural networks for this task.

Several studies propose different variants of non-neural CRF models for information extraction tasks but model them as token-labeling problems (Sutton and McCallum, 2006; Sarawagi et al., 2004; Culotta et al., 2006; Zhu et al., 2005; Peng and McCallum, 2006). In contrast, we propose a simpler linear-chain CRF model which directly connects entity and relation classes instead of assigning a label to each token of the input sequence. This is more similar to the factor graph by Yao et al. (2010) but computationally simpler. Xu and Sarikaya (2013) also apply a CRF layer on top of continuous representations obtained by a CNN. However, they use it for a token labeling task (semantic slot filling) while we apply the model to a sentence classification task, motivated by the fact that a CNN creates single representations for whole phrases or sentences.

3 Model

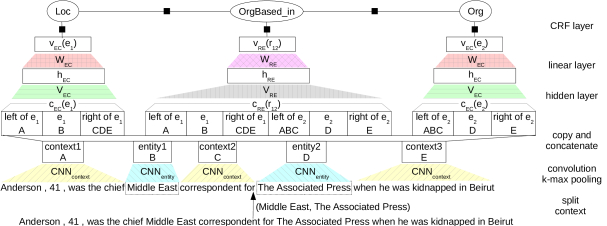

Figure 2: Model overview; the colors/shades show which model parts share parameters

3.1 Modeling Context and Entities

Figure 2 illustrates our model.

Input. Given an input sentence and two query entities, our model identifies the types of the entities and the relation between them; see Figure 1. The input tokens are represented by word embeddings trained on Wikipedia with word2vec (Mikolov et al., 2013). For identifying the class of an entity , the model uses the context to its left, the words constituting and the context to its right. For classifying the relation between two entities and , the sentence is split into six parts: left of , , right of , left of , , right of .111The ERR dataset we use provides boundaries for entities to concentrate on the classification task (Roth and Yih, 2004). For the example sentence in Figure 1 and the entity pair (“Anderson”, “chief”), the context split is: Anderson , 41 , was the chief Middle … Anderson , 41 , was the chief Middle East correspondent for …

Sentence Representation. For representing the different parts of the input sentence, we use convolutional neural networks (CNNs). CNNs are suitable for RE since a relation is usually expressed by the semantics of a whole phrase or sentence. Moreover, they have proven effective for RE in previous work (Vu et al., 2016). We train one CNN layer for convolving the entities and one for the contexts. Using two CNN layers instead of one gives our model more flexibility. Since entities are usually shorter than contexts, the filter width for entities can be smaller than for contexts. Furthermore, this architecture simplifies changing the entity representation from words to characters in future work.

After convolution, we apply

-max pooling for both the entities and the contexts and concatenate the results. The concatenated vector

, is forwarded to a task-specific hidden layer of size which learns patterns across the different input parts:

(1)

with weights and bias .

3.2 Global Normalization Layer

For global normalization, we adopt the linear-chain CRF layer by Lample et al. (2016).222https://github.com/glample/tagger It expects scores for the different classes as input. Therefore, we apply a linear layer first which maps the representations to a vector of the size of the output classes :

(2)

with . For a sentence classification task, the input sequence for the CRF layer is not inherentely clear. Therefore, we propose to model the joint entity and relation classification problem with the following sequence of scores (cf., Figure 2):

(3)

with being the relation between und

. Thus, we approximate the joint probability of entity types

, and relations as follows:

(4)

Our intuition is that the dependence between relation and entities is stronger than the dependence between the two entities.

The CRF layer pads its input of length

with begin and end tags and computes the following score for a sequence of predictions :

(5)

with being the transition score from class to class and being the score of class at position in the sequence. The scores are summed because all the variables of the CRF layer live in the log space. The matrix of transition scores is learned during training.3332 is added because of the padded begin and end tag For training, the forward algorithm computes the scores for all possible label sequences to get the log-probability of the correct label sequence :

(6)

For testing, Viterbi is applied to obtain the label sequence with the maximum score:

(7)

4 Experiments and Analysis

4.1 Data and Evaluation Measure

We use the “entity and relation recognition” (ERR) dataset from (Roth and Yih, 2004)444http://cogcomp.cs.illinois.edu/page/resource_view/43 with the train-test split by Gupta et al. (2016). We tune the parameters on a held-out part of train. The data is labeled with entity types and relations (see Table 1). For entity pairs without a relation, we use the label N. Dataset statistics and model parameters are provided in the appendix.

Following previous work, we compute of the individual classes for EC and RE, as well as a task-wise macro score. We also report the average of scores across tasks (Avg EC+RE).

4.2 Experimental Setups

Setup 1: Entity Pair Relations. Roth and Yih (2004, 2007); Kate and Mooney (2010) train separate models for EC and RE on the ERR dataset. For RE, they only identify relations between named entity pairs. In this setup, the query entities for our model are only named entity pairs. Note that this facilitates EC in our experiments.

Setup 2: Table Filling. Following Miwa and Sasaki (2014); Gupta et al. (2016), we also model the joint task of EC and RE as a table filling task. For a sentence with length , we create a quadratic table. Cell contains the relation between word and word (or N for no relation). A diagonal cell contains the entity type of word . Following previous work, we only predict classes for half of the table, i.e. for cells. Figure 3 shows the table for the example sentence from Figure 1. In this setup, each cell with is a separate input query to our model. Our model outputs a prediction for cell (the relation between and ) and predictions for cells and (the types of and ). To fill the diagonal with entity classes, we aggregate all predictions for the particular entity by using majority vote. Section 4.4 shows that the individual predictions agree with the majority vote in almost all cases.

Setup 3: Table Filling Without Entity Boundaries. The table from setup 2 includes one row/column per multi-token entity, utilizing the given entity boundaries of the ERR dataset. In order to investigate the impact of the entity boundaries on the classification results, we also consider another table filling setup where we ignore the boundaries and assign one row/column per token. Note that this setup is also used by prior work on table filling (Miwa and Sasaki, 2014; Gupta et al., 2016). For evaluation, we follow Gupta et al. (2016) and score a multi-token entity as correct if at least one of its comprising cells has been classified correctly.

Comparison. The most important difference between setup 1 and setup 2 is the number of entity pairs with no relation (test set: 3k for setup 1, 121k for setup 2). This makes setup 2 more challenging. The same holds for setup 3 which considers the same number of entity pairs with no relation as setup 2. To cope with this, we randomly subsample negative instances in the train set of setup 2 and 3. Setup 3 considers the most query entity pairs in total since multi-token entities are split into their comprising tokens. However, setup 3 represents a more realistic scenario than setup 1 or setup 2 because in most cases, entity boundaries are not given. In order to apply setup 1 or 2 to another dataset without entity boundaries, a preprocessing step, such as entity boundary recognition or chunking would be required.

Figure 3: Entity-relation table
Setup 1 Setup 2 Setup 3
softmax CRF softmax CRF softmax CRF
Peop 95.24 94.95 93.99 94.47 91.46 92.21
Org 88.94 87.56 78.95 79.37 67.29 67.91
Loc 93.25 93.63 90.69 90.80 85.99 86.20
Other 90.38 89.54 73.78 73.97 62.67 61.19
Avg EC 91.95 91.42 84.35 84.65 76.85 76.88
Located_in 55.03 57.72 51.03 55.13 44.96 52.29
Work_for 71.23 70.67 52.89 61.42 52.63 65.31
OrgBased_in 53.25 59.38 56.96 59.12 46.15 57.65
Live_in 59.57 58.94 64.29 60.12 64.09 61.45
Kill 74.70 79.55 69.14 74.73 82.93 75.86
Avg RE 62.76 65.25 58.86 62.10 58.15 62.51
Avg EC+RE 77.36 78.33 71.61 73.38 67.50 69.69
Table 1: results for entity classification (EC) and relation extraction (RE) in the three setups

4.3 Experimental Results

Table 1 shows the results of our globally normalized model in comparison to the same model with locally normalized softmax output layers (one for EC and one for RE). For setup 1, the CRF layer performs comparable or better than the softmax layer. For setup 2 and 3, the improvements are more apparent. We assume that the model can benefit more from global normalization in the case of table filling because it is the more challenging setup. The comparison between setup 2 and setup 3 shows that the entity classification suffers from not given entity boundaries (in setup 3). A reason could be that the model cannot convolve the token embeddings of the multi-token entities anymore when computing the entity representation (context B and D in Figure 2). Nevertheless, the relation classification performance is comparable in setup 2 and setup 3. This shows that the model can internally account for potentially wrong entity classification results due to missing entity boundaries.

The overall results (Avg EC+RE) of the CRF are better than the results of the softmax layer for all three setups. To sum up, the improvements of the linear-chain CRF show that (i) joint EC and RE benefits from global normalization and (ii) our way of creating the input sequence for the CRF for joint EC and RE is effective.

Comparison to State of the Art. Table 2 shows our results in the context of state-of-the-art results: (Roth and Yih, 2007), (Kate and Mooney, 2010), (Miwa and Sasaki, 2014), (Gupta et al., 2016).555We only show results of single models, no ensembles. Following previous studies, we omit the entity class “Other” when computing the EC score. Note that the results are not comparable because of the different setups and different train-test splits.666Our results on EC in setup 1 are also not comparable since we only input named entities into our model.

Our results are best comparable with (Gupta et al., 2016) since we use the same setup and train-test splits. However, their model is more complicated with a lot of hand-crafted features and various iterations of modeling dependencies among entity and relation classes. In contrast, we only use pre-trained word embeddings and train our model end-to-end with only one iteration per entity pair. When we compare with their model without additional features (G et al. 2016 (2)), our model performs worse for EC but better for RE and comparable for Avg EC+RE.

Model S Feats EC RE EC+RE
R & Y 2007 1 yes 85.8 58.1 72.0
K & M 2010 1 yes 91.7 62.2 77.0
Ours (NN CRF) 1 no 92.1 65.3 78.7
Ours (NN CRF) 2 no 88.2 62.1 75.2
M & S 2014 3 yes 92.3 71.0 81.7
G et al. 2016 (1) 3 yes 92.4 69.9 81.2
G et al. 2016 (2) 3 no 88.8 58.3 73.6
Ours (NN CRF) 3 no 82.1 62.5 72.3
Table 2: Comparison to state of the art (S: setup)

4.4 Analysis of Entity Type Aggregation

As described in Section 4.2, we aggregate the EC results by majority vote. Now, we analyze their disagreement. For our best model, there are only 9 entities (0.12%) with disagreement in the test data. For those, the max, min and median disagreement with the majority label is 36%, 2%, and 8%, resp. Thus, the disagreement is negligibly small.

Figure 4: Most strongly correlated entity types and relations according to CRF transition matrix

4.5 Analysis of CRF Transition Matrix

To analyze the CRF layer, we extract which transitions have scores above 0.5. Figure 4 shows that the layer has learned correct correlations between entity types and relations.

5 Conclusion and Future Work

In this paper, we presented the first study on global normalization of neural networks for a sentence classification task without transforming it into a token-labeling problem. We trained a convolutional neural network with a linear-chain conditional random field output layer on joint entity and relation classification and showed that it outperformed using a locally normalized softmax layer.

An interesting future direction is the extension of the linear-chain CRF to jointly normalize all predictions for table filling in a single model pass. Furthermore, we plan to verify our results on other datasets in future work.

Acknowledgments

Heike Adel is a recipient of the Google European Doctoral Fellowship in Natural Language Processing and this research is supported by this fellowship. This work was also supported by DFG (SCHU 2246/4-2).

References

  • Andor et al. (2016) Daniel Andor, Chris Alberti, David Weiss, Aliaksei Severyn, Alessandro Presta, Kuzman Ganchev, Slav Petrov, and Michael Collins. 2016. Globally normalized transition-based neural networks. In Proceedings of the 54th Annual Meeting of the Association for Computational Linguistics (Volume 1: Long Papers), pages 2442–2452, Berlin, Germany. Association for Computational Linguistics.
  • Collobert et al. (2011) Ronan Collobert, Jason Weston, Léon Bottou, Michael Karlen, Koray Kavukcuoglu, and Pavel Kuksa. 2011. Natural language processing (almost) from scratch.

    Journal of Machine Learning Research

    , 12:2493–2537.
  • Culotta et al. (2006) Aron Culotta, Andrew McCallum, and Jonathan Betz. 2006. Integrating probabilistic extraction models and data mining to discover relations and patterns in text. In Proceedings of the Human Language Technology Conference of the NAACL, Main Conference, pages 296–303, New York City, USA. Association for Computational Linguistics.
  • Giuliano et al. (2007) Claudio Giuliano, Alberto Lavelli, and Lorenza Romano. 2007. Relation extraction and the influence of automatic named-entity recognition. ACM Trans. Speech Lang. Process., 5(1):2:1–2:26.
  • Gupta et al. (2016) Pankaj Gupta, Hinrich Schütze, and Bernt Andrassy. 2016. Table filling multi-task recurrent neural network for joint entity and relation extraction. In Proceedings of COLING 2016, the 26th International Conference on Computational Linguistics: Technical Papers, pages 2537–2547, Osaka, Japan. The COLING 2016 Organizing Committee.
  • Kate and Mooney (2010) Rohit J. Kate and Raymond Mooney. 2010. Joint entity and relation extraction using card-pyramid parsing. In Proceedings of the Fourteenth Conference on Computational Natural Language Learning, pages 203–212, Uppsala, Sweden. Association for Computational Linguistics.
  • Lafferty et al. (2001) John D. Lafferty, Andrew McCallum, and Fernando C. N. Pereira. 2001. Conditional random fields: Probabilistic models for segmenting and labeling sequence data. In Proceedings of the Eighteenth International Conference on Machine Learning, ICML ’01, pages 282–289, San Francisco, CA, USA. Morgan Kaufmann Publishers Inc.
  • Lample et al. (2016) Guillaume Lample, Miguel Ballesteros, Sandeep Subramanian, Kazuya Kawakami, and Chris Dyer. 2016. Neural architectures for named entity recognition. In Proceedings of the 2016 Conference of the North American Chapter of the Association for Computational Linguistics: Human Language Technologies, pages 260–270, San Diego, California. Association for Computational Linguistics.
  • Mikolov et al. (2013) Tomas Mikolov, Kai Chen, Greg Corrado, and Jeffrey Dean. 2013.

    Efficient estimation of word representations in vector space.

    In Proceedings of Workshop at 1st International Conference on Learning Representations (ICLR), Scottsdale, Arizona, USA.
  • Miwa and Sasaki (2014) Makoto Miwa and Yutaka Sasaki. 2014. Modeling joint entity and relation extraction with table representation. In Proceedings of the 2014 Conference on Empirical Methods in Natural Language Processing (EMNLP), pages 1858–1869, Doha, Qatar. Association for Computational Linguistics.
  • Peng and McCallum (2006) Fuchun Peng and Andrew McCallum. 2006. Information extraction from research papers using conditional random fields. Information processing & management, 42(4):963–979.
  • Roth and Yih (2007) D. Roth and W. Yih. 2007. Global inference for entity and relation identification via a linear programming formulation. In Introduction to Statistical Relational Learning. MIT Press.
  • Roth and Yih (2004) Dan Roth and Wen-tau Yih. 2004. A linear programming formulation for global inference in natural language tasks. In HLT-NAACL 2004 Workshop: Eighth Conference on Computational Natural Language Learning (CoNLL-2004), pages 1–8, Boston, Massachusetts, USA. Association for Computational Linguistics.
  • Sarawagi et al. (2004) Sunita Sarawagi, William W Cohen, et al. 2004. Semi-markov conditional random fields for information extraction. In Advances in Neural Information Processing Systems, volume 17, pages 1185–1192.
  • Sutton and McCallum (2006) Charles Sutton and Andrew McCallum. 2006. An introduction to conditional random fields for relational learning. Introduction to statistical relational learning, pages 93–128.
  • Vu et al. (2016) Ngoc Thang Vu, Heike Adel, Pankaj Gupta, and Hinrich Schütze. 2016. Combining recurrent and convolutional neural networks for relation classification. In Proceedings of the 2016 Conference of the North American Chapter of the Association for Computational Linguistics: Human Language Technologies, pages 534–539, San Diego, California. Association for Computational Linguistics.
  • Xu and Sarikaya (2013) Puyang Xu and Ruhi Sarikaya. 2013. Convolutional neural network based triangular crf for joint intent detection and slot filling. In 2013 IEEE Workshop on Automatic Speech Recognition and Understanding, pages 78–83, Olomouc, Czech Republic. IEEE.
  • Yaghoobzadeh et al. (2016) Yadollah Yaghoobzadeh, Heike Adel, and Hinrich Schütze. 2016. Noise mitigation for neural entity typing and relation extraction. In Proceedings of the 15th Conference of the European Chapter of the Association for Computational Linguistics, Valencia, Spain. Association for Computational Linguistics.
  • Yao et al. (2010) Limin Yao, Sebastian Riedel, and Andrew McCallum. 2010. Collective cross-document relation extraction without labelled data. In Proceedings of the 2010 Conference on Empirical Methods in Natural Language Processing, pages 1013–1023, Cambridge, MA. Association for Computational Linguistics.
  • Zhu et al. (2005) Jun Zhu, Zaiqing Nie, Ji-Rong Wen, Bo Zhang, and Wei-Ying Ma. 2005. 2d conditional random fields for web information extraction. In Proceedings of the 22nd international conference on Machine learning, pages 1044–1051. ACM.

Appendix A Dataset Statistics

Table 3 provides statistics of the data composition in our different setups which are described in the paper. The N class of setup 2 and setup 3 has been subsampled in the training and development set as described in the paper.

train dev test
Peop 1146 224 321
Org 596 189 198
Loc 1204 335 427
Other 427 110 125
O 20338 5261 6313
Located_in 243 66 94
Work_for 243 82 76
OrgBased_in 239 106 105
Live_in 342 79 100
Kill 203 18 47
N (setup 1) 10742 2614 3344
N (setup 2/3) 123453 30757 120716
Table 3: Dataset statistics for our different experimental setups

Note that the sum of numbers of relation labels is slightly different to the numbers reported in (Roth and Yih, 2004). According to their website https://cogcomp.cs.illinois.edu/page/resource_view/43, they have updated the corpus.

Appendix B Hyperparameters

Setup Output layer
1 softmax 500 100 100 50
2 softmax 500 100 100 50
3 softmax 500 100 100 50
1 CRF 200 50 100 50
2 CRF 500 100 200 50
3 CRF 500 100 100 50
Table 4: Hyperparameter optimization results

Table 4 provides the hyperparameters we optimized on dev (: number of convolutional filters for the CNN convolving the contexts, : number of convolutional filters for the CNN convolving the entities; : number of hidden units for creating the final context representation, : number of hidden units for creating the final entity representation).

For all models, we use a filter width of 3 for the context CNN and a filter width of 2 for the entity CNN (tuned in prior experiments and fixed for the optimization of the parameters in Table 4).

For training, we apply gradient descent with a batch size of 10 and an initial learning rate of 0.1. When the performance on dev decreases, we halve the learning rate. The model is trained with early stopping on dev, with a maximum number of 20 epochs. We apply L2 regularization with

.
