Exploiting Spatial Correlation in Convolutional Neural Networks for Activation Value Prediction

07/21/2018
by   Gil Shomron, et al.
0

Convolutional neural networks (CNNs) compute their output using weighted-sums of adjacent input elements. This method enables CNNs to achieve state-of-the-art results in a wide range of applications such as computer vision and speech recognition. However, it also comes with the cost of high computational intensity. In this paper we propose to exploit the spatial correlation inherent in CNNs, and use it for value prediction. We show that spatial correlation may be exploited to predict activation values, thus reducing the needed computations in the network. We demonstrate this method with a heuristic that predicts which activations are zero-valued according to nearby activation values, in a scheme we call cross-neuron prediction. Our prediction heuristic reduces the number of multiply-accumulate operations by an average of 40.8 degradation in top-5 accuracy of 2.9 ResNet-18, respectively.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 1

page 3

page 4

09/17/2019

Thanks for Nothing: Predicting Zero-Valued Activations with Lightweight Convolutional Neural Networks

Convolutional neural networks (CNNs) introduce state-of-the-art results ...
10/29/2019

LeanConvNets: Low-cost Yet Effective Convolutional Neural Networks

Convolutional Neural Networks (CNNs) have become indispensable for solvi...
03/19/2020

Spatially Adaptive Inference with Stochastic Feature Sampling and Interpolation

In the feature maps of CNNs, there commonly exists considerable spatial ...
12/11/2017

Multi-Mode Inference Engine for Convolutional Neural Networks

During the past few years, interest in convolutional neural networks (CN...
01/07/2020

Sparse Weight Activation Training

Training convolutional neural networks (CNNs) is time-consuming. Prior w...
10/04/2019

SNDCNN: Self-normalizing deep CNNs with scaled exponential linear units for speech recognition

Very deep CNNs achieve state-of-the-art results in both computer vision ...
12/16/2016

Delta Networks for Optimized Recurrent Network Computation

Many neural networks exhibit stability in their activation patterns over...
This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

The rapid improvements in the performance of general-purpose processors (GPPs) have slowed down due to the breakdown of Dennard scaling and the decline in Moore’s law. At the same time, demands for compute are growing, fueled by the recent progress in artificial intelligence and the ever-increasing amount of data that is gathered, stored, and processed. These trends are pushing new avenues of exploration in computer architectures. One such avenue is specialized hardware for machine learning, and specifically deep learning.

Convolutional neural networks (CNNs) are a widely used form of deep neural networks (DNN), introducing state-of-the-art results in different applications such as image classification, computer vision tasks, and speech recognition. However, CNNs are compute intensive: for example, classification of a single image from the ImageNet dataset [8] may require billions of multiply-accumulate (MAC) operations [13]. Furthermore, demands for larger input dimensions, or deeper models, will increase the number of MAC operations per input [5].

To ease the compute intensity of CNNs, we adopt a technique often applied in GPPs — prediction, and more specifically, value prediction. Value prediction has been studied extensively in the context of GPPs [6], [9]; it can be further explored in the context of CNNs, and, in general, DNNs. For example, in contrast to GPPs, values within DNNs are more predictable as they can be constrained to a certain range or quantized to a discrete space. In addition, with DNNs, validation of the prediction correctness is sometimes unnecessary, since DNNs produce approximate results “by design”.

We propose a value prediction method which exploits the spatial correlation of activations inherent in CNNs. We argue that neighboring activations in the CNN output feature maps (ofmaps) share close values (illustrated in Fig. 1). Therefore, some activation values may be predicted according to the values of adjacent activations. By predicting an ofmap activation, an entire convolution operation between the input feature map (ifmap) and the kernel may be saved. We also show that harnessing the learning capability of DNNs compensates for the accuracy degradation that is caused by additional hardware, in our case a value predictor.

Fig. 1:

Examples of AlexNet CONV3 output feature map values (after ReLU) for five arbitrary filter channels. Spatial correlation is evident. Black pixels are zeros.

This paper makes the following contributions:

  • We quantify the amount of spatial correlation of zero-valued ofmap activations in three modern CNNs.

  • We demonstrate prediction of zero-valued activations using a method that exploits the spatial correlation inherent in CNNs, quantify the achievable MAC operations savings, and measure the effect on the model accuracy.

  • We show how retraining the network with our predictor embedded in the feed-forward phase compensates for the degradation in accuracy and increases the predictor’s effectiveness.

2 Exploiting Spatial Correlation in CNNs

CNNs are inspired by the biological visual cortex, where cells are sensitive to specific and confined areas in the visual field, also known as the receptive field. CNNs are therefore a popular choice for applications that involve images, such as image classification and computer vision tasks, and even for speech recognition. It makes sense to process only a restricted area in the visual field, or in our context, the input image, since adjacent pixels within an image are naturally correlated (e.g., the sky is blue and the grass is green).

As the input image propagates through the CNN, features are extracted. Since CNNs are built from layers which operate in a sliding window fashion, it makes sense that adjacent activations will share close values per feature map, and in particular zero-valued activations. We quickly recap how convolution layers work.

2.1 Quick CNN Recap

CNNs are comprised of convolution (CONV) layers. The basic operation of a CONV layer is a multidimensional convolution between the ifmaps and the corresponding filters, to construct the ofmaps. Each CONV layer input comprises a set of ifmaps, each called a channel. Therefore, the ifmap dimensions are 3D (height, width, channels). A single filter is 3D as well (height, width, ifmap channels), and each convolution operation is performed between a single filter and the ifmap. However, a set of filters exists. The ifmap-filter convolution is repeated with each filter within the set. Each convolution yields a 2D ofmap, which is then stacked with the other convolutions to form a 3D ofmap (height, width, channels). The convolution process is illustrated in Fig. 2.

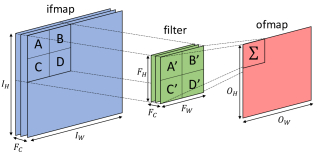

Fig. 2: Illustration of a single convolution with a single filter. This process is repeated for each filter. Eventually, the ofmap depth is equal to the number of filters.

A single ofmap activation requires MACs. We next describe how some of the convolutions may be avoided by exploiting spatial correlation.

2.2 Potential Performance Benefits

To understand the potential performance benefits of exploiting spatial correlation for value prediction, we should quantify the existing amount of spatial correlation. We measure the degree of spatial correlation of each channel of each CONV layer ofmap using a non-overlapping sliding window. If all ofmap activations within a certain window are equal, they are considered as spatially correlated. We found that strict equality of ofmap activations exists when they are equal to zero. This is a consequence of: (1) using the ReLU activation function that “squeezes” all negative values to zero and (2) using full-precision models, i.e., models in which floating-point representation is used for the activation values and may hold almost any number.

Spatial correlation is measured using varying window sizes from 2x2 to 5x5. Large windows filled with zeros indicate a high degree of spatial correlation, whereas small windows filled with non-zeros indicate a low degree of spatial correlation. A 1x1 window is used to measure the model sparsity.

We use three state-of-the-art models — AlexNet [3], VGG-16 [11], and ResNet-18 [2], and we use ILSVRC-2012 [8] as our dataset throughout this paper. Fig. 3 illustrates the averaged results of each model. From these measurements it is apparent that zero-valued activations are spatially correlated. For example, on average, 66% of the zero-valued activations are grouped in a 2x2 window (calculated as ), and 47% are grouped in a 3x3 window (). In addition, we also observe that the deeper layers exhibit more spatial correlation than the layers at the beginning of the model (due to space constraints we do not present a per layer spatial correlation breakdown).

Zero-valued activations may be adjacent to other zero-valued activations. We propose exploiting this characteristic to reduce the number of computations.

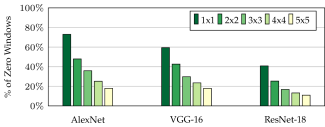

Fig. 3: Spatial correlation measurements of AlexNet, VGG-16, and ResNet-18.

2.3 Predicting Zero-Valued Activations

The spatial correlation characteristic of CNNs can be exploited in different ways. We exploit it to dynamically predict zero-valued ofmap activations, thereby saving MAC operations of entire ifmap-filter convolutions.

We propose a prediction method by which zero-valued activations are predicted according to nearby zero-valued activations. First, ofmaps are divided into square, non-overlapping prediction windows. The ofmaps are padded with zeros so predictions can also be made in the presence of margins. Next, the activations positioned diagonally in each window are calculated. If these activations are zero-valued, the remaining activations within that window are predicted to be zero-valued as well, thereby saving their MAC operations. Fig.

4 depicts this method.

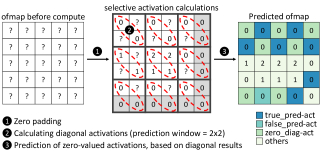

Fig. 4: Illustration of the prediction method. Predicted activation saves an entire ifmap-filter convolution.
