1 Introduction
Between 2011 and 2015, the number of selfreported data scientists more than doubled [15]. At the same time, machine learning has returned to the forefront of academia, business, and government as data scientists discover new applications for algorithms that automatically learn and create actionable insights from data. Owing to this growth, there has been a commensurate demand for offtheshelf tools that make machine learning more accessible, scalable, and flexible such that they can be applied across a wide variety of domains by nonexperts. Unfortunately, the effective application of many machine learning tools typically requires expert knowledge of the tool and the problem domain, knowledge of the assumptions involved in the analysis, and/or the use of exhaustive brute force techniques. Thus, harnessing many machine learning tools is often a costly endeavor—both in terms of time and computation.
For example, a typical data scientist will approach a machine learning problem as demonstrated in Figure 1
. Each step presents dozens of possible choices to make: How should the data be preprocessed (e.g., subset the features via feature selection? denoise the data with PCA?), what model should be used to fit the data (e.g., random forest? support vector machine?), what are the ideal model parameters for learning (e.g., how many trees in a random forest?), and so on. Experienced data scientists typically have a good sense for promising starting points in a given problem domain, but inexperienced data scientists can easily spend most of their time exploring myriad pipeline configurations before settling on the best one.
Theoretically, manual design of machine learning pipelines should no longer be necessary. In recent years, we have witnessed the development of intelligent systems in the field of evolutionary computation that consistently surprise us with their capabilities. From space antenna design
[9] to software development [7] and debugging [5] to the study of finite algebras [17], evolutionary algorithms have outperformed humans in a variety of domains that were previously considered exclusive to humans. If intelligent systems have been proven capable in so many domains, then we must ask ourselves: Can evolutionary algorithms automate the design of machine learning pipelines?
In this paper, we report on the most recent development of an evolutionary algorithm called the Treebased Pipeline Optimization Tool (TPOT) that automatically designs and optimizes machine learning pipelines [13]. TPOT uses a version of genetic programming [1] to automatically design and optimize a series of data transformations and machine learning models that maximize the classification accuracy for a given supervised learning data set. In the following sections, we demonstrate TPOT’s capabilities across a series of benchmarks, including simulated genetic analysis data sets and nine benchmark data sets from the wellknown UC Irvine Machine Learning Repository [12]. In particular, we show that TPOT is capable of discovering pipelines that achieve competitive performance by combining preexisting algorithms in novel ways. We also compare the standard version of TPOT to TPOTPareto, a version of TPOT with Pareto optimization, and show that simultaneously optimizing pipeline accuracy and pipeline complexity leads to effective and compact pipelines.
2 Related Work
Historically, machine learning automation research has primarily focused on optimizing subsets of the pipeline [10]. For example, grid search is the most commonlyused form of hyperparameter optimization that applies brute force search to explore a broad range of model parameters in order to discover the parameter set that allows for the best model fit. Recent research has shown that randomly evaluating parameter sets within the grid search often discovers the ideal parameter set more efficiently than exhaustive search [2], which shows promise for intelligent search in the hyperparameter space. Bayesian optimization of model hyperparameters, in particular, has been effective in this realm and has even outperformed manual hyperparameter tuning by expert practitioners [16].
Another focus of machine learning automation research has been feature construction. One recent example of automated feature construction is the “Data Science Machine,” which automatically constructs features from relational databases via deep feature synthesis
[11]. In their work, Kanter et al. demonstrated the crucial role of automated feature construction in machine learning pipelines by entering their Data Science Machine in three machine learning competitions and achieving expertlevel performance in all of them.More recently, Fuerer et al. developed a machine learning pipeline automation system called autosklearn [4], which uses Bayesian optimization to discover the ideal combination of feature preprocessors, models, and model hyperparameters to maximize classification accuracy. However, autosklearn explores a fixed set of pipelines that only include one data preprocessor, one feature preprocessor, and one model. Thus, autosklearn is incapable of producing arbitrarily large pipelines, which may be important for some machine learning analyses.
All of these findings point to one takeaway message: Intelligent systems are capable of automatically designing portions of machine learning pipelines, which can make machine learning more accessible and save practitioners considerable amounts of time by automating one of the most laborious parts of machine learning. As such, the work presented in this paper establishes a blueprint for future research on the automation of machine learning pipeline design.
3 Methods
In this section, we describe treebased pipeline optimization in detail, including the tools and concepts that underlie the Treebased Pipeline Optimization Tool (TPOT). We begin this section by listing the basic pipeline operators that are currently implemented in TPOT. Next we describe how the operators are combined together into a treebased pipeline, and then illustrate how treebased pipelines can be evolved via genetic programming. Finally, we end this section by providing an overview of the data sets that we use to evaluate TPOT.
3.1 Pipeline Operators
Here we list the four main types of pipeline operators that are currently implemented in TPOT. All pipeline operators make use of existing implementations in scikitlearn [14]. For further reading on these operators, refer to the scikitlearn online documentation and [8].
Preprocessors.
We implemented a standard scaling operator that uses the sample mean and variance to scale the features (StandardScaler), a robust scaling operator that uses the sample median and interquartile range to scale the features (RobustScaler), and an operator that generates interacting features via polynomial combinations of numerical features (PolynomialFeatures).
Decomposition.
We implemented RandomizedPCA, a variant of Principal Component Analysis that uses randomized SVD.
Feature Selection. We implemented a recursive feature elimination strategy (RFE), a strategy that selects the top features (SelectKBest), a strategy that selects the top percentile of features (SelectPercentile), and a strategy that removes features that do not meet a minimum variance threshold (VarianceThreshold).
Models. In this paper, we focus on supervised learning models. We implemented both individual and ensemble treebased models (DecisionTreeClassifier, RandomForestClassifier, and GradientBoostingClassifier), nonprobabilistic and probabilistic linear models (SVM and LogisticRegression), and nearest neighbors (KNeighborsClassifier).
3.2 Assembling Treebased Pipelines

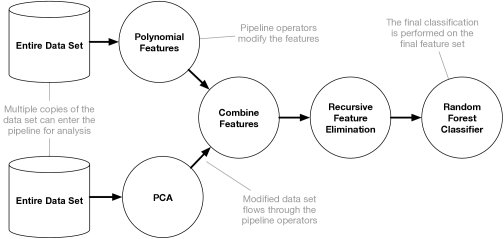

To combine all of these operators into a flexible pipeline structure, we implemented the pipelines as trees as shown in Figure 2, with the different operators being nodes in the tree. Every treebased pipeline begins with one or more copies of the input data set as the leaves of the tree, which is then fed into one of the four classes of pipeline operators: preprocessing, decomposition, feature selection, or modeling. As the data is passed up the tree, it is modified by that node’s operator. When there are multiple copies of the data set being processed, it is possible to combine them into a single data set via a data set combination operator.
Each time a data set is passed through a modeling operator, the resulting classifications are stored such that the most recent classifier to process the data overrides any previous predictions, and the earlier classifier’s predictions are stored as a new feature. Once the data set is fully processed by the pipeline (e.g., when the data set is passed through the Random Forest Classifier operator in Figure 2), the final predictions are used to evaluate the overall classification performance of the pipeline. In all cases, we divide the data into stratified 75% training and 25% testing sets, such that the pipeline will only make predictions on and therefore only be evaluated on the testing set. This treebased pipeline structure allows for arbitrary pipeline representations; for example, one pipeline could only apply operations in serial on a single copy of the data set, whereas another pipeline could just as easily work on several copies of the data set and combine them at the end before making a final classification.
3.3 Evolving Treebased Pipelines
GP Parameter  Value

Population size  100
Generations  100
Perindividual mutation rate  90%
Perindividual crossover rate  5%
TPOT selection  10% elitism,
rest 3way tournament
(2way parsimony)
TPOTPareto selection  5 copies of top 20%
according to NSGAII
Mutation  Point, insert, & shrink
1/3 chance of each
Unique replicate runs  30
To automatically generate and optimize these treebased pipelines, we use a wellknown evolutionary computation technique called genetic programming (GP) as implemented in the Python package DEAP [6]. Traditionally, GP builds trees of mathematical functions to optimize toward a given criteria. In TPOT, we use GP to evolve the sequence of pipeline operators as well as each operator’s parameters (e.g., the number of trees in a random forest or the number of feature pairs to select during feature selection) to maximize the classification accuracy of the pipeline. We follow a standard GP procedure with the settings described in Table 1, where changes to the pipeline can modify, remove, or insert new sequences of pipeline operators into the treebased pipeline.
In this paper, TPOT pipelines are evaluated based on their classification accuracy on the testing set. Here we also introduce an extension of TPOT, TPOTPareto, which uses Pareto optimization to optimize two separate objectives: maximizing the final classification accuracy of the pipeline as well as minimizing the pipeline’s overall complexity (i.e., total number of pipeline operators). Since there is not a globally optimal solution that maximally optimizes both criteria, we maintain a Pareto front in TPOTPareto and select the pipelines for reproduction according to the NSGAII selection strategy [3]
Through consecutive generations of evolution, TPOT’s GP algorithm will tinker with the pipelines—adding new pipeline operators that improve fitness and removing redundant or detrimental operators—in an intelligent, guided search for highperforming pipelines. At the end of every TPOT run, we use the single bestperforming pipeline ever discovered during the TPOT run (according to classification accuracy) as the representative pipeline.
3.4 GAMETES Simulated Data Sets
To evaluate TPOT, we adopt a diverse, complex simulation study design. We generate a total of 12 genetic models and 360 associated data sets using GAMETES [19], an open source software package designed to generate a diverse spectrum of pure, strict epistatic genetic models. GAMETES generates random, biallelic, nlocus single nucleotide polymorphism (SNP) models with “pure” epistasis, where all n loci, but no fewer, are predictive of disease status. We precisely generate these genetic models with specific heritabilities, SNP minor allele frequencies, and population prevalences.
In this paper, all data sets included 100 SNP attributes: 8 SNPs that are predictive of a binary case/control endpoint, and 92 SNPs that are randomly generated using an allele frequency between 0.05 and 0.5. The 8 predictive SNPs are simulated as four separate purely epistatic models, additively combined using the newlyadded “hierarchical” data simulation feature in GAMETES. In doing so, each separate interaction model additively contributes to the determination of the endpoint, but the overall data set does not include main effects, i.e., direct associations between single SNP variables and the endpoint.
We simulate twolocus epistatic genetic models with heritabilities of (0.1, 0.2, or 0.4) and attribute minor allele frequencies of 0.2 in GAMETES and select the model with median difficulty from all those generated [18]. From these models, we then generate data sets with a sample size of either 200, 400, 800, or 1600, within which each of the four underlying twolocus epistatic models carry an equal additive weight. For each model, we generate 30 replicate data sets, yielding a total of 360 data sets (i.e., 3 heritabilities * 4 sample sizes * 30 replicates). Together, this simulation study design allows us to evaluate TPOT across a broad range of data sets with varying difficulties and sample sizes to explore the limits of TPOT’s modeling capabilities.
3.5 UCI Benchmark Data Sets
To further demonstrate TPOT’s capabilities, we evaluate it on 9 handpicked benchmark supervised learning data sets from the wellknown UCIrvine Machine Learning Repository [12]. The purpose of these benchmarks is to demonstrate TPOT’s performance across a broad range of application domains and data set types, as TPOT is intended to be a generalpurpose supervised machine learning tool. For more information on these data sets, refer to their documentation at [12]. The benchmark data sets are:

HillValley: Two simulated data sets, with and without noise. Each record represents 100 points on a twodimensional graph, where the algorithm must classify the series as either a Hill (a “bump” in the terrain) or a Valley (a “dip” in the terrain).

breastcancerwisconsin: Data set containing continuous measurements from tumors. The algorithm must classify the tumor as benign or malignant.

carevaluation
: Simulated data set containing categorical variables about cars. The algorithm must assign one of four classes indicating the car’s acceptability for purchase.

glass: Data set containing continuous measurements from various types of glass. The algorithm must assign one of seven classes indicating the glass type.

ionosphere: Data set containing continuous measurements from highfrequency antennas. The algorithm must classify whether the signals are “good” or “bad.”

spambase: Data set containing word frequencies in emails. The algorithm must classify whether the emails are spam or not.

winequality: Two data sets for red and white wine containing continuous measurements from various wines. The algorithm must classify the wine quality on a scale from 0 to 10 (11 classes).
4 Results
In this section, we compare TPOT’s classification performance to that of two controls. The first control, RF, is a random forest with 500 decision trees, which is meant to represent a basic machine learning analysis with a stateoftheart model. The second control, TPOTRandom, is a version of TPOT where the same number of pipelines are randomly generated, which is meant to explore whether guided search is useful for pipeline optimization. In addition, we compare TPOT to TPOTPareto, which is a version of TPOT that uses Pareto optimization to discover highperforming pipelines with the smallest pipelines possible. In all cases, we divide the data sets into stratified 75% training and 25% holdout sets, where the performance reported here is the balanced accuracy on the holdout sets.

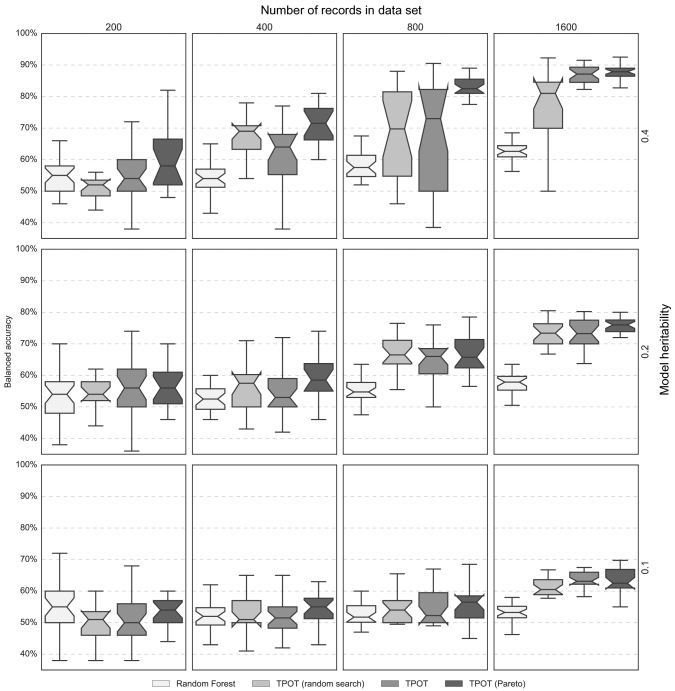

In Figure 3, we compare these four experiments across a range of GAMETES data sets. In general, we see that all of the experiments achieve higher classification accuracy with larger data sets and/or higher heritability (i.e., the less noise) in the genetic model, which is to be expected. Interestingly, even in the easiest case with sample size 1600 and a heritability of 0.4, RF is incapable of discovering the epistatic interactions between the features in the data set and achieves only 63% accuracy on average. In contrast, all versions of TPOT are capable of achieving 80%+ accuracy on the easiest GAMETES data sets, which indicates that they were able to discover the epistatic interactions in the data set using a combination of feature preprocessing and modeling. This finding demonstrates how TPOT adds value over a simple machine learning analysis with no feature preprocessing.
Furthermore, Figure 3 shows that, in most cases, all versions of TPOT perform moreorless the same on average on the GAMETES data sets. This result suggests that guided search may not be vital for the automated design of pipelines because random search generally performs as well as guided search. However, TPOTPareto tends to be much more consistent in discovering effective classification pipelines, as indicated by the lower variance in TPOTPareto’s accuracy distributions—especially in the GAMETES data sets with larger sample sizes and higher heritability.

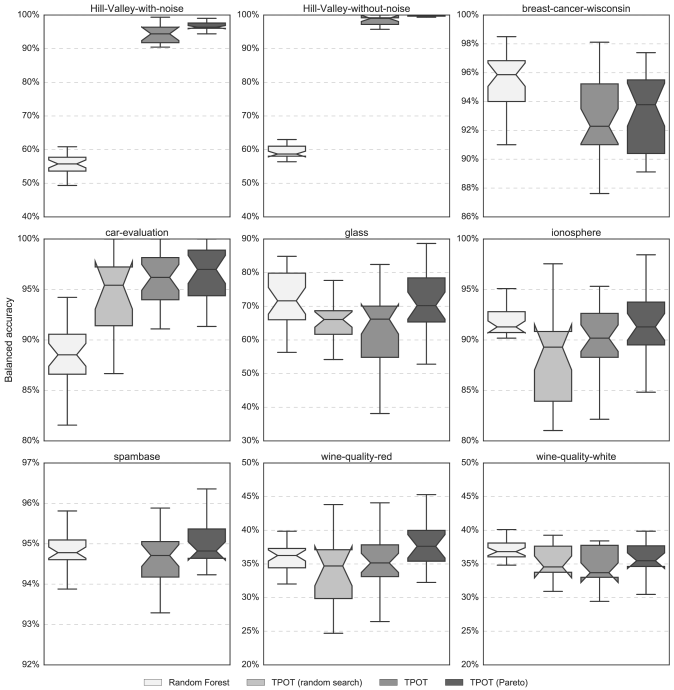

Figure 4 compares the four experiments on the series of UCI benchmark data sets. Again, TPOT achieves the same classification accuracy as RF across most of these data sets, and achieves significantly higher classification accuracy in the HillValley and carevaluation data sets. With the HillValleywithoutnoise data set in particular, TPOTPareto achieves 100% accuracy in all 30 replicates, which outperforms even the standard version of TPOT. This finding again demonstrates the value of automated pipeline design that intelligently explores many different ways of preprocessing the data prior to modeling it.
Similar to the GAMETES data set comparisons, Figure 4 also shows that TPOTRandom typically performs as well as the versions of TPOT with guided search. However, there are some major drawbacks to randomly generating TPOT pipelines that are presented here. For one, randomly generating TPOT pipelines tends to be much slower than optimizing pipelines via guided search because some of the random pipelines are needlessly complex and take several hours to evaluate. As an example of these massive randomly generated pipelines, none of the TPOTRandom replicates running on the HillValley and spambase data sets (the larger data sets) finished within 120 hours and had to be terminated prematurely. On the other hand, all TPOT and TPOTPareto replicates finished the same number of evaluations in less than 48 hours. Furthermore, even though TPOTRandom pipelines perform nearly as well as regular TPOT pipelines, TPOTRandom pipelines tend to be needlessly complex and contain 6 pipeline operators on average (Figure 5). In contrast, TPOT and TPOTPareto can achieve the same performance with 4 and 2 operators on average, respectively. Thus, even though all versions of TPOT usually achieve the same accuracy, TPOTPareto in particular discovers pipelines that are significantly more compact.
5 Discussion
In this paper we have shown that, in many cases, automated machine learning pipeline design and optimization can provide a significant improvement over a basic machine learning analysis while requiring little to no input nor prior knowledge from the user. However, it is important to note that the goal of automated pipeline design is not to replace data scientists nor machine learning practitioners. Rather, we aim for the treebased pipeline optimization tool (TPOT) to be a “Data Science Assistant” that explores the data, discovers novel features in the data, and recommends pipelines to the user. From there, the user is free to export the pipelines and integrate their domain knowledge as they see fit. To aid in this goal, we have released TPOT as an open source Python package that provides a flexible implementation of the concepts introduced in this paper. We encourage interested practitioners to involve themselves in the project on GitHub (http://github.com/rhiever/tpot).
One challenge raised in this paper is that TPOT with randomly generated pipelines consistently achieves the same accuracy as versions of TPOT with guided search (Figures 3 & 4). In practice, accuracy is not the only criteria by which a pipeline is evaluated. For one, the randomly generated pipelines tend to be slower than the pipelines generated through guided search, as shown by the inability for TPOTRandom to evaluate 10,000 pipelines (100 population size x 100 generations) within a 120hour period for several of the data sets (Figure 4). As a consequence, randomly generating pipelines will quickly become computationally infeasible as data sets grow beyond 2,000 records. Furthermore, due to the compactness of the TPOT and TPOTPareto pipelines (Figure 5), these pipelines are much easier for a user to interpret and apply in a production setting. Thus, guided evolutionary search plays a vital role in the automated design of machine learning pipelines that cannot be captured by random search.
Of course, TPOT is still in its early stages of development and there are still many improvements to be made. In particular, TPOT is still fairly slow on large data sets and often requires several hours (if not days) to properly analyze a large data set. In the near future, we plan to explore the use of autosklearn [4]
and other heuristics to seed the TPOT population with promising pipelines, which can “kick start” the TPOT population. Similarly, we plan to integrate a learning system into the genetic programming mutation and crossover operators to bias these operators toward changes that tend to improve fitness, with the goal of spending less time exploring detrimental changes. By doing so, we hope to enable TPOT to deliver effective pipelines in a speedier manner.
6 Conclusions
Treebased pipeline optimization is a new technique that shows significant promise for 1) making machine learning tools more accessible to nonexperts and 2) saving practitioners considerable amounts of time by automating the most tedious parts of machine learning. In this paper, we demonstrated that TPOT achieves a similar level of performance as a basic machine learning analysis across a wide variety of data sets without any input nor prior knowledge from the user. Furthermore, in several cases, TPOT was able to automatically discover combinations of preprocessing and modeling operators that significantly outperformed a basic machine learning analysis. Finally, by integrating Pareto optimization into TPOT, we demonstrated that TPOT can design compact, easytointerpret pipelines without sacrificing classification accuracy. As such, this work represents an important step toward fully automating machine learning pipeline design.
References
 [1] W. Banzhaf, P. Nordin, R. E. Keller, and F. D. Francone. Genetic Programming: An Introduction. Morgan Kaufmann, San Meateo, CA, 1998.
 [2] J. Bergstra and Y. Bengio. Random Search for HyperParameter Optimization. Journal of Machine Learning Research, 13:281–305, 2012.

[3]
K. Deb et al.
A fast and elitist multiobjective genetic algorithm: NSGAII.
IEEE Transactions on Evolutionary Computation, 6:182–197, 2002.  [4] M. Feurer et al. Efficient and robust automated machine learning. In Advances in Neural Information Processing Systems 28, pages 2944–2952. Curran Associates, Inc., 2015.
 [5] S. Forrest et al. A genetic programming approach to automated software repair. In Proceedings of the 11th Annual Conference on Genetic and Evolutionary Computation, GECCO ’09, pages 947–954, New York, NY, USA, 2009. ACM.
 [6] F.A. Fortin et al. DEAP: Evolutionary Algorithms Made Easy. Journal of Machine Learning Research, 13:2171–2175, 2012.
 [7] E. M. Fredericks and B. H. Cheng. Exploring automated software composition with genetic programming. In Proceedings of the 15th Annual Conference Companion on Genetic and Evolutionary Computation, GECCO ’13 Companion, pages 1733–1734, New York, NY, USA, 2013. ACM.
 [8] T. J. Hastie, R. J. Tibshirani, and J. H. Friedman. The Elements of Statistical Learning: Data Mining, Inference, and Prediction. Springer, New York, NY, USA, 2009.
 [9] G. S. Hornby et al. Computerautomated evolution of an Xband antenna for NASA’s Space Technology 5 mission. Evolutionary Computation, 19:1–23, 2011.
 [10] F. Hutter, J. Lücke, and L. SchmidtThieme. Beyond Manual Tuning of Hyperparameters. KI  Künstliche Intelligenz, 29:329–337, 2015.
 [11] J. M. Kanter and K. Veeramachaneni. Deep Feature Synthesis: Towards Automating Data Science Endeavors. In Proceedings of the International Conference on Data Science and Advance Analytics. IEEE, 2015.
 [12] M. Lichman. UCI machine learning repository, 2013.
 [13] R. S. Olson et al. Automating biomedical data science through treebased pipeline optimization. In Proceedings of the 18th European Conference on the Applications of Evolutionary and Bioinspired Computation, Lecture Notes in Computer Science, Berlin, Germany, 2016. SpringerVerlag.
 [14] F. Pedregosa et al. Scikitlearn: Machine learning in Python. Journal of Machine Learning Research, 12:2825–2830, 2011.
 [15] RJMetrics. The State of Data Science, Feb. 2016. https://rjmetrics.com/resources/reports/thestateofdatascience/.
 [16] J. Snoek, H. Larochelle, and R. P. Adams. Practical Bayesian Optimization of Machine Learning Algorithms. In Advances in Neural Information Processing Systems 25, pages 2951–2959. Curran Associates, Inc., 2012.
 [17] L. Spector et al. Genetic programming for finite algebras. In Proceedings of the 10th Annual Conference on Genetic and Evolutionary Computation, GECCO ’08, pages 1291–1298, New York, NY, USA, 2008. ACM.
 [18] R. J. Urbanowicz et al. GAMETES: a fast, direct algorithm for generating pure, strict, epistatic models with random architectures. BioData Mining, 5, 2012.
 [19] R. J. Urbanowicz et al. Predicting the difficulty of pure, strict, epistatic models: metrics for simulated model selection. BioData Mining, 5:1–13, 2012.
