Energy cost reduction in the synchronization of a pair of nonidentical coupled Hindmarsh-Rose neurons

04/17/2012
by   A. Moujahid, et al.
0

Many biological processes involve synchronization between nonequivalent systems, i.e, systems where the difference is limited to a rather small parameter mismatch. The maintenance of the synchronized regime in this cases is energetically costly 1. This work studies the energy implications of synchronization phenomena in a pair of structurally flexible coupled neurons that interact through electrical coupling. We show that the forced synchronization between two nonidentical neurons creates appropriate conditions for an efficient actuation of adaptive laws able to make the neurons structurally approach their behaviours in order to decrease the flow of energy required to maintain the synchronization regime.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 1

page 2

page 3

page 4

01/13/2012

Competition through selective inhibitory synchrony

Models of cortical neuronal circuits commonly depend on inhibitory feedb...
10/30/2002

Intelligence and Cooperative Search by Coupled Local Minimizers

We show how coupling of local optimization processes can lead to better ...
06/03/2021

Efficient ℤ_2 synchronization on ℤ^d under symmetry-preserving side information

We consider ℤ_2-synchronization on the Euclidean lattice. Every vertex o...
03/28/2021

Synchronization and Control for Multi-Weighted and Directed Complex Networks

The study of complex networks with multi-weights has been a hot topic re...
07/02/2020

Passive Quadrupedal Gait Synchronization for Extra Robotic Legs Using a Dynamically Coupled Double Rimless Wheel Model

The Extra Robotic Legs (XRL) system is a robotic augmentation worn by a ...
10/16/2018

Critical Neuromorphic Computing based on Explosive Synchronization

Synchronous oscillations in neuronal ensembles have been proposed to pro...
12/28/2016

An FFT-based Synchronization Approach to Recognize Human Behaviors using STN-LFP Signal

Classification of human behavior is key to developing closed-loop Deep B...
This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

When a given oscillator moves freely on its natural attractor its oscillatory regime consists of a balanced exchange of energy between the system and its environment that occurs spontaneously through the divergent components of the system’s structure without concurrence of any additional device. If, on the other hand, the system is forced to synchronize to a different guiding system its oscillatory regime occurs on an unnatural region of the state space where there is a nonzero net average exchange of energy with its environment. This net flow of energy per unit time requires the concurrence of a coupling device that includes an external source of energy. This flow of energy is necessary to maintain the synchronized regime and constitutes a cost for the synchronization process 1 . This consumption of energy can be reduced if the guided system itself adapts its structure to become closer to the one of the guiding system 3 . Ideally, if the systems become identical their joint dynamics is attracted toward a regime of zero error in the variables.

Many biological processes involve synchronization between different members of the same family of systems that have similar, although not identical, values of some distinctive parameters. This work studies the energy implications of synchronization phenomena in a pair of structurally flexible coupled neurons that interact through electrical coupling. We show that the forced synchronization between two nonidentical neurons creates appropriate conditions for an efficient actuation of adaptive laws able to make the neurons structurally approach each other in order to decrease the flow of energy required to maintain the synchronization regime. The neuron has been modelled by a four-dimensional Hindmarsh-Rose model 6 ; 7 ; 8 ; 9 ; 10 . This model is described by the following equations of movement:

(1)

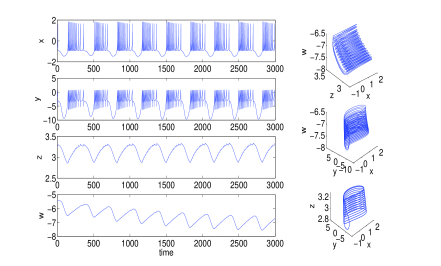

Figure 1: Time series and 3D projections of the dynamical variables , , , of the four-dimensional Hindmarsh-Rose neuron model

where , and are the parameters that govern the dynamics of the neural system. The variable is a voltage associated to the membrane potential, variable although in principle associated to a recovery current of fast ions has been transformed into a voltage, variable is a slow adaptation current associated to slow ions, and variable represents an even slower process than variable 11 . is a external current input, and is the main parameter we used to control the modes of spiking and bursting activity of the model. For the numerical results of this work we fix the parameters to the values , , , , , , , , , , , , , , .

Figure 1 shows a chaotic time series of the four variables. The complexity achieved by the incorporation of a slow variable that increases the realism of the description of slow Calcium currents can be observed in the projections of the attractor on the (), () and () axes.

In Sec. 2 we report the energy-like function associated to a four-dimensional Hindmarsh-Rose model. Sec. 3 briefly summarizes the adaptation mechanism we used to adapt the structure of the postsynaptic neuron, and presents computational results of the synchronization process of two electrically nonidentical coupled neurons. We consider that the presynaptic (sending) neuron always signal in a chaotic regime, while the postsynaptic (receiving) neuron is set to its quiescent state at a low value of its external current. In a first stage, the postsynaptic neuron has been forced to synchronize with the presynaptic one, then we initiate an adaptive process that adapts some parameters of the postsynaptic neuron to ones of the presynaptic neuron. We have analysed the energy dissipation of the receiving neuron during the synchronization process without and with structural adaptation.

2 Four-dimentional Hindmarsh-Rose model energy

In the Hindmarsh-model given by Eq. (1) the energy function is given by 2

(2)

where p is a parameter. As in the model time is dimensionless and every adding term in Eq.(2) has dimensions of square voltage, function H is dimensionally consistent with a physical energy as long as parameter p has dimensions of conductance. In this paper we fix parameter p to the arbitrary value . The minus sign has been chosen to make consistent the outcome of the model with the usual assumption of a demand of energy associated with the repolarization period of the membrane potential and also with its refractory period (see Fig. 2).

And the corresponding energy derivative is given by 2

(3)

is also dimensionally consistent with a dissipation of energy. As the states of an isolated Hindmarsh–Rose neuron are confined to an attractive manifold the range of possible values of its energy is recurrent and the long term average of its energy derivative is zero.

This energy and energy derivative functions are used to evaluate the energy consumption of the neuron in isolation and also when it is connected to other neurons through electrical synapses, and provide the basis for all the computational results presented in this work. The procedure followed to find this energy function has been reported in detail in

1 .

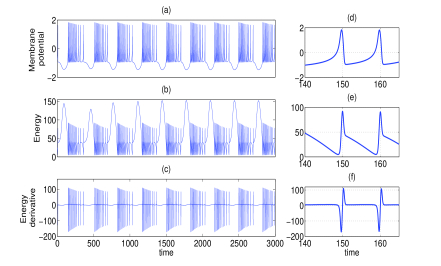

Figure 2: (a) Action potentials, (b) energy and (c) energy derivative for the Hindmarsh-Rose model neuron. (d), (e) and (f) Details of the action potential, energy and energy derivative associated to two spikes

Figure 2 (a) shows a series of action potentials (variable in the model neuron). Fig. 2(b) and Fig. 2(c) show both energy and energy derivative corresponding to that action potentials. Fig. 2(e) and Fig. 2(f) show detail of energy and energy derivative associated to a train of two action potentials. For each action potential it can be appreciated (see Fig. 2(e,f)) that the energy derivative is first negative, dissipation of energy while the membrane potential depolarizes during the rising period of the spike, and then positive, contribution of energy to repolarize the membrane potential during its descending period. During the refractory period between the two spikes the energy derivative remains slightly positive, still demanding energy, until the onset of the following action potential.

3 Synchronization energy of two electrically coupled neurons

In this section we analyze the energy aspects of the synchronization of two nonidentical neurons coupled by an electrical synapse. The presynaptic neuron is set in the chaotic spiking-bursting regime corresponding to an external current . While the postsynaptic neuron is set to its quiescent state at a low value of its external current. The two neurons are coupled unidirectionally according to the following equations:

(4)

where and is the coupling strength. are the indices for the neurons. Note that the coupling affects only the first variables of the postsynaptic neuron.

The coupling scheme given in Eq. 4 can be written in general terms as follows:

(5)

where and stand for the parameters of the presynaptic and postsynaptic neurons, and indicates the states of the postsynaptic neuron when the coupling strength is set to . Notice that is the coupling interface required in order to be physically able to implement the coupling of both neurons and .

If the coupling strength is large enough as to make the errors in the variables small, an operational law that adapts the parameters of the postsynaptic neuron to the ones of the presynaptic neuron is given by 3

(6)

where

denotes the vector of parameter errors, and the summation is over every component of the vector field

. The above law is general and can be used to find specific adaptive laws to any kind of homochaotic systems provided they are coupled through a feedback scheme of large enough coupling strength.

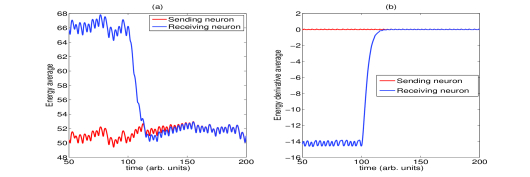

Figure 3: (a) Average over ten units of time of the energy per unit time. (b) Average over five units of time of the energy derivative per unit time. Adaptation of the external current begin at . The coupling strength is set to value

In the following we analyse the change in the balance of energy of the postsynaptic neuron when its external current parameter is governed by an adaptive law in order to reach the nominal value of the external current in the presynaptic neuron. The adaptation law has been implemented following Eq. 6. For this experiment, we have used a coupling strength with value . We started the adaptation procedure at and registered data between and for proper observation of the evolution of both energy and energy derivative during the process. The registrated values has been averaged over a convenient length of time in order to avoid large fluctuations. The dissipated energy (energy derivative) has been averaged over five units of time, while the proper energy has been averaged over ten units of time.

Figure 3 shows the average values of both energy and energy derivative per unit time. In Fig. 3 (a) we can see that in a first stage (), the receiving neuron is forced to synchronize with the sending neuron, and oscillates in an unnatural region of the state space characterized by an average energy of about 66 (arb. units), and a nonzero energy derivative average of about 14 (arb. units), ie, a nonzero net average exchange of energy with its environment (see Fig 3 (b)). After adaptation take place, the two neurons become structurally close each other, and enter in a completely synchronized regime of balanced exchange of energy between the system and its environment corresponding to zero value of energy derivative ().

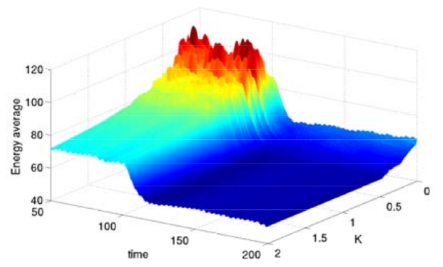

Figure 4: Average over five units of time of energy per unit time of the receiving neuron at different values of the coupling strength . Adaptation of the external current begin at

To illustrate the ability of this adaptive laws to decrease the energy dissipation, we have computed, for the receiving neuron, the average energy and average energy dissipation over a convenient length of time at different values of the coupling strength ranging from to . The adaptation run at time .

Figure 4 shows average over ten units of time of the energy per unit time at different values of the coupling strength ranging from to . It can be seen that before the adaptation occurs (), and for low value of the coupling strength not sufficient to induce a certain degree of synchrony, the receiving neuron shows a waving average energy pattern. This oscillating regime of energy average disappears once the adaptation process start, and decreases to low values. For high values of the coupling strength, the receiving neuron is forced to synchronize with the sending neuron and moves in a region of state space where the average of its energy is greater than that of the sending neuron. When the coupling strength is large enough as to make the errors in the variables small, and as soon as the adaptation process starts the average energy quickly decreases to values corresponding to the average energy of the sending neuron.

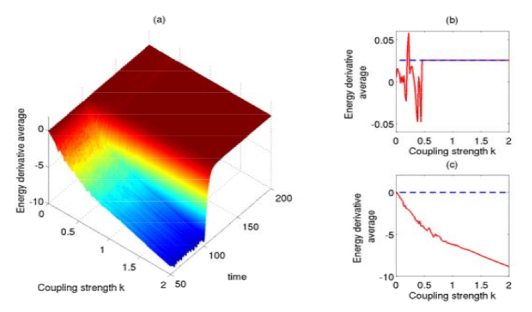

Figure 5: (a) Average over ten units of time of of energy derivative per unit time of the receiving neuron at different values of the coupling strength . (b) and (c) show respectively the average of energy derivative of the receiving neuron (solid line) and the sending neuron (dash line) as a function of the coupling strength with and without structural adaptation. Adaptation of the external current begin at .

Figure 5 shows average over five units of time of the energy derivative per unit time at different values of the coupling strength ranging from to . When , ie, no guidance at all, the receiving neuron moves on its natural region of state space and its averaged dissipated energy is zero. As soon as the coupling device is connected the average energy derivative per unit time becomes negative, that is, it start to dissipate on average an energy that the coupling device will have to provide in order to maintain the forced regime. The required energy increases with coupling strength as it can appreciated in Fig.5 (c). Once the adaptation process starts the average energy derivative quickly decreases to zero, reflecting the fact the receiving neuron has become structurally so close to the sending neuron that they can reach a regime of identical synchronization.

Bibliography

  • (1) Sarasola C., Torrealdea, F.J., d’Anjou, A., Moujahid, A., Graña, M.: Energy balance in feedback synchronization of chaotic systems. Phy. Rev. E 69, 011606 (2004)
  • (2) Torrealdea, F.J., Sarasola, C., d’Anjou, A., Moujahid, A., Vélez de Mendizábal, N.: Energy efficiency of information transmission by electrically coupled neurons. BioSystems 97, 60-71 (2009)
  • (3) Sarasola C., Torrealdea, F.J., d’Anjou, A., Moujahid, A., Graña, M.: Feedback synchronization of chaotic systems. Int. J. Bifurcation Chaos Appl. Sci. Eng. 13, 177-191 (2003)
  • (4) Kepler, T.B., Marder, E., Abbott, L.F.: The effect of electrical coupling on the frequency of model neuronal oscillators. Science 248, 83 (1990).
  • (5) Connors, B.W., Long, M.A.: Electrical synapses in the mammalian brain. Annu. Rev. Neurosci. 27, 393, (2004).
  • (6) Hindmarsh, J., Rose, R.: A model of neural bursting using three coupled first order differential equations. Proc. R. Soc. Lond., Ser. B221 87, (1984)
  • (7) Rose, R., Hindmarsh, J.: A model of thalamic neuron. Proc. R. Soc. Lond., Ser. B225, 161, (1985)
  • (8) Rose, R., Hindmarsh, J.: The assembly of ionic currents in a thalamic neuron. I. the the three dimensional model. Proc. R. Soc. Lond., Ser. B 237, 267-288, (1989a).
  • (9) Rose, R., Hindmarsh, J.: The assembly of ionic currents in a thalamic neuron. II. the stability and state diagrams. Proc. R. Soc. Lond., Ser. B 237, 289-312, (1989b).
  • (10) Rose, R., Hindmarsh, J.: The assembly of ionic currents in a thalamic neuron. III. the seven dimensional model. Proc. R. Soc. Lond., Ser. B 237, 313-334, (1989c).
  • (11) Pinto, R.D., Varona, P., Volkovskii, A., Szücs, A., Abarbanel, H.D., Rabinovich, M.: Synchronous behavior of two coupled electronic neurons. Phys. Rev. E 62, 2644, (2000).
