1 Introduction

Traffic sign recognition (TSR) is key to Advanced Driver Assistance Systems (ADAS) and Intelligent Transport Systems (ITS). Typically, given a road scene image, TSR automatically localizes and recognizes traffic signs in it, thereby reminding human drivers or helping ADAS make decisions. Many TSR methods have been proposed in recent years [Cireşan et al.(2011)Cireşan, Meier, Masci, and Schmidhuber, Cireşan et al.(2012)Cireşan, Meier, Masci, and Schmidhuber, Aghdam et al.(2016)Aghdam, Heravi, and Puig, Zhu et al.(2016a)Zhu, Zhang, Zhou, Wang, Bai, and Liu, Yang et al.(2016)Yang, Luo, Xu, and Wu, Wang et al.(2017)Wang, Hou, Xu, Yue, and Liu], and validated on some public traffic sign recognition benchmarks [Stallkamp et al.(2012)Stallkamp, Schlipsing, Salmen, and Igel, Stallkamp et al.(2011)Stallkamp, Schlipsing, Salmen, and Igel, Larsson and Felsberg(2011)].

However, there are still many challenging problems for real-world applications. First, road scenes are extremely complicated, because of varying illumination, color deterioration of traffic signs, and the existence of decorations looking similar to traffic signs. In this situation, it is hard for TSR to obtain a high recall rate while producing few false positives during detection. Second, unlike lab environments, automobiles have limited memory and computing capacity. Thus, the computational complexity of TSR should be low and its required memory resources should be small. Third, the scales of traffic signs captured by moving vehicles vary in a large range. Traffic signs, especially small ones, are easily missed by current TSR systems.

In this paper, we propose a scale-aware Traffic Sign Recognition framework (scale-aware TSR for short), which deals the above problems well. The overview of the proposed framework is illustrated in Figure 1

. It consists of two Convolutional Neural Networks (CNNs), a proposal (class-agnostic detection) network to find possible regions of traffic signs and a classification network for classifying each region proposal. The proposal network adopts a dual multi-scale structure. Given an image, a rough image pyramid is constructed beforehand and fed into the network. Inside of the network, there are two output branches, one from a lower layer for small-scale objects and the other from the last layer for large-scale objects. The results of the dual multi-scale proposal network are aggregated and sent to the classification network. The classification network is designed to be lightweight and capable of fusing multi-scale features.

Our major contributions are as follows: (1) A traffic sign recognition framework named scale-aware TSR is proposed. It beats state-of-the-art methods and achieves precision and average recall rate on Swedish Traffic Signs Dataset (STSD) [Larsson and Felsberg(2011)]; (2) Within the framework, we elaborately design a Fully Convolution Network (FCN) with an efficient dual multi-scale structure for region proposals. The network is experimentally verified to be scale-aware, thereby capable of localizing targets of wide-range scales; (3) Moreover, a lightweight classification sub-network with multi-scale feature fusion structure and "Inception" module [Szegedy et al.(2015)Szegedy, Liu, Jia, Sermanet, Reed, Anguelov, Erhan, Vanhoucke, and Rabinovich] is presented and validated.

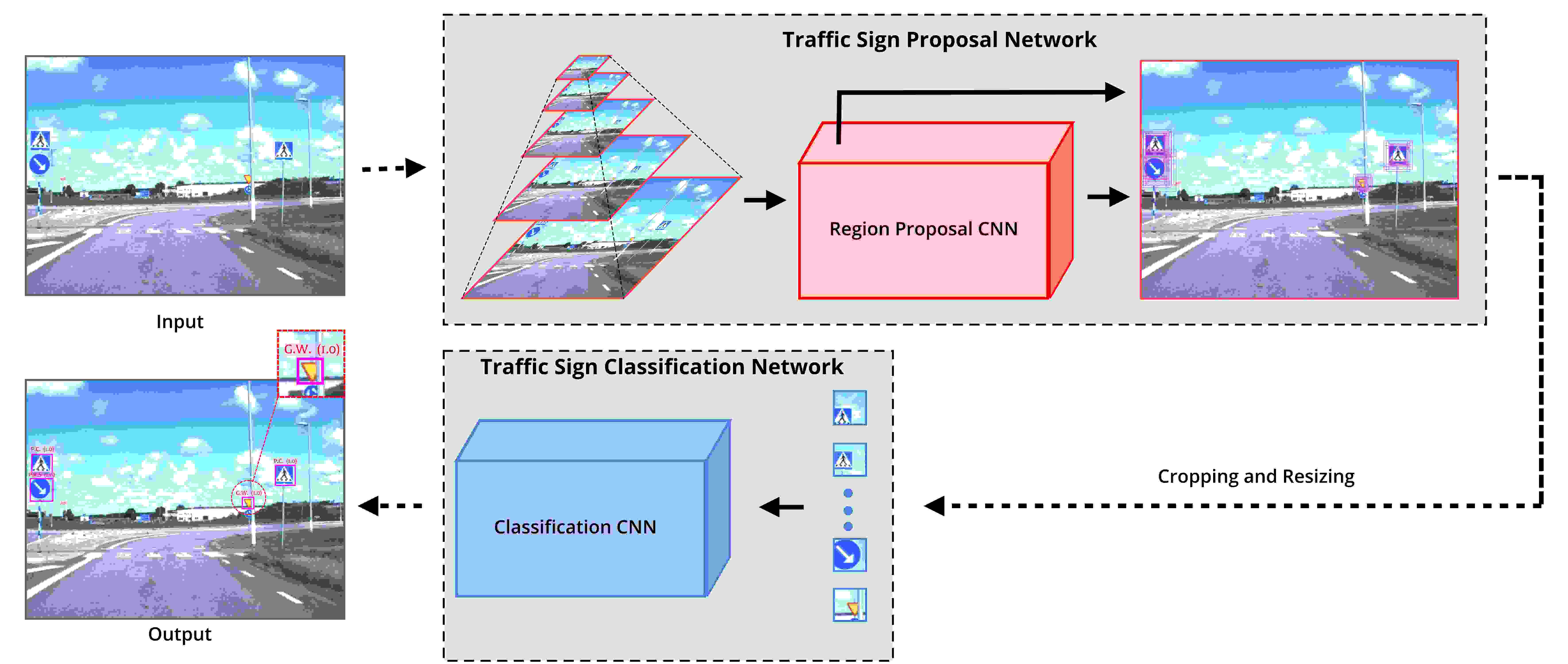

Figure 1: Overview of the proposed scale-aware TSR system.

2 Related Work

In traditional paradigm, TSR is usually carried out as two separate sub-tasks: class-agnostic detection and class-specific classification. They are validated on separate datasets, e.g. the German Traffic Sign Detection Benchmark (GTSDB) [Stallkamp et al.(2012)Stallkamp, Schlipsing, Salmen, and Igel] for detection and the German Traffic Sign Recognition Benchmark (GTSRB) [Stallkamp et al.(2011)Stallkamp, Schlipsing, Salmen, and Igel] for classification.

In the task of traffic sign detection, most state-of-the-art methods [Wang et al.(2013)Wang, Ren, Wu, Zhao, and Jiang, Liang et al.(2013b)Liang, Yuan, Hu, Li, and Liu, Stallkamp et al.(2012)Stallkamp, Schlipsing, Salmen, and Igel] adopted a general pipeline where a "sliding window" is firstly employed, followed by a hand-crafted feature extractor such as HOG [Dalal and Triggs(2005)] or Hough [Duda and Hart(1972)], and a classifier (SVM [Chang and Lin(2011)]

or Random Forests

[Breiman(2001)]). As the sliding window scheme involves exhaustive search, these methods are too time-consuming to be deployed in real-world scenarios. To tackle this issue, several Regions of Interest (ROIs) based methods [Liang et al.(2013a)Liang, Yuan, Hu, Li, and Liu, Salti et al.(2013)Salti, Petrelli, Tombari, Fioraio, and Di Stefano, Yang et al.(2016)Yang, Luo, Xu, and Wu] were proposed to replace the exhaustive search and gain acceleration. In particular, [Yang et al.(2016)Yang, Luo, Xu, and Wu]

proposed a color probability model to estimate a probability map from an input image. Based on the probability map, a Maximally Stable Extremal Regions (MSERs) detector is applied to extract traffic sign ROI proposals. This method costs only 67

per image in GTSDB test dataset. These hand-crafted detectors might not have a promising recall rate when they are applied in new scenes. Most recently, Aghdam et al[Aghdam et al.(2016)Aghdam, Heravi, and Puig] combined sliding window, feature extractors and classifiers into an end-to-end CNN architecture, which gains improvement on both accuracy and speed. Note that our traffic sign proposal network is partly motivated by this approach.

In the traffic sign classification task, most current methods are based on the assumption that all possible traffic signs have already been detected successfully and their locations are accurate. Before CNNs started to lead state-of-the-art performance, various traditional hand-engineered features along with shallow classifiers were exploited for traffic sign classification, such as pixel-level features + SVM  [Maldonado-Bascon et al.(2007)Maldonado-Bascon, Lafuente-Arroyo, Gil-Jimenez, Gomez-Moreno, and López-Ferreras] and HOG + Random Forests [Zaklouta et al.(2011)Zaklouta, Stanciulescu, and Hamdoun]. Recently, [Stallkamp et al.(2011)Stallkamp, Schlipsing, Salmen, and Igel] and [Stallkamp et al.(2012)Stallkamp, Schlipsing, Salmen, and Igel] showed that CNN-based methods achieved better-than-human classification rate. In [Cireşan et al.(2011)Cireşan, Meier, Masci, and Schmidhuber, Cireşan et al.(2012)Cireşan, Meier, Masci, and Schmidhuber]

, a committee of CNNs was proposed, where a CNN and a Multi-Layer Perceptron (MLP) are combined together and trained on raw pixel intensities. They obtained a high recognition rate up to

on GTSRB. Furthermore, [Jin et al.(2014)Jin, Fu, and Zhang]

proposed a hinge loss stochastic gradient descent method to train CNNs and achieved

recognition rate on GTSRB. To balance the accuracy and computational efficiency, a small scale CNN was proposed in [Zhu et al.(2016a)Zhu, Zhang, Zhou, Wang, Bai, and Liu]. It adopted bootstrapping training to enhance its discriminative ability. [Haloi(2015)] improved the performance on GTSRB to with the combination of the insight from the inception module [Szegedy et al.(2015)Szegedy, Liu, Jia, Sermanet, Reed, Anguelov, Erhan, Vanhoucke, and Rabinovich]

and the spatial transformer networks

[Jaderberg et al.(2015)Jaderberg, Simonyan, Zisserman, et al.]. However, these approaches are not lightweight enough for hardware equipment mounted on vehicles. In addition, as mentioned earlier, these methods are tested on already perfectly detected traffic signs. We consider traffic sign class-agnostic detection and classification together for practical applications.

We also researched methods dealing with detection and classification simultaneously, most of which target at generic objects. The most popular framework among them is R-CNN [Girshick et al.(2014)Girshick, Donahue, Darrell, and Malik]. It uses a pre-trained CNN to extract features from box proposals generated by selective search [Uijlings et al.(2013)Uijlings, Van De Sande, Gevers, and Smeulders], and then class-specific linear SVMs for classification. The significant advantage of this work is the replacement of hand-engineered features with CNN extracted ones. Meanwhile, some variants of R-CNN were proposed to decrease the running time of R-CNN [He et al.(2014)He, Zhang, Ren, and Sun, Girshick(2015), Ren et al.(2015)Ren, He, Girshick, and Sun]. It is worth noting that Faster R-CNN [Ren et al.(2015)Ren, He, Girshick, and Sun] amended the multi-stage task in R-CNN into an end-to-end detection system which consists of a Region proposal network (RPN) as well as a CNN for classification and bounding box regression. Most recently, some TSR works gained insights from generic object detection and developed end-to-end systems. For example, motivated by OverFeat [Sermanet et al.(2013)Sermanet, Eigen, Zhang, Mathieu, Fergus, and LeCun], Zhu et al[Zhu et al.(2016b)Zhu, Liang, Zhang, Huang, Li, and Hu] proposed an FCN that can detect and classify traffic signs simultaneously. [Zhu et al.(2016a)Zhu, Zhang, Zhou, Wang, Bai, and Liu] used FCN [Long et al.(2015)Long, Shelhamer, and Darrell] and EdgeBoxes [Zitnick and Dollár(2014)] to generate region proposals of traffic signs in a coarse-to-fine manner, and then a small size CNN to classify these proposals. This method was evaluated on STSD which is designed for testing the performance on entire TSR systems. We treat this method [Zhu et al.(2016a)Zhu, Zhang, Zhou, Wang, Bai, and Liu] as our baseline and also evaluate our method on STSD.

3 Methodology

In the following, we describe the two parts in the proposed TSR system (shown in Figure 1), region proposal network and classification network, respectively.

Figure 2: Flowchart and architecture of the proposed DMS-net

3.1 Proposal Network

A dual multi-scale network (DMS-net) is designed for region proposals of traffic signs. Figure 2 illustrates the flowchart and architecture of the DMS-net. Initially, a pyramid with multi-scale images is constructed based on a raw image. The multi-scale pyramid is forwarded through a hierarchical convolutional network layer by layer. For each layer of the image pyramid, the network produces multi-scale probability maps, in which a value represents the probability of its corresponding region in the input image being a part of a traffic sign. The dual multi-scale probability maps are aggregated to determine traffic sign proposals in the form of bounding boxes in the raw image.

Dual Multi-scale Network: Localizing objects in different scales is essential for an outstanding object detector in real-world applications. There are two main strategies to achieve this goal. The first is to train a detector with objects of various scales so that it can localize objects of different sizes in testing images [Felzenszwalb et al.(2008)Felzenszwalb, McAllester, and Ramanan]. An alternative approach is to construct a hierarchical structure inside of the detector. Through the structure, the detector draws features of multiple scales to help make decisions. Several state-of-the-art detection methods adopted this strategy, such as MSCNN [Cai et al.(2016)Cai, Fan, Feris, and Vasconcelos]. In the proposed DMS-net, we combine these two strategies together in the framework of CNN in an efficient way.

As seen in Figure 2, the DMS-net consists of two multi-scale structures, a rough image pyramid (5 scales in our experiments) and a hierarchical network with two output branches. In this way, our DMS-net can detect traffic signs at 10 different scales () in total with high computation efficiency.

Architecture:

The DMS-net adopts an FCN structure which can take an image of arbitrary size as input. This makes our method possible to deal with image pyramid. The network primarily includes a "backbone" stream and two "branches". To be specific, there are two convolution layers in the "backbone". The first one is followed by a Relu

[Nair and Hinton(2010)]activation function, and the second one is similar except being preceded by a max pooling layer. The two branches have the same structure with a minor difference in configuration. The structure includes a max pooling layer, a dilated convolution layer [Yu and Koltun(2015)] with the Relu, as well as a

convolution layer and softmax layer for probability maps. Note that the first branch is out from the first layer of the backbone and the second comes from the end of the backbone. The detailed configurations of our DMS-net are given in Table

1.

Proposal Network (DMS-net)
Module Name Backbone Branch #1 Branch #2
Layer Conv1 Conv2 Conv1_1 Conv1_2 Conv2_1 Conv2_2
Details
C(60, 9, 9)
st.1, Relu
P(2, 2)
C(120, 5, 5)
st.1, Relu
P(6, 2)
C(300, 2, 2)
dilation 3
st.1, Relu
C(2, 1, 1)
st.1
P(4, 2)
C(300, 3, 3)
dilation 2
st.1, Relu
C(2, 1, 1)
st.1
Classification Network (fusion-net)
Module Name Basic Layers Multi-Scale Features Fusion Module Inception Module Classifier Layers
Layer Conv1 Conv2 Conv3_1 Conv3_2 Conv3_3 #1*1 #3*3 Reduce #3*3 #5*5 reduce #5*5 pool project Avg Pool FC
Details
C(100,5,5)

st. 1, pad 2

Relu
P(2,2)
C(150,3,3)
st. 1, pad 1
Relu
P(2,2)
C(250,3,3)
st. 1, pad 1
Relu
P(2,2)
C(250,3,3)
st. 1, pad 1
Relu
P(2, 2)
C(250,3,3)
st. 1, pad 1
Relu
P(2, 2)
C(64,1,1)
st. 1, pad 1
Relu
C(32,1,1)
st. 1, pad 1
Relu
C(32,3,3)
st. 1, pad 1
Relu
C(16,1,1)
st. 1, pad 1
Relu
C(32,5,5)
st. 1, pad 1
Relu
P(3,1)
C(96,1,1)
st. 1, pad 1
Relu
Ave_P(5,1) FC 11
Table 1:

The detailed settings of our DMS-net (top) and fusion-net(bottom). In the details cell, "C (number,size,size)" denotes the number of convolution filters and their local receptive size; "st." and "pad" indicate the convolution stride and spatial padding, respectively. "P" indicates average pooling with kernel size and stride.

Dense Prediction: Another reason to use the FCN structure is its ability to make dense predictions for per-pixel tasks like semantic segmentation [Long et al.(2015)Long, Shelhamer, and Darrell]. Unlike semantic segmentation [Yu and Koltun(2015), Long et al.(2015)Long, Shelhamer, and Darrell] where each output pixel is a classifier of its path-connected one in the input image, each value in our probability maps represents the probability of its corresponding receptive field in the input image as parts of traffic signs. In this way, we can generate region proposals with the FCN structure. This idea is mainly motivated by the works in [Aghdam et al.(2016)Aghdam, Heravi, and Puig, Yu and Koltun(2015)].

We take the first branch in Figure 2 and its output as an example to explain the correspondences between probability maps and receptive fields in the input image. Given an image patch of pixels, the first convolution layer with kernels of size generates feature maps. In these feature maps, each value has a receptive field in the original image. Then, after the max pooling layer in the first branch with kernels of size and stride of 2, the feature maps become with a receptive field of size . Note that the first convolution layer in the branch is dilated convolution. The dilated convolution has been proved to support exponentially expanding receptive fields without losing resolution or coverage [Aghdam et al.(2016)Aghdam, Heravi, and Puig, Yu and Koltun(2015)]. For more details about dilated convolution, please refer to [Yu and Koltun(2015)]. In this way, the dilated convolution layer with kernels of size and dilation factor of 3 will produce only one value which has a receptive field of the whole image patch (). The last convolution layer and softmax producing probability maps will not affect the receptive field. Therefore, for an arbitrary scale image, each value in the probability maps of the first branch corresponds to a region of size pixels in the image.

Since there is an additional convolution layer and max pooling layer, the second branch has a larger receptive field. By projecting the multi-scale probability maps into the pyramid images and aggregating them, we obtain dense multi-scale bounding boxes. Note that in our DMS-net, we ignore the bounding boxes with irregular aspect ratios and only keep the square ones. This is because of the observation that most traffic signs stay within square regions.

Training: In order to train the DMS-net, we transform the original ground truth (bounding box style) into spatial probability maps by scanning each image with a square window. If the square window has an intersection-over-union (IoU) with traffic signs higher than 0.7 threshold, we assign (positive) to the objective probability map. If the IoU is lower than , we assign (negative) to the probability map. Otherwise, we assign a special value, which will be ignored in loss calculation. The size of the scanning window depends on the receptive fields of the specific branches. For each image, we generate 10 ground truth maps with different scales in all. In order to provide a sufficient data to train our network, we adopt several data augmentation tricks including contrast adjustments, random blur, and lighting adjustments. Note that unlike the common patch-level training paradigm in pixel-to-pixel tasks [Hariharan et al.(2014)Hariharan, Arbeláez, Girshick, and Malik, Pinheiro and Collobert(2014)]

, we input the whole images for training efficiently. Because the ratio of negative/positive in the ground truth maps is extremely high, the overall loss will be too small to be backpropagated if we sum over pixel-wise losses in the probability maps. To solve this issue, we adopt the modified Online Hard Example Mining (OHEM)

[Shrivastava et al.(2016)Shrivastava, Gupta, and Girshick] in the training stage to suppress false positives. To be specific, we calculate the pixel-wise loss on all the positions of probability maps. Then we sort the positions by their loss values and select top N positions (

in our experiments). Only the top N selected positions participate in the back-propagation process. This technique guarantees that our DMS-net converges fast and generates few false positives. We train the two branches in our network in a multi-stage way. Specifically, only one branch is trained while the other branch is frozen in each iteration. For training, we use same standard cross-entropy loss function for each branch with Stochastic Gradient Descent(SGD). The layers are initialized from a Gaussian distribution with zero mean and

variance. Other hyper-parameters are momentum ; weight decay ; batch size ; initial learning rate , which is decreased by a factor of after iterations. We trained the model for iterations in our experiments.

3.2 Classification Network

After the region proposals are extracted, we use a classification network, called fusion-net, to differentiate traffic signs of different classes and background. The fusion-net comprises two basic components, a multi-scale feature fusion module and an "Inception" module [Szegedy et al.(2015)Szegedy, Liu, Jia, Sermanet, Reed, Anguelov, Erhan, Vanhoucke, and Rabinovich], followed by an average pooling layer and a fully connected layer. The input image size is . The details about our fusion-net are listed in Table 1.

Multi-Scale Features Fusion Module: Fusing features from different layers in a CNN is proved to be effective in improving accuracy in many tasks [Long et al.(2015)Long, Shelhamer, and Darrell, Sermanet and LeCun(2011), Kong et al.(2016)Kong, Yao, Chen, and Sun, Bell et al.(2016)Bell, Lawrence Zitnick, Bala, and Girshick]. Features from different layers have different receptive fields and semantic clues, thereby helping our classification network differentiate fine-grain classes, e.g different speed signs. Our multi-scale feature fusion module has three unified convolution layers. The output of each layer is branched out and then concatenated together.

Inception Module and Average Pooling: The "Inception" module [Szegedy et al.(2015)Szegedy, Liu, Jia, Sermanet, Reed, Anguelov, Erhan, Vanhoucke, and Rabinovich]

performs multi-size convolution at the same time. All the results are then concatenated. This allows the model to take advantage of multi-level feature extraction from the same input with less time consumption and parameters. For more details about the "Inception" module, please refer to Table

1 and [Szegedy et al.(2015)Szegedy, Liu, Jia, Sermanet, Reed, Anguelov, Erhan, Vanhoucke, and Rabinovich]. After the "Inception" module, we perform a global average pooling operation as a bridge to connect later with a fully connected layer. This can dramatically help fusion-net reduce overall parameters and prevent over-fitting.

Training: The fusion-net is not trained with DMS-net in an end-to-end manner. Similar to the method in [Zhu et al.(2016a)Zhu, Zhang, Zhou, Wang, Bai, and Liu], we adopt bootstrapping to mine hard negative for training our fusion-net. Instead of sampling training data from the region proposal results, we randomly crop square regions, which have IoU with the traffic signs higher than 0.6 on the raw training images, as positive training data. Regions with the IoU lower than 0.5 are treated as negative training data. After the convergence of the network training, we use the model to find the wrongly classified samples and add them to the training set to further optimize the network. Most of the hyper-parameters are the same with those in training the proposal network, except that the batch size is 128, the learning rate is decreased by a factor of 5 after 20k iterations and the training ends after 100k iterations.

Post Processing: In the testing stage, we feed the bounding boxes generated by the DMS-net to the fusion-net. Then we perform non-maximum suppression over all the region proposals according to their classification scores. Finally, we adopt the bounding boxes voting trick [Gidaris and Komodakis(2015)] to further boost the location accuracy.

4 Experiments

The proposed scale-aware TSR system is implemented in the framework of Caffe

[Jia et al.(2014)Jia, Shelhamer, Donahue, Karayev, Long, Girshick, Guadarrama, and Darrell], and run on a machine with a 4-core CPU@2.7GHz, 16G RAM, and a NVIDIA K40 GPU. We evaluate our method on STSD [Larsson and Felsberg(2011)], which consists of more than 2,000 annotated images. We follow the experimental configurations in [Zhu et al.(2016a)Zhu, Zhang, Zhou, Wang, Bai, and Liu] to split the training and testing data.

4.1 Evaluation on Standard STSD Benchmark

We compare our system with state-of-the-art methods [Larsson and Felsberg(2011), Zhu et al.(2016a)Zhu, Zhang, Zhou, Wang, Bai, and Liu, Ren et al.(2015)Ren, He, Girshick, and Sun, Girshick et al.(2014)Girshick, Donahue, Darrell, and Malik, Chen and Lu(2016)] based on the standard evaluation benchmark proposed in [Larsson and Felsberg(2011)], where only traffic signs labeled as ’visible’ and larger than

are considered. The performances of the methods are measured by precision and recall separately, where results having IoU with ground truth higher than 0.5 are treated as true positive.


Sign name
FDs[Larsson and Felsberg(2011)] Adaboost+SVR[Chen and Lu(2016)] R-CNN[Girshick et al.(2014)Girshick, Donahue, Darrell, and Malik] Faster R-CNN[Ren et al.(2015)Ren, He, Girshick, and Sun] FCN+EdgeBoxes[Zhu et al.(2016a)Zhu, Zhang, Zhou, Wang, Bai, and Liu] scale-aware TSR (ours)
Prec.() Rec.() Prec.() Rec.() Prec.() Rec.() Prec.() Rec.() Prec.() Rec.() Prec.() Rec.()
PEDESTRAIN CROSSING 96.03 91.77 98.52 93.45 87.9 87.2 94.21 97.44 100 95.20 100 99.15
PASS RIGHT SIDE 100 95.33 100 97.53 93.8 93.8 94.44 96.23 95.3 93.8 100 100
NO STOPPING NO STANDING 97.14 77.27 99.20 81.46 66.8 71.7 85.71 54.55 100 75.0 100 100
50 SIGN 100 76.12 100 80.56 100 100 100 100 100 100 100 100
PRIORITY ROAD 98.66 47.76 97.89 79.68 95.7 97.8 96.51 98.81 100 98.9 98.77 95.24
GIVE WAY 59.26 47.76 71.50 52.39 79.4 90 100 85.71 96.7 96.7 100 96.43
70 SIGN - - - - 92.6 86.2 100 100 100 100 100 100
80 SIGN - - - - 100 77.3 100 100 94.4 77.3 100 95.24
100 SIGN - - - - 100 100 100 73.68 90.5 100 100 94.74
NO PARKING - - - - 96.3 68.4 100 76.47 100 92.1 100 85.29
Average (the first 6 classes) 91.84 77.08 94.52 80.85 90.08 87.27 95.15 88.79 98.67 93.27 99.79 98.47
Average (all) - - - - 91.25 87.24 97.09 88.29 97.69 92.90 99.88 96.61

Table 2: Accuracy comparison on STSD based on standard evaluation benchmark

Methods
Region Proposal Classification Overall Accuracy
Time(s/img) Parameters(million) Time(s/img) Parameters(million) Time(s/img) Parameters(million) Prec.() Rec.()
FCN+EdgeBoxes[Zhu et al.(2016a)Zhu, Zhang, Zhou, Wang, Bai, and Liu] 0.578 14.7 0.052 53.4 0.63 68.1 97.69 92.90
Faster R-CNN [Ren et al.(2015)Ren, He, Girshick, and Sun] 0.423 17.1 0.041 119.7 0.511 136.8 97.09 88.29
scale-aware TSR 0.226 0.5 0.102 1.8 0.413 2.4 99.88 96.61
scale-aware TSR (64 proposals) 0.226 0.5 0.056s 1.8 0.356 2.4 99.88 96.52
Table 3: Comparison of running time and model complexity.

Comparison on Accuracy: Table 2 gives precisions and recall rates of FDs [Larsson and Felsberg(2011)], Adaboost+SVR [Chen and Lu(2016)], R-CNN [Girshick et al.(2014)Girshick, Donahue, Darrell, and Malik], Faster R-CNN [Ren et al.(2015)Ren, He, Girshick, and Sun], FCN+EdgeBoxes [Zhu et al.(2016a)Zhu, Zhang, Zhou, Wang, Bai, and Liu] and our scale-aware TSR. For Faster R-CNN, we use VGG16 as its backbone network and as input size. All the training and testing settings are the same with the original paper [Ren et al.(2015)Ren, He, Girshick, and Sun]. For all the experiments except those specifically stated ones, we truncate 128 proposals generated by DMS-net. As shown in table 2, our method achieves an average precision of and an average recall of on the first 6 classes, which are much better than those of any other methods. Most notably, the improvement on the recall rate, points higher than the best method [Zhu et al.(2016a)Zhu, Zhang, Zhou, Wang, Bai, and Liu], is significant for traffic sign recognition. We argue that it mainly gains from the dual multi-scale design in the DMS-net, which will be verified in the next section. For all the classes, we also have the best performance ( precision and recall rate). In comparison with the baseline method [Zhu et al.(2016a)Zhu, Zhang, Zhou, Wang, Bai, and Liu], we gain and improvement on precision and recall rate, respectively. Moreover, we observe that the classification of all types of speed signs generated by our proposal network are correct, due to the multi-scale feature fusion structure in the fusion-net enabling fine-grained recognition.

Comparison on Efficiency: Fast computation and low model complexity are essential for practical applications. We take the top 3 methods (Faster R-CNN [Ren et al.(2015)Ren, He, Girshick, and Sun], FCN+EdgeBoxes [Zhu et al.(2016a)Zhu, Zhang, Zhou, Wang, Bai, and Liu] and ours) in Table 2 for model complexity and time cost comparison. Due to the lightweight consideration in system design, the number of parameters in our entire system is around lower than that in Faster R-CNN and around lower than that in [Zhu et al.(2016a)Zhu, Zhang, Zhou, Wang, Bai, and Liu]. Therefore, our system is better suited to automobiles with on-board hardware. In order to test the time costs, we run the above three methods with their default settings on our machine whose configuration was presented earlier. Since the overall code of FCN+EdgeBoxes [Zhu et al.(2016a)Zhu, Zhang, Zhou, Wang, Bai, and Liu] is not public, we reproduce their work and estimate their time costs on our machine. The time may have a minor difference with that presented in their paper due to different machines. We show the speeds of each stage and the overall systems in Table 3. Although our classification is slower than that of the others, our whole system is the fastest one ( in total running time). Furthermore, We also attempt to reduce the region proposals from 128 to 64. Our method gains speedup, while it only drops recall rate.

4.2 Ablation Study

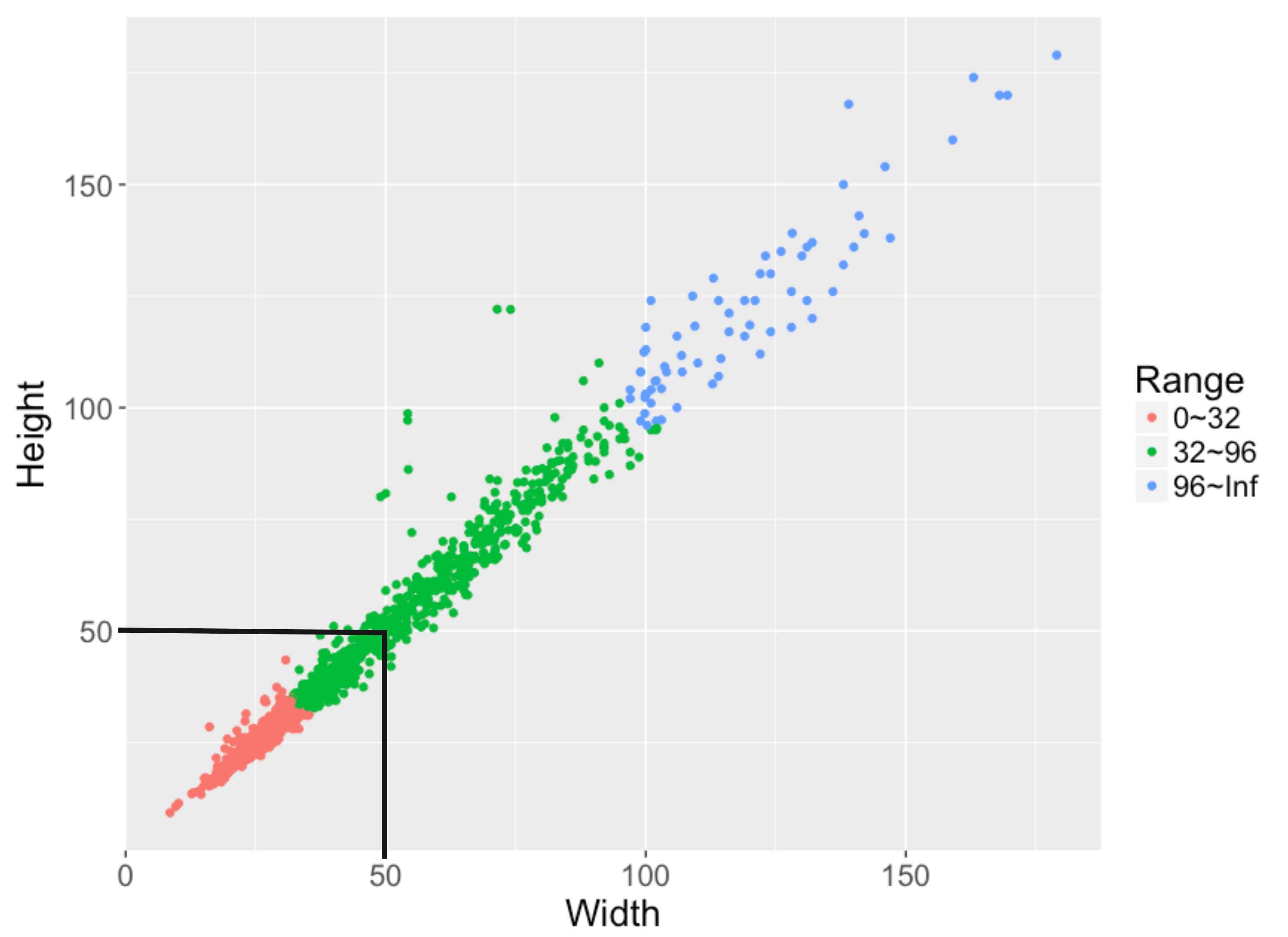

Figure 3: Distribution of the traffic signs in STSD testing dataset.

We conduct a deep analysis on the STSD dataset and evaluation metrics. Figure

3 reports the data distribution of the testing dataset. According to this distribution, most of the traffic signs in the STSD testing dataset are smaller than pixels, only traffic signs satisfy the requirements of the evaluation benchmark in  [Larsson and Felsberg(2011)]. In other words, the standard STSD benchmark ignores small-scale traffic signs which are widespread in the real world. Detecting small objects is alway a challenge, not only in traffic sign recognition [Zhu et al.(2016b)Zhu, Liang, Zhang, Huang, Li, and Hu] but also in generic object detection tasks [Lin et al.(2014)Lin, Maire, Belongie, Hays, Perona, Ramanan, Dollár, and Zitnick]. Motivated by the mainstream evaluation metrics in MS COCO [Lin et al.(2014)Lin, Maire, Belongie, Hays, Perona, Ramanan, Dollár, and Zitnick], we redesign a new evaluation method on the STSD dataset, which takes the wide-range traffic signs into account. In this evaluation method, we incorporate all size of traffic signs into the evaluation and split them into three different scales according to their areas. As shown in Figure 3, , , and denote small, medium and large scale, respectively. In this way, it is possible to evaluate TSR methods based on not only their overall performances but also their multi-scale performances. Moreover, we adopt Average Precision (AP) , the area under the precision-recall curve, to measure class-wise performances. We utilize Average Recall (AR) metric which is an averaged recall over different IoU thresholds () to evaluate region proposal methods.

Analysis on DMS-net. To verify the scale-awareness of our DMS-net, we compare it against three well-known state-of-the-art methods for generic object proposals, including Selective Search [Uijlings et al.(2013)Uijlings, Van De Sande, Gevers, and Smeulders], EdgeBoxes [Zitnick and Dollár(2014)] and RPN [Ren et al.(2015)Ren, He, Girshick, and Sun]. Table 4 reports the AR values at different proposals and different scales. We can see that our DMS-net is significantly better than the others on all metrics. Our DMS-net also exceeds non-learning methods (Selective Search and EdgeBoxes) by a large margin. Compared with RPN method, we gain improvement on both the small-scale and large-scale traffic signs. This proves that our method is effective in detecting multi-scale traffic signs. We also conduct an ablation study by removing the first or second branch but keeping the same number of scales at 10 to verify the effectiveness of the proposed dual multi-scale structure. We observe that if we remove the first branch, the performance on detecting small traffic signs decrease dramatically. The DMS-net without the second branch also has inferior ARs on small and large traffic signs, even though it has a minor increase () relative to our entire DMS-net on AR at medium ones. Moreover, We observe that our DMS-net limitedly benefits from the increase in the number of proposals. This means that our method can achieve satisfying results even with few proposals, thereby saving computing time in the later classification task.

Analysis on fusion-net. In order to evaluate our fusion-net, we compare it with the classifier in our baseline method [Zhu et al.(2016a)Zhu, Zhang, Zhou, Wang, Bai, and Liu]. For fair comparison, we use the same region proposal method, our DMS-net, to generate proposals for the two classifiers. As we can see from Table 5, our fusion-net performs better in most categories of traffic signs and achieves mAP higher than the baseline. Moreover, we compare our entire system (DMS-net + fusion-net) with Faster R-CNN. The results in Table 5 show that our scale-aware TSR outperforms Faster R-CNN by a large margin, mAP. We further replace their classifier with our fusion-net, it gains around mAP improvement. This also proves the effectiveness of our fusion-net. For the multi-scale evaluation, our scale-aware TSR obtains high AP scores at different scales. Especially, it achieves AP at medium-scale traffic signs.


Methods
AR@50 AR@100 AR@300 AR@Small AR@Medium AR@Large
Selective Search[Uijlings et al.(2013)Uijlings, Van De Sande, Gevers, and Smeulders] 4.8 10.7 23.4 1.1 12.3 33.4
EdgeBoxes [Zitnick and Dollár(2014)] 36.9 41.0 47.4 22.0 48.3 67.9
RPN [Ren et al.(2015)Ren, He, Girshick, and Sun] 66.9 67.0 67.2 57.6 71.4 72.1
DMS-net (w/o branch1) 52.5 52.8 53.0 5.7 74.6 77.2
DMS-net (w/o branch2) 67.0 71.3 72.3 61.4 75.8 75.3
DMS-net 69.8 71.5 72.3 62.2 75.6 76.7
Table 4: Average Recall (AR) analysis obtained with different proposal numbers and scales. AR for small, medium and large objects are computed for 100 proposals.

Methods
AP (small) AP (medium) AP (large) mAP

DMS-net+ fusion-net
85.19 98.10 96.29 94.67 96.74 98.97 86.67 96.55 95.75 90.44 98.91 95.45 97.04 90.11

DMS-net+[Zhu et al.(2016a)Zhu, Zhang, Zhou, Wang, Bai, and Liu]classifier
82.42 97.10 94.15 92.80 96.73 98.94 86.67 96.20 94.62 94.34 98.91 81.65 92.90 87.70

Faster R-CNN[Ren et al.(2015)Ren, He, Girshick, and Sun]
52.42 93.96 97.72 83.00 86.54 88.83 59.32 81.70 82.48 88.24 91.66 87.25 75.64 88.35

RPN[Ren et al.(2015)Ren, He, Girshick, and Sun]+ fusion-net
86.63 97.30 89.64 93.41 94.65 97.92 84.56 95.98 90.33 94.82 97.82 95.45 95.42 87.13

Table 5: Average Precision (AP) on all the data and those of different scales and categories.

5 Conclusion

The paper presented a traffic sign recognition system with performance beyond state-of-the-art methods. The system adopted an FCN with a dual multi-scale CNN architecture to detect traffic signs of different scales, and a concise CNN structure to fuse multi-scale features for classification. Besides, multiple existing effective strategies and modules, e.g. OHEM and Inception, were introduced into the system. The whole system and its modules were evaluated thoroughly on STSD. The system was experimentally proved to be more accurate and faster than state-of-the-art methods. Moreover, the system is more lightweight than the others, thereby more suitable for automobiles with on-board hardware. Future work will be focused on strengthening the system for more challenging tasks, e.g. recognizing traffic signs from images captured in fog weather.

References

  • [Aghdam et al.(2016)Aghdam, Heravi, and Puig] Hamed Habibi Aghdam, Elnaz Jahani Heravi, and Domenec Puig. A practical approach for detection and classification of traffic signs using convolutional neural networks. Robotics and Autonomous Systems, 84:97–112, 2016.
  • [Bell et al.(2016)Bell, Lawrence Zitnick, Bala, and Girshick] Sean Bell, C Lawrence Zitnick, Kavita Bala, and Ross Girshick.

    Inside-outside net: Detecting objects in context with skip pooling and recurrent neural networks.

    In CVPR, pages 2874–2883, 2016.
  • [Breiman(2001)] Leo Breiman. Random forests. Machine learning, 45(1):5–32, 2001.
  • [Cai et al.(2016)Cai, Fan, Feris, and Vasconcelos] Zhaowei Cai, Quanfu Fan, Rogerio S Feris, and Nuno Vasconcelos. A unified multi-scale deep convolutional neural network for fast object detection. In ECCV, pages 354–370, 2016.
  • [Chang and Lin(2011)] Chih-Chung Chang and Chih-Jen Lin.

    Libsvm: a library for support vector machines.

    ACM Transactions on Intelligent Systems and Technology (TIST), 2(3):27, 2011.
  • [Chen and Lu(2016)] Tao Chen and Shijian Lu. Accurate and efficient traffic sign detection using discriminative adaboost and support vector regression. IEEE Transactions on Vehicular Technology, 65(6):4006–4015, 2016.
  • [Cireşan et al.(2011)Cireşan, Meier, Masci, and Schmidhuber] Dan Cireşan, Ueli Meier, Jonathan Masci, and Jürgen Schmidhuber. A committee of neural networks for traffic sign classification. In IJCNN, pages 1918–1921, 2011.
  • [Cireşan et al.(2012)Cireşan, Meier, Masci, and Schmidhuber] Dan Cireşan, Ueli Meier, Jonathan Masci, and Jürgen Schmidhuber. Multi-column deep neural network for traffic sign classification. Neural Networks, 32:333–338, 2012.
  • [Dalal and Triggs(2005)] Navneet Dalal and Bill Triggs. Histograms of oriented gradients for human detection. In CVPR, volume 1, pages 886–893, 2005.
  • [Duda and Hart(1972)] Richard O Duda and Peter E Hart. Use of the hough transformation to detect lines and curves in pictures. Communications of the ACM, 15(1):11–15, 1972.
  • [Felzenszwalb et al.(2008)Felzenszwalb, McAllester, and Ramanan] Pedro Felzenszwalb, David McAllester, and Deva Ramanan. A discriminatively trained, multiscale, deformable part model. In CVPR, pages 1–8, 2008.
  • [Gidaris and Komodakis(2015)] Spyros Gidaris and Nikos Komodakis. Object detection via a multi-region and semantic segmentation-aware cnn model. In ICCV, pages 1134–1142, 2015.
  • [Girshick(2015)] Ross Girshick. Fast r-cnn. In ICCV, pages 1440–1448, 2015.
  • [Girshick et al.(2014)Girshick, Donahue, Darrell, and Malik] Ross Girshick, Jeff Donahue, Trevor Darrell, and Jitendra Malik. Rich feature hierarchies for accurate object detection and semantic segmentation. In CVPR, pages 580–587, 2014.
  • [Haloi(2015)] Mrinal Haloi. Traffic sign classification using deep inception based convolutional networks. arXiv preprint arXiv:1511.02992, 2015.
  • [Hariharan et al.(2014)Hariharan, Arbeláez, Girshick, and Malik] Bharath Hariharan, Pablo Arbeláez, Ross Girshick, and Jitendra Malik. Simultaneous detection and segmentation. In ECCV, pages 297–312, 2014.
  • [He et al.(2014)He, Zhang, Ren, and Sun] Kaiming He, Xiangyu Zhang, Shaoqing Ren, and Jian Sun. Spatial pyramid pooling in deep convolutional networks for visual recognition. In ECCV, pages 346–361, 2014.
  • [Jaderberg et al.(2015)Jaderberg, Simonyan, Zisserman, et al.] Max Jaderberg, Karen Simonyan, Andrew Zisserman, et al. Spatial transformer networks. In Advances in Neural Information Processing Systems, pages 2017–2025, 2015.
  • [Jia et al.(2014)Jia, Shelhamer, Donahue, Karayev, Long, Girshick, Guadarrama, and Darrell] Yangqing Jia, Evan Shelhamer, Jeff Donahue, Sergey Karayev, Jonathan Long, Ross Girshick, Sergio Guadarrama, and Trevor Darrell. Caffe: Convolutional architecture for fast feature embedding. In Proceedings of the 22nd ACM international conference on Multimedia, pages 675–678, 2014.
  • [Jin et al.(2014)Jin, Fu, and Zhang] Junqi Jin, Kun Fu, and Changshui Zhang. Traffic sign recognition with hinge loss trained convolutional neural networks. IEEE Transactions on Intelligent Transportation Systems, 15(5):1991–2000, 2014.
  • [Kong et al.(2016)Kong, Yao, Chen, and Sun] Tao Kong, Anbang Yao, Yurong Chen, and Fuchun Sun. Hypernet: towards accurate region proposal generation and joint object detection. In CVPR, pages 845–853, 2016.
  • [Larsson and Felsberg(2011)] Fredrik Larsson and Michael Felsberg. Using fourier descriptors and spatial models for traffic sign recognition. In Scandinavian Conference on Image Analysis, pages 238–249, 2011.
  • [Liang et al.(2013a)Liang, Yuan, Hu, Li, and Liu] Ming Liang, Mingyi Yuan, Xiaolin Hu, Jianmin Li, and Huaping Liu. Traffic sign detection by roi extraction and histogram features-based recognition. In IJCNN, pages 1–8, 2013a.
  • [Liang et al.(2013b)Liang, Yuan, Hu, Li, and Liu] Ming Liang, Mingyi Yuan, Xiaolin Hu, Jianmin Li, and Huaping Liu. Traffic sign detection by roi extraction and histogram features-based recognition. In IJCNN, pages 1–8, 2013b.
  • [Lin et al.(2014)Lin, Maire, Belongie, Hays, Perona, Ramanan, Dollár, and Zitnick] Tsung-Yi Lin, Michael Maire, Serge Belongie, James Hays, Pietro Perona, Deva Ramanan, Piotr Dollár, and C Lawrence Zitnick. Microsoft coco: Common objects in context. In ECCV, pages 740–755, 2014.
  • [Long et al.(2015)Long, Shelhamer, and Darrell] Jonathan Long, Evan Shelhamer, and Trevor Darrell. Fully convolutional networks for semantic segmentation. In CVPR, pages 3431–3440, 2015.
  • [Maldonado-Bascon et al.(2007)Maldonado-Bascon, Lafuente-Arroyo, Gil-Jimenez, Gomez-Moreno, and López-Ferreras] Saturnino Maldonado-Bascon, Sergio Lafuente-Arroyo, Pedro Gil-Jimenez, Hilario Gomez-Moreno, and Francisco López-Ferreras. Road-sign detection and recognition based on support vector machines. IEEE transactions on intelligent transportation systems, 8(2):264–278, 2007.
  • [Nair and Hinton(2010)] Vinod Nair and Geoffrey E Hinton. Rectified linear units improve restricted boltzmann machines. In ICML, pages 807–814, 2010.
  • [Pinheiro and Collobert(2014)] Pedro HO Pinheiro and Ronan Collobert. Recurrent convolutional neural networks for scene labeling. In ICML, pages 82–90, 2014.
  • [Ren et al.(2015)Ren, He, Girshick, and Sun] Shaoqing Ren, Kaiming He, Ross Girshick, and Jian Sun. Faster r-cnn: Towards real-time object detection with region proposal networks. In Advances in neural information processing systems, pages 91–99, 2015.
  • [Salti et al.(2013)Salti, Petrelli, Tombari, Fioraio, and Di Stefano] Samuele Salti, Alioscia Petrelli, Federico Tombari, Nicola Fioraio, and Luigi Di Stefano. A traffic sign detection pipeline based on interest region extraction. In IJCNN, pages 1–7, 2013.
  • [Sermanet and LeCun(2011)] Pierre Sermanet and Yann LeCun. Traffic sign recognition with multi-scale convolutional networks. In IJCNN, pages 2809–2813, 2011.
  • [Sermanet et al.(2013)Sermanet, Eigen, Zhang, Mathieu, Fergus, and LeCun] Pierre Sermanet, David Eigen, Xiang Zhang, Michaël Mathieu, Rob Fergus, and Yann LeCun. Overfeat: Integrated recognition, localization and detection using convolutional networks. arXiv preprint arXiv:1312.6229, 2013.
  • [Shrivastava et al.(2016)Shrivastava, Gupta, and Girshick] Abhinav Shrivastava, Abhinav Gupta, and Ross Girshick. Training region-based object detectors with online hard example mining. In CVPR, pages 761–769, 2016.
  • [Stallkamp et al.(2011)Stallkamp, Schlipsing, Salmen, and Igel] Johannes Stallkamp, Marc Schlipsing, Jan Salmen, and Christian Igel. The german traffic sign recognition benchmark: a multi-class classification competition. In IJCNN, pages 1453–1460, 2011.
  • [Stallkamp et al.(2012)Stallkamp, Schlipsing, Salmen, and Igel] Johannes Stallkamp, Marc Schlipsing, Jan Salmen, and Christian Igel. Man vs. computer: Benchmarking machine learning algorithms for traffic sign recognition. Neural networks, 32:323–332, 2012.
  • [Szegedy et al.(2015)Szegedy, Liu, Jia, Sermanet, Reed, Anguelov, Erhan, Vanhoucke, and Rabinovich] Christian Szegedy, Wei Liu, Yangqing Jia, Pierre Sermanet, Scott Reed, Dragomir Anguelov, Dumitru Erhan, Vincent Vanhoucke, and Andrew Rabinovich. Going deeper with convolutions. In CVPR, pages 1–9, 2015.
  • [Uijlings et al.(2013)Uijlings, Van De Sande, Gevers, and Smeulders] Jasper RR Uijlings, Koen EA Van De Sande, Theo Gevers, and Arnold WM Smeulders. Selective search for object recognition.

    International journal of computer vision

    , 104(2):154–171, 2013.
  • [Wang et al.(2017)Wang, Hou, Xu, Yue, and Liu] Dongdong Wang, Xinwen Hou, Jiawei Xu, Shigang Yue, and Cheng-Lin Liu. Traffic sign detection using a cascade method with fast feature extraction and saliency test. IEEE Transactions on Intelligent Transportation Systems, 2017.
  • [Wang et al.(2013)Wang, Ren, Wu, Zhao, and Jiang] Gangyi Wang, Guanghui Ren, Zhilu Wu, Yaqin Zhao, and Lihui Jiang. A robust, coarse-to-fine traffic sign detection method. In IJCNN, pages 1–5, 2013.
  • [Yang et al.(2016)Yang, Luo, Xu, and Wu] Yi Yang, Hengliang Luo, Huarong Xu, and Fuchao Wu. Towards real-time traffic sign detection and classification. IEEE Transactions on Intelligent Transportation Systems, 17(7):2022–2031, 2016.
  • [Yu and Koltun(2015)] Fisher Yu and Vladlen Koltun. Multi-scale context aggregation by dilated convolutions. arXiv preprint arXiv:1511.07122, 2015.
  • [Zaklouta et al.(2011)Zaklouta, Stanciulescu, and Hamdoun] Fatin Zaklouta, Bogdan Stanciulescu, and Omar Hamdoun. Traffic sign classification using kd trees and random forests. In IJCNN, pages 2151–2155, 2011.
  • [Zhu et al.(2016a)Zhu, Zhang, Zhou, Wang, Bai, and Liu] Yingying Zhu, Chengquan Zhang, Duoyou Zhou, Xinggang Wang, Xiang Bai, and Wenyu Liu. Traffic sign detection and recognition using fully convolutional network guided proposals. Neurocomputing, 214:758–766, 2016a.
  • [Zhu et al.(2016b)Zhu, Liang, Zhang, Huang, Li, and Hu] Zhe Zhu, Dun Liang, Songhai Zhang, Xiaolei Huang, Baoli Li, and Shimin Hu. Traffic-sign detection and classification in the wild. In CVPR, pages 2110–2118, 2016b.
  • [Zitnick and Dollár(2014)] C Lawrence Zitnick and Piotr Dollár. Edge boxes: Locating object proposals from edges. In ECCV, pages 391–405, 2014.
