DS-VIO: Robust and Efficient Stereo Visual Inertial Odometry based on Dual Stage EKF

05/02/2019 ∙ by Xiaogang Xiong, et al. ∙ Arizona State University Harbin Institute of Technology 0

This paper presents a dual stage EKF (Extended Kalman Filter)-based algorithm for the real-time and robust stereo VIO (visual inertial odometry). The first stage of this EKF-based algorithm performs the fusion of accelerometer and gyroscope while the second performs the fusion of stereo camera and IMU. Due to the sufficient complementary characteristics between accelerometer and gyroscope as well as stereo camera and IMU, the dual stage EKF-based algorithm can achieve a high precision of odometry estimations. At the same time, because of the low dimension of state vector in this algorithm, its computational efficiency is comparable to previous filter-based approaches. We call our approach DS-VIO (dual stage EKFbased stereo visual inertial odometry) and evaluate our DSVIO algorithm by comparing it with the state-of-art approaches including OKVIS, ROVIO, VINS-MONO and S-MSCKF on the EuRoC dataset. Results show that our algorithm can achieve comparable or even better performances in terms of the RMS error

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 5

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

I Introduction

In GPS-denied environments, for instance, indoors and in urban canyons, it is essential for mobile robot platforms such as micro aerial vehicles (MAVs) to know their own pose for operations. In recent years, this pose estimation problem is popularly solved by the combination of visual information from cameras and measurements from an Inertial Measurement Unit (IMU), which is usually referred to as Visual Inertial Odometry (VIO)[1, 2]. Compared to lidar based approaches, VIO requires only a lightweight and small-size sensor package, making it the preferred technique for mobile robot platforms.

Realtime VIO solutions are critical for robots to response quickly to corresponding environments. At the same time, computation efficiency of VIO solutions is also important for robots with limited payloads and computation power such as MAVs. It is well-known that filter-based VIO solutions are generally more computationally efficient than that of optimization based methods [1] while stereo cameras are more robust to hostile environments compared with monocular camera. In order to solve the above problem of pose estimation in a realtime and robust manner, we propose a new VIO solution based on the extended Kalman filer (EKF) and information from stereo cameras in this paper.

To achieve a precise and robust pose estimation, the algorithm we present here is a dual stage EKF-based VIO solution, which is referred as to DS-VIO. It is consisted of two EKF filters and each stage has one EKF filter. We demonstrate that our algorithm perform comparable or even higher precision than other state-of-art VIO algorithms. The primary contribution of our work is a new filter-based VIO framework that contains a dual stage EKF filter. The first stage perform the sensor fusion of the measurements of accelerometer and gyroscope. The second stage performs the fusion of the measurements of IMU and stereo camera. The dual stage of EKF allows the VIO solution achieve higher precision and robustness. To show the effects, we provide detailed comparisons between our DS-VIOS with other state-of-art open-source VIO approaches including OKVIS, ROVIO, VINS-MONO and S-MSCKF on the EuRoC dataset through experiments. The results demonstrate that our DS-VIO is able to achieve similar or even better performance than these state-of-art VIO approaches in term of precision and robustness.

The rest of the paper is orgnized as follows: Section II introduces the related work. Section III and Section  IV provide the mathematical details of the first and second stage of EKF filter. Section V describes the enforcement mechanism of dual stage EKF filter. The experiments comparing our DS-VIO with state of the art open-source VIO approaches is conducted in Section VI. Finally, Section VII draws some conclusions of this paper.

Ii Related Work

There are a large number of work which fuses measurements from cameras and IMUs to perform pose estimations, including VIO and VI-SLAM (Simultaneous Localization and Mapping). The related work is discussed from three different aspects: (i) loosely or tightly coupled solutions. (ii) filter-based or optimization-based solutions. (iii) direct or indirect solutions.

Loosely coupled solutions process the measurements from IMUs and cameras separately. Some methods process the images for computing relative-motion estimates between consecutive poses firstly [3, 4, 5] and then fuse the result with IMU measurements. In contrast, in [6, 7], IMU measurements are used to compute rotation estimates and fuse the result with an visual estimation algorithm. Loosely coupled solutions lead to a reduction in computational cost and information loss [8]. However, the tightly coupled solutions can achieve higher accuracy [9, 10, 11, 12, 13]. In this work, we are interested in tightly coupled solutions and the proposed DS-EKF is also a tightly coupled solution.

Existing tightly coupled solutions can be divided into filter-based or optimization-based solutions. The latter generally attains higher accuracy because re-linearization at each iteration can better deal with their nonlinear measurement models, like [14, 15, 12, 16]. However, the procedure for multiple iterations lead to heavy calculation burden. As for filter-based solutions, to date, the majority of the proposed algorithms are EKF-based methods like [17, 18, 19, 20, 11, 21, 13], also, Uncented Kalman Filter in [22], and Particle Filter in [23]. In order to improve the accuracy of filter-based solutions, some researchers focus on the consistency of estimator. The works in [24, 25] present the First Estimate Jacobian EKF (FEJ-EKF). Observability Constraint EKF (OC-EKF) is presented in [26, 27, 13]. The key idea of FEJ-EKF is to choose the same or first-ever available estimations for all the state variables as the linearization points. However, OC-EKF guarantees observability of the linearized system by ensuring the rank of nullspace of the nonlinearized system not changed after linearized. The OC-EKF is applied in our DS-VIO algorithm.

The vast majority of pose estimation methods have relied on the usage of point features, which are detected and tracked in the images like [11, 12]. The methods in [28, 29] employ edge information while the method in [2]

employs both point and line features. All the above methods are classified as indirect solutions. The methods in

[30, 31] present a direct method which employ the image-intensity measurements directly. The direct methods exploit more information from the images than that of indirect methods.

Iii First Stage Ekf Filter Description

The mathematical description in this paper follows the formulations in [11]. The gyroscope state is defined as:

where is the unit quaternion describing the rotation from inertial frame () to the body frame (), describes the bias of gyroscope measurement. Here, the body frame () is assumed to be fixed to IMU frame.

Iii-a Process Model

The state equation in the time-continuous form is given as follows:

(1a)
(1b)

where is the rotational velocity in the IMU frame,

and the gyroscope bias is modeled as a random walk process with random walk rate . The gyroscope measurements is:

(2)

By applying the expectation operator in (1), we can get the estimates of the evolving gyroscope state:

(3a)
(3b)

where .

To propagate the uncertainty of the state, the discrete time state transition matrix should be computed, as for (3a),

where and is the time interval between two IMU measurements. As for (3b), in a similar manner, one has

Therefore, we can get

Therefore, one can obtain the following expression:

(4)

where is the Jacobian of process model with respect to the gyroscope state, which is shown in Appendix, is a vector describe the process noise, of which the covariance matrix is as follows:

Finally, the propagated covariance of the gyroscope state is described as:

Iii-B Measurement Model

The first correction stage uses data from the accelerometers to correct the gyroscope state, the measurement is,

(5)

According to [32], can be presented by

where is the constant g-force acceleration, and

(6)

The residual of the measurement can be approximated as

(7)

where is the Jacobian of measurement with respect to the gyroscope state, which is shown in Appendix, describes the measurement noise, of which the covariance matrix is ,

Iv Second Stage Ekf Filter Description

The evolving IMU state is defined as follows:

where and are vectors describing the IMU position and velocity in frame , and describes the bias of accelerometer measurement. The bias is modeled as random walk processes and the random walk rate is . The IMU error-state is defined as:

where the standard additive error defined as with and is used for position, velocity and bias, respectively, and represents the quaternion error [11, 33]. Ultimately, we add the camera poses in the IMU state, we can get the EKF state vector, at time-step, it can be defined as:

where the , is the camera attitude and position, respectively. The EKF error state vevtor is defined as:

Iv-a Process Model

The continuous-time system model is described as :

(8a)
(8b)
(8c)
(8d)
(8e)

where is the body acceleration in the global frame (). The accelerometer measurement is:

where denotes a rotational matrix, and are measurement noise, is gravitational acceleration expressed int the local frame. From (1) to (4), we can get the equations for propagating the estimates of the evolving IMU state by applying expectation operator:

(9a)
(9b)
(9c)
(9d)
(9e)

where . Therefore, the linearized continuous-time model for the IMU error-state is:

(10)

where , F and G are shown in appendix. The state equation model can be computed as follows:

(11)

where the computation of transform matrix and the discrete time noise covariance can be found in [13]. So the propagated covariance of the IMU state is described as:

where the covariance matrix and are described as:

When recording a new camera, we should add the camera pose into the state by using the following expressions:

The augmented covariance is given by:

(12)

where J is shown in Appendix.

Iv-B Measurement Model

The second correction stage employs data from the images to correct the IMU state, of which the measurement model we adopted here follows [11, 13]. It is based the fact that static features in the wold can be observed from multiple camera poses showing constraints among all these camera poses. Consider the case of a single feature observed by the stereo cameras at time step . Assume this feature are observed by both left and right cameras, and the left and right cameras poses are represented as and . For the feature at time step , the stereo measurement is,

where , represent the positions of feature in the left and right camera frame are given by,

where is the position of feature in the golbal frame, it can be computed the least square method shown in [11].

Once is obtained, the measurement residual can be computed by:

By linearizing about the estimates for the camera poses and feature position, the residual can be approximated as:

where is the noise of the measurement, and are the Jacobian matrixes of the measurement with respect to the state and the feature position, respectively, of which the value of these two Jacobian matrixes can be found in [13], is the error in the position estimate of . By stacking all the observations of feature , one can obtain:

Because the position of feature is computed by using the state estimate X, the error is correlated with the error . The form of residual cannot be directly used for update in the EKF. By projecting to the nullspace of , one has

where A

denotes the unitary matrix whose columns form the basis of the left nullspace of

[11].

V Dual Stage Ekf Mechanism

The structure of the proposed dual stage of EKF filter is shown in Fig.1. The first stage of EKF is designed to combine the measurements from accelerometer and gyroscope. By implementing the first stage EKF filter, data from accelerometer is used as a corrective measure by taking into account the gravitational force to curb the error of the orientation estimate. The role of the second stage EKF is fusing measurements from IMU and stereo cameras. The images from stereo cameras can present a natural complement to IMU to to curb the errors and drift.

Fig. 1: The block diagram of illustrating the structure of proposed dual stage EKF filter

As shown in Fig.1, the first stage of EKF is executed immediately as the IMU measurements are acquired. For each IMU measurement received, one has:

  • Propagation: The rotational velocity is used to propagate the gyroscope state , and covariance matrix .

  • update: The body acceleration is used to perform an EKF update.

The second stage of EKF contains the first stage, and the first stage is regarded as the propagate part in the second stage EKF:

  • Propagation: Whenever a new IMU measurement is received, it propagates the IMU state and covariance matrix .

  • Image registration:

    Whenever new stereo images are acquired, it (i) augments the IMU state and the corresponding covariance matrix; (ii) operates image frontend processes, including feature extraction and feature matching.

  • update: EKF update is performed when (i) a feature has been tracked in a number of images (the number is 3 in our algorithm) is no longer detected; (ii) camera poses will be discarded when the largest number of camera poses in the IMU state has been reached.

We present a new strategy to discard old camera poses in the above update. The oldest non-keyframe is discarded according to two criteria whenever new stereo images are received. The two criteria from [12] is employed here for keyframe selection. The first one is the average parallax apart from the previous keyframe and the second one is tracking quality.

Vi Experiments

In this section, we perform two experiments to evaluate the proposed DS-VIO algorithm. In the first experiment, we compare the proposed algorithm with other state-of-the-art algorithms on public dataset by analyzing the Root Mean Square Error (RMSE) metrics. In the second experiment, we compare the proposed DS-VIO with S-MSCKF in the indoor environment. S-MSCKF is selected because it is also one of stereo and EKF filter based approaches.

Vi-a Dataset Comparison

The proposed DS-VIO algorithm (stereo-filter) is compared with the state of the art approaches including OKVIS [14] (stereo optimization), ROVIO [33] (monocular filter), VINS-MONO [12] (monocular optimization) and S-MSCKF [13] (stereo filter) on the EuRoC dataset [34]. These methods are different combinations of monocular, stereo, filter-based, and optimization-based methods. Among these methods, S-MSCKF is a tightly-coupled filtering-based stereo VIO algorithm which is closely related to our work. During the experiment, only the images from the left camera are used for monocular camera based algorithms like ROVIO and VINS-MONO. In order to perform a convictive experiment, only the performance of VIO is conducted and the functionality of loop closure is disabled for VINS-MONO. For each algorithm, its performance is evaluated for repeating experiments ten times and the mean value is treated as the result.

The EuRoC MAV Dataset is a collection of visual-inertial datasets collected on-board a Micro Aerial Vehicle (MAV). It contains synchronized 20Hz stereo images and 200Hz IMU messages, accurate motion and structure ground-truth. Some parts of the dataset exhibit very dynamic motions and different image brightness, which renders stereo matching and feature tracking more challenging.

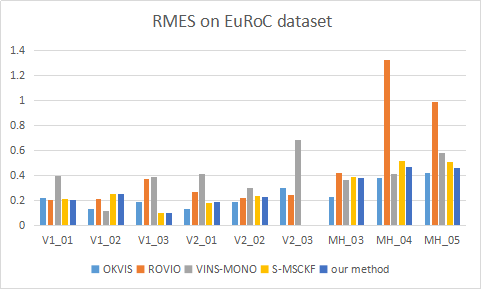

Fig. 2: Root Mean Square Error (RMSE) results
