DRAPS: Dynamic and Resource-Aware Placement Scheme for Docker Containers in a Heterogeneous Cluster

05/22/2018 ∙ by Ying Mao, et al. ∙ Rochester Institute of Technology The College of New Jersey UNC Charlotte 0

Virtualization is a promising technology that has facilitated cloud computing to become the next wave of the Internet revolution. Adopted by data centers, millions of applications that are powered by various virtual machines improve the quality of services. Although virtual machines are well-isolated among each other, they suffer from redundant boot volumes and slow provisioning time. To address limitations, containers were born to deploy and run distributed applications without launching entire virtual machines. As a dominant player, Docker is an open-source implementation of container technology. When managing a cluster of Docker containers, the management tool, Swarmkit, does not take the heterogeneities in both physical nodes and virtualized containers into consideration. The heterogeneity lies in the fact that different nodes in the cluster may have various configurations, concerning resource types and availabilities, etc., and the demands generated by services are varied, such as CPU-intensive (e.g. Clustering services) as well as memory-intensive (e.g. Web services). In this paper, we target on investigating the Docker container cluster and developed, DRAPS, a resource-aware placement scheme to boost the system performance in a heterogeneous cluster.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 1

page 2

page 3

page 4

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

I Introduction

In the past few decades, we have witnessed a spectacular information explosion over the Internet. Hundreds of thousands of users are consuming the Internet through various services, such as websites, mobile applications, and online games. The service providers, at the back-end side, are supported by state-of-the-art infrastructures on the cloud, such as Amazon Web Service [1] and Microsoft Azure [2]. Focusing on providing the services at scale, virtualization is one of the emerging technologies used in data centers and cloud environments to improve both hardware and development efficiency.

At the system level, the virtual machine is a widely-adopted virtualization method [3], which isolates CPU, memory, block I/O, network resources, etc [4]

. In a large-scale system, however, providing services through virtual machines would mean that the users are probably running many duplicate instances of the same OS and many redundant boot volumes

[5]. Recent research shows that virtual machines suffer from noticeable performance overhead, large storage requirement, and limited scalability [6].

To address these limitations, containers were designed for deploying and running distributed applications without launching entire virtual machines. Instead, multiple isolated service units of the application, called containers, share the host operating system and physical resources. The concept of container virtualization is yesterday’s news; Unix-like operating systems leveraged the technology for over a decade and modern big data processing plforms utilize containers as a basic computing unit [7, 8, 9]. However, new containerization platforms, such as Docker, make it into the mainstream of application development. Based on previously available open-source technologies (e.g. cgroup), Docker introduces a way of simplifying the tooling required to create and manage containers. On a physical machine, containers are essentially just regular processes; in the system view, that enjoy a virtualized resource environment, not only just CPU and memory, but also bandwidth, ports, disk i/o, etc.

We use “Docker run image” command to start a Docker container on physical machines. In addition to the disk image that we would like to initiate, users can specify a few options, such as “-m” and “-c”, to limit a container’s access to resources. While options set a maximum amount, resource contention still happens among containers on every host machine. Upon receiving “Docker run” commands from clients, the cluster, as the first step, should select a physical machine to host those containers. The default container placement scheme, named Spread, uses a bin-pack strategy and tries to assign a container on the node with the fewest running containers. While Spread aims to equally distribute tasks among all nodes, it omits two major characteristics of the system. First of all, the nodes in a cluster do not necessary have to be identical with each other. It is a common setting to have multiple node types, in terms of total resource, in the cluster. For example, a cutting edge server can easily run more processes concurrently than a off-the-shelf desktop. Secondly, the resource demands from containers are different. Starting with various images, services provided by containers are varied, which leads to a diverse resource demands. For instance, a clustering service, e.g. Kmeans, may need more computational power and a logging service, e.g. Logstash, may request more bandwidth.

In this project, we propose a new container placement scheme, DRAPS, a Dynamic and Resource-Aware Placement Scheme. Different from the default Spread scheme, DRAPS  assigns containers based on current available resources in a heterogeneous cluster and dynamic demands from containers of various services. First, DRAPS  identifies the dominant resource type of a service by monitoring containers that offer this service. It, then, places the containers with complementary needs to the same machine in order to reduce the balance resource usages on the nodes. If one type of resource, finally, becomes a bottleneck in the system, it migrates the resource-intensive containers to other nodes. Our main contributions are as follows:

  • We introduce the concept of dominant resource type that considers the dynamic demands from different services.

  • We propose a complete container placement scheme, DRAPS, which assigns the tasks to appropriate nodes and balance resource usages in a heterogeneous cluster.

  • We implement DRAPS  into the popular container orchestration tool, Swarmkit, and conduct the experiment with 18 services in 4 types. The evaluation demonstrates that DRAPS  outperforms the default Spread and reduces usage as much as 42.6% on one specific node.

Ii Related Work

Virtualization serves as one of the fundamental technologies in cloud computing systems. As a popular application, virtual machines (VMs) have been studied for decades. However, in the reality, VMs suffer from noticeable performance overhead, large storage requirement, and limited scalability [6]. More recently, containerization, a lightweight virtualization technique, is drawing increasing popularity from different aspects and on different platfroms [10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21].

The benefits and challenges of containerized systems have been studied in many aspects. A comprehensive performance study is presented in  [22], where it explores the traditional virtual machine deployments, and contrast them with the use of Linux containers. The evaluation focuses on overheads and experiments that show containers’ resulting performance to be equal or superior to VMs performances. Although containers outperform VMs, the research [23] shows that the startup latency is considerably larger than expected. This is due to a layered and distributed image architecture, in which copying package data accounts for most of container startup time. The authors propose Slacker which can significantly reduce the startup latency. While Slacker reduces the amount of copying and transferring packages, if the image is locally available, the startup could be even faster. CoMICon [24] addresses the problem by sharing the image in a cooperative manner. From different aspect, SCoPe [25] tries to manage the provisioning time for large scale containers. It presents a statistical model, used to guide provisioning strategy, to characterize the provisioning time in terms of system features.

Besides the investigations on standalone containers, the cluster of containers is another important aspect in this field. Docker Swarmkit [26] and Google Kubernetes [27] are dominant cluster management tools in the market. The authors of  [28], first, conduct a comparison study of scalabilities under both of them. Then, firmament is proposed to achieve low latency in large-scale clusters by using multiple min-cost max-flow algorithms. On the other hand, focusing on workload scheduling, the paper [29] describes an Ant Colony Optimization algorithm for a cluster of Docker containers. However, the algorithm does not distinguish various containers, which usually have a divese requirements.

In this paper, we investigate the container orchestration in the prospective of resource awareness. While users can set limits on resources, containers are still competing for resources in a physical machine. Starting from different images, the containers target various services, which results in different requirements on resources. Through analyzing the dynamic resource demands, our work studies a node placement scheme that balance the resource usages in a heterogeneous cluster.

Iii Background and Motivation

Iii-a Docker Containers

A Docker worker machine runs a local Docker daemon. New containers may be created on a worker by sending commands to its local daemon, such as “docker run -it ubuntu bash”. A Docker container image is a lightweight, stand-alone, executable package of a piece of software that includes everything needed to run it: code, run-time, system tools, system libraries, and settings. In general, each container targets a specific service of an application. If the application needs to scale up this particular service, it initiates duplicated containers by using the same image. One physical machine can host many applications with various services in a standalone mode.

Iii-B Container Orchestration

When deploying applications into a production environment, it’s difficult to achieve resilience and scalability on a single container host. Typically, a multi-node cluster is used to provide the infrastructures for running containers at scale. Introduced by Docker, SwarmKit is an open source toolkit for container orchestration in the cluster environment.

There are two types of nodes in a cluster that are running SwarmKit, worker nodes, and manager nodes. Worker nodes are responsible for running tasks; on the other hand, manager nodes accept specifications from the user and are responsible for reconciling the desired state with the actual cluster state.

A Docker container can be initiated with specific requirements (e.g. memory and CPU) and user-defined labels. The scheduler that runs on a manager combines the user-input information with states of each node to make various scheduling decisions, such as choosing the best node to perform a task. Specifically, it utilizes filters and scheduling strategies to assign tasks. There are four filters available. ReadyFilter: checks that the node is ready to schedule tasks; ResourceFilter: checks that the node has enough resources available to run; PluginFilter: checks that the node has a specific volume plugin installed. ConstraintFilter: selects only nodes that match certain labels. If there are multiple nodes that pass the filtering process, SwarmKit supports three scheduling strategies: spread (currently available), binpack, and random (under development based on Swarm Mode). Spread strategy: places a container on the node with the fewest running containers. Binpack strategy: places a container onto the most packed node in the cluster. Random strategy: randomly places the container into the cluster.

Fig. 1: Starting Dockers on a single machine

The default spread strategy, which attempts to schedule a service task based on the number of active containers on each node, can roughly assess the resources on the nodes. However this assessment fails to reflect various nodes in a heterogeneous cluster setting. Considering the heterogeneity, the nodes in such a cluster have different configurations in terms of memory, CPU, and network. Therefore, running the same amount of containers on these nodes results in different experiences. Fig 1 plots the average starting delay of and overall makespan of the set of Tomcat Docker containers. We conduct the experiments on two machines, M1 with 8GB memory, 4-core CPU and M2 has 16GB memory and 8-core CPU. On each particular machine, M1 or M2, we can see that the more containers it hosts, the larger the starting delay and makespan. However, M1 costs 23.67s on average to start 30 Tomcat containers and M2 costs 18.32s to start 40 containers. Additionally, when trying to initiate 80 Tomcat containers, M1 fails to complete the job and M2 finishes it.

Iv Draps  System

Iv-a Framework of Manager and Worker Nodes

As described in the previous section, there are multiple managers and workers in the system. A manager has six hierarchical modules. Client API accepts the commands from clients and creates service objects. Orchestrator handles the lifecycle of service objects and manages mechanics for service discovery and load balancing. Allocator provides network model specific allocation functionality and allocates IP addresses to tasks. Scheduler assigns tasks to worker nodes. Dispatcher communicates with worker nodes, checks their states, and collects the heartbeats from them.

A worker node, on the other hand, manages the Dockers containers and sends back their states to managers through periodical heartbeat messages. An executor is used to run the tasks that are assigned to the containers in this worker.

Iv-B Draps  modules

To simplify the implementation, we integrate the DRAPS  components into the current framework. As shown on Fig 2, it mainly consists of three parts: a container monitor that resides in the worker nodes, a worker monitor, and a DRAPS  scheduler that implement in manager nodes.

Container Monitor: a container monitor collects the runtime resources usage statistics of Docker containers on worker nodes. At each application level, the monitored resources contain memory, CPU percentage, block I/O, and network I/O. The average usage report in a given time window of top users will be injected into the DRAP-Heartbeat messages and sent back to managers. At the host system level, the tracking information includes I/O wait, reminder percentage of available memory, CPU, and bandwidth. The information is used by worker nodes to conduct a self-examination to identify its own bottleneck. If a bottleneck is found, a DRAP-Alert message will be produced and sent back to managers.

Work Monitor: a worker monitor processes the messages from worker nodes. It maintains a table for each worker and the corresponding containers. Through analyzing the data, it will generate tasks, such as migrating a resource-intensive container to another host.

DRAP-Scheduler: the DRAP-Scheduler assigns a task to a specific node based on the current available resources. For a duplicated Docker container, DRAP-Scheduler checks its characteristics on resource consumption, such as memory intensity, through the records of the previous containers in the same services.

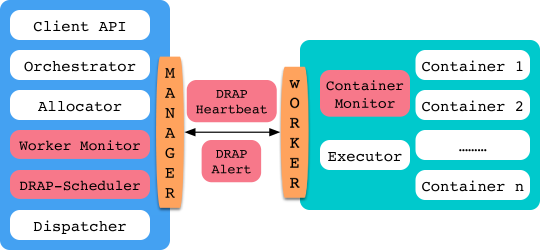

Fig. 2: Docker Framework with DRAPS  Implemention

V Problem Formulation

The DRAPS  scheduler aims to optimize the container placement such that the available resources on each worker node are maximized. In this paper, we assume that a container requires multiple resources such as memory, CPU, bandwidth, and I/O for running its services. Since the services and their workloads in a container change over time, the resource requirements in a container also exhibit temporal dynamics. Therefore, we formulate the resource requirements of a container as a function of time. Denote as the th resource requirement of the th container at time . Let be the container placement indicator. If , the th container is placed in the th work node. Denote as the total amount of the th resource in the th work node. Let , , be the set of containers, work nodes, and the resources, respectively. The utilization ratio of the resource in the th work node can be expressed as

(1)

We assume that the utilization ratio of the th work node is defined by its highest utilized resource. Then, the utilization ratio of the th work node is . The highest resource utilization among all the work nodes can be identified as

(2)

Since our objective when designing the DRAPS  scheduler is to maximize the available resources in each worker node, the DRAPS  scheduling problem can be formulated as

(3)
(4)
(5)

The constraint in E.q. (4) requires that each container should be placed in one worker node. The constrain in E.q. (5) enforces that the utilization ratio of any resource in a worker is less than one.

Lemma 1.

The DRAPS  scheduling problem is NP-hardness.

Proof.

In proving the Lemma, we consider a simple case of the DRAPS  scheduling problem in which the resource requirements of each container are constant over time. The simplified DRAPS  scheduling problem equals to the multidimensional bin packing problem which is NP-hard [30, 31, 32]. Hence, the lemma can be proved by reducing any instance of the multidimensional bin packing to the simplified DRAPS  scheduling problem. For the sake of simplicity, we omit the detail proof in the paper. ∎

Vi Draps  in a Heterogeneous Cluster

Previously, we discussed the different modules in DRAPS  and their major responsibilities. We also formulated the DRAPS  scheduling problem and proved that the problem is NP-hard. In this section, we present the detailed design of DRAPS

 with heuristic container placement and migration algorithms, in a heterogeneous cluster, which aims to increase resource availability on each worker node and boost the service performance by approximating the optimal solution of the

DRAPS  scheduling problem. To achieve the objectives, DRAPS  system consists of three strategies: 1) Identify dominant resource demands of containers; 2) Initial container placement; 3) Migrate a container

(a) Usage of CPU
(b) Usage of Memory
(c) Usage of Network I/O
(d) Usage of Block I/O
Fig. 3: Resource demonds under different workloads on four services, MySQL, Tomcat, YUM, PI.

Vi-a Identify Resource Demands from Containers

Before improving the overall resource efficiency, the system needs to understand the dynamic resource demands of various containers. A container is, usually, focused on providing a specific service, such as web browsing, data sorting, and database querying. Different algorithms and operations will be applied to the services, which result in diverse resource demands. As an intuitive example, we conducted the experiments on NSF Cloudlab [33] (M400 node hosted by University of Utah). The containers are initiated by using the following four images and the data is collected through “docker stats” command.

  1. MySQL: the relational database management system. Tested workloads: scan, select, count, join.

  2. Tomcat: provides HTTP web services with Java. Tested workloads: HTTP queries at 10/second and 20/second of a HelloWorld webpage.

  3. YUM: a software package manager that installs, updates, and removes packages. Tested workload: download and install “vim” package.

  4. PI: a service to calculate PI. Tested workload: top 3,000 digits with single thread, top 7,500 digits with two threads.

Figs. 2(d), 2(c), 2(b) and 2(a) plots the dynamic resource demands under different workloads on the above four Docker containers. The figures illustrate very diverse usage patterns on four types of resources: CPU, memory, network I/O, and block I/O. For example, without workload, container PI consumes very limited resources. However, when the jobs arrive at 10th and 38th second, the CPU usage jumps to 100% for a single thread job and 200% for a two-threads job. The usages of the other three types of resources still remain at very low levels. For MySQL service container, with tested operations, the CPU usage shows a burst when clients submit a request. At time 84, a “join” operation that involves 3 tables is submitted, and we can find CPU usage jumps, as well as memory usage. This is because the join operation needs a lot of computation and copies of tables in memory. Different usage trends are found on YUM and Tomcat services, where YUM uses less CPU and memory, but more network I/O and block I/O to download and install packages. On the other hand, Tomcat consumes a very small amount of network I/O and block I/O due to the size of a tested HelloWorld page, but more than 200MB of memory is used to maintain the service. To balance the resource usage, it’s crucial to place the containers with complementary demands on the same worker. As shown on the graphs, there is a dominant resource demand of a service in a given period despite multiple types of resources.

In DRAPS , we need to identify the dominant resource demand for each service. A manager, in the system, can monitor all of the containers’ resource usage and group them by their associated service ID. Suppose the service contains running containers that store in a set, . The resources consumed by

is denoted by a vector,

, where each attribute, , in the vector represents a type of resources, such as memory and CPU. If there are types of resources in the system, the average resource cost of is a vector, ,

On the worker nodes, there is a limited amount of resources in each type. The resource limit is a vector that contains attributes, . The limit of a system, , is obtained by from the sum of vectors from workers. Therefore, can be represented by a percentage of the total resources in the system, for the type, the container cost for in on average is . With the analysis, we define the dominant function, Function returns the type of a dominant resource demand of service within a given time period. The value of changes along with the system depending on the running containers for and the current cost of them.

Vi-B Initial Container Placement

To use a SwarmKit cluster, clients need to execute the command “docker run” to start a new container. Therefore, the first task for the cluster is to choose a worker node to host the container. As discussed in section III, the default container placement strategy fails to take dynamic resource contention into consideration. This is because the managers in SwarmKit do not have a mechanism that can monitor the current available resource. DRAPS, on the other hand, addresses the problem by introducing DRAPS-Heartbeat. DRAPS-Heartbeat is an enhanced heartbeat message that not only the states of worker node, but also the containers’ resource usage over a given time window, the usage includes memory, CPU, bandwidth, and block I/O. On the manager side, the data will be organized into a table that keeps tracking the current available resource on each worker and its corresponding containers’ resource usages.

Running on managers, Algorithm 1 assigns a container initialization task to a specific worker. Firstly, each manager maintains a known service set that records dockers’ characteristics, such as the usage of memory, CPU, bandwidth, and block i/o (line 1). The initial candidate worker are all running workers (line 2). When a new container starting task arrives, the algorithm applies all filters that the user specified to shrink the candidate work set, (line 3-6). Then, it checks whether the container belongs to a known service (line 7). If it is, the parameter will be used to store the container’s dominant resource attribute (line 8). In DRAPS, we consider four types, memory, CPU, bandwidth, and block i/o. The set will be sorted according to the dominant resource attribute and return the with the highest available resource in type (line 9-10). If the service cannot be found in , with the highest available resource on average will be chosen (line 11-13).

1:  Maintains a known characteristics service set
2:   = All running ;
3:  Function ContainerPlacement()
4:  for  do
5:     if  then
6:        Remove from
7:  if  then
8:
9:     Sort according to
10:     Return with highest
11:  else
12:     Sort for
13:     Return with highest average available resource
Algorithm 1 Container Placement on Managers

Vi-C Migrating a Container

In a Swarmkit cluster, resource contention happens on every worker. The container conitor, which is a module of DRAPS, runs on each worker to record resource usages of hosting containers. In addition, the worker keeps tracking available resources on itself. Whenever it finds a draining type of resources becomes a bottleneck, it sends to managers a DRAPS  alert message that contains the bottleneck type and the most costly container of this type. Upon receiving the DRAPS  alert message, the manager needs to migrate this container to an appropriate worker and kill it on the worker to release the resources.

Algorithm 2 presents the procedure to process an alert message from . It first builds a candidate set , which includes all running workers expect that sends the alert (line 1). Then, the manager extracts the resource type, that causes the bottleneck and finds the corresponding for the (lines 2-4). With and , the algorithm can decide whether this is a global service (line 5). If is a global service and it is in the known service set, , the algorithm returns that is included in , with the highest available . On the other hand, it returns with the highest available if is not in and on unknown (lines 6-12). When is not a global service, we want to increase the reliability of by placing its containers to different workers as much as possible. In this situation, we have a similar process expect a different , where contains all running workers that do not hosting any containers for (lines 13 - 23).

1:   = All running workers expect ;
2:  Function ReceiveAlertMsg()
3:  Extract the bottleneck type
4:  Find corresponding for
5:  if  then
6:     if  then
7:
8:        Sort according to
9:        Return with highest
10:     else
11:        Sort according to
12:        Return with highest
13:  else
14:     for  do
15:        if  then
16:           Remove from
17:     if  then
18:
19:        Sort according to
20:        Return with highest
21:     else
22:        Sort according to
23:        Return with highest
Algorithm 2 Process DRAPS  Alert Message from

Vii Performance Evaluation

(a) Worker 1 (Spread, 100)
(b) Worker 2 (Spread, 100)
(c) Worker 3 (Spread, 100)
(d) Worker 1 (DRAPS, 100)
(e) Worker 2 (DRAPS, 100)
(f) Worker 3 (DRAPS, 100)
Fig. 4: Memory and CPU resources usage comparison between Spread and DRAPS placement scheme (100 containers)

Vii-a Implementation, Testbed and Workloads

We implement our new container placement scheme, DRAPS, on Docker Community Edition (CE) v17. As described in Section IV, the major modules in DRAPS are integrated into the existing Docker Swarmkit framework.

To evaluate DRAPS, we build a heterogeneous cluster on Alibaba Cloud [34], which supports multiple types of computing nodes. Specifically, we use three different types of instances, small (1 CPU core and 4G memory), medium (4 CPU cores and 8G memory) and large (8 CPU cores and 16G memory). In the small-scale testing, we setup a cluster with 3 nodes, one of each type, and configure it with 1 manager and 3 worker (1 of the 3 physical nodes hosts both manager and worker). In experiments on scalability, we configure the cluster with 1 manger and 9 workers that consist 3 instances of each type.

The main objective of DRAPS is to understand resource demands of services and place them on appropriate worker nodes. As we discussed in Section VI-A, characteristics of services are varied. Therefore, workloads for the cluster are images of various services. In the evaluation, we select 18 different images in 4 types from Docker Hub [35] to build our image pool. Database Services: MongoDB, MySQL, Postgres, Cassandra, RethinkDB. Storage/Caching Services: Registry, Memcached. Web Services: Tomcat, Httpd, Redis, HAProxy, Jetty, Nginx, GlassFish. Message Services: RabbitMQ, Apache ZooKeeper, ActiveMQ, Ghost.

Vii-B Evaluation Results

Vii-B1 Idle containers

In this subsection, we present the result of a cluster with idle containers. If a container is in a running state but does not serve any clients, we call it a idle container. Idle container is an important concept since every node, right after initialization will act as an idle container. Understanding the resource demands of an idle container will help us select its host. In these experiments, we first randomly choose 14 images form the pool, and each image will be used to initiate 10 containers. Therefore, there are 140 containers in the cluster. Those containers are started one by one with 5 seconds interval. This is because previous containers will result in different available resources on worker nodes, which we can utilize to test DRAPS.

Fig 4 illustrates a comparison of memory and CPU usages between Spread, a Swarmkit default placement scheme, with DRAPS. As we can see from the subfigures, most of the CPU usage happens from 0 to 500s. This is caused by submission pattern that used to initiate containers. The percentage grows continuously from 0 to 500s since we have 100 containers and the submission interval is 5 seconds. While in both systems, the usage of CPU stays at a low level on average. However, the memory usage keeps increasing along with the number of containers on each worker. Due to the idle container setting, the utilization of memory is stable after 500s (all the containers have successfully initiated). There are some jitters on the curve of CPU, because some supporting programs, such as the Docker engine and service daemon, are running on the same worker and, of course, they are consuming resources. Comparing the memory usage rates after 500s, DRAPS significantly reduces rate on worker 1, from 80.5% to 46.7%. On worker 2, Spread and DRAPS achieve similar performance on memory, 39.1% verse 40.6%. On worker 3, Spread results in 23.6% and DRAPS consumes 33.3%. The DRAPS outperforms Spread by considering the heterogeneity in the cluster and various resource demands of services. When a task arrives at the system, it selects a worker based on the service demands and current available resources. Fig 6 shows the number of containers on workers. For Swarmkit with Spread, it uses a bin-pack strategy and tries to equally distribute the containers to every worker, which results in 34, 33, 33 containers for worker 1, 2, 3. While in DRAPS, worker 3 has more power than others and hosts more containers than worker 1, which has limited resource.

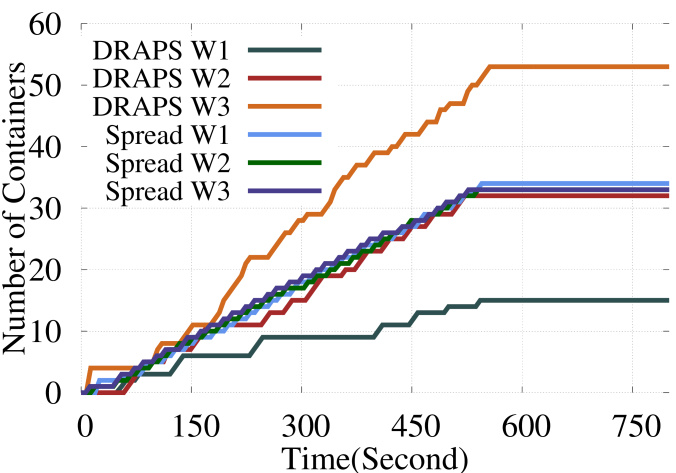

Fig. 5: Number of containers on each worker

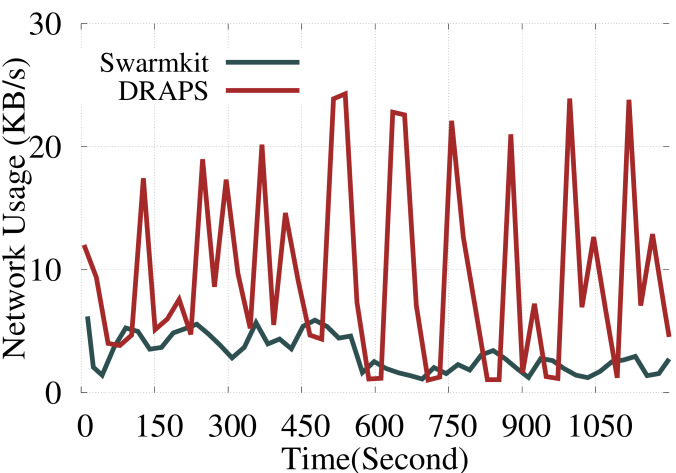

Fig. 6: Network consumption comparison on worker 3

While DRAPS achieves better performance, it introduces more data transfers between managers and workers through heartbeat messages. Fig 6 plots the network consumption of Swarmkit and DRAPS  on worker 3, which hosts both a manager and a worker. As expected, DRAPS  consumes more bandwidth than Swarmkit due to the enhanced heartbeat messages includes more statistical information resource usages of containers. Considering the distributed architecture, the system can have multiple managers and each of them in charge of controllable number of workers, the increase of bandwidth consumption that brought by DRAPS  is reasonable.

(a) Worker 1 (Spread, 140)
(b) Worker 2 (Spread, 140)
(c) Worker 3 (Spread, 140)
(d) Worker 1 (DRAPS, 140)
(e) Worker 2 (DRAPS, 140)
(f) Worker 3 (DRAPS, 140)
Fig. 7: Memory and CPU resources usage comparison between Spread and DRAPS placement scheme (140 containers)

Next, we conduct the same experiments with 40% more containers to test the scalability of DRAPS. Fig 7 plots the system performance with 140 Docker containers. Comparing the figures, the first impression is that on Fig 6(a), the usages suddenly drop from 95.2% to 11.1% for memory and 100% to 0 for CPU. The reason lies in the fact that, at time 726, the memory becomes bottlenecked on work 1 with Spread scheme. However, the manager does not award this situation on worker 1, and assign a new container to it. Worker 1 fails to start the new container, and drains the memory, which results in the death of all containers on it. The Docker engine decides to kill them all when it can not communicate with them. On the other hand, DRAPS considers dynamic resources usages on workers, and it stops assigning task to a worker if it has already overwhelming. It is shown on Fig 6(d) that the usages of memory and CPU remains at 46.3% and 18.8% for worker 1 with DRAPS. While worker 2 with Spread still runs smoothly at the end of the testing, its memory usage is at a high level, 76.6%, comparing to work 2 with DRAPS  the value is 54.1%.

Vii-B2 Loaded containers

Besides idle containers, we set up a mix environment that includes both idle and loaded containers. If clients are generating workloads to the services on the running containers, we call it loaded containers. Evidenced by Fig. 3, we know that loaded containers consume more resources than idle ones. In addition, the usage pattern of a loaded container changes along with the workload. Fig 9 plots the memory usage and number of containers on Worker-1. For the experiments running with Spread, it drains the memory at time 825s that the memory usage drops from 98.5% to 11.9%. Simultaneously, the number of running containers on worker-1 drops from 44 to 9 and then, to 0 at time 825s and 837s. This is because the docker engine kills all containers when the memory is not enough to maintain the system itself. Due to less containers on worker-1 with DRAPS (44 v.s 24), it runs normally throughout the entire experiments. Fig 9 shows the value of I/O wait in percentage, which measures the percent of time the CPU is idle, but waiting for an I/O to complete. It shows a similar trend that at time 849s the value drops to 0 for Spread, while DRAPS maintains stable performance.

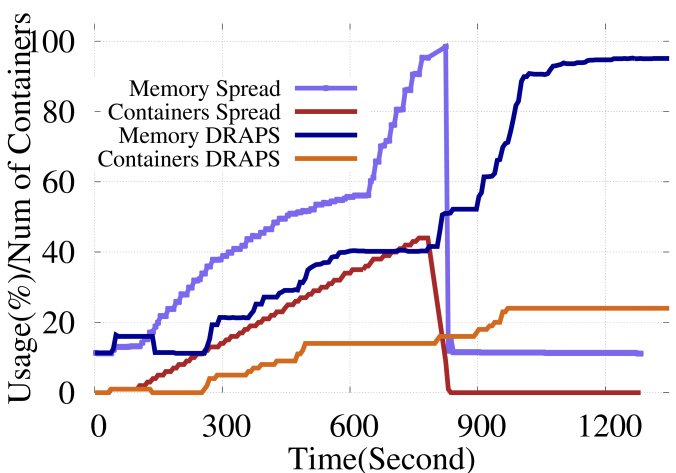

Fig. 8: Memory usage and container number on worker1

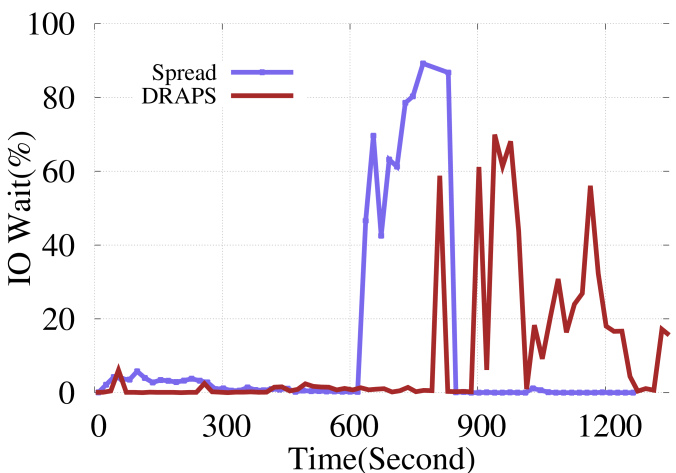

Fig. 9: Value of I/O Wait on worker1

Viii Conclusion

This paper studies the container placement strategy in a heterogeneous cluster. We target on distributing containers to the worker nodes with the best available resources. In this paper, we develop DRAPS, which considers various resource demands from containers and current available resources on each node. We implemented DRAPS on Docker Swarmkit platform and conducted extensive experiments. The results show a significant improvement on the system stability and scalability when comparing with the default Spread strategy.
