For DL testing, the classical approach is to gather sufficient manually labeled data to assess the accuracy of DL systems. However, the input space of testing is so huge that it is extremely hard to collect all the possible inputs to trigger every feasible logic of a DL system. It is demonstrated that state-of-the-art DL systems can be fooled by adding small perturbations to the test inputs (Szegedy et al., 2013)
. Although DL systems exhibit impressive performance on image classification tasks, the classifiers can also be easily led to incorrect classifications by applying imperceptible perturbations(Moosavi Dezfooli et al., 2016), as shown in Figure 1. Therefore, DL testing is quite challenging but essential to ensure the correctness of those safety-critical practices.
Several approaches have been proposed to improve the testing efficiency of DL systems. Some of them leverage solvers like Z3 to generate adversarial inputs under the formalized constraints of the DL models (Huang et al., 2017; Gu and Rigazio, 2014)
. These techniques are accurate, but work in a heavy whitebox manner and are resource-consuming for constraint solving. Some blackbox methods exploit heuristic algorithms to mutate the inputs until the adversarial inputs acquired(Wicker et al., 2018). These methods are time-consuming and rely heavily on the manually supplied ground truth labels. Other approaches of adversarial deep learning focus on fooling the DL systems by applying imperceptible perturbations to the inputs mostly in a gradient-based manner (Szegedy et al., 2013; Moosavi Dezfooli et al., 2016). They work efficiently but are shown to have low neuron coverage (Pei et al., 2017). Recently, DeepXplore (Pei et al., 2017) was presented as the state-of-the-art whitebox testing framework for DL systems and first introduced the concept of neuron coverage as a testing metric. Meanwhile, it requires multiple DL systems with similar functionality as cross-referencing oracles to avoid manual checking. Nevertheless, cross-referencing suffers from the scalability and difficulty of finding similar DL systems.
In this paper, we propose DLFuzz111https://github.com/turned2670/DLFuzz, the first differential fuzzing testing framework aiming to maximize the neuron coverage and generate more adversarial inputs for a given DL system, without cross-referencing other similar DL systems or manual labeling. First, DLFuzz iteratively selects neurons worthy to activate for covering more logic, and mutates the test inputs by applying minute perturbations to guide the DL systems exposing incorrect behaviors. During the mutation process, DLFuzz keeps the mutated inputs which contribute to a certain increase of the neuron coverage for the subsequent fuzzing, and the minute perturbation is restricted to be invisible and ensures that the prediction results of the original input and the mutated inputs should be the same. In this way, DLFuzz is able to obtain rare inputs, and can automatically identify the erroneous behaviors with differential testing that an error is triggered when the prediction result of the mutated input is not the same with the original input.
To evaluate the efficiency of DLFuzz, we conducted empirical studies on six DL systems trained on two popular datasets, MNIST (LeCun, 1998)
and ImageNet(Deng et al., 2009). The DL systems and the datasets are exactly the same as those used by DeepXplore. Compared with DeepXplore, DLFuzz does not need extra efforts to collect similar functional DL systems for cross-referencing label check, but could generate more adversarial inputs with smaller perturbations, and obtain higher neuron coverage. For the time efficiency, it saves time consumption in average with one exceptional case on ImageNet costing more than DeepXplore.
There exists a large gap between DL testing and traditional software testing, owing to the totally distinct internal structures of deep neural networks (DNN) and software programs. Researchers have devoted many efforts to applying software testing to DL testing in both whitebox and blackbox manner(Huang et al., 2017; Gu and Rigazio, 2014; Wicker et al., 2018). We aim to break the resource consumption limitation of blackbox testing techniques(Wicker et al., 2018) and the cross-referencing obstacles of whitebox testing techniques(Pei et al., 2017) with DLFuzz, the first differential fuzzing testing framework leveraging imperceptible perturbations to ensure the invisible difference between the inputs and the mutated inputs.
Fuzzing testing (Zalewski, 2007; Wang et al., 2018; Liang et al., 2018) has been recognized as one of the most effective methodologies for vulnerability detection in software testing, demonstrated by the huge amount of vulnerabilities caught. The core idea is to generate random inputs to execute as many program paths as possible so as to lead the program to expose violations and crashes. It can be seen that fuzzing testing and DL testing share similar goals of achieving higher coverage as well as getting more exceptional behaviors. In general, we combined the knowledge in key stages of fuzzing into DL testing as below:
Optimization Goal. The goal of reaching higher neuron coverage and exposing more exceptional behaviors can be treated as a joint optimization problem. This optimization problem can be implemented in the gradient-based manner.
Seed Maintenance. While fuzzing, the mutated inputs which contribute to a certain increase of the neuron coverage are kept in the seed list, based on the potential to improve neuron coverage continuously in the subsequent fuzzing.
Diversity in Mutation Strategies. We designed many neuron selection strategies to select neurons that are possible to cover more logic and trigger more incorrect outputs. Furthermore, multiple mutation ways for test inputs have been already practiced, and are easy to be integrated.
3. DLFuzz Approach
The overall architecture of DLFuzz is depicted in Figure 2. In this paper, we implement DLFuzz to work on image classification, a popular task in DL domains to demonstrate its feasibility and effectiveness. The adaptions in other tasks such as speech recognition are straightforward and also follow the same workflow in Figure 2.
To specify, the given test input
is an image to be classified, the DNN is a particular convolutional neural network (CNN) under test, such as VGG-16(Simonyan and Zisserman, 2015). The mutation algorithm applies tiny perturbation to and gets , which is visibly indistinguishable from . If the mutated input and the original input are both fed to the CNN but classified to be of different class labels, we treat this as an incorrect behavior and to be one of the adversarial inputs. The inconsistent classification results before and after mutation indicate that at least one of them is wrong so that manually labeling effort is not required here. In contrast, if the two are predicted of the same class label by the CNN, will continue to be mutated by the mutation algorithm to test the CNN’s robustness.
The mutation algorithm is the main component of DLFuzz. It is completed by solving a joint optimization problem of both maximizing the neuron coverage and the number of incorrect behaviors. Based on the demonstration that covering more neurons could potentially trigger more logic and more erroneous behaviors (Pei et al., 2017), DLFuzz also leverages the same definition and computing way of neuron coverage as DeepXplore (Pei et al., 2017). Neurons with output values larger than the set threshold are regarded as activated (covered).
The core process of the mutation algorithm is in Algorithm 1. The algorithm contains three key components to discuss in detail.
Optimization Problem. As discussed in Section 1, the gradient-based adversarial deep learning outperforms the other approaches in several aspects, especially in time efficiency. It founds perturbations by optimizing the input to maximize the prediction error (Szegedy et al., 2013)
, which is opposite to optimizing the weights to minimize the prediction error while training the DNN. It is easy to implement by customizing the loss function as our objective and maximizing the loss by gradient ascent.
The loss function of DLFuzz is defined as the following equation (Algorithm 1 line 9), which is also the optimization objective:
where the objective consists of two parts. In the first part , is the original class label of the input, is one of top k class labels with confidence just lower than (Algorithm 1 line 7). Maximizing the first part guides the input to cross the decision boundary of the original class and lie in the decision space of top k other classes. Such modified inputs are more likely to be classified incorrectly (Moosavi Dezfooli et al., 2016). In the second part , is a target neuron intended to activate. These neurons are selected considering many strategies to improve neuron coverage (Algorithm 1 line 8). The hyperparameter is used for balancing the two objectives.
Fuzzing Process. The fuzzing process reveals the overall workflow of Algorithm 1. When given a test input , DLFuzz maintains a seed list for keeping the intermediate mutated inputs which contribute to neuron coverage. At first, the seed list only has one input which is exactly . Next, DLFuzz traverses each seed and obtains the elements making up its optimization objective. Then, DLFuzz computes the gradient direction for later mutation. In the mutation process, DLFuzz iteratively applies the processed gradient as the perturbation to and obtains the intermediate input . After each mutation, the intermediate class label , coverage information, distance of and are acquired. If the neuron coverage improved by and distance are desired, will be added into the seed list. Finally, if is already different from , mutation process for seed terminates and will be included in the set of adversarial inputs. Therefore, DLFuzz is able to generate multiple adversarial inputs for a certain original input and explore a new way to further improve neuron coverage.
For the iterative mutation process, first, various processing methods are available to generate perturbations when the gradients obtained, including just keeping the sign (Szegedy et al., 2013), imitating the realistic situations (Tian et al., 2018; Pei et al., 2017), etc. These mutation strategies for the input are easy to be extended to DLFuzz. Second, DLFuzz adopts distance to measure the perturbation with the same computation as (Moosavi Dezfooli et al., 2016), so as to ensure the distance between and is imperceptible. As for the conditions of seed keeping in line 18, DLFuzz limits our desired distance to a relatively small range (less than 0.02) to ensure the imperceptibility. As the neuron coverage improvement of one input declines with time, the corresponding threshold for keeping the seed also decreases with running time. In addition, the inputs and hyperparameters configuring DLFuzz have certain effects to the performance and need some exploration efforts. Furthermore, we can increase the thresholds of seed keeping to reserve more mutated inputs with greater distance.
Strategies for Neuron Selection. To maximize neuron coverage, we propose four heuristic strategies for selecting neurons more likely to improve coverage as listed below. For each seed , neurons will be selected utilizing one or multiple strategies, which can be customized in of the algorithm inputs.
Strategy 1. Select neurons covered frequently during past testing. Inspired by practical experience in traditional software testing that code fragments often or rarely executed are more possible to introduce defects. Neurons covered often or rarely perhaps can result in unusual logic and activate more neurons.
Strategy 2. Select neurons covered rarely during past testing due to the considerations stated above.
Strategy 3. Select neurons with top weights. It is presented based on our assumption that neurons with top weights maybe have larger influence on other neurons.
Strategy 4. Select neurons near the activation threshold. It is easier to accelerate if activating/deactivating neurons with output value slightly lower/larger than the threshold.
4.1. Experiment Setup
We implemented DLFuzz based on the widespread frameworks of DL systems, Tensorflow 1.2.1 and Keras 2.1.3. Tensorflow and Keras provide the efficient interfaces for gradient computations and support the process of recording the intermediate output of all neurons after each prediction of the DNN. We developed and evaluated DLFuzz on a computer with 4 cores (Intel i7-7700HQ @3.6GHz), 16GB of memory, a NVIDIA GTX 1070 GPU and Ubuntu 16.04.4 as the host OS.
We selected two datasets (MNIST and ImageNet) and the corresponding CNNs used by DeepXplore for image classification tasks to evaluate DLFuzz. MNIST (LeCun, 1998) is a large database of handwritten digits consisting of 60000 training images and 10000 testing images. ImageNet (Deng et al., 2009) is a large visual database containing over 14 million images for object recognition. The same as DeepXplore, DLFuzz tested three pre-trained models for each dataset, that is, LeNet-1 (LeCun et al., 1998), LeNet-4 (LeCun et al., 1998), LeNet-5 (LeCun et al., 1998) for MNIST and VGG-16 (Simonyan and Zisserman, 2015), VGG-19 (Simonyan and Zisserman, 2015), ResNet50 (He et al., 2016) for ImageNet. Considering the fairness, we also randomly choose 20 images from the dataset for each CNN as test inputs in the same way with DeepXplore. As for the hyperparameters configured in the input, we tried lots of combinations of possible settings. If not specified, the default settings of those hyperparameters , , , are respectively for their good performance on many DNNs.
Table 1 presents the effectiveness of DLFuzz compared with DeepXplore. DLFuzz exhibits its advantages in improving neuron coverage, generating more adversarial inputs within the same time limit and restricting imperceptible perturbations. First, as presented in the third column of the table, for the tested six CNNs, DLFuzz achieves to higher neuron coverage than DeepXplore in different settings in average. For the best setting, DLFuzz is able to acquire higher neuron coverage.
|DataSet||Model (#Neurons)||NC Imp.1||Distance||#Adv.2||Adv. Time3|
Comparisons represented by content in format a/b, where a denotes the result
of DeepXplore and b denotes the result of DLFuzz.
Average neuron coverage improvement.
Number of adversarial inputs generated.
Average time of generating per adversarial input.
Next, adversarial inputs generated by DLFuzz have much smaller perturbations. As the cases in Figure 3, the perturbations generated by DeepXplore are visible while those generated by DLFuzz are invisible and imperceptible. In this way, DLFuzz provides stronger guarantee for the consistence of the image’s identity before and after mutation. As shown in the fourth and fifth column of table 1, DLFuzz averagely generated more adversarial inputs with smaller perturbations. Moreover, DLFuzz spent shorter time on generating each adversarial input on these DL systems. An exceptional case is that DLFuzz cost more time on generating adversarial inputs than DeepXplore for ResNet50, which is owing to more time needed for neuron selection when testing a DL system consisting of a huge amount of neurons (94056).

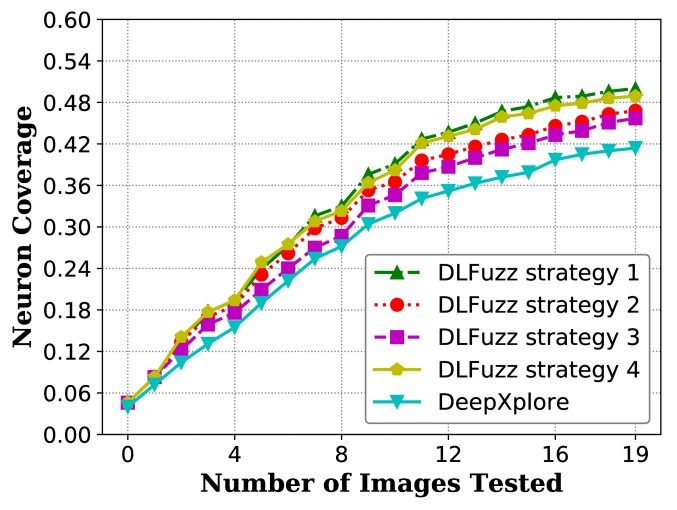

We also tried all the proposed neuron selection strategies on two CNNs and depicted the results in Figure 4. All strategies are shown to contribute more to neuron coverage improvement than DeepXplore while have similar performance among themselves. It seems that ”strategy 1” performs slightly better. In addition, to prove the practical use of DLFuzz, we incorporated 114 adversarial images into the training set of three CNNs on MNIST and retrained them to see if their accuracy is able to increase. Finally, we improve their accuracy by up to
within 5 epochs. More improvement is expected if more adversarial inputs included in the retraining process.
Applicability of Fuzzing to DL Testing. The effectiveness of DLFuzz demonstrates that applying the knowledge of fuzzing to DL testing is feasible and can greatly improve the performance of existing DL testing techniques such as DeepXplore. The gradient-based solution of the optimization problem guarantees the easy deployment and high efficiency of the framework. The mechanism of seed maintenance provides diverse directions and larger space for improving neuron coverage. As the cases shown in Figure 3, it is also capable to obtain incremental adversarial inputs for one input. Various strategies combined for neuron selection proved to be good at finding neurons beneficial for increasing neuron coverage.
Without Manual Effort. For confirmation, we checked all the 366 adversarial inputs generated by DLFuzz, though DLFuzz maintains quite small distance by the restricted threshold. We haven’t found any adversarial inputs that have already changed their identities after mutation. The adversarial inputs are nearly the same as the original input, and the perturbations are imperceptible.
Future Work. Encouraged by the impressive effects of DLFuzz on image classification tasks, we will work on the deployments of DLFuzz on other popular tasks in DL domains, such as speech recognition. The specific constraints for input mutation of the corresponding task will be added into the common workflow. Also, some domain knowledge can be leveraged to provide more efficient mutation operations and increase the the efficiency of DLFuzz.
We design and implement DLFuzz as an effective fuzzing testing framework of DL systems. DLFuzz first combines the basic ideas of fuzzing testing into DL testing and demonstrates its efficiency. Compared with DeepXplore, DLFuzz averagely obtained higher neuron coverage and generated more adversarial examples with smaller perturbations given the same amount of inputs. DLFuzz also overcomes the trouble of relying on multiple DL systems of the similar functionality in DeepXplore. Additionally, DLFuzz exhibits its practical use by incorporating these adversarial inputs to retrain the DL systems and to steadily improve their accuracy. The premiere results present its potential usage to expose the incorrect behaviors of DL systems at an early stage, and ensure the reliability and robustness.
