1 Introduction

Computing relative importance across a series of inputs can be regarded as one of the important advances in modern deep learning research. This paradigm, commonly known as

attention Bahdanau et al. (2015), has demonstrated immense success across a wide spectrum of applications. To this end, learning to compute contextual representations Vaswani et al. (2017), to point to the relevant part in the input Vinyals et al. (2015), or to select windows or spans Wang and Jiang (2017) from sequences forms the crux of many modern deep neural architectures.

Despite aggressive advances in developing neural modules for computing relative relevance Luong et al. (2015); Chiu and Raffel (2018), there has been no general purpose solution for learning differentiable attention windows. While span selection-based pointer network models typically predict a start boundary and an end boundary Wang and Jiang (2017); Seo et al. (2017), these soft predictions generally reside at the last layer of the network and are softly optimized. To the best of our knowledge, there exists no general purpose component for learning differentiable windows within networks.

Although the practical advantages of learning differentiable windows are plenty, this paper focuses on improving attentions with differentiable windows. The key idea is to enable more focused attention, leveraging dynamic window selection for limiting (and guiding) the search space for the standard attention modules to work within. This can also be interpreted as performing a form of dynamic local attention.

We make several key technical contributions. First, we formulate the dynamic window selection problem as a problem of learning a discrete mask (i.e., binary values representing the window). By learning and composing left and right boundaries, we show that we are able to parameterize the (discrete) masking method. We then propose soft adaptations of the above mentioned, namely trainable soft masking and segment-based soft masking, which are differentiable approximations that can not only be easily optimized in an end-to-end fashion, but also inherit the desirable properties of discrete masking.

While these modules are task and model agnostic, we imbue the state-of-the-art Transformer Vaswani et al. (2017) model with our differentiable window-based attention. To this end, we propose two further variants, i.e., multiplicative window attention and additive window attention for improving the Transformer model. Within the context of sequence transduction and self-attention based encoding, learning dynamic attention windows are beneficial because they can potentially eliminate noisy aggregation and alignment from large input sequences.

On the other hand, it is good to note that hard attention Xu et al. (2015), which replaces the weight average of soft attention with a stochastic sampling model, tries to achieve similar ends, albeit restricted to token-level selection. Hence, our proposed differentiable windows are more flexible and expressive compared to hard attentions.

We evaluate our Transformer model with differentiable window-based attention on a potpourri of NLP tasks, namely machine translation, sentiment analysis, language modeling, and subject-verb agreement. Extensive experimental results on these tasks demonstrate the effectiveness of our proposed method. Notably, on the English-German and English-French WMT’14 translation tasks, our method accomplishes improvements of 0.63 and 0.85 BLEU, respectively. On the Stanford Sentiment Treebank and IMDB sentiment analysis tasks, our approach achieves 2.4% and 3.37% improvements in accuracy, respectively. We further report improvements of 0.92% in accuracy and 2.13 points in perplexity on the subject-verb agreement and language modeling tasks, respectively. We make our code publicly available at https://ntunlpsg.github.io/project/dynamic-attention/.

2 Background

The attention mechanism enables dynamic selection of relevant contextual representations with respect to a query representation. It has become a key module in most deep learning models for language and image processing tasks, especially in encoder-decoder models Bahdanau et al. (2015); Luong et al. (2015); Xu et al. (2015).

2.1 Transformer and Global Attention

The Transformer network

Vaswani et al. (2017) models the encoding and decoding processes using stacked self-attentions and cross-attention (encoder-decoder attentions). Each attention layer uses a scaled multiplicative formulation defined as:


where denotes the softmax operation over each row of matrix , is the matrix containing the

query vectors, and

are the matrices containing the key and value vectors respectively, with being the number of vector dimensions; , ,

are the associated weights to perform linear transformations.

To encode a source sequence, the encoder applies self-attention, where , and contain the same vectors coming from the output of the previous layer.111Initially, , , and contain the token embeddings. In the decoder, each layer first applies masked self-attention over previous-layer states. The resulting vectors are then used as queries to compute cross-attentions over the encoder states. For cross-attention, comprises the decoder self-attention states while and contain the encoder states. The attention mechanism adopted in the Transformer is considered global since the attention context spans the entire sequence.

2.2 Windows in Attentions

In theory, given enough training data, global attention should be able to model dependencies between the query and the key vectors well. However, in practice we have access to only a limited amount of training data. Several recent studies suggest that incorporating more focused attention over important local regions in the input sequence as an explicit inductive bias could be more beneficial.

In particular, Shaw et al. (2018) show that adding relative positional biases to the attention scores (Eq. 1) increases BLEU scores in machine translation. Specifically, for each query at position and key at position , a trainable vector is added to the key vector before the query-key dot product is performed. The window size is chosen via tuning. Sperber et al. (2018) also consider local information by restricting self-attention to neighboring representations to improve long-sequence acoustic modeling. Although shown to be effective, their methods only apply to self-attention and not to cross-attention where the query vectors come from a different sequence.

That said, Luong et al. (2015) are the first to propose a Gaussian-based local attention for cross-attention. At each decoding step , their model approximates the source-side pivot position as a function of the decoding state and the source sequence length. Then, local attention is achieved by multiplying the attention score with a confidence term derived from a distribution. The aligned pivot

and the variance

(a hyper-parameter) respectively represent the center and the size of the local window.

Meanwhile, Yang et al. (2018) improve the method of Luong et al. (2015

) by assigning a soft window weight (a Gaussian bias) to obtain a flexible window span. Despite effective, the aligned pivot position in the source is determined only by the decoder state, while the encoder states are disregarded - these should arguably give more relevant information regarding the attention spans over the source sequence. Besides, the confidence for local attention span may not strictly follow a normal distribution, but rather vary dynamically depending on the relationship between the query and the key. Furthermore, the approach of Luong et al. (

2015) is only applicable to cross-attention while the one of Yang et al. (2018) works better only for encoder self-attention as shown in their experiments.

Our proposed differentiable window approach to local attention addresses the above limitations of previous methods. Specifically, our methods are dynamic and applicable to encoder and decoder self-attentions as well as cross-attention, without any functional constraints. They incorporate encoder states into the local window derivation. They are also invariant to sequence length, which removes the dependence on global features from the local context extraction process.

3 Dynamic Differentiable Window

Our proposed attention method works in two steps: (i) derive the attention span for each query vector to attend over, and (ii) compute the respective attention vector using the span. In this section, we present our approaches to step (i) by proposing trainable soft masking and segment-based soft masking. In the next section, we present our methods to compute the attention vectors. To give the necessary background to understand what can be expected from our method, we first present the discrete masking case.

3.1 Discrete Window Masking

In this context, we seek to dynamically derive a boolean mask vector for each query that will indicate the window in the key-sequence over which the query should attend. In other words, attentions are only activated on the consecutive positions where the mask vector element is , and the positions with are canceled out. Let the query vector and the key-sequence be and , respectively. Formally, we define the local attention mask vector for the query as follows.


where and denote the left and right positional indices that form a discrete window over which the query attends. As such, in the standard global attention, and for all the query vectors, and in decoder self-attention, and for the query vector at decoding step . To facilitate the construction of , we first define vectors , , and matrix with entries as:


Figure 1: Example of , , and vectors and how the mask vector can be derived for and .

where denotes the one-hot representation for a boundary position (from the left or right of a sequence), and are the ‘rightward’ mask vector and ‘leftward’ mask vector, respectively; denotes a unit-value (1) upper-triangular matrix with and being the row and column indices respectively. Figure 1 visualizes how these entities appear. Specifically, has entry values of ’s for position and its right positions, while has entry values of ’s for position and its left positions. As such, and can be derived from and as follows.


Note that can be interpreted as the cumulative sum across , while as the inverse cumulative sum across .

Given the above definitions, the mask vector for a query to attend over the window in the key sequence such that can be achieved by:


where denotes element-wise multiplication. As shown in Figure 1, represents the intersection between and , and forms a masking span for the attention.

3.2 Trainable Soft Masking

The above masking method is non-differentiable as is discrete, which makes it unsuitable in an end-to-end neural architecture. In our trainable soft masking method, we approximate the discrete one-hot vector with a pointing mechanism Vinyals et al. (2015).222However, unlike the standard pointer network, in our case there is no direct supervision for learning the pointing function. Our network instead learns it from the end prediction task. Specifically, given the query and the key-sequence as before, we define confidence vectors as follows.


where is the softmax function as defined before, and are trainable parameters. Eq. 7-8 approximate the left and right boundary positions of the mask vector for the query . However, contrary to the discrete case, they do not enforce absolute cancellation or activation of attention weights on any position in the key-sequence. Instead, they assign a confidence score to each position. This allows the model to gradually correct itself from invalid assignments. Moreover, the softmax operations enable differentiability while maintaining the gradient flow in an end-to-end neural architecture.

Note however that the left and right boundary concepts have now become ambiguous since the positions and are not guaranteed to conform to the constraint . To understand its implication, lets first consider the discrete case in Eq. 6; the element-wise multiplication between and results in a zero vector for if , canceling out the attention scores entirely. Although not absolute zeros, in the continuous case, would potentially contain significantly small values, which renders the attention implausible. To address this, we compute the soft mask vector as follows.


This formulation has two additive terms; the former constructs the mask vector when , whereas the latter is activated when . This ensures a non-zero result regardless of and values. It can be shown that the values in represent the expected value of the discrete flags in , i.e., = ; see Appendix for a proof.

We concatenate the mask vectors horizontally for all the query vectors in to get the mask matrix . Since the pointing mechanism is invariant to sequence length, the computation of the mask vectors enjoys the same advantages, enabling our models to efficiently perform attentions on any arbitrarily long sequences. In addition, the method is applicable to all attention scenarios – from decoder to encoder cross-attention, encoder self-attention, and decoder self-attention.

3.3 Segment-Based Soft Masking

The soft masking introduced above modulates the attention weight on each token separately which may result in unsmooth attention weights on neighbouring tokens. However, words in a sentence are related and they often appear in chunks or phrases, contributing to a shared meaning. Thus, it may be beneficial to assign identical mask values to the tokens within a segment so that they are equally treated in the window selection method. In this section, we propose a novel extension to our soft masking method that enables the mask vector to share the same masking values for the tokens within a segment in a key-sequence.

The main idea is to divide the key-sequence into consecutive segments and to assign the same masking value to the tokens in a segment. The segment size is considered a hyper-parameter. We compute the segment-based mask vector similarly as in Eq. 9, but with replaced by defined as follows.


Eq. 10 - 11 ensure that all the items in a segment share the same masking value, which is the cumulative sum of the confidence scores in and . For instance, suppose and segment size , then the term evaluates to , and evaluates to . Similarly, and will have segment-level effects on the cumulative sums. Figure 2 visualizes the method with an example for .

One advantage of this approach is that it allows us to control the masking behavior (by varying ) without increasing the number of parameters compared to the token-based masking. We also show its effectiveness in our experiments.

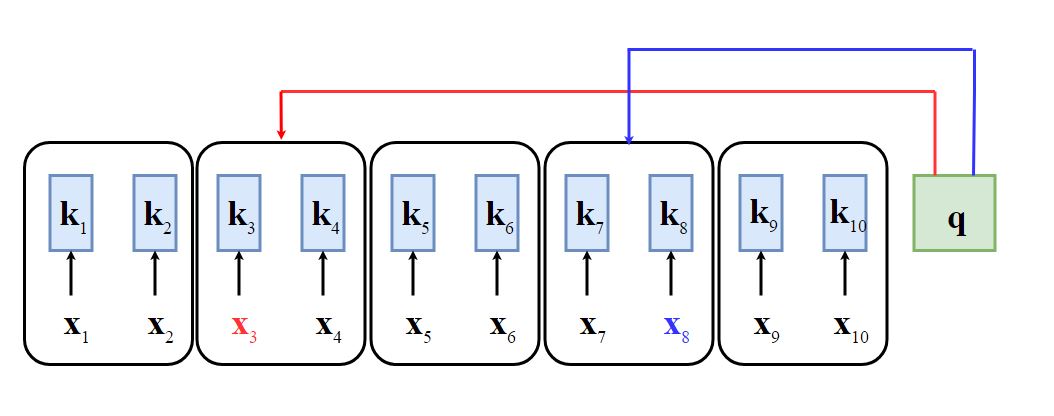

Figure 2: Segment-based masking for segment size . Instead of pointing to the left and right indices of the tokens, the soft segment-based method (approximately) points to the left and right boundaries of the segments, respectively.

4 Dynamic Window Attention Methods

Having presented our method to compute the mask vector that defines the attention spans, we now present our methods to incorporate the mask vectors into the attention layers.

4.1 Multiplicative Window Attention

In this approach, the attention weights (Eq. 2) are (element-wise) multiplied by the mask matrix to confine their attention scope defined by the mask. Formally, the attention scores and outputs are defined as follows.

score (12)

In this approach, the standard global attention weights are suppressed and partially overshadowed by the attention window imposed by . Thus, it can be interpreted as a local attention method similar to Luong et al. (2015). However, instead of using a static Gaussian bias, we use a dynamic mask to modulate the attention weights.

4.2 Additive Window Attention

Having a local attention window could be beneficial, but it does not rule out the necessity of global attention, which has been shown effective in many applications Vaswani et al. (2017); Devlin et al. (2019). Thus, we also propose an additive window attention, which implements a combination of global attention and local attention. The attention output in this method is formally defined as


where , and are the weight matrices for global and local attentions.

Compared to the multiplicative window attention where the mask re-evaluates the global attention weights, additive window attention applies the mask vector to the local attention scores (), which is then added to the global attention scores () before passing it through the softmax function. In this way, the mask-defined local window does not suppress the global context but rather complements it with a local context. Moreover, the resulting attention weights add up to one, which avoids attention weights diminishment that could occur in the multiplicative window attention. Additive merger of global and local window components may also facilitate more stable gradient flows.

4.3 Implementation in Transformer

We now describe how the proposed dynamic window attention methods can be integrated into the Transformer.

Encoder, Decoder and Cross Attentions.

Our proposed methods can be readily applied to the any of the attention layers in the Transformer framework. We could also selectively apply our methods to different layers in the encoder and decoder. In our initial experiments on WMT’14 English-German development set, we observed that the following settings provide more promising performance gains.
First, encoder self-attention layers benefit most from additive window attention, while decoder self-attention layers prefer multiplicative attention. This shows that the global attention component is more useful when the key sequence is provided entirely in the encoder, while less useful when only the fragmented key sequence (past keys) is visible in the decoder. Second, the above argument is further reinforced as we found that cross-attention layers also prefer additive window attention, where the entire source sequence is available. Third, cross-attention works better with segment-based masking

, which provides smoothness and facilitates phrase (n-gram) based translations.

Lower-layer Local Attentions.

It has been shown that deep neural models learn simple word features and local syntax in the lower layers, while higher layers learn more complex context-dependent aspects of word semantics. Belinkov et al. (2017) show this on NMT models, while Peters et al. (2018) and Jawahar et al. (2019) show this on representation learning with ELMo and BERT respectively. In other words, local contextual information can still be derived in higher layers with the standard global attention. As such, we propose to apply our dynamic window attention methods only to the first 3 layers of the Transformer network, leaving the top 3 layers intact. Our diverse experiments in the following section support this setup as it offers substantial improvements, whereas using local attention in higher layers does not show gains, but rather increases model parameters.

5 Experiment

In this section, we present the training settings, experimental results and analysis of our models in comparison with the baselines on machine translation (MT), sentiment analysis, subject verb agreement and language modeling (LM) tasks.

5.1 Machine Translation

We trained our models on the standard WMT’16 English-German (En-De) and WMT’14 English-French (En-Fr) datasets containing about 4.5 and 36 million sentence pairs, respectively. For validation (development) purposes, we used newstest2013 for En-De and a random split from the training set for En-Fr. All translation tasks were evaluated against their respective newstest2014 test sets, in case-sensitive tokenized BLEU. We used byte-pair encoding Sennrich et al. (2016) with shared source-target vocabularies of 32,768 and 40,000 sub-words for En-De and En-Fr translation tasks, respectively. We compare our models with three strong baselines: (i) Transformer Base Vaswani et al. (2017), (ii) Transformer Base with Relative Position Shaw et al. (2018), and (ii) Transformer Base with Localness Modeling Yang et al. (2018). To ensure a fair comparison, we trained our models and the baselines with the following training setup.

Training Setup.

We followed model specifications in Vaswani et al. (2017) and optimization settings in Ott et al. (2018), with some minor modifications. Specifically, we used word embeddings of dimension 512, feedforward layers with inner dimension 2048, and multi-headed attentions with 8 heads.

We trained our models on a single physical GPU but replicated the 8-GPU setup following the gradient aggregation method proposed by Ott et al. (2018).

We trained the models for 200,000 updates for En-De and 150,000 updates for En-Fr translation tasks. Finally, we averaged the last 5 checkpoints to obtain the final models for evaluation. The segment size in the segment-based masking method was set to 5.333We did not tune ; tuning might improve the results further.

Translation Results.

We report our translation results in Table 1; Enc(AW) indicates the use of additive window (AW) attention in the encoder, Dec(MW) indicates the use of multiplicative window (MW) attention in the decoder, and Cr(AW,Seg) indicates the use of additive window attention with segment-based masking for cross-attention. The attention module that is not specified in our naming convention uses the default token-based global attention in the Transformer. For example, Enc(AW)-Dec(MW) refers to the model that uses AW attention in the encoder, MW attention in the decoder and the default global attention for cross attention.

We notice that despite a minor increase in the number of parameters, applying our attentions in the encoder and decoder offers about 0.7 and 1.0 BLEU improvements in En-De and En-Fr translation tasks respectively, compared to the Transformer base Vaswani et al. (2017). Our model with the segment-based additive method for cross attention achieves a similar performance. We observe further improvements as we apply our attentions in all the attention modules of the Transformer. Specifically, our model Enc(AW)-Cr(AW,Seg)-Dec(MW) achieves 28.25 and 40.32 BLEU in En-De and En-Fr translation tasks, outperforming Transformer base with localness Yang et al. (2018) by 0.63 and 0.85 BLEU, respectively.

Model #-params En-De En-Fr
Vaswani et al. (2017) 63M 27.46 39.21
Shaw et al. (2018) 63M 27.56 39.37
Yang et al. (2018) 63M 27.62 39.47
Our Models
Enc(AW)-Dec(MW) 68M 28.11 40.24
Cr(AW, Seg) 65M 28.13 40.06
Enc(AW)-Cr(AW,Seg)-Dec(MW) 73M 28.25 40.32
Table 1: BLEU scores for different models in WMT’14 English-German and English-French translation tasks.

5.2 Ablation Study

To verify our modeling decisions, we performed an ablation study in the WMT’14 En-De translation task. In particular, we evaluated (i) the impact of applying our differentiable window attentions in all layers vs. only in certain lower layers of the Transformer network, (ii) which window attention methods (additive or multiplicative) are suitable particularly for the encoder/decoder self-attention and cross-attention, and (iii) the impact of segment-based masking in different attention modules. (iv) training efficiency and performance of our best model with the similar models. Plus, to further interpret our window-based attention, we also provide the local window visualization.

Method Module Full (6 layers) Partial (3 layers)
Transformer - 27.46 -
AW Encoder 27.77 27.90
MW Encoder 27.25 27.40
AW Decoder 27.73 27.85
MW Decoder 27.88 28.04
AW Cross 27.78 27.97
MW Cross 27.58 27.79
Table 2: Evaluation of Additive Window (AW) and Multiplicative Window (MW) attentions in encoder/decoder self attention and cross attention for full vs. partial settings.

Full vs. Partial.

Table 2 shows BLEU scores for the Transformer models that employ our window-based attentions in all 6 layers (Full) vs. only in the first 3 layers (Partial), as well as the methods used in different attention modules (encoder/decoder self-attention, cross-attention). We can see that almost all the models with window-based methods in the first 3 layers outperform those that use them in all 6 layers. This gives the setup significant advantages as it performs not only better in BLEU but also requires less parameters.

The results also show that multiplicative window (MW) attention is preferred in decoder self-attention, while additive window (AW) is more suitable for encoder self-attention and for cross-attention. This suggests that the global context, which is maintained in AW, is more useful when it is entirely available like in encoder self-attention and cross attention. In contrast, incomplete and partially-generated context in decoder self-attention may induce more noise than information, where MW attention renders better performance than AW.

Model Token-based Segment-based

27.97 28.13
Enc(AW)-Dec(MW) 28.11 27.91
Table 3: BLEU scores for token- and segment-based masking in cross attention and encoder self-attention. The decoder self-attention always uses token-based masking.
(a) Local masking scores ().
(b) Our attention scores.
(c) Transformer attention scores.
Figure 3: Visualization of masking scores, and attention scores for our and the original Transformer models.

Token- vs. Segment-based.

Table 3 compares the results for using token-based vs. segment-based masking methods in different attention modules of the network. Note that it is preferred for decoder self-attention to adopt token-based masking since the decoder cannot point to unfinished segments in autoregressive generation, if it had used segment-based masking. We see that segment-based additive window masking outdoes its token-based counterpart (28.13 vs. 27.97 BLEU) for cross-attention. Meanwhile, for encoder self-attention, token-based masking performs better than segment-based masking by 0.2 BLEU. This suggests that segments (or phrases) represent better translation units than tokens, justifying its performance superiority in cross-lingual attention but not in mono-lingual (self-attention) encoding.

Model #-params # steps/sec BLEU
Vaswani et al. (2017) 63M 1.20 27.46
Yang et al. (2018) 63M 1.07 27.62
Vaswani et al. (2017) 7 layers 69M 1.05 27.74
Vaswani et al. (2017) 8 layers 75M 0.99 27.89
Enc(AW)-Cr(AW,Seg)-Dec(MW) 73M 1.04 28.25
Table 4: Training efficiency and size of similar models

Speed and Parameters.

As shown in table 4, our training efficiency is competitive to the baselines. That is, the training speed for our model is steps/sec which is similar to Yang et al. (2018). Besides, our model outperforms the Transformer with 8 layers, which has more parameters. This suggests that our performance gain may not come from additional parameters, but rather from a better inductive bias through the dynamic window attention.

Local Window Visualization.

To further interpret our window-based attentions, Figure 2(a) shows the cross-attention soft masking values () on the source tokens for each target token in an En-Fr test sample assigned by our Enc(AW)-Cr(AW,Seg)-Dec(MW) model. The darker the score, the higher the attention is from a target token to a source token. We can see the relevant subwords are captured by the attentions quite well, which promotes ngram-level alignments. For instance, the mask () guides the model to evenly distribute attention scores on sub-words “Co@@” and “en” (Fig. 2(b)), while standard attention is biased towards “Co@@” (Fig. 2(c)). Similar phenomenon can be seen for “Bro@@” and “thers” (towards “frères”).

5.3 Text Classification

We evaluate our models on the Stanford Sentiment Treebank (SST) Socher et al. (2013), IMDB sentiment analysis Maas et al. (2011) and Subject-Verb Aggreement (SVA) Linzen et al. (2016) tasks. We compare our attention methods (incorporated into the Transformer encoder) with the encoders of Vaswani et al. ( 2017), Shaw et al. (2018) and Yang et al. (2018).

Training Setup.

As the datasets are quite small compared to the MT datasets, we used tiny versions of our models as well as the baselines.444As specified in https://github.com/tensorflow/tensor2tensor. Specifically, the models consist of a 2-layer Transformer encoder with 4 attention heads, 128 hidden dimensions and 512 feedforward inner dimensions. In these experiments, our attention methods are applied only to the first layer of the network. We trained for 3,000, 10,000 and 10,000 updates for SST, IMDB and SVA tasks, respectively on a single GPU machine.

Vaswani et al. (2017) 79.36 83.65 94.48
Shaw et al. (2018) 79.73 84.61 95.27
Yang et al. (2018) 79.24 84.13 95.00
Enc (MW) 79.70 85.09 95.95
Enc (AW) 82.13 87.98 96.19

Table 5: Classification accuracy on Stanford Sentiment Treebank (SST) and IMDB sentiment analysis and Subject-Verb Agreement(SVA) tasks.


Table 5 shows the results. Our multiplicative window approach (Enc (MW)) achieves up to 79.7%, 85.1% and 95.95% accuracy in SST, IMDB and SVA, exceeding Transformer Vaswani et al. (2017) by 0.4%, 1.35% and 1.47%, respectively. Our additive window attention (Enc (AW)) renders even more improvements. Specifically, it outperforms Transformer with relative position (Shaw et al. 2018) by 2.4% and 3.37%, 0.92% reaching 82.13%, 87.98% and 96.19% accuracy in SST, IMDB and SVA, respectively. In fact, the results demonstrate consistent trends with our earlier MT experiments: additive window attention outdoes its multiplicative counterpart in the encoder, where the entire key sequence is available.

5.4 Language Modeling

Finally, to demonstrate our proposed methods as effective general purpose NLP components, we evaluate them on the One Billion Word LM Benchmark dataset Chelba et al. (2013). The dataset contains 768 million words of data compiled from WMT 2011 News Crawl data, with a vocabulary of 32,000 words. We used its held-out data as the test set.

Training Setup.

As the LM dataset is considerably large, we used the same model settings as adopted in our MT experiments. For these experiments, we only trained the models on virtually 4 GPUs for 100,000 updates using gradient aggregation on a single GPU machine. Note that only the self-attention based autoregressive decoder of the Transformer framework is used in this task. Therefore, the method of Yang et al. (2018) is not applicable to this task.

Model Perplexity
Vaswani et al. (2017) 46.37
Shaw et al. (2018) 46.13
Dec (MW) 44.00
Dec (AW) 44.95

Table 6: Perplexity scores on 1-billion-word language modeling benchmark (the lower the better).


Table 6

shows the perplexity scores. As can be seen, our multiplicative and additive window attention models both surpass Transformer

Vaswani et al. (2017) by 2.37 and 1.42 points respectively, reaching 44.00 and 44.95 perplexity scores respectively. In addition, it is noteworthy that similar to MT experiments, multiplicative attention outperforms the additive one on this task, where the decoder is used. This further reinforces the claim that where the global context is not fully available like in the decoder, the incomplete global context may induce noises into the model. Thus, it is effective to embrace dynamic local window attention to suppress the global context, for which the multiplicative window attention is designed.

6 Conclusion

We have presented a novel Differential Window method for dynamic window selection, and used it to improve the standard attention modules by enabling more focused attentions. Specifically, we proposed Trainable Soft Masking and Segment-based Masking, which can be applied to encoder/decoder self-attentions and cross attention.

We evaluated our models on four NLP tasks including machine translation, sentiment analysis, subject verb agreement and language modeling. Our experiments show that our proposed methods outperform the baselines significantly across all the tasks. All in all, we demonstrate the benefit of incorporating the differentiable window in the attention. In the future, we would like to extend our work to make a syntactically-aware window that can automatically learn tree (or phrase) structures.


We would like to express our gratitude to Yi Tay and our anonymous reviewers for their insightful feedback on our paper. Shafiq Joty would like to thank the funding support from his Start-up Grant (M4082038.020).


  • D. Bahdanau, K. Cho, and Y. Bengio (2015) Neural machine translation by jointly learning to align and translate. In ICLR, Cited by: §1, §2.
  • Y. Belinkov, N. Durrani, F. Dalvi, H. Sajjad, and J. Glass (2017) What do neural machine translation models learn about morphology?. In Proceedings of the 55th Annual Meeting of the Association for Computational Linguistics (Volume 1: Long Papers), Vancouver, Canada, pp. 861–872. External Links: Link, Document Cited by: §4.3.
  • C. Chelba, T. Mikolov, M. Schuster, Q. Ge, T. Brants, P. Koehn, and T. Robinson (2013) One billion word benchmark for measuring progress in statistical language modeling. Technical report Google. External Links: Link Cited by: §5.4.
  • C. Chiu and C. Raffel (2018) Monotonic chunkwise attention. In International Conference on Learning Representations, External Links: Link Cited by: §1.
  • J. Devlin, M. Chang, K. Lee, and K. Toutanova (2019) BERT: pre-training of deep bidirectional transformers for language understanding. In Proceedings of the 2019 Conference of the North American Chapter of the Association for Computational Linguistics: Human Language Technologies, Volume 1 (Long and Short Papers), Minneapolis, Minnesota, pp. 4171–4186. External Links: Link, Document Cited by: §4.2.
  • G. Jawahar, B. Sagot, and D. Seddah (2019) What does BERT learn about the structure of language?. In Proceedings of the 57th Annual Meeting of the Association for Computational Linguistics, Florence, Italy, pp. 3651–3657. External Links: Link Cited by: §4.3.
  • T. Linzen, E. Dupoux, and Y. Goldberg (2016) Assessing the ability of lstms to learn syntax-sensitive dependencies.

    Transactions of the Association for Computational LinguisticsThe Journal of Machine Learning Research

    Cited by: §5.3.
  • T. Luong, H. Pham, and C. D. Manning (2015) Effective approaches to attention-based neural machine translation. In

    Proceedings of the 2015 Conference on Empirical Methods in Natural Language Processing (EMNLP)

    EMNLP, pp. 1412–1421. Cited by: §1, §2.2, §2.2, §2, §4.1.
  • A. L. Maas, R. E. Daly, P. T. Pham, D. Huang, A. Y. Ng, and C. Potts (2011) Learning word vectors for sentiment analysis. In Proceedings of the 49th Annual Meeting of the Association for Computational Linguistics: Human Language Technologies, Portland, Oregon, USA, pp. 142–150. External Links: Link Cited by: §5.3.
  • M. Ott, S. Edunov, D. Grangier, and M. Auli (2018) Scaling neural machine translation. In Proceedings of the Third Conference on Machine Translation (WMT), Cited by: §5.1, §5.1.
  • M. Peters, M. Neumann, L. Zettlemoyer, and W. Yih (2018) Dissecting contextual word embeddings: architecture and representation. In Proceedings of the 2018 Conference on Empirical Methods in Natural Language Processing, Brussels, Belgium, pp. 1499–1509. External Links: Link Cited by: §4.3.
  • R. Sennrich, B. Haddow, and A. Birch (2016) Neural machine translation of rare words with subword units. In Proceedings of the 54th Annual Meeting of the Association for Computational Linguistics (Volume 1: Long Papers), pp. 1715–1725. External Links: Document, Link Cited by: §5.1.
  • M. J. Seo, A. Kembhavi, A. Farhadi, and H. Hajishirzi (2017) Bidirectional attention flow for machine comprehension. In 5th International Conference on Learning Representations, ICLR 2017, Toulon, France, April 24-26, 2017, Conference Track Proceedings, Cited by: §1.
  • P. Shaw, J. Uszkoreit, and A. Vaswani (2018) Self-attention with relative position representations. In Proceedings of the 2018 Conference of the North American Chapter of the Association for Computational Linguistics: Human Language Technologies, Volume 2 (Short Papers), pp. 464–468. External Links: Document, Link Cited by: §2.2, §5.1, §5.3, §5.3, Table 1, Table 5, Table 6.
  • R. Socher, A. Perelygin, J. Wu, J. Chuang, C. D. Manning, A. Ng, and C. Potts (2013) Recursive deep models for semantic compositionality over a sentiment treebank. In Proceedings of the 2013 Conference on Empirical Methods in Natural Language Processing, pp. 1631–1642. External Links: Link Cited by: §5.3.
  • M. Sperber, J. Niehues, G. Neubig, S. Stuker, and A. Waibel (2018) Self-attentional acoustic models. In Interspeech 2018, 19th Annual Conference of the International Speech Communication Association, Hyderabad, India, 2-6 September 2018., pp. 3723–3727. External Links: Link, Document Cited by: §2.2.
  • A. Vaswani, N. Shazeer, N. Parmar, J. Uszkoreit, L. Jones, A. N. Gomez, Ł. Kaiser, and I. Polosukhin (2017) Attention is all you need. In Advances in Neural Information Processing Systems, pp. 5998–6008. Cited by: §1, §1, §2.1, §4.2, §5.1, §5.1, §5.1, §5.3, §5.3, §5.4, Table 1, Table 4, Table 5, Table 6.
  • O. Vinyals, M. Fortunato, and N. Jaitly (2015) Pointer networks. In Advances in Neural Information Processing Systems 28, C. Cortes, N. D. Lawrence, D. D. Lee, M. Sugiyama, and R. Garnett (Eds.), pp. 2692–2700. External Links: Link Cited by: §1, §3.2.
  • S. Wang and J. Jiang (2017) Machine comprehension using match-lstm and answer pointer. In 5th International Conference on Learning Representations, ICLR 2017, Toulon, France, April 24-26, 2017, Conference Track Proceedings, Cited by: §1, §1.
  • K. Xu, J. Ba, R. Kiros, K. Cho, A. Courville, R. Salakhudinov, R. Zemel, and Y. Bengio (2015) Show, attend and tell: neural image caption generation with visual attention. In Proceedings of the 32nd International Conference on Machine Learning, F. Bach and D. Blei (Eds.), Proceedings of Machine Learning Research, Vol. 37, Lille, France, pp. 2048–2057. External Links: Link Cited by: §2.
  • K. Xu, J. L. Ba, R. Kiros, K. Cho, A. Courville, R. Salakhutdinov, R. S. Zemel, and Y. Bengio (2015) Show, attend and tell: neural image caption generation with visual attention. In Proceedings of the 32Nd International Conference on International Conference on Machine Learning - Volume 37, ICML’15, pp. 2048–2057. External Links: Link Cited by: §1.
  • B. Yang, Z. Tu, D. F. Wong, F. Meng, L. S. Chao, and T. Zhang (2018) Modeling localness for self-attention networks. In Proceedings of the 2018 Conference on Empirical Methods in Natural Language Processing, Brussels, Belgium, pp. 4449–4458. External Links: Link Cited by: §2.2, §5.1, §5.1, §5.2, §5.3, §5.4, Table 1, Table 4, Table 5.



The probability of left and right boundary for a query



For any ,


Since and are binary values,
