I Introduction
Multirobot systems have to deal with various sources of uncertainties when operating in the realworld. As such, we require models and approaches that account for such uncertainty when coordinating a team of robots. This need has inspired a considerable amount of recent efforts aimed at developing riskaware approaches to multirobot coordination that explicitly account for different forms of uncertainty (see [21] for a comprehensive survey). Indeed, such riskaware approaches have been shown to be significantly more successful than approaches that ignore uncertainty.
In this work, we address multirobot task allocation (MRTA) problems that involve uncertainty. Within MRTA, we focus on the singletask robots multirobot tasks instantaneous assignment (STMRIA) problem in heterogeneous multirobot teams (see [4, 6] for detailed treatments of the various categories of MRTA). The STMRIA problem is also referred to as the coalition formation problem. While there are various sources of uncertainty, we focus on the uncertainty in robots’ capabilities. Such uncertainties arise either due to potential failures or due to modeling large teams of robots into a small number of groups (e.g., [9, 11]).
Existing approaches to riskbased task allocation fall into one of two categories. First, riskneutral approaches focus on the expected value of payoff or cost (e.g., [10, 3]). Second, riskaverse approaches avoid worstcase and nearworst case outcomes (e.g., [7, 11]).
In this work, we argue that neither ignoring nor avoiding risk might be sufficient for a certain class of task allocation problems. Specifically, we focus on task allocation problems that require each coalition to satisfy certain minimum capabilitybased requirements associated with the assigned task. Examples of such minimum requirements involve capabilities such as collective payload, fuel level, and specialized equipment. As such, falling short of these requirements would result in categorical task failure. In such scenarios, we show that it might be necessary to resort to riskier solutions when faced with dire circumstances.
Our view of risk management is inspired by a rich body of work on risksensitive foraging behavior in animals (e.g., [2]
). This literature demonstrated that animals will prefer to forage under safer conditions (with lowvariance on available food) if they are able to meet their calorific needs. However, if such safe sources of food fail to meet their energy demands, they would resort to riskprone foraging strategies with costlier worstcase outcomes. Indeed, it was shown that this
adaptive behavior is optimal in the sense that it minimizes the probability of starvation [13].Inspired by adaptive animal behavior, we formalize and develop a riskadaptive approach to task allocation and coalition formation. Our approach is capable of autonomously choosing between safer and riskier options. In contrast to maximizing a stochastic payoff, our approach solves a constrained optimization problem to explicitly optimize the probability of meeting or surpassing minimum requirements.
We evaluate our approach using detailed numerical evaluations and simulated robot experiments on the Robotarium [16] simulator. In each of the experiments, we compared our riskadaptive approach against three baselines: random, riskneutral, and riskaverse allocation approaches. The results conclusively demonstrate the benefits of a riskadaptive approach over the baselines in terms of task success rates.
In summary, our core contributions include:

A formalism for riskbased task allocation that acknowledges the benefit of riskseeking behavior when safer options are unlikely to satisfy minimum requirements.

A riskadaptive task allocation algorithm that autonomously switches between riskseeking and riskaverse behavior to better satisfy task requirements.
Related work
MRTA problems are typically categorized based on three dimensions: i) singletask (ST) robots vs. multitask (MR) robots, ii) singlerobot (SR) tasks vs. multirobot (MR) tasks, and iii) instantaneous assignment (IA) vs. timeextended assignment (TA) [4, 6]. Our work falls under the category of STMRIA (also called coalition formation) and is known to be NPhard. While there is a large body of work associated with the various categories of MRTA, we limit our discussion to approaches focused on coalition formation.
Coalition formation has been tackled by a wide variety of approaches. Notable examples include auctionbased methods that rely on effective biding mechanisms (e.g., [5, 17]), utilitybased methods that attempt to jointly maximize the total utility (e.g., [15, 8]), and the morerecent traitbased approaches that attempt to satisfy trait requirements associated with each task. Our approach falls under the category of traitbased methods, which do not assume knowledge of the utility of assigning each robot or coalition to each task. Instead, we allow for task requirements to be specified in terms of the capabilities necessary to perform the task.
The methods discussed so far do not account for the various sources of uncertainty that a multirobot system might face in the realworld. Recent attempts have focused on explicitly accounting for such uncertainty [21]. Existing approaches to riskbased task allocation are either riskneutral or riskaverse. Riskneutral approaches focus on the expected value of payoff or cost [10, 3]. Riskaverse approaches take variance into account and try to avoid worstcase, potentially leading to highly conservative outcomes.
Recent work has demonstrated that riskaverse methods can be made less conservative by considering more nuanced measures of risk (e.g., meanvariance [19, 11], and conditional value at risk (CVaR) [7, 12]) that allow for a userspecified level of risk. However, these methods require that the user predetermines the desired risk tolerance (e.g., regularizer in meanvariance optimization and risk parameter in VaR or CVaR). This explicit and a priori specification of risk tolerance places these approaches on a static point on the spectrum from riskaverse to riskseeking, irrespective of the current context. In contrast, our approach adaptively determines where to fall on this spectrum depending on the context as determined by task requirements and the availability of resources. As such, our approach adapts to the particulars of the problem, producing riskier or more conservative allocations depending on what will maximize the probability of task success. Further, unlike most existing approaches that optimize a singledimensional payoff variable, we can handle multidimensional requirements.
Ii Modeling Framework
To provide context, we first introduce our basic modeling principles, which are adapted from our prior work [11].
Iia Species
Consider a team of heterogeneous robots. We take a group modeling approach [1] and model the team of robots as being made of species (i.e. robot types). Examples of such species include a group of UAVs and a group of ground vehicles. By utilizing such an aggregate model at the level of robot types, we gain computational efficiency over alternative approaches that model each robot individually.
IiB Traits
When modeling traits (i.e., capabilities), we take into account the fact that robots within a particular species may not share identical traits. For instance, not all UAVs will share the same speed or carrying capacity. As such, we model the traits of the th species as , where and
are the expected trait vector and the corresponding diagonal covariance matrix indicating that each trait of the
th species is an independent Gaussian random variable. Taken together, the traits of the entire team are denoted by the
stochastic speciestrait matrix with containing the expected values. Specifically the th element of denotes the expected value of the th trait of the th species. Similarly, the variances associated with each trait of each species is contained in the matrix . The th element of denotes the variance of the th trait of the th species.IiC Tasks
Let the team be tasked with solving concurrent tasks, each with its own set of trait requirements denoted by . To successfully complete the tasks, the team has to form coalitions such that each coalition collectively meets or surpasses the corresponding task’s trait requirements. The trait requirements for all the tasks can be represented by a task requirements matrix .
IiD Agent Assignment
The assignment of agents from species across the tasks is denoted by . Thus, the assignment of the whole team across the tasks can be described using the assignment matrix .
IiE Trait Aggregation
Finally, the aggregation of various traits assigned across all the tasks is denoted by the stochastic trait distribution matrix , and can be computed as
(1)
Note that is composed of Gaussian random variables (one for each task) due to the fact that is composed of Gaussian random variable (one for each species). Thus, the expected value of is given by
(2)
and the variance of each element of given by
(3)
where denotes the Hadamard (elementwise) product.
Iii RiskAdaptive Task Allocation
In this section, we introduce the notion of riskadaptive task allocation. We begin by considering the trait requirements associated with all the tasks. Let the minimum trait requirements associated with the th task be given by . Thus, the probability of successfully performing the th task is given by
(4)
where denotes the elementwise grater than operator. Thus, the success of each task is given by a multivariate normal cumulative density function.
Iiia Illustrative Example
To illustrate the benefits of a riskadaptive approach, let us consider an example task that requires a coalition of robots that can collectively satisfy a singledimensional trait requirement, such as payload or fuel. Without loss of generality, let us analyze two options for the coalition with different aggregate traits ( and
). Indeed, given the probabilistic nature of our capabilities model, the aggregate trait of each coalition represents a probability distribution. When a safer (orange
) option exists that can satisfy the trait requirement in expectation (as in Fig. 1, left), our riskadaptive approach would prefer it, behaving similarly to riskneutral or riskaverse approaches. In contrast, when neither coalition can satisfy the trait requirement in expectation (as in Fig. 1, right), our approach would adaptively choose the riskier option (blue ), as it maximizes the chances of satisfying the minimum requirement.IiiB Rationale
The analysis of animal foraging behavior in [13] can be easily extended to explain why a riskadaptive strategy improves the probability of success in (4).
Consider a potential allocation such that the expected value of the resulting trait aggregation satisfies the desired trait requirements (i.e., ). Under this circumstance, it is clear that the probability of success (i.e., ) will increase only if the variance (i.e., ) decreases. Thus, our riskadaptive approach operates in a riskaverse regime when as it prefers allocations with smaller variances if their expected values are similar. This observation further explains the choices in Fig. 1 (left).
Similarly, consider a potential allocation such that the expected value of the trait aggregation fails to satisfy the desired trait requirements (i.e., ). Under this circumstance, it is clear that the probability of success (i.e., ) will increase only if the variance (i.e., ) increases. Thus, our riskadaptive approach operates in a riskseeking regime when as it prefers allocations with larger variances if their expected values are similar. In contrast, riskaverse approaches will continue to prefer smaller variances as they optimize for worstcase outcomes. However, as a result, riskaverse approaches will inadvertently decrease the probability of success. This observation further explains the choices in Fig. 1 (right).
IiiC Constrained Optimization
Given the model for task success, we turn to the problem of optimizing the probability of success. Note that the example from IIIA is focused on a single task. Our problem consists of forming coalitions for tasks when provided a fixed number of agents from each species. Thus, we simultaneously optimize the chances of satisfying the requirements for all tasks.
We cast our riskadaptive task allocation problem in the form of the following maxmin optimization problem
(5)
(6)
(7)
where is a vector of the number of agents in each species. An alternative strategy would be to replace the objective function in (5
) with the average or sum of individual task probabilities. However, such an objective function will not discourage disproportionately different success probabilities across tasks, resulting in skewed allocation of robots to tasks and unintended prioritization.
Note that the optimization problem in (5)(7) represents a considerably challenging nonlinear constrained integer program. In this work, we approximately solve this problem by relaxing the integer constraint in (7) and replacing it with the constraint . Further, given the nonconvex natural of the objective function, we employ a global optimization technique that performs a scatter search to provide multiple initial conditions for a local nonlinear program solver [14]. Finally, we convert every element of the optimized assignment matrix into an integer while ensuring that the constraint in (6) is satisfied.
In practice, we initialize the allocation matrix using a riskneutral solution. As such, the global optimization attempts to improve the probability of success when possible by resorting to riskier options when appropriate. If safer options exists, our approach will choose allocations that are similar to that of riskneutral or riskaverse approach.
Iv Experiments
We evaluated our approach with two experiments: 1) a numerical simulation using teams of varying size, trait distribution, and task requirement, and 2) a simulated robot experiment in the Robotarium multirobot testbed simulator [16] that samples robots from a given trait distribution in order to complete two example tasks. Across all experiments, we used MATLAB’s GlobalSearch
function to approximately solve the optimization problem in (5)(7) as detailed in Section IIIC and the baselines. All experiments were conducted using a 2.6 GHz 6core Intel i7 Processor^{1}^{1}1Source code available here.. On average, the optimization took approximately 0.4 seconds for each baseline and 3.0 seconds for our method. The difference in computation time is due to the fact that, unlike the baselines, our approach solves a nonconvex problem.
Iva Baselines
In all of our experiments, we compared the performance of our method with that of the following three baselines:
1. Random baseline uniformly randomly allocates the available agents to all the tasks.
2. Riskneutral baseline allocates agents such that the expected trait aggregation satisfies the trait requirements. This baseline is similar in spirit to existing approaches that focus on expected payoff (e.g., [10, 3]). To this end, it solves the following optimization problem
where denotes the Frobenius norm.
3. Riskaverse baseline allocates agents such that worstcase or near worstcase outcomes are avoided. This baseline is similar in spirit to existing approaches that rely on meanvariance optimization (e.g. [11, 19]) as it solves the following optimization problem
where is a regularization coefficient.
Similar to our proposed riskadaptive approach, the optimization problems associated with both the riskneutral and riskaverse baselines were solved approximately by relaxing the integer constraint and utilizing MATLAB’s GlobalSearch
function to ensure fair comparisons. Further, we utilized sequential quadratic programming (SQP) as the local solver in global optimization for all algorithms with the maximum number of iterations set to .
IvB Numerical Simulations
We first analyzed the performance of our method and that of the baselines using numerical simulations. To this end, we simulated independent coalition formation problems involving species each, traits, and tasks. To generate a heterogeneous teams, we ensured that each species had a dominant trait (i.e., higher expected trait value than its other traits). Simulation of such dominant traits is motivated by the fact that realworld robots are often optimized for a few attributes while tradingoff others (e.g., speed vs. payload). On average, the variance of the dominant trait is smaller than that of the nondominant traits. During each simulation run, parameters of the robot trait distribution ( and ), number of robots per species (), and task trait requirement () are uniformly randomly sampled from ranges described in Table I.
Parameter  Distribution Range

Dominant trait
Nondominant trait
Dominant Trait
NonDominant Trait
# robots per species ()
For each run, we measure the performance of each algorithm by computing the success probability for each task, given by where denotes the aggregated traits achieved by the candidate algorithm for the th task. Given that the distributions are Gaussian, this metric measures the actual probability of satisfying the task requirements when utilizing a particular allocation rather than providing an approximated rate of success based on Monte Carlobased simulations. We report both i) the individual task success probabilities for all the tasks, and ii) the minimum task success probability (computed over the tasks) in Figs. 2 and 3, respectively.

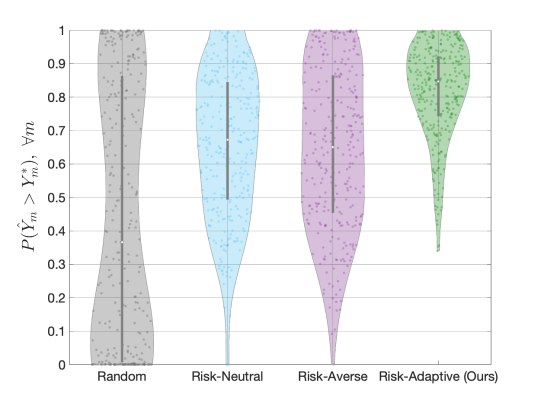

From Figs. 2 and 3, we can see that our riskadaptive method generally outperformed all the baselines in fulfilling the trait requirement probabilities. This is due to the fact that our approach adaptively chooses between riskaverse and riskseeking behavior based on the particular allocation problem. Further, thanks to the maxmin optimization, our approach ensures that all the chances of success for all tasks are jointly improved. This claim is supported by the considerably lower variance in task success probability across all tasks achieved by our riskadaptive approach (see Fig. 2).
We observed that the random baseline exhibited the largest variance in individual task success probabilities. This is because the random baseline is more likely to unevenly assign the robots to tasks such that the requirements associated with a subset of the tasks are fulfilled with nearcertainty. But, this usually comes at the cost of failing to meet the requirements of the rest of the tasks with nearcertainty. From Fig. 3, we can see that the random baseline’s minimum task success probability per trial was near zero for several instances.
When looking at the aggregate performance across all 100 runs, we find that the riskneutral and riskaverse baselines performed similarly to each other. However, for any given problem instance, these two baselines may not necessarily perform similarly. This is due to fact that while avoiding risk might be very helpful in some situations, it might be too conservative in others. Further, the performances of these two baselines are influenced by factors, such as the variances of the trait distributions, and the regularization coefficient . However, given the adaptive nature of our approach, it always performs similarly to or better than the baselines (in terms of ) for any given instance of the problem.
In summary, it is evident that our riskadaptive approach has considerably higher chances of satisfying task requirements compared to approaches that either ignore or avoid risk all together. These observations are to be expected given that our riskadaptive approach explicitly maximizes the chances of satisfying trait requirements. As explained in IIIB, this incentivizes the algorithm to adaptively switch between its riskaverse and riskseeking regimes.
IvC Robotarium Simulations

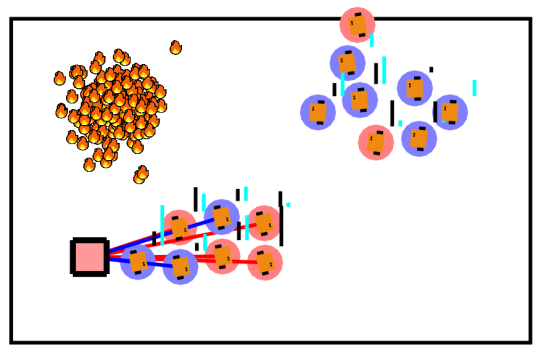

In the second round of experiments, we considered a multirobot scenario to illustrate the benefits of our approach. We developed an emergency response scenario in the Robotarium simulator [16] in which we sample robot capabilities from specified distributions. Our scenario involved a fire fighting task and a debris removal task (see Fig. 4). These tasks were to be completed by a heterogeneous team of robots composed of species, each with
traits. Species 1 had 6 robots and Species 2 had 9 robots. Each robot had two traits: i) water carrying capacity and ii) payload capacity. The distribution of robot capabilities (in arbitrary units) were modelled using Gaussian distributions with the following parameters:
The robots assigned to each task must work together to collectively complete their task. The debris removal task requires 11 units of strength and the firefighting task requires 14 units of water. More formally, we defined the task requirements matrix as follows:
Note that, if the coalition assigned to the debris removal task do not have the cumulative payload capacity to move the debris, the task would fail. Similarly, if the robots assigned to the firefighting task do not have enough water to douse the flames, the fire burns on.
Using these parameters, we obtained the following allocations computed using each of the methods by solving the corresponding optimization program.
where RN and RA refer to the riskneutral and riskaverse baselines, respectively. Note that we do not specify the random baseline’s assignment matrix, as it would change with every run.

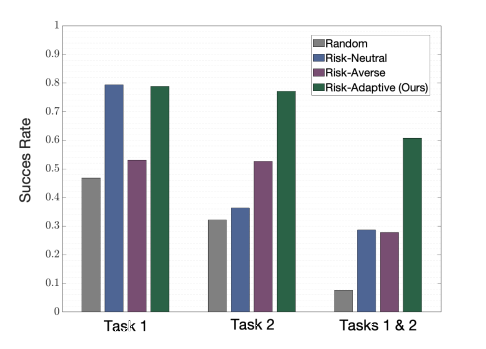

To evaluate the approaches on this scenario, we generate instances of the scenario. In each instance, we sampled the robots’ traits based on the distribution parameters defined above. We measured the performance of the allocations computed by each approach in terms of task success rates (i.e., no. successful completions / 10,000). We measured both individual task success rates as well as a combined task success rates that required both tasks be completed successfully. We report these success rates for each approach in Fig. 5. As one would expect, the random baseline performs worse than all other approaches. Further, the riskneutral and riskaverse approaches outperform each other at different tasks, resulting in similar combined performance. Finally, we can see that our riskadaptive method successfully completed both tasks at a much higher rate than the baselines as it is more likely to fulfill the corresponding trait requirements.
V Conclusion
We introduced a novel framework for riskadaptive task allocation that maximizes the probability of satisfying minimum trait requirements instead of maximizing expected payoff or avoiding worstcase outcomes. Using this framework, we demonstrated that it is necessary to seek risk in order to satisfy requirements when safer options do not meet requirements in expectation. Through numerical simulations and robot experiments, we have shown that our adaptive method indeed results in considerably higher probability of task success. A key limitation of our framework is that we approximately solve our optimization problem using a blackbox optimization technique. Further investigation is necessary to leverage any inherent structures of the optimization problem, such as submodularity [10, 20].
