Design of an Audio Interface for Patmos

01/23/2017 ∙ by Daniel Sanz Ausin, et al. ∙ DTU 0

This paper describes the design and implementation of an audio interface for the Patmos processor, which runs on an Altera DE2-115 FPGA board. This board has an audio codec included, the WM8731. The interface described in this work allows to receive and send audio from and to the WM8731, and to synthesize, store or manipulate audio signals writing C programs for Patmos. The audio interface described in this paper is intended to be used with the Patmos processor. Patmos is an open source RISC ISAs with a load-store architecture, that is optimized for Real-Time Systems. Patmos is part of a project founded by the European Union called T-CREST (Time-predictable Multi-Core Architecture for Embedded Systems).[5] The structure of this project is integrated with the Patmos project: new hardware modules have been added as IOs, which allow the communication between the processor and the audio codec. These modules include a clock generator for the audio chip, ADC and DAC modules for the audio conversion from analog to digital and vice versa, and an I2C module which allows setting configuration parameters on the audio codec. Moreover, a top module has been created, which connects all the modules previously mentioned between them, to Patmos and to the WM8731, using the external pins of the FPGA.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 4

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

The audio interface described in this paper is intended to be used with the Patmos processor. Patmos is an open source RISC ISAs with a load-store architecture, that is optimized for Real-Time Systems. Patmos is part of a project founded by the European Union called T-CREST (Time-predictable Multi-Core Architecture for Embedded Systems).[5]

The majority of the hardware development for Patmos was done with the hardware description language Chisel. Chisel is an open-source Scala-based hardware description language developed by the university of Berkeley. [3] All the development in this project was also Chisel-based.

The development is based on the DE2-115 FPGA board from Altera. Hence focuses this paper also on the communication with the on board WM8731 audio codec from Wolfson.

The paper is organized as follows: The following Section 2 discusses the related work. Section 3 introduces the design of the audio interface. Section 4 covers the implementations in Chisel, VHDL and C as well as the FPGA integration process. After that Section 5 presents the evaluation and finally, section 6 concludes the paper.

2 Related Work

As mentioned before, this project has been developped using Patmos, the open source real-time RISC processor developped by T-CREST. There are many different versions of the Patmos processor, including a multi-core version with 9 cores. But, for this project, the most simple 1-core version has been used.

José Albiach discusses in his master thesis the FPGA implementation for the WM8731 audio codec on an Altera UP3 board. In his work he briefly summarizes the functionality and then describes his approach to interact with the audio chip. In his work he suggest to divides the clock to generate the needed clock signals for the audio chip. [1]

3 Design

In the Altera data sheet for the DE2-115 Board the basic features and concept of the Wolfson WM8731 audio encoder and decoder can be found. The WM8731 has line-in and line-out ports as well as a microphone-in. The chip can be configured under use of the bus to set parameters such as the volume, the sampling frequency, and so on. The FPGA pins connected to the audio chip are for input audio data (ADCDAT) and output audio data (DACDAT) as well as there respective sampling clocks (ADCLRCK, DACLRCK), which are used for synchronization. Furthermore a master clock input for the chip is available (XCK), and an additional clock used for the ADC and DAC (BCLK). Finally, there are two pins for the interface: data (SDAT) and clock (SCLK). [2, chapter 4.11]

It was necessary to consult the data sheet of the WM8731 for a better understating. It can be clearly seen from there that there are two main separated parts: the digital audio interface and the control interface. [4] According to this, the design was split into smaller modules, in order to keep a good structure of the system. An overview of the design can be seen in Figure 1. Patmos and the created audio interface communicate via the open core protocol. Applications on the Patmos processor can then write or read audio data and configuration parameters to or from registers in the audio interface. The "AudioDAC" and "AudioADC" components exchange the content of the audio registers with the audio chip in the correct format for the audio interface of the WM8731. Likewise, the "Audio " component writes the data and address of the configuration registers using the protocol. For both the conversion from digital to analog and from analog to digital audio data, sampling clocks are needed. Therefore, the clock generation unit generates the master clock input (XCK) and the digital audio bit clock (BCLK). Later these units will be described in more detail.

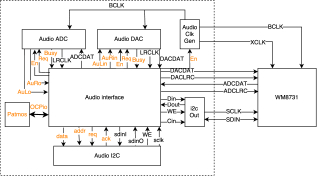

Figure 1: Overview of the Design

3.1 Audio Interface Component

The audio interface is designed to be the heart of the implementation which includes all the described components (see Figure 1).

The audio interface has different registers in which Patmos can write and read from. Depending on its functionality will some registers only be readable.

Additionally, this component will specify the desired output pins, which will be 1-bit outputs for the digital to analog data (dacDat) and the sample rate clocks (dacLrc, adcLrc) and a 1-bit input for the analog to digital data (adcDat). The audio chip will be used in slave mode and will be clocked by the FPGA hence there are also pins needed for the master clock (XCK) and the bit clock (BCLK). Moreover, does the interface need two outputs (Data abd Clock). The data signal is bidirectional (as it will be described in the next subsection), so it needs both an input and output pin as well as a write enable signal. This 3-state buffer design is used because it is impossible to define inout types in Chisel.

Furthermore, this unit forwards the default configurations from the hardware configuration XML file to the submodules. The configuration parameters for the audio interface include the audio data length, which can be either 16, 20, 24 or 32-bit, the sampling frequency (Fs) divider, which can range from to , and finally the divider for the clock signals into the audio codec (BCLK and XCLK). For this last signal the divider value chosen is 6, to get a frequency of into the audio codec from the frequency of Patmos.

3.2 Audio I2C Component

In the following the communication with the audio chip is described. If there is a reference to the clock always the clock is meant and not the clock from Patmos.

The datasheet states that the maximum clock frequency is 526 kHz. It was decided to select 200 kHz as the clock frequency for SCLK, to be sure that there is enough time for the slave to read the data.

requires a start condition which is the data transitioning from high to low while the clock stays high. After the start condition the slave address ( which is always 0011010) needs to be submitted concatenated with the read write signal. The write signal has to be always zero, because it is a write only device. After a successful delivery the device will answer with an acknowledge by pulling the data signal one clock cycle low. After that, the address for the configuration register (7-Bit) and the data (9-bit) can be submitted in two 8-bit chunks. The communication ends with a stop condition were the data signal goes from low to high while the clock is high.

Based on this setup configuration the sate machine shown in figure 2 was created.

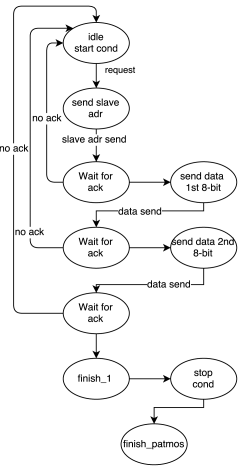

Figure 2: State machine for the I2C communication

3.3 Audio ADC Component

The "audio ADC" component is designed to receive audio data from WM8731 and stores it into two audio registers for the left and right data. The bitlength of this registers is specified in the configuration XML file. In order to reduce the power consumption, an enable signal is used, so that the conversion is only done when Patmos requests so, setting the enable signal to high. While converting, the data should not be read, this is why the busy signal is used, so that Patmos makes sure it does not read any invalid data.

For both the ADC and the DAC, the mode selected to receive or send audio data is the DSP Mode. As it can be seen from figure 3 that first the LRC signal needs to be high for one BCLK clock cycle. Then, the audio codec will send the data of the left audio channel, and immediately after, the right channel. Furthermore, it can be seen that the most significant bit comes first. This communication mode is referred in the datasheet as the DSP mode A.

The time between each LRC pulse has to fit the sampling frequency. The chosen sampling frequency is , which the audio codec generates dividing its input clock, XCLK by 256. The WM8731 audio codec expects an input clock frequency of , to get . However, this clock cannot be generated with an integer divider from the frequency of Patmos. One possible solution would be to change the clock of Patmos. Instead, the chosen solution has been to use a frequency of BCLK, so the resulting sampling frequency is . This is not an standard sampling frequency value, but this is not extremely important here as the audio quality does not decrease (it actually increases slightly).

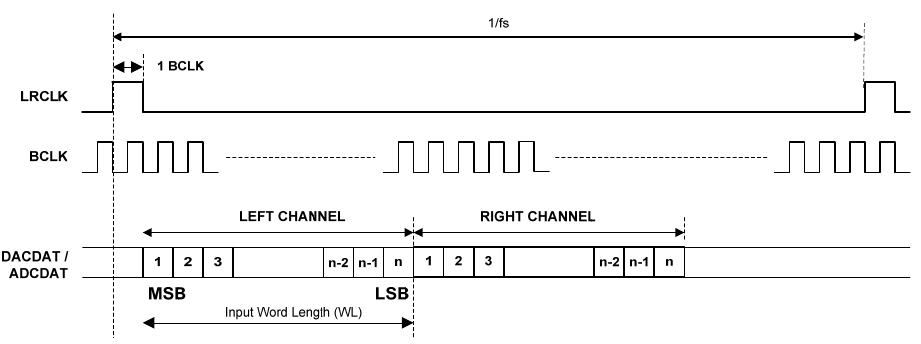

Figure 3: DSP Mode A (source: [4])

Based on this specification, the designed state machine for this module is shown in figure 4.

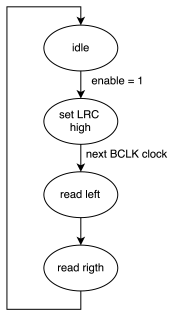

Figure 4: State machine for the audio adc component

3.4 Audio DAC Component

The "audio DAC" component converts the output audio data, which is stored in registers inside the "audio interface" module, to the format need for the WM8731. The chosen conversion mode here is also DSP mode A, as in the "Audio ADC" component. Therefore, the design of the audio DAC is also very similar to the ADC described in the previous section. Instead of receiving audio data the data will be send to the audio chip. The state machine used to design this module in Chisel is not shown due to its similarity with the previous one.

However, one of the main differences is that, in the "audio ADC", the data pin (ADCDAT) is an input (output from the audio codec), so it needs to be captured in the raising edge of BCLK. Instead, in the "audio DAC", the audio data pin (DACDAT) is an output (input to the audio codec): this means that the data has to be writen in the pin in the falling edge of BCLK, so that the audio chip can read the data on the raising edge.

3.5 Audio Clock Generation Component

The WM8731 is set to slave mode, which means that it needs to receive the master clock (XCLK) and the digital audio bit clock (BCLK) from the FPGA. As it is stated in the datasheet ([4, p42]), the sampling rate of the audio device depends on the XCLK value chosen. As explained before, none of these frequencies could be matched, so a frequency of has been chosen to get a sample rate of , which is equally valid. These parameters can be easily changed from the XML configuration file of Patmos and from the configuration registers of the WM8731.

4 Implementation

This section briefly describes the implementation of the design in the Altera DE2-115 board, and points out challenges and methods used to achieve a successful implementation. All the files are publicly available at:

4.1 I2C and ADC Implementation

The first goal was to get a minimal working solution and then extend the working design. For a minimal working solution it was both required to configure the registers and write something on the ADC channel. Initially, in order to verify that the modules mentioned before were implemented correctly, the Patmos emulator was used. Figure 5 shows the waveform graph. It can be seen that first interface address (0011010) plus the concatenate 0 are transmitted and then the address and data signals. Also the clock length is verified. After one 8-bit data is sent the we signal is set to low to let the audio codec pull sdata down as an acknowledge.

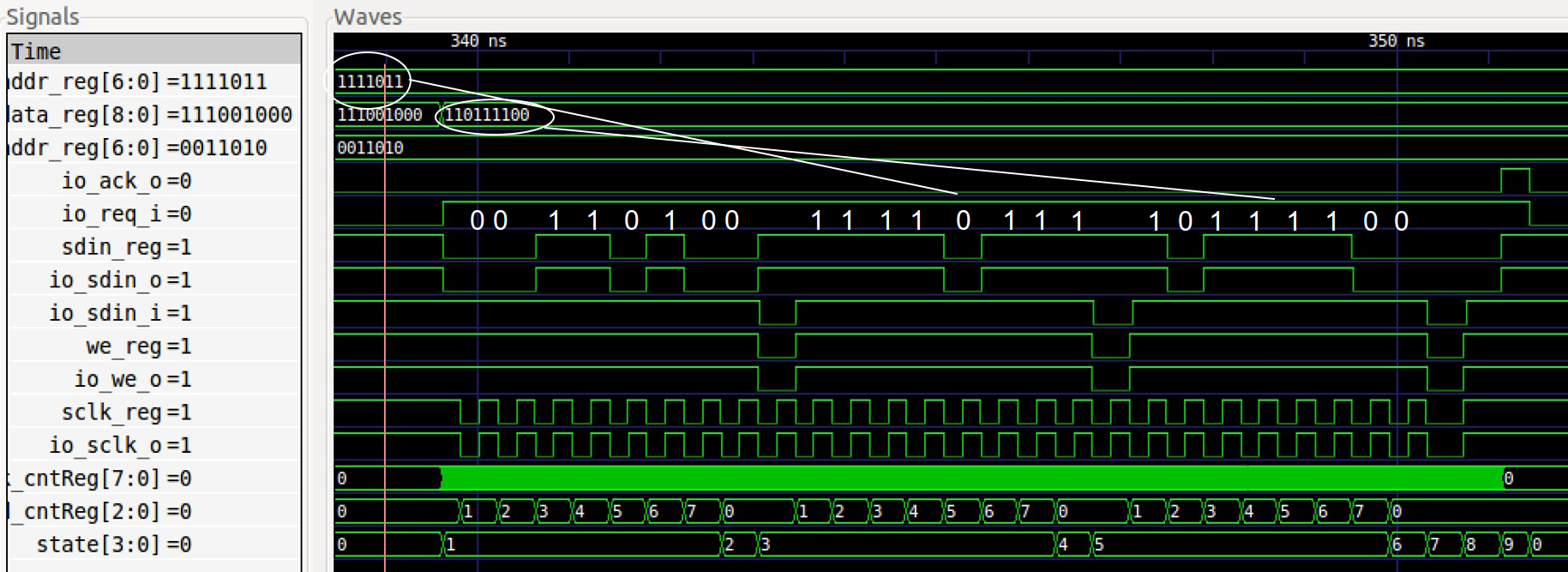

Figure 5: Simulation of the I2C communication

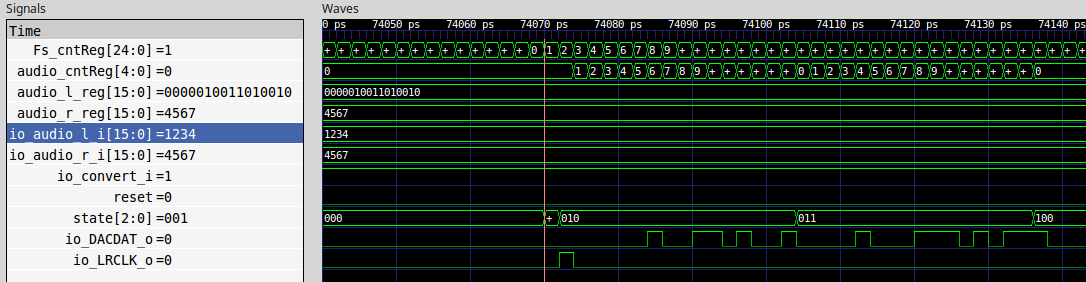

In figure 6, the simulation of DAC communication is shown. It can be seen that the LRC signal comes first, and then the left and right channel are transmitted.

Figure 6: Simulation of the DAC communication

4.2 SignalTap

One of the main difficulties during the synthesis on the FPGA was that the configuration registers of the WM8731 are read only: this means that it is not possible to check if data was written on them correctly. With the help of the logic analyzer, SignalTap, that Quartus provides it was possible to get a better insight into what was happening. Looking at the waveforms from SingalTap helped immensely because it included the response of the audio chip. As it can be seen in figure 7 the acknowledge signal comes as desired after every eight bit submitted. This means that the data is being written into the configuration registers correctly. This can also also verified by checking some of the configuration parameters, such as the volume.

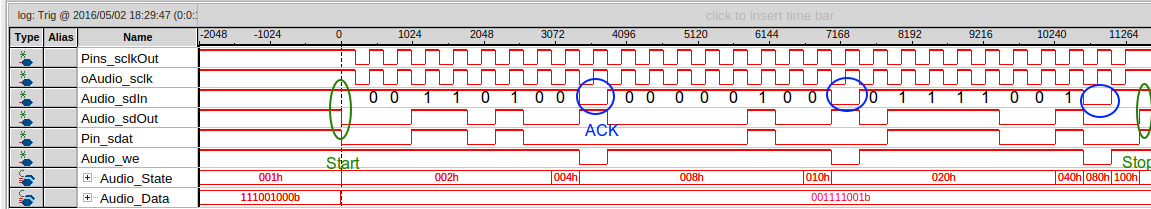

Figure 7: SignalTap capture of the I2C communication

Again, SignalTap was used to check that the audio data was being sent and received correctly into and from the WM8731. Looking at the digital audio signals it could be verified that the format corresponds to DSP mode A, as expected. This is shown in figure 8.

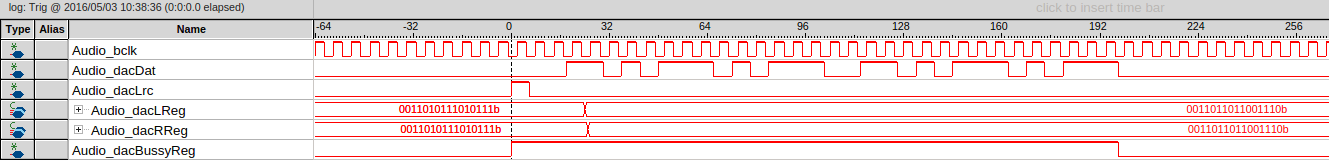

Figure 8: SignalTap capture of the audio DAC communication in detail

In figure 9 a submission of two consecutive audio packets can be seen. The LRCK signals are 1536 cycles apart. With a clock period of , this corresponds to a period of (). So the frequency is . The logic analyzer was also used here to make the signals look exactly as it is specified in the datasheet.

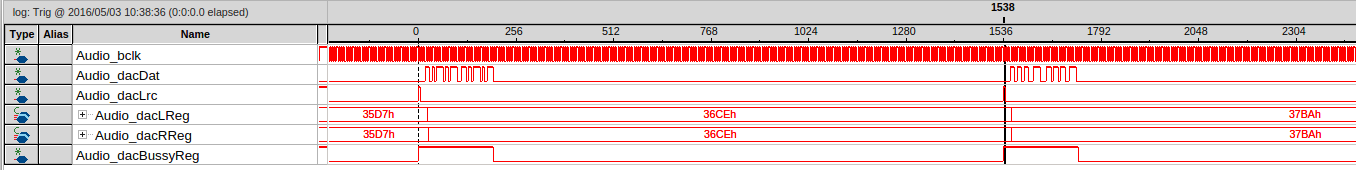

Figure 9: SignalTap capture of the audio DAC communication overview

4.3 C Implementation

All the work done, using the Chisel hardware description language, is intended to make it easier to write programs to manipulate audio in many ways: recording and processing of a signal, synthesis, audio effects, and so on. It is much more suitable to write audio processing programs in a programming language such as C, and then run them on the Patmos processor instead of describing them in hardware.

The C programs developed include the library (audio.c), where some functions can be found to set up the configuration registers, write and read audio to and from the audio codec and synchronise the audio signals. Several test programs have been written which verify that this functions work correctly. In a header file (audio.h) all the needed addresses for the available registers are defined.

The two most important functions implemented are the ones that read and write audio data from and to the WM8731. As a design decision, it was chosen not to create any audio buffer: this decision was chosen because Patmos is intended to be a real-time processor, and audio buffers introduce a delay from input to output, which can lead to a loss of the real-time concept. Instead, it has been decided that each audio sample is input, processed and output directly, with a delay of only 1 sample: . The way the audio input and output function works is very simple: data is simply written or read to or from the audio data registers in the audio interface (between Patmos and the WM8731). Then, the hardware module takes care of transmitting this signal to the WM8731 only when the device is not busy, so when there is no conversion going on.

Additionally, it is necessary to synchronize each audio sample with the sampling frequency, to avoid overwriting the same values of data. Therefore, two synchronisation functions (for ADC and DAC) were created, which synchronize with the sampling frequency by waiting for the LRC pulse.

Finally, there is a function available to change the volume of the audio output. The volume can be set between +6 and -73 db. No functions have been implemented for other configuration registers, because the only parameter that is usually modified many times during execution is the volume.

4.4 FPGA Tests

A simple test created to validate the implementation is a program to output a sine wave. While this test was running, the analog output was recorded using an external audio interface, and it could be confirmed that the output looked exactly like a sinusoidal signal.

The second test was to output the data directly from the input, without modifying it. This was done using a program where the data from the input registers was copied into the output registers, and then waiting to the synchronization signal again. This program proved to work correctly: a drum machine was used to generate a drum loop audio signal, and it was recorded directly using the external audio interface. After that, the same audio signal was recorded again, but this time going into and out of the FPGA: both signals looked exactly the same, and also sounded the same.

A more elaborated test was the implementation of a simple delay effect. The input audio was mixed with a delayed copy of input. The idea of the effect is illustrated in figure 10. Using the keys on the FPGA, the user had the possibility to manipulate the delay time from none to up to one second. Furthermore, it was possible to change the volume of the output.

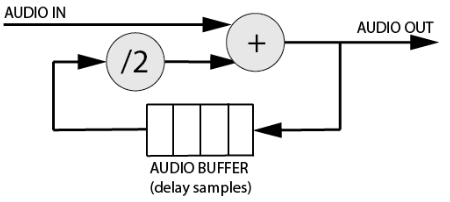

Figure 10: Delay effect

5 Evaluation

The final results of this project show to be very satisfactory: the initial goal of designing an audio interface has been achieved, and it has been proved that it works correctly, both for inputting audio into Patmos, and for outputting it as well.

The workflow has been done sequentially, where each module has been simulated and tested in the FPGA before starting to design and implement new modules. As explained before, first the I2C module was implemented, then the DAC module, which was tested by synthesizing a sinusoidal signal, and finally the ADC module.

The C programs behave as expected, and the audio interface is flexible with the audio codec: it allows changing parameters easily, such as the sampling rate and the audio data bit length, as well as some other parameters such as the input and output volumes.

One of the main drawbacks of the design is the lack of an audio buffer between the input and the output signal, which is common in many computers, laptops, smartphones and many electronic devices nowadays. However, as explained before, this design decision was taken in order to reduce the audio latency as much as possible. But the implementation of an audio buffer is not difficult and can be considered as part of the future work.

6 Conclusions

As said in the previous section, the results of this project have proved to be satisfactory. An efficient audio interface has been designed which allows writing audio programs to Patmos.

We have learned a lot from different perspectives: first of all, we have understood how a real processor can handle different buses or ports which are connected to its IO pins, which is a pure advanced computer architecture concept. But, apart from that, we have also learned how an audio codec works, what the main parameters and options are, and how to treat audio signals, both in digital hardware and in software.

Last but not least, it is important to discuss the future work that is related to this project. As mentioned before, the implementation of an audio buffer can be easily done: this would not only allow to relax the processor, but it would also permit the easier implementation of some very extended audio effects, such as the Fourier Frequency Transformation, where audio signals are not treated as a single sample, but as a block of samples instead. Apart from this, the use of the multi-core version of Patmos can be very useful to accelerate some audio computation for big programs. The digital hardware in the FPGA can also be used in the same way, for audio processing acceleration. This is something very common for video and graphics acceleration, but it can provide interesting improvements on audio computing as well.

7 Acknowledgments

This paper was written with in the scope of the course Advanced Computer Architecture (02211) at the Technical University of Denmark in the spring of 2016.

We would like to thank Martin Schoeberl (masca@dtu.dk) and Jens Sparsø (jspa@dtu.dk) for their support and supervision.
