1.1 Motivation

Despite many advances in Artificial Intelligence (AI) for games, no universal Reinforcement Learning (RL) algorithm can be applied to advanced game environments without extensive data manipulation or customization. This includes traditional Real-Time Strategy (RTS) games such as Warcraft III, Starcraft II, and Age of Empires. RL has been applied to simpler games such as the Atari 2600 platform but is to the best of our knowledge not successfully applied to more advanced games. Further, existing game environments that target AI research are either overly simplistic such as Atari 2600 or complex such as Starcraft II.

RL has in recent years had tremendous progress in learning how to control agents from high-dimensional sensory inputs like images. In simple environments, this has been proven to work well [36], but are still an issue for advanced environments with large state and action spaces [34]. In environments where the objective is easily observable, there is a short distance between the action and the reward which fuels the learning [21]. This is because the consequence of any action is quickly observed, and then easily learned. When the objective is complicated, the game objectives still need to be mapped to a reward, but it becomes far less trivial [24]. For the Atari 2600 game Ms. Pac-Man this was solved through a hybrid reward architecture that transforms the objective to a low-dimensional representation [59]. Similarly, the OpenAI’s bot is able to beat world’s top professionals at one versus one in DotA 2. It uses an RL algorithm and trains this with self-play methods, learning how to predict the opponents next move.

Applying RL to advanced environments is challenging because the algorithm must be able to learn features from a high-dimensional input, in order act correctly within the environment [15]. This is solved by doing trial and error to gather knowledge about the mechanics of the environment. This process is slow and unstable [37]. Tree-Search algorithms have been successfully applied to board games such as Tic-Tac-Toe and Chess, but fall short for environments with large state-spaces [8]. This is a problem because the grand objective is to use these algorithms in real-world environments, that are often complex by nature. Convolutional Neural Networks (ConvNet) [28] solves complexity problems but faces several challenges when it comes to interpreting the environment data correctly.

The primary motivation of this thesis is to create a foundation for RL research in advanced environments, Using generative modeling to train artificial neural networks, and to use the Capsule Network architecture in RL algorithms.

1.2 Thesis definition

The primary objective of this thesis is to perform Deep Reinforcement Learning using Capsules in Advanced Game Environments. The research is split into six goals following the thesis hypotheses.

1.2.1 Thesis Goals

Goal 1: Investigate the state-of-the-art research in the field of Deep Learning, and learn how Capsule Networks function internally.

Goal 2: Design and develop game environments that can be used for research into RL agents for the RTS game genre.

Goal 3: Research generative modeling and implement an experimental architecture for generating artificial training data for games.

Goal 4: Research the novel CapsNet architecture for MNIST classification and combine this with RL problems.

Goal 5: Combine Deep-Q Learning and CapsNet and perform experiments on environments from Achievement 2.

Goal 6: Combine the elements of Goal 3 and Goal 5. The goal is to train an RL agent with artificial training data successfully.

1.2.2 Hypotheses

Hypothesis 1: Generative modeling using deep learning is capable of generating artificial training data for games with a sufficient quality.

Hypothesis 2: CapsNet can be used in Deep Q-Learning with comparable performance to ConvNet based models.

1.2.3 Summary

The first goal of this thesis is to create a learning platform for RTS game research. Second, to use generative modeling to produce artificial training data for RL algorithms. The third goal is to apply CapsNets to Deep Reinforcement Learning algorithms. The hypothesis is that its possible to produce artificial training data, and that CapsNets can be applied to Deep Q-Learning algorithms.

1.3 Contributions

This thesis introduces four new game environments, Flash RL111Proceedings of the Norwegian Informatics Conference, Oslo, Norway 2017, Deep Line Wars222Proceedings of the SGAI International Conference on Artificial Intelligence, Cambridge, UK, 2017, Deep RTS, and Deep Maze. These environments integrates well with OpenAI GYM, creating a novel learning platform that targets Deep Reinforcement Learning for Advanced Games.

CapsNet is applied to RL algorithms and provides new insight on how CapsNet performs in problems beyond object recognition. This thesis presents a novel method that use generative modeling to train RL agents using artificial training data.

There is to the best of our knowledge no documented research on using CapsNet in RL problems, nor are there environments specifically targeted RTS AI research.

1.4 Thesis outline

Chapter 2 provides preliminary background research for Artificial Neural Networks (2.1, 2.2), Generative Models (2.3), Markov Decision Process (2.4), and Reinforcement Learning (2.5).

Chapter 3 investigates the current state-of-the-art in Deep Neural Networks (3.1), RL (3.2), GAN (3.3) and Game environments (3.5).

Chapter 4 outlines the technical specifications for the new game environments Flash RL (4.1), Deep Line Wars (4.2), Deep RTS (4.3), and Maze (4.4). In addition, a well established game environment (Section 4.5) is introduced to validate experiments conducted in this thesis.

Chapter 5 introduces the proposed solutions for the goals defined in Section 1.2. Section 5.1 outlines how the environments are presented as a learning platform. Section 5.2 introduces the proposal to use Capsules in RL. Section 5.3 describes the Deep Q-Learning algorithm and the implementations used for the experiments in this thesis. Finally, the artificial training data generator is outlined in Section 5.4.

Chapter 6 and 7 shows experimental results from the work presented in Chapter 5.

Chapter 8 concludes the thesis hypotheses and provides a summary of the work done in this thesis. Section 8.2 outlines the road-map for future research related to the thesis.

2.1 Artificial Neural Networks

An Artificial Neural Network (ANN) is a computing system that is inspired by how the biological nervous systems, such as the brain, function [19]. ANNs are composed of an interconnected network of neurons that pass data to its next layer when stimulated by an activation signal. When a network consists of several hidden layers, it is considered a Deep Neural Network (DNN). Figure 2.1 illustrates a Deep Multi-Layer Perceptron (MLP) with two hidden layers.

Figure 2.1: Deep Neural network with two hidden layers
Figure 2.2: Single Perceptron
(2.1)

MLPs are considered a network because they are composed of many different functions. Each of these functions is represented as a perceptron. The combination of these functions gives us the ability to represent complex and high-dimensional functions [19]. Figure 2.2 illustrates a single perceptron from an MLP where are inputs to the perceptron. Each of these inputs has a weight . Input and weight are multiplied into and where is the bias value and is the perceptron value. In Figure 2.2

, the perceptron has a binary activation function (Equation

2.1), the neuron produce the value 1 for all above 1, and 0 otherwise. There are several different activation functions that can be used in a perceptron network, see Section 2.1.1.

2.1.1 Activation Functions
Name Equation
TanH
Softmax
Sigmoid
Rectified Linear Unit (ReLU)
LeakyReLU
Binary
Table 2.1: Equations of activation function

The purpose of an Activation function is often to introduce non-linearity into the network. It is proven that an DNN using only linear activations are equal to a single-layered network [42]. It is therefore natural to use non-linear activation functions in the hidden layers of an ANN if the goal is to predict non-linear functions. TanH and Rectified Linear Unit (ReLU) has proven to work well in ANNs [39, 65, 22], but there exist several other alternatives as illustrated in Table 2.1. Researchers do not understand to the full extent why an activation function works better for a particular problem and is why trial and error is used to find the best fit [33].

2.1.2 Optimization

Optimization in ANNs is the process of updating the weights of neurons in a network. In the optimization process, a loss function is defined. This function calculates the error/cost value of the network at the output layer. The error value describes the distance between the ground truth and the predicted value. For the network to improve, this error is backpropagated back through the network until each neuron has an error value that reflects its positive or negative contribution to the ground truth. Each neuron also calculates the gradient of its weights by multiplying output delta together with the input activation value. Weights are updated using stochastic gradient descent (SDG), which is a method of gradually descending the weight loss until reaching the optimal value.

2.1.3 Loss Functions

To measure the inconsistency between the predicted value and the ground truth, a loss function is used in ANNs. The loss function calculates a positive number that is minimized throughout the optimization of the parameters111Weights and Parameters are used interchangeably throughout the thesis (Section 2.1.2). A loss function can be any mathematical formula, but there exist several well established functions. The performance varies on the classification task.

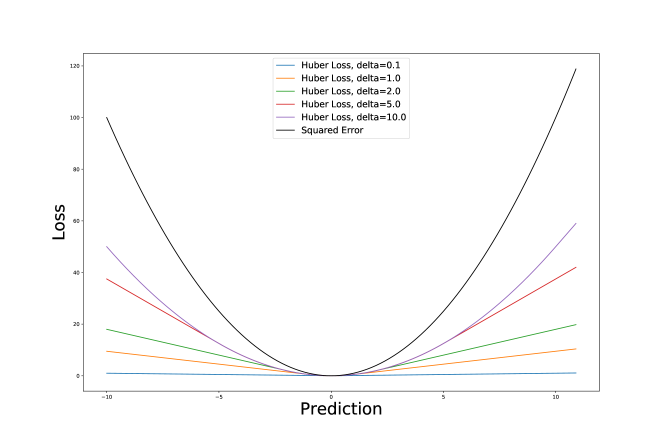

Figure 2.3: Loss functions

Mean Squared Error

(MSE) is a quadratic loss function widely used in linear regression, and are also used in this thesis. Equation

2.2 is the standard form of MSE, where the goal is to minimize the residual squares .

(2.2)
(2.3)

Huber Loss is a loss function that is widely used in DRL. It is similar to MSE, but are less sensitive to data far apart from the ground truth. Equation 2.3 defines the function where a refers to the residuals and refers to its sensitivity. Figure 2.3 illustrates the difference between MSE and Huber Loss using different configurations.

2.1.4 Hyper-parameters

Hyper-parameters are tunable variables in ANNs. These parameters include learning rate, learning rate decay, loss function, and optimization algorithm like Adam, and SDG.

2.2 Convolutional Neural Networks

A Convolutional Neural Network is a novel ANN architecture that primarily reduces the compute power required to learn weights and biases for three-dimensional inputs. ConvNets are split into three layers:

  1. Convolution layer

  2. Activation layer

  3. Pooling (Optional)

A Convolution layer has two primary components, kernel (parameters) and stride. The kernel consists of a weight matrix that is multiplied by the input values in its receptive field

. The receptive field is the area of the input that the kernel is focused on. The kernel then slides over the input with a fixed stride. The stride value determines how fast this sliding happens. With a stride of 1, the receptive field move in the direction

, and when at the end of the input x-axis, .

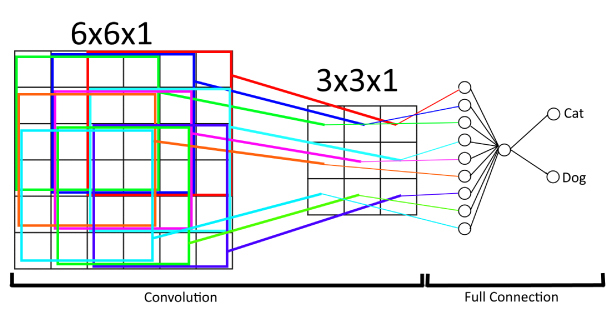

Figure 2.4: Convolutional Neural Network for classification

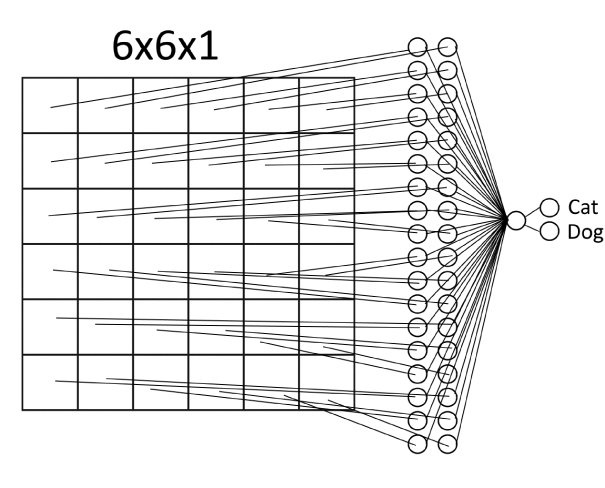

Figure 2.5: Fully-Connected Neural Network for classification

Consider a three-dimensional matrix representing an image of size

. In this example, the goal is to classify the image to be either a cat or dog. By using hyperparameters

and , there are 32 shared parameters to be optimized. In contrast, a Fully-Connected network (FCN) with a single neuron layer, would have 2357 parameters to optimize. The reason why convolutions work is that it exploits what is called feature locality. ConvNets use filters that learn a specific feature of the input, for example, horizontal and vertical lines. For every convolutional layer added to the network, the information becomes more abstract, identifying objects and shapes. Figures 2.4 and 2.5 illustrate how a simple ConvNet is modeled compared to an FCN. The ConvNet use a stride of and a kernel size of yielding a output. This produces a total of 31 parameters to optimize, compared to 41 parameters in the FCN.

2.2.1 Pooling

Pooling is the operation of reducing the data resolution, often subsequent a convolution layer. This is beneficial because it reduces the number of parameters to optimize, hence decreasing the computational requirement. Pooling also controls overfitting by generalizing features. This makes the network capable of better handling spatial invariance [48].

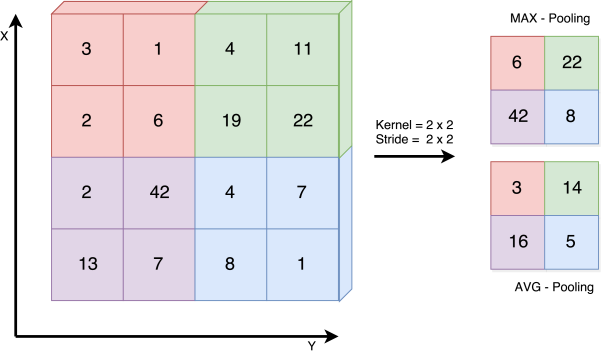

Figure 2.6: MAX and AVG Pooling operation

There are several ways to perform pooling. Max and Average

pooling are considered the most stable methods in whereas Max pooling is most used in state-of-the-art research

[29]. Figure 2.6 illustrates the pooling process using Max and Average pooling on a 222Depth of the input volume input volume. The hyperparameters for the pooling operation is and

applied to the input vector yields the resulting

output volume. This operation performed independently for each depth slice of the input volume.

2.2.2 Summary

Historically, ConvNets drastically improved the performance of image recognition because it successfully reduced the number of parameters required, and at the same time preserving important features in the image. There are however several challenges, most notably that they are not rotation invariant. ConvNets are much more complicated then covered in this section, but this beyond the scope of this thesis. For an in-depth survey of the ConvNet architecture, refer to Recent Advances in Convolutional Neural Networks [12].

2.3 Generative Models

Generative Models are a series of algorithms trying to generate an artificial output based on some input, often randomized. Generative Adversarial Networks and Variational Autoencoder is two methods that have shown excellent results in this task. These methods have primarily been used in generating realistic images from various datasets like MNIST and CIFAR-10. This section will outline the theory in understanding the underlying architecture of generative models.

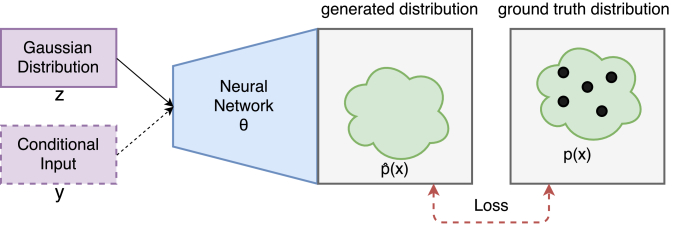

Figure 2.7: Overview: Generative Model

The objective of most Generative Models is to generate a distribution of data, that is close to the ground-truth distribution (the dataset). The Generative Model takes a Gaussian distribution

, as input, and outputs as illustrated in Figure 2.7. The goal is to find parameters that best matches the ground truth distribution with the generated distribution. Convolutional Neural Networks are often used in Generative Modeling, typically for models using noise as input. The model has several hidden parameters that is tuned via backpropagation methods like stochastic gradient descent. If the model reaches optimal parameters, is considered true.

2.4 Markov Decision Process

MDP is a mathematical method of modeling decision-making within an environment. An environment defines a real or virtual world, with a set of rules. This thesis focuses on virtual environments, specifically, games with the corresponding game mechanic limitations. The core problem of MDPs is to find an optimal policy function for the decision maker (hereby referred to as an agent).

(2.4)

Equation 2.4

illustrates how a decision/action is made using observed knowledge of the environmental state. The goal of the policy function is to find the decision that yields the best cumulative reward from the environment. MDP behaves like a Markov chain, hence gaining the

Markov Property. The Markov property describes a system where future states only depend on the present and not the past. This enables MDP based algorithms to do iterative learning [54]. MDP is the foundation of how RL algorithms operate to learn the optimal behavior in an environment.

2.5 Reinforcement Learning

Reinforcement learning is a process where an agent performs actions in an environment, trying to maximize some cumulative reward [53] (see Section 2.4

). RL differs from supervised learning because the ground truth is never presented directly. In RL there are

model-free and model-based algorithms. In model-free RL, the algorithm must learn the environmental properties (the model) without guidance. In contrast, model-based RL is defined manually describing the features of an environment [10]. For model-free algorithms, the learning only happens in present time and the future must be explored before knowledge about the environment can be learned [26, 11].

This thesis focuses on Q-Learning algorithms, a model-free RL technique that may potentially solve difficult game environments. This section investigates the background theory of Q-Learning and extends this method to Deep Q-Learning (DQN), a novel algorithm that combines RL and ANN.

2.5.1 Q-Learning

Q-Learning is a model-free algorithm. This means that the MDP stays hidden throughout the learning process. The objective is to learn the optimal policy by estimating the action-value function

, yielding maximum expected reward in state s performing action a in an environment. The optimal policy can then be found by

(2.5)

Equation 2.5 is derived from finding the optimal utility of a state . Since the utility is the maximum value, the argmax of that same value qualifies as the optimal policy. The update rule for Q-Learning is based on value iteration:

(2.6)

Equation 2.6 shows the iterative process of propagating back the estimated Q-value for each discrete time-step in the environment. is the learning rate of the algorithm, usually low number between 0.001 and 0.00001. The reward function , and is often between to increase learning stability. is the discount factor, discounting the importance of future states. The ”old Q” is the estimated Q-Value of the starting state while the ”new Q” estimates the future state. Equation 2.6 is guaranteed to converge towards the optimal action-value function, as i [53, 36].

2.5.2 Deep Q-Learning

At the most basic level, Q-Learning utilizes a table for storing pairs. Instead, a non-linear function approximation can be used to approximate . This is called Deep-Q Learning. describes tunable parameters (weights) for the approximation.ANNs are used as an approximation method for retrieving values from the Q-Table but at the cost of stability. Using ANN is much like compression found in JPEG images. The compression is lossy, and information is lost at compression time. This makes DQN unstable, since values may be wrongfully encoded under training. In addition to value iteration, a loss function must be defined for the backpropagation process of updating the parameters.

(2.7)

Equation 2.7 illustrates the loss function proposed by Minh et al [37]. It uses Bellmans equation to calculate the loss in gradient descent. To increase training stability, Experience Replay is used. This is a memory module that store memories from already explored parts of the state space. Experiences are often selected at random and then replayed to the neural network as training data. [36].

3.1 Deep Learning

Deep Learning has a long history, dating back to late 1980’s. One of the first relevant papers on the area is Learning representations by backpropagating errors from Rumelhart et al. [44] In this paper, they illustrated that a deep neural network could be trained using backpropagation. The deep architecture proved that a neural network could successfully learn non-linear functions.

Yann LeCun started in the early 1990’s research into Convolutional Neural Networks (ConvNet), with handwritten zip code classification as the primary goal [27]. He created the famous MNIST dataset, which is still widely used in the literature [28]. After ten years of research, LeCun et al. achieved state-of-the-art results on the MNIST dataset using ConvNets similar to those found in literature today [28]

. But due to scaling issues with Deep ANNs, they were outperformed by classifiers like Support Vector Machines. It was not until 2006 with the paper

A fast learning algorithm for deep belief nets by Hinton et al. that Deep Learning would appear again [17]. This paper showed how ectively train a deep neural network, by training one layer at a time. This was the beginning of Deep Neural Networks as they are known today.

For this thesis, Computer Vision is the most interesting architecture. There have been many advances in computer vision in the last couple of years. AlexNet [25], VGGNet [40] and ResNet [63]

are models achieving state-of-the-art results in the ImageNet competition. These models are complex, but does a good job in image recognition. For DRL, there is to best of our knowledge no abstract model, that works for all environments. Therefore the model must be adapted to fit the environment at hand best.

3.2 Deep Reinforcement Learning

The earliest work found related to Deep Reinforcement Learning is Reinforcement Learning for Robots Using Neural Networks. This PhD thesis illustrated how an ANN could be used in RL to perform actions in an environment with delayed reward signals successfully. [31]

With several breakthroughs in computer vision in early 2010’s, researchers started work on integrating ConvNets into RL algorithms. Q-Learning together with Deep Learning was a game-changing moment, and has had tremendous success in many single agent environments on the Atari 2600 platform. Deep Q-Learning (DQN) as proposed by Mnih et al. used ConvNets to predict the Q function. This architecture outperformed human expertise in over half of the games.

[36]

Hasselt et al. proposed Double DQN (DDQN), which reduced the overestimation of action values in the Deep Q-Network. This led to improvements in some of the games on the Atari platform. [7]

Wang et al. then proposed a dueling architecture of DQN which introduced estimation of the value function and advantage function. These two functions were then combined to obtain the Q-Value. Dueling DQN were implemented with the previous work of van Hasselt et al. [43].

Harm van Seijen et al. recently published an algorithm called Hybrid Reward Architecture (HRA) which is a divide and conquer method where several agents estimate a reward and a Q-value for each state. The algorithm performed above human expertise in Ms. Pac-Man, which is considered one of the hardest games in the Atari 2600 collection and is currently state-of-the-art in the reinforcement learning domain. The drawback of this algorithm is that generalization of Minh et al. approach is lost due to a huge number of separate agents that have domain-specific sensory input. [59]

There have been few attempts at using Deep Q-Learning on advanced simulators made explicitly for machine-learning. It is probable that this is because there are very few environments created for this purpose.

3.3 Generative Modeling

There are primarily three Generative models that are actively used in recent literature, GAN, Variational Autoencoders and Autoregressive Modeling. GAN show far better results than any other generative model and is the primary field of research for this thesis.

GAN show great potential when it comes to generating artificial images from real samples. The first occurrence of GAN was introduced in the paper Generative Adversarial Networks from Ian J. Goodfellow et al. [23]. This paper proposed a framework using a generator and discriminator neural network. The general idea of the framework is a two-player game where the generator generates synthetic images from noise and tries to fool the discriminator by learning to create authentic images, see Figure 3.1.

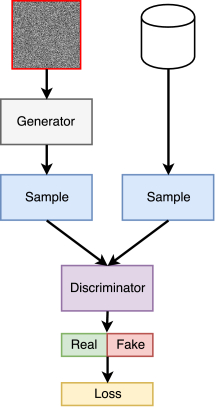

Figure 3.1: Illustration of Generative Adversarial Network Model

In future work, it was specified that the proposed framework could be extended from . This was later proposed in the paper Conditional Generative Adversarial Nets (CGAN) by Mirza et al.[35]. GAN is extended to a conditional model by demanding additional information y as input for the generator and discriminator. This enabled to condition the generated images on information like labels illustrated in Figure 3.2.

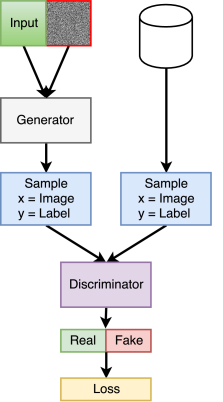

Figure 3.2: Illustration of Conditional Generative Adversarial Network Model

Radford et al. [33] proposed Deep Convolutional Generative Adversarial Networks (DCGAN) in Unsupervised Representation Learning with Deep Convolutional Generative Adversarial Networks. This paper improved on using ConvNets in unsupervised settings. Several architectural constraints were set to make training of DCGAN stable in most scenarios. This paper illustrated many great examples of images generated with DCGAN, for instance, state-of-the-art bedroom images.

In summer 2016, Salimans et al. (Goodfellow) presented Improved Techniques for Training GANs achieving state-of-the-art results in the classification of MNIST, CIFAR-10, and SVHN [46]

. This paper introduced minibatch discrimination, historical averaging, one-sided label smoothing and virtual batch normalization.

There have been many advances in GAN between and after these papers. Throughout the research process of GANs, the most prominent architecture for our problem is Conditional GANs which enables us to condition the input variable x on variable y. The most recent paper on this topic is Towards Diverse and Natural Image Descriptions via a Conditional GAN from Dai et al. [9]. This paper focuses on captioning images using Conditional GANs. It produced captions that were of similar quality to human-made captions. In RL terms it is successfully able to learn a good policy for the dataset.

3.4 Capsule Networks

Capsule Neural Networks (CapsNet) is a novel deep learning architecture that attempts to improve the performance of image and object recognition. CapsNet is theorized to be far better at detecting rotated objects and requires less training data than traditional ConvNet. Instead of creating deep networks like for example ResNet-50, a Capsule layer is created, containing several sub-layers in depth. Each of these capsules has a group of neurons, where the objective is to learn a specific object or part of an object. When an image is inserted into the Capsule Layer, an iterative process of identifying objects begins. The higher dimension layers receive a signal from the lower dimensions. The higher dimension layer then determines which signal is the strongest and a connection is made between the winning signal (betting). This method is called dynamic routing. This routing-by-agreement ensures that features are mapped to the output, and preserves all input information at the same time.

Pooling in ConvNet is also a primitive form of routing, but information about the input is lost in the process. This makes pooling much more vulnerable to attacks compared to dynamic routing. In current state-of-the-art, CapsNet is explained as inverse graphics, where a capsule tries to learn an activity vector describing the probability that an object exists.

Capsule Networks are still only in infancy, and there is not well-documented research on this topic yet apart from state-of-the-art paper Dynamic Routing Between Capsules by Sabour et al. [45].

3.5 Game Learning Platforms

There exists several exciting game learning platform used to research state-of-the-art AI algorithms. The goal of these platforms is generally to provide the necessary platform for studying Artificial General Intelligence (AGI). AGI is a term used for AI algorithms that can perform well across several environments without training. DRL is currently the most promising branch of algorithms to solve AGI.

Bellemare et al. provided in 2012 a learning platform Arcade Learning Environment (ALE) that enabled scientists to conduct edge research in general deep learning [4]. The package provided hundreds of Atari 2600 environments that in 2013 allowed Minh et al. to do a breakthrough with Deep Q-Learning and A3C. The platform has been a critical component in several advances in RL research. [36, 37, 32]

The Malmo project is a platform built atop of the popular game Minecraft. This game is set in a 3D environment where the object is to survive in a world of dangers. The paper The Malmo Platform for Artificial Intelligence Experimentation by Johnson et al. claims that the platform had all characteristics qualifying it to be a platform for AGI research.[20]

ViZDoom is a platform for research in Visual Reinforcement Learning. With the paper ViZDoom: A Doom-based AI Research Platform for Visual Reinforcement Learning Kempka et al. illustrated that an RL agent could successfully learn to play the game Doom, a first-person shooter game, with behavior similar to humans. [41]

With the paper DeepMind Lab, Beattie et al. released a platform for 3D navigation and puzzle solving tasks. The primary purpose of Deepmind Lab is to act as a platform for DRL research.[3]

In 2016, Brockman et al. from OpenAI released GYM which they referred to as ”a toolkit for developing and comparing reinforcement learning algorithms”. GYM provides various types of environments from following technologies: Algorithmic tasks, Atari 2600, Board games, Box2d physics engine, MuJoCo physics engine, and Text-based environments. OpenAI also hosts a website where researchers can submit their performance for comparison between algorithms. GYM is open-source and encourages researchers to add support for their environments. [5]

OpenAI recently released a new learning platform called Universe. This environment further adds support for environments running inside VNC. It also supports running Flash games and browser applications. However, despite OpenAI’s open-source policy, they do not allow researchers to add new environments to the repository. This limits the possibilities of running any environment. Universe is, however, a significant learning platform as it also has support for desktop games like Grand Theft Auto IV, which allow for research in autonomous driving [30].

Very recently Extensive Lightweight Flexible (ELF) research platform was released with the NIPS paper ELF: An Extensive, Lightweight and Flexible Research Platform for Real-time Strategy Games. This paper focuses on RTS game research and is the first platform officially targeting these types of games. [58]

3.5.1 Summary

Multiple interesting observations about current state-of-the-art in learning platforms for RL algorithms were found during our research. Table 3.1 describes the capabilities of each of the learning platform in the interest of fulfilling the requirements of this thesis. GYM-CAIR is included in this comparison and is further described in Chapter 4 and 5.

[HTML]BBDAFFPlatform [HTML]BBDAFFDiversity [HTML]BBDAFFAGI [HTML]BBDAFFAdvanced Environment(s)
ALE [HTML]D5E8D4Yes Yes [HTML]F8CECCNo
Malmo Platform [HTML]F8CECCNo [HTML]F8CECCNo Yes
ViZDoom [HTML]F8CECCNo Yes Yes
DeepMind Lab [HTML]F8CECCNo [HTML]F8CECCNo Yes
OpenAI Gym [HTML]D5E8D4Yes Yes [HTML]F8CECCNo
OpenAI Universe [HTML]D5E8D4Yes Yes [HTML]F8CECCPartially
ELF [HTML]F8CECCNo [HTML]F8CECCNo Yes
(GYM-CAIR) [HTML]D5E8D4Yes Yes Yes
Table 3.1: Summary of researched platforms

3.6 Reinforcement Learning in Games

Reinforcement Learning for games is a well-established field of research and is frequently used to measure how well an algorithm can perform within an environment. This section presents some of the most important achievements in Reinforcement Learning.

TD-Gammon is an algorithm capable of reaching an expert level of play in the board game Backgammon [56, 57]. The algorithm was developed by Gerald Tesauro in 1992 at IBM’s Thomas J. Watson Research Center. TD-Gammon consists of a three-layer ANN and is trained using an RL technique called TD-Lambda. TD-Lambda is a temporal difference learning algorithm invented by Richard S. Sutton [52]. The ANN iterates over all possible moves the player can perform and estimates the reward for that particular move. The action that yields the highest reward is then selected. TD-Gammon is one of the first algorithms to utilize self-play methods to improve the ANN parameters.

In late 2015, AlphaGO became the first algorithm to win against a human professional Go player. AlphaGO is an RL framework that uses Monte Carlo Tree search and two Deep Neural Networks for value and policy estimation [49]. Value refers to the expected future reward from a state assuming that the agent plays perfectly. The policy network attempts to learn which action is best in any given board configuration. The earliest versions of AlphaGO used training data from games played by human professionals. In the most recent version, AlphaGO Zero, only self-play is used to train the AI [51] In a recent update, AlphaGO was generalized to work for Chess and Shogi (Japanese Chess) only using 24 hours to reach superhuman level of play [50]

DOTA 2 is an advanced player versus player game where the player is controlling a hero unit. The game objective is to defeat the enemy heroes and destroy their base. In August 2017, OpenAI invented an RL based AI that defeated professional players in one versus one game. Training was done only using self-play, and the algorithm learned how to exploit game mechanics to perform well.

DeepStack is an algorithm that can perform an expert level play in Texas Hold’em poker. This algorithm uses tree-search in conjunction with neural networks to perform sensible actions in the game [38]. DeepStack is a general-purpose algorithm that aims to solve problems with imperfect information.

There have been several other significant achievements in AI, but these are not directly related to the use of RL algorithms. These include Deep Blue111Deep Blue is not AI and Watson from IBM.

4.1 FlashRL

Adobe Flash is a multimedia software platform used for the production of applications and animations. The Flash run-time was recently declared deprecated by Adobe, and by 2020, no longer supported. Flash is still frequently used in web applications, and there are countless games created for this platform. Several web browsers have removed the support for the Flash runtime, making it difficult to access the mentioned game environments. Flash games are an excellent resource for machine learning benchmarking, due to size and diversity of its game repository. It is therefore essential to preserve the Flash run-time as a platform for RL.

Flash Reinforcement Learning (FlashRL) is a novel platform that acts as an input/output interface between Flash games and DRL algorithms. FlashRL enables researchers to interface against almost any Flash-based game environment efficiently.

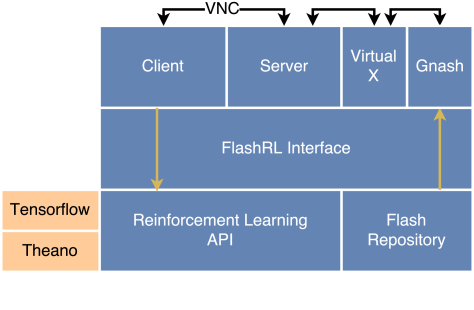

Figure 4.2: FlashRL: Architecture

The learning platform is developed primarily for Linux based operating systems but is likely to run on Cygwin with few modifications. There are several key components that FlashRL uses to operate adequate, see Figure 4.2. FlashRL uses XVFB to create a virtual frame-buffer. The frame-buffer acts like a regular desktop environment, found in Linux desktop distributions [18]. Inside the frame-buffer, a Flash game chosen by the researcher is executed by a third-party flash player, for example, Gnash. A VNC server serves the frame-buffer and enable FlashRL to access display, mouse and keyboard via the VNC protocol. The VNC Client pyVLC was specially made for this FlashRL. The code base originates from python-vnc-viewer [55]. The last component of FlashRL is the Reinforcement Learning API that allows the developer to access the input/output of the pyVLC. This makes it easy to develop sequenced algorithms by using API callbacks or invoke commands manually with threading.

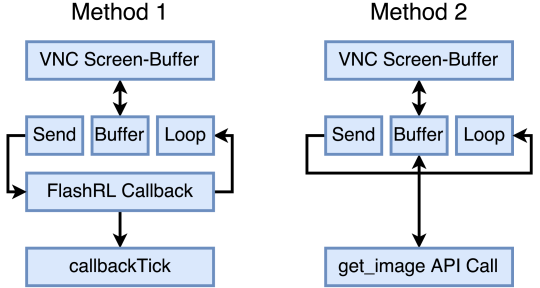

Figure 4.3: FlashRL: Frame-buffer Access Methods

Figure 4.3

illustrates two methods of accessing the frame-buffer from the Flash environment. Both approaches are sufficient to perform RL, but each has its strengths and weaknesses. Method 1 sends frames at a fixed rate, for example at 60 frames per second. The second method does not set any restrictions of how fast the frame-buffer can be captured. This is preferable for developers that do not require images from fixed time-steps because it demands less processing power per frame. The framework was developed with deep learning in mind and is proven to work well with Keras and Tensorflow

[1].

Figure 4.4: FlashRL: Available environments

There are close to a thousand game environments available for the first version of FlashRL. These game environments were gathered from different sources on the world wide web. FlashRL has a relatively small code-base and to preserve this size, the Flash repository is hosted at a remote site. Because of the large repository, not all games have been tested thoroughly. The game quality may therefore vary. Figure 4.4 illustrates tested games that yield a great value for DRL research.

4.2 Deep Line Wars

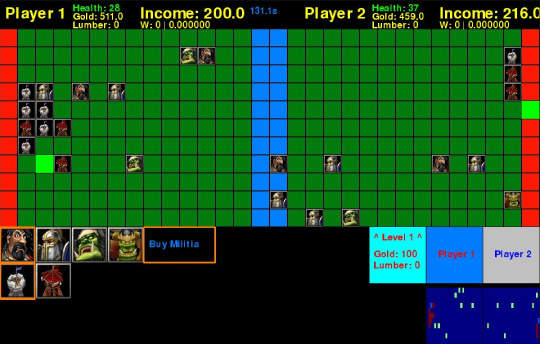

Figure 4.5: Deep Line Wars: Graphical User Interface

The game objective of Deep Line Wars is to invade the opposing player (hereby enemy) with mercenary units until all health points are depleted (see Figure 4.5). For every friendly unit that enters the red area on the map, the enemy health pool is reduced by one. When a player purchases a mercenary unit, it spawns at a random location inside the red area of the owners base. Mercenary units automatically move towards the enemy base. To protect the base, players can construct towers that shoot projectiles at the opponents mercenaries. When a mercenary dies, a fair percentage of its gold value is awarded to the opponent. When a player sends a unit, the income is increased by a percentage of the units gold value. As a part of the income system, players gain gold at fixed intervals.[2]

To successfully master game mechanics of Deep Line Wars, the player (agent) must learn

  • offensive strategies of spawning units,

  • defending against the opposing player’s invasions, and

  • maintain a healthy balance between offensive and defensive to maximize income

The game is designed so that if the player performs better than the opponent in these mechanics, he is guaranteed to win over the opponent.

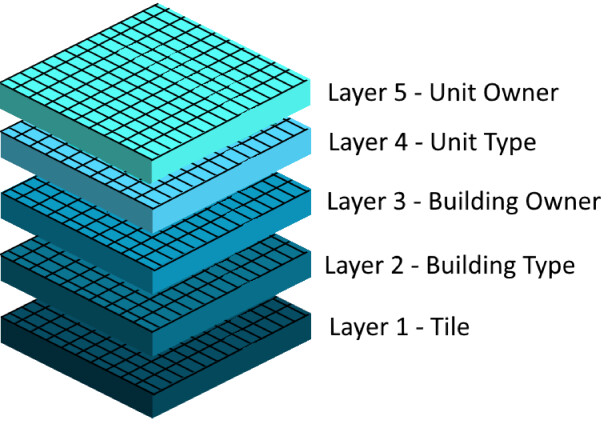

Figure 4.6: Deep Line Wars: Game-state representation
Figure 4.7: Deep Line Wars: Game-state representation using heatmaps

Because the game is specifically targeted towards RL research, the game-state is defined as a multi-dimensional matrix. This way, it is trivial to input the game-state directly into ANN models. Figure 4.6 illustrates how the game state is constructed. This state is later translated into graphics, seen in Figure 4.5. It is beneficial to directly access this information because it requires less data preprocessing compared to using raw game images. Deep Line Wars also features abstract state representation using heat-maps, seen in Figure 4.7. By using heatmaps, the state-space is reduced by a magnitude, compared to raw images. Heatmaps can better represent the true objective of the game, enabling faster learning for RL algorithms [47].

[HTML]BBDAFF [HTML]BBDAFFRepresentation [HTML]BBDAFFMatrix Size Data Size
Image 1440000
Matrix 750
Heatmap RGB 450
Heatmap Grayscale 150
Table 4.1: Deep Line Wars: Representation modes

In Deep Line Wars, there are primarily four representation modes available for RL.Table 4.1 shows that there is considerably lower data size for grayscale heatmaps. Effectively, the state-space can be reduced by 9600%, when no data preprocessing is done. Heatmaps seen in 4.7 define

  • red pixels as friendly buildings,

  • green pixels as enemy units, and

  • teal pixels as the mouse cursor.

When using grayscale heatmaps, RGB values are squashed into a one-dimensional matrix with values ranging between 0 and 1. Economy drastically increases the complexity of Deep Line Wars, and it is challenging to present only using images correctly. Therefore a secondary data structure is available featuring health, gold, lumber, and income. This data can then be feed into a hybrid DL model as an auxiliary input [61].

4.3 Deep RTS

RTS games are considered to be the most challenging games for AI algorithms to master [60]. With colossal state and action-spaces, in a continuous setting, it is nearly impossible to estimate the computational complexity of games such as Starcraft II.

The game objective of Deep RTS is to build a base consisting of a Town-Hall and then expand the base to gain the military power to defeat the opponents. Each of the players starts with a worker. Workers can construct buildings and gather resources to gain an economic advantage.

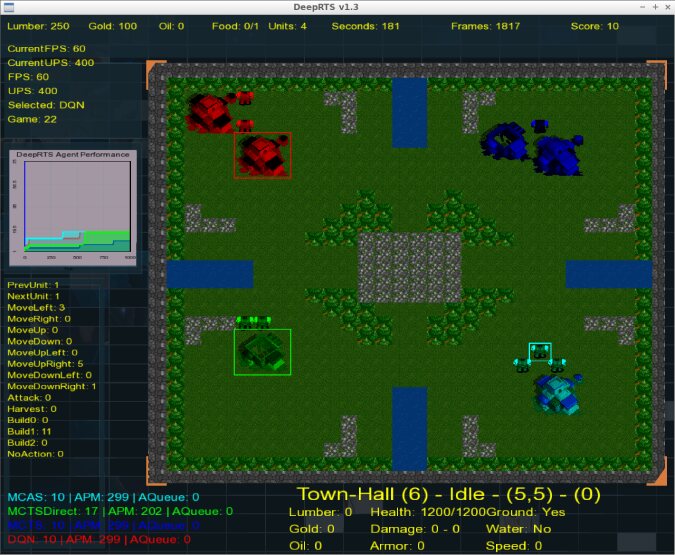

Figure 4.8: Deep RTS: Graphical User Interface

The game mechanics consist of two main terminologies, Micro and Macro management. The player with the best ability to manage their resources, military, and defensive is likely to win the game. There is a considerable leap from mastering Deep Line Wars to Deep RTS, much because Deep RTS features more than two players.

[HTML]BBDAFFPlayer Resources
Property: Lumber Gold Oil Food Units
Value Range: 0 - 0 - 0 - 0 - 200 0 - 200
Table 4.2: Deep RTS: Player Resources

The game interface displays relevant statistics meanwhile a game session is running. These statistics show the action distribution, player resources, player scoreboard and a live performance graph. The action distribution keeps track of which actions a player has performed in the game session. These statistics are stored to the hard-drive after a game has reached the terminal state. Player Resources (Table 4.2), are shown at the top bar of the game. Player Scoreboard indicates the overall performance of each of the players, measured by kills, defensive points, offensive points and resource count. Deep RTS features several hotkeys for moderating the game-settings like game-speed and state representation. The hotkey menu is accessed by pressing the G-hotkey.

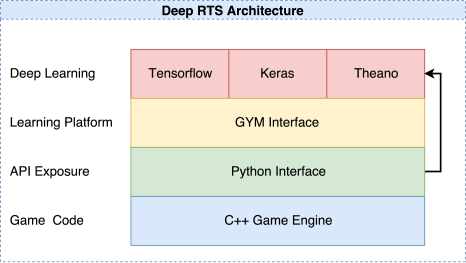

Figure 4.9: Deep RTS: Architecture

Deep RTS is an environment developed as an intermediate step between Atari 2600 and the famous game Starcraft II. It is designed to measure the performance in RL algorithms, while also preserving the game goal. Deep RTS is developed for high-performance simulation of RTS scenarios. The game engine is developed in C++ for performance but has an API wrapper for Python, seen in Figure 4.9. It has a flexible configuration to enable different AI approaches, for instance online and offline RL. Deep RTS can represent the state as raw game images (C++) and as a matrix, which is compatible with both C++ and Python.

4.4 Deep Maze

Deep Maze is a game environment designed to challenge RL agents in the shortest path problem. Deep Maze defines the problem as follows:

  • How can the agent optimally navigate through any fully-observable maze?

The environment is simple, but becomes drastically more complicated when the objective is to find the optimal policy where s = state for all the maze configurations.

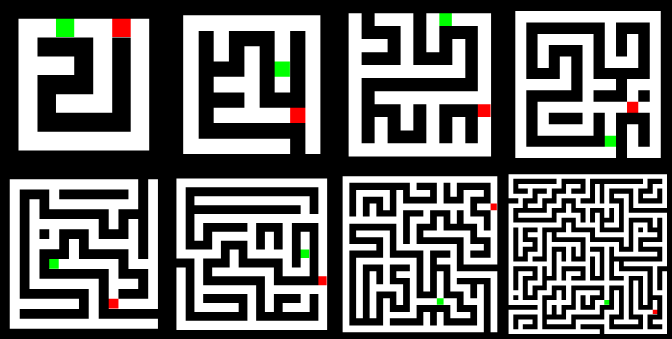

Figure 4.10: Deep Maze: Graphical User Interface

There are multiple difficulty levels for Deep Maze in two separate modes; deterministic and stochastic. In the deterministic mode, the maze structure is never changed from game to game. Stochastic mode randomizes the maze structure for every game played. There are multiple size configurations, ranging from in width and height, seen in Figure 4.10.

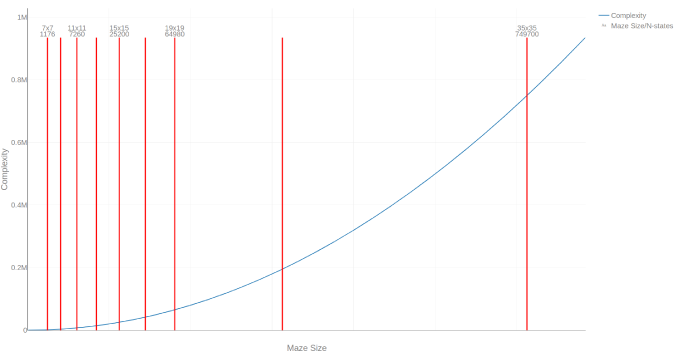

Figure 4.11: Deep Maze: State-space complexity

Figure 4.11 illustrates how the theoretical maximum state-space set of Deep Maze increase with maze size. This is calculated by performing following binomial: . This is however reduced depending on the maze composition, where dense maze structures are generally less complex to solve theoretically.

The simulation is designed for performance so that each discrete time step is calculated with fewest possible CPU cycles. The simulation is estimated to run at 3 000 000 ticks per second with modern hardware. This allows for fast training of RL algorithms.

From an RL point of view, Deep Maze challenges an agent in state-interpretation and navigation, where the goal is to reach the terminal state in fewest possible time steps. It’s a flexible environment that enables research in a single environment setting, as well as multiple scenarios played in sequence.

4.5 Flappy Bird

Flappy Bird is a popular mobile phone game developed by Dong Nguyen in May 2013. The game objective is to control a bird by ”flapping” its wings to pass pipes, see Figure 4.12. The player is awarded one point for each pipe passed.

Figure 4.12: Flappy Bird: Graphical User Interface

Flappy Bird is widely used in RL research and was first introduced in Deep Reinforcement Learning for Flappy Bird [6]. This report shows superhuman agent performance in the game using regular DQN methods111Source code: https://github.com/yenchenlin/DeepLearningFlappyBird.

OpenAI’s gym platform implements Flappy Bird through PyGame Learning Environment222Available at: https://github.com/ntasfi/PyGame-Learning-Environment (PLE). It supports both visual and non-visual state representation. The visual representation is an RGB image while the non-visual information includes vectorized data of the birds position, velocity, upcoming pipe distance, and position.

Figure 4.12 illustrates the visual state representation of Flappy Bird. It is represented by an RGB Image with the dimension of . It is recommended that raw images are preprocessed to gray-scale and downscaled to . Flappy Bird is an excellent environment for RL and provides adequate validation of new game environments introduced in this thesis.

5.1 Environments

OpenAI GYM is an open-source learning platform, exposing several game environments to the AI research community. There are many existing games available, but these are too simple because they have too easy game objectives. A game environment is registered to the GYM platform by defining a scenario. This scenario predefines the environment settings that determines the complexity. This type of registration is beneficial because it enables to construct multiple scenarios per game environment. An example of this would be the Maze environment, which contains scenarios for deterministic and stochastic gameplay for the different maze sizes.

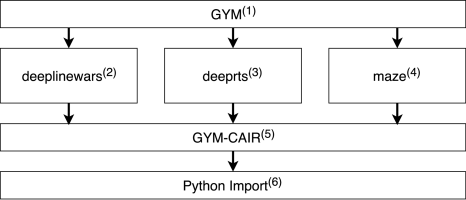

Figure 5.2: Architecture: gym-cair

Figure 5.2 illustrates how the environment ecosystem is designed using OpenAI GYM. Environments are registered to the GYM platform.
Deep Line Wars, Deep RTS and Maze are then added to a common repository, called gym-cair. This repository links together all environments, which can be imported via Python.

1:
2:
3:while not  do
4:
5:
6:
7:
8:end while
Algorithm 1 Generic GYM RL routine

The benefit of using GYM is that all environments are constrained to a generic RL interface, seen in Algorithm 1. The environment is initially reset by running gym.reset function (Line 1). It is assumed that the environment does not start in a terminal state (Line 2). While the environment is not in a terminal state, the agent can perform actions (Line 5 and 6). This procedure is repeated until the environment reaches the terminal state.

By using this setup, it is far more trivial to perform experiments in the proposed environments. It also enables better comparison, because GYM ensures that the environment configuration is not altered while conducting the experiments.

5.2 Capsule Networks

Capsule Networks recently illustrated that a shallow ANN could successfully classify the MNIST dataset of digits, with state-of-the-art results, using considerably fewer parameters then in regular ConvNets. The idea behind CapsNet is to interpret the input by identifying parts of the whole, namely the objects of the input. [45] The objects are identified using Capsules that have the responsibility of finding specific objects in the whole. A capsule becomes active when the object it searches for exist.

It becomes significantly harder to use CapsNet in RL. The objective of RL is to identify actions that are sensible to do in any given state. This means that actions become parts, and the whole becomes the state. Instead of classifying objects, the capsules now estimate a vector of the likelihood that an action is sensible to do in the current state.

Several issues need to be solved for CapsNet to work properly in the environments outlined in Chapter 4. The first problem is the input size. The MNIST dataset of digits contains images of pixels, in contrast, game environments usually range between and pixels.

[HTML]BBDAFF Layer Name Output Params Output Params
Input 0 0
Conv Layer 20 992 20 992
Primary Caps 5 308 672 5 308 672
Capsule Layer 2 359 296 75 759 616
Output 16 0 16 0
Parameters 7 688 960 81 089 280
Table 5.1: Capsule Networks: Dimension Comparison

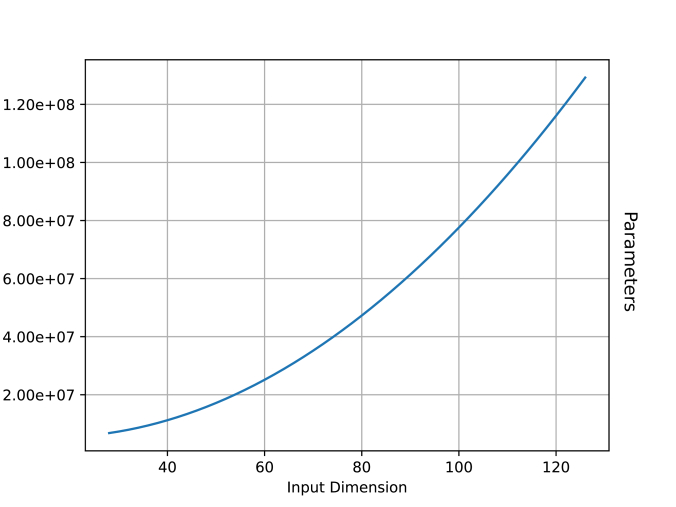

Figure 5.3: Capsule Networks: Parameter count for different input sizes

Table 5.1 illustrates the consequence of increasing the input size beyond the specified . By increasing the input size by a magnitude of 3 (), the model gains over parameters. Figure 5.3 illustrates how parameters increase exponentially with the input size. In attempts to solve the scalability issue, several Convolutional Layers can be put in front of the CapsNet. This enables the algorithm to extract feature maps from the original input, but it is crucial to not utilize any form of pooling prior the Capsule Layer. The whole reason to use Capsules is that it solves several problems with invariance that max-pooling possess.

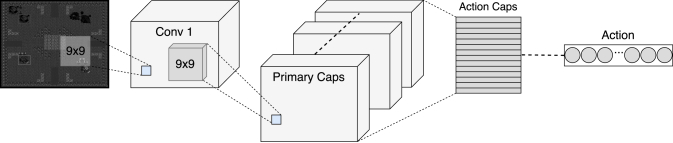

Figure 5.4: Capsule Networks: Architecture

Figure 5.4 illustrates how a standard CapsNet is structured, using a single Convolutional Layer. When a neural network is used, a question is defined to instruct the neural network to predict an answer. For a simple image classification task, the question is: what do you see in the image. The neural network then tries to answer, by using its current knowledge: I see a bird. The answer is then revealed to the neural network, which allows it to tune its response if it answered incorrectly. The same analogy can be used in an RL problem.

The hope is that despite having several scalability issues, it is possible to accurately encode states into the correct capsules for each possible action in the environment. There are several methods to improve the training, but for this thesis, only primitive Q-Learning strategies will be used.

5.3 Deep Q-Learning111General knowledge of ANN, DQN, and CapsNet from Chapter 2 is required.

There are many different Deep Q-Learning algorithms available consisting of different hyper-parameters, network depth, experience replay strategies and learning rates. The primary problem of DQN is learning stability, and this is shown with the countless configurations found in the literature [36, 37, 16, 7, 43, 14]. Refer to Section 2.5.2 for how the algorithm performs learning of the Q function.

[HTML]BBDAFF [HTML]BBDAFFModel [HTML]BBDAFFPaper [HTML]BBDAFFYear
1 Vanilla DQN Mnih et al. [36, 37] 2013/2015
2 Deep Recurrent Q-Network Hausknecht et al. [16] 2015
3 Double DQN Hasselt et al. [7] 2015
4 Dueling DQN Wang et al. [43] 2015
5 Continuous DQN Gu et al. [14] 2016
6 Deep Capsule Q-Network
7 Recurrent Capsule Q-Network
Table 5.2: Deep Q-Learning architectures in testbed

Models 1-4 (Figure 5.2) are the most commonly used DQN architectures found in literature. Model 5 shows great potential in continuous environments, comparable to environments from Chapter 4. Models 6 and 7 are two novel approaches using Capsule Layers in conjunction with Convolution layers [45, 64].

[HTML]BBDAFFDeep Q-Learning Models
[HTML]BBDAFF(It is assumed that all models have a preceding input layer)
Model Layer 1 Layer 2 Layer 3 Layer 4 Layer 5
1 DQN
Conv
Relu
Conv
Relu
Conv
Relu
Dense
Relu
Output
Linear
2 DRQN
Conv
Relu
Conv
Relu
Conv
Relu
LSTM
3 DDQN
Conv
Relu
Conv
Relu
Conv
Relu
Dense
Relu
Dense
Relu
Output
Linear
Output
Linear
4 DuDQN Uses 2x DQN, Gradual updates from Target to Main
5 CDQN Identical to DDQN but with different update strategy
6 DCQN
Conv
Relu
Conv
Relu
Conv
Relu
Capsule OutCaps
7 RCQN 222Time Distributed / Recurrent
Conv
Relu
Conv
Relu
Conv
Relu
Capsule OutCaps
Table 5.3: Deep Q-Learning architectures
[HTML]BBDAFFDeep Q-Learning Hyperparameters
[HTML]BBDAFFParameter [HTML]BBDAFFValue Range [HTML]BBDAFFDefault
Learning Rate 0.0-1.0
Discount Factor 0.0-1.0 0.99
Loss Function [Huber, MSE] Huber
Optimizer

[SGD, Adam, RMSProp]

Adam
Batch Size 32
Memory Size 1 000 000
0.10
1.0
1.0
Table 5.4: Deep Q-Learning hyper-parameters

Models 1-7 are implemented in the Keras/Tensorflow framework according to the definitions found in the illustrated papers. Table 5.3 shows the architecture of the DQN models found in Table 5.2. Filter and stride count is intentionally left out because these are considered as hyper-parameters. Hyperparameters are manually tuned by trial and error. Table 5.4 outlines the parameters that are tuned individually for each of the architectures.

5.4 Artificial Data Generator

The Artificial Data Generator component from Figure 5.1 is an attempt to shorten the exploration phase in RL. By generating artificial training data, the hope is that DQN models can learn features that were never experienced within the environment. The proposed algorithm could be able to predict these future states, given conditioned on action in the generator function  [35]. The initial plan was to utilize adversarial generative networks but was not able to generate conditioned states successfully. Instead, an architecture called Conditional Convolution Deconvolution Network was developed that use SDG to update parameters (Section 5.4).

Conditional Convolution Deconvolution Network (CCDN) is an architecture that tries to predict the consequence of a condition applied to an image. A state is conditioned on a action to predict future game states.

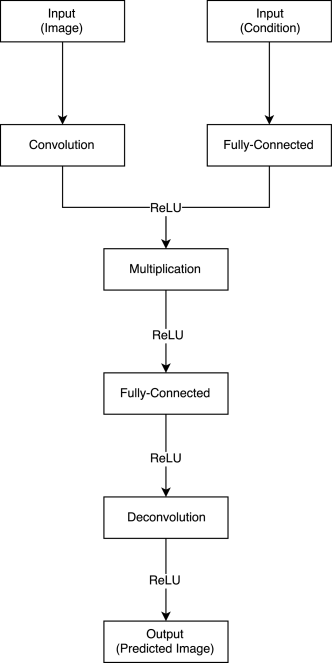

Figure 5.5: Architecture: CCDN

Figure 5.5 illustrates the general idea of the model. The model is designed using two input streams, image and condition steam. The image stream is a series of convolutional layers following a fully-connected layer. The conditional stream contains fully-connected layers where the last layer matches the number neurons in the last layer of the image steam. These streams are then multiplied following a fully-connected layer that encodes the conditioned states. The conditioned state is then reconstructed using deconvolutions. The output layer is the final reconstructed image of the predicted next state given condition.

The process of training this model is supervised as it consumes data from the experience replay buffer gathered by RL agents. The model is trained by fetching a memory from the experience replay memory (, a, ) where is the current state, is the action, and is the transition . CCDN generates an artificial state by using the generator model . The parameters is optimized using SDG, and the loss is calculated using MSE.

(5.1)

Equation 5.1 (Equation 2.2; the predicted value y is now denoted S) is simple in that the loss is decreased when the value of the predicted state gets closer to .

Table 5.5 illustrates how states are generated using CCDN. It is assumed that it is possible to transition between states given an action, to create training data. When sufficient training data is collected, the recorded state data is used to estimate future states. In this example, there is a grid where the agent is a red square with the actions, up, down, left, and right. This yields a theoretical maximum state-space of 4 states with possible transitions (4 actions per cell = possible state and action combinations). When a portion of the state-space is explored trough random-play the CCDN algorithm can train by comparing the predictions against real data. The goal is for the model to converge towards learning the transition function of the environment, to continue generating future states without any interaction with the environment. It is likely that the model are able to converge towards the optimal solution for more than a single time-step in the future.

[HTML]FE0000 1 [HTML]333333 0 [HTML]333333 0 [HTML]FE0000 1 [HTML]333333 0 [HTML]333333 0
Real States [HTML]333333 0 [HTML]333333 0 [HTML]333333 0 [HTML]333333 0 [HTML]333333 0 [HTML]FE0000 1
[HTML]333333 0 [HTML]FE0000 1 [HTML]333333 0 [HTML]333333 0
Generated States N/A [HTML]333333 0 [HTML]333333 0 [HTML]333333 0 [HTML]FE0000 1
Table 5.5: Proposed prediction cycle for CCDN

6.1 Introduction

CCDN predicts the future states by conditioning current state on a action. Figure 5.5 illustrates the architecture used in these experiments. To calculate the loss, MSE (Equation 5.1) was used during training. The model is tested using 32, 64, 128, 256, and 512 neurons in the fully-connected layer. Depending on the neuron count, the model has approximately 13 000 000 to 67 000 000 parameters in total.

It is beneficial to have a significant amount of parameters because it allows the model to encode more data. The drawback of this is that the model uses more memory, and takes longer to train. The aim is to train the model for 10 000 epoch at a maximum of 168 hours. For this reason, the algorithm used 32 neurons in the hidden layers which gave reasonably good results for some environments.

Conditioned actions are not shown in the generated images from these experiments. This is because the precision is still too coarse, and the generated future states are yet too far from the ground truth. These results are impressive for some environments, and there is a possibility that the generated samples can be used in conjunction with real samples to train DQN models.

6.2 Deep Line Wars

Deep Line Wars show excellent results when generating data using CCDN to generate future states . Table 6.1 illustrates the transition from real states (Left side) to generated future states by training CCDN using SDG.

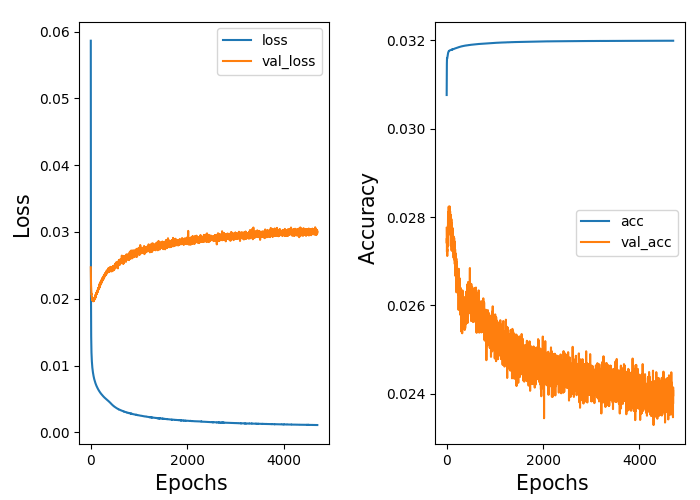

Figure 6.1: CCDN: Deep Line Wars: Training Performance

CCDN was not able to converge, but it is possible that this is due to our low neuron count of 32 in the fully-connected layer. Figure 6.1 shows that the loss inclined gradually while the accuracy declined. Loss and accuracy do not reflect the generated images seen in Table 6.1. The observed transitions at Day 5-6.5 illustrate realistic transition behavior between states. Observations indicate that CCDN learns input features like:

  • Background intensity (Represents health points)

  • Possible mouse position (White square)

  • Possible unit positions

  • Building positions

The model is still not able to correctly predict the movement of units. This could potentially be solved by stacking several state transitions before predicting future states [6]. This could be done using ConvNets or the use of recurrence in neural networks (RNN).

[HTML]BBDAFFDeep Line Wars: Conditioned State Transitions
Day 1 Day 4
Day 1.5 Day 4.5
Day 2 Day 5
Day 2.5 Day 5.5
Day 3 Day 6
Day 3.5 Day 6.5
Table 6.1: CCDN: Deep Line Wars

6.3 Deep Maze

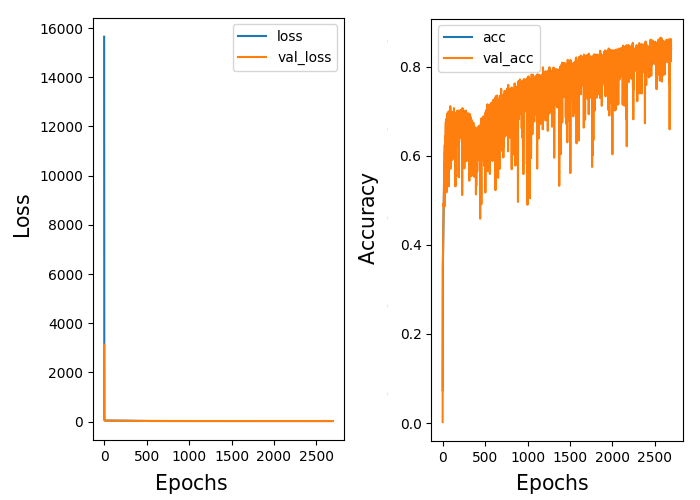

Figure 6.2: CCDN: Deep Maze: Training Performance

Deep Maze should be considered as one of the more straightforward environments to generate high-quality training data because it has the simplest state-space. From Table 6.2 it is clear that CCDN recognized features like the maze structure early in the training process. Figure 6.2 illustrates that CCDN converged quickly, having a loss near 0 at the 5th epoch of training. High accuracy was reported during training when using MSE as the loss function. By inspecting the produced images manually, it was clear that CCDN did not learn how to predict the position of the player inside the maze. Hallways inside the maze did not show any sensible information about the actual location of the player. Instead, the maze hallways were generated as random noise. There are however some parts of the maze that presents less noise, indicating that the player did not visit these locations as frequently.

[HTML]BBDAFFDeep Maze: Conditioned State Transitions
Day 1 Day 4
Day 1.5 Day 4.5
Day 2 Day 5
Day 2.5 Day 5.5
Day 3 Day 6
Day 3.5 Day 6.5
Table 6.2: CCDN: Deep Maze

6.4 FlashRL: Multitask

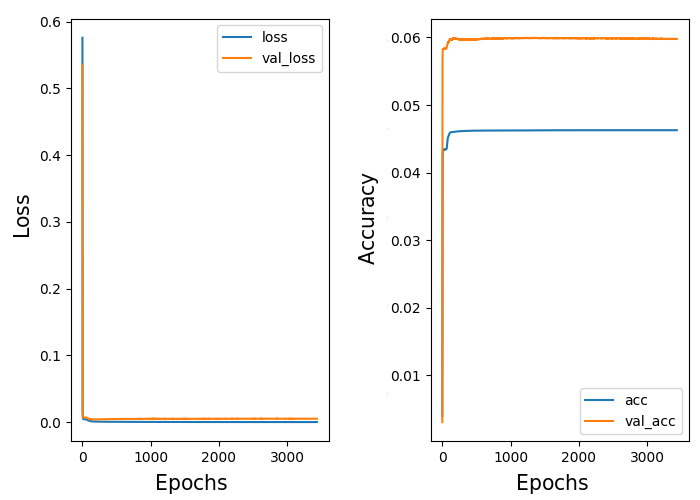

Figure 6.3: CCDN: FlashRL: Training Performance

CCDN produced high-quality state transitions when applying it to Flash RL: Multitask. Since Multitask is an environment consisting of several different scenes (Menu, Stage 1, Stage 2), it was expected that it would fail to generate sensible output. Table 6.3 illustrates that CCDN was able to extract features from all states and map it to correct action. Transitions from Day 2.5 and Day 3.5 illustrates a slight change in the paddle tilt and the position of the ball. This shows that the algorithm can to some extend understand game mechanics. In addition to this, CCDN can draw the menu including a slight change in the mouse position. The results show that CCDN can learn to extract:

  • The current scene layout

  • Primitive physics

Figure 6.3 illustrates that CCDN did not reach more than 5% accuracy at training time even though the loss was close to zero. It is not clear what is causing the training instability because measuring loss of the images manually using MSE gave far better accuracy for most training samples. The results indicate that CCDN did indeed learn to extract features from the Multitask environment.

[HTML]BBDAFFFlash RL: Conditioned State Transitions
Day 1 Day 4
Day 1.5 Day 4.5
Day 2 Day 5
Day 2.5 Day 5.5
Day 3 Day 6
Day 3.5 Day 6.5
Table 6.3: CCDN: FlashRL: Multitask

6.5 Flappy Bird

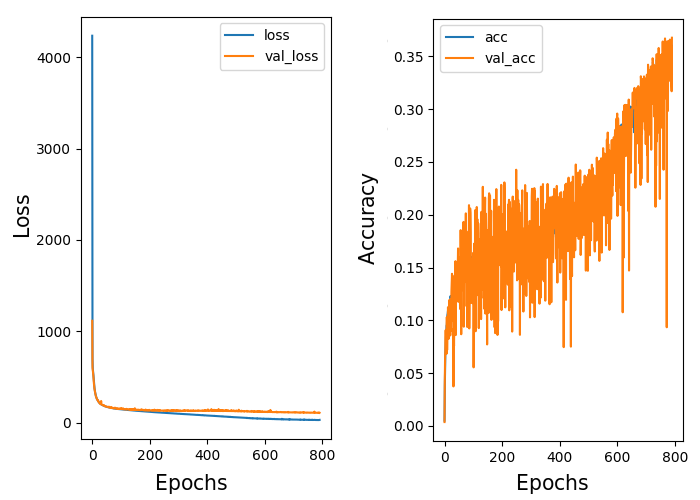

Figure 6.4: CCDN: Flappy Bird: Training Performance

Table 6.4 illustrates the generated transitions for the third party game Flappy Bird. Figure 6.4 show that CCDN has a gradual decrease in the loss while the accuracy increases to approximately 35%. Flappy Bird has the highest accuracy for the tested game environments, but observations shows that CCDN is only able to generate noise.

The reason is that Flappy Bird has a scrolling background, meaning that CCDN must encode a lot more data than in the other environments. Because of this, CCDN could not determine how to generate future state representations for this game.

It is expected that this problem could be mitigated by performing data preprocessing. Literature indicates that RL algorithms often strip away the background to simplify the game-state [13]. Also, it is likely that CCDN could successfully encode Flappy Bird with additional parameters, but this would increase the training time to several weeks.

[HTML]BBDAFF Flappy Bird: Conditioned States
Day 1
Day 3
Day 4
Day 6
Table 6.4: CCDN: Flappy Bird

6.6 Summary

CCDN is a novel algorithm suited for generating artificial training data for RL algorithms and shows great potential for some environments. The results indicate that CCDN has issues in game environments with a sparse state-space representation. Flappy Bird illustrates the problem well because CCDN generates noise instead of future states for action and state pairs. One method to combat this problem may be to increase the neuron count for the fully-connected layer in the CCDN model.

ANN based algorithms frequently suffer from training instability. The results show that the CCDN algorithm was not able to accurately determine the loss using regular MSE. This could potentially be the cause of the training instability because the optimizer would not be able to determine how well it is doing when updating network parameters. It is likely that replacing the MSE loss function could improve the generated images drastically.

The results presented in this Chapter shows excellent potential in using CCDN for generation of artificial training data for game environments. It shows excellent performance in Deep Line Wars and Flash RL: Multitask and could potentially reduce the required amount of exploration in RL algorithms

7.1 Experiments

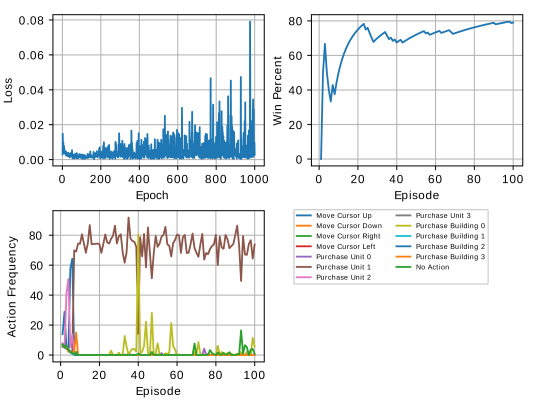

Figure 7.1: DQN-CapsNet: Deep Line Wars
Figure 7.2: DQN-ConvNet: Deep Line Wars

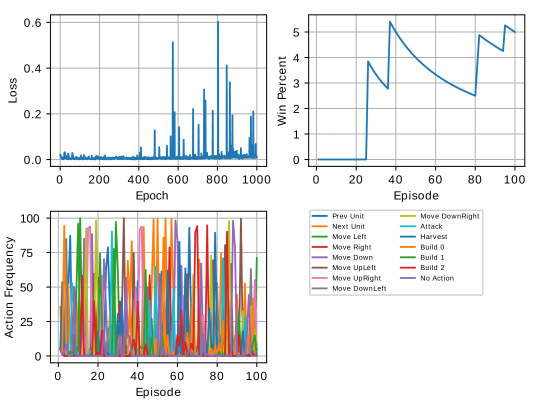

Figure 7.3: DQN-CapsNet: Deep RTS
Figure 7.4: DQN-ConvNet: Deep RTS

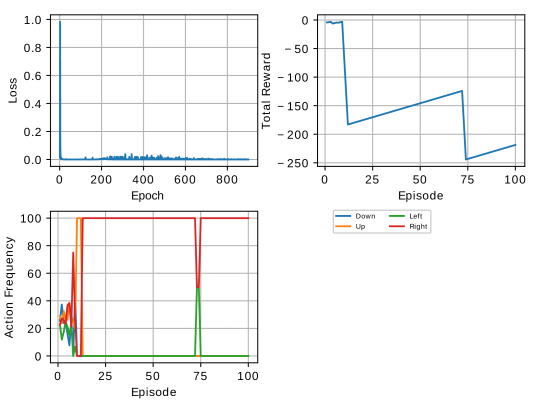

Figure 7.5: DQN-CapsNet: Deep Maze
Figure 7.6: DQN-ConvNet: Deep Maze

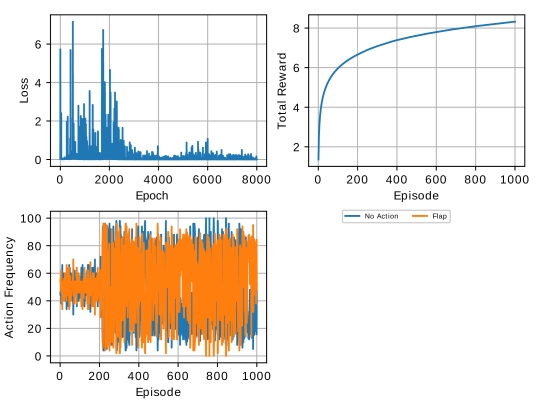

Figure 7.7: DQN-CapsNet: Flappy Bird
Figure 7.8: DQN-ConvNet: Flappy Bird

7.2 Deep Line Wars

For Deep Line Wars, both agents illustrated relatively strong capabilities when it comes to exploiting game mechanics and finding the opponents weakness. The opponent is a random-play agent, that builds an uneven defense, sending units without any economic considerations. Figure 7.1 and Figure 7.2 show that both agents find the opponents weakness to be defense.

Figure 7.9: DQN-CapsNet: Agent building defensive due to low health in Deep Line Wars

Results shows that the game mechanics are not balanced, making the Purchase Unit 1 the obvious choice for offensive actions. This unit is strong enough to survive most defenses and does the most damage to the opponents health pool. The ConvNet agent performs better in a period of 100 episodes, and both agents can master the random-play opponent.

7.3 Deep RTS

Deep RTS shows exciting results, where DQN-CapsNet starts at a low loss with a high total reward, slowly diverging in reward and loss. The results show that DQN-CapsNet and DQN-ConvNet perform comparably. It is not clear why DQN-CapsNet diverged, but the high action-space is a likely candidate. It is difficult to see any sense in the determination of action-state mapping, but some observations indicated that the agent favor gathering instead of military actions.

7.4 Deep Maze

The goal of Deep Maze is to find the shortest path from start to goal in a labyrinth. Figure 7.5 and Figure 7.6 shows that DQN-CapsNet had issues with the training stability. The algorithm is tested with several different hyper-parameter configurations, but there was no solution to remedy this. DQN-ConvNet did not indicate any issues during the training. Both agents had issues finding the shortest path, looking at the total reward, both agents had a negative score. For each move done after reaching the optimal move count, a negative reward is given the agent. Observations show that both agents have similar performance in this experiment.

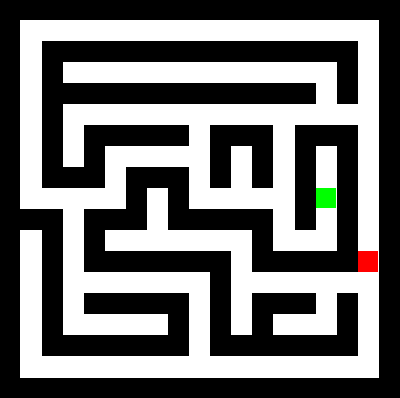

Figure 7.10: DQN-CapsNet: Agent attempting to find the shortest path in a Deep Maze

Figure 7.10 illustrates an in-game image of the map used in this experiment. The green square is the start area, while the red is the goal. The optimal path for this experiment is a series of 21 actions.

7.5 FlashRL: Multitask

For FlashRL: Multitask, the DQN-CapsNet was not able to compete with DQN-ConvNet. It was not able to learn how to control the first paddle. The results are for this reason not included for this environment. Refer to Publication B for results using DQN-ConvNet.

7.6 Flappy Bird

Flappy Bird is a difficult environment for an agent to master because the state-space is large due to the scrolling background. In literature, the training time for this environment is between one and four days. For this experiment, the agent trained for seven days, in the hope that both agents would converge. Figure 7.7 and Figure 7.8 shows that both agents performed well, where DQN-ConvNet scored 0.4 points higher. For each pipe, the bird passes, 0.1 points are awarded to the total reward.

7.7 Summary

Looking at the results, it is clear that DQN-CapsNet overestimates actions for almost all environments. Instead of having a sensible distribution of actions, it often chooses to favor a particular move after a short period of training.

Recent state-of-the-art suggests that self-play using dueling methods may increase stability and performance in the long-term [43], but this was not possible due to GPU memory limitations. It is clear that DQN-CapsNet can work for other tasks then image recognition, but there are still many challenges to solve before it can perform comparably to DQN-ConvNet. A significant issue is that Capsules do not scale well with several outputs (actions), resulting in a model that quickly becomes too large for the GPU memory to handle. The upcoming paragraphs summarize the findings of the experiments conducted using DQN-CapsNet and DQN-ConvNet.

Training Loss
An interesting observation during the training was that none of the models had a gradual decline in the loss during training. This may be because the state-space was quite large for all environments in the test-bed. Some investigation revealed that environments with sparse input had a more significant loss increase. By comparing Figure 7.1 and Figure 7.3, it is clear that Deep RTS has far more loss compared to Deep Line Wars when predicting the best Q-Value for an action. Since CapsNet primarily detects objects, it is likely that the sudden jumps in loss (Figure 7.5) can be explained by several capsules changing its prediction vector at the same time. A possible improvement would be to decay the learning rate throughout the training period. It is likely that the training loss issues can be managed for models with several new hyper-parameter configurations.

Action Frequency
Results shows that CapsNet tends to overestimate actions drastically in environments with few actions (Deep Maze and Flappy Bird). It is possible that this is because a Capsule looks for parts in the whole. Since CapsNet is positional invariant, one explanation may be that the model classifies states by looking for the existence of an object, instead of the likelihood of the best action. For Flappy Bird, the model determines that the agent should use Flap as long as the bird exists in the input. For environments with large action-spaces, observations show a more consistent action frequency.

Agent Performance
Table 7.2 shows that DQN-CapsNet does indeed perform above random-play agents in selected environments, but falls behind compared to DQN-ConvNet. For all environments, a higher score is better. In Deep Line Wars, the reward increases as the agent keep surviving the game or defeat the enemy. The CapsNet agent has approximately 57% win chance while ConvNet wins in 78% of the games against a random-play agent.

In Deep RTS, the accumulated score is measured during the first 600 seconds of the game. This is typically resource harvesting, as the agent was never able to create long-term strategies. In early training, CapsNet accumulated far more resources then ConvNet, but it gradually declined while training. This means that the model diverged from the optimal solution. It is likely that this is because the model starts to overestimate action Q-values. In comparison, results show that both models perform comparably while performing well beyond the capability of random-play agents.

In Deep Maze, none of the agents were able to find the optimal path to the goal. Additional experiments were conducted and showed better results for smaller mazes (9x9 and 11x11). For 25x25 the CapsNet used on average 275 additional actions to reach the goal, while ConvNet performed marginally better using 225 actions.

The CapsNet agent is able to perform well in Flappy Bird. With only 0.4 points less then ConvNet, it is clear that both agents perform at the same level of expertise. It is possible that the CapsNet agent could achieve far better results if a solution is found for the Q-Value overestimation problem.

[HTML]BBDAFFEnvironment [HTML]BBDAFFRandom [HTML]BBDAFFDQN-CapsNet [HTML]BBDAFFDQN-ConvNet
Deep Line Wars 50 57 78
Deep RTS 1.4 5.0 5.1
Deep Maze -600 -275 -225
FlashRL: Multitask 14 N/A 300
Flappy Bird 1.4 7.9 8.3
Table 7.2: Comparison of DQN-CapsNet, DQN-ConvNet, and Random accumulative reward (Higher is better)

8.1 Conclusion

Hypothesis 1: Generative modeling using deep learning is capable of generating artificial training data for games with sufficient quality.

  • Our work shows that it is indeed possible to generate artificial training data using deep learning. Our work shows that it is of sufficient quality to perform off-line training of deep neural networks.

Hypothesis 2: CapsNet can be used in Deep Q-Learning with comparable performance to ConvNet based models.

  • The research shows that CapsNet can be directly adapted to work with Deep Q-Learning, but the stability is inferior to regular ConvNet. Some experiments show comparable results to ConvNets, but it is not clear how CapsNets do reasoning in an RL environment.

Goal 1: Investigate the state-of-the-art research in the field of Deep Learning, and learn how Capsule Networks function internally.

  • A thorough survey of the state-of-the-art in deep learning was outlined in Chapter 3. Much of the performed work was inspired by previous research, which enabled several exciting discoveries in RL. Results show that it is possible to combine CapsNet with other algorithms.

Goal 2: Design and develop game environments that can be used for research into RL agents for the RTS game genre.

  • The thesis outline four new game environments that target research into RL agents for RTS games.

    Deep RTS is a Warcraft II clone that is suited for an agent of high-quality play. It requires the agent to do actions in a high-dimensional environment that is continuously moving. Since the Deep RTS state is of such high-dimension, it is still not feasible to master this environment.

    Deep Line Wars was created to enable research on a simpler scale, this enabled research into some of the RTS aspects, found in Deep RTS.

    To simplify it even further, Deep Maze was created to only account for trivial state interpretations. Flash RL was created as a side project, enabling research into a vast library of Flash games.

    Together, these game environments create a platform that allows for in-depth research into RL problems in the RTS game genre.

Goal 3: Research generative modeling and implement an experimental architecture for generating artificial training data for games.

  • CCDN is introduced as a novel architecture for generating artificial future states from a game, using present state and action to learn the transition function of an environment. Early experimental results are presented in this work, showing that it has potential to successfully train a neural network based model.

Goal 4: Research the novel CapsNet architecture for MNIST classification and apply this to RL problems.

  • Section 5.2 outlines the research into CapsNet in scenarios that are different from the MNIST experiments conducted by Sabour et al[45]. The objective of Capsules is redefined so that it could work for RL related problems.

Goal 5: Combine Deep-Q Learning and CapsNet and perform experiments on environments from Achievement 2.

  • In Chapter 7, DQN and CapsNet were successfully combined and illustrated that it has the potential to perform well in several advanced game environments. Although these results only show minor agent intelligence, it is an excellent beginning for further research into this type of deep models.

Goal 6: Combine the elements of Goal 3 and Goal 5. The goal is to train an RL agent with artificial training data successfully.

  • Results shows that training data generated with CCDN can be used in conjunction with real data to train an DQN algorithm successfully.

All of the goals defined in the scope of this thesis were accomplished. Although the results are not astounding for all goals, it enables further research into several new deep learning fields. The work presented in this thesis enables further research into CapsNet based RL in advanced game environments. Because of the new learning platform, researchers can better perform research into RTS games. It is possible that the work from this thesis could be the foundation for novel RL algorithms in the future.

8.2 Future Work

Environments

  1. Continue work on Flash RL, enabling it to replace OpenAI Universe Flash.

  2. Propose partnership with ELF111ELF Source-code: https://github.com/facebookresearch/ELF and implement Deep RTS and Deep Line Wars into ELF.

  3. Develop a full-fledged platform that expands beyond gym-cair.

  4. Implement Image state-representation for Deep RTS.

Generative Modeling

  1. Additional experiments with hyper-parameters with the existing models.

  2. Attempt to stabilize training.

  3. Investigate if it is possible to use adversarial methods to train the generative model.

  4. Identify and solve the issue with the loss function in CCDN.

Deep Capsule Q-Learning

  1. Improve stability of current architecture, enabling less data. preprocessing for the algorithm to function.

  2. Improve the scalability of Capsules for large action spaces.

  3. Do additional experiments with multiple configurations to find the cause of the training instability.

  4. More research into combining Capsules with RL algorithms.

Planned Publications222Proposed Publication titles may change in final versions

  1. Deep RTS: A Real-time Strategy game for Reinforcement Learning.

  2. CCDN: Towards infinite training data using generative models.

  3. DCQN: Using Capsules in Deep Q-Learning.

References

  • [1] Per-Arne Andersen, Morten Goodwin, and Ole-Christoffer Granmo. FlashRL: A Reinforcement Learning Platform for Flash Games. Norsk Informatikkonferanse, 2017.
  • [2] Per Arne Andersen, Morten Goodwin, and Ole Christoffer Granmo. Towards a deep reinforcement learning approach for tower line wars. In Lecture Notes in Computer Science (including subseries Lecture Notes in Artificial Intelligence and Lecture Notes in Bioinformatics), volume 10630 LNAI, pages 101–114, 2017.
  • [3] Charles Beattie, Joel Z. Leibo, Denis Teplyashin, Tom Ward, Marcus Wainwright, Heinrich Küttler, Andrew Lefrancq, Simon Green, Víctor Valdés, Amir Sadik, Julian Schrittwieser, Keith Anderson, Sarah York, Max Cant, Adam Cain, Adrian Bolton, Stephen Gaffney, Helen King, Demis Hassabis, Shane Legg, and Stig Petersen. DeepMind Lab. dec 2016.
  • [4] Marc G. Bellemare, Yavar Naddaf, Joel Veness, and Michael Bowling. The arcade learning environment: An evaluation platform for general agents. IJCAI International Joint Conference on Artificial Intelligence, 2015-Janua:4148–4152, 2015.
  • [5] Greg Brockman, Vicki Cheung, Ludwig Pettersson, Jonas Schneider, John Schulman, Jie Tang, and Wojciech Zaremba. OpenAI Gym. jun 2016.
  • [6] Kevin Chen. Deep Reinforcement Learning for Flappy Bird. page 6, 2015.
  • [7] Wenliang Chen, Min Zhang, Yue Zhang, and Xiangyu Duan. Exploiting meta features for dependency parsing and part-of-speech tagging. Artificial Intelligence, 230:173–191, sep 2016.
  • [8] Gianfranco Ciardo and Andrew S. Miner. Storage alternatives for large structured state spaces. In Lecture Notes in Computer Science (including subseries Lecture Notes in Artificial Intelligence and Lecture Notes in Bioinformatics), volume 1245, pages 44–57, 1997.
  • [9] Bo Dai, Sanja Fidler, Raquel Urtasun, and Dahua Lin. Towards Diverse and Natural Image Descriptions via a Conditional GAN. mar 2017.
  • [10] Kenji Doya, Kazuyuki Samejima, Ken-ichi Katagiri, and Mitsuo Kawato. Multiple model-based reinforcement learning. Neural computation, 14(6):1347–1369, 2002.
  • [11] Eyal Even-dar, Shie Mannor, and Yishay Mansour. Action Elimination and Stopping Conditions for Reinforcement Learning. Icml, 7:1079–1105, 2003.
  • [12] Jiuxiang Gu, Zhenhua Wang, Jason Kuen, Lianyang Ma, Amir Shahroudy, Bing Shuai, Ting Liu, Xingxing Wang, Gang Wang, Jianfei Cai, and Tsuhan Chen. Recent advances in convolutional neural networks. Pattern Recognition, dec 2017.
  • [13] Shixiang Gu, Ethan Holly, Timothy Lillicrap, and Sergey Levine. Deep reinforcement learning for robotic manipulation with asynchronous off-policy updates, 2017.
  • [14] Shixiang Gu, Timothy Lillicrap, Ilya Sutskever, and Sergey Levine. Continuous Deep Q-Learning with Model-based Acceleration. mar 2016.
  • [15] Abhishek Gupta, Clemens Eppner, Sergey Levine, and Pieter Abbeel. Learning dexterous manipulation for a soft robotic hand from human demonstrations. In IEEE International Conference on Intelligent Robots and Systems, volume 2016-Novem, pages 3786–3793, 2016.
  • [16] Matthew Hausknecht and Peter Stone. Deep Recurrent Q-Learning for Partially Observable MDPs. jul 2015.
  • [17] Geoffrey E. Hinton, Simon Osindero, and Yee-Whye Teh. A Fast Learning Algorithm for Deep Belief Nets. Neural Computation, 18(7):1527–1554, 2006.
  • [18] Harold L Hunt and I I Jon Turney. Cygwin/X Contributor’s Guide. 2004.
  • [19] Aaron Courville Ian Goodfellow, Yoshua Bengio. Deep Learning, volume 521. MIT Press, 2017.
  • [20] Matthew Johnson, Katja Hofmann, Tim Hutton, and David Bignell. The malmo platform for artificial intelligence experimentation. IJCAI International Joint Conference on Artificial Intelligence, 2016-Janua:4246–4247, 2016.
  • [21] Leslie Pack Kaelbling, Michael L. Littman, and Andrew W. Moore. Reinforcement learning: A survey. Journal of Artificial Intelligence Research, 4:237–285, 1996.
  • [22] I Kanter, Y LeCun, and S Solla. Second-order properties of error surfaces: learning time and generalization. Advances in Neural Information Processing Systems (NIPS 1990), 3:918–924, 1991.
  • [23] Shohei Kinoshita, Takahiro Ogawa, and Miki Haseyama. LDA-based music recommendation with CF-based similar user selection. 2015 IEEE 4th Global Conference on Consumer Electronics, GCCE 2015, pages 215–216, jun 2016.
  • [24] George Konidaris and Andrew G. Barto. Autonomous shaping. International Conference on Machine Learning, pages 489–496, 2006.
  • [25] Alex Krizhevsky, Ilya Sutskever, and Geoffrey E Hinton. ImageNet Classification with Deep Convolutional Neural Networks, 2012.
  • [26] Ben J.A. Kröse. Learning from delayed rewards. PhD thesis, King’s College, Cambridge, UK, 1995.
  • [27] Y. LeCun, B. Boser, J. S. Denker, D. Henderson, R. E. Howard, W. Hubbard, and L. D. Jackel. Backpropagation Applied to Handwritten Zip Code Recognition. Neural Computation, 1(4):541–551, dec 1989.
  • [28] Yann LeCun, Léon Bottou, Yoshua Bengio, and Patrick Haffner. Gradient-based learning applied to document recognition. Proceedings of the IEEE, 86(11):2278–2323, 1998.
  • [29] Chen-Yu Lee, Patrick W. Gallagher, and Zhuowen Tu. Generalizing Pooling Functions in Convolutional Neural Networks: Mixed, Gated, and Tree. sep 2015.
  • [30] Yuxi Li. Deep Reinforcement Learning: An Overview. arXiv, pages 1–30, 2017.
  • [31] L J Lin. Reinforcement Learning for Robots Using Neural Networks. Report, CMU, pages 1–155, 1993.
  • [32] Björn Lindström, Ida Selbing, Tanaz Molapour, and Andreas Olsson. Racial Bias Shapes Social Reinforcement Learning. Psychological Science, 25(3):711–719, feb 2014.
  • [33] Chunhui Liu, Aayush Bansal, Victor Fragoso, and Deva Ramanan. Do Convolutional Neural Networks act as Compositional Nearest Neighbors? arXiv, pages 1–15, 2017.
  • [34] Piotr Mirowski, Razvan Pascanu, Fabio Viola, Hubert Soyer, Andrew J. Ballard, Andrea Banino, Misha Denil, Ross Goroshin, Laurent Sifre, Koray Kavukcuoglu, Dharshan Kumaran, and Raia Hadsell. Learning to Navigate in Complex Environments. nov 2016.
  • [35] Mehdi Mirza and Simon Osindero. Conditional Generative Adversarial Nets. nov 2014.
  • [36] Volodymyr Mnih, Koray Kavukcuoglu, David Silver, Alex Graves, Ioannis Antonoglou, Daan Wierstra, and Martin Riedmiller. Playing Atari with Deep Reinforcement Learning. dec 2013.
  • [37] Volodymyr Mnih, Koray Kavukcuoglu, David Silver, Andrei A. Rusu, Joel Veness, Marc G. Bellemare, Alex Graves, Martin Riedmiller, Andreas K. Fidjeland, Georg Ostrovski, Stig Petersen, Charles Beattie, Amir Sadik, Ioannis Antonoglou, Helen King, Dharshan Kumaran, Daan Wierstra, Shane Legg, and Demis Hassabis. Human-level control through deep reinforcement learning. Nature, 518(7540):529–533, feb 2015.
  • [38] Matej Moravčík, Martin Schmid, Neil Burch, Viliam Lisý, Dustin Morrill, Nolan Bard, Trevor Davis, Kevin Waugh, Michael Johanson, and Michael Bowling. DeepStack: Expert-Level Artificial Intelligence in No-Limit Poker. jan 2017.
  • [39] Fernando Naclerio, Marco Seijo-Bujia, Eneko Larumbe-Zabala, and Conrad P. Earnest. Carbohydrates alone or mixing with beef or whey protein promote similar training outcomes in resistance training males: A double-blind, randomized controlled clinical trial. International Journal of Sport Nutrition and Exercise Metabolism, 27(5):408–420, 2017.
  • [40] Bruno A. Olshausen and David J. Field. Sparse coding of sensory inputs. Current Opinion in Neurobiology, 14(4):481–487, sep 2004.
  • [41] Etienne Perot, Maximilian Jaritz, Marin Toromanoff, and Raoul De Charette. End-to-End Driving in a Realistic Racing Game with Deep Reinforcement Learning. IEEE Computer Society Conference on Computer Vision and Pattern Recognition Workshops, 2017-July:474–475, may 2017.
  • [42] Laurent Praly and Yuan Wang. Stabilization in spite of matched unmodeled dynamics and an equivalent definition of input-to-state stability. Mathematics of Control, Signals, and Systems, 9(1):1–33, 1996.
  • [43] Carlos Ramirez-Perez and Victor Ramos. SDN meets SDR in self-organizing networks: Fitting the pieces of network management. IEEE Communications Magazine, 54(1):48–57, nov 2016.
  • [44] David E. Rumelhart, Geoffrey E. Hinton, and Ronald J. Williams. Learning representations by back-propagating errors. Nature, 323(6088):533–536, oct 1986.
  • [45] Sara Sabour, Nicholas Frosst, and Geoffrey E Hinton. Dynamic Routing Between Capsules. Nips, oct 2017.
  • [46] Tim Salimans, Ian Goodfellow, Wojciech Zaremba, Vicki Cheung, Alec Radford, and Xi Chen. Improved Techniques for Training GANs. jun 2016.
  • [47] Wojciech Samek, Alexander Binder, Gregoire Montavon, Sebastian Lapuschkin, and Klaus Robert Muller. Evaluating the Visualization of What a Deep Neural Network Has Learned. IEEE Transactions on Neural Networks and Learning Systems, sep 2016.
  • [48] Dominik Scherer, Andreas Müller, and Sven Behnke. Evaluation of pooling operations in convolutional architectures for object recognition. In Lecture Notes in Computer Science (including subseries Lecture Notes in Artificial Intelligence and Lecture Notes in Bioinformatics), volume 6354 LNCS, pages 92–101, 2010.
  • [49] David Silver, Aja Huang, Chris J. Maddison, Arthur Guez, Laurent Sifre, George Van Den Driessche, Julian Schrittwieser, Ioannis Antonoglou, Veda Panneershelvam, Marc Lanctot, Sander Dieleman, Dominik Grewe, John Nham, Nal Kalchbrenner, Ilya Sutskever, Timothy Lillicrap, Madeleine Leach, Koray Kavukcuoglu, Thore Graepel, and Demis Hassabis. Mastering the game of Go with deep neural networks and tree search. Nature, 529(7587):484–489, 2016.
  • [50] David Silver, Thomas Hubert, Julian Schrittwieser, Ioannis Antonoglou, Matthew Lai, Arthur Guez, Marc Lanctot, Laurent Sifre, Dharshan Kumaran, Thore Graepel, Timothy Lillicrap, Karen Simonyan, and Demis Hassabis. Mastering Chess and Shogi by Self-Play with a General Reinforcement Learning Algorithm. dec 2017.
  • [51] David Silver, Julian Schrittwieser, Karen Simonyan, Ioannis Antonoglou, Aja Huang, Arthur Guez, Thomas Hubert, Lucas Baker, Matthew Lai, Adrian Bolton, Yutian Chen, Timothy Lillicrap, Fan Hui, Laurent Sifre, George Van Den Driessche, Thore Graepel, and Demis Hassabis. Mastering the game of Go without human knowledge. Nature, 550(7676):354–359, 2017.
  • [52] Richard S Sutton and Andrew G Barto. Time-Derivative Models of Pavlovian Reinforcement. Learning and Computational Neuroscience: Foundations of Adaptive Networks, (Mowrer 1960):497–537, 1990.
  • [53] R.S. Sutton and A.G. Barto. Reinforcement Learning: An Introduction, volume 9. MIT Press, 1998.
  • [54] W.W. Swart, C.E. Gearing, and T. Var. A dynamic programming—integer programming algorithm for allocating touristic investments, volume 27. 1972.
  • [55] Techtonik. python-vnc-viewer. https://github.com/techtonik/python-vnc-viewer, 2015.
  • [56] Gerald Tesauro. TD-Gammon, a Self-Teaching Backgammon Program, Achieves Master-Level Play. Neural Computation, 6(2):215–219, 1994.
  • [57] Gerald Tesauro. Temporal difference learning and TD-Gammon. Communications of the ACM, 38(3):58–68, 1995.
  • [58] Yuandong Tian, Qucheng Gong, Wenling Shang, Yuxin Wu, and C. Lawrence Zitnick. ELF: An Extensive, Lightweight and Flexible Research Platform for Real-time Strategy Games. jul 2017.
  • [59] Harm van Seijen, Mehdi Fatemi, Joshua Romoff, Romain Laroche, Tavian Barnes, and Jeffrey Tsang. Hybrid Reward Architecture for Reinforcement Learning. jun 2017.
  • [60] Oriol Vinyals, Timo Ewalds, Sergey Bartunov, Petko Georgiev, Alexander Sasha Vezhnevets, Michelle Yeo, Alireza Makhzani, Heinrich Küttler, John Agapiou, Julian Schrittwieser, John Quan, Stephen Gaffney, Stig Petersen, Karen Simonyan, Tom Schaul, Hado van Hasselt, David Silver, Timothy Lillicrap, Kevin Calderone, Paul Keet, Anthony Brunasso, David Lawrence, Anders Ekermo, Jacob Repp, and Rodney Tsing. StarCraft II: A New Challenge for Reinforcement Learning. aug 2017.
  • [61] Fang Wan and Chaoyang Song. Logical Learning Through a Hybrid Neural Network with Auxiliary Inputs. may 2017.
  • [62] Jiang Wang, Yang Song, Thomas Leung, Chuck Rosenberg, Jingbin Wang, James Philbin, Bo Chen, and Ying Wu.

    Learning fine-grained image similarity with deep ranking.

    Proceedings of the IEEE Computer Society Conference on Computer Vision and Pattern Recognition, pages 1386–1393, apr 2014.
  • [63] Songtao Wu, Shenghua Zhong, and Yan Liu. Deep residual learning for image steganalysis. Multimedia Tools and Applications, pages 1–17, dec 2017.
  • [64] Edgar Xi, Selina Bing, and Yang Jin. Capsule Network Performance on Complex Data. dec 2017.
  • [65] Lecun Yann. Efficient backprop. Neural networks: tricks of the trade, 53(9):1689–1699, 1998.

Appendices

C Hardware Specification

Operating System Ubuntu 17.10
Processor Intel i7-7700K
Memory 64GB DDR4
Graphics 1x NVIDIA GeForce 1080TI

C Hardware Specification

Operating System Ubuntu 17.10
Processor Intel i7-7700K
Memory 64GB DDR4
Graphics 1x NVIDIA GeForce 1080TI

Appendix A Towards a Deep Reinforcement Learning Approach for Tower Line Wars

See pages - of papers/deeplinewars.pdf

Appendix B FlashRL: A Reinforcement Learning Platform for Flash Games

See pages - of papers/flashrl.pdf
