1 Introduction

Promotion of mental well-being is at the core of the action plan on mental health 2013–2020 of the World Health Organisation (WHO) World Health Organization (2013) and of the European Pact on Mental Health and Well-being of the European Union EU high-level conference: Together for Mental Health and Well-being (2008). The biggest potential breakthrough in fighting mental illness would lie in finding tools for early detection and preventive intervention Insel and Scholnick (2006). The WHO action plan stresses the importance of health policies and programmes that not only meet the need of people affected by mental disorders but also protect mental well-being. The emphasis is on early evidence-based non-pharmacological intervention, avoiding institutionalisation and medicalisation. What is particularly important for successful intervention is the frequency with which the therapy can be accessed Hansen et al. (2002). This gives automated systems a huge advantage over conventional therapies, as they can be used continuously with marginal extra cost. Health assistants that can deliver therapy, have gained great interest in recent years Bickmore et al. (2005); Fitzpatrick et al. (2017). These systems however are largely based on hand-crafted rules. On the other hand, the main research effort in statistical approaches to conversational systems has focused on limited-domain information seeking dialogues Schatzmann et al. (2006); Geist and Pietquin (2011); Gasic and Young (2014); Fatemi et al. (2016); Li et al. (2016); Williams et al. (2017).

In this paper we introduce a new task: understanding of mental health concepts derived from Cognitive Behavioural Therapy (CBT). We present an ontology that is formulated according to Cognitive Behavioural Therapy principles. We label a high quality mental health corpus, which exhibits targeted psychological phenomena. We use the whole unlabelled dataset to train distributed representations of words and sentences. We then investigate two approaches for classifying the user input according to the defined ontology. The first model involves a convolutional neural network (CNN) operating over distributed words representations. The second involves a gated recurrent network (GRU) operating over distributed representation of sentences. Our models perform significantly better than chance and for instances with a large number of data they reach the inter-annotator agreement. This understanding module will be an essential component of a statistical dialogue system delivering therapy.

The paper is organised as follows. In Section 2 we give a brief background of the statistical approach to dialogue modelling, focusing on dialogue ontology and natural language understanding. In Section 3 we review related work in the area of automated mental-health assistants. The sections that follow represent the main contribution of this work: a CBT ontology in Section 4, a labelled dataset in Section 5, and models for language understanding in Section 6. We present the results in Section 7 and our conclusion in Section 8.

2 Background

A dialogue system can be treated as a trainable statistical model suitable for goal-oriented information seeking dialogues Young (2002). In these dialogues, the user has a clear goal that he or she is trying to achieve and this involves extracting particular information from a back-end database. A structured representation of the database, the ontology is a central element of a dialogue system. It defines the concepts that the dialogue system can understand and talk about. Another critical component is the natural language understanding unit, which takes textual user input and detects presence of the ontology concepts in the text.

2.1 Dialogue ontology

Statistical approaches to dialogue modelling have been applied to relatively simple domains. These systems interface databases of up to entities where each entity has up to properties, i.e. slots Cuayáhuitl (2009)

. There has been a significant amount of work in spoken language understanding focused on exploiting large knowledge graphs in order to improve coverage

Tür et al. (2012); Heck et al. (2013). Despite these efforts, little work has been done on mental health ontologies for supporting cognitive behavioural therapy on dialogue systems. Available medical ontologies follow a symptom-treatment categorisation and are not suitable for dialogue or natural language understanding Bluhm (2017); Hofmann (2014); Wang et al. (2018).

2.2 Natural language understanding

Within a dialogue system, a natural language understanding unit extracts meaning from user sentences. Both classification Mairesse et al. (2009) and sequence-to-sequence Yao et al. (2014); Mesnil et al. (2015) models have been applied to address this task.

Deep learning architectures that exploit distributed word-vector representations have been successfully applied to different tasks in natural language understanding, such as semantic role labelling, semantic parsing, spoken language understanding, sentiment analysis or dialogue belief tracking

Collobert et al. (2011); Kim (2014); Kalchbrenner et al. (2014); Le and Mikolov (2014a); Rojas Barahona et al. (2016); Mrkšić et al. (2017).

In this work we consider understanding of mental health concepts of as a classification task. To facilitate this process, we use distributed representations.

3 Related work

The aim of building an automated therapist has been around since the first time researchers attempted to build a dialogue system Weizenbaum (1966). Automated health advice systems built to date typically rely on expert coded rules and have limited conversational capabilities Rojas-Barahona and Giorgino (2009); Vardoulakis et al. (2012); Ring et al. (2013); Riccardi (2014); DeVault et al. (2014); Ring et al. (2016). One particular system that we would like to highlight is an affectively aware virtual therapist Ring et al. (2016). This system is based on Cognitive Behavioural Therapy and the system behaviour is scripted using VoiceXML. There is no language understanding: the agent simply asks questions and the user selects answers from a given list. The agent is however able to interpret hand gestures, posture shifts, and facial expressions. Another notable system DeVault et al. (2014) has a multi-modal perception unit which captures and analyses user behaviour for both behavioural understanding and interaction. The measurements contribute to the indicator analysis of affect, gesture, emotion and engagement. Again, no statistical language understanding takes place and the behaviour of the system is scripted. The system does not provide therapy to the user but is rather a tool that can support healthcare decisions (by human healthcare professionals).

The Stanford Woebot chat-bot proposed by Fitzpatrick et al. (2017)

is designed for delivering CBT to young adults with depression and anxiety. It has been shown that the interaction with this chat-bot can significantly reduce the symptoms of depression when compared to a group of people directed to a read a CBT manual. The conversational agent appears to be effective in engaging the users. However, the understanding component of Woebot has not been fully described. The dialogue decisions are based on decision trees. At each node, the user is expected to choose one of several predefined responses. Limited language understanding was introduced at specific points in the tree to determine routing to subsequent conversational nodes. Still, one of the main deficiencies reported by the trial participants in

Fitzpatrick et al. (2017) was the inability to converse naturally. Here we address this problem by performing statistical natural language understanding.

4 CBT ontology

To define the ontology we draw from principles of Cognitive Behavioural Therapy (CBT). This is one of the best studied psychotherapeutic interventions, and the most widely used psychological treatment for mental disorders in Britain Bhasi et al. (2013). There is evidence that CBT is more effective than other forms of psychotherapy Tolin (2010). Unlike other, longer-term, forms of therapy such as psychoanalysis, CBT can have a positive effect on the client within a few sessions. Also, due to it being highly structured, it is more easily amenable by computer interpretation. This is why we adopted CBT as the basis of our work.

Cognitive Behavioural Therapy is derived from Cognitive Therapy model theory Beck (1976); Beck et al. (1979), which postulates that our emotions and behaviour are influenced by the way we think and by how we make sense of the world. The idea is that, if the client changes the way he or she thinks about their problem, this will in turn change the way he or she feels, and behaves.

A major underlying principle of CBT is the idea of cognitive distortions, and the value in challenging them. In CBT, clients are helped to test their assumptions and views of the world in order to check if they fit with reality. When clients learn that their perceptions and interpretations are distorted or unhelpful they then work on correcting them. Within the realm of cognitive distortion, CBT identifies a number of specific self-defeating thought processes, or thinking errors. There is a core of around 10 to 15 thinking errors, with their exact titles having some fluidity. A strong component of CBT is teaching clients to be able to recognize and identify the thinking errors themselves, and ultimately discard the negative thought processes and ‘re-think’ their problems.

We consider the main analytical step in this therapy: an adequate decoding of these ‘thinking error’ concepts, and the identification of the key emotion(s) and the situational context of a particular problem. Therefore, our ontology consists of thinking errors, emotions, and situations.

4.1 Thinking errors

Notwithstanding slight variations in number and terminology, the list of thinking errors is fairly well standardised in the CBT literature. We present one such list in Table 1. However, it is important to note that there is a fair degree of overlap between different thinking errors, for example, between Jumping to Negative Conclusions and Fortune Telling, or between Disqualifying the Positives and Mental Filtering. In addition, within the data used – and as is likely to be the case in any data of spontaneous expressions of psychological upset – a single problem can exhibit several thinking errors simultaneously. Thus, the situation is much more challenging than in simple information-seeking dialogues, where ontologies are typically clearly defined and there is no or very little overlap between concepts.

Thinking Error Frequency Exhibited by…
Black and white (or all or nothing) thinking
Only seeing things in absolutes
No shades of grey
Holding others responsible for your pain
Not seeking to understand your own responsibility in situation
Magnifying a (sometimes minor) negative event
into potential disaster
Making dissatisfied comparison of self versus others
Disqualifying the positive
Dismissing/discounting positive aspects
of a situation or experience
Emotional reasoning
Assuming feelings represent fact.
Fortune telling Predicting how things will be, unduly negatively
Jumping to negative conclusions
Anticipating something will turn out badly,
with little evidence to support it
Using negative, sometimes highly coloured, language
to describe self or other
Ignoring complexity of people
Low frustration tolerance
”I can’t bear it”
Assuming something is intolerable,
rather than difficult to tolerate or a temporary discomfort
Having rigid beliefs
about how things or people ‘must’ or ‘ought to’ be
Mental filtering
Focusing on the negative
Filtering out all positive aspects of a situation
Assuming others think negative things
or have negative motives and intentions
Generalising negatively,
using words like ‘always’, ‘nobody’, ‘never’, etc
Interpreting events as being related to you personally and
overlooking other factors
Table 1: Taxonomy for thinking errors and how they are exhibited.

4.2 Emotions

In addition to thinking errors, we define a set of emotions. We mainly focus on negative emotions, relevant to people in psychological distress. In CBT, emotions tend to be divided into positive and negative, or helpful/healthy and unhelpful/unhealthy emotions Branch and Willson (2010). The set of emotions for this work evolved over time in the early days of annotation. Although we initally agreed to focus on ‘unhealthy’ emotions, as defined by CBT, there seemed also to be a place for the ‘healthy’ emotion Grief/sadness. Overall, the list of emotions used was drawn from a number of sources, including CBT literature, the annotators’ own knowledge of what they work with in psychological therapy, and the common emotions that were seen emerging from the data early on in the process. Note that more than one emotion might be expressed within an individual problem – for example Depression and Loneliness. The list of emotions is given in Table 3.

Emotion Frequency Exhibited by … Anger (/frustration) Feelings of frustration, annoyance, irritation, resentment, fury, outrage Anxiety Any expression of fear, worry or anxiety Depression Feeling down, hopeless, joyless, negative about self and/or life in general Grief/sadness Feeling sad, upset, bereft in relation to a major loss Guilt Feeling blameworthy for a wrongdoing or something not done Hurt Feeling wounded and/or badly treated Jealousy Antagonistic feeling towards another either wish to be like or to have what they have Loneliness Feeling of alone-ness, isolation, friendlessness, not understood by anyone Shame Feeling distress, humiliation, disgrace in relation to own behaviour or feelings
Table 2: Taxonomy for emotions and how they are exhibited.
Situation Frequency Bereavement Existential Health Relationships School/College Work Other
Table 3: Taxonomy for situations.

4.3 Situations

While our main emphasis was on thinking errors and emotions, we also defined a small set of situations. The list of situations again evolved during the early days of annotation, with a longer original list being reduced down, for simplicity. Again, it is possible for more than one situation (for example Work and Relationships) to apply to a single problem. The considered situations are given in Table 3.

Figure 1: An example of an annotated Koko post.

5 The corpus

The corpus consists of K written posts that users anonymously posted on the Koko platform111 This platform is based on the peer-to-peer therapy proposed by Morris et al. (2015). In this set-up, a user anonymously posts their problem (referred to as the problem) and is prompted to consider their most negative take on the problem (referred to as the negative take). Subsequently, peers post responses that attempt to offer a re-think and give a more positive angle on the problem. When first developed, this peer-to-peer framework was shown to be more efficacious than expressive writing, an intervention that is known to improve physical and emotional well-being Morris et al. (2015). Since then, the app developed by Koko has collected a very large number of posts and associated responses. Initially, any first-time Koko user would be given a short introductory tutorial in the art of ‘re-thinking’/‘re-framing’ problems (based on CBT principles), before being able to use the platform. This however changed over time, as the age of the users decreased, and a different tutorial, emphasizing empathy and optimism, was used (less CBT-based than the ‘re-thinking’). Most of the data annotated in this study was drawn from the earlier phase. Figure 1 gives an annotated post example.

5.1 Annotation

A subset of posts was annotated by two psychological therapists using a web annotation tool that we developed. The annotation tool allowed annotators to have a quick view of the posts, showing up to 50 posts per page, to navigate through posts, to check pending posts and to annotate them by adding or removing thinking errors, emotions and situations. All annotations were stored in a MySQL database.

Initially posts were analysed. These were used to define the ontology. Then posts were labelled with thinking errors, emotions and situations. It takes an experienced psychological therapist about one minute to annotate one post. Note that the same post can exhibit multiple thinking errors, emotions and situations

, which makes the whole process more complex. We randomly selected 50 posts and calculated the inter-annotator agreement. The inter-annotator agreement was calculated using a contingency table for thinking error, emotion and situation, showing agreement and disagreement between the two annotators. Then, Cohen’s kappa was calculated discounting the possibility that the agreement may happen by chance. The result is shown in Table

4. The main reason for the low agreement in thinking errors (61%) is due to the unbounded number of thinking errors per post. In other words, the annotators typically have three or four thinking errors in common but one of them might have detected one or two more. Still, the agreement is much higher than chance, so we think that while challenging, it is possible to build a classifier for this task. The distributions of labelled posts with multiple sub-categories for three super-categories are shown in Figure 2

Figure 2: Distribution of posts for each category.
Concept Thinking error Situation Emotion
Table 4: Cohen’s kappa with a confidence interval

6 Deep learning model

6.1 Distributed representations

The task of decoding thinking errors and emotions is closely related to the task of sentiment analysis. In sentiment analysis we are concerned with positive or negative sentiment expressed in a sentence. Detecting thinking errors or emotions could be perceived as detecting different kinds of negative sentiment. Distributed representations of words, sentences and documents have gained success in sentiment detection and similarity tasks Le and Mikolov (2014a); Maas et al. (2011); Kiros et al. (2015). A key advantage of these representations is that they can be obtained in an unsupervised manner, thus allowing exploitation of large amounts of unlabelled data. This is precisely what we have in our set-up, where only a small portion of our posts is labelled.

We utilise GloVe Pennington et al. (2014) word vectors, which have previously achieved competitive results in a similarity task. We train the word vectors on the whole dataset and then use a convolutional neural network (CNN) to extract features from posts where words are represented as vectors.

We also consider distributed representation of sentences. A particularly competitive model is the skip-thought model, which is obtained from an encoder-decoder model that tries to reconstruct the surrounding sentences of an encoded passage Kiros et al. (2015). On similarity tasks it outperfoms the simpler doc2vec model Le and Mikolov (2014a). An approach that represents vectors by weighted averages of word vectors and then modifies them using PCA and SVD outperforms skip-thought vectors Arora et al. (2017). This method however does not do well on a sentiment analysis task due to down-weighting of words like “not”. As these often appear in our corpus, we chose skip-thought vectors for investigation here.

The skip-thought model allows a dense representation of the utterance. We train skip-thought vectors using the method described in Kiros et al. (2015). The automatically generated post shown in Fig 3

demonstrates that skip-thought vectors can convey the sentiment well in accordance to context. We then train a gated recurrent unit (GRU) network using the skip-thoughts as input.

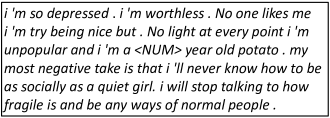

Figure 3: An example of a generated post using skip-thought vectors initialised with ”I’m so depressed”.

6.2 Convolutional neural network model

The convolutional neural network (CNN) model is preferred over a recurrent neural network (RNN) model, because the posts are generally too long for an RNN to maintain memory over words. The convolutional neural network (CNN) used in this work is inspired by

Kim (2014) and operates over pre-trained GloVe embeddings of dimensionality . As shown in Fig 4, the network has two inputs, one for the problem and the other for the negative take

. These are represented as two tensors. A convolutional operation involves a filter

which is applied to

words to produce the feature map. Then, a max-pooling operation is applied to produce two vectors:

for problem and for negative take. The reason for this is that the negative take is usually a summary of the post, carrying stronger sentiment (see Figure 1). We use a gating mechanism to combine and as follows:



is the sigmoid function,

, and are weight matrices, is a bias term, is a vector of ones, is the element-wise product, and is the output of the gating mechanism. The extracted feature is then processed with a one-layer fully-connected neural network (FNN) to perform binary classification. The model is illustrated in Fig 4.

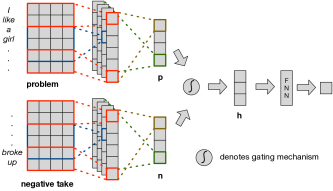

Figure 4: CNN with gating mechanism.

6.3 Gated recurrent unit model

We use the gated recurrent unit (GRU) model to process skip-thought sentence vectors, for two reasons. First, most posts contain less than 5 sentences, so a recurrent neural network is more suitable than a convolutional neural network. Second, since our corpus only comprises very limited labelled data, a GRU should perform better than a long short-term memory (LSTM) network as it has less parameters.

Denote each post as , where is the sentence in post . First, we use an already trained GRU to extract skip-thought embeddings from the sentences . Then, taking the sequence of sentence vectors as input, another GRU is used as follows:


are recurrent weight matrices, are bias terms, is the element-wise dot product, and is the sigmoid function.

Finally, the last hidden state is fed into a FNN with one hidden layer of the same size as input. The model is illustrated in Fig 5.

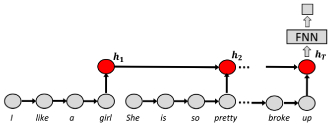

Figure 5: GRU with skip-thought vectors.

6.4 Training set-up

We first train and dimensions for both GloVe embeddings and skip-thought embeddings using the same mechanism as in Pennington et al. (2014); Kiros et al. (2015). In some posts the length of sentences is very large, so we bound the length at 0 words. We do not treat the problem separately from the negative take as the GRU will anyway put more importance on the information that comes last. We split the labelled data in a ratio for training, validation and testing in a -fold cross validation for both GRU and CNN training. A distinct network is trained for each concept, i. e. one for thinking errors, one for emotions and one for situations. The hidden size of the FNN is .

To tackle the data bias problem, we utilise oversampling. Different ratios (1:1, 1:3, 1:5, 1:7) of positive and negative samples are explored.

We used filter windows of , , and with feature maps for the CNN model. For the GRU model, the hidden size is set at , so that both models have comparable number of parameters. Mini-batches of size are used and gradients are clipped with maximum norm . We initialise the learning rate as with a decay rate of

every 10 steps. The non-recurrent weights with a truncated normal distribution

, and the recurrent weights with orthogonal initialisation Saxe et al. (2013). To overcome over-fitting, we employ dropout with rate and

-normalisation. Both models were trained with Adam algorithm and implemented in Tensorflow

Girija (2016).

7 Results

7.1 Baselines

For rule-based models, we chose a chance classifier and a majority classifier, where all the posts are treated as positive examples for each class. In addition, we trained two non-deep-learning models, the logistic regression (LR) model and the Support Vector Machine (SVM). Both of them take the bag-of-words feature as input and implemented in sklearn

Pedregosa et al. (2011). For completeness, we also trained 100 and 300 dimensions PV-DM document embeddings Le and Mikolov (2014b) as the distributed representations of the posts using the gensim toolkit Řehůřek and Sojka (2010), and employ FNNs to do the classification, the hidden size is set as 800 to ensure parameters of all deep learning models comparable. All the baseline models are trained with the same set-up as described in section 6.4.

7.2 Analysis

Table 5 gives the average F1 scores and the average F1 scores weighted with the frequency of CBT labels for all models under the oversampling ratio 1:1. It shows that GloVe word vectors with CNN achieves the best performance both in 100 and 300 dimensions.

Model AVG. F1 Weighted AVG F1
Chance 0.2030.008 0.3370.008
Majority 0.240.000 0.4320.000
LR-BOW 0.3300.011 0.4790.008
SVM-BOW 0.4030.000 0.5360.000
FNN-DocVec-100d 0.3390.006 0.5020.005
FNN-DocVec-300d 0.3490.007 0.5080.005
GRU-SkipThought-100d 0.4010.005 0.5580.004
GRU-SkipThought-300d 0.4230.005 0.5700.004
CNN-GloVe-100d 0.5760.005
Table 5: F1 scores for all models with 1:1 oversampling
Freq. SVM-BOW 100d 300d
Num. CNN-Glove GRU-Skip-thought CNN-Glove GRU-Skip-thought
Anxiety 2547 0.7980.000 0.8050.003 0.8050.002 0.8050.006
Depression 836 0.5640.000 0.6050.003 0.5680.001 0.5780.005
Hurt 802 0.4480.000 0.5050.007 0.4830.003 0.4960.006
Anger 595 0.3750.001 0.3890.009 0.3840.007 0.3830.004
Loneliness 299 0.5580.000 0.4950.008 0.4450.007 0.4570.005
Grief 230 0.4330.005 0.4620.010 0.3730.008 0.3820.005
Shame 229 0.2200.000 0.2430.004 0.2770.007 0.2540.004
Jealousy 126 0.2170.000 0.1590.004 0.2160.005 0.2160.009
Guilt 136 0.2520.000 0.1860.007 0.2790.014 0.2250.008
AVG. F1 score for Emotion 0.4290.001 0.4050.005 0.4280.006
Relationships 2727 0.8610.000 0.8710.003 0.8860.001 0.8780.006
Existential 885 0.5560.000 0.5910.002 0.5940.007 0.5990.006
Health 428 0.4760.000 0.5550.005 0.5850.008 0.5870.006
School_College 334 0.6330.000 0.6700.004 0.6410.003 0.6730.009
Other 223 0.1960.001 0.2550.011 0.2410.008 0.2560.005
Work 246 0.6510.000 0.5720.006 0.6610.011 0.6390.006
Bereavement 107 0.6020.000 0.6370.021 0.4020.024 0.4930.011
AVG. F1 score for Situation 0.5680.000 0.6110.007 0.5570.007 0.5950.006
Thinking Error
Jumping_to_negative_conclusions 1782 0.5900.000 0.6960.004 0.6850.004 0.6870.002
Fortune_telling 1037 0.4580.000 0.5580.004 0.5850.006 0.5640.005
Black_and_white 840 0.3950.000 0.4310.002 0.4370.004 0.4320.003
Low_frustration_tolerance 647 0.3180.000 0.3220.007 0.3300.003 0.3130.005
Catastrophising 479 0.3520.000 0.3580.005 0.3710.004 0.3640.003
Mind-reading 589 0.3600.000 0.4040.005 0.3530.011 0.3560.007
Labelling 424 0.3990.001 0.4530.007 0.3350.004 0.3730.002
Emotional_reasoning 537 0.2900.000 0.2850.005 0.3060.006 0.2930.008
Over-generalising 512 0.4050.001 0.4050.006 0.3750.004 0.3890.004
Inflexibility 326 0.2020.001 0.2030.014 0.1880.007 0.2080.005
Blaming 325 0.2090.001 0.2640.002 0.2770.003 0.2740.004
Disqualifying_the_positive 248 0.1460.000 0.1940.007 0.1760.005 0.1870.003
Mental_filtering 222 0.0880.000 0.1420.007 0.1500.001 0.1410.002
Personalising 236 0.2120.000 0.2300.012 0.2200.005 0.2210.005
Comparing 132 0.2420.000 0.1770.008 0.2550.009 0.2270.007
AVG. F1 score for Thinking Error 0.3110.000 0.3260.005 0.3550.0050 0.3390.004
AVG. F1 score 0.4030.000 0.4010.005 0.4420.007 0.4230.005
AVG. F1 score weighted with Freq. 0.5360.000 0.5760.005 0.5580.004 0.5700.004
Table 6: F1 score of the models trained with embeddings with dimensionality of 300 and 100 respectively.
label precision recall F1 score accuracy
Anxiety 0.7390.007 0.8840.005 0.8050.006 0.7290.012
Depression 0.5380.010 0.7080.005 0.6110.008 0.8130.010
Hurt 0.4280.005 0.6200.004 0.5060.005 0.7630.011
Anger 0.3130.005 0.4910.000 0.3830.004 0.7690.012
Loneliness 0.4790.010 0.6430.008 0.5490.009 0.9230.006
Grief 0.4370.013 0.4900.000 0.4620.008 0.9370.005
Shame 0.2190.008 0.3780.004 0.2770.007 0.8910.007
Jealousy 0.1700.002 0.2960.012 0.2160.005 0.9350.006
Guilt 0.2210.014 0.3780.008 0.2790.014 0.9360.008
Relationships 0.8470.005 0.9120.007 0.8780.006 0.8290.011
Existential 0.5160.008 0.7000.004 0.5940.007 0.7890.009
Health 0.5200.010 0.6680.005 0.5850.008 0.9000.006
School_College 0.5700.009 0.8210.008 0.6730.009 0.9340.004
Other 0.2090.004 0.3310.007 0.2560.005 0.8940.007
Work 0.6010.015 0.7330.006 0.6610.011 0.9550.003
Bereavement 0.5670.029 0.7330.008 0.6390.021 0.9790.002
Jumping_to_negative_conclusions 0.6430.005 0.7750.004 0.7030.005 0.7110.009
Fortune_telling 0.4860.006 0.7370.004 0.5850.006 0.7330.010
Black_and_white 0.3300.003 0.6250.003 0.4320.003 0.6570.011
Low_frustration_tolerance 0.2220.005 0.5310.002 0.3130.005 0.6310.028
Catastrophising 0.2910.005 0.5090.000 0.3710.004 0.7960.012
Mind-reading 0.3430.008 0.5400.002 0.4190.006 0.7830.014
Labelling 0.3760.004 0.5970.003 0.4620.004 0.8530.007
Emotional_reasoning 0.2410.006 0.4170.004 0.3060.006 0.7480.017
Over-generalising 0.3370.009 0.5480.002 0.4180.008 0.8080.014
Inflexibility 0.1620.002 0.3360.006 0.2180.003 0.8070.012
Blaming 0.2180.002 0.3810.005 0.2770.003 0.8410.009
Disqualifying_the_positive 0.1250.002 0.3650.008 0.1870.003 0.8080.016
Mental_filtering 0.0870.001 0.3860.009 0.1410.002 0.7410.026
Personalising 0.1790.003 0.3450.007 0.2360.004 0.8710.009
Comparing 0.2570.009 0.2530.009 0.2550.009 0.9520.003
Table 7: Precision, recall, F1 score and accuracy for 300 dim CNN-GloVe with oversampling ratio 1:1

Table 6 shows the F1-measure of the compared models that detect thinking errors, emotions and situations under the oversampling ratio. We only include the results of the best performing models, SVMs, CNNs and GRUs, due to limited space. The results show that both models outperform SVM-BOW in larger embedding dimensions. Although SVM-BOW is comparable to 100 dimensional GRU-Skip-thought in terms on average F1, in all other cases CNN-GloVe and GRU-Skip-thought overshadow SVM-BOW. We also find that CNN-GloVe on average works better than GRU-Skip-thought, which is expected as the space of words is smaller in comparison to the space of sentences so the word vectors can be more accurately trained. While the CNN operating on 100 dimensional word vectors is comparable to the CNN operating on 300 dimensional word vectors, the GRU-Skip-thought tends to be worse on 100 dimensional skip-thoughts, suggesting that sentence vectors generally need to be of a higher dimension to represent the meaning more accurately than word vectors.

Table 7

shows a more detailed analysis of the 300 dimensional CNN-GloVe performance, where both precision and recall are presented, indicating that oversampling mechanism can help overcome the data bias problem. To illustrate the capabilities of this model, we give samples of two posts and their predicted and true labels in Figure

6, which shows that our model discerns the classes reasonably well even in some difficult cases.

Figure 6: predictions of posts by 300 dim CNN-GloVe

Figure 7 gives the comparative performance of two models under different oversampling ratios. While oversampling is essential for both models, GRU-Skip-thought is less sensitive to lower oversampling ratios, suggesting that skip-thoughts can already capture sentiment on the sentence level. Therefore, including only a limited ratio of positive samples is sufficient to train the classifier. Instead, models using word vectors need more positive data to learn sentence sentiment features.

Figure 7: Weighted AVG. F1 for different models

8 Conclusion

We presented an ontology based on the principles of Cognitive Behavioural Therapy. We then annotated data that exhibits psychological problems and computed the inter-annotator agreement.

We found that classifying thinking errors is a difficult task as suggested by the low inter-annotator agreement. We trained GloVe word embeddings and skip-thought embeddings on K posts in an unsupervised fashion and generated distributed representations both of words and of sentences. We then used the GloVe word vectors as input to a CNN and the skip-thought sentence vectors as input to a GRU. The results suggest that both models significantly outperform a chance classifier for all thinking errors, emotions and situations with CNN-GloVe on average achieving better results.

Areas of future investigation include richer distributed representations, or a fusion of distributed representations from word-level, sentence-level and document-level, to acquire more powerful semantic features. We also plan to extend the current ontology with its focus on thinking errors, emotions and situations to include a much lager number of concepts. The development of a statistical system delivering therapy will moreover require further research on other modules of a dialogue system.


This work was funded by EPSRC project Natural speech Automated Utility for Mental health (NAUM), award reference EP/P017746/1. The authors would also like to thank anonymous reviewers for their valuable comments. The code is available at


  • Arora et al. (2017) S. Arora, Y. Liang, and T. Ma. 2017. A simple but tough-to-beat baseline for sentence embedding. In ICLR.
  • Beck (1976) A.T. Beck. 1976. Cognitive Therapy and the Emotional Disorders. New York, International Universities Press.
  • Beck et al. (1979) A.T. Beck, J. Rush, B. Shaw, and G Emery. 1979. Cognitive Therapy of Depression. New York, Guildford Press.
  • Bhasi et al. (2013) Charissa Bhasi, Rohanna Cawdron, Melissa Clapp, Jeremy Clarke, Mike Crawford, Lorna Farquharson, Elizabeth Hancock, Miranda Heneghan, Rachel Marsh, and Lucy Palmer. 2013. Second Round of the National Audit of Psychological Therapies for Anxiety and Depression (NAPT).
  • Bickmore et al. (2005) Timothy Bickmore, Amanda Gruber, and Rosalind Picard. 2005. Establishing the computer–patient working alliance in automated health behavior change interventions. Patient education and counseling, 59(1):21–30.
  • Bluhm (2017) Robyn Bluhm. 2017. The need for new ontologies in psychiatry. Philosophical Explorations, 20(2):146–159.
  • Branch and Willson (2010) R. Branch and R. Willson. 2010. Cognitive Behavioural Therapy for Dummies. Wiley.
  • Collobert et al. (2011) Ronan Collobert, Jason Weston, Léon Bottou, Michael Karlen, Koray Kavukcuoglu, and Pavel Kuksa. 2011. Natural language processing (almost) from scratch.

    Journal of Machine Learning Research

    , 12(Aug):2493–2537.
  • Cuayáhuitl (2009) Heriberto Cuayáhuitl. 2009.

    Hierarchical reinforcement learning for spoken dialogue systems

    Ph.D. thesis, University of Edinburgh, Edinburgh.
  • DeVault et al. (2014) D DeVault, R Artstein, G Ben, T Dey, E Fast, A Gainer, K Georgila, J Gratch, A Hartholt, M Lhommet, G Lucas, S Marsella, F Morbini, A Nazarian, S Scherer, G Stratou, A Suri, D Traum, R Wood, Y Xu, A Rizzo, and L-P Morency. 2014. Simsensei kiosk: A virtual human interviewer for healthcare decision support. In International Conference on Autonomous Agents and Multiagent Systems.
  • EU high-level conference: Together for Mental Health and Well-being (2008) EU high-level conference: Together for Mental Health and Well-being. 2008. European Pact on Mental Health and Well-being.
  • Fatemi et al. (2016) Mehdi Fatemi, Layla El Asri, Hannes Schulz, Jing He, and Kaheer Suleman. 2016. Policy networks with two-stage training for dialogue systems. In Proceedings of SIGDIAL.
  • Fitzpatrick et al. (2017) Kathleen Kara Fitzpatrick, Alison Darcy, and Molly Vierhile. 2017. Delivering cognitive behavior therapy to young adults with symptoms of depression and anxiety using a fully automated conversational agent (woebot): a randomized controlled trial. JMIR mental health, 4(2).
  • Gasic and Young (2014) M. Gasic and S. Young. 2014. Gaussian processes for pomdp-based dialogue manager optimization. Audio, Speech, and Language Processing, IEEE/ACM Transactions on, 22(1):28–40.
  • Geist and Pietquin (2011) M Geist and O Pietquin. 2011. Managing Uncertainty within the KTD Framework. In

    Proceedings of the Workshop on Active Learning and Experimental Design

    , Sardinia (Italy).
  • Girija (2016) Sanjay Surendranath Girija. 2016. Tensorflow: Large-scale machine learning on heterogeneous distributed systems.
  • Hansen et al. (2002) Nathan B. Hansen, Michael J. Lambert, and Evan M. Forman. 2002. The psychotherapy dose-response effect and its implications for treatment delivery services. Clinical Psychology: Science and Practice, 9(3):329–343.
  • Heck et al. (2013) Larry P Heck, Dilek Hakkani-Tür, and Gökhan Tür. 2013. Leveraging knowledge graphs for web-scale unsupervised semantic parsing. In Proceedings of Interspeech, pages 1594–1598.
  • Hofmann (2014) Stefan Hofmann. 2014. Toward a cognitive-behavioral classification system for mental disorders. Behavior Therapy, 45(4):576 – 587.
  • Insel and Scholnick (2006) TR Insel and EM Scholnick. 2006. Cure therapeutics and strategic prevention: raising the bar for mental health research. Molecular Psychiatry, 11(1):11-17.
  • Kalchbrenner et al. (2014) Nal Kalchbrenner, Edward Grefenstette, and Phil Blunsom. 2014. A convolutional neural network for modelling sentences. arXiv preprint arXiv:1404.2188.
  • Kim (2014) Yoon Kim. 2014. Convolutional neural networks for sentence classification. arXiv preprint arXiv:1408.5882.
  • Kiros et al. (2015) R. Kiros, Y. Zhu, R. Salakhutdinov, R.S. Zemel, A. Torralba, R. Urtasun, and S. Fidler. 2015. Skip-thought vectors. NIPS.
  • Le and Mikolov (2014a) Quoc Le and Tomas Mikolov. 2014a. Distributed representations of sentences and documents. In Proceedings of the 31st International Conference on International Conference on Machine Learning - Volume 32, ICML’14, pages II–1188–II–1196.
  • Le and Mikolov (2014b) Quoc Le and Tomas Mikolov. 2014b. Distributed representations of sentences and documents. In International Conference on Machine Learning, pages 1188–1196.
  • Li et al. (2016) Jiwei Li, Will Monroe, Alan Ritter, and Dan Jurafsky. 2016. Deep reinforcement learning for dialogue generation. In Proceedings of EMNLP.
  • Maas et al. (2011) Andrew L Maas, Raymond E Daly, Peter T Pham, Dan Huang, Andrew Y Ng, and Christopher Potts. 2011. Learning word vectors for sentiment analysis. In Proceedings of the 49th annual meeting of the association for computational linguistics: Human language technologies-volume 1, pages 142–150. Association for Computational Linguistics.
  • Mairesse et al. (2009) F. Mairesse, M. Gašić, F. Jurčíček, S. Keizer, B. Thomson, K. Yu, and S. Young. 2009. Spoken language understanding from unaligned data using discriminative classification models. In Proceedings of ICASSP.
  • Mesnil et al. (2015) Grégoire Mesnil, Yann Dauphin, Kaisheng Yao, Yoshua Bengio, Li Deng, Dilek Hakkani-Tur, Xiaodong He, Larry Heck, Gokhan Tur, Dong Yu, and Geoffrey Zweig. 2015. Using recurrent neural networks for slot filling in spoken language understanding. IEEE Transactions on Audio, Speech, and Language Processing, 23(3):530–539.
  • Morris et al. (2015) RR Morris, Schueller SM, and Picard RW. 2015. Efficacy of a Web-Based, Crowdsourced Peer-To-Peer Cognitive Reappraisal Platform for Depression: Randomized Controlled Trial. J Med Internet Res, 17(3).
  • Mrkšić et al. (2017) Nikola Mrkšić, Diarmuid Ó Séaghdha, Tsung-Hsien Wen, Blaise Thomson, and Steve Young. 2017. Neural belief tracker: Data-driven dialogue state tracking. In Proceedings of the 55th Annual Meeting of the Association for Computational Linguistics (Volume 1: Long Papers), pages 1777–1788. Association for Computational Linguistics.
  • Pedregosa et al. (2011) F. Pedregosa, G. Varoquaux, A. Gramfort, V. Michel, B. Thirion, O. Grisel, M. Blondel, P. Prettenhofer, R. Weiss, V. Dubourg, J. Vanderplas, A. Passos, D. Cournapeau, M. Brucher, M. Perrot, and E. Duchesnay. 2011. Scikit-learn: Machine learning in Python. Journal of Machine Learning Research, 12:2825–2830.
  • Pennington et al. (2014) Jeffrey Pennington, Richard Socher, and Christopher D. Manning. 2014. Glove: Global vectors for word representation. In Empirical Methods in Natural Language Processing (EMNLP), pages 1532–1543.
  • Řehůřek and Sojka (2010) Radim Řehůřek and Petr Sojka. 2010. Software Framework for Topic Modelling with Large Corpora. In Proceedings of the LREC 2010 Workshop on New Challenges for NLP Frameworks, pages 45–50, Valletta, Malta. ELRA.
  • Riccardi (2014) Giuseppe Riccardi. 2014. Towards healthcare personal agents. In Proceedings of the 2014 Workshop on Roadmapping the Future of Multimodal Interaction Research Including Business Opportunities and Challenges, RFMIR ’14, pages 53–56, New York, NY, USA. ACM.
  • Ring et al. (2013) Lazlo Ring, Barbara Barry, Kathleen Totzke, and Timothy Bickmore. 2013. Addressing loneliness and isolation in older adults: Proactive affective agents provide better support. In Proceedings of the 2013 Humaine Association Conference on Affective Computing and Intelligent Interaction, ACII ’13, pages 61–66, Washington, DC, USA. IEEE Computer Society.
  • Ring et al. (2016) Lazlo Ring, Timothy Bickmore, and Paola Pedrelli. 2016. An affectively aware virtual therapist for depression counseling. In CHI 2016 Computing and Mental Health Workshop.
  • Rojas Barahona et al. (2016) Lina M. Rojas Barahona, M. Gasic, N. Mrkšić, P-H Su, S. Ultes, T-H Wen, and S. Young. 2016. Exploiting sentence and context representations in deep neural models for spoken language understanding. In Proceedings of COLING 2016, the 26th International Conference on Computational Linguistics: Technical Papers, pages 258–267, Osaka, Japan. The COLING 2016 Organizing Committee.
  • Rojas-Barahona and Giorgino (2009) Lina Maria Rojas-Barahona and Toni Giorgino. 2009. Adaptable dialog architecture and runtime engine (adarte): A framework for rapid prototyping of health dialog systems. I. J. Medical Informatics, 78(Supplement-1):S56–S68.
  • Saxe et al. (2013) Andrew M Saxe, James L McClelland, and Surya Ganguli. 2013. Exact solutions to the nonlinear dynamics of learning in deep linear neural networks. arXiv preprint arXiv:1312.6120.
  • Schatzmann et al. (2006) J Schatzmann, K Weilhammer, MN Stuttle, and S Young. 2006. A Survey of Statistical User Simulation Techniques for Reinforcement-Learning of Dialogue Management Strategies. KER, 21(2):97–126.
  • Tolin (2010) D.F. Tolin. 2010. Is cognitive–behavioral therapy more effective than other therapies? A meta-analytic review. Clinical Psychology Review, 30:710–720.
  • Tür et al. (2012) Gökhan Tür, Minwoo Jeong, Ye-Yi Wang, Dilek Hakkani-Tür, and Larry P Heck. 2012. Exploiting the semantic web for unsupervised natural language semantic parsing. In Proceedings of Interspeech.
  • Vardoulakis et al. (2012) L.P. Vardoulakis, L. Ring, B. Barry, C. Sidner, and T. Bickmore. 2012. Designing relational agents as long term social companions for older adults. In Yukiko Nakano, Michael Neff, Ana Paiva, and Marilyn Walker, editors, Intelligent Virtual Agents, volume 7502 of Lecture Notes in Computer Science, pages 289–302. Springer Berlin Heidelberg.
  • Wang et al. (2018) Y. Wang, L. Wang, M. Rastegar-Mojarad, S. Moon, F. Shen, N. Afzal, S. Liu, Y. Zeng, S. Mehrabi, S. Sohn, and H. Liu. 2018. Clinical information extraction applications: A literature review. Journal of Biomedical Informatics, 77:34 – 49.
  • Weizenbaum (1966) Joseph Weizenbaum. 1966. Eliza, a computer program for the study of natural language communication between man and machine. ACM, 9(1):36–45.
  • Williams et al. (2017) Jason D. Williams, Kavosh Asadi, and Geoffrey Zweig. 2017. Hybrid code networks: practical and efficient end-to-end dialog control with supervised and reinforcement learning. In Proceedings of ACL.
  • World Health Organization (2013) World Health Organization. 2013. Mental health action plan 2013 - 2020.
  • Yao et al. (2014) Kaisheng Yao, Baolin Peng, Yu Zhang, Dong Yu, G. Zweig, and Yangyang Shi. 2014. Spoken language understanding using long short-term memory neural networks. In Spoken Language Technology Workshop (SLT), 2014 IEEE, pages 189–194.
  • Young (2002) SJ Young. 2002. Talking to Machines (Statistically Speaking). In Proceedings of ICSLP.
