1 Introduction

Recent practices of medicine strongly rely on the visualization of inner organs in order to study the relationship of anatomic structure and physiological process of living beings. In this context, vibro-acoustography (VA) Fatemi and Greenleaf (1998) has become a medical imaging tool for investigating calcifications in human arteries Greenleaf et al. (1998); Fatemi and Greenleaf (2000); Fatemi et al. (2003), microcalcifications in the breast Fatemi et al. (2002); Alizad et al. (2004a), liver tumors Alizad et al. (2004b), bone structure Calle et al. (2001), among others applications Urban et al. (2011).

The VA technique employs two co-focused ultrasound beams in megahertz range with slightly different frequencies, typically in the kilohertz range, to scan biological tissues (see Fig. 1 for the system description). The VA image formation process is related to the nonlinear interaction of the primary ultrasound waves (incident and scattered), which gives rise to a secondary acoustic wave at the difference-frequency Silva et al. (2008); Silva and Mitri (2011). The generated difference-frequency wave is detected by a hydrophone (typical bandwidth ). The acquired signal is processed and used to form VA images.

The interaction of the primary incident ultrasound waves gives rise to a highly collimated difference-frequency beam, known as the parametric array effect Westervelt (1963). It has been recently shown that the difference-frequency signal detected in the forward scattering direction is mostly due to the nonlinear interaction of the primary scattered waves Silva and Mitri (2011). Hence, the parametric array may behave as a background signal present in the difference-frequency wave detected to form VA images.

The VA method can be extended to generate several images at once using a multifrequency arrangement also known as multifrequency VA Urban et al. (2006). In this configuration, ultrasound beams (more than two) are produced and they overlap in the system focal region. Due to the nonlinear interaction of the ultrasound waves, difference-frequency components arise in the medium and they are used to form multiple images with just one scanning process.

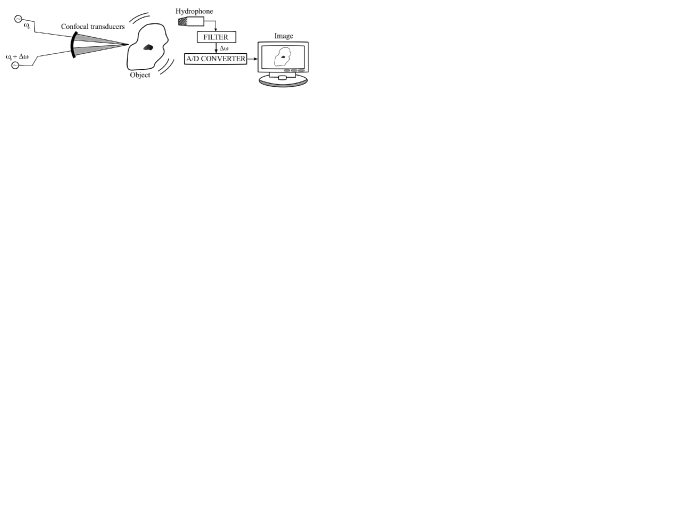

Figure 1: Description of a typical VA imaging system. The central- and the difference-frequency are and , respectively.

The spatial resolution of VA described in terms of the system point spread function (PSF) is determined by the transducer geometrical properties and the ultrasound driving frequencies. Beamforming has a great impact on the system resolution. Some schemes to generate two or more ultrasound beams for VA have been proposed based on a confocal transducer Fatemi and Greenleaf (1999), -focal (crossing beams) Chen et al. (2004), sector array Silva et al. (2004), linear array Silva et al. (2004); Urban et al. (2011), and reconfigurable array Kamimura et al. (2012). The VA resolution does not to correspond to the difference-frequency beam waist due to the parametric array effect. Indeed, the system PSF has a narrower lateral width than that of a parametric beam produced by the VA confocal transducer. To verify this, we have computed the parametric beam with the theory presented in Ref. Ding (2000) and found that this beam does not fit the PSF waist shown in Ref. Fatemi and Greenleaf (1999). However, for the sake of brevity, these results will not be included in this article.

The study presented here is limited to VA systems based on the confocal arrangement. Specifically, a confocal VA system composed by a two-element confocal transducer with -diameter, focused at , and operating with frequencies around , achieves a spatial resolution ( beamwidth) of approximately  mm in the focal plane and  mm axially. With this resolution only images formed at the focal plane are feasible. Furthermore, compared to conventional pulse-echo ultrasound images, VA images generated by the confocal transducer do not exhibit speckle noise.

Clinical applications of VA will demand systems based on linear array transducers because the ultrasound beams can be electronically steered over the region to be imaged. It has been shown through computational simulations that a typical linear array with -aperture operating at can produce VA images with of lateral resolution of when focused at in depth Silva et al. (2004). However, the system PSF is not symmetric in the imaging plane as in other VA beamforming schemes. The resolution is poorer in the elevation when compared to the lateral direction (roughly threefold larger). Hence, linear array systems (1.25 and 1.5D) may produce distorted VA images. Recently, a VA system based on the General Electric Vivid 7 ultrasound scanner with the GE 7L and 10L linear array transducers was designed and assessed Urban et al. (2011). This system was set to operate at nearly , with the difference-frequency being . When the incident beams were focused at in depth, the spatial resolution achieved by the system at was laterally, in elevation, and axially.

Limitations in the spatial resolution of VA systems degrade the yielded images, reducing their utility to medical imaging applications. The need for restoration of VA images in either elevation (with linear arrays) or axial directions has prompted us to assess the efficiency of some restoration algorithms applied to these images. In doing so, three deconvolution frequency domain filters, namely constrained least squares (CLS), geometric mean, and Wiener filters Gonzalez and Woods (2008); Hunt (1973) based on the theoretical PSF of the system are employed to restore simulated VA images Perciano et al. (2008). In addition, a phantom composed by three stretched wires was imaged by a confocal VA system. The VA line spread function (LSF) was estimated from the image and used to restore the image through the CLS filter. Restoration with the theoretical LSF yielded results with no visual information of the wires. The main reason for this problem lies on the lack of the phase information in the theoretical LSF. This is illustrated by restoring the actual VA image with a combined LSF, in which the magnitude and the phase come from the theoretical and the experimental LSF, respectively. In this case, the CLS filter restoration is capable to restore most of the information such as position, shape and contrast of the wires in the image.

This article is organized as follows. A model for vibro-acoustic image formation based on a three-dimensional PSF composed by the product of the pressure amplitudes of the incident beams is presented in Sec. 2. The general aspects of the restoration filters (Wiener, CLS, and geometric mean) are briefly described in Sec. 3. The computational and experimental results are explained in Sec. 4. In Sec. 5, the main conclusions of this study are outlined.

2 Image formation

The VA technique employs two ultrasound beams at frequencies and to form an image of the region-of-interest. Hence the primary incident pressure upon this region is given by

where

is the position vector indicating the observation point,

is the imaginary unit, is the time, and and are the complex pressure amplitudes.

Based on the radiation force concept, a 2D image formation model was proposed in which the system PSF is the product of the incident pressure fields in the transducer focal plane Fatemi and Greenleaf (1999). An extension of this model to account for depth-of-field effects in the VA image formation was presented in Ref. Silva et al. (2006). According to these image formation models, the three-dimensional PSF of a VA system is given by

(1)

where the symbol * means complex conjugation. It is worthy noting that the PSF of a VA system as given in Eq. (1) is a complex function. Despite early success on explaining VA as a radiation force imaging method, a recent study Silva and Mitri (2011) has shown that the difference-frequency signal used to form VA images depends on the nonlinear interaction of primary incident and scattered waves at the frequencies and . Both radiation force phenomenon and the nonlinear interaction of the waves scale quadratically with the primary pressure amplitudes. Hence, the description of the difference-frequency pressure magnitude based upon the radiation force and the nonlinear interaction models are alike, but the phase information due to each phenomenon is different Silva and Mitri (2011). Therefore, as the deconvolution of VA images needs to be done with the PSF (magnitude and phase). Thus, we can expect that the deconvolution using the PSF given in Eq. (1) may not be able to fully recover the visual information in VA images.

To compute the PSF given in Eq. (1) one has to calculate the incident pressure field amplitudes and in the linear approximation for the VA transducer. This has been done using the Field II simulation program Jensen and Svendsen (1992). Even though the fields from Field II are linear the combination through equation 2 makes the problem inherently nonlinear. The nonlinearity of the VA beamforming arises because of the interaction of the two beams, not the nonlinear propagation of the pressure from the transducer. The simulations were performed considering the transducer and operation frequencies used in the experiments to be described later. Hence, a two-element spherical confocal transducer with a diameter and focus at was considered. The transducer inner radius is , while the outer ring ranges from to . The transducer elements were driven independently by sinusoidal signals at and . The magnitudes of the simulated PSF laterally and in depth are presented in Fig. 2.

Figure 2: Magnitude of the PSF in the focal plane and in depth for a two-element confocal transducer with inner and outer radii being respectively and . The transducer focal distance is , which corresponds to zero in the depth scale.

The VA image of an object can be obtained by convolving the function which represents the object with the system PSF. Accordingly, the image function is given by Silva et al. (2006)

(2)

where is the function that represents the object, represents the additive Gaussian noise, and the symbol

denotes the spatial convolution. The additive Gaussian noise is the only source of noise present in VA images due to thermal fluctuations present in the electronic devices of the VA system. The noise level of VA images has been assessed. Thus, a white noise with

signal-to-noise ratio (SNR) was chosen to be added to all simulated images here. This level was considered by visual inspection of the VA simulated and actual images.

In the current arrangement of VA, real-time images cannot be done because the system requires four or five difference-frequency cycles to form a pixel. At , this corresponds to per pixel. To form images with pixels and show them in frames per second, one needs for each pixel.

3 Restoration algorithms

Among different filtering schemes to perform image deconvolution, we choose the Wiener, the constrained least-squares (CLSs), and the geometric mean (GM) filters Gonzalez and Woods (2008). This choice is based on the following digital image processing aspects. Firstly, the chosen filters operate in the frequency domain, which is computationally less expensive than to perform the filtering in the spatial domain. Secondly, inasmuch as the VA image formation is based on a spatial invariant model with additive noise as given in Eq. (2), one can use inverse filter methods for deconvolution. In this scheme, the Wiener filter removes the image degradation without division by small values, which can lead to numerical overflow. However, this filter reduces the noise level by smoothing the image without sharpening the edges. On the other hand, the CLS filter reduces the image degradation and it allows the control of sharpening the edges through a regularization parameter. The CLS and the Wiener filters were used for the deconvolution of ultrasound images Yeoh and Zhang (2006). The GM filter combines the features of the Wiener and the CLS filters depending on the adjustment of two parameters. The criteria used here to set the filters parameters will be discussed later.

To describe the Wiener, the CLS, and the GM filters, the image formation model in Eq. (2) is written in the frequency domain as

(3)

where is the reciprocal of , and , , , and

are the Fourier transforms of the functions

, , , and , respectively.

3.1 Wiener filter

The Wiener filter is designed to minimize the mean squared error between the filtered and the ideal images. In the frequency domain, this filter is given by Gonzalez and Woods (2008)

(4)

where and are the power spectrum density of the noise and of the ideal image, respectively.

3.2 Constrained least-squares filter

In the frequency domain, the constrained least-squares (CLSs) filter is expressed as Gonzalez and Woods (2008)

(5)

where is the regularization parameter and is the Fourier Transform of the discrete Laplacian operator in three-dimensions.

3.3 Geometric mean filter

The geometric mean (GM) filter is given in the frequency domain by Gonzalez and Woods (2008)

(6)

where and .

3.4 Filter parameters estimation

In performing the VA image deconvolutions, a trial and error approach is adopted. In doing so, the best visual and quantitative results for the restored images are sought. The quantitative analysis is performed using three indices of digital image processing, namely Wang and Bovik (2002); Wang et al. (2002) improvement in the signal-to-noise ratio (ISNR), mean squared error (MSE), and universal image quality index (UIQI). For the last two indices, the imaginary part of the restored image is ignored, because it approaches to zero after the filtering process.

4 Results and discussion

4.1 Computational simulations

To perform the computational simulation of VA images, the PSF is represented by a complex matrix whose dimensions are . This corresponds to a region of  mm laterally and  mm in depth. Two computational phantoms are devised with three and five spherical inclusions as shown in Fig. 3. The phantoms have dynamic range of , i.e., a pixel is represented with depth. Later, we present two computer phantoms with inclusions having up to four contrast levels. The purpose of using such phantoms is to demonstrate that the deconvolution of VA images can recover most information regarding to the inclusions morphology. Thus, the adopted dynamic range, which represents inclusions with contrast ratio, is sufficient for this proposal. In turn, the inclusions can be regarded as soft tissue with different mechanical properties compared to the background.

Figure 3: Phantoms used in the computational restoration. (a) Phantom 1 seen in the 6 mm-transverse plane. (b) Phantom 1 seen in-depth with three inclusions with  mm radius each and (left), (center), and (right) contrasts. (c) Phantom 2 seen in the 8 mm-transverse plane. (d) Phantom 1 seen in-depth with two additional inclusions of  mm radius and contrast. The dotted lines in (b) and (d) indicates the position of the images (a) and (b).

Phantom 1 is composed by three inclusions having same radius of  mm. The inclusions have contrasts of (left), (center), and (right). Phantom 2 is similar to phantom 1 with two additional spheres are included with  mm radius each and contrast. The dimensions of the inclusions are typically found in VA images of mass legions and calcifications.

The VA computational images are generated by convolving the system PSF with the function which represents the phantom, as given in Eq. (2). A Gaussian white noise of signal-to-noise ratio (SNR) was added to the generated images. The simulated images are presented in Fig. 4. It is not possible to recognize any inclusion from the axial image information.

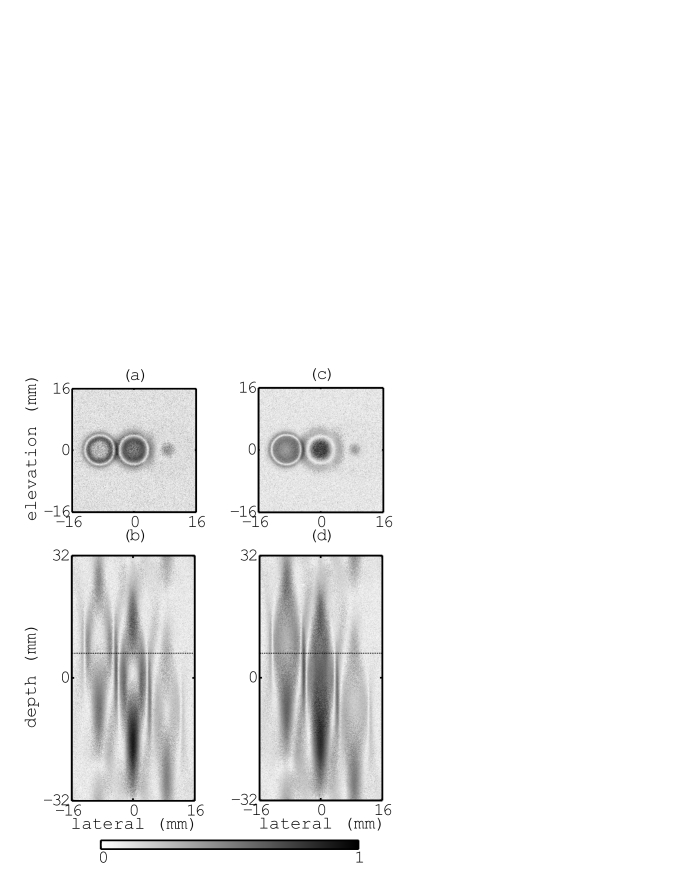

Figure 4: VA images obtained by computational simulations with white noise of SNR. (a) Image of phantom 1 seen in the 6 mm-transverse plane. (b) Phantom 1 seen along depth. (c) Image of phantom 2 at the 8 mm-transverse plane. (d) Phantom 2 shown along depth. The dotted lines in (b) and (d) indicates the position of the images (a) and (b).

The simulated images are restored with the CLS, geometric mean and Wiener filters. The obtained results for both phantoms are shown in Figs. 5 and 6. It is clear that all details in the axial images are recovered by the filters analyzed here.

Figure 5: Image restoration results for phantom 2 on both the -transverse plane and in-depth. The filter parameters are (CLS), and and (geometric mean). The CLS filter yielded the best boarder preservation, while the Wiener filter yielded the most blurred image. The dotted line indicates where the respective transverse image is placed in depth.
Figure 6: Image restoration results for phantom 2 on both the -transverse plane and in-depth. The filter parameters are (CLS), and and (geometric mean). The image restored with the Wiener filter is more blurred than the other results. The CLS filter yielded the best edge preservation among the other filters.

In Fig. 7, the profile of phantom 2 and the corresponding restored images at 8 in depth are displayed in normalized scale. The VA image profile in Fig. 7(b) shows a noisy mixture of two gray levels present in phantom 2. After the restoration process, the gray levels resemble that of phantom 2.

(a) Phantom 2
(b) VA image
(c) Wiener filter
(d) CLS filter
(e) GM filter
Figure 7: Gray levels obtained for a transverse line at in depth of phantom 2. LABEL: Transverse line for phantom 2. LABEL: Transverse line for the simulated VA image of phantom 2. Transverse lines for the restored images using LABEL: Wiener filter, LABEL: CLS filter and LABEL: GM filter.

The quantitative analysis is performed using the measures defined in Sec. 3.4. Deconvolution restoration results for phantoms 1 and 2 are presented in Table 1. The values indicate good results for the three restoration algorithms because the ISNR gives 60 dB improved with respect to the raw image. Moreover, the MSE is lower than and the UIQI is higher than (when this index values one, it indicates “perfect” restoration). The best restoration result was achieved by the Wiener filter for both phantoms. We observe that the resulting images are smoother than those obtained with the two other filters. In other words, the restored Wiener image is more blurred and the object borders are mixed with the background. Furthermore, the constrained least-squares filtered images display the best border preservation because it is based on the Laplacian operator, which enhances the object borders.

Phantom 1 Phantom 2
Filters ISNR MSE UIQI ISNR MSE UIQI
Constrained least-squares
Geometric mean
Wiener
Table 1: Quantitative results based on the ISNR (improvement in signal-to-noise ratio), MSE (mean squared error), and UIQI (universal image quality index) for phantoms 1 and 2.

4.2 Experimental images

To investigate how actual VA images can be restored, an experiment using a VA system is performed and the results are presented here. The VA system consists of the two-element confocal transducer described in Sec. 2, which scans a wire phantom (see Fig. 8). The driving frequencies of the transducer elements are and and the corresponding difference-frequency is . In turn, the wire phantom is composed of three stretched  mm-diameter wires distributed along the depth-of-field. The wires are diagonally arranged and spaced by  cm. The scanned area is   mm and each pixel was taken in steps of  mm. This area encloses all depth-of-field information of the acquired images. A hydrophone (ITC-6050C, ITC, Santa Barbara, CA, USA) with sensitivity is used to detect the generated difference-frequency pressure. The hydrophone is placed at approximately way from the farthest wire to the transducer. This corresponds to , which can be regarded as the hydrophone farfield region. The active element of the hydrophone is a cylinder located in the middle of its conical tip. This cylinder has a height of and diameter of . Its axis is aligned with the the hydrophone long axis. The hydrophone cannot be considered as a point detector for difference-frequency wavelength of few centimeters ( at in water). The finite-size effect of the active element (in a linear model) yields an output voltage proportional to the spatial average of the detected pressure over the element area plus a signal-independent noise Boutkedjirt and Reibold (2000). Consequently, the hydrophone may add an extra information to the phase of the acquired signal. Fig. 9 shows the experimental VA setup used.

Figure 8: Image of the computational representation of the wire phantom.
(a) Side view.
(b) Top view.
(c) View from transducer.
Figure 9: VA experimental setup composed of a two-element confocal transducer, a phantom with three stretched thin wires, and a hydrophone. All components are submerged in a water tank.

Two schemes are devised to restore the actual VA images. Firstly, we estimate the line-spread function (LSF) directly from the experimental image (central wire) and use it in the deconvolution process. In order to make the experimental LSF more similar to the theoretical one, we applied a spectral inversion to the image, i.e., first a low-pass filtering is performed and then the filtered image is subtracted from the original image Smith (1997). Secondly, because the magnitude of both the theoretical and the estimated LSF are similar, we compose the LSF by combining the magnitude of Eq. (1) and the phase information directly from the experimental data. Such arrangement was chosen because we found discrepancies between the phase of the estimated and the theoretical LSF based on the radiation force model. This model seems not to provide the entire phase information present in VA images. A more complete image formation description needs to take into account parametric and nonlinear scattering phenomena.

The magnitude and phase of the estimated and the theoretical LSFs are exhibited in Figs. 10 and 10. The theoretical LSF was obtained by the convolution of the 3D VA PSF with the 3D wire phantom. The phase of the experimental LSF is estimated as follows. Each pixel is formed from an acquired harmonic sequence. This sequence discretized from the detected signal by the hydrophone at the difference-frequency . Suppose that the time sequence which represents the th-pixel of the VA image is given by

(7)

where and are the is the phase of the signal, is the sampling frequency, and the number of sampling points. By taking the Hilbert transform Wolfram (1999) of , one obtains Thus, the representation of the acquired signal in complex notation is

(8)

Therefore, the phase of a sequence which represents the th-pixel with respect to that of the th-pixel can be computed from

(9)

All the pixel phases can be obtained with respect to a reference pixel. The amplitudes and can be calculated by computing the root mean square of the respective acquired signal.

It can be noticed from Figs. 10 and 10 that the theoretical and the experimental LSFs have differences in their phase contents. The lack of information in the LSF phase leads to unsatisfactory restoration results with several artifacts. The missing information in the phase is mostly related to the fact that the image formation model based on Eq. (1) does not consider the nonlinear interaction of the primary beams. Moreover, the finite-size effect of the hydrophone active element was not considered in the theoretical model.

Figure 10: The magnitudes of (a) the experimental and (b) the theoretical LSFs. The corresponding phases in radians of the center line along the depth-of-field are also displayed.

The result obtained by estimating the LSF from the experimental image, is presented in Fig. 11, while the result using the composed LSF is shown in Fig. 11. Both methods yielded similar restored images. Despite presenting two blurred wires (top left and bottom right), the restored images show aspects of the imaged wires, including location, geometric shape and contrast. Some aspects may have contributed for the occurrence of artifacts in the restored images. The deconvolution filters used here usually produce undesirable artifacts during the process of deconvolution because of the ill-posed nature of the image restoration problem, i.e., it may have more than one solution and the solutions depend discontinuously on the initial data. Therefore, perturbations in the VA image due to the noise, may cause undesired variations in the restoration results. This can be noticed by comparing the result of a complete simulated deconvolution process presented in Fig. 11, where no artifacts are produced, because the whole process is controlled, from the image formation up until its restoration. That is, the same LSF is used for both VA image formation and restoration. Furthermore, it is important to note that an extra information may appear in the phase of the detected signal caused by the acoustical path difference from the wire positions to the hydrophone.

Figure 11: Image restoration using the CLS filter with . The raw VA image is shown in (a). The restoration results are presented for the experimental (b) and the composed (c) LSFs. The deconvolution for the computer generated VA image is shown in (d).

5 Summary and conclusions

In this paper, we have presented the results of three restoration techniques (Wiener, CLS and geometric mean filters) applied in the restoration of VA images. The restoration algorithms based on the theoretical PSF were applied to computationally simulated images, in which the visual information of the objects was lost. The performance of the algorithms were assessed both quantitatively and visually. The deconvolution of simulated images was capable of restoring the size, shape, position and contrast of the objects present in the images for all filters used.

The CLS filter was employed in restoring an actual VA image of three stretched wires. In this case, two LSFs were used, one was estimated from the image, while the other combines the phase of the estimated LSF with the magnitude of the theoretical one. The wire positions and partial information about their shape and contrast can be recognized in the images restored with both experimental and combined LSFs.

The restoration of the experimental VA image with the theoretical LSF based on Eq. (1) yielded a poor visual restoration retrieve and thus was not presented here. Yet the magnitudes of both theoretical and experimental LSFs matched, the phases showed distinctly different contents. This hints that the adopted theoretical model for the PSF lacks the appropriate phase information of VA images. Additional information may come from the difference-frequency generation based on the nonlinear interaction of the primary waves Silva et al. (2008); Silva and Mitri (2011); Westervelt (1963) and possibly also on the finite-size effect of the hydrophone active element.

This study represents a preliminary step in understanding how application of deconvolution filters can be used to restore the resolution and contrast for VA images. The optimal restoration filter may depend on the object being imaged with to improve resolution and contrast. Future studies would be necessary to understand and validate how different filters and modeling of the PSF would affect the restoration of VA images of simple phantoms and soft tissues.

6 Acknowledgments

This work was partially supported by FAPESP and Grants 306697/2010-6, 477653/2010-3 CNPq (Brazilian agencies).
