I Introduction

Alzheimer’s disease (AD) is an irreversible and chronic neurodegenerative disease. It is characterized by slowly progressive memory loss and cognitive deficits, constituting the most common form of dementia in the elderly and becoming a worldwide health issue[1, 2, 3, 4]. According to the Alzheimer’s Association[5], it is forecasted that at least 50 million people worldwide suffer from AD, and the number will exceed 152 million by 2050 if this situation continues. The widespread incidence of AD makes it an inevitable global issue and creates a severe financial burden to both patients and governments. However, the causes and mechanisms of AD are still unveiled, and there aren’t efficient treatments for AD. Therefore, it is becoming increasingly important for the scientific community to develop novel methods to study the pathological features of AD.

Traditional neuroimaging methods[6, 7] using CT or MRI to study the morphological feature of brain regions-of-interest(ROIs) have already achieved high precision to AD’s early diagnosis. However, a nonnegligible defect of traditional imaging methods is that they can not characterize the interaction relations between ROIs. It is the main obstacle to understand the pathological features of AD. To overcome such barriers, new tools should be implemented. One of the modern approaches is the analysis of the brain network. Brain network provides a powerful representation of the interaction patterns among ROIs, which gains a lot of attention in investigating the mechanisms of AD.

A brain network can be characterized as a series of nodes and edges. The nodes represent ROIs and edges measure regional interactions extracted from neuroimaging. There are two common categories of brain networks: functional connectivity (FC) and structural connectivity (SC). FC is defined as the interdependence between two ROI’s blood-oxygen-level-dependent (BOLD) signals extracted from resting-state functional magnetic resonance imaging (rs-fMRI). SC is defined as the physical connection strength between two ROI’s neural fibers extracted from Diffusion Tensor Imaging (DTI). However, most existing brain network analysis approaches focus on either FC or SC. These approaches may ignore the complementary information existing in different modality data. Previous studies

[8, 9, 10, 11] have shown that using multimodal neuroimaging data to study brain networks can better understand the brain mechanisms.

Recent neurology studies [12, 13] indicated that brain cognitive mechanisms involve multiple co-activated brain regions (i.e., neural circuit) interactions rather than single pairwise interactions of two ROIs. Such neural circuits information could be critical to understanding the pathological underpinnings of AD. However, how to detect the crucial neural circuits of AD from multimodal brain networks is still challenging: because of the brain’s many-to-one function-structure mode, traditional regression methods cannot be directly used to explore the neural circuits relationships among nodes. Moreover, the individual variability and the non-linearity between the nodes feature and the weighted adjacent matrix of edges need to be considered simultaneously.

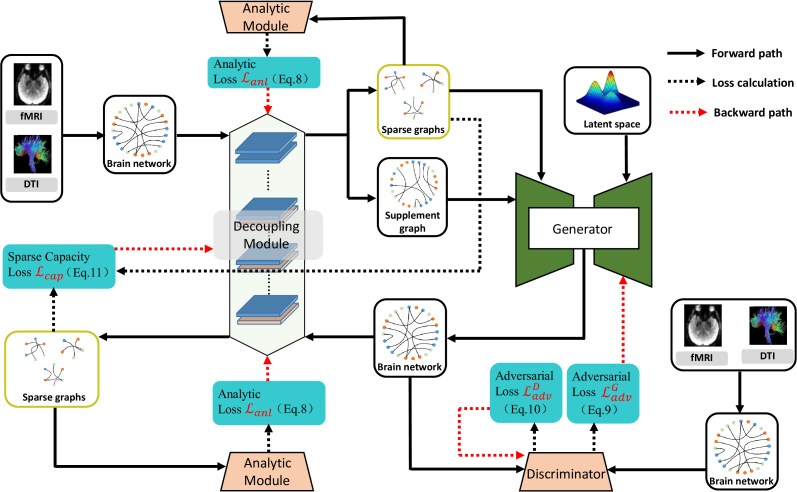

Fig. 1: The flowchart of DecGAN. It consists of four components: a decoupling module, a generator, a discriminator, and an analytic module.

To overcome the above-mentioned difficulties and motivated by the recent development of deep neural network based methods

[14, 15], a novel decoupling generative adversarial network (DecGAN) is proposed to detect the crucial neural circuits of AD from multimodal brain networks. Generative adversarial networks (GANs) [16, 17, 18, 19, 20]

have attracted wide attention since it is efficient to learn complex distribution without explicitly modeling the probability density function. It is worth mentioning that combining variational methods

[21, 22, 23] with GANs can learn high-order latent boundary distribution. This advantage of GAN can be utilized to capture the complicated high-order relationships buried in ROIs. In this work, a novel decoupling module in DecGAN is designed to decompose the multimodal brain network into several sparse subgraphs and a supplement graph. The nodes of each represent a crucial neural circuit of AD, and the nodes of the supplement graph represent the ROIs whose influence on AD can be ignored. Specifically, the decoupling module is designed by using graph-based algorithms [24, 25]

. Compared to traditional CNN-based feature extracting algorithm that can only operate on regular, Euclidean data, The graph-based algorithms can analyze interrelated and hidden structures beyond the grid neighbors, such as brain networks. By encoding the detected neural circuits to hypergraph data, an analytic module associated with the hyperedge neurons algorithm is designed to identify the neural circuits of the subjects, guide the decoupling module to capture the neural circuits largely determining the development of AD. In addition, the generator of DecGAN is utilized to reconstruct the brain network by using the outputs of the decoupling module and the latent variable as inputs. And then input the reconstruction brain network to the decoupling module, obtain sparse subgraphs

. Basing on hypergraph embedding and similarity of hypergraph, a novel sparse capacity loss is designed to compare the spatial-spectral differences between and . By minimizing , the accuracy and robustness of the proposed model can be efficiently improved. Therefore the crucial neural circuits of AD can be detected. To the best of our knowledge, the proposed DecGAN is the first work to detect crucial neural circuits of AD by using generative adversarial networks. The contributions of this paper are summarized as follows:

  • A novel decoupling module associated with an adversarial strategy is proposed to detect the abnormal neural circuits for Alzheimer’s disease. By utilizing the iteration decoupling mechanism, the proposed model can efficiently extract brain network’ feature highly related to Alzheimer’s disease.

  • A novel sparse capacity loss is designed to characterize the spatial-spectral differences between two collections of neural circuits, which can minimize the difference of intrinsic topological distribution from detected neural circuits. It can significantly improve the accuracy and robustness of the proposed model.

  • An analytic module based on the hyperedge neurons algorithm is developed to identify the relationship between the detected neural circuits and Alzheimer’s disease. The analytic module can guide the decoupling module to capture the neural circuits that largely determine the development of Alzheimer’s disease.

The rest of this paper is organized as follows. The related work is reviewed in Section II. The proposed DecGAN is described in detail in Section III. In Section IV, DecGAN is tested and compared with existing brain network analysis methods to demonstrate its advantage. Finally, concluding remarks and future work are discussed in Section V.

Ii Related Work

With the development of machine learning (ML) techniques

[26, 27, 28, 29, 30, 31] in the area of brain networks, a lot of ML models have been proposed to detect AD-related brain connectivity and predict AD progression. For example, Li et al. [32] proposed a deep spatial-temporal feature fusion method to predict AD at its early stage. Wang et al. [33]

proposed a novel convolutional recurrent neural network for automated prediction of AD progression. Zhao et al.

[34]

present a nonlinear dynamic approach to reconstruct brain networks, which shows the significant differences of FC between AD and NC. Recently, there is a growing interest in studying brain connectivity by using graph-structured learning. Graph-structured learning that captures the whole topology features of brain networks has significant advantages in describing the high-order relationships between ROIs. In particular, graph convolutional networks (GCNs) is a graph-structured algorithm that generalizes convolutional neural networks (CNN)

[35] from Euclidean data into graph-structured data [36, 37, 38]. Recently, GCN methods have been successfully used to analyze abnormal brain connections [39]. Moreover, some studies [40, 41] have used spatial-based GCN to capture triplet-order relationships of brain networks. Experiments have shown that modeling triplet-order relationships of brain networks are helpful to boost classification accuracy and learning performance. Even though studies [37, 41] just consider triplet-order relationships of brain networks, it is a good start to study general high-order relationships of brain networks.

Iii Methods

Notations: Throughout this paper, let

be the set of real numbers. We denote scalars, vectors, and matrices by normal letters, lowercase boldface, and uppercase boldface, respectively. For a matrix

A, we denote its -th entry, inverse matrix, transpose as , , and , respectively.

Iii-a GCN and Decoupling Module

In this study, we construct a graph to combine information on the multimodal imaging data (including rs-fMRI and DTI). To encode the priori brain networks by rs-fMRI and DTI, let be an undirected weighted graph, where is the set of nodes represent 90 ROIs defined by the anatomical automatic labeling (AAL) template, is the set of edges between nodes. Let BOLD signals be the feature for the corresponding nodes, and we will denote by the feature matrix . Let the SC matrix be the weighted adjacent matrix of edges , and we will denote by A the weighted adjacent matrix. The multi-layer GCN is defined with the following layer-wise propagation rule:

(1)

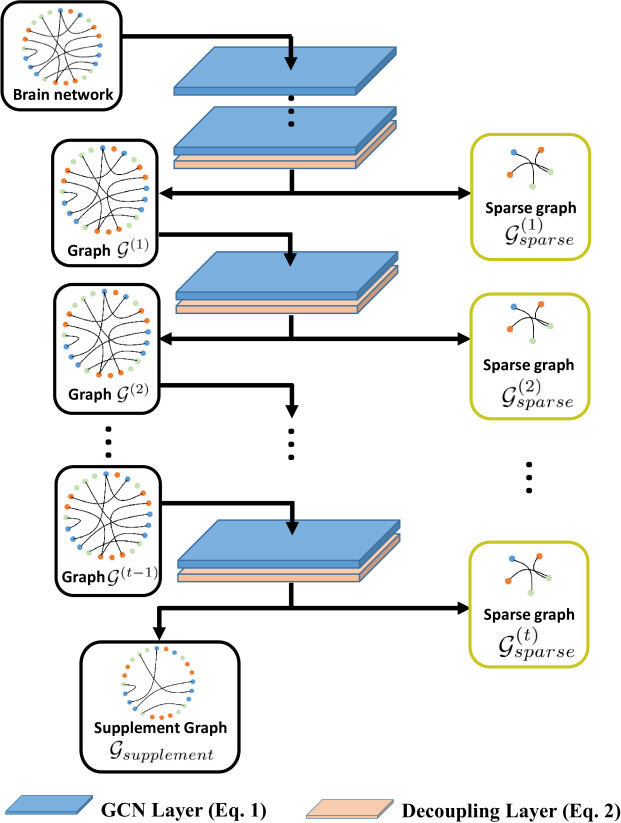

Fig. 2: The architecture of proposed decoupling module.

Where, is the weighted adjacent matrix of with added self-connections,

is the identity matrix of

, is the degree matrix of , and is a layer-specific trainable weight matrix.

denotes a nonlinear activation function.

is the feature matrix of nodes in the layer; .

The decoupling layer detects a neural circuit by choosing top nodes which satisfy the following inequality:

(2)

Where, d is a trainable vector, W is a trainable weighted matrix, and is a trainable bias. and

are hyperparameters. Suppose that the decoupling layer outputs a neural circuit

(here since the number of nodes satisfying condition (2) may be less than ), we get the sparse graph where the weighted adjacent matrix of edges is given as follows

(3)

Behind decoupling layer, we update to by setting the adjacent matrix . And then using GCN layer extracts the feature matrix of , using decoupling layer gets a neural circuit and sparse graph , and updates to . We iterate this procedure -times, we will get the neural circuits . The supplementary set of will be denoted by . Finally we define the supplementary graph where the weighted adjacent matrix of edges is given as follows

(4)

The architecture of decoupling module is shown in Fig.2

Iii-B Hypergraph and Analytic Module

To guarantee the neural circuits that are detected by the decoupling module have a significant influence on AD, a analytic module is designed to analyze AD progression by using these neural circuits. The analytic module is based on a hypergraph-related algorithm. The concepts of the hypergraph are introduced as follows. A hypergraph is defined as , which includes a vertex set , a hyperedge set . The main difference between hypergraph and graph is that a hyperedge in a hypergraph can connect more than two vertices. A graph is a special case of a hypergraph, where each hyperedge has size . The structure of hypergraph can be denoted by a incidence matrix H, with entries defined as

Fig. 3: Left: a hypergraph with and , where , , , . Right: the incidence matrix of .

Fig. 4: The architecture of proposed analytic module.

Recall that each sparse graph corresponds a neural circuit . The collection of neural circuits is embedded to the hypergraph by setting . Let the feature matrix of the hypergraph be the average of the feature matrices of the sparse graphs, i.e. . The hyperedge neurons algorithm proposed in [42] is used to update with the following layer-wise propagation rule:

(5)
(6)

where are layer-specific trainable weight matrices, and are layer-specific trainable bias. The architecture of the analytic module is shown in Fig.4.

Iii-C Generator and Discriminator

The generator is designed to reconstruct the brain network from the sparse graphs and the supplementary graph . There are two steps in this procedure. Firstly, we reconstruct the weighted adjacent matrix of the brain network. Given a latent space , generator learns a mapping from a random vector to an output connective matrix . We reconstruct the weighted adjacent matrix as follows:

(7)

Where is the neural circuits, is the supplementary set of . is the weighted adjacent matrix of supplementary graph . is the weighted adjacent matrices of sparse graphs , respectively. Secondly, we use multi-layer GCN with weighted adjacent matrix and the initial feature matrix to reconstruct the feature matrix of the brain network. The reconstructive brain network will be denoted by . The discriminator is designed to identify whether the brain network is real or fake. The discriminator contains of a multi-layer GCN and a fully connect layer. The initial brain network and the reconstructive brain network are treated as real and fake samples for the discriminator training. The structure of the generator and discriminator is illustrated in Fig.5

Fig. 5: The network structure of proposed generator.

Iii-D Loss Functions

Analytic Loss. Given an multimodal brain network, the goal of DecGAN is to detect the crucial neural circuits of AD that be represented by the sparse graphs. To achieve this condition, the analytic module is introduced in III-B. The analytic loss is imposed when optimizing the analytic module and the decoupling module. In detail, the formula of analytic loss is defined as

(8)

Optimize the analytic module and the decoupling module by minimizing this analytic loss. The analytic module is trained to analyze the disease status by using sparse graphs . The decoupling module is trained to detect the sparse graphs such that the analytic module have highest analytic accuracy when using these sparse graphs as inputs.

Adversarial Loss. To make the reconstructive brain network indistinguishable from initial brain net, the adversarial loss for generator is defined as

(9)

The adversarial loss for discriminator is defined as

(10)

Sparse Capacity Loss. The decoupling module is optimized according to the feedback of the analytic module. However, this procedure does not guarantees that decoupling module can detect the neural circuits with robustness when slightly changing the topological structure of brain network. To break this dilemma, a novel sparse capacity loss is designed to characterize the structural difference of two collections of neural circuits. Let and be the collections of neural circuits which are the outputs of decoupling module using and as inputs, respectively. The collections and are embedded to the hypergraphs and by setting and , respectively. The sparse capacity loss is consisted of two terms: The spatial similarity and the spectral similarity of the hypergraphs and , i.e.,

(11)

In details, the spatial similarity is defined by

(12)

The spectral similarity is based on hypergraph Laplacian

(13)

where H is the incidence matrix of , denotes the diagonal matrix of node degree , and denotes the diagonal matrix of edge degree . Let and

be the eigenvalues of the hypergraph Laplacian

and , respectively. The spectral similarity of and is defined by

(14)

Total Loss

. The total loss functions to optimize the decoupling module

, the analytic module , the generator , and the discriminator are summarized respectively as

(15)
(16)
(17)
(18)

where is hyperparameter that control the relative importance of analytic loss and sparse capacity loss.

Iv Experiments

Iv-a Dataset and Preprocessing

DTI and rs-fMRI images from the Alzheimer’s Disease Neuroimaging Initiative (ADNI) public dataset are used to validate our proposed framework. There are 236 subjects’ data used in our study. The detailed subjects’ information is summarized in Table I.

Group AD(53) LMCI(31) EMCI(74) NC(78)
Male/Female 32M/21F 15M/16F 45M/29F 35M/43F
Age(mean SD) 75.3 5.5 74.9 5.3 75.8 6.1 74.0 5.9
TABLE I: Subjects information in this study

In this study, DPARSF toolbox [43] and GRETNA [44] toolbox is used to preprocess the rs-fMRI data. At first, the initial DICOM format of rs-fMRI data is converted to NIFTI format data. Then, standard steps for rs-fMRI data preprocessing is applied by using the DPARSF, including the discarding of the first 20 volumes, head motion correction, spatial normalization, and Gaussian smoothing in this stage. Next, the AAL atlas is used to divide brain space into 90 ROIs. Finally, the time series of all voxels are extracted by using the GRETNA. By taking the mean value of the time series of all voxels in a specific ROI, the BOLD signal of individual ROI is obtained.

PANDA toolbox [45] is used to preprocess the DTI data. Similar to the preprocessing of rs-fMRI data, at first, the initial DICOM format of DTI data is converted to NIFTI format data. Then, skull stripping, resampling the fiber bundle, head motion correction is applied. Next, the AAL atlas is used to divide brain space into 90 ROIs. Each ROI is defined as a node of the brain network. Finally, the structural connectivity of the brain network is determined by fiber tracking between different ROIs. The fiber tracking stopping condition is defined as follows: (1) the crossing angle between two consecutive moving directions is more than 45 degrees. (2) the fractional anisotropy value is not in the range of [0.2, 1.0].

Iv-B Experiment Settings

A five-fold validation strategy is used to evaluate the performance of our proposed DecGAN model. In detail, all subjects are randomly divided into five subsets with equal size. One of the subsets is treated as the test set, and the union of the other four subsets is treated as the training set. Repeat this process five times to remove the bias by the random division. The classification performance is evaluated by mean values of detection accuracy(ACC), sensitivity(SEN), specificity(SPEC), and F-score(F1). The proposed DecGAN is implemented in Pytorch. All experiments in this study are conducted on four NVIDIA GeForce GTX 2080 Ti GPUs. The optimizer is set to ’Adam’. The batch size is set to 16. The decoupling coefficient

is set to 0.1. The learning rate of the decoupling module, analytic module, generator, and discriminator are set to , , , and , respectively.

Iv-C Neural Circuits Analysis

In this section, the experiments are conducted to study the influence of the hyper-parameters and of the decoupling module on classification performance. Recall that the hyper-parameter represents the number of neural circuits which are outputted by the decoupling module, and the hyper-parameter represents the maximal number of ROIs contained in each neural circuit. The experiments evaluate the ACC and AUC value of binary classification tasks (AD vs. NC) with varied parameters , while keeping other parameters invariant. The results are shown in Fig. 6. The top two highest ACC value of and are achieved at and . In addition, root mean square error (RMSE) is used to measure the structural differences between the priori brain network and the reconstruction brain network. Thus, to generate reliable reconstruction brain network, the RMSE should keep decreasing before converged. The quantitative analysis between the reconstruction brain networks and the priori brain networks is shown in Fig.7.

Fig. 6: Left: ACC comparison with various of and ; Right: AUC comparison with various of and

Fig. 7: Root Mean-Square Error between the reconstruction structural connectivity and the priori structural connectivity

Counting all the output from total subjects, the abnormal neural circuits for AD is [Hippocampus_L, Hippocampus_R, Precuneus_L, Precuneus_R, Putamen_L];[Frontal_Mid_Orb_L, Amygdala_R, Pallidum_L, Heschl_L, Heschl_R] when . The abnormal neural circuits for AD is [Frontal_Mid_Orb_L, Hippocampus_L, Hippocampus_R, Amygdala_R, Occipital_Inf_L, Occipital_Inf_R, Pallidum_L, Heschl_L] when . The structural connectivity in neural circuits are shown in Fig.8,9,10,11,12.

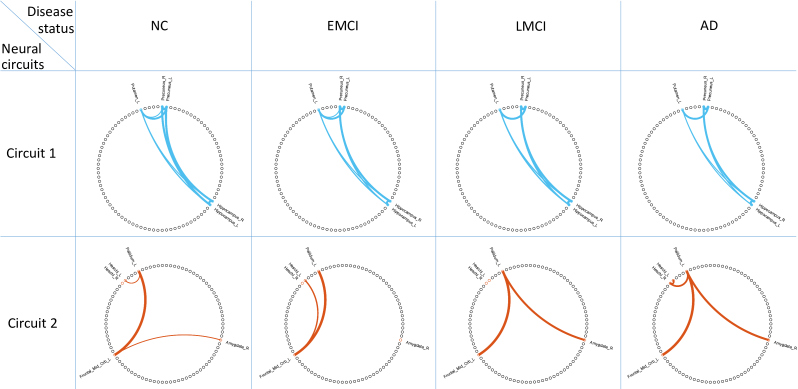

Fig. 8: The connectivity of the neural circuit with the hyperparameters .

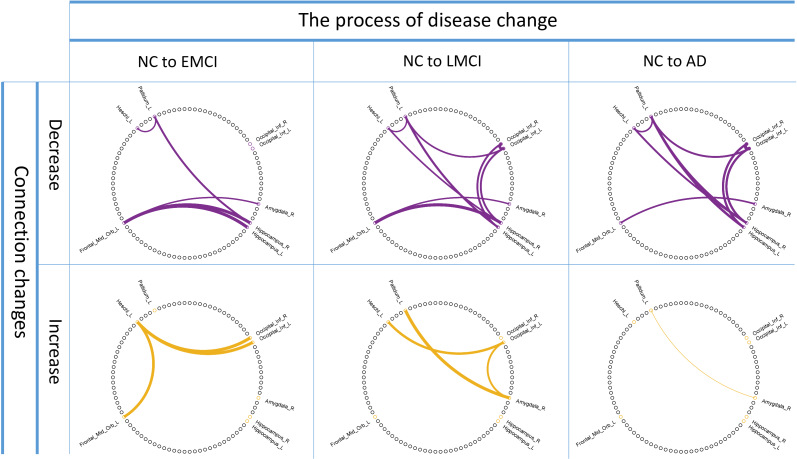

Fig. 9: The connectivity changes of the neural circuit between two disease statuses with the hyperparameters .

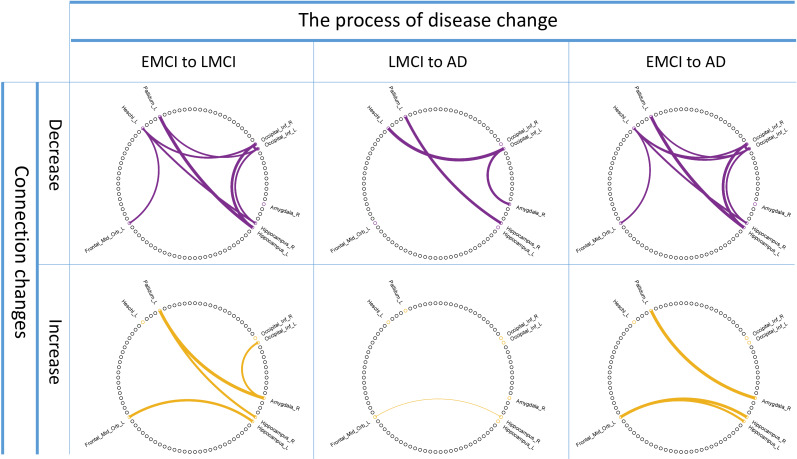

Fig. 10: The connectivity changes of the neural circuit between two disease statuses with the hyperparameters .

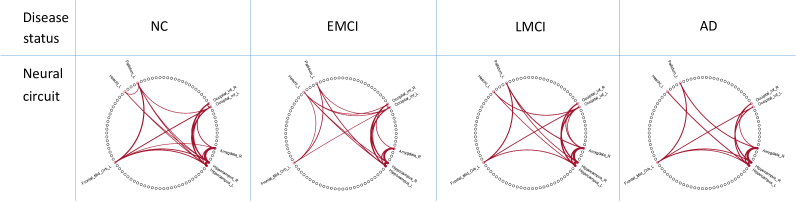

Fig. 11: The connectivity of the neural circuits with the hyperparameters .

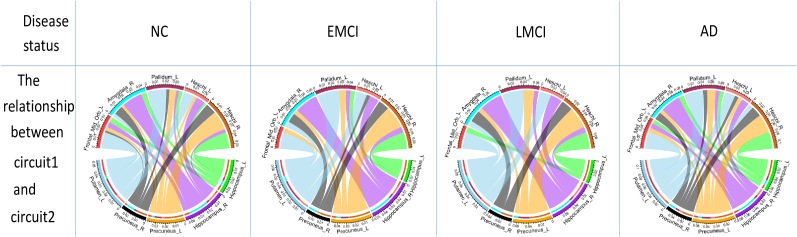

Fig. 12: This figure shows the interaction of two neural circuits with the hyperparameters . The lower semicircle and upper semicircle represents the neural circuit 1 and the neural circuit 2 shown in Fig.11, respectively. the width of bands represents the connection strength between ROI in the lower semicircle and ROI in the upper semicircle.

Iv-D Ablation analysis

We propose the sparse capacity loss to compare the structural differences between the neural circuits decoupled from the priori brain network and the neural circuits decoupled from the reconstruction brain network. In order to explore the effectiveness of the sparse capacity loss, two ablation experiments are performed in this paper.

Fig. 13: The comparison of classification performance of AD vs. NC with different loss functions.

One is using MSE loss to replace the sparse capacity loss to measure the structural difference between two neural circuits. The other is directly removing the sparse capacity loss.

The effects of the sparse capacity loss on classification performance is shown in Fig.13. As shown in Fig.13, the results of the sparse capacity loss are better than MSE loss and without loss function. The improvement of ACC, SEN, SPE, and F1 value demonstrate that the sparse capacity loss can effectively enhance the performance of the decoupling module.

V Discussion and conclusion

V-a Comparison with clinical results

By counting the number of occurrences of ROIs in the neural circuits of model output, we get the top ten ROIs, specificity, these ROIs are Frontal_Mid_Orb_L, Hippocampus_L, Hippocampus_R, Amygdala_L, Occipital_Inf_L, Occipital_Inf_R, Precuneus_L, Precuneus_R, Heschl_L and Heschl_R. We can see that these brain regions are mainly concentrated on the memory and reasoning areas, which are highly related to the AD according to the clinical studies [46, 47].

AAL region Location Evidence
Frontal_Mid_Orb_L Frontal lobe Salat et al. [48]
Hippocampus_L Limbic lobe Du et al. [49]
Hippocampus_R Limbic lobe Du et al. [49]
Amygdala_L Limbic lobe Tsuchiya et al. [50]
Occipital_Inf_L Occipital lobe Sun et al. [51]
Occipital_Inf_R Occipital lobe Gupta et al. [52]
Precuneus_L Parietal lobe Yang et al. [53]
Precuneus_R Parietal lobe Karas et al. [54]
Heschl_L Temporal lobe Zhou et al. [55]
Heschl_R Temporal lobe Pusil et al. [56]
TABLE II: The clinical information of the top ten AD-related ROIs detected by the proposed model.
Classifier Input NC vs. EMCI NC vs. LMCI NC vs. AD
ACC SEN SPE F1 ACC SEN SPE F1 ACC SEN SPE F1
SVM Priori brain networks 72.41% 73.33% 71.42% 73.33% 76.19% 86.66% 50.00% 83.87% 77.77% 87.50% 63.63% 82.35%
Reconstruction brain networks 75.86% 80.00% 71.42% 77.41% 80.95% 86.66% 66.66% 86.66% 85.18% 75.00% 100.00% 85.71%
DNN Priori brain networks 79.31% 86.66% 71.42% 81.25% 80.95% 80.00% 83.33% 85.71% 81.48% 87.50% 72.72% 84.85%
Reconstruction brain networks 79.31% 73.33% 85.71% 78.57% 85.71% 86.66% 83.33% 89.65% 85.18% 93.75% 72.72% 88.23%
GCN Priori brain networks 82.75% 86.66% 78.57% 83.87% 80.95% 73.33% 100.00% 84.61% 81.48% 81.25% 81.80% 83.87%
Reconstruction brain networks 86.20% 86.66% 85.71% 86.66% 85.71% 80.00% 100.00% 88.88% 85.18% 81.25% 90.91% 86.66%
TABLE III: Prediction performance of the priori brain networks and reconstruction brain networks under different classifiers.

In detail, literature verification is carried out to find out whether these ROIs are related to AD, the results are shown in Table II. Note that these ROIs are mainly located in the Limbic lobe, Occipital lobe, Parietal lobe, and Temporal lobe. The limbic lobe is regarded as an important brain area that highly relates to AD pathology [57]. The occipital lobe is significantly related to visual memory, in which AD patients showed atrophy in the occipital cortex [58]. The parietal lobe is involved in the spatial function and is particularly important for real-time spatial navigation, in which AD patients showed the change in parietal lobe white matter hyperintensities [59]. The parietal lobe plays important role in integrating sensory information from various parts of the body, knowledge of numbers. The AD patients showed rapid atrophy in the medial temporal lobe [60]. Therefore, these clinical results prove the High correlation of the neural circuits detected by our model to AD.

V-B The Reconstruct Brain Networks By Generator

The generator is used to reconstruct the brain network from the output of the decoupling module and the latent space. The main goal of the proposed model is to detect the abnormal neural circuits which have a significant influence on AD. The stability of the decoupling module can be improved by enhancing the AD-related feature expression ability of the reconstruction brain networks. Therefore, the quality of the reconstruction brain network is the key factor that affects whether the proposed model can detect neural circuits accurately. To verify the AD-related feature expression ability of the reconstruction brain networks, the classification experiment is designed to compare the prediction performance of the priori brain networks and reconstruction brain networks on different AD stages. The classification results is shown in Table III. Finally, the visualization of the structural connectivity (i.e. weighted adjacent matrix of brain network) of the brain networks is shown in Fig.14.

Fig. 14: Left: the reconstruction structural connectivity; Right: the priori structural connectivity

V-C Conclusion

In this paper, we propose a novel decoupling generative adversarial network (DecGAN) to detect the crucial neural circuits for AD. Benefit from the GCN layer and the decoupling layer, the proposed model can efficiently extract complementary topology information between rs-fMRI and DTI. Moreover, we propose the sparse capacity loss to characterize the intrinsic topological difference between different neural circuits, which significantly improved the robustness and accuracy of the proposed model. This paper only focuses on AD, but it is worth mention that the proposed model can be easily extended to other neurodegenerative diseases. Although the proposed model is promising in providing a new multimodal analysis framework for neural circuits detection, there are still two major limitations in our works. One limitation is that the proposed model cannot explain how the internal mechanisms of the detected neural circuits affect the development of the disease. A possible solution is introducing recurrent neural networks to analyze the BOLD signal, which makes it possible to quantitatively characterize the influence of neural circuits on the disease process. Another limitation is that our current study dataset is relatively small. In the future, we plan to test the effectiveness of the proposed model on a larger dataset of brain images such as UKBiobank.

References

  • [1] M. W. Bondi, E. C. Edmonds, and D. P. Salmon, “Alzheimer’s disease: Past, present, and future,” Journal of the International Neuropsychological Society: JINS, vol. 23, no. 9-10, pp. 818–831, Oct. 2017.
  • [2] W. Yu, et al., “Morphological feature visualization of Alzheimer’s disease via Multidirectional Perception GAN,” IEEE Transactions on Neural Networks and Learning Systems, 2021.
  • [3] C. Patterson, World Alzheimer Report 2018: The State of the Art of Dementia Research: New Frontiers. London, U.K.: Alzheimer’s Disease International, 2018.
  • [4] S. Wang, H. Wang, Y. Shen, X. Wang, “Automatic recognition of mild cognitive impairment and alzheimers disease using ensemble based 3d densely connected convolutional networks” 2018 17th IEEE International Conference on Machine Learning and Applications (ICMLA), pp. 517–523, 2018
  • [5] Alzheimer’s Association, “2019 Alzheimer’s disease facts and figures,” Alzheimer’s Dementia, vol. 15, no. 3, pp. 321–387, 2019.
  • [6] S. Hu, W. Yu, Z. Chen, and S. Wang, “Medical Image Reconstruction Using Generative Adversarial Network for Alzheimer Disease Assessment with Class-Imbalance Problem,” 2020 IEEE 6th International Conference on Computer and Communications (ICCC), pp. 1323–1327, 2020.
  • [7] S. Wang, H. Wang, A. Cheung, Y. Shen, and M. Gan, “Ensemble of 3D Densely Connected Convolutional Network for Diagnosis of Mild Cognitive Impairment and Alzheimer’s Disease,” Deep Learning Applications, pp. 53–73, 2020.
  • [8] C. Hinrichs, V. Singh, G. Xu, S. C. Johnson, and The Alzheimers Disease Neuroimaging Initiative, “Predictive markers for AD in a multimodality framework: An analysis of MCI progression in the ADNI population,” NeuroImage, vol. 55, no. 2, pp. 574–589, 2011.
  • [9] S. Hu, J. Yuan, and S. Wang, “Cross-modality Synthesis from MRI to PET Using Adversarial U-Net with Different Normalization,” 2019 International Conference on Medical Imaging Physics and Engineering (ICMIPE), pp. 1–5, 2019.
  • [10] E. M. Reiman and W. J. Jagust,“Brain imaging in the study of alzheimer’s disease,” in  Neuroimage, vol. 61, no. 2, pp. 505–516, 2012.
  • [11] D. L. Weimer and M. A. Sager,“Early identification and treatment of alzheimer’s disease: social and fiscal outcomes,”   Alzheimer’s & Dementia, vol. 5, no. 3, pp. 215–226, 2009.
  • [12] S. Harris, F. Wolf, B. Strooper, and M. Busche, “Tipping the Scales: Peptide-Dependent Dysregulation of Neural Circuit Dynamics in Alzheimer’s Disease,” Neuron, vol. 107, pp. 417–435, Aug. 2020.
  • [13] R. Canter, J. Penney, and L-H. Tsai, “The road to restoring neural circuits for the treatment of Alzheimer’s disease,” Nature, 539, pp. 187–196, Nov. 2016.
  • [14] B. Lei, et al., “Deep and joint learning of longitudinal data for Alzheimer’s disease prediction,” Pattern Recognition, vol.102, pp.107247, 2020
  • [15] S. Wang, Y. Shen, W. Chen, T. Xiao, and J. Hu, “Automatic recognition of mild cognitive impairment from mri images using expedited convolutional neural networks,” International Conference on Artificial Neural Networks, pp. 373–380, 2017.
  • [16] S. Hu, et al., “Bidirectional Mapping Generative Adversarial Networks for Brain MR to PET Synthesis,” IEEE Transactions on Medical Imaging, DOI: 10.1109/TMI.2021.3107013, 2021.
  • [17] I. Goodfellow, J. Pouget-Abadie, M. Mirza, B. Xu, D. Warde-Farley, S. Ozair, A. Courville, and Y. Bengio, “Generative adversarial nets,” in   Advances in Neural Information Processing Systems, pp. 2672–2680, 2014.
  • [18] S. Hu, Y. Shen, S. Wang, and B. Lei, , “Brain MR to PET Synthesis via Bidirectional Generative Adversarial Network,” International Conference on Medical Image Computing and Computer-Assisted Intervention, pp. 698–707, 2020
  • [19] B. Lei, et al., “Skin lesion segmentation via generative adversarial networks with dual discriminators,” Medical Image Analysis, vol. 64, pp. 010716, 2020.
  • [20] W. Yu, B. Lei, M. Ng, A. Cheung, Y. Shen, and S. Wang, “Tensorizing GAN with high-order pooling for Alzheimer’s disease assessment,” IEEE Transactions on Neural Networks and Learning Systems, 2021.
  • [21] L. Mo, and S. Wang, “A variational approach to nonlinear two-point boundary value problems,” Nonlinear Analysis: Theory, Methods & Applications, vol. 71, no. 12, pp. 834–838, 2009.
  • [22] S. Wang, “A variational approach to nonlinear two-point boundary value problems,” Computers & Mathematics with Applications, vol58, no. 11–12, pp.2452–2455, 2009.
  • [23] S. Wang, and J. He, “Variational iteration method for solving integro-differential equations,” Physics letters A, vol. 367, no. 3, pp. 188–191, 2007.
  • [24] S. I. Ktena et al., “Metric learning with spectral graph convolutions on brain connectivity networks,”  NeuroImage, vol. 169, pp. 431–442, 2018.
  • [25] D. Yao, M. Liu, M. Wang, C. Lian, J. Wei, L. Sun, J. Sui, and D. Shen, “Triplet graph convolutional network for multi-scale analysis of functional connectivity using functional MRI,” in   International Workshop on Graph Learning in Medical Imaging, pp. 70–78, Springer, 2019.
  • [26]

    D. Zeng, S. Wang, Y. Shen, and C. Shi, “A GA-based feature selection and parameter optimization for support tucker machine,”

    Procedia computer science, vol. 111, pp. 17–23, 2017.
  • [27] S. Wang, and J. He, “Variational iteration method for a nonlinear reaction-diffusion process,” International Journal of Chemical Reactor Engineering, vol. 6, no. 1, 2008.
  • [28] S. Wang, et al., “Skeletal maturity recognition using a fully automated system with convolutional neural networks,” IEEE Access, vol. 6, pp. 29979–29993, 2018.
  • [29] S. Wang, et al., “An Ensemble-Based Densely-Connected Deep Learning System for Assessment of Skeletal Maturity,” IEEE Transactions on Systems, Man, and Cybernetics: Systems, 2020.
  • [30] S. Wang, Y. Hu, Y. Shen, and H. Li, “Classification of diffusion tensor metrics for the diagnosis of a myelopathic cord using machine learning,” International journal of neural systems, vol. 28, no 02, pp. 1750036, 2018.
  • [31] S. Wang, et al., “Prediction of myelopathic level in cervical spondylotic myelopathy using diffusion tensor imaging,” Journal of Magnetic Resonance Imaging, vol. 41, no. 6, pp.1682–1688, 2015.
  • [32] Y. Li, J. Liu, Z. Tang, and B. Lei, “Deep Spatial-Temporal Feature Fusion From Adaptive Dynamic Functional Connectivity for MCI Identification,”   IEEE Transactions on Medical Imaging, vol. 39, no. 9, pp. 2818–2830, Sep. 2020
  • [33] M. Wang, C. Lian, D. Yao, D. Zhang, M. Liu, and D. Shen,“Spatialtemporal dependency modeling and network hub detection for functional MRI analysis via convolutional-recurrent network,” IEEE Transactions on Biomedical Engineering, 2020.
  • [34] Y. Zhao et al., “Imaging of Nonlinear and Dynamic Functional Brain Connectivity Based on EEG Recordings With the Application on the Diagnosis of Alzheimer’s Disease,” IEEE Transactions on Medical Imaging, vol. 39, no. 5, pp. 1571–1581, May 2020,
  • [35] K. Wu, Y. Shen, and S. Wang, “3D convolutional neural network for regional precipitation nowcasting,” Journal of Image and Signal Processing, vol.7, no. 4, pp. 200–212, 2018
  • [36] T. Kipf, and M. Welling, “Semi-Supervised Classification with Graph Convolutional Networks,”  arXiv preprints arXiv:1609.02907, 2016.
  • [37] D. Yao, M. Liu, M. Wang, C. Lian, J. Wei, L. Sun, J. Sui, and D. Shen, “Triplet graph convolutional network for multi-scale analysis of functional connectivity using functional MRI,” in   International Workshop on Graph Learning in Medical Imaging, pp. 70–78, Springer, 2019.
  • [38] S. Parisot. et al., “Disease prediction using graph convolutional networks: Application to autism spectrum disorder and Alzheimer’s disease,”  Medical Image Analysis, vol. 48, pp. 117–C130, 2018.
  • [39] S. I. Ktena et al., “Distance metric learning using graph convolutional networks: Application to functional brain networks,” in   Proc. Int. Conf. Med. Image Comput. Comput.-Assist. Intervent. Cham, Switzerland: Springer, 2017, pp. 469–477.
  • [40] S. Yu, et al., “Multi-scale Enhanced Graph Convolutional Network for Early Mild Cognitive Impairment Detection,” International Conference on Medical Image Computing and Computer-Assisted Intervention, pp.228–237, 2020.
  • [41] G. Ma et al., “Deep graph similarity learning for brain data analysis,” in   Proceedings of the 28th ACM International Conference on Information and Knowledge Management, pp. 2743–2751, 2019.
  • [42] Y. Dong, W. Sawin , and Y. Bengio, “HNHN: Hypergraph Networks with Hyperedge Neurons”  arXiv preprints arXiv:2006.12278, 2020.
  • [43] C. Yan, and Y. Zang, “DPARSF: a MATLAB toolbox for” pipeline” data analysis of resting-state fMRI” Frontiers in systems neuroscience, vol. 4, pp. 13, 2010.
  • [44] J. Wang, X. Wang, M. Xia, X. Liao, A. Evans, and Y. He, “GRETNA: a graph theoretical network analysis toolbox for imaging connectomics” Frontiers in human neuroscience, vol. 9, pp. 386, 2015.
  • [45] Z. Cui, S. Zhong, P. Xu, Y. He, and G. Gong, “PANDA: a pipeline toolbox for analyzing brain diffusion images” Frontiers in human neuroscience, vol. 7, pp. 42, 2013.
  • [46] D. Veitch. et al., “Understanding disease progression and improving alzheimer’s disease clinical trials: Recent highlights from the alzheimer’s disease neuroimaging initiative” Alzheimer’s & Dementia, vol. 15, pp. 106–152, 2019.
  • [47] B. Lei, et al., “Predicting Clinical Scores for Alzheimer’s Disease Based on Joint and Deep Learning” Expert Systems with Applications, DOI: https://doi.org/10.1016/j.eswa.2021.115966, 2021.
  • [48] D. Salat. et al., “Selective preservation and degeneration within the prefrontal cortex in aging and Alzheimer disease” Archives of neurology, vol. 58 pp. 1403–1408, 2001.
  • [49] A. Du. et al., “Magnetic resonance imaging of the entorhinal cortex and hippocampus in mild cognitive impairment and Alzheimer’s diseas disease” Journal of neurology, neurosurgery, and psychiatry psychiatry, vol. 71 pp. 441–447, 2001.
  • [50] K. Tsuchiya, and K. Kosaka, “Neuropathological study of the amygdala in presenile Alzheimer’s disease” Journal of the Neurological Sciences, vol. 100 pp. 165–173, 1990
  • [51]

    L. Sun. et al., “Mining brain region connectivity for Alzheimer’s disease study via sparse inverse covariance estimation”

    Proceedings of the 15th ACM SIGKDD international conference on Knowledge discovery and data mining, pp. 1335–1344, 2009
  • [52] Y. Gupta. et al., “Early diagnosis of Alzheimer’s disease using combined features from voxel-based morphometry and cortical, subcortical, and hippocampus regions of MRI T1 brain images ” PLoS ONE, vol. 14, 2019
  • [53] L. Yang. et al., “Gradual disturbances of the amplitude of low-frequency fluctuations (ALFF) and fractional ALFF in Alzheimer spectrum ” Frontiers in neuroscience, vol. 12: 975, 2018
  • [54] G. Karas. et al., “Precuneus atrophy in early early-onset Alzheimer’s disease: a morphometric structural MRI study” Neuroradiology, vol. 49 pp.967–976, 2007
  • [55]

    K. Zhou. et al., “Feature selection and transfer learning for Alzheimer’s disease clinical diagnosis ”

    Applied Sciences, vol. 8: 1372, 2018
  • [56] S. Pusil. et al., “Aberrant MEG multi-frequency phase temporal synchronization predicts conversion from mild cognitive impairment-to-Alzheimer’s disease ” NeuroImage: Clinical, vol. 24: 101972, 2019
  • [57] M. Takahashi, Y. Oda, T. Okubo, and Y. Shirayama, “Relationships between cognitive impairment on ADAS-cog and regional cerebral blood flow using SPECT in late-onset Alzheimer’s disease” J. Neural Transm., vol. 124, no. 9, pp. 1109–1121, Sep. 2017.
  • [58] R. Migliaccio. et al., “Mapping the Progression of Atrophy in Early- and Late-Onset Alzheimer’s Disease” J. Alzheimers Dis., vol. 46, no. 2, pp. 351–364, Mar. 2015
  • [59] A. Brickman. et al., “ Reconsidering harbingers of dementia: progression of parietal lobe white matter hyperintensities predicts Alzheimer’s disease incidence” Neurobiology of aging, vol. 36, no. 1, pp. 27–32, 2015.
  • [60] K. Jobst. et al., “Rapidly progressing atrophy of medial temporal lobe in Alzheimer’s disease” The Lancet, vol. 343, no .8901, pp. 829–830 1994.
