Multi-robot coverage and tracking is a well-studied problem. Over the years, several approaches have been presented for planning and coordination algorithms . In particular, consider the problem of covering a set of mobile targets using a team of aerial robots with downwards-facing cameras (Figure 1). A target is said to be covered if it falls within the field-of-view of one of the robots’ cameras. The objective is for the robots to choose their individual trajectories so as to maximize the total number of targets covered.
There are several reasons why this problem is challenging. Coordination amongst the robots is critical as you want to avoid overlap and maximize the coverage. This is easier in a centralized setting; however, our focus is on decentralized strategies where the robots can communicate directly only with their immediate neighbors. Decentralization is also harder since each robot only knows of the targets in their own fields-of-view. Finally, since we need to cover mobile targets, we need to predict their motion over the planning horizon. However, the motion model of the targets itself may be unknown making the problem even more challenging.
In this paper, we investigate the question: Can the robots learn to plan and coordinate in a decentralized fashion for target coverage problems? Recently, there has been significant work on learning-based approaches to multi-robot planning. However, most of this work is restricted to coordination for path finding (where each robot needs to find the shortest path to its own goal position in an unknown environment) [4, 8, 9] and formation control (such as flocking) [13, 6]. We build on this to study a more complex task that requires planning, coordination, and prediction.
Our contribution is a decentralized, differentiable coverage planner (D2CoPlan) for multi-robot teams. D2CoPlan consists of three differentiable modules, namely map encoder, decentralized information aggregator, and local action selector. The input to D2CoPlan is a coverage map that represents predictions of where the targets are going to be in the next timestep. This map comes from another differentiable module we call Differentiable Map Predictor (DMP
). The map encoder takes the predicted maps and turns it into a compact representation which is shared with the other agents using a Graph Neural Network (GNN). The GNN aggregates information from neighboring agents and uses that for selecting the ego robot’s action. D2CoPlan is trained on an expert strategy (centralized optimal algorithm that has global information) but is executed in a decentralized fashion (following the Centralized Training, Decentralized Execution paradigm ). We show that D2CoPlan is a scalable, efficient approach for multi-robot target coverage. In particular, we show that D2CoPlan is able to achieve of the centralized optimal algorithm in upto x less time but in a decentralized fashion.
A typical approach for this problem is to frame it as a submodular maximization problem with a uniform matroid constraint . A decentralized greedy (DG) algorithm gives theoretical performance guarantees and works well empirically [10, 15]. We show that D2CoPlan performs as well as DG when the ground truth positions of the targets are known and better when the robots have to predict the motion of the targets. Further, the running time of D2CoPlan scales better compared to DG. A key advantage of D2CoPlan is that it consists of two differentiable modules, where the observation processor module can be trained to be compatible with the planner module. We investigate several ways of combining the two modules as well as ablation studies for the design of D2CoPlan’s architecture.
The rest of the paper is organized as follows: we first discuss the related work on this topic in Section II. Then we formulate the problem in Section III. Section IV describes the design of D2CoPlan. Section V first provides the implementation details and then describe various experiment and the results obtained. We conclude by summarizing our finding in Section VI and discuss the avenues of future work.
Ii Related Work
Multi-robot coordination problems have largely relied on using classical, non-leaning-based approaches. The centralized approaches assume presence of a single entity which can access observations from all the robots and plan accordingly. Since finding optimal solutions may be practically intractable, the centralized approaches often utilize greedy formulations to find approximate solutions. Many multi-robot tracking and coverage objectives are submodular i.e., they have diminishing return property, and greedy solutions provide constant factor approximation guarantee for them .
Finding solutions with centralized approaches is still computationally expensive and the runtime rapidly increases with the increase in the number of robots. Decentralized approached provide an efficient solution at the cost of a lower, but acceptable drop in the task performance, by distributing the task of computation to cliques[17, 18, 12]. The communication could be expanded to multiple hops to increase the information horizon, but it comes at the cost of increased runtime [10, 15].
Neural networks provide an avenue to improve upon classical solutions through their ability to model complexities using data. Furthermore, a differentiable approach can be combined with other differentiable methods to enable efficient with end-to-end learning from data . Introduction of GNNs  to solve problem with graph representations opened doors to application of neural networks to decentralized multi-robot tasks by facilitating feature sharing between robots . Recent works have successfully employed GNNs to solve multi-robot problems such path planning [8, 9], persistent monitoring , and formation control [13, 6] among others. Specifically for multi-robot coverage problems, Tolstaya et al.  and Gosrich et al.  used GNNs in different training paradigms to learn control policies. Many of these works show that apart from achieving near-expert solutions, GNNs can help scale well to larger robot teams.
Unlike these works, we specifically focus on target coverage. Recently, Zhou et al.  proposed a planner for the coverage problem using GNN and show such a planner performs on par with the classical counterpart and scales marginally better. However, their approach requires hand-crafted features and uses only 20 closest target as input. This design makes the network non-differentiable at the input layer and thus can not be used in conjunction with other learning methods. We address both these issues in our work by using a richer map representation, while also improving the coverage performance and scalability.
Iii Problem Formulation
In this work, we investigate the problem of decentralized, multi-robot action selection for joint coverage maximization. Consider the scenario in Figure 1.
A set of robots are tasked to cover targets moving in a grid of size . Every robot has a set of actions that it must select from at each time step. All the targets that fall within the sensing range (e.g., camera footprint) are said to be covered by the robot. The objective is to maximize the total number of targets covered by selecting the actions for each robot.
We assume that the robots do not collide with each other (e.g., by flying at different altitudes). A robot can communicate with another robot is if it is within the communication range . The robots need to select their actions based on only local information.
Each robot has access to a local coverage map, which gives the predicted occupancy of targets near the robot (specifically, targets that can be covered by its motion primitives). Any overlap in covering the same set of targets results in the targets being counted as covered only once. We show an example in Figure 2 where robot 2 and robot 3 may end up tracking the same target. Thus, a robot must collaborate with others to minimize overlap in motion for efficient coverage. To do so, the robot must also share its local coverage map with others. It is also important to share a compact representation of the map to reduce the bandwidth requirement of the algorithm.
Our main contribution is D2CoPlan, which solves both problems simultaneously. It consists of an map encoder that comes up with a compact representation of each robot’s coverage map, an information aggregator, followed by an action selector. Furthermore, since D2CoPlan is differentiable, we can combine it with a Differentiable Map Predictor (DMP), that takes as input the history of observations from a robot and predicts the coverage map of where the targets are going to be when the robots move.
We present a differentiable, decentralized coverage planner called D2CoPlan to efficiently solve the multi-robot coverage problem by predicting the best action for a robot given its local coverage map. It can be integrated with any differentiable map predictor (DMP), to solve tasks where direct observations are not available. We design D2CoPlan as a combination of three sub-modules:
Iv-a Map Encoder
This module takes the robot’s coverage map as input and transforms it into a feature vector that can be share with the robot’s neighbors. We implement this module using a multi-layer Convolutional Neural Network (CNN), consisting of convolution, pooling, and ReLU activation layers. The input to the encoder is the coverage map as a single channel image of size. The output features from the CNN are flattened into a vector of size before sharing with the neighbors. This also allows for compressing the local maps making it efficient to communicate them to other robots. We choose CNN as the encoder here over a fully-connected neural network as it allows for a richer representation than the pre-processed inputs required for the latter as used in prior work . Furthermore, we do not need to limit the maximum number of targets as input in our representation.
Iv-B Distributed Feature Generator
This part of the network enables sharing of the map encoding features with a GNN. GNN enables feature aggregation for each graph node through neural networks, allowing distributed execution. The information can be shared with -hop communication to the neighbors identified using the adjacency matrix. The output of this module summarize the information from the neighbors as a vector, enabling informed decision-making in the next step.
Iv-C Local Action Selector
The last module of D2CoPlan is responsible for prescribing the best action to the robot based on the information gathered from the neighbors in the previous step. We implement this module as a Multi-Layer Perception (MLP) which outputs a -dimensional output, denoting the fitness of each action, . During the training the loss is calculated as cross-entropy over these outputs with the ground truth actions. Thus, this module enables the gradient flow for end-to-end training for D2CoPlan.
For training D2CoPlan, we use a centralized greedy algorithm as the expert algorithm to generate the target actions. The centralized greedy algorithm has access to global information (i.e., the global coverage map) and can therefore make much more informed decisions. In fact, it is known that the centralized greedy algorithm is within of the centralized optimal which eliminates the need to run optimal, brute force search algorithm that is infeasible for generating training data for large number of robots. The expert algorithm evaluates the coverage by each robot-action pair and selects the pair with the highest value. The selected robot and the covered targets are removed from consideration and the process is repeated till each robot is assigned an action. The algorithm has a time complexity of for number of robots. We refer to this algorithm as Expert.
Iv-D Differentiable Map Predictor
To transform the robot’s observation to coverage maps, we introduce a map predictor module. To allow integration with D2CoPlan in order to learn the transformation we use a differentiable map predictor (DMP). The design of DMP depends on the task at hand, and can be realized with neural networks. For example, if the task is defined as maximizing coverage with moving targets, DMP
can be implemented as a recurrent neural network. We use CNN to solve this task by stacking the historical observations as a multidimensional image and train it with a pre-trainedD2CoPlan over the expert actions. This module is optional and we can use the ground truth coverage map for action selection, if available.
V Experiments and Results
V-a Experiment Setup
In our experiments, We use D2CoPlan trained over robots. To generate the training data, we use a grid with i.e., a grid with size . The target coverage maps are generated using a mixture of Gaussian to simulate low and high density areas. The intuition is to mimic real-life situations such as animals density being higher closer to water holes and lower around ditches in a forest. For this, we choose a random number of Gaussian components in the range
with the standard deviation for each uniformly sampled from the set. The locations of the means are selected uniformly at random on the grid. Some of the components are randomly inverted by multiplying by
to simulate lower density regions. The probability density obtained by summing up the components is then normalized to obtain a categorical probability density function over the grid. As the last step, we sample locations using this density function to fillof the grid cells to represent the target locations. We simulate linear motion for the targets with randomly chosen initial velocity.
The robot locations are randomly selected on the grid. The action set for each robot consists of 5 actions, one per cardinal direction and one to stay in place. The sensing range , each action moves a distance of , and communication range is . With our choice of action primitives, the coverage map looks like a rectangular field on the grid of size , where only the target within the coverage map are visible. The communication is limited to 1-hop only. We generate total 40000 maps and run Expert on each to obtain the target actions. From this dataset, instances are used for training, are used for validation and the rest are used for testing.
Map encoder is implemented as a 3-layer CNN (ConvReLUMaxpool) with intermediate output features of size , and . The final output is flattened to a vector of size . This vector acts as a compresses map representation. For Distributed feature aggregator, we use implementation by Li et al.  with 2 graph layers of and nodes and ReLU activation. Local action selector is implemented as a single layer fully connected network, directly predicting the actions. We also use dropout of
in the CNN layers and after the GNN to regularize the network. We train the network on an Nvidia GeForce RTX 2080Ti GPU with 11GB of memory for 1500 epochs and use the network weights with the minimum validation loss for evaluation.
An efficient distributed planner must have some desirable properties: it should run faster than the centralized algorithm, while achieving coverage within a reasonable margin of the centralized algorithm; and it should scale well with varying number of agents by generalizing beyond the settings it is trained on. In this section, we present empirical evidence that D2CoPlan has the aforementioned desirable properties. We go one step further and show that D2CoPlan scales better than even DG. Finally, we demonstrate the advantages of a differentiable design. Specifically, we show that D2CoPlan performs better when combined with DMP than DG.
V-B1 Comparisons with Expert
We begin by comparing the coverage performance (number of targets covered) and runtime of D2CoPlan with the Expert which is the centralized greedy algorithm that D2CoPlan is trained using. In this set of experiments, we use the ground truth coverage map as inputs since our focus is on evaluating the planner. In subsequent experiments, we will evaluate the effect of the map predictor on the coverage task.
D2CoPlan was trained on a dataset of 20 robots in a grid of size . We compare the two algorithms with increasing number of robots (from to ) in the same grid. We run 1000 Monte-Carlo simulations for each setting.
The results for this evaluation are shown in Figure 4. D2CoPlan has a clear advantage in terms of runtime and the advantage increases as the number of robots increases. For example, with 50 robots, D2CoPlan is more than two orders of magnitude faster than Expert. This is not surprising since Expert is a centralized algorithm whose runtime scales quadratically with the number of robots whereas D2CoPlan is a decentralized algorithm. In addition to being significantly faster, we also observe that D2CoPlan covers of the targets as the Expert, despite each robot having only a limited amount of information.
V-B2 Comparisons with Dg
Next, we compare D2CoPlan with a classical decentralized algorithm, DG. In DG, each robot chooses its own action by running a greedy algorithm but only on the set that includes itself and its immediate neighbors (hence, decentralization). As shown in Figure 5, D2CoPlan and DG perform almost the same in terms of the number of targets tracked. However, the real advantage of D2CoPlan comes in the runtime where we observe it becomes much faster than DG as the number of robots increase (e.g., with 50 robots, D2CoPlan is almost twice as fast). While both algorithms are decentralized, DG still requires running a greedy algorithm over the local neighborhood of each robot which increases the runtime as the density of the robots increase. Furthermore, in Section V-B4 we show that D2CoPlan outperforms DG even in terms of coverage performance when the true coverage map is not given.
Next, we evaluate the generalization capability of D2CoPlan beyond the scenario it has been trained on. We test two types of generalization: (1) across number of robots; and (2) across density of the targets (i.e., coverage map) in the environment. For both tests, we train on a specific number of robots (1) or target density (2) and test with a different number of robots (1) or target density (2). We summarize these results in Table I and Table II obtained over 1000 Monte-Carlo runs.
We observe that D2CoPlan generalizes well in both cases. Table I shows the coverage performance when trained on the number of robots given in the row and tested on the number of robots given in the column. We see that in most cases, the performance remains unchanged. The network trained on robots sees a slight drop in performance on other test configurations but still covers around of the targets covered by Expert.
D2CoPlan also generalizes well across varying target density as shown in Table II. We observe that D2CoPlan trained with a target density of performs almost the same when tested on other target densities. The performance is of the Expert in all cases but density (where it is ), which we believe is caused by fewer number of available targets, increasing the gap in the performance of the compared algorithms. These results validate the claim that D2CoPlan trained under one type of scenario generalizes to other deployment scenarios.
|TrainTest||10 Robots||20 Robots||30 Robots|
|Target Density||Relative coverage|
V-B4 Prediction and Planning
A key advantage of D2CoPlan is its differentiablity, allowing D2CoPlan to be combined with other gradient-based learning methods to solve challenging problems in an end-to-end manner. In this section, we evaluate how the differentiable map predictor can be trained along with the differentiable planner (D2CoPlan) and compare it with DG.
So far, we have used the ground truth coverage map as input to the planners. Now, we consider a scenario where the input consists of the observations of the targets over the past timesteps. The true motion model of the robots is not known to the robots. Therefore, they need a predictor to estimate the positions of the targets over the planning horizon which can then be used byDG or D2CoPlan.
Here, we use a DMP to learn the motion model. The targets move with a linear velocity selected randomly at the start of the episode (unknown to the planner). To show the advantage of having a decentralized planner, we compare three methods: (1) an Oracle i.e., the ground truth map as the mapper along with Expert as the planner; (2) DMP as the learnable mapper with DG as the planner; and (3) DMP as the learnable mapper with D2CoPlan as the planner. In (2), DMP is trained from scratch where in (3) DMP
is trained by backpropagating the loss fromD2CoPlan. D2CoPlan itself is frozen and aids DMP in learning better representations for action prediction. The three settings present different combinations classical and learning-based approaches.
Coverage maps observed over last 3 time steps are used as input to DMP and it predicts the map at the next time step. We use a 4-layer CNN with 8, 16, 4 and 2 channels as DMP. We keep the map size same across each layer to avoid information loss and predict the occupancy probability of each cell as a two channel map. The probability map thus obtained is used as input to the planner. We trained DMP over 2000 epochs with 5 examples of 20 robots (i.e., 100 training instances) in each. Given that most of the cells in the coverage map will be zero, we weigh the cross-entropy loss by a ratio of 1:10 for free and occupied cells. The action prediction loss for (3) is the unweighted cross-entropy loss.

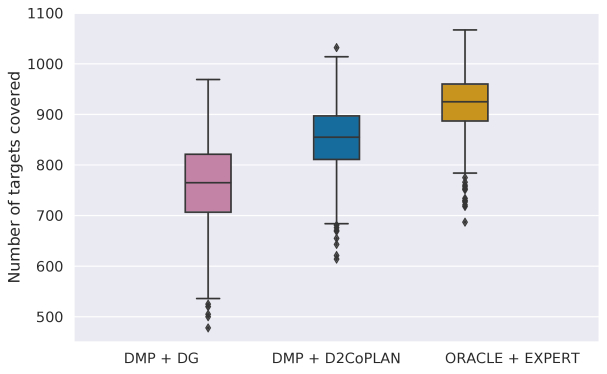

Figure 6 shows a comparison of the three approaches and provides evidence for benefit of using a differentiable planner to realize end-to-end learning. The combination of D2CoPlan and DMP is better compared to DG and DMP, despite DMP in the latter being trained on ground truth. We attribute this to the fact that D2CoPlan and DMP form a differentiable chain which allows DMP to be trained directly on the downstream task (action selection) rather than on just map prediction. DG and DMP, on the other hand, are not a differentiable chain and thus DMP cannot be trained on the downstream task directly.
We further explore this by comparing 3 ways of training DMP when used in conjunction with D2CoPlan: (1) DMP and D2CoPlan are trained together from scratch; (2) DMP and D2CoPlan are trained individually and then used together; and (3) D2CoPlan is first trained and then DMP is trained on loss from D2CoPlan while D2CoPlan is frozen.
Figure 7 shows the comparison of all three methods. The third approach outperforms the other two. This demonstrates the advantage of having a differentiable planner. Using a pre-trained and frozen D2CoPlan and training directly on the downstream task loss, allows DMP to learn patterns beneficial for action prediction and not just for map prediction. If both modules are trained from scratch in an end-to-end manner, they may need more time to learn the same behavior. The third approach also does not require ground truth motion models for the targets to be available for training DMP. While in this paper we use the ground truth to generate the expert solutions used in training D2CoPlan, in general, one can use any other expert algorithm such as human inputs to train D2CoPlan which does not need ground truth target motion.
We presented D2CoPlan, a differentiable, decentralized target coverage planner for multi-robot teams. Our experimental results show that D2CoPlan is more scalable than the classical decentralized algorithm that is used for such tasks while performing closer to the centralized algorithm. Furthermore, due to the fact that it is a differentiable planner, we can combine this with other differentiable modules (e.g., a coverage map predictor) to yield better performance than the classic counterparts. These results present an encouraging path forward for multi-robot coordination tasks. Our immediate work is evaluating D2CoPlan for more complex tasks. In this paper, we train D2CoPlan in a supervised setting. We are also working on training D2CoPlan
with reinforcement learning. Finally, an interesting avenue for extension is where we learn not justwhat to communicate with other robots (as we do in this paper) but also who to communicate with.
