I Introduction

In the current digital era, time series data is ubiquitous due to widespread adoption of Internet of Things technology with applications across several domains such as healthcare, equipment health monitoring, meteorology, demand forecasting, etc. Time series classification (TSC) has several practical applications such as those in healthcare (e.g. real-time monitoring, disease diagnosis using time series of physiological parameters, classifying heart arrhythmia in ECG, etc.) and fault diagnostics using sensor data from equipment (e.g. determining the type of fault from sensor data).

Deep learning approaches, such as those based on recurrent neural networks (RNNs) and convolution neural networks (CNNs) have been proven to be very effective for univariate time series classification (UTSC)

[1, 2, 3]. Deep CNNs have yielded some of the state-of-the-art models [1, 3] for TSC. However, it is well-known that training deep networks requires significant hyper-parameter tuning effort and expertise, high computational resources, and is prone to overfitting, especially when access to a large labeled training dataset is difficult.

Transfer learning [4, 5] is known to be an effective way to address some of the above-mentioned challenges in training deep neural networks: It enables knowledge transfer from a source task with sufficient training instances to a related target task with fewer training instances, for example, by training a deep neural network model on source task(s) with large labeled data, and adapting this model for the target task using a small amount of labeled data from the target task. This approach of fine-tuning a pre-trained network for target task is often faster and easier than obtaining a network from scratch (starting with randomly initialized weights) that often requires computationally expensive hyper-parameter tuning [5]. For example, it is well-established that training a deep CNN using a diverse set of images results in generic filters that can provide useful features for target tasks with images from unseen domains [6].

Recently, transfer learning for TSC using deep neural networks has been explored, e.g., using RNNs in [7, 8, 9], and using CNNs in [10, 11]. These approaches pre-train a deep network on time series from diverse domains, and then either use it as a time series feature extractor for the target task as in TimeNet [7, 8], or use the pre-trained network to initialize the parameters of the neural network for the target task [10, 11, 9]. When pre-training a deep network on time series from diverse domains, the rate of change of relevant information in time series can vary significantly across tasks and domains. We note that CNN based TSC architectures, as proposed in [1, 3], can extract local information at only one time scale determined by a single fixed filter size, limiting the flexibility of the model. The filter size of a convolutional layer should, therefore, be chosen carefully to extract relevant features depending on the domain and target task. Indeed, hand-crafted transformations such as smoothening and down-sampling of time series to learn features at various time scales for TSC have been shown to be useful in Multi-scale CNNs [12]. We hypothesize that this aspect is even more relevant in a transfer learning setting when adapting a pre-trained deep CNN with its convolutional filters to a target domain. For example, training a common network on diverse tasks with time series as short as to as long as warrants the need to take into account varying relevant time scales: a filter length of may be useful and sufficient to capture relevant features for datasets with short time series, whereas a filter length of may be more appropriate for datasets with long time series.

In this work, we propose ConvTimeNet (CTN), a deep CNN-based transfer learning approach for UTSC. CTN consists of multiple length 1-D convolutional filters in all convolutional layers (similar to that in InceptionNet [13, 14]) resulting in filters that can capture features at multiple time scales. The key contributions of this work can be summarized as follows:

  1. We propose ConvTimeNet (CTN), a novel pre-trained deep CNN for univariate time series classification tasks.

  2. We demonstrate that fine-tuning CTN for target tasks outperforms a deep CNN trained from scratch in terms of classification accuracy.

  3. We demonstrate that the CTN can cater to diverse time series of varying lengths by using 1-D convolutional filters of multiple lengths to capture features at different time scales.

  4. We demonstrate that fine-tuning the CTN is computationally efficient compared to training a deep CNN from scratch.

We report state-of-the-art results for UTSC on the UCR TSC benchmark [15] considering all datasets with time series length up to 512, while also significantly improving upon our RNN-based TimeNet [16].

Ii Related Work

Several approaches for UTSC have been reviewed in [17]. A plethora of research has been done using feature-based approaches or methods to extract a set of features that represent time series patterns as reviewed in [17]. COTE (Collective of Transformation-Based Ensembles), ST (Shapelet Transform), PF (Proximity Forest) and (Bag-of-SFA-Symbols) are considered to be the state-of-the-art non-deep learning algorithms for UTSC [17]. Although COTE is one of the most accurate classifiers, it has a large training time complexity which is ( being number of training samples and being time series length). Whereas most of these approaches extract features using data from the UTSC task at hand, our proposed approach aims to learn generic multi-time-scale features via filters in CNNs which can be useful on time series from unseen domains in a transfer learning setting.

Recently, several deep learning architectures based on Long short-term memory networks (LSTMs), CNNs, and their combinations have been proposed for univariate TSC (e.g.

[12, 1, 2]). To overcome overfitting issues and achieve better generalizability, data augmentation methods have been proposed: combining datasets of similar length across domains [18], using simulated data [19], window slicing, warping, and mixing [18, 12], etc. Decorrelating filters of CNNs has been recently shown to be effective in reduce overfitting [20]. On the other hand, we consider transfer learning to achieve better generalizability by pre-training a model on large labeled datasets and then fine-tuning it for the end (target) task with potentially less labeled data.

Several approaches for transfer learning exist in other domains such as computer vision and natural language processing, e.g. via fine-tuning

[21, 22]. In the context of time series classification applications, few instances of leveraging transfer learning to achieve better generalizability have been considered when using deep learning models, e.g. [7, 10, 11]. [23] reports significant improvements by combining pre-specified features from Fourier, wavelet, and other transformations of the time series signals with deep learning features from TimeNet [16]. However, none of these approaches consider the inherent need of multi-scale learning when training a common model across domains with varying time series. [14] attempts to address this need but not in transfer learning scenarios. In this work, we propose CTN which uses multiple length filters yielding significant improvements over fixed-length CNN models for transfer learning.

Iii ConvTimeNet

Iii-a Overview

Consider a univariate time series with for , and being the length of the time series. Further, consider a labeled dataset having samples and ground truth class label with being the number of classes. The goal of UTSC model trained on

is to predict a probability vector

with corresponding to the ground truth one-hot vector for a test time series . In this work, we propose CTN, a deep convolutional neural network (CNN) based UTSC model that is trained on a source set containing UTSC source datasets. Once trained, CTN can be adapted to a new target UTSC task with small labeled dataset via suitable fine-tuning.

We first describe the architecture considered for CTN in Section III-B, and then describe how we train CTN using a diverse source set in Section III-C. In Section III-D, we describe how CTN is adapted for a target task via fine-tuning.

Iii-B CTN Architecture

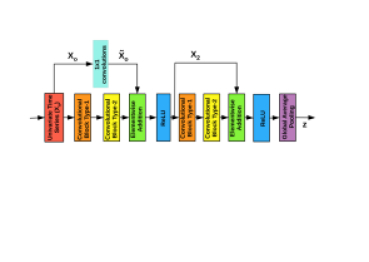

Fig. 1: ConvTimeNet with four convolutional blocks.

As depicted in Fig. 1, the architecture of CTN is fairly simple: it consists of multiple convolutional blocks followed by a Global Average Pooling (GAP) layer [24], as detailed next. CTN is trained via additional multi-head fully connected (FC) and softmax layers, as detailed in Section III-C.

Iii-B1 Convolutional Blocks with multiple length filters

Consider a CTN with convolutional blocks. The -th convolutional block consists of 1-D convolution filters of varying lengths (e.g. filters of exponentially varying lengths ) as shown in Fig. 2. This allows CTN to extract and combine features from different time scales, improving the generalization of the network across diverse TSC tasks (as shows later empirically in Section IV-E).

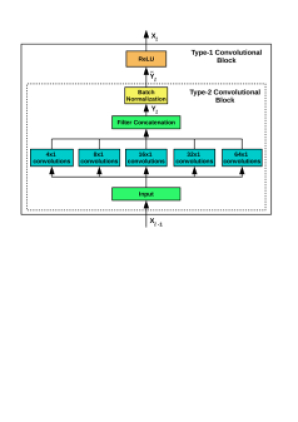

Fig. 2: Convolutional Block

For a time series

, the input tensor to the

-th convolutional block with filters is given by with channels (Note: corresponding to the univariate input time series). A filter of length in layer is represented by a tensor where . The feature map obtained using -th filter is given by where is the convolution operation and is a scalar bias111

We use zero-padding to keep the length

of input and output same.
. The output tensor consisting of the feature maps from the filters is represented by . Note that the length varies across filters, e.g. in Fig. 2. We consider equal number of filters for each length, such that there are filters of each length.

We consider residual connections

[25] across blocks to allow gradients to flow directly to lower layers, enabling training of deep networks. Depending on whether the output of the block is to be added to the output of a previous layer in the network via residual connections or not, there are two types of convolutional blocks: Type-1 and Type-2, as shown in Fig. 2. For convolutional blocks of Type-1,

is passed through a batch normalization (BN) layer

[26]

and a Rectified Linear Unit (ReLU) layer (where

operation) to obtain . The structure of the convolutional blocks of Type-2 differs from that of Type-1 in the sense that is processed by the BN layer to obtain but not the ReLU layer thereafter. Instead, a residual connection is used such that is added to after being processed via an optional convolutional layer to obtain to enable element-wise addition with , and then finally passed through a ReLU layer to obtain , where is the element-wise addition operation.

Iii-B2 GAP layer to obtain fixed-dimensional vector for time series of varying lengths

For classification tasks, a standard CNN approach would flatten the output of the last convolutional layer to obtain a -dimensional vector, and further use FC layer(s) before a final softmax layer. For long time series, i.e. large , this approach leads to a significantly large number of trainable parameters that grows linearly with . Instead, we pass the output of the final convolutional block through a Global Average Pooling (GAP) layer that averages each feature map along the time dimension (as used in, e.g. [1] and [3]). More specifically, GAP layer maps to a vector by taking a simple average of the values in each of the feature maps, thereby drastically reducing the number of trainable parameters.

In a nutshell, CTN takes as input a univariate time series of length and converts it to a fixed-dimensional feature vector of length to be subsequently passed to a multi-head FC layer followed by softmax layer for training the various layers of CTN, as described next and summarized in Algorithm 1.

Iii-C Training CTN

Hereafter, we use to refer to the set of all trainable parameters of CTN consisting of , , and the BN parameters for and . In order to learn the parameters , we train CTN over the diverse set of time series classification tasks in with varying number of classes and time series lengths, by adopting a multi-head learning strategy: the core neural network (CTN) is common across the source tasks, while the task-specific parameters of the FC layer before the softmax layer are learned independently for each source task. A labeled training dataset () consists of samples and corresponds to a -class classification problem. Since each dataset has different number of classes, we use FC and softmax layers, one for each dataset as shown in Fig. 3, with the -th head mapping to probability values.

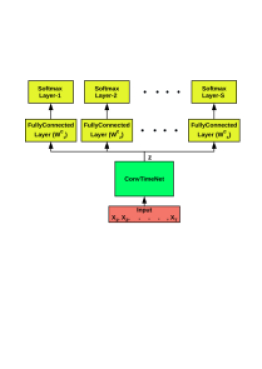

Fig. 3: Training CTN using multi-head FC and softmax layer

Since the number of samples across datasets can vary significantly, we consider training CTN on randomly sampled batches of size for each of the

datasets in an epoch. Each epoch, therefore, considers

training samples from each dataset resulting in a total of training samples per epoch. The order in which the datasets are iterated within an epoch is decided randomly. In turn, the batches of a dataset are processed together (one after the other) while updating and

in each iteration using stochastic gradient descent to minimize cross-entropy loss:

(1)

where is the probability that the -th time series instance in batch belongs to class , for the target class while otherwise.

Note that while the parameters are updated during each of the iterations in an epoch, the task-specific parameters are updated only during the corresponding iterations of dataset in an epoch and stored thereafter, until these are re-used and updated during the next epoch when processing the batches from . By using the same filters for all the UTSC tasks, the learned filters are likely to capture generic time series trends, patterns and features that are potentially useful for time series from other domains.

Iii-D Fine-tuning CTN for a target dataset

Result: Final CTN parameters
Input: Train set , validation set
Orthogonal Initialization of for i=1 …max_train_epochs do
        // train
        for  do
               update and for iterations
        end for
        // fine-tune for validation datasets
        for  do
               initialize update and for compute test loss at epoch with minimum validation loss
        end for

end for
Algorithm 1 Procedure for training CTN.

We first describe how to fine-tune CTN for a new UTSC task, i.e. for a new dataset with a different set of target classes, and then discuss how to use it for (i) finding the best parameters via hold-out validation, as well as for (ii) transfer learning. For a new UTSC task, we consider training the task-specific FC layer with parameters (followed by softmax) on top of the GAP layer of CTN while also updating the parameters as shown in Fig. 4. The parameters and

are then updated together using cross-entropy loss function as in Equation

1.

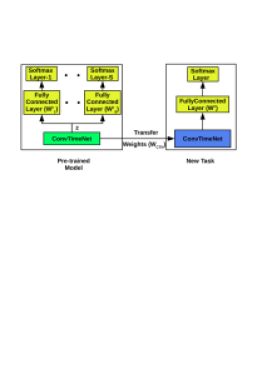

Fig. 4: Transfer Learning using ConvTimeNet

Iii-D1 Fine-tuning for validation

Rather than the standard approach of using hold-out instances from the training dataset to build a validation set, we use different datasets for validation, where we fine-tune CTN for hold-out unseen datasets independently one-at-a-time, and then use average loss across the validation datasets as validation loss (described later in this section). This way of validation of CTN mimics the transfer learning scenario where the goal is to adapt CTN for a new dataset, and therefore, yields a CTN model that is likely to generalize to unseen tasks. Such an approach for defining validation tasks has been shown to be useful in transfer learning settings, e.g. [27].

More specifically, for obtaining the best parameters during the iterative training process (refer Algorithm 1), we use a (relatively smaller) validation set containing UTSC datasets such that . Let represent the parameters of CTN at the end of -th training epoch. The time series instances in are divided into train, validate and test samples. For each dataset for , the parameters and are fine-tuned using the train samples of via stochastic gradient descent for a fixed number of epochs. Using updated and at the epoch with minimum validation loss, we compute the test loss for . Then, the validation loss for CTN at the end of -th training epoch is defined as the average of these test losses across all datasets in , and is given by . The optimal parameters are chosen at the epoch where the validation loss is minimum, and represent the final parameters of the CTN.

Iii-D2 Transfer to a new task

The procedure for adapting / fine-tuning CTN for any new target task is similar to that of validation: We use as initial weights of CTN and randomly initialize FC layer weights , and train them simultaneously for a fixed number of iterations using labeled data from target task.

Iv Experimental Evaluation

(a) Training datasets
Dataset T C N Dataset T C N
ItalyPowerDemand 24 2 1096 SonyAIBORobotSurfaceII 65 2 980
SonyAIBORobotSurface 70 2 621 TwoLeadECG 82 2 1162
FacesUCR 131 14 2250 Plane 144 7 210
Gun_Point 150 2 200 ArrowHead 251 3 211
WordSynonyms 270 25 905 ToeSegmentation1 277 2 268
Lightning7 319 7 143 ToeSegmentation2 343 2 166
DiatomSizeReduction 345 4 322 OSULeaf 427 6 442
Ham 431 2 214 Fish 463 7 350
ShapeletSim 500 2 200 ShapesAll 512 60 1200
(b) Validation datasets
Dataset T C N Dataset T C N
MoteStrain 84 2 1272 CBF 128 3 930
Trace 275 4 200 Symbols 398 6 1020
Herring 512 2 128 Earthquakes 512 2 461
TABLE I: Training and validation datasets used for ConvTimeNet. Here, T: time series length, C: number of classes, N: number of time series.
Dataset Name
Flat
COTE
BOSS ResNet
CTN-S
CTN-T
(proposed)
Dataset Name
Flat
COTE
BOSS ResNet
CTN-S
CTN-T
(proposed)
Adiac 0.21 0.24 0.17 0.17 0.16 50words 0.20 0.29 0.26 0.17 0.16
Chlor.Conc. 0.27 0.34 0.16 0.14 0.17 Beef 0.13 0.20 0.25 0.31 0.26
Cricket_X 0.19 0.26 0.21 0.14 0.14 BeetleFly 0.20 0.10 0.15 0.17 0.13
Cricket_Y 0.17 0.25 0.20 0.14 0.14 BirdChicken 0.10 0.05 0.11 0.18 0.17
Cricket_Z 0.19 0.25 0.19 0.12 0.13 Coffee 0.00 0.00 0.00 0.00 0.00
Dist.Phal.O.A.G 0.25 0.25 0.20 0.21 0.18 Dist.Phal.O.C 0.24 0.27 0.20 0.22 0.21
Dist.Phal.TW 0.30 0.32 0.24 0.27 0.26 ECG5000 0.05 0.06 0.07 0.06 0.06
ECG200 0.12 0.13 0.12 0.14 0.08 ECGFiveDays 0.00 0.00 0.03 0.00 0.00
ElectricDevices 0.29 0.20 0.27 0.29 0.30 FaceAll 0.08 0.22 0.17 0.20 0.21
FordA 0.04 0.07 0.08 0.05 0.06 FaceFour 0.10 0.00 0.05 0.05 0.03
FordB 0.20 0.29 0.09 0.08 0.08 InsectWingbeatSound 0.35 0.48 0.49 0.36 0.37
Mid.Phal.O.A.G 0.36 0.46 0.27 0.29 0.28 MedicalImages 0.24 0.28 0.23 0.22 0.21
Mid.Phal.O.C 0.20 0.22 0.19 0.19 0.19 Mid.Phal.TW 0.43 0.46 0.40 0.41 0.39
PhalangesO.C 0.23 0.23 0.16 0.17 0.17 Meat 0.08 0.10 0.03 0.11 0.09
Prox.Phal.O.A.G 0.15 0.17 0.15 0.16 0.16 Prox.Phal.O.C 0.13 0.15 0.08 0.10 0.09
Prox.Phal.TW 0.22 0.20 0.21 0.22 0.22 Strawberry 0.05 0.02 0.04 0.03 0.03
SwedishLeaf 0.05 0.08 0.04 0.04 0.04 synthetic_control 0.00 0.03 0.00 0.00 0.00
Two_Patterns 0.00 0.01 0.00 0.00 0.00 uWave_X 0.18 0.24 0.22 0.17 0.17
uWave_Y 0.24 0.32 0.33 0.24 0.23 uWave_Z 0.25 0.31 0.25 0.23 0.23
wafer 0.00 0.01 0.00 0.00 0.00 Wine 0.35 0.26 0.26 0.17 0.17
yoga 0.12 0.08 0.13 0.10 0.08 W/T/L of CTN-T 26/6/9 30/4/7 22/6/13 17/18/6 -
Mean Arithmetic Rank 3.22 3.91 2.88 2.72 2.27
TABLE II: Comparison of error rates of proposed CTN-T (transfer learning) with Flat COTE [28], BOSS [29], ResNet [3], and CTN-S (CTN-like architecture trained from scratch for target task).

We empirically evaluate CTN from three perspectives: 1) classification performance: to evaluate if fine-tuning CTN for target task provides better accuracy compared to training a model from scratch, 2) computational efficiency: to evaluate if CTN can be adapted quickly with fewer iterations compared to training a deep model from scratch, 3) ablation study: to understand the advantage of multiple filter lengths in CTN. Additionally, we provide a qualitative analysis of the trained filters in CTN and useful insights into the interpretability of results in Sec IV-F.

Iv-a Dataset details

We train and test CTN on diverse disjoint subsets of the datasets taken from the UCR TSC Archive Benchmark [15, 17, 3]

belonging to seven diverse categories: Image Outline, Sensor Readings, Motion Capture, Spectrographs, ECG, Electric Devices and Simulated Data. All time series are z-normalized, i.e. the mean and standard deviation of the values in any time series is 0 and 1, respectively. The length of time series varies significantly from

across datasets, and the number of classes also varies significantly from . Further, the number of labeled training instances varies between . We use the same (random) split of training () and validation () datasets (refer Table I) as used in [16] and detailed in [30], such that we have datasets for training CTN and for model selection. The 18 training and 6 validation datasets have , and we therefore, restrict testing to the remaining 41 datasets with .

For each training dataset, all the labeled train as well as test samples from the original train-test split in the archive are used for training CTN. For each of the 6 validation datasets and the 41 test datasets, we use the same train-test splits as provided in [17] while fine-tuning CTN using train split of respective datasets.

Iv-B Hyperparameters

Based on preliminary experiments on a smaller subset of and to decide the number of layers and filters, we consider CTN with blocks, each convolutional layer in the convolutional blocks consist of five different filters lengths, i.e. , with 33 filters for each such that for each convolutional block (). We use the Adam optimizer for optimizing the weights of the networks with an initial learning rate of . We used orthogonal initialization of convolutional filters in all our experiments. CTN was trained for epochs; during each epoch, for each dataset , we randomly chose batches of size each. For validation datasets, we fine-tune CTN parameters and task-specific parameters for epochs with a learning rate of . While adapting CTN for each test dataset, parameters of CTN and the FC layer are fine-tuned for iterations with a reduced learning rate of .

Iv-C Baselines considered

We refer to the proposed approach of fine-tuning the pre-trained CTN for target task as CTN-T (CTN-Transfer), and compare it to: (i) CTN-S: We train CTN-S (CTN architecture trained from Scratch) as an exact replica of CTN with all parameters initialized randomly for each test dataset. By doing so, we can attribute the gains in performance, if any, obtained via using CTN-T over CTN-S to the pre-trained filters in CTN. (ii) ResNet [3] as the state-of-the-art deep learning approach: ResNet is trained independently for each dataset and contains 11 layers of which the first 9 layers are convolutional with shortcut residual connections between residual blocks (each block with 3 convolutional layers) followed by a GAP layer and a FC layer+softmax. (iii) Two non-deep learning state-of-the-art techniques as baselines [17]: i) Flat COTE (Collective of transformation-based ensembles) [28], ii) BOSS (Bag of SFA Symbols)[29].

For evaluating CTN-T and CTN-S on each test dataset, we use the entire train split for training and use the model parameters corresponding to the iteration with minimum training cross-entropy loss, following the same protocol222We additionally considered a stratified sampling approach to divide the train split of each dataset into 75%-25% training and validation samples, and still found the resulting variant of CTN-T to perform better than BOSS, ResNet and Flat COTE methods used for comparison in Table II. However, this variant was worse compared to the CTN-T model using entire train split for training; especially for three datasets, namely Beef, Chlor.Conc., and 50words. This can be attributed to a small number of training instances per class and/or large diversity in patterns within samples of same class. as used in [1, 3]. We train three models for each dataset (with randomly initialized FC layer and entire network for CTN-T and CTN-S, respectively), and report the average of the three error rates in Table II.

Iv-D Observations

The comparison of classification error rates (fraction of wrongly classified instances) and the number of wins/ties/losses (W/T/L) is summarized in Table II. We make the following key observations:

  1. [wide, labelwidth=!, labelindent=0pt]

  2. CTN-T has W/T/L of 17/18/6 concluding that a pre-trained network based transfer learning (CTN-T) has significantly better performance compared to training the CTN-like architecture from scratch (CTN-S), as also highlighted in Fig. 4(a). Further, we observe that CTN-T has W/T/L of 22/6/13 compared to ResNet, proving the advantage of leveraging a pre-trained model. CTN-T has mean arithmetic rank of 2.27 based on error rates which is significantly better than both non-transfer-based deep learning approaches, i.e. CTN-S and ResNet.

    (a) CTN-T (transfer learning) vs. CTN-S (training from scratch)
    (b) CTN-T () vs. CTN-T ().
    Fig. 5: Scatter plots of classification error rates.
  3. As shown in Fig. 6, we observe that CTN-T performs significantly better compared to CTN-S and ResNet when number of parameter updates is small, i.e. fewer number of training/fine-tuning iterations. (Due to random initialization of FC layer, ResNet and CTN-T are similar initially but CTN-T quickly adapts.) This suggests that starting from a pre-trained model is computationally efficient compared to starting from scratch: CTN-T takes fewer iterations to reach optimal classification performance while having better classification error rates, proving the advantage of leveraging a pre-trained network over a network trained from scratch.

  4. CTN-T has W/T/L of 26/6/9 compared to COTE. Given that COTE is extremely computationally expensive [17]

    , training and deploying it in practical applications can be highly inefficient. On the other hand, training and inference in CTN-T is highly parallelizable making it suitable for practical applications. Further, fine-tuning of pre-trained CTN is efficient and overcomes the need for any hyperparameter tuning.

(a) CTN-T vs. CTN-S
(b) CTN-T vs. ResNet
Fig. 6: Comparison in terms of no. of wins with no. of training iterations. CTN-T with pre-trained filters adapts faster to target tasks compared to models trained from scratch.

Iv-E Ablation study: Does having different filter lengths help?

To evaluate the importance of having multiple filter lengths in a transfer learning setting to deal with diverse datasets, we train four CTN-like architectures keeping the filter length fixed (, , , and ) for all layers while keeping the total number of trainable parameters to be approximately same as that in CTN by suitably adjusting the number of filters in each layer, such that we have , , and filters when , , , and , respectively, in each convolutional layer. We observe that CTN-T performs significantly better in comparison to any of these variants. CTN-T has W/T/L of 24/10/7 compared to the best performing fixed-length variant CTN-T corresponding to as shown in Fig. 4(b). These results highlight the significance of having filters of multiple lengths in a transfer learning setting: multiple filter lengths help to capture trends and patterns occurring at varying temporal resolutions which would be otherwise difficult to capture via filters of fixed length in a CNN model.

Iv-F Analysis of CTN filters

(a) Sharp rise & fall (Cricket-X, )
(b) Gradual rise & fall (Swe.Leaf, )
(c) Sharp fall (Wafer, )
Fig. 7: Filters capturing different basic time series patterns: Sample time series (input) with most relevant filter from 1st conv. layer (filter weights) in CTN-T, and feature maps (activation). Filter is shown at the point where activation is maximum.

Iv-F1 Fine-tuning all layers vs partial fine-tuning

Typically, lower layers of a deep neural network tend to learn generic features while higher layers tend to learn task-specific features. To analyze this behavior in CTN, we consider four variants where we freeze the parameters of the first, first two, first three, and all four convolutional layers of CTN, respectively, while fine-tuning the remaining layers for a test dataset as described in Section III-D. We keep the parameters of BN layers trainable and only freeze the convolutional layers for reasons explained in [31]. We observe an average improvement in classification performance of around 1% across the test datasets by freezing the first convolutional block, a drop of around 0.9% when freezing first two or three layers, while a significant drop of on freezing all four convolutional layers. These observations suggest that fine-tuning the final convolutional layer can be critical to obtain good task-specific models from pre-trained CTN. Further, minor improvement by freezing the first layer can be attributed to the fact that it may be capturing generic patterns relevant across datasets.

Iv-F2 Qualitative analysis of filters from first layer of ConvTimeNet

We first find the filter with maximum value for relevance for a dataset, where , and with :

(2)

Fig. 8 depicts the filter weights for eight different test datasets before and after fine-tuning of CTN. We observe that the filters capture typical patterns that are encountered in time series like sharp/gradual rise/fall, rise followed by a fall, etc. further indicating generic features learned by CTN which do not change much on fine-tuning. We found different filters to be most relevant for different datasets. The patterns captured are illustrated in Fig. 7 using filter weights and corresponding activations for sample time series.

Fig. 8: Most relevant filters from first layer in CTN for sample datasets. Numbers in bracket represent the filter length .

Further, it is interesting to note that some of the filters (e.g. the ones with in Fig. 8) may appear extremely noisy and not capturing any trends at first. However, ignoring those points in the filters with weights very close to (say, between to ) yields meaningful patterns - these filters tend to capture trends over longer time steps while ignoring some of the steps (corresponding to filter weight ) in a time series: e.g. refer the most relevant filter for uWave_Y dataset with which is at time steps and , i.e. this filter ignores the th and th time steps in a window of length during the convolution operation, and therefore tries to capture coarser higher level temporal patterns rather than finer trends.

Iv-F3 Interpretability via Occlusion Sensitivity

We provide preliminary analysis of interpretability in terms of identifying the region(s) in the time series that are most relevant for making a particular classification decision. We use the “Two Patterns” test dataset from “Simulated” category as an illustrative example for its ease of visual interpretability: “Two Patterns” has four classes constituting the possible combinations of the two patterns “up” and “down”. Refer Fig. 9(a) for a (test) instance of up-down class along with the two most relevant filters for this dataset identified using Eq. 2. We observe that one filter captures the “up” trend while the other captures the “down” trend, with maximum activation value coming at the corresponding points in the time series as depicted in Fig. 9(b). To find the region of time series used by CTN-T classifier to arrive at the classification decision, we compute occlusion sensitivities [32] by occluding parts of the time series and observing the changes in probability for the predicted class. Specifically, we consider a moving window of length and set the values over that window to

. The moment an important part of the time series is occluded, we expect a sharp drop in the probability

for the predicted class. This change in probability over time, i.e. occlusion sensitivity (where is probability for the predicted class after occluding and is the actual probability without any occluded parts) is shown in Fig. 9(c). We observe that as soon as the window covers the “up”/“down” trend in the time series, there is a sharp drop in indicating that the network is focusing on the correct regions in the time series for making the decisions (also these regions coincide with the most relevant filters for the dataset).

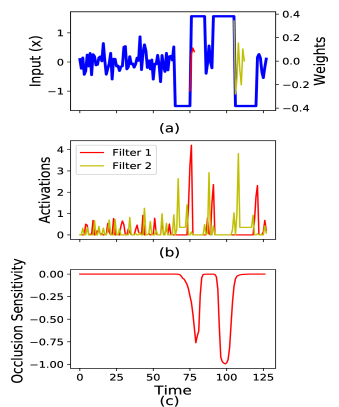

Fig. 9: (a) Sample time series with top-2 relevant filters from Two Patterns dataset, (b) their activation maps, and (c) occlusion sensitivity plot.

V Conclusion and Future Work

We have proposed ConvTimeNet (CTN): a pre-trained deep CNN for univariate time series classification. CTN leverages multiple length filters to model various temporal patterns from diverse time series across domains. Adapting a pre-trained model like CTN for the target task via fine-tuning i) yields significantly better results compared to existing state-of-the-art time series classification approaches, ii) is computationally efficient, and iii) does not require expertise in deep learning compared to training a deep network from scratch. In future, we plan to train a bigger CTN model on a larger and diverse dataset with longer time series. Also, it will be interesting to see if the number of parameters to be updated during the fine-tuning task can be reduced to make fine-tuning even more efficient.
