I Introduction
Complex mission specifications require provably correct controllers that satisfy the task specification infinitely often. To that end, we address the issue of synthesizing a control architecture for multiagent systems, subject to LTL specifications. We propose a control architecture which uses finite time convergence control barrier functions (hereafter to be known as finite time barrier certificates) and temporal logic to solve the continuous time reachability problem in multiagent dynamical systems. In particular, we use finite time barrier certificates, introduced in [15] in the context of composition of different behaviors for multirobot systems, to guarantee finite time reachability to desired regions in the state space and linear temporal logic for specifying complex task specifications to be satisfied by the system.
The contributions of this paper are threefold. First, we introduce the notion of composition of multiple finite time barrier certificates using addition which provides feasible solutions in cases where using methods such as the one followed in [15] can lead to infeasibility. Our framework results in a larger set of feasible control laws as compared to methods such as the one followed in [15]. This allows for more flexibility when the task specification is more complex. Second, we use finite time control barrier certificates inspired by [15] for a continuous time multiagent system in the context of motion planning. Third, we use a discretization free approach inspired by [1] which allows us to leverage key ideas from automata theory and temporal logic, in conjunction with finite time barrier certificates.
Control of multiagent systems has been studied extensively over the past few years in a plethora of context and settings. We cite some of the recent work in this domain which are most related to the concepts provided in this paper. Papers [4], [5], discuss the use of control barrier functions (described in Section II) for collision avoidance in multirobot systems, while [6], [7] apply these principles to adaptive cruise control and automotive systems. In [2], [9], [10], the authors discuss a verification method for nonlinear systems as well as for continuous and hybrid systems in stochastic and worst case settings. In all these papers, the primary focus is safety whereas in our paper, we shift the focus towards finite time reachability for continuous time dynamical systems. LTL based motion planning has also been the subject of recent study [17, 18, 19]. Papers [8], [11], [12], [13], [14], synthesize robust optimal controllers for multirobot systems subject to LTL as well as other temporal logic languages. In the aforementioned papers, a discretization of the system dynamics is involved which we avoid in our paper.
This paper is organized as follows. Section II presents mathematical tools required for our solution approach. In Section III, we formulate the problem statement tackled in this paper. Section IV combines ideas from temporal logic and barrier certificates. In Section V, we formulate our theorem on composition of multiple finite time barrier certificates, and also discuss some important remarks regarding the same. Section VI provides an illustrative example that highlights our solution methodology. Section VII discusses the simulation and experimental results conducted on the Robotarium testbed facility at Georgia Tech [16], respectively. Section VIII provides concluding remarks.
Ii Mathematical Preliminaries
This section discusses finite time barrier certificates and linear temporal logic.
Iia Control Barrier Functions
In this paper, we use finite time convergence control barrier functions introduced in [15] as a building block for our control architecture. Consider a control affine dynamical system
(1)
where and are locally Lipschitz continuous, , and .
Definition 1.
[15] A function is a finite time convergence control barrier function if there exists real parameters and such that for all ,
(2)
Finite time convergence control barrier functions are used to establish finite time reachability. Thus, if is a finite time convergence control barrier function, then there exists a control input that drives the state of the system to the set in finite time, as formalized next.
Proposition 1.
[15] Let be a finite time convergence control barrier function for (1), and for all , define
(3)
Then, for any initial condition and any continuous feedback control satisfying for all , the system will be driven to the set in a finite time such that , where the time bound is given by [20], and renders the set forward invariant.
Above, and are the Lie derivatives of along and respectively.
Given a finite time convergence control barrier function , a closed formed expression for as in (3) is rarely available. However, in practice, this formulation is amenable to efficient online computation of feasible control inputs. In particular, for fixed , the requirement that becomes a linear constraint and we define a minimum energy quadratic program (QP) as
(4)
This QP is solved with the finite time barrier certificate as the constraint on the control law and returns the minimum energy control law that drives the system to the goal set in finite time. We will reference this idea of a QP based controller throughout this paper in the context of our theorem and analysis.
IiB Linear Temporal Logic (LTL)
Complex and rich system properties can be expressed succinctly using LTL, and one of the main advantages of LTL is the ease with which high level system objectives can be formalized. LTL formulas are developed using atomic propositions which label regions of interest within the state space. These formulas are built using a specific grammar. LTL formulas without the next operator are given by the following grammar [3]:
(5)
where is a member of the set of atomic propositions, and represents a LTL specification. From the negation () and the disjunction () operators, we can define the conjunction (), implication (), and equivalence () operators. We can thus derive for example, the eventually () and always () operators as and respectively.
Iii Problem Formulation
Consider a multiagent system consisting of robots with index set . The dynamics for each agent is
(6)
where and for some .
Let be the closed and connected domain for the agents and suppose can be written as a super zero level set of a function , that is, . The state space for the multiagent system is then . Consider a finite set of regions of interest in the domain such that for all , and there exists a continuously differentiable function such that for all . Regions of interest may denote, for example, goal regions that must be reached by an agent or agents, or it may denote regions that should be avoided by an agent or agents. For each and , let
(7)
that is, is the set of states for the multiagent system for which agent is in region . Similarly, let
(8)
that is, is the set of states for the multiagent system for which agent is outside the region .
In addition to these regions of interest, we assume there exists a set of global conditions defined over the multiagent domain such that for each , and there exists a continuously differentiable function such that .
Similarly, we can write . Such global conditions may include, for example, a connectivity constraint.
For each with , , let
(9)
This means if and only if agent is in region .
Similarly, for all , let if and only if .
The collection
(10)
constitutes the set of atomic propositions for the multiagent system. For , we will sometimes write to denote the set that induces , i.e., if for some , , or if for some . Finally, for , we denote
(11)
that is, if and only if, for all , if and only if .
Given a trajectory of the multiagent system, intuitively, the trace of the trajectory is the sequence of sets of atomic propositions that are satisfied along the trajectory. The following definition formally defines the trace of a trajectory of a system [2].
Definition 2.
An infinite sequence where for all is the trace of a trajectory if there exists an associated sequence of time instances such that , as and for each , satisfies the following conditions,


,

If , then for some , for all , for all , and either or .

If for some , then for all and (resp., ) if (resp., ) for all for all .
The last condition of the above definition implies that a trace contains a repeated set of atomic propositions only if this set holds for all future time, capturing, e.g., a stability condition of the multiagent system. By forbidding repetitions otherwise, we ensure that each trajectory possesses a unique trace. This exclusion is without loss of generality since we only considered LTL specifications without the next operator. To that end, we define the problem we aim to solve in this paper.
System Objective.
Given a multiagent system with initial condition and a LTL specification over the set of atomic propositions , synthesize a control law such that the resulting trace of the system satisfies the specification .
Iv LassoType Constrained Reachability Objectives
To solve the above objective, we propose to use finite time barrier certificates to solve for a satisfying controller online. To this end, we note that it is wellknown that if there exists a trace (that is, a sequence of sets of atomic propositions) that satisfies a given LTL specification, then there exists a trace satisfying the specification in lasso or prefixsuffix form [3], where a trace in lasso form consists of a prefix and suffix that are both finite sequences of sets of atomic propositions such that the trace is equal to the prefix sequence followed by the suffix sequence repeated infinitely often. Such a lasso trace is denoted as where signifies infinite repetition.
Because atomic propositions of the multiagent system are defined as subsets of the domain, it is possible to interpret such lasso traces as sequences of constrained reachability problems in lasso form, which leads to our control synthesis methodology described in Section VI. To that end, we have the following definitions.
Definition 3.
Given two sets and , the constrained reachability problem consists in finding a feedback control strategy for the multiagent system such that for any , there exists a finite time satisfying for all and , where is the trajectory of the system initialized at subject to the control strategy .
With Definition 3, we formalize the definition of a constrained reachability problem induced by sets of atomic propositions.
Definition 4.
Let , , , and be sets of atomic propositions for the multi agent system. Let
(12)
(13)
The reachability problem is the Constrained Reachability problem induced by the sets , , , and .
Here, represents the set of atomic propositions which are true before the reachability objective is executed, represents the set of atomic propositions which are false before the reachability objective is executed, is the set of atomic propositions that must be true after the execution of the reachability objective and is the set of atomic propositions that must be false at the end of the execution of the reachability objective.
In the above definitions, represents the reachability set and represents the safety set. If we can solve the constrained reachability problem defined in Definition 4 by synthesizing a control law such that the conditions in Definition 3 are satisfied, then the multiagent system will converge to the set in a finite time while remaining in the safety set . We solve a series of constrained reachability problems which results in a system trajectory whose trace satisfies the given LTL specification.
Definition 5.
A lassotype constrained reachability sequence is a sequence of constrained reachability problems in lasso form such that each subsequent safety set is compatible with the prior goal set. That is, a lassotype constrained reachability sequence has the form
(14)
where , , and each for some satisfying for all and also . The sequence is a finite horizon prefix objective and is a finite suffix objective that is repeated infinitely often.
By the preceding discussion, if there exists a trace that satisfies a given LTL specification, then there exists a lassotype constrained reachability sequence that, if feasible, guarantees that the multiagent system satisfies the LTL specification. Algorithms exist for automatically extracting traces in lasso form from a socalled Büchi Automaton constructed from a LTL specification [3]. Choosing a good lasso sequence candidate from a list of possible lasso sequences is outside the scope of this paper, but is the subject of our current research work.
V Composite Finite Time Control Barrier Certificates
In this section, we formulate a theorem on composition of multiple finite time barrier certificates for a general control affine system of the form (1). This result is applicable to any system with control affine dynamics as in (1).
Theorem 1.
Consider a dynamical system in control affine form as in (1). Given defined by a collection of functions such that and for with , is bounded i.e. for all , for .^{1}^{1}1If all the functions are bounded, then and so we will have only (15) as a constraint in the QP If there exists a collection with , parameters , and a continuous controller where , such that for all
(15)
(16)
then under the feedback controller , for all initial conditions , there exists such that .
Proof.
By contradiction, suppose for some the control law that satisfies (15) and (16) is such that there does not exist a finite time so that . In particular, then for all , , where is the solution to (1) initialized at under the control law . By (16) for all , we have for all by Proposition 1. To that end, if we define , then for all we have, . In particular, observe that
(17)
so that by integration of (17) using the fundamental theorem of calculus and (15), we have
We observe that as , . But this is a contradiction since for is bounded i.e. . This proves that there exists a such that . ∎
We remark that [15] proposes a more restrictive solution to the constrained reachability problem with desired level sets being individually defined by multiple functions in a QP. In particular, [15] allows for the set of control laws given by
(18)
Note that this is equivalent to taking in Theorem 1. To that end define,
(19)
then we can formulate the following corollary
Corollary 1.
The set is a superset to the set i.e. .
From [15], finite time barrier certificates also possess the property of forward invariance. This allows us to encode the global constraints as well as other additional system constraints, discussed in Section III, as invariance conditions in a QP. To that end, we formulate the following remarks.
Remark 1.
In addition, suppose we require that as in (13) for all , then we add these additional constraints individually in the QP as constraints of the form (16) of Theorem 1. In order to solve the constrained reachability problem of the form as in Definition 3 where and are of the form (12) and (13) respectively, we can use Theorem 1 for the reachability problem along with constraints of the form (16) which ensure invariance as discussed in Proposition 1, for the safety and avoid problem.
Remark 2.
^{2}^{2}2Online quadratic programs are solved easily using non strict inequalities, so we introduce parameter where we take to be small.Vi Illustrative Example
Consider a two robot (single integrator dynamics) homogeneous multiagent system in the domain with three regions and agents indexed by the set . This is as shown in Fig. 1. The state of the system is . We first require robot to visit goal A and robot to visit goal B. Then, both the robots must visit goal C. This process needs to be repeated infinitely often. However, there is a caveat to this task specification. We enforce a connectivity constraint between the two robots which is a function of the state of . In addition to this, the robots must always avoid the obstacle region ‘O’. It is important to note that we do not require the agents to enter the goal regions simultaneously. However, after a certain time both the agents must be inside their respective goal regions. The function for the level set of each region of interest is
(20)
Here, is a positive definite matrix, is the center of the region of interest and is the state of agent of the system.
The three goal regions A, B and C are defined as (7), and the obstacle ‘O’ is defined as (8). The additional connectivity constraint is given as
(21)
where is the connectivity distance between the two agents that needs to be maintained, and is the interagent distance. We consider
(22)
where and are constants, and is the coordinate of in the workspace. Such a constraint captures a situation in which the robots have poor connectivity in certain areas of the workspace, which requires them to maintain a closer distance with each other. In areas where the robots have strong connectivity, they are free to maintain a larger distance from each other. This constraint is equivalent to the global constraints discussed in section III.
The global LTL specification to be satisfied by the multiagent system is
(23)
The lassotype constrained reachability sequence for this example from Definition 5 is .
From (10), . We assume that the robots start off within the connectivity radius . Applying the formalism from Definition 3 and Definition 4, we have , , , and . Hence, the reachability set from (12) is given by . The safety set from (13) is given by, . Thus, the constrained reachability problem to be solved is .
The constraints encoded in the QP are,
For the second reachability problem, from Definition 3 and Definition 4, we have , , , and . The corresponding reachability problem and safety problem are , and Thus, the constrained reachability problem to be solved is .
Similarly, the constraints encoded in the QP are,
By solving these two QPs, we solve the lassotype constrained reachability sequence, as per (14).
Vii Simulation and Experimental Results

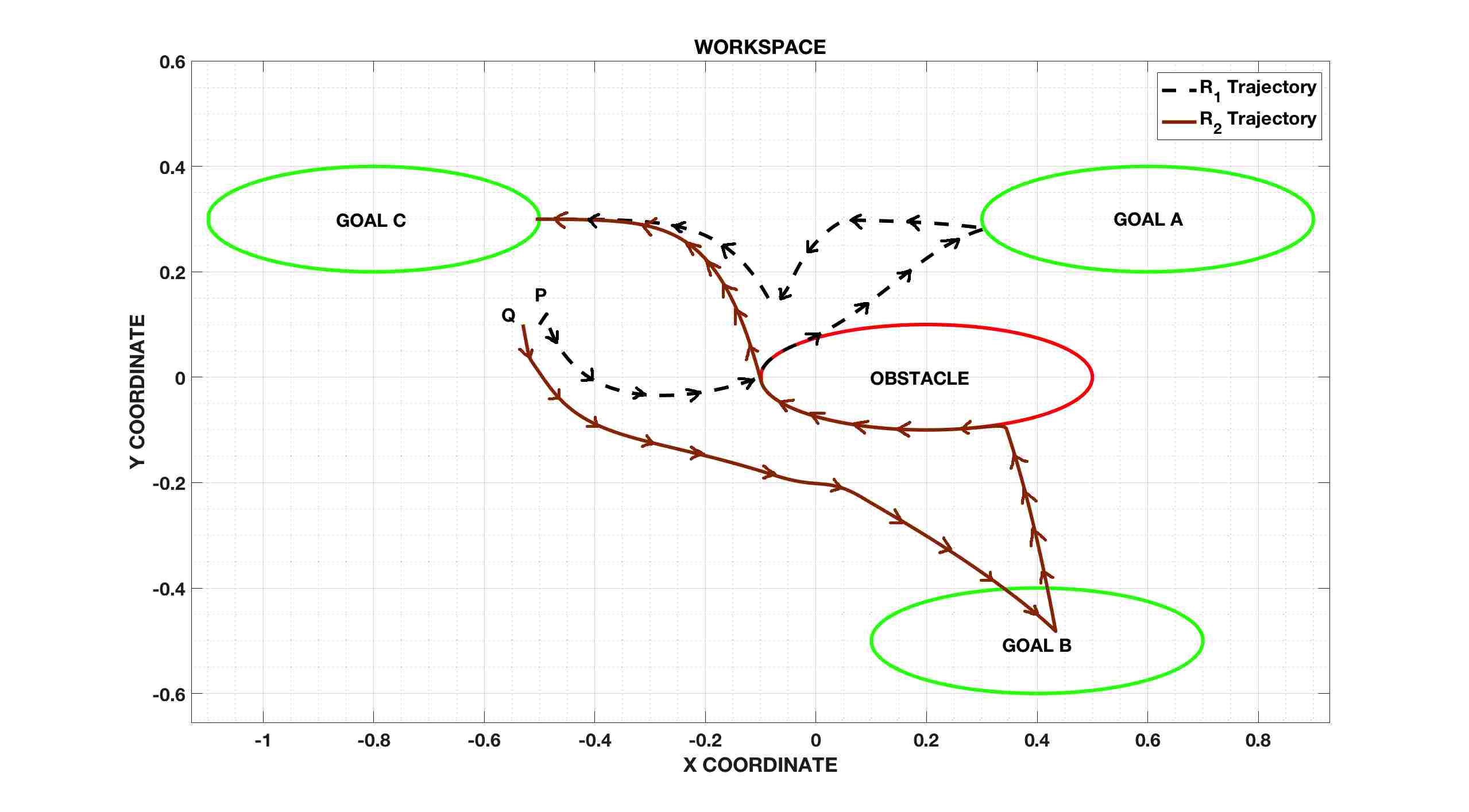

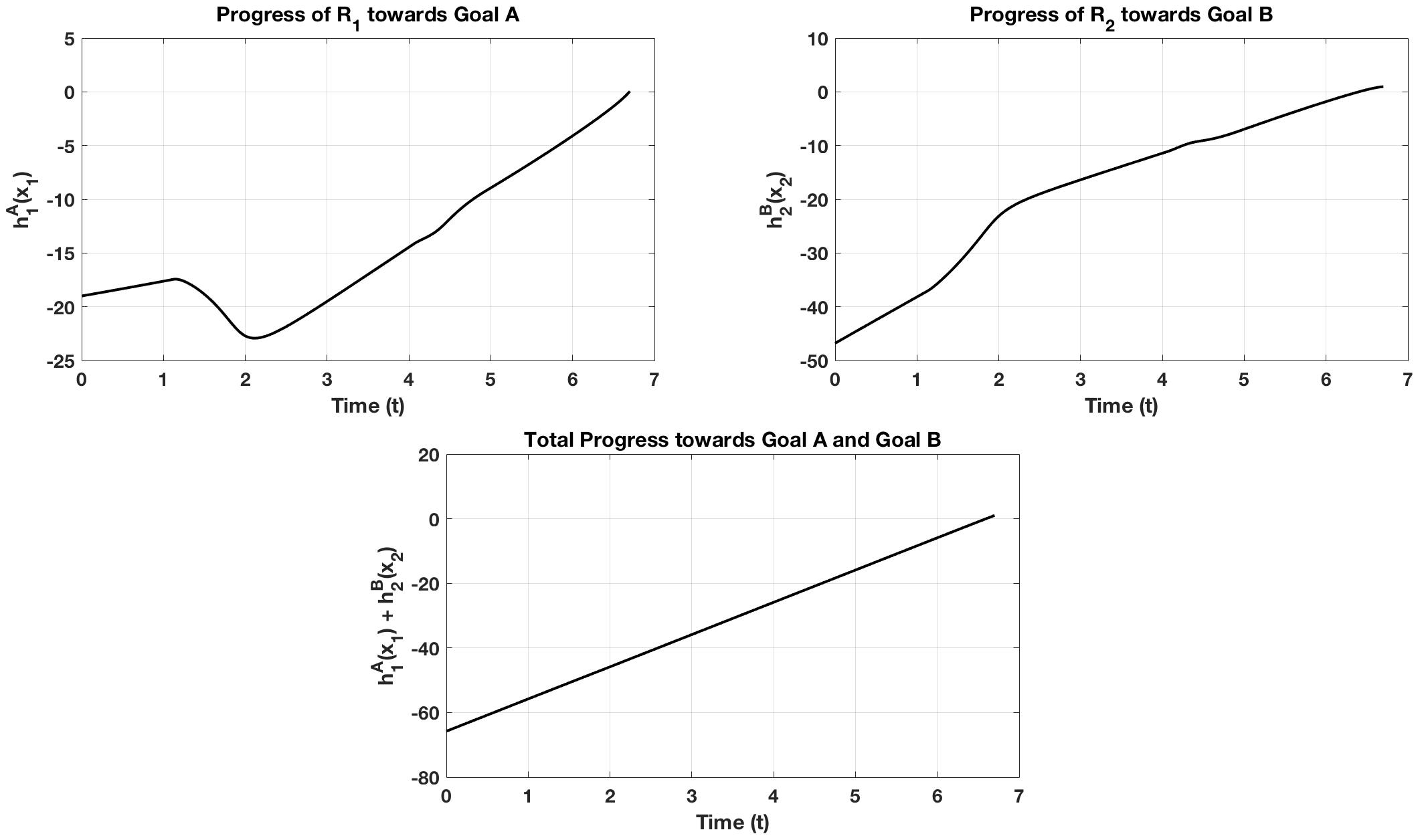

The generated trajectory in MATLAB is shown in Fig. 1. Fig. 2 illustrates how our theorem is effective by ensuring that the system makes total positive (increasing) progress towards its goals for all , even though an individual robot moves away from its goal momentarily ( moves away from goal A in the interval from P to Q in Fig. 1. This corresponds to the dip in the level set in the first plot in Fig. 2). It is important to note that the connectivity constraint is maintained for all time of the simulation and experiment. We also execute our algorithm on the Robotarium testbed [16] and provide a video of the experiment (https://youtu.be/Gnga3k2BHWg). The trajectories followed by the robots is consistent with the trajectory in Fig. 1.
Viii Concluding Remarks
In this paper we provided a theoretical framework to synthesize controllers for continuous time multiagent systems, given a linear temporal logic task specification using finite time control barrier certificates. We formulated a theorem on the composition of multiple bounded finite time barrier certificates. The proposed framework results in a larger set of feasible control laws as compared to methods such as [15]. By solving a sequence of constrained reachability problems by means of quadratic programs, we solve a lassotype constrained reachability sequence that synthesizes system trajectories whose traces satisfy the given LTL specification.
References
 [1] E. M. Wolff, U. Topcu and R. M. Murray, “Automatonguided controller synthesis for nonlinear systems with temporal logic,” 2013 IEEE/RSJ International Conference on Intelligent Robots and Systems, Tokyo, 2013, pp. 43324339.
 [2] TT. Wongpiromsarn, U. Topcu and A. Lamperski, “Automata Theory Meets Barrier Certificates: Temporal Logic Verification of Nonlinear Systems,” in IEEE Transactions on Automatic Control, vol. 61, no. 11, pp. 33443355, Nov. 2016.
 [3] C. Baier and J.P. Katoen, Principles of Model Checking, MIT Press, 2008.
 [4] L. Wang, A. D. Ames and M. Egerstedt, “Safety Barrier Certificates for CollisionsFree Multirobot Systems,” in IEEE Transactions on Robotics, vol. 33, no. 3, pp. 661674, June 2017.
 [5] L. Wang, A. Ames and M. Egerstedt, “Safety barrier certificates for heterogeneous multirobot systems,” 2016 American Control Conference (ACC), Boston, MA, 2016, pp. 52135218.
 [6] A. D. Ames, J. W. Grizzle and P. Tabuada, “Control barrier function based quadratic programs with application to adaptive cruise control,” 53rd IEEE Conference on Decision and Control, Los Angeles, CA, 2014, pp. 62716278.
 [7] A. D. Ames, X. Xu, J. W. Grizzle and P. Tabuada, “Control Barrier Function Based Quadratic Programs for Safety Critical Systems,” in IEEE Transactions on Automatic Control, vol. 62, no. 8, pp. 38613876, Aug. 2017.
 [8] G. E. Fainekos, H. KressGazit and G. J. Pappas, “Temporal Logic Motion Planning for Mobile Robots,” Proceedings of the 2005 IEEE International Conference on Robotics and Automation, 2005, pp. 20202025.
 [9] S. Prajna, A. Jadbabaie and G. J. Pappas, “A Framework for WorstCase and Stochastic Safety Verification Using Barrier Certificates,” in IEEE Transactions on Automatic Control, vol. 52, no. 8, pp. 14151428, Aug. 2007.
 [10] S. Prajna, and A. Jadbabaie, “Safety Verification of Hybrid Systems Using Barrier Certificates”, International Workshop on Hybrid Systems: Computation and Control (HSCC 2004), pp 477492
 [11] A. Ulusoy, S. L. Smith, X. C. Ding and C. Belta, “Robust multirobot optimal path planning with temporal logic constraints,” 2012 IEEE International Conference on Robotics and Automation, Saint Paul, MN, 2012, pp. 46934698.
 [12] Y. Kantaros and M. M. Zavlanos, “SamplingBased Control Synthesis for Multirobot Systems under Global Temporal Specifications,” 2017 ACM/IEEE 8th International Conference on CyberPhysical Systems (ICCPS), Pittsburgh, PA, 2017, pp. 314.
 [13] M. Rauscher, M. Kimmel and S. Hirche, “Constrained robot control using control barrier functions,” 2016 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS), Daejeon, 2016, pp. 279285.
 [14] M. Guo, K. H. Johansson and D. V. Dimarogonas, “Motion and action planning under LTL specifications using navigation functions and action description language,” 2013 IEEE/RSJ International Conference on Intelligent Robots and Systems, Tokyo, 2013, pp. 240245.
 [15] A. Li, L. Wang, P. Pierpaoli, and M. Egerstedt, “Formally Correct Composition of Coordinated Behaviors using Control Barrier Certificates”, 2018 IEEE/RSJ International Conference on Intelligent Robots and Systems
 [16] D. Pickem, P. Glotfelter, L. Wang, M. Mote, A. Ames, E. Feron, and M. Egerstedt, “The Robotarium: A remotely accessible swarm robotics research testbed,” 2017 IEEE International Conference on Robotics and Automation (ICRA), Singapore, 2017, pp. 16991706.
 [17] M. Kloetzer, X. C. Ding and C. Belta, “Multirobot deployment from LTL specifications with reduced communication,” 2011 50th IEEE Conference on Decision and Control and European Control Conference, Orlando, FL, 2011, pp. 48674872.
 [18] E. A. Gol and C. Belta, “Timeconstrained temporal logic control of multiaffine systems”, Nonlinear Analysis: Hybrid Systems (NAHS), 2013
 [19] M. Tobenkin, I. Manchester, and R. Tedrake, “Invariant funnels around trajectories using sumofsquares programming”, https://arxiv.org/abs/1010.3013
 [20] S. P. Bhat and D. S. Bernstein, “Finitetime stability of continuous autonomous systems”, SIAM Journal on Control and Optimization, 38(3):751?766, 2000
