1 Introduction

Aggregation is widely used in data analytics. Parallel aggregation is executed in two steps. The first step is an optional local aggregation where data is aggregated locally, followed by a second step where data is repartitioned and transferred to the final destination node for aggregation [45, 14]. The local aggregation can reduce the amount of data transferred in the second step for algebraic aggregations, as tuples with the same GROUP BY key are aggregated to a single tuple during local aggregation [6, 52, 22, 35, 48]. Local aggregation works effectively for low-cardinality domains, such as age, sex or country, where data can be reduced substantially and make the cost of the repartition step negligible. However, high-cardinality aggregations see little or no benefit from local aggregation. Optimizing the repartitioning step for high-cardinality aggregations has received less research attention.

High-cardinality aggregations are surprisingly common in practice. One example is sessionization, where events in a timestamp-ordered log need to be grouped into user sessions for analysis. An exemplar is the publicly-available Yelp dataset where 5.2M reviews are aggregated into 1.3M user sessions [53]. Even when there are no high-cardinality attributes, aggregation on composite keys of multiple attributes can lead to high-cardinality aggregations, which is common in data cube calculations [16].

This paper focuses on reducing the communication cost for high-cardinality aggregations. We classify aggregations into two types: all-to-one aggregation and all-to-all aggregation. In all-to-one aggregation, one coordinator collects and aggregates data from all compute nodes. All-to-one aggregation frequently happens at the last stage of a query. In all-to-all aggregation, data is repartitioned on the GROUP BY attributes and every node aggregates a portion of the data. All-to-all aggregation is common in the intermediate stages of a query plan.

Directly transmitting the data to the destination node during an aggregation underutilizes the network. In all-to-one aggregation, the receiving link of the destination is the bottleneck while every other receiving link in the network is idle. In all-to-all aggregation, workload imbalance due to skew or non-uniform networks

[17, 27] means that some network links will be underutilized when waiting for the slower or overburdened links to complete the repartitioning.

Figure 1: Graph representation of a cluster with four nodes. The aggregation destination is and the router is .
Figure 2: Aggregation based on repartitioning completes in 9 time units. The bottleneck is the link.
Figure 3: The similarity-aware plan completes in 6 time units.
Figure 4: The similarity-oblivious plan finishes in 9 time units.

Systems such as Dremel [32], Camdoop [7], NetAgg [31] and SDIMS [51] reduce the communication cost and increase network utilization by using aggregation trees for all-to-one aggregations. The most relevant prior work is LOOM [8, 9], which builds aggregation trees in a network-aware manner. LOOM assumes that every node stores distinct keys and that the cardinality of the final aggregation result is . Given these parameters as input, LOOM produces an aggregation tree with a fan-in that is a function of the reduction rate

. Applying LOOM during query execution is not trivial, however, as the cardinality of the input and the final result is not known in advance. (Even estimations of the cardinality can be inaccurate

[24].) Furthermore, the aggregation plan that LOOM produces fails to consider how the similarity between partitions impacts the reduction rate at intermediate steps of the aggregation.

The importance of considering partition similarity during aggregation can be shown with an example. Figure 4 shows an all-to-one aggregation in a 4-node cluster, where is the switch, node is the destination node, node stores three tuples with keys A, B and C, and nodes and store three tuples each with keys D, E and F. (For simplicity, the figures only show the GROUP BY keys.)

  • [leftmargin=1em, topsep=0em, noitemsep]

  • The repartitioning strategy in Figure 4 finishes the aggregation in 9 time units, where one time unit is the time needs to receive and process a single tuple.

  • The similarity-aware aggregation plan in Figure 4 proceeds in two phases. In the first phase, transmits keys {A,B,C} to and transmits keys {D,E,F} to . In the second phase, computes the partial aggregation and transmits keys {D,E,F}. The entire aggregation completes in 6 time units — faster than repartitioning.

  • The similarity-oblivious aggregation plan shown in Figure 4 transmits keys {D,E,F} from to in the first phase and then needs 6 time units in the second phase to transmit keys {A,B,C,D,E,F} to . The entire aggregation completes in 9 time units, as fast as repartitioning.

This paper introduces GRASP, an algorithm that carefully constructs aggregation plans to accelerate high-cardinality aggregation. Unlike prior solutions [32, 7, 31, 51] that do not consider if data can be combined during an aggregation, GRASP aggregates fragments with similar keys first to improve performance. GRASP has the following attributes: (1) it is distribution-aware as it selects aggregation pairs that will produce smaller partial aggregates, (2) it is topology-aware as it schedules larger data transfers on faster network links, (3) it achieves high network utilization as it uses as many network links as possible.

The paper is structured as follows. Section 2 develops a theoretical model for the network cost of parallel data aggregation. Section 3 introduces GRASP, a topology-aware and data distribution-aware algorithm, that accelerates aggregations by leveraging partition similarity. A natural question to ask is if GRASP produces aggregation plans that approximate the optimal plan by some constant factor. Section 4 proves that the aggregation scheduling problem cannot be approximated within a constant factor by any polynomial algorithm (including GRASP), assuming the SSE conjecture. Section 5 contains the experimental evaluation which shows that GRASP can be up to faster than repartitioning and up to faster than LOOM on real datasets.

2 Problem definition

Symbol Description
Data transfer from node to node
Phase ,
Aggregation plan,
Data of partition in node after completes
Data in after finishes,
Data in before the aggregation starts
Data sent from to in phase
Size of one tuple
Available bandwidth for the data transfer
Network cost for the data transfer
Table 1: Symbol definitions.

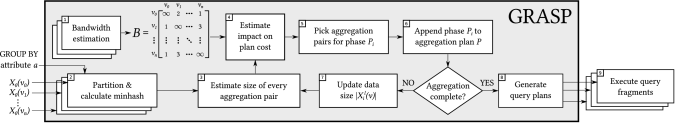

Figure 5: The GRASP framework.

We use a connected, directed, weighted graph to represent the network topology of the cluster. Each edge represents one network link, with the edge direction to be the direction of data flow.

The fat-tree topology is widely used in data centers [1]. We represent all routers in the network as a single node and model the fat-tree topology as a star network. The set represents the compute nodes of the cluster. Compute nodes have bidirectional network links, therefore , where edge represents the uplink and edge represents the downlink.

2.1 Modeling all-to-one aggregations

Aggregation Model. We first consider an aggregation where data is aggregated to one single node . The aggregation consists of multiple phases which execute in serial order. We use to denote an aggregation execution plan with phases, , where represents one phase of the aggregation. In a phase , there are concurrent data transfers, , where denotes the data transfer in which node sends all its data to node . Figure 4 shows an aggregation execution plan with two phases and . Phase performs two data transfers , and phase performs one data transfer .

We impose one constraint in the selection of pairs: node will never send its data to a node that has no data, unless is the final destination node , as no data will be aggregated in this case. (In fact, we could not find any instance where transferring to an empty node would be beneficial over transmitting data directly to the destination in a single-path star topology.) Hence, a node can be a receiver multiple times across multiple phases, but once it transmits its data in some phase it becomes inactive and it will not participate in the aggregation in phases . A corollary is that a node cannot be both sending and receiving data in the same phase.

Let be the data in node in the beginning of the aggregation execution and be the data in node after phase completes. Let be the data sent from to in phase . A node will send all its local data within one phase, hence . After phase completes, for every transfer , and

(1)

The aggregation has finished in phase when all nodes except have sent their data out for aggregation:

(2)

Aggregation cost. The aggregation execution plan consists of phases in serial order. Hence the network cost of is:

(3)

The network cost for phase is the cost of the network transfer which completes last:

(4)

The cost of the data transfer is the time it takes to transfer tuples of size each over the available link bandwidth :

(5)

Section 3.2 shows how GRASP estimates without network topology information. Section 4.1 shows one way to calculate if all network activity is known.

Problem definition. Given a connected, directed, weighted graph , the data in every node , the final destination node , obtain an aggregation execution plan containing one or more phases such that is minimized.

2.2 Modeling all-to-all aggregations

The all-to-all aggregation model executes multiple all-to-one aggregations over different partitions in a single plan.

Aggregation Model. In all-to-all aggregation data is divided into partitions, . Every compute node in is the aggregation destination for one or more partitions. This is specified by a mapping that maps a partition to a specific destination . Let be the data of partition in node in the beginning of the aggregation execution and be the data of partition in node after phase completes.

Within one aggregation phase, a node will send an entire partition of local data to , hence . Once a node transmits all its data for partition it becomes inactive in subsequent phases for this partition, but it will participate in aggregations for other active partitions. Hence, in all-to-all aggregation a node can be both sending and receiving data in the same phase, as long as it does not send and receive data belonging to the same partition. is the data in node after phase completes:

(6)

All-to-all aggregation completes when data in all partitions are aggregated to their corresponding destination:

(7)

Problem definition. Given a connected, directed, weighted graph , the data for each partition in every node , and a mapping denoting the destination of each partition, obtain an aggregation execution plan containing one or more phases such that is minimized.

3 The GRASP framework

This section introduces GRASP, a greedy aggregation scheduling p

rotocol, which uses partition similarity as a heuristic to carefully schedule data transfers to improve performance.

3.1 Overview

Figure 5 shows an overview of the GRASP framework. The inputs to the framework are the data in every node and the Group By attribute . The input data may be either a table in the database or an intermediate result produced during query processing. Steps iii and ix are run by all compute nodes, while steps iiiviii are run in the coordinator.

  1. Bandwidth estimation. Every node estimates the available bandwidth between itself and other nodes and stores it in matrix . Section 3.2 describes the process in detail.

  2. Partition, pre-aggregate and calculate minhash signatures. Every node partitions and aggregates data locally. During this operation, every node runs the minhash algorithm [3, 21, 13] to produce succinct minhash signatures.

  3. Estimate the cardinality of every possible pair. The coordinator collects the minhash signatures and estimates the cardinality of all possible aggregation pairs. An aggregation pair is a partition , a source node and a destination node . Section 3.3 presents the algorithms in detail.

  4. Estimate the cost of the final plan. The coordinator uses the available bandwidth matrix as input and estimates the runtime cost and the future benefit of executing every possible aggregation pair. Section 3.4 describes the cost heuristic.

  5. Generate aggregation phase . The coordinator selects aggregation pairs for phase based on their cost. The detailed algorithm is described in Section 3.5.

  6. Add to aggregation plan . If the aggregation is complete, the aggregation plan is scheduled for execution.

  7. Update data size . The coordinator updates the estimation of the size of each partition in every node for the next phase of the aggregation. GRASP does not make another pass over the data, as the minhash signature of any intermediate result can be calculated from the original minhash signatures obtained in Step ii.

  8. Generate query plans. The aggregation planning is complete. GRASP generates query plans for execution.

  9. Query execution. Every node in the cluster executes its assigned aggregations for each phase.

3.2 Estimating the bandwidth

This section describes how GRASP estimates the available bandwidth for data transfers without network topology information. GRASP schedules aggregation plans so that one node sends to and receives from at most one node within a phase to avoid network contention. This ensures that the outgoing link and the incoming link of each node are used by at most one data transfer. Similar approaches are used by Rödiger et al. [41] to minimize network contention.

GRASP measures the pair-wise bandwidth through a benchmarking procedure that is executed on system startup. The bandwidth is measured by running a benchmark on every and pair individually, where keeps sending data to . The average throughput is stored as the estimation of in a matrix, where the row index is the sender and the column index is the receiver. (For example, in Figure 5.) The bandwidth matrix is computed once and reused for all queries that follow. Section 5.3.1 evaluates the accuracy of the estimation and the robustness of GRASP to estimation errors.

3.3 Estimating the size of intermediate results

GRASP needs to estimate the cardinality of the intermediate result between every node pair and for aggregation planning. According to set theory, the size of the union of two sets and can be calculated as , where is the Jaccard similarity . Hence one can calculate the cardinality of an aggregation from the cardinality of the input partitions , and the Jaccard similarity between them.

Accurately calculating the Jaccard similarity is as expensive as computing the aggregation itself, as it requires collecting both inputs to the same node. GRASP thus estimates the Jaccard similarity using the minhash algorithm [3, 21, 13]

. After running minhash, the inputs are represented by a small vector of integers called a

minhash signature. The minhash signatures are used to estimate the Jaccard similarity between the two sets.

The minhash algorithm generates minhash signatures by applying a set of hash functions to the dataset. The minhash signature value is the minimum value produced by each hash function. Figure 6 shows an example of the minhash signature calculation for two sets and and their minhash signatures and , respectively. The Jaccard similarity between the two sets can be estimated from the minhash signatures as the fraction of the hash functions which produce the same minhash value for both sets. In the example shown in Figure 6, the accurate Jaccard similarity is . The estimated Jaccard similarity from the minhash signatures is , as only hash function produces the same minhash value between the two sets.

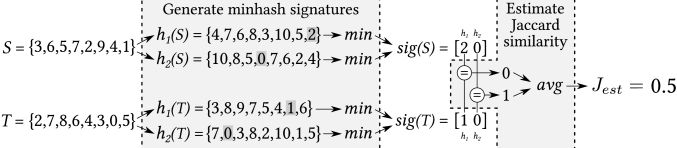

Figure 6: Example of Jaccard similarity estimation with the minhash algorithm and hash functions and .

Another appealing property of the minhash algorithm is that the minhash signature can be computed from the minhash signatures and , respectively: The minhash signature of the union is the pairwise minimum of the respective signatures, or . The practical significance of this property is that GRASP needs to access the original data only once before the aggregation starts, and then will operate on the much smaller signatures during aggregation planning.

In GRASP, every node partitions the local data and calculates the cardinality and the minhash signatures for each partition. (This is step ii in Figure 5.) The coordinator collects the cardinality and the minhash signature for each partition of every node in two arrays Card and MinH of size . The arrays are initialized to Card and MinH. After these arrays are populated with information from every node, they are only accessed by two functions during aggregation planning, which are defined in Algorithm 1. The first function is EstCard which estimates the Jaccard similarity between the sets and from their minhash signatures and returns an estimate of the cardinality of their union. The second function is Update which updates the Card and MinH arrays after the transfer of partition .

How many hash functions does minhash need? GRASP uses only 100 hash functions so that signatures are less than 1KB. This choice sacrifices accuracy but keeps the computation and network cost small. Satuluri and Parthasarathy [43] show that the estimation is within 10% of the accurate similarity with probability when . Section 5.3.4 evaluates the accuracy of the minhash estimation.

Input : computing node identifiers
           : data partition identifier
function EstCard
       1 ; ;
       2 for  do
              3 if sigS sigT then
                     4

       5return

function Update
       6
       7
       8 for  do
              9

       10

Algorithm 1 EstCard estimates and Update updates the Card and MinH arrays.

3.4 Forecasting the benefit of each aggregation

Ideally one should take the cost of all future aggregation phases into account when picking the best plan for the current phase. This is prohibitively expensive as there are possible aggregation trees for a cluster with nodes [4]. A greedy approach that minimizes the cost of the current phase only ignores how similarity can reduce the network cost of future data transfers. Hence, GRASP looks one phase ahead during optimization to balance the network transfer cost of a data transfer in the current phase with the anticipated future savings from transmitting less data in the next phase.

The heuristic GRASP uses to pick which transfers to schedule in the current phase is based on a cost function that adds the cost of an transfer in this phase and the cost of transmitting the union of the data in the next phase. is constructed based on the following intuition:

1) Penalize the following transfers by setting so that they will never be picked: (1) Node sending partitions whose destination is , to prevent circular transmissions. (2) One node sending a partition to itself, as this is equivalent to a no-op. (3) Transfers involving nodes that neither have any data nor are they the final destination for this partition.

2) When any node transmits partition to its final destination , only the cost of the data transfer needs to be considered, as this partition will not be re-transmitted again. Hence, we set to in this case, where COST is defined in Eq. 5, and .

3) Otherwise, add the cost of the transfer to the cost of transmitting the aggregation result in the next phase. We define to simplify the notation.

Based on the above, we define for a transfer of partition between any pair of nodes in phase as:

(8)

Figure 7 shows for the phase of the aggregation shown in Figure 4. There is only one partition in this example, hence . The row index is the sending node and the column index is the receiving node. Note that the matrix will not be symmetric, because transfers and transmit different data and use different network links.

Figure 7: The matrix for the phase of the aggregation problem in Figure 4 that has a single partition. The example assumes is equal to the bandwidth . Rows represent the sender and columns represent the receiver. The circled value corresponds to the aggregation where sends out to aggregate with in .

3.5 Selecting aggregation pairs

Input : the cost function defined in Eq. 8.
          : candidate nodes to send
          : candidate nodes to receive
          : candidate nodes to operate on partition
Output : the next aggregation phase
21 ; ; ; while  and  do
       3 Pick such that
             , and
       4       has the minimum value in if  then
              5 break
       6Remove from and , if found
       987 Remove from and , if found Add to Update
10return
Algorithm 2 Selecting data transfers for phase

This section describes step v in Figure 5 which selects transfers among all possible pairs to produce one aggregation phase . There are three aspects for consideration when selecting candidate aggregations:

1) In each phase, how many transfers does a node participate in? Prior work shows that uncoordinated network communication leads to congestion in the network [41, 42]. Rödiger et al. [41] do application-level scheduling by dividing communication into stages to improve throughput, where in each stage a server has a single target to send to and a single source to receive from. Like prior work, GRASP restricts the communication within one phase to minimize network contention. Specifically, GRASP picks transfers such that one node sends to at most one node and receives from at most one node in each aggregation phase.

2) How many nodes are selected for aggregation in one phase? In order to maximize the network utilization, GRASP picks as many data transfers as possible in one phase until the available bandwidth is depleted.

3) Given many candidate aggregation pairs, which aggregation should one choose within one phase? GRASP minimizes the function defined in Equation 8 and selects aggregations by picking the smallest values.

Algorithm 2 shows how GRASP selects candidate aggregations for one phase . is the set of candidate nodes to be senders, is the set of candidate nodes to be receivers, and is the nodes that can operate on partition . The algorithm picks the aggregation pair which has smallest value in (line 2). The algorithm then removes the selected nodes from the candidate node sets (lines 6-2) to enforce that (a) one node only sends to or receives from at most one node, and (b) one node does not send and receive data for the same partition within the same phase. Then, the transfer for partition is added to the aggregation phase (line 2). GRASP calls the function Update, which was defined in Algorithm 1, to update the minhash signatures and the cardinalities in arrays MinH and Card (line 2), as data in and will change after the aggregation. The algorithm stops when either candidate set is empty (line 2) or there are no more viable transfers in this phase (line 2).

Figure 8: An example of how GRASP generates aggregation plans for an all-to-one aggregation with a single partition.

Figure 8 shows an example of how GRASP selects aggregations using the cost function. For simplicity, we again show an all-to-one aggregation with a single partition , and we assume the bandwidth to be equal to the tuple width . In the first iteration, the coordinator constructs the matrix from the cost function described in Section 3.4. For example, assume in the first phase and , then . After constructing the cost matrix , GRASP picks data transfers for aggregation using Algorithm 2. The first pick is because it has the least cost. Because a transfer has now been scheduled on the link, GRASP eliminates and from the corresponding candidate sets. GRASP then picks . GRASP then finishes this phase because there are no candidates left, and appends the aggregation phase to the aggregation plan . In the next iteration, GRASP constructs matrix and picks the last data transfer for phase . At this point, all data will have been aggregated to the destination nodes so the aggregation plan will be scheduled for execution.

4 Hardness of Approximation

Many hard problems are amenable to efficient approximation algorithms that quickly find solutions that are within a guaranteed distance to the optimal. For instance, -approximation algorithms —polynomial algorithms that return a solution whose cost is at most twice the optimal— are known for many NP-hard minimization problems. A natural question to ask is how closely does GRASP approximate the optimal solution to the aggregation problem.

This section proves that it is not feasible to create a polynomial algorithm that approximates the optimal solution to the aggregation problem within any constant factor. In other words, the aggregation problem is not only NP-hard but it also cannot be approximated within any constant factor by any polynomial algorithm, including GRASP. This hardness of approximation result is much stronger than simply proving the NP-hardness of the problem, as many NP-hard problems are practically solvable using approximation.

The proof is structured as follows. Section 4.1 introduces an assumption regarding the cost of using shared network links. Section 4.2 defines the Small Set Expansion (SSE) problem and the well-established SSE conjecture. Section 4.3 starts with an instance of SSE and reduces it to the all-to-one aggregation problem. This proves that the all-to-one aggregation problem is NP-hard to approximate, assuming the SSE conjecture. Section 4.3.3 proves that the all-to-all aggregation problem is also NP-hard to approximate.

4.1 Link sharing assumption

Whereas GRASP will never schedule concurrent data transfers on the same link in one phase in a star network, the theoretical proof needs a mechanism to assess the runtime cost of sharing a network link for multiple transfers. Our proof makes the fair assumption that the cost of sending data from one node to another is proportional to the total data volume that is transferred over the same link across all aggregations in this phase.

One way to incorporate link sharing information in the cost calculation is to account for the number of concurrent data transfers on the path when computing the available bandwidth . For example, for the network topology shown in Figure 4 the available bandwidth from to , can be calculated as:

(9)

where and are the network bandwidths of the links, denotes the number of data transfers using the link and denotes the number of data transfers using the link in this phase.

4.2 The Small Set Expansion Problem

This subsection defines the Small Set Expansion (SSE) conjecture [37]. We first briefly discuss the intuition behind this problem then give a formal definition.

4.2.1 Intuition

A -regular graph is a graph where each vertex has edges for some integer . The Small Set Expansion problem asks if there exists a small subset of vertices that can be easily disconnected from the rest in a -regular graph. The SSE conjecture states that it is NP-hard to distinguish between the following two cases: (1) The YES case, there exists some small set of vertices that can be disconnected from the graph. (2) The NO case, such a set does not exist. In other words, in this case every set of vertices has a relatively large boundary to the other vertices in the graph.

Note that the SSE conjecture is currently open, as it has not been proven or disproven yet. Just like the well-known conjecture, the theory community has proceeded to show that many problems are hard to approximate based on the general belief that the SSE conjecture is true. Significant hardness of approximation results that assume the SSE conjecture include the treewidth and pathwidth of a graph [2], the Minimum Linear Arrangement (MLA) and the -Balanced Separator problem [38].

4.2.2 Formal Definition

Let be an undirected -regular graph. For any subset of vertices , we define the edge expansion of to be .

Definition 4.1.

Let . Let

be the inverse function of the normal distribution. Let

and

be jointly normal random variables with mean

and covariance matrix . We define as .

Conjecture 4.2 (The Small Set Expansion conjecture [37]).

For every integer and , it is NP-hard to distinguish between the following two cases:

YES There is a partition of into equi-sized sets such that , .

NO For every we have , where .

Remark 4.1.

In the YES case, the total number of edges that are not contained in one of the sets is at most .

Remark 4.2.

In the NO case, for every with , we have , for some constant .

4.3 Hardness of the aggregation problem

Before stating the formal inapproximability result, we first provide the intuition behind our proof strategy approach. We then reduce the SSE problem to the all-to-one aggregation problem. Finally, we show that the all-to-all problem is a straightforward generalization of the all-to-one problem.

4.3.1 Intuition

We now give a brief intuitive overview of the proof. Recall that in the SSE problem we are given a graph and the goal is to decide whether admits a partition into small subgraphs, each having a small boundary (a SSE partition henceforth), or is an expander at small scales, that is, all small subgraphs of G have a large boundary. The SSE conjecture asserts that this problem is hard to approximate, and has been used to show the inapproximability of various graph optimization problems [2]. Inspired by these results, we show that the all-to-one aggregation problem is hard to approximate by reducing the SSE problem to it. Our proof strategy is as follows. We begin with an instance of the SSE problem. We encode as an instance of the all-to-one aggregation problem by interpreting each node of as a leaf node in the star network, and each edge of as a data item which is replicated in nodes and in the aggregation problem. We show that any partition of can be turned into an aggregation protocol, and, conversely, any aggregation protocol can be turned into a partition of . The key intuition is that the cost of the partition is related to the cost of the aggregation via the observation that the data items that need to be transmitted twice are exactly the edges that are cut by the partition.

4.3.2 Formal proof for the all-to-one aggregation

Suppose that we are given an all-to-one aggregation instance: a graph , a single destination vertex , and the data in each node . Let be the set of all data. Let be an execution plan. For every , let and .

We define the overhead cost of to be . Under the all-to-one aggregation model, every execution plan is obtained from an aggregation tree. To simplify the proof, we assume that one node sends data to only one node within a phase. This modeling assumption is acceptable from a theoretical standpoint as one can represent a phase where a node transmits data to multiple destinations as a sequence of discrete phases to each individual destination. We say that is obtained from an aggregation tree , if the following conditions hold:

  1. is a spanning tree of , rooted at .

  2. The leaf vertices of are exactly the elements of . Furthermore, for every , the leaf vertices of are exactly the elements of .

Theorem 4.3.

For every , given an aggregation instance , it is SSE-hard to distinguish between the following two cases:

[itemsep=0em]

YES There exists an execution plan that is obtained from an aggregation tree with overhead cost .

NO Every execution plan that is obtained from an aggregation tree has overhead cost .

Proof.

We start with an instance of SSE with , and reduce it to our problem. Let be the -regular graph of the SSE instance. We construct an aggregation instance as follows. Let , and . Note that is a complete graph with the same vertex set as . For every , let be the set of data that is held by .

In the YES case of the SSE instance, we have disjoint sets of equal size. For every , we have . We may assume w.l.o.g. that . For every , pick an arbitrary vertex . Let also . For every , let . We first construct an aggregation tree as follows. For every , let be the parent of all other vertices in . Let be also the parent of .

Now consider the execution plan corresponding to . This aggregation has two phases: . First we describe . For each , we aggregate all the data held by vertices of to ; that is every vertex in (except itself) transfers its dataset to . This can be done simultaneously for all ’s, since ’s are disjoint sets. We have that .

By the construction, at the beginning for each vertex we have that . Therefore, for every , the total volume of data to be transferred to is . In other words, for every , we have that , and thus we have .

In the second phase of the execution plan, for every , we need to transfer all the data held by to . This can be done simply by sending one data at a time to . We have:

By Remark 4.1, the total number of tuples that are transferred more than once in this phase is at most . This means that . Therefore we have that , and thus the overhead cost of this execution plan is .

In the NO case, we want to show that every execution plan that is obtained from an aggregation tree has cost . Let be an execution plan that is obtained from an aggregation tree . For every , let be the subtree of rooted at .

Suppose that has a child such that . We apply Remark 4.2 by setting . We have that , for some constant . This means that there are at least data that are going to be sent at least twice to in the execution plan, or . Thus, the overhead cost of this execution plan is .

Otherwise, has a child such that . In this case, there are at least data in that are going to be transferred at least twice to get to in the execution plan. Therefore, we have , and thus the overhead cost of this execution plan is clearly . This completes the proof. ∎

Corollary 4.4.

Assuming Conjecture 4.2, it is NP-hard to approximate the minimum overhead cost of an all-to-one aggregation plan that is obtained from an aggregation tree within any constant factor.

Corollary 4.5.

Assuming Conjecture 4.2, it is NP-hard to find an all-to-one aggregation plan that is obtained from an aggregation tree with minimum cost.

One might ask if it is feasible to brute-force the problem for small graphs by enumerating all possible aggregation trees and picking the best solution. Unfortunately this would be extremely expensive even for small graphs. Cayley’s formula [4] states that the number of different spanning trees of graph with vertices is . Hence, even for one needs to enumerate different trees.

4.3.3 Formal proof for the all-to-all aggregation

The more general case is the all-to-all aggregation problem. We observe that the all-to-one aggregation problem can be trivially reduced to the all-to-all aggregation problem, since by the definition, every instance of the all-to-one aggregation problem is also an instance of the all-to-all aggregation problem.

Theorem 4.6.

Assuming Conjecture 4.2, it is NP-hard to find an all-to-all aggregation plan with minimum cost.

Proof.

We reduce the all-to-one aggregation problem to the all-to-all aggregation problem. Suppose that we are given an instance of the all-to-one aggregation problem. By its definition, this is also an instance of the all-to-all aggregation problem where the mapping is such that the aggregation destination of every partition is node . By Corollary 4.5 we know that the all-to-one aggregation problem is NP-hard assuming Conjecture 4.2, therefore the all-to-all aggregation problem is NP-hard as well. ∎

5 Experimental evaluation

This section compares the GRASP algorithm with the repartitioning algorithms and LOOM. Section 5.1 introduces the experimental setup, which includes the hardware setting, the workloads and the baselines. The other sections evaluate the following questions:

  • [leftmargin=*, itemsep=0.15em]

  • ( 5.2.1) How well does GRASP leverage similarity between datasets?

  • ( 5.2.2) How does similarity within the dataset affect performance?

  • ( 5.2.3) Can GRASP benefit from workload imbalance?

  • ( 5.3.1) How accurate is the bandwidth estimation? How robust is GRASP to estimation errors?

  • ( 5.3.2) How does GRASP perform in nonuniform networks?

  • ( 5.3.3) How does the performance change when the number of fragments increases?

  • ( 5.3.4) Is GRASP faster than aggregation based on repartitioning and LOOM on TPC-H and real datasets?

  • ( 5.3.5) How well does GRASP work in a real-world deployment where the network conditions are unpredictable?

5.1 Experimental setup

We implemented the GRASP framework in C++ and we have open-sourced our prototype implementation [15]. We evaluate GRASP in two clusters. The first is a shared cluster connected by a 1 Gbps network. Each machine has two NUMA nodes with two Intel Xeon E5-2680v4 14-core processors and 512 GB of memory. The second cluster is Amazon EC2 with d2.8xlarge instances which have 36 vCPUs and 244 GB of memory. The instances are connected with a 10 Gbps network.

We run one or more aggregation fragments in each machine/instance. Hence, one fragment corresponds to one logical graph node in Figure 4. We evaluate all-to-all aggregations by setting the mapping between partitions and destinations so that aggregation results are evenly balanced across all nodes. We evaluate all-to-one aggregations by mapping all data partitions to the same destination.

Our evaluation reports the total response time to complete the aggregation query. All our performance results include the time to plan the aggregation using GRASP, the time to transfer all data to their destinations and the time to process the aggregation locally in each node. All experiments use hash-based local aggregations.

5.1.1 Baselines

We compare GRASP with two baselines. The first baseline is LOOM [8, 9]. As described in Section 1, LOOM needs the size of aggregation results during query planning. In our evaluation we configure LOOM to use the accurate result size so that LOOM achieves its best performance. The second baseline is repartitioning which has two versions. One version is without local aggregation, where data is directly sent to the destination fragment for aggregation. We use “Repart” to denote this version. The other version is with local aggregation, where data is first aggregated locally, then the local aggregation result is sent to the destination fragment for aggregation. We use “Preagg+Repart” to denote this version of repartitioning. Note that repartitioning works for both all-to-all and all-to-one aggregations, while LOOM only works for all-to-one aggregations.

5.1.2 Workloads

We use five workloads in our evaluation.

1) Synthetic workload. The first workload is a synthetic workload which has one table R, with two long integers R.a and R.b as attributes. The query evaluated is SELECT R.a SUM(R.b) FROM R GROUP BY R.a.

2) TPC-H workload. The second workload is the TPC-H workload with scale factor 80. We evaluate this subquery from TPC-H Q18: SELECT ORDERKEY, SUM(QUANTITY) FROM LINEITEM GROUP BY ORDERKEY. The LINEITEM table is partitioned and distributed on the SUPPKEY to framgents with a modulo hash function.

3) MODIS workload. The third workload is the Surface Reflectance data MOD09 from MODIS (Moderate Resolution Image Spectroradiometer) [46]. The MODIS data provides the surface relfectance of 16 bands together with the location coordinates (latitude and longitude). In the processing of MODIS data, one product is MOD09A1 [47] which aggregates the observed data in an 8-day period with the following query: SELECT Latitude, Longitude, MIN(Band3) FROM RelfectTable GROUP BY ROUND(Latitude, 2),
ROUND(Longitude, 2) WHERE Date BETWEEN ‘01/01/2017’ AND ‘01/08/2017’
. The MODIS data is stored in separate files, one file per satelite image in timestamp order. We download about 1200 files from the MODIS website, and assigned files into plan fragments in a round-robin fashion. Overall, there are about 3 billion tuples and 648 million distinct GROUP BY keys in this dataset.

4) Amazon workload. The fourth dataset is the Amazon review dataset [19]. The review dataset has more than 82 million reviews from about 21 million users. The dataset includes the reviewer ID, overall rating, review time and detail review etc. We evaluate the following query to calculate the average rating a customer gives out. SELECT ReviewerID, AVG(OverallRate) FROM AmazonReview GROUP BY ReviewerID. The reviews are stored in timestamp order and we split this file into plan fragments.

5) Yelp workload. The fifth dataset is the Yelp review dataset [53]. The review dataset has more than 5 million reviews from about 1.3 million users. The Yelp dataset has similar attributes as the Amazon dataset and we use a similar query to calculate the average stars a customer gives.

5.2 Experiments with uniform bandwidth

This section evaluates GRASP in a setting where each plan fragment communicates with the same bandwidth. The measured inter-fragment bandwidth is 118 MB/s. We experiment with 8 machines and 1 fragment per machine, which results in 8 fragments in total. We use the synthetic workload in this section.

5.2.1 Effect of similarity across fragments

GRASP takes advantage of the similarities between datasets in different fragments in aggregation scheduling. How well does the GRASP algorithm take advantage of similarities between datasets?

(a) Jaccard similarity .
(b) Jaccard similarity .
Figure 9: The line segments represent the range of GROUP BY attributes. The Jaccard similarity increases when the overlap of GROUP BY key ranges increases.

In this experiment, we change the similarities between datasets, i.e. the number of common GROUP BY keys, in different plan fragments. Each plan fragment has 64 million tuples. Figure 9 shows how we change the similarity between datasets. Each segment in Figure 9 shows the range of in one fragment. Figure 9 only shows fragments 0, 1 and 2. The range of datasets between adjacent fragments has an overlap. The Jaccard similarity increases when the size of the overlap increases.

The experimental results for all-to-one aggregation are shown in Figure 12. The horizontal axis is the Jaccard similarity coefficient between datasets. The vertical axis is the speedup over the Preagg+Repart algorithm with Jaccard similarity 0. Here speedup 1 corresponds to response time of 64.6 seconds. Figure 12 shows that GRASP has the best performance and is up to faster than Preagg+Repart and faster than LOOM when the Jaccard similarity is 1. Figure 12 shows that the performance of Repart and Preagg+Repart stays the same when the Jaccard similarity changes. This means that repartitioning cannot utilize the similarities between datasets.

GRASP has better performance than LOOM for two reasons. First, GRASP is data distribution-aware and prioritizes aggregations with higher similarity. Second, GRASP has higher network utilization than LOOM. In GRASP, a fragment can be both sending and receiving as long as it is not working on the same partition. In LOOM, a fragment is either a parent fragment receiving data or a child fragment sending data.

In all-to-all aggregation GRASP has similar performance with repartitioning as there is no underutilized link in the network. We omit the results for brevity.

Figure 10: Speedup of GRASP when the similarity between datasets increases. GRASP is up to faster than LOOM and faster than Preagg+Repart.
Figure 11: Speedup over Preagg+Repart when there are multiple tuples for each GROUP BY key in the same fragment for all-to-one aggregation.
Figure 12: Speedup of GRASP for all-to-all aggregations when there fragment 0 receives more tuples. GRASP is up to faster than Preagg+Repart.

5.2.2 Effect of similarity within fragments

This experiment evaluates how GRASP works when there are multiple tuples for one GROUP BY key within one fragment. In this case local aggregation will reduce the size of data, hence the Preagg+Repart algorithm will have better performance than the Repart algorithm.

There are 128 million tuples in each fragment in this experiment. We change the distinct cardinalities of the datasets from 128 million, 64 million, 32 million to 16 million, which changes the number of tuples per GROUP BY key from 1, 2, 4, to 8, respectively. The smaller the distinct cardinality is, the more tuples are aggregated during local aggregation.

The results for the all-to-one aggregation are shown in Figure 12. The horizontal axis is the number of tuples for each GROUP BY key within the same fragment. The vertical axis shows the speedup over the Preagg+Repart algorithm. Higher bars means better performance. The results show that Preagg+Repart has better performance than Repart when the number of tuples for each GROUP BY key increases, which means there are more opportunities for local aggregation. However, GRASP always has better performance: it is more than faster than Preagg+Repart and about faster than than LOOM in all-to-one aggregations. Hence GRASP has the same or better performance than repartition and LOOM when the similarity within the same dataset changes.

5.2.3 Effect of workload imbalance

In parallel aggregation, some fragments may receive more tuples to aggregate for two reasons. First, the repartition function may assign more GROUP BY keys to some fragments. Second, even if each fragment gets the same number of GROUP BY keys to process, there may be skew in the dataset. In this section, we evaluate how GRASP works when one fragment gets more tuples to process.

In this experiment, we have 128 million tuples and ranges from 1 to 128 million. We change the repartition function to assign more tuples to fragment 0. We assign million tuples to fragment 0 for aggregation and assign million tuples to the other fragments. We use to denote the imbalance level. When equals to 16, is 1 and there is no imbalance. However, as increases, fragment 0 gets more tuples than other fragments.

The results are shown in Figure 12. The horizontal axis is imbalance level . The vertical axis is the speedup over Preagg+Repart when is 0. Here speedup 1 corresponds to response time of 22.1 seconds. Notice that LOOM is not shown here because LOOM does not work for all-to-all aggregations. Figure 12 shows that the performance of repartition and GRASP both decreases when the workload imbalance increases. However, the performance decreases much faster for repartition than GRASP and GRASP is already faster than Preagg+Repart when fragment 0 receives about 3 times of data of other fragments. This is because in repartition, other fragments will stop receiving and aggregating data when they are waiting for fragment 0 to complete. While for GRASP, other fragments are still scheduled to receive and aggregate data. GRASP improves performance when some fragments process more tuples.

5.3 Experiments with nonuniform bandwidth

GRASP is cognizant of the network topology, which is crucial when the communication bandwidth is nonuniform. Nonuniform bandwidth means that some plan fragments communicate at different speeds than others. The distribution of the link bandwidth is not uniform in many common network topologies. Datacenter networks are often oversubscribed and data transfers within the same rack will be faster than data transfers across racks [17]. The data transfer throughput between instances in the cloud is also nonuniform [27]. Even HPC systems which strive for balanced networks may have nonuniform configurations [20].

This section evaluates how GRASP performs when the network bandwidth is nonuniform. All experiments in this section run multiple concurrent plan fragments in each server to emulate a nonuniform network where some data transfers will be faster than others due to locality.

Figure 13: Comparing between the theoretical bandwidth and the bandwidth estimated from benchmarks.
Figure 14: Speedup on the MODIS dataset when changing the estimated bandwidth.
Figure 15: Speedup over Preagg+Repart with nonuniform bandwidth.
(a) All-to-one aggregation. (b) All-to-all aggregation.
Figure 16: Speedup over Preagg+Repart when scaling out.
Figure 17: Speedup over Preagg+Repart on TPC-H workload and real datasets.

5.3.1 Impact of bandwidth estimation

The bandwidth estimation procedure described in Section 3.2 leads to two questions: how accurate is the estimation and how robust is GRASP to estimation errors?

Figure 14 compares the available bandwidth as estimated by GRASP versus a manual calculation based on the hardware specifications, the network topology and the fragment placement. This experiment uses 8 machines with each machine having 14 fragments in the experiment. “Within machine” and “Across machines” corresponds to the communication bandwidth between fragments within the same node and across different nodes, respectively. The result shows that the estimation error is within 20% from the theoretical bandwidth. We conclude that the GRASP estimation procedure is fairly accurate in an idle cluster.

The estimation procedure may introduce errors in production clusters that are rarely idle. Figure 14 shows the impact of bandwidth underestimation on the response time of the aggregation plan produced by GRASP. We test two underestimation levels, and

from the theoretical value. In this experiment we force GRASP to use a modified bandwidth matrix while running the aggregation query on the MODIS dataset. We run the experiment 10 times picking nodes at random for each setting, and show the standard deviation as an error bar. Co-location results in the underestimation of the communication bandwidth between local fragments in one or more machines. NIC contention and switch contention underestimates the available network bandwidth for one or all nodes in the cluster, respectively. “Topology” corresponds to the calculation based on the hardware capabilities, while “GRASP estimation” corresponds to the procedure described in Section

3.2. The horizontal axis is the response time difference with respect to the plan GRASP generated using the theoretical hardware capabilities (hence, lower means faster). The result shows that GRASP has better performance when using the estimated bandwidth matrix than the accurate bandwidth from network topology. This is because the estimated bandwidth measured from the benchmark is closer to the available bandwidth during query execution. Moreover, even when the available bandwidth is underestimated by up to 50%, the change in query response time is less than 20%. We conclude that GRASP is robust to errors introduced during bandwidth approximation.

5.3.2 Effect of nonuniform bandwidth

GRASP takes network bandwidth into consideration in aggregation scheduling. How well does GRASP work when the bandwidth between network links is different in a cluster?

In this experiment, we use 4 machines and each machine has 14 aggregation fragments. The dataset in each fragment has 14 million tuples with ranging from 1 to 14 million.

The result is shown in Figure 17. The vertical axis is the speedup over Preagg+Repart. The results show that GRASP has better performance than both repartitioning and LOOM in both all-to-one and all-to-all aggregations. GRASP is up to faster than Preagg+Repart and faster than LOOM in all-to-one aggregation and faster than Preagg+Repart in all-to-all aggregation. This is because GRASP is topology-aware and schedules more aggregations on the faster network links. GRASP is topology-aware and has better performance than the baselines when the bandwidth between fragments is not uniform.

5.3.3 Effect of more plan fragments

GRASP considers the candidate aggregations between all plan fragments for all partitions in each phase of aggregation scheduling. Hence the cost of GRASP increases when there are more plan fragments. In this experiment, we evaluate how GRASP works when the number of fragments increases. We change the number of fragments from 28, 56, 84 to 112 by running 14 fragments per node and changing the number of nodes from 2, 4, 6 to 8. Each plan fragment has 16 million tuples with ranging from 1 to 16 million.

The result is shown in Figure 17, where the horizontal axis is the number of fragments and the vertical axis is the speedup over Preagg+Repart. For all-to-one aggregations, Figure 15(a) shows that GRASP has better performance and is faster than Preagg+Repart and faster than LOOM when the number of fragments is 112. The speedup increases when the number of fragments increases. This is because in all-to-one aggregations the receiving link of the final destination node is the bottleneck when repartitioning. Hence, the performance of repartitioning rapidly degrades when the number of fragments increases.

For all-to-all aggregations, Figure 15(b) shows that GRASP is faster than Preagg+Repart when the number of fragments is 56. However, the speedup decreases for GRASP when the number of fragments exceeds 56 in all-to-all aggregation. This is because the planning cost of GRASP becomes more expensive in all-to-all aggregations as there are more candidate transfers to consider in each phase. This points to the need to parallelize aggregation planning for all-to-all aggregations in networks that concurrently execute hundreds of plan fragments.

5.3.4 Real datasets and the TPC-H workload

These experiments evaluate the performance of the GRASP plans with the TPC-H workload and three real datasets. We use 8 machines and 14 fragments per machine. The dataset is aggregated to fragment 0, which corresponds to the all-to-one aggregation.

Speedup results: Figure 17 shows the speedup over Preagg +Repart for each algorithm. The result shows that GRASP has the best performance for all datasets. GRASP is faster than LOOM and faster than Preagg+Repart in the MODIS dataset.

Network utilization: Figure 18 shows the network utilization plot for the MODIS dataset. The horizontal axis is the time elapsed since the query was submitted to the coordinator. (Note that the scale of the horizontal axis is not the same, as some algorithms finish earlier than others.) Each horizontal line in the plot represents one incoming network link or one outgoing link of a fragment. For each link, we plot a line when there is traffic in the link and leave it blank otherwise.

Figure 17(a) shows network utilization with GRASP. After a short delay to compute the aggregation plan, the network is fully utilized in the first few phases and there is traffic in all links. As the aggregation progresses, more fragments contain no data and hence these fragments do not further participate in the aggregation. The aggregation finishes in under 300 seconds.

Figure 17(b) shows LOOM. One can see that the network links, especially the receiving links, are not as fully utilized as in Figure 17(a). The fan-in of the aggregation tree produced by LOOM is 5 for this experiment, which makes the receiving link of the parent fragment to be bottleneck. The aggregation finishes in about 600 seconds.

Figure 17(c) shows Preagg+Repart. All receiving links except fragment 0 (the aggregation destination) are not utilized. The entire aggregation is bottlenecked on the receiving capability of fragment 0. The aggregation takes more than 900 seconds. We omit the figure for Repart as it is similar to Preagg+Repart.

(a) GRASP
(b) LOOM
(c) Preagg+repart
Figure 18: Network link utilization.

Tuples transmitted to destination: The GRASP performance gains can be directly attributed to the fact that it transmits less data on the incoming link of the destination fragment, which is frequently the bottleneck of the entire aggregation. Table 2 shows how many tuples the destination fragment receives under different algorithms. Local pre-aggregation has minimal impact as it is only effective when duplicate keys happen to be co-located on the same node. LOOM transmits fewer tuples to the destination fragment as tuples are combined in the aggregation tree before arriving at the final destination fragment. By aggressively combining fragments based on their similarity, GRASP transmits less tuples than LOOM to the destination fragment.

Accuracy of minhash estimation: We also evaluate the accuracy of the minhash estimation with the MODIS dataset. Figure 20

shows the cumulative distribution function of the absolute error in estimating the size of the intersection between fragments when the cardinality of the input is accurately known. The result shows that the absolute error of the size of the intersection is less than

for of the estimations. We conclude that the minhash estimation is accurate and it allows GRASP to pick suitable fragment pairs for aggregation.

Repart Preagg+Repart LOOM GRASP
3,464,926,620 3,195,388,849 2,138,236,114 787,105,152
Table 2: Tuples received by the final destination fragment.
Figure 19: Absolute error in minhash estimation.
Figure 20: Speedup over Preagg+Repart on the MODIS dataset in Amazon EC2.

5.3.5 Evaluation on Amazon EC2

This section evaluates GRASP on the MODIS dataset on Amazon EC2. We allocate 8 instances of type d2.8xlarge and run 6 fragments in each instance. Figure 20 shows the speedup over the Preagg+Repart algorithm for each algorithm. Preagg+Repart has better performance than Repart in this experiment. This is because the fast 10 Gbps network in EC2 makes the query compute bound. The throughput of the local aggregation on pre-aggregated data is measured to be 811 MB/s, which is faster than aggregation on raw data with throughput to be 309 MB/s. This does not make a difference in the experiment in Section 5.3.4, as aggregation is network bound in the 1 Gbps network where the maximum throughput is 125 MB/s. However, the aggregation is compute bound in the 10 Gbps network of EC2 with a maximum throughput of 1.2 GB/s, hence pre-aggregation makes a big difference.

Figure 20 shows that GRASP is 2.2 faster than Preagg+ Repart and 1.5 faster than LOOM. GRASP still has better performance when computation is the bottleneck. This is because GRASP maximizes network utilization by scheduling as many aggregations as possible in each phase, which also maximizes the number of fragments participating in the aggregation and sharing the computation load of each phase.

6 Related work

Aggregation execution

Aggregation has been extensively studied in previous works. Many works have focused on how to execute an aggregation efficiently in a single server. Larson [23] studied how to use partial aggregation to reduce the input size of other operations. Cieslewicz and Ross [6] evaluated aggregation algorithms with independent and shared hash tables on multi-core processors. Ye et al. [52] compared different in-memory parallel aggregation algorithms on the Intel Nehalem architecture. Raman et al. [39] described the grouping and aggregation algorithm used in DB2 BLU. Müller et al. [34] proposed an adaptive algorithm which combines the hashing and sorting implementations. Wang et al. [48] proposed a NUMA-aware aggregation algorithm. Jiang and Gagan [22] and Polychroniou et al [35] used SIMD and MIMD to parallelize the execution of aggregation. Gan et al. [12]

optimized high cardinality aggregation queries with moment based summaries. Müller et al.

[33] studied the floating-point aggregation.

Aggregation has also been studied in the parallel database system literature. Graefe [14] introduced aggregation evaluation techniques in parallel database system. Shatdal and Naughton [45] proposed adaptive algorithms which switch between the repartition and the two-phase algorithm at runtime. Aggregation trees are used in accelerating parallel aggregations. Melnik et al. [32] introduced Dremel, which uses a multi-level serving tree to execute aggregation queries. Yuan et al. [54] compared the interfaces and implementations for user-defined distributed aggregations in several distributed computing systems. Mai et al. [31] implemented NetAgg which aggregates data along network paths. Costa et al. [7] proposed Camdoop, which does in-network aggregation for a MapReduce-like system in a cluster with a direct-connect network topology. Yalagandula and Dahlin [51] designed a distributed information management system to do hierarchical aggregation in networked systems. Culhane et al. [8, 9] proposed LOOM, which builds an aggregation tree with fixed fan-in for all-to-one aggregations.

The impact of the network topology on aggregation has been studied. Gupta et al. [18] proposed an aggregation algorithm that works in unreliable networks such as sensor networks. Madden et al. [29] designed an acquisitional query processor for sensor networks to reduce power in query evaluation. Madden et al. [28, 30] also proposed a tiny aggregation service which does in network aggregation in sensor networks. Chowdhury et al. [5] proposed Orchestra to manage network activities in MapReduce systems.

None of the above aggregation algorithms takes advantage of the similarity between fragments as GRASP does. The most relevant work is LOOM which considers the amount of data reduction in an aggregation during planning. However LOOM only considers the overall reduction rate and does not consider data similarities during aggregation. The biggest strength of GRASP is that it carefully estimates the size of every partial aggregation and handles each partition differently, which is not possible with LOOM.

Distribution-aware algorithms

Distribution-aware algorithms use information about the distribution and the placement of the data during query processing. Prior works have extensively studied how to take advantage of locality. Some algorithms consider the offline setting. Zamanian et al. [55] introduced a data partitioning algorithm to maximize locality in the data distribution. Prior works have also considered how to extract and exploit locality information at runtime. Rödiger et al. [42] proposed a locality-sensitive join algorithm which first builds a histogram for the workload, then schedules the join execution to reduce network traffic. Polychroniou [36] proposed track-join, where the distribution of the join key is exchanged across the cluster to generate a join schedule to leverage locality. Lu et al. [26] proposed AdaptDB, which refines data partitioning according to access patterns at runtime.

Distribution-aware algorithms have also been proposed to deal with skewed datasets. DeWitt et al. [10] handled skew in a join by first sampling the data, then partitioning the build relation and replicating the probe relation as needed. Shah et al. [44] implemented an adaptive partitioning operator to collect dataset information at runtime and address the problem of workload imbalance in continuous query systems. Xu et al. [50] addressed skew in parallel joins by first scanning the dataset to identify the skewed values, then keeping the skewed rows locally and duplicating the matching rows. Rödiger et al. [40] adopted similar approach as DeWitt et al. [10] by first sampling 1% of the data and then use this information to decide the data partition scheme. Wolf et al. [49] divided the parallel hash join into two phases, and add one scheduling phase to split the partition with data skew. Elseidy et al. [11] proposed a parallel online dataflow join which is resilient to data skew.

7 Conclusions and future work

Parallel aggregation is a ubiquitous operation in data analytics. For low-cardinality parallel aggregations, the network cost is negligible after the data has been aggregated locally using pre-aggregation. However, the network communication cost becomes significant for high-cardinality parallel aggregations. This paper proposes GRASP, an algorithm that schedules parallel aggregation in a distribution-aware manner to increase network utilization and reduce the communication cost for algebraic aggregations.

Looking ahead, GRASP can be further extended in two promising ways. First, GRASP can be extended for non-algebraic aggregations. This would require a new metric to quantify the data reduction of an aggregation pair. Second, the assumption that the communication cost dominates the aggregation marginally holds on 10 Gbps networks, and will not hold in faster networks such as InfiniBand. One opportunity is to augment the cost estimation formulas to account for compute overheads, instead of modeling the network transfer cost alone. This can jointly optimize compute and communication overheads during aggregation in high-performance networks.

Acknowledgements: We would like to acknowledge Srinivasan Parthasarathy, Jiongqian Liang, Vishal Dey and the anonymous reviewers for their insightful comments that improved this paper. This work was supported by the National Science Foundation grants IIS-1464381, CCF-1816577, CCF-1815145, CCF-1423230 and CAREER award 1453472.

References

  • [1] M. Al-Fares, A. Loukissas, and A. Vahdat. A Scalable, Commodity Data Center Network Architecture. SIGCOMM Comput. Commun. Rev., 38(4):63–74, Aug. 2008.
  • [2] P. Austrin, T. Pitassi, and Y. Wu. Inapproximability of Treewidth, One-shot Pebbling, and Related Layout Problems. In

    Approximation, Randomization, and Combinatorial Optimization. Algorithms and Techniques

    , pages 13–24. Springer, 2012.
  • [3] A. Z. Broder, M. Charikar, A. M. Frieze, and M. Mitzenmacher. Min-wise Independent Permutations (Extended Abstract). In

    Proceedings of the Thirtieth Annual ACM Symposium on Theory of Computing

    , STOC ’98, pages 327–336, New York, NY, USA, 1998. ACM.
  • [4] A. Cayley. A theorem on trees. Quarterly Journal of Pure Applied Mathematics, 23:376–378, 1889.
  • [5] M. Chowdhury, M. Zaharia, J. Ma, M. I. Jordan, and I. Stoica. Managing Data Transfers in Computer Clusters with Orchestra. In Proceedings of the ACM SIGCOMM 2011 Conference, SIGCOMM ’11, pages 98–109, New York, NY, USA, 2011. ACM.
  • [6] J. Cieslewicz and K. A. Ross. Adaptive Aggregation on Chip Multiprocessors. In Proceedings of the 33rd International Conference on Very Large Data Bases, VLDB ’07, pages 339–350. VLDB Endowment, 2007.
  • [7] P. Costa, A. Donnelly, A. I. T. Rowstron, and G. O’Shea. Camdoop: Exploiting In-network Aggregation for Big Data Applications. In Proceedings of the 9th USENIX Symposium on Networked Systems Design and Implementation, NSDI 2012, San Jose, CA, USA, April 25-27, 2012, pages 29–42, 2012.
  • [8] W. Culhane, K. Kogan, C. Jayalath, and P. Eugster. LOOM: Optimal Aggregation Overlays for In-memory Big Data Processing. In Proceedings of the 6th USENIX Conference on Hot Topics in Cloud Computing, HotCloud’14, pages 13–13, Berkeley, CA, USA, 2014. USENIX Association.
  • [9] W. Culhane, K. Kogan, C. Jayalath, and P. Eugster. Optimal communication structures for big data aggregation. In 2015 IEEE Conference on Computer Communications, INFOCOM 2015, Kowloon, Hong Kong, April 26 - May 1, 2015, pages 1643–1651, 2015.
  • [10] D. J. DeWitt, J. F. Naughton, D. A. Schneider, and S. Seshadri. Practical Skew Handling in Parallel Joins. In Proceedings of the 18th International Conference on Very Large Data Bases, VLDB ’92, pages 27–40, San Francisco, CA, USA, 1992. Morgan Kaufmann Publishers Inc.
  • [11] M. Elseidy, A. Elguindy, A. Vitorovic, and C. Koch. Scalable and Adaptive Online Joins. PVLDB, 7(6):441–452, 2014.
  • [12] E. Gan, J. Ding, K. S. Tai, V. Sharan, and P. Bailis. Moment-Based Quantile Sketches for Efficient High Cardinality Aggregation Queries. CoRR, abs/1803.01969, 2018.
  • [13] A. Gionis, P. Indyk, and R. Motwani. Similarity Search in High Dimensions via Hashing. In Proceedings of the 25th International Conference on Very Large Data Bases, VLDB ’99, pages 518–529, San Francisco, CA, USA, 1999. Morgan Kaufmann Publishers Inc.
  • [14] G. Graefe. Query Evaluation Techniques for Large Databases. ACM Comput. Surv., 25(2):73–170, 1993.
  • [15] GRASP. https://code.osu.edu/pythia/grasp.
  • [16] J. Gray, A. Bosworth, A. Layman, and H. Pirahesh. Data Cube: A Relational Aggregation Operator Generalizing Group-By, Cross-Tab, and Sub-Total. In Proceedings of the Twelfth International Conference on Data Engineering, February 26 - March 1, 1996, New Orleans, Louisiana, pages 152–159, 1996.
  • [17] A. G. Greenberg, J. R. Hamilton, N. Jain, S. Kandula, C. Kim, P. Lahiri, D. A. Maltz, P. Patel, and S. Sengupta. VL2: A Scalable and Flexible Data Center Network. In Proceedings of the ACM SIGCOMM 2009 Conference on Applications, Technologies, Architectures, and Protocols for Computer Communications, Barcelona, Spain, August 16-21, 2009, pages 51–62, 2009.
  • [18] I. Gupta, R. v. Renesse, and K. P. Birman. Scalable Fault-Tolerant Aggregation in Large Process Groups. In Proceedings of the 2001 International Conference on Dependable Systems and Networks (Formerly: FTCS), DSN ’01, pages 433–442, Washington, DC, USA, 2001. IEEE Computer Society.
  • [19] R. He and J. McAuley. Ups and Downs: Modeling the Visual Evolution of Fashion Trends with One-Class Collaborative Filtering. In Proceedings of the 25th International Conference on World Wide Web, WWW 2016, Montreal, Canada, April 11 - 15, 2016, pages 507–517, 2016.
  • [20] https://htor.inf.ethz.ch/research/topologies/.
  • [21] P. Indyk and R. Motwani.

    Approximate Nearest Neighbors: Towards Removing the Curse of Dimensionality.

    In Proceedings of the Thirtieth Annual ACM Symposium on Theory of Computing, STOC ’98, pages 604–613, New York, NY, USA, 1998. ACM.
  • [22] P. Jiang and G. Agrawal. Efficient SIMD and MIMD Parallelization of Hash-based Aggregation by Conflict Mitigation. In Proceedings of the International Conference on Supercomputing, ICS ’17, pages 24:1–24:11, New York, NY, USA, 2017. ACM.
  • [23] P. Larson. Data Reduction by Partial Preaggregation. In Proceedings of the 18th International Conference on Data Engineering, San Jose, CA, USA, February 26 - March 1, 2002, pages 706–715, 2002.
  • [24] V. Leis, B. Radke, A. Gubichev, A. Mirchev, P. A. Boncz, A. Kemper, and T. Neumann. Query Optimization Through the Looking Glass, and What We Found Running the Join Order Benchmark. VLDB J., 27(5):643–668, 2018.
  • [25] F. Liu, A. Salmasi, S. Blanas, and A. Sidiropoulos. Chasing similarity: Distribution-aware aggregation scheduling. PVLDB, 12(3):292–306, 2018.
  • [26] Y. Lu, A. Shanbhag, A. Jindal, and S. Madden. AdaptDB: Adaptive Partitioning for Distributed Joins. PVLDB, 10(5):589–600, 2017.
  • [27] L. Luo, J. Nelson, L. Ceze, A. Phanishayee, and A. Krishnamurthy.

    Parameter Hub: a Rack-Scale Parameter Server for Distributed Deep Neural Network Training.

    In Proceedings of the ACM Symposium on Cloud Computing, SoCC 2018, Carlsbad, CA, USA, October 11-13, 2018, pages 41–54, 2018.
  • [28] S. Madden, M. J. Franklin, J. M. Hellerstein, and W. Hong. TAG: A Tiny AGgregation Service for Ad-Hoc Sensor Networks. In 5th Symposium on Operating System Design and Implementation (OSDI 2002), Boston, Massachusetts, USA, December 9-11, 2002, 2002.
  • [29] S. Madden, M. J. Franklin, J. M. Hellerstein, and W. Hong. The Design of an Acquisitional Query Processor for Sensor Networks. In Proceedings of the 2003 ACM SIGMOD International Conference on Management of Data, SIGMOD ’03, pages 491–502, New York, NY, USA, 2003. ACM.
  • [30] S. Madden, R. Szewczyk, M. J. Franklin, and D. E. Culler. Supporting Aggregate Queries Over Ad-Hoc Wireless Sensor Networks. In 4th IEEE Workshop on Mobile Computing Systems and Applications (WMCSA 2002), 20-21 June 2002, Callicoon, NY, USA, pages 49–58, 2002.
  • [31] L. Mai, L. Rupprecht, A. Alim, P. Costa, M. Migliavacca, P. Pietzuch, and A. L. Wolf. NetAgg: Using Middleboxes for Application-specific On-path Aggregation in Data Centres. In Proceedings of the 10th ACM International on Conference on Emerging Networking Experiments and Technologies, CoNEXT ’14, pages 249–262, New York, NY, USA, 2014. ACM.
  • [32] S. Melnik, A. Gubarev, J. J. Long, G. Romer, S. Shivakumar, M. Tolton, and T. Vassilakis. Dremel: Interactive Analysis of Web-Scale Datasets. PVLDB, 3(1):330–339, 2010.
  • [33] I. Müller, A. Arteaga, T. Hoefler, and G. Alonso. Reproducible Floating-Point Aggregation in RDBMSs. CoRR, abs/1802.09883, 2018.
  • [34] I. Müller, P. Sanders, A. Lacurie, W. Lehner, and F. Färber. Cache-Efficient Aggregation: Hashing Is Sorting. In Proceedings of the 2015 ACM SIGMOD International Conference on Management of Data, SIGMOD ’15, pages 1123–1136, New York, NY, USA, 2015. ACM.
  • [35] O. Polychroniou, A. Raghavan, and K. A. Ross. Rethinking SIMD Vectorization for In-Memory Databases. In Proceedings of the 2015 ACM SIGMOD International Conference on Management of Data, SIGMOD ’15, pages 1493–1508, New York, NY, USA, 2015. ACM.
  • [36] O. Polychroniou, R. Sen, and K. A. Ross. Track Join: Distributed Joins with Minimal Network Traffic. In Proceedings of the 2014 ACM SIGMOD International Conference on Management of Data, SIGMOD ’14, pages 1483–1494, New York, NY, USA, 2014. ACM.
  • [37] P. Raghavendra and D. Steurer. Graph Expansion and the Unique Games Conjecture. In Proceedings of the forty-second ACM symposium on Theory of computing, pages 755–764. ACM, 2010.
  • [38] P. Raghavendra, D. Steurer, and M. Tulsiani. Reductions Between Expansion Problems. In Computational Complexity (CCC), 2012 IEEE 27th Annual Conference on, pages 64–73. IEEE, 2012.
  • [39] V. Raman, G. Attaluri, R. Barber, N. Chainani, D. Kalmuk, V. KulandaiSamy, J. Leenstra, S. Lightstone, S. Liu, G. M. Lohman, T. Malkemus, R. Mueller, I. Pandis, B. Schiefer, D. Sharpe, R. Sidle, A. Storm, and L. Zhang. DB2 with BLU Acceleration: So Much More Than Just a Column Store. PVLDB, 6(11):1080–1091, 2013.
  • [40] W. Rödiger, S. Idicula, A. Kemper, and T. Neumann. Flow-Join: Adaptive Skew Handling for Distributed Joins over High-speed Networks. In 32nd IEEE International Conference on Data Engineering, ICDE 2016, Helsinki, Finland, May 16-20, 2016, pages 1194–1205, 2016.
  • [41] W. Rödiger, T. Mühlbauer, A. Kemper, and T. Neumann. High-Speed Query Processing over High-Speed Networks. PVLDB, 9(4):228–239, 2015.
  • [42] W. Rödiger, T. Mühlbauer, P. Unterbrunner, A. Reiser, A. Kemper, and T. Neumann. Locality-sensitive Operators for Parallel Main-memory Database Clusters. In IEEE 30th International Conference on Data Engineering, Chicago, ICDE 2014, IL, USA, March 31 - April 4, 2014, pages 592–603, 2014.
  • [43] V. Satuluri and S. Parthasarathy. Bayesian Locality Sensitive Hashing for Fast Similarity Search. PVLDB, 5(5):430–441, 2012.
  • [44] M. A. Shah, J. M. Hellerstein, S. Chandrasekaran, and M. J. Franklin. Flux: An Adaptive Partitioning Operator for Continuous Query Systems. In Proceedings of the 19th International Conference on Data Engineering, March 5-8, 2003, Bangalore, India, pages 25–36, 2003.
  • [45] A. Shatdal and J. F. Naughton. Adaptive Parallel Aggregation Algorithms. In Proceedings of the 1995 ACM SIGMOD International Conference on Management of Data, SIGMOD ’95, pages 104–114, New York, NY, USA, 1995. ACM.
  • [46] E. Vermote-NASA GSFC and MODAPS SIPS - NASA. (2015). MOD09 MODIS/Terra L2 Surface Reflectance, 5-Min Swath 250m, 500m, and 1km. NASA LP DAAC.
  • [47] E. Vermote-NASA GSFC and MODAPS SIPS - NASA. (2015). MOD09A1 MODIS/Surface Reflectance 8-Day L3 Global 500m SIN Grid. NASA LP DAAC.
  • [48] L. Wang, M. Zhou, Z. Zhang, M. Shan, and A. Zhou. NUMA-Aware Scalable and Efficient In-Memory Aggregation on Large Domains. IEEE Trans. Knowl. Data Eng., 27(4):1071–1084, 2015.
  • [49] J. L. Wolf, P. S. Yu, J. Turek, and D. M. Dias. A Parallel Hash Join Algorithm for Managing Data Skew. IEEE Trans. Parallel Distrib. Syst., 4(12):1355–1371, Dec. 1993.
  • [50] Y. Xu, P. Kostamaa, X. Zhou, and L. Chen. Handling Data Skew in Parallel Joins in Shared-nothing Systems. In Proceedings of the 2008 ACM SIGMOD International Conference on Management of Data, SIGMOD ’08, pages 1043–1052, New York, NY, USA, 2008. ACM.
  • [51] P. Yalagandula and M. Dahlin. A Scalable Distributed Information Management System. In Proceedings of the 2004 Conference on Applications, Technologies, Architectures, and Protocols for Computer Communications, SIGCOMM ’04, pages 379–390, New York, NY, USA, 2004. ACM.
  • [52] Y. Ye, K. A. Ross, and N. Vesdapunt. Scalable Aggregation on Multicore Processors. In Proceedings of the Seventh International Workshop on Data Management on New Hardware, DaMoN ’11, pages 1–9, New York, NY, USA, 2011. ACM.
  • [53] https://www.yelp.com/dataset/documentation/json.
  • [54] Y. Yu, P. K. Gunda, and M. Isard. Distributed Aggregation for Data-parallel Computing: Interfaces and Implementations. In Proceedings of the ACM SIGOPS 22Nd Symposium on Operating Systems Principles, SOSP ’09, pages 247–260, New York, NY, USA, 2009. ACM.
  • [55] E. Zamanian, C. Binnig, and A. Salama. Locality-aware Partitioning in Parallel Database Systems. In Proceedings of the 2015 ACM SIGMOD International Conference on Management of Data, SIGMOD ’15, pages 17–30, New York, NY, USA, 2015. ACM.
