I Introduction

The complexity of deep neural network (DNN) based machine learning (ML) algorithms is scaling up rapidly. As such, GPUs or ASIC/FPGA-based ML accelerators are widely being adopted for accelerating the computationally dense

DNN layers. Examples include convolutional neural networks (CNNs), recurrent neural networks (RNNs), and multi-layer perceptrons (MLPs), all of which are amenable for hardware acceleration thanks to their highly regular and deterministic dataflow.

While we were able to make significant strides in accelerating these compute-intensive DNN layers, little attention has been paid in addressing the challenges of memory limited

non-DNN layers in emerging ML workloads. Consequently, we are witnessing these non-DNN layers, especially those that are memory intensive, gradually becoming a more significant performance bottleneck [38, 23, 35]. In particular, ML algorithms employing sparse embedding layers exhibit drastically different characteristics than conventional dense DNN layers. Figure 1 illustrates the high-level structure of ML applications employing embedding layers, which are being adopted in a variety of application domains such as ads, social networking service, e-commerce, and others. The backbone ML algorithms that power these applications are personalized recommendation systems, the most widely deployed ML workload serviced from the cloud. As we study in this paper, embedding layers account for a significant fraction of the inference time of recommendations. Consequently, several hyperscalers such as Google [18], Facebook [54, 23, 63], Alibaba [60], and Baidu [27] all pinpoint to these embedding layers as causing a severe performance bottleneck in production-level personalized recommendation models.

Fig. 1: Topological structure of a DNN-based personalized recommendation model containing sparse embedding layers as the frontend and dense DNN layers as the backend processing step.

In this paper, we focus on addressing the system-level challenges in deploying DNN-based recommendation models. Personalized recommendation consists of two key modules: (1) the frontend, sparse embedding layers and (2) the backend, dense MLP layers. As detailed in Section III, embedding layers consume up to several hundreds of GBs of memory capacity in recommendations, even for inference. Because such requirement is far beyond the physical memory capacity of GPUs (only available with several tens of GBs, GB in NVIDIA V100 [50]), a common practice in deploying these models over the cloud is to utilize the capacity-optimized CPU memory to store the embeddings and utilize the CPU exclusively for inference (CPU-only[25, 23, 54].

Given this landscape, this paper first conducts a workload characterization study on state-of-the-art personalized recommendation models. We identify the following key challenges in deploying personalized recommendations on conventional CPU-only

systems. During the frontend embedding layer stage, multiple embedding vectors are

gathered from several embedding tables which are subsequently reduced over the low-bandwidth CPU memory (Figure 1). Because the aggregate size of the gathered embeddings for inference is much smaller than the size of the embedding tables (e.g., several KBs or MBs of read over several tens of GBs of embedding tables), the embedding gather operations are extremely sparse with low spatial/temporal locality, exhibiting high last-level cache (LLC) miss rates (Section III-B). Unlike throughput-optimized GPUs however, CPUs are primarily optimized for latency with only a handful of concurrent threads and miss status holding registers (MSHRs). As such, we observe that CPUs fail to maximize memory-level parallelism thus significantly under-utilizing memory bandwidth for such sparse embedding gather operations (Section III-C). Consequently, these sparse embedding layers can account for a significant fraction of inference time (up to ), causing a performance bottleneck. Another significant challenge with CPU-only recommendations is that the compute-intensive MLPs are executed using the low-throughput CPUs, experiencing significant latency overheads. Overall, we identify the limited memory throughput utilization of CPU memory systems and the low computational throughput of CPUs as the two most significant obstacles in addressing the system-level bottlenecks of personalized recommendation.

To this end, we present Centaur, a chiplet-based hybrid sparse-dense FPGA accelerator that holistically addresses the challenges of personalized recommendations. FPGAs have recently had a surge of interest for ML acceleration thanks to their power-efficient and highly programmable nature. However, prior work on FPGA-accelerated ML primarily targets the compute-intensive dense DNN layers [44, 48, 45, 4, 59, 66, 64, 65, 20, 12, 67, 58, 42, 53], so they cannot properly address the challenges of sparse embeddings. Traditionally, the most commonly employed integration tier between the CPU and FPGA is to connect them over the PCIe I/O bus, each with its own local physical memory. The FPGA in effect functions as a discrete co-processor device (similar to discrete GPUs) and provides ML acceleration as a service to the CPU via a task offloading request. Recent advances in chiplet technology [43, 6, 57] however enabled a more tight CPU+FPGA integration at the package-level, providing high-bandwidth and low-latency communication between the CPU and FPGA chiplets over a physically shared memory. This allows the FPGA chiplet to directly access the embedding tables stored inside the CPU DIMMs, obviating the need for memory copy operations between host and I/O device memory as required in discrete GPUs or FPGAs. Furthermore, as these package-integration technology matures, we expect an even higher compute density as well as higher inter-chip communication bandwidth [43, 30, 6]. The key innovation of Centaur is the utilization of this emerging, chiplet-based CPU+FPGA technology to develop a heterogeneous accelerator architecture tailored to address the conflicting resource requirements of recommendation models. Concretely, Centaur synergistically combines the following two modules for high-performance recommendations:

  1. “Sparse” accelerator for embeddings: Under our package-integrated CPU+FPGA, the FPGA can directly read (write) from (to) the shared physical memory over the high-bandwidth, low-latency CPUFPGA communication links. Centaur implements a sparse accelerator for high-throughput embedding gather and reduction operations, directly streaming out the embeddings and reducing them from the CPU memory. This helps improve Centaur’s effective throughput in embedding gathers and reductions, achieving superior memory bandwidth utilization for embedding layers.

  2. “Dense” accelerator for GEMMs: Alongside our sparse accelerator, Centaur incorporates a module for accelerating the compute-intensive DNN layers. We design a dense accelerator to handle the GEMM (general purpose matrix multiplication) operations such as MLPs or feature interactions, allowing significant latency reduction compared to the baseline CPU-only which relies on low-throughput CPU cores for GEMM operation.

Overall, our Centaur design utilizes the unique properties of package-integrated CPU+FPGAs to demonstrate the merits of a chiplet-based, hybrid sparse-dense accelerator architecture that effectively tackles the performance bottlenecks of personalized recommendation. Specifically, our sparse-optimized accelerator helps overcome the limited memory bandwidth utility of CPU-only and achieves significant throughput improvements for sparse embedding layers. Furthermore, Centaur improves the performance of MLP layers thanks to the high-throughput FPGA logic. Putting everything together, Centaur provides speedup and energy-efficiency improvement than CPU-only in deploying end-to-end personalized recommendation models.

Ii Background

Fig. 2: Functional behavior of SparseLengthsSum() in Caffe2 [8], which conducts embedding gathers and reductions.

Ii-a Sparse vs. Dense Layers in Personalized Recommendations

The computer systems community has primarily focused on accelerating the computationally intensive CNNs, RNNs, and MLPs, which exhibit a dense and highly regular computational property. Because of its highly deterministic dataflow, these dense DNN layers are amenable for hardware acceleration using custom-designed architectures for training and inference [13, 61, 52, 10, 14, 41, 24, 51, 1, 59, 66, 64, 65, 62, 55, 40, 39, 37, 56, 28, 15, 33].

However, emerging ML workloads employing embedding layers exhibit a highly irregular and sparse dataflow. Figure 2 is a pseudo-code of the SparseLengthsSum function implemented in Caffe2 [8], which conducts embedding lookups (aka gathers) and embedding (vector) reductions, widely employed in DNN-based recommendation systems [46]. Millions of vectors called embeddings are stored contiguously inside a table, called embedding (lookup) table, and a sparse index ID is used to lookup a unique row from this table. An embedding gather operation takes multiple sparse indices as inputs, which do not necessarily point to contiguous rows within the embedding table, to lookup multiple rows from this table. Consequently, an embedding gather operation exhibits a highly sparse and random memory access pattern with low temporal/spatial locality. The embedding vectors gathered from the lookup table can be combined with other vectors using element-wise (addition/multiplication/) operations, hence performing reductions as illustrated in Figure 3. The reduced embedding vectors go through a feature interaction step to algorithmically capture the complex interaction between different embedding features. While several implementations exists for feature interaction [46]

, we assume the dot-product based feature interaction method as employed in Facebook’s open-sourced deep learning recommendation model (DLRM)

[46]. The feature interaction stage in DLRM is implemented by taking the dot-product between all pairs of (reduced) embedding vectors (the batched GEMM operation in Figure 3), the outputs of which are all concatenated with the output vector of the bottom MLP layer (Figure 1

). The concatenated vector is then post-processed with the top MLP and fed into a Sigmoid function to calculate an event probability (e.g., the likelihood of a Facebook user clicking an advertisement banner).

Fig. 3: Illustration of embedding gather and reduction operations, followed by a feature interaction stage. The example assumes three embedding tables are used, each with , , and

gather operations per each table. The feature interaction stage is conducted by a batched GEMM operation, the input of which is collected by concatenating the three reduced embeddings as a tensor.

Ii-B ML Workloads using Embeddings

An embedding is a projection of a discrete, categorical feature into a vector of continuous real numbers. Under the context of our ML workloads, embeddings are low-dimensional, learned vector representations of feature variables, which have recently shown to be very effective in numerous application domains such as recommendation systems [26, 46, 60], machine translation [19]

, and automatic speech recognition

[5]

. A recommendation system for instance is formulated as a problem of estimating the likelihood of a certain event. A DNN-based recommendation is designed to utilize embeddings to take into account each user and item’s learned features and use embedding reductions to interact different features altogether, which is later processed by a backend DNN execution step to extract the probability of a certain event.

Fig. 4: CPUFPGA integration tiers assuming (a) a discrete FPGA communicating with the CPU over the PCIe I/O bus, and (b) a package-integrated CPU+FPGA housed inside a single CPU socket. (c) The package-level integration of CPU+FPGA enables a shared memory address space between the CPU and FPGA, allowing high-bandwidth, low-latency communication between the CPU and FPGA at the hardware level. As this paper utilizes Intel’s HARPv2 [29] to demonstrate the merits of chiplet-based CPU+FPGA for recommendations, we assume Intel’s technology (e.g., QPI) and nomenclature for the rest of this paper. Nonetheless, the high-level intuitions of our proposal are equally applicable for alternative chiplet-based CPU+FPGA designs.

Ii-C Discrete vs. Integrated FPGAs for ML Acceleration

While ASICs provide significant energy-efficiency gains than general-purpose CPUs/GPUs for dense DNN layers, they are not able to flexibly cope with the ever-evolving ML algorithm research space. Reconfigurable processor architectures such as FPGAs represent an intermediate design point between the efficiency of ASICs and the programmability of general purpose (CPU/GPU) processors, providing the potential for flexible acceleration of the constantly evolving ML applications [44, 48, 45, 4, 59, 66, 64, 65, 20]. The most widely employed CPU-FPGA integration strategy is to connect a discrete FPGA card to the CPU over the I/O bus (i.e., PCIe), both of which is equipped with its own local physical memory (Figure 4(a)). Many FPGA boards employ this style of integration because of its extensibility and the high throughput it can provide to the CPU as a co-processor device. A key challenge with such integration tier is that the CPUFPGA communication speed is bounded by the narrow PCIe bus bandwidth and its high latency, so the benefits of FPGA acceleration is only provided when its benefits outweigh the task offloading overhead. More recent products therefore employ a more tight CPU+FPGA integration at the package-level, allowing the CPU and FPGA chiplets to communicate at a much higher bandwidth and lower latency than discrete FPGAs (Figure 4(b)), with future designs expected to provide even higher bandwidth and speed using more advanced multi-chip packaging technologies [43, 30, 6]. Another key advantage of integrated CPU+FPGA devices is that they can share a single physical memory, which allows fine-grained FPGA-to-CPU data accesses (and vice versa) at the hardware-level, obviating the latency overheads of traversing through the software stack for data movements (i.e., manual DMA-invoked memcpys across the CPUFPGA memory address space, Figure 4(c)) thus reducing overall memory access latency.

Iii Workload Characterization of DNN-based Personalized Recommendation Systems

In this section, we utilize the open-sourced deep learning recommendation model (DLRM) [46] to conduct a detailed workload characterization study on DNN-based personalized recommendations. DLRM comes with several production-level model configurations and we generate six recommendation models that covers the design space of recommendations (as discussed in [46, 23]) by varying the number of embedding tables, number of gather operations per each table, and the total memory usage of embedding tables and MLP layers (Table I). Following prior work [46, 23], each embedding is sized as a -dimensional vector as default. A key objective of our characterization study is to root-cause the performance bottlenecks of recommendation models and motivate our hybrid sparse-dense FPGA accelerator design. In the rest of this paper, we assume the CPU-only system as our baseline architecture as it is the most commonly deployed system design point for recommendations. We further detail the merits of CPU-only for deploying recommendations in Section IV-A.

Model # of Tables Gathers/table Table size MLP size
DLRM(1) MB KB
DLRM(2) GB KB
DLRM(3) MB KB
DLRM(4) GB KB
DLRM(5) GB KB
DLRM(6) MB KB
TABLE I: Recommendation model configurations.

Iii-a Breakdown of End-to-End Inference Time

Figure 5 shows a breakdown of end-to-end inference latency and normalized execution time when sweeping the input batch size from to . There are several interesting observations to be made from this experiment. First, unlike conventional ML applications extensively studied in the computer systems community, non-DNN layers such as embedding layers take up significant fraction of execution time on personalized recommendation models. Second, MLP layers still account for a non-trivial portion of runtime, especially when the inference batch size is small. Third, although larger batch sizes increase the latency of both the embedding and MLP layers, MLP layers experience a relatively slower increase in execution time than embedding layers (except for DLRM(6) which is intentionally configured to have a lightweight embedding layer followed by a much more compute-intensive MLP layer, see Section V for details of our methodology). This is because large batch sizes tend to help increase the data reuse of MLP weights across the multiple input batches and amortize the cost of uploading weights on-chip (e.g., as detailed in the next subsection, LLC miss rates in MLP layers are never more than ), whereas larger batches in embeddings do not translate into better data reuse whatsoever. In other words, large batch sizes simply result in a larger amount of embeddings to be gathered (Figure 2) from the memory subsystem which, depending on the relative execution time of embedding layers with respect to other layers, can result in a proportional increase in execution time. In general, we conclude that DNN-based recommendation systems are severely bottlenecked by embedding layers. Nonetheless, MLP layers also account for a significant portion of execution time, especially when the batch size is small for some configurations.

Fig. 5: Breakdown of CPU’s inference latency into embedding layers (EMB), MLP layers, and others (left-axis) as a function of batch size, from to (x-axis). The inference latency normalized to the slowest DLRM model with batch size (DLRM(1)) is shown on the right-axis.

Iii-B On-chip Caching Efficiency

To better understand the compute and memory bandwidth demands of the aforementioned two bottleneck layers (i.e., sparse embedding layers and MLP layers), we conduct a detailed analysis on the CPU’s LLC miss rate and MPKI (misses per thousand instructions) while executing embedding and MLP layers (Figure 6). In general, embedding layer’s LLC miss rate shows high sensitivity to input batch size with an increasing number of LLC misses as batch size is increased. The reason behind embedding layer’s high LLC miss rate is as follows. A unique property of embedding tables is that its size can be in the order of several tens to hundreds of GBs [54, 38, 23]. This is because the total number of embedding vectors within a table increases proportional to the number of users/items (e.g., total number of users registered or movies serviceable in YouTube/Netflix). As such, the embedding gather operations over such high-capacity embedding tables are extremely sparse with little spatial/temporal locality. Now, the aggregate size of the gathered embeddings scales up proportional to the batch size (Figure 2), which directly translates into higher memory traffic – but one with low locality. Larger batch sized embedding layers therefore end up more severely pressurizing the LLC, leading to larger number of LLC misses and higher MPKI (Figure 6).

In terms of the MLP layers, the LLC miss rate of these layers exhibit relatively less sensitivity to the input batch size because the aggregate model size of the MLP layers in all our workloads are sufficiently small enough (typically less than 1MB) to be captured inside the tens of MBs of CPU on-chip caches. Therefore, the MLP layers in recommendation models typically exhibit low LLC miss rates () and low MPKI, exhibiting a compute-limited behavior.

(a)
(b)
Fig. 6: Effect of executing embedding (EMB) and MLP layers on (a) LLC miss rate and (b) MPKI as a function of batch size (from to ). We use Callgrind [47] to collect the profiled statistics used for these experiments.

Iii-C Effective Memory Throughput

While sparse embedding layers exhibit a high LLC miss rate and an accordingly high MPKI (compared to MLP layers), we observe that the “effective” memory bandwidth utilized in gathering embedding vectors is extremely low. Figure 7 summarizes the memory throughput of gathering embedding vectors while executing embedding layers. To clearly quantify how efficiently memory bandwidth is being utilized for embedding lookups, we measure the effective memory throughput for embedding layers by only considering the useful number of bytes transferred in gathering and reducing embeddings (i.e., size of total embedding vectors gathered / latency incurred in executing the embedding layer)111Directly measuring DRAM bandwidth utilization using Intel VTune [32] followed similar trends, albeit with smaller numbers than our defined effective memory throughput as subset of gathered embeddings can hit in the cache. . As depicted in Figure 7, the effective memory throughput for embedding layers is far below the maximum GB/sec of memory bandwidth of our baseline CPU memory system (Section V). Recall that a single embedding vector is only in the order of several hundreds of bytes (i.e., bytes with our default -dimensional vector), far below the size of an KB of DRAM row buffer. Additionally, each of these vector loads have limited spatial locality due to their sparse and irregular memory access nature. Unlike throughput-optimized GPUs which execute with several thousands of concurrent threads with a large number of MSHRs (e.g., NVIDIA Volta’s L1 cache implements the so-called streaming cache which allows unlimited inflight cache misses to maximize data fetch throughput [16]), latency-optimized CPUs utilize only tens of threads with a handful of MSHRs. As the aggregate size of the embedding vectors gathered is only in the order of several KBs (low batch) or MBs (large batch) over several tens of GBs of embedding tables, it makes it challenging for CPU architectures to maximize memory-level parallelism and thus memory bandwidth utilization under the sparse, irregular, and fine-grained vector gather operations222It is possible to achieve more than GB/sec of effective throughput ( of max) in embedding layers when the batch size is larger than or when the embedding vector dimension is sufficiently large (i.e., more than -dimensional vector). However, such large batch size and wide embedding dimensions is an unrealistic one to assume for inference. .

(a)
(b)
Fig. 7: (a) Embedding layer’s effective memory throughput for embedding gathers and reductions as a function of input batch size (from to ). To quantify its sensitivity to the number of embeddings gathered, the effective throughput of a single table configuration in DLRM(4) is plotted in (b) when sweeping the total number of embeddings gathered. As depicted, the effective memory throughput generally grows monotonically as the batch size increases or when the number of embeddings gathered are increased. However, the effective throughput is far below the maximum memory bandwidth, especially with small batch sizes or under realistic number of gathers per table (i.e., typically under gathers per table [17, 9, 46, 36, 38, 22]).

Iv Centaur: A Hybrid Sparse-Dense Accelerator for Personalized Recommendation

We present Centaur, a chiplet-based hybrid sparse-dense accelerator that holistically addresses the dual challenges of memory limited embeddings and compute limited MLPs of personalized recommendations. To the best of our knowledge, Centaur is the first end-to-end accelerator that tackles both the memory and compute bottlenecks of personalized recommendation models. We first present our motivation for a package-integrated CPU+FPGA platform (rather than ASICs), followed by a description of our proposed architecture.

Iv-a Motivation: Why Package-integrated CPU+FPGAs?

GPUs are currently the dominating processor architecture for ML training because their throughput-optimized design suits well for the (throughput-heavy) algorithmic nature of training. For cloud deployment of recommendation services however, latency-optimized CPUs are the preferred architecture of choice. First, the abundance of readily available CPUs in today’s datacenters makes it an appealing computing platform from a total cost of ownership (TCO) perspective, especially when considering the off-peak portions of the diurnal cycle where CPUs would otherwise remain idle [25]. Second, user-facing inference services (e.g., news feed, advertisement, e-commerce) for recommendations have firm SLA (service level agreement) goals to meet which renders latency-optimized CPUs more suitable than throughput-oriented GPUs. Lastly, recall that sparse embedding layers are significantly memory capacity hungry because the embedding tables can require up to several hundreds of GBs of memory usage (Section III-C). As a result, the bandwidth-optimized 3D stacked memory employed in GPUs or ML accelerators such as Google TPUs [34, 21] cannot store the embedding tables locally inside their physical memory, preventing them from being used for deploying recommendations. Therefore, the vast majority of cloud ML inference services for personalized recommendation are primarily powered using CPU-only systems as noted by several hyperscalers [23, 54, 25].

Given this landscape, we observe that package-integrated CPU+FPGAs become a promising solution as it holistically addresses all the aforementioned challenges, as detailed below:

  1. Package-integrated CPU+FPGAs are minimally intrusive to existing server chassis designs (and therefore the server rack and the overall datacenter) as they are socket compatible to existing system nodes. Furthermore, CPUs can still function as a “host” from the OS’s perspective (unlike GPUs/TPUs which are slave devices). As such, they can be utilized for non-ML usages thus enhancing the resource utility for optimizing TCO.

  2. The reconfigurable FPGA logic can be utilized to address performance bottlenecks, further reducing inference latency to help satisfy SLA goals and improve QoS.

  3. More importantly, the CPU and FPGA both share a single physical memory (i.e., the memory DIMMs within/across CPU sockets) which is based on capacity-optimized DDRx. This allows the FPGA-side accelerator to keep the entire embedding tables in CPU memory as-is and access them directly using the high-bandwidth, low-latency CPUFPGA communication channels, a requirement discrete GPUs or FPGAs cannot fulfill.

Based on these key observations, our Centaur architecture utilizes the FPGA’s programmable logic area to implement a heterogeneous computing device, synergistically combining a sparse accelerator for embedding gathers/reductions and a dense accelerator for GEMM computations. Before we detail the microarchitecture of our sparse-dense accelerator, the next subsection first discusses our proposed chiplet-based CPU+FPGA architecture. We then discuss our proof-of-concept CPU+FPGA substrate, Intel HARPv2 [29], which we utilize to demonstrate our proposal.

Fig. 8: Proposed package-integrated CPU+FPGA architecture.

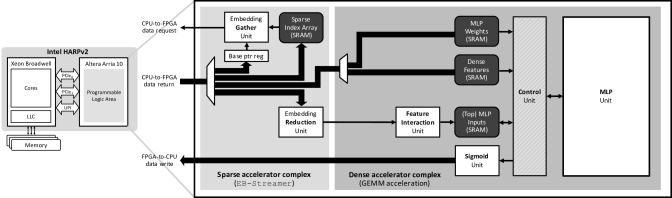

Fig. 9: High-level overview of our proposed Centaur architecture. As a proof-of-concept prototype, we utilize Intel HARPv2 to design our hybrid sparse-dense accelerator. The reconfigurable FPGA logic are used to synthesize both the sparse (EB-Streamer used for high-throughput, low-latency embedding gathers and reductions) and dense (for high-throughput GEMM computation) accelerators.

Iv-B Proposed Chiplet-based CPU+FPGA Architecture

Figure 8 illustrates our proposed chiplet-based CPU+FPGA architecture, which is designed to be minimally intrusive to existing TCO-optimized server chassis/rack as it is socket-compatible to current systems. The FPGA chiplet has two communication paths to the CPU memory subsystem. The cache coherent path utilizes the CPUFPGA cache coherent links (denoted as CC-link) to traverse through the CPU on-chip cache hierarchy first and then to the off-chip memory (via the blue-colored arrows), which can be effective for memory accesses with high data locality. An alternative cache bypassing path (via the red-colored arrows), which is more appropriate for our memory-intensive embedding layers, utilizes a separate memory channel interface that completely bypasses the CPU caches and directly routes FPGA-side memory requests to the off-chip memory interface. By provisioning the cache bypassing route’s communication throughput to be commensurate to (or higher than) the maximum off-chip memory bandwidth, the sparse accelerator of Centaur can significantly boost the throughput of embedding layers by conducting vector gathers over this communication channel.

Unfortunately, chiplet-based commercialized CPU+FPGA designs are still at an early stage with limited accessibility and functionality. We therefore utilize Intel’s HARPv2 [29] as a proof-of-concept substrate to demonstrate the merits of our proposal. As we detail in the next subsection, HARPv2 comes with the cache coherent path (but no cache bypassing route) for CPU memory accesses, so the throughput benefits of our sparse accelerator is constrained by the memory-level parallelism that can be reaped out over the CPUFPGA cache coherent path, and accordingly the CPU cache hierarchy. Nonetheless, we use it to conservatively estimate the throughput benefits chiplet-based CPU+FPGAs can provide for recommendations. In the following subsections, we first present the details of our sparse-dense accelerator microarchitecture, followed by a description of its software interface to the overall system.

Iv-C Sparse Accelerator

The key design objective of our sparse accelerator is to enable high-throughput, low-latency embedding gather and reduction operations. Recall that package-integrated CPU+FPGA devices enable the custom-designed FPGA logic to directly access the shared physical memory system in fine-grained (-Byte) cache line granularity via cache-coherent high-bandwidth communication links. Under the Intel HARPv2 platform we assume in this work, a theoretical maximum uni-directional communication bandwidth of GB/sec is provided between the CPU and FPGA using two PCIe links and one cache coherent UPI link. Our sparse accelerator utilize such communication technology to implement an embedding streaming unit (henceforth referred to as EB-Streamer) that spawns off multiple embedding vector gather operations followed by an on-the-fly reduction operation, in a high-throughput manner. Figure 10 details the microarchitecture of EB-Streamer, which contains a base pointer register set (BPregs), sparse index SRAM array (SRAM), embedding gather unit (EB-GU), and the embedding reduction unit (EB-RU). The embedding gathers and reductions are conducted as follows:

  1. When system is booted up, the CPU utilizes the MMIO interface to inform the FPGA the CPU memory addresses that point to a) the sparse index array (i.e., the row IDs to gather from the embedding table), b) the embedding table, c) the MLP weights, and d) dense features (to be used as inputs for the bottom MLP). These base pointer values are copied into the BPregs to be utilized by the sparse-dense accelerators for both embedding gathers and GEMM operations.

  2. Once BPregs is initialized, the EB-GU utilizes BPregs’s base pointer address of the sparse index array to perform a CPUFPGA read operation which populates the SRAM with sparse index IDs subject for gather operations. Notice that EB-GU is nothing more than an address generator (i.e., base + offset, see Figure 2) which is dominated by logic gates, thus having low implementation overhead.

  3. Using the embedding table base address value stored in BPregs and the sparse index IDs stored in SRAM, the EB-GU starts generating CPUFPGA embedding gather operations. To maximally utilize CPUFPGA communication bandwidth, the EB-GU monitors the communication bandwidth utility and aggressively instantiates embedding vector read operations over the PCIe/UPI links, whenever the CPUFPGA communication links become available.

  4. When the embedding vectors arrive at the sparse accelerator, they are immediately routed to our EB-RU. As vector reductions are in-place operations, EB-RU conducts embedding “reduction” operations on-the-fly whenever the embedding vectors are streamed into EB-RU.

  5. Once all embeddings are gathered and reduced, the EB-RU forwards the reduced embedding vector to the dense accelerator complex.

As embeddings are typically sized as -wide vectors, a single embedding vector gather operation is equivalent to a -Byte load instruction. Note that the memory addresses of the multiple embedding vectors subject for gathering are scattered across the memory address space. Consequently, a brute-force, software level data transfer over such fine-grained, irregular data access stream can incur severe latency overheads as each cpuToFpgaMemcpy() API execution for a -Byte CPUFPGA read operation must traverse through various layers in the software stack. One of the key advantage of initiating embedding gather operations over the package-integrated CPUFPGA channels is that the process of data fetch and retrieval is entirely orchestrated at the hardware level, significantly reducing memory access latency. Furthermore, embedding gathers are conducted while being less interfered and bottlenecked by the CPU’s cache hierarchy. As discussed in Section III, embedding gather operations are inherently sparse with extremely low locality, rendering conventional CPU caching mechanism ineffective. Nonetheless, the baseline CPU-only system must always traverse through the multi-level on-chip caches for all embedding vector load operations, only to discover that the embeddings to be gathered are (most likely) located in CPU memory. Because the entire embedding gathering process is orchestrated using a handful of threads, CPU-only embedding gathers are limited in terms of both parallelism and locality, achieving low memory bandwidth utility (Figure 7). Because our sparse accelerator directly fetches the embeddings over the CPUFPGA communication links, Centaur can achieve significantly higher memory bandwidth utilization (Section VI-B) and fundamentally address the memory bandwidth challenges of embedding layers.

Fig. 10: Microarchitecture of Centaur sparse accelerator.

Iv-D Dense Accelerator

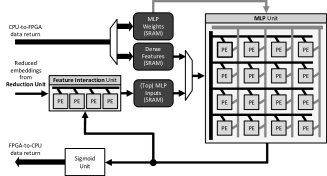

We now present our dense accelerator design, the microarchitecture of which is shown in Figure 11. The primary design objective of our dense accelerator is to speed up the execution of GEMM, the key algorithm that powers both the MLP layers and the batched GEMM operation for feature interactions. We use Altera’s FPGA floating-point IP core [3] optimized for matrix multiplications between two square matrices (the FP_MATRIX_MULT module) as key building blocks to construct our dense accelerator complex. A processing engine (PE) in Figure 11 is based on a single instance of the FP_MATRIX_MULT module (configured to handle matrix multiplication between two [] matrices), which we utilize to compose a spatial PE array for the MLP unit and another four instances of PEs for the feature interactions. Putting all these together, Centaur provides an aggregate computational throughput of GFLOPS operating over MHz. The MLP control unit employs an output-stationary dataflow [11] which tiles the input and weight matrices in [] sizes (to be compatible with the PE’s GEMM compute granularity) and broadcasts these tiles across the spatial PE array. The MLP unit then conducts an outer-product among the input and weight tiles using the PE array, which generates the partial sums to be temporally accumulated into the SRAM buffers allocated per each PE (Figure 12). In addition to the GEMM computation units, the dense accelerator complex contains several SRAM buffers to store 1) the MLP weights (SRAM), 2) the dense features to be used as inputs to the bottom MLP layers (SRAM), and 3) the (top) MLP inputs (SRAM). The model parameters that are used to execute both top and bottom MLP layers are copied over the CPUFPGA communication link using the BPregs at boot-time. The MLP weight values remain persistent throughout the entire deployment process, so the overhead of uploading model weights to the FPGA’s SRAM is negligible as it is amortized over all future inference requests serviced by Centaur. Using these modules, the dense accelerator complex goes through the following steps to finalize the recommendation process.

Fig. 11: Microarchitecture of Centaur dense accelerator.
  1. The BPregs in the sparse accelerator complex is used to upload the MLP weights into SRAM and the inputs to the bottom MLP layer into SRAM. As noted above, initializing the SRAM with model parameters only has to be done once as they remain persistent, whereas SRAM needs to be updated whenever there is a new inference request.

  2. The MLP unit first uses SRAM and SRAM to execute the bottom MLP layer, the result of which is forwarded to the feature interaction unit.

  3. Once the sparse accelerator forwards the reduced embeddings to the feature interaction unit, the output vector of the bottom MLP layer is concatenated with the reduced embeddings to form a tensor. The feature interaction unit utilizes the concatenated tensor to initiate a batched GEMM computation for feature interactions (Figure 3), the result of which is stored into SRAM.

  4. The outputs of the feature interaction unit, which is read out of SRAM, is subsequently routed to the MLP unit to execute the top MLP layers using the model parameters stored inside SRAM.

  5. Once the top MLP layers complete execution, the final results are forwarded to the Sigmoid unit to calculate the event probability. The final result is then copied back to the CPU memory for post-processing.

As the entire dense GEMM computation is orchestrated seamlessly with the sparse accelerator, Centaur provides significantly higher throughput and reduced latency in executing dense DNN layers compared to CPU-only systems. In the following subsection, we detail the software interface that enables CPU+FPGA integration into the overall system.

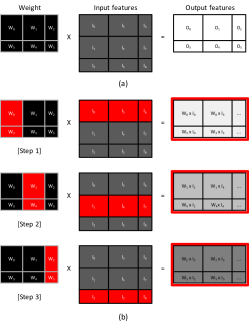

Fig. 12: The output-stationary dataflow in Centaur’s MLP unit’s (a) GEMM operation. (b) An outer-product between the weight-input tiles generates the output tiles to be accumulated into the intra-PE SRAM buffers. Each PE conducts a WI matrix multiplication operation between the weight and input tiles. In each computation step, a given W tile (I tile) is broadcasted to all the PEs within its corresponding row (column) using the bus interconnection network within the MLP unit (Figure 11).

Iv-E Software Interface

As the package-integrated HARPv2 platform provides a unified virtual memory address space between the CPU and FPGA, the CPU+FPGA functions as a single processor as far as the operating system and its applications are concerned, supporting the “pointer-is-a-pointer” like semantics. Concretely, the pointers to the sparse index array, the embedding tables, the dense feature inputs, and others are forwarded to the FPGA using the MMIO interface. As these base address pointers are virtual addresses, the FPGA-side IOMMU (and TLB) translates them into physical addresses when the embedding gather operations are conducted, allowing the FPGA to directly access the CPU physical memory at the hardware level. Compared to invoking multiple software invoked DMA copy operations, such fine-grained hardware level data movement helps reduce average memory access latency, allowing Centaur to achieve superior memory throughput for embedding gathers. Once the base pointer address values for key data structures (e.g., sparse index array, embedding tables, ) are copied over to the Centaur’s BPregs

over MMIO, the inference process is entirely orchestrated under the hood at the hardware level. As a result, high-level ML framework (e.g., TensorFlow, PyTorch) can readily employ our proposed architectural solution with minimal changes.

V Methodology

Evaluation platform. We demonstrate and benchmark Centaur on Intel HARPv2 system containing a Broadwell Xeon E5-2680v4 and Altera Arria 10 GX1150 [29]. At the time of this writing, Intel’s HARPv2 platform (released in ) is the only publicly accessible package-integrated x86 CPU+FPGA so we evaluate Centaur using this computing architecture as a proof-of-concept prototype. The entire sparse-dense accelerator is written in SystemVerilog RTL and we use Quartus Prime Pro to synthesize, place, and route our design (Table II). We explore three design points of recommender systems. The baseline CPU-only uses HARPv2’s Broadwell CPU without the FPGA activated for a fair comparison with Centaur. Aside from Centaur, we also established an additional design point to better cover the design space of recommendation inference systems. While CPUs are the preferred system design point in deploying recommendations (as discussed in Section IV-A), we nonetheless evaluate the performance of a GPU-based system for the completeness of our study. Here, we assume the entire embedding tables are stored in CPU memory so once all the embedding vectors are gathered and reduced by the CPU (using SparseLengthsSum(), Figure 2), the CPU copies them over PCIe to the GPU for GPU-side MLP computation (referred to as CPU-GPU [38]). We utilize NVIDIA DGX-1 [49] for CPU-GPU performance measurements. When estimating CPU’s power consumption, we used pcm-power for both CPU socket-level power estimation as well as the power consumed by its memory DIMMs. For GPU power consumption, NVIDIA’s nvprof profiling tool has been utilized. For Centaur’s CPU+FPGA power measurements, we use pcm-power to measure both the socket-level CPU+FPGA as well as the power consumed by the memory DIMMs. When evaluating energy-efficiency, we multiply the power estimation values with each design-point’s end-to-end inference execution time. All performance numbers are measured end-to-end in wall clock time, which is collected after sufficiently warming up the CPU’s cache hierarchy.

ALM Blk. Mem RAM Blk. DSP PLL
GX1150 (Max) 427,200 55.5 M 2,713 1,518 176
Centaur 127,719 23.7 M 2,238 784 48
Utilization [%] 29.9 42.6 82.5 51.6 27.3
TABLE II: Centaur FPGA resource utilization.

Benchmarks. We use the open-sourced deep learning recommendation model (DLRM) as our primary benchmark suite [46]. DLRM is configured using the latest PyTorch backend library (version nightly build, accessed March , ) which extracts parallelism using OpenMP and AVX instructions for embedding and MLP layers. DLRM provides three reference model architectures which are used across two different services and have different configurations depending on their use-case. The configurations vary in terms of the number of embedding tables, the number of gathers per each embedding table, total memory requirement of embedding tables, and the number of MLP layers and its dimension size. While maintaining the distinctive characteristics of the default three models, we add three more configurations to better highlight the different compute and memory access behavior of recommendation models, as detailed in Section III. Table I summarizes the six benchmarks we study in this paper. Note that DLRM(6)’s embedding layer has been artificially scaled down to have a short embedding layer stage with a relatively longer MLP computation step, which we utilize to evaluate Centaur’s sensitivity to MLP intensive recommendations.

Vi Evaluation

This section explores three design points of recommender systems: 1) baseline CPU-only, 2) CPU-GPU, and 3) Centaur. We first discuss the FPGA resource utility of our hybrid sparse-dense accelerator. We then compare the memory throughput and overall performance of CPU-only vs. Centaur, followed by a comprehensive comparison study between all three design points in terms of energy-efficiency.

Module LC comb. LC reg. Blk. Mem DSP
Sparse Base ptr reg. 98 211 0 0
Gather unit 295 216 0 0
Reduction unit 108 8,260 0 96
SRAM arrays 350 98 12.2M 0
Total 851 8.8K 12.3M 96
Dense MLP unit 40K 131K 2.3M 512
Feat. int. unit 10K 33K 593K 128
SRAM arrays 1K 11K 1.6M 48
Weights 13 77 5.2M 0
Total 52K 175K 9.8M 688
Others Misc. 587 6K 608K 0

TABLE III: Sparse vs. Dense FPGA resource usage.

Vi-a Centaur FPGA Resource Utilization

Table III summarizes how Centaur’s sparse-dense accelerator utilizes the various FPGA resources. As the major role of our sparse-optimized accelerator is to perform high-throughput embedding gathers/reductions, the EB-Streamer is designed to incorporate a local sparse index array to be able to seamlessly invoke multiple embedding gather operations in parallel. That is, we employ a large SRAM array to hold many sparse index IDs such that the embedding gather unit can aggressively launch multiple gather operations concurrently, boosting memory-level parallelism and overall memory bandwidth utilization. This is reflected by the sparse accelerator complex using of the block memory bits to store sparse indices, with little usage of the ALMs and DSPs ( and usage, respectively) as the primary computation conducted inside the sparse accelerator is the address generation for gathers and reductions, both of which can be designed in a lightweight fashion. The dense accelerator complex on the other hand is designed for high computational throughput, so it consumes of the DSPs and of the ALMs, achieving much higher computation throughput than CPU-only

systems. As we further discuss in the remainder of this section, such rather skewed, heterogeneous usage of FPGA resources helps

Centaur strike a balance that effectively tackles the bottlenecks of memory intensive embedding gathers and compute limited GEMM operations.

(a)
(b)
Fig. 13: (a) Centaur’s effective memory bandwidth utilized for embedding gathers (left-axis) and its improvements compared to CPU-only (right-axis) as a function of input batch size (from to ). (b) Centaur’s effective memory bandwidth as a function of total number of embeddings gathered from the embedding tables, exhibiting a much rapid improvement in effective throughput than the baseline CPU-only (Figure 7(b)).

Vi-B Effective Memory Throughput for Embedding Layers

CPU-only cannot effectively execute embedding layers because of its low memory throughput in gathering embeddings, spending significant faction of time on this bottleneck layer. Our EB-Streamer significantly improves the effective throughput in gathering embedding vectors, especially for low batches, achieving up to GB/sec of throughput (Figure 13). As the maximum possible effective uni-directional CPUFPGA communication bandwidth is around GB/sec in HARPv2, our EB-Streamer achieves of the possible communication bandwidth. Given the highly irregular, sparse data access patterns of embedding gathers, EB-Streamer’s high communication bandwidth utility demonstrates the robustness of our embedding gather unit. Because large batches help CPU-only better utilize memory bandwidth (Figure 7(a)), the gap between CPU-only and Centaur’s memory throughput gradually shrinks as batch size is increased. In particular, EB-Streamer falls short than CPU-only by for DLRM(4) and DLRM(5) with a large batch size of , as EB-Streamer’s throughput is constrained by the CPUFPGA link bandwidth. As detailed in Section VI-C, such performance overhead for large batches is offset by the high-throughput Centaur’s dense accelerator delivers. Note that the effective throughput of EB-Streamer is expected to naturally scale up as CPUFPGA communication link bandwidth is increased with the latest high-bandwidth package-level signaling technologies [43, 31, 6, 57]. Overall, Centaur provides an average throughput improvement than CPU-only across our studied configurations, even with our conservatively chosen HARPv2 platform, thus effectively tackling the memory bandwidth limitations of embedding layers. We now discuss the end-to-end performance improvement our Centaur delivers using our sparse-dense hybrid accelerator architecture.

Fig. 14: Breakdown of Centaur’s inference time into CPUFPGA sparse index fetch time (IDX), embedding gathers/reductions (EMB), CPUFPGA dense feature fetch time (DNF), MLP execution, and others (left axis). The right-axis summarizes the performance improvement Centaur achieves compared to CPU-only.

Vi-C Performance

Centaur significantly improves the performance of memory limited embedding layers, thanks to EB-Streamer’s high-throughput gather operations. At the same time, the abundant computation units in dense accelerator complex reduces the latency to execute GEMMs in recommendation models. This allows Centaur to substantially reduce end-to-end latency as it holistically addresses the two most significant bottlenecks of recommendation. Figure 14 shows a latency breakdown of our studied workloads and the resulting performance improvement against baseline CPU-only, achieving end-to-end speedup. Among the six DLRM models we study, five of them are bottlenecked by embedding layers especially under low batches, so the throughput-optimized EB-Streamer helps resolve the system bottlenecks, achieving superior performance improvements. DLRM(6) achieves a modest average speedup, which is expected because this model is intentionally configured to have a heavyweight MLP layer with a lightweight embedding layer (Table I). Consequently, the overall performance is relatively insensitive to the improved memory throughput EB-Streamer brings about. Nonetheless, Centaur’s dense accelerator still provides significant latency reduction when executing DLRM(6)’s GEMM, achieving substantial end-to-end performance improvement.

Vi-D Power and Energy-Efficiency

So far we have demonstrated the superior memory bandwidth utility and performance of Centaur against the baseline CPU-only. This section provides a comparison study of Centaur against CPU-only and CPU-GPU in terms of power and energy-efficiency. Table IV summarizes the power consumption of our evaluated systems, the methodology of which is summarized in Section V. Compared to the baseline CPU-only or the power-hungry CPU-GPU, Centaur consumes much less power, as the CPU cores mostly remain idle while the FPGA-side sparse-dense accelerator orchestrates the embedding gathers/reductions and the backend MLP computation step in a power-efficient manner. As Centaur achieves superior power-efficiency while also significantly improving end-to-end inference time, the overall energy-efficiency is also significantly improved. Figure 15 provides a summary of the performance and energy-efficiency improvements Centaur brings about. In general, the baseline CPU-only performs better than CPU-GPU on average, achieving and performance and energy-efficiency improvements. As the CPU-GPU design needs to store the embedding tables inside the CPU memory, the CPU-invoked embedding gathers/reductions must always copy the reduced embeddings to the GPU for MLP acceleration. This causes a noticeable latency penalty due to the CPUGPU communication overhead, rendering CPU-GPU to perform poorly than CPU-only. Centaur on the other hand achieves 1.717.2 performance speedup and 1.719.5 energy-efficiency improvement than CPU-only.

CPU-only CPU-GPU Centaur
Power (Watts) / (CPU/GPU)
TABLE IV: Power consumption.
(a)
(b)
Fig. 15: Centaur’s (a) performance and (b) energy-efficiency improvement compared to CPU-only and CPU-GPU. All results are normalized to CPU-GPU which exhibits the lowest performance and energy-efficiency.

Vii Discussion

Given the limited availability of chiplet-based, package integrated CPU+FPGA devices, we utilized Intel HARPv2 as a proof-of-concept substrate to demonstrate the merits of Centaur. With recent advances in packaging (e.g., Intel EMIB [43] and Foveros [31]) and package-level signaling technologies (e.g., NVIDIA’s ground-referenced signaling [6, 57]), architects are provided with rich a set of tools for designing chiplet-based CPU+FPGA architectures. This section discusses some key design paramaters of CPU+FPGAs and its implication in designing accelerators for recommendations.

CPUFPGA bandwidth. While our baseline CPU+FPGA platform provides only GB/sec of CPUFPGA uni-directional communication bandwidth, upcoming package-level signaling technologies are expected to deliver several hundreds of GB/sec of communication throughput across chiplets [6, 57]. As discussed in Section III, the limited parallelism and throughput in gathering embedding vectors is one of the key obstacles for CPU-only designs. Note that embedding gather operations are inherently a collective operation where all embedding vectors must be gathered first in order to proceed to the following feature interaction stage. Because a significant fraction of vector reads are cache misses however, the gathering embeddings suffer from significant latency overheads due to the implicit barrier enforced in gathers. An interesting CPU+FPGA design point is to optimize the overall architecture for throughput, rather than locality, and allow the high-bandwidth FPGACPU embedding vector read operations to bypass the CPU cache hierarcy (as discussed in Section IV-B, Figure 8), maximizing available parallelism and throughput. Care must be taken however to guarantee cache coherence and consistency, which require carefully co-designed cache primitives for sparse embedding layers. Exploring such design point is part of our next future work.

FPGA size. State-of-the-art FPGA-based dense accelerators provide several tera-operations scale of throughput, thanks to the abundant reconfigurable logic units available within the latest FPGA device (e.g., Cloud-DNN provides TOPS of throughput over a Xilinx VU9P board [12]). Given the embarrassingly parallel nature of DNN algorithms, we expect the effective throughput of our dense accelerator to proportionally scale up once the latest FPGA technology is integrated with the CPU. This must of course be accompanied by a high-throughput CPUFPGA communication channel across chiplets in order to to proportionally feed enough input tensors to the accelerator, which can be delivered using the aforementioned, high-speed/high-bandwidth package-level signaling technology.

Viii Related Work

Recommendation models are the backbone ML algorithm that supports a variety of internet services thus having significant industrial importance. While several hyperscalers [18, 54, 23, 25, 27, 23] hint at the scale of compute and memory required to deploy recommendations, little attention has been paid from the computer systems community to address this important research space (e.g., Wu et al. [63] states that only of research papers published in top computer architecture venues studies recommendation models). Our recent work on TensorDIMM [38] was one of those few earlier works [38, 36, 22] in the architecture community to explore this research area, proposing a hardware/software co-design for embedding layers. TensorDIMM employs a DIMM-based near-memory processing unit [7, 2] in a disaggregated GPU memory system as means to overcome the memory bandwidth bottlenecks of embedding layers. While the problem space Kwon et al. tackles is identical to Centaur, the following factors render our study unique compared to TensorDIMM. First, the focus of our work is on CPU-centric systems which is the most commonly adopted inference deployment setting by hyperscalers, unlike TensorDIMM which assumes a GPU-centric system for inference. Second, TensorDIMM requires a separate, pooled memory architecture to achieve maximum performance benefits, which impacts the overall compute density of the overall datacenter, potentially impacting TCO. Centaur has been carefully designed from the ground up to be minimally intrusive to existing server nodes as our chiplet-based CPU+FPGA based solution is socket-compatible to current systems, easing its adoption. Third, TensorDIMM is based on a near-memory processing paradigm which requires modifications to the GPU ISA, system software, and the runtime system, unlike Centaur which can be implemented using existing package-integrated CPU+FPGA technology. Lastly, TensorDIMM relies on rank-level parallelism to increase the effective throughput of embedding gather operations, so the benefits of TensorDIMM is limited to sufficiently wide embedding vectors, constraining the algorithmic nature of recommendation models. Our solution is not tied to a particular embedding vector size and is hence much more flexible and applicable for a variety of recommendation algorithms. Overall, the key contribution of our work on Centaur is orthogonal to TensorDIMM and stands unique on its own. Table V is a summary of comparison between Centaur and closely related work.

TABLA [42] DNNWEAVER [58] DNNBuilder [67] Cloud-DNN [12] Chameleon [7] TensorDIMM [38] Ours
Transparent to existing hardware
Transparent to existing software
Work on accelerating dense DNNs
Applicable for accelerating gathers
Applicable for small vector loads
Study on recommendation models
TABLE V: Comparison between Centaur and prior work.

Ix Conclusion

In this paper, we utilize an emerging, package-integrated CPU+FPGA technology to demonstrate an end-to-end acceleration of personalized recommendation models. Our hybrid, sparse-dense Centaur architecture synergistically combines a sparse accelerator for embedding gathers/reductions and a dense accelerator for GEMM computations, holistically addressing the dual challenges of memory bandwidth and compute throughput. Using a prototype implementation of our proposal on Intel HARPv2 device, Centaur achieves and performance and energy-efficiency improvement, respectively, compared to conventional CPU-only systems.

Acknowledgment

This research is supported by Samsung Research Funding Center of Samsung Electronics (SRFC-TB1703-03). We thank Jaewoong Sim and Intel Labs for giving us access to the CPU+FPGA system through the Hardware Accelerator Research Program (HARP). We also thank the anonymous reviewers and Yunjae Lee from our research group for their constructive feedback that helped improve the final version of this paper.
