1 Introduction
A robust classification system is expected to give the same prediction for every image of the same class or for images representing the same element in different poses. Machine learning methods, such as Convolutional Neural Networks (CNN), have been used in many classification, detection and recognition tasks [16, 10, 3]. However, in order to achieve good performance with data driven approaches, well representative data of the visual word are required [19, 14, 11]. While it is possible to mitigate some bias effects with debiasing techniques [12] or with data augmentation [23], it is important to use machine learning approaches with good generalization performance as it contributes to design more robust applications to unseen or underrepresented imaging conditions. This paper focuses on the latter topic and presents a comparison between Convolutional Neural Networks (CNNs) and Capsule Networks (CapsNets) [22, 7]
. The neurons in a CapsNet are organized in groups denoted as Capsules
[8]. In contrast to a single neuron, a capsule can learn a specific image entity over a range of viewing conditions such as viewpoint and rotation. With the use of a routing algorithm to interconnect the capsules, a CapsNet model would be affine invariant and spatially aware. While the behaviour of CNNs with biased data has been extensively investigated [11, 14, 15], how bias influences CapsNets’ performance has received little attention so far.This paper aims to fill this gap by proposing two experimental scenarios. The first experiment set evaluates a model’s classification accuracy with unfamiliar affine transformations. It introduces a capture bias [26] obtained with training and test data having transformation intensities sampled from different distributions. The second test scenario is to assess the variation of a network’s performance when trained with a dataset presenting several overrepresented classes with respect to evenly distributed classes. The results are presented for five network models: three dynamic routingbased CapsNet [22] with one, two and three capsule layers respectively, an EMMatrix routing CapsNet [7] and for a CNN, which represents a comparison baseline.
The rest of this paper is organized as follows. Section 2 provides an overview of related work; Section 3 gives an introduction on capsule networks; Section 4 describes the method and criteria used for the performance evaluation. The results obtained are presented and discussed in Section 5. Finally, Section 6 draws conclusions and proposes possible extensions.
2 Related Work
The impact of bias on data driven methods have been extensively explored in the literature. A review of various types of bias in machine learning datasets is provided in [5]. The problem of bias in popular datasets dissected by cause is presented in [26] and further discussed in [25] where several debiasing methods are compared. The generalization performance of CNNs is assessed with unfamiliar scale factor in [11] and with unfamiliar yaw pose and lighting conditions in [14]
, utilizing face recognition tasks. The analysis of imbalanced data is addressed in
[19] and [2]. In [19] several imbalanced datasets are built from CIFAR10 [15] by means of class down and oversampling and used to assess CNNs. In [2], the importance of choosing the suitable performance evaluation metric in the presence of imbalanced classes is discussed. To the best of our knowledge, the only work addressing the generalization problem for CapsNets is
[6], which demonstrates that dynamic routing based CapsNets generalize faster than CNNs when training data is injected with a few examples of an unfamiliar class. Only a few other works analyze this type of CapsNet but without considering bias or generalization performance: [27] and [20] only test CapsNets with more complex data than those utilized in the original paper [22]. Our paper aims to fill these gaps by proposing an analysis of the generalization performance with unfamiliar affine transformations and imbalanced training data for both the available architectures of CapsNets: dynamic routing [22](denoted as VectorCapsNet from now on) and EMMatrix routing based
[7] (MatrixEMCapsNet).3 Capsule Networks
A capsule is a group of neurons whose activity is a tensor which can learn to detect a specific entity over a domain of limited range of viewing conditions such as viewpoint, rotation and lighting
[8]. Two Capsule Networks (CapsNets) are proposed in [22] and [7] which are characterized by the architecture outlined as follows. 1) An input stage including one or more regular convolution layers; 2) a single Primary Capsule Layer consisting of a convolutional stage whose neurons are grouped into capsules; 3) one or more Capsule Layers, with the last one as network output, and consists of a capsule per class. Every pair of capsule layers (this includes the Primary layer) are fully connected by means of a routing stage. Routing allows a CapsNet to learn relationships between entities by directing the output of a capsule to the proper parent capsule located in the next level. For example, a capsule that learned to recognize eyes, will be routed towards the parent capsule for faces but not to a torso capsule.CapsNets from [22] and [7] have significant differences in their capsule architecture and routing algorithm. The architecture from [22]
(VectorCapsNet) utilizes 1D vector capsules whose length is an hyperparameter. A capsule encodes an entity and its pose like a CNN, deeper capsules encoding higher level entities. The routing stage fully connects two consecutive capsule layers (
and ), thus the total input of a capsule () in depends on the output of every capsule in . Dynamic routing between capsules works as follows. The output () of a capsule is multiplied by a transformation matrix to obtain the prediction vector (û${}_{ij}$). If the prediction vector is similar to the output of the parent capsule , then the routing algorithm concludes that and are highly related and assigns a high value to the related coupling coefficient (). As the contribution to the total input of provided by the capsule is computed as û${}_{ij}c_{ij}$, the coupling coefficient expresses how likely capsule will activate capsule . Furthermore, the capability of learning relationship between entities that characterize CapsNets is due to a transformation matrix for each capsule pair and .The capsules of the network proposed in [7] (MatrixEMCapsNet) consist of a scalar activation () and a pose matrix (). As in VectorCapsNet, capsule layers are fully connected. Thus, each capsule in a layer is connected to each capsule in the next layer by means of a transformation matrix (
) which is learned with an iterative routing algorithm based on EM (Expectation Maximization) clustering and denoted as EM Routing. The prediction of the parent capsule’s pose matrix
(vote) is computed as the product between and and utilized along with by a routing algorithm to assign routes between capsule in layer and capsule in layer ().The main difference between CapsNet and CNN is how features are routed between layers. CNN utilizes single neurons for representing image features and pooling operations as routing mechanisms. Pooling ensures invariance to small image changes (translation in particular) at the cost of information loss [17] and makes nearly impossible for a CNN to learn relationship between image entities.
4 Experimental Setup
The proposed approach consists of two types of experiment to assess a network’s performance with unseen affine transformations and with prominent class imbalance.
4.1 Capture Bias Experiment
Training data and test data are built from the same dataset by applying affine transformations whose intensity is sampled from different distributions. Hence, a model becomes familiar with several image transformations which appear at different intensities in the training and test datasets. For example, if the considered transformation is rotation, the training set would be augmented by a rotation angle sampled in a range, such as , while the transformation magnitude for testing would be sampled from a wider range such as .
The performance metric utilized for these experiments is classification accuracy, which is the number of correct predictions from all predictions made. Hence, more general models are those achieving higher accuracy on unseen magnitude of a given affine transformation.
In order to provide more comprehensive insights about the influence of unseen imaging conditions, two different criteria for sampling training data are used: uniform and sparse sampling.
4.1.1 Uniform Sampling
Let be an affine transformation, a training dataset, the relative test dataset, and two magnitude ranges such that . A network is trained with whose every sample , is augmented with where is the magnitude uniformly sampled from : . Our tests consist of running the model along the complete axis of transformation range . Thus, a set of magnitudes are sampled at fixed size steps starting from the lower bound of until the end of the range. For each , the complete dataset is transformed with and used to compute a network’s accuracy. This process results in a curve showing the relationship between transformation magnitude and a model’s accuracy.
4.1.2 Sparse Sampling
Let be an affine transformation, a training dataset, the relative test dataset, and two magnitude ranges such that . A subset of of values are chosen from to form a set . A network is trained with whose sample is augmented with where is the magnitude uniformly sampled from : . Our test procedure is the same as in the Uniform Sampling experiment.
4.2 Imbalanced Data
A model trained with imbalanced classes presents a bias towards the overrepresented ones, which results in more frequent prediction of such majority classes [5]. The performance measure is the Matthew’s Correlation Coefficient (MCC) for multiple classes [9] as it is proven to be more insensitive to imbalanced data than accuracy [2]. MCC value can fall in , where corresponds to a perfect classification. A network is trained with both balanced and imbalanced data and the resulting MCC values are compared. Better models are expected to have a narrower gap between MCC scores of balanced and imbalanced data.
5 Results
Model  Layers

cnnwp
vcapss
vcapsd
vcapst
capsem
Results are presented for several models as listed in Table 1
: cnnwp is a CNN with three layers and max pooling, vcapss, vcapsd and vcapst are VectorCapsNet with one, two and three layers of capsules respectively and capsem is a MatrixEMCapsNet. All the networks are implemented with Tensorflow
[1]. In particular, vcapss, vcapsd and vcapst are built on top of the source code provided by the authors of VectorCapsNet [21], while capsem is derived from the code shared at [28]. The cnnwp model is implemented from scratch and has similar architecture and hyperparameters as the comparison baseline from [22] used to evaluate VectorCapsNet on the MNIST dataset [18]. For the notation in Table 1, the following convention is utilized. C represents a convolutional layer with kernel, stride
and filters; P indicates a max pool layer with kernel and stride ; F is a fully connected network with a single hidden layer of neurons; Pr indicates a Primary Capsule Layer having capsules with length and utilizing iterations for the routing algorithm; Cps represents a capsule layer and , and have the same meaning as for Pr. Except for an additional convolutional layer at the start, capsem has the same architecture as proposed in [7] but uses less capsules per layer. While in [7] the hyperparameters , , , are all equal to 32, our implementation reduces the complexity of the network by setting B, C and D to . This compromise was necessary to run capsem with at least 2 routing iterations on our 8GB RAM graphics card. The models have been trained with the Adam [13] optimizer with default parameters ( and ) and with an initial learning rate of for VectorCapsNet and cnnwp, andfor MatrixEMCapsNet. The loss function to train vcapss, vcapsd and vcapst is Margin Loss
[22] with parameters . The Spread Loss [7] has been used for capsem with margin increasing from up toin around 10 epochs. Regularization has been obtained with a reconstruction stage consisting of a neural network with two hidden layers of
and units respectively.5.1 Generalization Performance on Unfamiliar Affine Transformations
Generalization performance with uniformly sampled affine transformations (Section 4.1.1) has been assessed utilizing affMNIST [24] as training data and MNIST [18] for tests. AffMNIST is a dataset obtained from MNIST by applying to each image several uniformly sampled transformations, namely rotation in , scale between and , shear along the axis in and translation. As compared to MNIST, which has 28 pixel images, affMNIST has 40 pixel images in order to fit scaled up digits. Accuracy data is obtained for each transformation using the MNIST test set with the following extended ranges: rotation , scale factor , horizontal shear and horizontal translation ( axis) . As test required wider range of transformations with respect to those available during training, the models have been fed with 56 pixel images obtained by zeropadding affMNIST images. Padding allowed us to test the models with scale factors up to 2.0 and wider translations than those present in affMNIST without any crop to MNIST digits. Figure 1 shows some samples from MNIST as they are transformed and padded for testing a model accuracy.

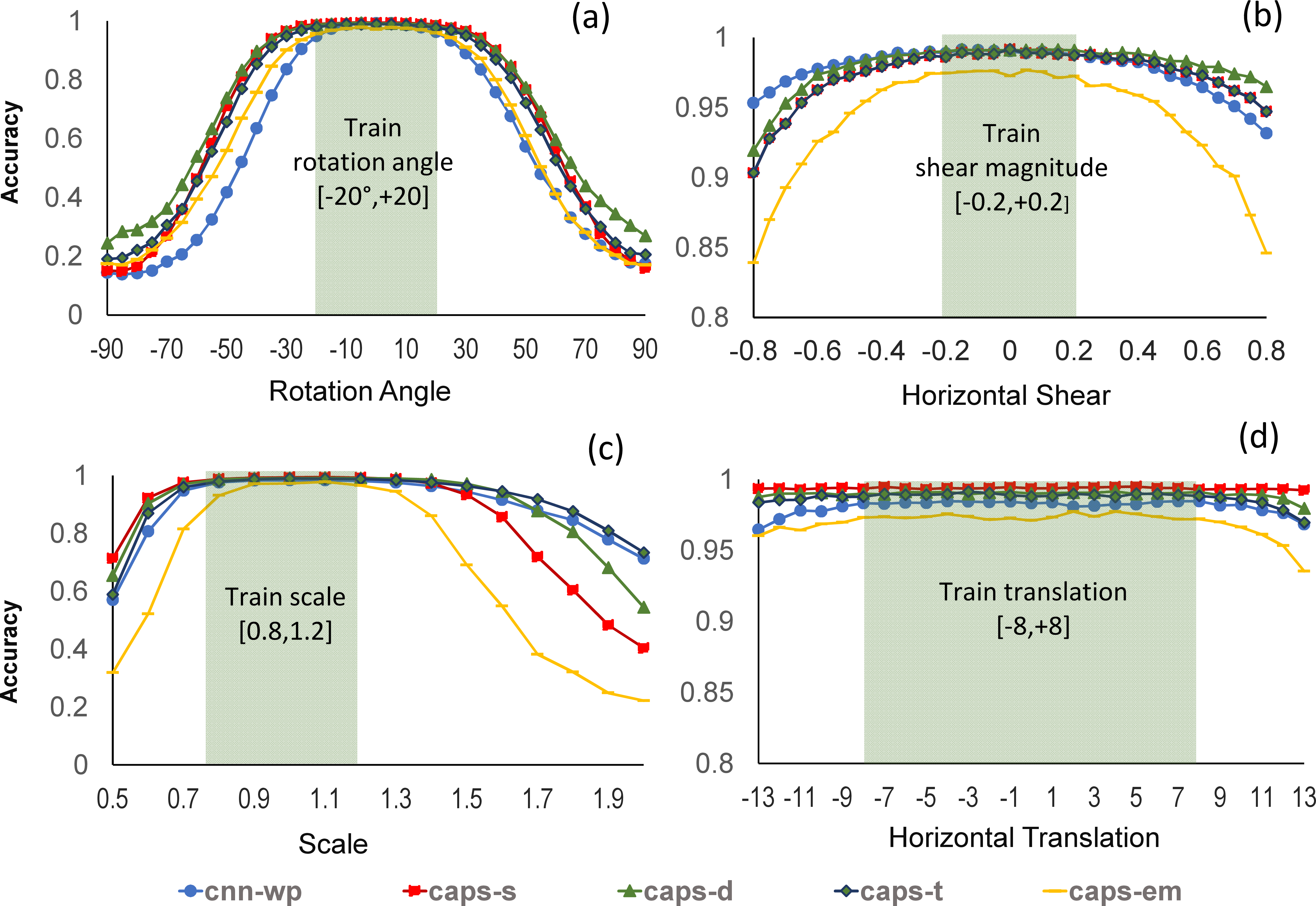

The results for uniform sampling experiments are shown in Figure 2 where the accuracy as a function of an affine transformation is plotted for each model.
The most prominent difference among models occurs with unfamiliar scales where vcapst outperforms both cnnwp and the other capsule networks. A closer look at the scale plot (Figure 2.c) allows us to infer a positive relationship between the number of capsule layers in VectorCapsNets and generalization performance with unfamiliar scale factors. Indeed, vcapst achieves better accuracy at each unfamiliar scale than vcapss and vcapsd for scale factors larger than 1.2, which is the largest scale present in affMNIST. On the contrary, for small test scale this trend is inverted and it appears that VectorCapsNet has the slowest decay in accuracy among the considered models. Also with rotation, CapsNets generalize better than other types of networks, keeping the accuracy above in the interval , which is wider than the sample interval for the rotation used to generate affMNIST.

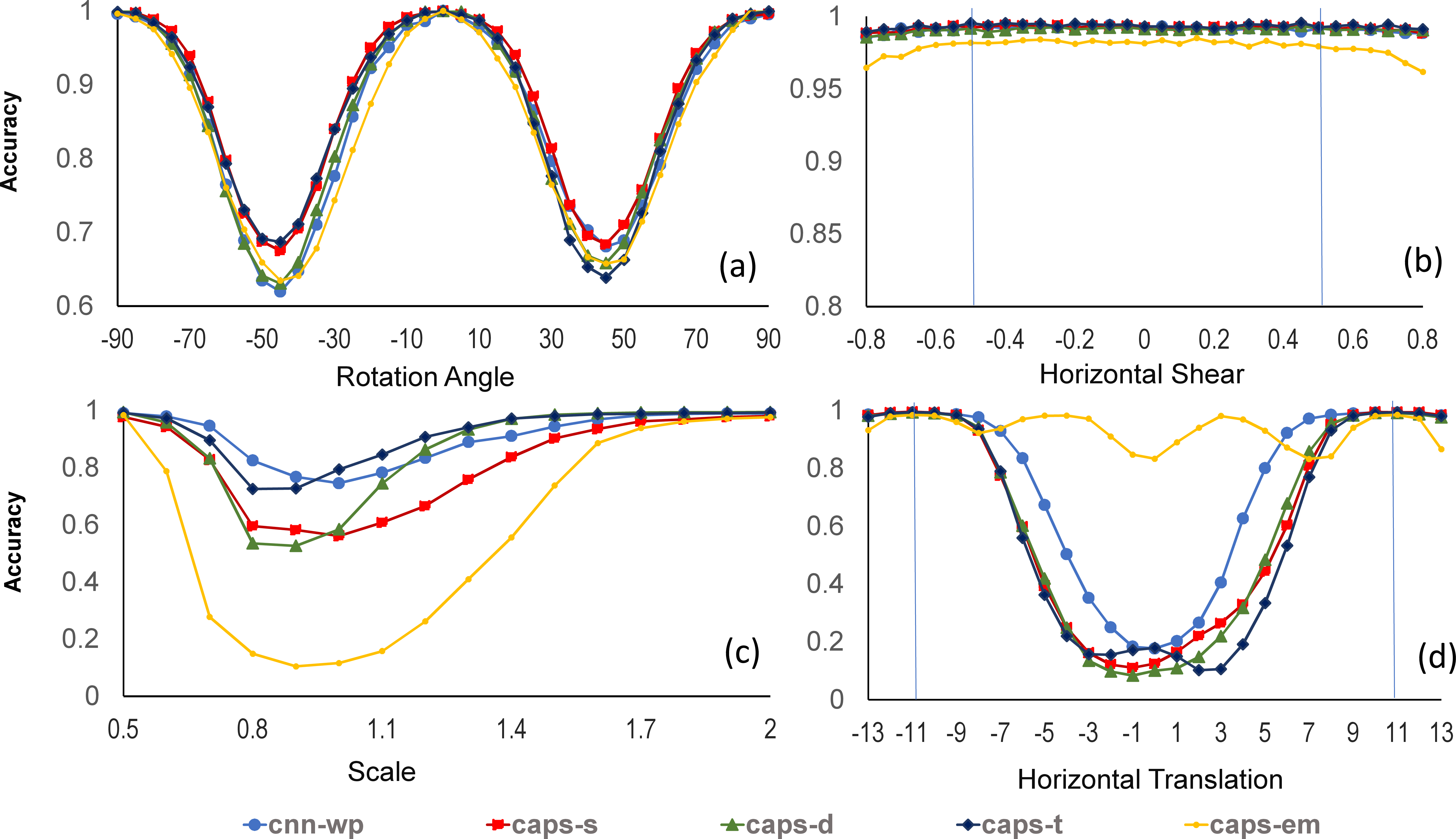

The same four affine transformations have been considered in sparse sampling experiments. Model training is carried out by augmenting MNIST samples with a single transformation a time whose intensity is sampled in a finite set. Hence, rotation is sampled in , scale in , horizontal shear in and horizontal translation in .
The models do not present significant differences with respect to each other for rotation and horizontal shear (Figure 3). In particular, the networks show a very good generalization performance to unseen shear magnitudes. In fact, just including two values for shear in the training set, yields an almost flat accuracy plot along all shear test range. Generalization performance with sparse shear sampling is coherent with the results obtained with uniform sampling. Indeed, the models’ accuracy has a flat trend along the entire test interval . Similarly to the uniform sampling scenario, the scale results show that deeper VectorCapsNets generalize better than the other models with unfamiliar scale factors.
The results from sparse translation experiments show that cnnwp and the three considered VectorCapsNet have a prominent accuracy drop in the middle of the test interval, while capsem has stable accuracy on the entire test interval. The reason for the performance gap between capsem and VectorCapsNet is probably due to the routing algorithm, which is the main difference between these two types of network (Section
3).5.2 Performance Analysis with Imbalanced Data
model  MNIST  affMNIST  BAL  IBAL  GAP

cnnwp  0.9923  0.9926  0.9258  0.9021  0.0237
capss  0.9958  0.9999  0.9202  0.8973  0.0229
capsd  0.9935  0.9981  0.9336  0.8929  0.0407
capst  0.9933  0.9999  0.9139  0.9004  0.0135
capsem  0.9827  0.9961  0.8899  0.7483  0.1416

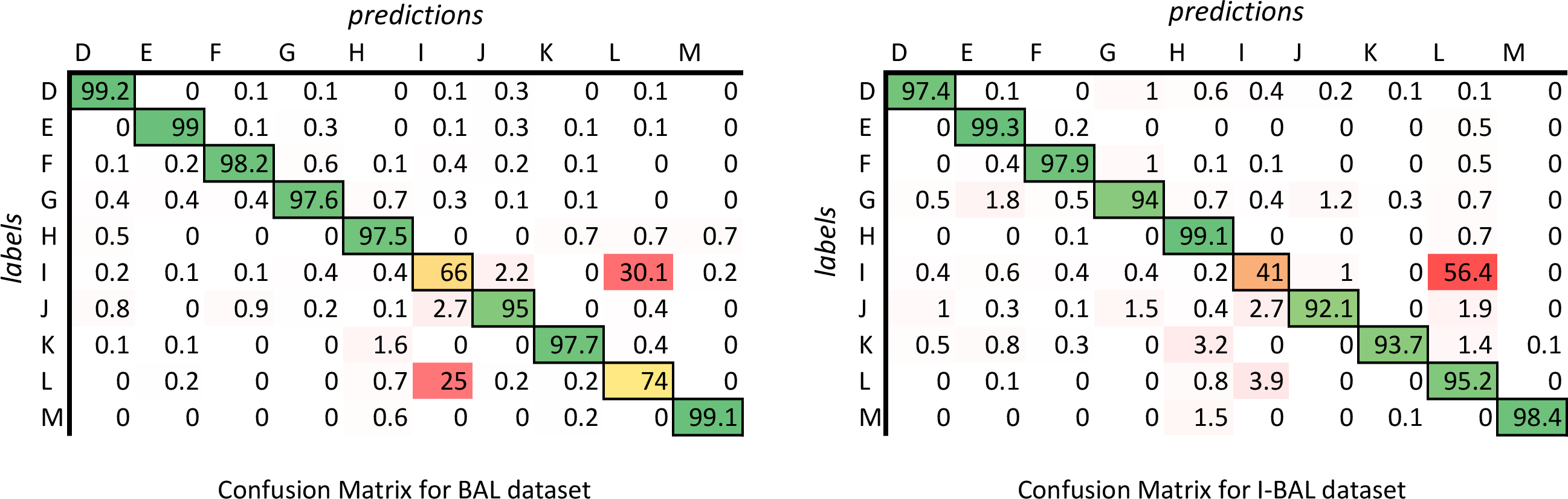

The datasets utilized for these experiments have been generated from EMNISTLetters [4], which consists of 26 balanced classes of handwritten letters with 4800 samples each. The balanced dataset (BAL) is a subset of EMNIST including 10 of its classes ( to ) with 2400 samples each, while for the imbalanced dataset (IBAL) classes have been downsampled to 600 images, except for , and which have the same 4800 samples from EMNISTLetters. Figure 4 shows the confusion matrices of vcapst for BAL and IBAL. As expected, the three overrepresented classes, , and , are predicted more often. This is particularly evident for classes that are similar to each other such as and . Indeed, the similarities between lowercase letters and uppercase letters result in several misclassifications even with BAL datasets where is predicted as in cases and is called in cases. In IBAL, is overrepresented as compared to
, which is wrongly classified as
more than half of the time (). MCC for all the models are summarized in Table 2. The least robust model to imbalanced data is capsem, with a gap between BAL and IBAL of 0.1416. cnnwp and vcapss have similar results while vcapst capture the best performance with a gap of 0.0135, which is about one half of vcapss’ gap.The number of capsule layers alone does not explain the better performance of vcapst over vcapss. Indeed, vcapsd outperforms the other networks with BAL (MCC of ) but it also has the widest gap with unbalanced data among VectorCapsNet: 0.0407. Several double layer architectures were examined other than vcapsd, but it was neither possible to find a better model nor to precisely determine the factor that influences the performance the most. For example, replacing the two capsule layers of vcapsd (Table 1) with increased the learnable parameters from to however, the performance decreased sightly from for BAL to for IBAL (with a gap of ) in our experiments.
6 Conclusions
The analysis of capsule networks has received little attention. This paper aimed to provide novel insights into this new type of neural network and proposed several experiments to assess the performance of a network with biased data. Overall, CapsNet outperforms CNNs in most of the cases but not by a large gap. Our results have allowed us to infer that the number of capsule layers (depth) influences generalization performance, this is particularly evident in scale plots (Figure 2.c) where the accuracy at unseen scales improves with a network depth. Apart from this, the influence of a CapsNet’s hyperparameters is not totally understood and would deserve a more detailed and specific analysis. On imbalanced data vcapst outperforms all the other networks by a consistent gap but the contribution of the triple capsule layer of vcapsd remains unclear, which is affected by imbalance data more than vcapss. Finally, the worst model in any scenario is capsem with the exception of sparse translation (Figure 3). However, it is worth mentioning that the capsem implementation it not from its authors and includes less capsules than the model originally proposed in [7]. Indeed, our Tensorflow implementation is very demanding in terms of RAM and capsem is the most complex model that can fit in an 8GB Graphics card. A natural extension of this work would include MatrixEMCapsNet once an official implementation is available. Furthermore, new insights would be provided from a more specific analysis of the relationship between hyperparameters and generalization performance such as the depth and the distribution of capsules among a CapsNet’s layers.
Acknowledgment
This work has been supported by the UK Engineering and Physical Sciences Research Council EPSRC [EP/K004638/1, EP/R02572X/1 and EP/P017487/1]
References
 [1] Abadi, M., Agarwal, A., Barham, P., Brevdo, E., Chen, Z., Citro, C., Corrado, G.S., Davis, A., Dean, J., Devin, M., Ghemawat, S., Goodfellow, I., Harp, A., Irving, G., Isard, M., Jia, Y., Jozefowicz, R., Kaiser, L., Kudlur, M., Levenberg, J., Mané, D., Monga, R., Moore, S., Murray, D., Olah, C., Schuster, M., Shlens, J., Steiner, B., Sutskever, I., Talwar, K., Tucker, P., Vanhoucke, V., Vasudevan, V., Viégas, F., Vinyals, O., Warden, P., Wattenberg, M., Wicke, M., Yu, Y., Zheng, X.: TensorFlow: Largescale machine learning on heterogeneous systems (2015), https://www.tensorflow.org/, software available from tensorflow.org
 [2] Akosa, J.: Predictive accuracy: A misleading performance measure for highly imbalanced data. In: Proceedings of the SAS Global Forum (2017)

[3]
Arandjelovic, R., Gronat, P., Torii, A., Pajdla, T., Sivic, J.: Netvlad: CNN architecture for weakly supervised place recognition. In: Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition. pp. 5297–5307 (2016)
 [4] Cohen, G., Afshar, S., Tapson, J., van Schaik, A.: Emnist: an extension of mnist to handwritten letters. arXiv preprint arXiv:1702.05373 (2017)
 [5] Glauner, P., Valtchev, P., State, R.: Impact of biases in big data. arXiv preprint arXiv:1803.00897 (2018)
 [6] Gritsevskiy, A., Korablyov, M.: Capsule Networks for lowdata transfer learning. arXiv preprint arXiv:1804.10172 (2018)
 [7] Hinton, G., Frosst, N., Sabour, S.: Matrix capsules with em routing (2018)
 [8] Hinton, G.E., Krizhevsky, A., Wang, S.D.: Transforming autoencoders. In: International Conference on Artificial Neural Networks. pp. 44–51. Springer (2011)
 [9] Jurman, G., Furlanello, C.: A unifying view for performance measures in multiclass prediction. arXiv preprint arXiv:1008.2908 (2010)
 [10] Kalliatakis, G., Stamatiadis, G., Ehsan, S., Leonardis, A., Gall, J., Sticlaru, A., McDonaldMaier, K.D.: Evaluating deep Convolutional Neural Networks for material classification. arXiv preprint arXiv:1703.04101 (2017)
 [11] Karianakis, N., Dong, J., Soatto, S.: An empirical evaluation of current convolutional architectures’ ability to manage nuisance location and scale variability. In: Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition. pp. 4442–4451 (2016)
 [12] Khosla, A., Zhou, T., Malisiewicz, T., Efros, A.A., Torralba, A.: Undoing the damage of dataset bias. In: European Conference on Computer Vision. pp. 158–171. Springer (2012)
 [13] Kingma, D., Ba, J.: Adam: A method for stochastic optimization. arXiv preprint arXiv:1412.6980 (2014)
 [14] Kortylewski, A., Egger, B., Schneider, A., Gerig, T., MorelForster, A., Vetter, T.: Empirically analyzing the effect of dataset biases on deep face recognition systems. Preprint (2017)
 [15] Krizhevsky, A., Hinton, G.: Learning multiple layers of features from tiny images. Tech. rep., Citeseer (2009)

[16]
Krizhevsky, A., Sutskever, I., Hinton, G.E.: Imagenet classification with deep Convolutional Neural Networks. In: Advances in neural information processing systems. pp. 1097–1105 (2012)

[17]
LeCun, Y., Bengio, Y., Hinton, G.: Deep learning. nature
521(7553), 436 (2015)  [18] LeCun, Y., Bottou, L., Bengio, Y., Haffner, P.: Gradientbased learning applied to document recognition. Proceedings of the IEEE 86(11), 2278–2324 (1998)
 [19] Masko, D., Hensman, P.: The impact of imbalanced training data for Convolutional Neural Networks (2015)
 [20] Nair, P., Doshi, R., Keselj, S.: Pushing the limits of Capsule Networks. Technical note (2018)
 [21] Sabour, S.: Dynamic routing between capsules, source code (2017), https://github.com/Sarasra/models/tree/master/research/capsules, last accessed: 05.02.2019
 [22] Sabour, S., Frosst, N., Hinton, G.E.: Dynamic routing between capsules. In: Advances in Neural Information Processing Systems. pp. 3859–3869 (2017)

[23]
Savinov, N., Seki, A., Ladicky, L., Sattler, T., Pollefeys, M.: Quadnetworks: unsupervised learning to rank for interest point detection. In: Proc. IEEE Conference on Computer Vision and Pattern Recognition (CVPR) (2017)
 [24] Tieleman, T.: affMNIST (2013), https://www.cs.toronto.edu/~tijmen/, last accessed: 05.02.2019
 [25] Tommasi, T., Patricia, N., Caputo, B., Tuytelaars, T.: A deeper look at dataset bias. In: Domain Adaptation in Computer Vision Applications, pp. 37–55. Springer (2017)
 [26] Torralba, A., Efros, A.A.: Unbiased look at dataset bias. In: Computer Vision and Pattern Recognition (CVPR), 2011 IEEE Conference on. pp. 1521–1528. IEEE (2011)
 [27] Xi, E., Bing, S., Jin, Y.: Capsule Network performance on complex data. arXiv preprint arXiv:1712.03480 (2017)
 [28] Zhang, S.: Matrixcapsulesemtensorflow, source code (2018), https://github.com/www0wwwjs1/MatrixCapsulesEMTensorflow, last accessed: 05.02.2019
