1 System overview

The open-source Rhythm project [Led18] encompasses electronic wearable badges and online tools to analyze social interaction between groups and group members.

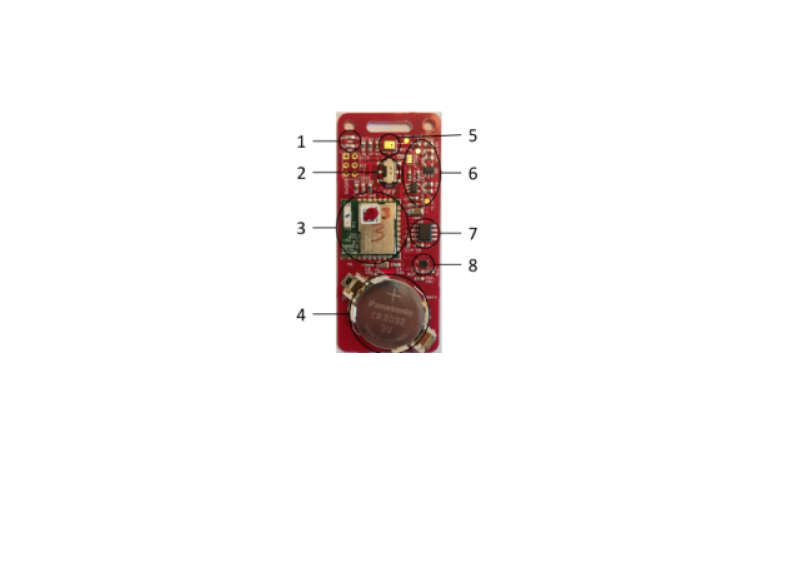

Figure 1: Rhythm badge. The custom hardware platform that collects data from different environmental sensors. No. Description 1 2x Status LEDs 2 Power switch 3 BMD-200-B BLE-module (Rigado) 4 3V coin cell battery 5 Analog microphone (Knowles) 6 Analog filter + amplification circuit 7 M95M02 external EEPROM 8 LIS2DH12 3-axis accelerometer Table 1: Badge components. The table lists the most important components of the badge.

The badge shown in Figure 1 fits in a standard plastic name tag holder and is worn in front of the participant’s chest. It is used to record different types of data in order to analyze the social interaction of the participant. In addition to vocal activity, proximity to other badges, movement and location can be measured. The most important components of the badge are listed in Table 1. The Rhythm framework (Figure 2) combines badges with other devices and tools to examine different types of social interactions and meetings.

Figure 2: Rhythm framework [Led18]. The Rhythm framework consists of different components: The badges worn by the participants record the required data for the subsequent analysis. Location beacons are used to provide location information. The recorded data of the badges are retrieved by hubs and/or mobile hubs and sent to a backend server. Finally, the server aggregates and analyzes the data. Additionally, a visual frontend for real-time feedback can be used.

1.1 Bluetooth Low Energy

The communication between badges and hubs is realized with Bluetooth Low Energy (BLE). BLE is a short-range, low-power wireless communication technology developed by the Bluetooth Special Interest Group and specified in the Bluetooth 4.0 standard [Raz15]. The 2.4 GHz Industrial Scientific Medical (ISM) band is divided into 40 channels with a channel spacing of 2 MHz. A BLE device uses three of these channels for periodical broadcast of advertisment packets. A BLE device that only receives data through the three advertisment channels is called scanner. In Bluetooth 4.2 the number of bytes for an advertisment packet is limited to 31 [Raz15]. Additionally, a bi-directional connection for data exchange can be established between two BLE devices: the master/central and the slave/peripheral. The advertisment, discovering and connection processes are managed by the Generic Access Profile (GAP). The master or initiator listens for advertisment packets of the slave. These advertisment packets inform the master whether the slave is a connectable device or not. When the master receives such a packet, it transmits a connection request message to a connectable slave to establish a point-to-point connection. A BLE slave can only be connected to one master device at a time. For the data exchange during a connection, an adaptive frequency hopping mechanism selects one of the 37 available data channels for a specific time interval [Gom12]. The Attribute Protocol (ATT) defines server and client roles for the communication between two connected devices: The peripheral device acts as server and the central as client. The Generic Attribute Profile (GATT) defines a framework that uses the ATT for discovering services and to access their characteristics [Cha14]. Services are a collection of information to provide a specific functionality, for example a Heart Rate Service. A service contains one or more characteristics that represent a single data point, such as the current heart rate or the temperature [Gom12]. The service used for the communication between the badges and the hubs is the Nordic UART Service (NUS) that has a RX-characteristic to receive bytes and a TX-characteristic to send bytes. The actual interpretation of the bytes is done by a customized protocol that is described in section 8.

1.2 Badges

Each participant of a meeting, a workshop, a discussion or an event obtains a badge that is worn in front of the chest. The badge is made of a printed circuit board (PCB) assemblied with various components. The core element of the badge is the BMD-200-B system on module (SoM) from Rigado. It combines the embedded 2.4GHz transceiver of the nRF51822 system on chip (SoC) from Nordic Semiconductor with an on-module chip antenna and essential peripherals, such as an analog-to-digital converter (ADC), a serial peripheral interface (SPI), an universal asynchronous receiver-transmitter (UART)-interface, an inter-integrated circuit (I2C)-interface, input/output (I/O)-pins, a real-time clock (RTC) and different timers [Rig17]. The nRF51822 enables Bluetooth 4.2 LE connectivity and includes an ARM® Cortex™ M0 32-bit CPU with 256 kB embedded flash program memory and 32 kB random access memory (RAM).

A common setup of the system consists of many badges that record the data but only a few hubs that pull the data from the badges. Therefore, the badges need to buffer their data until they are transmitted. The integrated RAM of the microcontroller is not able to buffer the generated amount of data. Consequently the recorded data have to be stored in a NVM such as the embedded flash-memory. To minimze the loss of data when the badge records data for a long time without contact to a hub, the NVM is increased by using an external electrical erasable programmable read-only memory (EEPROM). The M95M02-DR from STMicroelectronics is an surface-mounted device (SMD) with 256 kB of EEPROM and is controlled by an SPI bus master [STM18]. Flash-memory and EEPROM differ in the way data are erased and stored, in their speed as well as in the maximum number of store/erase cycles. In flash-memory a whole page has to be erased before words can be stored to this page. The built-in flash-memory of the nRF51822 provides 256 pages with a page size of 1024 bytes. Due to the word size of 32 bits, the minimum number of bytes that can be stored is four. The time required to erase a page is 22.3 ms and 46.3 µs to store a word. The number of store/erase cycles is limited to 20,000 cycles [Nor16a]. On the other hand, the incorporated EEPROM allows to erase and store single bytes. When a store operation is started, the affected bytes are erased automatically. The EEPROM chip provides 1024 pages with a page size of 256 bytes and requires 10 ms for storing one byte or a whole page. In contrast to flash-memory, the number of 4 million store/erase cycles is significantly higher for EEPROM [STM18]. Due to the limited resources, the different types of data have to be stored efficiently in the NVMs. Therefore, a flexible filesystem that is decribed in section 6 was developed. This filesystem requires an uniform storage interface that allows to store and read single bytes. In order to meet this requirement an abstraction layer was implemented that enables the application to address the EEPROM as well as the flash-memory on byte level.

During the activation of the badge a two bytes identification number (ID) and a one byte group number is assigned to distinguish between different badges and their membership to different groups/projects. In addition to the ID and the group number, the supply voltage, the medium access control (MAC) address and status flags are advertised by each badge. The proximity to other badges can be determined through scanning for surrounding Bluetooth devices. When a Bluetooth device is discoverd, the received signal strength indicator (RSSI) value is reported. The RSSI value is proportional to the received signal strength [Fav07]. Based on this value, the distance to the discovered device can be approximated with a radio propagation model [Xu10][Jia14][Jia09]. After the received advertising packet is decoded, the group membership is checked to ignore unrelated badges. To save storage space, the ID of the discovered device is stored instead of the 6-byte MAC address.

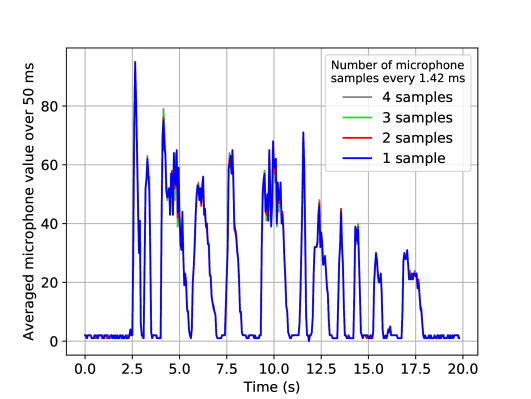

To record vocal activity, the analog microelectromechanical system (MEMS) microphone SPU0414HR5H-SB from Knowles is incorporated. It is a high-performance, low-power acoustic sensor with an analog output pin [Kno12]. The output signal of the microphone is amplified and low-pass filtered by an external operational amplifier. The resulting signal is routed to an ADC pin of the BMD-200-B. An external voltage regulator (LP2985) supplies the microphone and amplification circuit with 1.8 Volts.

Moreover, the ultra-low-power, three-axis accelerometer LIS2DH12 from STMicroelectronics is integrated to detect and record movement. The accelerometer is configured via the SPI bus and supports various operating modes, datarates and the capability to generate interrupts when preconfigured events, such as free-fall or motion, are detected. Additionally, the accelerometer has a built-in 32-level first-in first-out (FIFO) buffer for the acceleration data. This feature can be used to reduce the reading frequency of the SPI bus master because up to 32 data points can be retrieved with only one SPI transfer [STM17].

The power supply of the badge is provided by a coin cell and can be turned on/off by an external power switch. For status indication and signaling a green and a red light-emitting diode (LED) are integrated.

1.3 Location beacons

An important parameter for the analysis of social interaction data is the absolute location of the people wearing a badge. To measure the absolute location in a room or a building, different approaches can be applied on basis of the RSSI value received from location beacons. Location beacons are stationary mounted devices with known position and periodically transmit a uniquely assignable data packet. The badges described in section 1.2 or iBeacons can be configured to act as location beacons by assigning an ID greater or equal to 16,000.

Several localization methods can be used. The naive method is to assign a person to the closest location beacon [Led18]. Another potential localization technique used by Yang et al. [Yan12] is RSSI fingerprinting. This approach requires a map of the building and is divided into two steps. In the first step, RSSI values are recorded at different positions of the map and stored together with the position. In a second step, where the actual position should be determined, the currently recorded RSSI values are matched with the RSSI values of the first step to obtain the most likely position. A further feasible method for localization based on RSSI values is trilateration [Shc14]

. On the basis of a radio propagation model, the distance to the location beacons can be estimated. When the distance to at least three of them is known, the absolute position in a two-dimensional map can be computed with trilateration.

Due to the limited NVM, the different devices discovered in a Bluetooth scan have to be filtered according to their relevance. Location beacons and badges with a high RSSI value are more important than badges with a low RSSI value. This prioritization is accomplished by a sorting mechanism that is described in section 4.

1.4 Hubs

Hubs are used to control, activate and retrieve the recorded data from the badges. There are two different types of hubs used in the project. A Python based implementation and a mobile hub application. In addition to the actual badge control and data request, the mobile hub can be configured as a real-time feedback visualization tool that is shown in Figure 3. The so called Round Table-visualization displays the participants of a meeting around a round table and a green filled circle which is connected to the individual participants by a line. The circle and the lines represent the partiticipation of each user [Led18]. The implementation of the mobile application can also be found on GitHub.

Figure 3: Mobile hub. [Led18]. The mobile application that can act as hub and as real-time visualization tool.

The Python based implementation of the hub software is deployed on a Raspberry Pi with a BLE interface. The code is wrapped in a Docker container to simplify the installation and setup. There are two operating modes of the Python based hub: Standalone and server mode. In standalone mode only one hub is active. It retrieves a list of available badges from a local file. After the activation of the available badges, the received data are also stored in local files. In server mode, one or more hubs communicate with a server that manages a list of available badges. In this setup, the received data from the badges are forwarded to the server where the data are processed in a second step. In a setup with multiple hubs, it is essential to synchronize the local clock of the hubs by using the Network Time Protocol (NTP) [Led16b].

1.5 Server

After the recorded data of the platform are stored on the server, a server-side application processes the data in real-time. This analytics engine analyzes the different data and generates statistics about the communication behavior and pattern of the participants. The real-time computed data can be retrieved via application programming interfaces. In addition, the server provides monitoring information about the functionality of system components such as badges, location beacons and hubs.

2 Firmware architecture

The main topic of this work is the reimplementation of the badges’ firmware. The firmware should be optimized for modularity, extensibility and maintainability. As programming language C is used. C is a high-level programming language that is often applied for the programming of embedded systems with limited resources. It allows the developer to interact with the hardware in an easy way and the code generated by the C compilers is in general very efficient [Bar06]. This section describes the requirements of the firmware as well as its architecture and the interaction of the different modules.

2.1 Requirements

The badge offers the possibility to record the following data: the audio signal from the microphone, the RSSI values of surrounding Bluetooth devices, the battery voltage, the raw acceleration data and interrupt events generated by the accelerometer when a predefined acceleration threshold is exceeded. Due to the diversity of these data sources an appropriate and efficient way to store the datasets in the NVMs is needed. Therefore, a filesystem with separated partitions for each data source was implemented. To simplify the implementation of the filesystem, a single interface to interact with the storage is required. The flash-memory only supports the storing of words (4 bytes), not single bytes, and the associated flash pages have to be erased before the words can be stored to the flash cells. In contrast to this, the EEPROM offers the possibility to store data at byte level and prevents the application from erasing the EEPROM cells before storing to them. As a result, a uniform, easy to use storage interface was developed that combines the flash-memory and the EEPROM to one virtual memory with byte level access.

Data handling consists of two steps: sampling, which is the recording of data, and processing, which includes, for example, sorting and the storage of the recorded data. The processing step requires closed data units. Therefore, the sampled data is splitted into data chunks with a certain size. Each data chunk consists of a header and the actual data points. The header contains information about the chunk, such as a timestamp and how many data points are included in this chunk. An efficient mechanism to decouple the data sampling from the data processing is needed because the data processing, such as storing, could be a time-consuming procedure and should not influence or delay the data sampling. Therefore, a so called chunk-FIFO was developed to allow an efficient data sampling and to decouple data sampling from data processing.

Before any type of structured data, for instance a chunk of audio data, can be stored to the NVMs via the filesystem, the structured data must be serialized or encoded. The result of serialization is a sequence of bytes representing the structured data. In C a sequence of bytes can be expressed through a byte-array. This serialization process is crucial for the efficiency of data storage. The less bytes are required to represent the structured data, the more data can be stored in the NVMs. To reconstruct structured data from a serialized byte sequence, deserialization or decoding has to be applied. The process of de-/serialization has to be generic to facilitate the declaration and use of new structured data types. Otherwise the developer has to implement a de-/serialization procedure for every type of data.

Another application of the serialization and deserialization procedure is the data exchange between the badges and the hubs. As described in the previous section, the Nordic UART Service is used for the data exchange between the devices. This BLE service allows the transmission of raw bytes that have to be interpreted by another instance such as a data exchange protocol. Ultimately, a protocol is nothing else than a description of how to interpret bytes. The data representation for storing and transmission does not have to be equal. One reason for this is that different protocol versions can have different data representations. Therefore, the representation of data that are stored on the badge is independent from the data representation of the protocol to prevent compatibility problems.

There are many different techniques to represent data structures or objects and to serialize them for transfer or storage. The Extensible Markup Language (XML) defines a language for data representation and serialization in a human- and machine-readable format. The representation that is produced during the serialization has usually a larger size compared to other serialization techniques such as the JavaScript Object Notation (JSON) due to redundant tags in XML. JSON represents data in the human- and machine-readable object notation of JavaScript. It is a popular alternative to XML because of its better readability and smaller serialized representation. Another serialization technique developed by Google is Protocol Buffers. On the basis of a predefined schema, classes and functions to serialize and deserialize structured data are generated by the Protocol Buffers compiler. It is characterized by a small binary representation of the data and a fast serialization. The mentioned techniques support various programming languages, such as C++, Java and Python [Mae12]. As part of this work, a serialization library called Tinybuf was implemented. It is orientated at Google’s Protocol Buffers library. Tinybuf was developed to overcome some drawbacks of Protocol Buffers: High RAM allocation for the serialized message, large overhead produced by additional field identifiers and incompatibility with the previous protocol implementation. Tinybuf uses a parser to analyze a schema file with the definition of data structures and generates source code for the programming languages C and Python. It is optimized for efficient data serialization to enable an effective data storage and transmission. The Tinybuf library is described in section 5.

Testing plays an important rule during the development of software. Implementation errors can lead to unpredictable behaviors and complete system failures which are unacceptable in applications that are deployed for instance in airplanes or cars [Des06]. Although the firmware for the badges is not as critical as applications for airplanes, it is necessary to verify the correct behaviour of the implemented software. There are two main concepts to verify the correctness of software components: Static analysis and dynamic testing. Static analysis can be performed by humans or by automated static analysis tools. Humans can apply techniques such as desk checking and code walkthrough to detect implementation bugs [Des06]. In general, static analysis tools are applied directly to the source code to be checked, not to the compiled or executable binary. These tools are established in the development of applications with high security requirements [Che04] or in safety-critical systems for instance in the automotive and aerospace industry [Bla03]. On the other hand, dynamic testing methods actually run the code against predefined test cases to verify its functionality: The code has to produce the results that are expected by the test cases. For instance, unit, regression and integration tests are types of dynamic testing. Unit tests consist of a set of independend test cases that verify the functionality of small functional units, such as functions or modules [Ham04]. Regression tests ensure that an already existing functionality is not influenced when the code is changed due to bug fixes or code extension. Integration tests focus on the interaction between multiple components of the system to verify that these components work together as specified [Des06].

In this work, a dynamic testing framework based on Google Test [Goo08a] was developed to verify the functionality of the implemented modules. The testing framework combines Google Test with a code coverage analysis tool and the capability to simulate interrupts to test the asynchronous parts of the code. The framework is described in section 3.

2.2 Modules overview

This section explains the general module interaction and the main implementation concepts that are used. The functionality of the application can be divided into the following individual functional units: Recording, storage, streaming and exchange of data. Each of these units consists of one ore more interacting modules. Beside these main functional units, additional modules are required for the correct operation of the application and to facilitate the development. An instance that provides reliable time basis is such an additional module. Accurate timestamps are needed to assign the correct time to a data chunk. This is neccessary to combine and correlate the data recorded from different badges in a second step. Furthermore, a timeout mechanism was implemented that calls a timeout handler function if a predefined time interval elapses. The mechanism can be deferred by calling a reset function for the timeout. One application of the timeout mechanism is, for example, the automatic stop of data recording after a predefined interval if no connection between the badge and a hub has been established within this interval. Another crucial aspect for the correct behavior of the badge is to ensure the proper operation of the hardware (HW). Therefore, a selftest module provides the capability to test selected peripheral components, such as the EEPROM, the flash-memory, the microphone, the battery measurement and the accelerometer. The incorporated LEDs signal the testing process and indicate an error if necessary. For development and test purposes, the UART-interface can be enabled manually by using the corresponding compile target in the Makefile. Via the UART-interface the badge can communicate with a serial monitor such as Cutecom for debug or logging purposes. Additionally, commands can be sent via the UART-interface to the badge to perform specific actions, for example restarting the badge.

The programming paradigm used for the application is an event-driven approach. Event-driven software architectures are based on the processing of events. When an event, such as a timer event or an I/O pin interrupt, occurs, a registered callback function is invoked to handle the event [Dab02]. The callback function is executed in a predefined priority context and suspends lower priority contexts such as the main context that has the lowest context priority. In general, the execution time of callback functions has to be very short to minimize the delay of lower priority contexts or to prevent the loss of new callbacks with the same or lower priority. The number of available priority levels for the application depends on the HW. Nordic Semiconductor provides a software development kit (SDK) that abstracts the HW-interfaces in drivers, includes useful libraries and simplifies the usage of the Bluetooth connectivity via a so called SoftDevice. SoftDevices are precompiled and linked binary software components with an embedded BLE protocol stack. The SoftDevice type S130 is used for the badges. This SoftDevice type enables a BLE application to act as central, peripheral, broadcaster or observer device. The latest SDK version that supports the incorporated nRF51822 chip is v12.3.0 [Nor18a]. The SDK contains two modules that are crucial for the previous described event-driven programming paradigm: The app-timer and the app-scheduler module. The app-timer module uses the RTC to generate interrupts or events at configurable time intervals. These events are handled by a previously registered callback function. The callback functions are executed in a low priority context to enable the handling of higher priority events in the meantime. As already mentioned, it is crucial that the time for the execution of callback handlers/functions is short. There are cases, for example when an event triggers a storage operation, where the time required for the callback function would be too long. The app-scheduler module elimates this problem by transferring the execution from the callback context to the main context. The concept of the scheduler is based on an event queue. Events are inserted into the scheduler FIFO queue. The main context processes the events from the queue by deleting them and calling the corresponding handler functions. Another application of the scheduler is the postponement of functions that cannot be executed because the required resources are currently not available. Due to this event-driven approach, the main function that is invoked at application-start only consists of initialization functions and the loop that is shown in Figure 4.

Figure 4: Main loop. The main loop with scheduler execution and sleep function.

The app_sched_execute() function reads out available events from the scheduler queue and calls the corresponding handler functions. The sd_app_evt_wait() function is an SoftDevice API function that enters sleep mode until an interrupt occurs. This is important to reduce power consumption of the chip. When the central processing unit (CPU) of the nRF51822 chip is running, a typical value for the current consumption is about 4.2 mA whereas the sleep mode consumes only about 3.8µA [Nor16a].

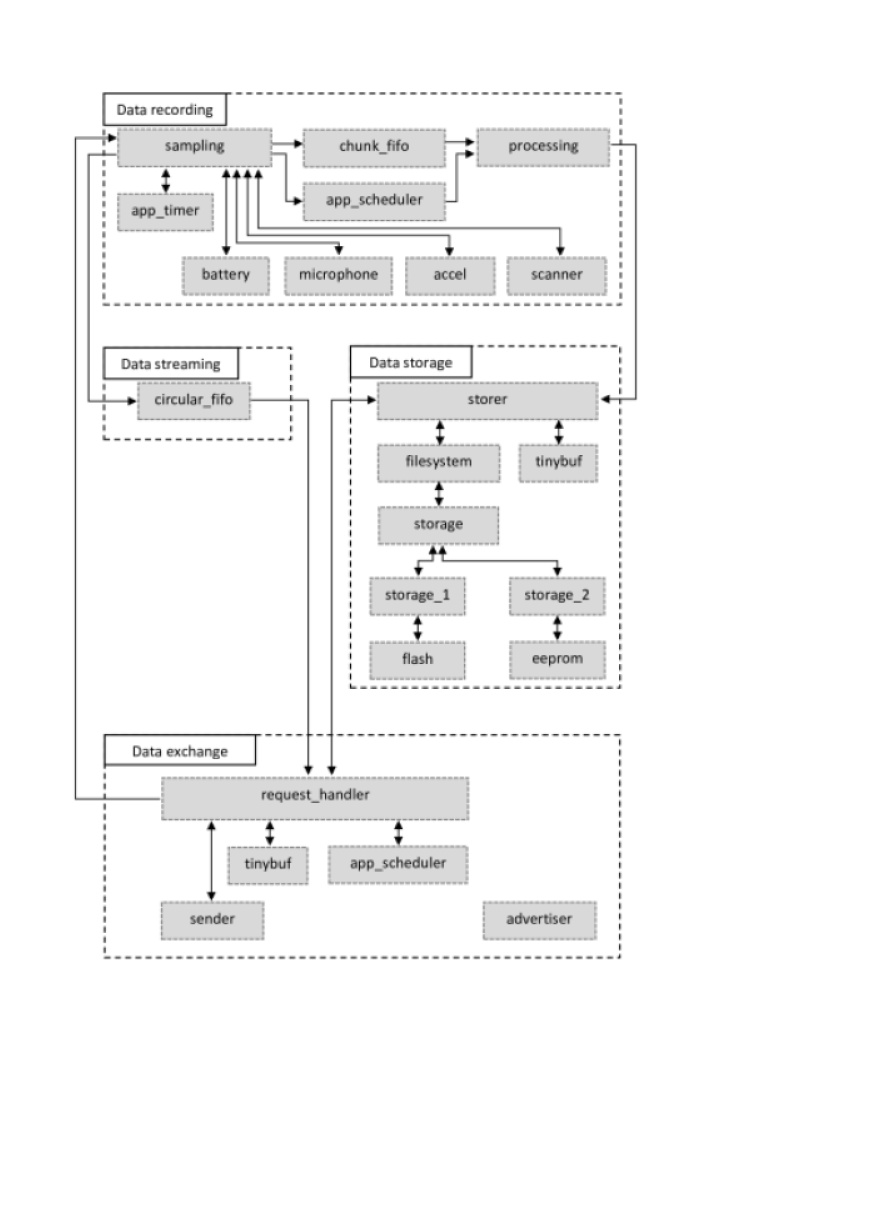

Figure 5: Modules overview. The main functional units data recording, data streaming, data storage and data exchange consist of one or more modules to provide the functionality. The arrows illustrate the dataflow and/or the controlflow between the components. In this overview only the modules are depicted that are necessary to understand the general behavior of the firmware.

Figure 5 gives an overview about the interaction between the functional units: data recording, data streaming, data storage and data exchange. Furthermore, the different modules of each functional unit are displayed. In the following a brief explanation of their functionality is presented.

The data recording unit includes the sampling, app-timer, app-scheduler, chunk-FIFO and processing module. Additionally, it uses the HW abstraction modules for the data sources battery, microphone, accelerometer and scanner. The sampling module controls the data recording process. It collects data from the available data sources at predefined time intervals through the app-timer module or at occurness of specific events such as a motion-interrupt from the accelerometer. As already mentioned, the sampled data is splitted into data chunks for each data source. For an efficient and more importantly synchronized exchange of the data chunks between the sampling and the processing module, the chunk-FIFO module is applied. The processing module reads the available data chunks from the chunk-FIFO and processes the chunks, for instance sorting the data or storing to the NVMs. In general, this processing step is time consuming and should not be handled in a high priority context. Therefore, the execution is transferred to the main context by the app-scheduler module. The HW abstraction modules represent the functionality of the corresponding HW components. The battery module provides a function to read the supply voltage of the battery while the microphone module reads the audio signal from the analog microphone. Both modules use the ADC to generate the data. To synchronize the access on the ADC an abstraction layer based on the SDK ADC-driver was implemented. All required SDK drivers have to be enabled in the sdk-config header file of the project. The incorporated accelerometer is controlled by the accelerometer (accel) module. This module enables the access to the recent acceleration data and calls a configurable callback function when the accelerometer generates an interrupt event. To interact with the accelerometer chip, the SPI-driver of the SDK is used. Since the SPI-driver is also required by the eeprom module, an additional abstraction layer was implemented to synchronize multiple SPI-driver access. Furthermore, the abstraction layer includes an automatic control of the slave select (SS)-pin to choose the correct HW device for SPI communication. The last data type that can be recorded is the proximity to other badges. The proximity to surrounding Bluetooth devices can be reconstructed using the RSSI values from a Bluetooth scan. The BLE scan functionality is provided by the SoftDevice. To facilitate the interaction with the SoftDevice, a BLE module was implemented that abstracts only the needed BLE functionality, such as scanning, advertising and bi-directional communication. The scanner module, that is associated to the data recording unit, is based on this BLE abstraction and provides the functionality to scan for surrounding Bluetooth devices, such as location beacons or other badges. A detailed description of the sampling and processing strategy of each data source is presented in section 4.

After the data from the different data sources have been recorded, they can be directly transmitted to a central BLE device and/or stored to the NVMs for later transmission. The first case, in which the data arrive continuously, is called data streaming [Bab02]. This data streaming process is handled by the data streaming unit in cooperation with the data exchange unit. The circular-FIFO module is the only module in the data streaming unit. In contrast to the FIFO implementation of the SDK, the circular-FIFO allows synchronized overwriting of unread data if the FIFO is full. This has the advantage that the data in the FIFO is always up to date. Each data source has its own circular-FIFO, which contains single data points (e.g. the current microphone values) and no complete data chunks. The circular-FIFO as well as the streaming messages are presented in section 7.

In the second case, the recorded data are stored in the NVMs to be transmitted at a later timepoint. The data storage unit is responsible for the storing process of the generated data chunks. The storer module controls the storage to and the reading from the NVMs. Therefore, the tinybuf module is used to efficiently serialize the data chunks to a byte sequence that can be stored to the NVMs via the filesystem module. The filesystem consists of multiple seperated partitions for each class of data, such as the microphone data or the accelerometer data etc. The filesystem module is based on the storage module, which combines multiple memories to one virtual memory. Between the actual HW abstraction modules for the memories and the storage module, another abstraction layer is integrated to enable an uniform interface for the different memory types. The flash module is the HW abstraction of the integrated flash-memory and enables certain flash operations, such as erasing pages and storing or reading words. The interaction with the flash-memory is done by the fstorage module of the SDK and the SoftDevice. To minimize the SoftDevice conflicts between BLE activity and flash operation, the fstorage module splits the requested flash operation into smaller units that are successively processed. The EEPROM is controlled by the eeprom module and enables the application to store and read single bytes or byte sequences. As already mentioned, the communication between the nRF51822 and the EEPROM chip is based on the SPI. To synchronize the SPI access between the eeprom and the accelerometer module, the abstraction layer on top of the SPI-driver is applied. To retrieve the data chunks again from the NVMs, the serialized data chunks are read from the corresponding filesystem partition and deserialized via the tinybuf module. In section 6 the functionality of the filesystem as well as the uniform storage abstraction is explained.

Ultimately, data has to be exchanged with a central BLE device such as a hub. The data exchange unit is responsible for this task (see Figure 5). Advertising related functionality, for instance the advertising packet management, is implemented in the advertiser module. The sender module enables the bi-directional communication during an established BLE connection between a central BLE device and the badge through the Nordic UART Service. The advertiser module as well as the sender module is based on the BLE module that abstracts the interaction with the SoftDevice. The entire data exchange process is controlled by the request handler module. This includes the processing of received messages, the reading of stored data chunks and the transmission of stream or data chunk messages. The general procedure is the following: The sender module receives a message or notification from the remote BLE device and generates a callback for the request handler module. The request handler module processes this message by deserializing it with the tinybuf module to an interpretable request structure. This request is analyzed in a second step and if necessary a response for the remote device is generated and transmitted. In general, the process of analyzing the request and generating the response is time consuming and is therefore transferred to the main execution context through the app-scheduler module. Additionally, the app-scheduler module is used to suspend an operation that is currently unavailable and to retry it at a later timepoint. After the reponse is generated, the tinybuf module is used to serialize the response to a byte sequence that can be transmitted through the sender module. Section 8 presents the data exchange unit and the corresponding modules.

3 Testing framework

As part of this work, a testing framework was developed to apply dynamic testing methods to the implemented software. A testing framework is a software tool that provides an environment to easily create and execute tests and reports the results of these tests. Usually, unit tests are created simultaneously with the development of the application software. Unit tests are based on the application modules to be tested, but exist only in the test framework and not in the application itself. A unit test checks a specific behavior of the application software. If the test is succesful, this specific behavior of the application is verfied. In general, the most basic functionality of the application should be tested first, followed by more complex tests that may combine different functional units of the application. One advantage of a well-maintained testing framework is the ability to immediately verify code changes, which enables faster application development [Ham04]. Altough the implementation of unit tests is an additional expenditure during the implementation, a case study in [Osh15] showed that the overall time to provide a bug free application can be reduced when unit testing is applied during the development process.

The basis for the testing framework is Google Test. Google Test is a cross platform testing framework written in C++. It is compiled and linked together with the application modules to be tested. The framework enables an easy declaration of tests and provides a lot of useful features. In Google Test, one single test is called test and the set of various tests associated to one component is called test case. The basic concept is the following: The user creates a C++ file to setup a test case for a specific component of the application. Within this file one or more single tests are defined to verify the component’s functionality. To verify the functionality of a component or a function, assertions are made about its behavior, which have to be fulfilled. Google Test displays a failure message when the assertion fails. This failure message contains the line number where the test failed, additional information about the cause of failure and optionally a custom failure message. Assertions are divided into two groups: Fatal and nonfatal assertions. When a fatal assertion fails, the current test is aborted, whereas a nonfatal assertion would not abort the current test. An overview of common used assertions is presented in Table 2.

Fatal assertion Nonfatal assertion Verifies
ASSERT_TRUE(condition) EXPECT_TRUE(condition) condition is true
ASSERT_FALSE(condition) EXPECT_FALSE(condition) condition is false
ASSERT_EQ(val1, val2) EXPECT_EQ(val1, val2) val1 == val2
ASSERT_NE(val1, val2) EXPECT_NE(val1, val2) val1 != val2
ASSERT_LT(val1, val2) EXPECT_LT(val1, val2) val1 < val2
ASSERT_LE(val1, val2) EXPECT_LE(val1, val2) val1 <= val2
ASSERT_GT(val1, val2) EXPECT_GT(val1, val2) val1 > val2
ASSERT_GE(val1, val2) EXPECT_GE(val1, val2) val1 >= val2
Table 2: Assertions. Each fatal or nonfatal assertion performs a specific type of verification.

Each test uses one or more of these assertions to verify the functionality of a certain component. Figure 6

(a) shows a simple function to be tested and an associated test. The task of the function is to check whether an input number is even or odd by using the modulo operator. If the number is even, the function should return true, otherwise false. The corresponding test is defined by the TEST(TestCaseName, TestName) macro and uses one of the mentioned assertions to verify a specific behavior of the function. In this case, the test verifies that the function returns false if the input number is 1. To run the test case, the created C++ test case file, the corresponding modules to test and the Google Test framework modules have to be compiled and linked together. The framework invokes the created tests sequentially. The resulting test report is displayed in Figure

6 (b). The report shows the success of the test and thus also that the function fulfils the behavior asserted in the test. In contrast, Figure 7 (a) shows the same function, but in this case it is implemented incorrectly: The condition in the if-statement is exactly the opposite of the previous implementation. If the same test is executed for the incorrect implementation of the function, the test fails. The report produced by the Google Test framework shows this failure (Figure 7 (b)). It provides the line number where the test failed and information about the cause of the failure.

(a) (b)
Figure 6: Successful unit test. The correct implemented function that checks whether a number is even or not and a single test is shown in (a). The test report generated by the Google Test framework after running the test is depicted in (b).
(a) (b)
Figure 7: Failed unit test. An incorrect implementation of the function that checks whether a number is even or not is shown in (a). After execution of the test, the Google Test framework reports the failure of the test (b).

With this information, the implementation bug can be fixed quickly. Several tests within a test case should be independent of each other, otherwise it might be difficult to find the cause of a failed test. Especially, test of modules or functions with an internal state are affected by this problem. To ensure the same configuration or state for several different tests, the framework provides so called test fixtures: TEST_F(TestCaseName, TestName). Before each test fixture is invoked by the framework, a SetUp-function is called to reset the internal state or to create a consistent configuration [Goo08a].

Another related dynamic testing method is code coverage testing. This type of testing is characterized by specifically designed tests that cover a high percentage of the code. Code coverage can be refined into different types: statement or line coverage, path coverage, condition or branch coverage and function coverage. For line coverage, the tests are designed to execute each line of the code to be tested. One assumption is that the more lines covered, the better the functionality is tested. Path coverage considers the code as individual logical paths that can be executed and not as single lines. This type of coverage is a stronger criterion than line coverage. Branch coverage is related to path coverage but provides a stronger criterion than path coverage. This is due to the fact that a different combination of conditions can lead to the same path being executed. The function coverage represents the number of program functions that are covered by the tests. Furthermore, the number of function calls is monitored, enabling the developer to optimize functions that are called frequently [Des06].

The technique applied for code coverage analysis is called instrumentation. In this technique, additional code or instructions are incorporated into the original source code. These instructions generate information about the instrumented code during runtime. The result of the analysis is the coverage in percent. For example, the line coverage is computed in the following way:

(1)

When the tests execute the instrumented code and it turns out that the code coverage is insufficient, either the existing tests have to be adjusted or new tests have to be added to increase the coverage. This process is repeated until the code coverage is sufficient. A set of effective tests is the result of this repeated process.

In this work the coverage analysing tool gcov is used. This utility is included in the GNU Compiler Collection (GCC). To incorporate the instrumentation into the code, special compiler options have to be added: -fprofile-arcs -ftest-coverage. During the compilation process for each source file, a .gcno file is generated that contains information that are necessary for gcov such as a flow graph of the program. While executing the compiled object files, a .gcda file is created for each of the source files. These .gcda files contain profiling information about the executed object files. Both, the .gcno and .gcda files are used by gcov to perform the actual coverage analysis [GCC05]. Since the generated results are difficult to read, lcov in combination with genhtml is applied to provide a more convenient visualization for the developer. Lcov collects the coverage information generated by gcov and writes them into a file. Based on this file, genhtml creates a Hypertext Markup Language (HTML) file that presents the coverage information, such as line, function and branch coverage. [Obe08]. The HTML file can be interpreted by any standard Browser such as Google Chrome or Firefox. An example for the code coverage analysis and HTML visualization is shown in Figure 8. The function to be tested is the same as for the previous examples. This time the function has another implementation error: Instead of returning true when the condition in the if-statement is fulfilled, the function returns erroneously false. The functionality of the function is verified with the same test as for the previous implementations: The test asserts that the function returns false when it is called with the input number 1. The implementation error has no effect on this assertion, because it is not reached during the test. Consequently, the test reports the correct functionality of the function, although there is obviously an error. To solve this problem, and ultimately detect the implementation error, one or more tests with different input parameters have to be added. The code coverage analysis tool helps the developer to easily find such untested code lines or branches. Figure 8 (a) shows the coverage analysis generated with gcov, lcov and genhtml for the mentioned test. The red highlighted line containing the implementation error is never called during the test. The reason for this is pointed out by the branch data column: The condition of the if-statement is never true. In addition to the detailed source code analysis, a statistic of the entire source file is generated. This is shown in Figure 8 (b) and includes statistic values for the line, function and branch coverage. Therefore, the combination of the Google Test framework and gcov/lcov provides an useful tool for software development. The test framework verifies the functionality of the implementation and the coverage tool analyzes how much of the source code is actually executed by the tests. This enables developers to create better tests and eventually more stable applications.

(a) (b)

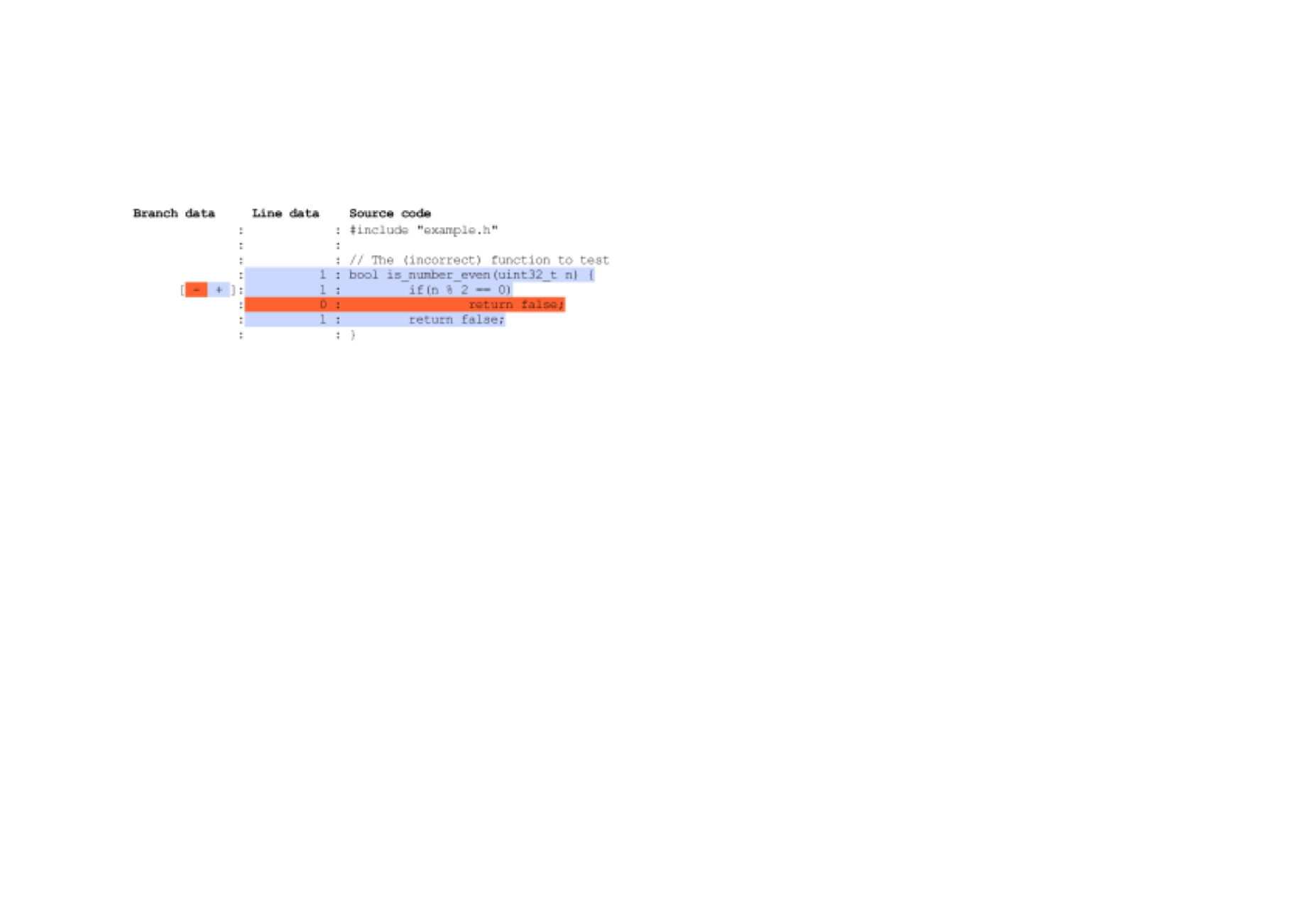

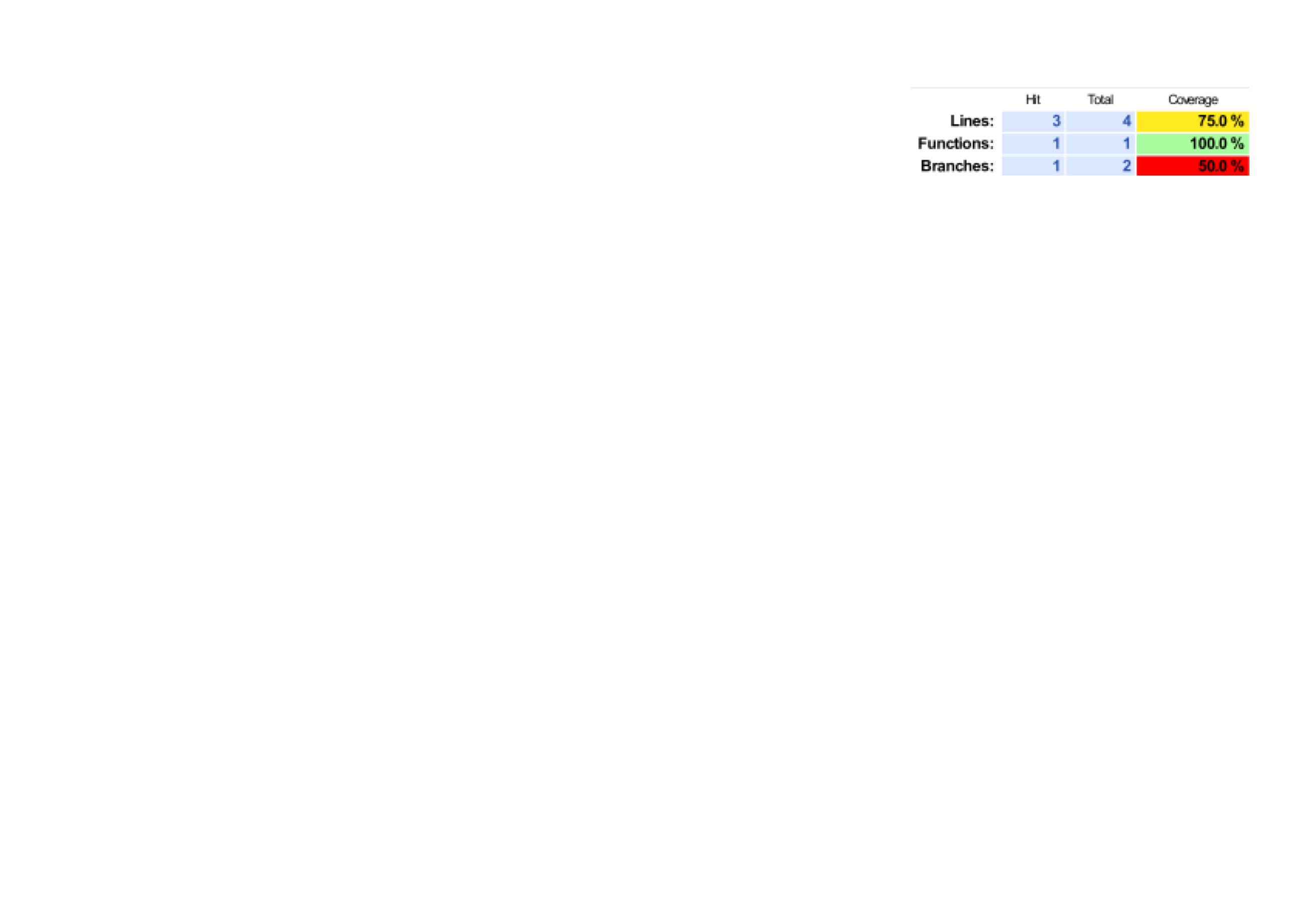

Figure 8: Example coverage analysis. The detailed source code coverage analysis is depicted in (a). It includes the source code itself, the number how often each line is executed (line data) and information about the branch coverage (branch data). In (b) the statistic about the entire source file coverage is displayed.

Modules or functions that are based on HW or HW-drivers cannot be verified with the testing framework because the required functionality is only available on the HW. Examples for such HW components are the EEPROM, the flash-memory, the accelerometer, the microphone, the battery and the BLE interface. To verify the correct functionality of these HW modules, their tests are integrated into the application running on the HW. The HW modules have to be abstracted in so called mock objects, to test other units of the application that interact with these modules. Since the programming language is C, mock objects are modules with the same interface/header-file as the HW modules. Internally, the mock objects no longer access the HW, but try to simulate it. The first aspect of mock object simulation includes the generation of data. The second aspect is the simulation of asynchronous events such as interrupts. For instance, the mock object for the accelerometer module has to provide both aspects: When the read function of the mock object is called, acceleration data have to be returned. In addition, the mock object has to generate motion interrupts under certain conditions. The left part of Figure 9 shows the sampling module that uses the HW dependend accelerometer module. To test the implementation of the sampling module, the mock object of the accelerometer module has to be created, which is shown in the right part of the picture. The functionality of the mock object itself is again verified with the test framework. The easiest way to generate data, e.g. accelerometer data, is to return predefined default values. In some applications this would already be sufficient, but there are applications that perform complex operations on the returned data, such as sorting or classification. For these applications, specifically generated data must be returned to test the complex functionality. To provide this possibility, an abstraction layer for data generation was implemented in this work: If the application calls a read function of the mock object, the function call is forwarded to the data-generator module. In addition to default values, function pointers can be set in this module. These function pointers enable test-dependent functions to be called to generate the data.

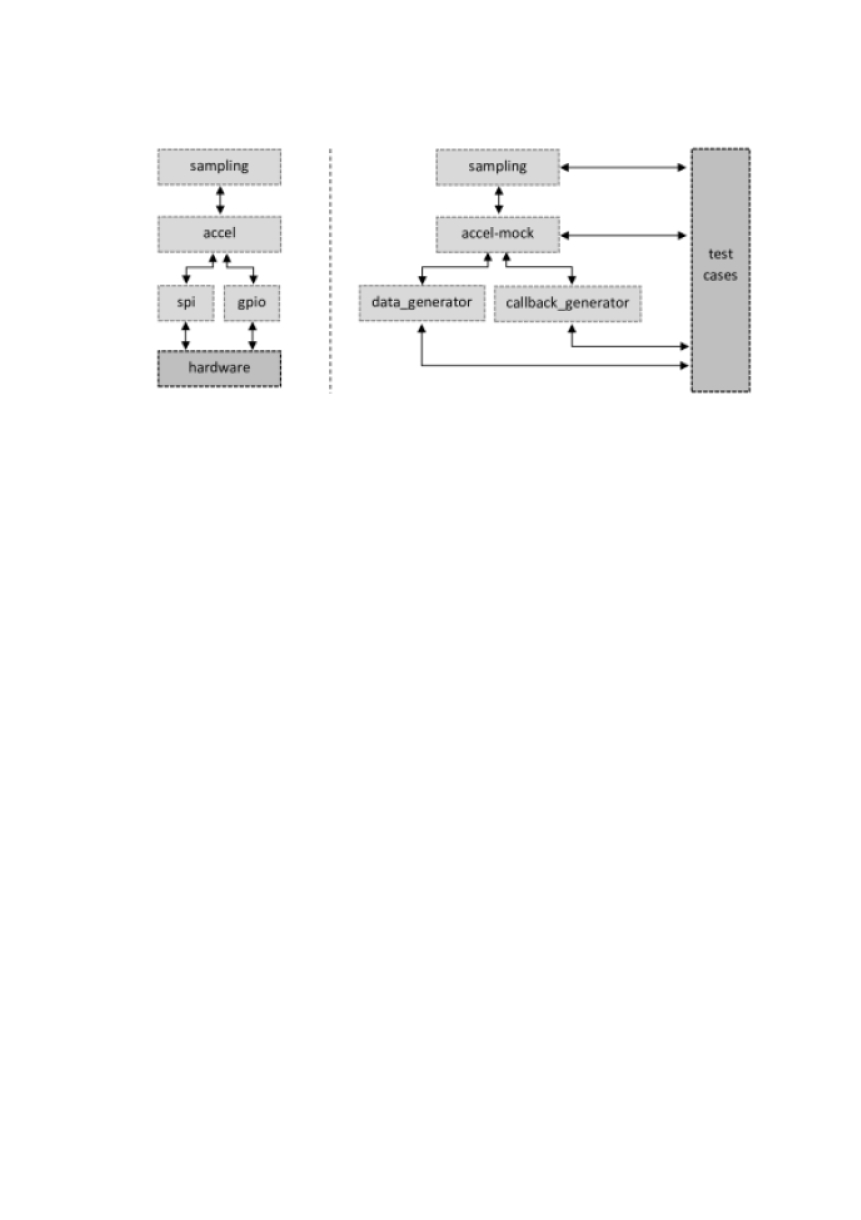

Figure 9: Accelerometer mock object. The left part shows the sampling and accelerometer module when the application is directly running on the HW. For the offline testing with the test framework, a HW-independent mock object for the accelerometer has to be implemented.

To simulate asynchronous events, for example a motion interrupt of the accelerometer, the callback-generator module can be used. This module allows to easily register and create asynchronous events at specific configurable time points. The event generating process is started by calling a trigger-function. The module manages an array of time points that are processed sequentially. These time points are defined during the initialization by the developer. At each time point, a previous registered callback function is called to simulate an asynchronous event. Internally, threads are used to generate this asynchronous behavior. To protect critical sections of the code from asynchronous execution, special synchronization mechanisms must be applied. In the case of the accelerometer mock object, the callback generator module is used as follows: The test defines the time points at which the motion interrupts should be generated. During the initialization process of the accelerometer mock object, the trigger-function that starts the process is called. At the defined time points an event is generated and the interrupt handler function of the accelerometer mock object is invoked. The interrupt handler is invoked as on the HW.

The developed test framework enables the capability for simple creation and execution of tests. In addition, the integrated code coverage analysis tool gives the developer an indication of the quality of the tests.

4 Data recording

This section describes the data recording unit and the recording strategy of the different data sources in more detail. At the start of the application, the sampling module initializes the required timers, chunk-FIFOs and HW abstraction modules. The sampling module provides an interface to start and stop data recording for a single data source. The parameters required for each data source, such as the sampling period for the microphone, are passed via the start function. Depending on the data source, no timer, one timer or two timers are required for reading the data points. These timers are also launched in the start function. Furthermore, the start function sets up the data chunks, where the recorded data points are buffered. In addition to the actual data points, the chunks also contain metadata in which information such as a timestamp and, if applicable, the number of data points are stored. Chunks are internally represented as C structures. Figure 10 shows an example of the chunk structure for the microphone data. After a chunk has been filled with data points, it has to be processed, for example, stored. The fast data generation of the sampling module must not be delayed by these time-consuming operations. Therefore, an efficient mechanism to exchange finalized chunks is required. Care has to be taken that no copy operations are used, because these operations are rather time-consuming. These requirements are implemented in a specifically designed chunk-FIFO. The functionality of the mechanism is as follows: During the initialization of the sampling module, a chunk-FIFO for each data-source is created, in which the chunks are inserted sequentially. It allocates memory in RAM for a given number of chunks. The chunk-FIFO provides interfaces to open or close a chunk for writing or reading. When opening a chunk for writing, a pointer to the next free position in the chunk-FIFO is returned. This pointer has to be casted in order to access the chunk-structure, for example a microphone-chunk. This procedure prevents the already mentioned time-consuming copy operations. If too less memory is allocated during the initialization or the reading of the finalized chunks from the chunk-FIFO is performed too late, no writable chunks are available in the chunk-FIFO. In this case the pointer to the last finalized chunk is returned. This prevents overwriting of unread chunks. However, the last written chunk is overwritten by the new chunk. The reason for this kind of implementation is the following: If no chunk is currently available for writing, data recording should actually be stopped so that no new data points are generated. As soon as space is available in the chunk-FIFO, data recording should be restarted again. More complex mechanisms would have to be provided to automatically restart data recording. In order to keep the implementation simple, the described method of overwriting the last finalized chunk is used. In both cases data loss occurs. Therefore, the number of available chunks in the chunk-FIFO must be selected appropriately during initialization.

Figure 10: Microphone chunk. The figure shows the C structure for the microphone chunk. It consists of a timestamp, the sample period in milliseconds, the number of microphone data points in the microphone data point array and the microphone data point array itself. The MicrophoneData-type consist of one byte representing the audio data.

After a chunk has been closed by the sampling module, a processing function is inserted into the scheduler. Each data-source has its own processing function, which is implemented in the processing module. The scheduler executes this function as soon as possible. The processing function reads finalized chunks from the chunk-FIFO for the given data-source and processes them sequentially. Depending on the data source, the processing differs. In the case of microphone chunks, the chunk structure is just serialized and stored by the storer module. In contrast to this, the data points of proximity chunks are sorted before they are serialized and stored.

4.1 Proximity data

The proximity to other people is an important variable to infer communication patterns and face-to-face interactions. The proximity data can be used to determine which persons have most likely interacted with each other. The badges retrieve the data by scanning for BLE advertising packets of surrounding devices. Each badge advertises its packet every 200 ms. The advertising packet is broadcasted on all three advertising channels. The parameters for the scanning of advertising-packets can be configured remotely. The selectable parameters for the scan procedure are the interval, the window, the duration and the period. The scan interval describes the time interval between two active receiving windows. The active receiving time is represented by the scan window parameter. In each window only one of the three advertising channels is covered. Therefore, the next window receives on the subsequent advertising channel of the previous window and starts again with the first one when the previous window has covered the last advertising channel [Kin18]. This procedure is repeated until the scan duration is exceeded. Finally, the scan period describes the time interval at which a new scan procedure should be started. Typical parameters are: an interval of 300 ms, a window of 100 ms, a duration of 3 seconds and a period of 15 seconds.

The proximity and approximate distance is finally calculated based on the RSSI values of the received advertising packets. The advertising packets of each badge contains an ID and a group number. Both values are set by the hub during the activation of the badge. In addition to badges, location beacons can also be recorded in a scan. Location beacons are stationary BLE devices mounted on a known position that periodically transmit their advertising packet. Both, iBeacons and badges can be deployed as location beacons. Each location beacon is also assigned an ID and a group number. The recording strategy of proximity data is as follows: A timer is started that periodically invokes a callback function at the specified scan period. In this callback a new scan-chunk of the scan-chunk-FIFO is opened and the actual BLE scan is started via the scanner module. Every time an advertising packet is received by the scanner module, a function is called that inserts the received ID and RSSI value into the chunk. If the group number of the received advertising packet does not match with its own group number, the badge ignores this device and no insertion into the chunk takes place. Since the available RAM is limited, multiple RSSI values of the same device have to be aggregated during the scan. Currently two aggregation methods are supported: The average and the maximum of the RSSI values. The scan-chunk has the capacity to store up to 255 devices during the sampling procedure. Beside the ID and the aggregated RSSI value, the number of received packets for the corresponding device is stored in the scan-chunk. After the scan duration has been expired, a function is called that closes the current scan-chunk of the chunk-FIFO and schedules the processing via the app-scheduler module. The processing function, implemented in the processing module, reads out the available scan-chunk(s) from the chunk-FIFO. In worst case, a scan-chunk consists of 255 discovered devices. To store a chunk like this into the NVMs, 1027 bytes are required: 6 bytes for the timestamp, 1 byte for the number of discovered devices, and for each of the 255 devices 2 bytes for the ID, 1 byte for the RSSI value and 1 byte for the number of received packets. Since the NVMs are also limited, 1027 bytes for one scan-chunk is not acceptable. In general, not all of the discovered devices are important for the data analysis. Especially badges with a low RSSI value are less important. A low RSSI

value usually indicates a greater distance and implies that there is probably no face-to-face interaction between the corresponding participants. In contrast, location beacons are often characterized by a lower

RSSI value, because in a normal setup there are only few location beacons that are distributed over the entire operational area. To calculate the absolute position of a person, the distance to at least three, better four location beacons is necessary. In order to prioritize a certain number of location beacons and to filter out badges with a low RSSI value, a special sorting mechanism is applied: First of all, the location beacons, characterized by an ID greater or equal 16,000, are sorted to the beginning of the scan-chunk. After that, the location beacons are sorted by their aggregated RSSI values to obtain the nearest location beacons at the beginning of the chunk. Finally, all remaining devices are sorted by their aggregated RSSI values. The result of this multistage sorting mechansim is a chunk that prioritizes location beacons and is sorted according to the proximity to other badges. Before serializing and storing to the NVMs using the storer module, the sorted scan-chunk is reduced by only taking the first 29 devices. The number of 29 devices has been adopted from the previous firmware implementation, but can be changed at any time if required.

4.2 Audio data

In addition to the proximity between persons, acoustic information is essential to analyze the communication patterns, such as turn-taking and speech overlap. To record audio data, the analog microphone of the badge is used. The microphone transforms the audio signal into an analog electrical signal on its output pin. This signal is amplified and low-pass filtered by the operational amplifier circuit of the badge. The cutoff-frequency of the low-pass filter is approximately 340 Hz. According to the Nyquist-Shannon sampling theorem, the sampling frequency must be higher than twice the highest frequency occurring in the signal. Otherwise, aliasing effects may appear [Mar12]. Therefore a sampling frequency of 700 Hz is used. The pre-processed signal is digitized by the ADC. The reference voltage for the ADC is the supply voltage of the microphone and amplifier circuit, which is regulated to 1.8 Volts by a regulator. The resolution of the digital representation is 8 bit. The zero point at the output of the operational amplifier circuit is 0.9 Volts. This voltage corresponds to a digital representation value of 128. The actual digital audio signal is the absolute difference between the current ADC value and this zero point.

For the analysis of communication patterns, the recording of the actual content of the conversation is not required. Only certain language characteristics are relevant, such as how often, how long and at what volume the participants speak. Therefore, to decrease the amount of data that has to be stored and finally transmitted, the raw microphone amplitude is averaged over 50 ms [Led18]. This averaging period can be setted remotely. To control the data-recording of the microphone, the sampling module provides a start- and a stop-function. In the start-function a microphone-chunk of the microphone-chunk-FIFO is opened and two timers are started. The first timer invokes a callback function every 1.42 ms ( 700 Hz). This callback function reads the raw amplitude via the microphone module. The microphone module uses the underlying ADC-driver to generate this amplitude. The second timer calls a function at the specified averaging period, for example every 50 ms. In this function, the previous read amplitudes are averaged and inserted into the microphone-chunk. As soon as the microphone-chunk is filled, the chunk is closed and a new one is opened for further data recording. Additionally, the corresponding processing function is inserted into the scheduler. This function reads out the available chunks from the microphone-chunk-FIFO, serializes and finally stores them to the NVMs via the storer module.

4.3 Acceleration data

Another useful information about the behavior of participants are their patterns of physical movement. This can be used, for example, to determinie their physical activity intensity or the number of steps. A three-axis accelerometer is used to record movement information. The incorporated accelerometer (LIS2DH12) of the badge offers a wide range of functionalities. The accelerometer supports four operating modes: Power-down, low-power, normal and high-resolution mode. In power-down mode, most of the internal units of the accelerometer are switched off to reduce power consumption. In this mode, no acceleration data are available and the power consumption of the accelerometer is reduced to approximately 0.5 µA [STM17]. The low-power mode provides a resolution of 8 bits for the acceleration. The resolution refers to the configured full scale value. A full scale value of 2 gravitational force (g), 4 g, 8 g or 16 g can be selected. In normal mode the resolution is 10 bits and in high-resolution mode 12 bits. The power consumption in these three modes depends on the datarate at which the acceleration is measured. Table 3 gives an overview of the power consumption.

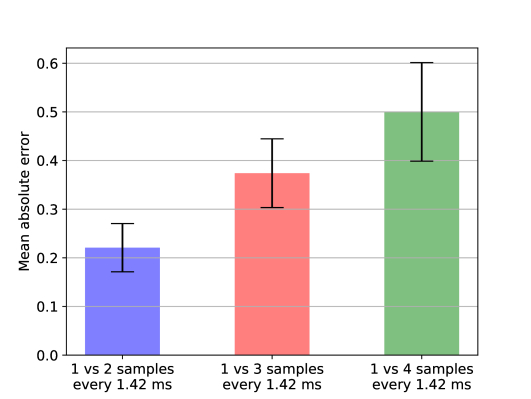

Datarate (Hz) Low-power mode (µA) Normal mode (µA) High-resolution mode (µA)
1 2 2 2
10 3 4 4
25 4 6 6
50 6 11 11
100 10 20 20
200 18 38 38
400 36 73 73

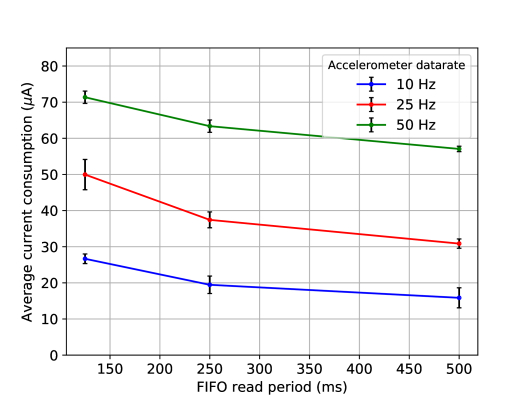

Table 3: Accelerometer power consumption. Excerpt of the accelerometer power consumptions in different operation modes and datarates [STM17].

The accelerometer has an integrated 32-level FIFO for the raw acceleration values. This FIFO is used to minimize the number of SPI-transfers, since up to 32 data points can be read at once by the SPI-master. Furthermore, the accelerometer features an optional high-pass filter to eliminate the acceleration due to gravity. Beside the acceleration values of the three orthogonal axes, the accelerometer provides the capability to enable interrupts that are generated if preconfigured acceleration events are detected. These events are for example motion events, free-fall events or click-events. The events are signaled through an output pin of the accelerometer, which is connected to an interrupt pin of the microcontroller. The functionality of the accelerometer is abstracted in the accel module of the firmware. This module configures the accelerometer by writing to its internal registers via the SPI-driver. It provides interfaces to setup the accelerometer, to read the current acceleration along the three axes in milli gravitational force (mg) and to activate the event detection.

The sampling module of the firmware provides two data-sources based on the accelerometer: Raw acceleration data and motion events. The start-function for recording raw acceleration data expects certain parameters for the datarate, the operating mode, the full scale and the period to read out the 32-level FIFO. After configuration of the accelerometer via the accel module, the function opens a chunk of the accelerometer-chunk-FIFO and starts a timer that periodically reads the latest data from the 32-level FIFO. It is important that the specified timer frequency is at least as high as the selected datarate of the accelerometer. Since the SPI-driver is also used by the eeprom module, it can occur that the SPI-driver is not available to read the acceleration data from the FIFO

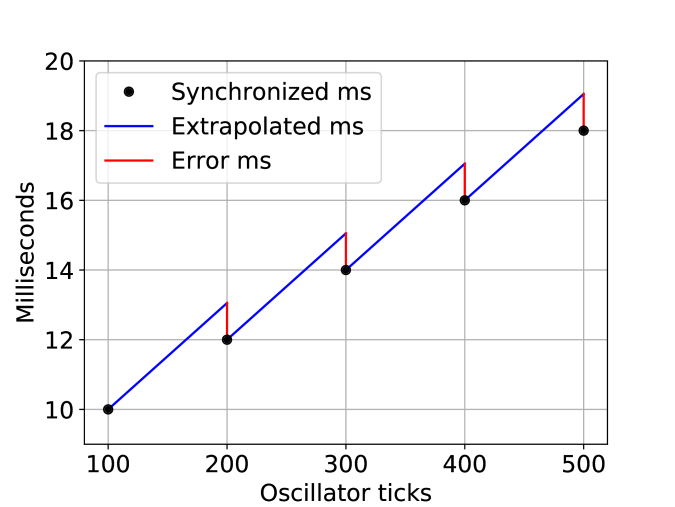

at the moment at which the timer callback function is executed. Therefore, it is advisable to select the timer frequency significantly higher than the datarate of the accelerometer. For the data analysis, the amount of movement, but not the exact acceleration of all three axes, is of particular importance. To eliminate the acceleration offset due to gravity, the integrated high-pass is applied. To retrieve a measure for the amount of movement, the absolute acceleration values of the three axes are summed up to one representative value

[Bou97]. This value is inserted into the accelerometer-chunk. If the chunk is filled, the corresponding processing function is called via the scheduler. This function is responsible for serializing and storing the chunk.

The motion event data-source is based on the interrupts generated by the accelerometer. To enable the motion event detection, three parameters have to be selected when calling the corresponding start-function of the sampling module. The first parameter is the acceleration threshold that has to be exceeded by at least one axis. The second parameter represents the minimal duration for which the acceleration must exceed the specified threshold to generate an interrupt. The last parameter describes the minimal duration between two consecutive events. If the next event occurs within this duration, it will be ignored. Every time such an event is detected, an interrupt is generated and a callback function in the sampling module is invoked. In this callback function, the event is inserted into the accelerometer-interrupt-chunk, which is closed afterwards. Finally, the corresponding processing function is scheduled to serialize and store the chunk.

4.4 Battery data

To monitor the functionality of the badges during their utilization, it is necessary to know the current supply voltage of the coin cell battery. The supply voltage can be used to determine the remaining capacity of the battery. Based on this information either the battery or the badge itself can be exchanged in time to avoid data loss. In addition, the supply voltage is important for subsequent data analysis, as it can be used to explain irregular behavior of the badges or corrupted data, especially when the voltage is low.

The current voltage can be retrieved through the battery module. Internally, the battery module periodically triggers the ADC-driver to measure the current voltage and averages consecutive values afterwards. To determine the supply voltage, the internal band gap reference voltage of the nRF51822 with 1.2 Volts serves as reference voltage for the ADC [Nor16a]. Since the external supply voltage exceeds 1.2 Volts in general, it is reduced to one third of the original value by an internal voltage divider. This value is then converted by the ADC with a resolution of 10 bits. Finally, the current external supply voltage () can be calculated based on the converted value () with the following formula:

(2)

Averaging is applied to eliminate voltage drops during high current consumption activities such as flash-memory interactions or BLE activity. The averaging is implemented as exponentially weighted moving average (EWMA). This type of averaging is characterized by a simple computation and by declining weights for older values [Hol04]. The recursive computation of the current averaged value at time point based on the previous averaged value and the current measured value is as follows:

(3)

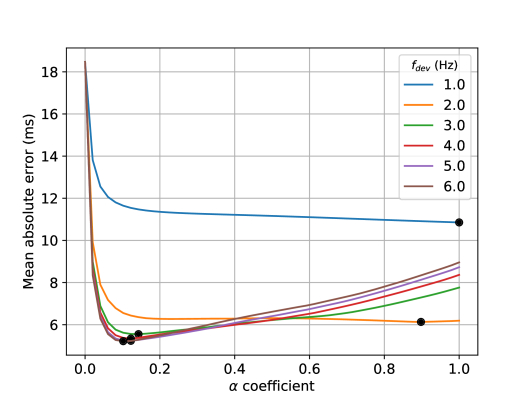

The coefficient in this equation ranges from 0 to 1 and affects the influence of older values. The higher this coefficient, the faster the influence of older values decreases. The periodical voltage measurement is implemented with a timer. Each time the timer callback updates the averaged voltage, the supply voltage of the advertising packet is also updated. This is accomplished using a function of the advertising module. The battery voltage can also be stored in the NVMs for later data analysis. This functionality is again provided by the sampling module. As soon as this data-source is activated, the sampling module sets up another timer that periodically reads the current averaged supply voltage from the battery module. This value is inserted into a battery-chunk of the battery-chunk-FIFO and the corresponding processing function of the processing module is scheduled. The processing of this data-source is similar to the other data-sources: The chunk is read out from the chunk-FIFO, then serialized and finally stored to the NVMs.

5 Data serialization

The efficient serialization and deserialization of structured data, such as chunks, is essential for data storage and transfer. Especially for data transfer, the de-/serialization mechanism has to be platform independent, since the data is exchanged between different architectures and programming languages. This section describes first Google’s Protocol Buffer library and afterwards the serialization and deserialization technique that was developed in this work.

Various types of de-/serialization techniques exist, such as XML, JSON or Protocol Buffers. XML and JSON are not suitable for an efficient serialization due to their high overhead. In contrast, Google’s Protocol Buffers library is characterized by a small overhead due to its efficient binary data representation [Goo08b]. Protocol Buffers officially supports the programming languages C++, Java, Python and Go, but not C. For C another Protocol Buffers implementation called nanopb exists, which is especially suitable for embedded systems with restricted resources [Aim12]. Based on a schema-file, the Protocol Buffers compiler generates special source code to serialize strucutured data into a binary representation and to deserialize it back to structured, interpretable data. In the schema-file, structured data are defined through messages. Each message has a name and contains one or more fields that characterizes the message. In Figure 11 a simple example message for representing a timestamp is shown.

Figure 11: Protocol Buffers example. The Protocol Buffers message of a timestamp consists of one field representing the seconds and one for the milliseconds. The numbers to the right of the equals sign are the corresponding field identifiers.

After the fields of the message have been setted via the automatically generated source code, the message can be serialized for transfer. Protocol Buffers support various data types, such as integer, float, double, string, boolean, byte-arrays and even other messages. Each field is specified with a field rule: required, optional or repeated. Required fields are essential for the message and have to be set/defined before serialization. On the other hand, optional fields need only to be specified if necessary. If an optional field is not set, it will be ignored during the serialization. Repeated fields can contain multiple elements of the specified data type, which corresponds to an array-representation. There are three main reasons why Protocol Buffers has not been used in this work and instead a custom de-/serialization technique was developed. The first reason is, that Procotol Buffers serialization applies variable-length integer (varint) encoding. The encoded or serialized length of an integer encoded with this mechanism can be higher than the actual byte representation of the integer. Secondly, each field gets an additional indentifier during the encoding process. Especially for repeated fields with another message as data type, the overhead is extremly high due to the additional identifiers. Thirdly, Protocol Buffers are not compatible with the previous implementation of the transmission protocol. Support of the previous protocol is particularly necessary to perform integration tests for the new firmware.

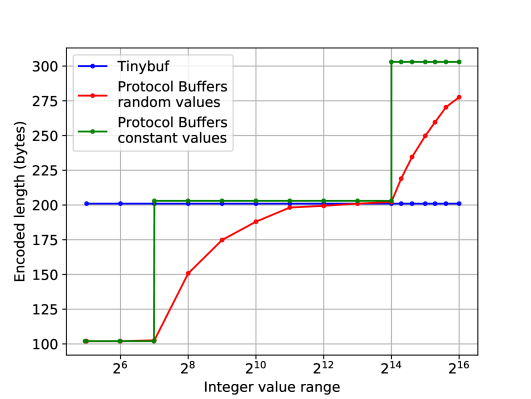

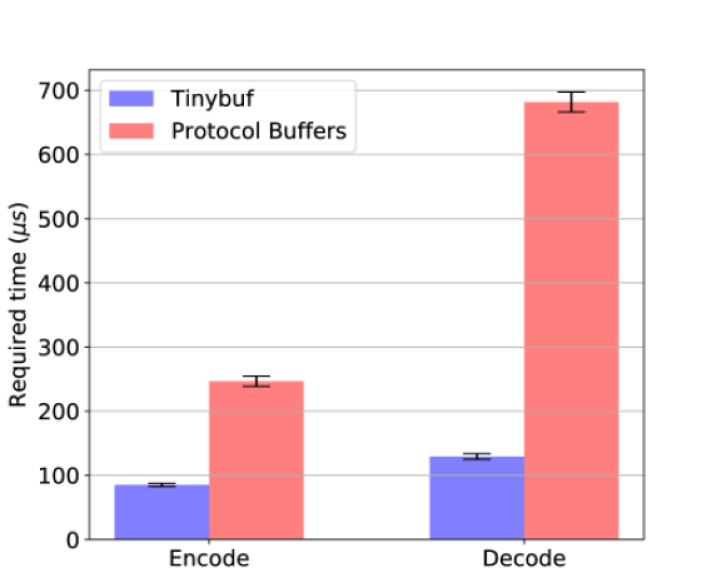

To overcome these difficulties a custom de-/serialization techique called Tinybuf has been developed. The workflow of Tinybuf is comparable to the workflow of Protocol Buffers. In the beginning, a schema-file has to be created that contains the message declarations. Afterwards the schema-file is converted to source code. Currently C and Python are supported as programming languages. Finally, the generated source code can be used to access the messages and to efficiently de-/serialize them. An overview of the workflow is shown in Figure 12.

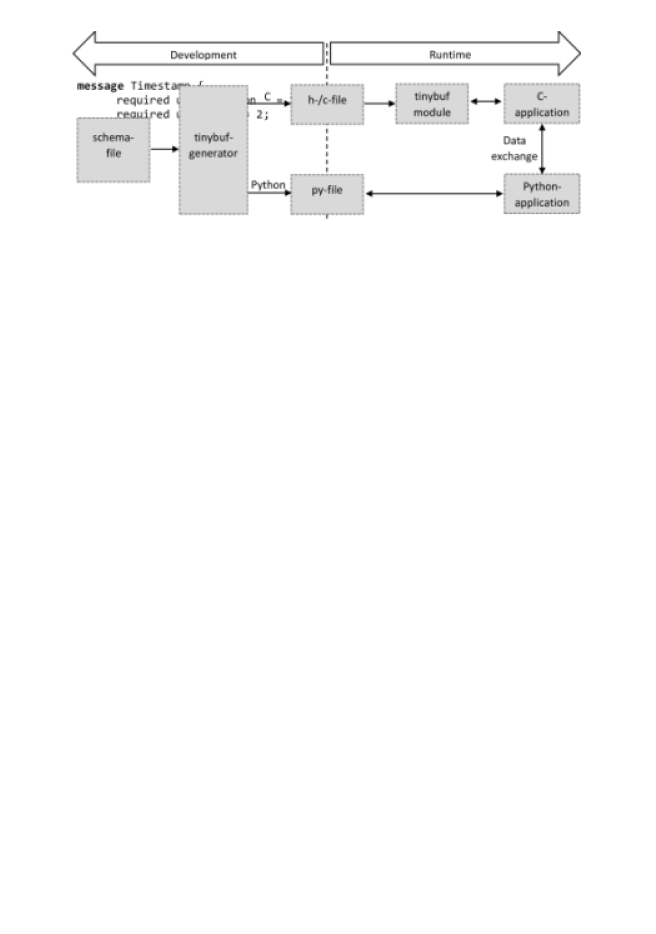

Figure 12: Tinybuf workflow. The workflow is divided into two parts. The left part takes place during the development process of the system: The schema-file is defined and converted to source code by the tinybuf-generator. The right part of the figure is executed while the system is running: The generated source code is used to de-/serialize the defined messages, which can be exchanged platform independently between applications with different programming languages.

The tinybuf-generator parses the schema-file in analogy to the Protocol Buffers compiler. This generator is implemented in Python and automatically generates source code for the chosen programming language. In case of Python, the tinybuf-generator creates one .py-file which represents the messages as Python classes. At runtime, the application creates objects of these classes and sets the desired message fields. Afterwards, the encode function is called to serialize the message object into a byte sequence. To convert such a byte sequence back to a message object, the decode function of the class has to be called. If C is selected as programming language, a C header-file and a C source-file is automatically generated. The defined messages are represented as C structures. In contrast to the generated python file, the encode and decode functions are not included in the generated C-source file. These functions are provided by an additional module: the tinybuf module. The encode and decode functions are generic and can be used for any structure created by the tinybuf-generator. This approach is more complex than the Python based method, because additional information about the structure is required for encoding or decoding. Especially when many different messages are defined, this decoupling leads to smaller code size compared to methods where each message has its own encoding and decoding function. A small code size is essential for embedded systems as the available resources are limited.

Data type Comment
uint8 1 byte unsigned integer
int8 1 byte signed integer
uint16 2 byte unsigned integer
int16 2 byte signed integer
uint32 4 byte unsigned integer
int32 4 byte signed integer
uint64 8 byte unsigned integer
int64 8 byte signed integer
float 4 byte floating-point number
double 8 byte floating-point number
message another previously defined message
Table 4: Tinybuf data types. The supported data types are integers, floating-point numbers and other messages.

Tinybuf supports the field data types shown in Table 4. The message data type has to be replaced with the actual message name. In contrast to Protocol Buffers, the integers are not encoded with varint, but with their binary representation. The field rules provided by Tinybuf are the following: required, optional, repeated, fixed-repeated and oneof. Required, optional and repeated fields have the same characteristics as in Protocol Buffers. Fixed-repeated fields are similar to repeated fields, but have a predefined fixed number of elements. The advantage of fixed-repeated fields is that no additional length information needs to be encoded. The most complex field rule is the oneof rule. In many applications it is often necessary to exchange not only one message, but different messages. The recipient of the serialized message must know which message has been received in order to deserialize it correctly. Either the recipient knows in advance which message will be received, or additional information must be included in the serialized message. Oneof fields consists of multiple fields, with only one field set at a time. When the oneof field is serialized, additional information describing which of the fields has been set is automatically included. This is exactly the mechanism that solves the message interpretation problem described above: Each of the different messages is represented as a field in a oneof field. Another advantage of the oneof field is that in C all the included fields share the same memory using a C union.

The presented de-/serialization technique is used by the data storage unit and the data exchange unit of the firmware. The data chunks mentioned in the previous section are represented by Tinybuf messages. Consequential, these chunks can be serialized directly with the tinybuf module, enabling an efficient storage. Furthermore, the tinybuf module is applied during the data exchange process. The communication protocol is defined by a Tinybuf schema-file which contains all messages required for the communication between the badges and remote BLE devices, such as hubs. By using this automated, generic de-/serialization technique, the developer no longer needs to implement individual de-/serialization functions for each message. This reduces development time and enables the quick integration of new functionalities.

6 Data storage

The storage of data in the NVMs is essential for the functionality of the system. On the one hand, persistent metadata, such as the ID and group number of the badge, must survive power losses. On the other hand, badges must store the recorded data chunks locally in order to transmit them when the remote BLE device requests it. To manage the storage of different types of data consistenly and without influencing each other, an efficient filesystem with a simple interface has been developed. To facilitate the implementation of the filesystem, a uniform storage abstraction of the NVMs is provided. This storage abstraction combines multiple NVMs to one large virtual memory. This section describes the data storage unit of the firmware in more detail. This includes the virtual memory, the filesystem and finally the highest layer that combines the filesystem and the tinybuf module to enable simple storing and reading of structured data.

6.1 Virtual memory

The purpose of a uniform storage interface is to simplify the interaction with multiple and different memory types such as the external EEPROM and the internal flash-memory. Flash-memory is organized in pages with a certain size. Each page has to be erased manually before storing data on it [Tal02]. The internal flash-memory of the nRF51822 has a page size of 1024 bytes. The smallest storable units are words with a size of 4 bytes or 32 bits [Nor16a] The external EEPROM (M95M02-DR) allows single bytes to be stored and there is no need to erase them before storing new data [STM18]. To combine these two memories into one virtual memory, a similar interface to each of them is required.

Since the interaction with the flash-memory is rather difficult, an abstraction layer (storage_1) has been implemented to simplify the access to the flash-memory. This abstraction enables the application to store single bytes to the flash-memory without manually erasing pages in advance and to read single bytes from it. This is achieved by a mechansim that automatically erases pages before storing the data. This mechanism tracks the address ranges in which data can be stored without erasing the corresponding pages. If a store operation is within this address range, no erase operation needs to be performed. The mechanism is optimized for storing data to consecutive addresses. To store and read single bytes instead of words, a special behavior of flash-memories is used: The erase operation sets all bits of a page to 1. During store operations, bits within one flash word can only be setted from 1 to 0. This can be used to create a word where all bits are 1 except the bits belonging to the byte to be stored. If the created word is stored to the flash-memory, only the bits with a value of 0 are updated. The byte can be extracted from the flash word again during the read operation. To provide the same interface for the EEPROM, a similar abstraction layer (storage_2) is added. In this case, no automatic erase mechanism is included, because it is already handled by the EEPROM.

Finally, both abstraction layers are combined to one virtual memory by the storage module. The storage_1 and storage_2 modules have their own address spaces, starting with address 0. The storage module concatenates both address spaces and generates a new consecutive address space. Internally, the addresses of the new address space are mapped to the corresponding addresses of storage_1 and storage_2. The resulting module interaction is shown in Figure 13.

Figure 13: Virtual storage. The figure shows the modules involved to provide a simple accessible virtual memory.

6.2 Filesystem

In order to simplify the implementation of the filesystem, this virtual storage interface is used as basis. The filesystem has to meet the following requirements: Each class of data to be stored must have its own physical partition in the memory to prevent mutual influences. The filesystem has to be optimized for sequential storage and read operations since most of the data to be stored are created and retrieved sequentially. Another advantage of sequential storage operations are an even access of the memory cells, maximizing their lifetime. The additional overhead produced by the filesystem must be minimal to maximize the available memory for application data. Another important feature is the ability to detect corrupted data in memory. Furthermore, the filesystem must support the variable length of the elements within a partition to optimize the utilization of the available memory and to support compression of data before storage. In addition, the filesystem must be able to handle power losses during storage operations.

In general two different concepts exist for filesystems [Gal05] [Dab98]. The first approach is characterized by a physical seperation of the data elements to be stored and the management information. This additional metadata information is needed to manage the stored elements. The management information is stored in a prior defined memory range. Each data element is referenced by an information entry in this management sector. This entry includes, for example, a unique number that identifies the element or record, the address at which the current element is stored in memory, the length of the element, and a checksum to detect corrupted elements. The resulting memory layout is shown in Figure 14. This approach is characterized by a relatively simple implementation. However, the approach also suffers from a number of disadvantages. The size of the management area must be defined in advance. This defines the maximum number of elements that can be stored, even if there is enough space for more data elements. Another drawback of this approach becomes evident when it is implemented with flash-memory as storage. If the entries of the management section are within a flash page and an erase operation is performed on this page, all entries are lost. This data loss can only be prevented if all entries are backed up. However, this backup mechanism heavily demands the memory cells.

Figure 14: Filesystem with management sector. The management information for each data element is seperated in a management sector. The management entry references the data element and contains additional information, such as a unique element number, the length of the element and a checksum.

The second filesystem concept is characterized by the combination of element data and management information. An existing filesystem implementation from Nordic Semiconductor works according to this concept and adds an element header with management information to each data element [Nor18a]. The filesystem of Nordic Semiconductor is not suitable for deployment in this project due to the following reasons. Firstly, this implementation only supports the internal flash-memory and has no interface to integrate other memories such as the external EEPROM. On the other hand, the additional overhead of 12 bytes is too large and only storing and reading of words is allowed.

The combination of element data and management information is also applied in the filesystem that was developed as part of this work. During the initialization, the application defines the sizes of the partitions for each class of data and registers the partitions in the filesystem. Two types of partitions are available: static partitions and dynamic partitions. In static partitions, all stored elements must have the same size which is defined during initialization. In contrast, dynamic partitions allow the storage of elements with an arbitrary length. Each element within a partition is stored along with a header that contains additional management information. In the case of a static partition, the header contains a record or element number and optionally a cyclic redundancy check (CRC) calculated from the element data. In dynamic partitions, the header consists of an element number, length information and optionally a CRC. The resulting header size can be retrieved from Table 5.

Static partition Dynamic partition
CRC disabled 2 4
CRC enabled 4 6
Table 5: Element header size. The table shows the size of the element header in bytes, depending on whether the partition is static or dynamic and whether CRC is enabled or not.

The data structure used in dynamic partitions to manage variable length elements is an exclusive or (XOR) linked list. XOR linked lists are special cases of doubly linked lists with reduced space requirements [Ber05]. In doubly linked lists, each element header refers to the next and to the previous element. Since the elements are stored consecutively in memory, these references can be expressed by the size of the previous element and the size of the current element. To reduce the header size, the previous element size and the current element size are combined via the XOR operator which results in an XOR linked list. The first element header of each partition is a special header. It contains additional metadata (14 Bytes) about the partition, such as the partition ID, the partition size, the address of the last element in the partition and the size of the first element. With the size of the first element, all other elements can be retrieved from the XOR linked list by iterating over the element headers. When the partition is full, the storage starts again at the first address of the partition. Overwriting the header of the first element is particularly problematic in case of a power loss, as all necessary management information is stored in this header and may be lost. In order to prevent this, a special backup mechanism is applied that stores the header of the first element in a reserved memory section before it is overwritten. In Figure 15 an extract of the filesystem with a doubly linked list is shown.

Figure 15: Filesystem with doubly linked list. Each element in the filesystem has a header that refers to the next and to the previous element. The elements are stored consecutively in the memory.

To retrieve the elements again from the partitions, an iterator for each partition is provided. By default, the iterator refers to the latest stored element. The iterator can be moved to the previous element as well as to the next element. This allows the application to flexibly read the sequentially stored elements. In addition, the filesystem offers an interface to clear a partition and to clear the entire memory. Clearing a partition is performed by deleting the first element header that contains the management information of the partition. The process of clearing the entire memory is relatively time-consuming compared to deleting the first element header of the partitions, since all bytes in the memory must be reseted to their default values.

6.3 Filesystem integration

The storer module of the firmware is another abstraction above the filesystem. This module manages the storing and reading of the previous described data chunks in the filesystem. For each of the data sources of section 4 an own partition with a configurable size is registered in the filesystem. Furthermore, the ID and group number assigned to the badge during the activation are also stored in an own filesystem partition. The module has an interface to store a data chunk of a certain data source, for example a microphone chunk, in the corresponding partition. This interface is used by the processing module of the data recording unit to store the recorded data chunks. The tinybuf module efficiently serializes the data chunks before they are stored. Finally, the stored data chunks are retrieved by the data exchange unit for the transmission to a remote BLE device. The current setup of the system requires that data chunks must be retrievable from a certain timestamp in the past until now. This functionality is also implemented by the storer module. First, the iterator of the partition is used to search for the oldest data chunk whose timestamp is greater than or equal to the requested timestamp. Afterwards, starting from this data chunk, the next one can be retrieved with a function.

7 Data streaming

Besides storing the recorded data for later transmission, the data can also be directly streamed. In this case, the data are transmitted to the remote BLE device immediately after their recording. The following firmware units are involved in the streaming process: the data recording, the data streaming and the data exchange (see Figure 5).

The sampling module of the data recording unit is responsible for collecting the data to be streamed from the individual data sources. The recorded data points for streaming are not organized in chunks, since the data points have to be transmitted immediately. A specially developed FIFO mechanism is used for sharing the recorded data points between the data recording unit and the data exchange unit. This FIFO mechanism is implemented in the data streaming unit. The requirement on this FIFO in contrast to other FIFO implementations is, that unread data points can be overwritten by new data points when the FIFO is full. This is necessary because the remote BLE device prefers to receive the most recent data points. Conceptually, a circular FIFO implementation is used as basis. This circular FIFO is extended to allow a synchronized shifting of the current read and write position of the FIFO.

The available data sources for streaming are the same as for storing: i.e. audio, proximity, supply voltage, acceleration data and acceleration events. Each of the mentioned data sources has its own circular FIFO. In contrast to the storage, the proximity data points and acceleration data points are not aggregated for streaming. For the proximity data points, the raw RSSI values are used and not the maximum or the average of several RSSI values. In the case of acceleration data, the raw values along the three axes are inserted into the circular FIFO.

The streaming process is controlled by the request handler module of the data exchange unit. This module is responsible to start the streaming for the various data sources and to retrieve them from the circular FIFOs. The data points are read from the FIFOs and enqueued for the transmission to the remote BLE device. Both, the streaming and the storage of the recorded data can be performed simultaneously. However, streaming is only available when a remote BLE device is connected. The data sources parameters are the same for the streamed and stored data.

8 Data exchange

In order to access data from the badges for monitoring or analysis, it must be exchanged. The data exchange unit of the firmware is responsible for the interaction with remote BLE devices and for controlling the behavior of the badge. This section provides an overview of the applied advertising-based and connection-oriented data exchange. In addition, the communication protocol, the processing of external requests and the clock synchronization are described in more detail.

8.1 Advertising

The periodic broadcasting of advertising packets by the badges is essential for the functionality of the system. On the one hand, the advertising packets are received by other badges during Bluetooth scans. The RSSI values are used to determine the proximity between the badges. On the other hand, useful information can be retrieved to monitor the badges including the current supply voltage and the status of the badge.

The advertising process is managed by the advertising module of the data exchange unit. With this module the broadcasting of the advertising packet can be started or stopped. The device name that appears in the badge’s advertising packet is ”’HDBDG”, the broadcasting period of the packet is 200 ms. In addition, the module has interfaces for inserting customized information into the advertising packet. The customized information includes the ID and group number, the MAC address, the current supply voltage and status information of the badge, e.g. the currently activated data sources and whether its clock is synchronized or not. To minimize the size of the advertising packet, the status information flags are encoded by the bits of one status byte. Furthermore, the supply voltage , which has the data type float (4 bytes), is encoded in a single byte by the following compression:

(4)

This compression allows a voltage range from 1 V to 3.55 V to be covered in one byte with a resolution of 0.01 V. The covered range is sufficient for the coin cell batteries. The receiver of the advertising packet can calculate the original voltage by solving equation 4 for .

8.2 Connection-based communication

In addition to unidirectional data exchange based on advertising packets, bi-directional connection-based BLE communication can also be selected for data exchange. The remote BLE central device, for example a hub, initiates the connection. After the connection has been established, the Nordic UART Service is used for the bi-directional communication. This BLE service has the RX- and the TX-characteristic. Using these two characteristics, raw bytes can be sent between the connected BLE devices. When data are received, a notification in form of a callback is generated by the SoftDevice to handle the bytes. The number of bytes that can be transmitted by the application at once is limited to 20 bytes [Gom12]. To enable the transmission and reception of more than 20 bytes, an additional abstraction based on the Nordic UART Service was implemented in the sender module. Internally, this module uses two FIFOs, one for transmission and one for reception, to handle packets larger than 20 bytes. To transmit data, the application inserts the data into the TX-FIFO. The sender module reads the first 20 bytes from the TX-FIFO and transmits them via the Nordic UART Service. This process is repeated until no more bytes are left in the TX-FIFO. The repetition time of this process is crucial for the resulting transmission speed. To be able to repeat the process, special mechanisms must be applied in order to avoid blocking the application. It can be implemented in three different ways. The first approach registers a callback function in the SoftDevice, which is called as soon as the 20 bytes have been successfully transmitted. If the TX-FIFO is not empty yet, the callback function reads the next 20 bytes (or less) from the TX-FIFO and restarts the transmission. The second available technique to achieve the repeated execution is the scheduler. The function that reads the bytes from the TX-FIFO and starts the transmission is executed again by inserting itself into the scheduler queue. The third method starts an asynchronous timer that periodically calls a function to read the bytes from the TX-FIFO and start the transmission. The timer is stopped as soon as there are no more bytes in the TX-FIFO. The advantage of the last approch is that the timer period is tunable via a parameter so that the transmission speed can be influenced. Additionally, the highest data throughput can be achieved with this method. Therefore, this timer-based approach is used in the new implementation. Another method to influence the transmission speed is the adjustment of the connection interval settings on the remote BLE central device. The central device defines the connection parameters used with the peripheral device. Smaller connection intervals imply higher data throughput.

To handle the received data from the remote BLE device, the sender module uses a FIFO. As soon as data are received, they are inserted into this RX-FIFO. Furthermore, a registerable notification handler is called to inform the application about the reception of data.

An additional feature of the sender module is the timeout mechanism to automatically disconnect if no data exchange occurs within a predefined time interval. This is important in case that the disconnect event of the central device is not received by the badge. The automatic disconnect feature can be disabled during development and testing.

8.3 Communication protocol

In addition to the physical data exchange of raw bytes, their correct interpretation by the involved communication partners is essential for the functionality of the entire system. The interpretation of the raw bytes is enabled by a communication protocol. This protocol defines rules for reconstruction of the exchanged message. Since communication takes place between devices developed with different programming languages, the rules of the communication protocol must also be implemented in these languages. Therefore, the developed serialization library Tinybuf, which supports C and Python, is used for the implementation of the communication protocol. Tinybuf enables a very simple, flexible and extensible design of messages to be exchanged. Furthermore, it is characterized by an efficient binary representation of the messages after serialization. The smaller the binary representation of the messages, the faster they can be exchanged. In the implemented communication protocol, messages are divided into two groups: Requests and responses. All messages transmitted from the remote BLE device to the badge are called requests. Conversely, all messages transmitted from the badge are referred as responses. All requests as well as all responses are placed in a Tinybuf oneof field. By using oneof fields, the information which message is encoded can be directly inserted into the binary representation. This eliminates the need to manually insert an additional header to identify the message. The sender module described above sequentially transmits all bytes in the TX-FIFO in 20 byte packets, without considering message boundaries. Therefore, additional information must be included in the binary representation so that the recipient can separate the messages. This additional information is provided in the form of a 2 byte header, which contains the length of the following serialized message.

The entire communication process is managed by the request handler module of the data exchange unit. This includes processing received requests, controlling the data recording unit, reading recorded data, and generating messages for transmission. The internal procedure for processing received messages is illustrated in Figure 16.

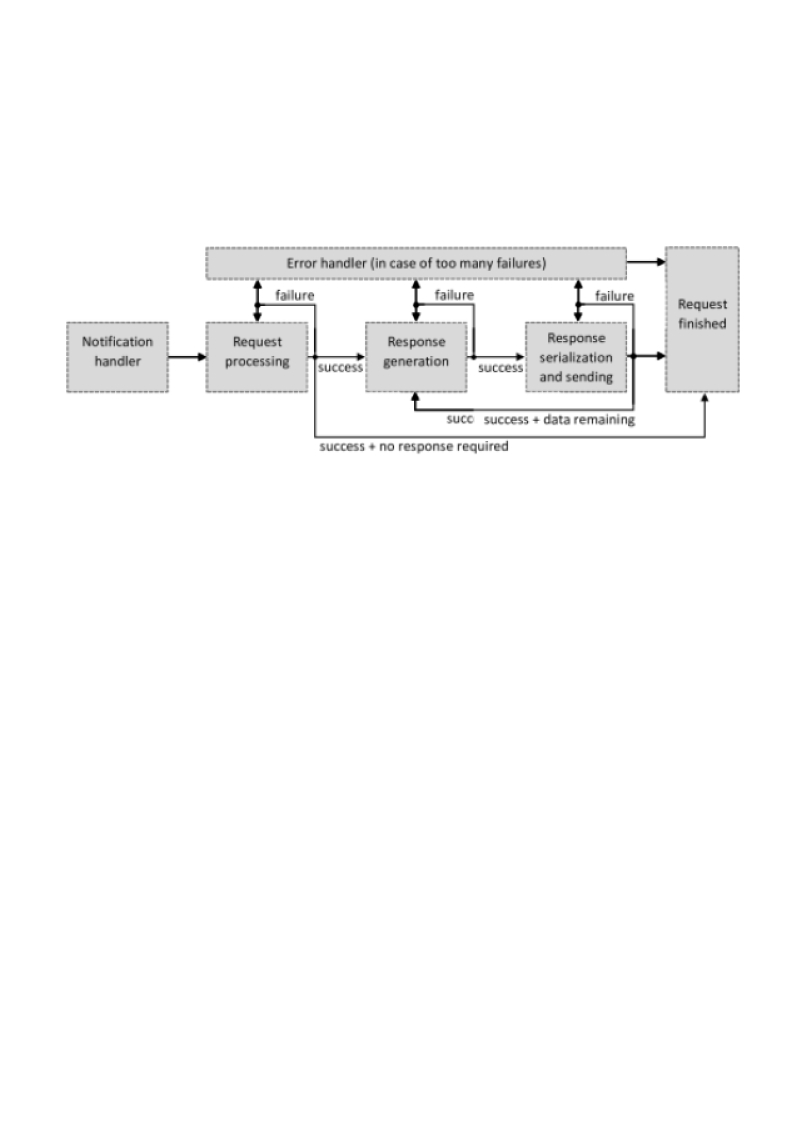

Figure 16: Message processing. The flowchart shows the individual steps from receiving a message to generating a response and transmitting it.

When data are received via the BLE interface, the notification handler is called to inform the request handler module that new data are available in the RX-FIFO of the sender module. Afterwards, the received data are read out and the request is reconstructed by decoding the binary representation using the tinybuf module. The resulting request, such as assigning the badge ID and group number, is then processed. Requests can be divided into two groups: Requests that expect a response and those that do not. If no response is expected by the remote BLE device, the processing of the request is finished. Otherwise, a response must be generated, for instance from a data chunk read from memory. After the response is generated, it is serialized using the tinybuf module and inserted into the TX-FIFO of the sender module. If further data have to be transmitted, the response generation is triggered again. If one of the steps is currently not executable because a required resource is in use or not enough space is available in the TX-FIFO, the step is executed again by the scheduler at a later time. In the case that a step fails too often, an error handler is called to reset the internal state and to perform a certain action, such as disconnecting from the remote BLE device.

The communication protocol offers a broad spectrum of available requests to control the badge or to retrieve data from the badge. Each data source can be started by its own request, which also provides the parameters for data recording. If a start request is received for an already running data source, it will be ignored unless the parameters have changed. The streaming of data points as well as the storage of data chunks for later transmission can be performed simultaneously. To stop a specific data source, a stop request has to be sent to the badge. The stored data chunks of each data source can be retrieved from a particular timestamp in the past until now by a data request. In addition to the data related requests, further requests exist to manage the badge. The status request enables the remote BLE device to retrieve the current status of the badge and to optionally assign its ID and group number. Furthermore, requests are available to restart the badge, to perform peripheral testing, or to identify the badge by blinking one of its status LEDs.

8.4 Clock synchronization

An accurate time basis of the badges is essential for the subsequent data analysis. The timestamps of the data chunks are used to correlate the data of different badges in order to analyze the communication patterns of the participants. To achieve an accurate time basis, the badges synchronize their internal clocks with an external time source. After the local time of the badge has been synchronized, the incorporated RTC oscillator with a nominal frequency of 32768 Hz [Abr12] is used to provide the internal time. At its frequency, the oscillator increments an internal tick counter that starts at 0. Based on these oscillator ticks and the synchronized reference time, the current local time can be calculated with the following equation.

(5)

In this equation, denotes the calculated current time, is the number of ticks, represents the number of ticks at the -th synchronization timepoint and is the -th received synchronization time. The -th synchronisation point corresponds to the latest synchronisation point. The oscillator frequency is assumed to be constant over time. In general, this assumption is not correct as the frequency of the oscillators may drift over time. Although the frequency error is usually quite small, the cumulative error over a long time period results in an observable difference in the calculated time [Hwa04]. Several reasons might exist for the frequency deviation of oscillators from their specified frequency. On the one hand, environmental factors can influence the oscillator frequency. These include variations in temperature or supply voltage as well as physical vibrations or shocks. On the other hand, the manufacturing process and the aging of the oscillator itself might have an influence on its frequency [Els02] [Dia17].

To avoid a local clock drift, it is necessary to apply special synchronization techniques. The simplest approach is a frequent synchronization with an external accurate time source. By ensuring a small time interval between the synchronization points, the time error caused by drift is reduced. However, in addition to the local clock drift, it is also a challenge to provide an accurate external time source for the synchronization process. In order to create such an accurate external time base, various influencing factors have to be considered. First, the accuracy of the external time base itself plays an important role. Furthermore, several factors that influence the time for transmission of the synchronization message must be taken into account. These include the time from message creation to transmission, the actual transmission time, and finally the time from message reception to processing [Els02]. A commonly used synchronization method is NTP [Mil91]. This technique is often applied for time synchronization of devices in variable-latency networks, such as the internet. It uses a software-based approach to compensate the latency of the synchronization message transfer and to adjust the local oscillator frequency to minimize the local time drift. The Timing-sync Protocol for Sensor Networks (TPSN) from Ganeriwal et al. [Gan03] is based on the MAC layer of the communication interface. It uses the MAC layer to exchange the synchronization timestamps between the devices. As a result, fluctuations in packet latency are minimized and can be easily compensated.

In the current setup of the system multiple hubs provide the external time base for the badges. Therefore it is necessary to synchronize the hubs with each other. Since the hubs have access to the internet, the NTP is used for this synchronization [Led16b]. Due to its complex protocol and energy inefficiency, NTP has not been selected as synchronization technique between the badges and the hubs. The TPSN is also not applicable because it requires access to the MAC layer of the communication interface, but the used SDK allows no direct access to the BLE MAC layer. Due to the drawbacks of the described methods a simple, energy efficient but nevertheless effective time synchronisation technique was developed in this work. This technique has the advantage that it is compatible with the protocol of the previous firmware and therefore no changes to the existing hub software have to be done. The time synchronization process of the badge is as follows: The hub connects to the badge and sends a request containing the current timestamp. When the badge receives this timestamp message, it retrieves the current number of oscillator ticks. Finally, the badge takes the number of ticks and the received timestamp to adjust its internal time.

The resulting equations are explained in more detail in the following. The current time is calculated similarly to equation 5. The only difference is that the slope of the straight line is no longer constant. The slope is the EWMA of the latest optimal slope . The latest optimal slope is the slope of the line between the -th and the -th synchronization point. The optimal slope is limited by plausible values for the oscillator frequency. The limiting parameter is

, which describes the maximum deviation from the nominal frequency. This limitation enables robustness against outliers.

(6)
(7)
(8)

The presented time synchronization technique enables the robust compensation of time drifts caused by oscillator frequency changes and is characterized by a simple iterative implementation with basic arithmetic operations. The tunable parameters of the method are the coefficient of the EWMA and the maximum frequency deviation . In Figure 17 the functionality of the method is illustrated and compared to the approch with a constant slope.

(a) (b)

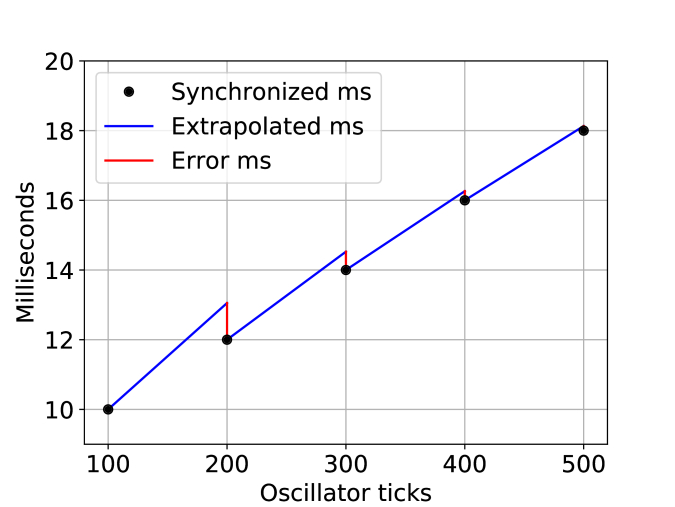

Figure 17: Illustration time synchronization. Figure (a) shows the constant slope approach. The black circles represents the synchronization points, the blue line corresponds to the line equation 5 with constant slope and the red line illustrate the error between the internal time and the synchronized time. Due to the constant slope of the straight line, the error cannot be reduced. In contrast, Figure (b) illustrates the method with variable slope from equation 6. In this case, the error decreases because the slope of the straight line approaches the true slope.

9 Serialization performance

An important factor for both data transmission and data storage is the performance of the de-/serialization technique. The performance can be divided into two categories. The first one is the resulting size of the serialized binary representation of a message. The smaller this size, the more data can be transferred or stored. The second one is the time required to perform the serialization or deserialization of data. The longer the execution time, the more energy is consumed. Therefore, this time should be as short as possible.

To evaluate the performance of the developed de-/serialization library Tinybuf, Google’s Protocol Buffers library is used as reference. Since most messages of the badge for transmission and storage typically consist of arrays, a simple message with a repeated field is used for evaluation. The repeated field should contain up to 100 unsigned integer values with a maximum of 2 bytes. On the one hand, the Tinybuf generator creates a 2 byte unsigned integer array with 100 elements. On the other hand, Protocol Buffers uses an array of 100 varint encoded unsigned integer elements.

Due to the varint encoding of the Protocol Buffers library, the resulting encoded length depends on the element values. In order to evaluate this influence, two different approaches are used to generate the integer values. In the first approach all array elements have the same integer value. The integer value range is from to

. In the second approach, the integer values are not constant across the array, but are randomly derived from an uniform distribution. The value range for the uniform distribution starts at 0 and ends with the same values as for the first approach. The resulting encoded length for Tinybuf and Protocol Buffers is shown in Figure

18. The encoded length for Tinybuf is constant for the investigated integer values. For Protocol Buffers, the encoded length depends on the integer values of the array.

Figure 18: Encoded length. The plot shows the comparison between the encoded length for Tinybuf and Protocol Buffers for an array of 100 integer elements.

Both Tinybuf and Protocol Buffers support the programming languages C and Python. For the evaluation of the execution time for encoding and decoding, the described message with a repeated field consisting of 100 integer elements is also used. The evaluation of the C implementation has been performed on the nRF51822. The Python based implementation has been analyzed on a 64-bit Windows 10 machine with i5 2.5 GHz dual core. The results of the required times of both implementations are shown in Figure 19. It can be seen, that for both implementations Tinybuf is faster than Protocol Buffers.

(a) (b)
Figure 19: Encoding and decoding execution times. For the analysis of the execution times, integer values have been chosen so that the resulting encoded length for Tinybuf and Protocol Buffers is identical. In (a) the required time of the C implementations executed on the nRF51822 is depicted. The results for the Python implementations are shown in (b). The execution times have been averaged over multiple measurements.

10 Transmission speed

The transmission speed or data throughput of the BLE interface is an important factor for the functionality of the system. The transfer of multiple microphone-chunks is used to determine the data throughput of the badge. The transferred microphone-chunks have a constant size of 127 bytes. Based on the number of chunks received and the time elapsed since the request for the data, the remote BLE device can calculate the transmission speed. The used BLE connection interval is 50 ms.

The data throughput of the implemented timer-based approach, scheduler-based approach and SoftDevice callback approach are analyzed. The data throughput of the timer-based approach, which periodically tries to transmit the next 20 bytes via the Nordic UART Service, depends on the selected timer period. The theoretically possible data throughput as a function of the timer period can be computed as follows:

(9)

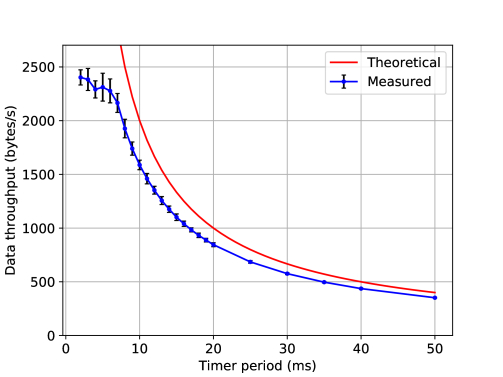

Figure 20 shows the measured data throughput of the timer-based approach in dependency of the timer period. Figure 21 presents a comparision between the three different approaches.

Figure 20: Throughput timer-based approach. The measured data throughput of the timer-based approach as function of the timer period is depicted by the blue line. In contrast, the red line illustrates the theoretical possible data throughput.

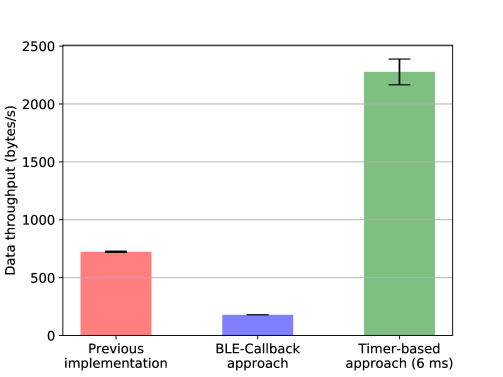

Figure 21: Comparison data throughput. The previous implementation of the firmware uses the scheduler-based approach for data transmission. The SoftDevice callback approach is the slowest approach. The timer-based approach developed in this work is the fastest for a certain timer period.

11 Clock synchronization

In order to determine the accuracy of the implemented clock synchronization technique, synchronisation messages have been sent to the badge in randomized intervals between 0 and 600 seconds, which closely approaches a realistic deployment scenario. Each time the badge receives a message, it outputs the received timestamp and the oscillator ticks at the reception point via its serial interface. This serial output is recorded and afterwards the set of tuples is used to evaluate the synchronisation accuracy.

For the evaluation of accuracy, the difference between the received timestamp and the internal time at the reception point is used. The higher this difference (error), the less accurately the internal clock is synchronized. In Figure 22 a typical error graph over a period of approximately 9.5 hours is shown.

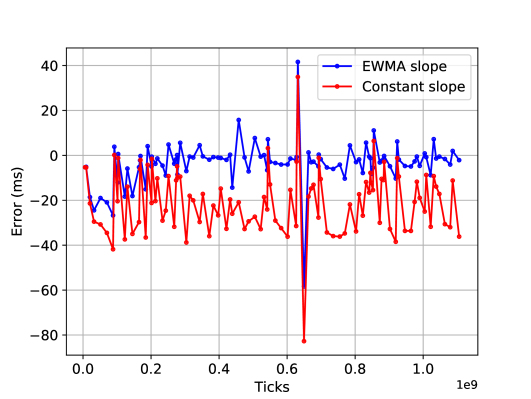

Figure 22: Typical error graphs. The red graph represents the errors at the synchronization points when a constant oscillator frequency of 32768 Hz is assumed. In contrast, the blue graph shows the errors when the EWMA slope technique with the parameters and is applied. A negative error implies that the internal time of the badge is slower than the external time.

The error of the constant slope method can be explained by a constant frequency deviation of the oscillator frequency. This frequency offset is illustrated in Figure 23. It shows the synchronization error in dependency of the time since the last synchronization. The longer the time since the last synchronization point, the greater the accumulation of the internal time error due to a deviating oscillator frequency. Especially, the constant slope method suffers from this effect. The EWMA slope technique can almost completely compensate this oscillator deviation.

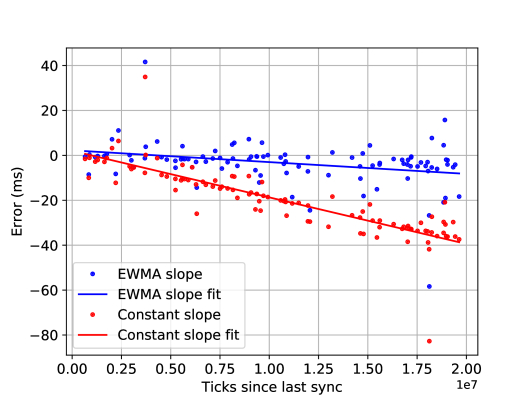

Figure 23: Frequency offset. The x axis represents the time difference to the last synchronization message. The plots show the measured time error and a fitted straight line to estimate the frequency deviation.
Figure 24: Clock synchronization optimization. The plot shows the mean absolute error in dependence of the parameters and . The optimal point for each parameter combination is marked with a black circle. In this measurement, the optimal parameter combination is at and .

The tunable parameters for the developed EWMA slope technique are the coefficient and the maximum frequency deviation . These parameters have to be optimized to achieve a small synchronization error. As measure for the goodness of a parameter combination, the mean of the absolute synchronization errors has been taken. The smaller this value, the better the parameter combination. An example for an optimization of the two parameters is shown in Figure 24. A value of 0 for corresponds to the initial case with constant slope and its average absolute error can be regarded as a reference value for the optimization. The optimal parameter combination found for several measurements is shown in Table 6.

0.11 0.089
3.833 0.898
Table 6: Optimal parameters clock synchronization. The table shows the mean (

) and the standard deviation (

) of the distribution of the optimal parameters and for several measurements.

12 Audio data

The low-pass filtered audio signal of the microphone is sampled with a period of 1.42 ms. Every 1.42 ms the timer callback function is invoked for reading the digitized value from the ADC. In the previous implementation of the firmware, not one but several readings are taken at each function call to provide more samples for averaging. This averaging is performed every 50 ms.

Since the sampling process of the microphone is rather power-intensive, it was examined in more detail. The previous implementation spends about 0.1 ms every 1.42 ms to perform microphone readings. During this time interval, two microphone readings can be taken. To determine the influence of the number of samples, the resulting averaged signal is recorded and compared with different number of samples. In Figure 25 the results are shown.

Figure 25: Audio signal with different sample numbers. The figure shows an exemplarily averaged audio signal with noises for a 20 seconds time interval. The averaged audio signals are computed based on different number of samples every 1.42 ms.

The goal is to minimize the number of samples in order to maximize the time the CPU is in sleep mode, leading to a reduced power consumption of the badge. Therefore, the quality of the averaged audio signal as function of the number of samples is investigated. The mean absolute error (MAE) is used as a measure for the difference between two signals. This measure is suitable to quantify the difference between two signals and [Wil05]. The MAE is computed based on observation points with the following equation:

(10)

The resulting MAE based on multiple measurements is shown in Figure 26. Since the signal difference between using one sample and using multiple samples is negligible, the new implementation reads only one sample every 1.42 ms to reduce power consumption.

Figure 26: Audio signal difference. The signal error between different numbers of samples for the calculation of the averaged signal. The error is calculated over several measurements with a time interval of 20 seconds each (due to equation 10).

13 Power consumption

The total power consumption of the badge is composed of the consumption of its various components. To determine this important quantity, the Power Profiler Kit of Nordic Semiconductor [Nor16b] is used. This kit supports a current measurement resolution down to 0.2 µA at a sampling rate of 77 kHz. The measured current of an external device under test (DUT), such as a badge, is transfered via a nRF51 or nRF52 Development Kit to an application that plots the measured current in real-time. To obtain a representative value for the power consumption, the measured current is averaged over a configurable time interval.

The power consumption of the data sources, such as the accelerometer, is heavily dependent on their parameterization. In the following, the measured value of each data source also includes the consumption of the associated data processing and storage. Figure 27 shows the influence of the accelerometer datarate and the read period of the acceleration FIFO. The more frequently the FIFO is read, the more often the CPU has to leave the sleep mode, which results in increased power consumption. The datarate of the accelerometer not only influences the power consumption of the accelerometer itself, but also that of the entire system, since the amount of data to be stored is also affected.

Figure 27: Accelerometer consumption. The figure shows the average power consumption of the badge as function of the FIFO read period for different accelerometer datarates.

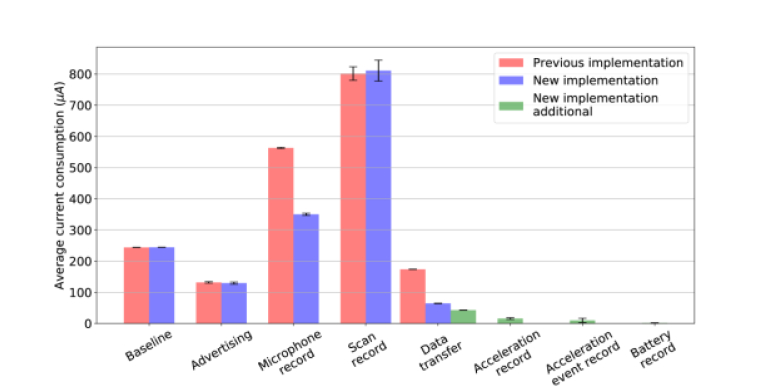

The averaged current consumption of each component is shown in Figure 28. The parameters that influence the power consumption of the badges have been selected appropriate to simulate a realistic deployment scenario. The parameters and a description of the different components are summarized in Table 7.

Figure 28: Average current consumption overview. The average current consumption of the different components is depicted with bar graphs. For each component, the consumption of the previous implementation is compared to the new implementation. Since the supply voltage and accelerometer are not used as data sources in the previous implementation, the additional consumption of these components in the new implementation is considered separately.
Component Description Parameters
Baseline Sleep mode and default enabled peripherals -
Advertising The periodical broadcast of the advertising packet 200 ms advertising period
Microphone record The microphone reading, averaging and chunk storage 1.42 ms reading period
50 ms average period
Scan record The BLE device scanning, sorting and chunk storage 100 ms scan window
300 ms scan interval
3 s scan duration
15 s scan period
Data
transfer
Data reading and exchange via the BLE connection (assumption: connection established every 5 minutes) -
Acceleration
record
Acceleration reading, processing and chunk storage 10 Hz datarate
Normal operation mode
500 ms FIFO period
Acceleration
event record
Acceleration event processing and storage (assumption: event detected every 5 seconds) 10 Hz datarate
Normal operation mode
Battery record Supply voltage reading and storage 60 s reading period
Table 7: Component description power analysis. The table describes various components of the badge that are important for the power consumption analysis. In addition, the parameters used for the analysis are specified.

14 Serialization performance

The developed de-/serialization technique Tinybuf offers the possibility to define messages in a flexible way, which can be serialized very efficiently. Tinybuf automatically generates source code for various programming languages. This leads to faster development processes, since the de-/serialization functionality does not have to be implemented manually. In the previous implementation of the firmware each message has its own de-/serialization function. Therefore, in cases where existing messages have to be changed or new messages have to be added, this approch is inflexible.

To validate the performance of the developed technique, Tinybuf was compared to Google’s Protocol Buffers library. For the evaluation, a simple message was used containing a field of 100 integer elements, each with a size of 2 bytes. The performance test was splitted into two parts: Evaluation of the resulting encoded length of the binary representation and the evaluation of the execution time for serialization and deserialization.

The results showed, that the encoded length produced by Tinybuf is always 201 bytes long, independent of the chosen integer value of the elements. In contrast, the encoded length of the message serialized with Protocol Buffers depends strongly on the individual values of the elements, since varint encoding is applied. To substantiate the facts, if the integer values are smaller than , the encoded length is 102 bytes. In case, that integer values are in the range from to , the binary representation has a size of 203 bytes. Finally, if all integer values are greater than or equal to , the resulting encoded length produced by Protocol Buffers is 303 bytes. In a realistic scenario, the values are usually distributed randomly over a certain range of values. In this case, the resulting encoded length of Protocol Buffers is partially smaller than, equal to or greater than the encoded length of Tinybuf, depending on the chosen range and distribution. However, the size of the memory to be reserved in RAM for the encoded message differs significantly. For Protocol Buffers, the worst case must be assumed, which in this case corresponds to an encoded length of 303 bytes. In contrast, Tinybuf guarantees an encoded length of 201 bytes. Especially when multiple messages with repeated integer fields are defined, the use of Tinybuf considerably reduces the amount of RAM space to be reserved.

In addition, a significant difference was found regarding the encoded length when using repeated fields with another message as data type. This is for example the case in the scan-chunk message. A scan-chunk contains a repeated field of messages, which includes the discovered device, the corresponding RSSI value and a counter how often the device has been seen (see Figure 29). In this case, Protocol Buffers adds a field identifier for each field in the ScanResultData-type, which in turn results in a high overhead in the encoded message. As an example: If 29 devices has been discovered in a scan, the resulting encoded length for Protocol Buffers is approximately 300 bytes. In contrast, Tinybuf encodes the message in only 123 bytes.

Figure 29: Scan Chunk. The message definition of a scan-chunk. It consists of a timestamp, and an array of scan result data (with device ID, aggregated RSSI value and counter).

The second performance criterion is the execution time of the encoding and decoding operations. Both the C and the Python implementations of Tinybuf perform serialization and deserialization faster than Protocol Buffers. The faster execution time of the encode and decode process can be explained by the fact that Protocol Buffers uses varint representation. This integer representation requires more operations than the simple integer byte representation used by Tinybuf.

As mentioned above, Tinybuf enables the efficient encoding and decoding of messages independent of the actual values of the message fields. Especially, the encoding of repeated message fields results in a significantly smaller binary representation compared to Protocol Buffers. Futhermore, Tinybuf’s serialized messages are compatible with the previous protocol implementation and therefore enables the simple integration into the existing system.

15 Transmission speed

The Nordic UART Service is used for the bi-directional data exchange between the badges and a remote BLE device. This service allows to transmit a maximum of 20 bytes at once. In order to exchange larger quantities of data, it is necessary to divide the data into 20 byte units and transmit them one after the other. The time between two consecutive packets is crucial for the resulting transmission speed. The shorter this time, the higher the resulting data throughput. To perform the repeated transmission of 20 byte packages until no more bytes have to be transmitted, three different approaches were evaluated.

The timer-based approach repeats the transmission at a configurable period. The measured effect of the timer period corresponds approximately to the expected theoretical effect. In fact, the measured data throughput is smaller than the theoretical one. This can be explained as a result of the measurement technique used to determine the throughput.

During one run, the method sends a microphone data request to the badge whereupon the badge transmits a certain amount of microphone-chunks. The time recording starts with transmitting the request and stops with the reception of the last chunk. This implies that not only the actual transmission time is measured, but also the time needed to read the chunks from the NVMs and to serialize them. The faster the actual data transmission, the greater the influence of the additional time needed to generate the data packets.

Additionally, the theoretical possible data throughput is limited by the maximum transmission speed of the BLE interface. The maximum possible data throughput of the SoftDevice depends on the connection interval and the number of packets transmitted per connection event. The SoftDevice S130 can transmit up to 6 packets per connection event [Nor16c]. Since the selected connection interval for the evaluation was 50 ms, the resulting maximum possible data throughput is 2400 bytes per second.

As the data throughput cannot be significantly increased with timer periods smaller than 6 ms, this value has been selected as the optimal timer period. The resulting data throughput of the timer-based approach with a timer period of 6 ms is approximately 2300 bytes per second. Since this value is by far the highest, this approach has been used in the new firmware.

In contrast, the scheduler-based approach applied in the previous implementation of the firmware provides a data throughput of approximately 730 bytes per second. Here, the transmission of 20 bytes is repeated by inserting the function, which is responsible for the transmission, in the scheduler queue until no more bytes are left. Since other operations are also inserted into this queue, for example the execution of data storage, the repeated transmission process is delayed and consequently the data throughput decreases.

The last approach, which uses the SoftDevice callback to trigger the transmission of the 20 byte packages, has the smallest data throughput with approximately 180 bytes per second. The SoftDevice invokes the callback function if the packet has been transmitted and acknowledged successfully during a connection event. Depending on the connection interval settings, the duration until the callback function is called can be rather long.

16 Clock synchronization

The incorporated low-power RTC oscillator with a nominal frequency of 32768 Hz is used as clock source for the internal time of the badge. The time is synchronized by messages that are received from a remote BLE central device, such as a hub, during a connection. These messages contain the current global timestamp to provide the same time base for all badges. For an accurate time synchronization, various factors must be considered, such as the internal drift of the oscillator frequency, the accuracy of the external time base, and the duration between the transmission and reception of the synchronization message.

To evaluate the resulting accuracy of the developed technique with a self-adapting oscillator frequency, it is compared to the previous implementation with a constant frequency. In the latter, long time intervals between the synchronization messages results in a significant time error caused by a deviating oscillator frequency. The measured time error of the constant frequency approach was up to 40 ms for a synchronization period of 10 minutes. In contrast, with the self-adapting frequency approach, the error could be reduced to 8 ms for the same synchronization period. In order to simulate a real deployment scenario, the synchronization messages were transmitted in random time intervals. To quantify the time error, the MAE over a time period of 9.5 hours was computed. The MAE of the constant frequency approach was 19 ms. By using the self-adapting approach with an optimal choice of parameters, the MAE was reduced to 5 ms. The optimal parameter combination was determined over several measurements and multiple badges. For the -coefficient of the EWMA slope the value of 0.11 0.089 was found. For the frequency deviation the value of 3.833 0.898 Hz was identified. In general, the smaller the value , the larger must be chosen to compensate an oscillator frequency drift. This can be explained by the fact that with smaller less influence is exerted on the current frequency at each synchronization point. Therefore, must be chosen larger to expedite the correction. However, a too large causes outliers to have a strong influence on the frequency calculation and a too small implies a very slow compensation of the oscillator drift. A similar situation applies for the choice of : On the one hand, a too small can prevent a high drift from being completely compensated, because limits the adjusted oscillator frequency to a predefined range. On the other hand, a too large allows outliers to have a high impact on the adjusted frequency. Therefore, a compromise must be found between robustness against outliers, the fast compensation of the oscillator frequency drift and the maximum compensatable drift. The found optimal parameter combination represents such a compromise. The presented self-adjusting oscillator frequency technique significantly improves the internal time accuracy compared to the previous implementation.

One limitation of the self-adjusting frequency approach is that it assumes a constant time between the transmission and the reception of the synchronization message. Since a BLE connection is used for the transmission, the synchronization messages are only sent during connection events. Depending on the connection interval settings, the latency between the generation of the message and its actual transmission can vary between a few milliseconds up to several seconds. This is the reason, why there is noise in the time synchronization although the drift compensation is applied. This random time offset can be prevented if the timestamp exchange is implemented on the MAC layer of the communication interface as in the TPSN [Gan03]. Since the used SDK provides no interface to control the BLE MAC

layer, this technique cannot be applied. Another approach to compensate this influence is the use of linear regression over many cycles of synchronization messages

[Els02]. The implementation of the linear regression technique could be investigated in future developments of the system.

17 Audio data

The recording of the audio signal generated by the microphone has a strong influence on the power consumption of the system. Therefore, the audio recording process has been specially analyzed in order to find solutions for reducing the power consumption. The amplified and low-pass filtered audio signal is sampled with a frequency of 700 Hz. The recorded samples are averaged over a time interval of 50 ms to obtain a representative value for vocal activity within this interval. The purpose of this averaging is to minimize the amount of data to be stored while still ensuring a good time resolution.

This sampling and averaging process is controlled by two timers: The first timer reads the raw audio signal at a period of 1.42 ms ( 700 Hz), accumulates the values in a variable and increments the counter in which the number of readings is stored. The second timer calculates the average of the audio signal every 50 ms by dividing the accumulated value by the counter. In the previous implementation of the firmware, the first timer function reads not only one but two audio samples for the accumulation. The detailed analysis showed that the quality of the audio signal was not significantly influenced by the number of chosen samples. In other words, the audio signal difference between using one sample and multiple samples is negligible. To underpin this statement, the MAE between the averaged signal over 20 seconds using one sample and two samples is 0.22 0.05.

The small difference between using one sample and multiple samples can be explained by the analog low-pass filter. The low-pass filter limits the maximal frequency in the signal to its cutoff-frequency of approximately 340 Hz. The time that is required to perform one ADC reading, to accumulate the value and to increment the counter is in total approximately 50 µs. When reading multiple samples, this corresponds to a sampling frequency of 20 kHz. Since the frequency in the audio signal is limited to a maximum of 340 Hz, the difference between two consecutive samples recorded at a frequency of 20 kHz is negligible. Based on this result, in the new implementation only one sample is recorded every 1.42 ms, leading to a reduction of power consumption.

For the later communication pattern analysis only the vocal activity, which indicates how often a participant speaks and at what volume, is of relevance. Therefore, it would be sufficient to record the amplitude envelope of the audio signal. In future designs an envelope detector [Lia12] could be integrated to further reduce the sampling rate.

18 Power consumption

The power supply of the badge is provided by a 3 Volts coin cell battery. A common value for the capacity of these batteries is 230 mAh [VAR16]. As this available amount of energy is rather low, the overall power consumption of the badge must be minimized to ensure an enlarged operating time.

The power consumption of the badge is composed of several components. In the inactive state the badge consumes about 244 µA. This baseline consumption includes the sleep state current of the nRF51822, the EEPROM and the accelerometer. The following components, which are turned on by default, have the greatest impact on the consumption in the inactive state: the analog microphone (155 µA), the analog amplifier circuit (20 µA) and the voltage regulator (65 µA). The periodical broadcast of the advertising packet every 200 ms leads to an average current consumption of 130 µA. The power consumption of the audio signal recording is different for the previous and the new implementation of the firmware. The first-mentioned one reads two samples every 1.42 ms and consumes about 564 µA. The new implementation reads only one sample, because the audio quality of the averaged signal is comparable. As a result, the average current consumption can be reduced to 350 µA.

The scan process for surrounding BLE devices has the highest consumption of all components. This can be explained by the high consumption of the active receive operation of the nRF51822, which draws up to 13 mA [Nor16a]. The averaged power consumption of the scan process is approximately 800 µA. Although the current consumption during the BLE data transfer is slightly higher in the new implementation, the average power consumption (64 µA) was considerably decreased compared to the previous one (173 µA). This can be attributed to the significantly higher data throughput. Since the new implementation includes additional data sources, such as the accelerometer, an additional consumption (42 µA) is generated for their data transmission. The recording of raw acceleration data consumes about 15 µA on average, the acceleration event recording about 10 µA and the supply voltage recording about 2 µA. As already mentioned in the previous chapter, the consumption of the components is highly dependent on the parameter settings.

Finally, for the developed firmware, the total average power consumption of the badge including the additional data sources is 1.66 mA. This results in a theoretically possible lifetime of approximately 5.7 days (using a 3 V, 230 mAh coin cell battery). This theoretical lifetime cannot be achieved as the available capacity of coin cells decreases due to high current peaks that are typical for BLE applications [Fur11].

19 Filesystem

The implemented filesystem and virtual memory abstraction enables the developer to easily access the NVMs for sequential storing and reading. The filesystem divides the memory into partitions with a configurable size. A partition can be initialized as static or dynamic. In a static partition all elements, such as data chunks, must have the same size. In contrast, a dynamic partition allows a variable length of elements. Within a dynamic partition an XOR linked list is used to efficiently manage sequential store and read operations.

In the previous implementation, the two physical memories, flash-memory and EEPROM, are considered separately. In the flash-memory the recorded microphone-chunks are stored. In the EEPROM

the assigned ID and group number as well as the scan-chunks are stored. Due to this strict separation it is not possible to divide the available storage space evenly between the data sources. In addition, the data chunks must have a certain size so that they can be stored word- and page-aligned in memory. To meet these alignment requirements, the data chunks must be partially padded. The use of padding might waste usable memory space. Since in the previous implementation scan-chunks have a fixed size, memory is wasted if only few devices have been discovered during the scan process.

The developed filesystem based on the virtual memory with byte level access overcomes these limitations. Since there is only one large virtual memory, the available memory space can be divided arbitrarily between the data sources. In addition, padding is not required anymore due to the byte level access. The storage of variable size scan-chunks can be realized in a dynamic partition without wasting memory space. Another advantage of a dynamic partition is that it enables data compression, which generally results in a variable size of data [Szp11].

The implemented filesystem has also some restrictions: For instance, the filesystem does not provide a mechanism for deleting data elements, but only for sequentially overwriting old elements. Therefore, the filesystem is not suitable for applications which are not based on sequential data generation and retrieval. Furthermore, the filesystem requires access to the memory at byte level. This implies that an abstraction layer must be implemented if the underlying memory does not allow byte level access.

Appendix A Us7216088 (B1)

Title System and method for managing a project based on team member interdependency and impact relationships
Publication Number US7216088 (B1)
Publication Date May 8, 2007
Inventor(s) Oscar A. Chappel,
Christopher T. Creel
Assignee(s) NTT Data Services Corp
Abstract A system and method for determining interdependencies between project team members working on a development project. The method includes receiving data indicative of a temporal relationship between a first and a second project team member having modified at least one artifact of the development project. The data indicative of the temporal relationship between the project team members may be statistically analyzed. At least one metric representative of an interdependency relationship between the first and second project team members may be formed. The metric(s) representative of the interdependency relationship may be stored.

Appendix B Wo2010099488 (A1)

Title Contact tracking using wireless badges
Publication Number WO2010099488 (A1)
Publication Date September 9, 2010
Inventor(s) Theodore Herman,
Philip Polgreen
Assignee(s) University Of Iowa Research Foundation
Abstract This application discusses apparatus and methods for tracking contacts between various entities in a region. An apparatus includes portable transceiver device having a radio, memory and a power supply. The portable transceiver device can detect and record a history of proximity to other transceiver devices. The portable transceiver device can receive information related to disease exposure of the transceiver device and can include a processing component to compute an exposure potential to a contagious disease using the history of proximity and the disease exposure information.

Appendix C Us10049336 (B2)

Title Social sensing and behavioral analysis system
Publication Number US10049336 (B2)
Publication Date August 14, 2018
Inventor(s) Daniel Olguin Olguin,
Tuomas Jaanu,
Derek Heyman,
Benjamin Waber
Assignee(s) Sociometric Solutions Inc
Abstract A method and system for capturing and analyzing human behavior data is disclosed. The present disclosure describes a method and system for a plurality of people, wherein each person wears a badge. The badge transmits data collected from a plurality of sensors from the badge to a base station. The data is sent from the base station to a server, which aggregates the data from a plurality of base stations, and then analyzes and processes the data to create raw human behavior data. From the raw human behavior data and plurality of metrics is calculated, which can be displayed on a computer screen according to whichever metrics a user wishes to view.

References

  • [Abr12] Abracon LLC: ABS07-120-32.768kHz-T; TUNING FORK CRYSTAL, 10 2012.
  • [Aim12] P. Aimonen: Nanopb - Protocol Buffers for Embedded Systems, 2012, https://github.com/nanopb/nanopb. Accessed 2018-11-05.
  • [Bab02] B. Babcock, S. Babu, M. Datar, R. Motwani, J. Widom: Models and issues in data stream systems, in Proceedings of the twenty-first ACM SIGMOD-SIGACT-SIGART symposium on Principles of database systems, ACM, 2002, pp. 1–16.
  • [Bar06] M. Barr, A. Massa: Programming embedded systems: with C and GNU development tools, O’Reilly Media, Inc., 2006.
  • [Ber05] J. Berdine, C. Calcagno, P. W. O’hearn: Smallfoot: Modular automatic assertion checking with separation logic, in International Symposium on Formal Methods for Components and Objects, Springer, 2005, pp. 115–137.
  • [Bla03] B. Blanchet, P. Cousot, R. Cousot, J. Feret, L. Mauborgne, A. Miné, D. Monniaux, X. Rival: A static analyzer for large safety-critical software, in ACM SIGPLAN Notices, Vol. 38, ACM, 2003, pp. 196–207.
  • [Bou97] C. V. Bouten, K. T. Koekkoek, M. Verduin, R. Kodde, J. D. Janssen: A triaxial accelerometer and portable data processing unit for the assessment of daily physical activity, IEEE transactions on biomedical engineering, Vol. 44, No. 3, 1997, pp. 136–147.
  • [Bro14] C. Brown, C. Efstratiou, I. Leontiadis, D. Quercia, C. Mascolo, J. Scott, P. Key: The architecture of innovation: Tracking face-to-face interactions with ubicomp technologies, in Proceedings of the 2014 ACM International Joint Conference on Pervasive and Ubiquitous Computing, ACM, 2014, pp. 811–822.
  • [Cal16] D. Calacci, O. Lederman, D. Shrier, A. Pentland: Breakout: An open measurement and intervention tool for distributed peer learning groups, Proc. 2016 Int’l Conf. Social Computing Behavioral-Cultural Modeling & Prediction and Behavior Representation in Modeling and Simulation (SBP-BRIMS 16) Social Cultural and Behavioral Modeling, 2016.
  • [Car02] K. M. Carley: Computational organizational science and organizational engineering, Simulation Modelling Practice and Theory, Vol. 10, No. 5-7, 2002, pp. 253–269.
  • [Cat10] C. Cattuto, W. Van den Broeck, A. Barrat, V. Colizza, J.-F. Pinton, A. Vespignani: Dynamics of person-to-person interactions from distributed RFID sensor networks, PloS one, Vol. 5, No. 7, 2010, p. e11596.
  • [Cha14] K.-H. Chang: Bluetooth: a viable solution for IoT?[Industry Perspectives], IEEE Wireless Communications, Vol. 21, No. 6, 2014, pp. 6–7.
  • [Che04] B. Chess, G. McGraw: Static analysis for security, IEEE Security & Privacy, Vol. 2, No. 6, 2004, pp. 76–79.
  • [Cho02] T. Choudhury, A. Pentland: The sociometer: A wearable device for understanding human networks, in CSCW’02 Workshop: Ad hoc Communications and Collaboration in Ubiquitous Computing Environments, 2002.
  • [Dab98] N. Daberko: Operating system including improved file management for use in devices utilizing flash memory as main memory, July 28 1998, US Patent 5,787,445.
  • [Dab02] F. Dabek, N. Zeldovich, F. Kaashoek, D. Mazières, R. Morris: Event-driven programming for robust software, in Proceedings of the 10th workshop on ACM SIGOPS European workshop, ACM, 2002, pp. 186–189.
  • [Des06] S. Desikan, G. Ramesh: Software testing: principles and practice, Pearson Education India, 2006.
  • [Dia17] F. J. Dian, A. Yousefi, K. Somaratne: A study in accuracy of time synchronization of BLE devices using connection-based event, in Information Technology, Electronics and Mobile Communication Conference (IEMCON), 2017 8th IEEE Annual, IEEE, 2017, pp. 595–601.
  • [DiM04] J. M. DiMicco, A. Pandolfo, W. Bender: Influencing group participation with a shared display, in Proceedings of the 2004 ACM conference on Computer supported cooperative work, ACM, 2004, pp. 614–623.
  • [Don10] W. Dong, A. S. Pentland: Quantifying group problem solving with stochastic analysis, in

    International Conference on Multimodal Interfaces and the Workshop on Machine Learning for Multimodal Interaction

    , ACM, 2010, p. 40.
  • [Doy93] M. Doyle, D. Straus: How to make meetings work, The Berkley Publishing Group, 1993.
  • [Dre96] S. Drew, C. Coulson-Thomas: Transformation through teamwork: the path to the new organization?, Management Decision, Vol. 34, No. 1, 1996, pp. 7–17.
  • [Els02] J. Elson, L. Girod, D. Estrin: Fine-grained network time synchronization using reference broadcasts, ACM SIGOPS Operating Systems Review, Vol. 36, No. SI, 2002, pp. 147–163.
  • [Fav07] L. Favalli, M. Lanati, P. Savazzi: Wireless communications 2007 CNIT thyrrenian symposium, 2007.
  • [For18] D. R. Forsyth: Group dynamics, Cengage Learning, 2018.
  • [Fur11] K. Furset, P. Hoffman: High pulse drain impact on CR2032 coin cell battery capacity, Nordic Semiconductor and Energizer, 2011.
  • [Gal05] E. Gal, S. Toledo: A transactional flash file system for microcontrollers., in USENIX Annual Technical Conference, General Track, 2005, pp. 89–104.
  • [Gan03] S. Ganeriwal, R. Kumar, M. B. Srivastava: Timing-sync protocol for sensor networks, in Proceedings of the 1st international conference on Embedded networked sensor systems, ACM, 2003, pp. 138–149.
  • [GCC05] GCC: gcov - a Test Coverage Program, 2005, https://gcc.gnu.org/onlinedocs/gcc/Gcov.html. Accessed 2018-10-23.
  • [Gom12] C. Gomez, J. Oller, J. Paradells: Overview and evaluation of bluetooth low energy: An emerging low-power wireless technology, Sensors, Vol. 12, No. 9, 2012, pp. 11734–11753.
  • [Goo08a] Google: Google Test, 2008, https://github.com/google/googletest. Accessed 2018-10-15.
  • [Goo08b] Google: Protocol Buffers, 2008, https://developers.google.com/protocol-buffers/. Accessed 2018-11-05.
  • [Gre03] J. Greenberg, R. A. Baron: Behavior in Organizations: Understanding and Managing the Human Side of Work, Pearson Prentice Hall Upper Saddle River, NJ, 2003.
  • [Ham04] P. Hamill: Unit test frameworks: tools for high-quality software development, O’Reilly Media, Inc., 2004.
  • [Hol04] C. C. Holt: Forecasting seasonals and trends by exponentially weighted moving averages, International journal of forecasting, Vol. 20, No. 1, 2004, pp. 5–10.
  • [Hwa04] S.-Y. Hwang, D.-H. Yu, K.-J. Li: Embedded system design for network time synchronization, in International Conference on Embedded and Ubiquitous Computing, Springer, 2004, pp. 96–106.
  • [Jeh01] K. A. Jehn, E. A. Mannix:

    The dynamic nature of conflict: A longitudinal study of intragroup conflict and group performance

    ,
    Academy of management journal, Vol. 44, No. 2, 2001, pp. 238–251.
  • [Jia09] Z. Jianwu, Z. Lu: Research on distance measurement based on RSSI of ZigBee, in Computing, Communication, Control, and Management, 2009. CCCM 2009. ISECS International Colloquium on, Vol. 3, IEEE, 2009, pp. 210–212.
  • [Jia14] Z. Jianyong, L. Haiyong, C. Zili, L. Zhaohui: RSSI based Bluetooth low energy indoor positioning, in Indoor Positioning and Indoor Navigation (IPIN), 2014 International Conference on, IEEE, 2014, pp. 526–533.
  • [Kim08] T. Kim, A. Chang, L. Holland, A. S. Pentland: Meeting mediator: enhancing group collaborationusing sociometric feedback, in Proceedings of the 2008 ACM conference on Computer supported cooperative work, ACM, 2008, pp. 457–466.
  • [Kin18] P. H. Kindt, M. Saur, M. Balszun, S. Chakraborty: Neighbor discovery latency in BLE-like protocols, IEEE Transactions on Mobile Computing, Vol. 17, No. 3, 2018, pp. 617–631.
  • [Kno12] Knowles Corporation: SPU0414HR5H-SB Product Datasheet, 12 2012, Rev. E.
  • [Led16a] O. Lederman, D. Calacci, A. MacMullen, D. C. Fehder, F. E. Murray, A. Pentland: Open badges: A low-cost toolkit for measuring team communication and dynamics, in 2016 International Conference on Social Computing, Behavioral-Cultural Modeling, & Prediction and Behavior Representation in Modeling and Simulation , Washington DC, USA, June 28-July 1, 2016.
  • [Led16b] O. Lederman et al.: Openbadge Hub Python, 2016, https://github.com/HumanDynamics/openbadge-hub-py. Accessed 2018-10-12.
  • [Led16c] O. Lederman et al.: OpenBadge project, 2016, https://github.com/HumanDynamics/openbadge. Accessed 2018-10-12.
  • [Led18] O. Lederman, A. Mohan, D. Calacci, A. S. Pentland: Rhythm: A Unified Measurement Platform for Human Organizations, IEEE MultiMedia, Vol. 25, No. 1, 2018, pp. 26–38.
  • [Les09] G. Leshed, D. Perez, J. T. Hancock, D. Cosley, J. Birnholtz, S. Lee, P. L. McLeod, G. Gay: Visualizing real-time language-based feedback on teamwork behavior in computer-mediated groups, in Proceedings of the SIGCHI Conference on Human Factors in Computing Systems, ACM, 2009, pp. 537–546.
  • [Lev15] D. Levi: Group dynamics for teams, Sage Publications, 2015.
  • [Lia12] T.-T. Liao, L.-S. Lo: Audio system and related method integrated with ultrasound communication functionality, April 17 2012, US Patent 8,160,276.
  • [Mae12] K. Maeda: Performance evaluation of object serialization libraries in XML, JSON and binary formats, in Digital Information and Communication Technology and it’s Applications (DICTAP), 2012 Second International Conference on, IEEE, 2012, pp. 177–182.
  • [Mar12] R. J. I. Marks:

    Introduction to Shannon sampling and interpolation theory

    ,
    Springer Science & Business Media, 2012.
  • [Mas17] K. Masumoto, T. Yaguchi, H. Matsuda, H. Tani, K. Tozuka, N. Kondo, S. Okada: Measurement and visualization of face-to-face interaction among community-dwelling older adults using wearable sensors, Geriatrics & gerontology international, Vol. 17, No. 10, 2017, pp. 1752–1758.
  • [Mer14] D. Merkel: Docker: lightweight linux containers for consistent development and deployment, Linux Journal, Vol. 2014, No. 239, 2014, p. 2.
  • [Mil91] D. L. Mills: Internet time synchronization: the network time protocol, IEEE Transactions on communications, Vol. 39, No. 10, 1991, pp. 1482–1493.
  • [Nad79] D. A. Nadler: The effects of feedback on task group behavior: A review of the experimental research, Organizational Behavior and Human Performance, Vol. 23, No. 3, 1979, pp. 309–338.
  • [Nah94] A. Nahavandi, E. Aranda: Restructuring teams for the re-engineered organization, Academy of Management Perspectives, Vol. 8, No. 4, 1994, pp. 58–68.
  • [Nor16a] Nordic Semiconductor: nRF51822 Product Specification, 7 2016, Rev. 3.3.
  • [Nor16b] Nordic Semiconductor: Power Profiler Kit, 2016, https://www.nordicsemi.com/eng/Products/Power-Profiler-Kit. Accessed 2018-11-15.
  • [Nor16c] Nordic Semiconductor: S130 SoftDevice Specification, 4 2016, Rev. 2.0.
  • [Nor17] Nordic Semiconductor: Nordic Thingy:52, 2017, https://www.nordicsemi.com/eng/Products/Nordic-Thingy-52. Accessed 2018-11-02.
  • [Nor18a] Nordic Semiconductor: Infocenter, 2018, http://infocenter.nordicsemi.com/. Accessed 2018-10-16.
  • [Nor18b] Nordic Semiconductor: nRF52840 Product Specification, 3 2018, Rev. 1.0.
  • [Obe08] P. Oberparleiter: lcov - a graphical GCOV front-end, 2008, https://linux.die.net/man/1/lcov. Accessed 2018-10-23.
  • [Olg06] D. O. Olguín, J. A. Paradiso, A. Pentland: Wearable communicator badge: Designing a new platform for revealing organizational dynamics, in Proceedings of the 10th international symposium on wearable computers (student colloquium), 2006, pp. 4–6.
  • [Olg09] D. O. Olguín, B. N. Waber, T. Kim, A. Mohan, K. Ara, A. Pentland: Sensible organizations: Technology and methodology for automatically measuring organizational behavior, IEEE Transactions on Systems, Man, and Cybernetics, Part B (Cybernetics), Vol. 39, No. 1, 2009, pp. 43–55.
  • [Olg10] D. O. Olguín, A. Pentland: Sensor-based organisational design and engineering, Vol. 1(1-2), 2010, pp. 69–97.
  • [Osh15] R. Osherove: The art of unit testing, MITP-Verlags GmbH & Co. KG, 2015.
  • [Pen10] A. Pentland: Defend your research: We can measure the power of charisma-Harvard Business Review, Harvard Business Review Case Studies, Articles, Books, Pamphlets-Harvard Business Review. Retrieved from http://hbr. org/2010/01/defend-your-research-we-can-measure-the-power-of-charisma/ar/1, 2010.
  • [Pen12] A. Pentland: The new science of building great teams, Harvard Business Review, Vol. 90, No. 4, 2012, pp. 60–69.
  • [Raz15] S. Raza, P. Misra, Z. He, T. Voigt: Bluetooth smart: An enabling technology for the Internet of Things, in Wireless and Mobile Computing, Networking and Communications (WiMob), 2015 IEEE 11th International Conference on, IEEE, 2015, pp. 155–162.
  • [Rig17] Rigado Inc.: BMD-200 Module for Bluetooth 4.2 LE, 8 2017, Rev. 1.7.
  • [Ruu18] Ruuvi Innovations Oy: What is RuuviTag?, 2018, https://ruuvi.com/ruuvitag-specs/. Accessed 2018-11-02.
  • [Sam18] S. Samrose, R. Zhao, J. White, V. Li, L. Nova, Y. Lu, M. R. Ali, M. E. Hoque: CoCo: Collaboration Coach for Understanding Team Dynamics during Video Conferencing, Proceedings of the ACM on Interactive, Mobile, Wearable and Ubiquitous Technologies, Vol. 1, No. 4, 2018, p. 160.
  • [Shc14] M. Shchekotov: Indoor localization method based on Wi-Fi trilateration technique, in Proceeding of the 16th conference of fruct association, 2014, pp. 177–179.
  • [STM17] STMicroelectronics: LIS2DH12 Datasheet: MEMS digital output motion sensor: ultra-low-power high-performance 3-axis ’femto’ accelerometer, 6 2017, Rev. 6.0.
  • [STM18] STMicroelectronics: M95M02-DR, 9 2018, Rev. 11.0.
  • [Str12] J. B. Stryker, M. D. Santoro: Facilitating face-to-face communication in high-tech teams, Research-Technology Management, Vol. 55, No. 1, 2012, pp. 51–56.
  • [Szp11] W. Szpankowski, S. Verdú: Minimum expected length of fixed-to-variable lossless compression without prefix constraints, IEEE Transactions on Information Theory, Vol. 57, No. 7, 2011, pp. 4017–4025.
  • [Tal02] A. Tal: Two flash technologies compared: NOR vs NAND, White Paper of M-Systems, 2002.
  • [Tan95] D. Tannen: The power of talk: Who gets heard and why, Harvard Business Review, Vol. 73, No. 5, 1995, pp. 138–148.
  • [VAR16] VARTA Microbattery GmbH: CR2032 Lithium Manganese Dioxide Data Sheet, 9 2016.
  • [Wak09] Y. Wakisaka, N. Ohkubo, K. Ara, N. Sato, M. Hayakawa, S. Tsuji, Y. Horry, K. Yano, N. Moriwaki: Beam-scan sensor node: Reliable sensing of human interactions in organization, in Networked Sensing Systems (INSS), 2009 Sixth International Conference on, IEEE, 2009, pp. 1–4.
  • [Wat14] J.-i. Watanabe, N. Ishibashi, K. Yano: Exploring relationship between face-to-face interaction and team performance using wearable sensor badges, PloS one, Vol. 9, No. 12, 2014, p. e114681.
  • [Why91] G. Whyte: Decision failures: Why they occur and how to prevent them, Academy of Management Perspectives, Vol. 5, No. 3, 1991, pp. 23–31.
  • [Wil05] C. J. Willmott, K. Matsuura: Advantages of the mean absolute error (MAE) over the root mean square error (RMSE) in assessing average model performance, Climate research, Vol. 30, No. 1, 2005, pp. 79–82.
  • [Wuc07] S. Wuchty, B. F. Jones, B. Uzzi: The increasing dominance of teams in production of knowledge, Science, Vol. 316, No. 5827, 2007, pp. 1036–1039.
  • [Xu10] J. Xu, W. Liu, F. Lang, Y. Zhang, C. Wang: Distance measurement model based on RSSI in WSN, Wireless Sensor Network, Vol. 2, No. 08, 2010, p. 606.
  • [Yan12] Z. Yang, C. Wu, Y. Liu: Locating in fingerprint space: wireless indoor localization with little human intervention, in Proceedings of the 18th annual international conference on Mobile computing and networking, ACM, 2012, pp. 269–280.
