I Introduction

The University of South Carolina’s Autonomous Field Robotics Lab (AFRL) Jetyak is an ASV modeled after the Woods Hole Oceanographic Institution (WHOI) Jetyak[1]. This work focuses on improving modularity and performance throughout the design and build phases in order to expand capabilities for operating in different environments. Furthermore, the proposed design and implementation aims to expand deployment capabilities to include highly dynamic environments typically occurring in remote, uninhabited areas. Along with our desire to maintain an onboard manual operation mode, this expansion is guided in increasing the diversity of the operating modes and payloads, by setting the modularity and control as core implementation requirements of the platform.

The ASV described in this paper is based on the Mokai EsKape [2] boat. It is controlled using a Pixhawk PX4 microcontroller, and is capable of communicating using radio modems, remote control radios, and a WiFi connection. The communication capabilities enable connectivity with: a remote control transmitter, a remote computer termed Ground Control Station (GCS), and other ASVs using an adhoc network. The proposed design enables the following operating modes:

Figure 1: Example of a highly dynamic environment ideal for ASV deployment for the task of infrastructure inspection.
  • Manual operation onboard: A human uses the manual control of the Mokai EsKape [2] to drive the vessel. This mode is valuable for a scientist to manually drive to a location and collect data, as well to test the dynamics of the vessel in challenging conditions. Furthermore, this mode can be utilized for learning via demonstration of autonomous control.

  • Manual operation offboard: A human uses a remote control radio to operate the vehicle. Such mode can be employed to send the vessel to collect data in a challenging situation, especially when such operation raises safety concerns for a human operator.

  • Autonomous waypoint operation offboard: The boat is sent GPS waypoints via a remote computer. That way a single GCS can control multiple vehicles and coordinate with respect to collision avoidance.

  • Autonomous waypoint operation onboard: A computer onboard sends GPS waypoints to the vehicles microcontroller (Pixhawk PX4). Decisions are made locally, and the vehicle can operate even if the communication with the GCS is intermittent.

  • Autonomous velocity control on/offboard: A computer uses a control algorithm (PID, adaptive, or model based) to change the steering angle and the forward velocity of the vessel based on sensory input. Such capability is critical for operating in adversarial conditions, such as high currents and strong winds.

Figure 2: Stock Mokai EsKape with additional modular components added by UofSC’s AFRL to accommodate a multitude of underwater and above the surface sensors. Splash guards added in 3 locations to protect engine and onboard electronics. Navigation lights and safety equipment are included on each JetYak for Coast Guard compliance.

The main contributions of this paper lie, first, on expanding the modularity and flexibility of existing ASV platforms; providing a modular design of an ASV with publicly available documentation and software [3]; discussing lessons learned during the construction of the vehicle and various deployments; and demonstration of our implementation’s expanded capabilities through providing preliminary data collected in stable and highly dynamic environments.

The paper is structured as follows. Section II discusses related work, current design goals, and where the design goals diverge between previous approaches and the proposed design. Section III details the construction process of the base platform. Section IV presents additional lessons learned not covered in the build section as well as valuable lessons learned through over 50 deployments of up to four Jetyaks simultaneously. Section V illustrates the current navigation and data collection success of this platform. Section VI describes the ongoing work that AFRL is planning for increasing the platform’s capabilities, and finally we will conclude with Section VII.

Ii Background

Ii-a Related Work & Current State of The Art

The most relevant work to the proposed design is the WHOI Jetyak by Kimball et al. [1], on which we have based our design. Their Jetyak is capable of autonomous operations carrying different payloads for extended periods of time; however, the design does not allow for manual operations or easy reconfiguration of the payload. Next, we discuss other approaches to the ASV design and how their contributions have influenced our design.

Among the earlier designs of a small scale ASV was MARE by Girdhar et al. [4]. Driven by low cost considerations, it enabled collection of visual data over shallow coral reefs and operated as a communication point in multirobot operations [5]. The design was based on the catamaran style with two electric motors that where controlled in a differential drive configuration. Battery powered, the range of operations was limited. Similar catamaran design with two electric motors have also the Kingfisher and the Heron Unmanned Surface Vehicle (USV) models from Clearpath Robotics111https://www.clearpathrobotics.com/ while portable, their range of operations is limited to one to two hours.

In 2005, MIT’s Curcio et al. introduced their surface craft for oceanographic and undersea testing (SCOUT)[6]. SCOUT is geared for oceanographic deployment based on an obstacle avoidance system working in conjunction with a remote palm device for highlevel mission control. Their pioneering design and build of a truly unmanned boat set the stage for a variety of expansions of their original design. For our purposes, the electric drivetrain results in an increased draft to allow clearance for the electric motor head and propeller to displace water below the stern of the kayak. As well, the mission specific sensor design and implementation offer us insight for our design to remain flexible and modular to accommodate larger and heavier instrumentation. Examples include sidescan sonar sensors and acoustic Doppler current profilers (ADCP) that are becoming prolific as the devices become more affordable. The small size limiting manual operation capabilities, low operating maximum speed of 5.6 kilometers per hour, and medium operation time of eight hours between charging are shortcomings of SCOUT that we seek to improve.

In 2008, Santa Clara University introduced their small waterplane twin hull (SWATH)[7] ASV. SWATH employed two under the surface catamarans running electric motors mainly for shallow and inland water operation. They originally deployed multibeam sonar as a tool for bathymetric mapping. Again in 2013, a Master’s Thesis[8] sought to improve the path following capabilities of SWATH in environments with wind and current present. While the results are successful in moderate conditions, its speed and deployment duration do not fit our needs for long distance deployment. However, their off-board control system inspires our design and implementation for customized control sequences for future mission specific tasks, such as object placement and retrieval.

In December 2012, Rodriquez et al. wrote a comparison study[9] of existing ASVs for the specific purpose of measuring the environmental indicators that bear directly on climate change. Throughout their study, they cover capabilities of satellites, weather balloons, RADAR, stationary buoy arrays, manned boats, autonomous underwater vehicles (AUV), and ASVs. They compared each platforms capabilities of measuring wind speed, wind direction, water salinity, water temperature, barometric pressure, and oil mapping. Their comparison of generic platform capabilities logically concluded that only manned boats and ASVs were capable of monitoring all indicators. Their report goes on to compare several AUV and ASV implementations with much insight gained from interviews with scientists and engineers from NOAA, WPI, Social and Environmental Research Institute (SERI), and the Applied Ocean Physics and Engineering Department from WHOI. Leveraging their conclusion that both manned boats and ASVs provide the greatest capabilities in their study led us to our requirement to keep our design flexible enough to support manned and unmanned operating modes.

In 2014, Fraga et al. introduced Squirtle[10], an autonomous electric catamaran for inland water environmental monitoring. While their lack of passenger carrying capability, deeper draft due to propeller shafts and reliance on an electric source are not in line with our design goals, their methods for implementing a ROS node to provide autonomous control based on precise real time kinematic (RTK) GPS and inertial measurement unit (IMU) measurements, provide insight to our challenges with a maintaining a fully capable, selfreliant platform.

Based on the payload, speed, and mission duration capabilities in the reviewed literature above, we decided that the WHOI approach was the best starting point for our development. Their ingenuity and pioneering approach to expand the capabilities of a commercial platform are what led us to select MOKAI as the base platform from which to build the ASV. From there, we seek to add modularity and flexibility to their design in order to provide a multipurpose platform.

Ii-B Design Goals

Our design differs from WHOI with respect to expanding capabilities to include long term deployments for inland waterways with highly dynamic currents and landscape. Our design considerations include physical platform modularity, sensor mounting versatility, and controls integration flexibility. To enable these endstate goals, we researched and planned for robust communication and microcontroller platforms modified and configured to operate in marine environments with safety features such as the ability to remotely kill the engine. The physical layout must support onboard manual operation to support environmental scientists requiring a level of supervision during data collection. The platform must include the capability to host numerous above water sensors such as cameras, LIDAR, anemometer, GPS, radar, and communication components. Also, the platform must be capable of hosting at least four underwater sensors such as depth sounders, bathymetric imaging transducers, water current sensors, and cameras. Onboard layout requirements include power planning for a 24 volt power source and plugnplay distribution panel for 12 and 5 volt devices. In addition to the factory joystick controls, the onboard footprint must include space for our autonomous and teleoperation control box, programmable control boards (PCB) servicing desired sensors and additional minicomputers. Space for onboard companion minicomputers must be retained for our online autonomous control interface using the Robot Operating System (ROS)[11] as a framework for software development and standardized data collection. The specific components, placement, and integration of these components is covered in Section III and illustrated in Figure 2.

Iii Autonomous Field Robotics Lab’s Jetyak

Figure 3: Front portion of marine grade starboard subfloor with footings for battery, control box, as well as topside and anchor mast ports installed.

Iii-a Stock Platform

Our base platform consists of the commercial Mokai EsKape[2] boat, whose predecessor has been previously modified and termed the WHOI Jetyak by Kimball et al. [1]. The latest model ESKape is 3.6 meters long and is propelled by a seven horsepower, four stroke, internal combustion engine costing $5,400. With its 9.8liter fuel reservoir, the ESKape can operate at lower speeds for 18 hours and top speed for four hours before refueling is required. Top speed with an average payload of 90 kilograms is 21.7 kilometers per hour, and the maximum payload capacity is 163 kilograms. Additionally, the factory ESKape includes an improved jet drive with a clutch allowing the impeller to be stopped without stopping the engine, a modification that the WHOI team had to implement that we did not. As noted in WHOI’s work, Mokai released their ESKape model in 2014, which includes pulse width modulated (PWM) servos for both throttle and steering controls. This electronic control upgrade allows us to forgo developing electromechanical controls. This provides direct access to the servos controlling the throttle lever and steering nozzle by piggybacking on factory joystick controls and wiring harness. As a result, teleoperation and waypoint autonomous navigation controls are able to be directly implemented. In turn, this enables a ROS based control interface as a gateway to our research in developing an adaptive control system for operating in highly dynamic environments.

The remainder of this section describes the physical modifications to the platform, power distribution panel as well as the robotic controller integration. While our latest design and build is shown here, it should be noted that this design includes several lessons learned throughout the first four iterations of the modified Jetyak.

Iii-B Physical Platform Modifications

(a)
(b)
Figure 4: LABEL: Supervised Jetyak 3 with Ping DSP 3D sidescan imaging transducer, anchor light, communication hub, lidar, GPS, stereo camera, and monocular camera deployed. Engine wave guard and sensor splash guards are also installed and functioning. LABEL: Unsupervised Jetyak 1 with anchor light, communication hub, anemometer, 2 surface current and depth sonar sensors deployed.

Our endstate goals of maintaining manual operation capability and robust underwater and terrestrial sensor deployment flexibility translate to challenging spatial planning and layout considerations. Additionally, through lessons learned from initial deployments, three areas that require protection from the marine environment were identified.

Iii-B1 Interior Footprint

When received, the inside hull of the EsKape is a single layer of plastic maintaining the same shape as the exterior. In order to mount boxes, plan for a mast, and keep wires off the bottom of the boat where water could collect, a subfloor of marinegrade polymer starboard was constructed. This subfloor sits on the side steps of the hull and is fastened to the hull with stainless steel screws in the reinforced area of the bow, above the waterline. In addition, footings and tie downs were installed for the batteries and our electronics control box. Finally, the base for the mast is added directly under the top mast port for added rigidity, illustrated in Figure 3.

Iii-B2 Terrestrial Sensor and Communication Platform

Another area that our design diverges from previous implementations is derived from our longrange communication and robust terrestrial sensor requirements. In order to extend 2.4GHz and 915MHz radio communication range, we experimented with different materials and mast lengths until we found the optimal setup to be 2.4 meters of fiberglass pipe. This height allows for the Jetyak to be trailered on highways and while maximizing height for longer range line-of-sight capabilities. Its rigidity, low weight and electrically noninterfering properties with the cables and antennas are desirable properties for this application. Since this mast anchors to the bottom of the subfloor, we added a second lightweight PVC pipe to the outside to serve as a conduit for cables. As seen in Figure 4(a), the mast is capable of supporting the radio box, lidar sensor, GPS, stereo camera, and monocular camera. The flexibility of the mast mounting strategy is illustrated in Figure 4(b) where the Jetyak hosts an anemometer on the same mast.

Iii-B3 Underwater Sensor Platform

Again, our design goals were to develop a highly modular platform capable of deploying all types of sensors without the need to retrofit or make structural changes to the base boat. We decided to develop a strong, lightweight universal outboard mounting plate to permanently attach to the Jetyak. The complementary component to such a design is the vertical mounting poles that have a universal mounting ring welded to the bottom. The plate and pole design was delivered to a local water jet facility for cutting and welding the 6.35mm aluminum plate and brackets. As seen in Figure 4, each pole can be raised, lowered or removed independently according to researcher requirements. The underwater sensor in Figure 4(a) is the 3DSSDX450 sidescan transducer from Ping DSP[12].

Iii-B4 Engine & Electronics Water Protection

As we continued to develop and test the Jetyaks in rougher lake waters and faster moving currents, we learned quickly that protection for the air intake of the air cooled engine would be required. There are two ways that water can enter the engine compartment and air intake in our design. First, and consistent with all Mokai stock platforms is the possibility of water from waves overflowing the top of the engine. Using examples from our predecessors, we fabricated and installed a simple galvanized metal protection hood as visible in Figure 4(a) to guard against this hazard. The second hazard, due directly to our outboard sensor design, is from water deflecting up the sensor mounting poles into the air intake. This is overcome by cutting 3.175mm thick Lexan plastic to mount under the plate and extend forward and rearward of the plate to deflect water back away from the engine. Finally, as seen in previous implementations where humans are part of the payload, we integrated a windshield to abate spray from the front of the boat away from occupants and electronics.

Figure 5: Power distribution diagram with our 24 volt power bank added to the Mokai factory system.

Iii-C Power Distribution

To meet the requirements of many high end oceanographic sensors such as sonars, radars, ADCPs, and sidescan sonars, a 24 volt power source is required. We accomplish this by connecting two 12 volt deep cycle batteries in series for direct wiring of 24 volt electronics. Figure 5 illustrates the power sources for each onboard component. We provide 12 volts from one of the bank batteries to our power distribution panel. Within the power distribution panel, we add an additional step down of the 12 volt line to five volts for our Pixhawk, Raspberry Pi, and Arduino PCB power supplies. This initiative is a result of a lesson learned after the addition of more than three sensors caused a confusing and cumbersome array of power and sensor wires, resulting in the loss of at least one Pixhawk PX4 and one Arduino UNO. A second lesson learned after witnessing some erratic servo behavior when controlling through the Pixhawk, was the requirement of ensuring a common ground ties both systems together. Since on a watercraft there is not a true ground but rather a floating ground reference, providing a common ground connection, ensures the factory servos and our added control system maintain the same zero voltage reference. Once the electrical bugs were identified and corrected, the integration of the power distribution panel resulted in a clean plugnplay system which also provides better durability when deployed with a human on board.

Figure 6: Jetyak controls architecture, illustrating the integration of factory, onboard, and offboard components.

Iii-D Robotic Control Integration

Our requirement to maintain five methods of operating the Jetyak required significant design and planning. The following subsections describe our design and build of the Jetyak with a natural progression from preserving manual operation to remote control teleoperation and waynavigation to our current work in developing adaptive controls on a ROS node. The schematics, PCB controller code, diagrams, pictures and configurations are included in our open source Jetyak tutorial page at the AFRL resource page [3].

Iii-D1 Integrating with Factory Components

In a worstcase scenario, we ensure that the Mokai Jetyak maintains its factory manual operating capability. This drove our decision to place a manual/auto switch in the factory joystick control box that would always allow us to take over manual control of the boat. As illustrated in Figure 6, there are two intersections of our equipment with the Mokai’s controls in the joystick box.

The PWM wires connect the steering and throttle outputs of the Pixhawk to autonomous side of manual/auto switch and the factory PWM outputs of the joystick are attached to the manual side. At this point the factory 6 volt and ground connections are passed through with the manual/auto switch output on the factory harness to the servos. There are two advantages to this implementation. First, we reduce the footprint and exposure of our additional PWM carrying wires to the protected area in the factory joystick box. Second, by passing through the factory voltages, we eliminate the need to step up our five volt control voltage to the six volts required by the servos.

Iii-D2 Remote Shutdown and Power Loss Safety Circuit

Although our goal is toward a fully autonomous Jetyak, safe testing and deployment requires a method for remotely shutting down the Jetyak in case of emergency or eminent crash. To accomplish this, we provide a parallel kill analog control connection to the factory circuits. Kill or shut down is accomplished through closing a loop which shorts the engine magneto to ground. We emulate this active low behavior through programming a digital channel on the Taranis radio and in the Pixhawk to normally operate in the high state, and when kill is activated, change to the low state. Using this output of the Pixhawk as the coil input for a relay results in the relay being energized during normal operation. When the Pixhawk signal goes low, normally closed contact is made in the relay. We provide this circuit in parallel to the factory system so that if either our system or the factory kill switch is activated the boat shuts down. It should be noted that this configuration also shuts the boat down when power is lost to the Pixhawk. As this remote safety feature may not be desirable when manually driving or recovering a Jetyak, we provide a physical override switch on the side of the Pixhawk box to effectively disable this feature.

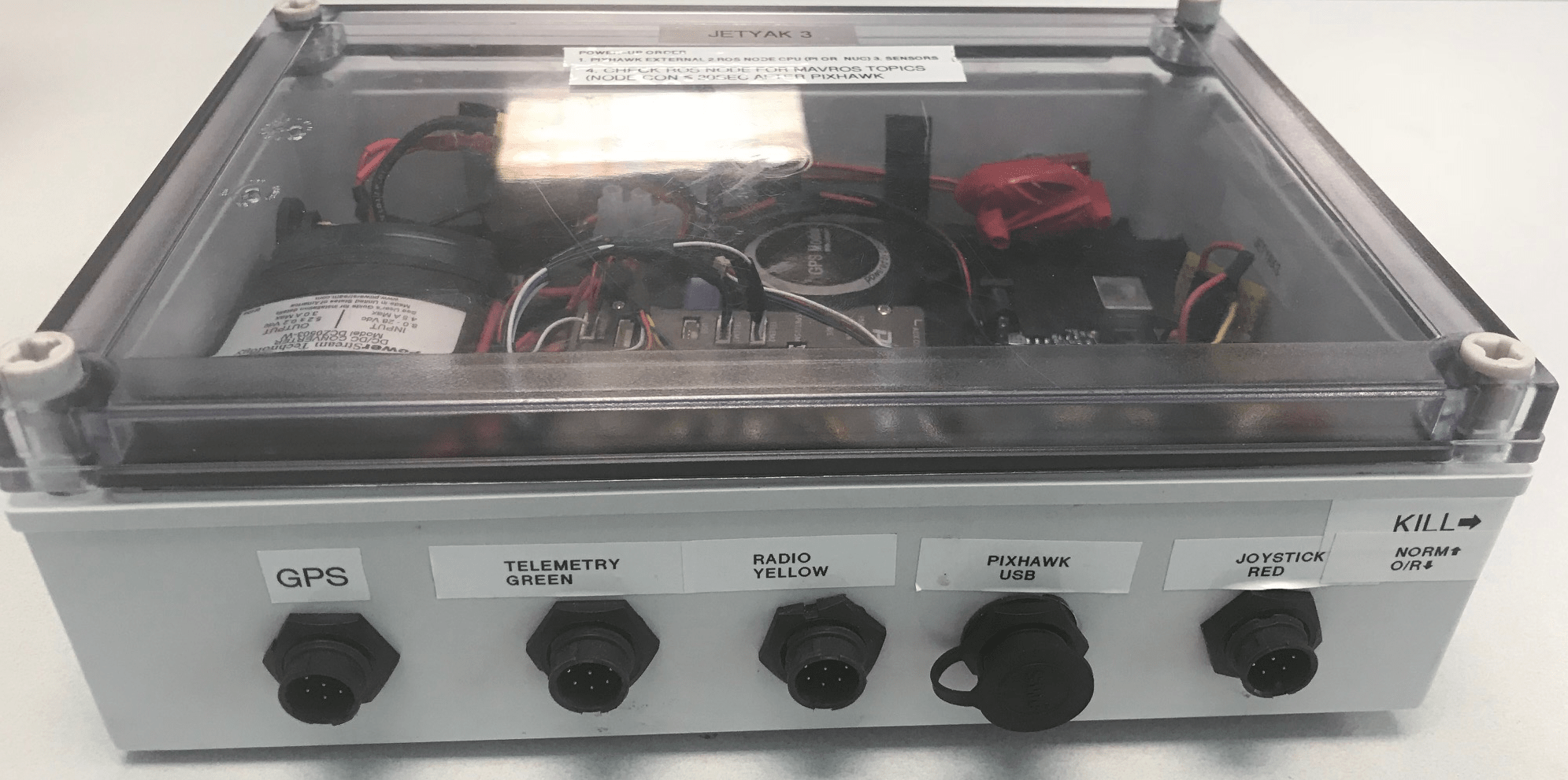

Figure 7: Pixhawk Box with power conditioner, Pixhawk PX4, Arduino Uno, GPS, joystick outputs, remote control interface, MAVLink MAVROS node proxy inputs/outputs collocated.

Iii-D3 Baseline Teleoperation and waypoint Navigation

At the heart of our design, we selected 3DR Pixhawk 1 running PX4 on the NuttX[13] operating system, along with the ArduPilot Software Suite[14] to enable teleoperation and waypoint navigation capabilities, shown in Figure 7 in its Pixhawk box. This version of the Pixhawk includes an internal compass and external I2C (interintegrated circuit) compass port for an external compass, included with most GPS antennas. Configuration of the PixHawk as a Rover [15] allowed us to start from a point where the throttle and steering servos on the stock Mokai Jetyak are directly imitable. Both the Hitec HS5485HB222https://hitecrcd.com/products/servos/discontinued-servos-servo-accessories/hs-5485hb-standard-karbonite-digital-servo/product throttle linkage servo and the Torxis i04903333https://gearwurx.com/product/torxis-industrial-outdoor/ steering servo are controlled by modifying the Pulse Width Modulation (PWM) values in the PixHawk to match their operating specifications. The latter steering servo is internally controlled by the Polulu Jrk21V3 USB motor controller, which allows the user to access the PWM cutoffs and allows direct calibration between the mechanical steering angle and the input signal. This results in one valuable lesson learned, in that electromechanical devices with identical specifications, operate differently given the specification tolerances. In order to overcome these challenges, it is extremely beneficial to measure the factory PWM output widths at minimum, maximum and center with an oscilloscope prior to attempting to teleoperate the servos. This allows the parameters for the throttle and steering output channels on the Pixhawk to be properly aligned from the start. Another lesson learned is to ensure the orientation and calibration of the compass(es) are accurately completed, since different manufacturers of external compasses may assume a non-forward mounting orientation.

The second enabling component to our implementation is the Taranis X9D plus radio system, which offers great flexibility in programming explicit controls of up to 16 channels when paired with the Taranis D8RXP receiver. In our case, we use the community standard of channel one to control steering and channel three to control throttle. We use channel six to provide our teleoperated kill capability, and channel five to control the mode of operation. The last step to enabling remote control operation of the Jetyak is to configure the appropriate channel outputs in the Pixhawk to match behavior characteristics required for the controlled device, e.g., servo PWM minimum and maximum thresholds, PWM trim (neutral) position and forward/reverse direction. The highly modular programming interface allows for fully customized servo and switching controls based on logical functions, making the remote control capabilities very granular. For instance, there are five desired control modes for our application from manual progressing to guided or offboard control which cannot be programmed with a single 3position switch. The X9D is capable of assigning a distinct PWM signal reflecting the logical result of the positions of a 3position and 2position switch. This example is completed when the Pixhawk is programmed with the corresponding mode functions for the received PWM signal on that channel. As a result, the Jetyak is capable of being supervised when testing autonomous capabilities and can always be overridden, which is a necessary feature when conducting field trials in the public domain. Next, we will describe the platform enhancements we have added to enable greater autonomy beyond waypoint following.

Iii-D4 ROS Integration

Initially, the platform was used to conduct preplanned missions, collect data, and return to its home location. To accomplish this task, we only need a common time source, location and the desired sensor measurements to be synchronized. Since the goal is to produce an autonomous Jetyak for deployment in highly dynamic environments, we preplanned implementation of a system that could collect the information in a format that would be available for online usage. Luckily, there exists a wellsupported, opensource solution readily available to support our needs, ROS.

ROS is a robust middleware providing a framework for publishing and subscribing to topics and messages between different process, lowlevel device controllers and onboard computers. In addition, it provides a package management environment enabling addon packages such as MAVROS to interface with many offtheshelf controllers such as the Pixhawk. This allows access and integration with IMU, GPS, heading, velocity, pose and several other Pixhawk telemetry topics. These topics are then published by the onboard ROS node through USB connection on its host Raspberry Pi or Intel NUC. ROS also accommodates the addition of our depth sonar, current speed, and anemometer measurements directly into the same ROS framework. We have included depth, wind, and current sensors as a standard component to our Jetyak design, enabling operation in highly dynamic environments.

Lastly, in order for the Jetyak to use sensor measurements for online path planning, the ROS framework provides an integration of sensing and acting commands. More specifically, ROS integration provides a topic publishing conduit for sending general navigation as well as channellevel steering and throttle control commands directly to Pixhawk using MAVROS and the MAVLink protocol. The specific approach is up to the specific application.

Iii-D5 Robust Communication

AFRL’s Jetyak maintains three forms of communication to allow interfacing and programming at different levels and distances. Shortrange communication is maintained through 802.11g wireless adhoc connectivity to the NUC and Pi devices. Remote teleoperation and lowlevel telemetry communication is provided through the FrSky Taranis X9D Plus transmitter to D8RXP receiver radio link operating in 2.4MHz spectrum. While the longrange communications is provided through RFD 900+ MHz modems, with one as a base station and one modem per deployed Jetyak node. With the addition of our 2.4 meter mast, we have been able to extend our line of sight communication with the base station to 2.8 kilometers. Note: While not a best practice, it is possible to allow the Pixhawk to continue its programed mission without this communication link.

Iii-D6 Initial Tuning Requirements

Initial deployment and testing included manual refinement of steering and throttle servo proportional, integral, and derivative (PID) controls to establish the reliable path following capability of the ASV. The starting point and manual procedure for this tuning is included on the AFRL’s Jetyak tutorial[3]. Once tuning the PID controller coefficients is complete, we were able to deploy a single Jetyak on waypoint tracking missions. These missions were created from a Dubins vehicle grid search coverage algorithm developed in UofSC’s AFRL[16] shown in Figures 9(a) and 9(b).

Iv Lessons Learned

Figure 8: Four Jetyaks operating autonomously in the Congaree River near Columbia, SC.

In addition to the implied lessons learned in Section III, we will discuss other valuable lessons learned during the building and deployment of a fleet of Jetyaks. First, the lessons we have learned in building the first five Jetyaks of UofSC’s fleet will help anyone seeking to develop their own Jetyak avoid some of the pitfalls that cost us time and money in terms of replacement costs and repair time. The second general area, often overlooked, is the lessons learned during field testing any platform in the real world. In our specific design and implementation, we learned some valuable lessons associated with the outboard sensor mount that must be understood and overcome to collect reliable, consistent data. Lastly, time and resources should be allotted for maintaining the fleet. Ignoring these lessons often costs precious time, especially when considering the logistics involved with hauling and launching one or more boats.

Iv-a Building a Fleet instead of a Single Vessel

Iv-A1 Electromagnetic Interference

When working with an internal combustion engine, the magneto introduces interference. In the first iteration of building a Jetyak, we implemented a separate auto/manual switching box that used the factory joystick outputs and our Pixhawk control outputs as its inputs and used our inhouse fabricated cables to connect to factory ports on the engine bay. After the second day of testing continued to produce unpredictable behaviors, we began monitoring the switch box outputs with an oscilloscope to find that when we switched the system to auto (Pixhawk) signals, an inordinate amount of noise was introduced. This can have catastrophic effects when working with PWM signals. If the last signal sent happens to correspond to the servo manipulation for accelerate, then the servo will continue to hold that position until overridden. In order to rectify this, we designed a system with the same signals, but this time, eliminating any nonfactory wiring beyond the outputs of the control box. The results were much cleaner signals in both operating modes and stable behavior.

(a)
(b)
(c)
Figure 9: (a) An ideal NorthSouth grid search mission used to provide a baseline for measuring tracking performance with minimal turning radius of 5 meters. (b) Trajectory for grid search conducted by a single Jetyak with tuned PID coefficients. (c) Trajectories for three Jetyaks searching their respective areas of responsibility according to mission resulting from implementation of our multirobot coverage algorithm for Dubins vehicles.

Iv-A2 Maintaining Compass Accuracy

The Pixhawk is capable of maintaining two compass headings, its internal compass and an external. Depending on the quality of the external I2C compass purchased, in our case 3DR, it is often beneficial to assign priority to externals. In order to compare the reliability of two compasses, simply select each compass as the primary compass in Mission Planner and select the one that drifts the least in a stationary environment. Finally, when the compass is mounted in an orientation not aligned with the Jetyak, it is essential to input the axes orientation and calibrate the compasses in Mission Planner to ensure the proper offsets are maintained.

Iv-A3 Repeatability & Quality Control

A large scale project such as this will thoroughly test any lab’s methods for ensuring efficiency and best practices. Recognizing differing methods for maintaining best practices, some examples of areas in the project that will consume time and money follow:

  • Standardized Wiring Color Scheme: Develop a standard wiring color scheme beginning with the factory joystick box scheme.

  • Documentation Standards & Sharing: Developing a standard for real-time collaboration and sharing of design changes is crucial when lab turnover occurs.

  • Adopting Industry-like Quality Assurance & Control Standards: Establishing a hierarchy within the build team will save several hours of troubleshooting the dozens of circuits required to make this architecture function.

Iv-B Realworld Deployment

Field deployment of the Jetyak brought a new level of learned lessons to our team, especially in the domain of highly disrupted marine deployments. These lessons fall into three categories expanded below: field trial deployments, outboard sensor deployment, and maintenance.

Iv-B1 Field Trials

The logistics required to plan and safely execute field trials with one or multiple Jetyaks cannot be understated. After our first attempt to deploy a Jetyak at Lake Murray, SC in a generally calm and stable environment, we developed a comprehensive startup checklist to ensure all components were operational in a sequential manner. The general component groups we test are the steering, throttle and kill operations as well as ground control station connectivity in manual, remote control, and autonomous modes. Each aforementioned test is carried out with the boat engine off as well as running for thoroughness. Before deeming the Jetyak ready for launch, we ensure our ROS node is operational and receiving all required MAVROS and sensor topics. Our field trial log sheet is included as an appendix to AFRL Jetyak tutorial[3].

Iv-B2 Outboard Sensor Orientation

Other physical phenomena we contend with are the resulting cavitation and aeration effects of moving a body through water. Cavitation must be considered when deploying physical measurement sensors such as current sensors, and aeration will quickly become the enemy of sonar based sensors, causing erratically high or undefined readings. In our case, several trials were required to find the best location and orientation with relation to the ASV to ensure accurate readings. Generally, the sensor needs to be mounted slightly deeper than any hull of the boat traveling infront of the sensor, and away from the disruption area of the propulsion system. In addition the mounting pole of the sensor should be mounted behind the sensor. These two tactics allow unperturbed water to cover the bottom of the sensor. Planning for and reducing sensor exposure to the effects of cavitation and aeration will save much frustration and time lost in trips to and from the launch site for future builders.

Iv-B3 Maintenance

Proper routine maintenance of the Jetyak will ensure proper mechanical operation for the next deployment. Tasks such as topping off fuel, checking and changing the oil when required, charging batteries, greasing the drive shaft coupler can be completed days or weeks prior to the next deployment. These tasks are also captured on our startup checklist included in the tutorial.

Lastly, if excessive water does make its way into the engine air intake, impromptu maintenance must take place otherwise catastrophic failure may occur. When this happens, the engine should be stopped and the boat returned to safety where the engine can be removed and the oil changed several times until the milky appearance has disappeared. Due to the modular design of Mokai’s lock and pin assembly, it is feasible to include an extra engine or engine box as part of the field trial support package to reduce downtime if this does occur.

V Results

In this section, we provide some examples of field deployments we have completed with the Jetyak. Initial sensor payload includes different combinations of Ping DSP sidescan sonar, Humminbird Helix 7 sidescan, Velodyne lidar, stereo camera, depth sonar, anemometer, and current sensors. The measurements and predictive data illustrated here is still under analysis and development for future improvement goals. Nonetheless, they give some intuition into the utility and versatility of the Jetyak for exploration and task focused data collection. Real world data collection results include sonar, anemometer, and surface current measurements in stable environments on Lake Murray, SC and the highly dynamic environment of the Congaree River near Columbia, SC. In addition to the raw measurements, initial mapping and prediction capabilities are illustrated for close temporal planning.

V-a Stable Environment Deployments

Figure 10: Depth map of portion of Congaree River, SC.
Figure 11: Actual current direction and intensities after transformation from boat reference frame to world reference frame taken on Congaree River during flood stage currents.
Figure 12: Actual wind direction and intensities on Congaree River after transformation from the boat reference frame to the world reference frame.

Initially, we deployed a single Jetyak on Lake Murray in South Carolina with a single sonar depth sensor to test the Jetyak’s performance from launch to autonomous operation to data collection and logging. Afterwards, multiple Jetyaks were used as an experimental setup in the work by Karapetyan et al. [16] for deploying a MultiRobot coverage algorithm with Dubins kinematic constraints. The trajectories of each robot are illustrated in Figure 9. The coverage was performed locally, by each Jetyak tracking preassigned waypoints programmed in the mission planner. Given the recent addition of Jetyak 3 to the fleet at the time of this experiment, the lack of time to tune the PID coefficients resulted in Jetyak 3’s erratic behavior in Figure 9(c). The resources required to maintain accurate tuning and overcome this behavior for the entire fleet along with how naturally occurring disturbances (wind, current) adversely affect our ASV platform has motivated our future work in adaptive controls.

V-B Highly Dynamic Environment Deployments

As we extended our platform to operate and collect data in more volatile environments, we are able to complete our data collection goals in water currents reaching nearly . The PID controller is able to track waypoints against the current by slowly working against the current until it reaches the desired point. However, the Jetyak misses several waypoints that are downstream or cross stream where faster moving surface currents exist. This experimental realization has reinforced our desire for future work in adaptive controls. Figures 10 through 12 illustrate the depth, current and wind measuring capability of the Jetyak in these adverse conditions.

In addition, we have successfully deployed sidescan imaging sensors similar to the one on the MIT SCOUT using the modular poles without modification to our universal mounting bracket.

Vi Future Work

Our future work builds on the demonstrated capability to collect measurements of depth, wind, current, side scan images, lidar data, and stereo camera images, by enabling online methods for control as an augmentation to the PID controller. Yang et al. [17] published similar work focused on reactive controls once the phenomenon has affected the ASV’s course. Expanding on their work with oceangoing vessels, we focus on deployments in ports, tributaries, canals and rivers to enable exploration and monitoring of remote waters. In addition to providing the ability to generate models of the environment, we are exploring Gaussian Process based techniques to predict and model current and wind disturbances in short temporal windows to enable proactive controls for deployments in highly volatile situations. The long term goal is to provide a comprehensive set of hardware and software that allows scientists to easily field such vehicles for autonomous and robust deployments in a wide array of marine environments.

Vii Conclusion

In this paper, we have shown the design and build of AFRL’s Jetyak including the design considerations, components, build details, and lessons learned. The AFRL Jetyak is the result of customizing a commercially available Mokai EsKape, including design considerations and comparisons to previous pioneers from WHOI, MIT, WPI, and Santa Clara University in their similar implementations. We demonstrate the utility of our design and build in demonstrations in both stable environments as well as highly dynamic environments. We illustrate our future work with this platform through identifying its current limitations of maintaining accurate trajectories in environments with high winds and surface currents; seeking to provide a solution that will allow deployment in such environments through adaptive controls. Finally, we provide a publicly available tutorial [3] to enable interested marine domain researchers to duplicate the presented system.

Acknowledgement

This work was made possible through the generous support of National Science Foundation grants (NSF 1513203, 1637876). The authors would also like to thank Scott White for providing the Ping DSP sidescan sonar for payload testing.

References

  • [1] P. Kimball, J. Bailey, S. Das, R. Geyer, T. Harrison, C. Kunz, K. Manganini, K. Mankoff, K. Samuelson, T. Sayre-McCord, F. Straneo, P. Traykovski, and H. Singh, “The WHOI Jetyak: An autonomous surface vehicle for oceanographic research in shallow or dangerous waters,” in IEEE/OES Autonomous Underwater Vehicles (AUV), 2014, pp. 1–7.
  • [2] “Mokai Manufacturing Inc.” http://www.mokai.com/, accessed: 11 August 2018.
  • [3] AFRL, “Jetyak Documentation,” https://afrl.cse.sc.edu/afrl/resources/JetyakWiki/index.html, 2018, [Online; accessed 19 July 2018].
  • [4] Y. Girdhar, A. Xu, B. B. Dey, M. Meghjani, F. Shkurti, I. Rekleitis, and G. Dudek, “MARE: Marine Autonomous Robotic Explorer,” in IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS), 2011, pp. 5048–5053.
  • [5] F. Shkurti, A. Xu, M. Meghjani, J. C. G. Higuera, y. Girdhar, P. Giguere, B. B. Dey, J. Li, A. Kalmbach, C. Prahacs, K. Turgeon, I. Rekleitis, and G. Dudek, “Multi-domain monitoring of marine environments using a heterogeneous robot team,” in IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS), 2012, pp. 1447–1753.
  • [6] J. Curcio, J. Leonard, and A. Patrikalakis, “SCOUT-a low cost autonomous surface platform for research in cooperative autonomy,” in MTS/IEEE OCEANS, 2005, pp. 725–729.
  • [7] P. Mahacek, T. Berk, A. Casanova, C. Kitts, W. Kirkwood, and G. Wheat, “Development and initial testing of a swath boat for shallow-water bathymetry,” in OCEANS 2008.   IEEE, 2008, pp. 1–6.
  • [8] K. Rasal, “Navigation & control of an automated swath surface vessel for bathymetric mapping,” Santa Clara University, 2013, accessed: 2017-10-18. [Online]. Available: https://scholarcommons.scu.edu/mech_mstr/2
  • [9] D. Rodriquez, M. Franklin, and C. Byrne, “A study of the feasibility of autonomous surface vehicles,” Worcester Polytechnic Institute, 2012. [Online]. Available: https://web.wpi.edu/Pubs/E-project/Available/E-project-121212-135500/unrestricted/ASV_IQP.pdf
  • [10] J. Fraga, J. Sousa, G. Cabrita, P. Coimbra, and L. Marques, “Squirtle: An ASV for inland water environmental monitoring,” in ROBOT2013: First Iberian Robotics Conference.   Springer, 2014, pp. 33–39.
  • [11] M. Quigley, K. Conley, B. Gerkey, J. Faust, T. Foote, J. Leibs, R. Wheeler, and A. Y. Ng, “ROS: an open-source Robot Operating System,” in ICRA workshop on open source software, vol. 3.2, 2009, p. 5.
  • [12] “Ping DSP Inc.” http://www.pingdsp.com/3DSS-DX-450, [Accessed: 2018-05-11].
  • [13] C. of nuttx.org, “NuttX Real-Time Operating System — NuttX Real-Time Operating System,” 2018, [Online; accessed 14-July-2018]. [Online]. Available: http://nuttx.org/doku.php?id=nuttx&rev=1531430789
  • [14] R. Mackay, “Ardupilot,” https://github.com/ArduPilot/ardupilot_wiki/blob/master/rover/source/docs/gettit.rst, 2016.
  • [15] “Ardupilot rover,” http://ardupilot.org/rover/, accessed: 2016-09-13.
  • [16] N. Karapetyan, J. Moulton, J. S. Lewis, A. Quattrini Li, J. M. O’Kane, and I. Rekleitis, “Multi-robot Dubins coverage with autonomous surface vehicles,” in IEEE International Conference on Robotics and Automation (ICRA), 2018.
  • [17] Y. Yang, J. Du, H. Liu, C. Guo, and A. Abraham, “A trajectory tracking robust controller of surface vessels with disturbance uncertainties,” IEEE Transactions on Control Systems Technology, vol. 22, no. 4, pp. 1511–1518, 2014.
