An adaptive kernel-split quadrature method for parameter-dependent layer potentials

06/18/2019
by   Ludvig af Klinteberg, et al.
Simon Fraser University
0

Panel-based, kernel-split quadrature is currently one of the most efficient methods available for accurate evaluation of singular and nearly singular layer potentials in two dimensions. However, it can fail completely for the layer potentials belonging to the modified Helmholtz, biharmonic and Stokes equations. These equations depend on a parameter, denoted α, and kernel-split quadrature loses its accuracy rapidly when this parameter grows beyond a certain threshold. The present report describes an algorithm that remedies this problem, using per-target adaptive sampling of the source geometry. The refinement is carried out through recursive bisection, with a carefully selected rule set. This maintains accuracy for a wide range of α, at an increased cost that scales as α. Using this algorithm allows kernel-split quadrature to be both accurate and efficient for a much wider range of problems than previously possible.

READ FULL TEXT VIEW PDF

Authors

page 4

10/22/2019

Accurate quadrature of nearly singular line integrals in two and three dimensions by singularity swapping

The method of Helsing and co-workers evaluates Laplace and related layer...
05/26/2021

High-order close evaluation of Laplace layer potentials: A differential geometric approach

This paper presents a new approach for solving the close evaluation prob...
05/26/2020

Highly accurate special quadrature methods for Stokesian particle suspensions in confined geometries

Boundary integral methods are highly suited for problems with complicate...
12/12/2020

Quadrature error estimates for layer potentials evaluated near curved surfaces in three dimensions

The quadrature error associated with a regular quadrature rule for evalu...
04/14/2020

Neglecting discretization corrections in regularized singular or nearly singular integrals

A method for computing singular or nearly singular integrals on closed s...
07/22/2021

Continuity estimates for Riesz potentials on polygonal boundaries

Riesz potentials are well known objects of study in the theory of singul...
02/19/2020

Split representation of adaptively compressed polarizability operator

The polarizability operator plays a central role in density functional p...
This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

This report presents an extension to the panel-based, kernel-split quadrature scheme by Helsing and Ojala [9]

, for evaluating singular and nearly singular layer potentials in two dimensions. This scheme represents one of the current state of the art methods for maintaining low errors when solving elliptic partial differential equations (PDEs) in two dimensions using integral equation methods

[9, 7, 13]. However, there exists a set of problems for which this scheme can fail completely. This includes the following PDEs in :

(1)
(2)
(3)

where is real number. For brevity, we refer to them as the modified PDEs. Note that they are not consistently named in the literature. For example, the modified Helmholtz equation is also known as the screened Poisson equation, the Yukawa equation, the linearized Poisson-Boltzmann equation, and the Debye-Hückel equation. Meanwhile, the modified Stokes equations are also known as the Brinkman equations. These PDEs appear in many different applications: electrostatic interactions in protein and related biological functions, macroscopic electrostatics and fluid flow on the micro scale, to mention a few [15, 14, 10, 11, 5, 8]. They also appear as a result of applying implicit or semi-implicit time marching schemes to the heat equation and the time-dependent Stokes and Navier-Stokes equations [4, 6].

A common trait of the modified PDEs is that their associated layer potentials have kernels that either decay exponentially, or have components that decay exponentially, with a rate that is proportional to . This decay presents a problem for the abovementioned kernel-split quadrature. In short, the quadrature method is based on writing the kernel on a form with smooth functions multiplying explicit singularities, and then integrating each term separately. In order to be accurate, these smooth functions have to be well approximated by piecewise polynomials, which is no longer the case when is large.

We have developed a robust quadrature scheme, based on adaptive refinement, that maintains high accuracy for any

, without sacrificing effficiency. It applies for target points both on and close to the boundary, where regular quadrature is insufficient. In this context, refinement refers simply to an interpolation of known quantities to a locally refined discretization, as opposed to increasing the number of degrees of freedom in the discretized integral equation.

This report presents a work in progress, as the guidelines for setting parameters are entirely heuristic at the moment, even though they provide very satisfying result. We will at a later date update this report with analysis that supports these parameter choices.

The remainder of this report is organized as follows. In section 2 we give an outline of the kernel-split quadrature. Section 3 describes the problem that we are trying to solve, using the modified Helmholtz equation as an example. The new algorithm we propose is presented in section 4, followed by numerical results in section 5.

2 Background

Our goal is to evaluate layer potentials of the form

(4)

The layer density is assumed to be smooth, while the kernel is singular at . It can be expressed with explicit singularities as

(5)

where , and are smooth functions. We refer to this decomposition as kernel-split.

The boundary is discretized using a composite Gauss-Legendre quadrature. It is subdivided into intervals, denoted panels,

(6)

Each panel is described by a parametrization ,

(7)

Associated with the parametrization is a speed function

, a normal vector

and the curvature . Introducing the convenience notation , the layer potential from a panel becomes

(8)

Each panel is discretized in the parametrization variable using the nodes and weights of an -point Gauss-Legendre quadrature rule, which is of order , such that on each panel we have the discrete quantities

(9)
(10)

Omitting the panel index , the layer potential contribution from a panel is then computed using the approximation

(11)

Due to the singularities in , the above formula requires to be well-separated from (this notion will be clarified further). Otherwise, the scheme of [7] is used, known as product integration. With that, target-specific quadrature weights of order are computed for the known singularities where needed, such that

(12)
(13)

Substituting (5) into (4) and applying the above product integration gives the so called kernel-split quadrature scheme. By formulating it as a correction, we only need to explicitly evaluate at . Depending on the location of the target point relative to the source panel , the evaluation can be divided up into three different cases:

  1. Singular, with self-interaction. If is one of the quadrature nodes, , then the term multiplying is smooth, with the limit

    (14)

    where is the curvature of at . Applying product integration to the term, we get

    (15)
  2. Singular, without self-interaction. If is either on the source panel , or on a neighboring panel, then the term is still smooth, but we do not have to take the limit at into account. This lets us simplify the above to

    (16)
  3. Nearly singular case. If is close to , but not on a neighboring panel, then we need to deal with both the singularities in (5). This case occurs when either is close to , or when is on a section of the boundary that is distant in arc length or disjoint. The layer potential is then evaluated as

    (17)

Given a target point , the panels on are partitioned into two sets: far panels, that can be evaluated directly using (11), and near panels, that must be evaluated (or corrected), using either (15), (16), or (17).

3 Problem statement

The kernel-split quadrature scheme outlined above is both efficient and accurate when applied to the single and double layer potentials of several PDEs, such as the Laplace, Helmholtz and Stokes equations [9, 7, 13]. However, for the layer potentials of eqs. 3, 2 and 1, the scheme can fail completely. All of these equations have layer potential kernels including second-kind modified Bessel functions, in the forms and/or . As we shall see, this is problematic for the kernel-split quadrature.

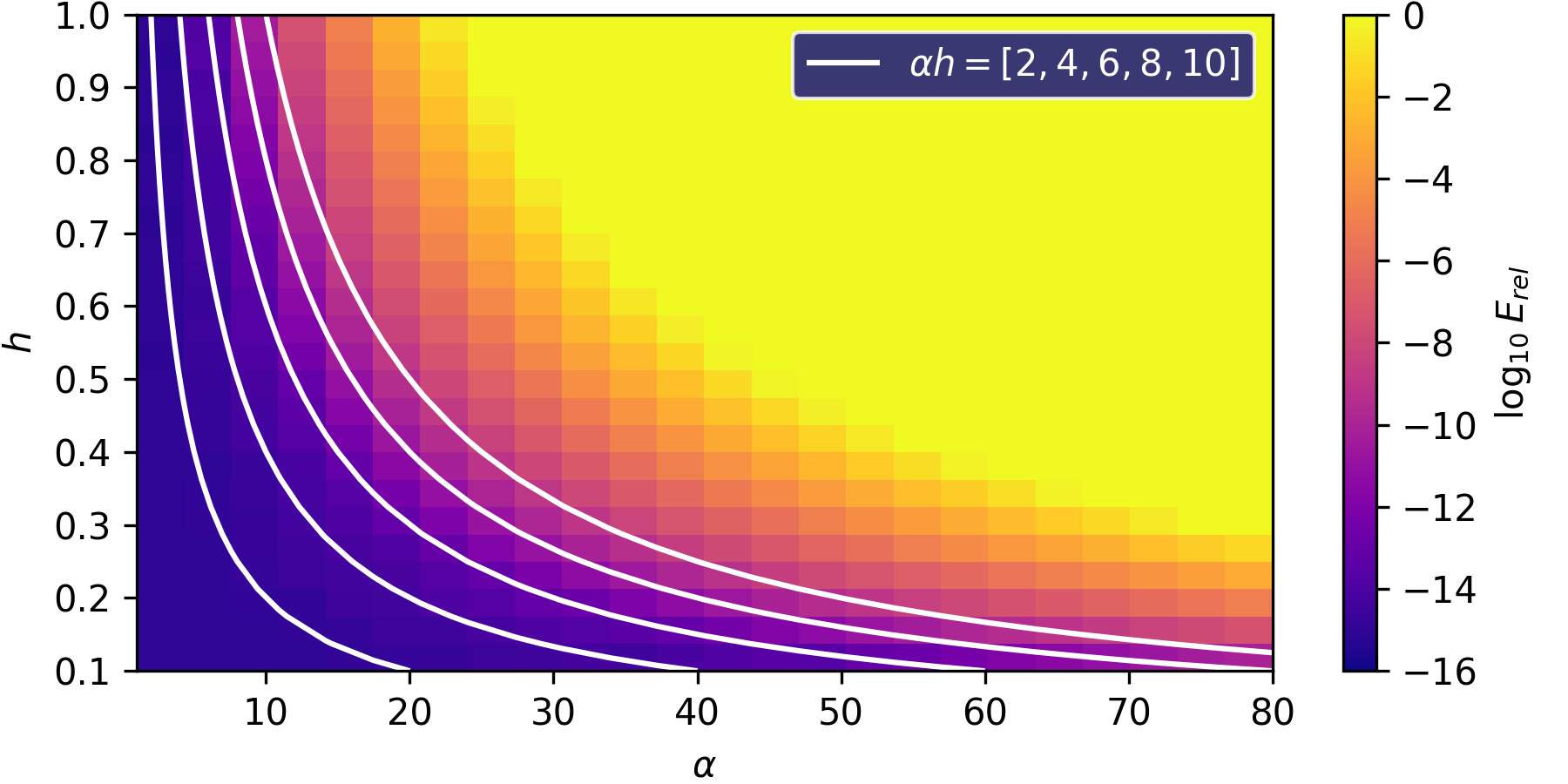

Figure 1: Relative error , when evaluating the modified Helmholtz single layer potential (23) over a flat panel of length , using kernel-split quadrature. The maximum is taken over 100 values of randomly drawn from the box . The white lines are contours of the quantity , providing a heuristic motivation for why a criterion of the form (30) is suitable.
