Deep learning-based systems are typically designed under the assumption that the inputs/examples presented to the system during the test/operational phase follow the same underlying distribution as the examples used to train the system. However, recent research has shown security vulnerabilities of such systems when this fundamental assumption is violated. More specifically, researchers have shown that it is possible to craft adversarial examples that violate the aforementioned assumption to fool deep neural networks .
Most adversarial examples on convolutional neural network architectures (typically used in image classification scenarios including face recognition) are generated by perturbing the pixel intensities directly in the digital domain[13, 16, 3]. These digital attacks, however, do not directly translate into the physical domain where an adversary has access to the open-camera channel. In such setting, the adversary usually does not have access to the image captured using the camera that is input to the convolutional neural network. Specifically, consider a face recognition system, that is deployed, such that it captures a face image of a subject and compares it to the enrolled faces to validate or establish the identity of the subject. While security mechanisms can be enforced to safeguard the digital storage and transmission of facial data captured using the camera, an adversary can potentially trick the system by providing a malicious input to the camera directly  .
A subclass of physical attacks called presentation or spoofing attacks on face recognition systems achieve this by creating physical spoofs using one or more face images of the target (e.g., 2D-printed face photos, 3D masks) . The same objective can also be achieved by crafting physical adversarial artifacts such as glasses that an adversary can wear to either evade recognition or mimic a target . However, because physical adversarial artifacts are generally fabricated using a manufacturing method (e.g., 2D or 3D printing), adversarial attacks using such artifacts cannot be carried out in real-time. In addition, the utility of physical artifacts is limited in conducting at-scale physical attacks targeting multiple users of a face recognition system by the type of physical specimens that can be fabricated in typical resource-constrained settings.
We investigate the feasibility of conducting a real-time physical attack on face recognition systems using adversarial light projections that can be used for impersonating different enrolled users (called impersonation), or evading recognition (called obfuscation). The adversary first calibrates the camera-projector setup and then uses a transformation-invariant adversarial pattern generation method to generate adversarial patterns in the digital domain. These digital patterns are subsequently projected onto the adversary’s face to conduct impersonation or obfuscation attack. We refer to this attack as adversarial light projection attack. As an example, impersonation is the goal when an adversary intends to obtain access to a resource, e.g., personal device protected with a target’s face. Obfuscation, on the other hand, is the goal of an adversary blacklisted by law enforcement agencies who wants to evade recognition in scenarios such as border crossing.
A similar idea was recently proposed for fooling deep learning classifiers designed for image classification systems. However, the authors did not evaluate the utility of their method in the context of face recognition systems. Another recent work  fabricated a wearable cap with infrared LEDs to attack face recognition systems. Although this work is similar in terms of its objective, our method does not require a wearable artifact and thus offers an easier alternative using off-the-shelf camera-projector setup (e.g., a portable mini projector ) for conducting physical attacks on facial recognition systems. Preliminary experiments conducted on 50 subjects show the vulnerability of state-of-the-art face recognition systems to adversarial light projection attacks in both white-box and black-box attack settings.
The major contributions of this work include:
Investigation of real-time adversarial light projection attacks using off-the-shelf camera-projector setup on state-of-the-art face recognition systems.
An efficient transformation-invariant adversarial pattern generation method suitable for conducting real-time adversarial light projection attacks.
Demonstration of vulnerability of state-of-the-art face recognition systems to adversarial light projection attacks in both white-box and black-box settings.
2 Related Work
Existing research on adversarial attacks can be broadly classified into two major categories: digital and physical attacks. Given one or more examples from source and target class, digital attack methods generate adversarial pattern(s) in the digital domain such that the pattern(s) results in a source class example being misclassified as a target class example (called targeted attack), or the source class example being incorrectly classified as an example from a different class (called untargeted attack). Physical attacks extend this notion into the physical domain by using specially crafted adversarial artifacts for targeted or untargeted attacks. Below we summarize the major research in the two categories and contrast existing physical attack methods from the method presented here.
2.1 Digital Attacks
One of the first digital attack methods proposed by Szegedy et al. in 2013 called L-BFGS  formulates the goal of adversarial pattern generation as an optimization problem, and uses a box-constrained optimizer and linear search to find the optimal solution. In 2014, Goodfellow et al.  proposed Fast Gradient Sign Method (FGSM), a single-step adversarial pattern generation method that uses gradients computed from neural network parameters for adversarial pattern generation. Following this, multiple extensions of FGSM were introduced [10, 5, 24, 25].
Shi et al.  combine gradient ascent and descent with binary search to find the adversarial pattern with the least norm. One of the most popular adversarial pattern generation methods Projected Gradient Descent (PGD)  uses gradient projection space as a bound to generate adversarial patterns. Other prominent methods include DeepFool  which was proposed for conducting untargeted attacks with norm, and models adversarial pattern generation as a linear approximation problem, and SparseFool  that aims to generate adversarial patterns by modifying a minimal number of pixels. Another popular method proposed by Carlini and Wagner
uses gradient descent with a custom loss function to minimize thenorm during adversarial pattern generation.
2.2 Physical Attacks
Kurakin et al.  printed 2D adversarial patches containing objects overlaid by adversarial patterns to attack deep networks trained for the object recognition task. Several other researchers directly printed 2D adversarial patterns which are then manually attached to physical objects to attack object detection and classification algorithms [4, 21, 7, 27]. Similarly, Thys et al.  printed 2D adversarial patches to circumvent pedestrian detection classifiers. Athalye et al.  proposed a transformation-invariant adversarial pattern generation scheme called Expectation of Transformations (EOT) to fabricate 3D adversarial objects designed to fool object classifiers. More recently, Li et al.  printed adversarial dots on a 2D transparent paper to provide adversarial input via the camera to an object recognition system. Although the aforementioned methods succeed in achieving their stated objective, they usually require extensive calibration of each 2D or 3D-printed artifact before fabrication. In addition, they also require fabrication of physical artifacts. On the other hand, the camera-projector setup used in the method presented here can be calibrated once based on the attack environment, and then subsequently used for conducting multiple real-time attacks targeting different enrolled users of a face recognition system.
Similar to this work, Nichols and Jasper  used a camera-projector setup to generate 2D adversarial dot patterns that are then projected onto the physical scene to attack object recognition systems. However, they did not use the setup for conducting impersonation or obfuscation attacks on face recognition systems. Zhou et al. , on the other hand, fabricated a wearable cap with infrared LEDs to fool face recognition systems. Although this work is identical to the method presented here in terms of its objective, our method does not require creation of a wearable artifact and thus offers an easier alternative using off-the-shelf camera-projector setup for conducting physical attacks on facial recognition systems.
3 Adversarial Light Projection Attack

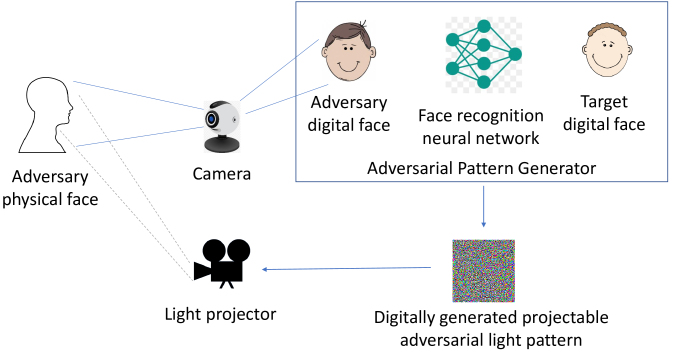

The proposed adversarial light projection attack is performed in two steps: the first step is to calibrate the camera-projector setup based on the attack environment and compute the adversarial pattern in the digital domain that can be used to either evade recognition or impersonate a target, and the second step is to project the computed digital adversarial pattern onto the adversary’s face using the projector to attack the deployed face recognition system (see Figure 2).
In the first step, the adversary is assumed to have either white-box access111In white-box setting, the adversary knows the internal details of the model including the architecture and trained weight parameters. or black-box access222In black-box setting, the adversary only knows the decision/output of the model for one or more inputs. to the deployed face recognition algorithm that the adversary intends to attack. White-box is a reasonable assumption for face recognition algorithms such as FaceNet  and SphereFace  that are available in open-source. On the other hand, commercial face recognition systems often only provide black-box access. So we assume that the adversary uses an open-source algorithm to generate adversarial patterns to attack the black-box system. This assumption exploits the property that adversarial patterns are highly transferable across deep network architectures.
Additionally, we assume that the adversary has access to an image of the target (in case of impersonation attack). Further, the adversary has access to a camera to capture the adversary’s own face image in order to compute the adversarial light pattern, and a projector that is able to project light patterns on his/her own face in the physical domain in order to conduct the attack. In addition, the adversary has prior knowledge of the environment where the face recognition system is deployed. This is to ensure that the adversarial light pattern can be calibrated based on the attack environment before projection.
3.2 Practical Considerations
Adversarial light projection attacks are inherently challenging because of their unconstrained nature. Below we discuss key practical considerations critical to the success of such attacks:
Environmental factors, for example ambient and positional lighting, and their interplay with the projected light. Calibration of the attack setup based on the attack environment is therefore integral to the success of the attack (see Section 4).
Intra-adversary facial variations especially due to slight physical movements of the adversary, e.g., head movements and changes in the distance to the camera, while conducting the attack. Generation of adversarial patterns that are relatively invariant to such variations is therefore critical to the success of the attack (see Section 5).
Intra-target facial variations because the adversary would typically not have access to the enrolled images of the target in the deployed face recognition system. Instead, the adversary would have target images captured in a different context, such as social media. Hence it is important that the generated adversarial pattern be robust to the target’s facial variations (see Section 5).
4 Attack Setup Calibration
The key assumption in this step is that the adversary either has access to the actual attack environment or is able to simulate the attack environment to a reasonable extent in offline setting for calibration purposes. There are two key calibration steps integral to success of the attack: (i) position calibration: to ensure that the adversarial pattern generated in the digital domain can be projected onto the appropriate region of the adversary’s face while conducting the attack, and (ii) color calibration: to ensure that the digital adversarial pattern is reproduced with high fidelity by the projector as adversarial light.
4.1 Position calibration

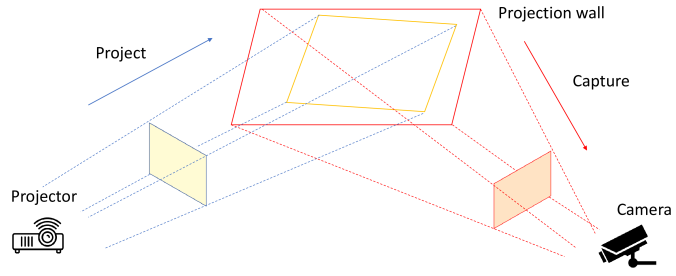

Assume that the adversary is in view of both the camera and the projector (Figure 3). There are two possible ways to perform position calibration: (i) manual: the adversary manually annotates a small number (3-4) of corresponding points between the two views; or (ii) automatic: a facial landmark detection algorithm is used to detect corresponding facial landmarks from the two views. Once the landmark correspondences are determined, a calibration matrix is computed to perform position calibration (see Figure 4).
4.2 Color calibration
Let and be the color reproduction functions of the camera and projector, respectively, in the physical attack setting. The objective of color calibration is to find the color transformation function given and . Let , where is the physical adversary, is the image of the adversary in the digital domain, and is the method used to generate adversarial pattern in the digital domain. Also, assume additive characteristic of the color reproduction functions, i.e. . The relationship between digital and physical domain can then be expressed as follows:
Given this relationship, the color calibration function
is estimated using regression on the corresponding digital-physical color pairs in the attack setting. In practice, we found that performing regression incolor space results in more accurate color reproduction in the physical domain than standard color space.
A reasonable estimate of can be obtained using the aforementioned method. However, the underlying assumption here is that the adversary has prior access to the attack environment. If this is not the case, the adversary can perform calibration on-the-fly before conducting the attack.
5 Transformation-Invariant Adversarial Pattern Generation
Generation of adversarial patterns that are relatively invariant to intra-adversary facial variations is critical to the success of light projection attacks. Let and , respectively, be the images pertaining to the adversary and the target in the digital domain that are used in the adversarial pattern generation process. Existing methods (e.g., , ) generate a transformation-invariant adversarial pattern by applying different transformations on the adversary’s image. In case of impersonation attack, the following optimization is solved:
Here, corresponds to the transformation, corresponds to the weight of such that . Also, is the loss function of the face recognition algorithm used in the adversarial pattern generation process. Equation 2 involves computation of loss functions with respect to each transformation in each iteration. This is computationally intensive, and limits the application of these methods in the setting where an adversary wants to generate adversarial patterns in real-time.
5.1 Computing representative adversary image
Instead, our method computes an average representative image of the adversary as follows:
For the impersonation task, the following optimization is then solved:
Equation 4 does not require explicit computation of loss functions for all possible transformations, yet explores a wide variety of transformation configurations in each iteration. The limitation though is that the optimization is performed with respect to a single representative image, and not with respect to expected loss pertaining to each transformation configuration. For real-time light projection attacks, this trade-off is desirable.
5.2 Using the original adversary image
Optimizing with respect to the representative image provides an efficient way to achieve transformation-invariance. However, to ensure that the generated pattern retains adversarial characteristics not only for the representative image but for as well, optimization with respect to both and is performed. Figure 5 illustrates example benefit for translation and rotation-invariance. Similar benefits were observed for other transformations.
5.3 Proposed method
Algorithm 1 summarizes the proposed transformation-invariant pattern generation method. The method takes as input the image of the adversary and the image of the target , and outputs the adversarial pattern . The transformations used depend on the invariance objective (e.g
., affine, perspective, photo-metric or others). The convergence criteria is either number of steps or similarity score threshold. A brightness term sampled from a normal distribution is used during each iterative update for obtaining invariance to slight illumination changes (step 5). Furthermore, a binary mask can be used to constrain the facial region for which the adversarial pattern is generated similar to.
5.4 Using multiple images of target
While the method described above focuses on intra-adversary invariance, it is desirable to impart invariance to intra-target variations as well to increase likelihood of success. For this, multiple images of the target can be used. Instead of a single target image, algorithm 1 can then be optimized with respect to target embedding computed using multiple target images.
6 Experimental Evaluation
To study the feasibility of adversarial light projection attacks, live subject experiments are performed with 50 subjects in total. Each experiment is conducted in a room with fixed lighting. A Logitech web camera and a Panasonic or Epson projector are used for the experiments.
6.1 Experimental setup
A web-based user interface is designed that takes real-time input of a subject’s face using a web camera, and lets the subject select/upload face images of the target. The interface also lets the subject perform calibration based on the camera feed and the connected projector. Multi-task convolutional neural network (MTCNN)-based face detection and landmark estimation  is used for automatic position calibration. For color calibration, the method described in section 4.2 is used. If necessary, the brightness and color intensity of the projector is manually tuned via the interface.
Post calibration, a python script executes the transformation-invariant pattern generation method (implemented in Tensorflow 2.0) for 100 iterations. Cosine is used as distance metric and multiplication as the fusion function. For gradient update, the parametersand are set to and respectively. The following transformation configurations (assuming the origin is centered at midpoint of adversary’s image) are considered during generation of the transformation-invariant pattern: to pixels translation in both and directions, to rotation, and times scaling. Each transformation configuration is assumed to be equally likely.
The computed digital pattern is projected using the projector in the form of adversarial light onto the subject’s face. The subject’s face with light projection is captured for about 30 seconds and used to attack a face recognition algorithm in real-time. The subject is instructed to make natural head movements (e.g. translation, rotation) during the duration of the attack. Similarity score between each captured image and the target face image is computed. If the computed score for any adversary-target image pair is above the threshold corresponding to False Accept Rate (FAR) of 0.01%, the attack attempt is considered successful. FaceNet  and SphereFace  are the two face recognition algorithms used in white-box setting. In black-box setting, FaceNet is used to generate adversarial pattern to attack a commercial face recognition algorithm.
For impersonation, a face image of a subject (adversary) captured using the camera, and a face image of the target (obtained from the web or a database) are used to generate the digital adversarial pattern. A different face image of the target (also obtained from the web or a database) is assumed to be enrolled in the face recognition system to be attacked. Impersonation attempts are made using different subject pools in the following scenarios.
Fixed target: Impersonating a fixed high-profile target (Rowan Atkinson). 25 subjects in total attempted this in both white-box and black-box setting. 23 and 21 attempts out of 25 on FaceNet and SphereFace, respectively, succeeded. In black-box setting, 15 out of 25 attempts on the commercial system succeeded.
Selected target: Impersonating any one of the given targets (Taylor Swift, Michael Phelps, or Albert Einstein) at random. A total of 15 subjects attempted this in white-box setting. 14 and 12 attempts out of 15 on FaceNet and SphereFace, respectively, succeeded.
Top-k similar targets: Given a database of target images (Labelled Faces in the Wild (LFW) database ), impersonate top-k most similar targets based on a face recognition algorithm. 10 different subjects attempted this on five most similar targets from LFW in white-box setting. 44 and 39 out of 50 attempts on FaceNet and SphereFace, respectively, succeeded.
For obfuscation, two face images of a subject (adversary-target pair) captured using the camera are used to generate digital adversarial pattern. A different face image of the same subject (target) is assumed to be enrolled. 10 different subjects attempted obfuscation attacks in both white-box and black-box setting. All 10 obfuscation attempts on FaceNet and SphereFace succeeded in white-box setting, whereas in black-box setting 7 out of 10 attempts on the commercial face recognition system succeeded. Table 1 summarizes the experimental results. Figure 8 shows a successful example of obfuscation on the commercial face recognition system.
6.4 Failure Cases
While most impersonation and obfuscation attempts are successful, failure of adversarial light projection attacks is observed due to one or more of the following reasons:
Light projection either covering the entire face or significantly occluding majority of the face resulting in failure of face detection. Projection of adversarial light on a particular part of the face, e.g., cheeks or forehead, is found to result in higher likelihood of success in practice.
Strong ambient or directional lighting that overpowers the projected light.
Extreme facial pose of the adversary. In practice, however, this is less likely as the adversary is cooperative.
Out of focus light projection on the adversary’s face when the projector lens is not tuned appropriately. Manual tuning of the projector lens to ensure the projected light is properly focused on the adversary’s face is important for a successful attack attempt in practice.
We plan to investigate failure cases in a more systematic manner in a follow-up study.
7 Conclusions and Future Work
We show the feasibility of conducting impersonation and obfuscation attacks using adversarial light projections on two open-source face recognition systems in white-box setting and a commercial face recognition system in black-box setting. Furthermore, an efficient transformation-invariant adversarial pattern generation method that enables an adversary to conduct light projection attacks in real-time is presented.
While we have shown the feasibility of light projection attacks, we have not systematically tested the likelihood of success in different environments. One of our immediate goals, therefore, is to systematically investigate the impact of environmental and subject-dependent covariates (such as lighting and subject pose) on the repeatability of light projection attacks. Furthermore, we suspect that presentation attack detection methods designed for static attacks using 2D or 3D fabricated artifacts will be inadequate in defending against dynamic adversarial attacks such as light projection attacks. Therefore, we also plan to conduct an evaluation of existing defense mechanisms and develop novel defense mechanisms for such dynamic attacks.
