1 Introduction
Robot learning has proven to be a challenge in realworld application. This is partially due to the ineffectiveness of passive data acquisition for learning and a necessity for action in order to generate informative data. What makes this problem even more challenging is that active data gathering is not a stable process. It involves exciting states in order to acquire new information. Safe exploration then becomes a challenge for modern day robotics. The problem becomes exacerbated when memory and task constraints (i.e., actively collecting data after deployment) are imposed on the robot. If the structures that compose the dynamics of the robot change over time, the robot will need to explore its own dynamics in a manner that is systematic and informative, avoiding damage to the underlying structures (and humans) in the environment. In this paper, we address these fundamental issues by developing an algorithm that is inspired by hybrid systems theory. This algorithm enables robots to actively pursue informative data by generating area coverage while guaranteeing Lyapunov attractiveness during exploration.
Active data acquisition and learning are often considered part of the same problem of learning from experience [1, 2]
. This is generally seen in the field of reinforcement learning (RL) where attempts at a task, as well as learning from the outcome of actions, are used to both learn policies and predictive models
[1, 3]. As a result, generalizing these methods to realworld application has been a topic of research [3, 1, 4] where datainefficiency dominates much of the progress. A solution to the problem of datainefficiency is to simulate robots in a realistic virtual environment and subsequently use the large amount of synthetic data to solve a learning problem before applying the results on a real robot [5]. This leads to issues such as the “realitygap” where finer modelling details such as motor delays lead to poor quality data for learning.Existing work addresses the datainefficiency problem by actively seeking out informative data using information maximization [6] or by pruning a dataset based on some information measure [7]. These methods still suffer from the problem of local minima due to a lack of exploration or nonconvex information objectives [8]. Safety in the task is also a concern when actively seeking out informative measurements. Methods typically provide some bound on the worst outcome model using probabilistic approaches [9], but often only consider the safety with respect to the task and not with respect to the data collection process. We focus on problems where data collection involves exploring the statespace of robots where safe generation of informative data is important. In treating data acquisition as a dynamic area coverage problem—where the time spent during the trajectory of the robot is proportional to regions where there is an expectation of informative data—we are able to uncover more informative data that is not already expected. With this approach, we can provide attractiveness guarantees—that the robot will eventually return to a stable state—while providing control authority that allows the robot to actively seek out informative data in order to later solve a learning task. Thus, our contribution is an approach to dynamic area coverage for active data collection that starts from equilibrium policies for robots.
We structure the paper as follows: Section 2 provides a list of related work, Section 3 defines the problem statement for this work. Section 4 formulates the algorithm for active data acquisition from equilibrium. Section 5 provides simulated and experimental examples of our method. Last, Section 6 provides concluding remarks on our method and future directions.
2 Related Work
Existing work generally formulates problems of active data acquisition as information maximizing with respect to a known parameterized model [10, 11]. The problem with this approach is that robots need to address local optima [12, 11], resulting in insufficient data collection. Other approaches have sought to solve this problem by thinking of information maximization as an area coverage problem [12, 13]. Ergodic exploration, in particular, has remedied the issue of local extrema by using the ergodic metric to minimize the Sobelov distance [14] from the timeaveraged statistics of the robot’s trajectory to the expected information in the explored region. This enables both exploration (quickly in low information regions) and exploitation (spending significant amount of time in highly informative regions) in order to avoid local extrema and collect informative measurements. The major downside is that this method assumes that the model of the robot is fully known. Moreover, there is little guarantee that the robot will not destabilize during the exploration process. This becomes an issue when the robot must explore part of its own statespace (i.e., velocity space) in order to generate informative data. To the authors’ best knowledge this has not been done to this date. Another issue is that these methods do not scale well with the dimensionality of the search space, making experimental applications with this approach challenging due to computational limitations.
Our approach overcomes these issues by using a samplebased KLdivergence measure [13] as a replacement for the ergodic metric. This form of measure has been used previously; however, it relied on motion primitives in order to compute control actions [13]. We avoid this issue by using hybrid systems theory in order to compute a controller that sufficiently reduces the KLdivergence measure from an equilibrium stable policy. As a result, we can use approximate models of dynamical systems instead of complete dynamic reconstructions in order to actively collect data while ensuring safety in the exploration process through a notion of attractiveness.
The following section formulates the problem statement that our method solves.
3 Problem Statement
Modeling Assumptions and Stable Policies
Assume we have a robot whose approximate dynamics can be modeled using
(1)
where is the state of the robot,
is a control vector applied to the robot,
is the free unactuated dynamics, is the actuated dynamics, and is the time rate of change of the robot at state subject to the control . Moreover, let us assume that there exists a Lyapunov function such that under a policy , , where for . For the rest of the paper, we will refer to as an equilibrium policy.KLdivergence and Area Coverage
Given the assumptions of known approximate dynamics and the equilibrium policy, we can define active exploration for informative data acquisition as automating safe switching between and some control authority that generates actions that actively seek out informative data. This is accomplished by specifying the active data acquisition task using an area coverage objective where we minimize the KLdivergence between the time average statistics of the robot along a trajectory and a spatial distribution defining the current coverage requirement. We can then define an approximation to the spatial statistics of the robot as follows:
Given a search domain where , the approximated timeaveraged statistics of the robot, i.e., the time the robot spends in regions of the search domain , is defined by
(2)
where is a point in the search domain , is the component of the robot’s trajectory and actions that intersects the search domain , is a positive definite matrix parameter that specifies the width of the Gaussian, is a normalization constant such that and , is the sampling time, and is sum of the time horizon and amount of time the robot remembers into the past.
This is an approximation because the true timeaveraged statistics, as described in [12]
, is a collection of delta functions parameterized by time. We approximate the delta function as a Gaussian distribution with covariance
, converging as . Using this approximation, we are able to relax the ergodic areacoverage objective in [12] and use the following KLdivergence objective [13]:where is the expectation operator, , and , , is a distribution that describes where in the search domain an informative measurement is likely to be acquired. We can further approximate the KLdivergence via sampling where we approximate the expectation operator as
(3)
where
is the number of samples in the search domain drawn from a uniform distribution. With this formulation, we can approximate the ergodic coverage metric using (
3).In addition to the KLdivergence, we can add a task objective
(4)
where is the sampling time, is the time horizon, is the running cost, is the terminal cost, and is the state of the robot at time . This additional objective will typically encode some other task, in addition to the KLdivergence objective.
By summing the KLdivergence objective and a task objective (4), we can then pose active data acquisition as an optimal control problem subject to the initial approximate dynamic model of the robot. More formally, the objective is written as
(5)
where the goal is to generate a control that minimizes (5) subject to the approximate dynamics (1). Because we are including the equilibrium policy in the objective, we are able to synthesize controllers that take into account the equilibrium policy and the desire to actively seek out measurements.
For the rest of the paper, we assume the following:

We have an initial approximate model of the robot.

We also have an initial policy that maintains the robot at equilibrium, for which there is a Lyapunov function.
These two assumptions are reasonable in that often robots are designed around stable states and typically have locally stable policies.
The following section uses the fact that we have an initial policy in order to synthesize control vectors that reduce (5). Specifically, we want to generate a hybrid composition of control actions that enable active data collection and actions that stabilize the robotic system. That way, it is possible to quantify how much the robot is deviating from a stable equilibrium. Thus, we motivate using hybrid systems theory in order to consider how much the objective (5) changes from switching from the equilibrium policy to the control . By quantifying the change, we specify an unconstrained optimization which solves for a control that applies actions that retain Lyapunov attractiveness.
4 Algorithm
Our algorithm starts by considering the objective defined in (5) subject to the approximate dynamic constraints (1) and policy . We want to quantify how sensitive the objective is to switching from policy to the control vector for time for a infinitesimally small time duration . This sensitivity will be a function of and inform us of the most influential time to apply . Thus, we can use the sensitivity to write an objective whose minimizer is the schedule of control vectors that reduces the objective (5). The sensitivity of the objective (5) with respect to the duration time , of switching from the policy to the control at time is
(6)
where and , and is the adjoint, or costate variable which is the solution of the following differential equation
(7)
subject to the terminal constraint . Taking the derivative of the objective (5) with respect to the duration time gives
The term is calculated by
(8)
where , and is the state transition matrix for the integral equation
(9)
where and .
We can similarly show that the term is given by
(10)
using the same expression in (9). Combining (4) and (4) and taking the limit as gives
(11)
Setting
and from [15] we can show that (11) can be written as
where
subject to the terminal condition .
The sensitivity is known as the mode insertion gradient [15]. We can directly compute the mode insertion gradient for any control that we choose. However, our goal is to find one such control that reduces the objective (5) but still maintains its value near the equilibrium policy . To solve for this control, we formulate the following objective function
(12)
where is a positive definite matrix that penalizes the deviation from the policy . The control vector that minimizes is given by
(13)
Taking the derivative of (12) with respect to gives
(14)
Since is convex in , we set the expression in (4) to zero and solve for which gives us
which is a schedule of control values that reduce the objective for time . This controller reduces (5) for that is sufficiently small. The reduction in (5), , by applying can be approximated as . Ensuring that is an indicator that the robot is always actively pursuing data and reducing the objective (5). Let us assume that , where is the control Hamiltonian. Then where is the control space. Inserting (13) into (6) gives
(15)
Because of the manner in which we chose to solve for , and cancel out in (15). In addition, implies that and the policy is not an optimizer of (5). As a result, we can further analyze without the need to consider the policy . This gives us the following expression
which we can rewrite as
(16)
Thus, (16) shows us that is always negative subject to the schedule of control vectors (13) and the objective is being reduced when is applied.
We automate the switching between and by choosing a and such that is most negative and . This is done through the combination of choosing with a 1dimensional optimization and solving for using a line search until [16, 17]. By choosing we can place a bound on how much our algorithm excites the dynamical system through Lyapunov analysis (Theorem 4).
Assume there exists a Lyapunov function for (1) such that under the policy , is asymptotically stable. That is, where for . Then, given the schedule of control vectors (13) , , where is the Lyapunov function subject to the policy , and . Writing the integral form of the Lyapunov function switching between and at time for a duration of time starting at gives
(17)
where we explicitly write the dependency on in
. Using chain rule, we can write
(18)
By inserting (13) in (18) we can show the following identity:
(19)
Using (4) in (4), we can show that
(20)
where .
Letting the largest value of be given by we can approximate (4) as
(21)
(22)
Subtracting both side by gives the upper bound on instability
(23)
for the active data collection process. By fixing the maximum value of , we can provide an upper bound to the change of the Lyapunov function during active data acquisition. Moreover, we can tune our control vector using the regularization value such that as , and . With this bound, we can guarantee Lyapunov attractiveness [18], where the system (1) is not Lyapunov stable, but rather there exists a time such that the system (1) is guaranteed to return to a region of attraction where the system can be guided towards a stable equilibrium state . This property will play an important role in examples in Section 5. A dynamical system (1) is Lyapunov attractive if at some time , the trajectory of the system where and such that is an equilibrium state. Given the schedule of control vectors (13) , the robotic system governed by the dynamics in (1) is Lyapunov attractive such that , where
is the solution to switching between stable and exploratory motions for duration starting at time . Assume there exists a Lyapunov function such that under the policy . Moreover, assume that subject to the control vector , the trajectory where where . Using Theorem 4, the integral form of the Lyapunov function (4), and the identity (4), we can write
(24)
where . Since is fixed and can be tuned by the matrix weight , we can choose a such that . Thus, and , implying Lyapunov attractiveness, where is the minimum of the Lyapunov function at the equilibrium state . Asymptotic attractiveness shows us that the robot will return to a region where will return to a minimum under policy , allowing the robot to actively explore and collect data safely. Moreover, we can choose the value of and in automating the active data acquisition such that attractiveness always holds, giving us an algorithm that is safe for active data collection.
All that is left is to define a spatial distribution that actively selects which measurements are more informative to the learning task.
Measure of Data Importance for Model Learning
Our goal is to provide a method that is general to any form of learning that requires a robot to actively seek out measurements through action. This may include area mapping or learning the dynamics of the robot. Thus, we use measures that allow the robot to quantify where in the search domain there exists useful data that needs to be collected. While there exists many measures that can select important data subject to a learning task, we use a measure of linear independence [19, 7, 20]. This measure is often used in sparse Gaussian processes [7, 20] where a data set is comprised of input measurements and output measurements such that each data point maximizes the measure of linear independence. We use this measure of independence, also known as a measure of importance, to create a distribution for which the robot will provide area coverage in the search domain for active data collection.
As illustrated in [7], this is done by evaluating a new measurement against the existing data points in given the structure of the model that is being learned. The importance measure for a new measurement pair is given by
(25)
which is the solution to , where are the basis functions (also known as feature vectors) ^{1}^{1}1
This feature vector can be anything from a Fourier set of basis functions or a neural network. In addition, we can parameterize the functions
and have the functions change over time., is the coefficient of linear dependence, the matrix is known as the kernel matrix with elements such that is the kernel function given by the inner product , , and .The value provides a measure of how well the point can be represented given the existing data set and structure of the model being learned. Note that this measure will be computationally intractable for very large . Instead, other measures like the expected information density derived from the Fisher information matrix [12, 21] can be used if the learning task has a model that is parameterized by a set of parameters . Since , we define an importance distribution for which the robot will use generate area coverage. The importance distribution is
(26)
where , and , are functions of points . Note that will change as is augmented or pruned. If at any time for , we remove the point with the lowest value and add in the new data point.
We provide an outline of our method in Algorithm 1 for online data acquisition. The following section evaluates our method on various simulated environments.
5 Simulated Examples
In this section, we illustrate examples of Algorithm 1 for different examples that may be encountered in robotics. Figure 1 depicts three robotic systems on which we base our examples. In the first example, we use a cart double pendulum for use in area coverage for shape estimation. In the second and third example, we use a 22 dimensional quadrotor [22] and a 26 dimensional halfcheetah model from Roboschool [23] for learning a dynamics model of the robotic systems by exploring in the statespace. For implementation details, including parameters used, we refer the reader to the appendix.
Shape Estimation while Stabilizing Cart Double Pendulum
Our first example demonstrates the functionality of our algorithm for estimating a sinusoidal shape while simultaneously balancing a cart double pendulum in its upright position. The purpose of this example is to show that our method can synthesize actions that ensures the cart double pendulum is maintained upright while actively collecting data for estimating the shape. This example also serves the purpose of illustrating that our method can safely automate choosing when to stabilize and when to explore for data using approximate linear models of the robot dynamics and stabilizing policies derived from the approximate models.
The measurements of the height of the sinusoidal shape are collected through position of the cart (illustrated in Fig. 2
as the magenta crosshair underneath the cart). A Gaussian process with an radial basis function (RBF) kernel
[7] is then used to estimate the function and provide the distribution used for exploration. The underlying importance distribution (26) is updated as the data set is pruned to include new informative measurements.As a result of Algorithm 1
, the robot will spend time where there is a high probability of acquiring informative data. This results is the shape reconstruction shown in Fig.
2 using a limited fixed set of data ().We analyze our algorithm by observing a candidate Lyapunov function (energy). Figure 3 depicts the value of the Lyapunov function over the time window of the cart double pendulum collecting data for estimating shape. The control vector over the application time increases the overall energy in the system (due to exploration). Since we include a regularization term that ensures does not deviate too far from the equilibrium policy , the cart double pendulum is able to stabilize itself, eventually returning to an equilibrium state and ensuring stability, illustrating the Lyapunov attractiveness property proven in Theorem 4.
Learning Dynamics of Quadrotor
Our next example illustrates active data acquisition in the statespace of a 22 degree of freedom quadrotor vehicle shown in Fig.
0(a). The results are averaged across trials with random initial conditions sampled uniformly in the body angular and linear velocities where is a uniform distribution.The goal for this quadrotor is to maintain hovering height while collecting data in order to learn the dynamics model . In this example, a linear approximation of the dynamics centered at the hovering height is used as the local dynamics approximation on which Algorithm 1 is based. We then generate a LQR controller with the approximate dynamics which we use as the equilibrium policy, The input data we collect is the state and control and the output data is which approximates the function [24]. An incremental sparse Gaussian process [7] with a radial basis function kernel is used to generate a learned model of the dynamics using a data set of and to specify the importance measure (4).

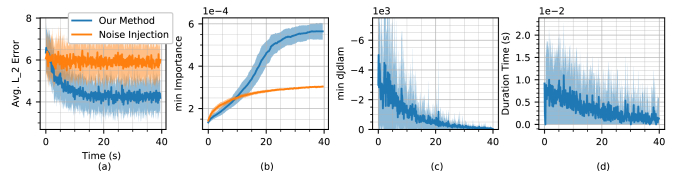

Figure 4 (a) and Figure 4 (b) illustrates the modeling error and the minimum importance value within the data set using our method and the equilibrium policy with uniformly added added noise at of the saturation limit. Our method sequences and automates the process of choosing when it is best to explore and to stabilize by taking into account the approximate dynamics and the equilibrium policy. As a result, a robot is capable of acquiring informative data that improves the prediction of the nonlinear dynamic model of the quadrotor. In contrast, adding noise to the control input (often referred to as “motor babble” [24]) does not have temporal dependencies. That is, each new sample does not have information from the previous samples and cannot effectively explore the statespace.
As the robot continues to explore, the value of the mode insertion gradient (6) decreases as does the duration time as shown in Fig. 4 (c) and (d). This implies that the robot is sufficiently reducing the objective for area coverage and the equilibrium policy begins to take over to stabilize the robot. This is a result of taking into account the local stability of the robotic system while generating exploratory actions.
Learning to Gallop
In this last example, we consider applications of Algorithm 1 for systems with dynamic models and policies that are learned. We use the halfcheetah from the roboschool environment [23] for the task of learning a dynamics model in order to control the robot to gallop forward.
We first learn a simple standing upright policy using the augmented random search (ARS) method [25]. In that process, we collect the state and action data to compute a linear approximation using leastsquares for the local dynamics. Then Algorithm 1 is applied using an incremental sparse Gaussian process using an RBF kernel to generate a dynamics model from data as well as provide the importance measure using a set of data points. The inputoutput data structure maps input to the change in state . Our running cost is set to maintain the halfcheetah upright. After the Gaussian process model is learned, we use the generated model in the prediction of the forward dynamics as a replacement for the initial dynamics model.

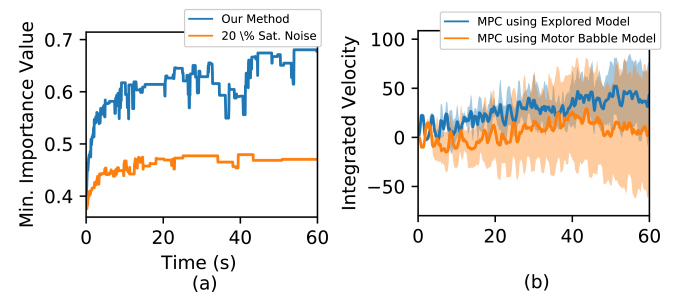

As shown in Fig. 5, our method collects informative data while respecting the standing upright policy when compared to noisy inputs. We compared the two learned models using our controller with and the running cost set to maximize the forward velocity of the halfcheetah. We show those results in Fig. 5 over 5 runs of our algorithm at different initial states. Our method provides a learned model that has overall positive integrated velocity (forward movement). While our method is more complex than simply adding noise, it provides stability guarantees based on known policies in order to explore and collect data.
6 Conclusion
Algorithm 1 enables robots to actively seek out informative data based on the learning task while maintaining stability using equilibrium policies. Our method generates area coverage using a KLdivergence measure in order to enable robots to actively seek out informative data. Moreover, by using a hybrid systems theory approach to generating area coverage, we were able to incorporate equilibrium policies in order to provide stability guarantees even with the model of the robot dynamics only locally known. Last, we provide examples that illustrate the benefits of our approach for active data acquisition for learning tasks.
