1 Introduction

Conversational entrainment describes a communication phenomenon in which humans align their behaviors to each other during conversation. This alignment has been shown to be important for successful conversation. In summarizing some of the key literature investigating entrainment and conversational success, Borrie and Liss concluded that entrainment serves as a powerful coordinating device that impacts both comprehension and the development of positive social relationships [1]. Acoustic-prosodic entrainment, an aspect of conversational entrainment, refers to the alignment of speech features. For example, people align the pitch and intensity of their speech to closely match those features in the speech of their conversational partner [2].

A body of literature investigating acoustic-prosodic entrainment exists; however, a consensus on how entrainment is measured or quantified at the local turn-by-turn level does not. Local entrainment refers to entrainment measures at the speaking turn level while global entrainment refers to entrainment measures at the speaker level [3]. Broadly speaking, the literature reports on two main approaches to measuring local acoustic-prosodic entrainment. One line of research [4] quantifies acoustic-prosodic entrainment by focusing on the degree to which single acoustic features are aligned during conversation and compares these measures to sham conversations involving speakers who never conversed (i.e., not-in-conversation partners). The second line of research [5] is more data-driven and measures the complex relationship between conversational partners’ acoustic-prosodic features with respect to a particular prediction task (e.g., marriage success in a Couple Therapy corpus). Our approach is a unique combination of two: we use sham conversations to develop a data-driven measure for quantifying acoustic-prosodic entrainment and validate our measure on a conversational success task.

In the present study, we propose a novel, discriminative approach for measuring local acoustic-prosodic entrainment that possesses inherent internal validity and demonstrates ecological validity. Approaches to quantifying entrainment can be broadly divided into two classes: absolute or relational approaches and projection approaches. Synchrony, or the Pearson correlation between separate streams of acoustic features across a speaker turn change, is a classic example of a relational entrainment approach. For example, [4] used synchrony and other relational approaches to look at differences in conversational partner’s acoustic-prosodic features on a turn-by-turn basis while [3]

used a projection approach to project the original acoustic-prosodic features onto a principal components analysis (PCA) subspace. Our approach is motivated by the straightforward observation that entrainment values should be higher in real versus sham conversations. To that end, we propose an algorithm that quantifies entrainment on a turn-by-turn basis, projecting differences between interlocutors’ acoustic-prosodic features for a given turn into a discriminative feature space using linear discriminant analysis (LDA). We claim that our approach possesses inherent internal validity because the projected, discriminative feature space maximally differentiates between real conversations involving two partners and sham conversations generated by randomly mixing the partner’s speaking turns. We evaluate the ecological validity of our approach based on its ability to predict an objective measure of an aspect of conversational success, communicative efficiency; this measure has been previously correlated with acoustic-prosodic entrainment of single speech features including pitch, intensity, and vocal quality

[2][6]. Our proposed approach is compared with three additional local entrainment measures that have been used on acoustic-prosodic features.

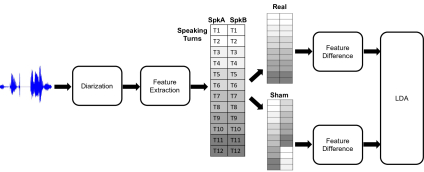

Figure 1:

An overview of the proposed local entrainment analysis framework. The main steps include speaker diarization, feature extraction, creation of the sham conversations, extraction of the speaker difference measures, and LDA analysis. The grey scale indicates the temporal order of the speaking turns (T).

2 Proposed Approach

2.1 Measuring Local Entrainment using LDA

In the current study, we use LDA [7] to maximize the separation between the original conversations and their sham counterparts. This allows us to project the data into a new feature space that maximally differentiated between real and sham conversations. The purpose of the projection was to 1) ensure that all conversations could be compared in the same feature space and 2) operationally define local entrainment as the projected feature representation that maximally differentiates between real and sham conversations. An overview of the processing steps are graphically depicted in Figure 1– we start with an audio recorded conversation, diarize it and extract acoustic-prosodic features at the turn level; then we form a sham version of the original conversation and measure the feature difference between consecutive turns of conversational partners. Finally, these features are used to learn a discriminative feature subspace that maximally separates between real and sham conversations. Details regarding the specifics of this approach are outlined below.

2.1.1 Sham Conversations

Our approach requires that the conversation is diarized at the level of a speaking turn (either automatically or manually). Sham conversations are randomized versions of the original conversations that disrupt the natural, turn-by-turn dialogue exchange in conversations. For example, [3] used randomly generated dialogues between partners from different conversations to validate an approach for measuring entrainment. The current study uses a more specific type of sham conversation, similar to [8], which also disrupts the turn-by-turn modulation of behavior but retains acoustic-prosodic data from both original partners. Rather than completely randomizing each conversational partner’s turns, each partner’s turns were first divided into thirds and then the order between turn blocks was block-randomized (see sham in Figure 1). This randomization scheme was employed to maximally preserve the within-speaker dyadic coordination while disrupting the block order of at least one partner’s turns. Each speaker block was paired with each non-corresponding speaker block (i.e., AB and AC, but not AA) resulting in two within-conversation shams per dyad (i.e., a total of 106 shams).

2.1.2 Feature Extraction and LDA Analysis

A set of features are extracted for each speaking turn. In our implementation we extract four different feature sets (i.e., MFCC Statistics, EMS, LTAS, and Phonation Features; see Section 3.3 for details). For each conversation, the magnitude of the feature difference between the utterances immediately adjacent to a change in speaking turn (i.e., as designated by the utterances’ turn-midpoints) was calculated. The result was a difference measure for each feature for each speaking turn in a given conversation. This idea is graphically depicted in Figure 2. Next, the difference measures within each conversation were grouped into their corresponding feature sets (Section 3.3). The result was four groups, designated by feature set, that included all the feature difference measures for all the speaking turns. This process was repeated for both the real and sham conversations, but the designation between the real and sham groups was preserved.

Figure 2: Features are extracted from the speaker utterances adjacent a change in speaking turn. The difference measure for a given turn is the absolute difference between these features.

The LDA analysis was performed on each feature set separately. For the analysis, the difference measures were estimated for every change in speaking turn and divided into two classes: real and sham. Let

denote a feature difference matrix for speaking turn change and let represents the class (real vs. sham) for the same sample. We define the within-class scatter matrix as,

(1)

Where is the number of speaking turns. Here, is the sample mean of the class (real or sham) represented by . The between-class scatter matrix is defined as:

(2)

Here, is the overall sample mean, and is the number of samples in the -th class. Then, LDA can be formulated as an optimization problem to find a projection, , that maximizes the ratio of the between-class scattering to the within-class scattering, as

(3)

The solution is given by the following generalized eigenvalue problem:

(4)

The result of this process is a projection matrix that transforms the high-dimensional features into a single feature that maximizes the difference between real and sham conversations. This process is performed independently for each of the four feature sets considered in this paper. This means that, for every feature set, a single LDA projection matrix is derived and difference features at the turn level can be projected on this matrix. This results in four LDA features being extracted for each conversation at the level of a turn. We convert the turn-level LDA features to conversation-level features by calculating the min, max, mean, and standard deviation across the conversation. This results in a 16-dimensional feature vector for each conversation (4 statistical features for each of the 4 LDA feature sets).

3 Data and Features

3.1 Dataset

This work is based on a corpus of 53 task-oriented conversations, elicited from students engaged in university-level education. Conversations consisted of two partners paired up to form a dyad, and thus the corpus involved 106 conversational partners (93 females and 13 males) aged 19–28 years old. All conversational partners were native speakers of American English with no history of speech, language, hearing, or cognitive impairment. Each dyad participated in the Diapix Task, a cooperative task where partners verbally communicate to identify differences (as quickly and as accurately as possible) between two different versions of the same picture scene [9]. Details of the interaction task, instructions and recording equipment are specified in [2]. Each conversation consisted of 11-14 minutes (M = 11.5 mins) of spoken dialogue.

An objective measure of an aspect of conversational success was used as the prediction target for the classification task. This measure was based on the total the number of differences identified during the first 10 minutes of the conversation task. Thus, the measure represents a simple, gross measure of communicative efficiency: relatively low and high numbers of identified differences indicate relatively high and low communicative efficiency, respectively. This prediction target measure has been found to track with entrainment index scores using previous approaches of quantifying entrainment [2][6]; and is presumably influenced by fewer extraneous factors than domain-specific measures such as marital success.

We use the entrainment features to predict a binary measure of conversational success. The total number of differences identified by dyads in the task-oriented conversations ranged from 10 to 30. Using a binary class label, the conversations were classified as having low efficiency (i.e., 10-19 differences) or high efficiency (i.e., 21-30 differences). From the corpus of 53 conversations, 27 conversations were classified as low and 23 conversations were classified as high. The three conversations that scored 20 differences (median score) were excluded from the classification analysis to avoid class overlap and the use of a continuous scale.

3.2 Preprocessing of Audio Data

The following section describes the pre-processing steps used to prepare the recorded conversations for the feature extraction and subsequent entrainment analyses. Trained research assistants manually annotated the conversations, by speaker, into spoken utterances using Praat [10] acoustic analysis software. A spoken utterance is defined as an inter-pausal unit (IPU) from a single speaker, including pauses of up to 0.5 seconds [4]. Any non-speech section less than 0.5 seconds is included in the spoken utterance that surrounds it and spoken utterances that overlap in time are permitted.

All sound files were normalized using a standard loudness normalization procedure based on a reference level, ensuring that the resulting normalized signal was within -1 to 1 to avoid peak clipping. Additionally, all sound files were downsampled to 16kHz prior to feature extraction.

3.3 Feature Extraction

The following acoustic-prosodic features were extracted for each spoken utterance. This resulted in a 418-dimensional feature vector for each utterance. Similar feature extraction methods have been used previously in [11][12][13][14]. Additional post-processing prior to entrainment feature extraction included removing any utterance that was 0.5 seconds or less and by replacing any missing values with the median feature value for that conversation.

3.3.1 MFCC Statistics

The Mel-Frequency Cepstral Coefficient (MFCC) statistics are calculated from the 13th order MFCCs (including 0th order) and their first and second order derivatives. The MFCCs are extracted using a 20 ms window with 10 ms frame increment. Then, across all frames of MFCCs, the mean, standard deviation, range, skewness, kurtosis and mean absolute deviation are calculated for each dimension. This results in a 234 (6x39)-dimensional feature vector.

3.3.2 Ems

The Envelope Modulation Spectrum (EMS) measures long-term changes in energy distribution across various frequency bands [15]. The original speech segment, , is first filtered into 9 octave bands with center frequencies of approximately 30, 60, 120, 240, 480, 960, 1920, 3840, and 7680 Hz using eight-order Butterworth filters. Let denote the filter associated with the th octave. The filtered signal is then denoted by,

(5)

The envelope for the ten signals (the original signal and 9 octave band signals), denoted by , is extracted by:

(6)

where, is the analytical signal, is the impulse response of a fourth-order, 30 Hz low-pass Butterworth filter, and denotes the Hilbert transform.

Once the amplitude envelope of each signal is obtained, the mean is removed and the power spectrum for each of the bands, , is estimated by evaluating the DFT using the Goertzel algorithm at frequencies . From the power spectrum, six EMS metrics are computed for each of the 9 octave bands, and the full signal (see [16] for more details). This results in a 60-dimensional feature vector.

3.3.3 Ltas

The Long-Term Average Spectrum (LTAS) [17] captures the average spectral information in each octave of the signal.

The original speech segment, , is first filtered into 9 octave bands using the same filter bank settings as in the EMS feature extraction. Each of the ten band signals (the original full-band signal and 9 octave band signals), , is then framed using a 20 ms non-overlapping rectangular window and the Root Mean Square (RMS) of each frame is estimated. Finally, ten features are extracted for each of the bands (see [16] for more details). This results in a 99-dimensional feature vector.

3.3.4 Phonation Features

Praat [10] was used to automatically extract phonation features including fundamental frequency, jitter, shimmer, and Harmonics-to-Noise Ratio (HNR). The features respectively provide information about pitch, cycle-to-cycle pitch variation, cycle-to-cycle amplitude variation, and an estimate of the noise level in the human voice. Results from the phonation measurements depend on the pitch extraction settings. The phonation features were extracted using a 5 ms time step and default parameters for pitch floor, pitch ceiling, silence threshold, and voicing threshold. Additional voice quality features as well as measures of central tendency and variation were also included in the feature set resulting in a 24-dimensional feature vector.

3.3.5 Intensity

OpenSmile [18] was used to automatically extract the mean intensity resulting in one additional feature. The intensity feature was included for comparison purposes with previous local acoustic-prosodic entrainment measures. The parameters used to extract the intensity feature are described in [19].

4 Results

We compare the proposed approach against three existing methods for measuring local acoustic-prosodic entrainment. Three machine learning classifiers were used to compare performance between the four local measures: Logistic Regression, Support Vector Machine, and Naive Bayes. The classifiers were chosen because they have been used most recently in the literature for prediction tasks related to acoustic-prosodic entrainment

[5] and because they provide a descriptive comparison between linear and non-linear classification methods. The classification experiments were conducted using leave-one-out cross validation. All classifiers were implemented in WEKA with default settings [20]. The three existing methods of measuring local entrainment include:

Convergence, Proximity, Synchrony: Local synchrony, convergence, and proximity measures were all calculated as described in [4]. Herein, we compute these measures for mean and max pitch, local jitter, local shimmer, mean intensity, and mean HNR descending. This results in an 18-dimensional feature vector for each conversation.

PCA Symmetric Similarity: Local PCA similarity measures were computed as described by [3] regarding their global PCA similarity measures, except, instead of a single score per conversation, we split the conversation into the first and second halves. We then obtained a PCA similarity score for each half. A PCA similarity score was extracted for EMS, MFCC, LTAS, and Phonation Features for each conversation, resulting in a four-dimensional feature vector for each conversation.

Short Term Dynamic Functionals: Short term dynamic functionals capture the dynamic interaction between conversational partners in conversation. The differences (i.e., deltas) between corresponding features in adjacent speaker turns were calculated following the procedures outlined in [5]. The turn-level analysis described in [5]

was adapted to an utterance level analysis and statistical functionals (i.e., mean, median, and standard deviation) of the utterance-level delta features were selected using a simple correlation-based feature selection method, where the features with the highest Pearson’s correlation coefficient to the outcome measure were selected. In the present study, a 15-dimensional feature vector for each conversation was extracted, approximating the feature vector length (i.e., 10-20% of the 74 acoustic features) outlined in

[5].

Entrainment Logistic SVM Naive Bayes
LDA 56.00 68.00 72.00
Prox/Conv/Sync 64.00 51.20 50.00
PCA 56.00 31.00 42.00
STDF 44.00 61.60 52.00
Table 1: Entrainment Classification Performance

4.1 Classification Performance

The results of the classification experiments are shown in Table 1. The LDA entrainment approach using a Naive Bayes classifier revealed the highest classification performance at 72%. In addition, the LDA entrainment measures outperformed the other entrainment approaches in two out of the three classifiers. The proximity, convergence, and synchrony measures outperformed the alternative entrainment approaches when using a linear logistic regression classifier, but the LDA entrainment approach outperformed these results by 4% and 8% when using Support Vector Machine and Naive Bayes classifiers, respectively.

5 Conclusion

We present a new method for measuring local entrainment during conversation that is motivated by the straightforward observation that entrainment values should be higher in real versus sham conversations and should predict a functional outcome, conversational success. While validated on acoustic-prosodic speech features, our approach provides a general framework for measuring local entrainment that can generalize to other modalities. For example, local lexical entrainment could be quantified as the root mean squared error between real and sham linguistic influence matrixes [21] on a turn-by-turn basis. Thus, future studies could examine this discriminative approach for quantifying entrainment with other aspects of entrainment.

6 Acknowledgements

This research was supported by the National Institute of Deafness and Other Communication Disorders, National Institutes of Health Grants R21DC016084-01 and R01DC006859.

References

  • [1] S. A. Borrie and J. M. Liss, “Rhythm as a Coordinating Device: Entrainment With Disordered Speech,” Journal of speech, language, and hearing research : JSLHR, vol. 57, no. 3, pp. 815–824, Jun. 2014.
  • [2] S. A. Borrie, N. Lubold, and H. Pon-Barry, “Disordered speech disrupts conversational entrainment: a study of acoustic-prosodic entrainment and communicative success in populations with communication challenges,” Frontiers in Psychology, vol. 6, 2015.
  • [3] C.-C. Lee, A. Katsamanis, M. P. Black, B. R. Baucom, A. Christensen, P. G. Georgiou, and S. S. Narayanan, “Computing vocal entrainment: A signal-derived PCA-based quantification scheme with application to affect analysis in married couple interactions,” Computer Speech & Language, vol. 28, no. 2, pp. 518–539, Mar. 2014.
  • [4] R. Levitan and J. Hirschberg, “Measuring acoustic-prosodic entrainment with respect to multiple levels and dimensions.” Twelfth Annual Conference of the International Speech Communication Association, 2011.
  • [5] M. Nasir, Brian Robert Baucom, P. Georgiou, and S. Narayanan, “Predicting couple therapy outcomes based on speech acoustic features,” PLOS ONE, vol. 12, no. 9, p. e0185123, Sep. 2017.
  • [6] S. A. Borrie and C. R. Delfino, “Conversational Entrainment of Vocal Fry in Young Adult Female American English Speakers,” Journal of Voice, vol. 31, no. 4, pp. 513–e25, 2017.
  • [7] R. A. Fisher, “The Use of Multiple Measurements in Taxonomic Problems,” Annals of Eugenics, vol. 7, no. 2, pp. 179–188, Sep. 1936.
  • [8] A. Ward and D. Litman, “Measuring convergence and priming in tutorial dialog.” Technical report, University of Pittsburgh, 2007.
  • [9] K. J. Van Engen, M. Baese-Berk, R. E. Baker, A. Choi, M. Kim, and A. R. Bradlow, “The Wildcat Corpus of Native-and Foreign-accented English: Communicative Efficiency across Conversational Dyads with Varying Language Alignment Profiles:,” Language and Speech, Sep. 2010.
  • [10] P. Boersma and D. Weenink, “Praat: doing phonetics by computer (Version 5.3.77),” Amsterdam, 2014. [Online]. Available: http://www.fon.hum.uva.nl/praat/
  • [11] V. Berisha, J. Liss, S. Sandoval, R. Utianski, and A. Spanias, “Modeling pathological speech perception from data with similarity labels,” in 2014 IEEE International Conference on Acoustics, Speech and Signal Processing (ICASSP), May 2014, pp. 915–919.
  • [12] M. Tu, Y. Jiao, V. Berisha, and J. M. Liss, “Models for objective evaluation of dysarthric speech from data annotated by multiple listeners,” in 2016 50th Asilomar Conference on Signals, Systems and Computers, Nov. 2016, pp. 827–830.
  • [13] M. Tu, V. Berisha, and J. Liss, “Objective assessment of pathological speech using distribution regression,” in 2017 IEEE International Conference on Acoustics, Speech and Signal Processing (ICASSP), Mar. 2017, pp. 5050–5054.
  • [14]

    M. Tu, V. Berisha, and J. Liss, “Interpretable Objective Assessment of Dysarthric Speech based on Deep Neural Networks,”

    Proc. Interspeech, 2017.
  • [15] J. M. Liss, S. LeGendre, and A. J. Lotto, “Discriminating Dysarthria Type From Envelope Modulation Spectra,” Journal of Speech, Language, and Hearing Research, vol. 53, no. 5, pp. 1246–1255, Oct. 2010.
  • [16] [Online]. Available: http://www.public.asu.edu/~visar/IS2018Supp.pdf
  • [17] E. Mendoza, N. Valencia, J. Muñoz, and H. Trujillo, “Differences in voice quality between men and women: Use of the long-term average spectrum (LTAS),” Journal of Voice, vol. 10, no. 1, pp. 59–66, Jan. 1996.
  • [18] Florian Eyben, Martin Wöllmer, and Björn Schuller, “openSMILE – The Munich Versatile and Fast Open-Source Audio Feature Extractor,” Proceedings of the international conference on Multimedia, pp. 1459–1462, 2010.
  • [19] N. Lubold and H. Pon-Barry, “Acoustic-Prosodic Entrainment and Rapport in Collaborative Learning Dialogues,” Proceedings of the 2014 ACM workshop on Multimodal Learning Analytics Workshop and Grand Challenge, pp. 5–12, 2014.
  • [20] M. Hall, E. Frank, G. Holmes, B. Pfahringer, P. Reutemann, and I. H. Witten, “The WEKA Data Mining Software: An Update,” ACM SIGKDD explorations newsletter, vol. 11, no. 1, pp. 10–18, 2009.
  • [21] K. Kawabata, V. Berisha, A. Scaglione, and A. LaCross, “A convex model for linguistic influence in group conversations,” Proc. Interspeech, 2016.
