1 Introduction

Lung diseases and disorders are one of the leading causes of death and hospitalization throughout the world. According to the American Lung Association, lung cancer is the number one cancer killer of both women and men in the United States, and more than 33 million Americans are facing a chronic lung disease. The chest radiograph (chest X-ray, or CXR) is one of the most requested radiologic examination for pulmonary diseases such as lung cancer, chronic obstructive pulmonary disease (COPD), pneumonia, tuberculosis, etc. There are huge demands on developing computer-aided diagnosis/detection (CADx/CADe) methods to assist radiologists and other physicians in reading and comprehending chest X-ray images [Shin et al.(2016)Shin, Roberts, Lu, Demner-Fushman, Yao, and Summers, Wang et al.(2017)Wang, Peng, Lu, Lu, Bagheri, and Summers, Wang et al.(2018b)Wang, Peng, Lu, Lu, and Summers, Tang et al.(2018c)Tang, Wang, Harrison, Lu, Xiao, and Summers], given the fact that there is a shortage of experienced radiologists, especially in developing countries. Precise segmentation of lung fields can provide rich structural information such as shape irregularity, size measurement and total lung volume, which further facilitates subsequent stages of automated diagnosis (e.g

., disease pattern recognition, segmentation and quantization) to assess certain serious clinical conditions.

Over the past decades, automated segmentation of lung boundaries in CXR has received substantial attention in the literature [Candemir et al.(2014)Candemir, Jaeger, Palaniappan, Musco, Singh, Xue, Karargyris, Antani, Thoma, and McDonald, Dai et al.(2017)Dai, Doyle, Liang, Zhang, Dong, Li, and Xing] but still remained a challenging problem [El-Baz et al.(2016)El-Baz, Jiang, and Suri]

. Previous work mainly adopted hand-crafted features to design rule-based systems

[Li et al.(2001)Li, Zheng, Kallergi, and Clark], active shape/appearance models [Xu et al.(2012)Xu, Mandal, Long, Cheng, and Basu], or their hybrid methods [Candemir et al.(2014)Candemir, Jaeger, Palaniappan, Musco, Singh, Xue, Karargyris, Antani, Thoma, and McDonald]

to segment the lung boundaries. These approaches rely on the test CXR images being well modeled by the existing training images but they may fail on a different distribution or population. Recently, deep learning based methods (e.g. fully convolutional neural networks (FCN)

[Shelhamer et al.(2017)Shelhamer, Long, and Darrell]) have achieved great successes in biomedical image segmentation [Chen et al.(2018)Chen, Bentley, Mori, Misawa, Fujiwara, and Rueckert, Tang et al.(2019a)Tang, Oh, Tang, Xiao, and Summers, Cai et al.(2018)Cai, Tang, Lu, Harrison, Yan, Xiao, Yang, and Summers, Tang et al.(2018a)Tang, Cai, Lu, Harrison, Yan, Xiao, Yang, and Summers] and other medical image analysis tasks [Tang et al.(2019d)Tang, Tang, Han, Xiao, and Summers, Tang et al.(2019c)Tang, Tang, Han, Xiao, and Summers, Tang et al.(2019b)Tang, Yan, Tang, Liu, Xiao, and Summers, Tang et al.(2018b)Tang, Harrison, Bagheri, Xiao, and Summers, Jin et al.(2018)Jin, Xu, Tang, Harrison, and Mollura, Yan et al.(2018)Yan, Wang, Lu, Zhang, Harrison, Bagheri, and Summers, Yan et al.(2019)Yan, Peng, Lu, and Summers]. The FCN-based methods are intrinsically limited to local receptive fields and insufficient contextual information due to the fixed geometric structures of the convolution. These limitations impose unfavorable effects in segmenting boundaries around less clear lung regions caused by pathological conditions or poor image quality (e.g., low contrast, costophrenic angle clipped off, bad positioning of the patient). Structure correcting adversarial network (SCAN) [Dai et al.(2017)Dai, Doyle, Liang, Zhang, Dong, Li, and Xing] incorporates FCN and adversarial learning [Goodfellow et al.(2014)Goodfellow, Pouget-Abadie, Mirza, Xu, Warde-Farley, Ozair, Courville, and Bengio] to segment organs (lungs and heart) in CXRs. SCAN imposes regularization based on the physiological (global) structures by using a critic network that discriminates between the ground truth annotations from the segmentation masks generated by the FCN.

In order to capture richer global contextual information for robust and accurate lung segmentation, we make use of a criss-cross attention (CCA) module [Huang et al.(2018b)Huang, Wang, Huang, Huang, Wei, and Liu] to aggregate long-range pixel-wise contextual information in both horizontal and vertical directions. Further dense contextual information can be achieved by stacking more CCA modules recurrently to cover all the pixels. In addition, since publicly available datasets only contain small numbers of lung masks and they are mainly for normal lungs and lungs with subtle findings or unique pathology in an posterioranterior view (e.g., small nodules within the lung field in the JSRT database [Shiraishi et al.(2000)Shiraishi, Katsuragawa, Ikezoe, Matsumoto, Kobayashi, Komatsu, Matsui, Fujita, Kodera, and Doi], CXRs with tuberculosis presented in the Montgomery database [Jaeger et al.(2014)Jaeger, Candemir, Antani, Lu, and Thoma]), it is insufficient to directly use these datasets for training a powerful lung segmentor that can be adapted to pathological lungs with hazy lung boundaries (e.g., large masses, pneumonias, effusions, etc.) for both posterioranterior (PA) and anteroposterior (AP) views. Furthermore, it is very time consuming and tedious for radiologists to manually annotate lung masks, especially on CXRs with abnormalities/pathologies in lung regions (or the so-called abnormal CXRs in this paper). Therefore, we use an image-to-image translation method [Huang et al.(2018a)Huang, Liu, Belongie, and Kautz] to synthesize radiorealistic (i.e. a synthesized radiograph that appears anatomically realistic) abnormal CXRs from the source of normal ones for data augmentation and mask propagation. The lung masks of synthetic abnormal CXRs are transferred from their normal counterpart and then used as pseudo masks for segmentor retraining.

The proposed framework XLSor (i.e. X-ray Lung Segmentor) takes advantage of radiorealistic synthesized abnormal CXRs and pseudo masks, without requiring paired normal and abnormal CXRs from the same patient (which is infeasible in reality), as well as the criss-cross attention module to generate robust and accurate lung segmentation. We annotate 100 lung masks on a more challenging NIH Chest X-ray dataset [Wang et al.(2017)Wang, Peng, Lu, Lu, Bagheri, and Summers] containing both PA and AP views for evaluation. Extensive experiments on different datasets validate the robustness and effectiveness of the proposed framework.

2 Methodology

2.1 XLSor Framework Overview

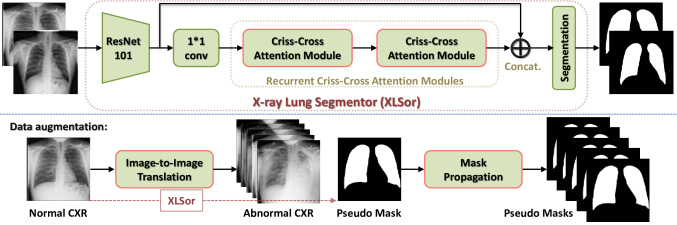

Figure 1: Framework of the proposed X-ray lung segmentor (XLSor).

The overall XLSor framework is shown in Figure 1. Given a training set with ground-truth masks, an initial lung segmentor is trained (see details in Sec. 2.2). Then, for an auxiliary external set, an image-to-image method MUNIT [Huang et al.(2018a)Huang, Liu, Belongie, and Kautz] is used to synthesize abnormal CXRs from normal ones, so as to augment the training data and pseudo mask annotations (mask of normal CXR is obtained using the initial lung segmentor and propagated to its synthesized abnormal CXRs, see details in Sec. 2.3). The initial lung segmentor is updated using along with the augmented dataset with pseudo masks.

2.2 Criss-Cross Attention based Network for Lung Segmentation

In preliminary experiments, we trained a U-Net model [Ronneberger et al.(2015)Ronneberger, Fischer, and Brox], a widely used model in many applications of medical image segmentation, for lung segmentation. When testing it on the unseen abnormal CXRs, the segmentations are not very promising. That is because the features are extracted from local receptive fields and cannot well capture sufficient contextual information of lungs in U-Net. However, the rich and global contextual information of lungs and their surrounding regions is very important for lung segmentation.

Criss-cross Network (CCNet) [Huang et al.(2018b)Huang, Wang, Huang, Huang, Wei, and Liu] achieved state-of-the-art performance in semantic segmentation based on a novel criss-cross attention (CCA) module. Inspired by this, we employ CCA to build a robust and accurate lung segmentor (named XLSor) on chest X-rays. The XLSor is constructed with a fully convolutional network and two CCA modules to capture long-range contextual information (see Figure 1

top). Specifically, we replace the last two down-sampling layers in the ImageNet pre-trained ResNet-101

[He et al.(2016)He, Zhang, Ren, and Sun] with dilated convolution operation [Chen et al.(2015)Chen, Papandreou, Kokkinos, Murphy, and Yuille]

, resulting in an output stride of 8. The CCA module collects contextual information in horizontal and vertical directions to enhance pixel-wise representative capability. Recurrent criss-cross attention module can capture dense contextual information from all pixels by stacking two CCA modules with shared weights. CCA shares the similar idea of capturing global contextual information as the non-local neural network

[Wang et al.(2018a)Wang, Girshick, Gupta, and He] but with much higher computational efficiency. Please refer to [Huang et al.(2018b)Huang, Wang, Huang, Huang, Wei, and Liu] for more details about the CCA module. Therefore, the CCA based XLSor can generate clear lung boundaries for more accurate lung segmentation by considering the richer and global contextual information.

The mean square error loss function and the SGD with momentum of 0.9 and weight decay of 0.0005 are used to optimize the XLSor. The initial learning rate is 0.02 and updated using a poly learning rate policy where the initial learning rate is multiplied by

, where is the number of current iterations and is the total number of iterations. The batch size is set as 4. The size of the input CXR is .

2.3 Data Augmentation via Abnormal Chest X-Ray Pairs Construction

As discussed in Sec. 1, it is insufficient to train a robust lung segmentor using the existing datasets and mask annotations. A simple solution is to enrich the training data, which has been widely used in deep learning. The traditional data augmentation means is to use a combination of affine transformations to manipulate the training data, e.g., shifting, zooming in/out, rotation, flipping, etc, so as to generate new duplicate images for each input image. The contextual information in these generated images do not change very much. To solve these problems, we propose a data augmentation strategy using an image-to-image translation method [Huang et al.(2018a)Huang, Liu, Belongie, and Kautz] to construct a large number of abnormal chest X-ray pairs without involving any human intervention, based on which a powerful model can be learned for robust and accurate lung segmentation on different challenging CXRs.

(a) (b) (c) (d) (e) (f) (g)

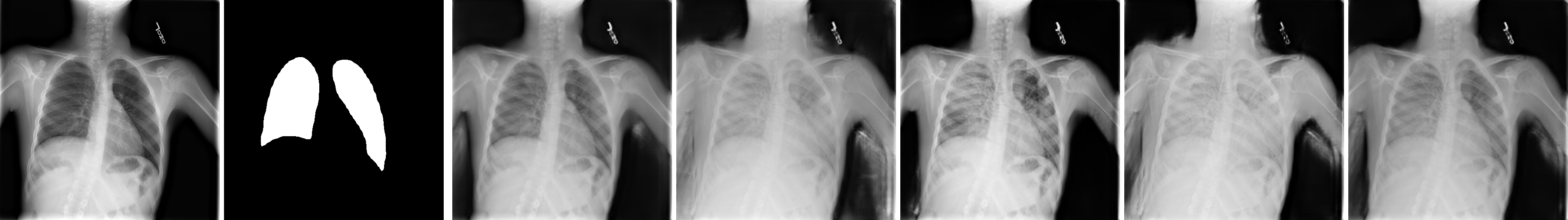

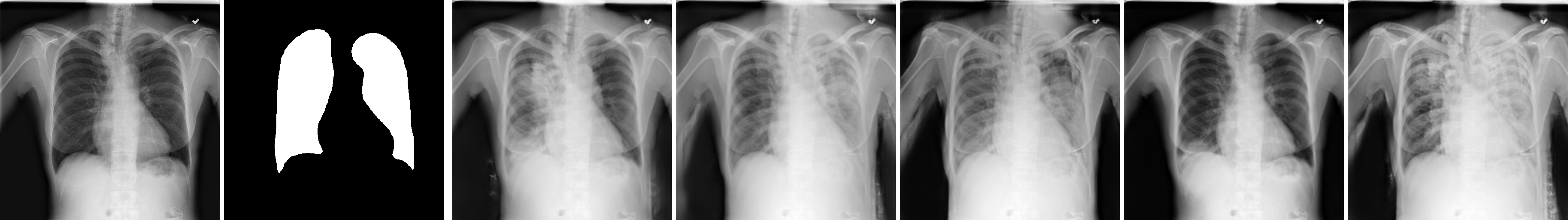

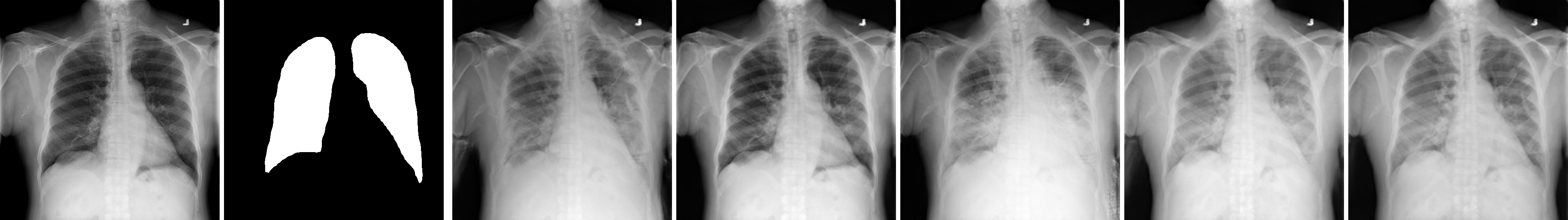

Figure 2:

Three examples (rows) of the constructed abnormal CXR pairs. Given an unseen normal CXR (a), XLSor outputs a lung segmentation that is binarized with a threshold of 0.5 to get the lung mask (b) and MUNIT generates different abnormal CXRs (c-g). The lung mask (b) and the synthesized abnormal CXRs (c-g) form the constructed abnormal CXR pairs.

To construct the pairs of abnormal CXR and its corresponding lung masks, there are two straightforward ways. One is to convert the abnormal CXRs into normal ones, and then compute the lung masks which serve as the ground truths for the abnormal CXRs. The other one is to convert the normal CXRs into abnormal ones, and then the lung masks segmented on the normal CXRs are considered as the ground truths of the abnormal ones. Here, we prefer the second way, since the lung regions in real normal CXRs are determined while the ones could be different for various generated normal CXRs in the first way. For the image-to-image translation task, i.e. from normal CXRs to abnormal ones, a state-of-the-art method, i.e. MUNIT [Huang et al.(2018a)Huang, Liu, Belongie, and Kautz], is utilized in this work. MUNIT assumes that the image representation can be decomposed into a content code that is domain-invariant, and a style code that captures domain-specific properties. To translate an image to another domain, MUNIT recombines its content code with a random style code sampled from the style space of the target domain. Please refer to [Huang et al.(2018a)Huang, Liu, Belongie, and Kautz] for more details about MUNIT. In this work, we first train the MUNIT model using the default parameter configuration and the NIH chest X-Ray dataset [Wang et al.(2017)Wang, Peng, Lu, Lu, Bagheri, and Summers], from which 5,000 normal CXRs and 5,000 abnormal CXRs are randomly selected for training. Then, given a normal CXR (see Figure 2(a)), we use the trained MUNIT model to generate (or synthesize) a number of abnormal CXRs (see Figure 2(c)-(g)) by combining the content code of the normal CXR and different random style codes learned from the domain of abnormal CXRs. From Figure 2(c)-(g), we can see that the generated abnormal CXRs are radiorealistic. We also notice that the shape of lungs are distorted slightly in the generated abnormal CXRs sometimes. Therefore, the generated abnormalities are customized using the style codes and visually radiorealistic. At last, we use the initial XLSor model trained from the publicly available datasets to obtain the lung masks (see Figure 2(b)) of the given normal CXR, which are also considered as the pseudo masks of the generated abnormal CXRs (i.e. mask propagation) to form the constructed abnormal CXR pairs (see Figure 1 bottom) for further training the XLSor model. We also iteratively conducted above processes and found that it is not helpful because the normal CXRs are easy to segment and the pseudo masks are good enough at the first iteration.

3 Experiments

3.1 Datasets and Evaluation Criteria

We evaluate the lung segmentation performance of the proposed XLSor using two publicly available datasets, i.e. JSRT [Shiraishi et al.(2000)Shiraishi, Katsuragawa, Ikezoe, Matsumoto, Kobayashi, Komatsu, Matsui, Fujita, Kodera, and Doi] and Montgomery [Jaeger et al.(2014)Jaeger, Candemir, Antani, Lu, and Thoma], and our own annotated dataset (named NIH). JSRT contains 247 CXRs, among which 154 have lung nodules and 93 have no lung nodule. Montgomery contains 138 CXRs, including 80 normal patients and 58 patients with manifested tuberculosis (TB). Both datasets provide pixel-wise lung mask annotations. We notice that the abnormal lung regions in these two datasets are mild. Only using such datasets for evaluation cannot well demonstrate the effectiveness and generalizability of the methods, since diseases can occasionally cause severe damages to the lungs. Therefore, we manually annotate the lung masks of 100 abnormal CXRs with various severity of lung diseases, which are selected from the NIH Chest X-Ray dataset [Wang et al.(2017)Wang, Peng, Lu, Lu, Bagheri, and Summers] by excluding the samples used for MUNIT training. Here, we name the manually labeled set as NIH.

JSRT and Montgomery datasets are combined and randomly split into three subsets for both normal and abnormal CXRs, i.e. training (70%), validation (10%) and testing (20%). Specifically, the validation and testing sets include 37 and 78 CXRs, respectively. The remaining 280 CXRs serve as a training set for model training. The validation set is used for model selection, and the testing set and the NIH dataset are used for performance evaluation. Five criteria, i.e. volumetric similarity (VS), averaged Hausdorff distance (AVD), Dice similarity coefficient (DICE), precision (PRE) and recall (REC) scores, are calculated pixel-wisely by a publicly available segmentation evaluation tool [Taha and Hanbury(2015)] with threshold of 0.5 and used to evaluate the quantitative segmentation performance.

3.2 Quantitative Results

In this work, U-Net [Ronneberger et al.(2015)Ronneberger, Fischer, and Brox] is applied for performance comparisons to demonstrate the effectiveness of the criss-cross attention based XLSor. To validate the usefulness of adding the augmented samples for lung segmentation, we first use the proposed data augmentation strategy to generate four augmented training sets, denoted as , , and , respectively. Here, contains 600 constructed pairs including 100 normal pairs and 500 abnormal pairs where five abnormal CXRs are synthesized from each normal CXR using MUNIT [Huang et al.(2018a)Huang, Liu, Belongie, and Kautz]. contains all samples in and another new 600 constructed pairs. We then train the XLSor and U-Net models for lung segmentation using six different training settings, i.e. only using the real public training set (denoted ), using the real public training set and any augmented set (denoted ), and only using the augmented set . To validate the effectiveness of CCA for segmentation performance improvement, we also train the XLSor model without CCA modules (denoted XLSor) and the U-Net model with CCA modules (denoted U-Net) using and . In each training setting, the same traditional data augmentation techniques (e.g., scaling and flipping) are adopted. Finally, the five criteria are used to evaluate the performance of lung segmentation on the public testing set and NIH dataset, whose results are reported in Table LABEL:tab:public.

tab:public Method REC PRE DICE AVD VS Public testing set XLSor 0.9730.02 0.9790.02 0.9760.01 0.1490.51 0.9920.01 XLSor 0.9730.02 0.9790.02 0.9760.01 0.1520.52 0.9910.01 XLSor 0.9740.02 0.9780.02 0.9760.01 0.1170.31 0.9910.01 XLSor 0.9720.02 0.9790.02 0.9760.01 0.1260.33 0.9910.01 XLSor 0.9740.02 0.9770.02 0.9760.01 0.1460.44 0.9910.01 XLSor 0.9650.03 0.9790.02 0.9720.02 0.1620.36 0.9890.01 XLSor 0.9730.02 0.9780.02 0.9750.01 0.1510.53 0.9910.01 XLSor 0.9720.02 0.9780.02 0.9760.01 0.1480.47 0.9910.01 U-Net 0.9760.02 0.9680.03 0.9720.02 0.1980.56 0.9880.02 U-Net 0.9730.02 0.9760.02 0.9740.01 0.1620.54 0.9900.01 U-Net 0.9770.02 0.9730.02 0.9750.01 0.1350.41 0.9890.01 U-Net 0.9760.02 0.9750.02 0.9750.01 0.1310.34 0.9900.01 U-Net 0.9730.02 0.9780.01 0.9750.01 0.1520.46 0.9900.01 U-Net 0.9670.02 0.9750.01 0.9710.01 0.1640.37 0.9890.01 U-Net 0.9760.02 0.9700.03 0.9720.02 0.1910.54 0.9880.02 U-Net 0.9750.02 0.9770.01 0.9750.01 0.1300.33 0.9900.01 NIH dataset XLSor 0.9660.02 0.9270.09 0.9430.05 0.6691.64 0.9660.05 XLSor 0.9580.03 0.9730.02 0.9650.02 0.1720.26 0.9850.01 XLSor 0.9620.02 0.9800.01 0.9710.01 0.0970.08 0.9890.01 XLSor 0.9670.02 0.9780.02 0.9730.01 0.0890.07 0.9900.01 XLSor 0.9740.01 0.9760.01 0.9750.01 0.0780.06 0.9930.01 XLSor 0.9640.02 0.9830.01 0.9730.01 0.0980.13 0.9880.01 XLSor 0.9650.03 0.9020.10 0.9290.06 0.9521.81 0.9550.06 XLSor 0.9650.02 0.9810.01 0.9670.01 0.0930.10 0.9900.01 U-Net 0.9380.07 0.7610.20 0.8230.16 5.2319.02 0.8690.15 U-Net 0.9260.05 0.9600.03 0.9420.03 0.8321.29 0.9710.02 U-Net 0.9470.04 0.9500.04 0.9480.03 0.5001.03 0.9810.02 U-Net 0.9500.03 0.9540.03 0.9510.02 0.3930.58 0.9830.02 U-Net 0.9430.04 0.9580.03 0.9500.03 0.4540.73 0.9820.02 U-Net 0.9520.03 0.9590.03 0.9550.02 0.3150.47 0.9830.02 U-Net 0.9290.07 0.8040.20 0.8420.14 4.7828.05 0.8950.14 U-Net 0.9560.03 0.9690.02 0.9620.02 0.2620.54 0.9850.02

Table 1: Lung segmentation results on the public testing set and NIH dataset

using the proposed XLSor and U-Net with different training settings. Results showing mean with standard deviation.

: the larger the better. : the smaller the better.
CXR Mask U-Net U-Net U-Net XLSor XLSor XLSor (a) (b) (c) (d) (e) (f) (g) (h)

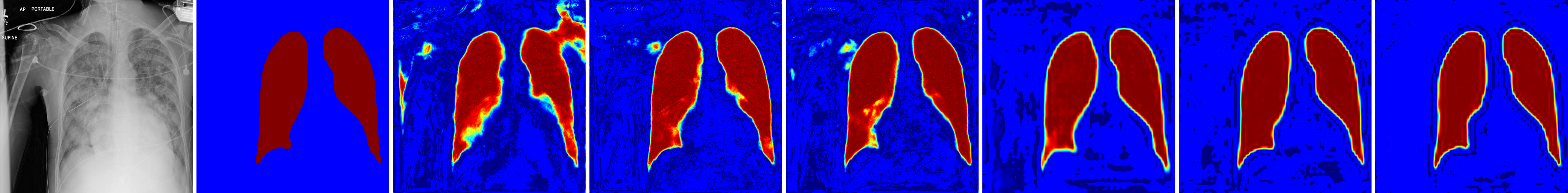

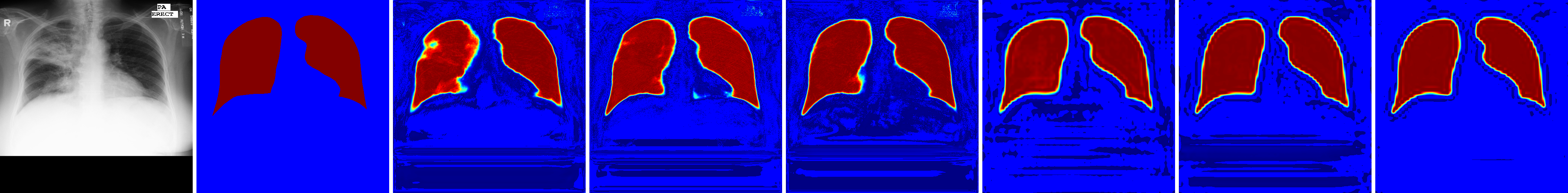

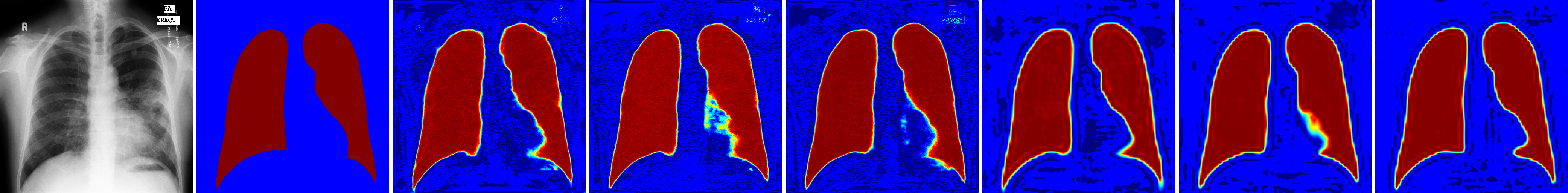

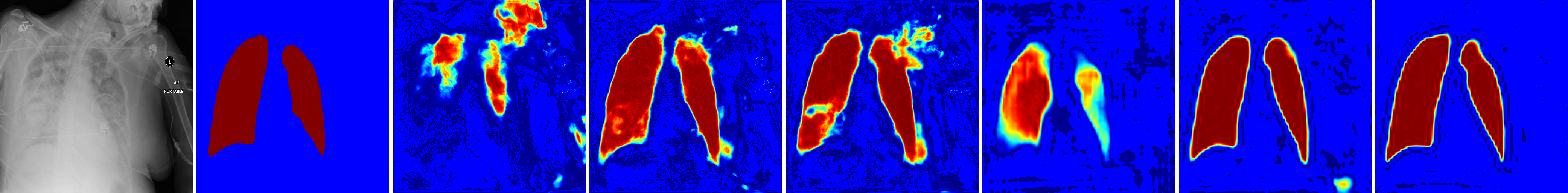

Figure 3: Four examples (rows) of lung segmentation results produced by XLSor and U-Net trained using , and

. Here, the results are given as the probability maps directly outputted by the models, which can be binarized with a threshold of 0.5 to get the binary lung masks for performance evaluation. The first two rows are from the public testing set and the last two rows are from the NIH dataset. To better visualize the differences between lung segmentation results and ground truths, we colorize them with pseudo-colors. Better viewed in color.

From Table LABEL:tab:public, we can see that 1) the proposed XLSor gets better results than U-Net on both the simple public testing set and the difficult NIH dataset. Especially, the performance of XLSor is much better than the one of U-Net on the NIH dataset (e.g., improving the Dice score about 12%), meaning that the proposed XLSor is able to work much better than U-Net on the unseen CXRs whose data distribution is much different from the training data. This demonstrates that the proposed XLSor based on the criss-cross attention module can well learn the global contextual information of lung regions and strong discriminative features to distinguish the lung regions from their surrounding structures regardless of the CXRs’ properties. 2) When adding the augmented samples for model training, the performance is improved, i.e. XLSor (or U-Net) gets better results than XLSor (or U-Net), suggesting the effectiveness of our data augmentation technique for lung segmentation performance improvement. Through experiments, we find that the performance remains stable when adding more augmented samples than . 3) When only using the augmented samples for model training, both XLSor and U-Net still get very promising performance on the public testing set and the NIH dataset (see the results of XLSor and U-Net in Table LABEL:tab:public), suggesting that the generated abnormal CXRs are radiorealistic and the pseudo lung masks effectively supervise the learning processes for lung segmentation. 4) The results by all models are quite similar in the public testing set, that is because the testing CXRs are all (near-)normal and the lung segmentation task is relatively easy. 5) U-Net obtains worse performance on NIH dataset than the public testing set, meaning that the CXRs in the NIH dataset are more complex and difficult than the ones in the public testing set. But XLSor can get comparable and good results on both datasets, suggesting that the proposed XLSor is robust and powerful for lung segmentation in different scenarios. 6) XLSor/U-Net achieves better results than XLSor/U-Net (especially, on the NIH dataset), suggesting that using CCA modules can make the model learn the global contextual information of lung regions better and extract more powerful discriminative features for performance improvement. All results quantitatively demonstrate the effectiveness and generalizability of the proposed XLSor for lung segmentation on various CXRs.

3.3 Qualitative Results

Figure 3 shows four qualitative lung segmentation results produced by the models (i.e. XLSor and U-Net) trained with the following settings: , and . Compared with U-Net, the lung segmentation results produced by the proposed XLSor are much closer to the ground truths in various challenging scenarios. To be specific, 1) the proposed XLSor not only highlights the correct lung regions clearly, but also well suppresses the probabilities of background regions, so as to produce the segmentation results with higher contrast between lung regions and background than U-Net. 2) With the help of the criss-cross attention module that considers sufficient contextual information, the proposed XLSor is able to output the lung segmentations with clear boundaries and consistent probabilities, even when the model is trained and tested on CXRs with different distribution of abnormalities. 3) With the augmented samples for training, the qualities of lung segmentations are improved. These intuitively demonstrate the effectiveness of the proposed XLSor and the usefulness of the proposed data augmentation strategy for lung segmentation on chest X-rays.

4 Conclusions and Future Work

In this paper, we propose a robust and accurate lung segmentor based on a criss-cross attention network and a customized radiorealistic abnormalities generation technique for data augmentation. Experiments showed that the proposed framework was able to capture rich contextual information from both original and radiorealistic synthesized CXRs to adapt to more challenging images, resulting in much better segmentation, especially in unseen abnormal CXRs. Future work includes segmenting more organs and integrating with more downstream tasks such as disease classification and detection to provide comprehensive and accurate computer-aided detection on CXR images, e.g., performing segmentation and classification simultaneously by training different MUNIT models for individual diseases and using them to generate abnormalities accordingly in categories.

This research was supported by the Intramural Research Program of the National Institutes of Health Clinical Center and by the Ping An Insurance Company through a Cooperative Research and Development Agreement. We thank Nvidia for GPU card donation.
