XL-NBT: A Cross-lingual Neural Belief Tracking Framework

08/19/2018 ∙ by Wenhu Chen, et al. ∙ IEEE Tencent The Regents of the University of California The Ohio State University 0

Task-oriented dialog systems are becoming pervasive, and many companies heavily rely on them to complement human agents for customer service in call centers. With globalization, the need for providing cross-lingual customer support becomes more urgent than ever. However, cross-lingual support poses great challenges---it requires a large amount of additional annotated data from native speakers. In order to bypass the expensive human annotation and achieve the first step towards the ultimate goal of building a universal dialog management system, we set out to build a cross-lingual state tracking framework without requiring any human labor. Specifically, we assume that there exists a source language with dialog belief tracking annotations while having no access to any form of dialogue data for the other target languages. Then, we pre-train a state tracker for the source language as a teacher, which is able to exploit easy-to-access parallel data and distill its own knowledge to the student state tracker in target languages. In this paper, we specifically discuss two different types of common parallel resources (bilingual corpus and bilingual dictionary) and design different strategies to realize our transfer learning framework. Experimentally, we successfully use English state tracker as the teacher to transfer its knowledge to both Italian and German trackers and achieve promising results.

READ FULL TEXT VIEW PDF
POST COMMENT

Comments

There are no comments yet.

Authors

page 1

page 2

page 3

page 4

This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

1 Introduction

Over the past few years, we have witnessed the burgeoning of real-world applications of dialog systems, with many academic, industrial, and startup efforts racing to lead the widely-believed next-generation human-machine interfaces. As a result, numerous task-oriented dialog systems such as virtual assistants and customer conversation services were developed Wen et al. (2015); Rojas-Barahona et al. (2017); Bordes and Weston (2017); Williams et al. (2017); Li et al. (2017), with Google Duplex111https://ai.googleblog.com/2018/05/duplex-ai-system-for-natural-conversation.html being the most recent example.

With the rapid process of globalization, more countries have observed growing populations of immigrants, and more companies have moved forward to develop their overseas business sectors. To provide better customer service and bring down the cost of labor at call centers, the development of universal dialog systems has become a practical issue. A straightforward strategy is to separately collect training data and train dialog systems for each language. However, it is not only tedious but also expensive. Two settings naturally arise for more efficient usage of the training data: (1) Multi-lingual setting: we annotate data for multiple languages and train a single model, with possible innovations on joint training. (2) Cross-lingual setting: we annotate data and train a model for only one (popular) language, and transfer the learned knowledge to other languages. Here we are interested in the second case, and the important research question we ask is: How can we build cross-lingual dialog systems that can support less popular, low- or even zero-resource languages?

As an initial step towards cross-lingual dialog systems, we focus on the cornerstone of dialog systems – dialog state tracking (DST), or belief tracking, a key component for understanding user inputs and updating belief state, i.e., a system’s internal representation of the state of conversation Young et al. (2010). Based on the perceived belief state, the dialog manager can decide which action to take, and what verbal response to generate Precup and Teh (2017); Bordes and Weston (2017).

DST models require a considerable amount of annotated data for training Henderson et al. (2014b); Mrksic et al. (2015, 2017). For a common dialog shown in Figure 1, a typical data acquisition process Rojas-Barahona et al. (2017) not only requires two human users to converse for multiple turns but also requires annotators to identify user’s intention in each turn. Such two-step annotation is very expensive, especially for rare languages.

We study the novel problem of cross-lingual DST, where one leverages the annotated data of a source language to train DST for a target language with zero annotated data (Figure 1); no conversation dialog or dialog state annotation is available for the target language. In order to deal with this zero-resource challenging scenario, we first decouple the state-of-the-art neural belief tracker framework Mrksic et al. (2017) into sub-modules, namely utterance encoder, context gate, and slot-value decoder. By introducing a teacher-student framework, we are able to transfer knowledge across languages module by module, following the divide-and-conquer philosophy. Requiring no target-side dialog data, our method relies on other easy-to-access parallel resources to understand the connection between languages. Depending on the popularity and availability of target language resources, we study two kinds of parallel data: bilingual corpus and bilingual dictionary, and we respectively design two transfer learning strategies.

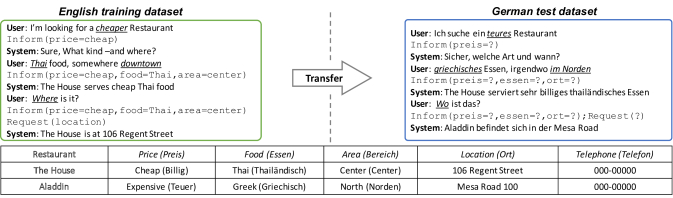

Figure 1: Cross-lingual transfer learning for dialog state tracking, where the underlying database (the table above) is shared across languages. The source language has annotated dialogs and the ground truth states, but the target language has neither dialogs nor ground truth states (only a testing dataset for evaluation).

We use the popular Wizard-of-Oz Rojas-Barahona et al. (2017) dataset as our DST benchmark to evaluate the effectiveness of our cross-lingual transfer learning. We specify English as the source (primary) language and two different European languages (German and Italian) as our zero-annotation target languages. Compared with an array of alternative transfer learning strategies, our cross-lingual DST models consistently achieve promising results in both scenarios for both zero-annotation languages. To ensure reproducibility, we release our code, training data and parallel resources in the github222https://github.com/wenhuchen/Cross-Lingual-NBT. Our main contributions are three-fold:

  • [noitemsep,topsep=0pt]

  • Towards building cross-lingual dialog systems, we are the first to study the cross-lingual dialog state tracking problem.

  • We systematically study different scenarios for this problem based on the availability of parallel data and propose novel transfer learning methods to tackle the problem.

  • We empirically demonstrate the efficacy of the proposed methods, showing that our methods can accurately track dialog states for languages with zero annotated data.

2 Related Work

2.1 Dialog State Tracking

Broadly speaking, the dialog belief tracking algorithms can be divided into three families: 1) hand-crafted rules 2) generative models, and 3) maximum-entropy model Metallinou et al. (2013)

. Later on, many deep learning based discriminative models have surged to replace the traditional strategies

Henderson et al. (2014a); Mrksic et al. (2017); Williams et al. (2016) and achieved state-of-the-art results on various datasets. Though the discriminative models are reported to achieve fairly high accuracy, their applications are heavily restricted by the domain, ontology, and language. Recently, a pointer network based algorithm Xu and Hu (2018) and another multi-domain algorithm Rastogi et al. (2017) have been proposed to break the ontology and domain boundary. Besides,  Mrkšić et al. (2017) has proposed an algorithm to train a unified framework to deal with multiple languages with annotated datasets. In contrast, our paper focuses on breaking the language boundary and transfer DST knowledge from one language into other zero-annotation languages.

2.2 Cross-Lingual Transfer Learning

Cross-lingual transfer learning has been a very popular topic during the years, which can be seen as a transductive process. In such process, the input domains of the source and target are different Pan and Yang (2010)

since each language has its own distinct lexicon. By discovering the underlying connections between the source and target domain, we could design transfer algorithms for different tasks. Recently, algorithms have been successfully designed for POS tagging

Zhang et al. (2016); Kim et al. (2017), NER Pan et al. (2017); Ni et al. (2017) as well as image captioning Miyazaki and Shimizu (2016). These methods first aim at discovering the relatedness between two languages and separate language-common modules from language-specific modules, then resort to external resources to transfer the knowledge across the language boundary. Our method addresses the transfer learning using a teacher-student framework and proposes to use the teacher to gradually guide the student to make more proper decisions.

3 Problem Definition

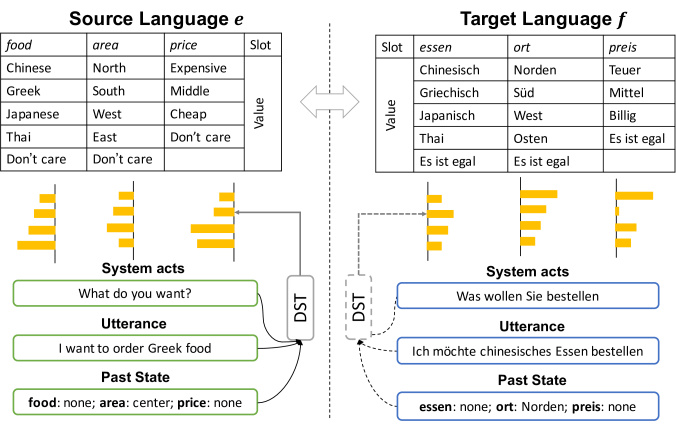

Figure 2: Cross-lingual DST structure, the ontology and database between multiple languages are shared.

The dialog states are defined as a set of search constraints (i.e. informable slots or goals) that the user specified through the dialog and a set of attribute questions regarding the search results (i.e. requestable slots or requests). The objective of dialog state tracking (DST) is to predict and track the user intention (i.e., the values of the aforementioned slots) at each time step based on the current user utterance and the entire dialog history. As shown in Figure 2, for each slot, the DST computes an output distribution of the candidate values using three inputs: (i) system response , which is the sentence generated by the system, (ii) utterance , which is the sentence from the user, and (iii) previous state, which denotes the selected slot-value pairs. We define the ontology of the dialog system to be the set of all the possible words the dialog slot and value can take. In this paper, we are interested in learning a cross-lingual DST. Specifically, we assume that the DST for the source language has access to a human-annotated training dataset while the DSTs for the target languages do not have access to annotated data in other languages except for testing data. We here mainly consider two different types of parallel resources to assist the transfer learning:
(1) Bilingual Corpus, where abundant bilingual corpora exist between the source and the target languages. This is often the case for common language pairs like German, Italian, and French, etc.
(2) Bilingual Dictionary, where public bilingual dictionaries exist between the source and the target languages, but large-scaled parallel corpus are harder to obtain. This can be the case for rarer languages like Finnish, Bulgarian, etc.
Furthermore, we assume that all the languages share a common multi-lingual database, whose column/row names and entry values are stored via multiple languages (see the database in Figure 1). That is, the ontology of dialog among different languages is known with a one-to-one mapping between them (e.g., greek=griechisch=greco, food=essen=cibo). Based on that, we could construct a mapping function to associate the ontology terms from different languages with pre-designed language-agnostic concepts: for example, = = = food. We illustrate our problem definition in Figure 2.

4 Decoupled Neural Belief Tracker

We design our cross-lingual DST on top of the state-of-the-art Neural Belief Tracker (NBT) Mrksic et al. (2017)

, which demonstrates many advantages (no hand-crafted lexicons, no linguistic knowledge required, etc). These nice properties are essential for our cross-lingual DST design because we are pursuing a general and simple framework regardless of the language properties. In short, NBT consists of a neural network that computes the matching score for every candidate slot-value pair

based on the following three inputs: (i) the system dialog acts ,333 represents the system request, represents the system confirmation. If the system wants to request some information from the user by asking “what’s your favorite area?”, then NBT sets =“AREA”. If the system wants to confirm some information from a user by asking “should I try Persian restaurants in the north?” then NBT sets =“area, north”. (ii) the user utterance , and (iii) the candidate slot-value pair. And it identifies the user intents by evaluating the scores for all the slot-value pairs (see Figure 3). With a slight abuse of notation, we still use

to denote the vector representations of themselves, where

is the embedding dimension. We will use pre-trained embedding vectors in our cross-lingual NBT, just like the original NBT and they will be fixed during training. To enable cross-lingual transfer learning, we first re-interpret the architecture of the original NBT by decomposing it into three components:

Utterance Encoding

The first component is an utterance encoder, which maps the utterance of a particular language into a semantic representation vector , where is the word vector for the -th token and is the length of the utterance. Note that the dimension of the semantic vector is the same as that of the word vector.

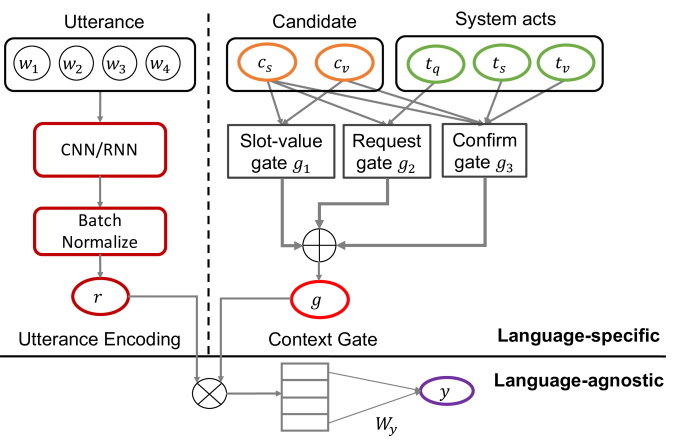

Figure 3: Our implementation of baseline NBT, slightly modified from Mrksic et al. (2017).

We implement the encoder using the same convolutional neural network (CNN) as the original NBT, with a slight modification of adding a top batch normalization layer. We will explain this change in

section 5.

Context Gate

The second part is the context gate, which takes the system acts and the candidate slot-value pair as its inputs and filter out the desired information from the encoded utterance. The context gate is a sum of three separate gates:

(1)

where the individual gates are defined as:

(2)

where are the weight matrices, and and denote the Hadamard product and the inner product, respectively. The three gates model the relevance between the candidate slot and value, the system request and the system confirms, respectively. The transformation matrices are added to the original NBT to increase the model flexibility of the gates.

Slot-Value Decoding

The final component is a slot-value decoder, which predicts the score of a given slot-value pair using the filtered information from the utterance representation as:

(3)

where is the weight vector. The above expression computes the score for the slot-value pair based on the information from the current turn. We combine it with the information from previous turns to get the final score:

(4)

here is a combination weight. For each given slot

, NBT selects the single highest value for informable slots and selects all values above a certain threshold for request slots. Here we replace the multi-layer perceptron in the orginal NBT by a linear output layer (to be explained in

section 5).

5 Cross-lingual Neural Belief Tracker

In this section, we develop a cross-lingual Neural Belief Tracker (XL-NBT) that distills knowledge from one NBT to another using a teacher-student framework. We assume the ontology mapping is known a priori (see section 3). XL-NBT uses language-specific utterance encoder and context gate for each input language while sharing a common (language-agnostic) slot-value decoder across different languages (see Figure 3). The key idea is to optimize the language-specific components of the student network (NBT of the target language) so that their outputs are language-agnostic. This is achieved by making these outputs close to that of the teacher network (NBT of the source language), as we detail below.

Figure 4: Teacher-Student Framework for cross-lingual transfer learning. The dotted line denotes the imaginary utterances, which expresses the same intention as the source side.

5.1 Teacher-Student Framework

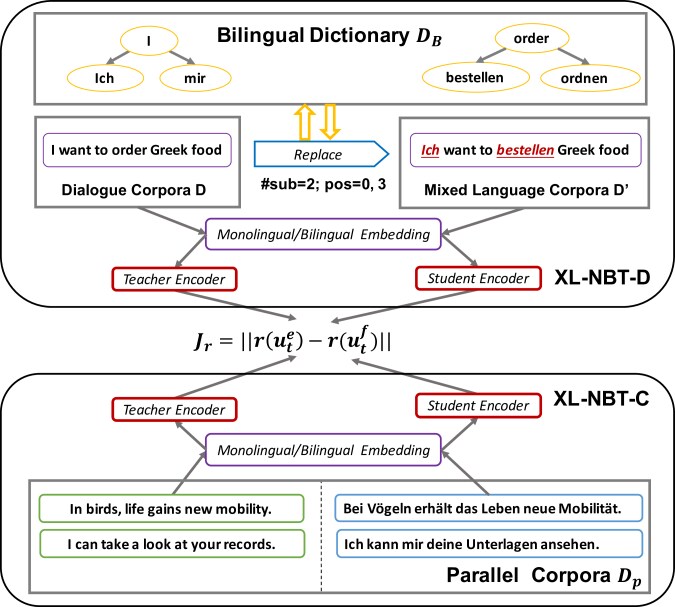

Figure 5: XL-NBT-C and XL-NBT-D for two scenarios

We are given a well-trained NBT for a source language , and we want to learn an NBT for a target language

without any annotated training data. Therefore, we cannot learn the target-side NBT from standard supervised learning. Instead, we use a teacher-student framework to distill the knowledge from the source-side NBT (teacher network) into the target-side NBT (student network) (see

Figure 4). Let be the input to the teacher network and let be the associated input to the student network. The standard teacher-student framework trains the student network by minimizing

(5)

where and denote the scores by the teacher and the student networks, respectively, and the slot-value pairs satisfy and . However, the target-side inputs parallel to are usually not available in cross-lingual DST, and, even worse, the target-side utterance is not available. We may have to generate synthetic input data for the student network or leverage external data sources. It is relatively easy to use the mapping to generate ) (i.e., the inputs of the target-side context gate) from the . But it is more challenging to obtain the parallel utterance data from . Therefore, we have to leverage external bilingual data sources to alleviate the problem. However, the external bilingual data are usually not in the same domain as the utterance, and hence they are not aligned with the slot-value pair and system acts (i.e., or ). For this reason, we cannot perform the knowledge transfer by minimizing the cost (5). Instead, we need to develop a new cost function where the utterance is not required to be aligned with the slot-value pair and the system acts. To this end, let and . And we substitute (3) into (5) and get:

where and . As we mentioned earlier, the weight in the slot-value decoder is shared between the student and the teacher networks and will not be updated. The teacher-student optimization only adjusts the weights related to the language-specific parts in Figure 3 (i.e., utterance encoding and context gating). Therefore, the shared weight is seen as a constant. Furthermore, can be seen as a constant since the teacher gate is fixed. Since we use batch normalization layer to normalize the encoder output (described in Figure 3), can also be treated as a constant . Therefore, we formally write the upper bound of as our surrogate cost function :

(6)

The surrogate cost has successfully decoupled utterance encoder with context gate, and we use and to measure the encoder matching cost and the gate matching cost, respectively.

(7)

The encoder cost is optimized to distill the knowledge from the teacher encoder to student encoder while gate cost is optimized to distill the knowledge from teacher gate to student gate. This objective function successfully decouples the optimization of encoder and gate, thus we are able to optimize and separately from different data sources. Recall that we can easily simulate the target-side system acts, slot-value pairs by using the ontology mapping . Therefore, optimizing is relatively easy. Formally, we write the gate matching cost as follows:

(8)

However, exact optimization of is difficult and we have to approximate it using external parallel data. We consider two kinds of external resources (bilingual corpus and bilingual dictionary) in the sections 5.2-5.3 (see  Figure 5 for the main idea).

5.2 Bilingual Corpus (XL-NBT-C)

In our first scenario, we assume there exists a parallel corpus consisting of sentence pairs from the source language and the target language. In this case, the cost function (6) is approximated by

(9)

where is the balancing factor and is defined in (6). The cost function (9

) is minimized by stochastic gradient descent. At test time, we switch the encoder to receive target language inputs.

5.3 Bilingual Dictionary (XL-NBT-D)

In the second scenario, we assume there exists no parallel corpus but a bilingual dictionary that defines the correspondence between source words and target words (a one-to-many mapping ). Likewise, it is infeasible to optimize the exact encoder cost due to the lack of target-side utterances. We propose a word replacement strategy (to be described later) to generate synthetic parallel sentence of “mixed” language. Then, we use the generated target parallel sentences to approximate the cost (6) by

(10)

where is the balancing factor. For word replacement, we first decide the number of words to be replaced, then we draw positions randomly from the source utterance and substitute the corresponding word with their target word synonym from based on the context as follows:

(11)

where represents the context vector and denotes the utterance length. The context similarity of context and the target-side synonym can better help us in choosing the most appropriate candidate from the list. In our following experiments, we adjust the temperature of to control the aggressiveness of replacement.

6 Experiments

6.1 Dataset

The Wizard of Oz (WOZ) Rojas-Barahona et al. (2017) dataset is used for training and evaluation, which consists of user conversations with task-oriented dialog systems designed to help users find suitable restaurants around Cambridge, UK. The corpus contains three informable (i.e. goal-tracking) slots: FOOD, AREA, and PRICE. The users can specify values for these slots in order to find which best meet their criteria. Once the system suggests a restaurant, the users can ask about the values of up to eight requestable slots (PHONE NUMBER, ADDRESS, etc.). Multilingual WOZ 2.0 Mrksic et al. (2017) has expanded this dataset to include more dialogs and more languages. The train, valid and test datasets for three different languages (English, German, Italian) are available online444https://github.com/nmrksic/neural-belief-tracker/tree/master/data. We use the English as source language where 600 dialogs are used for training, 200 for validation and 400 for testing. We use the German and Italian as the target language to transfer our knowledge from English DST system. In the experiments, we do not have access to any training or validation dataset for German and Italian, and we only have access to their testing dataset which is composed of 400 dialogs.

For external resource, we use the IWSLT2014 Ted Talk parallel corpus Mauro et al. (2012) from the official website555https://wit3.fbk.eu/mt.php?release=2014-01 for bilingual corpus scenario. In the IWSLT2014 parallel corpus, we only keep the sentences between 4 and 40 words and decrease the sentence pairs to around 150K. We use Panlex Kamholz et al. (2014) as our data source and crawl translations for all the words appearing in the dialog datasets to build our bilingual dictionary. We specifically investigate two kinds of pre-trained embedding, and we use Glove Pennington et al. (2014) as the monolingual embedding and MUSE Conneau et al. (2017) as the bilingual embedding to see their impacts on the DST performance.

We split the raw DST corpus into turn-level examples. During training, we use the ground truth previous state

as inputs. At test time, we use the model searched states as the previous state to continue tracking intention until the end of the dialog. When the dialog terminates, we use two evaluation metrics introduced in

Henderson et al. (2014a) to evaluate the DST performance: (1) Goals: the proportion of dialog turns where all the user’s search goal constraints were correctly identified. (2) Requests: similarly, the proportion of dialog turns where user’s requests for information were identified correctly. Our implementation is based on the NBT666https://github.com/nmrksic/neural-belief-tracker, the details of our system setting are described in the appendix.

Error Type Examples
Modify
Failure
Machine: I have two options that fit that description, golden wok Chinese restaurant and the Nirala which
serves Indian food, do you have a preference?
User: How about Nirala, what’s the address and phone of that?
Previous State: food=Chinese; Prediction: food=none; Groundtruth: food=Indian
Maintain
Failure
Machine: there are $num places with a moderate price range. can you please tell me what kind of food
you would like?
User: well I want to eat in the north, what’s up that way?
Previous State: food=expensive; Prediction: food=none; Groundtruth: food=expensive
History
Failure
Machine: Anatolia is located at $num bridge street city center.
User: thank you goodbye!
Previous State: food=Chinese; Prediction: food=Chinese;,Groundtruth: food=Turkish
Table 1: Here we show the frequent error types, the examples are translated to English for better understanding.
Language German (student) Italian (student) English (teacher)
Models Goal Request Goal Request Goal Request
w/ Supervised Dialog NBT Mrksic et al. (2017) - - - - 0.84 0.91
Decoupled NBT (mono) 0.79 0.83 0.86 0.91 0.82 0.89
Decoupled NBT (bilingual) 0.80 0.84 0.88 0.91 0.84 0.90
w/o Bilingual Data w/o Transfer (mono) 0.15 0.10 0.15 0.11 - -
w/o Transfer (bilingual) 0.13 0.13 0.11 0.12 - -
Ontology Matching 0.24 0.21 0.23 0.21 - -
w/ Bilingual Corpus Translate Klein et al. (2017) 0.41 0.42 0.48 0.51 - -
XL-NBT-C (mono) 0.48 0.54 0.65 0.60 - -
XL-NBT-C (bilingual) 0.55 0.59 0.72 0.69 - -
w/ Bilingual Dictionary Word-by-Word 0.22 0.25 0.25 0.27 - -
XL-NBT-D (mono) 0.14 0.15 0.23 0.22 - -
XL-NBT-D (bilingual) 0.51 0.56 0.73 0.63 - -
Table 2: Experimental results for cross-lingual NBT and other baseline algorithms. All results are averaged over 5 runs. Here we use “mono” to refer to the experiments with pre-trained monolingual embedding, “bilingual” to refer to the experiments with pre-trained bilingual embedding.

6.2 Results

Here we highlight the baselines we use to compare with our cross-lingual algorithm as follows:
(1) Supervised: this baseline algorithm assumes the existence of annotated dialog belief tracking datasets, and it determines the upper bound of the DST model.
(2) w/o Transfer: this algorithm trains an English NBT, and then directly feeds target language into the embedding level as inputs during test time to evaluate the performance.
(3) Ontology-match: this algorithm directly uses exact string matching against the utterance to discover the perceived slot-value pairs, it directly assigns a high score to the appearing candidates.
(4) Translation-based: this system pre-trains a translator on the external bilingual corpus and then translates the English dialog and ontology into target language as “annotated” data, which is used to train the NBT in the target language domain (more details about the implementation, performance and examples are listed in the appendix).
(5) Word-By-Word (WBW): this system transforms the English dialog corpus into target language word by word using the bilingual dictionary, which is used to train the NBT in target side.
We demonstrate the results for our proposed algorithms and other competing algorithms in Table 2, from which we can easily conclude that that (i) our Decoupled NBT does not affect the performance, and (ii) our cross-lingual NBT framework is able to achieve significantly better accuracy for both languages in both parallel-resource scenarios.

Compare with Translator/WBW.

With bilingual corpus, XL-NBT-C with pre-trained bilingual embedding can significantly outperform our Translator baseline Klein et al. (2017). This is intuitive because the translation model requires both source-side encoding and target-side word-by-word decoding, while our XL-NBT only needs a bilingual source-encoding to align two vector space, which averts the compounded decoding errors. With the bilingual dictionary, the word-by-word translator is very weak and leading to many broken target sentences, which poses challenges for DST training. In comparison, our XL-NBT-D can control the replacement by adjusting its temperature to maintain the stability of utterance representation. Furthermore, for both cases, our teacher-student framework can make use of the knowledge learned in source-side NBT to assist its decision making, while translator-based methods learn from scratch.

Bilingual Corpus vs. Bilingual Dictionary.

From the table, we can easily observe that bilingual corpus is obviously a more informative parallel resource to perform cross-lingual transfer learning. The accuracy of XL-NBT-D is lower than XL-NBT-C. We conjecture that our replacement strategy to generate “mixed” language utterance can sometimes break the semantic coherence and cause additional noises during the transfer process, which remarkably degrades the DST performance.

Monolingual vs. Bilingual embedding.

From the table, we can observe that the bilingual embedding and monolingual embedding does not make much difference in supervised training. However, the gap in the bilingual corpus case is quite obvious. Monolingual embedding even causes the transfer to fail in a bilingual dictionary case. We conjecture that the bilingual word embedding already contain many alignment information between two languages, which largely eases the training of encoder matching objective.

German vs. Italian

As can be seen, the transfer learning results for Italian are remarkably higher than German, especially for the “Goal” accuracy. We conjecture that it is due to German declension, which can produce many word forms. The very diverse word forms present great challenges for DST to understand its intention behind. Especially for the bilingual dictionary, German tends to have much longer replacement candidate lists than Italian, which introduces more noises to the replacement procedure.

Error Analysis

Here we showcase the most frequent error types in Table 1. From our observation, these three types of errors distribute evenly in the test dialogs. The error mainly comes from the unaligned utterance space, which leads to failure in understanding the intention of human utterance in the target language. This can lead the system to fail in modifying the dialog state or maintaining the previous dialog states.

6.3 Discussion

Here we want to further highlight the comparison between our transfer learning algorithm with the MT-based approach. Though our approach outperforms the standard Translator trained on IWSLT-2014, it does not necessarily claim that our transfer algorithm outperforms any translation methods on any parallel corpus. In our further ablation studies, we found that using Google Translator 777https://translate.google.com/ can actually achieve a better score than our transfer algorithm, which is understandable considering the complexity of Google Translator and the much larger parallel corpus it leverages. By leveraging more close-to-domain corpus and comprehensive entity recognition/replacement strategy, the translator model is able to achieve a higher score. Apparently, we need to trade off the efficiency for the accuracy. For DST problem, it is an overkill to introduce a more complex translation algorithm, what we pursue is a simple yet efficient algorithm to achieve promising scores. It is also worth mentioning that our XL-NBT algorithm only takes several hours to achieve the reported score, while the translator model takes much more time and memory to train depending on the complexity. Thus, the simplicity and efficiency makes our model a better fit for rare-language and limited-budget scenarios.

6.4 Ablation Test

Here we investigate the effect of hyper-parameter on the evaluation results. The is used to balance the optimization of encoder constraint and gate constraint, where larger means more optimization on gate constraint. The temperature is used to control the aggressiveness of the replacement XL-NBT-D, where smaller means more source words are replaced by target synonyms.

ablation ( fixed to 0.1) ablation ( fixed to 1)
value Goal Request value Goal Request
=0 0.13 0.00 =0 0.14 0.08
=0.1 0.46 0.54 =0.03 0.43 0.50
=1 0.51 0.56 =0.1 0.51 0.56
=5 0.46 0.54 =0.3 0.47 0.51
=10 0.46 0.52 =1 0.44 0.52
=100 0.44 0.50 =10 0.33 0.32
Table 3: Ablation test for hyper-parameter and on English-to-German XL-NBT-D.

From the table Table 3, we can observe that the experimental results are not very sensitive to , a dramatic change of will not harm the final results too much, we simply choose as the hyper-parameter. In contrast, the system is more sensitive to temperature. Too conservative replacement will lead to weak transfer, while too aggressive replacement will destroy the utterance representation. Therefore, we choose the a moderate temperature of throughout our experiments. We also draw the learning curve (Precision vs. Iteration) in the Appendix for both XL-NBT-C and XL-NBT-D. The learning curves show that our algorithm is stable and converges quickly, and the reported results are highly reproducible.

7 Conclusion

In our paper, we propose a novel teacher-student framework to perform cross-lingual transfer learning for DST. The key idea of our model is to decouple the current DST neural network into two separate modules and transfer them separately. We believe our method can be further extended into a general purpose multi-lingual transfer framework to resolve other NLP matching or classification problems.

8 Acknowledgement

We are gratefully supported by a Tencent AI Lab Rhino-Bird Gift Fund. We are also very thankful for the public belief tracking code and multi-lingual state-tracking datasets released by Nikola Mrksic from the University of Cambridge.

References

  • Bahdanau et al. (2016) Dzmitry Bahdanau, Philemon Brakel, Kelvin Xu, Anirudh Goyal, Ryan Lowe, Joelle Pineau, Aaron Courville, and Yoshua Bengio. 2016. An actor-critic algorithm for sequence prediction. arXiv preprint arXiv:1607.07086.
  • Bordes and Weston (2017) Antoine Bordes and Jason Weston. 2017. Learning end-to-end goal-oriented dialog. In Proceedings of the International Conference on Learning Representations (ICLR).
  • Conneau et al. (2017) Alexis Conneau, Guillaume Lample, Marc’Aurelio Ranzato, Ludovic Denoyer, and Hervé Jégou. 2017. Word translation without parallel data. In Proceedings of the International Conference on Learning Representations (ICLR).
  • Deng et al. (2018) Yuntian Deng, Yoon Kim, Justin Chiu, Demi Guo, and Alexander M Rush. 2018. Latent alignment and variational attention. arXiv preprint arXiv:1807.03756.
  • Henderson et al. (2014a) Matthew Henderson, Blaise Thomson, and Steve Young. 2014a.

    Robust dialog state tracking using delexicalised recurrent neural networks and unsupervised adaptation.

    In Spoken Language Technology Workshop (SLT), 2014 IEEE, pages 360–365. IEEE.
  • Henderson et al. (2014b) Matthew Henderson, Blaise Thomson, and Steve J. Young. 2014b. Word-based dialog state tracking with recurrent neural networks. In Proceedings of the SIGDIAL 2014 Conference, The 15th Annual Meeting of the Special Interest Group on Discourse and Dialogue, 18-20 June 2014, Philadelphia, PA, USA, pages 292–299.
  • Kamholz et al. (2014) David Kamholz, Jonathan Pool, and Susan M Colowick. 2014. Panlex: Building a resource for panlingual lexical translation. In LREC, pages 3145–3150.
  • Kim et al. (2017) Joo-Kyung Kim, Young-Bum Kim, Ruhi Sarikaya, and Eric Fosler-Lussier. 2017. Cross-lingual transfer learning for pos tagging without cross-lingual resources. In

    Proceedings of the 2017 Conference on Empirical Methods in Natural Language Processing

    , pages 2832–2838.
  • Klein et al. (2017) G. Klein, Y. Kim, Y. Deng, J. Senellart, and A. M. Rush. 2017.

    OpenNMT: Open-Source Toolkit for Neural Machine Translation.

    ArXiv e-prints.
  • Li et al. (2017) Xiujun Li, Yun-Nung Chen, Lihong Li, Jianfeng Gao, and Asli Çelikyilmaz. 2017. End-to-end task-completion neural dialogue systems. In Proceedings of the Eighth International Joint Conference on Natural Language Processing, IJCNLP 2017, Taipei, Taiwan, November 27 - December 1, 2017 - Volume 1: Long Papers, pages 733–743.
  • Mauro et al. (2012) Cettolo Mauro, Girardi Christian, and Federico Marcello. 2012. Wit3: Web inventory of transcribed and translated talks. In Conference of European Association for Machine Translation, pages 261–268.
  • Metallinou et al. (2013) Angeliki Metallinou, Dan Bohus, and Jason Williams. 2013. Discriminative state tracking for spoken dialog systems. In Proceedings of the 51st Annual Meeting of the Association for Computational Linguistics (Volume 1: Long Papers), volume 1, pages 466–475.
  • Miyazaki and Shimizu (2016) Takashi Miyazaki and Nobuyuki Shimizu. 2016. Cross-lingual image caption generation. In Proceedings of the 54th Annual Meeting of the Association for Computational Linguistics (Volume 1: Long Papers), volume 1, pages 1780–1790.
  • Mrksic et al. (2015) Nikola Mrksic, Diarmuid Ó Séaghdha, Blaise Thomson, Milica Gasic, Pei-hao Su, David Vandyke, Tsung-Hsien Wen, and Steve J. Young. 2015. Multi-domain dialog state tracking using recurrent neural networks. In Proceedings of the 53rd Annual Meeting of the Association for Computational Linguistics and the 7th International Joint Conference on Natural Language Processing of the Asian Federation of Natural Language Processing, ACL 2015, July 26-31, 2015, Beijing, China, Volume 2: Short Papers, pages 794–799.
  • Mrksic et al. (2017) Nikola Mrksic, Diarmuid Ó Séaghdha, Tsung-Hsien Wen, Blaise Thomson, and Steve J. Young. 2017. Neural belief tracker: Data-driven dialogue state tracking. In Proceedings of the 55th Annual Meeting of the Association for Computational Linguistics, ACL 2017, Vancouver, Canada, July 30 - August 4, Volume 1: Long Papers, pages 1777–1788.
  • Mrkšić et al. (2017) Nikola Mrkšić, Ivan Vulić, Diarmuid Ó Séaghdha, Ira Leviant, Roi Reichart, Milica Gašić, Anna Korhonen, and Steve Young. 2017. Semantic specialisation of distributional word vector spaces using monolingual and cross-lingual constraints. arXiv preprint arXiv:1706.00374.
  • Ni et al. (2017) Jian Ni, Georgiana Dinu, and Radu Florian. 2017.

    Weakly supervised cross-lingual named entity recognition via effective annotation and representation projection.

    In Proceedings of the 55th Annual Meeting of the Association for Computational Linguistics, ACL 2017, Vancouver, Canada, July 30 - August 4, Volume 1: Long Papers, pages 1470–1480.
  • Pan and Yang (2010) Sinno Jialin Pan and Qiang Yang. 2010. A survey on transfer learning. IEEE Transactions on knowledge and data engineering, 22(10):1345–1359.
  • Pan et al. (2017) Xiaoman Pan, Boliang Zhang, Jonathan May, Joel Nothman, Kevin Knight, and Heng Ji. 2017. Cross-lingual name tagging and linking for 282 languages. In Proceedings of the 55th Annual Meeting of the Association for Computational Linguistics (Volume 1: Long Papers), volume 1, pages 1946–1958.
  • Pennington et al. (2014) Jeffrey Pennington, Richard Socher, and Christopher Manning. 2014. Glove: Global vectors for word representation. In Proceedings of the 2014 conference on empirical methods in natural language processing (EMNLP), pages 1532–1543.
  • Precup and Teh (2017) Doina Precup and Yee Whye Teh, editors. 2017.

    Proceedings of the 34th International Conference on Machine Learning, ICML 2017, Sydney, NSW, Australia, 6-11 August 2017

    , volume 70 of Proceedings of Machine Learning Research. PMLR.
  • Rastogi et al. (2017) Abhinav Rastogi, Dilek Hakkani-Tür, and Larry P. Heck. 2017. Scalable multi-domain dialogue state tracking. In 2017 IEEE Automatic Speech Recognition and Understanding Workshop, ASRU 2017, Okinawa, Japan, December 16-20, 2017, pages 561–568.
  • Rojas-Barahona et al. (2017) Lina Maria Rojas-Barahona, Milica Gasic, Nikola Mrksic, Pei-Hao Su, Stefan Ultes, Tsung-Hsien Wen, Steve J. Young, and David Vandyke. 2017. A network-based end-to-end trainable task-oriented dialogue system. In Proceedings of the 15th Conference of the European Chapter of the Association for Computational Linguistics, EACL 2017, Valencia, Spain, April 3-7, 2017, Volume 1: Long Papers, pages 438–449.
  • Wen et al. (2015) Tsung-Hsien Wen, Milica Gasic, Nikola Mrksic, Pei-hao Su, David Vandyke, and Steve J. Young. 2015.

    Semantically conditioned lstm-based natural language generation for spoken dialogue systems.

    In Proceedings of the 2015 Conference on Empirical Methods in Natural Language Processing, EMNLP 2015, Lisbon, Portugal, September 17-21, 2015, pages 1711–1721.
  • Williams et al. (2016) Jason Williams, Antoine Raux, and Matthew Henderson. 2016. The dialog state tracking challenge series: A review. Dialogue & Discourse, 7(3):4–33.
  • Williams et al. (2017) Jason D. Williams, Kavosh Asadi, and Geoffrey Zweig. 2017.

    Hybrid code networks: practical and efficient end-to-end dialog control with supervised and reinforcement learning.

    In Proceedings of the 55th Annual Meeting of the Association for Computational Linguistics, ACL 2017, Vancouver, Canada, July 30 - August 4, Volume 1: Long Papers, pages 665–677.
  • Wiseman and Rush (2016) Sam Wiseman and Alexander M Rush. 2016. Sequence-to-sequence learning as beam-search optimization. arXiv preprint arXiv:1606.02960.
  • Xu and Hu (2018) Puyang Xu and Qi Hu. 2018. An end-to-end approach for handling unknown slot values in dialogue state tracking. In Proceedings of the 56th Annual Meeting of the Association for Computational Linguistics, ACL 2018, Melbourne, Australia, July 15-20, 2018, Volume 1: Long Papers, pages 1448–1457.
  • Young et al. (2010) Steve Young, Milica Gašić, Simon Keizer, François Mairesse, Jost Schatzmann, Blaise Thomson, and Kai Yu. 2010. The hidden information state model: A practical framework for pomdp-based spoken dialogue management. Computer Speech & Language, 24(2):150–174.
  • Zhang et al. (2016) Yuan Zhang, David Gaddy, Regina Barzilay, and Tommi S. Jaakkola. 2016. Ten pairs to tag - multilingual POS tagging via coarse mapping between embeddings. In NAACL HLT 2016, The 2016 Conference of the North American Chapter of the Association for Computational Linguistics: Human Language Technologies, San Diego California, USA, June 12-17, 2016, pages 1307–1317.

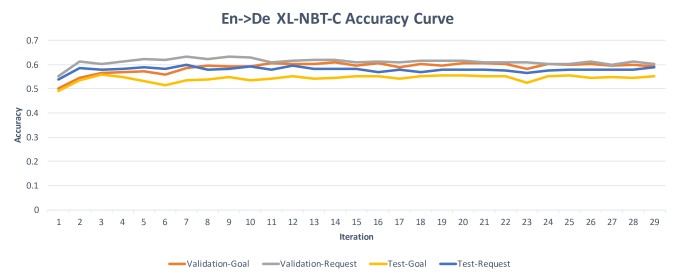

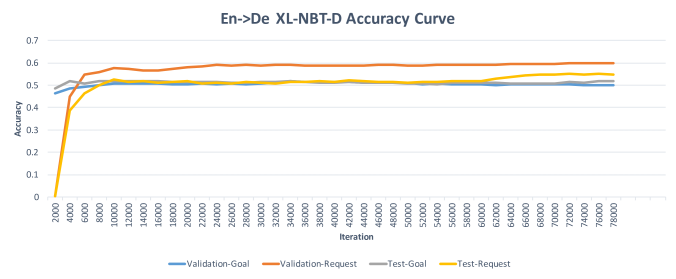

Appendix A Supplemental Material

a.1 Translator Baseline

In this paper, we use translator model as baseline to compare with our cross-lingual transfer algorithm. Here we adopt the open-source toolkit for neural machine translation (NMT) in openNMT888https://github.com/OpenNMT/OpenNMT-py

and train this model on the IWSLT2014 english-to-german and english-to-italian translation dataset. Our training data consists of 178K sentence pairs and validation data consists of 2K sentence pairs. We train the NMT model for roughly five epochs until it converges on the validation dataset. The source and target word vector size are both set to 500, the attention-based RNN hidden size for encoder and decoder are also both 500. We adopt the input feeding strategy to further boost the performance and apply beam size of 8 to search for the most probable target candidate. We leave the UNKs out during beam search to reduce noises. Here we first show the results of our trained model against some state-of-art algorithms to verify that our trained translation model makes sense:

Model BLEU
Actor-Critic Bahdanau et al. (2016) 28.53
BSO Wiseman and Rush (2016) 26.63
Variational Attention Deng et al. (2018) 33.09
Our OpenNMT Klein et al. (2017) 30.2
Table 4: The test set results on IWSLT for different algorithms

We can see from Table 4 that our pre-trained model is able to achieve reasonable results on the common translation dataset. Here we demonstrate some examples for translated dialogs:

  • Human(correct): gibt es irgendwelche eritrean restaurants in die stadt? (is there any eritrean restaurants in the town?)

  • Machine: no, there are no eritrean restaurants in town. would you like a different restaurant?

  • Human(missing): Wie steht es mit essen? (Is there any Chinese food?)

  • Machine: there is a wide variety of chinese restaurants, do you have an area preference or a price preference to narrow it down?

  • Human(correct): ich würde den osten der stadt mögen. (I want to try something in the east)

  • Machine: yu garden is a chinese restaurant in the east area.

  • Human(correct): könnte ich die adresse bekommen, und postcode garden? (Can I obtain the address and postcode of the restaurant?)

  • Machine: phone is xxx-xxxx, address and postcode are xxx new market road

Another example is shown below:

  • Human(missing): ich möchte ein restaurant in jedem gebiet finden , und serves essen? (I want to find a restaurant anywhere to serve Scottish food?)

  • Machine: there are no restaurants serving scottish food . would you like to try something else?

  • Human(correct): ja, wie steht es mit modernen europäischen essen? (how about moderate european food?)

  • Machine: eraina is a great european eatery. what other information can i provide to you?

  • Human(correct): was ist das telefon? (What is its telephone?)

  • Machine: their phone number is num may i help you with anything else?

  • Human(correct): nein, vielen dank. (no, thanks.)

The above generated German dialogs are shown with their English translation to help readers to understand. We have observed that the most frequent two error types are the entity missing and broken grammar. Since IWSLT2014 lies in another domain, its vocabulary is mis-aligned with the spoken dialog vocabulary. Therefore, the NMT decoder fails to generate many ontology words. These errors in the translated dialog corpus can remarkably degrade the DST performance.

a.2 NBT system setting

In our implementation, we set the word embedding size to be for both monolingual and bilingual embedding. We directly use the ontology’s corresponding lexicon embedding as its own embedding. Therefore, the ontology embedding also shares the same dimension. We restrict the length of utterance to be a maximum of 40 and filter the utterances beyond that length during training. Our CNN has three independent filter size (1, 2, 3) to extract unigram, bigram and trigram information out of the utterance. The intermediate feature dimension of CNN is also set to 300, finally we add the three filters to construct the utterance representation. We also apply dropout strategy after the three gates.

a.3 Learning Curve

Here we demonstrate the learning curve for XL-NBT-D in Figure 6 and XL-NBT-C in Figure 7.

Figure 6: The learning curve for Transfer Learning (XL-NBT-D).
Figure 7: The learning curve for Transfer Learning (XL-NBT-C).

The rise of our transfer learning is very steady, we average multiple runs as our final reported score in the paper.
