x.ent: R Package for Entities and Relations Extraction based on Unsupervised Learning and Document Structure

Relation extraction with accurate precision is still a challenge when processing full text databases. We propose an approach based on cooccurrence analysis in each document for which we used document organization to improve accuracy of relation extraction. This approach is implemented in a R package called x.ent. Another facet of extraction relies on use of extracted relation into a querying system for expert end-users. Two datasets had been used. One of them gets interest from specialists of epidemiology in plant health. For this dataset usage is dedicated to plant-disease exploration through agricultural information news. An open-data platform exploits exports from x.ent and is publicly available.

READ FULL TEXT VIEW PDF

page 13

page 22

page 24

page 26

08/21/2021

A Hierarchical Entity Graph Convolutional Network for Relation Extraction across Documents

Distantly supervised datasets for relation extraction mostly focus on se...
04/04/2019

Document-Level N-ary Relation Extraction with Multiscale Representation Learning

Most information extraction methods focus on binary relations expressed ...
06/07/2021

Document-level Relation Extraction as Semantic Segmentation

Document-level relation extraction aims to extract relations among multi...
02/20/2021

Entity Structure Within and Throughout: Modeling Mention Dependencies for Document-Level Relation Extraction

Entities, as the essential elements in relation extraction tasks, exhibi...
06/10/2016

Bootstrapping Distantly Supervised IE using Joint Learning and Small Well-structured Corpora

We propose a framework to improve performance of distantly-supervised re...
10/11/2020

Revising FUNSD dataset for key-value detection in document images

FUNSD is one of the limited publicly available datasets for information ...
12/14/2017

Relation Extraction : A Survey

With the advent of the Internet, large amount of digital text is generat...

1 Introduction

More than 90% of available information during history have been produced only the last 5 years (see [29]). All kind of data is concerned but if we consider data on internet, usage considered by people are mostly associated to textual data (i.e sending a tweet or an email)(see [32]), and on internet 3% out of 48 billions URLs are indexed by Google; it means 14 billions webpages are under textual format (see [25]). Even on a database such as Youtube we can find text annotations for videos. Text processing gets more and more interest in database processing to sift interesting pieces of information (see [37] [59]

). Natural Language Processing is naturally engaged in analytics and for lots of purposes, relations makes sense in many documents (see

[57]); not only bags of words as it has been widely studied and implemented for a long time (see [55] [20]).
Words are ambiguous syntactically or semantically, but if we consider such information extraction task as relation extraction with named entities it could increase accuracy of extraction because named entities are less ambiguous than noun phrases (see [58]). In lots of specialized domains, users play an important role. The domain acts as a constraint to the lexical universe, and end-users act as a validation process for extracted information. That is why involving users (i.e. domain-experts) in specification of usefulness about extraction add constraints about extracted information by a system.

In this sense our proposed system takes into account hand-crafted definition of external resources and user interface specification by domain experts. These resources are of two kinds: the first one is a proto-ontology of domain named entities, the second is rules definition with lexical markers in the case concepts can not fit to usual case of named entities (such as an opinion, a stage …). Sometimes we can map to a concept both approaches (dictionaries and rules). Once instances of concept are retrieved, we used heuristics of document architecture as rules to reinforce an unsupervised approach by co-occurrence analysis. Our tool x.ent integrates some graphical facilities help a user to explore exported lists of extractions.


Part 2 (state of the art) presents the context of named entity recognition, relation extraction of named entities. Part 3 (methodology) explains our approach to extract relations in a document (datasets, heuristics and algorithms). Finally the part 4 (results) shows result assessment and some means to explore relations.

2 State of the art

The field of ”Information Extraction” has been defined to identify pieces of information associated to real-world objects such that they can be classified by type, for instance organization:org, person:per, localisation:loc, protein:prot, disease:dis, prices:pri, times:tim… ; and extended recently with others popular components as species, phenotypes, medicines. This an example :


”We performed exome sequencing in a family with <Crohn’s disease:dis>(CD) and severe autoimmunity, analysed immune cell phenotype and function in affected and non-affected individuals, and performed in silico and in vitro analyses of <cytotoxic T lymphocyte-associated protein 4:prot>(CTLA-4) structure and function.”
Entity recognition is the first stage necessary for other stages that could association of other numeric or qualitative information about context of a named entity, relation extraction between entities, association of group of relations occurring in a same time or a same location, organizing a scenario of item-sets over time or causality. This is some example of relation: involved_in, located_in, part_of, married_to, sold_to, interact_with, causes_damage_to…). From the previous example we can set the relation between categories <prot>and <dis>as ”<prot>involved_in<dis>” and the identified instances <cytotoxic T lymphocyte-associated protein 4:prot><Crohn’s disease:dis>fits well. At an upper level of extraction we should able to achieve a network reconstruction or figuring out sets of events. But at this stage, mapping a sequence of events that have not been validated experimentally, or by an expertise, should be only putative.

There are two families of approaches. Handcraft-design rules by expert approach is considered as more qualitative or symbolic (also called knowledge-rich), and the machine learning approach is considered as more numeric or quantitative (also called knowledge-poor). But in any case experts are involved in the loop to define resources (well defined lexical dictionaries, annotated files, detection rules). Some learning techniques can avoid intervention of experts as distant learning and raw cooccurrence analysis, but they are not tractable in any case with good accuracy.

Named entity recognition (NER) is considered as a solved problem. First emblematic conferences, on the topic, was held between 1987 and 1997 to identify terrorist activities in news (Message understanding Conferences , see [27] ). Lasts conferences was about molecular biology information organized by the BioCreativ consortium in 2008, and about information from news at the computational natural language learning confernce (CONLL) in 2003. Look at Section 4.1

to see the definition of parameters (P or precision, R or recall, F-score) to assess quality of extraction. The two main approaches to recognize named entities are:

  • Pattern-based algorithms where experts define handcrafted rules.
    Rule-based techniques often works with automata theory (at least when processing textual data). An automaton is a machine in which a set of states Q contains only a limited number of components and is called a finite-state machine (FSM). FSMs are a set of abstract machines consisting in a set of states (set S), a set of input events (ensemble ), a set of output events (set Z) and a transition state function. The transition state function takes the current state and a event as input and return a new set of events as output and the next state. Hence, it can be seen as a function that maps an ordered sequence of events as input to a corresponding sequence, or a set of events, as output. With such transition function , this is the mathematical model which gives formal definitions, a finite-state machine is a quintuple where :

    • is an alphabet as input (a finite set, non null of symbols).

    • S is a non-null set of states.

    • is an initial state, an element of S.

    • is a state transition function : (in the case of a finite state automaton non-determinist it should be , i.e., should return a set of state).

    • F is a set of final states, a sub-set (maybe null) of S.

    For determinist and non-determinist FSMs, it is conventional to consider as a partial function, i.e. does not have to be defined for all combinations of et . If a FSM M is in a state q, the next symbol is x and

    is not defined, then M can export an error (i.e. reject an input). A finite state machine is a limited Turing machine where the reader header produces operations, and still go ahead, from left to right. A FSM can always be represented by a graphical model in which states and transitions are displayed. For instance the following, linear, expression can recognize some names of universities :


              [A-Z][a-z]+([ ][A-Z][a-z]+)+University
    Result could be ”Paris Est University” or ”New York City University”.
    Dictionary-based approach like in Lingpipe (see [12]) or LAITOR (Literature Assistant for Identification of Terms co-Occurrences and Relationships) (see [3]) can achieve a better score if entities are already stored in external resources. Some systems can used rules with predefined patterns using lexical tokens and grammatical conditions. Basic system using rules are based on finite automata and regular languages (see [44], [45], [47],[21]). More complex system use frames (see [7]).

  • Statistical Learning algorithms: HMM (see [23] [31] [2] [6]), MAXENT (see [5] [9], [43]) , CRF (see [42]

    ), regularized averaged perceptron. These approaches require annotated files to learn dependencies probabilities for the model. IllinoisNER system achieves 90.6% F1 and SNER (Stanford NER) 86.86% F1 to the CoNLL03 NER shared task data. IllinoisNER use a perceptron model and SNER a MaxEnt approach. HIT LTP NER use also a MaxEnt and obtain 92.25% F1 at OpenNLP namefinder (see

    [22]) uses also MAxEnt approach.

General accuracy evaluation challenges give a F-score >90% for NER task when at the time human assessment is 97%. Relation Extraction is more difficult (generally F-score <60%). This is the main basic techniques for relation extraction subdivided into two main approaches as for entities extraction:

  • Exact Dictionary-Based Chunking (see [13])

  • Handcrafted rule-based techniques ([40])

And optimization approaches :

In the range of tools using predefined schemas, the tool Pharmspresso (see [19]) aims at extracting instances matching with the schemas ”medicine association gene” in full texts documents. Out of 178 genes mentions, Pharmspresso finds 78.1% and out of 191 medicine mentions the tool finds 74.4%. With the previously cited schema the tool finds 50.3% of associations ; PPInterFinder (see [53]) is a tool implemented to extract causal relationships between human proteins in texts relying on 11 schemas. The tool achieves a score 66.05% on the AIMED corpus and overcomes most of other sytems. Biocreative challenge II (see [38]) was focused on molecule name detection and their relationships ; the overview highlights that one of the best scores (F-score=45%) is given by a system implementing lexical schemas about relationships. OpenDMAP is one of these tools (see [4]).
From the side of tools implementing symbolic learning, LIEP system outputs 85.2% F-score (recall 81.6%; precision 89.4%) with a training dataset about 100 sentences from the Wall Street Journal. Distant learning gives a precision about 67% (in a lexical framework) which does not varies with syntactic assumptions (68%) for 1000 relationships instances concerning films, geography, localisation, persons. A hybrid approach like Sprout-Dare gives 83% as precision on medical full texts in German.
Among statistical learning approaches, the MaxEnt method has been largely used to extract relationships of proteins with a 45% F-score. Unsupervised methods based on a simple cooccurrence analysis obtain not so much ridiculous scores (but on abstracts). For instance studies about instance of a schema such as ”gene-associated to-disease” highlight a relevance of detection in abstracts of 78.5% (Precision) and 87.1% (Recall) (with gene recognition scores P=89% and R=90.9%, and about diseases recognition scores P = 90% and R=96.6%).

In the era of internet, lots of resources are now available on internet. Generic databases for common knowledge collect millions of facts such as Freebase (see [26]) where we can find a relation song/singer like Yesterday ¡-¿ John Lennon, Paul McCartney. Freebase claims to register 3 billions entities with links. Another famous database is Yago (see [34]) storing 10 millions entities and 120 millions of facts. Others generic database can be mentioned and are also parsed by these cited one but individually they can contain lists of interesting pieces of information (WordNet, Wikipedia (see [28], [33])). Specific databases propose a summary of a domain like Gene Ontology (GO) in molecular biology or Agrovoc (created the by Food and Agriculture Organization of the United Nations - FAO) in agricultural sciences. These databases are not sufficiently exhaustive even if they can provide lots of relevant relations if we look at conferences such as BioCreative (see [24]).

3 Methodology

3.1 Assumptions

We settle two assumptions and we will assess these assumptions with precision and recall parameters. Our main assumption points out the issue to detect relations when features do not occur only inside a sentence but between sentences and also when a document have some topical organization with titles, subtitles and paragraphs.

Assumption 1

Architecture of a document
Relevant items and their relationships can occur to different architectural part of a document

Our second assumption is that relationship between named entities are explicit and able to be catched by shallow parsing of tokens in the text.

Assumption 2

Shallow parsing
Named entities can be captured by shallow parsing

And a last assumption is that a user can assess results :

Assumption 3

User needs
Items found in texts can be interpreted by an end-user and fits its usage needs

With these assumptions we try to infer all possible relationships mentioned by a document. Hence after document segmentation three steps can be interesting to insert into a pipe :

  1. reformatting and segmentation of a document into subparts;

  2. named entity recognition and contextual information extraction.

  3. relation extraction

  4. contextual information assignment (for instance: pest significance, development stage, climat, location).

To describe the problem in a formal way, we introduce the following definitions:

Definition 1

Text Unit and Entity
A text unit U is a linked list which consists of words W and entities E. An entity can be a word or a set of consecutive words. Entities in a text unit are labeled as E1, E2 … according to their order, and they take value that range over a set of entity types .

Segmentation into text units is not always an easy task because of text components occurring everywhere on a page and not linked sequentially with other text units around. Sometimes a conversion of pdf into ascii format may lead to a merge a text unit into another one. As example with our dataset, on the Figure 1, we can see that a text unit should start from ”Blé” and should end with ”mais ils ne peuvent enrayer les fortes infestations”. In this Text unit E1=”Blé”, E2=”blé”, E3=”orge de printemps”, E4=”piétin èchaudage”, E5=”céréale”, E6=”champignon”, E7=”maladie”, E8=”maïs”, E9=”ray-grass”, E10=”luzerne”, E11=”soja”, E12=”champignon”, E13=”maladie”. They are two kinds of named entity . C1 represents the ”crop” category, C2 represents the ”disease” category.

Definition 2

Relation
A (binary) relation represents the relation between two entities where is the first argument and is the second. Such relation can belong to a relation type over .

As example with our dataset, on the Figure 1, we can see that the relevant relations are associated with E1=”Blé” with entities about concept C2, some .

Definition 3

Types of relations between entities
Let denote the predefined set of relations and of entities and respectively.

Lots of kinds of entities can found in , named entities like : pests or crops, but not only, for instance ”developmental stage about crops”, ”developmental stage for pests”, or ”kinds of damage”. About relations, several kinds of relations can be found, for instance
.

3.2 Datasets

We call ROMEO the first dataset. It consists of the 5 acts (files) of the classical piece of theater from W. Shakespeare Romeo and Juliet in English. For this dataset the goal of a user needs could be to follow the relationships of persons along the scenes. We summarize the type of concepts and relations by these ensembles:



We know that # for ROMEO dataset. Number of words is 26,551. Number of tokens (unique words) is 5,846.
We call BSV the second dataset. This dataset is a collection of scanned and digital newsletter written in French. The neswletter is published since 1946 but majority of numbers are shared by the French National Library (Bibliothèque Mitterrand, or BNF) only since 1963. It is written in each French region weekly to inform about damage on local crops. We work with a sample of 2,323 files. But the dataset in construction should contain about 60,000 files in the range 1963-2015. Each file contain between 1 and 10 pages, 3 in average. For this dataset 8 concepts have been identified manually with experts for which we can design dictionaries. Other kinds information about context for a crop and its relationships should also be of interest such as ”developmental stage of a crop”, ”number of a newsletter”, ”degree of damage”, ”climate”. We summarize types of concepts and relations by the following ensembles:

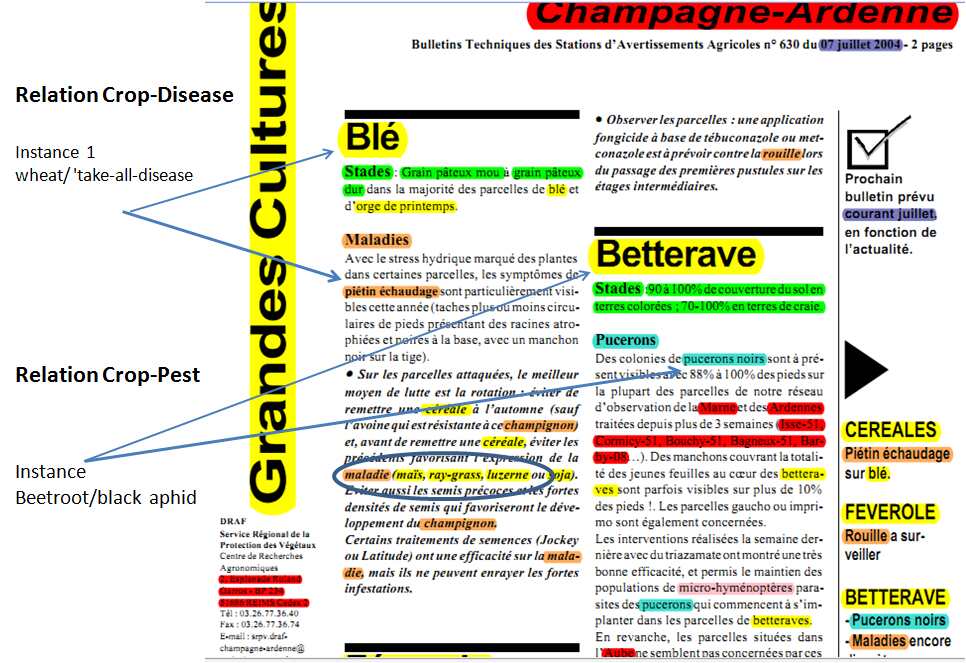

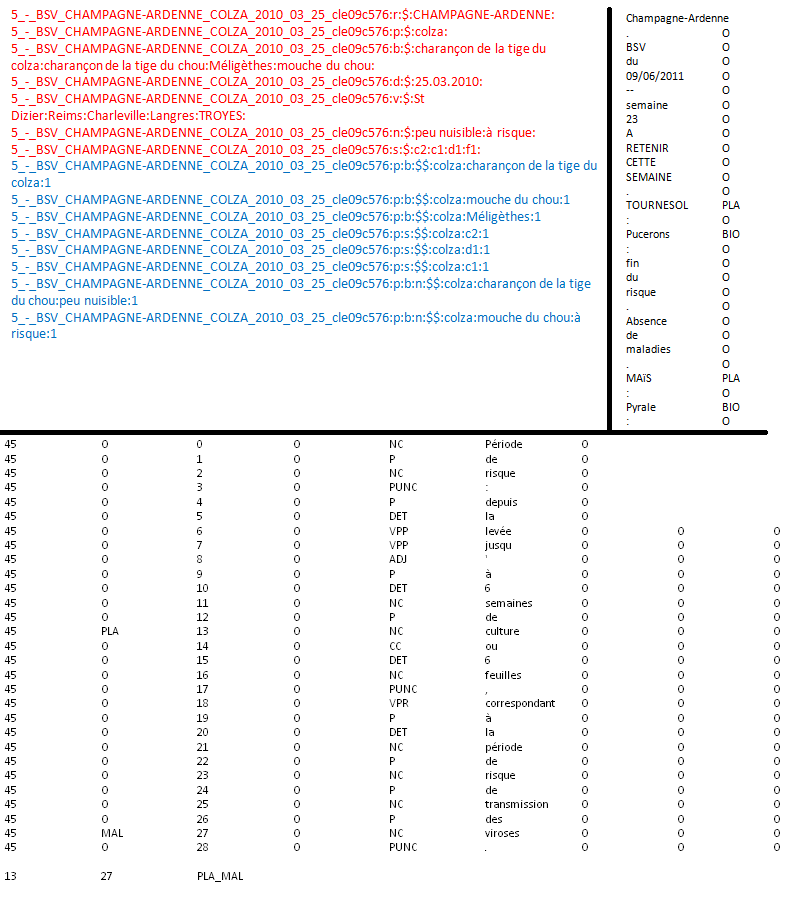

Figure 1: Manual annotations in a document from BSV dataset (in yellow: crops, in green: developmental stages of crops, in brown: diseases, in red: location, in blue: pests, in purple: auxiliaries, in dark blue: time).

An auxiliary is an insect (as a pest) but not agressive to the crop where it lives. Sometimes it can help control of pests. On the Figure 1 we can see that we can retrieve useful information. Among them relationships crop-disease and crop-disease are also of interest. Thesea are relations pointing agression. As we see in document these relationships does not use verb of other linguistic patterns.
To enable evaluation computing we made a annotated dataset about 37 files. To have in mind how much should cost the annotation process, 1000 documents would require 5 months for one person. And as one expert is not sufficient, another control by an extern expert would need more time. On the Figure 2 we see at top-left a sample of manual annotation for a file with nouns phrases denotating concepts (in blue) and relations between these concept (in red). Concepts are cited as a list but a relation occurs only inline. At top-right we see an example of annotation used for CONLL conference challenges about named entity recognition, at bottom the annotation format of CONLL for relation extraction evaluation.

Figure 2: Manual annotations of a document from BSV dataset for evaluation (up-left: csv-like format (in red: entities, in blue: relationships), up-right: BIO/BILOU format for named entities, down: BIO/BILOU format for named entity relationships).

3.3 Dictionary Matching

From several concepts denotating named entities about location, persons or biological entities like characters, crops, diseases or regions, we are able to define lexical nouns phrases and a list of entries associated to a set of noun sphrases. These nouns phrases can occur anywhere in the dataset.The format we have adopted can described a hierarchy of entries and lexical variants of each entry. The computing format is a csv-like format. Each line describe an unique entry, followed by an label N (node)or L (leaf) if the entry describe a category or a simple concept. For instance in crops wheat is a species and will be defined as a node; but durum wheat, buckwheat and soft wheat are defined as leaf because they are varieties and linked to wheat. After the category N or L all following nouns phrases are considered as equivalent and could be found in a document. Hence the dictionary collect all relevant entries of a concept describing hypernym relation and synonym relation between lexical phrases.
For instance, on the Figure 3 we can see a sample of the crop dictionary in French (”blé” is wheat, ”blé dur” is buckwheat, ”blé tendre” is soft wheat). Figure 4 describe the lexical population for each dictionary about the BSV dataset. About ROMEO dataset we can find 22 characters.

blé:N:blé:BLE:blés:Triticum:blé dur:blé tendre:
blé dur:L:BLE DUR:T. durum:Triticum durum:bles durs:blés durs:blé dur:
blé noir:L:BLE NOIR:f. esculentum:fagopyrum esculentum:sarrasin:bles noirs:blés noirs:blé noir:sarrasins:
blé tendre:L:BLE TENDRE:T. aestivum:Triticum aestivum:blé froment:blés froments:ble froments:blé tendre:blés tendres:bles tendres:
Figure 3: Sample of Crops dictionary.

  Entities Types

auxiliaries crops pests diseases chemicals region towns
#entries 28 114 373 275 4968 26 33161
#leafs 28 103 334 241 4968 26 33161
#concepts 0 18 53 40 0 0 0
#lexems 107 727 2673 1846 4968 869 89603
Figure 4: Number of entries in dictionaries.

3.4 Hand-crafted rule

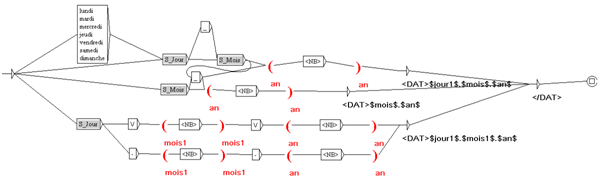

We used the Unitex tool (see [30]) to implement hand-crafted rules to detect some instance of named entity (date) but also contextual entities (number of a newsletter, developmental stage of a crop, intensity of damage on crop). Graph edition emphasizes to stack and encapsulate different FSM into a more global FSM. One positive point lead to prioritise the longest matching sequence to avoid inclusion problems, hence it solves the issue to order rules execution. Recognition of a date expression as ”15 janvier 1992” or ”10-2012” can be executed with the FSM showed by the following graph on Figure 5. We can see that a non-linear formulation enable unification of different schemes.

Figure 5: Local grammar (FSM) for data extraction.

More complex and encapsulated graph enable detection of information about damage assessment (risk, prevalence or severity). On Figure 6 we see a subgraph which can detect sequence having a numerical expression about risk. This subgraph can detect an expression such as ”infestations sont limitées à 0,27 larves par pied environ 1 parcelle sur 5 avait atteint 1 grosse altise en moyenne” (infestations are limited to 0.27 larvae per foot about 1 parcel in 5 had reached 1 large flea beetle in average). It is included a global graph with 10 subgraphs.

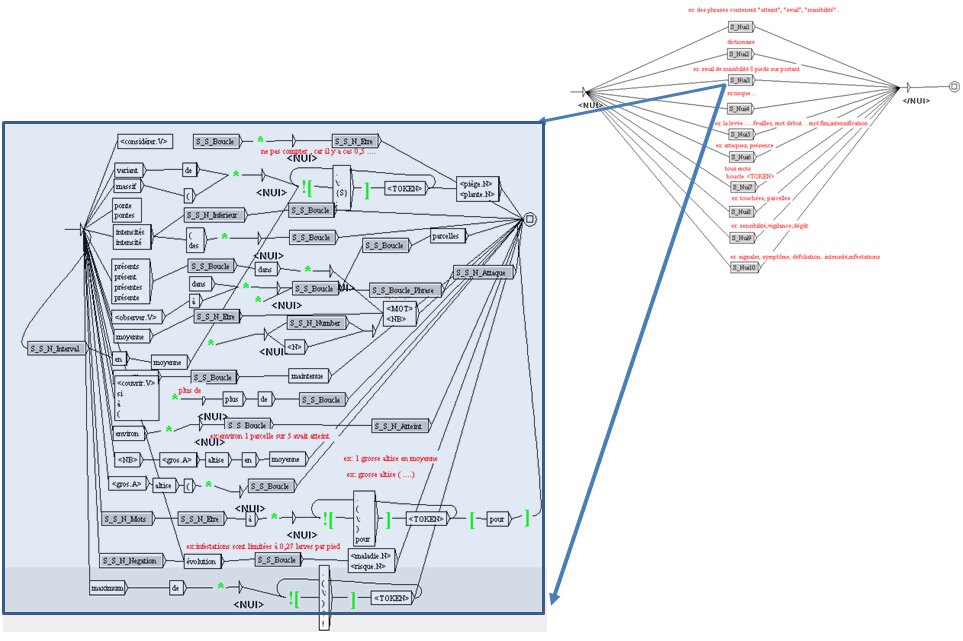

Figure 6: Local grammar (FSM) and hierarchy of FSMs for damage extraction.

3.5 Architecture Document Heuristics

Organisation of a document (titles, subtitles, references, sections, headers, table, pictures, summary, introduction, discussion) can influence the way to make extraction. We call this organizatin the architecture of a document. Of course lots of architecture are availiable and the set of heuristics is not limited. We propose three heuristics can help us to be more accurate in relatioship extraction that we test with BSV and ROMEO datasets.

Heuristics 1

Main entity
A target entity occur in a specific title or subtitle (beginning of a paragraph or a section).

On Figure 1 we see that main entity occur in the title of each section. It fits with heuristics 1.

Heuristics 2

Header
Different entities occurs in the header of the document (first lines).

On Figure 1 we see that instances of entity types region, issue, date occur in the Header. It fits with heuristics 2.

Heuristics 3

Avoid section
Some paragraphs begining by a specific title can contain entity but not associated to a main entity or contextual information.

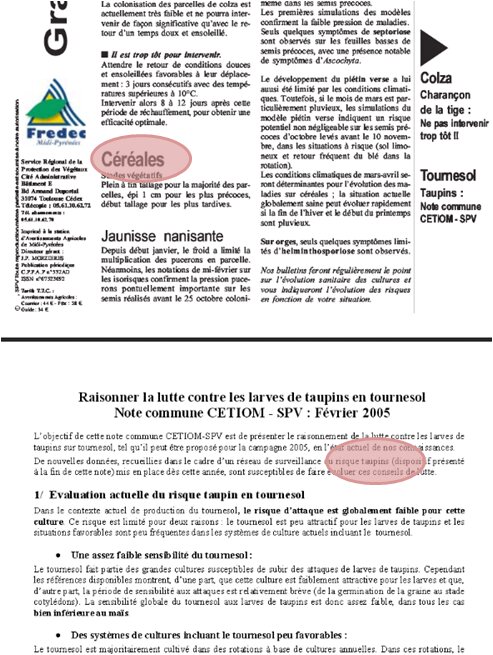

On Figure 7 we see that a section begins by ”Raisonner la lutte contre” (”Reasoning control against”). If we donot exclude this section of the analysis we get a relationship instance ”crop/pest” as cereals/wireworms that is false. It fits with heuristics 3.

Figure 7: Neighbourhood of a section with a main entity and an avoid section for the BSV dataset.

3.6 Unsupervised learning

We used a classical unsupervised learning approach called cooccurrence analysis. Three family of cooccurrence can be implemented.

Definition 4

Entity position
Let be a target entity. A document is split into a set of textual unit (TU). A TU can be a section, a sentence or a paragraph. Let be the position in terms of word, and of the header word of in the document. We define a window by WL, i.e. the number of words at left from , and WR the number of words at right from . , respectively , can be if we look the right, resp. left, context till the end, resp. the beginning, of the document.

Type 1

Text Unit Cooccurrence Let be a target entity, and another entity. We define the cooccurrence by the following function cooc() is a binary function such as :

(1)
Type 2

Window Cooccurrence the same as type 1 but now:

(2)
Type 3

Constrained Cooccurrence The same as type 1 or type 2. But now let be a list of markers , at least one marker need to be located between and so :

(3)

3.7 Step 1: Named Entity Recognition

Assumption 2 gives us to understand that named entities are explicitly written in the text as tokens. Assumption 3 highlights important way to extract only useful named entities for a specific usage. In that sense extraction is dictionary-driven for better relevance (see Algorithm 1).

0:  dictionaries and grammars. 0:  data entities.   read all dictionaries (with nodes and leafs) and grammars   for all  doc in corpus  do         for all  dic in dictionaries  do               if  words match in dic  then                     push data_entities, words               end if         end for         for all  gra in grammars  do               if  words match in gra  then                     push data_entities, words               end if         end for   end for   check data entities inclusive other words   sort_asc data_entities   for   do         for   do               if  data_entities[i] exist in data_entities[j]  then                     if  position of data_entities[i] in then document is the same position of data_entities[j] in the document  then                           Remove data_entities[j]                     end if               end if         end for         Extract data according the entities   end for Algorithm 1 named entity extraction algorithm.

There are entities for which we can not build the dictionaries, we propose the construction of grammar to extract the contents in the corpus, for instance pest significance, developmental stage of a crop, climate, location. We have integrated the Unitex tool for building grammar. Here in the following example, the uses of grammar is more reasonable, such as location, we can use the dictionary to store regions, cities or even towns. However there are names of region that combine with words of direction such as ”north”, ”south”, ”west”, etc. Because of that, the use of grammar will be more flexible and increase accuracy. This is some grammatical rules:

  • <words in the dictionary>

  • <keyword 1>…<end of sentence or punctuation>

  • <words in the dictionary>…<keyword 1>

  • <keyword 1>…<words in the dictionary>

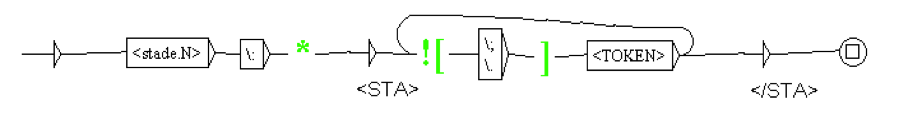

For example, to retrieve a developmental stage of crops in Figure 8: ”Stades: 90 à 100% de couverture du sol terres colorées”, the grammar will be as follow:

Figure 8: Local grammar (FSM) for developmental stage.

This diagram shows that, to begin finding a phrase that has the word ”stade” or ”stades” then two points, there is a loop to go through all the words in this sentence, to the meeting point signal ”.” or semicolon ”;”. Two words <STA> and </STA> mark the result.

3.8 Step 2: relation extraction

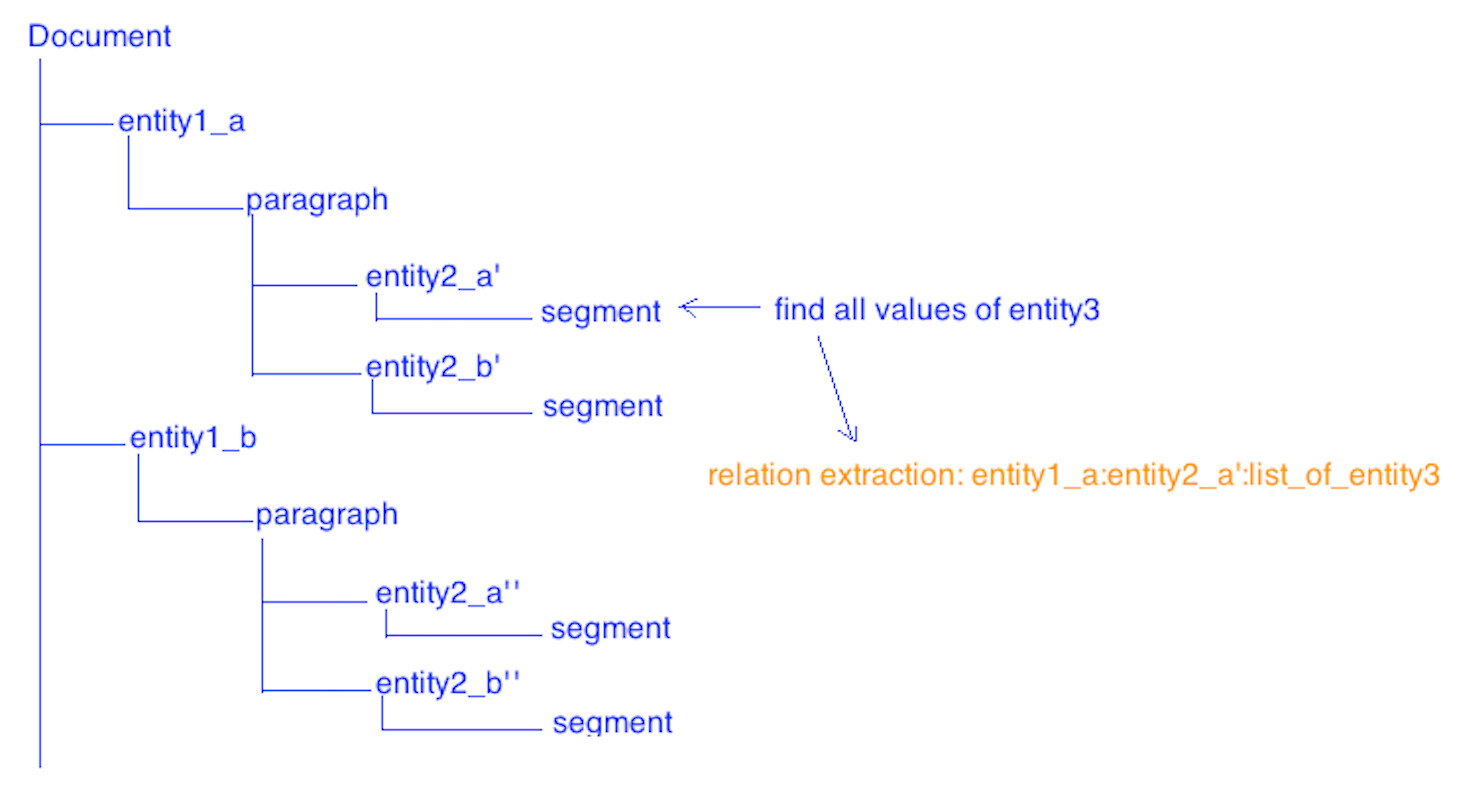

Relation extraction takes as input item-sets to identify relations the export from Algorithm 1, and plays with the three heuristics. Heuristics 1 set that some entities are main entities (i.e. a category is a chosen as a target) and we seek relations for these entities. Heuristics 2 sets that target entities are declared in header sections (titles, subtitles) and heuristics 2 declares that some sections are non-relevant, we called them avoid sections and they can be specified by a beginning phrase and can end by the end of document of another phrase. Algorithm 2 describes how relation extraction is implemented. x.ent implements also a class of algorithm to detect relation without heuristics in case, a document only consists of paragraphs (i.e a tweet, an email or a news).

0:  data entities of the document. 0:  relations.   for all  line in this document  do         let paragraphs = analyze structure doc {this is a step in analyzing document structure or concurrence in definition 4.}   end for   for all  para in paragraphs  do         if  exists Ei and Ej in this para  then               push this relation         end if   end for Algorithm 2 relation extraction algorithm.

3.9 Step 3: contextual information assignment

Some pieces of information are considered as category of named entities because they describe a pattern of reality but they do not denote a specific object as : crop damage, developmental stage, climate. Often, these categories often cannot be designed in a dictionary but with handcrafted-rules, but they are detected at the same time as others and independently (see Section 3.7).

Nevertheless they can describe more precisely the context of a relationship between two entities. That is why some relationship are not only binary but n-ary (for instance crop-disease-damage). Damage here describes a magnitude of the relationship.

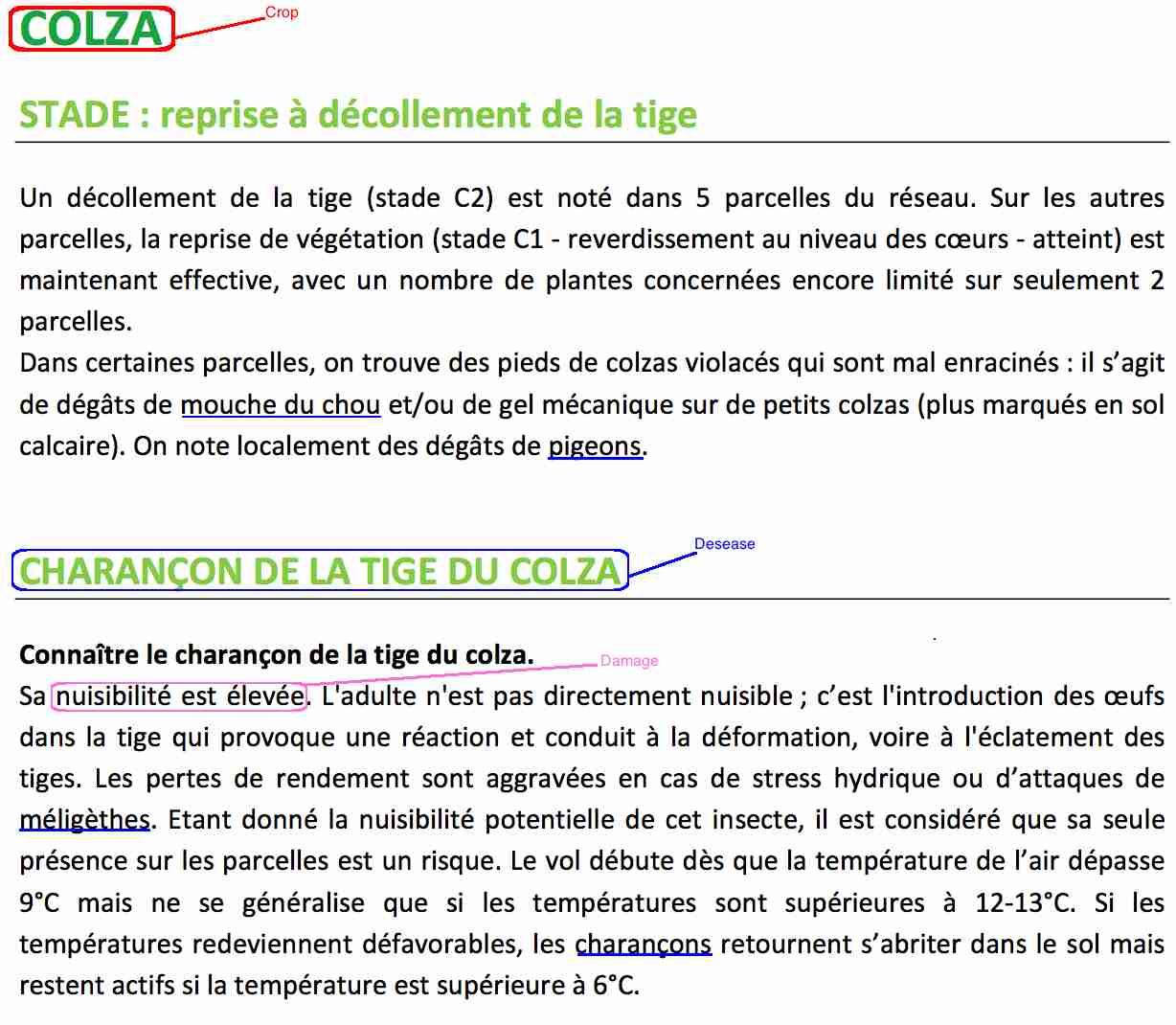

In the Figure 9, we have applied an algorithm to analyze the structure of paragraphs containing the entities ”crop”, ”disease” and ”damage” to find out the relationship crop-disease-damage. The Algorithm 1 found a crop’s value ”Colza” at the beginning of line, this value will be the one for breaking paragraphs at this position to a position of next crop entity or to the end of document if it doesn’t exists a value of crop entity at the start of line. In these paragraphs, we continue to analyze the structure of paragraphs according to disease entity, in this case ”Charançon de la tige du colza” is stated by a first line. Finally, we find all the values of damage entity in these segments that contain the values of disease entity. In this example, we will find that the relationship is ”Colza:Charançon de la tige du colza:nuisibilité est élevée” but not relation: ”Colza:mouche du chou:nuisibilité est élevée”.

Figure 9: An example for analyzing a relationship of three entities ”crop-disease-damage”.
Figure 10: Analyse a document to find out a relationship of three entities.
0:   0:  paragraphs.   for all  line in document do                                    if data of entity_tag is the start of the line or upper case first letter in line then                              if  then                     push paragraphes, phases                                    end if                        end if         if  then               push paragraphes, phases {push the final paragraph.}         end if   end for   return  paragraphes Algorithm 3 Transformer data.
0:   0:  relations of contextual information   if  then         {check a relationship of three entities}                  for all para1 in paragraphs1 do                              if length(paragraphs2)¿ 0 then                     for all para2 in paragraphs2 do                           if  then                                                                                                                                    push relations, values of entities tags                           end if                     end for               end if         end for   end if   return  relations Algorithm 4 Contextual Information Extraction.

4 Results

4.1 Evaluation about extractions

We proceed to a double evaluation process:
Firstly, we compare x.ent export of named entities with those produced by well-known approaches : exact dictionary-matching and MaxEnt approach with respectively LingPipe tool and SNER tool. Table 11 show results about crop, disease and pest names extraction. Standard measures to assess accuracy of a system rely on known pieces of information we aim to extract in a test dataset. The three parameters for assessment are the following: f-score (Equation 6), recall (Equation 5) and precision (Equation 4).

x.ent produce score as good as those revealed by Lingpipe. Lingpipe propose also a machine learning approaches based on hidden-markov models but it gives less good results.


Secondly, we compared relation extraction of x.ent and those exported by SNER and cooccurrence approach with different window parameters. SNER use a parsing tree analysing and French has been considered to process BSV dataset. Table 12 display that x.ent capture more good relation than other state of the art approaches with a F-score about 55%, when SNER produce 38% and cooccurrence window-base approach 42% (see Figure 13 about F-score variation according the window size).

(4)
(5)
(6)

For usually .

X.ENT SNER LINGPIPE
P R F1 P R F1 P R F1
BIO 96.46 95.52 95.98 92.66 71.41 80.52 96.45 95.53 95.99
MAL 96.97 95.53 96.24 95.46 77.38 85.38 96.97 95.52 96.24
PLA 88.80 98.67 93.47 93.99 82.68 87.94 88.80 98.67 93.47
REG 100 100 100 93.20 73.73 81.92 100 100 100
TOT 94.33 96.67 95.48 93.68 76.85 84.41 94.34 96.65 95.48
Figure 11: Evaluation of named entity recognition.
X.ENT COOCCURRENCE
P R F1 P R F1
PLA-BIO 53.4 75.8 52.7 36.4 50.5 42.3
PLA-MAL 58.1 69.5 63.3 41.3 38.7 40.0
TOT 55.3 73.1 62.9 38.1 45.4 41.4
Figure 12: Evaluation of entity relationship recognition.
Figure 13: F1 score in the parameter space (left and right window) about cooccurrence window-based approach.

4.2 Visualisation

The x.ent tool has been developped with Perl modules concerning the parsing function and but is encapsulated under an R package availaible on the R platform (see [17]). The package offers also R functions to explore results of extraction : parallel coordinates, histogram, Venn diagram, stacked bar graph and statistical test on pairwise relation.

On Figure 14 we see an example of parallel coordinate visualization between two sets of entities (e1 and e2). e1 is a target entity with which we seek relations. About BSV dataset the target entityt is crop category. In the example e2 are a set of entity from different categories (”mouche du chou” is an instance of pest category and ”mildiou” is an instance of disease category).
The R code is the following:
          xplot(e1=”colza”,e2=c(”mouche du chou”, ”mildiou”))
We can add a constraint about the time :
          xplot(e1=”colza”,e2=c(”mouche du chou”, ”mildiou”),t=c(”09.2010”,”02.2011”))

Figure 14: Parallel coordinate display.

Figure 15 shows the distribution over time about a specific relation ”colza:mildiou”, but it could work with any instance of an entity but only in the case a date entity is extracted from the dataset.
The R code is the following:
          xhist(”colza:mildiou”)

Figure 15: Histogram over time of a relation.

Figure 16 shows and a stacked bar graph representing for a first set of entities, in the example the crops: ”blé”, ”maïs”, ”tournesol”, ”colza”, the proportion of each instance of entity of the second set, hereafter ”mouche du chou”, ”puceron”.
The R code is the following:
          xprop( c(”blé”, ”maïs”, ”tournesol”, ”colza”) , c(”mouche du chou”, ”puceron”) )
If the first set the the whole set of instance of the target entity catagory (hereafter instances of crops) and having at least 2 occurences :


v1 = as.vector(xdata_value(”p”)$value[xdata_value(”p”)$freq >2])


         xprop(v1,c(”mouche du chou”,”puceron”))

Figure 16: stacked bar graph.

Figure 17 shows a Venn diagramme between a set of instance from the target category (hereafter ”blé”,”orge de printemps”,”tournesol”) and a set of instances from specified categories (hereafter b and m, denotating respectively pest and disease):
The R code is the following:
          xvenn(v=c(”blé”,”orge de printemps”,”tournesol”),e=c(”b”,”m”))

Figure 17: Venn diagram.

Figure 18

shows a comparison between a crop (hereafter ”blé”) and all possible instance of another entity category (hereafter instances of pest category). Four tests has been implemented for the function : Kolmogorov, Wilcoxon, Student and GrowthCurves. At moment no decision function makes interpolation over the tests to decide if yes or no the p-values agree for a positive similarity or not. Figure

19 shows an export with all p-values saturating at 1. For instance ”blé:limace des jardins” and ”blé:adventice” have the same distribution across the BSV dataset. It means that ”limace des jardins” occurs at same time that ”adventice” in ”blé” crop cultures.
The R code is the following:
          xtest( ”blé”, as.vector(xdata_value(”p”)))

relation KOLMOGOROV WILCOXON STUDENT GrowthCurves
700 blé:méligèthe/blé:thrips 1.00 0.13 0.13 0.02
543 blé:cicadelle/blé:pyrale 1.00 0.00 0.00 0.02
613 blé:criocère/blé:thrips 1.00 0.00 0.00 0.02
689 blé:méligèthe/blé:puceron des épis de céréales 0.91 0.00 0.00 0.02
Figure 18: Pairwise relations comparison.
blé:adventice/blé:limace des jardins
blé:adventice/blé:puceron des céréales et du rosier
blé:campagnol des champs/blé:corbeau freux
blé:campagnol des champs/blé:pyrale
blé:campagnol des champs/blé:zabre des céréales
blé:cécidomyie jaune du blé/blé:charançon
blé:cécidomyie jaune du blé/blé:charançon de la tige
blé:cécidomyie jaune du blé/blé:mouche grise des céréales
blé:cécidomyie jaune du blé/blé:noctuelle
blé:cécidomyie jaune du blé/blé:oscinie de l’avoine
Figure 19: Global saturation of all tests.

4.3 Integration

The x.ent tool has been used to parse BSV dataset so as to export result in a csv format and used in a database management system to be queried by end-users. In this system relations are pivotal information to offer useful piece of information for information retrieval. We can mention four cases of usage with main query and refinement:

  • main query is relation crop-disease, refinement damage and region on map.
    example: Crop=wheat, Disease=rust, On map : risk assessment, region=Burgondy

  • main query is crop, refinement pest (relation crop-pest) and region on map.
    example: Crop=rapeseed, On map : Pest=cabbage maggot, region=Centre, and document sorting by date

  • main query is disease, refinement pest (relation crop-disease) and region on map.
    example: disease=potato late blight, On map : crop=potato, region=Burgundy

  • main query is pest, refinement pest (relation crop-pest) and region on map.
    example: pest=fly, On map : crop=wheat, region=Midi-Pyrénées

At present 4 users specialists about potato and wheat take benefit from the database and platform-as-service. More epidemiologists and agronoms, from the integrated crop protection network (réseau PIC - protection intégrée des cultures) including 400 subscribers, are potentially interested in using this web platform. Risk analysis in a sociological point of view is also possible.

Figure 20: Vespa user interface.

4.4 Availability

We developed, improved and applied a relation extraction method we implemented as an R-project package (x.ent). The package is available from the CRAN R project server (http://cran.r-project.org/ see Software, Packages; x.ent version 1.0.6), and downloadable from the R graphical user interface (required R libraries : xtable(see [16]), jsonlite (see [50]), venneuler (see [62]), ggplot2 (see [61]), stringr (see [60]), opencpu(see [49]) and rJava [15] ).
The results of BSV corpus processing has been stored in a relational database with a web-front web access. The temporary website http://vespa.cortext.net display the front-end interface in which a user can query the result to retrieve relevant documents.

4.5 Discussion

Information extraction is not a new field but new opportunity with new usages and new corpora emphasizes this kind of task. If number of document in a corpus can not be huge (several ten thousands to several millions), the number of possible relations has no limit. Extract good and relevant relations, store all relations, and query relations in a concrete usage context can be challenges.
Lots of factors can influence relation extraction. We explore the capacity of syntactic expression in document to extract relations. Indirect relation are also possible, as in genetics when a genecist set that geneA interact geneB and geneB interact geneC than geneA can be in interaction with geneC, of if geneA interact with geneC in a species, then it is also a putative relation in another species. In our BSV dataset we do use any inference protocol. We try to take into account all possible signs in a document. Hence our approach goes further than a linguistic approach the aim of which is to analyze the structure of each sentence. Our point of view is equivalent to argumentative analysis when part of speech are linked by sections. In this point of view we show that sometimes specific concept of interest can be situated in a special location in a document as in a text of theater about speaking characters, or in a newsletter with titles.

5 Conclusion

We developed, improved and applied a relation extraction method available as a R package. The tool has been involved into an information system called Vespa Mining with end-user (agronoms and epidemiologists).
Extraction task involve the user to design a proto-ontology of its domain with a set of categories. Each category make sens with instances (string sequences) for which small local grammars and flat dictionaries can fit in documents. A target category is settle to search other instances of another category as a relationship and contextual information. The tool relies on both hypothesis that named entities are extractible and that document structure helps extraction. We compare with state of the art tool and we show that if x.ent can reach the performance of named entity recognizers, assessment about relation extraction give better scores. Exploitation of document structure together with unsupervised learning can achieves high score of extraction.
We used two datasets. A literary dataset about a Shakespeare theater piece and an agricultural newsletter dataset. The goal about the newsletter was to learn relations as crop-disease-damage and crop-pest-damage. Designing an evaluation dataset we obtain an F-score 55.
Our interest was also to help a user to explore the large potential amount of relationships. Two means was implemented in that direction. Firstly information visualization capacities such as : parallel coordinates, histogram, Venn diagram, stacked bar graph and statistical test on pairwise relation. Secondly an integration of the tool in a user-friendly platform with Concrete real-world information. Here the user can browse the dataset through relationships and complementary information (locations, damage magnitudes, or simple keywords) through geolocatlisation and feedback to original documents.

Acknowledgments

Special thanks to Kurt Hornik (Vienna University) for its discussion about technical aspects; and to Roselyne Corbière (INRA - Rennes center) and Vincent Cellier (INRA - Dijon center) about comments on usage with the web platform; and to Jean-Noel Aubertot (INRA - Toulouse center) for its initiative about the BSV dataset construction. The methodology discussed in this paper has been supported by the VESPA grant from the French Ministry of Agriculture and BSN5 grant from French Ministry of National Education and Research.

References

  • [1] E Agichtein and L Gravano. Snowball: Extracting relations from large plain-text collections. In Proceedings of the fifth ACM conference on Digital libraries, pages 85–94, 2000.
  • [2] D Appelt, J Hobbs, J Bear, D Israel, and M Tyson. Fastus: a finite-state processor for information extraction from real-world text. In Proceedings of the 13th International Joint Conference on Artifical Intelligence, 1993.
  • [3] A Barbosa-Silva, TG Soldatos, IL Magalh-es, GA Pavlopoulos, JF Fontaine, MA Andrade-Navarro, R Schneider, and JM Ortega. Laitor–literature assistant for identification of terms co-occurrences and relationships. BMC Bioinformatics, 1, 2010.
  • [4] J Baumgartner, Z Lu, H Johnson, J Caporaso, J Paquette, A Lindemann, E White, O Medvedeva, K Cohen, and L Hunter. Concept recognition for extracting protein interaction relations from biomedical text. Genome Biol, 9(2), 2008.
  • [5] A Berger, S Della Pietra, and V Della Pietra. A maximum-entropy approach to natural language processing. Computational Linguistics, 22(1), 1996.
  • [6] D Bikel, S Miller, R Schwartz, and R Weischedel. Nymble: a high-performance learning name-finder. In Proceeding ANLC ’97 Proceedings of the fifth conference on Applied natural language processing, pages 194–201, 1997.
  • [7] W Black, F Rinaldi, and D Mowatt. Facile: Description of the ne system used for muc-7. In Proceedings of 7th Message Understanding Conference, Fairfax, VA, 1998.
  • [8] C Blaschke, MA Andrade, C Ouzounis, and A Valencia. Automatic extraction of biological information from scientific text: protein-protein interactions. In Proceedings of the Int Conf Intell Syst Mol Biol, pages 60–67, 1999.
  • [9] A Borthwick. A Maximum Entropy Approach to Named Entity Recognition. PhD Dissertation, 1999.
  • [10] S Brin. Extracting patterns and relations from the world-wide web. In Proceedings of on the 1998 International Workshop on Web and Databases (WebDB-98), 1998.
  • [11] M Califf and R Mooney.

    Relational learning of pattern-match rules for information extraction.

    In

    Proceedings of the Sixteenth National Conf. on Artificial Intelligence

    , pages 328–334, 1999.
  • [12] B Carpenter. Lingpipe for 99.99% recall of gene mentions. In 2nd BioCreative workshop. Valencia, Spain, 2007.
  • [13] HW Chun, Y Tsuruoka, JD Kim, R Shiba, N Nagata, T Hishiki, and JI Tsujii. Extraction of gene-disease relations from medline using domain dictionaries and machine learning. In Proceedings of the Pacific Symposium on Biocomputing, 2006.
  • [14] M Craven and J Kumlien. Constructing biological knowledge bases by extracting information from text sources. In Proceedings of the 7th International Conference on Intelligent Systems for Molecular Biology, pages 77–86, 1999.
  • [15] David Dahl and David Scott. rJava: Coerce data to LaTeX and HTML tables., 2014. R package version 1.7-4.
  • [16] David Dahl and David Scott. xtable: Coerce data to LaTeX and HTML tables., 2014. R package version 1.7-4.
  • [17] R Development Core Team. R: A Language and Environment for Statistical Computing. R Foundation for Statistical Computing, Vienna, Austria, 2015. ISBN 3-900051-07-0.
  • [18] Ingo Feinerer and Kurt Hornik. tm: A framework for text mining applications within R., 2014. R package version 0.6.
  • [19] Y Garten and RB Altman. Pharmspresso: a text mining tool for extraction of pharmacogenomic concepts and relationships from full text. BMC Bioinformatics, 10(2), 2009.
  • [20] M Hearst. Automatic acquisition of hyponyms from large text corpora. In 14th International Conference on Computational Linguistics (COLING-1992), 1992.
  • [21] J Hopcroft and J Ullman. Introduction to Automata Theory, Languages and Computation. Addison-Wesley, 1979.
  • [22] Kurt Hornik. openNLP: Apache OpenNLP Tools Interface., 2014. R package version 0.2-3.
  • [23] httpBaumWelch. Baum-welch algorithm. Wikipedia, 2014.
  • [24] httpBiocreative. biocreative database. website, 2014.
  • [25] httpFactshunt. amount of webpages. httpFactshunt, 2014.
  • [26] httpFreebase. Freebase database. website, 2014.
  • [27] httpMUC. Message understanding conference. Wikipedia, 2014.
  • [28] httpPest. Pest wikipedia. Wikipedia, 2014.
  • [29] httpScienceDaily. Information availability. httpScienceDaily, 2013.
  • [30] httpUnitex. Unitex tool. httpUnitex, 2014.
  • [31] httpViterbi. Viterbi algorithm. httpViterbi, 2014.
  • [32] httpWeb. Usage on internet. httpWeb, 2015.
  • [33] httpWheat. Wheat wikipedia. Wikipedia, 2014.
  • [34] httpYago. Yago database. website, 2014.
  • [35] S Huffman. Learning information extraction patterns from examples. In Proceedings Connectionist, Statistical, and Symbolic Approaches to Learning for Natural Language Processing, pages 246–260, 1996.
  • [36] T Jenssen, A Laereid, J Komorowski, and E Hovig. A literature network of human genes for high-throughput analysis of gene expression. Nature Genetics, 28(1), 2001.
  • [37] Manu Konchady. Building Search Applications: Lucene, LingPipe, and Gate. Mustru Publishing (448 pp), 2008.
  • [38] M Krallinger, F Leitner, C Rodriguez-Penagos, and A Valencia. A overview of the protein-protein interaction annotation extraction task of biocreative ii. Genome Biology, 9(2), 2008.
  • [39] HU Krieger, C Spurk, H Uszkoreit, FY Xu, Y Zhang, F M-ller, and T Tolxdorff. Information extraction from german patient records via hybrid parsing and relation extraction strategies. In Proceedings of the 9th International Conference on Language Resources and Evaluation (LREC-2014), 2014.
  • [40] G Krupka. Sra: Description of the sra system as used for muc-6. In Proceedings of the Sixth Message Understanding Conference, pages 221–235, 1995.
  • [41] SG Kumar and G Zayaraz. A maximum-entropy approach to natural language processing. Journal of King Saud University - Computer and Information Sciences, 2014.
  • [42] J Lafferty, A McCallum, and F Pereira. Conditional random fields: Probabilistic models for segmenting and labeling sequence data. In Proceedings of the ICML, pages 282–289, 2001.
  • [43] A McCallum, D Freitag, and F Pereira. Maximum entropy markov models for information extraction and segmentation. In Proceedings of 17th International Conf. on Machine Learning, 2000.
  • [44] W McCulloch. A logical calculus immanent in nervous activity. Bulletin of Mathematical Biophysics, 5:115–133, 1943.
  • [45] G Mealy. A method for synthesizing sequential circuits. Bell System Tech. J., 34:1045–1079, 1955.
  • [46] M Mintz, S Bills, R Snow, and D Jurafsky. Distant supervision for relation extraction without labeled data. In Proceedings of the ACL, 2009.
  • [47] E Moore. Gedanken-experiments on sequential machines. dans Claude E. Shannon et John McCarthy (-diteurs), Automata Studies, Princeton, Princeton University Press, coll. - Annals of Mathematics Studies -, 1956.
  • [48] LA Nielsen. Extracting protein-protein interactions using simple contextual features. In Proceedings of BioNLP; New York, USA, 2006.
  • [49] Jeroen Ooms. opencpu: The OpenCPU system for embedded scientific computing and reproducible research., 2014. R package version 1.4.5.
  • [50] Jeroen Ooms, Duncan Temple Lang, and Lloyd Hilaiel. jsonlite: A Robust, High Performance JSON Parser and Generator for R., 2014. R package version 0.9.14.
  • [51] A Ozgur, B Cetin, and H Bingol. Co-occurrence network of reuters news. International Journal of Modern Physics C, 19(5), 2008.
  • [52] L Peshkin and A Pfeffer. Bayesian information extraction network. In Proceedings of 18th International Joint Conference on Artificial Intelligence (IJCAI), Acapulco, Mexico, 2003.
  • [53] K Raja, S Subramani, and J Natarajan. Ppinterfinder–a mining tool for extracting causal relations on human proteins from literature. Database, bas052, 2013.
  • [54] E Riloff. Automatically constructing a dictionary for information ex- traction tasks. In Proceedings of the Eleventh National Conference on Artificial In- telligence (AAAI-93), pages 811–816, 1993.
  • [55] E Riloff. An empirical study of automated dictionary construction for information extraction in three domains. Artificial Intelligence, 85(1-2):101–134, 1996.
  • [56] D Roth and W Yih. Probabilistic reasoning for entity & relation recognition. In Proceedings of the 20th International Conference on Computational Linguistics, 2002.
  • [57] S Soderland. Learning information extraction rules for semi-structured and free text. Machine Learning, 34(1-3):233–272, 1999.
  • [58] Nicolas Turenne. Knowledge Needs and Information Extraction. ISTE-WILEY, 2013.
  • [59] Nicolas Turenne. Handbook for corpus processing and textmining with R (Guide pratique d’Analyse de Corpus avec la plateforme R). to appear (250 pp), 2015.
  • [60] Hadley Wickham. stringr: Make it easier to work with strings., 2014. R package version 0.6.2.
  • [61] Hadley Wickham and Winston Chang. ggplot2: An implementation of the Grammar of Graphics., 2014. R package version 1.0.0.
  • [62] Lee Wilkinson. venneuler: Calculates and displays Venn and Euler Diagrams., 2014. R package version 1.1-0.
  • [63] W Wong, W Liu, and M Bennamoun. Acquiring semantic relations using the web for constructing lightweight ontologies. In Proceedings of the 13th Pacific-Asia Conference on Knowledge Discovery and Data Mining (PAKDD), pages 363–370, 2009.
