Wrist-Squeezing Force Feedback Improves Accuracy and Speed in Robotic Surgery Training

05/13/2022
by   Sergio Machaca, et al.
0

Current robotic minimally invasive surgery (RMIS) platforms provide surgeons with no haptic feedback of the robot's physical interactions. This limitation forces surgeons to rely heavily on visual feedback and can make it challenging for surgical trainees to manipulate tissue gently. Prior research has demonstrated that haptic feedback can increase task accuracy in RMIS training. However, it remains unclear whether these improvements represent a fundamental improvement in skill, or if they simply stem from re-prioritizing accuracy over task completion time. In this study, we provide haptic feedback of the force applied by the surgical instruments using custom wrist-squeezing devices. We hypothesize that individuals receiving haptic feedback will increase accuracy (produce less force) while increasing their task completion time, compared to a control group receiving no haptic feedback. To test this hypothesis, N=21 novice participants were asked to repeatedly complete a ring rollercoaster surgical training task as quickly as possible. Results show that participants receiving haptic feedback apply significantly less force (0.67 N) than the control group, and they complete the task no faster or slower than the control group after twelve repetitions. Furthermore, participants in the feedback group decreased their task completion times significantly faster (7.68 participants in the control group (5.26 therefore, has the potential to help trainees improve their technical accuracy without compromising speed.

READ FULL TEXT VIEW PDF

Authors

page 1

page 2

page 3

04/28/2020

Task Dynamics of Prior Training Influence Visual Force Estimation Ability During Teleoperation of a Minimally Invasive Surgical Robot

The lack of haptic feedback in Robot-assisted Minimally Invasive Surgery...
12/31/2020

Adaptive Surgical Robotic Training Using Real-Time Stylistic Behavior Feedback Through Haptic Cues

Surgical skill directly affects surgical procedure outcomes; thus, effec...
05/11/2020

Polyrhythmic Bimanual Coordination Training using Haptic Force Feedback

It is challenging to develop two thoughts at the same time or perform tw...
05/09/2021

Combining Time-Dependent Force Perturbations in Robot-Assisted Surgery Training

Teleoperated robot-assisted minimally-invasive surgery (RAMIS) offers ma...
09/23/2021

Robot-Assisted Surgical Training Over Several Days in a Virtual Surgical Environment with Divergent and Convergent Force Fields

Surgical procedures require a high level of technical skill to ensure ef...
05/22/2018

A Recurrent Convolutional Neural Network Approach for Sensorless Force Estimation in Robotic Surgery

Providing force feedback as relevant information in current Robot-Assist...
07/31/2018

Learning to See Forces: Surgical Force Prediction with RGB-Point Cloud Temporal Convolutional Networks

Robotic surgery has been proven to offer clear advantages during surgica...
This week in AI

Get the week's most popular data science and artificial intelligence research sent straight to your inbox every Saturday.

I Introduction

Robotic minimally invasive surgery (RMIS) is a frequently used method of treatment for many routine and non-routine surgical procedures [McGuinness2018RoboticsUrology, Sheetz2020TrendsProcedures]. By providing enhanced visualization and dexterity, RMIS platforms aim to overcome the limitations of laparoscopic surgery, which include limited range of motion, poor surgical tool ergonomics, and a two-dimensional video feed [Ballantyne2002TheSurgery]. The most commonly used RMIS platform, the Intuitive da Vinci surgical system, has yielded promising surgical outcomes in several procedures such as prostatectomy, nephrectomy, transoral surgery, and hernia repair [McGuinness2018RoboticsUrology, Ballantyne2007TeleroboticEfficacy, Weinstein2012TransoralMargins, Patel2007RoboticCases, Soliman2020Robot-assistedRepair, Donkor2017CurrentRepair]. The same platform has also sometimes been criticized for incurring high cost and slow procedure times without delivering substantially better clinical outcomes [Ahmad2017RoboticEvidence, Kang2011ConventionalAdvantages].

Despite the advantages of RMIS, teleoperation of the surgical instruments removes the surgeon’s ability to feel the physical interactions between the instruments and the surgical environment [Okamura2009]

. The lack of haptic information causes surgeons to rely solely on visual feedback to estimate applied instrument forces and tissue properties. This limitation can present significant challenges to surgeons trying to complete tasks such as palpating tissue, tying sutures, or localizing visually occluded target anatomy.

In an attempt to solve the haptic feedback limitation, significant research has investigated the utility of adding haptic feedback to RMIS platforms. Many studies have demonstrated the benefits of various kinds of haptic feedback in RMIS. For example, Koehn and Kuchenbecker showed that surgeons and non-surgeons prefer haptic feedback of instrument vibrations when performing surgical tasks [Koehn2015a], as opposed to no haptic feedback (visual cues only). Similarly, King et al. showed that tactile feedback significantly reduced the grip force applied by both novice and expert surgeons when performing a peg transfer task [King2009TactileSurgery]. Using a bilateral teleoperator in a vessel dissection task, Wagner et al. demonstrated that force feedback significantly reduced the magnitude of the instrument tip forces applied by non-surgeons, medical students, surgical residents, and attending surgeons alike [Wagner2007TheDissection]. On the contrary, there have been several studies that have suggested little to no perceived benefit of haptic feedback (see [VanDerMeijden2009TheReview] for a review). As suggested by Hagen et al., visual cues can act as a substitute for haptic feedback [Hagen2008], reducing its overall utility. It is likely that these conflicting viewpoints on the utility of haptic feedback for RMIS have limited the translation of haptic feedback to clinical use.

Given the demonstrated utility of haptic feedback in laparoscopic training [Zhou2012EffectAcquisition, Wottawa2013TheTasks], dental training [Kuchenbecker2017EvaluationDetection, Al-Saud2017FeedbackSimulator], and teleoperation more broadly [Khurshid2017EffectsTask, Pacchierotti2015CutaneousSystems], several researchers have explored the use of haptic feedback for RMIS training [Brown2017, VanDerMeijden2009TheReview, Coles2011TheArt]. Brown et al. for example demonstrated that wrist-squeezing haptic feedback of interaction force leads to improved accuracy (reduced contact forces) in an inanimate ring rollercoaster training task for novice da Vinci users [Brown2017]; notably, the performance improvement was sustained even after the haptic feedback was removed. Likewise, Abiri et al. demonstrated a significant reduction in grip force for both novice and expert surgeons using a pneumatic force-feedback system, noting that the presence of feedback had an even more significant impact on novices [Abiri2019Multi-ModalSurgery]. These benefits merit further exploration to determine how accuracy is impacted when training with haptic feedback, compared to conventional learning without feedback, for the same task.

It is also worth considering, from a skill acquisition standpoint, how these increases in performance affect task completion time. The tradeoff between speed and accuracy in motor tasks is well known [Meyer1982ModelsMovements] and has been investigated in the context of surgery more broadly. A few studies have demonstrated that a tradeoff exists between accuracy and task completion time for robotic surgery, wherein increases in accuracy come at the expense of longer task completion times [Chien2010AccuracySurgery]. There have also been studies that have demonstrated that haptic feedback improves accuracy and task completion time [Bark2012SurgicalTasks, Abiri2019ArtificialFeedback]. However, it is not always implied that these improvements in accuracy and task completion time are superior to conventional manipulation (without haptic feedback). When someone increases either their speed or their accuracy, the other metric often decreases, yielding a similar overall level of performance; deeper learning of the skills required, however, can improve both simultaneously. Regarding haptic feedback in RMIS, Brown et al. found that their wrist-squeezing haptic feedback increased task accuracy but had a mixed impact on task completion time, with some participants performing the task faster and others performing the task slower [Brown2017]. Also, their wrist-squeezing devices squeezed both wrists at the same time when either of the instruments were in contact with the task materials, providing no information about handedness. Using a bimodal vibrotactile system to convey applied forces, Abiri et al. found that haptic feedback led to significantly faster task completion times in a vessel localization task [Abiri2019ArtificialFeedback]; force accuracy was not reported. Based on these different findings, we are interested in understanding more generally how the speed-accuracy tradeoff differs for trainees receiving bimanual haptic feedback (with handedness information) and those that are not.

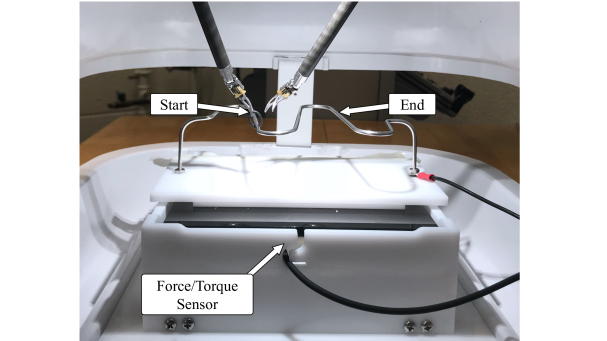

Fig. 1: Ring rollercoaster training task magnetically attached to the instrumented housing containing a six-axis force/torque sensor. The start and end positions used during the experiment are labeled.

While prior research has demonstrated that haptic feedback can increase task accuracy in RMIS training, it remains unclear whether these improvements represent a fundamental improvement in skill, or if they simply stem from re-prioritizing accuracy over task completion time. Furthermore, no prior studies have analyzed the rate at which the task completion time changes over repeated trials of an RMIS training task when receiving haptic feedback, nor whether that rate is different from conventional learning. In this study, we investigate the impact of bimanual haptic feedback on the speed-accuracy tradeoff in RMIS training compared to conventional learning. Using a between-subjects design, we compare performance in terms of accuracy (interaction force magnitude) and task completion time in the inanimate ring rollercoaster training task between novice da Vinci participants receiving wrist-squeezing haptic feedback of interaction force magnitude and a control group receiving no haptic feedback. Because they can physically perceive the consequences of instrument contact, we hypothesize that participants who receive haptic feedback will prioritize accuracy over speed, reducing their interaction forces while increasing their task completion time compared to the control group.

Ii Methods

Ii-a Experimental Setup

Our setup consists of an Intuitive Surgical da Vinci robot, an instrumented training platform, and a bimanual haptic feedback system. This setup is based on the experimental setup first presented by Brown et al. [Brown2017].

Ii-A1 da Vinci Robot

The da Vinci S HD surgical system consists of three main subsystems: patient-side cart, vision cart, and surgeon’s console. We instrumented the da Vinci with two Maryland bipolar forceps. The motion scale factor was set to normal (2:1 scale factor) and the 30-degree scope was set to the “down” configuration. Throughout the experiment, participants were not allowed to move the camera, zoom the camera in or out, or use the clutch pedal to adjust the workspace of the da Vinci manipulators.

Ii-A2 Instrumented Training Platform

A ring rollercoaster training task (Intuitive Surgical da Vinci Skills Drill Practicum) is magnetically attached to a custom acrylic platform housing an ATI Mini40 six-axis force/torque sensor (see Fig. 1). The instrumented training platform is centered within a white da Vinci skills dome, which simulates the human abdomen and features various trocar ports. A custom handedness circuit detects contact between each surgical instrument and the task materials. The circuit consists of a separate voltage divider for each instrument; it utilizes the electrical conductivity of the metal rollercoaster track, a conductive o-ring (Marco Rubber S1104-010), and the two bipolar Maryland forceps to distinguish between left and right instrument contacts.

Ii-A3 Bimanual Haptic Feedback System

As seen in Fig. 2, our bimanual haptic feedback system consists of two wrist-squeezing tactile actuators based on work by Stanley and Kuchenbecker [Stanley2012]. Each actuator consists of a Futaba s3114 servomotor (maximum output torque: 0.17 Nm) housed in a 3D-printed frame. Each frame is fastened on one of the participant’s wrists with a hook-and-loop strap, which is connected to the frame on one end and secured to the servo horn on the other end. The servomotors produce a squeezing sensation on participants’ wrists by shortening the strap as it rotates through its range of motion. A servo driver (Phidgets 1061_0) drives the servomotor angle in proportion to the interaction forces measured by the force/torque sensor according to:

(1)

where is the desired angle sent to the servo,

is the Euclidean magnitude of the 3D force vector measured by the force/torque sensor,

= 0.2 N is a threshold magnitude used to reduce noise at low forces, and = 0.56 N is a linear scaling factor that maps force to position. Larger angles squeeze the wrist more firmly. = 50 and = 0 are the maximum and minimum angles to which the servos are commanded. The servo remains at its maximum angle when the force signal exceeds 2 N; this limit and the other parameters of this haptic feedback mapping were determined empirically through pilot trials. The torque measurement from the force/torque sensor is not utilized in the force magnitude calculation.

Utilizing the handedness circuit, each wrist-squeezing actuator responds if the corresponding da Vinci instrument is making contact with the task materials. For instance, if the participant touches the ring rollercoaster track with the left instrument, then the actuator on the participant’s left arm tightens the wrist strap in proportion to the interaction force. If both instruments contact the task track, or if neither instrument contacts the track when a force is being applied, tactile feedback is delivered equally to both wrists.

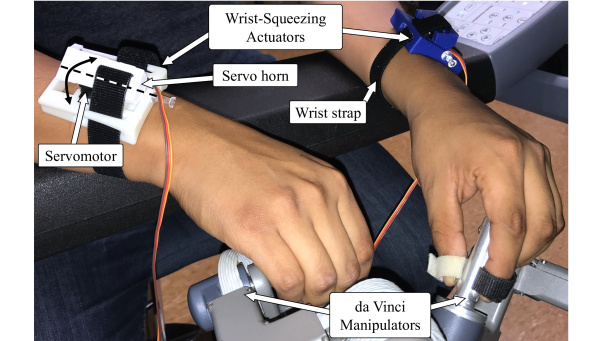

Fig. 2: Participant wearing the bimanual wrist-squeezing tactile actuators. Each actuator is controlled independently. The hook-and-loop strap is fixed to the 3D-printed frame on one end and attached to the servomotor horn on the other end. As the force applied by an instrument increases, the corresponding servo angle increases, and the hook-and-loop strap tightens around the participant’s wrist creating a squeezing sensation.

Ii-A4 Data Acquisition and Control

We used a custom data acquisition (DAQ) board containing chipsets for filtering and analog-to-digital conversion. The DAQ board receives six channels of raw voltage data from the ATI Mini40, which are used to calculate the force along and torque about the x, y, and z axes. An onboard Teensy 3.2 microcontroller buffers the signal and communicates with an Intel NUC computer via USB. On the computer, a custom Python script receives serial packets from the Teensy and converts raw voltage data into forces and torques, recording at a frequency of 50 Hz. In addition to the sensor readings from the force/torque sensor and the handedness circuit, the endoscopic video is recorded a rate of approximately 30 fps. Using the measured interaction forces, the Python script controls the servomotor angle according to Equation (1). The flow of communication between hardware systems is shown in Figure 3.

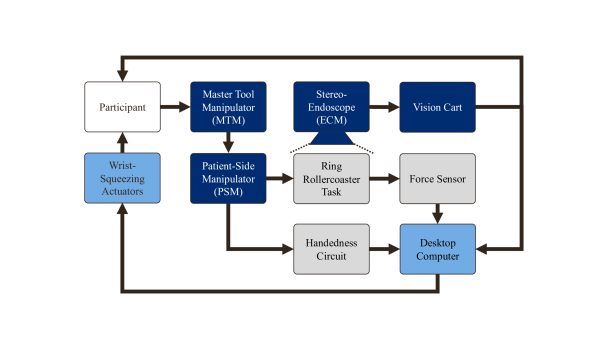

Fig. 3: Experimental setup flow diagram. Components of the da Vinci are shown in dark blue, instrumented training platform in gray, and bimanual haptic feedback system in light blue.

Participants start and stop the recording of each trial using a foot pedal on the surgeon’s console. The Python script receives the pedal input and tares the force sensor before each trial begins.

Ii-B Experiment Protocol

Ii-B1 Participants

We recruited N=21 novice participants (10 male, 11 female, mean age 19.21.2 years) from the adult population of the Johns Hopkins University. All participants were between 18 and 22 years old. From the initial pool of 21 participants, one was removed from the dataset since the ring rollercoaster track was not securely attached to the platform during their trials, which created erroneous data. Of the remaining N=20 participants, 18 had no prior experience using the da Vinci surgical system, and two had used it once in a demonstration. All participants were consented according to a protocol approved by the Johns Hopkins Homewood Institutional Review Board (#HIRB00005942) and were compensated at a rate of $15 per hour. The experiment lasted approximately one hour.

Ii-B2 Experiment Design

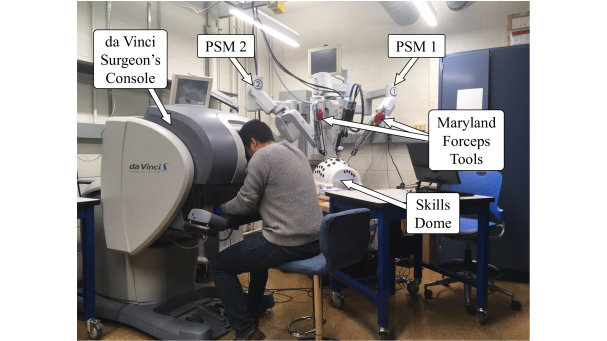

Fig. 4: Participant seated at the da Vinci console to control the instruments interacting with the task materials inside the skills dome.

Prior to each session, the experimenters set the camera view and initial positions of the da Vinci instruments. After providing informed consent, participants were randomized into either the feedback or no-feedback group. Participants in the feedback group wore the wrist-squeezing devices and received haptic feedback throughout the experiment. Participants in the no-feedback group did not wear the wrist-squeezing devices and received no haptic feedback. After being assigned to a group, participants completed a demographics survey and sat at the da Vinci console as shown in Fig. 4.

Participants were introduced to the da Vinci surgical system and received instructions on how to operate the controls. For participants in the feedback group, the wrist-squeezing tactile actuators were secured to participants’ wrists and activated. The strap was then adjusted to ensure participants felt the entire range of squeezing sensations. Participants then had five minutes to practice grasping and manipulating objects using the da Vinci and a peg transfer training task [Vassiliou2010FLSAssessment]. Participants were encouraged to explore the entire workspace with the surgical instruments. Following the warm-up session, the experimenters replaced the peg transfer board with the ring rollercoaster task, as shown in Fig. 1, and explained the task instructions.

In the ring rollercoaster task, the ring begins at the start position on the left-hand side of the track, and participants were instructed to move it to the end position on the right-hand side of the track. The start and end positions are each located halfway along the straight sections of the track. There are two curved sections and one straight section between the two positions. These positions were chosen such that the task could be completed without having to adjust the camera or use the clutch. Participants were required to pick the ring up with the left surgical instrument and perform at least one ring hand-off between left and right instruments during each trial. Participants were instructed to complete the task as quickly as possible, while centering the ring on the track. Participants were also told that the experimenters would notify them if excessive forces were being applied on the track. Participants wore headphones playing pink noise to mask any potential auditory cues from the haptic feedback devices or robot actuators. Each participant performed the ring rollercoaster task twelve times, for a total of 240 trials amongst all participants.

Ii-B3 Survey

The twelve trials of the ring rollercoaster task were broken into four blocks of three trials each. Participants took a five-minute break after each trial block and completed a survey based on the NASA Task Load Index (TLX) questionnaire [Hart-Staveland1988]. The survey consisted of rating-scale (1–10) and open-ended questions related to task difficulty and perceived task performance, as shown in Table I. The rating-scale survey questions were analyzed using statistical modeling. During this break, the experimenter also reminded participants of the task objectives.

Question Answer options
1. How mentally demanding was the task? 1-10
2. How physically demanding was the task? 1-10
3. Was there a change in your strategy / how you chose to manipulate the ring? Please describe. -
4. How successful were you at accomplishing your goal? 1-10
5. What prevented you from accomplishing your goal, if anything? -
6. How natural was your manipulation of the tools? 1-10
7. How frustrated, stressed, or annoyed were you? 1-10
8. How well could you concentrate on the task? 1-10
9. Other notes you want us to know? -
TABLE I: Survey questions

Ii-C Metrics and Data Analysis

To evaluate performance, two metrics were considered for each trial: task completion time and root-mean-square (RMS) force. As a measure of task speed, task completion time was calculated as the time between the first and last instances of contact with the ring rollercoaster track. For each trial, these instances were manually verified by watching the video recording of the trial. As a measure of task accuracy, RMS force was calculated as the RMS of the force magnitude signal calculated from the time-series data collected by the force/torque sensor for each trial. All recorded data were transformed using the base-10 logarithm, and the log task completion time and log RMS force were each visually determined to be normally distributed for each trial.

We used random-coefficients linear mixed-effects (LME) models to compare the log task completion time and log RMS force between feedback and no-feedback groups. Separate LME models were created for each metric; within each model, feedback condition and trial number were modeled as fixed effects and participant was modeled as a random effect. We also used random-intercepts LME models to compare the rating-scale responses from the NASA-TLX questionnaire between feedback and no-feedback groups. General linear hypothesis testing (GLHT) was used to assess the differences in rating-scale responses at the start of the experiment (trial 1). All statistical analyses were completed using R 3.6.3 and MATLAB R2020a; we use to determine significance.

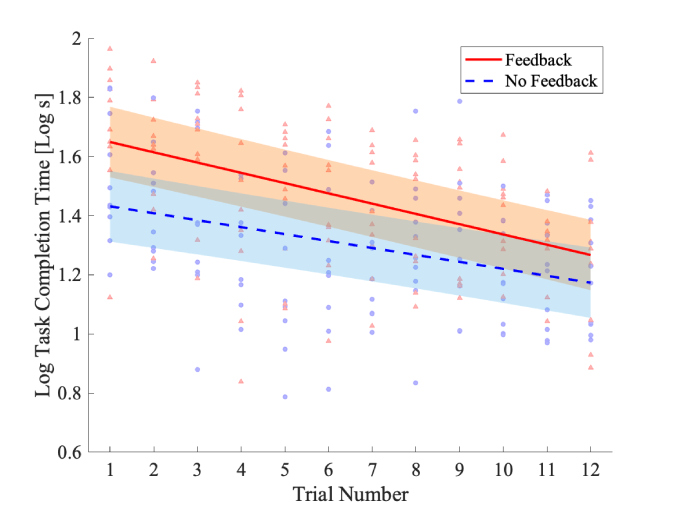

Fig. 5: Log-transformed task completion time by feedback condition. Red triangular markers and solid fit line represent the feedback group. Blue circular markers and dashed fit line represent the no-feedback group.

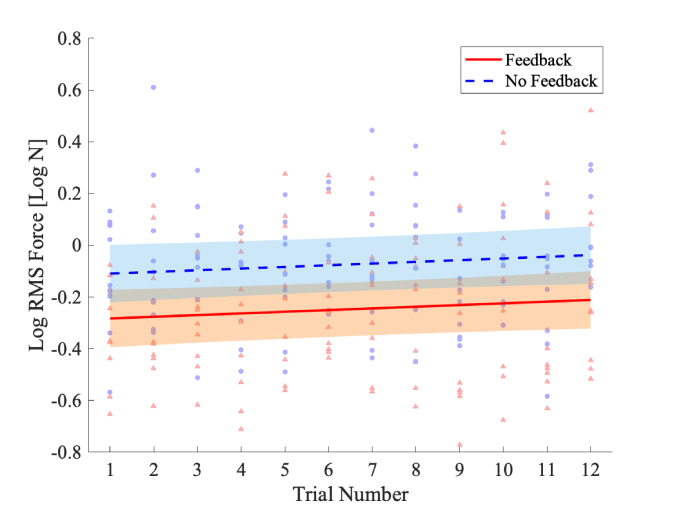

Fig. 6: Log-transformed RMS force by feedback condition. Red triangular markers and solid fit line represent the feedback group. Blue circular markers and dashed fit line represent the no-feedback group.
