Recent progress in Reinforcement Learning (RL), while impressive (Silver et al., 2016; Vinyals et al., 2019; Berner et al., 2019), has mostly focused on tabula-rasa learning, rather than exploitation of prior world knowledge. For example, while Go is an extremely difficult game to master, its rules and thus environment dynamics are simple and not heavily reliant on knowledge about concepts that can be encountered in the real world. Focusing on tabula-rasa learning confines state-of-the-art approaches to simulation environments that can be solved without the transfer of commonsense, world, or domain knowledge.
Many real-world applications (e.g. personal assistants and household robots) require agents that can learn fast and generalise well to novel situations, which is likely not possible without the ability to reason with commonsense and general knowledge about the world. Consider, for example, an agent tasked with performing common household chores that has never seen a dirty ashtray. When presented with this new object, the agent needs to know that a reasonable set of actions involving this object include cleaning the ashtray, but not feeding it to the cat.
Humans encode a large amount of commonsense knowledge in written language. For example, Wikipedia encodes such knowledge implicitly through corpus statistics, and at times explicitly in writing. Outside of RL, learning to represent and utilise prior knowledge has improved considerably over recent years. For example, a common approach is to pre-train neural language models and fine-tune them on downstream tasks (Devlin et al., 2019; Raffel et al., 2019). Recent works highlight that such pre-trained models capture many aspects of commonsense (Da & Kasai, 2019) and relational knowledge (Petroni et al., 2019), in addition to linguistic knowledge (Jawahar et al., 2019; Hewitt & Manning, 2019; Reif et al., 2019). Another popular approach is to represent commonsense knowledge explicitly as Knowledge Graphs (KGs), as done by ATOMIC (Sap et al., 2019) and ConceptNet (Speer et al., 2017). Such KGs have been used in commonsense reasoning tasks (Lin et al., 2019).
However, the question of how to best utilise commonsense knowledge (provided in language corpora or KGs) for downstream RL tasks has not received the same level of attention, partly due to a scarcity of simulation environments that directly benefit from transferring such prior knowledge. Robotics environments such as MuJoCo require knowledge not readily expressed in natural language, such as an intuitive understanding of physics (Todorov et al., 2012; Yu et al., 2019). Rule-based game environments such as Go or Chess (Silver et al., 2017, 2018), while very hard to master, are based on simple transition dynamics and largely disconnected from entities and concepts encountered in the real world. On the other hand, commonsense knowledge could be helpful in environments such as StarCraft II (Vinyals et al., 2019; Berner et al., 2019), which contain many complex interactions with a large number of entities (many of which have real-world analogues). However, such environments are costly to run, and learning to ground knowledge from external sources remains challenging, as natural language annotations of states and actions in such games are not readily available.
To study agents with commonsense knowledge, we present WordCraft, a fast RL environment based on the popular game Little Alchemy 2. In this game, the player is tasked with crafting over 700 different entities by combining previously discovered entities. For example, combining “water” and “earth” creates “mud”. Learning policies that generalize to unseen entities and combinations requires commonsense knowledge about the world. The environment runs quickly (around 8,000 steps per second on a single machine), enabling fast experimentation cycles. As the entities in the game correspond to words, they can be easily grounded with external knowledge sources. In addition, we introduce a method for conditioning agents trained in WordCraft on KGs encoding prior knowledge, such as ConceptNet and other commonsense KGs.
We formulate the RL problem as a Markov Decision Process (MDP)(Sutton & Barto, 2018) defined by the tuple , where is a state, is an action, is the transition function, is the reward function, and , the discount factor. The goal is to find a policy that maximises the expected sum of future discounted rewards: .
We represent knowledge about entities and the relations among them as a knowledge graph (KG): a collection of triples, each encoding a relationship of type (predicate) between the subject and the object of the triple. In order to work with incomplete knowledge graphs and infer missing relationships, we use the ComplEx link prediction model (Trouillon et al., 2016) (see Appendix A for details).
In order to benchmark the ability of RL agents to make use of commonsense knowledge, we present WordCraft, based on Little Alchemy 2111https://littlealchemy2.com/, a simple association game: Starting from a set of four basic items, the player must create as many different items as possible. Each non-starter item can be created by combining two other items. For example, combining “moon” and “butterfly” yields “moth”, and combining “human” and “medusa” yields “statue”. There are 700 total items (including rare and compound words) and 3,417 permissible item combinations (referred to as valid recipes throughout this paper) (IGN, 2020). Efficiently solving this game without trying every possible combination of items requires using knowledge about relations between common concepts.
WordCraft is a simplified version of Little Alchemy 2, sharing the same entities and valid recipes: First, the interface is text-based rather than graphical. Second, instead of a single open-ended task, WordCraft consists of a large number of simpler tasks. Each task is created by randomly sampling a goal entity, valid constituent entities, and distractor entities. The agent must choose which entities to combine in order to create the goal entity. The task difficulty can be adjusted by increasing the number of distractors or increasing the number of intermediate entities that must be created in order to reach the goal entity (we refer to this variant as depth-, with intermediate entities). The training and testing split is created by selecting a set of either goal entities or valid recipes that are not used during training. The relatively large number of entities and valid recipes enables the study of generalization to unseen goals.

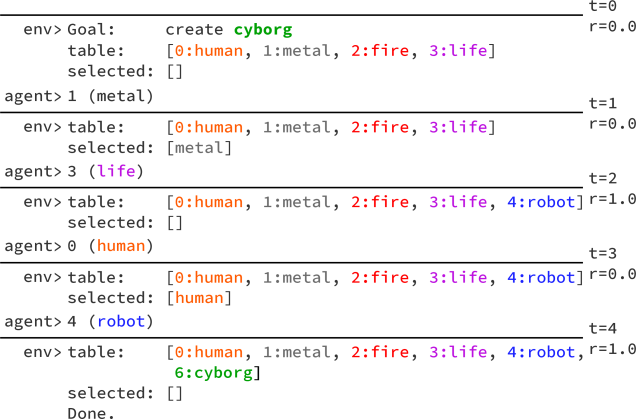

The environment is deterministic and fully-observable. At each time step, the state consists of the goal entity , a set of currently selectable entities , and the currently selected entity . The action corresponds to choosing one of the available entities as the second selected entity . When no entity is currently selected, is set to a placeholder empty entity. If corresponds to a valid recipe, the corresponding resulting entity is added to the table and is set to the empty entity. The episode terminates when the newly created entity is or after a maximum number of steps is reached. We keep the maximum number of steps low to discourage brute-force solutions ( for depth- tasks). The reward can be sparse (with or received only at the end of the episode) or shaped (with a penalty for choosing a wrong pair of items or creating irrelevant entities and a reward for creating intermediate ingredients).
Compared to other environments that combine language and RL (Janner et al., 2018; Chevalier-Boisvert et al., 2019; Côté et al., 2018; Das et al., 2018), WordCraft contains a much larger number of objects, with object relationships that reflect the structure of the real world. For example, the underlying KG of TextWorld (which is perhaps the closest comparison), contains 99 different objects and 10 types of relations (Zelinka et al., 2019). Furthermore, the environment does not contain movement-related actions. The state space is limited to combinations of entity words, and the action space, to table positions, yet generalization remains challenging. This allows allowing us to study commonsense reasoning in isolation, without requiring that the agent learn to ground states to text or deal with a combinatorially large action space (as seen in text games).
4 Guiding Agents with a Knowledge Graph
We propose an agent architecture that makes use of information from an external KG to guide the agent’s policy. At a high level, the model consists of a self-attention-based actor-critic network and an external KG link prediction model. Given that the recipes in WordCraft are based on real-world semantics among common entities, conditioning on commonsense knowledge present in a KG should enable agents to learn more efficiently by constraining their search space to policies biased toward interactions with underlying commonsense semantics.
4.1 Self-attention Actor-Critic Network
In order to handle a variable number of selectable entities at each time step and ensure selection decisions are invariant to the table position of entities, our policy network makes use of the scaled dot-product attention mechanism introduced in (Vaswani et al., 2017). The self-attention policy network encodes the features and current selection features into attention weights over the set of selectable entities. These attention weights
act as the logits to the action distribution over the set of selectable entitiesat each time step:
, where are learned representations of selectable entities.
4.2 Link Prediction Model
We assume access to a link prediction model trained on an external knowledge graph that contains information relevant to the RL task. While our model makes use of ComplEx for link prediction (Trouillon et al., 2016), in general this choice can be substituted by any other link prediction model. We chose ComplEx for its reliable performance in practice.
The link prediction model is trained on a set of subject-object-predicate relation triplets of the form to predict higher likelihood scores for true relation triplets. In the context of WordCraft, each recipe reduces to four relevant relation triplets: , , , and . These triplets, when aggregated across all recipes, forms the recipe graph. In our experiments, we train ComplEx on a subgraph of the recipe graph containing all nodes to ensure full entity coverage.
At each time step, we compute relation score vectorsand between the goal and selected entities and each on the table and in the selection: , . These scores are then mixed component-wise with the attention weights, before passing the mixed weights into the softmax policy head, thereby guiding the agent toward relevant predictions from the KG model. Details on learning the mixing coefficients are provided in Section B.1.
Our experiments focus on zero-shot generalization performance. We split the set of all valid recipes into train (80%) and test (20%) sets. Train tasks are generated such that task goals do not involve any recipes in the test set. The model is trained using the TorchBeast implementation of IMPALA (Espeholt et al., 2018; Küttler et al., 2019).
5.1 WordCraft Benchmarks
To demonstrate how well the task captures real-world relationships between entities, we represent entities as GloVe embeddings (Pennington et al., 2014) when evaluating the model in Section 4.1. We expect GloVe to help generalization if semantically similar entities have similar uses in this environment. We assess the zero-shot performance of our agent model without a link prediction module on depth-1 tasks with 1 and 8 distractors.
We also collect a human baseline at the same difficulty settings of WordCraft. This human baseline serves as an estimate of the zero-shot performance that can be achieved using commonsense and general knowledge (see the Appendix C.5 for the description of human evaluation protocol).

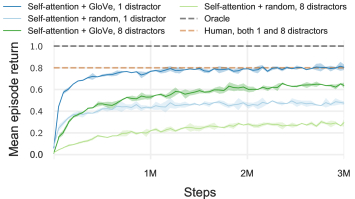

As seen in Figure 2, agents trained with GloVe embeddings generalize much better to tasks with recipes that were not part of any training task. This margin of improvement persists in harder task settings, even as the test success rate falls.
5.2 Knowledge Graph Benchmarks
We benchmark variants of our full agent with the link prediction module and compare zero-shot performance under different combinations of link prediction scores used to modulate the self-attention weights: both combinesWith and componentOf scores, or each score in isolation. In these experiments, is trained on the same train set of recipes used to generate the training tasks.

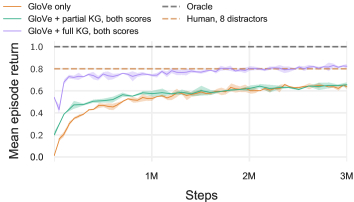

Our results show that access to a full KG model drastically improves the agent’s zero-shot performance (see Figure 3). However, while a partial-KG-model agent reaches an equivalent zero-shot success rate as an agent without any KG model in fewer training steps, they ultimately reach comparable levels of test performance as training progresses (see Appendix for a more detailed discussion).
6 Related Work
Recent work proposes several new environments incorporating a degree of commonsense dynamics and text-base corpora. For example, TextWorld (Côté et al., 2018) is a framework that enables creation of novel textual RL environments as well as interfacing with existing text-based games, such as Zork. Chevalier-Boisvert et al. (2019); Küttler et al. (2020) respectively propose BabyAI and NLE, grid-world environments that evaluate agents on procedurally-generated, goal-conditioned tasks with varying degrees of commonsense structure and available textual corpora. While these environments are challenging in their complex dynamics, large action spaces, sparse rewards, and long planning horizons, these same aspects confound the ability to isolate the problem of conditioning on external knowledge sources.
Luketina et al. (2019) presents a comprehensive survey of a related line of research conditioning policies on knowledge in textual corpora or knowledge bases. Fulda et al. (2017); Zahavy et al. (2018) demonstrate that word embeddings can be an effective modeling tool for policies, while Branavan et al. (2012); Narasimhan et al. (2018); Zhong et al. (2020) present work that directly conditions policies on domain knowledge encoded in textual corpora. Marzoev et al. (2020); Hill et al. (2020) show that language models can enable generalization to unseen instructions, which indicates that linguistic knowledge can be successfully transferred to aid downstream RL tasks.
Models integrating KGs with agents have been studied in the literature on text-based games (Ammanabrolu & Riedl, 2019; Adhikari et al., 2020). Closest to our work, Murugesan et al. (2020) concurrently propose solving a set of TextWorld tasks using a model that incorporates a combination of commonsense knowledge, encoded in ConceptNet, and a learned KG representing the current environment state. They find that while at times beneficial, KGs can also provide too strong a prior.
7 Future Work
There are multiple avenues that we plan to further explore. Extending WordCraft to the longer horizon setting of the original Little Alchemy 2, in which the user must discover as many entities as possible, could be an interesting setting to study commonsense-driven exploration. We also plan to introduce additional modalities such as images and control into WordCraft. Furthermore, we believe the ideas in this work could benefit more complex RL tasks associated with large corpora of task-specific knowledge, such as NLE. This path of research entails further investigation of methods for automatically constructing knowledge graphs from available corpora as well as agents that retrieve and directly condition on natural language texts in such corpora.
- Adhikari et al. (2020) Adhikari, A., Yuan, X., Côté, M.-A., Zelinka, M., Rondeau, M.-A., Laroche, R., Poupart, P., Tang, J., Trischler, A., and Hamilton, W. L. Learning dynamic knowledge graphs to generalize on text-based games. arXiv preprint arXiv:2002.09127, 2020.
- Ammanabrolu & Riedl (2019) Ammanabrolu, P. and Riedl, M. O. Transfer in deep reinforcement learning using knowledge graphs. EMNLP-IJCNLP 2019, pp. 1, 2019.
- Auer et al. (2007) Auer, S., Bizer, C., Kobilarov, G., Lehmann, J., Cyganiak, R., and Ives, Z. G. Dbpedia: A nucleus for a web of open data. In ISWC/ASWC, volume 4825 of Lecture Notes in Computer Science, pp. 722–735. Springer, 2007.
- Berner et al. (2019) Berner, C., Brockman, G., Chan, B., Cheung, V., Debiak, P., Dennison, C., Farhi, D., Fischer, Q., Hashme, S., Hesse, C., Józefowicz, R., Gray, S., Olsson, C., Pachocki, J., Petrov, M., de Oliveira Pinto, H. P., Raiman, J., Salimans, T., Schlatter, J., Schneider, J., Sidor, S., Sutskever, I., Tang, J., Wolski, F., and Zhang, S. Dota 2 with large scale deep reinforcement learning. CoRR, abs/1912.06680, 2019.
- Branavan et al. (2012) Branavan, S. R. K., Silver, D., and Barzilay, R. Learning to Win by Reading Manuals in a Monte-Carlo Framework. JAIR, 2012.
- Chevalier-Boisvert et al. (2019) Chevalier-Boisvert, M., Bahdanau, D., Lahlou, S., Willems, L., Saharia, C., Nguyen, T. H., and Bengio, Y. BabyAI: A Platform to Study the Sample Efficiency of Grounded Language Learning. In ICLR, 2019.
- Côté et al. (2018) Côté, M., Kádár, Á., Yuan, X., Kybartas, B., Barnes, T., Fine, E., Moore, J., Hausknecht, M. J., Asri, L. E., Adada, M., Tay, W., and Trischler, A. Textworld: A learning environment for text-based games. CoRR, abs/1806.11532, 2018. URL http://arxiv.org/abs/1806.11532.
- Da & Kasai (2019) Da, J. and Kasai, J. Cracking the contextual commonsense code: Understanding commonsense reasoning aptitude of deep contextual representations. CoRR, abs/1910.01157, 2019.
- Das et al. (2018) Das, A., Datta, S., Gkioxari, G., Lee, S., Parikh, D., and Batra, D. Embodied Question Answering. In CVPR, 2018.
- Devlin et al. (2019) Devlin, J., Chang, M., Lee, K., and Toutanova, K. BERT: pre-training of deep bidirectional transformers for language understanding. In NAACL-HLT (1), pp. 4171–4186. Association for Computational Linguistics, 2019.
- Espeholt et al. (2018) Espeholt, L., Soyer, H., Munos, R., Simonyan, K., Mnih, V., Ward, T., Doron, Y., Firoiu, V., Harley, T., Dunning, I., et al. Impala: Scalable distributed deep-rl with importance weighted actor-learner architectures. arXiv preprint arXiv:1802.01561, 2018.
- Fulda et al. (2017) Fulda, N., Ricks, D., Murdoch, B., and Wingate, D. What can you do with a rock? affordance extraction via word embeddings. CoRR, abs/1703.03429, 2017. URL http://arxiv.org/abs/1703.03429.
- Hewitt & Manning (2019) Hewitt, J. and Manning, C. D. A structural probe for finding syntax in word representations. In NAACL-HLT (1), pp. 4129–4138. Association for Computational Linguistics, 2019.
- Hill et al. (2020) Hill, F., Mokra, S., Wong, N., and Harley, T. Human instruction-following with deep reinforcement learning via transfer-learning from text. arXiv preprint arXiv:2005.09382, 2020.
- IGN (2020) IGN. Little Alchemy 2 Cheats - List of All Combinations - Little Alchemy 2 Wiki Guide - IGN. https://uk.ign.com/wikis/little-alchemy-2/Little_Alchemy_2_Cheats_-_List_of_All_Combinations, 2020. Online; accessed 8 June 2020.
- Janner et al. (2018) Janner, M., Narasimhan, K., and Barzilay, R. Representation learning for grounded spatial reasoning. TACL, 2018.
- Jawahar et al. (2019) Jawahar, G., Sagot, B., and Seddah, D. What does BERT learn about the structure of language? In ACL (1), pp. 3651–3657. Association for Computational Linguistics, 2019.
Küttler et al. (2019)
Küttler, H., Nardelli, N., Lavril, T., Selvatici, M., Sivakumar, V.,
Rocktäschel, T., and Grefenstette, E.
TorchBeast: A PyTorch Platform for Distributed RL.arXiv preprint arXiv:1910.03552, 2019. URL https://github.com/facebookresearch/torchbeast.
- Küttler et al. (2020) Küttler, H., Nardelli, N., Raileanu, R., Selvatici, M., Grefenstette, E., and Rocktäschel, T. The NetHack Learning Environment. In Workshop on Beyond Tabula Rasa in Reinforcement Learning (BeTR-RL), 2020. URL https://github.com/facebookresearch/nle.
Lacroix et al. (2018)
Lacroix, T., Usunier, N., and Obozinski, G.
Canonical tensor decomposition for knowledge base completion.In ICML, volume 80 of Proceedings of Machine Learning Research, pp. 2869–2878. PMLR, 2018.
Lin et al. (2019)
Lin, B. Y., Chen, X., Chen, J., and Ren, X.
KagNet: Knowledge-aware graph networks for commonsense reasoning.
Proceedings of the 2019 Conference on Empirical Methods in Natural Language Processing and the 9th International Joint Conference on Natural Language Processing (EMNLP-IJCNLP), pp. 2829–2839, Hong Kong, China, November 2019. Association for Computational Linguistics. doi: 10.18653/v1/D19-1282. URL https://www.aclweb.org/anthology/D19-1282.
Luketina et al. (2019)
Luketina, J., Nardelli, N., Farquhar, G., Foerster, J., Andreas, J.,
Grefenstette, E., Whiteson, S., and Rocktaschel, T.
A survey of reinforcement learning informed by natural language.
In Proceedings of the Twenty-Eighth International Joint
Conference on Artificial Intelligence, IJCAI-19
, pp. 6309–6317. International Joint Conferences on Artificial Intelligence Organization, 7 2019.
- Marzoev et al. (2020) Marzoev, A., Madden, S., Kaashoek, M. F., Cafarella, M., and Andreas, J. Unnatural language processing: Bridging the gap between synthetic and natural language data. arXiv preprint arXiv:2004.13645, 2020.
- Murugesan et al. (2020) Murugesan, K., Atzeni, M., Shukla, P., Sachan, M., Kapanipathi, P., and Talamadupula, K. Enhancing text-based reinforcement learning agents with commonsense knowledge. arXiv preprint arXiv:2005.00811, 2020.
- Narasimhan et al. (2018) Narasimhan, K., Barzilay, R., and Jaakkola, T. Grounding Language for Transfer in Deep Reinforcement Learning. JAIR, 2018.
- Nickel et al. (2016) Nickel, M., Murphy, K., Tresp, V., and Gabrilovich, E. A review of relational machine learning for knowledge graphs. Proceedings of the IEEE, 104(1):11–33, 2016. doi: 10.1109/JPROC.2015.2483592.
- Noy et al. (2019) Noy, N. F., Gao, Y., Jain, A., Narayanan, A., Patterson, A., and Taylor, J. Industry-scale knowledge graphs: lessons and challenges. Commun. ACM, 62(8):36–43, 2019.
- Pennington et al. (2014) Pennington, J., Socher, R., and Manning, C. D. Glove: Global vectors for word representation. In EMNLP, 2014.
- Petroni et al. (2019) Petroni, F., Rocktäschel, T., Riedel, S., Lewis, P. S. H., Bakhtin, A., Wu, Y., and Miller, A. H. Language models as knowledge bases? In EMNLP/IJCNLP (1), pp. 2463–2473. Association for Computational Linguistics, 2019.
- Raffel et al. (2019) Raffel, C., Shazeer, N., Roberts, A., Lee, K., Narang, S., Matena, M., Zhou, Y., Li, W., and Liu, P. J. Exploring the limits of transfer learning with a unified text-to-text transformer. CoRR, abs/1910.10683, 2019.
- Reif et al. (2019) Reif, E., Yuan, A., Wattenberg, M., Viégas, F. B., Coenen, A., Pearce, A., and Kim, B. Visualizing and measuring the geometry of BERT. In NeurIPS, pp. 8592–8600, 2019.
- Sap et al. (2019) Sap, M., Bras, R. L., Allaway, E., Bhagavatula, C., Lourie, N., Rashkin, H., Roof, B., Smith, N. A., and Choi, Y. ATOMIC: an atlas of machine commonsense for if-then reasoning. In AAAI, pp. 3027–3035. AAAI Press, 2019.
Silver et al. (2016)
Silver, D., Huang, A., Maddison, C. J., Guez, A., Sifre, L., van den Driessche,
G., Schrittwieser, J., Antonoglou, I., Panneershelvam, V., Lanctot, M.,
Dieleman, S., Grewe, D., Nham, J., Kalchbrenner, N., Sutskever, I.,
Lillicrap, T. P., Leach, M., Kavukcuoglu, K., Graepel, T., and Hassabis, D.
Mastering the game of go with deep neural networks and tree search.Nature, 529(7587):484, 2016.
- Silver et al. (2017) Silver, D., Schrittwieser, J., Simonyan, K., Antonoglou, I., Huang, A., Guez, A., Hubert, T., Baker, L., Lai, M., Bolton, A., Chen, Y., Lillicrap, T., Hui, F., Sifre, L., van den Driessche, G., Graepel, T., and Hassabis, D. Mastering the game of Go without human knowledge. Nature, 550(7676):354, 2017.
- Silver et al. (2018) Silver, D., Hubert, T., Schrittwieser, J., Antonoglou, I., Lai, M., Guez, A., Lanctot, M., Sifre, L., Kumaran, D., Graepel, T., et al. A general reinforcement learning algorithm that masters chess, shogi, and go through self-play. Science, 362(6419):1140–1144, 2018.
- Speer et al. (2017) Speer, R., Chin, J., and Havasi, C. Conceptnet 5.5: An open multilingual graph of general knowledge. In Proceedings of the Thirty-First AAAI Conference on Artificial Intelligence, AAAI’17, pp. 4444–4451. AAAI Press, 2017.
- Suchanek et al. (2007) Suchanek, F. M., Kasneci, G., and Weikum, G. Yago: a core of semantic knowledge. In WWW, pp. 697–706. ACM, 2007.
- Sutton & Barto (2018) Sutton, R. S. and Barto, A. G. Reinforcement learning: An introduction. MIT press, 2018.
- Todorov et al. (2012) Todorov, E., Erez, T., and Tassa, Y. Mujoco: A physics engine for model-based control. In 2012 IEEE/RSJ International Conference on Intelligent Robots and Systems, pp. 5026–5033. IEEE, 2012.
- Trouillon et al. (2016) Trouillon, T., Welbl, J., Riedel, S., Gaussier, É., and Bouchard, G. Complex embeddings for simple link prediction. International Conference on Machine Learning (ICML), 2016.
- Vaswani et al. (2017) Vaswani, A., Shazeer, N., Parmar, N., Uszkoreit, J., Jones, L., Gomez, A. N., Kaiser, L., and Polosukhin, I. Attention Is All You Need. 2017.
- Vinyals et al. (2019) Vinyals, O., Babuschkin, I., Chung, J., Mathieu, M., Jaderberg, M., Czarnecki, W. M., Dudzik, A., Huang, A., Georgiev, P., Powell, R., et al. Alphastar: Mastering the real-time strategy game starcraft ii. DeepMind blog, pp. 2, 2019.
- Yu et al. (2019) Yu, T., Quillen, D., He, Z., Julian, R., Hausman, K., Finn, C., and Levine, S. Meta-world: A benchmark and evaluation for multi-task and meta reinforcement learning. arXiv preprint arXiv:1910.10897, 2019.
- Zahavy et al. (2018) Zahavy, T., Haroush, M., Merlis, N., Mankowitz, D. J., and Mannor, S. Learn What Not to Learn: Action Elimination with Deep Reinforcement Learning. In Bengio, S., Wallach, H., Larochelle, H., Grauman, K., Cesa-Bianchi, N., and Garnett, R. (eds.), Advances in Neural Information Processing Systems 31, pp. 3562–3573. Curran Associates, Inc., 2018.
- Zelinka et al. (2019) Zelinka, M., Yuan, X., Cote, M.-A., Laroche, R., and Trischler, A. Building dynamic knowledge graphs from text-based games. arXiv preprint arXiv:1910.09532, 2019.
- Zhong et al. (2020) Zhong, V., Rocktäschel, T., and Grefenstette, E. Rtfm: Generalising to new environment dynamics via reading. In International Conference on Learning Representations, 2020. URL https://openreview.net/forum?id=SJgob6NKvH.
Appendix A Background
Knowledge graphs naturally represent the ontology of concepts underlying commonsense knowledge about the world. In a knowledge graph, nodes represent concepts, and edges between two nodes represent a relationship between the corresponding concepts. Let and denote a set of entities and a set of relation types, respectively. Formally, a KG is a set of subject-predicate-object triples , with and , where each triple encodes a relationship of type between the subject and the object . There are several examples of large-scale KGs encoding commonsense knowledge, both from academia (such as YAGO (Suchanek et al., 2007), DBpedia (Auer et al., 2007)) and industry (such as Microsoft’s Bing Knowledge Graph and the Google Knowledge Graph (Noy et al., 2019)). Such large-scale knowledge graphs hold an enormous amount of useful prior knowledge about the world, that should be useful for guiding an RL agent in any environment with real-world semantics. Especially relevant to this work are ATOMIC (Sap et al., 2019) and ConceptNet (Speer et al., 2017), two KGs encoding common-sense knowledge.
Representation Learning of KGs
An effective way of enabling statistical learning on KGs consists of learning continuous, distributed representations, also referred to asembeddings, for all entities in a KG. We refer to Nickel et al. (2016) for a recent survey on this topic. In this work, we use the ComplEx (Trouillon et al., 2016)
link prediction model, with the loss functions and regularizers proposed byLacroix et al. (2018). Given a subject-predicate-object triple , ComplEx defines the score of such a triple as:
where denotes the tri-linear dot product, denote the complex-valued -dimensional representations of , , and , denote the complex conjugate of , is the real part of . In order to learn the embedding representations for all entities and relation types in a KG , we follow Lacroix et al. (2018) and minimise the following objective via gradient-based optimisation:
regularized via the weighted nuclear -norm regularizer proposed by Lacroix et al. (2018).
Appendix B Model Details
b.1 Learning Mixing Coefficients
The link-prediction scores between goal and table entities for the componentOf relation and between each selected entity and table entities for the combinesWith relation are combined component-wise with the self-attention weights using mixing coefficients to yield final policy logits :
The mixing coefficients are computed by passing the self-attention-weighted table encoding through a fully-connected layer:
Appendix C Experiments
c.1 Self-Attention Actor-Critic Architecture
c.2 Training Parameters
|Training set ratio||0.8|
c.3 Model Parameters
|Self-attention key size||300|
|Self-attention value size||300|
|ComplEx embedding size||128|
|Simple-MLP hidden size||300|
c.4 Extended Discussion

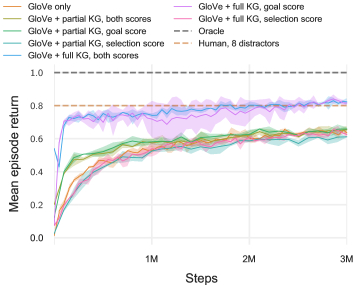

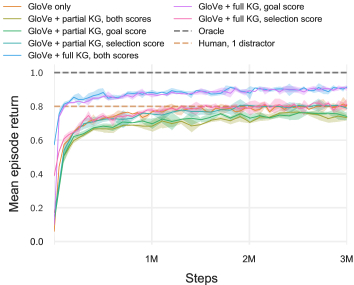

In addition to initial benchmarks conducted in 5.1, we also compare the performance of the self-attention actor-critic agent described in 4.1 to a simple, single-layer MLP that predicts the policy logits and value estimates from the concatenation of all GloVe word embeddings of goal, selection, and table entities at each time step. These results are presented in Fig. 5.
We further benchmark the performance of the self-attention actor-critic agent with and without access to an instance of ComplEx trained on a subgraph of the full recipe graph. We compare agents trained with access to ComplEx trained on a partial graph and those trained on the full graph. The partial KG models are trained on only the relations present in the set of training recipes.
As the method for incorporating ComplEx’s predicted relation scores into the policy prediction performs a weighted sum of each score with the self-attention weights, we investigate the effect of only using different subsets of the scores. As seen in Fig. 6 and Fig. 7, the subset of relation scores that are helpful to policy learning varies across task depth and distractor settings.
We generally find that access to a full KG model drastically improves the agent’s zero-shot success rate, as might be expected. In fact, one might expect that having access to the ground-truth recipe graph as encoded by ComplEx should enable the agent to achieve 100% zero-shot success rates across all task settings. In order to test the extent to which the full-KG ComplEx scores are predictive of the best actions, we also assessed the performance of agents whose final policy logit mixture only assigned positive weights to different subsets of the relation scores. Such full-KG-only agents that choose items only based on the combinesWith relation score will still often choose the same entity twice, believing the entity combines with itself. This is likely because the recipe graph includes several entities that combine with themselves, while the set of all self-combination triplets are not included in the training set.
Full-KG-only agents that choose items only based on the componentOf
relation score will tend to choose the same item twice, as this approach will always assign the highest action probability to selecting the entity on the table that ComplEx predicts to be most likely to be a component of the goal entity.
Interestingly, partial-KG-agents do not always do much better than a KG-free agent. This implies that as the KG-free agent sees more training tasks, it becomes comparable to ComplEx in predicting unseen relations among entities.
Early on in training, the relation scores predicted by ComplEx seem to help the agent achieve higher zero-shot success rates in fewer training steps compared to KG-free agents (see Figure 7).
c.5 Human Evaluation Protocol
We estimate the generalization ability of humans players on depth-1 tasks with 1 and 8 distractors. Each difficulty setting is tested on a different individual, and we test one individual per setting. The selected individuals were not familiar with the game and got to train on 40 randomly sampled training tasks before being evaluated on 40 testing tasks. The train and test split was the same as in the RL experiments. Surprisingly, we found that changing the number of distractors from 1 to 8 did not significantly influence human performance. We plan to conduct a larger-scale human performance evaluation.
Appendix D Example recipes
|Resulting entity||Entity combination(s)|
|airplane||bird metal; bird, steel|
|alcohol||fruit, time; juice, time|
|dew||water, grass; fog, grass|
|farmer||human, field; human, plant;|
|hay bale||hay, hay|
|iced tea||ice, tea|
|juice||water, fruit; pressure, fruit|
|kite||wind, paper; sky, paper|
|lake||water, pond; river, dam|
|milk||farmer, cow; cow, human|
|milk shake||milk, ice cream|
|narwhal||unicorn, ocean; unicorn, water|
|rainbow||rain, sun; rain, light|
|reindeer||Santa, wild animal; livestock, Santa|
|sand castle||sand, castle|
|Santa||human, Christmas tree|
|scythe||blade, grass; blade, wheat|
|telescope||glass, sky; glass, star; glass, space|
|umbrella||tool, rain; rain, fabric|
|volcano||lava, earth; lava, mountain|
|x-ray||light, bone; light, skeleton|
